Coke-Resistant Rh and Ni Catalysts Supported on γ-Al₂O₃ and CeO₂ for Biogas Oxidative Steam Reforming ^†

Abstract

The depletion of fossil fuels and the growing concerns related to the environmental impact of their processing has progressively switched the interest towards the utilization of biomass-derived materials for a large variety of processes. Among them, biogas, which is a CH₄-rich gas deriving from anaerobic digestion of biomass, has acquired a lot of interest as a feedstock for reforming processes. The main issue in employing biogas is related to the carbon deposition and active metal sintering, which are both responsible for the deactivation of the catalyst. In this work, bimetallic and monometallic Rh- and Ni-based formulations were supported on alumina and ceria with the aim of evaluating their activity and stability in biogas oxidative steam reforming. The Rh addition to the monometallic Ni/γ-Al₂O₃ formulation enhances its catalytic performances; nevertheless, this induces a higher coke deposition, thus suggesting a preferential coke formation on Rh sites. The initial activity of the CeO₂-supported catalysts was found to be lower than the Al₂O₃-supported catalysts, but the 5%Ni/CeO₂ sample showed a very good stability during the test and, despite the lower activity, 0.5%Rh-5%Ni/CeO₂ did not show coke deposition. The results suggest that the promotion of Ni/CeO₂ catalysts with other active metals could lead to the selection of a highly stable and performing formulation for biogas oxidative steam reforming.

1. Introduction

Biogas is a key component of green technologies which has acquired a growing importance in the renewable energy sources scenario. It is produced via anaerobic digestion of organic matter and its composition strictly depends on the original biomass nature: it is a methane-rich gas, with CH₄ typically in the range 55–65%, also containing CO₂ (35–45%) and trace gases (0–1%), among which H₂S is one of the main impurities [1]. Due to its composition, it finds a good application as a methane substitute in several processes, first of all methane reforming. However, the presence of CO₂ determines some difficulties and, in particular, it induces a fast and early deactivation of the catalyst. Biogas can be employed in the dry reforming reaction (Equation (1)), but it has several drawbacks such as high endothermicity and a high tendency to coke deposition because of the large number of side equations which can occur [2]. Addition of water and oxygen to the reaction system leads to the biogas oxidative steam reforming reaction, also called tri-reforming of biogas, in which Equations (1)–(3) occur simultaneously.

$$C{H}_4+C{O}_2\rightleftarrows 2CO+H_2\mathsf{\Delta }{H}_{298K}^o=247.4 {\mathrm{kJ}\mathrm{mol}}^{-1}$$

(1)

$$C{H}_4+H_{2}O\leftrightarrow CO+3H_2\mathsf{\Delta }{H}_{298K}^o=206 kJ mo{l}^{-1}$$

(2)

$$C{H}_4+1/2O_2\rightleftarrows CO+2H_2\mathsf{\Delta }{H}_{298K}^o=-35.6 {\mathrm{kJ}\mathrm{mol}}^{-1}$$

(3)

The presence of water and oxygen allows regulating the H₂/CO ratio and, even more importantly, it mitigates the carbon deposition, thus improving the process efficiency and increasing the catalyst lifetime [3,4].

As it is well known, nickel is by far the most employed active metal in catalysts for methane steam reforming: for this reason, its application to biogas reforming processes is a natural consequence. It is a general opinion that high-metal content catalysts undergo deactivation extremely more easily, and for this reason, low-metal content formulations are always preferred; despite that, the activity of low-content Ni catalysts towards the reaction is limited [5]. For this reason, Mg is frequently used as a promoter, while CeO₂ and ZrO₂ or mixed oxides are employed as dopants or supports [6]. In recent studies, rhodium has been selected as a promising promoter for biogas dry reforming (DR) and oxidative dry reforming (ODR) [7,8], while Moral et al. reported that low-content Rh-based catalysts outperformed Pt-based catalysts in the ODR of biogas, thus selecting Rh as the most active noble metal towards the reaction [9].

This work reports the investigation of Al₂O₃- and CeO₂-supported catalysts in which Ni, Rh or their combination are employed as active species in biogas oxidative steam reforming. The work aims to fill the gap in the literature, reporting a detailed study on the activity and stability of mono- and bimetallic formulations, in which the effect of the Rh addition to low-content Ni catalysts is highlighted.

2. Materials and Methods

2.1. Catalysts Preparation and Characterization

In this work, six catalysts were prepared and tested in the biogas oxidative steam reforming reaction. Commercial Al₂O₃ (provided by Sasol) and CeO₂ (provided by Rhodia) were employed as supports and preventively calcined at 850 °C before the active species deposition. Ni and Rh were deposited via wet impregnation, by preparing a solution of the precursor salt in bi-distilled water: Ni(NO₃)₂⋅6H₂O and RhCl₃ (both provided by Sigma-Aldrich) were, respectively, employed. For achieving the complete dissolution of RhCl₃ in water, the solution was acidified with HCl until reaching a pH value of 2. Once complete salt dissolution was achieved, the calcined support was added, and the solution was kept stirring until complete evaporation of the solvent; then, the catalyst was dried overnight and calcined at 850 °C for 3 h. In the bimetallic catalysts’ preparation, Ni and Rh were deposited in this order in two separate impregnation steps; a calcination step between the first and second wet impregnations was performed. The prepared catalysts with the corresponding nominal loadings are listed in

Table 1. Physical properties for the catalysts and bare supports (all samples calcined at 850 °C).

Label	Nominal Metal Loading wt% a		ED-XRF wt% b		SSA m2/g	YC %	CFR (mgcoke/gcat⋅gC,fed⋅h)
	Ni	Rh	Ni	Rh
10%Ni/Al2O3	10	-	7.897	-	93
5%Ni/Al2O3	5	-	4.010	-	104	0.010	0.0046
0.5%Rh/Al2O3	-	0.5	-	0.423	96	0.230	0.2629
0.5%Rh-5%Ni/Al2O3	5	0.5	4.125	0.402	91	0.095	0.0793
5%Ni/CeO2	5	-	4.067	-	31
0.5%Rh-5%Ni/CeO2	5	0.5	4.102	0.399	15
Al2O3					113
CeO2					40

^a Nominal metal loading is intended as %wt of metal with respect to the support mass. ^b Metal loading from ED-XRF analysis is the %wt with respect to the whole sample mass.

.

The prepared catalysts were characterized by means of SSA analysis (B.E.T. method), ED-XRF, XRD and TPO. The SSA analysis was performed with a Costech International Sorptometer 1040 by N2 dynamic adsorption at −196 °C. The metal loading of the catalysts was evaluated by an ARL™ QUANT’X Thermo Scientific™ ED-XRF spectrometer, with a fundamental parameters method: the analyses were performed with the powder catalysts compacted in a pill form (300 mg). The TPO was performed in situ in the reactor at the end of the stability test, with an oxidizing stream (500 Ncc/min, 5% O₂ in N₂) heating the system up to 1000 °C with a heating rate of 10 °C/min.

2.2. Experimental Apparatus and Procedures

The activity and stability tests were conducted in a tubular reactor (stainless-steel AISI 310, 400 mm long and with an internal diameter of 12 mm), horizontally located in an electric furnace for heat supply. A K-type thermocouple was employed to monitor the temperature at the outlet of the catalytic bed; in the inlet section, the reactor was equipped with an internal coil for water vaporization. For both the activity and stability tests, 0.5 g of catalysts (particles’ dimensions in the range 180–355 μm) was loaded in the middle of the reactor, diluted with quartz spheres (500–710 μm) up to a volume of 2 cm³ and held between two quartz wool disks. The product stream was dehydrated in a cold trap (2 °C) and then sent to a mass spectrometer (Hiden Analytical) for a continuous analysis.

The activity tests were carried out a constant temperature (850 and 750 °C) with the feed molar ratios CH₄/CO₂ = 1.5, O₂/biogas = 0.1 and H₂O/biogas = 0.4 (where biogas = CH₄ + CO₂); space velocity (SV, defined as the ratio between the biogas flowrate and the catalyst mass) was set to 60 NL h⁻¹g⁻¹. Before each catalytic test, the sample was reduced in situ with a reducing stream (500 Ncc/min, 5%H₂ in Ar), increasing the temperature with a heating rate of 10 °C/min up to 850 °C. Stability tests (time-on-stream, TOS) were carried out at 750 °C with the same feed condition for 24 h. Methane conversion and hydrogen yield were evaluated, respectively, as Equations (4) and (5). TPO experiments were conducted at the end of the TOS tests. With these results, the tendency to form coke for each catalyst was evaluated in terms of coke yield and average rate of coke production (defined as carbon formation rate, CFR), which were evaluated, respectively, according to Equations (6) and (7).

$$X_{C{H}_4}=\frac{mo{l}_{C{H}_4,in}-mo{l}_{C{H}_4,out}}{mo{l}_{C{H}_4,in}}$$

(4)

$$Y_{H_2}=\frac{mo{l}_{H_2,out}}{mo{l}_{BIOGAS}}$$

(5)

$$Y_C=\frac{mo{l}_C}{mo{l}_{C,fed}}$$

(6)

$$CFR=\frac{mas{s}_{coke}}{mas{s}_{catalyst}·mas{s}_{C, fed}·time}·100$$

(7)

3. Results and Discussion

3.1. Characterization

The specific surface area and metal loading obtained, respectively, via SSA measurement with B.E.T. calculation and ED-XRF analysis are reported in Table 1. From the results of the SSA analysis, it is possible to see the marked difference between ceria- and alumina-supported catalysts; furthermore, a reduction in the surface area is observed when the active metal is deposited on the support. These results were expected, but a peculiar reduction in SSA was observed for Rh-based catalysts: in fact, despite the Rh low loading, its addition determined a strong reduction in the SSA of the samples; this might be due to the acidification of the solution, which could have determined a structural modification of the support.

For what concerns the coke production, it is possible to see that 0.5%Rh/Al₂O₃ was the catalyst which showed the highest and also the fastest coke deposition, followed by 0.5%Rh-5%Ni/Al₂O₃ and 5%Ni/Al₂O₃.

3.2. Activity Tests

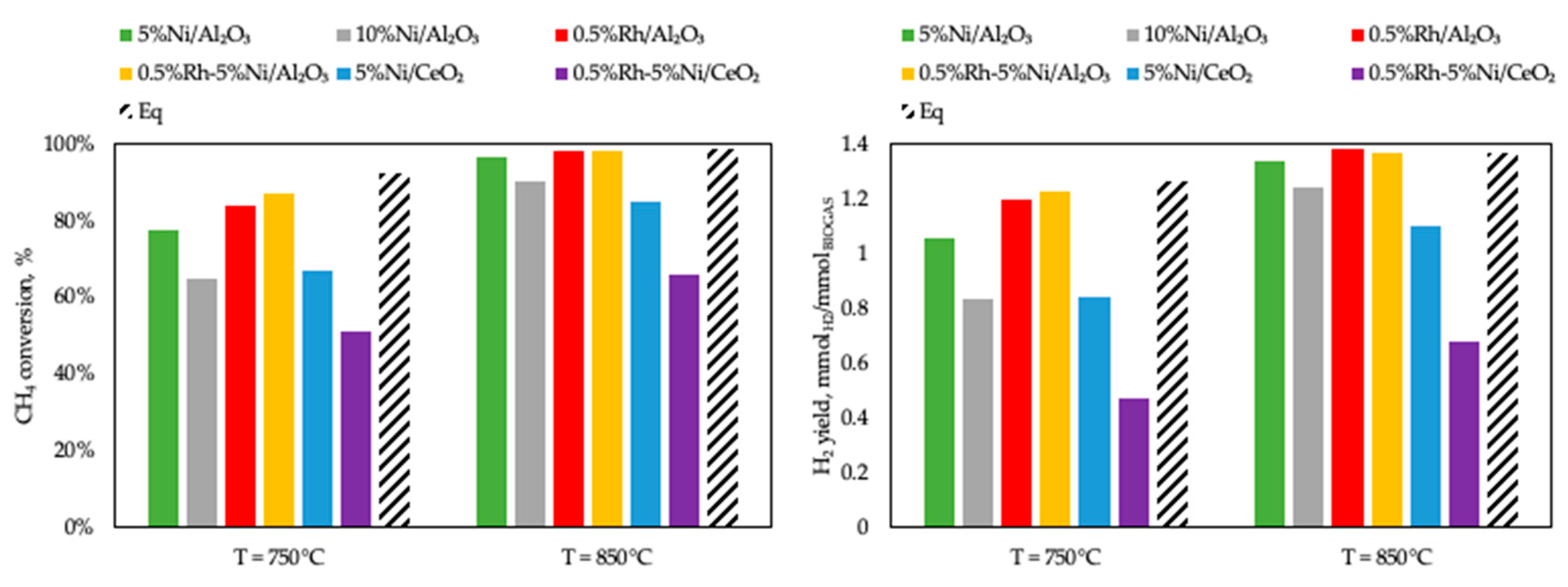

The activity tests results are reported in Figure 1. What emerges is that Al₂O₃-supported catalysts have a remarkably higher initial activity than CeO₂-supported catalysts: this requires two separate considerations.

In general, Al₂O₃-supported catalysts resulted to be very active and with a good approach to the equilibrium value, with the only exception for the 10%Ni/Al₂O₃ sample, whose catalytic performances are remarkably far from equilibrium, especially at 750 °C. Nevertheless, comparing the results of the CH₄ conversion and H₂ yield, it is clear that all catalysts showed an almost unitary selectivity at 850 °C and a selectivity exceeding 90% at 750 °C, which are good achievements. The order of activity, which is obtainable from both the CH₄ conversion and the H₂ yield trend, is 10%Ni <5%Ni <0.5%Rh <0.5%Rh-5%Ni. Thus, the noble metal has not only a higher activity than Ni, but also contributes to enhance the activity in the bimetallic formulation. The reason for the lower activity of the 10%Ni/Al₂O₃ catalyst might be addressed to the relatively low specific surface area of the sample (compared to the other Al₂O₃-supported catalysts): as a matter of fact, its SSA is comparable to the value obtained for the 0.5%Rh sample, but with a metal loading 20 times higher.

For what concerns the CeO₂-supported catalysts, the reduced activity can be addressed to the marked low specific surface area, which surely caused a bad dispersion of the active metal on the support surface. Furthermore, the activity even showed a worsening in catalytic activity with the addition of Rh to the formulation. Considering that Rh demonstrated to be a very active metal towards the reaction when supported on alumina, this result has to be necessarily related to the HCl addition to the precursor salt solution during preparation. In fact, the 0.5%Rh-5%Ni/CeO₂ catalyst reported the lowest SSA value, thus leading to a very bad dispersion of the active metals and consequently a poor number of active sites for the reaction.

3.3. Deactivation Study

All catalysts, except for 10%Ni/Al₂O₃, were tested in a 24-h time-on-stream experiment in order to evaluate their resistance over time and the eventual coke formation during the reaction. The results of these tests are reported in Figure 2 in terms of methane conversion and pressure drop. The latter was evaluated continuously by means of a pressure indicator, and it gives preliminary information on coke deposition: in fact, an increase in pressure drop means the formation of a solid product, which decreases the void fraction in the catalytic bed. As it is possible to see, 5%Ni/Al₂O₃ showed a marked deactivation during the test, reaching a stable condition after 12 h with a loss in H₂ yield of about 26% of the initial value; nevertheless, the unvaried pressure drop suggests a negligible coke deposition on the catalyst. On the other hand, 0.5%Rh/Al₂O₃ catalysts showed almost constant hydrogen production, but, at the same time, a strong rise in the pressure drop signal after 12 h of reaction: as discussed before, this could be ascribed to the deposition of a consistent amount of coke; in fact, in correspondence to this sharp rise, it was possible to observe a decrease in H₂ yield. The bimetallic sample 0.5%Rh-5%Ni/Al₂O₃ showed intermediate behavior: an appreciable rise in the pressure drop was observed, but it was not so marked as 0.5%Rh/Al₂O₃; and a slight decrease in the catalytic activity was observed, about 4% of the initial value.

The CeO₂-supported catalysts showed an unvaried pressure drop signal all throughout the experimental test, thus indicating a null coke formation. Nevertheless, the 5%Ni/CeO₂ sample showed a constant activity during the TOS test, while the 0.5%Rh-5%Ni/CeO₂ catalyst showed a consistent deactivation after 8 h. In addition to what was observed for the 5%Ni/Al₂O₃ sample, also in this case, the deactivation is ascribable to sintering phenomena, which are even more likely to occur considering the very low SSA of the sample. Comparing the behavior of the 5%Ni samples, it is possible to notice that 5%Ni/Al₂O₃ reaches the same conversion value of 5%Ni/CeO₂ at the end of the TOS test, thus indicating that the alumina-supported catalyst is not thermally stable and so the difference observed in the initial activity does not correctly describe the catalytic behavior of the samples.

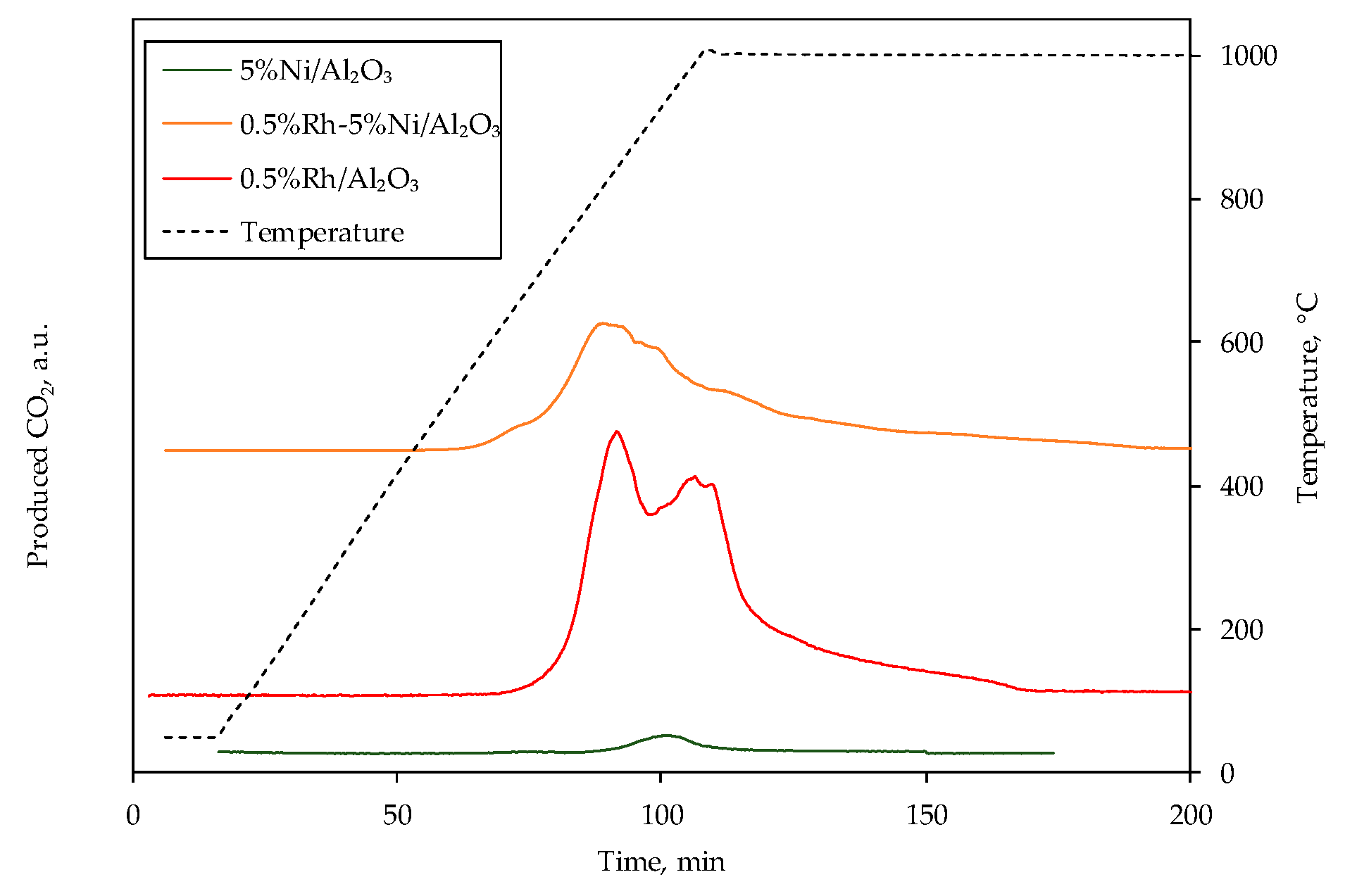

The results of the TPO experiments are reported in Figure 3 for the alumina-supported catalysts: CeO₂-supported samples did not produce CO₂ during the TPO experiment, thus confirming the lack of coke deposition in the catalytic bed; for this reason, these latter profiles are not shown below. As it is possible to see, the results are in agreement with the hypotheses made when observing the pressure drop trends: the sample 0.5%Rh/Al₂O₃ induced the highest coke formation, while a smaller production was observed on 0.5%Rh-5%Ni/Al₂O₃; and a very small quantity of coke was gasified during TPO on the 5%Ni/Al₂O₃ sample, thus again suggesting metal sintering as a different reason for the catalyst deactivation. Furthermore, these results suggest that coke deposition occurs preferentially on Rh sites rather than Ni ones.

4. Conclusions

In this work, a comparative study was performed on Ni- and Rh-based catalysts supported on Al₂O₃ and CeO₂. The experimental results show that the Al₂O₃-supported catalysts demonstrated to have a higher catalytic activity towards the reaction; despite that, they are not stable over time because of coke deposition or sintering phenomena. On the other hand, CeO₂-supported catalysts showed a lower activity but the 5%Ni/CeO₂ sample displayed a very good stability in the TOS test. Due to its good stability and the absence of coke formation, the 5%Ni/CeO₂ sample actually represents a promising catalyst to be promoted with the addition of a second metal, also considering Rh promotion with the employment of a different precursor salt.
