Proceeding Paper

New in the Catalytic Synthesis of Practically Important Eight- and Nine-Membered Carbocycles by Cycloaddition Reactions with the Participation of 1,3,5-Cycloheptatrienes and 1,3,5,7-Cyclooctatetraenes †

by
Gulnara N. Kadikova
* and
Usein M. Dzhemilev
Institute of Petrochemistry and Catalysis of Russian Academy of Sciences, 141 Prospekt Oktyabrya, 450075 Ufa, Russia
*
Author to whom correspondence should be addressed.
Presented at the 2nd International Electronic Conference on Catalysis Sciences—A Celebration of Catalysts 10th Anniversary, 15–30 October 2021; Available online: https://eccs2021.sciforum.net/.
Chem. Proc. 2022, 6(1), 2; https://doi.org/10.3390/ECCS2021-11037
Published: 14 October 2021

Abstract

:
The data obtained by the authors in the field of chemistry of 1,3,5-cycloheptatrienes and 1,3,5,7-cyclooctatetraenes with the participation of complexes of transition metals are summarized. The reactions of cyclocodimerization of 1,3,5-cycloheptatrienes and 1,3,5,7-cyclooctatetraenes with alkenes, dienes and alkynes in the presence of transition metal complexes, carried out by the type of [6π + 2π]- and [4π + 2π]-cycloaddition, are considered. Special attention is paid to the application of these reactions in the synthesis of practically important bi-, tri- and polycyclic strained compounds, as well as in the development of stereoselective methods for the synthesis of natural compounds.

1. Introduction

Among the large number of possible ways of constructing medium cycles, the most preferred are those based on cycloaddition reactions using metal complex catalysis methods [1,2,3]. Classical ring-closure methods are effective for small ring systems, but problematic for medium-sized ring systems owing to entropic and transannular penalties incurred when bringing the two ends of a reactant together [4]. For this reason, significant advances in the design of medium cycles have been achieved through new cycloaddition reactions catalyzed by transition metal complexes [1,2,3].
The development of reactions of catalytic cycloaddition with obtaining medium cycles is one of the most urgent and demanded areas of modern organic synthesis, in view of the high prevalence of these compounds in the composition of a large number of biologically active substances and drugs [1]. For example, eight-membered carbocycles form the structural backbone of a number of important medicinal compounds (Figure 1). Currently, the natural compound taxol is an effective anticancer agent widely used in medical practice [5]. In 2008, pleuromutilin was approved as an antibacterial drug [6].
According to the analysis of the world literature, one of the promising directions in the synthesis of medium cycles is directed catalytic conversions of available cyclic polyunsaturated monomers—1,3,5-cycloheptatrienes (CHT) and 1,3,5,7-cyclooctatetraene (COTT) [3]. Catalytic cycloaddition reactions involving these cyclopolyenes lead to the formation of practically important eight-membered carbocycles, bicyclo[4.2.1]nonadi(tri)enes and bicyclo[4.2.2]decatri(tetra)enes [1,2,3]. The bicyclo[4.2.1]nonane skeleton is a key structural element of biologically active terpenoids with pronounced antitumor properties [7,8,9] (Figure 2).
In the literature, there are preferably publications devoted to the study of reactions of thermally and photochemically induced cycloaddition of alkenes, 1,2-, 1,3-dienes and alkynes to Fe-, Ru- and Cr-containing carbonyl complexes CHT [10,11,12,13,14]. The catalytic variants of these transformations are represented by Ti-, Co-, Cr-, Mo- and Rh-catalyzed cyclodimerization of CHT [15,16,17,18,19,20,21].

2. Results and Discussion

To date, we have accumulated significant experience in the development of effective one-pot methods for the synthesis of various classes of previously undescribed bi-, tri- and polycyclic compounds based on cycloaddition reactions CHTs and COTT catalyzed by complexes of transition metals [3]. As a result of research carried out over the past 5–10 years, we have proposed effective preparative methods for the synthesis of a wide range of substituted bicyclo[4.2.1]nona-2,4-dienes and bicyclo[4.2.1]nona-2,4,7-trienes based on reactions of titanium- and cobalt-catalyzed cycloaddition of 1,2-dienes and alkynes to CHT and its derivatives. So, in 2013, we developed a two-component catalytic system TiX2Cl2-Et2AlCl (X = Cl, acac, i-PrO), which was used for the first time in the [6π + 2π] cycloaddition of 1,2-dienes 2 to CHT and 7-alkyl(phenyl,allyl)-1,3,5-cycloheptatrienes 1 to form substituted bicyclo[4.2.1]nona-2,4-dienes 3 as a single regioisomer [22] (Scheme 1).
In the development of research on the synthesis of new bicyclo[4.2.1]nonanes, as well as in order to expand the scope of application of the developed titanium-containing catalytic system, we carried out the cyclocodimerization of CHTs with alkynes [23]. It was found that [6π + 2π] cycloaddition of nitrogen- 4 and silicon-containing alkynes 5 to CHTs 1 under the action of the Ti(acac)2Cl2-Et2AlCl catalytic system in benzene for 8–24 h at 80 °C leads to the formation of bicyclo[4.2.1]nona-2,4,7-trienes 6 (61–88%) and 7 (79–88%) (Scheme 2):
Of particular interest are the works [24,25] on the reactions of cyclocodimerization of bis(1,3,5-cycloheptatriene-7-yl)alkanes—monomers containing in their structure simultaneously two cycloheptatriene fragments, which means two reaction centers. We found that as a result of the interaction of bis(1,3,5-cycloheptatriene-7-yl)alkanes 8 with a twofold excess of 1,2-dienes 2 or Si-containing alkynes 5 under the action of the catalytic system Ti(acac)2Cl2-Et2AlCl (benzene, 12 h, 80 °C) the corresponding [6π + 2π] cycloadducts are formed—bis(bicyclo[4.2.1]nona-2,4-diene)alkanes 9a,b and bis(bicyclo[4.2.1]nona-2,4,7-triene)alkanes 10a,b [24,25] (Scheme 3):
In 2019, we studied the cyclocodimerization reactions of 1-substituted CHTs [26]. We found 1-methyl(benzyl)-1,3,5-cycloheptatrienes 11 enter into a [6π + 2π]-cycloaddition reaction with Si-containing alkynes 5 under the action of the catalytic system Ti(acac)2Cl2-Et2AlCl (5 mol% Ti(acac)2Cl2, Ti/Al = 1:20, C6H6, 80 °C, 8 h) to form substituted bicyclo[4.2.1]nona-2,4,7-trienes 13 as a single regioisomer. Similarly, under the developed conditions (15 mol% Ti(acac)2Cl2, Ti/Al = 1:20, C6H6, 80 °C, 8 h), we managed to carry out the cyclodimerization of 1-methylcycloheptatriene 11 with propargylamines 4 to obtain nitrogen-containing bicyclo[4.2.1]nona-2,4,7-trienes 14 in high yields (76–88%) [26] (Scheme 4).
The reaction of 1-substituted CHTs 11 with terminal alkynes 12 takes place in the presence of a three-component cobalt-containing catalytic system Co(acac)2(dppe)/Zn/ZnI2 with the formation of functionally substituted bicyclo[4.2.1]nona-2,4,7-trienes 15, 16 as two regioisomers (72–86%) (Scheme 4).
In the development of ongoing studies on the synthesis of middle cycles based on cyclocodimerization of cyclic polyenes with unsaturated compounds of various structures, as well as with the aim of developing effective preparative methods for the synthesis of new classes of bicyclo[4.2.2]decatri(tetra)enes, we paid attention to COTT. In 2015, for the first time, we carried out the [6π + 2π]-cycloaddition of 1,2-dienes to COTT in the presence of a four-component catalytic system CoI2/dppe/Zn/ZnI2 with the formation of substituted (E)-bicyclo[4.2.2]deca-2,4,7-trienes 17 in high yields (76–87%) [27] (Scheme 5).
It should be emphasized that [6π + 2π]-cycloadducts of COTT with alkynes—bicyclo[4.2.2]deca-2,4,7,9-tetraenes are widely used as key synthons in the preparation of practically valuable natural and synthetic biologically active compounds [28,29,30,31]. For this reason, the creation of highly efficient methods for the synthesis of bicyclo[4.2.2]deca-2,4,7,9-tetraenes is especially urgent and in demand. To accomplish this task, we have developed an effective catalytic system—Co(acac)2/dppe/Zn/ZnI2, using which we have synthesized a wide range of functionally substituted bicyclo[4.2.2]deca-2,4,7,9-tetraenes 1820 based on the reaction of [6π + 2π]-cycloaddition of alkynes and 1,3-diynes to COTT [28,32] (Scheme 6):

3. Conclusions

Thus, in the course of our studies, we have developed effective one-pot methods for the synthesis of a large assortment of previously undescribed and hard-to-reach functionally substituted bicyclo[4.2.1]nonadi(tri)enes and bicyclo[4.2.2]decatri(tetra)enes, which can act in as key precursors in the synthesis of modern drugs and valuable biologically active compounds.

Author Contributions

Conceptualization, U.M.D. and G.N.K.; methodology, validation, and execution of chemistry experiments, G.N.K.; manuscript preparation, U.M.D. and G.N.K. All authors have read and agreed to the published version of the manuscript.

Funding

The work was done within approved plans for research projects at the IPC RAS State Registration No. AAAA-A19-119022290008-6 (2019–2021), Grant of Russian Foundation for Basic Research (19-03-00393).

Acknowledgments

The structural studies of the synthesized compounds were performed with the use of Collective Usage Centre “Agidel” at the Institute of Petrochemistry and Catalysis of RAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Petasis, N.A.; Patane, M.A. The Synthesis of Carbocyclic Eight-Membered Rings. Tetrahedron 1992, 48, 5757–5821. [Google Scholar] [CrossRef]
  2. Yu, Z.X.; Wang, Y.; Wang, Y. Transition-metal-catalyzed cycloadditions for the synthesis of eight-membered carbocycles. Chem. Asian J. 2010, 5, 1072–1088. [Google Scholar] [CrossRef] [PubMed]
  3. D’yakonov, V.A.; Kadikova, G.N.; Dzhemilev, U.M. Transition Metal Complex-Mediated Chemistry of 1,3,5-Cycloheptatrienes. Russ. Chem. Rev. 2018, 87, 797–820. [Google Scholar] [CrossRef]
  4. Galli, C.; Mandolini, L. The role of ring strain on the ease of ring closure of bifunctional chain molecules. Eur. J. Org. Chem. 2000, 2000, 3117–3125. [Google Scholar] [CrossRef]
  5. Kingston, D.G.I. A natural love of natural products. J. Org. Chem. 2008, 73, 3975–3984. [Google Scholar] [CrossRef]
  6. Daum, R.S.; Kar, S.; Kirkpatrick, P. Retapamulin. Nat. Rev. Drug Discov. 2007, 6, 865–866. [Google Scholar] [CrossRef]
  7. Francisco, C.; Banaigs, B.; Valls, R.; Codomier, L. Mediterraneol a, a novel rearranged diterpenoid-hydroquinone from the marine alga Cystoseira mediterranea. Tetrahedron Lett. 1985, 26, 2629–2632. [Google Scholar] [CrossRef]
  8. Suryawanshi, S.N.; Nayak, U.R. Novel lead tetraacetate oxidation of longicycline: Formation and reactions of the elusive true longicamphor. Tetrahedron Lett. 1977, 18, 2619–2620. [Google Scholar] [CrossRef]
  9. Francisco, C.; Banaigs, B.; Teste, J.; Cave, A.J. Mediterraneols: A novel biologically active class of rearranged diterpenoid metabolites from Cystoseira mediterranea (Pheophyta). Org. Chem. 1986, 51, 1115–1120. [Google Scholar] [CrossRef]
  10. Green, M.; Heathcock, S.M.; Wood, D. Reactions of Co-ordinated Ligands. Part II. The reaction of tricarbonylcycloheptatrieneiron and tricarbonyl(methy1-, bromo-, and phenylcyclo-Octatetraene)iron with hexafluoroacetone, dicyanobis-(trif1uoromethyl)ethylene, and tetracyanoethylene. J. Chem. Soc. Dalton Trans. 1973, 15, 1564–1569. [Google Scholar] [CrossRef]
  11. Cunningham, D.; Hallinan, N.; Moran, G.; McArdle, P. Reaction of tetracyanoethene with tricarbonyliron complexes of some substituted 7-methylenecycloheptatrienes and the subsequent isomerization of the initial addition products. J. Organomet. Chem. 1987, 333, 85–95. [Google Scholar] [CrossRef]
  12. Goldschmidt, Z.; Genizi, E.; Gottlieb, H.E.; Hezroni-Langermann, D. Pericyclic organometallic reactions. Cycloaddition reactions of (η4-cycloheptatriene)Ru(CO)3. Crystal structure of tricarbonyl[(2,3,4,9-η)-bicyclo[4.2.l]non-2-ene-4,9-diyl-7,7,8,8-tetracarbonitrile]ruthenium. J. Organomet. Chem. 1991, 420, 419–429. [Google Scholar] [CrossRef]
  13. Rigby, J.H.; Ateeq, H.S.; Charles, N.R.; Cuisiat, S.V.; Ferguson, M.D.; Henshilwood, J.A.; Krueger, A.C.; Ogbu, C.O.; Short, K.M.; Heegt, M.J. Metal-promoted higher-order cycloaddition reactions. Stereochemical, regiochemical, and mechanistic aspects of the [6π+4π] reaction. J. Am. Chem. Soc. 1993, 115, 1382–1396. [Google Scholar] [CrossRef]
  14. Rigby, J.H. Chromium(0)-promoted higher-order cycloaddition reactions in organic synthesis. Tetrahedron 1999, 55, 4521–4538. [Google Scholar] [CrossRef]
  15. Rigby, J.H.; Kondratenko, M.A.; Fiedler, C. Preparation of a resin-based chromium catalyst for effecting [6π+2π] cycloaddition reactions. Org. Lett. 2000, 2, 3917–3919. [Google Scholar] [CrossRef]
  16. Rigby, J.H.; Mann, L.W.; Myers, B.J. Room temperature chromium(0)-catalyzed higher-order cycloaddition reactions. Tetrahedron Lett. 2001, 42, 8773–8775. [Google Scholar] [CrossRef]
  17. Mach, K.; Antropiusova, H.; Petrusova, L.; Hanus, V.; Turecek, F. [6+2]Cycloadditions Catalyzed by Titanium Complexes. Tetrahedron 1984, 40, 3295–3302. [Google Scholar] [CrossRef]
  18. Klein, R.; Sedmera, P.; Cejka, J.; Mach, K. Titanium-Catalyzed Cycloaddition Reactions of Phenyl(trimethylsilyl)acetylene to Conjugated Dienes and 1,3,5-Cycloheptatriene. 1-Phenyl-2-(trimethylsilyl)-cyclohexa-1,4-dienes and Their Aromatization. J. Organomet. Chem. 1992, 436, 143–153. [Google Scholar] [CrossRef]
  19. Achard, M.; Tenaglia, A.; Buono, G. First Cobalt(I)-Catalyzed [6+2] Cycloadditions of Cycloheptatriene with Alkynes. Org. Lett. 2005, 7, 2353–2356. [Google Scholar] [CrossRef]
  20. Schmidt, T. Molybdenum-catalysed and -mediated cycloaddition reactions: Efficient synthesis of complex products from 1-oxa-l,3-dienes and cyclotrienes or –tetraenes. Chem. Ber. 1997, 130, 453–461. [Google Scholar] [CrossRef]
  21. Zhang, X.; Wang, J.; Zhao, H.; Wang, J. Rhodium-Catalyzed [6+2] Cycloaddition of Internal Alkynes with Cycloheptatriene: Catalytic Study and DFT Calculations of the Reaction Mechanism. Organometallics 2013, 32, 3529–3536. [Google Scholar] [CrossRef]
  22. Dzhemilev, U.M.; Kadikova, G.N.; Kolokoltsev, D.I.; D’yakonov, V.A. Catalytic [6π+2π]-Cycloaddition of Alkynes, 1,2- and 1,3-Dienes to 1,3,5-Cycloheptatrienes Involving Ti Complexes. Tetrahedron 2013, 69, 4609–4611. [Google Scholar] [CrossRef]
  23. D’yakonov, V.A.; Kadikova, G.N.; Kolokoltsev, D.I.; Ramazanov, I.R.; Dzhemilev, U.M. Titanium-Catalyzed [6π+2π]-Cycloaddition of Alkynes and Allenes to 7-Substituted 1,3,5-Cycloheptatrienes. Eur. J. Org. Chem. 2015, 2015, 4464–4470. [Google Scholar] [CrossRef]
  24. D’yakonov, V.A.; Kadikova, G.N.; Khalilov, L.M.; Dzhemilev, U.M. Catalytic [6π+2π]-Cycloaddition of 1,2-Dienes to Bis(cyclohepta-1,3,5-trien-7-yl)alkanes in the Presence of Ti(acac)2Cl2-Et2AlCl. Russ. J. Org. Chem. 2018, 54, 832–839. [Google Scholar] [CrossRef]
  25. Dyakonov, V.A.; Kadikova, G.N.; Nasretdinov, R.N.; Kolokoltsev, D.I.; Dzhemilev, U.M. Titanium-catalyzed [6π+2π]-cycloaddition of Si-containing alkynes to bis(1,3,5-cycloheptatriene-7-yl)alkanes. Tetrahedron Lett. 2017, 58, 1714–1716. [Google Scholar] [CrossRef]
  26. D’yakonov, V.A.; Kadikova, G.N.; Nasretdinov, R.N.; Dzhemileva, L.U.; Dzhemilev, U.M. The Synthesis of Bicyclo[4.2.1]nona-2,4,7-trienes by [6π+2π]-Cycloaddition of 1-Substituted 1,3,5-Cycloheptatrienes Catalyzed by Titanium and Cobalt Complexes. J. Org. Chem. 2019, 84, 9058–9066. [Google Scholar] [CrossRef]
  27. Dyakonov, V.A.; Kadikova, G.N.; Gazizullina, G.F.; Khalilov, L.M.; Dzhemilev, U.M. New in the catalytic synthesis of practically important eight- 2 and nine-membered carbocycles by cycloaddition reactions 3 with the participation of 1,3,5-cycloheptatrienes and 4 1,3,5,7-cyclooctatetraenes. Tetrahedron Lett. 2015, 56, 2005–2007. [Google Scholar] [CrossRef]
  28. Dyakonov, V.A.; Kadikova, G.N.; Dzhemileva, L.U.; Gazizullina, G.F.; Ramazanov, I.R.; Dzhemilev, U.M. Cobalt-Catalyzed [6 + 2] Cycloaddition of Alkynes with 1,3,5,7-Cyclooctatetraene as a Key Element in the Direct Construction of Substituted Bicyclo[4.3.1]decanes. J. Org. Chem. 2017, 82, 471–480. [Google Scholar] [CrossRef]
  29. D’yakonov, V.A.; Kadikova, G.N.; Dzhemileva, L.U.; Gazizullina, G.F.; Unusbaeva, M.M.; Dzhemilev, U.M. Oxidative skeletal rearrangement of bicyclo[4.2.2]deca-2,4,7,9-tetraenes to bicyclo[4.3.1]deca-2,4,8-triene-7,10-diols and study of the antitumor activity of the products in vitro. Tetrahedron 2018, 74, 4071–4077. [Google Scholar] [CrossRef]
  30. D’yakonov, V.A.; Kadikova, G.N.; Gazizullina, G.F.; Dzhemileva, L.U.; Tulyabaev, A.R.; Dzhemilev, U.M. Synthesis and Antitumor Activity Assay of Epoxy Bicyclo[4.2.2]deca-2,4,7,(9)-tri(tetra)enes and Tricyclo[9.4.2.02,10]heptadeca-2,12,14,16-tetraene. Curr. Org. Chem. 2019, 23, 1158–1165. [Google Scholar] [CrossRef]
  31. D’yakonov, V.A.; Kadikova, G.N.; Gazizullina, G.F.; Ramazanov, I.R.; Dzhemileva, L.U.; Dzhemilev, U.M. Reactions of functionally substituted bicyclo[4.2.2]deca-2,4,7,9-tetraenes with m-chloroperbenzoic acid and in vitro evaluation Of Product Cytotoxicity against tumor cells. Mendeleev Commun. 2019, 29, 517–519. [Google Scholar] [CrossRef]
  32. D’yakonov, V.A.; Kadikova, G.N.; Gazizullina, G.F.; Dzhemilev, U.M. Cobalt(I)-Catalyzed Cycloaddition of Functionally Substituted Alkynes and 1,3-Diynes to 1,3,5,7-Cyclooctatetraene in the Synthesis of Bicyclo[4.2.2]deca-2,4,7,9-tetraenes. ChemistrySelect 2018, 3, 6221–6223. [Google Scholar] [CrossRef]

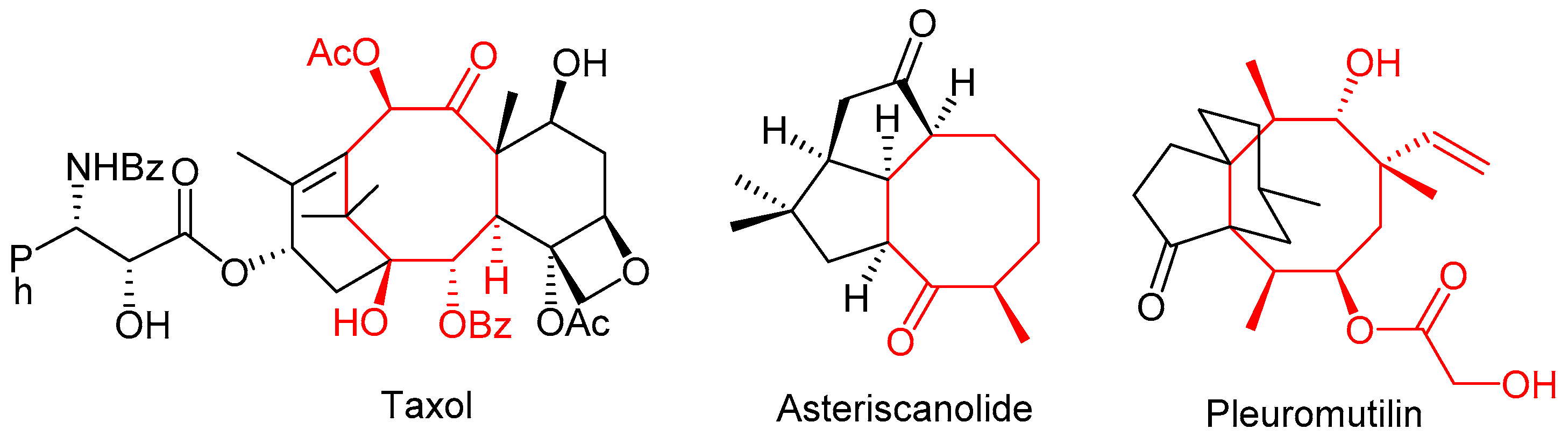

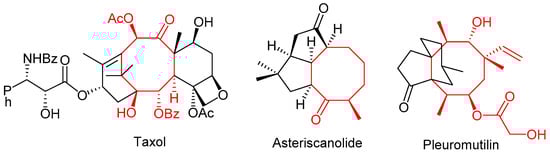

Figure 1. Natural products with eight-membered carbocyclic skeletons.
Figure 1. Natural products with eight-membered carbocyclic skeletons.
Chemproc 06 00002 g001

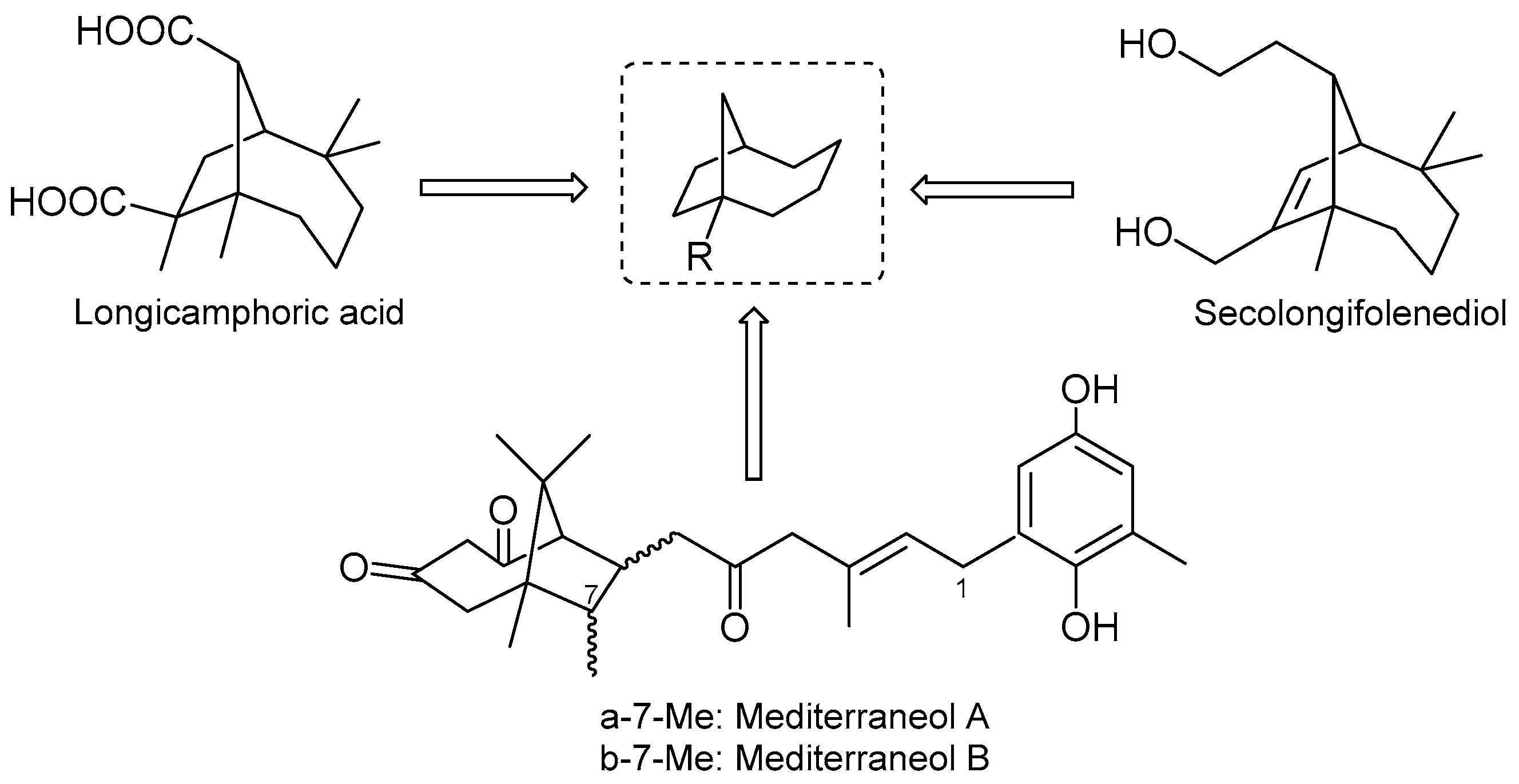

Figure 2. Natural products with the bicyclo[4.2.1]nonane core.
Figure 2. Natural products with the bicyclo[4.2.1]nonane core.
Chemproc 06 00002 g002

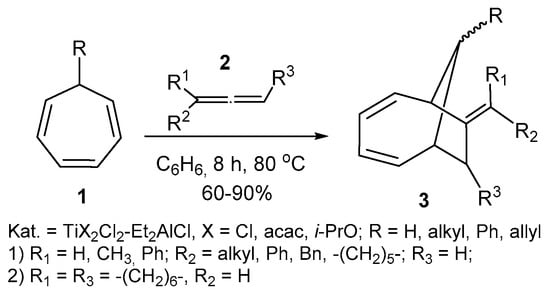

Scheme 1. Cycloaddition of 1,2-dienes with CHTs.
Scheme 1. Cycloaddition of 1,2-dienes with CHTs.
Chemproc 06 00002 sch001

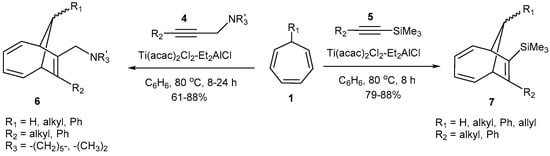

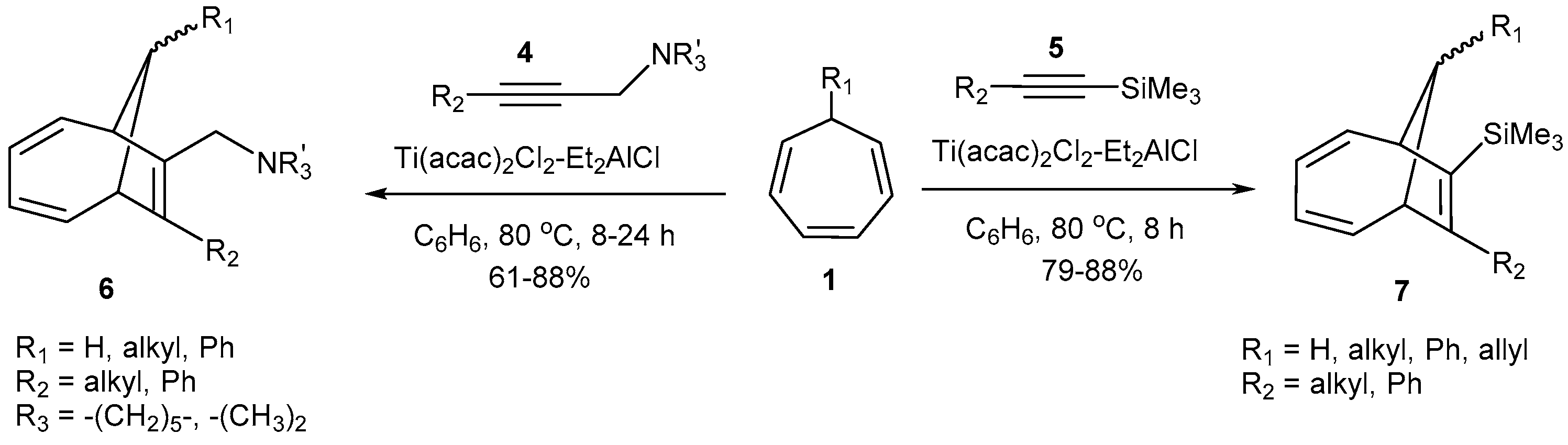

Scheme 2. Cycloaddition of alkynes with CHTs.
Scheme 2. Cycloaddition of alkynes with CHTs.
Chemproc 06 00002 sch002

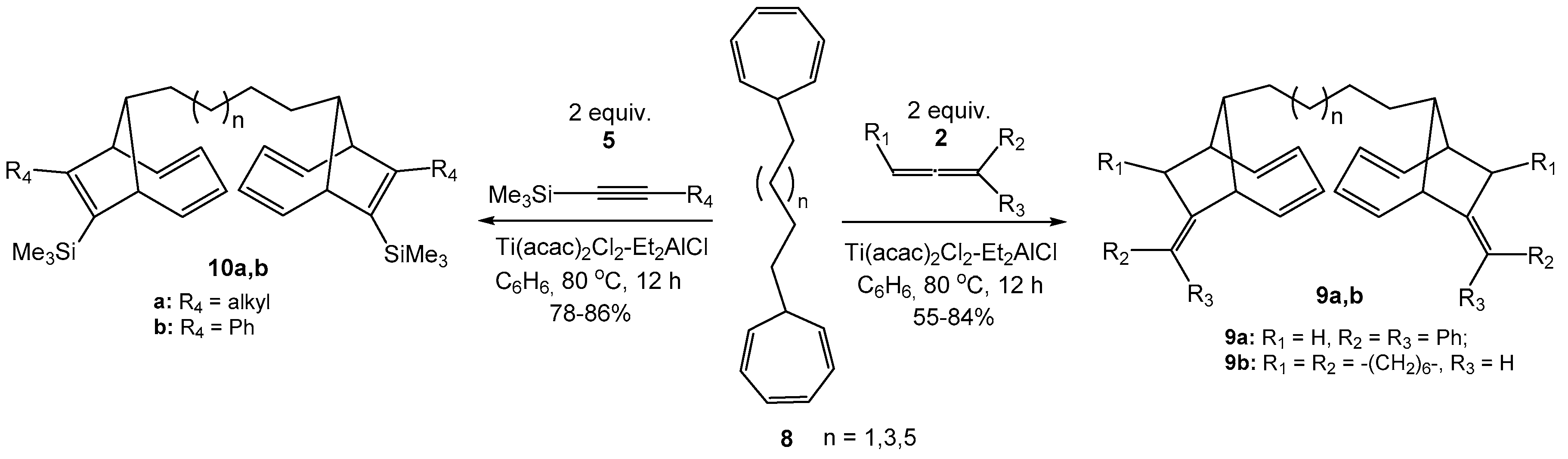

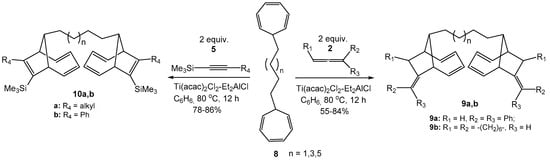

Scheme 3. Cycloaddition of alkynes and 1,2-dienes with bis(1,3,5-cycloheptatriene-7-yl)alkanes.
Scheme 3. Cycloaddition of alkynes and 1,2-dienes with bis(1,3,5-cycloheptatriene-7-yl)alkanes.
Chemproc 06 00002 sch003

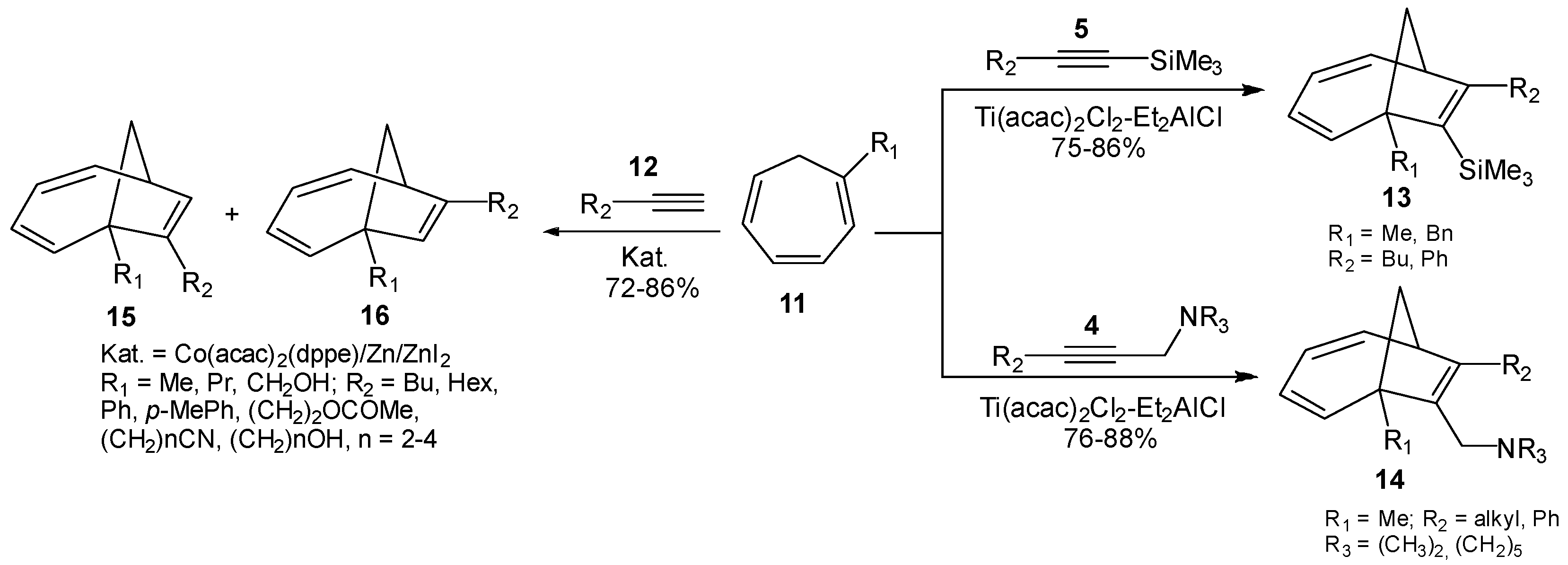

Scheme 4. Cycloaddition of alkynes with CHTs.
Scheme 4. Cycloaddition of alkynes with CHTs.
Chemproc 06 00002 sch004

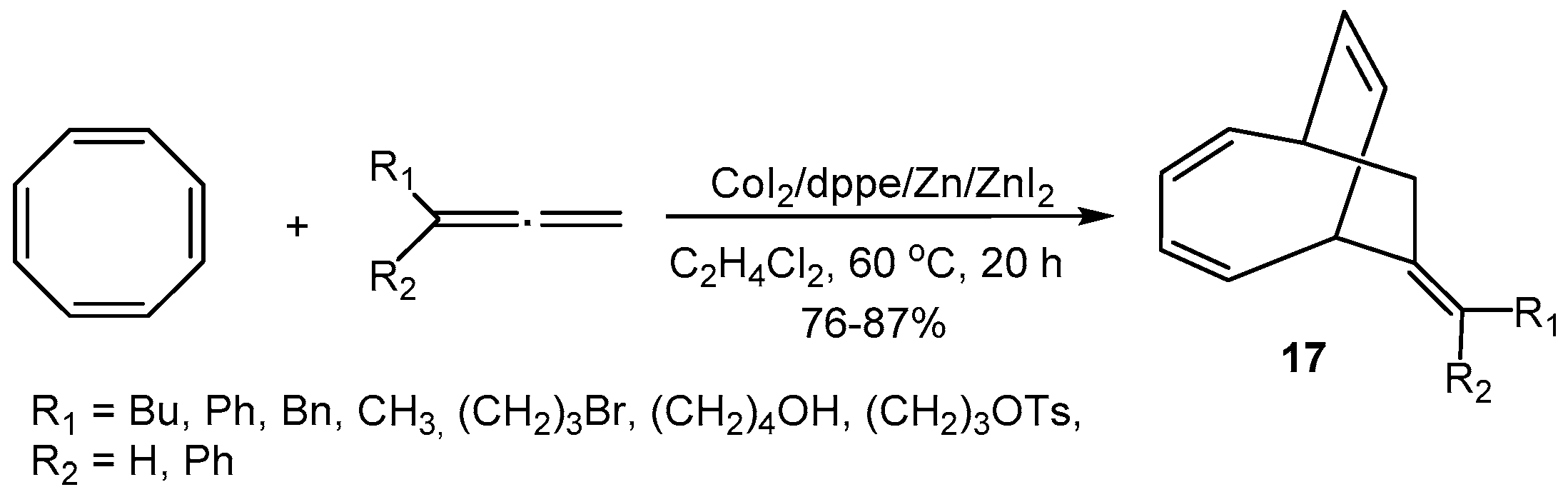

Scheme 5. Cycloaddition of 1,2-dienes with COTT.
Scheme 5. Cycloaddition of 1,2-dienes with COTT.
Chemproc 06 00002 sch005

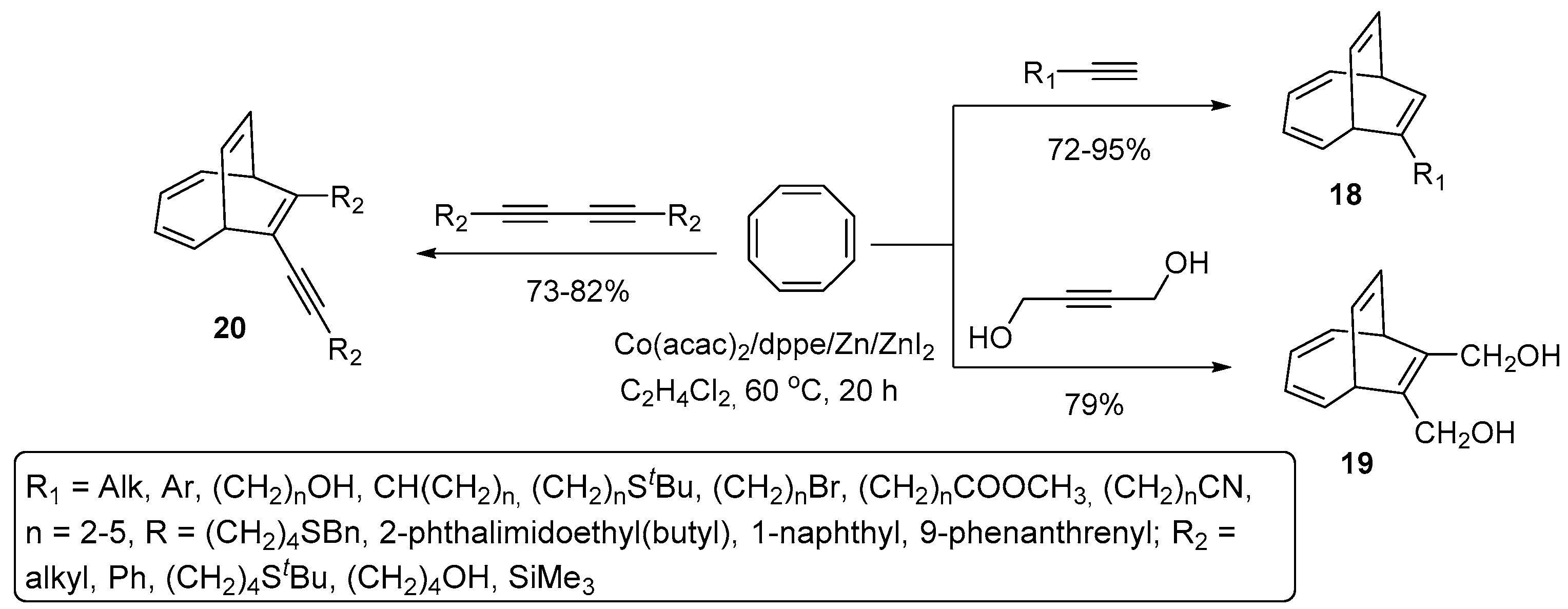

Scheme 6. Cycloaddition of alkynes with COTT.
Scheme 6. Cycloaddition of alkynes with COTT.
Chemproc 06 00002 sch006
