PEDOT-Based Chemiresistive and Colorimetric Dual-Mode Sensors for the Detection of Hydrogen Peroxide Vapor ^†

Abstract

Hydrogen peroxide (H₂O₂) is an aqueous solution that is widely used for oxidation, disinfection and sterilization, and its detection is very important in the fields of biological health and environment. The main detection methods of H₂O₂ include colorimetric, electrochemical, enzymatic and fluorescence analysis. However, due to the influence of moisture and oxidation, it is very difficult to realize simple, convenient, real-time and efficient detection technology for hydrogen peroxide vapor (HPV). Recently, our group proposed adding ammonium titanyl oxalate (ATO) to the sensing film composite system to prepare a chemosensor based on PEDOT:PSS-ATO/PEDOT composite film. The limit of detection (LOD) of the film was 1.0 ppm, and the linear trend was in the range of 1.0 ppm to 10.5 ppm. We then explored the influence of various material systems on its HPV sensing performance, which exhibited both electrical and colorimetric responses. This study was expected to realize a practical HPV sensor as well as promote the further application of PEDOT-based composites in the field of chemosensors.

1. Introduction

Hydrogen peroxide (H₂O₂) aqueous solution is an environmentally friendly and efficient oxidant and disinfectant. The outbreak of the novel coronavirus has led to the strengthening of disinfection and sterilization measures in public facilities, transportation, hospitals, nursing homes, and even ordinary families all over the world [1,2]. However, its widespread use is hazardous. For example, the strong oxidative properties of H₂O₂ may cause corrosion and irritation to the skin, eyes and mucous membranes of the human body. If the solution enters the human body, oxidative stress reactions may occur to generate free radicals, resulting in cell damage and some diseases, as well as accelerating the growth of the human body. Therefore, in view of the importance of biological and environmental safety, it is very important to develop effective detection technologies for H₂O₂.

At present, most of the research on H₂O₂ sensors focused on its detection in liquid phase systems [3]. In view of its wide use as environmental disinfectants and explosive markers, the importance of H₂O₂ vapor (HPV) monitoring in the air also cannot be ignored. In most cases, the HPV detection begins by firstly making it cool and adsorptive in water, and then using electrochemical methods to measure the liquid concentration [4]. In addition, the detection of HPV can also be achieved via fluorescence analysis [5,6], colorimetry [7], etc. Fluorescence methods generally have high sensitivity and selectivity, but there is a problem related to cumbersome material synthesis. In comparison, the colorimetric method is simple, fast and direct, and is seen as an important direction for sensor popularization research. On the other hand, the chemiresistive sensor is often used to monitor humidity and various gases, and has the advantages of low cost, small size, easy use, facile to construct device and real-time monitoring.

To explore effective HPV sensing materials, recently, our group investigated the applicability of poly(3,4-ethylenedioxythiophene) (PEDOT)-based chemiresistive and colorimetric dual-mode sensors [8,9]. Among them, poly(3,4-ethylenedioxythiophene)–polystyrene sulfonate (PEDOT:PSS)–ammonium titanyl oxalate (ATO)/PEDOT composite film was demonstrated as a good platform for highly selective, sensitive and naked-eye HPV sensing. The system was designed for the following reasons [5].

On one hand, intrinsically conductive polymers (ICPs), especially those in the PEDOT family, are considered to be important and good candidate sensing materials [10]. Their unique tunable electrical properties, as well as their advantages of easy synthesis, structural diversity, functionalization, and flexibility, make them versatile in sensor applications. At present, the application of PEDOT in this field has developed into many types, such as electrochemistry, chemoresistance, piezoelectricity, etc. In particular, their unique doping/dedoping process makes them one of the most promising candidates for chemistoric sensor applications for gas detection at room temperature [11]. PEDOT:PSS has special advantages [12], and has also been studied in relation to electrochemical detection of H₂O₂ in liquid phase system, and to evaluate its chemistoric response to many gas phase analytes like NH₃, CO, NO_x, etc.

On the other hand, the hygroscopicity of PEDOT:PSS film itself is conducive to the adsorption of HPV, and the electrical and optical properties will be affected by the oxidation of HPV. Additionally, the hydrophobic PEDOT outer layer could improve the film surface roughness and weaken its hygroscopicity, which will help maintain its stability and sensing accuracy, especially in high humidity.

Moreover, in view of the fact that, HPV is difficult to distinguish by smell and vision due to its colorless appearance and light odor, ATO, as a colorless compound that has characteristic complexation-induced discoloration when mixed with H₂O₂, was introduced into the gas-sensitive material system. It can basically eliminate the interference of all coexisting gases in the normal environment and thus ensure high selectivity [5]. At the same time, the color change reaction will provide a colorimetric sensing signal, which enhances the signal readability.

2. Materials and Methods

In this work, the PEDOT:PSS/ATO dispersion was spin-coated on the ITO conducting glass and dried in an oven at 50 °C to prepare the PEDOT:PSS-ATO film. The electrochemical correlation tests were performed using a three-electrode system. The well-prepared PEDOT:PSS-ATO film was selected as the working electrode, the platinum sheet as the counter electrode, Ag/AgCl as the reference electrode, and acetonitrile/tetrabutylammonium hexafluorophosphate (0.1 M) as the electrolyte and EDOT (1 mM) was added in as a unit of electropolymerization. The PEDOT layer with a certain amount of polymerization charge was electrodeposited on the surface of the composite film via electrochemical polymerization, and the PEDOT:PSS-ATO/PEDOT composite film was prepared. After that, we explored the resistance response and colorimetric response behavior and effect of the composite film under different concentrations of HPV.

3. Results and Discussion

The PEDOT:PSS-ATO and PEDOT:PSS-ATO/PEDOT composite films were prepared via conventional mechanical blending and electrochemical methods [8,9].

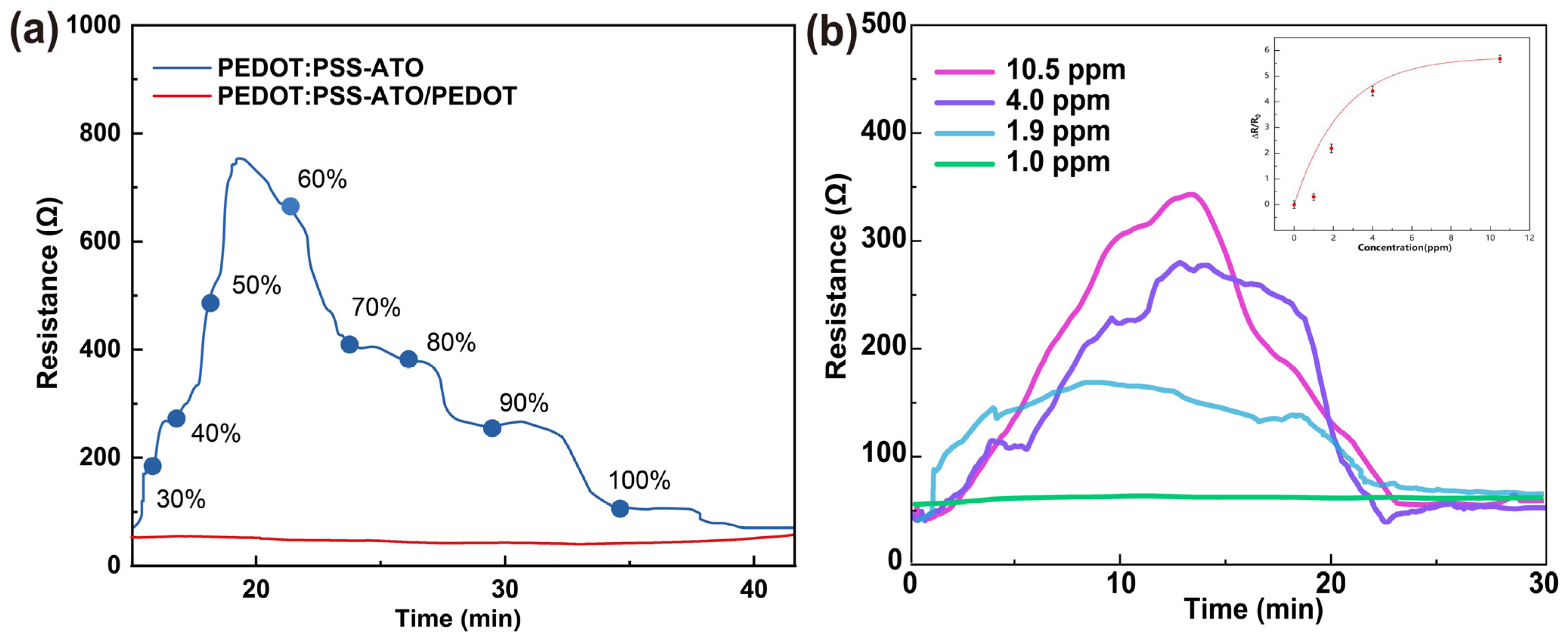

As seen in Figure 1a, the PEDOT:PSS-ATO film exhibited a typical moisture response of PEDOT:PSS film. As the humidity increased, the resistance value reached the maximum value (about 20 min, 7.6 times of the initial value) at about 50~60% RH. And then with the increases in the humidity, the resistance of film continued to decrease until it fell to the same level as the initial value. The resistance response curve (Figure 1b) of the PEDOT:PSS-ATO/PEDOT composite film was similar to that of the PEDOT:PSS/PEDOT film [8]. The resistance of the PEDOT:PSS-ATO/PEDOT film increased rapidly from the initial value (about 53 Ω, the PEDOT:PSS/PEDOT film was about 48 Ω [8]) and decreased rapidly until it reached levels similar to its initial values after 20 min. The resistance response values (ΔR/R₀) calculated based on the peak value were 5.68 (10.5 ppm), 4.42 (4.0 ppm), 2.19 (1.9 ppm), 0.30 (1.0 ppm), respectively, and the time taken to reach the peak value was 14 min, 13 min, 9 min, and 10 min [9]. Compared with our previous report, the reaction of ATO with H₂O₂ consumed part of HPV while generating the H₂O, thus speeding up the entire process of HPV film detection. Under the coverage of the PEDOT layer, the H₂O generated from the reaction of ATO and H₂O₂ was locked in the PEDOT:PSS-ATO layer, which accelerated the detection process. All samples were tested in parallel three times and their average values were taken. The resistance response-HPV concentration data of the PEDOT:PSS-ATO/PEDOT composite film were fitted using the ExpAssoc function. The final fitting curve is shown in Figure 1b (inset), y = 5.75634 × (1 − e^{(−x/2.42891)}), R² = 0.85399.

Here, we evaluate the colorimetric sensing based on the ΔE value. ΔE is the comprehensive total color difference, which can be calculated using the formula:

ΔE = [(ΔL)² + (Δa)² + (Δb)²]^1/2

(1)

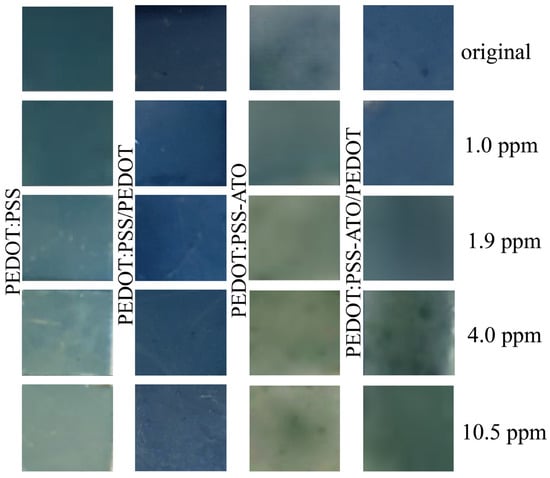

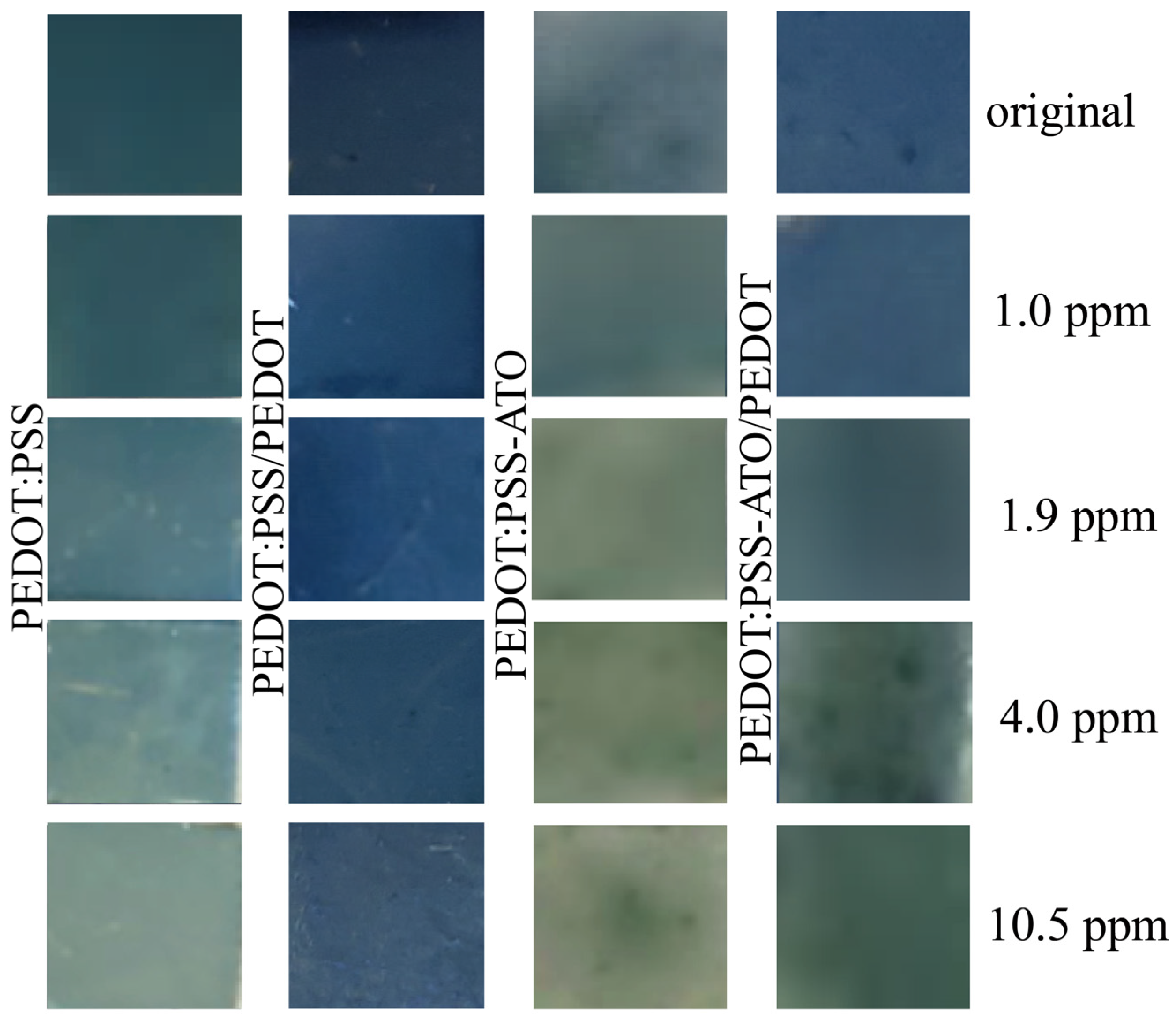

where ΔL, Δa, and Δb are the effects of PEDOT-based composite film on HPV. The colorimetric signal response to the color difference test results can be tested and recorded using a portable color difference meter [9]. According to the results shown in Figure 2, the ΔE value [9] of PEDOT:PSS film increased with the increase in HPV concentration, even at low concentrations (1.0 ppm), and subsequently, a slight color difference could be observed with the naked eye (ΔE = 2.11). However, when PEDOT was deposited on the PEDOT:PSS film, with the increase in the HPV concentration, the color change after the detection of HPV on the composite film was not obvious, and only when the original composite film was compared with the composite film that had detected HPV concentrations of 10.5 ppm could the naked eye slightly detect the color change (ΔE = 2.08). The PEDOT layer on the surface can not only slow down the immersion of moisture, but also hinders the entry of H₂O₂ components, which weakens the colorimetric response generated by the interaction between PEDOT:PSS layer and H₂O₂ components to a certain extent. The oxidative color-changing substance ATO, which responded characteristically to H₂O₂, was added to the PEDOT:PSS aqueous dispersion through mechanical blending, and PEDOT:PSS-ATO and PEDOT:PSS-ATO/PEDOT composite films were prepared. With the introduction of HPV and the increase in the concentration, the two composite films were observed to change from blue to yellow-green. Since ATO can react with H₂O₂ in a highly selective color change, compared with the monotonous blue shades of PEDOT:PSS and PEDOT, the detection of HPV by PEDOT:PSS-ATO and PEDOT:PSS-ATO/PEDOT composite films presents a richer and more obvious color change signal, so that the naked eye can more clearly identify the working condition of the sensor, and at a 1.0 ppm concentration of HPV, the ΔE value of PEDOT:PSS-ATO composite films reached 2.6. In the 4.0 ppm and 10.5 ppm concentration of HPV, the film color was obviously yellowish green. Compared with the colorimetric response of HPV detected by PEDOT:PSS/PEDOT composite film, the ΔE values of PEDOT:PSS-ATO/PEDOT composite films are higher. When the concentration of HPV is 1.0 ppm, the color change of the film can be slightly detected (ΔE = 1.57). Colorimetric response increased by nearly 128% at the same concentration, and the color change under the naked eye was more significant.

The paper-based colorimetric sensing system [5] was first described in 2011 by Prof. Zang Ling’s research group, which has made breakthrough contributions to HPV detection. This system can detect hydrogen peroxide vapor exceeding a few parts per billion, with a detection limit of 4.3 ppm. When titanium-based peroxide test paper [13] was exposed to peroxide vapor in the peroxide concentration range from 2.0 to 30.0 ppm, first-order behavior of color change with time was observed, and the detection limit was as low as 1.0 ppm. Comparing the linear range and limit of determination (LOD) with other sensors for hydrogen peroxide detection (

Table 1. Comparison of detection linear range and detection limit of sensors for hydrogen peroxide vapor detection.

Electrode Materials	Linear Range [ppm]	LOD [ppm]	References
PEDOT:PSS-ATO/PEDOT	1.0~10.5	1.0	This work
Paper-based ofibril materials	N/A	4.3	[5]
Titanium(IV)-based peroxide detection test strips	2.0~30.0	1.0	[13]

), it can be seen that the PEDOT:PSS-ATO/PEDOT film sensor has a lower detection limit and can achieve low-concentration target analysis object detection. Different from liquid phase detection, research on HPV detection is lacking. Our work not only studies the effect of applying PEDOT:PSS-based gas-sensing materials to HPV varistor sensing, but also enhances the effect of colorimetric signal detection. The future optimization of the PEDOT:PSS-based composite system using the dual-mode detection mechanism provides theoretical support.

4. Conclusions

In summary, ATO was added to the PEDOT:PSS aqueous dispersion to prepare PEDOT:PSS-ATO film and then EDOT was electrochemically polymerized at its surface, forming PEDOT:PSS-ATO/PEDOT composite film. It was successfully used for chemiresistive and colorimetric detection of HPV. Since ATO can react with H₂O₂ in a highly selective color change, compared with the monotonous blue shade change of PEDOT:PSS and PEDOT films, the detection of HPV by these films showed a much richer and more pronounced color change signal, allowing naked-eye identification. In particular, PEDOT:PSS-ATO/PEDOT film can detect HPV at a low concentration of 1.0 ppm via dual modes, which provides its application prospect for practical HPV monitoring under the safety threshold.
