Proceeding Paper

Flash Flood Forecasting Using Integrated Meteorological–Hydrological–Hydraulic Modeling: Application in a Mediterranean River †

by
George Varlas
1,*,
George Papaioannou
2,
Anastasios Papadopoulos
1,
Vassiliki Markogianni
1,
Leonidas Vardakas
1 and
Elias Dimitriou
1
1
Institute of Marine Biological Resources and Inland Waters (IMBRIW), Hellenic Centre for Marine Research (HCMR), 46.7 km Athens-Sounio, 19013 Anavissos, Greece
2
Department of Forestry and Management of the Environment and Natural Resources (FMENR), Democritus University of Thrace (DUTH), 68200 Orestiada, Greece
*
Author to whom correspondence should be addressed.
Presented at the 16th International Conference on Meteorology, Climatology and Atmospheric Physics—COMECAP 2023, Athens, Greece, 25–29 September 2023.
Environ. Sci. Proc. 2023, 26(1), 35; https://doi.org/10.3390/environsciproc2023026035
Published: 24 August 2023

Abstract

:
This study aims at assessing meteorological, hydrological, and hydraulic modeling to develop a flash flood forecasting tool. The flash flood that occurred in the Evrotas River Basin (ERB) on 26 January 2023 is used as a case study. Precipitation over 150 mm and water depths exceeding 2.5 m were recorded. The meteorological model initialized one day before flooding and simulated precipitation; the hydrological model, using meteorological input data, simulated discharge; and the hydraulic model, using discharge, estimated water depth at a bridge. The results indicate that the system can provide skillful and timely flash flood forecasts, thereby facilitating flood warnings.

1. Introduction

Flash floods cause human loss and infrastructure damage every year worldwide and are among the natural hazards that are strongly influenced by climate change [1]. Accurate forecasting of flash floods is a challenging task that poses the need for a holistic, multi-model approach. In this framework, the Institute of Marine Biological Resources and Inland Waters (IMBRIW) of the Hellenic Centre for Marine Research (HCMR) has been operating and frequently upgrading a high-resolution forecasting system consisting of a meteorological and a hydrological model since September 2015. The forecasts are available online from the website: https://meteo.hcmr.gr (accessed on 22 August 2023). To work towards the development of a more sophisticated forecasting tool tailored for river flash floods, this study aims at bridging numerical weather predictions with river routing and inundation modeling, combining all in an integrated system consisting of three different models: meteorological, hydrological, and hydraulic-hydrodynamic.
To assess the capabilities of the modeling system, the severe flash flood event that occurred in the Evrotas River Basin (ERB) on 26 January 2023 and caused damage to roads, cultivations, buildings, etc., is used as a case study. The flood caused severe damage mainly in agricultural areas as the vast majority of the ERB is covered by natural and agricultural areas, while urban areas account for 1%. Therefore, the flood had crucial socioeconomical implications. The collected non-conventional flood data (i.e., photographs, videos, and mass media reports) showed that the maximum water depth at the Skala’s bridge was approximately 6 m, almost equal to the bridge height. Hence, vehicles passing through the Skala’s bridge were prohibited because the water reached the bridge, increasing the risk of accidents.

2. Model Setup, Methodology, and Data

The flash flood modeling system consists of the Advanced Weather Research and Forecasting (WRF-ARW) v4.2 model [2], the WRF-Hydro v3.0 hydrological model [3], and the HEC-RAS hydraulic–hydrodynamic v6.3.1 model [4]. Several studies have demonstrated that the WRF-ARW and WRF-Hydro models are characterized by good forecasting skills regarding precipitation and discharge [5,6,7,8,9,10]. Moreover, the HEC-RAS model performs 2D flood inundation modeling and realistically simulates flood characteristics such as water depth and flood extent [6,7,8].
In this study, the meteorological model (WRF-ARW) was properly configured in forecasting mode (i.e., boundary conditions based on global model forecasts rather than analyses) to predict, approximately 1 day before the flood, the atmospheric conditions that triggered the persistent thunderstorm and heavy rainfall over the ERB. The model was set up on four nested domains covering the Mediterranean area with a horizontal resolution of 36 km, the eastern Mediterranean with 12 km, Greece with 4 km, and the ERB with 1 km. The simulation was initialized on 25 January at 12:00 UTC using the available Global Forecasting System (GFS) operational analysis of the National Centers for Environmental Prediction (NCEP) with a horizontal resolution of 0.25°. The boundary conditions were based on the GFS operational forecasts with a time step of 3 h, while the initial sea surface temperature (SST) field was based on the real-time global (RTG) SST (resolution 0.083°) for 24 January (1 day before initialization, similar to operational systems, e.g., [6]), also obtained from the NCEP.
Afterwards, the hydrological model (WRF-Hydro), using hourly input data provided by the meteorological simulation such as precipitation rate (find more information in [3]), simulated the flood discharge (i.e., flood hydrograph) in the streams of the ERB. With this aim in mind, WRF-hydro was configured on the ERB with a high horizontal resolution of 100 m. For the construction of the high-resolution terrain data required in routing grids (i.e., topography, flow direction, channel grid, and stream order), the void-filled Shuttle Radar Topographic Mission (SRTM) Digital Elevation Model (DEM; 90 m), based on data from the National Aeronautics and Space Administration (NASA) and distributed by the Hydrological Data and Maps Based on Shuttle Elevation Derivatives at Multiple Scales (HydroSHEDS) (Figure 1b) was used.
Finally, the hydraulic–hydrodynamic model (HEC-RAS) used the discharges provided by the hydrological simulation to estimate the water-level increase at the Skala’s bridge located at the lower part of the river. The water almost overran the Skala’s bridge and, thus, it was selected to be simulated and analyzed. A location slightly upstream of the Skala’s bridge was used as hydrograph input for the HEC-RAS simulation. For the HEC-RAS model setup, very fine river geometry data (unmanned-aerial-vehicle-derived DEM) were used to increase the topographical accuracy (Figure 1c). The remaining parameters were set up according to the user manual. The geometry of the Skala’s bridge was retrieved from the topographical survey for the eastern Peloponnese flood management risk plans. Hydraulic model calibration was accomplished by comparing simulated water depth with non-conventional water depth data (i.e., estimated observed water depth based on photographs and videos of the flood event). Τhe setups of the three models are similar to those presented in a previous publication [6].
In order to assess the results of simulations, various measurements during the flash flood were used. Daily precipitation values for 26 January ranging from 22.4 mm to 171.2 mm (Figure 2b) were recorded from meteorological stations of the IMBRIW-HCMR (https://hydro-stations.hcmr.gr/ (accessed on 21 February 2023)) and other public entities (i.e., National Observatory of Athens—NOA and Harokopio University of Athens—HUA). Moreover, hydrological stations of the IMBRIW-HCMR recorded river water depth exceeding 2.5 m in relatively wide sections of the river, indicating the large volume of the water during the flood.

3. Results

The flash flood event in the ERB that occurred on 26 January 2023 inundated several areas as derived from the calculation of the modified normalized difference water index (MNDWI [11]) (Figure 2a) based on the Sentinel-2A satellite image of 28 January 2023, approximately 48 h after the flood peak. The normalized difference water index (NDWI [12]) is widely used to separate water from the background based on a threshold value which is scene-specific according to the study area and the satellite image used. Additionally, MNDWI is enhanced and preferred in cases where built-up areas are correlated with open water in NDWI [11]. The inundation was caused by the main Evrotas river, especially at the downstream parts, as well as by several small independent streams (not shown) that connect the surrounding hills with the lowlands and which caused increased surface runoff without ending up in the sea.
The WRF-ARW model simulated the storm event and the precipitation pattern over the ERB that caused the flash flood realistically. Despite some small spatial and quantitative forecast misses, the daily precipitation forecast for 26 January agreed with the measurements (Figure 2b). Figure 2c–h demonstrate the spatial distribution of precipitation and the increase in discharge in Evrotas streams from 07:00 to 12:00 (local time; LT) of 26 January. The storm slowly moved from the southwestern to the northeastern parts of the ERB from 07:00 to 10:00 LT (Figure 2c–f). A peak of 1-h accumulated precipitation slightly exceeding 50 mm was estimated at 09:00 at the northeastern parts of the ERB (Figure 2e). It is important to note that the meteorological simulation produced precipitation before 07:00 LT and after 12:00 LT over the ERB, but only the critical phase of the storm causing the flash flood is presented here. Regarding the hydrological response, the WRF-Hydro model captured the flood features well, estimating maximum discharges ranging from 775 m3 s−1 to 769 m3 s−1 and from 10:00 to 12:00 LT, respectively (Figure 2f–h).
The HEC-RAS model simulated the maximum water depth at the Skala’s bridge (Figure 3a). The simulated maximum water depth was estimated at about 6 m, which is very close to the observed one, according to the collected non-conventional flood data. Finally, similar results are observed in Figure 3b, where the water depth time series slightly upstream of the validation location (bridge) near the Skala town are presented.

4. Discussion and Conclusions

The findings of this study indicate that the integrated, three-model, flash flood forecasting system can provide skillful forecasts. The simulation results were evaluated using precipitation measurements and estimated observed water depth based on photographs and videos of the flood event, presenting very good agreement between the two. Thus, this study highlights the benefits of the combined use of numerical weather prediction and river modeling to forecast flash flood events in an accurate and timely manner. This multi-model methodological approach should be applied in more case studies, also including larger river basins, to better set up the modeling system. It is noteworthy that the network of hydrological stations of IMBRIW-HCMR is continuously being expanded to include measurements and estimates of discharge. These data will be soon available for model calibration and validation of simulation results.
In conclusion, the proposed modeling framework can be applied as a flood warning tool for emergency responses. The modeling system can facilitate not only operational forecasting activities but also research efforts in an interdisciplinary context of flood simulation studies. The physically based modeling approach is able to increase the forecast lead time of storms and flash floods and, therefore, it could be exploited towards a more complete management and mitigation design for floods.

Author Contributions

Conceptualization, G.V., G.P., A.P. and E.D.; methodology, G.V., G.P., A.P. and E.D.; software, G.V., G.P., V.M. and A.P.; validation, G.V., G.P., A.P., V.M., L.V. and E.D.; formal analysis, G.V., G.P. and V.M.; investigation, G.V., G.P., A.P., V.M., L.V. and E.D.; resources, G.V., G.P., V.M., A.P. and E.D.; data curation, G.V., G.P., A.P., V.M. and E.D.; writing—original draft preparation, G.V., G.P. and V.M.; writing—review and editing, G.V., G.P., A.P., V.M., L.V. and E.D.; visualization, G.V., G.P. and V.M.; supervision, A.P. and E.D.; project administration, G.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This work has been supported by computational time granted by the Greek Research and Technology Network (GRNET) in the National High-Performance Computer (HPC) facility ARIS (https://hpc.grnet.gr/ (accessed on 22 August 2023)), under project pr013011_thin/CLIMED. NCEP is acknowledged for the provision of the GFS operational data and the RTG SST analysis. NASA and HydroSHEDS are acknowledged for the provision of SRTM DEM data. We also thank the National Observatory of Athens and the Harokopio University of Athens for the provision of meteorological measurements (https://meteosearch.meteo.gr/ and http://meteoclima.hua.gr/, respectively, accessed on 21 February 2023).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Blöschl, G.; Hall, J.; Viglione, A.; Perdigão, R.A.P.; Parajka, J.; Merz, B.; Lun, D.; Arheimer, B.; Aronica, G.T.; Bilibashi, A.; et al. Changing Climate Both Increases and Decreases European River Floods. Nature 2019, 573, 108–111. [Google Scholar] [CrossRef] [PubMed]
  2. Skamarock, W.C.; Klemp, J.B.; Dudhia, J.; Gill, D.O.; Zhiquan, L.; Berner, J.; Wang, W.; Powers, J.G.; Duda, M.G.; Barker, D.M.; et al. A Description of the Advanced Research WRF Model Version 4.1 (No. NCAR/TN-556+STR); National Center for Atmospheric Research (NCAR): Boulder, CO, USA, 2019; p. 145. [Google Scholar] [CrossRef]
  3. Gochis, D.; Yu, W.; Yates, D. The WRF-Hydro Model Technical Description and User’s Guide, Version 3.0; NCAR Technical Document; NCAR: Boulder, CO, USA, 2015; Available online: https://ral.ucar.edu/sites/default/files/public/images/project/WRF_Hydro_User_Guide_v3.0.pdf (accessed on 22 August 2023).
  4. Brunner, G. HEC-RAS River Analysis System: HEC-RAS 2D User’s Manual, Version 6.3; US Army Corps of Engineers–Hydrologic Engineering Center: Davis, CA, USA, 2022. [Google Scholar]
  5. Varlas, G.; Anagnostou, M.N.; Spyrou, C.; Papadopoulos, A.; Kalogiros, J.; Mentzafou, A.; Michaelides, S.; Baltas, E.; Karymbalis, E.; Katsafados, P. A Multi-Platform Hydrometeorological Analysis of the Flash Flood Event of 15 November 2017 in Attica, Greece. Remote Sens. 2019, 11, 45. [Google Scholar] [CrossRef]
  6. Varlas, G.; Papadopoulos, A.; Papaioannou, G.; Dimitriou, E. Evaluating the Forecast Skill of a Hydrometeorological Modelling System in Greece. Atmosphere 2021, 12, 902. [Google Scholar] [CrossRef]
  7. Papaioannou, G.; Varlas, G.; Terti, G.; Papadopoulos, A.; Loukas, A.; Panagopoulos, Y.; Dimitriou, E. Flood Inundation Mapping at Ungauged Basins Using Coupled Hydrometeorological-Hydraulic Modelling: The Catastrophic Case of the 2006 Flash Flood in Volos City, Greece. Water 2019, 11, 2328. [Google Scholar] [CrossRef]
  8. Papaioannou, G.; Varlas, G.; Papadopoulos, A.; Loukas, A.; Katsafados, P.; Dimitriou, E. Investigating Sea-state Effects on Flash Flood Hydrograph and Inundation Forecasting. Hydrol. Process. 2021, 35, e14151. [Google Scholar] [CrossRef]
  9. Spyrou, C.; Varlas, G.; Pappa, A.; Mentzafou, A.; Katsafados, P.; Papadopoulos, A.; Anagnostou, M.N.; Kalogiros, J. Implementation of a Nowcasting Hydrometeorological System for Studying Flash Flood Events: The Case of Mandra, Greece. Remote Sens. 2020, 12, 2784. [Google Scholar] [CrossRef]
  10. Kaffas, K.; Papaioannou, G.; Varlas, G.; Al Sayah, M.J.; Papadopoulos, A.; Dimitriou, E.; Katsafados, P.; Righetti, M. Forecasting Soil Erosion and Sediment Yields during Flash Floods: The Disastrous Case of Mandra, Greece, 2017. Earth Surf. Process Landf. 2022, 47, 1744–1760. [Google Scholar] [CrossRef]
  11. Xu, H. Modification of Normalised Difference Water Index (NDWI) to Enhance Open Water Features in Remotely Sensed Imagery. Int. J. Remote Sens. 2007, 27, 3025–3033. [Google Scholar] [CrossRef]
  12. McFeeters, S.K. The Use of the Normalized Difference Water Index (NDWI) in the Delineation of Open Water Features. Int. J. Remote Sens. 2007, 17, 1425–1432. [Google Scholar] [CrossRef]

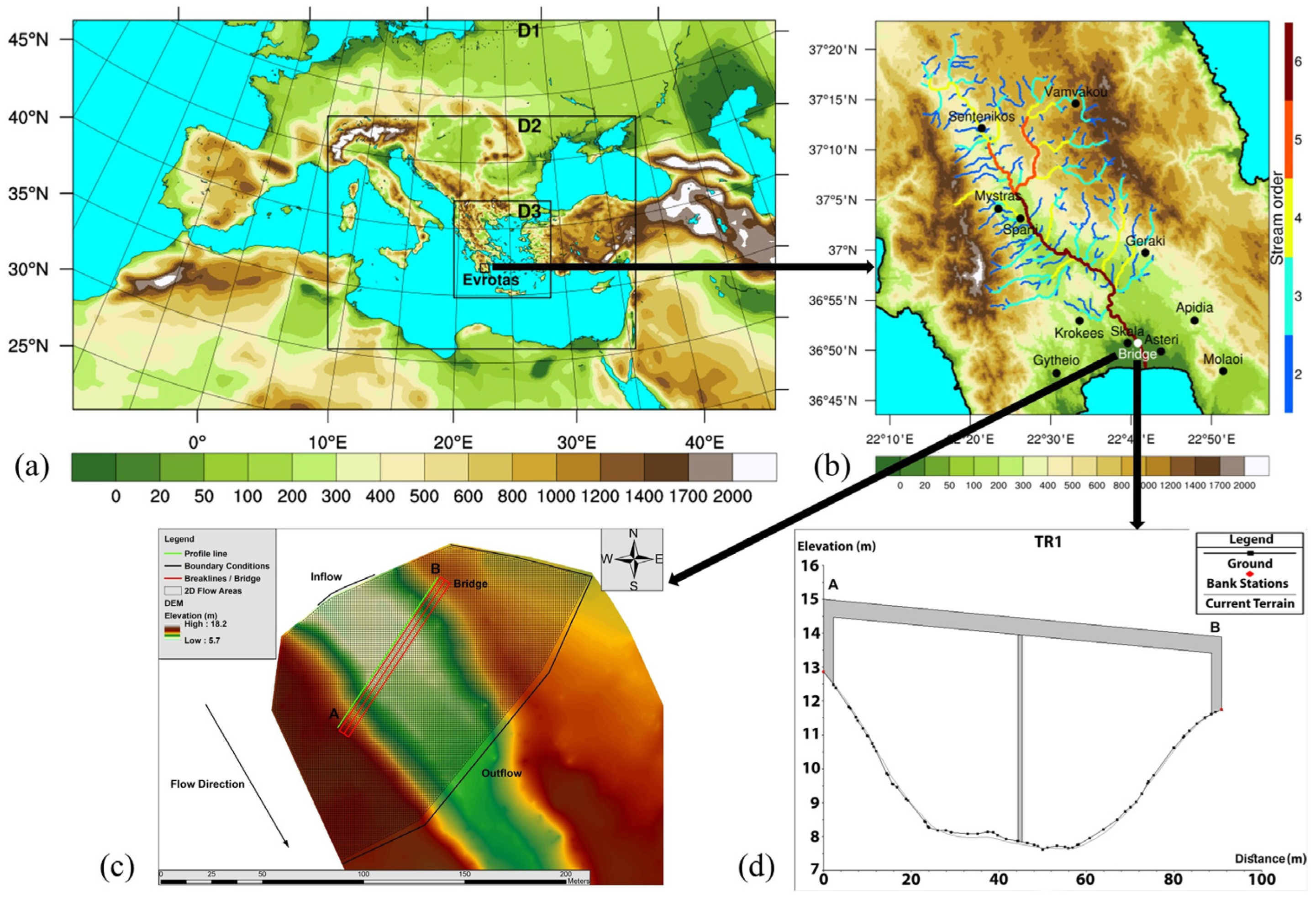

Figure 1. (a) WRF-ARW-nested domains and topography (m) used in the meteorological simulation; (b) WRF-Hydro domain and topography (m) and Strahler stream order discretization used in the hydrological simulation; (c) HEC-RAS domain and topography (m); (d) representation of Skala’s bridge.
Figure 1. (a) WRF-ARW-nested domains and topography (m) used in the meteorological simulation; (b) WRF-Hydro domain and topography (m) and Strahler stream order discretization used in the hydrological simulation; (c) HEC-RAS domain and topography (m); (d) representation of Skala’s bridge.
Environsciproc 26 00035 g001

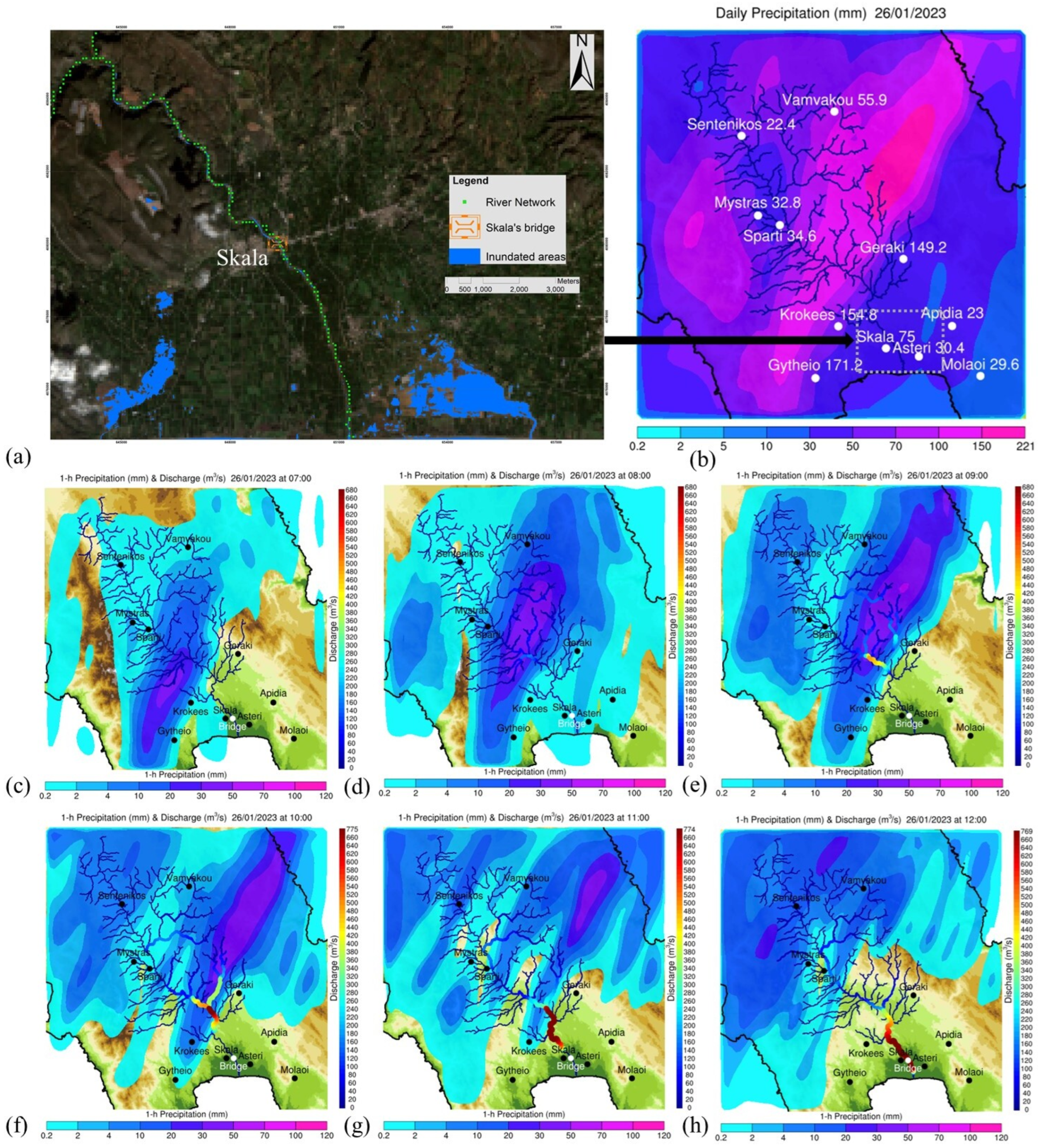

Figure 2. (a) Modified NDWI illustrating inundated areas based on Sentinel-2A image of 28 January 2023, approximately 48 h after the flood peak; (b) Spatial distribution of the daily precipitation (mm) obtained from the meteorological forecast of 26 January 2023. The map also demonstrates the precipitation measurements from meteorological stations of the IMBRIW-HCMR, NOA, and HUA; (ch) Spatial distribution of 1-h precipitation (mm) from the meteorological forecast and discharge (m3 s−1) from the hydrological forecast for 26 January from 07:00 to 12:00 LT, respectively.
Figure 2. (a) Modified NDWI illustrating inundated areas based on Sentinel-2A image of 28 January 2023, approximately 48 h after the flood peak; (b) Spatial distribution of the daily precipitation (mm) obtained from the meteorological forecast of 26 January 2023. The map also demonstrates the precipitation measurements from meteorological stations of the IMBRIW-HCMR, NOA, and HUA; (ch) Spatial distribution of 1-h precipitation (mm) from the meteorological forecast and discharge (m3 s−1) from the hydrological forecast for 26 January from 07:00 to 12:00 LT, respectively.
Environsciproc 26 00035 g002

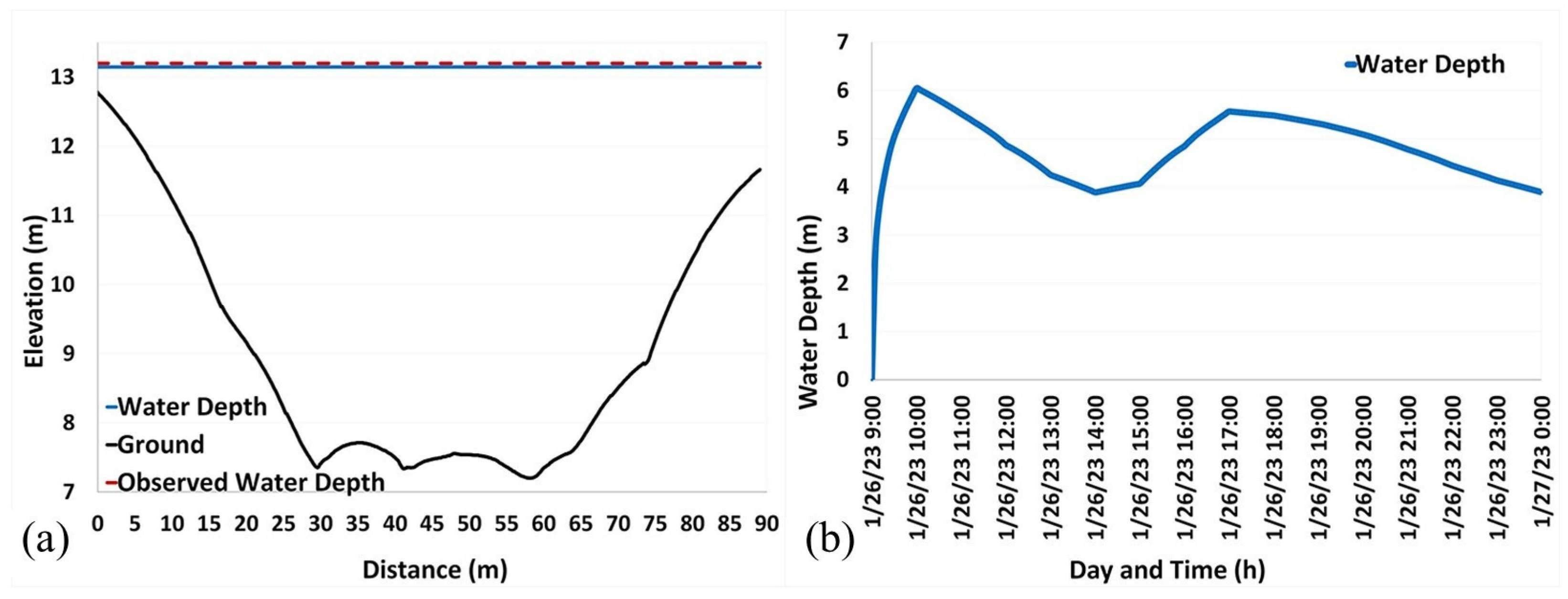

Figure 3. (a) Simulated and observed maximum water depth at the Skala’s bridge; (b) Simulated water depth time series at a location slightly upstream of the Skala’s bridge used as input in the HEC-RAS simulation.
Figure 3. (a) Simulated and observed maximum water depth at the Skala’s bridge; (b) Simulated water depth time series at a location slightly upstream of the Skala’s bridge used as input in the HEC-RAS simulation.
Environsciproc 26 00035 g003
