Structural Quasi-Isomerism in Au/Ag Nanoclusters

by
Yifei Zhang
1,2,†,
Kehinde Busari
3,†,
Changhai Cao
2,* and
Gao Li
3,*
1
Institute of Catalysis for Energy and Environment, College of Chemistry and Chemical Engineering, Shenyang Normal University, Shenyang 110034, China
2
Key Laboratory of Biofuels and Biochemical Engineering, SINOPEC Dalian Research Institute of Petroleum and Petro-Chemicals, Dalian 116045, China
3
State Key Laboratory of Catalysis, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Photochem 2022, 2(4), 932-946; https://doi.org/10.3390/photochem2040060
Submission received: 31 October 2022 / Revised: 24 November 2022 / Accepted: 28 November 2022 / Published: 5 December 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Atomically precise metal nanoclusters are a new kind of nanomaterials that appeared in recent years; a pair of isomer nanoclusters have the same metal types, numbers of metal atoms, and surface-protected organic ligands but different metal atom arrangements. This article summarizes the structure features of isomer nanoclusters and concentrates on synthesis methods that could lead to isomer structure. The pairs of isomer inorganic nanoclusters’ conversion to each other and their applications in catalyst and photoluminescence are also discussed. We found that the structure conversions are relevant to their stability. However, with the same molecule formulas, different atom arrangements significantly influence their performance in applications. Finally, the existing challenges and some personal perspectives for this novel field in the nano-science investigation are proposed. We hope this minireview can offer a reference for researchers interested in inorganic isomer nanoclusters.

1. Introduction

In chemistry, isomers mean molecules with identical formulas but various structures. The investigation of chemical compounds with isometry can be traced back to 1827 [1]. The structural differences usually cause disparate physical and chemical properties. Because of the diversity of branches of carbon chains and chirality, the structure isomerism and quasi-isomerism are universal phenomena in organic chemistry. Atomically precise metal clusters, usually smaller than 2 nm, have attracted more interest in the last decade [2,3,4]; by now, various kinds of metal clusters have been successfully synthesized, such as Au [5,6,7,8,9,10,11,12,13,14,15,16], Ag [17,18,19,20,21], Pt [21,22], Pd [23,24,25], Cu [26], and mixed metal clusters [27,28,29,30,31,32,33,34]. The crystal structure of metal nanoclusters can be measured using the technology of single-crystal X-ray diffraction. However, there were limited reports concerning the structure isomerism and quasi-isomerism of nanoparticles and nanoclusters due to two main reasons. Firstly, the preparation of nanoclusters at the atomic level is so complex that the prepared nanoparticles are usually polydispersed. Secondly, the different protect organic ligands could cause the difference in formulas, so even though two kinds of nanoclusters could be with the same metal atoms and numbers, they do not have an identical formula and can not be regarded as a couple of exact isomers. Research on isomers has lasted for nearly two hundred years; the reports of structural isomerism and quasi-isomerism in metal nanoclusters only appeared in the last few years [35].
Nanometal catalyst is a significant heterogeneous catalyst. In this regard, metal nanoclusters have many advantages compared to traditional metal nanoparticles because they have more activity sites (caused by the smaller size) and more selectivity (caused by the unique structure) [3]. More importantly, because of specific atomic arrangements, metal nanoclusters could become a powerful tool for investigating catalytic reaction mechanisms. The emergence of isomers of metal nanoclusters intensifies the application for their use in the study of the catalytic reaction mechanism. Nanoclusters with different formulas usually introduce size effect and ligands effect when they are used in catalytic reactions, and isomeric structures could almost eliminate the influence of both size and ligands effects and only concentrate on structure effect in catalytic reaction progress.
Photoluminescence is another essential application for metal nanoclusters which has attracted interest in both fundamental scientific research and practical applications [36]. Because many factors could impact metal nanocluster photoluminescence, such as nanoclusters aggregation, different ligands, and Au/SR atomic ratio, to find the true influence of the metal core structure, it is crucial to keep these characteristics consistent. In the field of theoretical investigation, it is still a big challenge to reveal the influence of kernel atom structure on metal nanocluster photoluminescence.
Au38(PET)24 (PET, phenylethanethiolate) was the initially reported isomer structure in the field of clusters [8], followed by Au23(C≡CBut)15, [Au25(p-MBA)18]−, et al., which have been reported in recent years [37,38]. Besides Au clusters, structural quasi-isomerism of Ag nanoclusters also has been successfully synthesized [39]. In the first section of this literature review, we will focus on the preparation of metal nanoclusters with structure isomers. The mutual transformation between organic isomer structures could happen under certain reaction conditions, and this kind of isomerization reaction could be found in the metal nanoclusters. Usually, an unstable structure could transform into a more stable one irreversibly. We will introduce it in detail in the second part of this paper.
Recently, metal nanoclusters have been widely used in various applications, such as catalysis, sensing, and photoluminescence [3]. Conventional investigation with metal nanoclusters’ catalysts usually focuses on the effect of cluster size and different ligands. The appearance of metal nanoclusters with quasi-isomerism could offer an opportunity to achieve an atomic-level understanding of the relationship between metal atom arrangement and character accurately by excluding the influence of different ligands and metal atom numbers. The investigation of metal nanoclusters with isomer structures used for catalytic reactions and photoluminescence is summarized in this article.
To enrich the series of metal nanoclusters, more work must be conducted with isomer structures and extend their applications in catalytic reactions. Primarily, many common metal nanoclusters do not have corresponding isomer structures, such as Au11, Au36 et al. In addition, metal nanoclusters with isomer structures have been used in catalytic reactions but are so limited that more valuable reactions still need to be involved with isomer nanoclusters (biomass conversion, CO2RR et al.). Investigation of the influence of catalytic activity on isomer structures is a significant challenge. Therefore, DFT simulations will be used [1,3] to reveal the relationship between catalytic activity and the structure of metal nanoclusters. In situ characterization is a powerful tool used for revealing catalytic reaction mechanisms but was rarely reported in this reaction system. Hence, there is still much work that needs to be done with the aim of further understanding the reaction principle catalyzed by metal nanoclusters that have isomer structures. In the last part of this article, we will provide the research emphasis on structural quasi-isomerism in metal nanoclusters in the near future. Above all, this review aims to summarize the appearance and development of structural quasi-isomerism in metal clusters and their applications in catalytic reactions and photoluminescence while revealing the crucial issue in this field, giving the researchers who are interested in the relevant area fundamental material.

2. Synthesis of Quasi-Isomerism of Metal Nanoclusters and the Structures

Because of stable structures and smaller sizes, metal nanoclusters have been investigated in detail for many years. However, isomer structures of metal nanoclusters with single metal only appeared in the last few years. Nanocluster structural isomers are clusters with the same atom composition but different configurations. Double-metal nanoclusters could achieve isomer structure by simply changing the replacement location of the minority metal atoms. Compared with that, the preparation of single-metal nanoclusters with isomer structures is more complicated because it requires a real difference for atomic arrangement.
Synthesis of Au38 nanocluster was realized as early as 1993 [40]. From then on, many efforts have been carried out (such as modifying the synthesis method and introducing distinct organic ligands) to improve the yield and reveal its crystal structure. The first reported isomer nanocluster called Au38T was a new structure in the Au38 family [35], and the corresponding old isomer structure was named Au38Q. The core of Au38T and Au38Q constituted twenty-three Au atoms but differed in configurations. In Au38Q, the core structure contains a pair of enantiomeric clusters. Each cluster has thirteen Au atoms and makes up one icosahedron. Every face of this icosahedron consists of three Au atoms, and two clusters form a rod shape by three Au atoms used in common. In Au38T, the Au23 core consists of one icosahedral Au13 and one Au10 structure unit by sharing two Au atoms; the Au13 cluster is like a cap covered on the Au10 cluster. Besides the core structure, the rest of the fifteen Au atoms covered the Au23 core also in different manners; each Au atom face-capped onto the Au3 faces of the Au23 core for Au38Q, and some faces are not capped because there were not enough Au atoms. For Au38T, the Au23 core was protected by six Au2(SR)3 and three Au (SR)2 structure units, which can be seen in Figure 1. The Au38T has a more symmetrical structure than Au38Q.
The Au38T was prepared by a simple one-pot method [35]. Briefly, HAuCl4, TOAB, and phenylethanethiol were dissolved in CH2Cl2 and then reduced by excessive NaBH4. The synthesis of Au38Q is more complicated. Firstly, Aun(SG)m was prepared by the reduction method. Subsequently, Au38Q nanoclusters were obtained by reacting with Aun(SG)m excess PhC2H4SH at 80 °C. This method is commonly called etching. Considering putting various kinds of Au nanoclusters into a certain hash environment, only one type of stable structure will be left to transform into only one stable structure, and others will undergo the progress of crushing and recombination. Thus, the Au38Q nanoclusters were synthesized under a more rigorous situation than their isomer structure. For this reason, the structure of Au38Q is much more stable than Au38T, as further proved by the experiment.
Au23(C≡CBu)15 (denoted as Au23-1 and Au23-2) was the first reported Au nanocluster with isomer structures protected by alkynyl ligands [37]. Au23-1 and Au23-2 have four structure units: one Au15 core, three V-shaped alkynyl-Au motifs, two linear “Bu-C≡C-Au-C≡C-Bu” motifs, and two bridge -C≡C-Bu ligands, and except for the Au15 core, other units have precisely uniform structures. In different Au15 cores, they have the same Au11 units which were constituted by three octahedral Au6 units through sharing five Au atoms. Three of the other four Au atoms have the same bonding environment in two Au15 cores, but the fourth Au atom is not at the same position. The core of Au23-1 has C2 symmetry, which passes through the Au2 atom and the center of the Au3-Au4 bond. The core of Au23-2 also has C2 symmetry, which passes through the Au5 atom and the middle of the Au6-Au7 bond (Figure 2a). In Au23-1, alkynyl bridge capping on the triangle face 1 (Au3) and linear staple binding over triangle face 2. In Au23-2, the positions of both the alkynyl bridge and linear staple changed compared with Au23-1 because of the different structures for the Au15 core (Figure 2b). Unlike Au38T and Au38Q, which have different atom arrangement, the pair of Au23-1 and Au23-2 is much more similar.
The synthesis of Au23 clusters was using Me2SAuCl as Au precursor mixing with HC≡CBut and reduced by NaBH4; in order to obtain Au23-2, a certain amount of Ph4P·Cl must be added after NaBH4, so in this reaction system, Ph4PCl was used as the inductive agent, which leads the formation of Au23-1 to transform into Au23-2. During the preparation process, the color change of the solution was the same for both isomer structures, similarly experiencing the transition from colorless to yellow and finally to dark brown. Because the formation of Au23-2 needs an extra inducer, Au23-1 is a more stable structure in the pair of isomers Au23.
The isomer structures of face-centered-cubic (fcc) vs. non-fcc, and non-fcc-structure Au42(TBBT)26 nanocluster (abbreviated Au42N) is the structural isomer of the earlier reported fcc structure Au42(TBBT)26 (abbreviated Au42F) [41]. Although Au42F and Au42N have different atom arrangements, they both have regular symmetrical structures. As can be seen from Figure 3, there are thirty-four Au atoms in the core of Au42F, and with the form of four cuboctahedras, two Au2(TBBT)3 dimers covered the top and bottom of the core, and four Au(TBBT)2 monomers at the middle part. Au42N has a non-fcc core structure formed by twenty-six Au atoms. The core can be further split into three parts: the top and bottom parts have nine Au atoms, and the middle part has eight Au atoms forming a concave quadrilateral interface. The core of Au42N is capped by four Au3(TBBT)4, four Au(TBBT)2, and two TBBT units.
Synthesis of non-fcc-structure and fcc-structure Au42(TBBT)26 both occurred with the method of traditional NaBH4 reduction, but the amount of each reagent was not the same. For example, the molar ratio of TBBT to Au was 7.71 for the synthesis of non-fcc-structure; the ratio changed to 6.1 in preparation of the fcc-structure. The most important distinction was the addition of cadmium cation in the synthesis of non-fcc-structure. Thus, without Cd, the non-fcc-structure of Au42(TBBT)26 could not be obtained. Researchers considered that Cd might influence the kinetics and thermodynamics in forming Au42 nanoclusters, maybe creating some unstable Au/Cd intermediates or influencing the etching rate of thiol ligand, so the detailed mechanisms still need to be further investigated subsequently.
To synthesize various metal nanoclusters with isomer structures, theoretical studies have been used to predict the structures of a series of Au clusters. Xu et al. viewed Au4 tetrahedron as a unit structure in building the Au8n+4(SR)4n+8 type nanoclusters, and the growth of Au kernels in thiolate-protected Au nanoclusters could be considered as the sequent addition of a basic unit. Then, the structure of Au36(DMBT)24-1D and Au36(DMBT)24-2D were predicted by a grand unified model and density functional theory calculation before being successfully synthesized [42]. Analyzed by single-crystal X-ray crystallography, both Au36(DMBT)24-1D and Au36(DMBT)24-2D can be viewed as a core with twenty Au atoms covered by eight other external staple motifs. In Au36(DMBT)24-2D, two groups of Au4 units arranged in a staggered mode in the core, and the surface staple motifs can be divided into three categories: two monomeric Au1(SR)2, two trimeric Au3(SR)4, and four dimeric Au2(SR)3. In contrast to Au36(DMBT)24-2D, the helical Au4 tetrahedron unit in Au36(DMBT)24-1D had the one-dimensional growth.
Different from Au38, Au23, and Au42, which are pairs of isomer structures that were synthesized respectively, Au36(DMBT)24-1D and Au36(DMBT)24-2D nanoclusters were synchronously synthesized with a two-step method. Firstly, the precursor was obtained by mixing HAuCl4 with organic ligands and reduced by NaBH4. Subsequently, the Au precursor was further etched by DMBT for 48 h at room temperature. Then, two isomer structures were obtained by thin-layer chromatography separation and crystallized in organic solution, respectively. In this pair of isomer Au36 nanoclusters, Au36(DMBT)24-1D is the more stable one.
Au28(CHT)20 structural isomers (Au28i and Au28ii for short) were prepared by a new quasi-antigalvanic method [43]. Similar to Au36, the synthesis of Au28 isomers was also conducted with a synchronous method. Au23(SC6H11)16 was firstly synthesized as the precursor. Then, 1.7 equivalents of AuCHT (CHT: cyclohexanethiol) complex were mixed with an Au23 precursor and dissolved in CH2Cl2. After stirring for 24 h at room temperature and separated by column chromatography on silica gel, Au28i and Au28ii were obtained. The structure of Au28ii is similar to that earlier reported: a four-tetrahedral Au14 core is protected by four Au3(SR)4 trimers and two Au(SR)2 dimers. Au28i has the same Au14 core structure as Au28i but is covered by two Au3(SR)4 trimers and four Au2(SR)3 dimers. The structure of Au28i was not directly obtained from crystals of genuine Au28i because it cannot be formed under different conditions. After changing the protect ligand from CHT to CPT, single crystals of CPT-protected Au28i were obtained and analyzed by SCXD. UV-vis-NIR spectrometry confirmed that the Au28i structure was not varied before and after ligand exchange.
Au25(SR)18 is a common structure in the family of Au nanoclusters and has been widely used in various kinds of catalytic reactions [6,44], but the strict isomer structures with Au25(SR)18 were reported only recently [38]. As described in Figure 4, the traditional structure of Au25(SR)18 (Au25R, Figure 4a) changed into a new isomer structure (Au25G, Figure 4b) by collective rotation of the icosahedral Au13 core (Figure 4b) [45]. It is worth noting that the novel structure of Au25(SR)18 was firstly predicted by molecular dynamics simulations and further confirmed by DFT. The synthesis of Au25(SR)18 could be simply described as a NaBH4 reduction method, and the foundation of isomer structure was caused by the characterization of electrospray ionization ion mobility mass spectrometry. The peak observed at 74.1 ms could be ascribed to Au25(SR)18, which was predicted by the calculations earlier.
The chiral isomer phenomenon can be widely found in the field of organic chemistry; however, inorganic compounds with chiral isomer structures were rarely reported. Mark et al. proved that introducing the chiral organic ligands in the synthesis of Ag clusters could produce the chiral effect in Ag atom arrangement [46]. The chiral ligands L/D and PL/PD lead to the formation of two pairs of enantiomeric silver clusters, Ag6L6/D6 and Ag6PL6/PD6 (Figure 5). Every cluster exhibits a distorted silver octahedron with six faces capped by chiral ligands that alternate in their orientation. Each Ag atom is coordinated with two sulfur atoms and one nitrogen atom from three ligands: every ligand ligates three silver atoms. In further investigation, the R/S-NYA ligands were also used in the synthesis of Ag nanoclusters with chiral isomer structures [47]. R/S-Ag17 was prepared by a reduction reaction with triethylamine serving as a reducing agent. Single-crystal structural analysis revealed that R/S-Ag17 is composed of an Ag17 core and 12 R/S-NYA ligands. The Ag17 core can be considered as three layers with a 7-3-7 arrangement. Six edge-sharing silver triangles are located on the top and bottom. Three silver atoms form a triangle in the middle of the core structure. The method for synthesis of all Ag clusters could be simply described as dissolving silver nitrate and ligands in organic solvent and crystallization in the dark. Thus, the formation of chiral isomer Ag nanoclusters must be caused by various chiral ligands.
In conclusion, various strict isomer structures of metal nanoclusters with single metal have been successfully synthesized by now. Among all obtained isomer clusters, the structure of Au28ii(CHT)20 could not be directly observed; it could only be proved indirectly, and the isomer phenomenon of Au25(SR)18 is detected by electrospray ionization ion mobility mass spectrometry. Every other cluster has a crystal structure. As can be seen from the results of single-crystal structural analysis, some pairs have a similar structure. Some other pairs are totally different.
Interestingly, both pairs of isomer Ag nanoclusters currently have the structure of a chiral isomer, but this kind of phenomenon could not be found in the system of isomer Au nanoclusters. The synthesis could proceed synchronously for different pairs of isomer metal nanoclusters, respectively. When the synchronous method was used, a pair of isomer structures must be separated by a chromatographic method. No matter what method was used, the obtained two isomer structures usually have different stability for Au nanoclusters. The respective synthesis method must be used for chiral isomer Ag nanoclusters because of the demand for different chiral ligands. However, distinct chirality influencing Ag nanoclusters’ stability is yet to be reported.

3. Reversion of the Isomerism Structure

Isomerization reaction is a kind of common organic reaction that is usually induced by solid catalysts. The discovery of isomerization reaction in the field of single-metal nanoclusters such as the isomer structures was successfully synthesized [35]. Au38T and Au38Q constituted the first reported Au nanoclusters with isomer structures. The reversion between these two structures also has been investigated in detail. At a temperature of −10 °C when dissolved in toluene, Au38T remained unchanged for one month. The absorption spectrum proved that, when the storage temperature was elevated to 50 °C, Au38T could transform into Au38Q. Although many methods have been tried, the retrorse transformation could not happen, so we concluded that the structure of Au38Q is more stable due to synthesis with a rigorous etching method. Similar to this conversion process, the unstable Au36(DMBT)24-2D is irreversibly converted to a more stable Au36(DMBT)24-1D, which also needs a relatively high temperature of 60 °C. As a result, the reaction speed is much faster than Au38 isomers (only need 2 h) [42].
Compared to Au38 and Au36 isomers, which need to raise the temperature for isomerization reactions, the conversion of Au23-2 to Au23-1 (a pair of isomer structures with a molecular formula of Au23(C≡CBut)15) could happen spontaneously at room temperature [37]. In the first 2 h, no change was detected by the UV-vis absorption spectrum for Au23-2. This led to the reduction in absorption peaks of 500–600 nm to 400 nm. The absorption between 400 and 500 nm was enhanced gradually. After 7 h, the spectrum showed two distinct peaks at 412 and 598 nm, which proved the successful conversion into Au23-1; the structure of Au23-1 was further confirmed by MALDI-TOF-MS, and no other kinds of nanoclusters were detected. As discussed, the synthesis of Au23-2 needs Ph4P·Cl as the inductive agent, which finally changes Au23-2 into Au23-1, forming a more stable structure and proving this inductive effect to be unsustainable.
Because of the character of the oscillator, a pair of Au28(CHT)20 structural isomers (Au28i and Au28ii) could repeatedly and reversibly transform into each other [43]. The conversion reaction of Au28i and Au28ii could be tuned by the solvent. Crystals of Au28ii dissolved in CH2Cl2 show the same absorption as Au28i even after several days. When a solubility-poor solvent (acetonitrile or methanol) is added, the formed crystals show the same absorption as Au28ii, and this pathway transformation can be repeated at least 10 times. Therefore, the Au28i and Au28ii are two isomers that have been reported initially. The stability property for Au28(CHT)20 isomers is exceptional, Au28i is more stable in solution, but Au28ii prefers to exist in a crystal state.
The phenomenon of isomer structure reversibly transforming into each other also could be found in the pair of isomers Au25R and Au25G [48]. When CTA+ ions were introduced to the Au25R solution, the interactions between CTA+ ions and nanoclusters’ surface changed the surface charge of nanoclusters. Zeta potential was used to monitor the state of intermolecular interactions, and the initial zeta potential was −45 mV, which means, under alkaline conditions, the surface of the negatively charged nanoclusters was caused by deprotonated carboxylic groups. After the addition of CTAB, zeta potential changed to +43 mV, indicating that the adsorbed CTA+ ions are a double-layer structure. The first layer was used to balance the negative surface charge and further transferred to the positive charge by the absorption of the second layer. The color of the solution gradually changed from reddish brown to dark green by two weeks after the addition of CTA+ ions, which indicated a synthesized novel species. ESI-MS revealed that these metal clusters have the same molecular formula as Au25(p-MBA)18. When Au25G was dissolved in methanol, decoupling of CTA+ ions would happen, which could be seen from the zeta potential, which changed from positive to negative. Then, the color of the solution shifted back to reddish brown after 4 h at room temperature, changing the structure back to Au25R, which could be further proved by its absorption characteristics. Hence, the stability of Au25G needs persistent induction by surface-covered CTA+ ions.
Au25 isomerization reaction caused by CTA+ ions will stretch the inner metallic core of Au nanoclusters and induce the isomerization process [49]. Other isomerization reactions with Au nanoclusters are all correlated with the stability of nanoclusters. Commonly, unstable structures transform into related stable structures irreversibly. Among them, Au28 pairs are special because the isomerization reaction with Au28i and Au28ii was realized by different stability in different phases. In all of the reported Au isomer structures, only the pair of Au42(TBBT)26 nanoclusters is not found with the isomerization reaction, which may be caused by two isomer structures having the same stability. It is worth noting that isomerization reactions are not reported with chiral isomer Ag nanoclusters. Similarly, the reason may be the same stability for chiral structures.

4. Catalytic Applications and Photoluminescence

Metals nanoparticles have played an essential role in industrial catalysis for a long time, to improve the catalytic activity and selectivity, revealing that the catalytic activity sites are major tasks for theoretical investigation [49]. Because traditional metal nanoparticles are usually polydisperse and have unknown surface structures, metal nanoclusters are ideal catalyst models for studying the reaction mechanism because of certain structures. By now, metal nanoclusters have been widely used in many different types of reactions such as cross-coupling, selectivity hydrogenation, et al. They could be used in correlating the catalytic properties with specific structures, and also could exhibit excellent catalytic selectivity in some cases [5]. Besides metal atoms arrangement, the kind of organic ligands covering the surface of metal clusters could also influence the catalytic activity, so different core metal structures with other ligands are not perfect catalyst models for investigation of the reaction mechanisms. In essence, the metal nanoclusters with isomer structures could solve this problem efficiently. Tian et al. used a pair of Au isomer structures, which is called Au38T and Au38Q in the reaction of 4-nitrophenol hydrogenation with NaBH4 [35]. In this reaction system, 4-nitrophenol can be reduced into 4-aminophenol in 44% yield with 0.1 mol% Au38T catalyst for half an hour; however, no product was detected when Au38Q was used in the same reaction condition. The ultraviolet-visible-near-infrared spectrum revealed that the structure of Au38T remained unchanged even after 18 catalytic cycles. The catalyst transformed to a more stable Au38Q and lost all of the catalytic activity, which was observed after 21 cycles. The authors supposed that the high catalytic activity of Au38T may be caused by its surface that was not as protected by organic ligands as densely as Au38Q.
Photoluminescence is an important item in the fields of both practical application and theoretical investigation. The photoluminescence of metal nanoclusters is usually influenced by many factors, and the isomers with different core metal structures will provide an excellent opportunity for investigating the kernel atom arrangement influence on the photoluminescence. Wu et al. reported that Au42F has stronger emission than Au42N (a pair of isomer structures with a molecular formula of Au42(TBBT)26), and the photoluminescence quantum yield of Au42F is about twice as high as Au42N [36]. Furthermore, density function theory calculation reveals that the charge states of total Au atoms in Au42N and Au42F are +2.678 and +2.898, respectively (electrically neutral for the whole cluster); thus, the kernel metal structures influence the charge distribution between the Au atoms and ligands. As reported earlier, the more positive charge state in the metal core prefers the charge transfer from ligands to metal part by Au-S bonds, resulting in more excellent photoluminescence performance. Au42F and Au42N have essential differences in Au atom arrangement. Ag isomer clusters only have a chiral transformation, and enantiomeric silver clusters have the same characteristics of photoluminescence [47].
By now, there is not so much literature on applications of isomer metal nanoclusters. From limited reports, we could conclude that, with the same molecular formulas, the application performance could also be influenced by core atom arrangements, except for chiral isomer, which could not impact the photoluminescence property of Ag nanoclusters. Among these reports, the discovery of specific catalytic performance with isomer Au clusters is especially important because it is the first time that directly correlates the structure and stability of metal clusters with catalyst activity. Meanwhile, it has brand new guiding significance for further investigation of catalytic reaction mechanism with nano-metal particles.
As a type of well-defined model nanocatalyst, metal nanoclusters with specific configurations have also been employed in catalytic selective oxidations [50,51]. Adding a monodopant to a metal particle at a particular position might modify the electronic properties of these materials and alter their catalytic activity. A novel type of “pigeon–pair” cluster known as [Au13Ag12(PPh3)10Cl8]·[Au12Ag13(PPh3)10Cl8]2+ was synthesized by Qin et al. by doping a mono-Ag atom at the center site of Au13Ag12(PPh3)10Cl8 nanoclusters with a rod-shape [52,53]. A variation in catalytic performance may emerge from the single-atom exchange between nanoclusters with identical structures since the electronic characteristics are disturbed [54,55]. To test the effect of a single-atom exchange on the catalytic process, Au13Ag12 and Au13Ag12Au12Ag13 clusters were both supported on TiO2 and used in the photocatalytic conversion of ethanol. The reaction took place under UV irradiation at 30 °C. Figure 6 shows that, compared to the Au13Ag12 clusters (23%), the Au13Ag12.Au12Ag13 clusters had a greater conversion of ethanol, and their selectivity of ethanal (79%) was only marginally higher than that of the Au13Ag12 clusters (72%). Given how similarly distributed the products are amongst the two clusters, it is reasonable to assume that the conversion pathway and catalytic reaction mechanism should be the same for both catalysts. In essence, the identical structure of the M25 clusters with a single atom change from Au to Ag results in a considerable variation in the catalytic activity driven by different electronic characteristics.

5. Conclusions and Perspectives

In this mini-review, we summarized development in recent years of the investigation of the structural quasi-isomerism with Au and Ag nanoclusters, including their metal atoms arrangements, synthesis methods, structure conversion, and applications, as listed in Table 1. The synthesis of isomer metal nanoclusters needs different craft processes, or thin-layer chromatography separation for one batch produced nanoclusters. Usually, a pair of isomer Au clusters have different stability, and the unstable one could be converted into the more stable one irrevocably under a particular situation. Au nanoclusters with isomer structures could exhibit different characteristics in catalysis and photoluminescence, proving this novel nanomaterial to have enormous potential for both practical application and theoretical investigation. To expand species and applications for isomer clusters, much work still needs to be carried out.
(I) Exploitation of new structures of quasi-isomerism of metal nanoclusters.
In view of isomer structures, Au nanoclusters could be divided into three basic categories: (i) those which have been successfully synthesized and detected the single-crystal structure, (ii) one of a pair isomer structures that have not gained the specific crystal structure, and (iii) the other kinds of Au nanoclusters for which the isomer structures have yet to be discovered. By now, only a few amounts of Au nanoclusters could be classified into the first and second kinds, and in the second species, it is challenging to say isomer structures have been synthesized because the clusters do not have definite crystal structures. The reports of isomer Au clusters are limited, and the same kinds of common Au nanoclusters (such as Au11, Au13 et al.) have not been found with isomer structures. To enlarge the family of isomer metal clusters and further establish an isomer metal nanocluster library, it is necessary to undergo a long progress and requires a great amount of effort. As reported in works of literature, the possible methods may include thin-layer chromatography separation for known metal nanoclusters, the addition of inducing agents, and fine-tuning the synthesis formula.
(II) Exploitation of new catalytic applications of quasi-isomerism of nanoclusters.
Because of uniform particle size and specific metal atom arrangement, metal nanoclusters could exhibit excellent performance in catalytic reactions. Until now, the only report of isomer metal clusters used in the catalytic reaction is the pair of Au38 application for 4-nitrophenol hydrogenation. As expected, the stability of nanocluster could influence their performance, and an unstable one has more activity under the same reaction system but would transform into a more stable structure during the reaction process gradually. Until recently, metal nanoparticles have been used in many kinds of valuable catalytic reactions, such as methane oxidation, biomass conversion, electrocatalytic CO2 hydrogenation, and selectivity hydrogenation for unsaturated aldehyde et al. All of them require high stability of nano-catalysts, which have to be carried out under hyperthermy [56].
To use isomer metal nanoclusters in various kinds of reactions, stability is the most crucial problem that needs to be solved first. Nanoclusters supported on metallic oxide are an effective method for enhancing stability, and in some conditions, the metal oxide-supported nanoclusters catalysts could show significantly higher catalytic activity [57,58,59,60], such as the selective oxidations and hydrogenations [61,62] and photo- and electro-catalysis [63,64,65,66,67,68,69].
(III) DFT simulations and in situ spectroscopy on the investigation of mechanism with isomer metal clusters used in catalytic reactions.
One of the most essential objectives for the synthesis of metal nanoclusters is to achieve an atomic-level understanding of the catalytic active site. Ultrasmall nanoclusters are usually protected by organic ligands, except for particle size and metal atom arrangement. The kinds of organic ligands also play an important role in catalytic activity: metal nanoclusters with isomer structures could exclude the influence of ligands effectively, so it is a more beneficial instrument for studying the catalytic reaction mechanism. Although isomer Au nanoclusters have been used in the catalytic reactions and two different Au38 structures exhibit distinct performance in reaction results, the specific reason is still not clear by now. DFT simulations are a powerful tool in studying the catalytic mechanism and have been wildly used in many reaction systems. Commonly, hypothetical models need to be put in DFT calculations; isomer metal nanoclusters have certain atom arrangements themselves, so they would be more suitable for taking part in DFT investigations. Compared with DFT simulations, in situ spectroscopy is a more direct method that could detect the reactants, products, and intermediates, and their combined situation with catalysts, and then reveal the detail of the reaction mechanism at the molecular level with the experimental method. In further studying the reaction mechanism catalyzed by the isomer metal clusters, DFT simulations and in situ spectroscopy play an important role in revealing the reaction progress and catalytic active site.
In short, structure quasi-isomerism with nanoclusters is a novel and worthy nanomaterial. Although the reports in this field are minimal, it is important for investigating the correlation between functions and structures. With literature published recently, we believe that more attention will be paid to the development of new isomer metal nanoclusters, which could finally become a significant part of nanometer material science.

Author Contributions

Investigation, Y.Z.; resources, Y.Z. and K.B.; writing—original draft preparation, Y.Z., K.B. and C.C.; writing—review and editing, K.B. and G.L.; supervision, C.C. and G.L.; project administration, C.C. and G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

DFTdensity functional theory
TBBTtert-butyl benzene thiol
PETphenylethanethiolate
p-MBApara-mercaptobenzoic acid
SGglutathione
R/S-NYAN-((R/S)-1-(naphthalen-4-yl)ethyl)prop-2-yn-1-amine
DMBTdimethyl benzene thiol
CHTcyclohexanethiol
SCXDsingle crystal X-ray diffraction
CTABrcetyl trimethyl ammonium bromide
UV-vis-NIRUv-visible near infrared
TOABtetraoctyl ammonium bromide
ESI-MSelectrospray ionization mass spectrometry
MALDI-TOF-MSmatrix-assisted laser desorption/ ionization time of flight mass spectrometry

References

  1. Kang, X.; Zhu, M. Structural Isomerism in Atomically Precise Nanoclusters. Chem. Mater. 2021, 33, 39–62. [Google Scholar] [CrossRef]
  2. Gao, L.; Rongchao, J. Atomically Precise Gold Nanoclusters as New Model Catalysts. Acc. Chem. Res. 2013, 46, 1749–1758. [Google Scholar]
  3. Shi, Q.; Qin, Z.; Sharma, S.; Li, G. Recent progress in heterogeneous catalysis over atomically and structurally precise metal nanoclusters. Chem. Rec. 2021, 21, 879–892. [Google Scholar] [CrossRef]
  4. Rongchao, J.; Gao, L.; Sachil, S.; Yingwei, L.; Xiangsha, D. Toward Active-Site Tailoring in Heterogeneous Catalysis by Atomically Precise Metal Nanoclusters with Crystallographic Structures. Chem. Rev. 2021, 121, 567–648. [Google Scholar]
  5. Yan, Z.; Huifeng, Q.; Bethany, A.D.; Rongchao, J. Atomically Precise Au25(SR)18 Nanoparticles as Catalysts for the Selective Hydrogenation of α,β-Unsaturated Ketones and Aldehydes. Angew. Chem. Int. Ed. 2010, 49, 1295–1298. [Google Scholar]
  6. Gao, L.; Rongchao, J. Gold Nanocluster-Catalyzed Semihydrogenation: A Unique Activation Pathway for Terminal Alkynes. J. Am. Chem. Soc. 2014, 136, 11347–11354. [Google Scholar]
  7. Xian-Kai, W.; Zong-Jie, G.; Quan-Ming, W. Homoleptic Alkynyl-Protected Gold Nanoclusters: Au44(PhC/C)28 and Au36(PhC/C)24. Angew. Chem. Int. Ed. 2017, 129, 11652–11655. [Google Scholar]
  8. Jiangwei, Z.; Yang, Z.; Kai, Z.; Hadi, A.; Douglas, R.K.; Junliang, S.; Gao, L. Diphosphine-induced chiral propeller arrangement of gold nanoclusters for singlet oxygen photogeneration. Nano Res. 2018, 11, 5787–5798. [Google Scholar]
  9. Chao, L.; Hadi, A.; Chunyang, Y.; Gao, L.; Masatake, H. One-pot Synthesis of Au11(PPh2Py)7Br3 for the Highly Chemoselective Hydrogenation of Nitrobenzaldehyde. ACS Catal. 2016, 6, 92–99. [Google Scholar]
  10. Wu, Z.; Suhan, J.; Jin, R. One-Pot Synthesis of Atomically Monodisperse, Thiol-Functionalized Au25 Nanoclusters. J. Mater. Chem. 2009, 19, 622–626. [Google Scholar] [CrossRef]
  11. Das, A.; Liu, C.; Byun, H.Y.; Nobusada, K.; Zhao, S.; Rosi, N.L.; Jin, R. Structure Determination of [Au18(SR)14]. Angew. Chem. Int. Ed. 2015, 54, 3140–3144. [Google Scholar] [CrossRef] [PubMed]
  12. Jehad, A.; Nitul, S.R.; Amine, E.M.; Mustapha, J. Recent Advances in the Design of Plasmonic Au/TiO2 Nanostructures for Enhanced Photocatalytic Water Splitting. Nanomaterials 2020, 10, 2260. [Google Scholar]
  13. Zhu, M.; Aikens, C.M.; Hollander, F.J.; Schatz, G.C.; Jin, R. Correlating the Crystal Structure of a Thiol-Protected Au25 Cluster and Optical Properties. J. Am. Chem. Soc. 2008, 130, 5883–5885. [Google Scholar] [CrossRef] [PubMed]
  14. Zeng, C.; Qian, H.; Li, T.; Li, G.; Rosi, N.; Yoon, B.; Barnett, R.N.; Whetten, R.L.; Landman, U.; Jin, R. Total Structure and Electronic Properties of the Gold Nanocrystal Au36(SR)24. Angew. Chem. Int. Ed. 2012, 51, 13114–13118. [Google Scholar] [CrossRef]
  15. Yu, Y.; Luo, Z.; Yu, Y.; Lee, J.Y.; Xie, J. Observation of Cluster Size Growth in CO-Directed Synthesis of Au25(SR)18 Nanoclusters. ACS Nano 2012, 6, 7920–7927. [Google Scholar] [CrossRef]
  16. Kenzler, S.; Schrenk, C.; Schnep, A. Au108S24(PPh3)16: A Highly Symmetric Nanoscale Gold Cluster Confirms the Generalm Concept of Metalloid Clusters. Angew. Chem. Int. Ed. 2017, 56, 393–396. [Google Scholar] [CrossRef]
  17. Chen, W.T.; Hsu, Y.J.; Kamat, P.V. Realizing Visible Photoactivity of Metal Nanoparticles: Excited-State Behavior and Electron-Transfer Properties of Silver (Ag8) Clusters. J. Phys. Chem. Lett. 2012, 3, 2493–2499. [Google Scholar] [CrossRef]
  18. Sridharan, K.; Jang, E.; Park, J.H.; Kim, J.H.; Lee, J.H.; Park, T.J. Silver Quantum Cluster (Ag9)-Grafted Graphitic Carbon Nitride Nanosheets for Photocatalytic Hydrogen Generation and Dye Degradation. Chem. Eur. J. 2015, 21, 9126–9132. [Google Scholar] [CrossRef]
  19. Wang, Z.; Su, H.F.; Kurmoo, M.; Tung, C.H.; Sun, D.; Zheng, L.S. Trapping an Octahedral Ag6 Kernel in a Seven-Fold Symmetric Ag56 Nanowheel. Nat. Commun. 2018, 9, 2094. [Google Scholar] [CrossRef] [Green Version]
  20. Chao, L.; Tao, L.; Hadi, A.; Zhimin, L.; Chen, Z.; Hyung, J.K.; Gao, L.; Rongchao, J. Chiral Ag23 Nanocluster with Open Shell Electronic Structure and Helical Face-Centered Cubic Framework. Nat. Commun. 2018, 9, 744. [Google Scholar]
  21. Xiaoben, Z.; Zhimin, L.; Wei, P.; Gao, L.; Wei, L.; Pengfei, D.; Zhen, W.; Zhaoxian, Q.; Haifeng, Q.; Xiaoyan, L.; et al. Crystal Phase Mediated Restructuring of Pt on TiO2 with Tunable Reactivity: Redispersion versus Reshaping. ACS Catal. 2022, 12, 3634–3643. [Google Scholar]
  22. Zheyi, L.; Zhaoxian, Q.; Chaonan, C.; Zhixun, L.; Bing, Y.; You, J.; Can, L.; Zhipeng, W.; Xiaolei, W.; Xiang, F.; et al. In-Situ Generation and Global Property Profiling of Metal nanoclusters by Ultraviolet Laser Dissociation-Mass Spectrometry. Sci. China Chem. 2022, 65, 1196–1203. [Google Scholar]
  23. Zhuang, Z.; Yang, Q.; Chen, W. One-Step Rapid and Facile Synthesis of Subnanometer-Sized Pd6(C12H25S)11 Clusters with Ultra High Catalytic Activity for 4-Nitrophenol Reduction. ACS Sustain. Chem. Eng. 2019, 7, 2916–2923. [Google Scholar] [CrossRef]
  24. Gao, X.; Chen, W. Highly Stable and Efficient Pd6(SR)12 Cluster Catalysts for the Hydrogen and Oxygen Evolution Reactions. Chem. Commun. 2017, 53, 9733–9736. [Google Scholar] [CrossRef] [PubMed]
  25. Yun, Y.; Sheng, H.; Yu, J.; Bao, L.; Du, Y.; Xu, F.; Yu, H.; Li, P.; Zhu, M. Boosting the Activity of Ligand-on Atomically Precise Pd3Cl Cluster Catalyst by Metal-Support Interaction from Kinetic and Thermodynamic Aspects. Adv. Synth. Catal. 2018, 360, 4731–4743. [Google Scholar] [CrossRef]
  26. Li, F.; Tang, Q. The Critical Role of Hydride (H-) Ligands in Electrocatalytic CO2 Reduction to HCOOH by [Cu25H22(PH3)12]Cl Nanocluster. J. Catal. 2020, 387, 95–101. [Google Scholar] [CrossRef]
  27. Hossain, S.; Imai, Y.; Suzuki, D.; Choi, W.; Chen, Z.; Suzuki, T.; Yoshioka, M.; Kawawaki, T.; Lee, D.; Negishi, Y. Elucidating Ligand Effects in Thiolate-Protected Metal Clusters Using Au24Pt(TBBT)18 as a Model Cluster. Nanoscale 2019, 11, 22089–22098. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, S.; Jin, S.; Yang, S.; Chen, S.; Song, Y.; Zhang, J.; Zhu, M. Total Structure Determination of Surface Doping [Ag46Au24(SR)32]-(BPh4)2 Nanocluster and Its Structure-Related Catalytic Property. Sci. Adv. 2015, 1, e1500441. [Google Scholar] [CrossRef] [Green Version]
  29. Chai, J.; Yang, S.; Lv, Y.; Chong, H.; Yu, H.; Zhu, M. Exposing the Delocalized Cu-S π Bonds on the Au24Cu6(SPhtBu)22 Nanocluster and Its Application in Ring-Opening Reactions. Angew. Chem. Int. Ed. 2019, 58, 15671–15674. [Google Scholar] [CrossRef]
  30. Panapitiya, G.; Wang, H.; Chen, Y.; Hussain, E.; Jin, R.; Lewis, J.P. Structural and Catalytic Properties of the Au25−xAgx(SCH3)18 (x = 6, 7, 8) Nanocluster. Phys. Chem. Chem. Phys. 2018, 20, 13747–13756. [Google Scholar] [CrossRef]
  31. Hanbao, C.; Guiqi, G.; Jinsong, C.; Sha, Y.; Bo, R.; Guang, L.; Manzhou, Z. Photoinduced Oxidation Catalysis by Au25−xAgx(SR)18 Nanoclusters. ChemNanoMat 2018, 4, 482–486. [Google Scholar] [CrossRef]
  32. Kwak, K.; Choi, W.; Tang, Q.; Kim, M.; Lee, Y.; Jiang, D.; Lee, D. A Molecule-like PtAu24(SC6H13)18 Nanocluster as an Electrocatalyst for Hydrogen Production. Nat. Commun. 2017, 8, 14723. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Zhuang, S.; Chen, D.; Liao, L.; Zhao, Y.; Xia, N.; Zhang, W.; Wang, C.; Yang, J.; Wu, Z. Hard-Sphere Random Close-Packed Au47Cd2(TBBT)31 Nanoclusters with a Faradaic Efficiency of Up to 96% for Electrocatalytic CO2 Reduction to CO. Angew. Chem. Int. Ed. 2020, 59, 3073. [Google Scholar] [CrossRef] [PubMed]
  34. Zhaoxian, Q.; Sachil, S.; Chong-qing, W.; Sami, M.; Wen-wu, X.; Hannu, H.; Gao, L. A Homoleptic Alkynyl-Ligated [Au13Ag16L24]3− Cluster as a Catalytically Active Eight-Electron Superatom. Angew. Chem. Int. Ed. 2020, 59, 970–975. [Google Scholar]
  35. Shubo, T.; Yi-Zhi, L.; Man-Bo, L.; Jinyun, Y.; Jinlong, Y.; Zhikun, W.; Rongchao, J. Structural isomerism in gold nanoparticles revealed by X-ray crystallography. Nat. Commun. 2015, 6, 8667. [Google Scholar]
  36. Zhang, J.; Li, Z.; Zheng, K.; Li, G. Synthesis and characterization of size-controlled atomically-precise gold clusters. Phys. Sci. Rev. 2018, 20170083. [Google Scholar] [CrossRef]
  37. Zong-Jie, G.; Feng, H.; Jiao-Jiao, L.; Zhao-Rui, W.; Yu-Mei, L.; Quan-Ming, W. Isomerization in Alkynyl-Protected Gold Nanoclusters. J. Am. Chem. Soc. 2020, 142, 299–3001. [Google Scholar]
  38. Elina, K.; Sami, M.; María, F.M.; Rania, K.; Thomas, B.; Hannu, H. Experimental Confirmation of a Topological Isomer of the Ubiquitous Au25(SR)18 Cluster in the Gas Phase. J. Am. Chem. Soc. 2021, 143, 1273–1277. [Google Scholar]
  39. Ren-Wu, H.; Xi-Yan, D.; Bing-Jie, Y.; Xiang-Sha, D.; Dong-Hui, W.; Shuang-Quan, Z.; Thomas, C.W.M. Tandem Silver Cluster Isomerism and Mixed Linkers to Modulate the Photoluminescence of Cluster Assembled-Materials. Angew. Chem. Int. Ed. 2018, 57, 8560–8566. [Google Scholar]
  40. Huifeng, Q.; William, T.E.; Yan, Z.; Tomislav, P.; Rongchao, J. Total Structure Determination of Thiolate-Protected Au38 Nanoparticles. J. Am. Chem. Soc. 2010, 132, 8280–8281. [Google Scholar]
  41. Shengli, Z.; Lingwen, L.; Jinyun, Y.; Nan, X.; Yan, Z.; Chengming, W.; Zibao, G.; Nan, Y.; Lizhong, H.; Jin, L.; et al. Fcc versus Non-fcc Structural Isomerism of Gold Nanoparticles with Kernel Atom Packing Dependent Photoluminescence. Angew. Chem. Int. Ed. 2019, 58, 4510–4514. [Google Scholar]
  42. Xu, L.; Wen, W.X.; Xinyu, H.; Endong, W.; Xiao, C.; Yue, Z.; Jin, L.; Min, X.; Chunfeng, Z.; Yi, G.; et al. De novo design of Au36(SR)24 nanoclusters. Nat. Commun. 2020, 11, 3349. [Google Scholar]
  43. Nan, X.; Jingyun, Y.; Lingwen, L.; Wenhao, Z.; Jin, L.; Haiteng, D.; Jinlong, Y.; Zhikun, W. Structural Oscillation Revealed in Gold Nanoparticles. J. Am. Chem. Soc. 2020, 142, 28, 12140–12140. [Google Scholar]
  44. Li, G.; Abroshan, H.; Liu, C.; Zhuo, S.; Li, Z.; Xie, Y.; Kim, H.J.; Rosi, N.L.; Jin, R. Tailoring the Electronic and Catalytic Properties of Au25 Nanoclusters via Ligand Engineering. ACS Nano 2016, 10, 7998–8005. [Google Scholar] [CrossRef]
  45. María, F.M.; Sami, M.; Emily, K.B.; Brian, M.B.; Christine, M. Aikensb and Hannu Häkkinen. A topological isomer of the Au25(SR)18− nanocluster. Chem. Commun. 2020, 56, 8087–8090. [Google Scholar]
  46. Zhen, H.; Xi-Yan, D.; Peng, L.; Si, L.; Zhao-Yang, W.; Shuang-Quan, Z.; Thomas, C.W.M. Ultrastable atomically precise chiral silver clusters with more than 95% quantum efficiency. Sci. Adv. 2020, 6, eaay0107. [Google Scholar]
  47. Miao-Miao, Z.; Xi-Yan, D.; Zhao-Yang, W.; Xi-Ming, L.; Jia-Hong, H.; Shuang-Quan, Z.; Thomas, C.W.M. Alkynyl-Stabilized Superatomic Silver Clusters Showing Circularly Polarized Luminescence. J. Am. Chem. Soc. 2021, 143, 6048–6053. [Google Scholar]
  48. Yitao, C.; Sami, M.; María, F.M.; Tiankai, C.; Qiaofeng, Y.; Run, S.; Hannu, H.; Jianping, X. Reversible isomerization of metal nanoclusters induced by intermolecular interaction. Chem 2021, 8, 2227–2244. [Google Scholar]
  49. Gao, L.; De-en, J.; Chao, L.; Changlin, Y.; Rongchao, J. Oxide-supported atomically precise gold nanocluster for catalyzing Sonogashira cross-coupling. J. Catal. 2013, 306, 177–183. [Google Scholar]
  50. Chao, L.; Junying, Z.; Jiahui, H.; Chaolei, Z.; Feng, H.; Yang, Z.; Gao, L.; Masatake, H. Efficient Aerobic Oxidation of Glucose to Gluconic Acid over Activated Carbon-Supported Gold Clusters. ChemSuSChem 2017, 10, 1976–1980. [Google Scholar]
  51. Kai, Z.; Jiangwei, Z.; Dan, Z.; Yong, Y.; Zhimin, L.; Gao, L. Motif Mediated Au25(SPh)5(PPh3)10X2 Nanorod of Conjugated Electron Delocalization. Nano Res. 2019, 12, 501–507. [Google Scholar]
  52. Qin, Z.; Hu, S.; Han, W.; Li, Z.; Xu, W.W.; Zhang, J.; Li, G. Tailoring optical and photocatalytic properties by single-Ag-atom exchange in Au13Ag12(PPh3)10Cl8 nanoclusters. Nano Res. 2022, 15, 2971–2976. [Google Scholar] [CrossRef]
  53. Qin, Z.; Zhang, J.; Wan, C.; Liu, S.; Abroshan, H.; Jin, R.; Li, G. Atomically Precise Nanoclusters with Reversible Isomeric Transformation for Rotary Nanomotors. Nat. Commun. 2020, 11, 6019. [Google Scholar] [CrossRef] [PubMed]
  54. Li, W.; Liu, C.; Abroshan, H.; Ge, Q.; Yang, X.; Xu, H.; Li, G. Catalytic CO Oxidation Using Bimetallic MxAu25−x Clusters: A Combined Experimental and Computational Study on Doping Effects. J. Phys. Chem. C 2016, 120, 10261–10267. [Google Scholar] [CrossRef]
  55. Qin, Z.; Wang, J.; Sharma, S.; Malola, S.; Wu, K.; Häkkinen, H.; Li, G. Photo-Induced Cluster-to-Cluster Transformation of [Au37−xAgx(PPh3)13Cl10]3+ into [Au25−yAgy(PPh3)10Cl8]+: Fragmentation of A Trimer of 8-Electron Superatoms by Light. J. Phys. Chem. Lett. 2021, 12, 10920–10926. [Google Scholar] [CrossRef] [PubMed]
  56. Liu, Z.; Li, Z.; Li, G.; Lai, C.; Wang, Z.; Wang, X.; Pidko, E.; Xiao, C.; Wang, F.; Li, G.; et al. Single-Atom Pt+ Derived from Laser Dissociation of Platinum Cluster: Insights of Non-Oxidative Alkane Conversion. J. Phys. Chem. Lett. 2020, 11, 5987–5991. [Google Scholar] [CrossRef]
  57. Chen, Y.; Wang, H.; Qin, Z.; Tian, S.; Ye, Z.; Ye, L.; Abroshan, H.; Li, G. TixCe1-xO2 Nanocomposites: A Monolithic Catalyst for Direct Conversion of Carbon Dioxide and Methanol to Dimethyl Carbonate. Green Chem. 2019, 21, 4642–4649. [Google Scholar] [CrossRef]
  58. Wang, Y.; Jiang, Q.; Xu, L.; Han, Z.; Guo, S.; Li, G.; Baiker, A. Effect of Configuration of Copper Oxide-Ceria Catalysts in NO Reduction with CO: Superior Performance of Copper-Ceria Solid Solution. ACS App. Mater. Interfaces 2021, 13, 61078–61087. [Google Scholar] [CrossRef]
  59. Guo, S.; Zhang, G.; Han, Z.; Zhang, S.; Sarker, D.; Xu, W.; Pan, X.; Li, G.; Baiker, A. Synergistic Effects of Ternary PdO-CeO2-OMS-2 Catalyst afford high Catalytic Performance and Stability in the Reduction of NO with CO. ACS Appl. Mater. Interfaces 2021, 13, 622–630. [Google Scholar] [CrossRef]
  60. Chen, Y.; Li, Y.; Chen, W.; Xu, W.; Han, Z.; Waheed, A.; Ye, Z.; Li, G.; Baiker, A. Continuous Dimethyl Carbonate Synthesis from CO2 and Methanol over BixCe1-xOδ Monoliths: Effect of Bismuth Doping on Population of Oxygen Vacancies, Activity, and Reaction Pathway. Nano Res. 2022, 15, 1366–1374. [Google Scholar] [CrossRef]
  61. Zhang, C.; Chen, Y.; Wang, H.; Li, Z.; Zheng, K.; Li, S.; Li, G. Transition-Metal-Mediated Catalytic Properties of CeO2-Supported Gold Clusters in Aerobic Alcohol Oxidation. Nano Res. 2018, 11, 2139–2148. [Google Scholar] [CrossRef]
  62. Zhang, X.; Shi, Q.; Liu, X.; Li, J.; Xu, H.; Ding, H.; Li, G. Facile assembly of InVO4/TiO2 heterojunction for enhanced photo-oxidation of benzyl alcohol. Nanomaterials 2022, 12, 1544. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, Q.; Qin, Z.; Liu, S.; Zhu, M.; Li, G. On the Redox Property of Ag16Au13 Clusters and Its Catalytic Application in the Photooxidation. J. Chem. Phys. 2021, 154, 164308. [Google Scholar] [CrossRef] [PubMed]
  64. Shi, Q.; Qin, Z.; Yu, C.; Waheed, A.; Xu, H.; Gao, Y.; Abroshan, H.; Li, G. Oxygen Vacancy Engineering: An Approach to Promote Photocatalytic Conversion of Methanol to Methyl Formate over CuO/TiO2-Spindle. Nano Res. 2020, 13, 939–946. [Google Scholar] [CrossRef]
  65. Cao, Y.; Guo, S.; Yu, C.; Zhang, J.; Pan, X.; Li, G. Ionic liquid-assisted one-step preparation of ultrafine amorphous metallic hydroxide nanoparticles for the highly efficient oxygen evolution reaction. J. Mater. Chem. A 2020, 8, 15767–15773. [Google Scholar] [CrossRef]
  66. Zhang, Y.; Wang, M.; Li, G. Recent Advances in Aerobic Photo-Oxidation over Small-Sized IB Metal Nanoparticles. Photochem 2022, 2, 528–538. [Google Scholar] [CrossRef]
  67. Cao, Y.; Su, Y.; Xu, L.; Yang, X.; Han, Z.; Cao, R.; Li, G. Ionic liquids modified oxygen vacancy-rich amorphous FeNi hydroxide nanoclusters on carbon-based materials as an efficient electrocatalyst for electrochemical water oxidation. J. Energy Chem. 2022, 71, 167–173. [Google Scholar] [CrossRef]
  68. Li, G.; Xie, Y.; Huang, J.; Guo, S.; Xu, L.; Zhang, J.; Jiang, Q.; Wang, Y. Facile Synthesis of Cobalt Clusters-CoNx Composites: Synergistic Effect Boosts up Electrochemical Oxygen Reduction. J. Mater. Chem. A 2022, 10, 16920–16927. [Google Scholar] [CrossRef]
  69. Shi, Q.; Zhang, X.; Liu, X.; Xu, L.; Liu, B.; Zhang, J.; Xu, H.; Han, Z.; Li, G. In-situ exfoliation and assembly of 2D/2D g-C3N4/TiO2(B) hierarchical microflower: Enhanced photo-oxidation of benzyl alcohol under visible light. Carbon 2022, 195, 401–409. [Google Scholar] [CrossRef]
Photochem 02 00060 g001 550
Figure 1. Structure details of Au38T and Au38Q. (a) an Au12 cap and an Au13 icosahedral; (b) Au23 core; (c,d) the Au3(SR)4, Au(SR)2 and SR protecting the Au23 core; (e) back view of Au38T; (f) Au38Q structure; color code: yellow atoms, S; other colored atoms, Au. Reproduced with permission from Ref. [35], Springer 2015.
Figure 1. Structure details of Au38T and Au38Q. (a) an Au12 cap and an Au13 icosahedral; (b) Au23 core; (c,d) the Au3(SR)4, Au(SR)2 and SR protecting the Au23 core; (e) back view of Au38T; (f) Au38Q structure; color code: yellow atoms, S; other colored atoms, Au. Reproduced with permission from Ref. [35], Springer 2015.
Photochem 02 00060 g001
Photochem 02 00060 g002 550

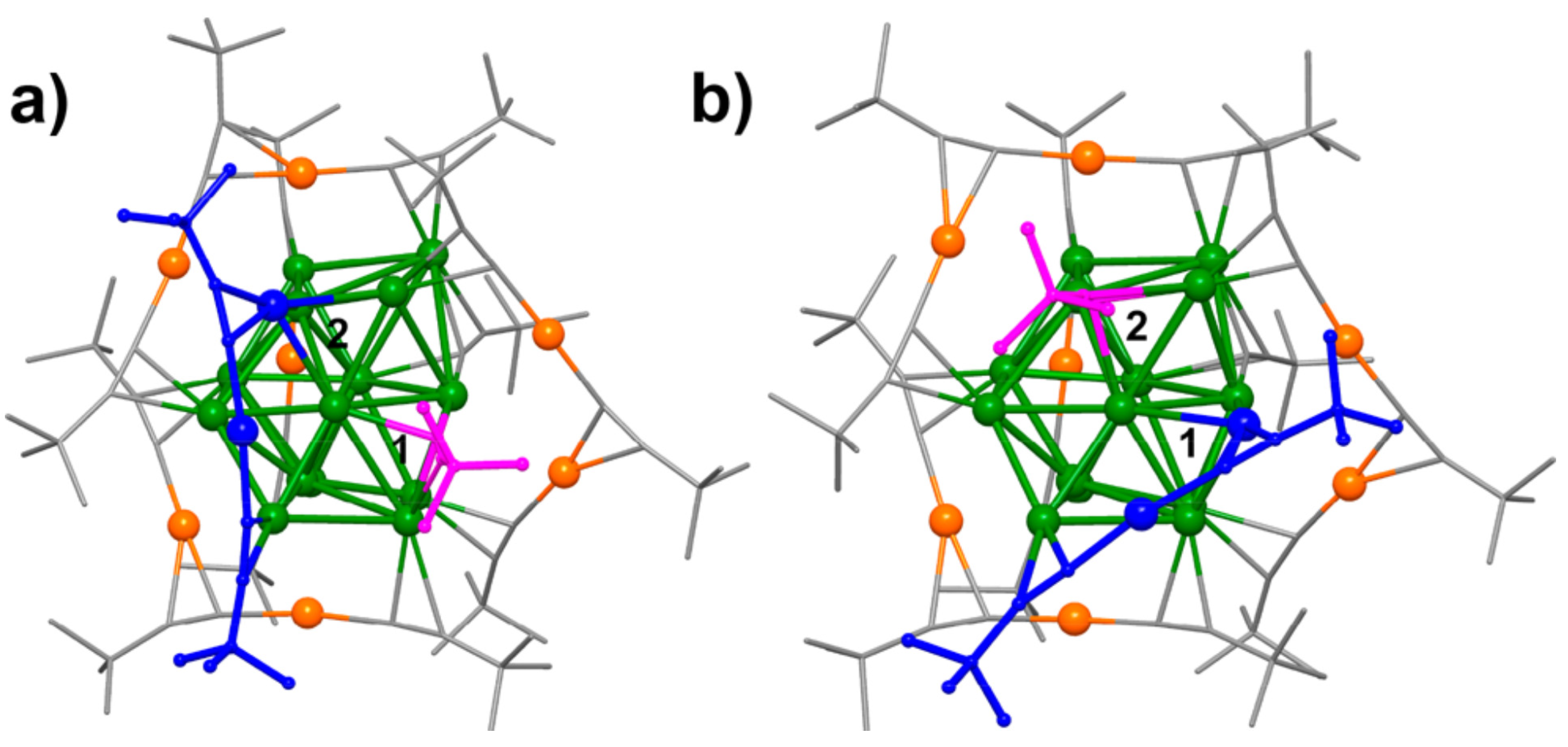

Figure 2. Structures of Au23-1 (a) and Au23-2 (b). Color code: grey atoms, C; green and orange atoms, Au; highlighted in blue, Au2(C≡C-Bu)2 unit; highlighted in pink, tri-bonded -C≡C-Bu. Reproduced with permission from Ref. [37]. Copyright 2020, American Chemical Society.
Figure 2. Structures of Au23-1 (a) and Au23-2 (b). Color code: grey atoms, C; green and orange atoms, Au; highlighted in blue, Au2(C≡C-Bu)2 unit; highlighted in pink, tri-bonded -C≡C-Bu. Reproduced with permission from Ref. [37]. Copyright 2020, American Chemical Society.
Photochem 02 00060 g002
Photochem 02 00060 g003 550

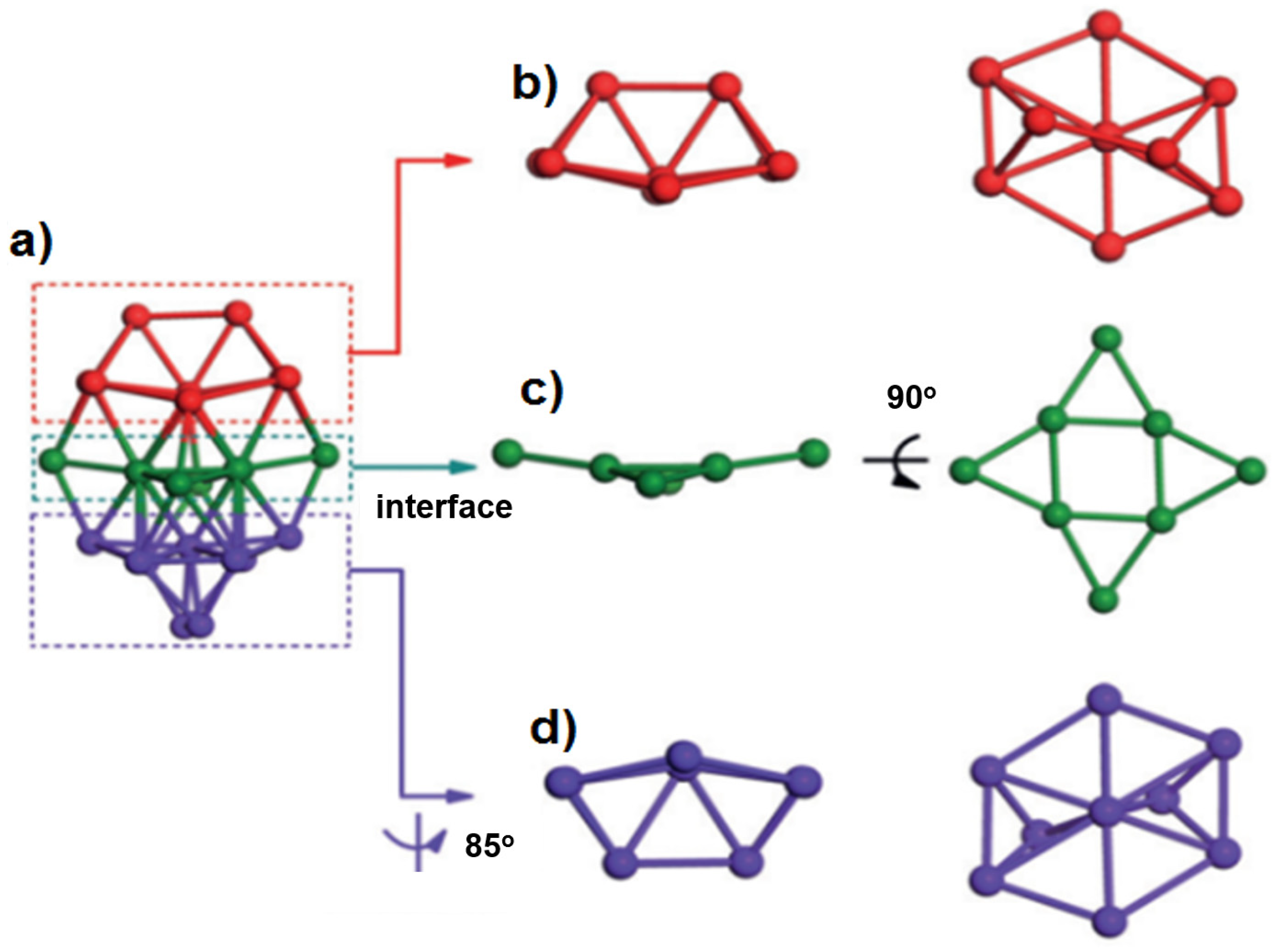

Figure 3. The kernel pattern of Au42N: Au26 kernel (a), view of unit 1 (b), interface (c), and unit 2 (d). Reproduced with permission from Ref. [36]. Copyright 2020 Wiley.
Figure 3. The kernel pattern of Au42N: Au26 kernel (a), view of unit 1 (b), interface (c), and unit 2 (d). Reproduced with permission from Ref. [36]. Copyright 2020 Wiley.
Photochem 02 00060 g003
Photochem 02 00060 g004 550
Figure 4. Structures of [Au25(PET)18]−: (a) Experimental and (b) DFT. Color code: yellow atoms, S; golden atoms, Au; black atoms C; white atoms, H. Reproduced with permission from Ref. [38]. Copyright 2020, American Chemical Society.
Figure 4. Structures of [Au25(PET)18]−: (a) Experimental and (b) DFT. Color code: yellow atoms, S; golden atoms, Au; black atoms C; white atoms, H. Reproduced with permission from Ref. [38]. Copyright 2020, American Chemical Society.
Photochem 02 00060 g004
Photochem 02 00060 g005 550

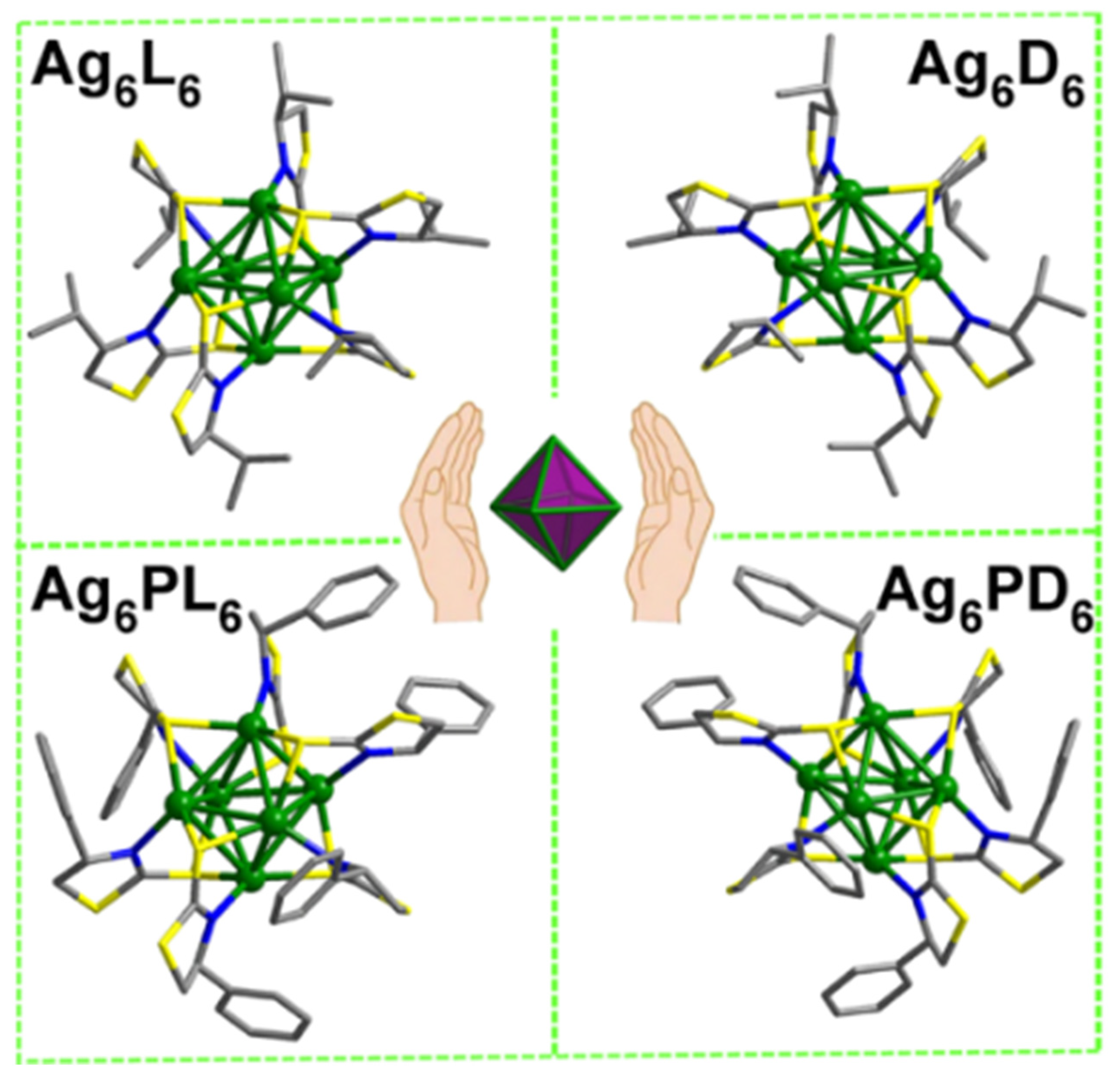

Figure 5. The enantiomers of Ag6L6/D6 and Ag6PL6/PD6. Color code: yellow atoms, S; green atoms, Ag; blue atoms, N; grey atoms, C. Reproduced with permission from Ref. [46]. Copyright 2020, Science.
Figure 5. The enantiomers of Ag6L6/D6 and Ag6PL6/PD6. Color code: yellow atoms, S; green atoms, Ag; blue atoms, N; grey atoms, C. Reproduced with permission from Ref. [46]. Copyright 2020, Science.
Photochem 02 00060 g005
Photochem 02 00060 g006 550

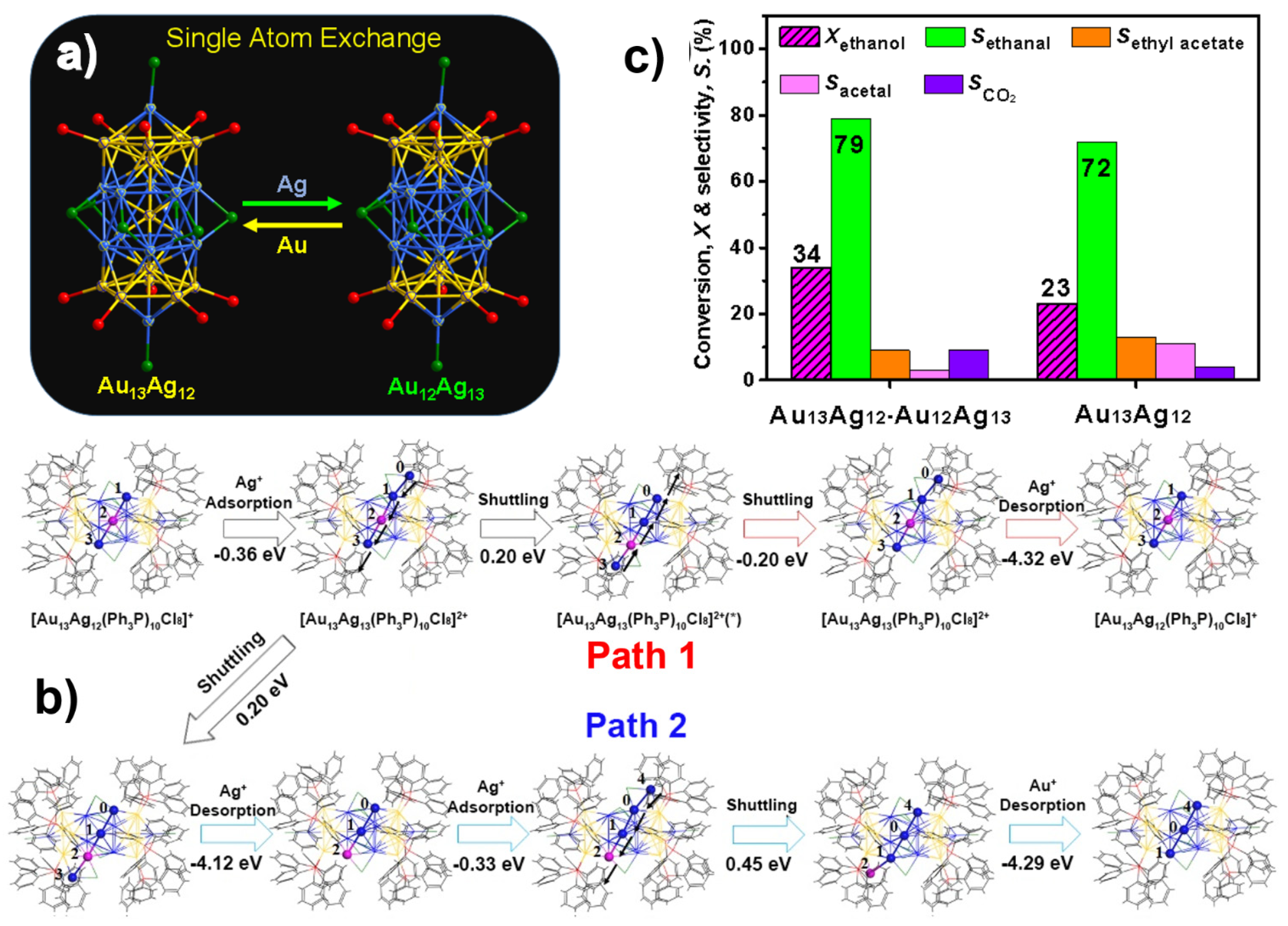

Figure 6. (a) Metal exchanging at the central site of the M25 clusters. Color code: yellow atoms, Au; blue atoms, Ag; green atoms, Cl; red atoms, P; (b) pathways of the Au-Ag exchanging at the central site of M25 clusters via DFT calculations. Color code: yellow atoms, Au; blue atoms, Ag; green atoms, Cl; grey atoms, C; white atoms, H; pink atom, exchanging atom of Au or Ag; (c) photocatalytic performance in the ethanol conversion. Reproduced with permission from Ref. [52]. Springer, 2022.
Figure 6. (a) Metal exchanging at the central site of the M25 clusters. Color code: yellow atoms, Au; blue atoms, Ag; green atoms, Cl; red atoms, P; (b) pathways of the Au-Ag exchanging at the central site of M25 clusters via DFT calculations. Color code: yellow atoms, Au; blue atoms, Ag; green atoms, Cl; grey atoms, C; white atoms, H; pink atom, exchanging atom of Au or Ag; (c) photocatalytic performance in the ethanol conversion. Reproduced with permission from Ref. [52]. Springer, 2022.
Photochem 02 00060 g006
Table
Table 1. The synthetic process and application of these metal cluster isomers.
Table 1. The synthetic process and application of these metal cluster isomers.
IsomersMethodBriefly Synthetic ProcessApplications
Au38T & Au38QRespective synthesisAu38T was prepared by a reduction method. Au38Q was obtained with an etching methodCatalytic hydrogenation of NO2PhOH
Au28i & Au28iiColumn chromatographySeparated by column chromatography on silica gel-
Au23-1 & Au23-2Ph4PCl inductive agentPh4PCl as the inductive agent leads the formation of Au23-1 to transform into Au23-2-
Au42N & Au42FCd cation inductive agentAddition of cadmium cation in the synthesis of Au42NPhotoluminescence
Au36(DMBT)24-1D & Au36(DMBT)24-2DColumn chromatographyTwo isomer structures were obtained by thin-layer chromatography separation-
Ag6L6/D6 & Ag6PL6/PD6Chiral organic ligandsUsing the chiral ligands of L/D and PL/PD-
Au13Ag12 & Au12Ag13Refactoring couplingThe fresh AgCl dispersed in CH2Cl2 was added in to a solution containing Au13Ag12 cluster.Photocatalysis of ethanol
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, Y.; Busari, K.; Cao, C.; Li, G. Structural Quasi-Isomerism in Au/Ag Nanoclusters. Photochem 2022, 2, 932-946. https://doi.org/10.3390/photochem2040060

AMA Style

Zhang Y, Busari K, Cao C, Li G. Structural Quasi-Isomerism in Au/Ag Nanoclusters. Photochem. 2022; 2(4):932-946. https://doi.org/10.3390/photochem2040060

Chicago/Turabian Style

Zhang, Yifei, Kehinde Busari, Changhai Cao, and Gao Li. 2022. "Structural Quasi-Isomerism in Au/Ag Nanoclusters" Photochem 2, no. 4: 932-946. https://doi.org/10.3390/photochem2040060

APA Style

Zhang, Y., Busari, K., Cao, C., & Li, G. (2022). Structural Quasi-Isomerism in Au/Ag Nanoclusters. Photochem, 2(4), 932-946. https://doi.org/10.3390/photochem2040060

Article Metrics

Back to TopTop
