Explainable Survival Analysis of Censored Clinical Data Using a Neural Network Approach

Abstract

Survival analysis is a statistical approach widely employed to model the time of an event, such as a patient’s death. Classical approaches include the Kaplan–Meier estimator and Cox proportional hazards regression, which assume a linear relationship between the model’s covariates. However, the linearity assumption might pose challenges with high-dimensional data, thus stimulating interest in performing survival analysis using neural network models. In the present work, we implemented a deep Cox neural network (Cox-net) to predict the time of a cardiac event using patient data collected from the Myocardial Iron Overload in Thalassemia (MIOT) project. Cox-net achieved a concordance index (c-index) of 0.812 ± 0.036, outperforming the classical Cox regression (0.790 ± 0.040), and it demonstrated resilience to varying levels of censored patients. A permutation feature importance analysis identified fibrosis and sex as the most significant predictors, aligning with clinical knowledge. Cox-net was able to represent the nonlinear relationships between covariates and maintain reliable survival curve predictions in datasets with a large number of censored patients, making it a promising tool for determining the appropriate clinical pathway for thalassemic patients.

1. Introduction

Survival analysis, or time-to-event analysis, refers to a set of statistical tools used to estimate the time it takes for an event of interest to occur based on a series of observations. The name “survival analysis” is related to investigating mortality rates. However, the technique can be used to estimate any clinical event. Survival analysis is used in various fields, such as demographics, biology, engineering, epidemiology, and medicine [1]. In the last case, the event of interest can be, for example, the diagnosis of an illness or death. A model that is able to predict the time of a particular event can be very useful for doctors, as it allows them to triage patients very quickly. For instance, survival analysis methods were applied during the COVID-19 pandemic period to prioritize radiography for patients characterized by a higher risk of death [2]. Moreover, these methods were applied to determine which treatment was most suitable for a given patient based on the related risk of developing a particular event [3]. Nonparametric methods, such as the Kaplan–Meier estimator, represent the classical tools still used, while semiparametric methods, such as the Cox proportional hazards regression model, represent the current standard [4]. More recently, machine learning (ML) methods have been applied to survival tasks (e.g., Random Survival Forest [5] and boosting-based methods [6]). Finally, neural networks (NNs) have been applied to the field of survival analysis. A complete list of existing methods can be found in [7]. Most of the proposed methods are Cox-based. These methods basically modify the Cox regression model by parameterizing the hazard rate and minimizing the Cox loss. Discrete-time methods, such as DeepHit [8,9], sample time in discrete intervals and predict binary events in the interval. Other approaches include parametric methods, such as DeepWeiSurv [10]; piece-wise exponential model (PEM) methods, such as Piecewise Constant (PC)-Hazard [11]; ordinary differential equation (ODE)-based methods, such as DeepComplete [12]; and ranking-based methods, such as RankDeepSurv [13].

Among the Cox-based models, the most representative is DeepSurv [3]. DeepSurv uses a deep NN with nonlinear hidden layer activation functions. Improvements in DeepSurv were presented by Kvamme et al. [11] and Tong et al. [14], who introduced a modified norm for handling the problem of missed features. Wang et al. introduced SurvNet. SurvNet includes an input construction and survival classification modules for handling missing values and high-/low-risk classification [15]. The Deep Cox Mixture (DCM) method exploits a Monte Carlo expectation maximization algorithm to estimate a mixture of Cox models [16]. Despite the high number of studies in the field, the problem of managing censored data has not been fully addressed in the current literature [7], so the influence of the percentage of censored data on methods based on NNs is poorly understood.

In the present work, we developed a Cox neural network to overcome the limits of classical Cox regression in performing survival analysis. The influence of censored patient incidence on network performances was investigated by analyzing synthetic data and a clinical database.

2. Materials and Methods

2.1. Survival Analysis

The survival function S(t) defines the probability that a subject will not experience the event of interest until time T:

$$S\left(t\right)=P(t>T)$$

(1)

The hazard function, denoted by h(t), describes the risk of an event occurring given that it has not happened by time T:

$$h\left(t\right)=\underset{\Delta t\to 0}{lim}{\displaystyle \frac{P(T\le t<T+\Delta t|t\ge T)}{\Delta t}}$$

(2)

Equation (2) describes the instantaneous risk of an event occurring at time t since the time interval $\Delta$t tends to 0. The relationship between the hazard function h(t) and the survival function S(t) can be described by the following equation:

$$h\left(t\right)=-{\displaystyle \frac{S^{\prime }\left(t\right)}{S\left(t\right)}},$$

(3)

where S′(t) is the first derivative of S(t). Hence, based on Equation (3), we can express S(t) as

$$S\left(t\right)=exp[-{\int }_0^{t}h\left(z\right)dz]=exp[-H\left(t\right)]$$

(4)

where H(t) is the cumulative hazard function. The most commonly used method for estimating S(t) is the Kaplan–Meier model, which is described by the following equation:

$$\widehat{S}\left(t\right)=\prod _{i=t_i<t}{\displaystyle \frac{n_i-d_i}{n_i}}$$

(5)

The term $d_i$ is the number of patients with the event at time t, and $n_i$ is the number of subjects at risk of developing the event just prior to time t.

The Cox Proportional Hazards Model [4] is the most popular and widespread survival regression model. It is a semi-parametric model, where the hazard risk at time t for a subject with a set of covariates $x_1$, …, $x_p$ can be expressed by the following equation:

$$h\left(t\right|X)=h_0\left(t\right)exp({\beta }_1{x}_1+{\beta }_2{x}_2+\dots +{\beta }_p{x}_p)$$

(6)

The term $h_0$(t) is the baseline hazard function, which is the hazard risk when all the covariates are equal to 0, and ${\beta }_1$, …, ${\beta }_p$ are the model parameters describing the effect of the covariates on the hazard risk. The model can be defined as semi-parametric because, while the covariates fit it linearly, the baseline can take any form [17].

The covariates $x_1$, …, $x_p$ can be continuous or categorical. Two important variables are 1: whether the event of interest has occurred (categorical) and 2: the time T at which the event occurred or, for patients who did not experience the event, the last time that they were seen (continuous) [18]. Censored subjects are those who experienced the event at an unknown time. The time can be unknown for two main reasons: the subject did not experience the event during the study observation period, or the patient left the study before the event occurred. Right-censored patients are those who are considered from the beginning of the study and did not experience the event before the end of the study or who left the study before the event occurred. Left-censored patients are those who did not experience the event before the end of the study and are considered in the study after the start time has already passed, so we cannot know whether they experienced the event in the period before being included in the study.

It is important to note that the only time-dependent element is the baseline hazard $h_0\left(t\right)$, which does not depend on covariates ${\beta }_1$, …, ${\beta }_p$. Therefore, an important quantity used to interpret the Cox model is the hazard ratio (HR), defined as the ratio between the hazard risk of two different subjects. Given two subjects i and j, the corresponding hazard risk values ${\theta }_i$ and ${\theta }_j$ are

$${\theta }_i={\beta }_1{x}_{i1}+{\beta }_2{x}_{i2}+\dots +{\beta }_p{x}_{ip},{\theta }_j={\beta }_1{x}_{j1}+{\beta }_2{x}_{j2}+\dots +{\beta }_p{x}_{jp}$$

(7)

So the HR can defined as

$$HR={\displaystyle \frac{h\left(t\right|X_i)}{h\left(t\right|X_j)}}={\displaystyle \frac{h_0\left(t\right)exp\left({\theta }_i\right)}{h_0\left(t\right)exp\left({\theta }_j\right)}}={\displaystyle \frac{exp\left({\theta }_i\right)}{exp\left({\theta }_j\right)}}$$

(8)

If the hazard ratio is greater than 1, it means that subject i is more likely to develop the event than subject j, while if the HR is lower than 1, subject j has a higher probability of developing the event than subject i. A hazard ratio of 1 means that the predictor does not affect the hazard risk of the event. As shown in Equation (8), the HR between subjects is not dependent on time t.

Considering Equation (6), we can interpret the model in the following manner:

• If ${\beta }_i$ is < 0 ($exp\left({\beta }_i\right)<1$), when the covariate increases, the event hazard decreases, and the survival time increases.
• If ${\beta }_i$ is = 0 ($exp\left({\beta }_i\right)=1$), the covariate has no effect on the event hazard.
• If ${\beta }_i$ is > 0 ($exp\left({\beta }_i\right)>1$), when the covariate increases, the event hazard increases, and the survival time decreases.

It is important to note that, thanks to Cox regression, we can estimate the model parameters ${\beta }_1$, …, ${\beta }_p$ without knowing the baseline hazard $h_0\left(t\right)$. Then, we can estimate which covariates have the greatest impact on the hazard risk.

The parameters $\beta$ are obtained by maximizing the so-called log partial likelihood [4]. The partial likelihood can be expressed by the following equation:

$$\mathcal{L}\left(\beta \right)=\prod _{i=1}^n{\displaystyle \frac{h_0\left(t\right)e^{{\beta }^T{x}_i}}{{\sum }_{j\in R_i}{h}_0\left(t\right)e^{{\beta }^T{x}_j}}}$$

(9)

where n is the number of subjects, $x_i$ are the subjects who had the event of interest at time $t_i$, and $R_i$ represents the group of patients’ indices who experienced the event of interest at time $t_j\ge t_i$. Estimation is conducted using the log partial likelihood, which can be written as

$$l\left(\beta \right)=log\left(\mathcal{L}\left(\beta \right)\right)=\sum _{i=1}^n({\beta }^T{x}_i-log\left(\sum _{j\in R_i}{e}^{{\beta }^T{x}_j}\right))$$

(10)

Using Equation (10), $\widehat{\beta }$ can be found by minimizing the negative log partial likelihood.

$$\widehat{\beta }=\underset{\beta }{\mathrm{argmin}}\{-l\left(\beta \right)\}$$

(11)

This is usually carried out using the Newton–Raphson method, one of the methods for approximating the solution of an f(x) = 0 equation.

In addition to covariates, it is also possible to estimate the baseline hazard $h_0\left(t\right)$ by the Aalen–Breslow estimator [19], which is a generalization of the non-parametric Nelson–Aalen estimator of the cumulative hazard function.

The Aalen–Breslow estimator can be defined as:

$${\widehat{h}}_0\left(t\right)=\sum _{t_i\le t}{\displaystyle \frac{d_i}{{\sum }_{j\in R_i}{e}^{{\beta }^T{x}_j}}}$$

(12)

The term $d_i$ is the number of patients with the event at time t, and $R_i$ is the group of patients’ indices who experienced the event of interest at time $t_j\ge t_i$.

After obtaining the covariate values and the baseline hazard, we can estimate the survival curve for each patient and, finally, the average survival curve for the entire study population.

2.2. Dataset

2.2.1. Synthetic Dataset Analysis

We generated synthetic datasets, each with a varying percentage of censored patients. These synthetic populations can be designed to closely resemble real datasets by ensuring that each variable matches the distribution of its corresponding covariate in the real data. Additionally, the coefficients ($\beta$) can be adjusted to align with those obtained from the Cox regression applied to real reference data (Equation (11)).

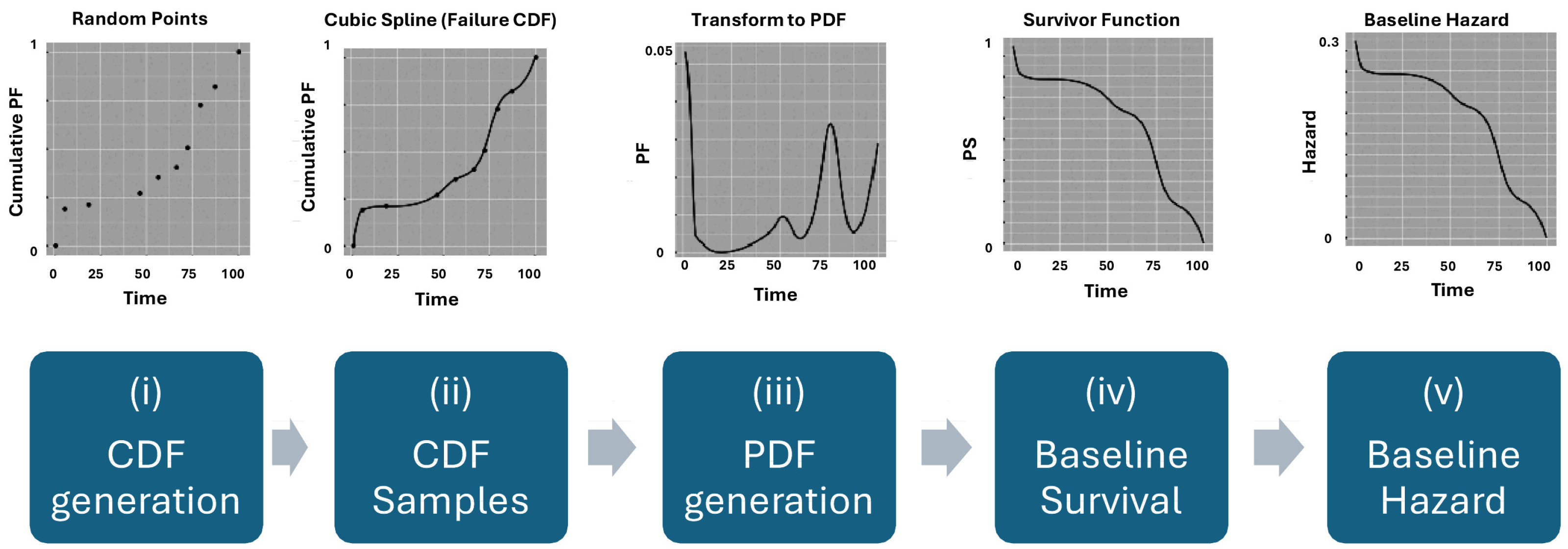

We simulated the survival synthetic dataset using the following steps [20], as depicted in Figure 1:

(i)

We designed the time axis, including k points in a time interval T. Internal points were randomly generated from a uniform distribution. We generated the cumulative distribution function (CDF) of event occurrences by randomly sampling CDF values from a uniform distribution in ascending order to simulate a monotone increasing function.

(ii)

The obtained CDF samples were fitted to a cubic smoothing spline, obtaining the simulated CDF.

(iii)

We calculated the probability density function (PDF) from the CDF.

(iv)

We obtained the baseline survival function as (1-PDF).

(v)

Finally, we computed the baseline hazard by dividing the PDF by the survival function.

For the baseline hazard, we need the covariate matrix X and the coefficient values $\beta$. After that, we can calculate the survival function for subject i using

$$S_i\left(t\right)=S_0\left(t\right)e^{X_i\beta }$$

(13)

For each subject i, we generated a value from a uniform distribution in the range [0, 1]. The corresponding event time value in the CDF function was taken as the subject survival time. Censored patients were randomly generated with a uniform distribution. Synthetic datasets were generated by R software using the sim.survdata() function in the coxed libraries.

2.2.2. Clinical Dataset

The clinical dataset used in the present study contains clinical data from thalassemia major (TM) patients enrolled in the Myocardial Iron Overload in Thalassemia (MIOT) network. The MIOT project is an Italian network devoted to prospectively following TM patients at thalassemia and magnetic resonance imaging (MRI) centers, connected by a web-based database configured to collect clinical, instrumental, and laboratory patient data [21]. Clinical data are updated at every MRI scan, which is performed per protocol every 18 ± 3 months. The dataset used in this study consists of 13 variables from 481 TM patients, acquired during the study, as shown in

Table 1. Clinical variables used in this study. Continuous variables are expressed as the mean ± SD, while categorical variables are expressed as percentages.

Variable	Mean ± SD
Age	29.3 ± 9.1 (years)
Left Ventricular End-Diastolic Volume Index (LVEDI)	86.2 ± 18.8 (mL/m2)
Left Ventricular Ejection Fraction (LVEF)	62.5 ± 5.9%
Left Ventricular Mass Index (LVMI)	58.8 ± 12.8 (g/m2)
Right Ventricular End-Diastolic Volume Index (RVEDI)	82.9 ± 19.4 (mL/m2)
Right Ventricular Ejection Fraction (RVEF)	61.6 ± 6.7%
Left Atrium Area Index (LAAI)	12.9 ± 2.7 (cm2)
Right Atrium Area Index (RAAI)	12.3 ± 2.4 (cm2)
Cardiac T2*	28.1 ± 12.3 (ms)
Liver Iron Concentration (LIC)	9.1 ± 9.0 (mg/g/dw)
Ferritin	1594 ± 1394 (mg/mL)
Replacement Myocardial Fibrosis	21%
Male Sex	47%

. The selection of clinical features was based on both clinical expertise and the existing literature focusing on cardiovascular risk. The standard MRI protocol included the following [21]:

• The quantification of hepatic and cardiac iron overload by the T2* MRI technique, with the subsequent conversion of hepatic T2* values into liver iron concentration (LIC) values;
• The measurement of left ventricular (LV) end-diastolic volume index (EDVI), LV mass index (MI), LV ejection faction (EF), right ventricular (RV) EDVI, and RV EF from cine images;
• The measurement of left atrial (LA) and right atrial (RA) area indices (AI) from cine images;
• The detection of replacement myocardial fibrosis by the late gadolinium enhancement technique;
• An assessment of serum ferritin levels within one month of the MRI scan.

Thirty-six patients experienced a cardiac event during the study. Cardiac events included heart failure (18), arrhythmia (16), and pulmonary hypertension (2). Heart failure, arrhythmia, and pulmonary hypertension were diagnosed by physicians based on symptoms, signs, and instrumental findings according to the American College of Cardiology (ACC)/AHA guidelines [22,23].

The MIOT database contains the characteristics of a typical survival analysis dataset:

• Both continuous and categorical variables;
• The censoring variable: a categorical variable that describes whether the patient is censored, that is, whether the event of interest (i.e., cardiac event) has occurred;
• The time variable: a continuous variable that represents the time at which the event occurred or, for patients who did not experience the event, the last time that they were seen.

2.3. Data Pre-Processing

As commonly observed in clinical practice, some data are missing in the MIOT database. There are different methods for treating missing values [15,24], e.g., replacing the missing clinical values with synthetically generated values, but this would wrongly alter the intrinsic characteristics of the dataset and, in the same way, the results obtained. Hence, patients with missing values in the MIOT dataset were omitted from the analysis in this study. We then normalized both the MIOT and synthetic datasets by applying standardization to continuous and discrete clinical variables to deal with the exploding gradient problem [25].

$$z={\displaystyle \frac{x-\mu }{\sigma }}$$

(14)

where x is the original value, $\mu$ is the mean, and $\sigma$ is the standard deviation.

2.4. Cox-Net Model

There are different NN-based methods for survival analysis in the literature, developed as alternatives to the Cox Proportional Hazard regression analysis, including Cox-net [26]. We developed a Cox-net model based on the design of existing survival analysis NN-models [3,8,13,26,27,28,29]. The proposed Cox-net had an input layer of 13 nodes (equal to the number of features), two fully connected hidden layers, both with 256 neurons, and a 1-neuron output layer without a bias term. The ReLU activation function was chosen instead of the tanh activation function used in the original model. The Cox-net architecture is represented in Figure 2.

The output predicts the log partial hazard of the Cox regression, expressed for patient i as

$${\theta }_i=G{\{W_{h1h2}\left[G(W_{inh1}{X}_i+b_{h1})\right]+b_{h2}\}}^T{W}_{hout}$$

(15)

where $W_{inh1}{X}_i+b_{h1}$ is the output of the first hidden layer, $W_{inh1}$ is the coefficient weight matrix between the input and the first hidden layer, $b_{h1}$ is the vector of the bias terms of each hidden node of the first hidden layer, $W_{h1h2}$ is the coefficient weight matrix between the first hidden layer and the second hidden layer, $b_{h2}$ is the vector of the bias terms of each hidden node of the second hidden layer, $W_{hout}$ is the coefficient weight matrix between the second hidden layer and the output layer, and G is the tanh activation function:

$$G\left(z\right)={\displaystyle \frac{e^z-e^{-z}}{e^z+e^{-z}}}$$

(16)

We used the negative partial log-likelihood loss with ridge normalization (L2):

$$pl\left(\beta \right)=\sum _{C\left(i\right)=1}\left({\theta }_i-log\sum _{t_i\le t_j}{e}^{{\theta }_j}\right)+\lambda {\parallel W\parallel }_2$$

(17)

We applied a dropout of 0.2 to the first fully connected layer to prevent overfitting.

2.5. Synthetic Data Generation

Since the MIOT dataset was highly unbalanced, with only 8% of the patients experiencing the event, we used synthetic populations to investigate how the proportion of censored patients affects Cox-net training and convergence. We generated eight synthetic datasets, each with a varying percentage of censored patients (0, 20, 35, 50, 65, 80, 95, and 98%). These synthetic populations were designed to closely resemble the MIOT dataset by ensuring that each variable matched the distribution of its corresponding covariate in the real data. Additionally, the coefficients ($\beta$) were set to align with those obtained from the Cox regression applied to the MIOT data (Equation (11)). All the generated populations had 1000 patients with 13 features, and, as in the MIOT dataset, 2 of the features were categorical. We set coefficients $\beta$ to be equal to those resulting from the Cox regression to obtain a dataset as close as possible to the MIOT population. Moreover, each continuous variable had the same distribution (mean and standard deviation) as the corresponding covariate in the real dataset, as shown in Table 1. The categorical variables corresponded to the real categorical variables of the MIOT dataset: sex and fibrosis. Considering the synthetic dataset without censored patients, by separating the entire dataset into two populations according to whether they had fibrosis or whether they were male or female and by applying the Kaplan–Meier estimator, we obtained two completely separate survival curves. In Figure 3, we can see that patients with fibrosis (Figure 3a) and male patients (Figure 3b) have a higher probability of developing a cardiac event.

2.6. Model Training and Validation

We trained Cox-net using K-fold stratified cross-validation with $K=3$ on both the synthetic and MIOT datasets in order to determine whether the model could be generalized to different data. To take into account the presence of a large number of censored patients, we applied stratified cross-validation and chose a small K value to ensure that all folds had patients with a reasonable number of events. We applied a stratified split so that the size of the test set was 20% of the total dataset. Then, according to the K-fold cross-validation, the remaining patients were divided into three folds randomly during each training session, and one of these folds was considered as the validation set, while the other folds were considered as the training set.

The SGD Nesterov optimizer was applied, with a learning rate of 0.00001, a dropout of 0.4, and a momentum of 0.9. $\lambda$ ridge, which is the regularization parameter presented in Equation (17), was set equal to 0.0005. We applied early stopping (patience = 20) to prevent overfitting by saving the model hyperparameters corresponding to the minimum validation loss value.

2.7. Model Evaluation: C-Index

We evaluated Cox-net using the concordance index (c-index) [30], which is the most frequently used evaluation metric for survival models. C-index was defined as the ratio of concordant pairs to comparable pairs:

$$c={\displaystyle \frac{\#\mathrm{concordant}\mathrm{pairs}}{\#\mathrm{concordant}\mathrm{pairs}+\#\mathrm{discordant}\mathrm{pairs}}}$$

(18)

Two samples i and j were comparable if the sample with a lower observed time experienced an event, i.e., if $t_j>t_i$ and $e_i=1$. We estimated the c-index value with Harrel’s c-index, which estimates the fraction of correctly ordered pairs out of all comparable pairs in the dataset. The principle of Harrell’s c-index is that the patient with the higher risk score should have a shorter time to disease.

Considering patients i and j, different situations can arise:

• If both i and j are not censored, then we can determine when both patients developed the disease. The pair $(i,j)$ is determined to be a concordant pair if ${\theta }_i>{\theta }_j$ and $t_i<t_j$, and it is determined to be a discordant pair if ${\theta }_i>{\theta }_j$ and $t_i>t_j$.
• If both i and j are censored, then we do not know who developed the disease first (if at all), so we do not consider this pair in the computation.
• If either i or j is censored, we only observe one disease. For example, if patient i develops the disease at time $t_i$ and patient j is censored, then two different situations can arise:

  –

  If $t_j<t_i$, then we do not know for sure who developed the disease first, so we do not consider this pair in the computation.

  –

  If $t_j>t_i$, then we know for sure that patient i developed the disease first. Hence, $(i,j)$ is a concordant pair if ${\theta }_i>{\theta }_j$, and it is a discordant pair if ${\theta }_i<{\theta }_j$.

2.8. Explanation by Permutation Feature Importance

Neural networks are intrinsically more complex than the standard survival models, so their level of interpretability is generally low. EXplainable Artificial Intelligence (XAI) helps solve this issue. In particular, the evaluation against adversarial perturbation suggested the execution of a certain perturbation process of the input data and the usage of evaluation metrics to quantify the faithfulness of the explanation to the AI model’s internal decision process [31]. In addition to evaluation against adversarial perturbation methods, we used the permutation feature importance method [32] to assess the importance of covariates in the NN-based prediction. Permutation feature importance (PFI) measures the increase in the prediction error of the model depending on the permutation of feature values. Here, a feature is considered “important” if shuffling its values increases the model prediction error, indicating that the model relied on the feature for the prediction. In contrast, a feature is “unimportant” if shuffling its values leaves the model prediction error unchanged. In survival analysis, PFI can be used to assess the importance of a covariate in the prediction of an event.

Let us consider an optimal predictive model with the associated tabular dataset D containing K features. The C-index value $e_{max}$ computed on D represents the best possible performance of the model. To assess the PFI value for the feature j, the c-index value $e_{kj}$ is computed k times (k in 1, …, K), and the column j of the dataset D is randomly shuffled to generate a corrupted version of the dataset, called $D_{kj}$. The feature importance $i_j$ related to the j feature is calculated as

$$i_j=e_{max}-{\displaystyle \frac{1}{K}}\sum _{k=1}^K{e}_{kj}$$

(19)

A PFI analysis was performed by the Python library $sklearn.inspection$ containing the function $permutation\_$$importance$ to determine which features are the most predictive.

3. Results

3.1. Synthetic Dataset Results

We generated synthetic datasets mimicking the characteristics of the MIOT dataset previously described. We created eight synthetic datasets containing 356 patients each, with different percentages of censored patients (range 0–98%), to investigate the influence of the percentage of censored patients on network performance. The test set included 72 patients, while the training/validation set included 284 patients (189 in the training set, and 95 in the validation set).

Table 2. Assessed c-index values in K-fold cross-validation for Cox-net and standard Cox regression approaches.

Cox-Net					Cox Regression
Censored (%)	Fold 1	Fold 2	Fold 3	Mean ± SD	Fold 1	Fold 2	Fold 3	Mean ± SD
0%	0.832	0.812	0.834	0.826 ± 0.009	0.832	0.819	0.836	0.828 ± 0.007
20%	0.883	0.863	0.852	0.866 ± 0.013	0.838	0.831	0.833	0.834 ± 0.003
35%	0.832	0.828	0.798	0.819 ± 0.015	0.793	0.776	0.759	0.776 ± 0.014
50%	0.828	0.859	0.827	0.838 ± 0.015	0.756	0.764	0.760	0.760 ± 0.003
65%	0.808	0.862	0.835	0.835 ± 0.022	0.749	0.739	0.726	0.738 ± 0.009
80%	0.857	0.862	0.813	0.844 ± 0.022	0.763	0.756	0.702	0.740 ± 0.027
95%	0.817	0.850	0.739	0.802 ± 0.047	0.745	0.660	0.720	0.708 ± 0.036
98%	0.857	0.745	0.863	0.821 ± 0.054	0.697	0.771	0.758	0.742 ± 0.032

reports the performance of Cox-net and the standard Cox regression in the three validation folds used in the network training. The training and validation loss curves in the worst case (simulated dataset with 98% of censored patients) are reported in Figure 4.

Cox-net outperformed standard Cox regression, especially when the number of censored patients increased. In fact, the average c-index of Cox-net among folds remained above 0.8, while the average c-index of the Cox regression dropped below 0.8 when the number of censored patients increased up to 35%. The performance reproducibility among folds decreased with the increase in the number of censored patients for both models.

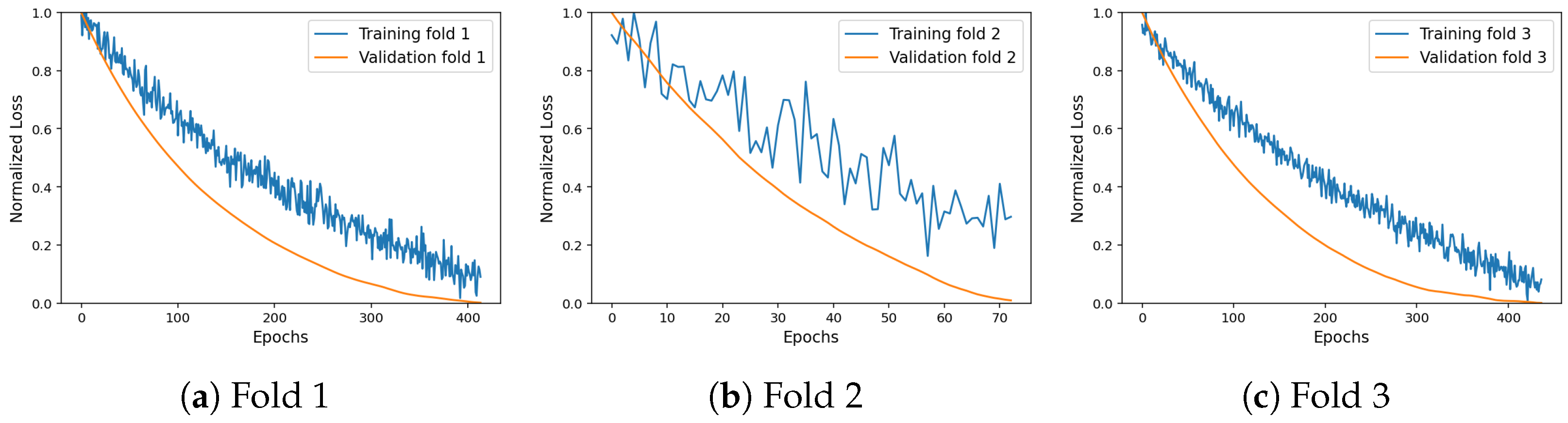

The model with the best performance (i.e., the one trained in Fold 1) was used to perform test set analysis (Figure 5). The results obtained on the test set were consistent with those obtained on the validation set, with a decrease in the performances in the simulated datasets with a higher number of censored patients. Overall, Cox-net performed better than the standard Cox regression in all datasets.

The survival curves obtained for the test set are shown in Figure 6 and compared with the Kaplan–Meier curves taken as references. When the number of censored patients was low, the survival curves generated by Cox-net and standard Kaplan–Meier were similar. For a higher number of censored patients, the predicted survival ratio significantly differed, with a higher risk estimation produced by the Kaplan–Meier estimator. The permutation analysis results are presented in Figure 7. As previously described, permutation feature importance analysis determines which features have the greatest influence on the output of Cox-net.

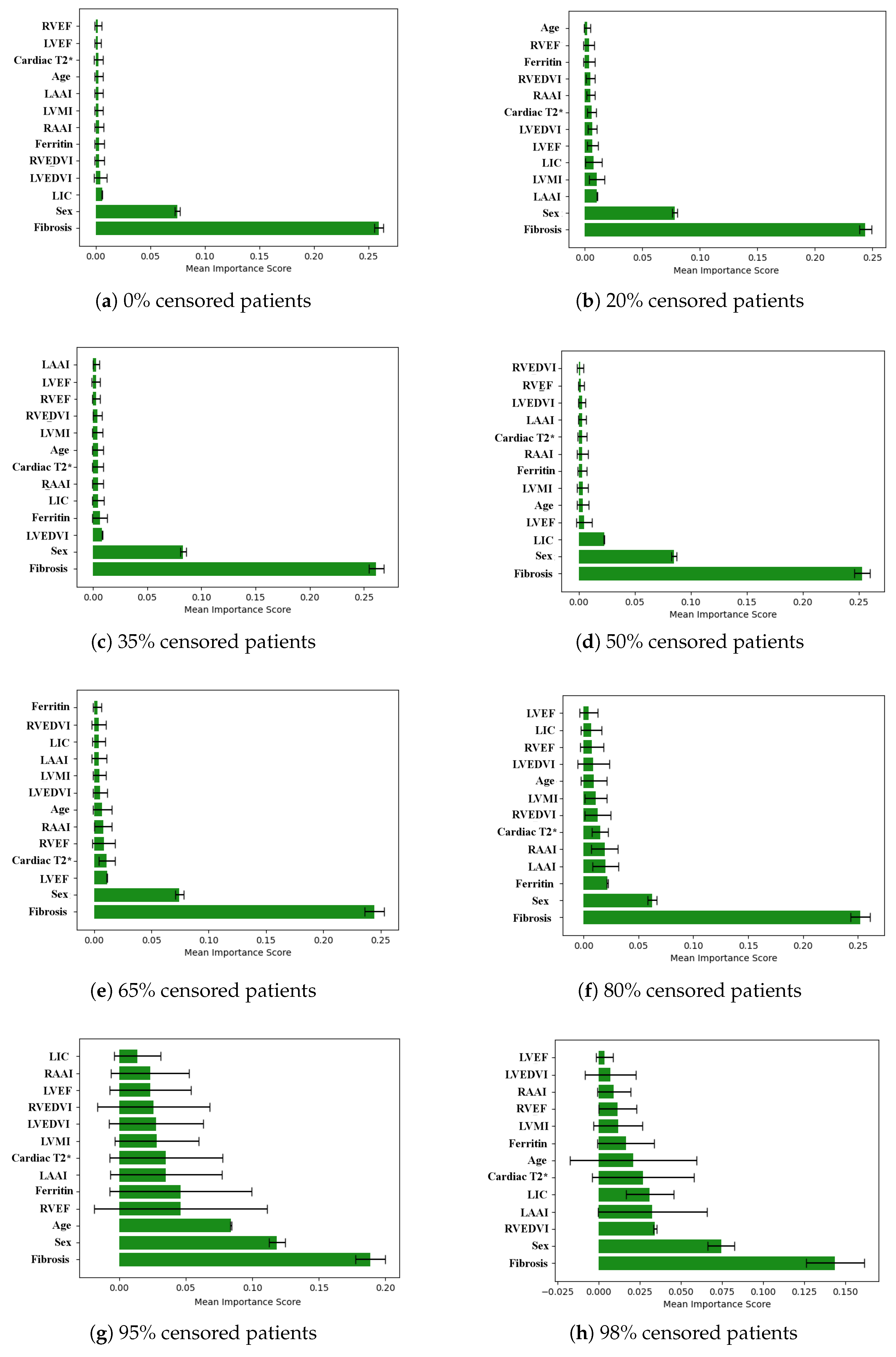

From the permutation analysis, we noticed that myocardial fibrosis and sex were the features with the highest impact on the log partial hazard. This finding was consistent among the different percentages of censored patients. We also noticed that, as the number of censored patients increased, the uncertainness in the permutation analysis rose.

3.2. MIOT Dataset Results

The MIOT database included about 90% of censored patients. After omitting patients with missing values, we analyzed 356 patients. Using stratified three fold cross-validation, we obtained a training set of 189 patients, including 15 with the event, and a validation set of 95 patients, including 8 with the event, in the first and second folds. In the third fold, we obtained a training set of 190 patients, including 16 with the event, and a validation set of 94 patients, including 7 with the event. The test set contained 72 patients, including 6 with the event.

Table 3. K-fold cross-validation and test set results for MIOT data.

Model	Fold 1	Fold 2	Fold 3	Mean ± SD	Test Set
Cox-Net	0.771	0.856	0.806	0.811 ± 0.035	0.795
Cox Regression	0.736	0.806	0.829	0.790 ± 0.040	0.690

reports the cross-validation results for the training of the Cox-net model. The results resembled those obtained in the synthetic data analysis, with a low reproducibility among folds showing a strong data dependence. Cox-net showed better performances than the standard Cox regression. The model with the best performance (i.e., the Fold 2 model) was used in the test set analysis.

Figure 8 shows the results of the permutation analysis introduced in Section 2.8 for the test set. Myocardial fibrosis appeared as the most important prediction factor, followed by sex. Based on this finding, we divided the test set into two different groups, first considering fibrosis and then considering sex, and we plotted the associated survival curves.

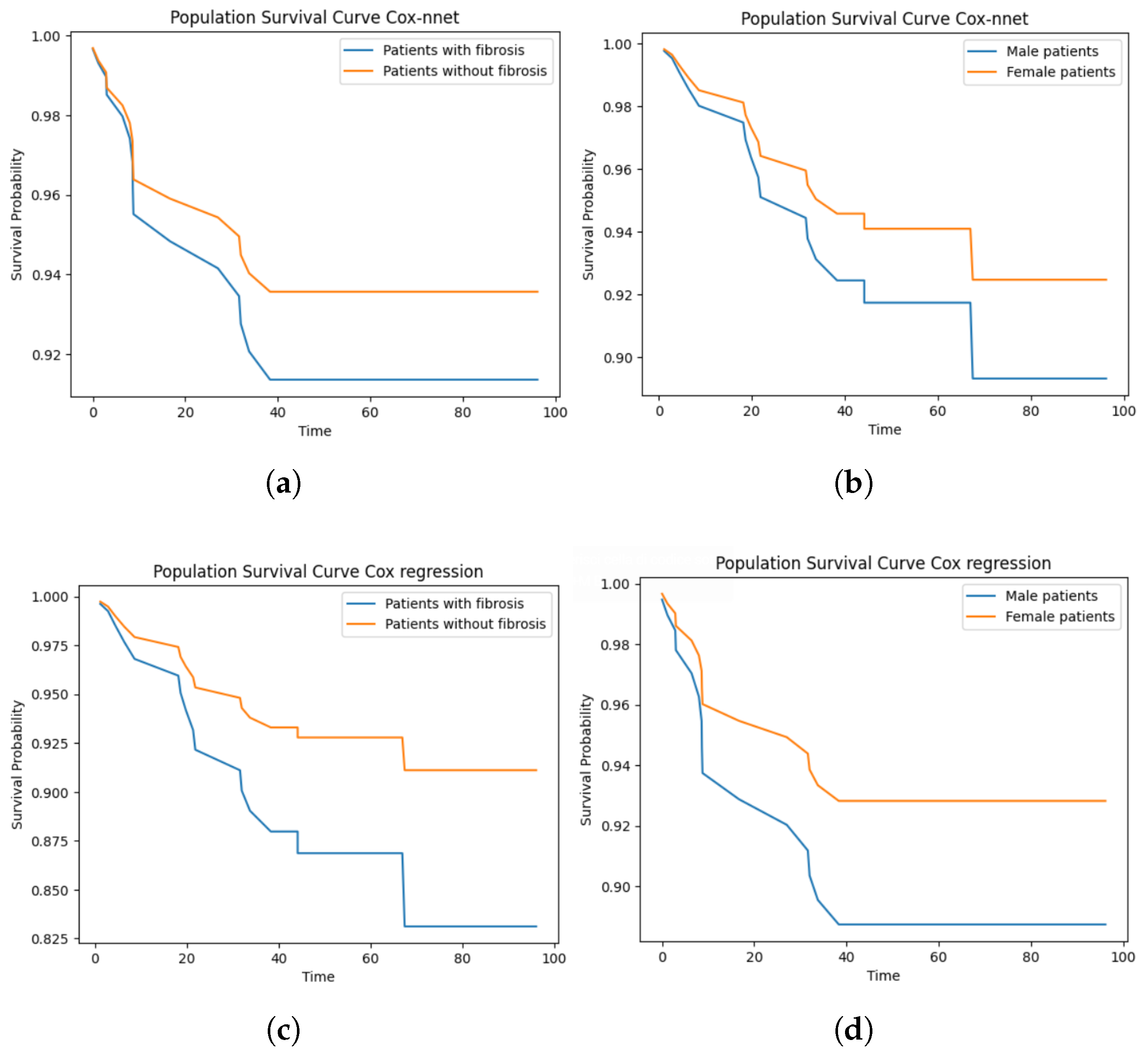

Figure 9 shows the survival curve analysis considering the fibrosis and sex covariates for the test set. Cox-net well discriminated the two patient groups.

4. Discussion

Artificial intelligence has revolutionary potential in healthcare applications [33]. Neural network models have strong nonlinear modeling capabilities, which allow them to effectively capture complex relationships among clinical variables. These models can provide accurate, personalized survival predictions. In this study, we trained and tested a neural network model (Cox-net) on synthetic and real clinical datasets to perform a survival analysis. In particular, we investigated the influence of the presence of censored patients on network performance and stability. As shown in Table 2, the performances of Cox-net and standard Cox regression were similar and reproducible among folds if the percentage of censored patients was low (<20%). As the percentage of censored patients increased, Cox-net outperformed standard Cox regression. For a high percentage of censored patients (i.e., >90%), the increase in the value of the c-index reached about 10%. However, the reproducibility of the performances among the folds decreased with the percentage of censored patients, revealing a significant dependence on the distribution of the data in the folds. Hence, the stability of the model showed a strong dependence on the number of events rather than the number of subjects. This finding was confirmed by examining the loss curves in the model training performed on a synthetic dataset with a large number of censored patients (Figure 4). In this case, a suboptimal convergence of the training procedure (Fold 2) was associated with a lower performance (CI = 0.745 in Fold 2 vs. 0.857 and 0.863 in Folds 1 and 3; see Table 2). The assessed trend was confirmed in a test set analysis (Figure 5). The performances of Cox-net were good (c-index about 80%) among a large range of censored patient percentages (0–80%) and better than those of standard Cox regression. A high percentage of censored patients led to a significant decrease in the value of the c-index. The findings of the survival curves analysis matched those of the c-index performance analysis (Figure 6). Cox-net allowed for an assessment of the importance of covariates by PFI. As shown in Figure 7, the ability of PFI to identify important covariates was reduced with the presence of many censored patients, although PFI was still effective for very high percentages of censored patients.

We used Cox-net to analyze a clinical database characterized by a high number of censored patients (>80%). Cross-validation and a test set analysis confirmed the findings obtained on the synthetic data (Table 3). Cox-net showed good performances, with a low reproducibility of performances among folds. The PFI analysis was able to clearly detect the dependence of the survival rate on fibrosis, while dependence on sex and the left atrium area was also found (Figure 8). The findings of the PFI analysis also align with those of previous clinical research, confirming that myocardial fibrosis is a strong predictor of cardiac risk in TM [34,35] and further highlighting the value of fully utilizing the multiparametric capabilities of magnetic resonance. Indeed, myocardial fibrosis represents a reparative response to myocardial injury and is considered an irreversible process. Over time, it leads to worsened ventricular function, abnormal remodeling, and increased stiffness, potentially resulting in left ventricular failure and heart failure symptoms. Additionally, reduced compliance and elevated filling pressures can raise left atrial pressures, promoting structural changes that increase the risk of atrial fibrillation [36]. Similarly, male sex is a well-established risk factor for cardiac complications in TM [37,38], likely due to a lower tolerance to iron toxicity. This increased vulnerability is thought to be driven by a greater sensitivity to chronic oxidative stress [39]. The link between the left atrial area and survival can be explained by the high incidence of arrhythmias in our population, as more than half of our patients had supraventricular arrhythmias. Atrial dilatation, leading to increased atrial pressures and altered electrical conduction, plays an important part in arrhythmia pathogenesis [40]. As shown in Figure 9, Cox-net was able to produce survival curves consistent with clinical findings. However, according to the synthetic data analysis, the predictions made by Cox-net did not perfectly overlap those made by standard Cox regression due to the high incidence of censored patients in the MIOT database.

This study has some limitations. The study results were affected by the relatively small sample size and low incidence of cardiovascular events. Hence, it was not possible to consider the different types of cardiovascular events separately. Patients with missing values in the MIOT database were excluded from the analysis. The explicit handling of missing values has been demonstrated in the literature [15,41] and could be employed to better manage patients with missing data. The model’s discriminatory ability was measured by the concordance index because of its established use and interpretability in survival analysis. Other indices, such as Uno’s C index and Dynamic AUC, could be used to further assess the model’s predictive performance. The primary goal of this study was to evaluate the performance of the deep Cox neural network compared to that of Cox regression, which remains one of the most widely used statistical methods in survival analysis. A comparison of the proposed model with other deep learning models proposed in the literature was not performed and will be the objective of further studies.

5. Conclusions

Cox-net represents a possible improvement in survival analysis, as it is able to interpret the nonlinear relationships between covariates and maintain acceptable performance in the presence of a high percentage of censored patients. The permutation feature importance method is a valid instrument for assessing the importance of covariates in Cox-net prediction. Hence, Cox-net offers a promising tool for improving risk stratification and supporting the clinical decision-making process. Future work will include expanding our analysis to larger and more diverse datasets to validate the generalizability of our approach across various clinical settings.
