Multi-Level Decision Support System in Production and Safety Management

Abstract

The proposed paper introduces an innovative approach based on the implementation of a multi-level Decision Support System (DSS) modelling processes in the industry. Specifically, the work discusses a theoretical Process Mining (PM) DSS model gaining digital knowledge by means of logics that are able to select the best decisions. The PM model is applied to an open dataset simulating a working scenario and defining a possible safety control method based on the risk assessment. The application of the PM model provides automatic alerting conditions based on a threshold of values detected by sensors. Specifically, the PM model is applied to worker security systems characterized by the environment with a risk of emission of smoke and gases. The PM model is improved by Artificial Intelligence (AI) algorithms by strengthening information through prediction results and improving the risk analysis. An Artificial Neural Network (ANN) MultilaLayer Perceptron (MLP) algorithm is adopted for the risk prediction by achieving the good computational performance of Mean Absolute Error (MAE) of 0.001. The PM model is first sketched by the Business Process Modelling and Notation (BPMN) method, and successively executed by means of the Konstanz Information Miner (KNIME) open source tool, implementing the process-controlling risks for different working locations. The goal of the paper is to apply the theoretical PM model by means of open source tools by enhancing how the multi-level approach is useful for defining a security procedure to control indoor worker environments. Furthermore, the article describes the key variables able to control production and worker safety for different industry sectors. The presented DSS PM model also can be applied to industry processes focused on production quality.

1. Introduction

Process mapping is a useful approach to optimize production, quality and security across an entire supply chain scenario. In particular, Artificial Intelligence (AI) engines provide further improvements to decision making processes by gaining knowledge and tailoring operation processes: the prediction of variables allows for the addition of information, thus optimizing decisions over the medium and long term. The modelled processes improved by AI are named Process Mining (PM) models [1,2,3]. The union of PM together with AI constitutes a Decision Support System (DSS) system, which is able to predict process quality [4] and worker risks (for example analyzing air quality [5]), and to manage human resources [6]. Business Process Modelling and Notation (BPMN) is a versatile approach for mapping processes as workflows. BPMN is adopted in different applications’ explaining and simulating processes, both for predictive maintenance [7] and for data flow in information systems [8]. Advanced PM models can be sketched by means of BPMN workflows, integrating intelligent logics and AI algorithms, thereby structuring a DSS [9]. A DSS implementing a multi-level logic can be a good solution to improve the efficacy of the monitoring processes regarding health scenarios integrating Artificial Neural Network (ANN) MultiLayer Perceptron (MLP) predictive algorithms [10], as well as for predictive maintenance applications [11]. The literature provides a classic definition of “Process Mining” as an analytical discipline for discovering, monitoring, and improving processes. The paper introduces a new definition of “Process Mining” as the discipline for discovering, monitoring, and improving processes by means of a multi-level DSS behaving as a decision-making engine based on AI algorithms. The DSS allows for the strengthening of the knowledge gain of the industry. The analyzed literature suggests the use of the BPMN tool to sketch an innovative PM workflow oriented, in general, on industry production and, more specifically, on the monitoring and control of worker environments. By considering these goals, the paper is structured according to the following steps:

• A block diagram of a “proof of concept” of PM based on the implementation of a DSS operating on different risk levels is formulated.
• The “proof of concept” of the PM model by a BPMN diagram by simplifying the DSS into three levels is detailed.
• The PM model is applied to a process monitoring risks in worker environments, by processing sensor data and by visualizing graphical risk dashboards.
• Different scenarios suitable for the application of the PM model in production quality assessment and in security process in industry sectors by defining the most important key variables to control are discussed.

The contribution of the paper is to provide a new PM theoretical model based on the concept of a DSS operating at different levels, where each level characterizes an alerting condition. The alerting condition defines a risk level: the first risk level (Level 1) is a minor danger condition; the second risk level (Level 2) is more dangerous, and so on (the last, Level n, is the most dangerous). The PM-DSS multi-level model can be used mainly to classify interventions to perform when an alerting level is enabled. The PM multi-level model can be applied to control the production or safety in industrial processes. More details about the multi-level model are provided in Section 2. In order to explain the model mechanisms, the article discusses an example of safety control in working environments. The topics discussed in the paper are significant for digital transformation of companies. Table 1 summarizes typical problems encountered by the digital transformation process by industries, as well as current solutions, and the aspects of originality introduced in the article.

Table 1. Problems of digital transformation, current solutions, and aspects concerning originality of the study.

Problems of Digital Transformation Involving PM	Current Solutions [1]	Originality of the Study
Knowledge Gain (KG)	Digital transformation process in industry involves the creation of a Knowledge Base (KB) and the possibility to gain information. Typically, the KG of a company is provided by the processing of data detected by Internet of Things (IoT) sensors. AI algorithms are also used to create KG.	The KG is also obtained by processing, in different phases, the digital data of sensors, thus providing incremental information about risks: the possibility of processing data by implementing specific logic conditions can strengthen decision making.
Risk mapping and risk prediction	The ‘AS IS’ and the ‘TO BE’ risk mapping is sketched by BPMN approach, integrating AI algorithms’ risk predictions.	The risks are estimated by a multi-level DSS, which simultaneously integrates specific logics and risk forecasting. The prediction is mainly indicated for the ‘TO BE’ processes matched with the medium and the long period. The prediction activity is performed by AI algorithms that gain information about possible risks, thereby improving the risk assessment. A preliminary analysis of the correlation of variables is important for a ‘precise’ prediction (selection of the variables having a major weight for the specific analysis).
Decision-making for intervention	Decision making processes are driven by AI results (robotic handling, predictive maintenance, etc.).	The decision-making processes are classified into intervention classes depending on the estimated alerting levels. The efficacy of the intervention is increased.
Real time alerting process	Real time data processing is fundamental for adopting rapid interventions by avoiding the risk degeneration for health and for the breakage of components.	Real time data processing can be activated only when it is required, thereby making computing resources more efficient.

2. Materials and Methods: Process Mining (PM) Model Implementing a Multi-Level DSS Engine

Figure 1 shows the block diagram of the “proof of concept” of the proposed PM multi-level model integrating DSS. The DSS is structured to operate on different data processing levels (n generic levels, depending on the variable to process and on the logic conditions to implement), representing a specific decision-making process. AI algorithms are applied in the main process to control the production and the safety conditions of the working environment, thus gaining knowledge. The inputs of the model are data detected by IoT sensors. The data output of the PM model defines the possible alerting conditions and the procedures to adopt.

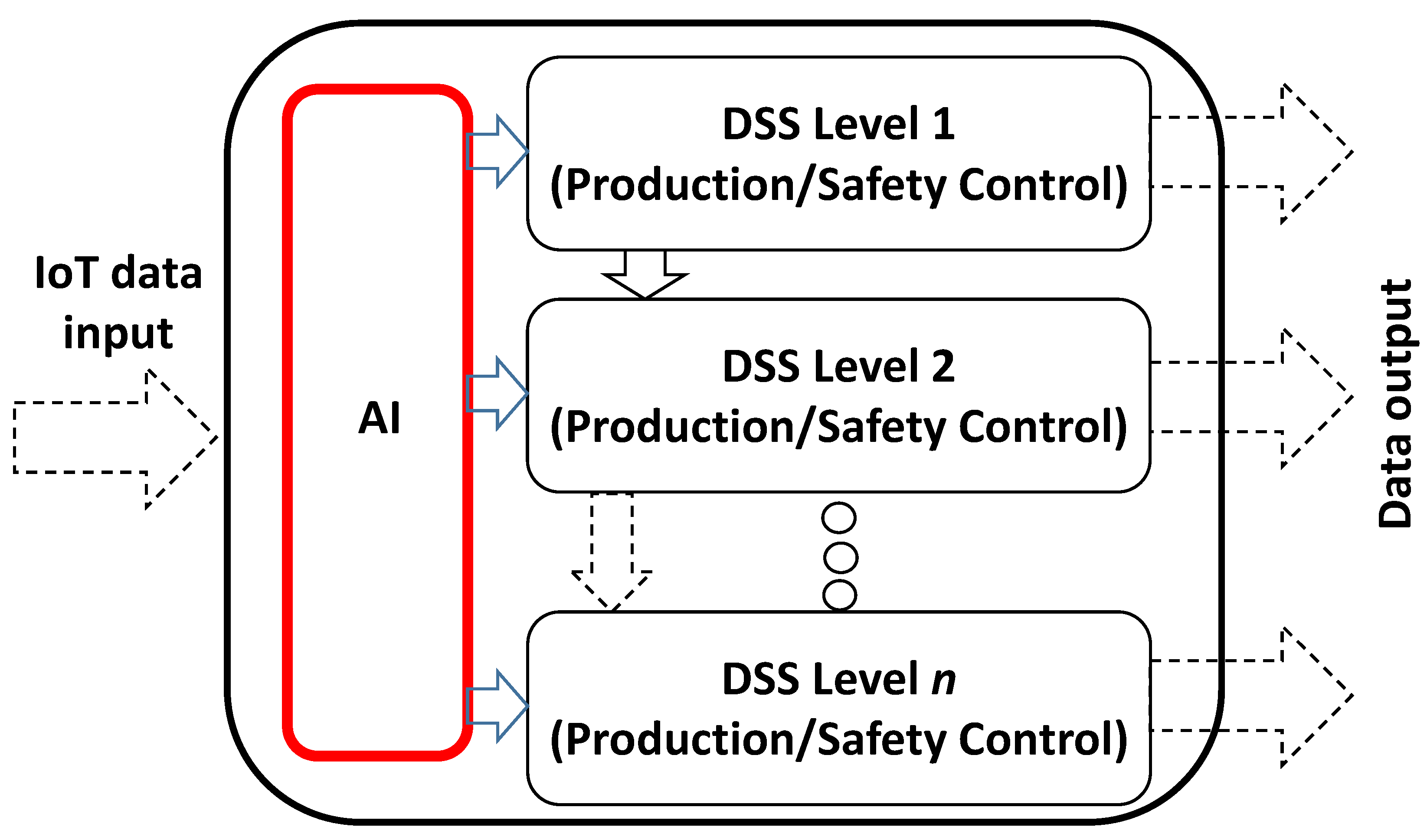

Figure 1. Block diagram of the “proof of concept” of the main PM model controlling production and worker safety by means of a multi-level DSS interconnected to AI algorithms.

The BPMN method is used to describe the PM diagram of Figure 1 in detail by explaining all the process flows. The tool adopted for the BPMN model of Figure 2 is the open source Draw.io tool [12], having the BPMN symbols available as libraries (BPMN 2.0 downloadable plugin). The symbols to represent the PM workflow of Figure 1 are mainly pools containing sub-processes, tasks (symbols as rectangular boxes), start and stop events, and gateways structuring decisional logics (by means of exclusive event based gateways behaving as decision-making objects) and actions of process splitting (by means of parallel gateways). The BPMN workflow of Figure 2 sketches a model based on three DSS levels, and it is structured by the following elements:

• DSS Alerting Level 1. This sub-workflow represents the first level of the whole PM model. The first alerting level is constituted by a first DSS based on the simultaneous analysis (parallel gateway), threshold check (detection of alert conditions in the short period), and AI prediction supporting the risk evaluation over the medium or long period. The processed dataset is the IoT input dataset or an extraction of the original dataset obtained by filtering the most relevant attributes. The logic condition is modelled by the ‘Exclusive Event Based’ symbol: for a positive check of the monitored variables (values do not overcoming specific thresholds), the production quality (or the security condition) is guaranteed and no interventions are required. Besides, in a negative case, the system provides a first alerting condition, enabling interventions (intervention type 1 named “Intervention 1”), and data are processed in the second DSS level (pool named “DSS Alerting Level 2”), providing more details about worker risks (higher level of the risk). Additionally, in the case of a positive check, for an additional security, the second sub-workflow of Level 2 can be executed.
• DSS Alerting Level 2. This workflow includes the ‘AND’ logic condition between true results of the DSS Alerting Level 1 and other variables. For a positive check of the monitored variables not overcoming specific thresholds, the process is secure. Besides, for a negative case, the system provides a second alerting condition addressing specific interventions (intervention type 2 named “Intervention 2”), and data are processed in the third level DSS analysis (pool named “DSS Alerting Level 3”).
• DSS Alerting Level 3. This last workflow has the same structure of the previous DSS workflows. The final dashboard indicates the entire summary of the results, as well. If the third level also indicates a risk, an immediate intervention is executed (very dangerous risk condition characterized by a higher risk level).

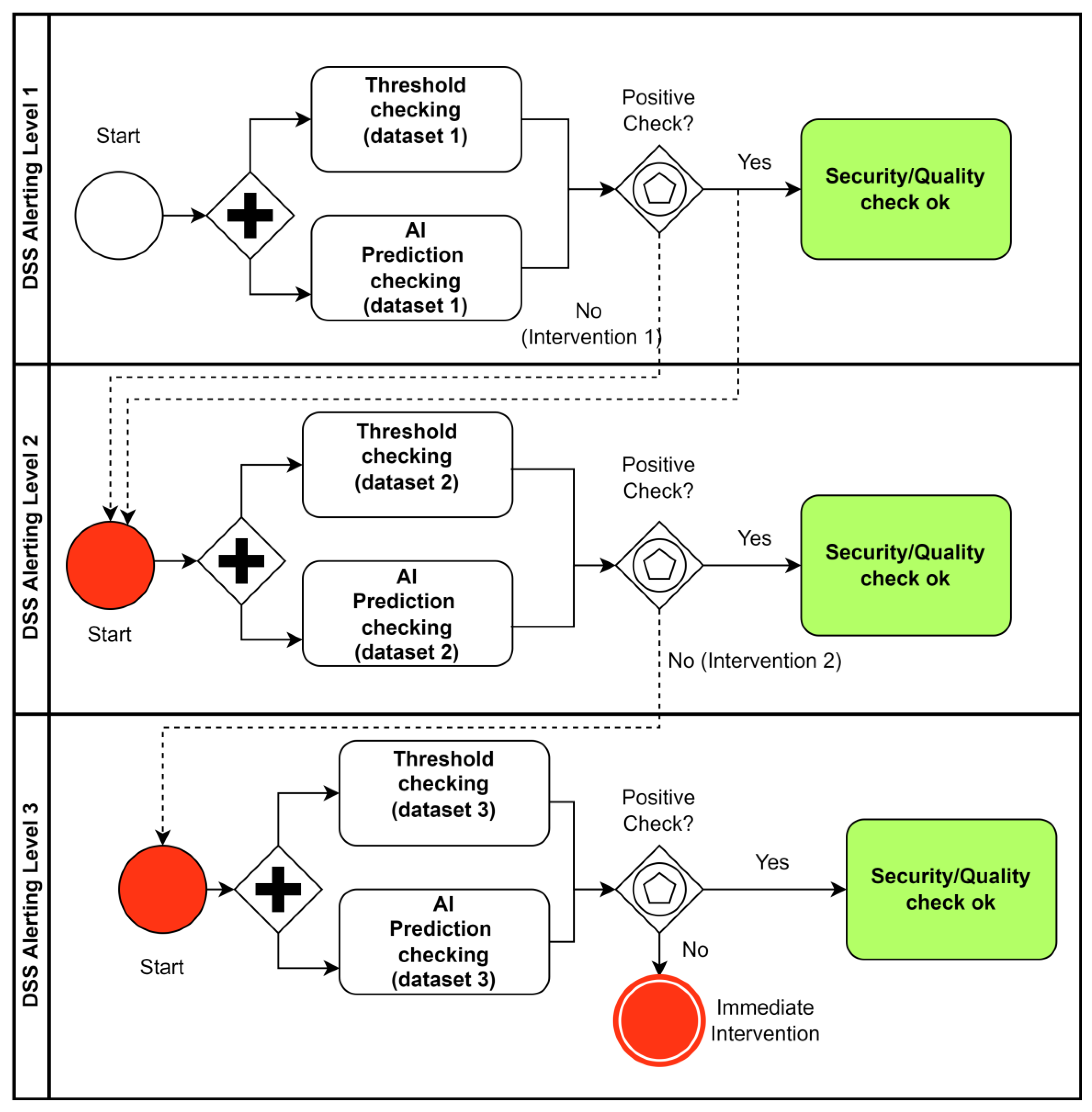

Figure 2. PM BPMN model describing the “proof of concept” of Figure 1 by considering three DSS levels (model simplified).

Figure 2. PM BPMN model describing the “proof of concept” of Figure 1 by considering three DSS levels (model simplified).

The execution of the theoretical PM model of Figure 2 is performed by developing the Konstanz Information Miner (KNIME) workflows [13,14]. The KNME workflows are applied to the open dataset of [15] concerning an IoT application (see in Appendix A more details of the analyzed dataset). The open dataset [15] is hypothesized to be acquired into a generic working environment, allowing for a simulation of scenarios of possible risk conditions.

3. Results: Example of PM Application is Safety Management

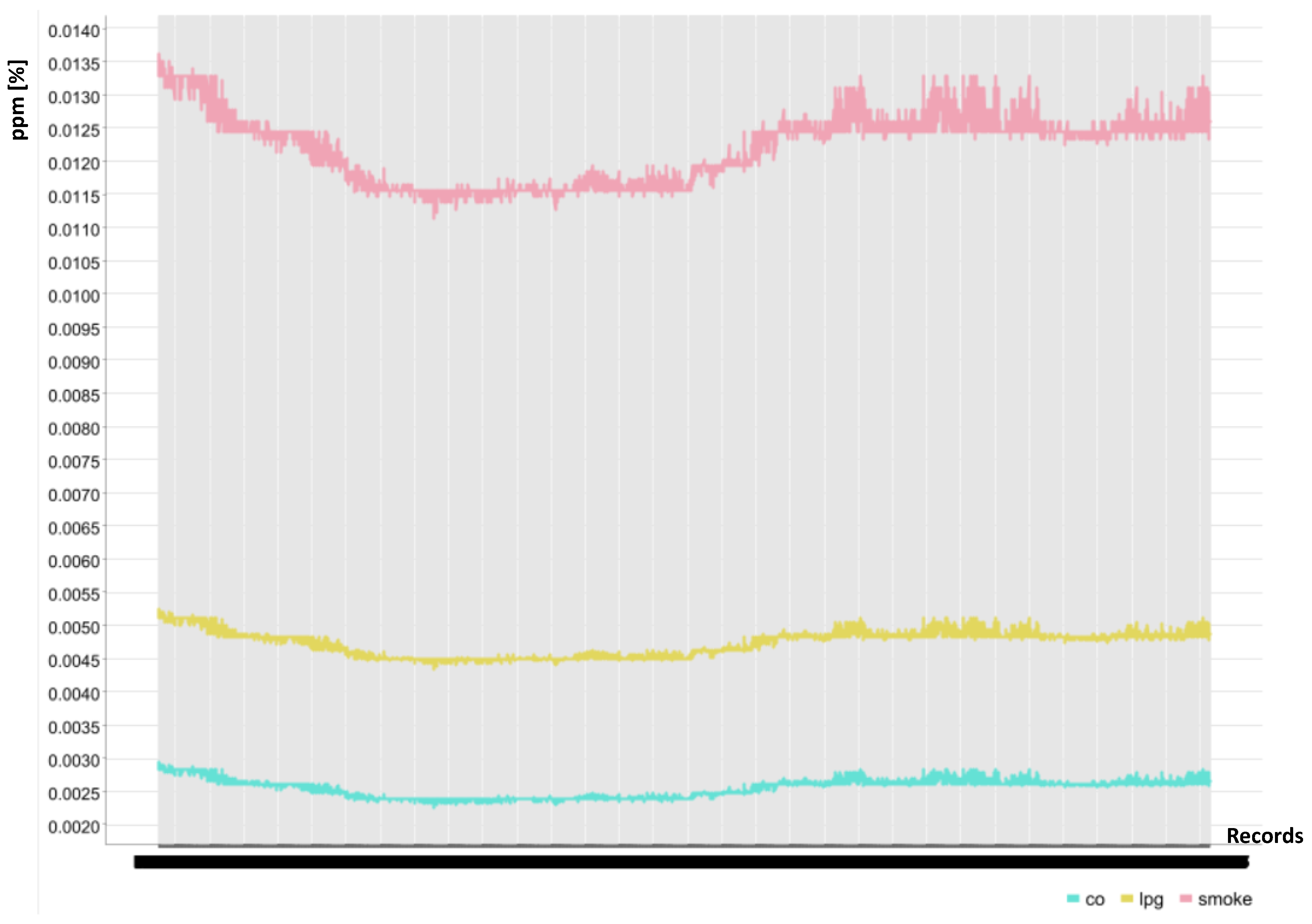

This section discusses the application of the PM model of Figure 2 by processing the dataset [15] (see Appendix A). The dataset contains the variables which potentially have a major weight concerning worker security, such as carbon monoxide emission (co), liquid petroleum gas (lpg) emission, and the presence of smoke (smoke), indicating a generic malfunction of the plant. The KNIME workflow is executed to implement logic conditions of the three DSS levels and the ANN-MLP algorithm is applied to predict the alerting condition.

3.1. KNIME Model Implementing a Three DSS Level Based on Logic Conditions

This workflow of Figure 3 ‘translates’ the scheme of Figure 2 by using KNIME blocks. Two different KNIME workflows model the logic conditions (threshold checking action) and the ANN-MLP prediction (AI prediction checking), respectively. The three DSS levels are connected in series by linking the following elements (named KNIME blocks):

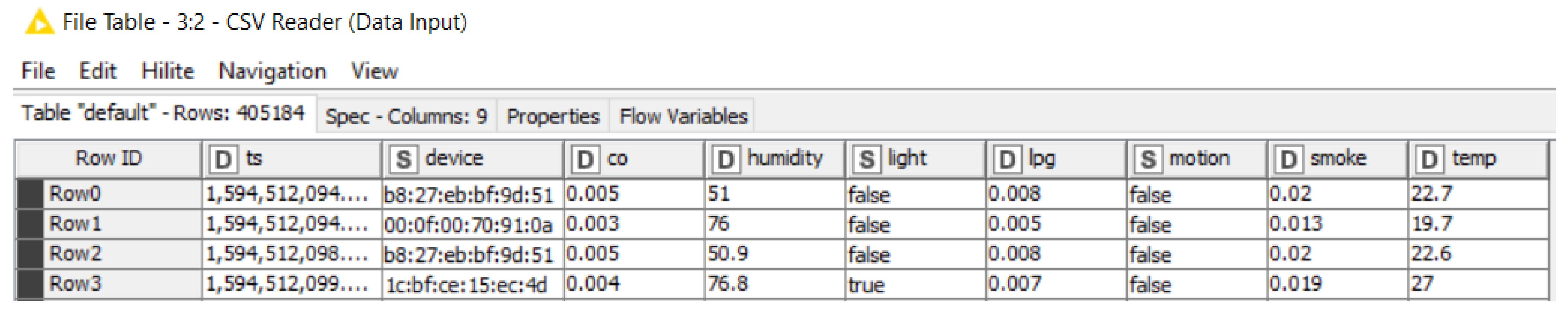

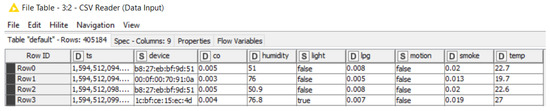

• CSV Reader: the dataset [15] is imported in the local repository to be processed by the other blocks;
• Row filter: three IoT electronic boards are located in three different work environments (location 1, location 2, and location 3) where the production plant parts are located; each ‘Row Filter’ will select the sensor data of the specific location;
• Role Engine (DSS level 1): the Exclusive Event Based gateway is modelled by this block, enabling logic control of the first level (“DSS Alerting Level 1” of Figure 1); in this case, the basic secure condition is that the light is switched on for the three locations (in the negative case the first alerting condition is enabled, “Alert 1”);
• Pie/Donut Chart: pie charts are used as dashboards for all of the levels;
• Role Engine (DSS level 2): these blocks implement the second logic control (“DSS Alerting Level 2” of Figure 2); the logic condition activates the alerting condition (“Alert 2”) when “Alert 1” AND variable smoke > = 0.02 is True;
• Role Engine (DSS level 3): these blocks implement the third logic control (DSS Alerting Level 3 of Figure 2); the logic condition enabling the final alerting condition (“Alert 3”) is when “Alert 2” AND variable co > = 0.005 AND variable lpg > = 0.008 are True.

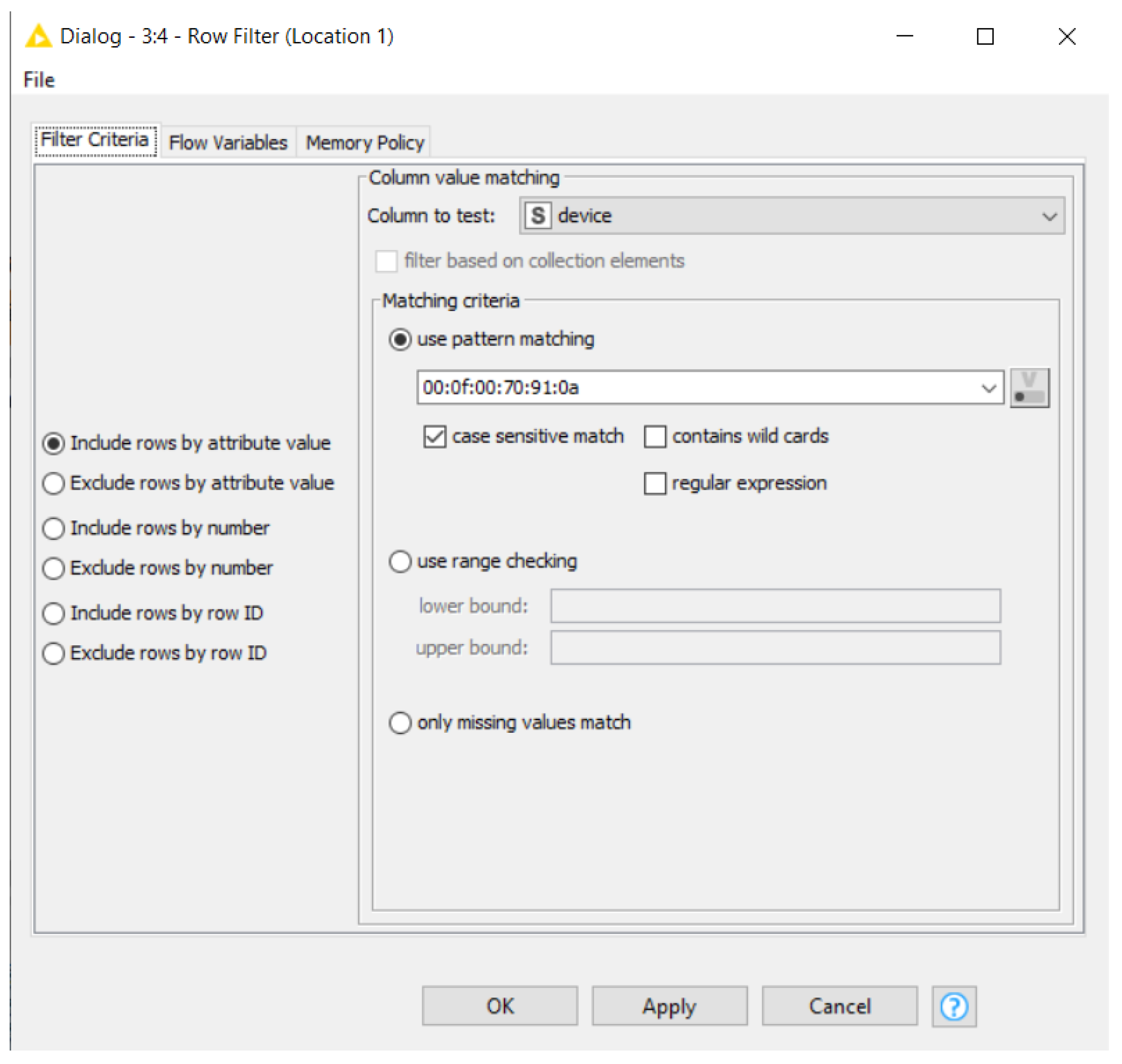

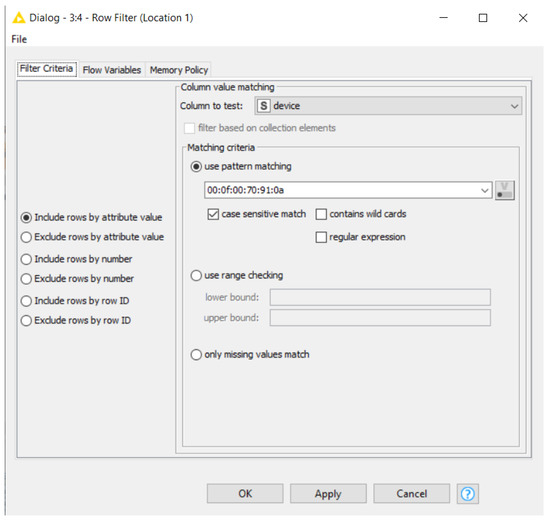

The main block configurations (pseudocodes and parameters) are listed in Appendix A.

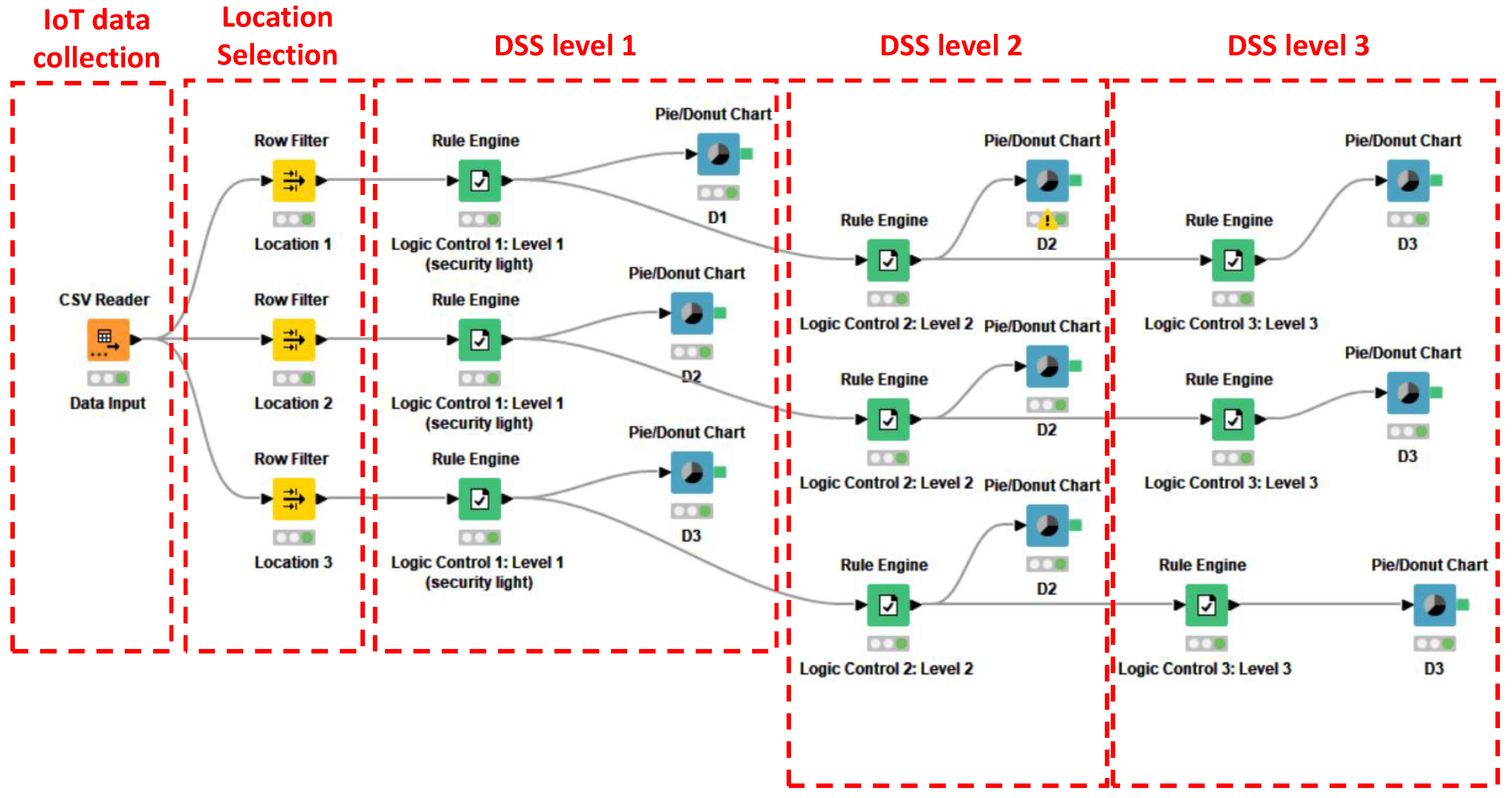

Figure 3. KNIME workflow model based on threshold checking and implementing three-DSS levels for worker safety control. The workflow executes the open dataset [15]. The horizontal flux of the KNIME workflows model the vertical BPMN structure of Figure 2.

Figure 3. KNIME workflow model based on threshold checking and implementing three-DSS levels for worker safety control. The workflow executes the open dataset [15]. The horizontal flux of the KNIME workflows model the vertical BPMN structure of Figure 2.

The implemented logic conditions represent a simulating scenario of working environments with production machines emitting smoke and gases in case of malfunctions. The logic rules are based on the following criteria:

• The first level of alert is the checking of lighting (first condition guaranteeing a basic security level).
• The second level of alert is when the light is switched off and, simultaneously, the smoke variable overcomes a specified threshold (0.02 ppm %).
• The third level of alert (most dangerous condition) is when the second level condition and the carbon monoxide and liquid petroleum gas overcoming specific thresholds are simultaneously checked (0.005 ppm % and 0.008, respectively).

It is observed that the threshold values are assumed only to prove the correct implementation of the KNIME workflow (testing of the model), thus, a real scenario can be different, according to local laws or policies. The pie dashboards of Figure 4a–i summarize the results regarding all risks in the three locations where the sensor matrices are positions. As shown in Figure 4, location 3 exhibits a more dangerous condition, having a higher impact of “Alert 3” condition if compared with the other two locations (location 1 is simply characterized by a no lighting condition, and location 3 is in a ‘no risk’ zone).

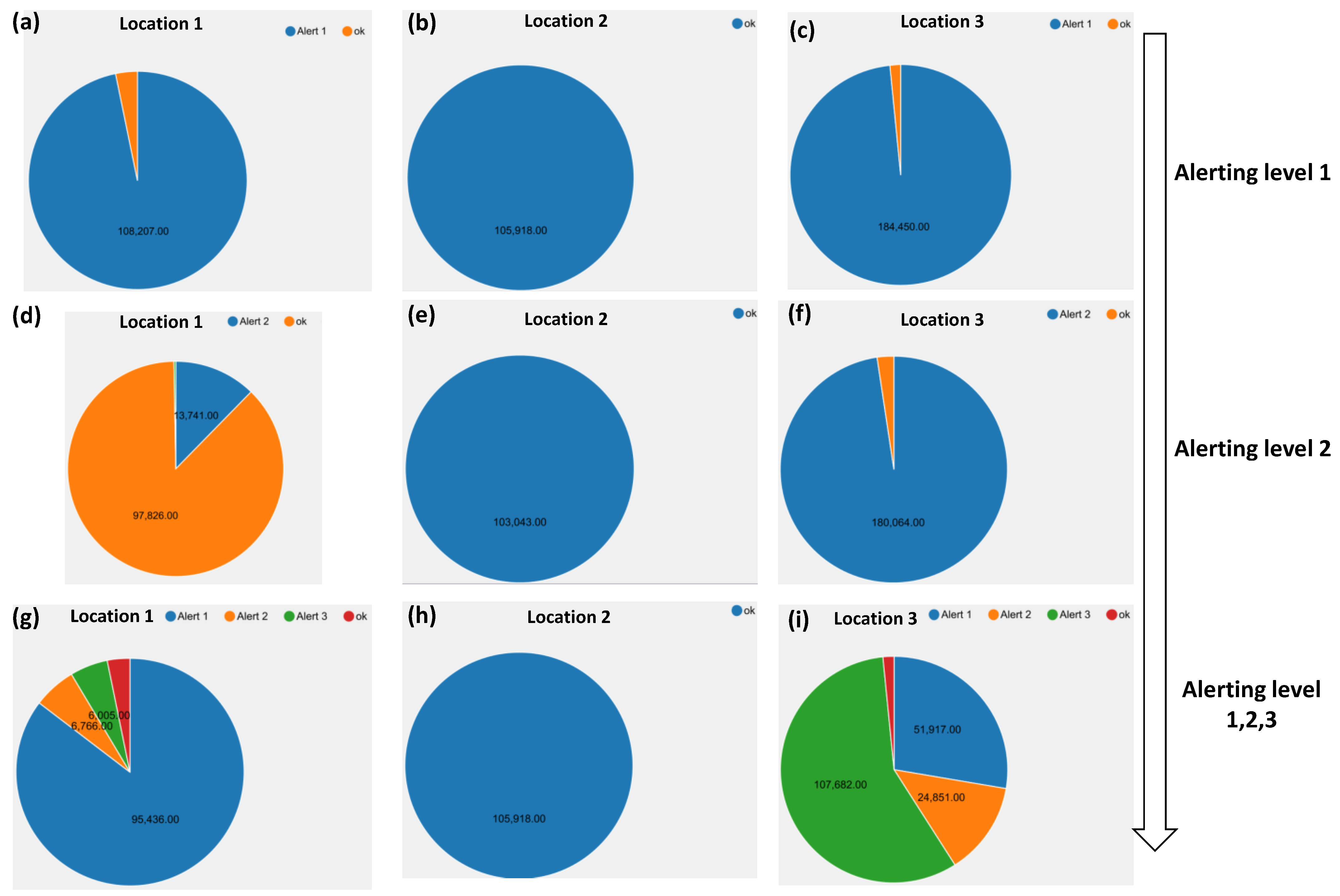

Figure 4. KNIME dashboards (output of the “Pie/Donut charts” blocks of the KNIME workflow of Figure 1). Alerting level 1 dashboards of location 1 (a), location 2 (b), and location 3 (c). Alerting level 2 dashboards of location 1 (d), location 2 (e), and location 3 (f). Alerting level 3 dashboards and summary of other alerting levels of location 1 (g), location 2 (h), and location 3 (i).

3.2. KNIME Model Implementing ANN-MLP Network Supporting Decisions

The PM model of Figure 2 additionally takes into account the check of predicted results, providing a complete risk scenario regarding the medium and the long periods. For the analyzed case, the attention is focused on DSS level 2 because it has no ability to predict the light condition. We note that it is important to predict mainly the smoke variable because it represents a sure condition of a plant/machine malfunction or failure. The KNIME workflow of Figure 5 indicates all the data processing phases of the ANN-MLP algorithm predicting the smoke variable. The phases are classified as:

• data input: Data importing action (csv containing IoT datasets).
• data pre-processing: Selection of the main variables (key variables) to process as inputs of the ANN-MLP network (variables chosen by analyzing the correlation matrix by means the “Linear Correlation” block); column filtering process able to clean the dataset from the other variables; partitioning process (“Partitioning” block) splitting the input dataset into two dataset (first partition for the training data process, and second partition for the testing data processing).
• data processing: Training (by “RProp Learner” block) and testing (by “MultiLayerPerceptron Predictor” block) phases.
• data reporting: Plot of the predicted results versus other key variables (by “Scatter Plot” block); performance of the algorithm provided by error’s estimation.

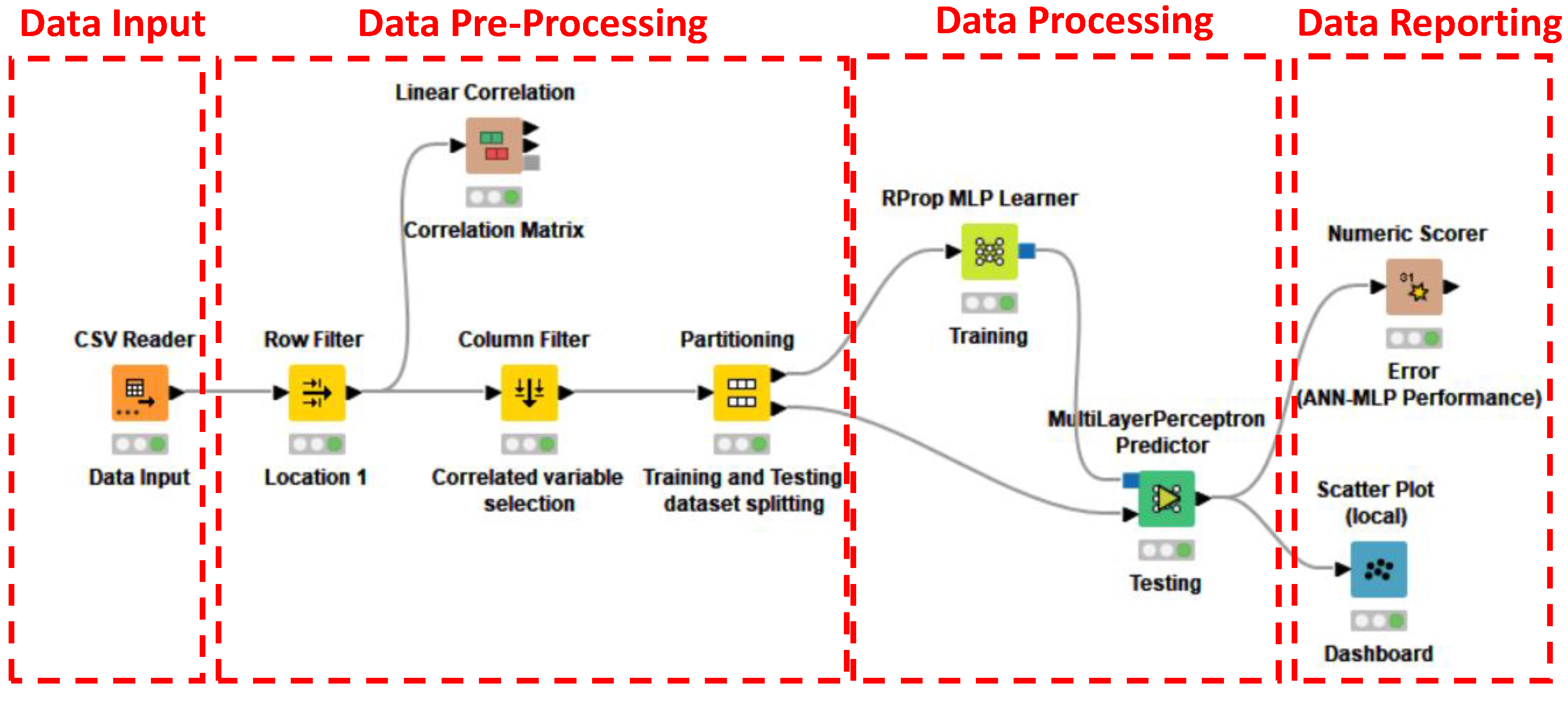

Figure 5. KNIME workflow implementing ANN-MLP network predicting important variables about worker security (in the analyzed case is predicted the labelled variable smoke).

Figure 5. KNIME workflow implementing ANN-MLP network predicting important variables about worker security (in the analyzed case is predicted the labelled variable smoke).

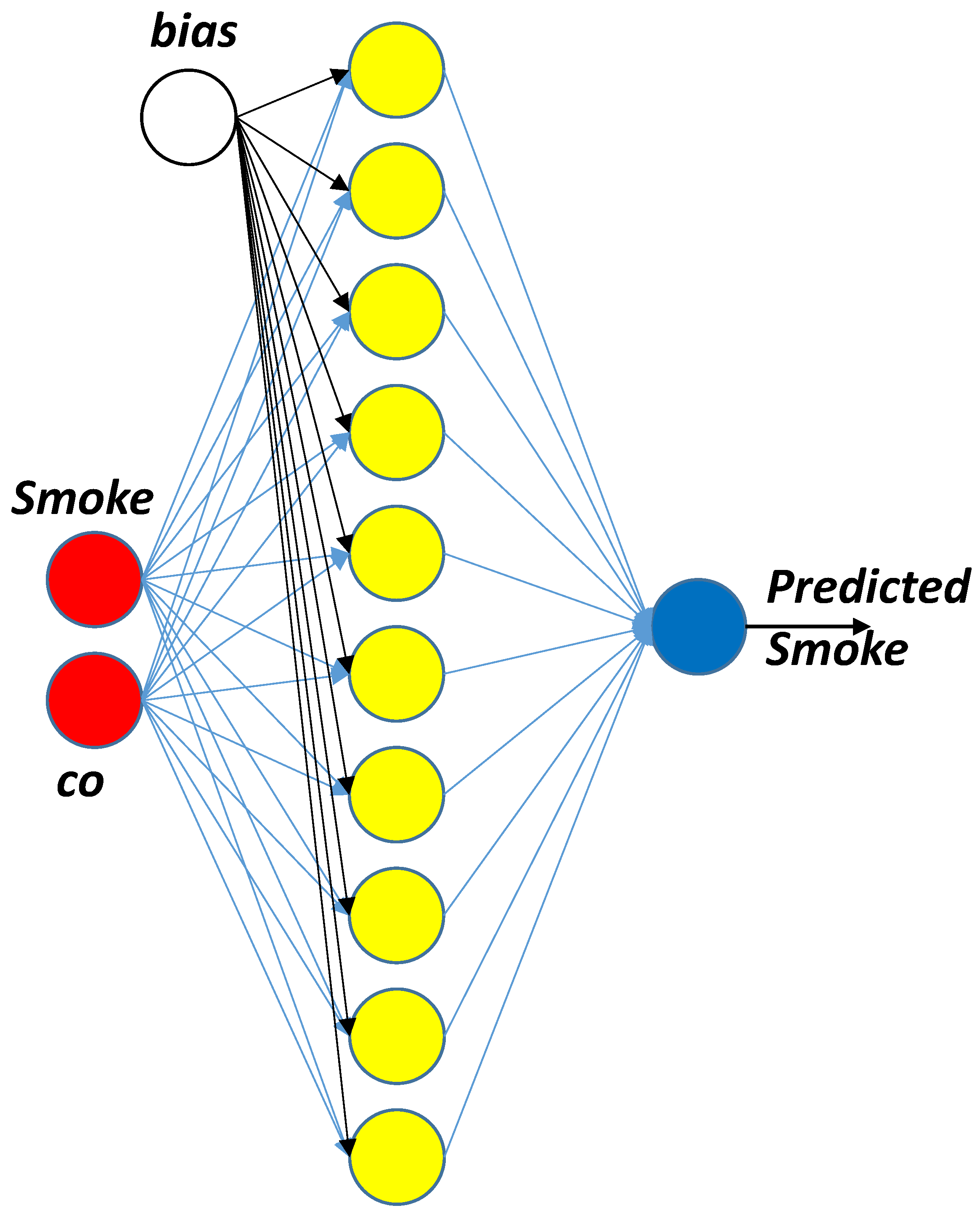

The key variables to be processed by the ANN-MLP algorithm are suggested by the correlation matrix analysis. This analysis takes into account the variables characterized by a strong correlation as the input nodes of the ANN-MLP network. By supposing that the smoke and the carbon monoxide are emitted together at the same time (and after this emission appear lpg due to a deeper machine damage happening after a long period of smoke emission), the variables to process are essentially smoke and co; this choice is enhanced by the correlation analysis illustrated in Figure 6a,b, where the correlation matrix values using a colored scale and double precision numbers are indicated, respectively.

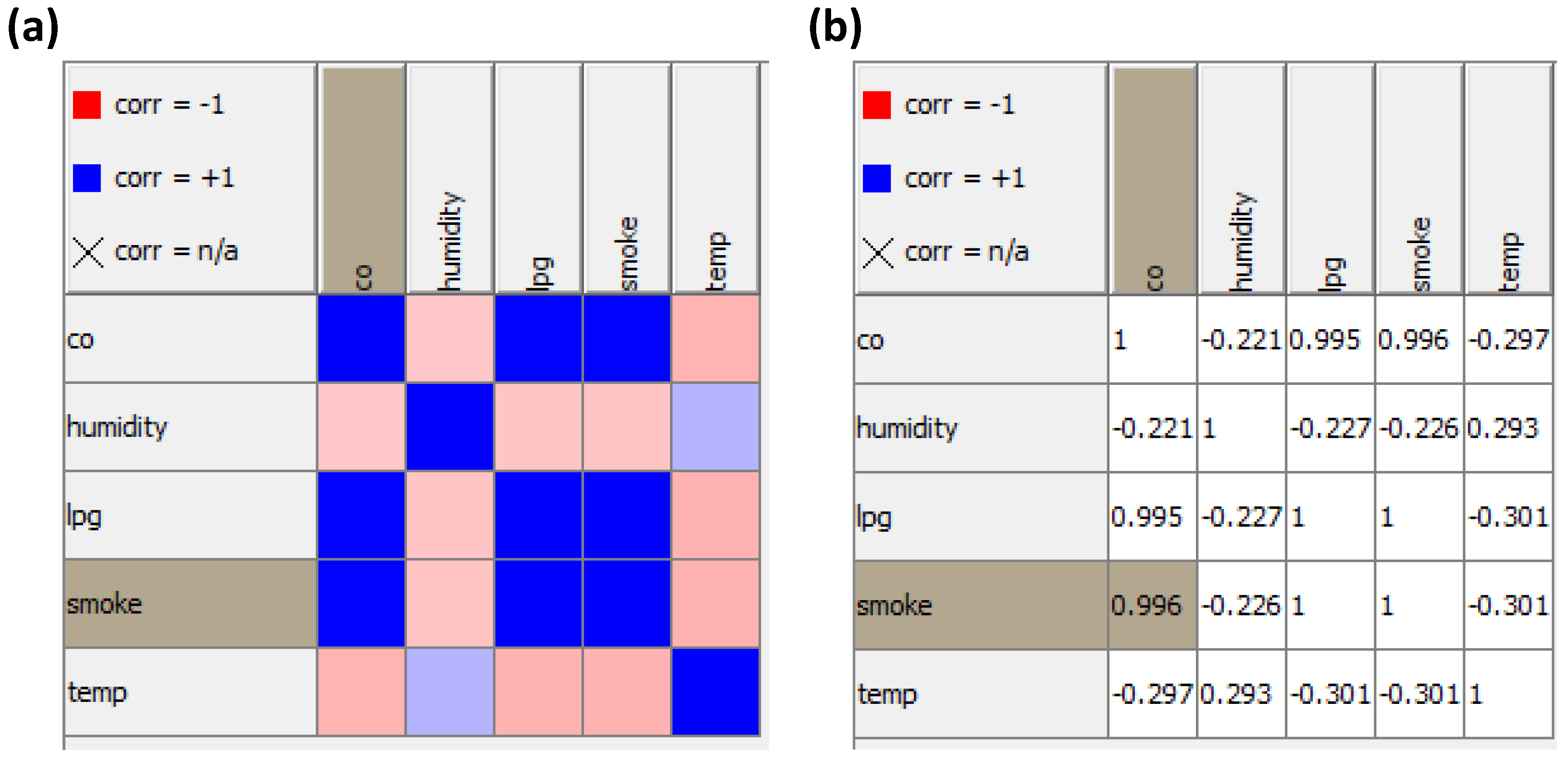

Figure 6. KNIME results: (a) correlation matrix of selected variables using a colored scale (a) and double precision values (b).

The outputs of the KNIME workflow of Figure 5 are illustrated in Figure 7a,b and Figure 8a,b. The plots of location1 indicate that the predicted smoke and co variables are mainly under the threshold, and, consequently, there is a no risk condition. Besides, a moderate predicted alert for location 2 and a high predicted alert for the location 3 are observed. A very low Means Absolute Error (MAE) of 0.001 (estimated by means the “Numeric Scorer” block of Figure 5) is checked for the prediction analysis, thus proving the good performance of the applied ANN-MLP algorithm. The ANN-MLP hyper-parameters and the related model used for the calculus are listed in Appendix A.

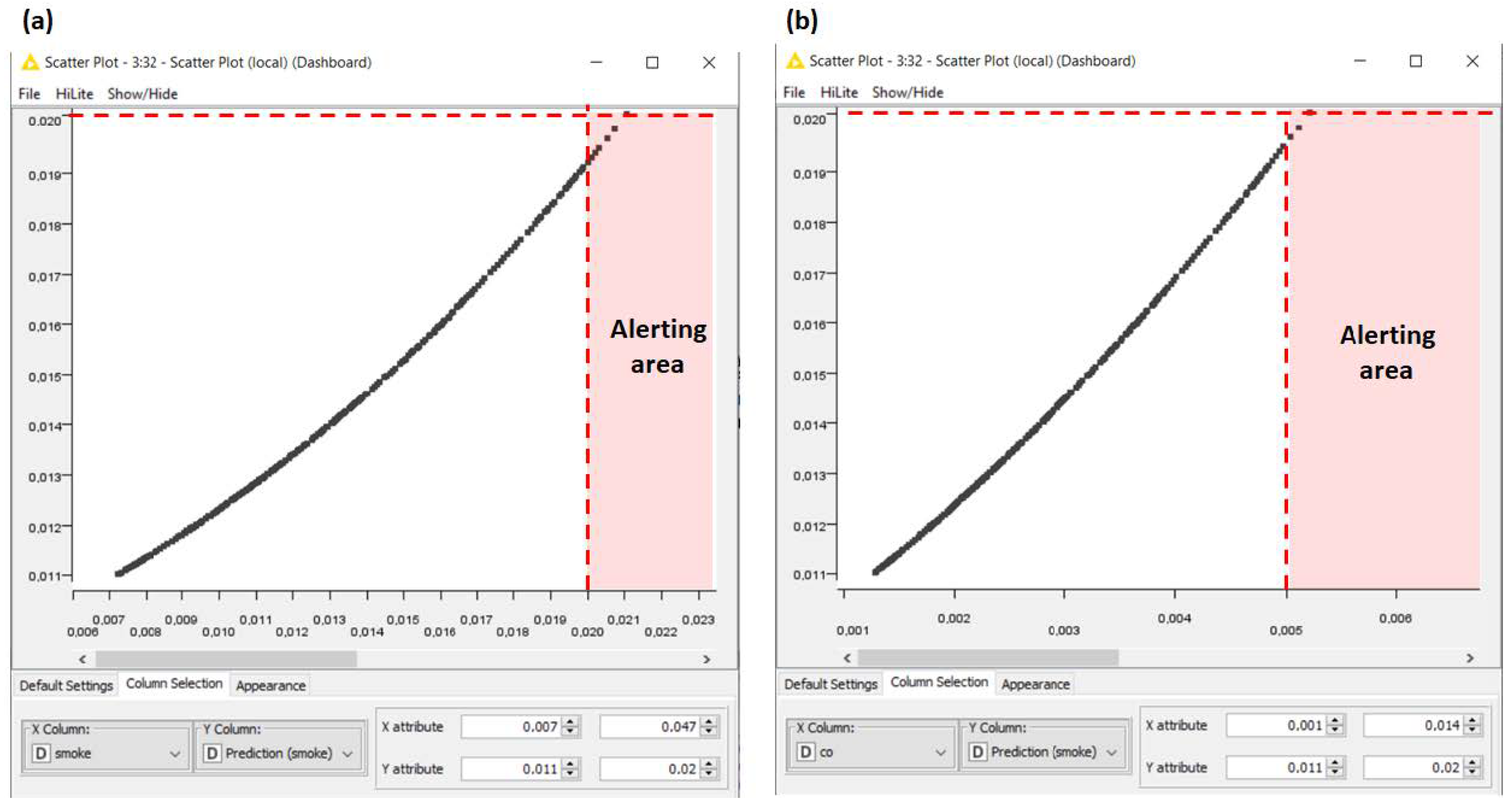

Figure 7. KNIME ANN-MLP algorithm predicting smoke variable. Plots of smoke versus predicted smoke (a), and co versus predicted smoke (b). The red area represents the alerting condition.

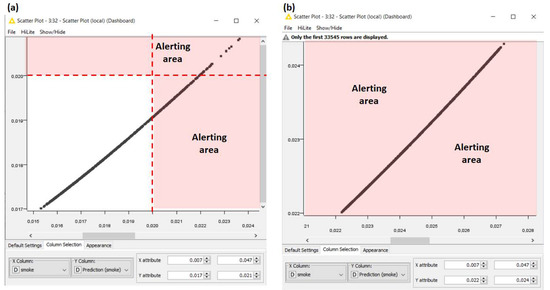

Figure 8. KNIME ANN-MLP algorithm predicting smoke variable. Plots of smoke versus predicted smoke for location 1 (a), for location 2 (b), and for location 3 (b). The red area represents the alerting condition.

In Table 2, the results of the threshold checking and the ANN-MLP predicted alert are summarized.

Table 2. Alerting conditions as results of the check of thresholds and of the ANN-MLP predicted alert.

Location	Alert 1	Alert 2	Alert 3	Predicted Alert	MAE
Location 1	Yes	Low	Low	No alert	0.001
Location 2	No	No	No	Moderate alert	0.001
Location 3	Yes	Yes	Yes	High Alert	0.001

5. Conclusions

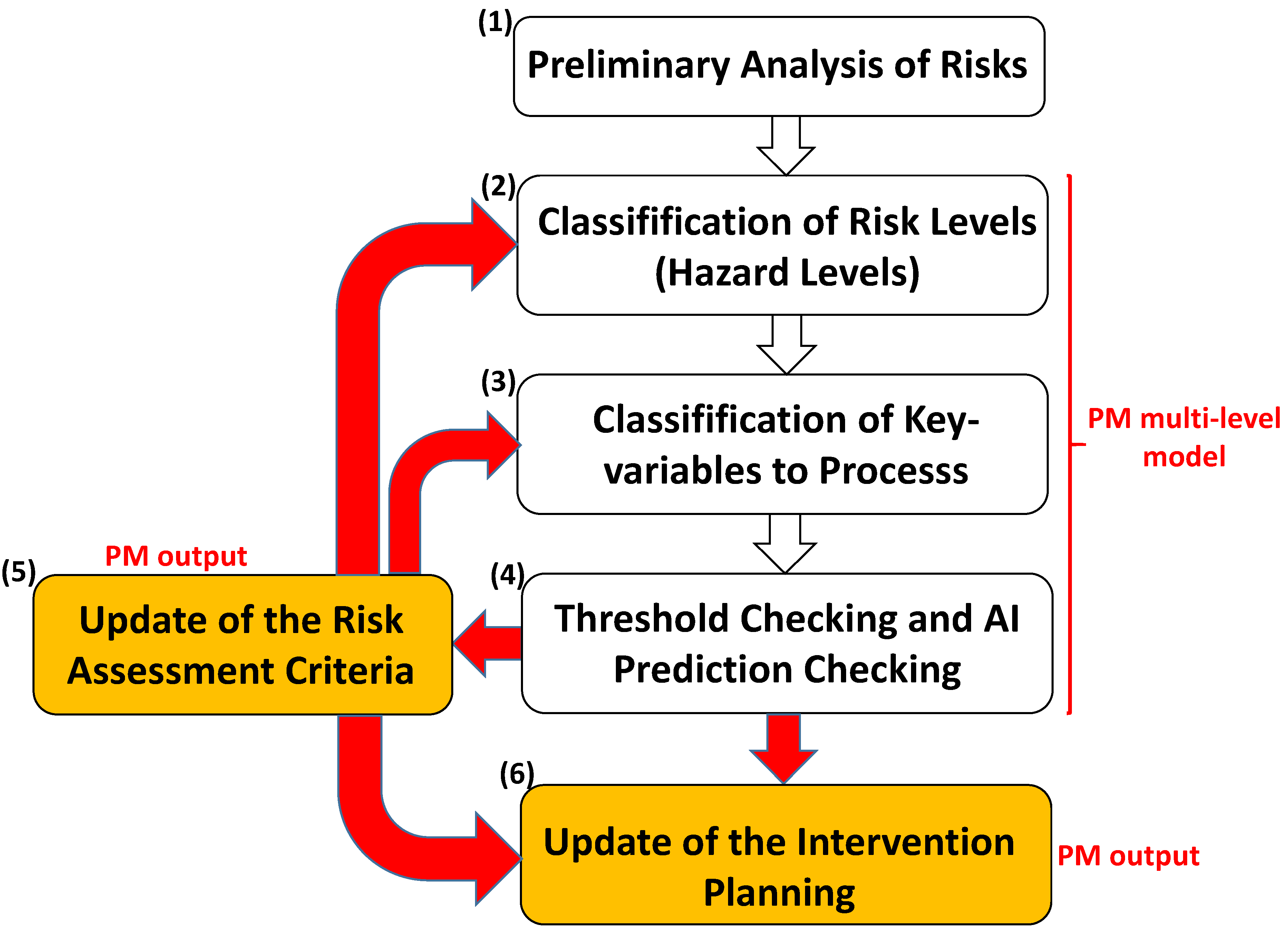

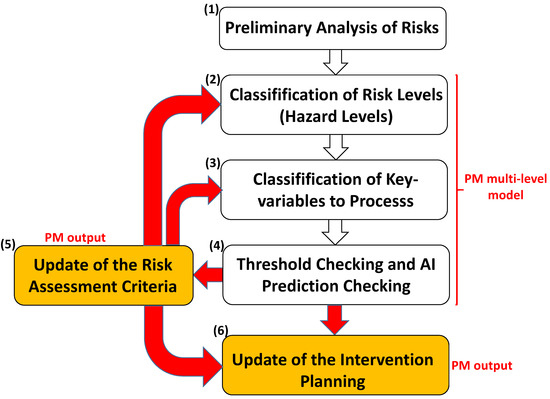

The study introduces a “proof concept” of PM implementing a DSS multi-level engine supporting decision-making processes. In the analyzed case, the DSS integrates logic functions and an ANN-MLP algorithm providing prediction of air parameters critical for safety. The method adopted to sketch the PM model is the BPMN model. KNIME workflows are used for the application of the BPMN model, providing risk dashboards. The discussed considerations about the PM results refer to the specific safety process to control and change depending on the working scenario. Different key variables and logics will be considered according to the preliminary risk assessment evaluation for the specific scenario being analyzed. The PM results facilitate the extraction of guidelines for risk assessment and for the optimized scheduling of the interventions to ensure worker safety. The proposed example provides the reading keys of the PM outputs and the method to control a specific process. The DSS algorithm to be applied includes the possibility to integrate AI supervised or unsupervised algorithms that can improve the PM decision-making model [42]. In this direction, the KNIME tool is suitable for the implementation of algorithms modeling the same workflow of the analyzed process [42,43]. For the first time, the PM model is structured into a multi-level model able to provide a risk assessment based on the characterization of hazard levels. The main assumption of the proposed methodology is the preliminary analysis of risks identifying the key variables to process by means of the DSS engine. The limitations are mainly in the automatisms to be implemented to achieve a self-adaptive model, because AI algorithms cannot entirely replace human intervention. Furthermore, a big dataset is required, as regards the analyzed case, in order to execute AI algorithms with good computational performance. Future works will address the last aspects of finding new solutions for an automatic DSS solution and for the use of augmented data-improving AI models. Additionally, the proposed PM approach can be adapted for quality control and management of production monitoring machines tools and product defects. The PM model is formulated to automate safety procedures, addressing research on Industry 5.0 processes and advanced systems.
