1. Introduction
Considering that the food supply chain can be divided into the primary production, processing, retail/distribution, and consumption stages, FAO defines ‘food loss’ as food discarded along the two mentioned first stages. During the pomegranate processing chain, around 43% can be catalogued as non-edible parts (peel and the carpel membranes) [
1]. Pomegranate by-products are very rich in bioactive compounds such as ellagitannins [
2]. On the other hand, harvesting broccoli generates a huge number of leaves, and stalks, which are catalogued as by-products. Furthermore, compared to broccoli florets or stalks, broccoli leaves, which could represent more than 50% of the total plant, have a higher total phenolic content (TPC), and more other bioactive compounds related to their antioxidant activity than the rest of the broccoli by-products [
3].
Green extraction technologies of the target bioactive compounds have recently been developed, including ultrasound-, microwave-, and enzyme-assisted extractions, among others [
1,
3,
4]. These technologies use green solvents, minimizing environmental and health disorders.
In view of the above, the aim of the present work is to observe the effect of green-solvents (50%:50% ethanol:water; 100% ethanol, and 100% water) on the extraction of TPC and Total Antioxidant Activity (DPPH and ABTS) from pomegranate peel and broccoli leaves through microwave-assisted extraction (MWAE).
2. Materials and Methods
2.1. Materials
Pomegranate fruits cv. Mollar de Elche ‘Protected Designation of Origin’ were obtained from the Sociedad Cooperativa Cambayas (Elche, Spain). Broccoli leaves (Naxos F1 Hybrid Broccoli, Sakata, Japan) were harvested and supplied by GrupoLucas® (El Raal, Murcia, España) in November 2022. Fruits were immediately transported to Universidad Politécnica of Cartagena installations and stored (5 °C, 90% relative humidity, 48 h) until processing.
2.2. Microwave-Assisted Extraction (MWAE)
Prior to the target compounds MWAE, pre-treatments (drying and grinding steps) were carried out to obtain a non-heterogeneous material. Samples were freeze-dried using a Telstar® LyoBeta (Terrassa, Spain). The fixed variables were as follows: (i) particle size (<56 µm), (ii) solid–liquid ratio (1:10), (iii) time (13 min), and (iv) temperature (50 °C). The continuous variables were the solvent (50%–50% ethanol:water; 100% ethanol, and 100% water). Subsequently, the extraction was carried out by a microwave device (Milestone, Ethos up, Italy). Once the extraction of all the samples was completed, the samples were centrifugated and the extracts were stored (−80 °C) until further analysis. The codification and combination of the variables are detailed in
Table 1.
2.3. Spectrophotometric Analysis
The determination of TPC was carried out according to the previously described method [
5], with some modifications [
6]. The TPC was calculated using a gallic acid standard and expressed as g of gallic acid equivalent per kg of dried weight (g GAE/kg dw).
The Total Antioxidant Capacity (TAC) was analyzed by DPPH and ABTS assay. For the DPPH assay [
7], 194 μL of DPPH solution was added to 21 μL of extract in a 96-well plate (darkness incubation: 30 min at room temperature). Then, the absorbance was measured (515 nm) and data were expressed as g of Trolox Equivalents (TE)/kg dw. The ABTS assay was carried out following the previously described method [
7]. For that, 200 μL of the activated ABTS solution (32 µM) was added to 11 μL of extract in a 96-well plate, darkness-incubated (20 min at room temperature) and measured (414 nm).
2.4. Statistics
Statistical analyses were carried out using the statistical package. Each sample was analyzed in triplicate for each analysis. One-way ANOVA test used “solvent” for each food by-product. Tukey test was used for means comparison (95% confidence level). Pearson correlation using XLSTAT Premium 2016 (Addingsoft, Barcelona, Spain) was conducted.
3. Results and Discussion
3.1. Total Polyphenolic Content

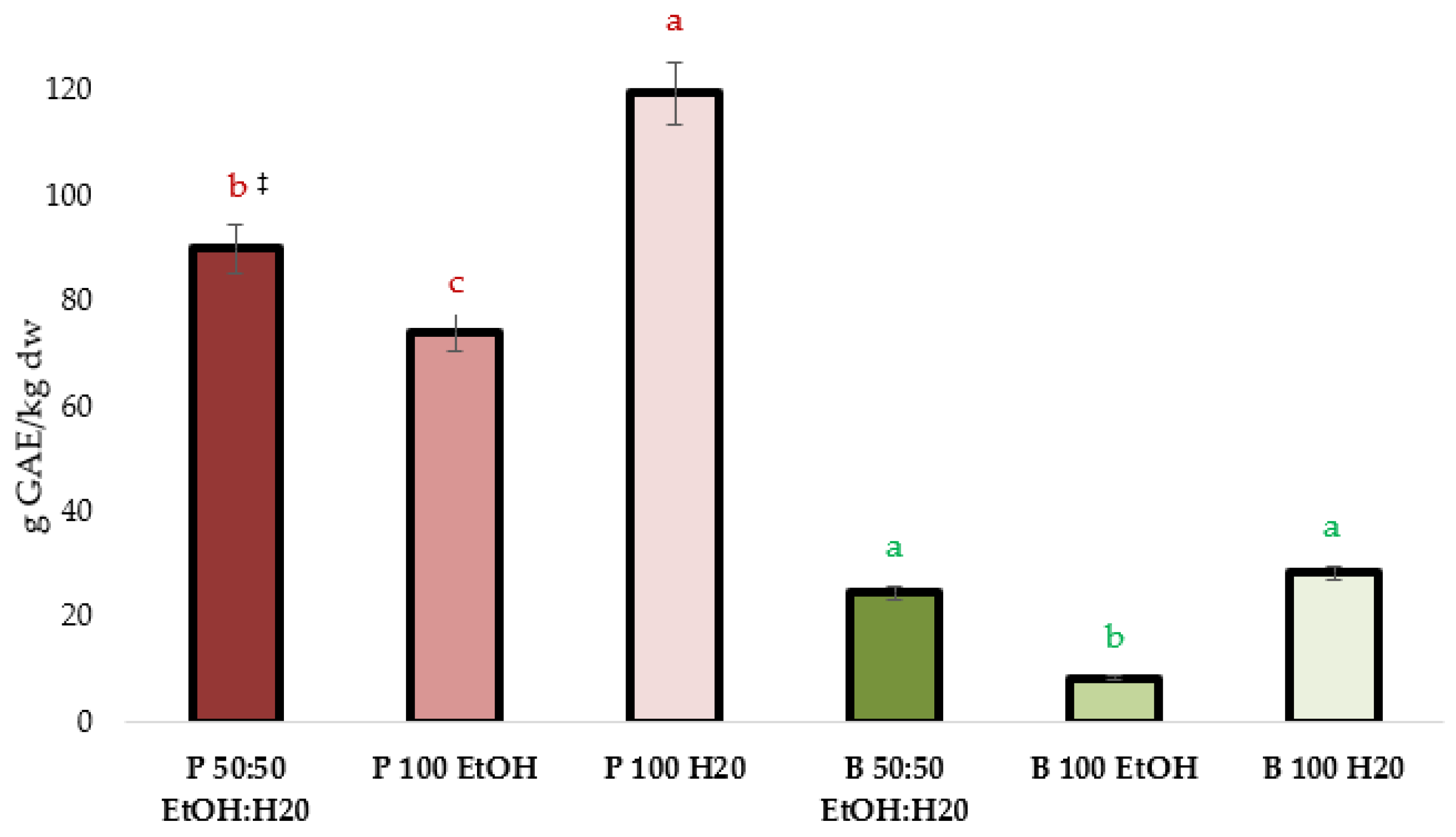

The effect of the solvent on the TPC extraction by MWAE in pomegranate by-products and broccoli by-products is shown in
Figure 1. It should be noted that because of the polarity differences between solvents, the solubility of the key bioactive compounds into the solvent is expected to be different. Significant differences were observed among the studied solvents in both pomegranate and broccoli by-products. Also, it is important to highlight that the use of water as a solvent was the best option for TPC extraction in both food by-products under study. In pomegranate peel, TPC after 100% aqueous extraction increased 1.6-fold more than 100% ethanolic extraction. In broccoli leaf by-products, TPC after 100% aqueous extraction increased 3.4-fold more than 100% ethanolic extraction. In general, previous studies indicated that the effect of the dielectric constants of the solvents impacts the extraction of antioxidant compounds. Methanol and water present higher constants than other solvents, such as ethanol and acetone. Therefore, the extraction yield depends on the type of antioxidant compound and must be optimized each fruit and vegetable commodity and their derivatives. It is worth noting that there are other solvents with a higher capacity to extract key bioactive compounds. but these are not catalogued as green solvents [
8,
9].
3.2. Total Antioxidant Capacity

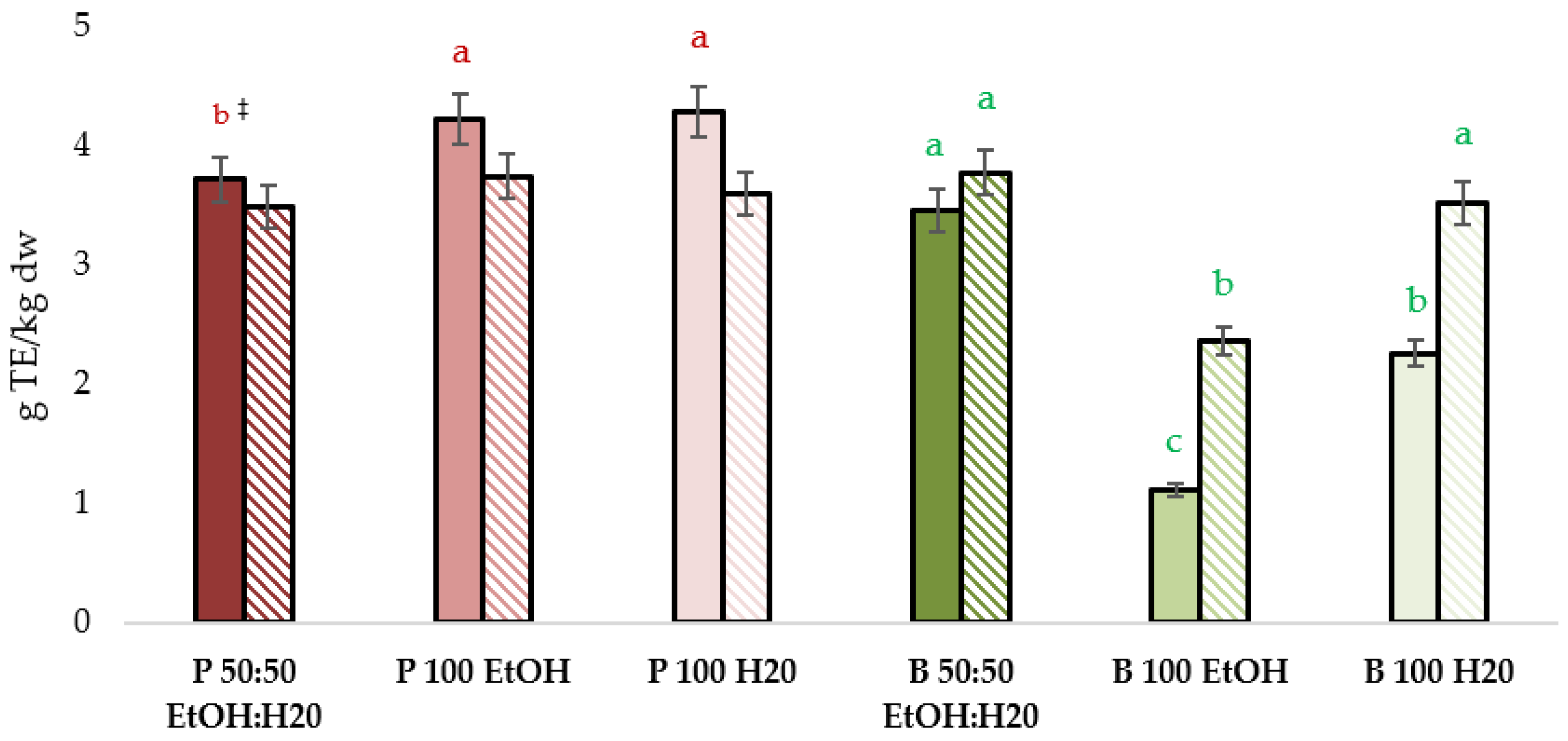

The effect of the solvent on the TAC via DPPH and ABTS assay was different in pomegranate and broccoli by-product extracts obtained using MWAE. In pomegranate extracts, ethanolic and aquose extracts presented the highest DPPH assay values, followed by 50:50 ethanol:water solvent. No significant differences were observed among solvents in ABTS data in pomegranate peel. On the other hand, the highest DPPH values were observed in the extracts obtained via 50:50 ethanol:water solvent, followed by aquose solvent. Brocoli by-product extracts using 50:50 ethanol:water and 100% water solvent presented the highest ABTS values (
Figure 2).
Table 2 shows the correlation among phytochemical parameters (TPC and TAC by DPPH
• and ABTS
+ assays). A positive and significant correlation was observed between TPC and DPPH
•, while no significant correlation was observed between TPC and ABTS
+.
4. Conclusions
In general, it can be concluded that the type of solvent and food by-product (pomegranate and broccoli material) influenced the extraction of TPC, which was higher in pomegranate by-products than in broccoli by-products. MWAE was demonstrated to be a clean, efficient, and a green alternative for the extraction of TPC and bioactive compounds with TAC from pomegranate peels and broccoli leaves. Aqueous MWAE is a green alternative to recover TPC and is of great interest for manufacturers, which should address the problem of food loss, as specified in the goals of global, European and national strategies (2030 Agenda, European Green Deal, and the FAO Strategic Framework 2022-31).
Author Contributions
Conceptualization, F.A.-H., M.C.-L. and L.M.-Z.; methodology, formal analysis, investigation, S.H., M.C.-L., L.M.-Z., E.B. and M.A.; resources, F.A.-H. and M.A.; data curation, S.H., M.C.-L. and L.M.-Z.; writing—original draft preparation, M.C.-L. and L.M.-Z.; writing—review and editing, F.A.-H.; visualization, S.H.; M.C.-L., L.M.-Z., E.B., M.A. and F.A.-H.; supervision, F.A.-H.; project administration F.A.-H.; funding acquisition, F.A.-H. All authors have read and agreed to the published version of the manuscript.
Funding
Project PID2021-123857OB-I00 financed by the Spanish Ministry of Science and Innovation, the Spanish State Research Agency/10.13039/501100011033/ and FEDER. This work has also been financed by the Autonomous Community of the Region of Murcia through the Seneca Foundation and the European program NextGenerationEU.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Acknowledgments
L.M.-Z. contract has been financed by the Program for the Re-qualification of the Spanish University System, Margarita Salas modality, by the University of Murcia. The M.C.-L. contract has been co-financed by Juan de la Cierva-Formación (FJC2020-043764-I) from the Spanish Ministry of Education.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Cano-Lamadrid, M.; Martínez-Zamora, L.; Castillejo, N.; Artés-Hernández, F. From Pomegranate Byproducts Waste to Worth: A Review of Extraction Techniques and Potential Applications for Their Revalorization. Foods 2022, 11, 2596. [Google Scholar] [CrossRef] [PubMed]
- Ko, K.; Dadmohammadi, Y.; Abbaspourrad, A. Nutritional and Bioactive Components of Pomegranate Waste Used in Food and Cosmetic Applications: A Review. Foods 2021, 10, 657. [Google Scholar] [CrossRef] [PubMed]
- Artés-Hernández, F.; Martínez-Zamora, L.; Cano-Lamadrid, M.; Hashemi, S.; Castillejo, N. Genus Brassica By-Products Revalorization with Green Technologies to Fortify Innovative Foods: A Scoping Review. Foods 2023, 12, 561. [Google Scholar] [CrossRef] [PubMed]
- Cano-Lamadrid, M.; Artés-Hernández, F. By-Products Revalorization with Non-Thermal Treatments to Enhance Phytochemical Compounds of Fruit and Vegetables Derived Products: A Review. Foods 2022, 11, 59. [Google Scholar] [CrossRef] [PubMed]
- Singleton, V.L.; Orthofer, R.; Lamuela-Raventós, R.M. [14] Analysis of Total Phenols and Other Oxidation Substrates and Antioxidants by Means of Folin-Ciocalteu Reagent. In Oxidants and Antioxidants Part A; Methods in Enzymology; Academic Press: Cambridge, MA, USA, 1999; Volume 299, pp. 152–178. [Google Scholar]
- Martínez-Hernández, G.B.; Artés-Hernández, F.; Gómez, P.A.; Formica, A.C.; Artés, F. Combination of Electrolysed Water, UV-C and Superatmospheric O2 Packaging for Improving Fresh-Cut Broccoli Quality. Postharvest Biol. Technol. 2013, 76, 125–134. [Google Scholar] [CrossRef]
- Castillejo, N.; Martínez-Hernández, G.B.; Artés-Hernández, F. Revalorized Broccoli By-Products and Mustard Improved Quality during Shelf Life of a Kale Pesto Sauce. Food Sci. Technol. Int. 2021, 27, 734–745. [Google Scholar] [CrossRef] [PubMed]
- Mohsen-Nia, M.; Amiri, H.; Jazi, B. Dielectric Constants of Water, Methanol, Ethanol, Butanol and Acetone: Measurement and Computational Study. J. Solut. Chem. 2010, 39, 701–708. [Google Scholar] [CrossRef]
- Socas-Rodríguez, B.; Torres-Cornejo, M.V.; Álvarez-Rivera, G.; Mendiola, J.A. Deep Eutectic Solvents for the Extraction of Bioactive Compounds from Natural Sources and Agricultural By-Products. Appl. Sci. 2021, 11, 4897. [Google Scholar] [CrossRef]
