Cropland Mapping Using Earth Observation Derived Phenological Metrics ^†

Abstract

Satellite Earth observations provide timely and spatially explicit information on crop phenology that can support decision making and sustainable agricultural land management. Accurate classification and mapping of croplands is primary information for agricultural assessments. This study presents a digital agriculture approach that integrates Earth Observation big data analytics based on machine learning technologies to classify and map main crop types. Two supervised machine learning models were calibrated using the Random Forest algorithm from phenological metrics, estimated from time series of NDVI and LAI vegetation indices calculated using Sentinel-2 MSI satellite acquisitions. Models were calibrated for the Toscana region in Italy. The results show a satisfactory overall accuracy (~78%) in cropland classification, and the model calibrated using LAI time series performed slightly better than the model calibrated using NDVI time series. The proposed approach offers the potential to accurately map crop types in a way that is useful to support agricultural land management and monitoring systems for large areas over time.

1. Introduction

Cropland mapping is becoming increasingly important in environmental topics which deal with sustainable agriculture production and natural resource management [1]. Nowadays, a wide number of stakeholders are interested in this topic, such as national authorities, local environmental agencies, regional government and authorities, municipalities, universities and research centers, civil protection agencies, insurance companies, and industries. Cropland mapping products answer the information need deeply felt by users in response to the growing interest shown by the European policies in climate change mitigation and adaptation, and foster sustainable agricultural practices, especially today in the context of the European Green Deal strategy [2].

The information provided by increasing availability of Earth observation (EO) data makes satellite images of paramount importance for identifying, characterizing, and mapping crop typologies in both the space and time dimensions by exploiting the radar backscatter and the optical response of vegetation [3,4]. The commitment by the European Commission (EC) to encourage the development of EO products, possibly taking advantage of Copernicus in situ Component, makes value-added information derived from satellites of primary importance for supporting agricultural land management. Indeed, the EC has finally sanctioned the use of Copernicus Sentinel data, integrated with EGNOS/Galileo, for the control and granting of Common Agricultural Policy (CAP) payments by local authorities, promoting open data with a common data-sharing approach (Regulation (EU) 746/2018).

Multitemporal satellite images have proven to be successfully used to estimate vegetation’s biophysical parameters and to identify phenological patterns [5,6,7]. Recently, the Copernicus Sentinel-2 satellite constellation, equipped with an MSI sensor, was able to sense the Earth’s surface at high spatial, spectral, and temporal resolutions, showing its potential for the estimation of vegetation parameters, such as phenological metrics (e.g., the start of season, the length of season, or the end of season) [7,8].

Many authors have investigated the efficacy of spectral and biophysical time series indices to differentiate crop types [9,10]. Vegetation spectral indices have been and are still widely used to detect the status of vegetation (e.g., growth, health, and cover), the most popular of which is the normalized difference vegetation index (NDVI) [11]. However, NDVI has saturation as its limit at high values. On the other hand, vegetation’s biophysical characteristics, such as the canopy structure and photosynthetic capacity, are well described by the leaf area index (LAI) largely used in agricultural studies in heterogeneous smallholder and fragmented agroecosystems [12,13].

Furthermore, the advances in analytical techniques, such as machine learning algorithms, enable us to deal with fast and robust analyses applied to big data. Among these, Random Forest (RF) is an ensemble learning classifier that has been successfully used in vegetation classification applications, including crop mapping [7,10,14].

The aim of this study was to present a digital agriculture approach that integrates EO big data analytics, based on a supervised machine learning model using temporal statistics and phenological metrics estimated from NDVI and LAI time series as predictors, to identify and map the main crop types. The performance of two supervised machine learning models, calibrated using the RF algorithm for a study area in central Italy, are presented and discussed.

2. Materials and Methods

2.1. Study Area

Tuscany is located in central Italy and covers about 23,000 square kilometers. The climate ranges from the Mediterranean dry climate along the coastline to the temperate humid and wet climate in the inland and northern areas of the region. Tuscany is mainly hilly (about 67%) and mountainous (about 25%), and it also includes some plains (about 8%). The cultivated areas represent about 39% of the region, mainly characterized by arable land, vineyards, and olive groves.

2.2. Satellite Images

Sentinel-2 (S2) satellites images, acquired from November 2015 to October 2019 with cloud cover lower than 90%, were acquired for the 4 granules corresponding to the study area. The Multi-Spectral Instrument (MSI) sensor onboard S2 is characterized by a high spatial resolution (10 m, 20 m, and 60 m), a high revisit time (5 days with two satellites), and 13 spectral bands from visible to shortwave infrared. The spectral bands of the images in the MUSCATE format, distributed by Theia as the bottom of the atmosphere (BOA) reflectance, orthorectified, terrain-flattened, and atmospherically corrected with the MACCS-ATCOR joint algorithm (MAJA) [15], were processed for spatial resampling at 10 m masked for invalid pixels (cloud, cloud_cirrus, cloud_shadow, topographic_shadow, snow, edge, sun_too_low). A static mask, generated from Copernicus Land Monitoring Service datasets, was applied to mask out pixels not corresponding to croplands.

2.3. Crop Type Maps

The reference crop type maps used in this study were made available by the Tuscany Regional Agency for Agriculture (http://dati.toscana.it/organization/artea, accessed on 17 October 2020) for the years from 2016 to 2019. This study focused only on the main crop types of the arable land, excluding permanent crops such as vineyards and olive groves. Selected crop typologies were grouped into 8 classes, taking the temporal pattern of the crops in the study area into account: winter cereals, clover and alfalfa, maize, sorghum, sunflower, rapeseed, horticultural crops, and soy. The centroid of each crop parcel polygon in the reference maps was used to query the raster predictors generated from the satellite images.

2.4. Time Series and Temporal Predictors

Two vegetation indices were selected to derive the main crop types in the study area: the NDVI and the LAI. The NDVI was calculated following Equation (1):

$$NDVI=\frac{\left(NIR-RED\right)}{\left(NIR+RED\right)}$$

(1)

where RED corresponds to the S2 MSI spectral band B4 and NIR corresponds to the S2 MSI spectral band B8. The Leaf Area Index (LAI) is defined as half of the total green (i.e., photosynthetically active) leaf area per unit of horizontal ground surface area. The biophysical processor [16] available in SNAP software was used to estimate the LAI from the surface reflectance data.

The time series of the vegetation indices were first gap-filled and interpolated daily using the Stinemann algorithm [17], and later temporally smoothed using the procedure based on second-order weighted polynomial fitting and Whittaker smoothing, as described in [18]. From the NDVI and LAI time series, temporal statistics and phenological metrics, derived following Gu et al. [19], were calculated and used as temporal predictors in the classification model (

Table 1. List of time series statistics and phenological metrics used as model predictors. The predictors’ importance resulting from the classification model is expressed as the Gini index value. Variables with no important values were not selected as model predictors. The abbreviation ‘dl’ stands for ‘dimensionless’.

Name	Description	Unit		Importance
		NDVI	LAI	NDVI	LAI
avg	Annual average value	dl	m2/m2	25,089.92	1910.118
std	Standard deviation value	dl	m2/m2	-	4332.682
min	Annual minimum value	dl	m2/m2	-	3486.984
max	Annual maximum value	dl	m2/m2	-	-
delta	Delta value	dl	m2/m2	-	-
djf_avg	Winter (December, January, February) average value	dl	m2/m2	-	-
djf_min	Winter (December, January, February) minimum value	dl	m2/m2	-	-
djf_max	Winter (December, January, February) maximum value	dl	m2/m2	-	-
jja_avg	Summer (June, July, August) average value	dl	m2/m2	26,029.03	2817.965
jja_max	Summer (June, July, August) maximum value	dl	m2/m2	24,610.40	-
SoS_doy	Start of season DoY	DoY	DoY	-	1890.944
SoS_value	Start of season value	dl	m2/m2	-	-
SGS_doy	Start of growing season DoY	DoY	DoY	-	2243.904
SGS_value	Start of Growing Season value	dl	m2/m2	23,572.20	-
PoS_doy	Peak of season DoY	DoY	DoY	-	2611.057
PoS_value	Peak of season value	dl	m2/m2	-	-
EGS_doy	End of growing season DoY	DoY	DoY	-	2653.588
EGS_value	End of growing season value	dl	m2/m2	-	-
EoS_doy	End of season DoY	DoY	DoY	-	-
EoS_value	End of season value	dl	m2/m2	22,521.31	-
amplitude	Amplitude value	dl	m2/m2	27,390.47	2052.926
greenup_doy	Greenup DoY	DoY	DoY	47,205.49	-
greenup_rate	Greenup rate	dl	m2/m2	24,246.63	-
senescence_doy	Senescence DoY	DoY	DoY	57,316.61	-
senescence_rate	Senescence rate	dl	m2/m2	20,347.07	-
plateau_slope	Rate of change during the maturity plateau	dl	m2/m2	23,675.63	-
DoS	Duration of the season	Days	Days	23,237.03	1627.551
LMP	Length of maturity plateau	Days	Days	-	1450.587
STI	Seasonal time-integrated value	dl	m2/m2	22,737.46	-

).

All predictors with a Pearson correlation coefficient higher than 0.9 and a variance inflation factor (VIF) higher than 2.0 [20] were removed to avoid multi-collinearity.

2.5. Random Forest Classification

The R package ‘mlr’ [21] was used to set the RF hyperparameter combination (i.e., mtry, min.node.size, ntree) through a 5-fold cross-validation with 20 repetitions and selected those with a higher Cohen’s kappa coefficient. The tuned hyperparameters were used to calibrate the classification models from the NDVI and LAI predictors using the R package ‘ranger’ [22]. The variables’ importance for the final set of selected predictors used in the models was calculated using the Gini index.

A stratified sampling method was applied to the crop type reference map of the year 2019 in order to select the pixels which represented all 8 classes of crop types and could be used as training samples for the classification and as test samples to verify the accuracy of the classification obtained. Here, 70% of the pixels were used as training samples and the remaining 30% as the test samples.

The results of the classifications obtained were evaluated by means of confusion matrices according to the test samples. Overall accuracy (OA), producer’s accuracy (PA), user’s accuracy (UA), and Cohen’s kappa coefficient (K) were assessed.

Finally, the crop type map product for the year 2019 was predicted using the calibrated supervised machine learning models.

3. Results

The RF hyperparameter tuning produced the following settings: mtry = 5, min.node.size = 2, ntree = 893 for NDVI, and mtry = 4, min.node.size = 3, ntree = 424 for LAI. The selected predictor variables reporting the highest Gini index were 13 for NDVI and 11 for LAI (Table 1).

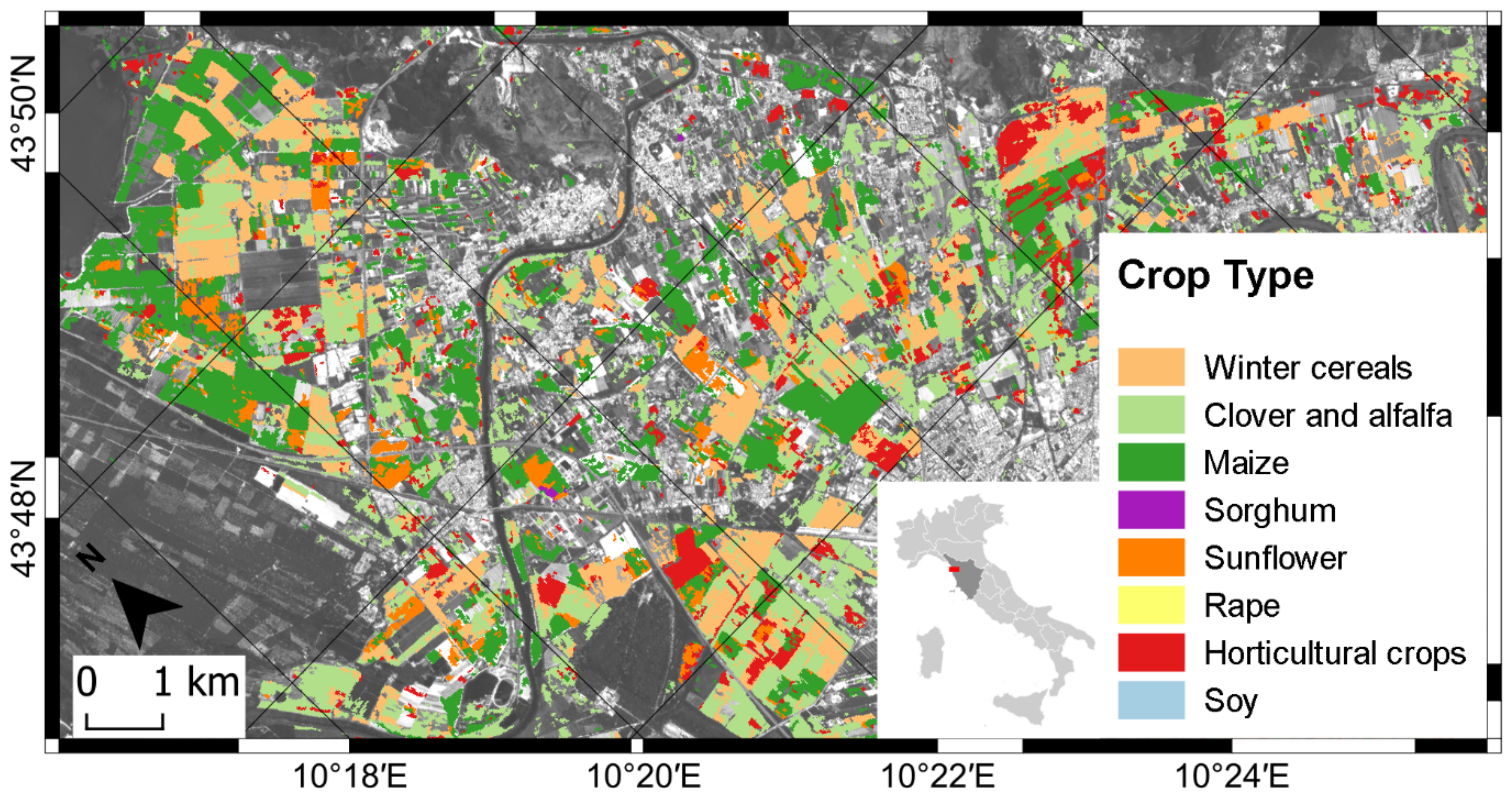

The resulting spatial crop type map is shown in Figure 1. Regarding the classification obtained from the NDVI time series analysis, an overall accuracy of 78.6% was achieved with a Cohen’s kappa coefficient of 0.54 (

Table 2. Confusion matrix of the RF results from the NDVI time series analysis. Producer’s (PA), user’s (UA), and overall (OA) accuracies (as percentages), as well as the Cohen’s kappa coefficient (K) are reported.

K = 0.54	Classification
Reference Map	Winter Cereals	Clover and Alfalfa	Maize	Sorghum	Sunflower	Rape	Horticultural Crops	Soy	Total	PA %
Winter cereals	3804	1609	4	2	8	24	44	0	5495	69.2
Clover and Alfalfa	2974	17,084	53	45	36	29	410	0	20,631	82.8
Maize	2	21	528	62	215	0	71	11	910	58
Sorghum	1	1	8	11	11	0	9	0	41	26.8
Sunflower	6	20	139	34	230	0	62	3	494	46.6
Rape	7	1	0	0	0	11	0	0	19	57.9
Horticultural crops	10	16	28	29	54	0	540	0	677	79.8
Soy	0	0	0	0	0	0	0	3	3	100
Total	6804	18,752	760	183	554	64	1136	17	28,270	OA%
UA %	55.9	91.1	69.5	6	41.5	17.2	47.5	17.6	OA%	78.6

). Some classes were more accurately classified than others, such as clover and alfalfa (UA = 91.1%; PA = 82.8%), maize (UA = 69.5%; PA = 58%), and winter cereals (UA = 55.9%; PA = 69.2%). On the contrary, sorghum was the worst classified (UA = 6%; PA = 26.8%). Rape and soy obtained low user’s accuracy (17.2% and 17.6% respectively).

As for the classified crop types resulting from the LAI time series analysis, an overall accuracy of 78.3% was achieved, with a Cohen’s kappa coefficient of 0.59 (

Table 3. Confusion matrix of the RF results from the LAI time series analysis. Producer’s (PA), user’s (UA), and overall (OA) accuracies (as percentages), as well as the Cohen’s kappa coefficient (K) are reported.

K = 0.59	Classification
Reference Map	Winter Cereals	Clover and Alfalfa	Maize	Sorghum	Sunflower	Rape	Horticultural Crops	Soy	Total	PA %
Winter cereals	9759	2510	0	0	0	62	40	0	12,371	78.9
Clover and Alfalfa	2170	7743	0	0	0	13	146	0	10,072	76.9
Maize	0	0	19	5	4	0	2	1	31	61.3
Sorghum	0	0	4	20	1	0	2	0	27	74.1
Sunflower	0	0	3	0	12	0	0	2	17	70.6
Rape	13	0	0	0	0	9	0	0	22	40.9
Horticultural crops	5	2	0	5	0	0	428	1	441	97.1
Soy	0	0	0	1	1	0	0	3	5	60.0
Total	11,947	10,255	26	31	18	84	618	7	22,986	OA %
UA %	81.7	75.5	73.1	64.5	66.7	10.7	69.3	42.9	OA %	78.3

). Unlike the NDVI model results, the LAI model generally showed high user’s and producer’s accuracies for all the classes, except for rapeseed (UA = 10.7%), and the misclassification was principally with winter cereals.

4. Discussion

The capacity to map crop types using phenological metrics with a high spatial resolution has been demonstrated in this research study for a heterogeneous, small, and fragmented agricultural system. Multi-temporal information has been demonstrated to increase the crop type classification’s accuracy significantly [7]. In the context of crop type mapping and the monitoring of agricultural practices, synthesizing information to fewer phenological metrics facilitates image data processing by reducing the time series’ dimensionality [18].

Azar et al. [1] analyzed the performance of crop classification from multi-temporal Landsat 8 OLI images over a study area in Northern Italy. Four supervised classification algorithms applied to the spectral indices’ profiles were tested over different time step datasets to assess the performance of in-season crop classification in the year 2013. The result was a crop type map with seven classes with OA = 86.5% that was produced five months ahead of the end of season, in the middle of July.

Many studies have confirmed crop classifications with a high accuracy (OA = 82%) for eight crop types [4] and mapped cropland status (cropped or fallowed) with accuracies over 75% [23]. The crop recognition method can lose accuracy, especially when the mapped crops have high intra-class variability [10] or when insufficient knowledge of the field data relating to the phenological cycles of the crops is available [24,25].

Despite the overall accuracies and Cohen’s kappa coefficient being similar for both the NDVI and the LAI model, comparing the results for individual classes, the latter showed slightly higher performance.

Veloso et al. [26] worked toward crop classification (maize, soybean, sunflower) using the temporal profile of NDVI and radar backscatter (VH, VV, and VH/VV). Regarding the classification of the crop, they concluded that NDVI shows low ability to distinguish summer crops, except for sunflower, during the senescence period in August and September. Besides, during periods of strong cover development, NDVI’s sensitivity to biomass is more likely to become saturated. High misclassifications of horticultural crops may be related to the different seeding times of the horticultural species, which could increase the variability in terms of the range of the predictors’ values. With respect to soy and rapeseed, it should be noted that the small number of reference crops used for model calibration and validation could be the reason for such a low class accuracy.

Mueller-Warran et al. [27] outlined that although converting multi-year land-use data into a crop rotation history is relatively simple in theory, the presence of classification errors can severely compromise the results. Given this fact, they proposed using a matrix of logically forbidden or extremely unlikely year-to-year land use transitions to detect classification errors. Likewise, the use of a priori knowledge of the local rotation practices could be a research avenue for improving crop type identification by constraining the classification models. Future research should consider the use of extended crop type information (e.g., the LUCAS Soil DataBase) in order to increase the number of classification model training points and therefore improve the overall accuracy.

5. Conclusions

The study demonstrated the EO big data analytics’ capacity to provide thematic products to support agricultural land management and fulfill the users’ requirements. The phenological metrics estimated from high-resolution imagery sensed by the Copernicus S2 satellite constellation, combined with a thematic reference dataset related to crop types, together with the use of advanced computational analytic techniques (the RF algorithm), allowed crop type mapping in heterogeneous, small, and fragmented agricultural systems. The calibrated NDVI and LAI supervised machine learning models showed similar performance, with the LAI model yielding better results.

The supervised machine learning model, applied to a wider spatial extent, could contribute to the measurement and assessment of sustainability foreseen by the European Green Deal strategy, in terms of sustainable agricultural practices and environmental monitoring, and climate change mitigation and adaptation, in accordance with the stakeholders’ requirements.
