The Potential Antibacterial and Antifungal Activities of Wood Treated with Withania somnifera Fruit Extract, and the Phenolic, Caffeine, and Flavonoid Composition of the Extract According to HPLC

by
Mervat EL-Hefny
1,*,
Mohamed Z. M. Salem
2,
Said I. Behiry
3 and
Hayssam M. Ali
4,5,*
1
Department of Floriculture, Ornamental Horticulture and Garden Design, Faculty of Agriculture (El-Shatby), Alexandria University, Alexandria 21545, Egypt
2
Forestry and Wood Technology Department, Faculty of Agriculture (EL-Shatby), Alexandria University, Alexandria 21545, Egypt
3
Agricultural Botany Department, Faculty of Agriculture (Saba Basha), Alexandria University, Alexandria 21531, Egypt
4
Botany and Microbiology Department, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
5
Timber Trees Research Department, Sabahia Horticulture Research Station, Horticulture Research Institute, Agriculture Research Center, Alexandria 21526, Egypt
*
Authors to whom correspondence should be addressed.
Processes 2020, 8(1), 113; https://doi.org/10.3390/pr8010113
Submission received: 13 December 2019 / Revised: 11 January 2020 / Accepted: 13 January 2020 / Published: 16 January 2020
(This article belongs to the Special Issue Green Separation and Extraction Processes)
Browse Figures
Versions Notes

Abstract

:
In the present study, Melia azedarach wood blocks treated with different acetone extract concentrations from Withania somnifera fruits are assessed for their antibacterial and anti-fungal activities. Wood blocks of M. azedarach treated with W. somnifera fruit extract at concentrations of 0, 1, 2, and 3% are evaluated for in vitro antimicrobial activity against five genbank accessioned bacterial strains—Agrobacterium tumefaciens, Dickeya solani, Erwinia amylovora, Pseudomonas cichorii, and Serratia pylumthica—and two fungi, namely, Fusarium culmorum and Rhizoctonia solani. Through HPLC analysis we find that the most abundant quantified phenolic and flavonoid compounds of acetone extract (mg/100 g) are salicylic acid (9.49), vanillic acid (4.78), rutin (4702.58), and myricetin (1386.62). Wood treated with the extract at 2% and 3% show no growth of A. tumefaciens, E. amylovora, and P. cichorii. Use of the extract at 3% causes inhibition of fungal mycelia of F. culmorum and R. solani by 84.07% and 67.03%, respectively. In conclusion, potent antifungal and antibacterial activity against plant pathogens is found when an acetone extract of W. somnifera fruits is applied to wood samples.

Graphical Abstract

1. Introduction

Plant extract compounds and their application in food industries have great value in preventing growth of fungi or bacteria, and can be involved in possible processing technologies in which they can be exploited as ideal preservative solutions.
The highlighted benefits and challenges of plant-derived products need further research for green society implementation and governmental regulation [1,2]. Increasing regulatory restrictions and negative consumer responses to chemical compounds and to the use of antibiotics in agriculture have contributed to pressure for the development of alternative compounds for use as antimicrobial agents [3,4].
In traditional medicine, Withania somnifera L. Dunal (Solanaceae) has been authenticated as having antitumor, anti-inflammatory, antiarthritic, antioxidant, immunomodulatory, and hepatoprotective effects [5,6,7].
Bioactive compounds such as ashwagandhine, cuscohygrine, anaferineisopelletierine, sitoindosides, anhygrine, withanamides, and tropine have been isolated and identified from W. somnifera [8,9,10]. In addition, the most important withanolides, withaferine A and withanolide A, have been isolated [11]. The plant has shown the presence of chemically active compounds related to flavonoids, alkaloids (tropine, hygrine, and anferine), terpenoids, steroidal lactones (anolides), and saponins in the extracts from different parts [12,13,14,15,16]. Fatty acids such as palmitic, oleic, linoleic, and linolenic acids have been isolated from n-hexane extracts of leaves and roots [8]. In some cases, W. somnifera extracts with multi-components have shown better medicinal effects than the purified compounds [17].
W. somnifera extracts have been demonstrated to possess strong antifungal and antibacterial activities [18,19,20,21,22]. Acetone root-bark extract from Salvadora persica has been shown to be very effective at stopping the bacterial growth of Agrobacterium tumefaciens and Dickeya solani [23], and leaf aqueous extract has been observed to inhibit the mycelial growth and spore germination of some plant pathogenic fungi [24].
During recent years, research manuscripts have introduced soft rot bacteria as a dangerous pathogen that could destroy many horticulture crops, and have developed methods to detect or characterize it, and even to provide control strategies [25,26]. Dickeya spp. strains have been isolated from diseased plants in Finland, Poland, France, the Netherlands, Switzerland, and other European countries, while Egypt and Israel have been associated with Serratia pylumthica [23,27,28,29,30]. D. solani strains are considered more aggressive than other blackleg-causing bacteria [31]. Erwinia amylovora, a Gram-negative bacterium, is the causal agent of fire blight [32].
A 16S rRNA gene PCR-based assay has been developed as a fast-molecular diagnostic method to differentiate between phylogenetically closely related species, such as the Crown gall bacterial pathogen caused by Agrobacterium tumefaciens and other species causing plant bacterial diseases which have different symptoms, in order to identify and discriminate the strains belonging to all bacterial species [33,34].
Molds (Penicillium selerotigenum, Paecilomyces variotii, and Aspergillus niger) show different growths on Citharexylum spinosum and Morus alba woods, reflecting their natural durability [35]. On the other hand, and during storage conditions with moist and poor environments, wood, wood containers, and wood-boxes may deteriorate or become stained with the growth of molds [36], which colonize these wood types and use simple sugars and starches for growth [37,38]. Previous works have shown that extracts or essential oils have potential antimicrobial activities against several fungi and bacteria in treated wood of Pinus sylvestris, P. rigida and Fagus sylvatica, Leucaena leucocephala, Melia azedarach, and Acacia saligna [39,40,41,42,43,44,45,46].
Hence, in this work we assess the antimicrobial activity of Melia azedarach wood treated with W. somnifera fruit extract against some plant pathogenic bacteria and fungi. This study also analyzes the chemical compositions of phenolic and flavonoid compounds using HPLC analysis.

2. Materials and Methods

2.1. Isolation Procedure

Bacterial isolation trials were carried out on infected pear and cabbage leaves, guava root galls, and potatoes that showed symptoms collected from Beheira Governorate during 2018 in Egypt. The plant samples were rinsed with water, placed in 1% sodium hypochlorite solution for 3 min, washed in sterile distilled water, and left to dry on sterilized paper. The infected tissues were milled in a mortar with sterile NaCl 0.8% solution, and then 5% sucrose nutrient agar plates for the pear leaves bacteria and glycerol nutrient agar for the other studied bacteria were inoculated with a loop of the previous suspension [47]. Pure colonies were picked and reserved in a refrigerator until use. The two fungal cultures used in this study had been previously isolated and molecularly identified as Fusarium culmorum and Rhizoctonia solani, and were obtained from Dr. Said Behiry, Head of the Molecular Plant Pathology Laboratory, Agricultural Botany Department, Faculty of Agriculture Saba Basha, Alexandria University, Alexandria, Egypt [3]. All the isolates were reserved on glycerol nutrient agar (for bacteria) and potato dextrose agar (for fungi) for later use.

2.2. Bacterial Phenotypic Characterization

The morphological, physiological, and biochemical features of the bacterial isolates were characterized and described according to the Schaad et al. [47] laboratory guide.

2.3. DNA Extraction, PCR Analyses, and Sequencing

DNA isolation from the bacterial cultures was performed according to the protocol cited by Ausubel et al. [48]. Partial amplification of the 16S rRNA gene using P0 (5′-GAAGAGTTTGATCCTGGCTCAG-3′) and P6 (5′-CTACGGCTACCTTGTTACGA-3′) primers was analyzed by a thermal cycler (Techne prime, Cambridge, UK). The partial amplicons were purified and sequenced with a ABI3730XL DNA sequencer at Macrogen Inc. (Seoul, South Korea) [45].

2.4. Preparation of Wood Blocks

Air-dried Melia azedarach wood samples were prepared with dimensions of 1 × 1 × 0.5 cm at the Department of Forestry and Wood Technology in January 2018. The samples were autoclaved at 121 °C for 20 min and then cooled.

2.5. Extraction and Preparation of Concentrations of Acetone Extract from Withania somnifera fruits

Fruits of Withania somnifera (Alexandria, Egypt) were thoroughly washed using tap water, air-dried, and then crushed into small pieces using a small laboratory Willy mill. Each flask contained 200 mL of acetone solvent; 50 g were soaked for three days at room temperature [44] and then filtered using Whatman No. 1 filter paper and microfiltered using a Millipore (0.45 μm pore size membrane). The acetone solvent was evaporated using a rotary evaporator at 45 °C and then the crude acetone extract was stored in sealed vials at 4 °C until further use [49]. The extract was prepared at concentrations of 1%, 2%, and 3% (w/v) as dissolved in 10% dimethyl sulfoxide (Sigma-Aldrich, Darmstadt, Germany) prior to treatment of the wood samples. All the treatments were compared with a control treatment (10% DMSO).

2.6. Treatment of M. azedarach Wood using the Soaking Method

Each wood sample of M. azedarach received 100 µL of the concentrated extract, and the control received 100 µL of 10% DMSO. All the treated woods were kept for 6 h in flasks. Three wood samples were used for each treatment [50].

2.7. Antimicrobial Activity of Wood Treated with Acetone Extract

The antibacterial activity of wood treated with an acetone extract of W. somnifera was tested against Agrobacterium tumefaciens, Dickeya solani, Erwinia amylovora, Pseudomonas cichorii, and Serratia pylumthica, while the antifungal activity was evaluated using the fungal strains Fusarium culmorum, MH352452 and Rhizoctonia solani, MH352450.
The antibacterial activity of wood treated with an acetone extract of W. somnifera fruits was measured according to National Committee for Clinical Laboratory Standards (NCCLS) [51] with minor modifications, wherein the treated wood samples were placed over the inoculated medium with each bacterium at 30 °C for three days and compared with the control treatment. For antifungal activity, the fungal isolates were grown at 28 °C and the wood-treated samples were assayed according to previous studies [41,42,43,50], with measurement of the mycelial growth inhibition percentage performed. The inhibition zone (IZ) was measured from the outer margin of the IZ to the inner margin of the surrounding pathogens, including the treated wood blocks for bacteria, and the IZ was measured from the edge of the treated wood blocks to the outer margin of the surrounding pathogens for the fungi.

2.8. Analytical HPLC of Phenolic Compounds/Caffeine and Flavonoids for the Acetone Extract

The HPLC apparatus and conditions used (Table 1), as well as all the standards used, can be found in previous works [39,44,45,52]. The minimum concentration that the detector was able to measure was 0.1 µg/mL.

2.9. Statistical Analysis

The percentages of mycelial inhibition growth of the three fungi and two bacterial strains as affected by the three concentrations (1, 2, and 3%) of W. somnifera fruit extract were statistically analyzed and compared with the control treatment (10% DMSO) using one-way ANOVA [53]. Comparisons among means were performed using the least significant difference at the 0.05 level of probability (LSD0.05).

3. Results

3.1. Bacterial Isolation and Characterization

Five bacterial isolates were isolated from infected cabbage, guava, pear, and potato plants. The morphological and biochemical characteristics and the partial sequence of 16S rRNA revealed that the isolates were Erwinia amylovora, Agrobacterium tumefaciens, Pseudomonas cichorii, Dickeya solani, and Serratia pylumthica (Table 2).

3.2. In Vitro Visual Observations of the Antibacterial Activity of Extract-Treated Wood

The antibacterial activity of the treated wood with acetone extract from W. somnifera fruits is shown in Table 3 and Figure 1. No growth of A. tumefaciens, E.a amylovora, and Pseudomonas cichorii was found when using the extract at 2% and 3%, and the inhibition zone (IZ) reached 90 mm. No significant differences among the three concentrations of extract were shown against the growth of D. solani, where the IZ reached 31.66 mm and was higher than the value for the control treatment. The IZ values found against the growth of S. pylumthica were 76 mm and >90 mm for wood treated at 2% and 3% of the extract, respectively.

3.3. In Vitro Visual Observations of the Antifungal Activity of Extract-Treated Wood

Table 4 and Figure 2 present an antifungal bioassay of wood treated with acetone extracts of W. somnifera fruits against two fungi (Fusarium culmorum and Rhizoctonia solani). Compared to control treatments with complete growth of fungi and when increasing the concentrations of the extract, fungal mycelia inhibition (FMI) was observed. At 3% of the extract, the FMI reached 84.07% and 67.03% for growth of F. culmorum and R. solani, respectively. On the other hand, the lowest values of 49.62% and 49.25% were observed at the concentration of 1% against the growth of F. culmorum and R. solani, respectively.

3.4. Phenolic/Caffeine and Flavonoid Compounds of the Acetone Extract

HPLC chromatograms of the phenolic/caffeine and flavonoid compounds in the acetone extract of W. somnifera fruits (Table 5) are presented in Figure 3a,b, respectively. In the mg/100 g extract, the most abundant phenolic compounds were found to be salicylic acid (9.49), vanillic acid (4.78), and o-coumaric acid (1.22), while the identified flavonoid compounds were found to be rutin (4702.58), myricetin (1386.62), and kaempferol (8.29).

4. Discussion

In this work, acetone extracts of W. somnifera fruits applied to M. azedarach wood showed potent activity against A. tumefaciens, E. amylovora, and P. cichorii, as well as mycelia inhibition of F. culmorum and R. solani.
Flavonoid compounds found in W. somnifera extract have been proven to be responsible for antimicrobial activity against certain pathogenic bacteria and fungi [54,55]. Previously, W. somnifera leaf methanol and acetone extracts have shown moderate antifungal activity against F. oxysporum and Colletotrichum capsici [56]. A methanol extract of W. somnifera has shown potential antifungal activity against the growth of Alternaria alternata, Bipolaris oryzae, Colletotrichum capsici, C. lindemuthianum, Curvularia lunata, F. moniliforme, F. oxysporum, Macrophomina phaseolina, Rhizoctonia solani, and Pyricularia oryzae, with the percentage of inhibition of mycelial growth ranging 54.44–78.88% [57].
The aqueous fruit extract of W. somnifera at 2% has exhibited potential antifungal action against F. oxysporum f. sp. radicis-lycopersici [58]. Phenolic compounds, flavonoid compounds, glycoside, fixed oils, tannins, alkaloids, and saponins, as well as withaferin A, ascorbic acid, and anthocyanin as polar compounds, are responsible for the potential antifungal activity of the extracts from this plant [18,59].
The black pointed disease caused by A. alternata in Triticum aestivum has been found to be reduced significantly when an aqueous extract of W. somnifera is begun to be used [60]. Methanol extract from fruit and leaf of W. somnifera has been observed to decrease Ascochyta rabiei biomass, the cause of chickpea blight disease [61]. Additionally, F. oxysporum f. sp. cepae biomass has been seen to be decreased by 93% when root methanolic extracts of W. somnifera are added [62].
Our previous works which have carried out studies of the effects of soaked or treated wood samples with natural products on the growth of pathogenic fungi and bacteria have shown some promising results. Acacia saligna wood treated with a combination treatment of Paraloid B-72 and Cupressus sempervirens wood methanolic extract has been found to have potent biocide activity against the mold fungus Trichoderma harzianum [40].
Several vital species of the pathogens Fusarium, Phaeoacremonium, Phytophthora, and Uromycladium are associated with diseases occurring in woody plant tissues. The best known of these include twig dieback in citrus, dieback and cankers on fruit trees (Petri and esca diseases), and collar rots and rusts of Acacia [63,64,65]. Species from many families are responsible for severe damage diseases of trees; for example Diaporthales and Botryosphaeriaceae cause diseases such as stem cankers, shoot, and twig blight of Eucalyptus [66,67].
Several studies have shown that wood can be protected by biopreservation chemicals using extracts or essential oils; for instance, the extent of mycelia of A. alternata, F. subglutinans, Chaetomium globosum, A. niger, and Trichoderma viride have been found to decrease or have their growth prevented on the surfaces of some woods treated with extracts from Pinus rigida (heartwood essential oil and extract), Eucalyptus camaldulensis (leaf extract and essential oil), and rhizomes of Costus speciosus (extract) [42,43]. Leucaena leucocephala wood treated with a combination of concentrations of extracts from the inner and outer bark of A. saccharum var. saccharum with citric acid has shown good inhibition against the growth of T. viride, F. subglutinans, and A. niger [44], which is related to the presence of phenolic compounds such as p-hydroxy benzoic acid, gallic acid, salicylic acid, and caffeine. M. azedarach wood treated with A. saligna flowers has shown antifungal and antibacterial activities with a high content of quercetin, benzoic acid, naringenin, caffeine, o-coumaric acid, and kaempferol [45]. Additionally, M. azedarach wood samples treated with peel extracts of Musa paradisiaca L. in the presence of ellagic acid, gallic acid, rutin, myricetin, and naringenin have shown good antifungal activity against R. solani and F. culmorum, as well as antibacterial activity against A. tumefaciens [39].

5. Conclusions

The potent antifungal and antibacterial activities exhibited by W. somnifera extract might be attributed to the presence of either the single or synergetic effects of more than one compound, or the high amount of flavonoid compounds, and may help us to discover new antibiotic substances that could serve as alternative treatments for plant diseases and their control. Hence, W. somnifera extract might be used as a bioactivity agent (antibacterial or antifungal) against plant pathogens. Further field studies are required to generalize the activity of this plant extract in treating various plant diseases.

Author Contributions

M.E.-H., M.Z.M.S., S.I.B., and H.M.A. designed the experiments, conducted the laboratory analyses, wrote parts of the manuscript, and interpreted the results; all coauthors contributed to the writing and revising of the article. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Researchers Supporting Project number RSP-2019/123, King Saud University, Riyadh, Saudi Arabia.

Acknowledgments

Researchers Supporting Project number RSP-2019/123, King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hintz, T.; Matthews, K.K.; Di, R. The use of plant antimicrobial compounds for food preservation. Biomed. Res. Int. 2015, 2015, 246264. [Google Scholar] [CrossRef] [Green Version]
  2. Mohanka, R.; Priyanka, D. Plant extract as natural food preservative against spoilage fungi from processed food. Int. J. Curr. Microbiol. Appl. Sci. 2014, 3, 91–98. [Google Scholar]
  3. Behiry, S.I.; EL-Hefny, M.; Salem, M.Z.M. Toxicity effects of Eriocephalus africanus L. leaf essential oil against some molecularly identified phytopathogenic bacterial strains. Nat. Prod. Res. 2019, 1–5. [Google Scholar] [CrossRef] [PubMed]
  4. Joerger, R.D. Alternatives to antibiotics: Bacteriocins, antimicrobial peptides and bacteriophages. Poult. Sci. 2003, 82, 640–647. [Google Scholar] [CrossRef]
  5. Bhattacharya, S.K.; Bhattacharya, D.; Sairam, K.; Ghosal, S. Effect of Withania somnifera glycowithanolides on a rat model of tardive dyskinesia. Phytomedicine 2002, 9, 167. [Google Scholar] [CrossRef]
  6. Marie Winters, N.D. Ancient medicine, modern use: Withania somnifera and its potential role in integrative oncology. Alter. Med. Rev. 2004, 11, 269–277. [Google Scholar]
  7. Subramanian, P.; Harikrishnan, B.; Subash, S. Effect of Withania Somnifera root powder on the levels of circulatory lipid peroxidation and liver marker enzymes in chronic hyperammonemia. J. Chem. 2008, 5, 872–877. [Google Scholar] [CrossRef] [Green Version]
  8. Chatterjee, S.; Srivastava, S.; Khalid, A.; Singh, N.; Sangwan, R.S.; Sidhu, O.P.; Roy, R.; Khetrapal, C.L.; Tuli, R. Comprehensive metabolic fingerprinting of Withania somnifera leaf and root extracts. Phytochemistry 2010, 71, 1085–1094. [Google Scholar] [CrossRef]
  9. Matsuda, H.; Murakami, T.; Kishi, A.; Yoshikawa, M. Structures of withanosides I, II, III, IV, V, VI, and VII, new withanolide glycosides, from the roots of Indian Withania somnifera Dunel and inhibitory activity for tachyphylaxis to clonidine in isolated guinea-pig ileum. Bioorg. Med. Chem. 2001, 9, 1499–1507. [Google Scholar] [CrossRef]
  10. Mishra, L.C.; Singh, B.B.; Dagenais, S. Scientific basis for the therapeutic use of Withania somnifera (ashwagandha): A review. Altern. Med. Rev. 2000, 5, 334–346. [Google Scholar]
  11. Sivanandhana, G.; Aruna, M.; Mayavana, S.; Rajesha, M.; Mariashibub, T.S.; Manickavasagama, M.; Selvarajc, N.; Ganapathi, A. Chitosan enhances withanolides production in adventitious root cultures of Withania somnifera (L.) Dunal. Ind. Crops Prod. 2012, 37, 124–129. [Google Scholar] [CrossRef]
  12. Rajeev, N.; Parul, J.; Sairta, K.; Alka, P.; Abhishek, G.; Singh, D. Study of Withania somnifera with the spatial reference of phytochemical, FTIR and flavonoids quantification. Int. J. Pharm. Life Sci. 2012, 3, 1530–1532. [Google Scholar]
  13. Singh, B.; Saxena, A.K.; Chandan, B.K.; Gupta, D.K.; Bhutani, K.K.; Anand, K.K. Adaptogenic activity of a novel, withanolide-free aqueous fraction from the root of Withania somnifera. Phytother. Res. 2001, 15, 311–318. [Google Scholar] [CrossRef] [PubMed]
  14. Singh, B.; Chandan, B.K.; Gupta, D.K. Adaptogenic activity of a novel withanolide-free aqueous fraction from the roots of Withania somnifera Dun. (Part II). Phytother. Res. 2003, 17, 531–536. [Google Scholar] [CrossRef] [PubMed]
  15. Singh, G.; Kumar, P. Evaluation of antimicrobial efficacy of flavonoids of Withania somnifera L. Indian J. Pharm. Sci. 2011, 73, 473–478. [Google Scholar] [CrossRef]
  16. Singh, G.; Kumar, P. Antibacterial potential of alkaloids of Withania somnifera L. & Euphorbia hirta L. Int. J. Pharm. Pharm. Sci. 2012, 4, 78–81. [Google Scholar]
  17. Deocaris, C.C.; Widodo, N.; Wadhwa, R.; Kaul, S. Merger of ayurveda and tissue culture-based functional genomics: Inspirations from systems biology. J. Transl. Med. 2008, 6, 14. [Google Scholar] [CrossRef] [Green Version]
  18. Dharajiya, D.; Patel, P.; Patel, M.; Moitra, N. In vitro antimicrobial activity and qualitative phytochemical analysis of Withania somnifera (L.) dunal extracts. Int. J. Pharm. Sci. Rev. Res. 2014, 27, 349–354. [Google Scholar]
  19. Dhuley, J.N. Therapeutic efficacy of ashwagandha against experimental aspergillosis in mice. Immunopharmacol. Immunotoxicol. 1998, 20, 191–198. [Google Scholar] [CrossRef]
  20. Owais, M.; Sharad, K.S.; Shehbaz, A.; Saleemuddin, M. Antibacterial efficacy of Withania somnifera (ashwagandha) an indigenous medicinal plant against experimental murine salmonellosis. Phytomedicine 2005, 12, 229–235. [Google Scholar] [CrossRef]
  21. Romha, G.; Admasu, B.; Gebrekidan, T.H.; Aleme, H.; Gebru, G. Antibacterial activities of five medicinal plants in Ethiopia against some human and animal pathogens. Evid. Based Complement. Altern. Med. 2018, 2018, 2950758. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Ziauddin, M.; Phansalkar, N.; Patki, P.; Patwardhan, B. Studies on immunomodulatory activity of ashwagandha. J. Ethanopharmocol. 1996, 50, 69–76. [Google Scholar] [CrossRef]
  23. Salem, M.Z.M.; Behiry, S.I.; Salem, A.Z.M. Effectiveness of root-bark extract from Salvadora persica against the growth of certain molecularly identified pathogenic bacteria. Microb. Pathog. 2018, 117, 320–326. [Google Scholar] [CrossRef] [PubMed]
  24. Baka, Z.A.M. Antifungal activity of six Saudi medicinal plant extracts against five phytopathogenic fungi. Arch. Phytopathol. Plant Prot. 2010, 43, 736–743. [Google Scholar] [CrossRef]
  25. Ashmawy, N.A.; Behiry, S.I.; Younes, H.A.; Khaled, A.E. Development of polyclonal rabbit serum-based ELISA for detection of Pectobacterium carotovorum subsp. carotovorum and its specificity against other causing soft rot bacteria. Asian J. Plant Pathol. 2015, 9, 135–141. [Google Scholar] [CrossRef] [Green Version]
  26. Behiry, S.I.; Ashmawy, N.A.; Abdelkhalek, A.A.; Younes, H.A.; Khaled, A.E.; Hafez, E.E. Compatible-and incompatible-type interactions related to defense genes in potato elucidation by Pectobacterium carotovorum. J. Plant Dis. Prot. 2018, 125, 197–204. [Google Scholar] [CrossRef]
  27. Laurila, J.; Ahola, V.; Lehtinen, A.; Joutsjoki, T.; Hannukkala, A.; Rahkonen, A.; Pirhonen, M. Characterization of Dickeya strains isolated from potato and river water samples in Finland. Eur. J. Plant Pathol. 2008, 122, 213–225. [Google Scholar] [CrossRef]
  28. Sławiak, M.; Łojkowska, E.; van der Wolf, J.M. First report of bacterial soft rot on potato caused by Dickeya spp. (syn. Erwinia chrysanthemi) in Poland. Plant Pathol. 2009, 58, 794. [Google Scholar] [CrossRef]
  29. Sławiak, M.; van Beckhoven, J.R.C.M.; Speksnijder, A.G.C.L.; Czajkowski, R.; Grabe, G.; van der Wolf, J.M. Biochemical and genetic analysis reveal a new clade of biovar 3 Dickeya spp. strains isolated from potato in Europe. Eur. J. Plant Pathol. 2009, 125, 245–261. [Google Scholar] [CrossRef]
  30. Toth, I.K.; van der Wolf, J.M.; Saddler, G.; Lojkowska, E.; Hélias, V.; Pirhonen, M.; Tsror, L.; Elphinstone, J.G. Dickeya species: An emerging problem for potato production in Europe. Plant Pathol. 2011, 60, 385–399. [Google Scholar] [CrossRef]
  31. Czajkowski, R.; de Boer, W.J.; van der Zouwen, P.S.; Kastelein, P.; Jafra, S.; de Haan, E.G.; van den Bovenkamp, G.W.; van der Wolf, J.M. Virulence of ‘Dickeya solani’ and Dickeya dianthicola biovar-1 and -7 strains on potato (Solanum tuberosum). Plant Pathol. 2012, 62, 597–610. [Google Scholar] [CrossRef]
  32. Piqué, N.; Miñana-Galbis, D.; Merino, S.; Tomás, J.M. Virulence factors of Erwinia amylovora: A Review. Int. J. Mol. Sci. 2015, 16, 12836–12854. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Giongo, A.; Ambrosini, A.; Freire, J.; Zanettini, M.; Passaglia, L.M.P. Amplification of 16S rRNA gene sequences to differentiate two highly related bradyrhizobia species. Pesqui. Agropecu. Bras. 2007, 42, 1361–1364. [Google Scholar] [CrossRef] [Green Version]
  34. Sawada, H.; Ieki, H.; Oyaizu, H.; Matsumoto, S. Proposal for Rejection of Agrobacterium tumefaciens and Revised Descriptions for the Genus Agrobacterium and for Agrobacterium radiobacter and Agrobacterium rhizogenes. Int. J. Syst. Bacteriol. 1993, 43, 694–702. [Google Scholar] [CrossRef] [PubMed]
  35. Mansour, M.M.A.; Salem, M.Z.M.; Khamis, M.H.; Ali, H.M. Natural durability of Citharexylum spinosum and Morus alba woods against three mold fungi. BioResources 2015, 10, 5330–5344. [Google Scholar] [CrossRef] [Green Version]
  36. Sirmah, P.; Dumarçay, S.; Gérardin, P. Unusual amount of (−)-mesquitol from the heartwood of Prosopis juliflora. Nat. Prod. Res. 2009, 23, 183–189. [Google Scholar] [CrossRef]
  37. Sequeira, S.; Cabrita, E.J.; Macedo, M.F. Antifungals on paper conservation: An overview. Int. Biodeterior. Biodegrad. 2012, 74, 67–86. [Google Scholar] [CrossRef]
  38. Rosado, T.; Martins, M.R.; Pires, M.; Mirão, J.; Candeias, A.; Caldeira, A.T. Enzymatic monitorization of mural paintings: Biodegradation and biodeterioration. Int. J. Conserv. Sci. 2013, 4, 603–612. [Google Scholar]
  39. Behiry, S.I.; Okla, M.K.; Alamri, S.A.; EL-Hefny, M.; Salem, M.Z.M.; Alaraidh, I.A.; Ali, H.M.; Al-Ghtani, S.M.; Monroy, J.C.; Salem, A.Z.M. Antifungal and antibacterial activities of Musa paradisiaca L. peel extract: HPLC analysis of phenolic and flavonoid contents. Processes 2019, 7, 215. [Google Scholar]
  40. Mansour, M.M.A.; Salem, M.Z.M. Evaluation of wood treated with some natural extracts and Paraloid B-72 against the fungus Trichoderma harzianum: Wood elemental composition, In-vitro and application evidence. Int. Biodeterior. Biodegrad. 2015, 100, 62–69. [Google Scholar] [CrossRef]
  41. Mansour, M.M.A.; Abdel-Megeed, A.; Nasser, R.A.; Salem, M.Z.M. Comparative evaluation of some woody trees methanolic extracts and Paraloid B-72 against phytopathogenic mold fungi Alternaria tenuissima and Fusarium culmorum. BioResources 2015, 10, 2570–2584. [Google Scholar] [CrossRef] [Green Version]
  42. Salem, M.Z.M.; Zidan, Y.E.; Mansour, M.M.A.; El Hadidi, N.M.N.; Abo Elgat, W.A.A. Antifungal activities of two essential oils used in the treatment of three commercial woods deteriorated by five common mold fungi. Int. Biodeterior. Biodegrad. 2016, 106, 88–96. [Google Scholar] [CrossRef]
  43. Salem, M.Z.M.; Zidan, Y.E.; Mansour, M.M.A.; El Hadidi, N.M.N.; Abo Elgat, W.A.A. Evaluation of usage three natural extracts applied to three commercial wood species against five common molds. Int. Biodeterior. Biodegrad. 2016, 110, 206–226. [Google Scholar] [CrossRef]
  44. Salem, M.Z.M.; Mansour, M.M.A.; Elansary, H.O. Evaluation of the effect of inner and outer bark extracts of Sugar Maple (Acer saccharum var. saccharum) in combination with citric acid against the growth of three common molds. J. Wood Chem. Technol. 2019, 39, 136–147. [Google Scholar] [CrossRef]
  45. Al-Huqail, A.A.; Behiry, S.I.; Salem, M.Z.M.; Ali, H.M.; Siddiqui, M.H.; Salem, A.Z.M. Antifungal, antibacterial, and antioxidant activities of Acacia saligna (Labill.) H. L. Wendl. flower extract: HPLC analysis of phenolic and flavonoid compounds. Molecules 2019, 24, 700. [Google Scholar] [CrossRef] [Green Version]
  46. Billing, E.; Crosse, J.E.; Garrett, C.M. Laboratory diagnosis of fire blight and bacterial blossom blight of pear. Plant Pathol. 1960, 9, 19–25. [Google Scholar] [CrossRef]
  47. Schaad, N.W.; Jones, J.B.; Chun, W. (Eds.) Laboratory Guide for Identification of Plant Pathogenic Bacteria, 3rd ed.; APS Press: St Paul, MN, USA, 2001; pp. 40–55. [Google Scholar]
  48. Ausubel, F.M.; Brent, R.; Kingston, R.E.; Moore, D.D.; Seidman, J.G.; Smith, J.A.; Struhl, K. Preparation of Genomic DNA from Bacteria. In Current Protocols in Molecular Biology; Ausubel, F.M., Brent, R., Kingston, R., Moore, D.D., Seiman, J., Smith, J.A., Struhl, K., Eds.; John Wiley and Sons: New York, NY, USA, 1995. [Google Scholar]
  49. Salem, M.Z.M.; Ali, H.M.; El-Shanhorey, N.A.; Abdel-Megeed, A. Evaluation of extracts and essential oil from Callistemon viminalis leaves: Antibacterial and antioxidant activities, total phenolic and flavonoid contents. Asian Pac. J. Trop. Med. 2013, 6, 785–791. [Google Scholar] [CrossRef] [Green Version]
  50. Salem, M.Z.M.; Behiry, S.I.; EL-Hefny, M. Inhibition of Fusarium culmorum, Penicillium chrysogenum and Rhizoctonia solani by n-hexane extracts of three plant species as a wood-treated oil fungicide. J. Appl. Microbiol. 2019, 126, 1683–1699. [Google Scholar] [CrossRef]
  51. National Committee for Clinical Laboratory Standards. Performance Standards for Antimicrobial Disk Susceptibility Tests Sixth Edition: Approved Standard M2-A6; NCCLS: Villanova, PA, USA, 1997. [Google Scholar]
  52. Salem, M.Z.M.; Ibrahim, I.H.M.; Ali, H.M.; Helmy, H.M. Assessment of the use of natural extracted dyes and pancreatin enzyme for dyeing of four natural textiles: HPLC analysis of phytochemicals. Processes 2020, 8, 59. [Google Scholar] [CrossRef] [Green Version]
  53. SAS. Users Guide: Statistics (Release 8.02); SAS Inst Inc.: Cary, NC, USA, 2001. [Google Scholar]
  54. Ganzera, M.; Chaudhary, M.J.; Khan, I.A. Quantitative HPLC analysis of withanolides in Withania somnifera. Fitoterapia 2003, 74, 68–76. [Google Scholar] [CrossRef]
  55. Singh, G.; Kumar, P. Antibacterial activity of flavonoids of Withania somnifera L. Int. J. Green Pharm. 2014, 8, 114–118. [Google Scholar] [CrossRef]
  56. Saidulu, C.; Venkateshwar, C.; Rao, S.G.; Vardhan, T.A. In-vitro antimicrobial Activity of Withania somnifera leaf and root extracts grown in heavy metal toxic soils. Int. J. Adv. Pharm. Biol. Chem. 2014, 3, 872–879. [Google Scholar]
  57. Khan, Z.S.; Nasreen, S. Phytochemical analysis, antifungal activity and mode of action of methanol extracts from plants against pathogens. J. Agric. Technol. 2010, 6, 793–805. [Google Scholar]
  58. Nefzi, A.; Ben Abdallah, R.A.; Jabnoun-Khiareddine, H.; Medimagh-Saïdana, S.; Haouala, R.; Daami-Remadi, M. Antifungal activity of aqueous and organic extracts from Withania somnifera L. against Fusarium oxysporum f. sp. radicis-lycopersici. Microb. Biochem. Technol. 2016, 8, 144–150. [Google Scholar] [CrossRef]
  59. Santhi, M.; Swaminathan, C. Evaluation of antibacterial activity and phytochemeical analysis of leaves of Withania somnifera L. Dunal. Int. J. Curr. Res. 2011, 33, 10–12. [Google Scholar]
  60. Shafique, S.; Bajwa, R.; Javaid, A.; Shafique, R. Antifungal activity of aqueous extracts of weeds against pathogen of black pointed disease of wheat seeds. Pak. J. Phytopathol. 2006, 18, 174–177. [Google Scholar]
  61. Javaid, A.; Munir, R. Bioassay guided fractionation of Withania somnifera for the management of Ascochyta rabiei. Int. J. Agric. Biol. 2012, 14, 797–800. [Google Scholar]
  62. Javaid, A.; Akhtar, R. Antifungal activity of methanolic root extract of Withania somnifera against Fusarium oxysporum f. sp. Cepae. Afr. J. Tradit. Complement. Altern. Med. 2015, 12, 22–27. [Google Scholar] [CrossRef] [Green Version]
  63. Dean, R.; Van Kan, J.A.L.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef] [Green Version]
  64. Gramaje, D.; Mostert, L.; Groenewald, J.Z.; Crous, P.W. Phaeoacremonium: From esca disease to phaeohyphomycosis. Fungal Biol. 2015, 119, 759–783. [Google Scholar] [CrossRef]
  65. Wood, A.R.; Morris, M.J. Impact of the gall-forming rust fungus Uromycladium tepperianum on the invasive tree Acacia saligna in South Africa: 15 years of monitoring. Biol. Control 2007, 41, 68–77. [Google Scholar] [CrossRef]
  66. Gomes, R.R.; Glienke, C.; Videira, C.I.R.; Lombard, L.; Groenewald, J.Z.; Crous, P.W. Diaporthe: A genus of endophytic, saprobic and plant pathogenic fungi. Persoonia 2013, 31, 1. [Google Scholar] [CrossRef] [Green Version]
  67. Li, G.Q.; Liu, F.F.; Li, J.Q.; Liu, Q.L.; Chen, S.F. Botryosphaeriaceae from Eucalyptus plantations and adjacent plants in China. Persoonia 2018, 40, 63–95. [Google Scholar] [CrossRef] [Green Version]
Processes 08 00113 g001 550
Figure 1. Antibacterial activity of wood treated with acetone extracts of Withania somnifera. (A) Agrobacterium tumefaciens; (B) Dickeya solani; (C) Erwinia amylovora; (D) Pseudomonas cichorii; (E) Serratia pylumthica. C indicates control treatment (10% DMSO); 1, 2, and 3 indicate 1%, 2%, and 3% concentrated acetone extract.
Figure 1. Antibacterial activity of wood treated with acetone extracts of Withania somnifera. (A) Agrobacterium tumefaciens; (B) Dickeya solani; (C) Erwinia amylovora; (D) Pseudomonas cichorii; (E) Serratia pylumthica. C indicates control treatment (10% DMSO); 1, 2, and 3 indicate 1%, 2%, and 3% concentrated acetone extract.
Processes 08 00113 g001
Processes 08 00113 g002 550
Figure 2. Antifungal activity of the treated wood with Withania somnifera fruit acetone extract. (A) Fusarium culmorum; (B) Rhizoctonia solani.
Figure 2. Antifungal activity of the treated wood with Withania somnifera fruit acetone extract. (A) Fusarium culmorum; (B) Rhizoctonia solani.
Processes 08 00113 g002
Processes 08 00113 g003a 550Processes 08 00113 g003b 550

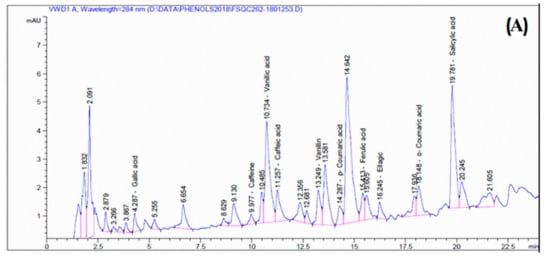

Figure 3. HPLC chromatogram of phenolic/caffeine (A) and flavonoid (B) compounds identified in acetone extracts of Withania somnifera fruits.
Figure 3. HPLC chromatogram of phenolic/caffeine (A) and flavonoid (B) compounds identified in acetone extracts of Withania somnifera fruits.
Processes 08 00113 g003aProcesses 08 00113 g003b
Table
Table 1. HPLC conditions for phenolic/caffeine and flavonoid compounds.
Table 1. HPLC conditions for phenolic/caffeine and flavonoid compounds.
HPLC ConditionsPhenolic/Caffeine CompoundsFlavonoid Compounds
Instrument Agilent 1260 Infinity HPLC Series equipped with a Quaternary pump and a Zorbax Eclipse plus C18 column (100 mm × 4.6 mm i.d.) (Agilent, Santa Clara, CA, USA)Smart line (Knauer, Germany) equipped with a binary pump and a Zorbax Eclipse plus C18 (column 150 mm × 4.6 mm i.d.) (Agilent technologies, Santa Clara, CA, USA)
Temperature of operation 30 °C35 °C
Separation elution gradientA: HPLC grade water 0.2% H3PO4 (v/v)
B: Methanol
C: Acetonitrile		Methanol: H2O with 0.5% H3PO4 (50:50)
Flow rate 0.7 mL/min
Injected volume20 μL20 μL
DetectorVariable wavelength detector (VWD) at 284 nmUV detector at 273 nm
Table
Table 2. Morphological traits, physiological traits, biochemical reactions, and accession numbers of bacterial isolates obtained from infected samples.
Table 2. Morphological traits, physiological traits, biochemical reactions, and accession numbers of bacterial isolates obtained from infected samples.
CharacteristicBacterial Isolate
Erwinia amylovoraAgrobacterium tumefaciensPseudomonas cichoriiDickeya solaniSerratia plymuthica
GenBank accession number of 16S rDNA sequenceMK720288MK720285MK720283MK720279MK720275
Shape (rods)-----
Gram staining+++++
Motility+++++
Anaerobic growth+++++
3-Ketolactose production+-+++
Growth at 37 °C--+++
Catalase test++-++
Mucoid growth++-++
Oxidase reaction-++--
Pigment on kingsBndnd+++
Indole production---+-
R. substance from sucrose-----
Urease production-----
Growth in 5% NaCl--+-+
Citrate utilization-+-+-
Malonate utilization--++-
Alkali from tartaric acidnd+++-
Glucosea--++
α-methyl glucoside--aaa
Maltose----a
Sucroseaaaaa
Lactoseaa-aa
Dulcitolaa-aa
Manitolaaaaa
Trehaloseaa-aa
+ = More than 80% of isolates gave a positive reaction. - = Less than 20% of isolates gave a negative reaction. Legend: a, acid; nd, not determined.
Table
Table 3. Antibacterial activity of wood treated with acetone extract from Withania somnifera fruits.
Table 3. Antibacterial activity of wood treated with acetone extract from Withania somnifera fruits.
Conc. Inhibition Zone (mm ± SD)
Agrobacterium tumefaciensDickeya solaniErwinia amylovoraPseudomonas cichoriiSerratia pylumthica
Control (10% DMSO) 0.00 c *0.00 b0.00 c0.00 c0.00 c
1%60.33 b ± 3.0531.66 a ± 1.1561.33 b ± 1.1579 b ± 1.730.00 c
2%>90 a31.66 a ± 0.57>90 a>90 a76 b ± 1.73
3%>90 a31.66 a ± 0.57>90 a>90 a>90 a
LSD0.052.871.331.081.631.63
* No significance between means within the same column and have the same letters. Legend: LSD, least significant difference at the 0.05 level of probability.
Table
Table 4. Antifungal activity of wood treated with acetone extracts from Withania somnifera fruits.
Table 4. Antifungal activity of wood treated with acetone extracts from Withania somnifera fruits.
Conc.Inhibition Percentage (%)
Fusarium culmorumRhizoctonia solani
Control (10% DMSO)0.00 d *0.00 d
1%49.62 c49.25 c
2%65.92 b53.33 b
3%84.07 a67.03 a
LSD0.051.811.35
* No significance between means have the same letters within the same column.
Table
Table 5. Phytochemical composition of the acetone extracts from Withania somnifera fruits by HPLC.
Table 5. Phytochemical composition of the acetone extracts from Withania somnifera fruits by HPLC.
CompoundConc. (mg/100 g extract)
Phenolic/caffeine compounds
Gallic acid 0.58
CatecholND *
p-Hydroxy benzoic acidND
Caffeine0.31
Vanillic acid4.78
Caffeic acid0.75
Syringic acidND
Vanillin0.82
p-Coumaric acid0.34
Ferulic acid0.54
Ellagic acid0.93
Benzoic acidND
o-Coumaric acid (trans-2-Hydroxycinnamic acid)1.22
Salicylic acid9.49
Cinnamic acidND
Flavonoid compounds
Rutin4702.58
Myricetin1386.62
QuercetinND
NaringeninND
Kaempferol 8.29
ApigeninND
* ND, not detected.

Share and Cite

MDPI and ACS Style

EL-Hefny, M.; Salem, M.Z.M.; Behiry, S.I.; Ali, H.M. The Potential Antibacterial and Antifungal Activities of Wood Treated with Withania somnifera Fruit Extract, and the Phenolic, Caffeine, and Flavonoid Composition of the Extract According to HPLC. Processes 2020, 8, 113. https://doi.org/10.3390/pr8010113

AMA Style

EL-Hefny M, Salem MZM, Behiry SI, Ali HM. The Potential Antibacterial and Antifungal Activities of Wood Treated with Withania somnifera Fruit Extract, and the Phenolic, Caffeine, and Flavonoid Composition of the Extract According to HPLC. Processes. 2020; 8(1):113. https://doi.org/10.3390/pr8010113

Chicago/Turabian Style

EL-Hefny, Mervat, Mohamed Z. M. Salem, Said I. Behiry, and Hayssam M. Ali. 2020. "The Potential Antibacterial and Antifungal Activities of Wood Treated with Withania somnifera Fruit Extract, and the Phenolic, Caffeine, and Flavonoid Composition of the Extract According to HPLC" Processes 8, no. 1: 113. https://doi.org/10.3390/pr8010113

APA Style

EL-Hefny, M., Salem, M. Z. M., Behiry, S. I., & Ali, H. M. (2020). The Potential Antibacterial and Antifungal Activities of Wood Treated with Withania somnifera Fruit Extract, and the Phenolic, Caffeine, and Flavonoid Composition of the Extract According to HPLC. Processes, 8(1), 113. https://doi.org/10.3390/pr8010113

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
