Search Results (26)

This account is an exploration of concepts exploring the widespread damage to liquid metals caused by poor current liquid metal handling and casting technology. The defects introduced in the liquid state are suggested to affect many properties of our engineering metals, especially tensile elongation and Charpy toughness, but also time-dependent degradation processes, which can result in failure by fracture, and which can be significantly aided by hydrogen, leading to hydrogen embrittlement (HE), and invasive corrosion, leading to stress corrosion cracking (SCC). The new phenomenon of ‘precipitation cleavage’ is introduced, explaining the sensitization of alloys by certain heat treatments. Direct visual evidence for precipitation cleavage is provided by the previously unexplained phenomenon of ‘fisheyes’ observed frequently on the fracture surfaces of steels, and more recently also in light alloys. Full article

With the increasing demand for premium-quality aluminum alloy castings that can be used as safety-critical structural components, as well as the rising urge to utilize sustainable materials during the manufacturing process, novel technologies need to be developed and implemented during the treatment of liquid alloys. Impurity and alloying elements accumulate in recycled aluminum alloys, which frequently results in the formation of coarse intermetallic compound (IMC) particles in the microstructure that have a detrimental effect on the ductility of cast products. One successful approach to alleviate this negative effect relies on affecting the phase selection and refinement of IMC phases. A growing body of literature has shown that the crystallization process of IMCs is affected by the native oxide phases present in the liquid alloys. It has also been demonstrated that by appropriate technologies, harmful oxide inclusion (like oxide bifilms) can be transformed into small-sized oxide particles that can be dispersed throughout the liquid alloy to serve as heterogeneous nucleation sites for different phases. In this way, the adverse effects of oxide inclusions and IMCs are simultaneously mitigated. This contribution aims to review the recent progress of experimental and theoretical work related to intermetallic particle refinement by oxide phases. Emerging technological solutions capable of refining intermetallics through transforming harmful oxide inclusions into numerous, well-dispersed heterogeneous nucleation sites are comprehensively reviewed. Besides analyzing the current state of these techniques, this discussion evaluates their future implications and the potential challenges that may arise in their application and development. Full article

A hot isostatically pressed specimen of the A357 alloy in T6 condition has been tested for fatigue performance in situ. During testing, multiple small cracks were observed during the first cycle, both in proximity to and far from the stress concentration. These cracks have competed to form a propagating crack, forming multiple crack paths initially. Once the propagating crack has been established, it has chosen paths from multiple cracks that have opened around the tip to grow further. All small cracks observed to open have been attributed to bifilms, i.e., liquid metal damage. It is imperative to develop processes that minimize liquid metal damage to enhance the fatigue performance of aluminum alloy castings. Full article

Due to its tendency to increase the power of engines, improving their reliability and operational efficiency, the compression ring in combustion engine pistons is embedded in a cast iron insert, which is subjected to the process of “alfining”. This involves covering the insert with an Al–Si alloy, which increases the iron content. Research has shown that the β-Al₅FeSi phases crystallizing in the area of the insert–piston connection are the main cause of an unstable connection between the silumin casting of the piston and the ring insert. Their unfavourable lamellar morphology and large dimensions are the main causes of weakening in the connection between the insert and the piston, resulting in an unacceptable number of defective products. It has also been found that up to approx. 0.59 wt.% Fe, the pore volume fraction is very small (up to 3%), and there is no correlation. However, after exceeding this value, both the volume fraction of the β-Al₅FeSi phase and the number of pores increase monotonically to values of approximately 18% and 14%, respectively, and the correlation between the examined features is statistically significant. These results were compared with known theories of the influence of iron on the porosity of Al–Si alloys, showing that the precipitates of the β-Al₅FeSi phase are more important in the porosity fraction than the two-layer oxide films called “bifilms”. This research was carried out and verified under industrial conditions in one of the largest piston foundries (Federal-Mogul Gorzyce sp. z o.o., F-MG) on a separate line intended for alfining ring inserts intended for combustion pistons. Full article

The competition between pores and hidden entrainment defects during tensile testing of specimens from Al-Si-Cu alloy high-pressure die castings has been characterized. In all tests, multiple strain concentrations have been identified by using the digital image correlation technique and the final fracture has been preceded by a competition between pores and hidden damage, later identified as oxide bifilms. The results have confirmed previous findings that overall damage to the metal during its liquid state is much more extensive than what can be assessed via X-ray inspection, which looks only for pores. It is concluded that current quality assurance techniques need to be updated. Full article

In the secondary metals refining processes, vacuum arc remelting (VAR) and electroslag remelting (ESR), the consumable electrode is commonly produced by vacuum induction melting (VIM) which employs the regrettably primitive casting technique of simply pouring into the open top of the mold. Despite the vacuum, the resulting oxidizing conditions and the immensely powerful turbulence accompanying the top-pouring of the electrode is now known to create a substantial density of serious cracks. The cracks in the cast electrode are bifilms (double oxide films), which in turn are proposed to be responsible for the major faults of the VAR ingot, including undetectable, horizontal macroscopic cracks, white spots (clean and dirty varieties) and in-fallen crown. The remedial action to solve all these issues at a stroke is the provision of a counter-gravity cast electrode, cast in air or vacuum, or provision of any similar electrode substantially free from bifilm defects. The ESR process is also described, explaining the reasons for its significantly reduced sensitivity to the top-poured VIM electrode, but indicating that with an improved electrode, this already nearly reliable process has the potential for perfect reliability. The target of this critical overview is an assessment of the potential of these secondary refining processes to produce, for the first time, effectively defect-free metals, metals we can trust. Full article

This paper presents the results of laboratory tests related to high-alloy silicon cast iron (HSCI). These materials are corrosion-resistant and commonly used in cathodic protection systems as protective electrodes. Due to their high fragility, alloys with increased Si content are not suitable for producing elements exposed to dynamic loads. This paper analyzes the crystallization process of silicon alloys (with Si content between 23% and 25%) using thermal and derivation analysis methods. The tests also included an extended analysis of chemical composition. The metallographic tests included scanning electron microscopy with an EDS system, and the phase composition was determined using X-ray diffraction. As a result of the tests, the warp components were identified, the primary share of which are intermetallic phases of the Fe₅Si₃ type. Moreover, single silicon crystals were found. The test results allowed for clarification of the temperature range of the transition of the Fe₂Si phase into the Fe₅Si₃ phase and the determination of characteristic points of the crystallization process (T_Solidus i T_Liquidus). Furthermore, bifilm-type inclusions were identified in the alloys. We also managed to present the silicon crystals and Fe₅Si₃ phases in a spatial layout via observation of the surfaces of contraction cavities using scanning electron microscopy. Full article

Turbulent filling of molten metal in sand-casting leads to bi-films, porosity and oxide inclusions which results in poor mechanical properties and high scrap rate of sand castings. Hence, it is critical to understand the metal flow in sand-molds, i.e., casting hydrodynamics to eliminate casting defects. While multiple numerical methods have been applied to simulate this phenomenon for decades, harsh foundry environments and expensive x-ray equipment have limited experimental approaches to accurately visualize metal flow in sand molds. In this paper, a novel approach to solve this challenge is proposed using Succinonitrile (SCN) as a more accurate metal analog in place of water. SCN has a long history in solidification research due to its BCC (Body-Centered-Cubic) crystal structure and dendrite-like solidification (melting temperature ~60 °C) like molten aluminum. However, this is the first reported study on applying SCN through novel casting hydrodynamics to accurately visualize melt flow for casting studies. This paper used numerical simulations and experiments using both water and SCN to identify the critical dimensionless numbers to perform accurate metal flow analog testing. Froude’s number and wall roughness were identified as critical variables. Experimental results show that SCN flow testing was more accurate in recreating the flow profile of molten aluminum, thus validating its utility as a metal analog for metal flow research. Findings from this study can be used in future metal flow analysis such as: runner, in-gate and integrated filling-feeding-solidification studies. Full article

There is significant evidence from light metals that turbulence in casting leads to bifilm defects; enfolded, doubled-over oxide films which act like cracks in the liquid, and are inherited as cracks by the solid. This population of introduced cracks is now known to significantly influence the tensile failure behaviour of light alloys. There is evidence that analogous defects exist in steels. This paper examines the possibility that bifilms may control the hot ductility of TWIP and TRIP steels, and therefore the problems of straightening during continuous casting. Techniques for overcoming these problems are indicated. Full article

Grain refiner particles, which are intended to induce the formation of fine equiaxed grain structure during the solidification of aluminum alloys, are prone to settling during the holding of the liquid metal, which phenomenon can affect not only the grain size but the spatial distribution of the double oxide films in the melt. In this study, the settling of Al₃Ti inoculant particles, as well as its effects on melt quality and grain refinement, were studied. During the experiments, the Ti-concentration of a liquid Al-Si-Mg-Cu alloy was increased to 0.3 wt.% by the addition of Al-10%Ti master alloy at different melt temperatures. Particle settling and grain size evolution were studied by quantitative metallography, while the interactions of grain refiners and bifilms were investigated by scanning electron microscopy (SEM). The evolution of melt quality was assessed by the computed tomographic (CT) analysis of reduced pressure test (RPT) samples. It was found that effective grain refinement was only realized when the introduced blocky Al₃Ti particles were dissolved and re-precipitated in the form of (Al,Si)₃Ti at a lower temperature. Without dissolving at higher holding temperatures, Al₃Ti particle settling has taken place within 10 min. The settling of (Al,Si)₃Ti particles improved melt quality by the aided sedimentation of bifilms in the melt. Full article

The search for more efficient methods for degassing aluminum alloy melts has always been of great interest for the metal industry because the presence of hydrogen and oxides in the melts’ prior casting was detrimental to the integrity and properties of the final products. In this work, we present an overview of the progress and key findings from the research and development of an innovative High Shear Melt Conditioning (HSMC) degassing technology during the Liquid Metal Engineering (LiME) Research Hub project. Compared to conventional rotary degassing, this novel technique was capable of working at higher rotor speeds to efficiently break and disperse the naturally occurring oxide bifilms in the melt and to capture and disperse each supplied inert gas bubble into many tiny bubbles throughout the whole melt. This resulted in the elimination of the need to degas fluxes to remove the oxides in the melt, the reduction in the gas flow required to reach the same level of hydrogen removal rate, and the minimization of the regassing effect after processing. The increased process efficiency allowed for reduced melt processing costs and, at the same time, improved the melt quality, which resulted in fewer defects and improved mechanical properties. Full article

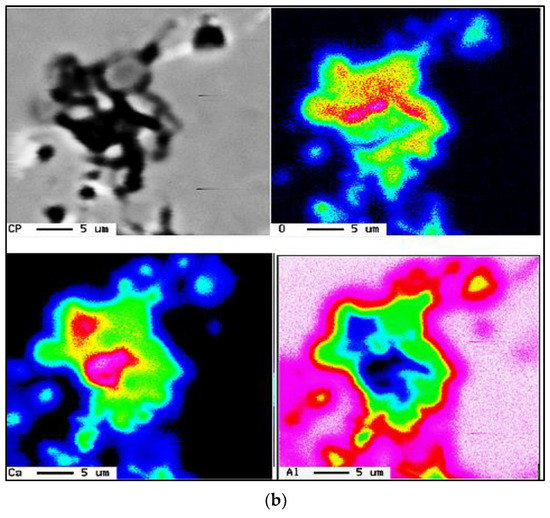

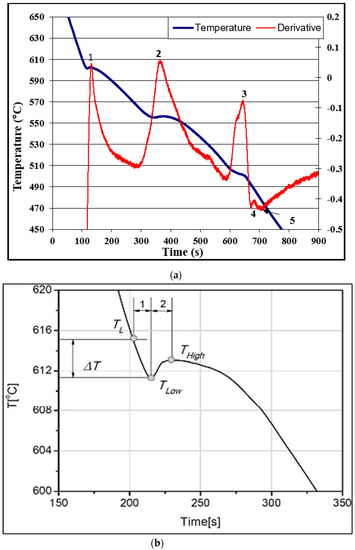

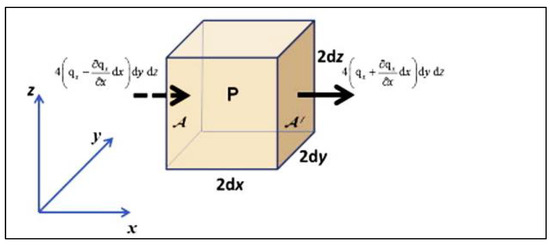

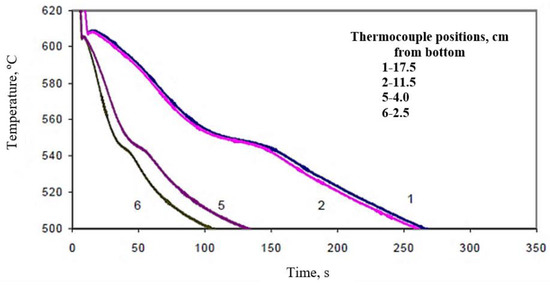

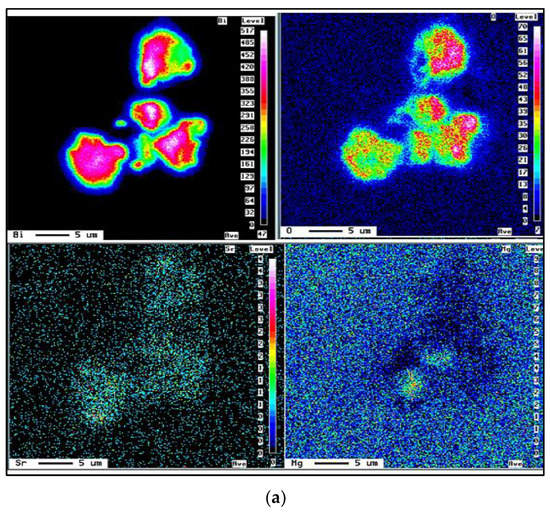

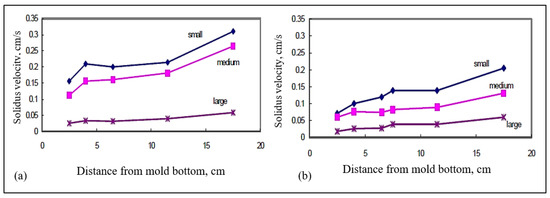

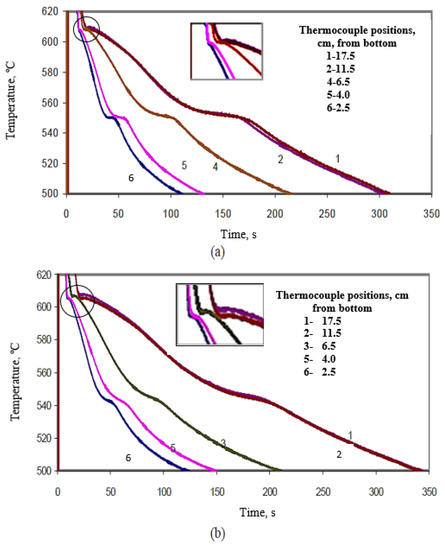

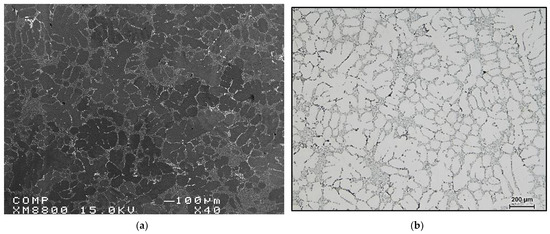

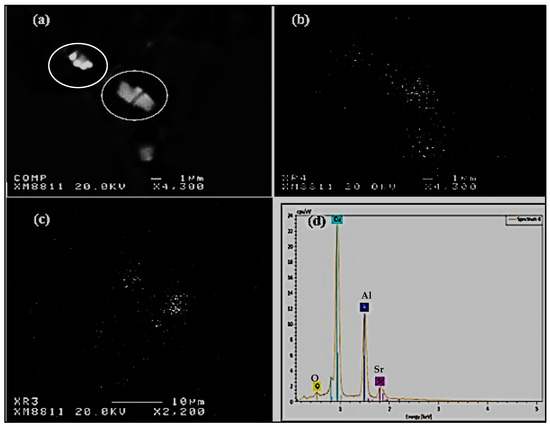

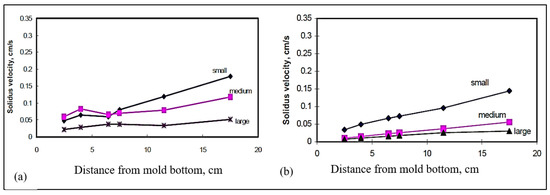

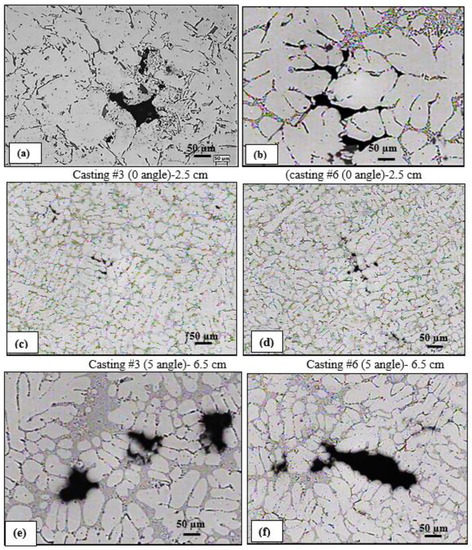

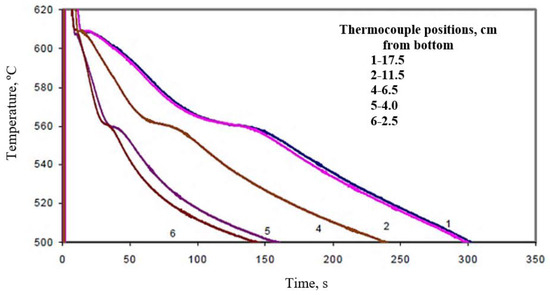

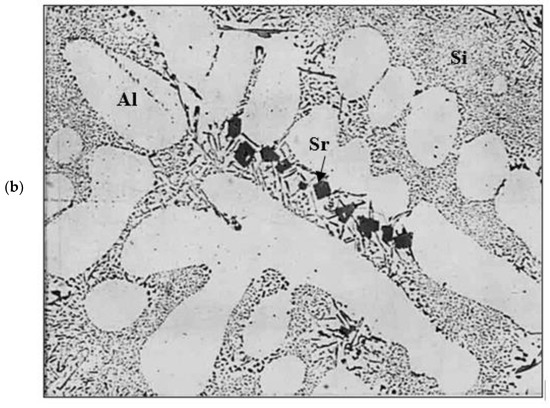

The effect of tramp elements, mainly Bi and Ca, on the thermal characteristics of Sr-modified Al–Si–Cu and Al–Si–Cu–Mg alloys has been investigated using thermal analysis, X-ray radiography, and field emission scanning electron microscopy (FESEM) techniques. The high affinity of Bi to interact with Sr results in an increase in the Al-Si eutectic temperature, and hence an increase in the size of eutectic silicon particles. In contrast, the Ca–Sr interaction seems to have no significant effect on the alloy thermal behavior. The effect of these interactions on porosity formation has been discussed. Hot zones may be formed in thin cavities, in particular, near the bottom of the mold, leading to formation of unexpected coarse porosity, mostly shrinkage type. The study also highlights the significance of other parameters on porosity formation, such as no melt degassing, SrO, Al₂O₃ (strings or bifilms), as well as the presence of iron-based intermetallics. Full article

The fatigue of engineered components involves more than the fatigue of metals as studied in laboratories. The miniscule laboratory test pieces cannot represent the pre-existing macroscopic crack defects in real engineering components. This brief study illustrates five examples in which major cracks are pre-existing as a result of the presence of bifilm defects. The pre-existing defects account for up to 90 per cent of the failure of so-called fatigue failure. The presence of pre-existing bifilm defects is of overwhelming importance. It is, with regret, suggested that the attempts at the elimination of so-called fatigue failures by only studying fatigue is misguided. The so-called fatigue failures of engineering components can be understood and addressed by realizing the major contributions of bifilms. Full article

Entrapped double oxide film defects are known to be the most detrimental defects during the casting of aluminium alloys. In addition, hydrogen dissolved in the aluminium melt was suggested to pass into the defects to expand them and cause hydrogen porosity. In this work, the effect of two important casting parameters (the filtration and hydrogen content) on the properties of Al–7 Si–0.3 Mg alloy castings was studied using a full factorial design of experiments approach. Casting properties such as the Weibull modulus and position parameter of the elongation and the tensile strength were considered as response parameters. The results suggested that adopting 10 PPI filters in the gating system resulted in a considerable boost of the Weibull moduli of the tensile strength and elongation due to the enhanced mould filling conditions that minimised the possibility of oxide film entrainment. In addition, the results showed that reducing the hydrogen content in the castings samples from 0.257 to 0.132 cm³/100 g Al was associated with a noticeable decrease in the size of bifilm defects with a corresponding improvement in the mechanical properties. Such significant effect of the process parameters studied on the casting properties suggests that the more careful and quiescent mould filling practice and the lower the hydrogen level of the casting, the higher the quality and reliability of the castings produced. Full article

The main problem during the production of castings from aluminium alloys is the presence of the reoxidation, which negatively affects the final casting quality. Liquid metal surface reacts with the surrounding atmosphere and oxide layer of Al₂O₃ is formed on its surface. The problem occurs when the oxide layer is entrained to the internal volume of the melt by turbulence and double oxide layers are formed, also known as “bifilms”. Its formation is related to the melt velocity and gating system design. In paper, naturally pressurized gating system was calculated and designed. Effect of the filter media and vortex element on the melt velocity, amount of oxides, mechanical properties, and porosity were observed. Designs with 10 ppi and 20 ppi foam filters and vortex element were compared with design without filters to prove the positive (or negative) effect of filter media on melt velocity and thus on final casting quality. The melt velocity and amount of oxides were observed with the aid of simulation software. Mechanical properties, quantity of pores, bifilm index and EDX analysis were evaluated after experimental casts. It was proven that by using 20 ppi foam filter in combination with vortex element, the best results were achieved. Full article
