Search Results (255)

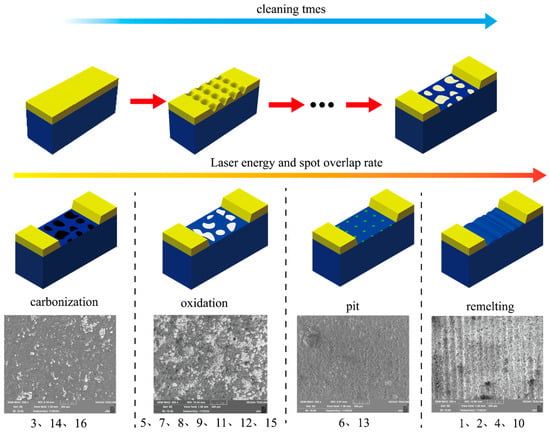

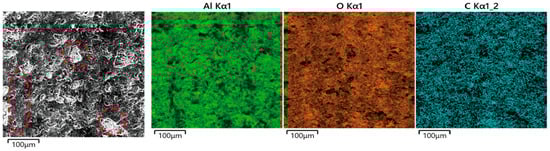

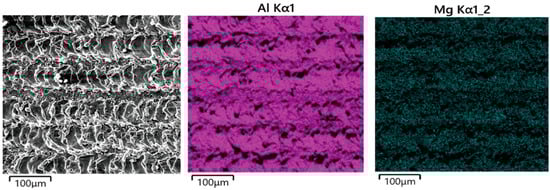

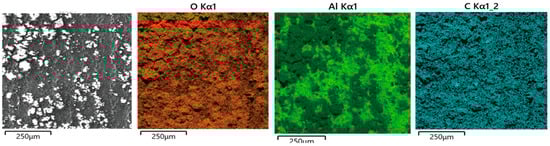

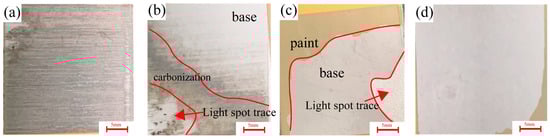

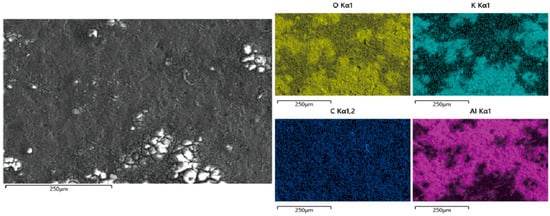

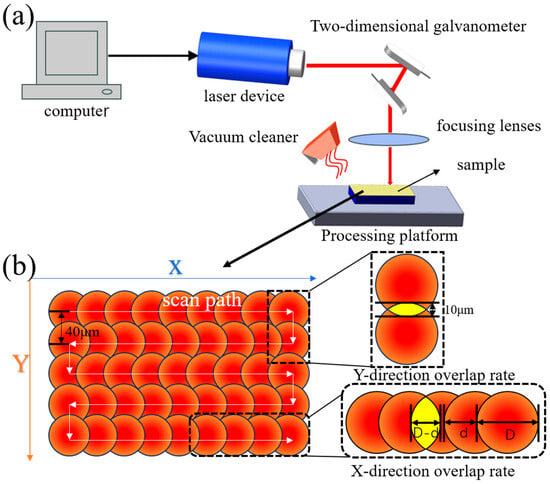

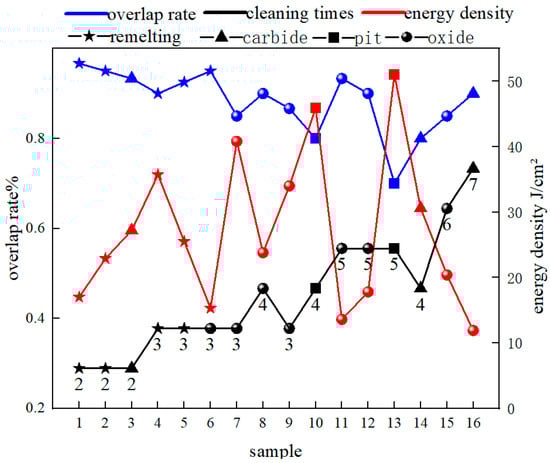

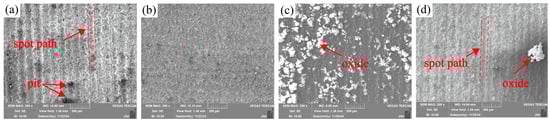

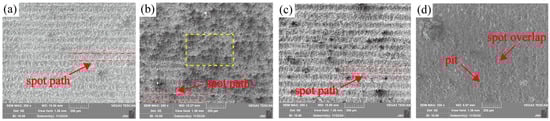

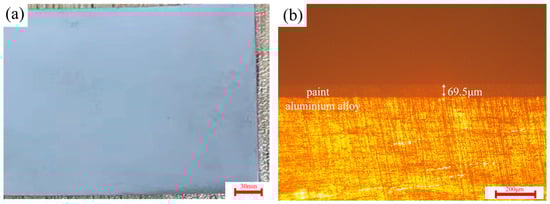

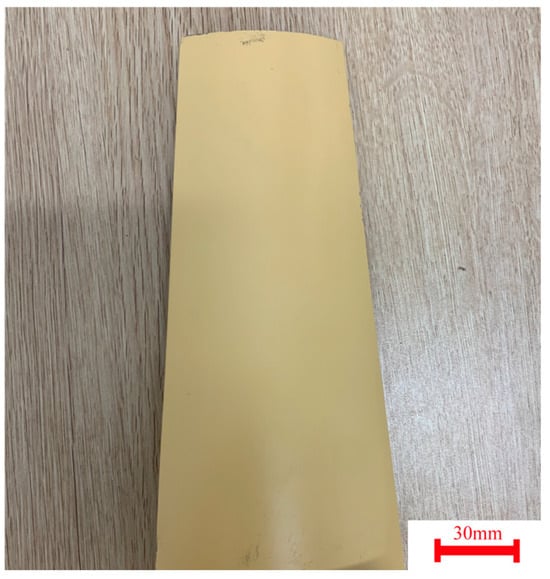

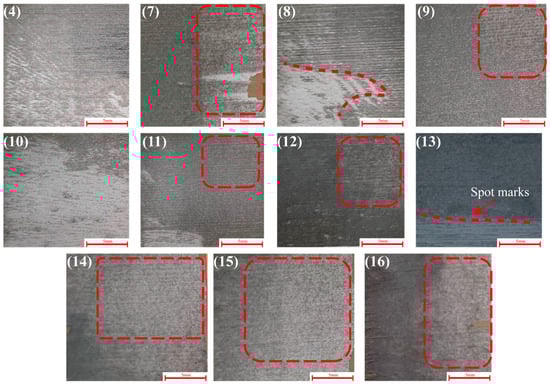

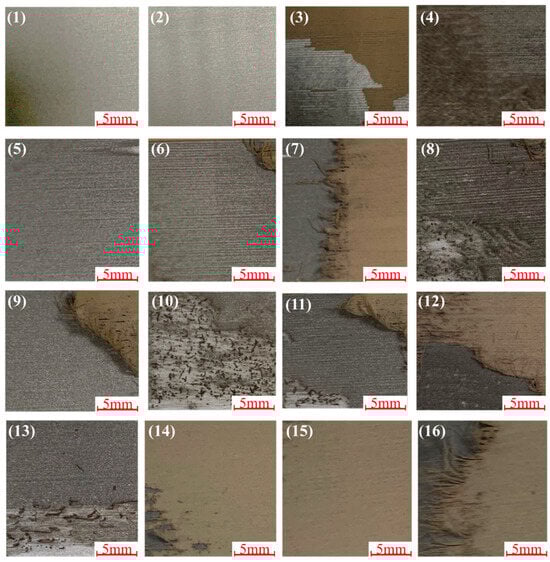

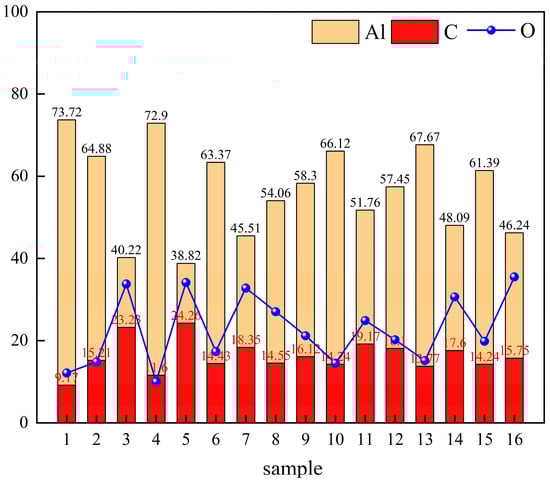

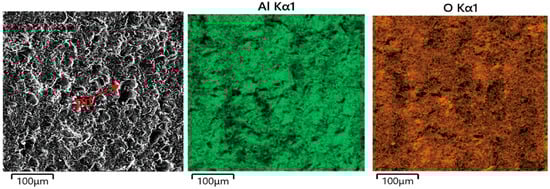

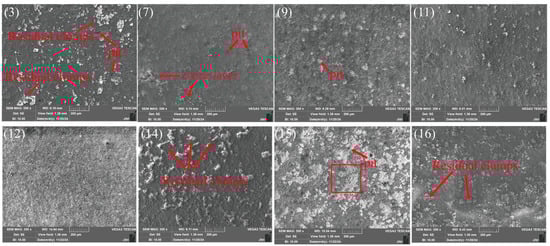

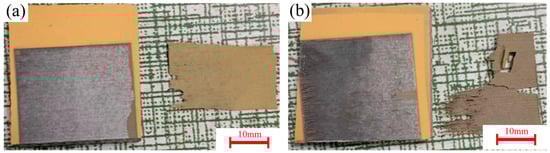

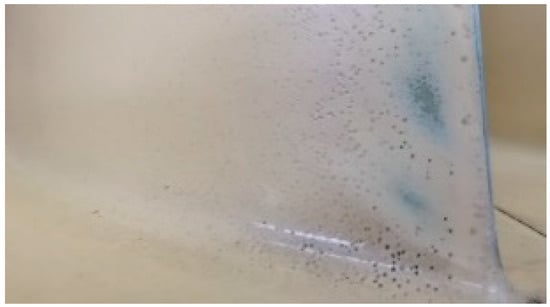

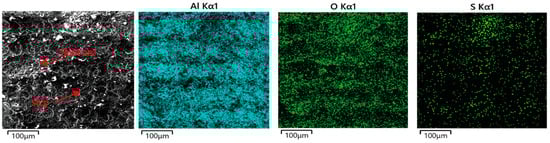

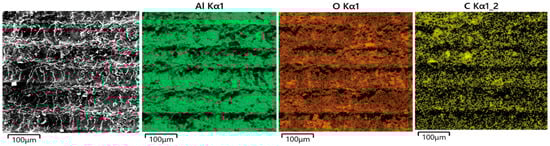

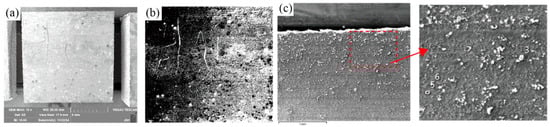

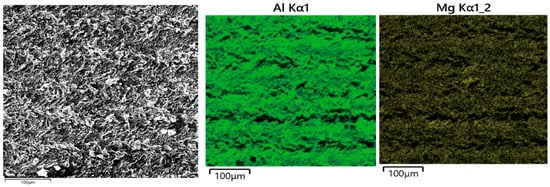

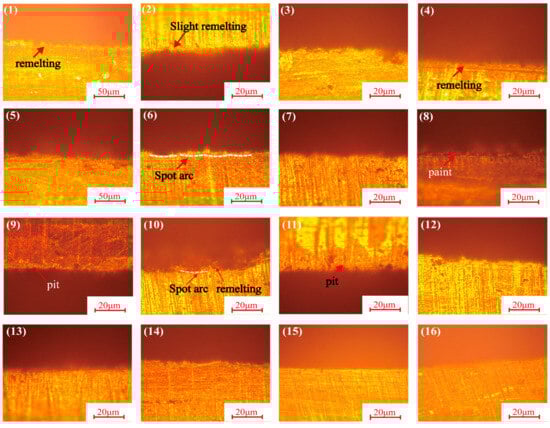

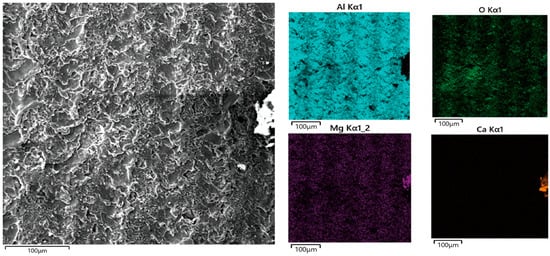

This study aims to develop an efficient laser cleaning process for removing paint coatings from low-pressure turbine blades while suppressing substrate remelting, focusing on elucidating the underlying paint removal mechanisms on coated aluminum alloy substrates. A pulsed fiber laser (1064 nm, 100 ns) was used to perform single-factor and orthogonal experiments, with laser power (70–100 W), scanning speed (1000–3000 mm/s), and repetition frequency (150–300 kHz) as the main variables. The energy density for each of the 16 orthogonal test samples ranged from 11.9 to 51.0 J/cm². Complete paint removal without substrate damage was achieved within an optimal energy density window of approximately 17–27 J/cm² (e.g., 23.8 J/cm²), whereas higher values above 35 J/cm² (e.g., 35.7 J/cm²) frequently caused localized remelting and pitting. The optimized parameter combination (90 W, 1500 mm/s, 300 kHz) achieved 98% paint removal efficiency in four passes with no observable substrate degradation. Mechanistic analysis indicated that low-to-moderate energy densities promoted interfacial debonding and controlled film ablation, while high energy densities led to substrate melting and reflow. This work clarifies the quantitative correlation between laser parameters, paint removal mechanisms, and remelting suppression, providing a scientific basis for turbine blade maintenance applications. Full article

Well integrity is paramount for the safe, environmentally responsible, and economically viable operation of wells throughout their lifecycle, encompassing conventional oil and gas production, unconventional resource extraction (e.g., shale gas and tight oil), and geological storage applications (CO₂, H₂, and natural gas). This review presents a comprehensive synthesis of well integrity challenges, failure mechanisms, monitoring technologies, and management strategies across these operational domains. Key integrity threats—including cement sheath degradation (chemical attack, debonding, cracking, microannuli), casing failures (corrosion, collapse, burst, buckling, fatigue, wear, and connection damage), sustained casing pressure (SCP), and wellhead leaks—are examined in detail. Unique challenges posed by hydraulic fracturing in unconventional wells and emerging risks in CO₂ and hydrogen storage, such as corrosion, carbonation, embrittlement, hydrogen-induced cracking (HIC), and microbial degradation, are also highlighted. The review further explores the evolution of integrity standards (NORSOK, API, ISO), the implementation of Well Integrity Management Systems (WIMS), and the integration of advanced monitoring technologies such as fiber optics, logging tools, and real-time pressure sensing. Particular emphasis is placed on the role of digital technologies—including artificial intelligence, machine learning, and digital twin systems—in enabling predictive maintenance, early failure detection, and lifecycle risk management. The novelty of this review lies in its integrated, cross-domain perspective and its emphasis on digital twin applications for continuous, adaptive well integrity surveillance. It identifies critical knowledge gaps in modeling, materials qualification, and data integration—especially in the context of long-term CO₂ and H₂ storage—and advocates for a proactive, digitally enabled approach to lifecycle well integrity. Full article

Erosive wear from suspended sediments significantly threatens the structural integrity and efficiency of composite tidal turbine blades. This study develops a novel framework for predicting erosion in FR4 glass fibre-reinforced polymers (GFRPs)—materials increasingly adopted for marine renewable energy components. While erosion models exist for metals, their applicability to heterogeneous composites with unique failure mechanisms remains unvalidated. We calibrated the Oka erosion model specifically for FR4 using a complementary experimental–computational approach. High-velocity slurry jet tests (12.5 m/s) were conducted at a 90° impact angle, and erosion was quantified using both gravimetric mass loss and surface profilometry. It revealed a distinctive W-shaped erosion profile with 3–6 mm of peak material removal from the impingement centre. Concurrently, CFD simulations employing Lagrangian particle tracking were used to extract local impact velocities and angles. These datasets were combined in a constrained nonlinear optimisation scheme (SLSQP) to determine material-specific Oka model coefficients. The calibrated coefficients were further validated on an independent 45° impingement case (same particle size and flow conditions), yielding 0.0143 g/h predicted versus 0.0124 g/h measured (15.5% error). This additional case confirms the accuracy and feasibility of the predictive model under input conditions different from those used for calibration. The calibrated model achieved strong agreement with measured erosion rates (R² = 0.844), successfully capturing the progressive matrix fragmentation and fibre debonding, the W-shaped erosion morphology, and highlighting key composite-specific damage mechanisms, such as fibre detachment and matrix fragmentation. By enabling the quantitative prediction of erosion severity and location, the calibrated model supports the optimisation of blade profiles, protective coatings, and maintenance intervals, ultimately contributing to the extended durability and performance of tidal turbine systems. This study presents a procedure and the output of calibration for the Oka erosion model, specifically for a composite material, providing a transferable methodology for erosion prediction in GFRPs subjected to abrasive marine flows. Full article

Continuous SiC fiber-reinforced SiC matrix composites (SiC/SiC), as structural heat protection integrated materials, are often used in parts for large-area heat protection and sharp leading edges, and there are a variety of low-velocity impact events in their service. In this paper, a drop hammer impact test was conducted using narrow strip samples to simulate the low-velocity impact damage process of sharp-edged components. During the test, different impact energies and impact times were set to focus on investigating the low-velocity impact damage characteristics of 2.5D SiC/SiC composites. To further analyze the damage mechanism, computed tomography (CT) was used to observe the crack propagation paths and distribution states of the composites before and after impact, while scanning electron microscopy (SEM) was employed to characterize the differences in the micro-morphology of their fracture surfaces. The results show that the in-plane impact behavior of a 2.5D needled SiC/SiC composite strip samples differs from the conventional three-stage pattern. In addition to the three stages observed in the energy–time curve—namely in the quasi-linear elastic region, the severe load drop region, and the rebound stage after peak impact energy—a plateau stage appears when the impact energy is 1 J. During the impact process, interlayer load transfer is achieved through the connection of needled fibers, which continuously provide significant structural support, with obvious fiber pull-out and debonding phenomena. When the samples are subjected to two impacts, damage accumulation occurs inside the material. Under conditions with the same total energy, multiple impacts cause more severe damage to the material compared to a single impact. Full article

A real-time structural health monitoring (SHM) system of an airplane composite wing with adjustable damage is reported, where testing under realistic flight conditions is carried out in the controllable and repeatable environment of an industrial wind tunnel. An FBG-based sensing array monitors a debonded region, whose compromised structural strength is regained by a set of lockable fasteners. Damage tunability is achieved by loosening some of or all these fasteners. Real-time analysis of the data collected involves Principal Component Analysis, followed by Hotelling’s T-squared and Q measures. With previously set criteria, real-time data collection and processing software can declare the structural health status as normal or abnormal. During testing, the system using the Q measure successfully identified the initiation of the damage and its extent, while the T-squared one returned limited outcomes. Full article

With the extensive application of 3D-printed composites across multiple industries, the investigation into their structural reliability under complex loading conditions has become a critical research focus. This study comprehensively employs acoustic emission (AE) monitoring, digital image correlation (DIC) measurement, and micro-computed tomography (Micro-CT) visualization techniques to explore the progressive damage behavior of 3D-printed sandwich-structured composites reinforced with continuous carbon fiber sheets under three-point bending. Mechanical tests show that increasing the fiber content of face sheets from 10% to 20% enhances average bending strength by 56%, while low fiber content compromises stiffness and load-bearing capacity. AE analysis categorizes damage modes into matrix cracking (<50 kHz), debonding/delamination (50–150 kHz), and fiber breakage (>150 kHz) using k-means clustering algorithms. DIC measurement reveals significant structural deformation processes during damage progression. The AE-DIC-Micro-CT combination demonstrates an initial undamaged state, followed by damage initiation and propagation in the subsequent stages. This integrated approach provides an effective method for damage assessment, guiding the design and reliability improvement of 3D-printed composites. Full article

During the machining of unidirectional carbon fiber-reinforced polymers (UD-CFRPs), their anisotropic characteristics and the complex cutting conditions often lead to defects such as delamination, burrs, and surface/subsurface damage. This study systematically investigates the effects of different fiber orientation angles (0°, 45°, 90°, and 135°) on cutting force, chip formation, stress distribution, and damage characteristics using a coupled macro–micro finite element model. The model successfully captures key microscopic failure mechanisms, such as fiber breakage, resin cracking, and fiber–matrix interface debonding, by integrating the anisotropic mechanical properties and heterogeneous microstructure of UD-CFRPs, thereby more realistically replicating the actual machining process. The cutting speed is kept constant at 480 mm/s. Experimental validation using T700S/J-133 laminates (with a 70% fiber volume fraction) shows that, on a macro scale, the cutting force varies non-monotonically with the fiber orientation angle, following the order of 0° < 45° < 135° < 90°. The experimental values are 24.8 N/mm < 35.8 N/mm < 36.4 N/mm < 44.1 N/mm, and the simulation values are 22.9 N/mm < 33.2 N/mm < 32.7 N/mm < 42.6 N/mm. The maximum values occur at 90° (44.1 N/mm, 42.6 N/mm), while the minimum values occur at 0° (24.8 N/mm, 22.9 N/mm). The chip morphology significantly changes with fiber orientation: 0° produces strip-shaped chips, 45° forms block-shaped chips, 90° results in particle-shaped chips, and 135° produces fragmented chips. On a micro scale, the microscopic morphology of the chips and the surface damage characteristics also exhibit gradient variations consistent with the experimental results. The developed model demonstrates high accuracy in predicting damage mechanisms and material removal behavior, providing a theoretical basis for optimizing CFRP machining parameters. Full article

Objective: This in vitro study evaluated the effectiveness of three laser systems—diode, CO₂, and Er:YAG—for debonding composite attachments used in aligner orthodontic therapy. Materials and Methods: Fifty extracted human premolars with composite attachments were divided into five groups (n = 10): control, RT (rotary tools), diode laser (980 nm, irradiance was 4811 W/cm²), CO₂ laser (10.6 µm, irradiance 1531 W/cm²), and Er:YAG laser (2940 nm, irradiance 471.7 W/cm²). Shear bond strength (SBS) testing measured debonding forces. Enamel surface changes were evaluated using micro-CT, optical profilometry, and stereomicroscopy. The Adhesive Remnant Index (ARI) assessed residual bonding material. Results: Laser treatment increased enamel roughness (p < 0.05). Er:YAG laser caused the highest roughness (Sa = 2.03 µm) and up to 0.17 mm enamel loss but left minimal adhesive remnants and no fractures. Diode laser preserved surface smoothness with moderate bond weakening. CO₂ laser had intermediate effects. RT showed the highest SBS but resulted in greater enamel alteration. SBS was significantly reduced in the laser groups, lowest for Er:YAG (81.7 ± 45.5 MPa vs. control 196.2 ± 75.3 MPa). ARI indicated better adhesive removal in the laser-treated groups, with Er:YAG showing the highest percentage of clean enamel surfaces (67% vs. 25%). Conclusions: Er:YAG demonstrated the best balance between effective debonding and enamel preservation. Diode and CO₂ lasers also offer viable alternatives to rotary tools. Further clinical studies are recommended. Full article

This study presents a novel methodology for the real-time characterisation and quantitative assessment of damage in fibre-reinforced polymers (FRPs) using acoustic emission (AE) techniques. While FRPs offer superior mechanical properties for structural applications, their anisotropic nature introduces complex damage mechanisms that are challenging to detect with conventional inspection methods. Our approach advances beyond traditional peak frequency analysis by implementing a multi-variant frequency assessment that can detect and evaluate simultaneously occurring damage modes. By applying the fast Fourier transform and examining multiple frequency peaks within AE signals, we successfully identified five distinct damage mechanisms in carbon fibre composites: matrix cracking (100–200 kHz), delamination (205–265 kHz), debonding (270–320 kHz), fibre fracture (330–385 kHz), and fibre pullout (395–490 kHz). A comparative analysis with wavelet transform methods demonstrated that our approach provides earlier detection of critical damage events, with delamination identified approximately 28 s sooner than with conventional techniques. The proposed methodology enables a more accurate quantitative assessment of structural health, facilitating timely maintenance interventions for large-scale FRP structures, such as wind turbine blades, thereby enhancing reliability while reducing operational downtime and maintenance costs. Full article

To investigate the microscopic mechanism of aging-induced “dewetting” at the matrix/filler interface in Nitrate Ester Plasticized Polyether (NEPE) propellant, this study decoupled the aging process into two factors: crosslinking density evolution and nitrate ester decomposition. Molecular dynamics (MD) simulations were employed to construct all-component matrix models and matrix/filler interface models with varying aging extents. Key parameters including crosslinking density, mechanical properties, free volume fraction, diffusion coefficients of the matrix, as well as interfacial binding energy and radial distribution function (RDF) were calculated to analyze the effects of both aging factors on “debonding”. The results indicate the following: 1. Increased crosslinking density enhances matrix rigidity, suppresses molecular mobility, and causes interfacial binding energy to initially rise then decline, peaking at 40% crosslinking degree. 2. Progressive nitrate ester decomposition expands free volume within the matrix, improves binder system mobility, and weakens nitrate ester-induced interfacial damage, thereby strengthening hydrogen bonding and van der Waals interactions at the interface. 3. The addition of a small amount of bonding agent improved the interfacial bonding energy but did not change the trend of the bonding energy with aging. Full article

The fuselage serves as the primary component of commercial aircraft. The strength reliability of fuselage panels is therefore crucial for commercial aircraft. In the present study, a finite element (FE)-based modeling approach has been developed to predict the post-buckling behavior of curved fuselage panels under combined axial compression and in-plane shear loads at different shear-to-compression ratios. The intra-laminar damage was replicated using a progressive damage model driven by the Hashin’s failure criteria, while the skin−stiffener debonding was modeled using the cohesive zone model. Failure tests were performed using a bespoke Fuselage Panel Test System (FPTS), enabling comparison between experiments and simulations. The predicted buckling loads and ultimate failure loads are in good agreement with those obtained from experiments, which verify the predictive capability of the FE model. The failure load of the panels was found to be at least 30% higher than the initial buckling loads for all loading cases, indicating significant post-buckling load-carrying capacity. Under these four loading conditions studied, the load transfer mechanisms of curved panels were examined. All specimens experienced local skin buckling and subsequent global buckling, resulting in skin−stiffener debonding followed by fracture of the stiffeners, which was the dominant failure mechanism for the panel studied. Full article

Background: Composite resin veneers have gained popularity due to their affordability and minimally invasive application as biomimetic restorations. However, long-term clinical challenges, such as discoloration, wear, and reduced fracture resistance, necessitate their replacement over time. Ceramic veneers, particularly feldspathic and lithium disilicate, offer superior esthetics and durability, as demonstrated by studies showing their high survival rates and enamel-preserving preparation designs. However, while ceramic veneers survive longer than composite resin veneers, ceramic veneers may need to be removed and replaced. Reports vary for using Er:YAG (erbium-doped yttrium aluminum garnet) lasers for the removal of existing veneers. Methods: A review was conducted to evaluate the effectiveness of removing restorative materials with an Er:YAG laser. A clinical study was included, highlighting the conservative removal of aged composite resin veneers using the Er:YAG laser. This method minimizes enamel damage and facilitates efficient debonding. Following laser application, minimally invasive tooth preparation was performed, and feldspathic porcelain veneers were bonded. Results: The review showed positive outcomes whenever the Er:YAG laser was used. In the case study, after a 3-year follow-up, the restorations exhibited optimal function and esthetics. Conclusions: Laser-assisted debonding provides a safe and predictable method for replacing failing composite veneers with ceramic alternatives, aligning with contemporary biomimetic principles. Full article

The dynamic response and failure of rubber-coated sandwich composite structures with buoyancy material core (RC-BMC-SCS) subjected to high-energy low-velocity impacts were experimentally and numerically investigated. Six types of BMC-SCSs were designed and manufactured, and high-energy low-velocity impact experiments were performed. Based on the Mohr-Coulomb theory and the Ogden hyperelasticity constitutive model, a low-velocity impact finite element analysis model was developed. The results indicate that BMC-SCS damage stages could be divided into: (1) matrix damage, (2) core cracks, (3) debonding and fiber breakage. Three distinct damage stages of the RC-BMC-SCS were revealed: (1) rubber layer energy absorption, (2) core cracks, (3) debonding. The rubber layer can enhance the damage threshold by approximately 100% compared to BMC-SCS. However, rubber energy absorption capacity has an upper limit. Additionally, the larger the curvature of the BMC-SCS, the higher the initial stiffness of the structure and the larger the impact damage area. The results of this study provide valuable insights for the multifunctional design of composite deep-sea marine structures. Full article

Fiber-reinforced polymers (FRPs) are effective for strengthening masonry walls. Debonding at the polymer–masonry interface is a major concern, requiring further investigation into interface behavior. This study utilizes detailed micro-modeling finite element (FE) analysis to predict failure mechanisms and analyze the behavior of brick masonry walls strengthened with externally bonded carbon fiber-reinforced polymer (CFRP) under in-plane loading. The research investigates three CFRP strengthening configurations (X, I, and H). The FE model incorporates the nonlinear behavior of brick masonry components using the Concrete Damage Plasticity (CDP) model and uses a cohesive interface approach to model unit–mortar interfaces and the bond joints between masonry and CFRPs. The results demonstrate that diagonal CFRP reinforcement enhances the ductility and capacity of masonry wall systems. The FE model accurately captures the crack propagation, fracture mechanisms, and shear strength of both unreinforced and reinforced walls. The study confirms that the model can reliably predict the structural behavior of these composite systems. Furthermore, the study compares predicted shear strengths with established design equations, highlighting the ACI 440.7R-10 and CNR-DT 200/2013 models as providing the most accurate predictions when compared to experimental results. Full article

Objective: The aim of this systematic review was to evaluate the effectiveness and safety of various laser systems for debonding ceramic orthodontic brackets compared to conventional mechanical removal methods. The primary outcomes assessed included enamel damage, pulp temperature changes, adhesive remnant index (ARI), and shear bond strength (SBS). Materials and Methods: A systematic search was conducted in November 2024 across the PubMed, Scopus, and Web of Science (WoS) databases following PRISMA guidelines. The initial search yielded 453 records, of which 41 studies met the inclusion criteria for qualitative and quantitative analysis. The risk of bias was assessed using a standardized scoring system, and only studies with accessible full texts were included. Results: The review highlighted significant heterogeneity in laser parameters, measurement protocols, and study methodologies. Among the evaluated lasers, CO₂ and Er:YAG were the most frequently studied and demonstrated high efficacy in debonding ceramic brackets while maintaining enamel integrity. Sixteen studies assessing SBS reported a reduction from baseline values of 13–23 MPa to clinically acceptable ranges of 7–12 MPa following laser application. ARI was analyzed in 25 studies, with laser-treated groups exhibiting higher scores (2–3), indicating safer debonding with more adhesive remaining on the tooth surface, thereby reducing enamel damage. Pulpal temperature increases were examined in 23 studies, revealing that most laser types, when used within optimal parameters, did not exceed the 5.5 °C threshold considered safe for pulpal health. However, diode and Tm:YAP lasers showed potential risks of overheating in some studies. Conclusions: Laser-assisted debonding of ceramic orthodontic brackets is an effective and safe technique when applied with appropriate laser parameters. CO₂ and Er:YAG lasers were the most effective in reducing SBS while preserving enamel integrity. However, variations in laser settings, study methodologies, and the predominance of in vitro studies limit the ability to establish standardized clinical guidelines. Further randomized controlled trials (RCTs) are necessary to develop evidence-based protocols for safe and efficient laser-assisted bracket removal in orthodontic practice. Full article
