Search Results (4,183)

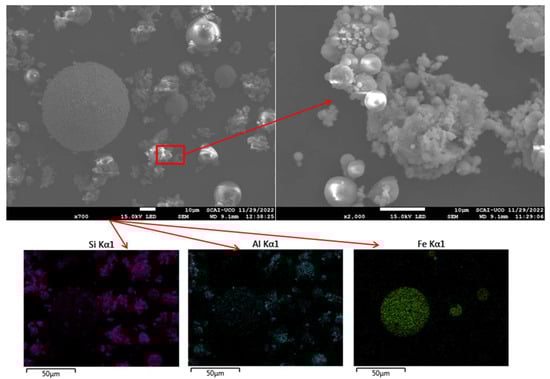

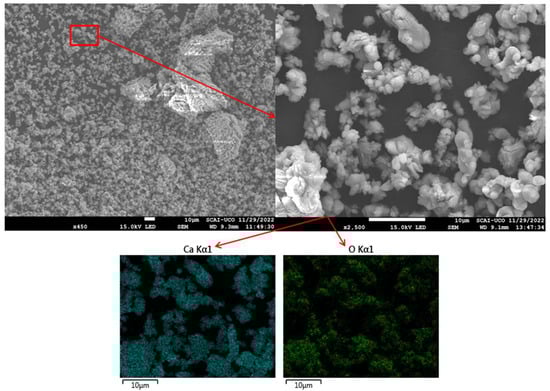

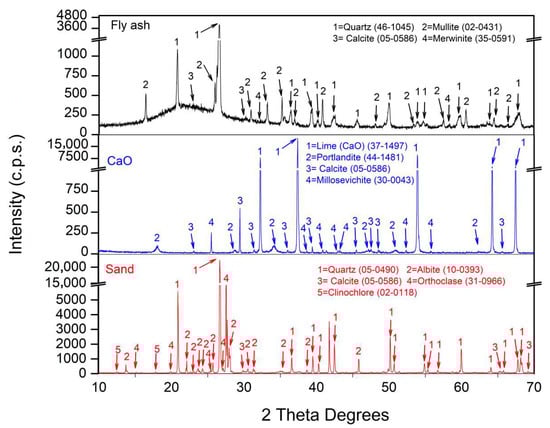

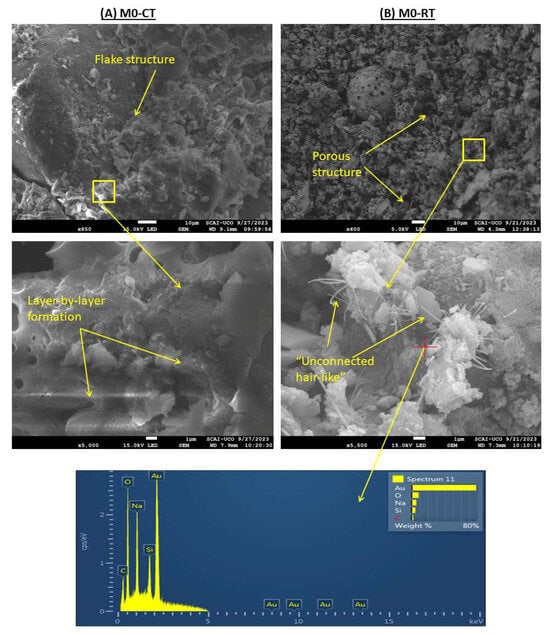

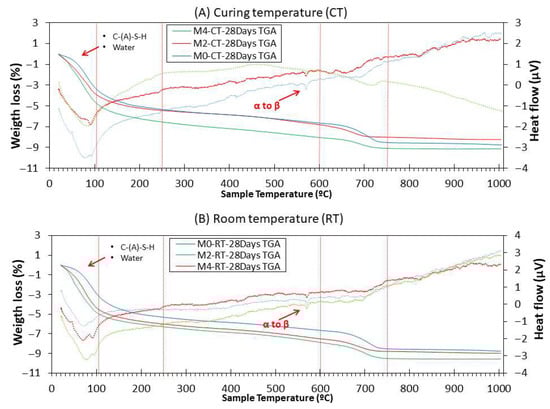

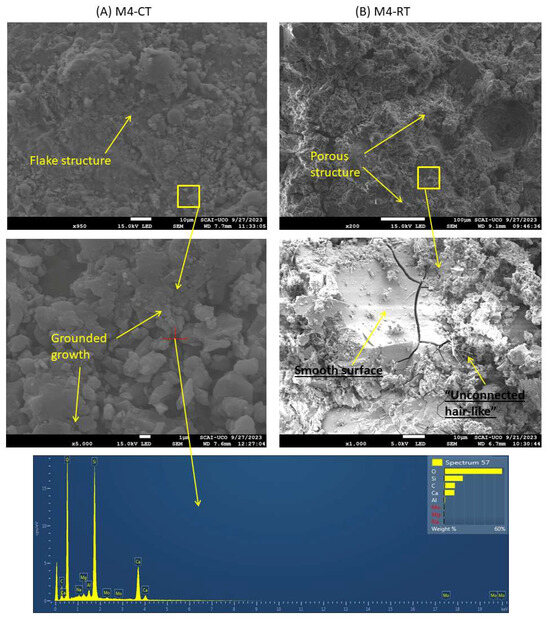

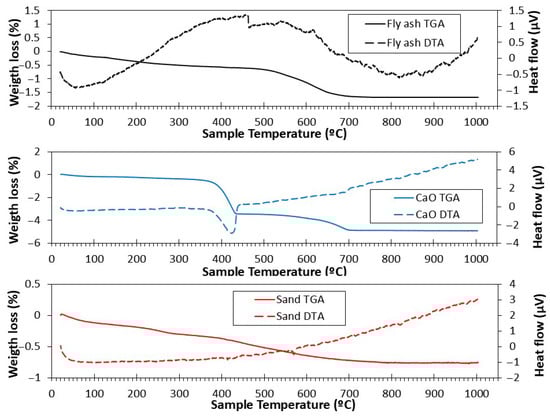

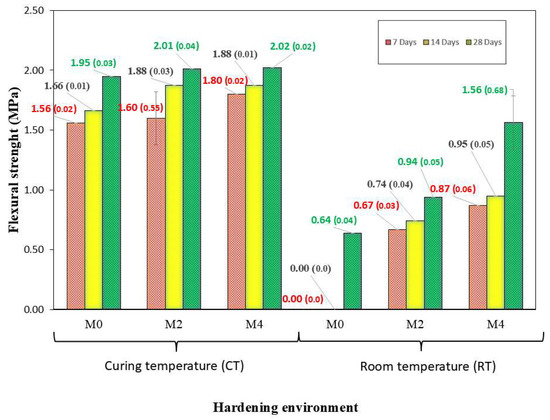

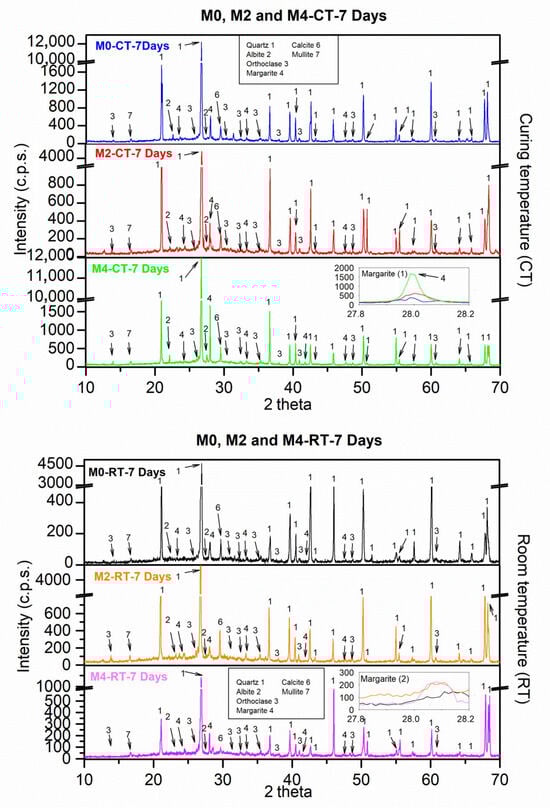

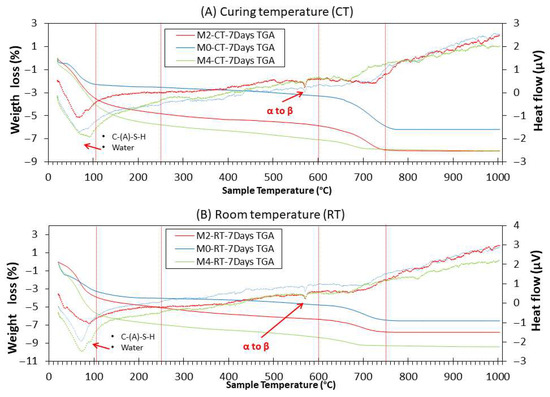

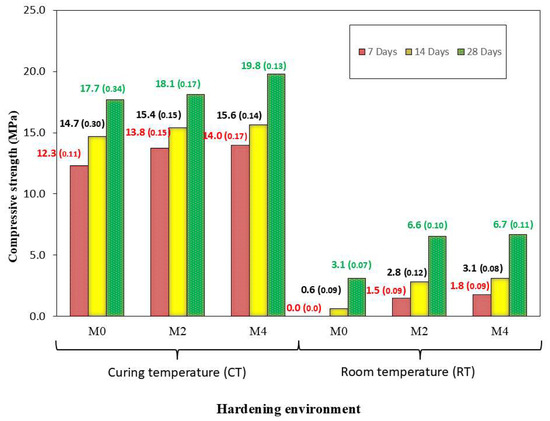

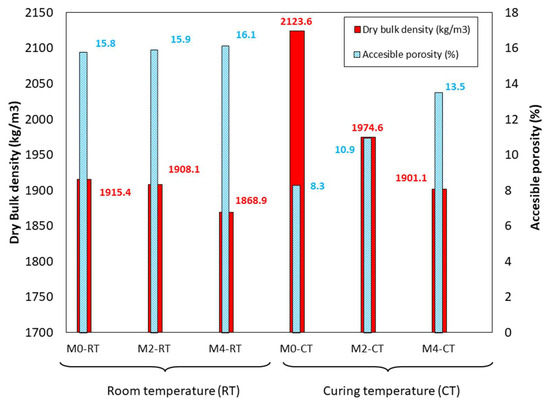

This work investigates the influence of CaO as a partial substitute for fly ash in alkali-activated fly ash mortars (AAFM), aiming to reduce reliance on conventional thermal curing. Mortars containing 0%, 2%, and 4% CaO were prepared and subjected to two curing regimes: thermal curing at 70 °C for 24 h and ambient curing at 21 °C for 24 h. The materials were thoroughly characterised by XRD, XRF, TGA/DTA, SEM, and particle size distribution, while compressive and flexural strength, density, and porosity were evaluated at 7, 14, and 28 days. The results demonstrated that CaO addition improved mechanical performance in both curing environments, particularly at a 4% substitution level, where compressive strength increased by up to 13.8% under thermal curing conditions. These improvements were associated with the formation of C-S-H and C-A-S-H gels, especially margarite, which contributed to accelerated setting and earlier demoulding. Nonetheless, while CaO incorporation improved mechanical performance and allowed earlier demoulding, it could not fully replicate the effects of heat curing at the studied percentages. Ambient-cured mortars exhibited higher porosity and less compact microstructures than thermally cured samples, which displayed denser, layered morphologies. The study confirms that CaO can act as a partial substitute or reducer for conventional curing, but is not sufficient to enable in situ applications without heat treatment. Future research should explore higher CaO contents in combination with set retarders, intermediate curing regimes, or alternative strategies to balance mechanical performance with energy efficiency. Full article

As a representative high-performance construction material, ultra-high performance concrete (UHPC) is typically prepared using quartz sand and steel fibers. To alleviate the shortage of building materials in island and reef regions, this study employs coral sand for UHPC preparation and investigates the effects of different fibers on its mechanical properties. This study demonstrates that this approach mitigates brittle failure patterns and enhances the durability of structures. To investigate the enhancement effects of PE and steel fibers on the mechanical properties of coral sand ultra-high performance concrete (CSUHPC), 12 mix designs were formulated, including a plain (no fiber) reference group and PE fiber-reinforced, steel fiber-reinforced, and hybrid fiber combinations. Compressive tests, tensile tests, and three-point bending tests on pre-notched beams were conducted. Key parameters such as 28-day compressive strength, tensile strength, and flexural strength and toughness were measured. A multi-criteria evaluation framework was established to comprehensively assess the integrated performance of each group. The experimental results demonstrated that fiber incorporation significantly enhanced the compressive strength and fracture properties of CSUHPC compared to the plain reference group. Steel fiber-only reinforcement exhibited the most pronounced improvement in compressive strength and fracture properties, while hybrid fiber combinations provided superior tensile performance. Through the established multi-criteria evaluation framework, the optimal comprehensive performance was achieved with a 3% steel fiber dosage, achieving improvements of 0.93 times in compressive strength, 2.80 times in tensile strength, 1.84 times in flexural strength, 192.08 times in fracture energy, and 1.84 times in fracture toughness relative to the control group. Full article

This study advances alkali-activated cementitious materials (AACMs) by developing a ground-granulated blast furnace slag/high-calcium fly ash (GGBS/HCFA) composite that incorporates Tuokexun desert sand and by establishing a clear linkage between activator chemistry, mix proportions, curing regimen, and microstructural mechanisms. The innovation lies in valorizing industrial by-products and desert sand while systematically optimizing the aqueous glass modulus, alkali equivalent, HCFA dosage, and curing temperature/time, and coupling mechanical testing with XRD/FTIR/SEM to reveal performance–structure relationships under thermal and chemical attacks. The optimized binder (aqueous glass modulus 1.2, alkali equivalent 6%, and HCFA 20%) achieved 28-day compressive and flexural strengths of 52.8 MPa and 9.5 MPa, respectively; increasing HCFA beyond 20% reduced compressive strength, while flexural strength peaked at 20%. The preferred curing condition was 70 °C for 12 h. Characterization showed C-(A)-S-H as the dominant gel; elevated temperature led to its decomposition, acid exposure produced abundant CaSO₄, and NaOH exposure formed N-A-S-H, each correlating with strength loss. Quantitatively, acid resistance was weaker than alkali resistance and both deteriorated with concentration: in H₂SO₄, 28-day mass loss rose from 1.22% to 4.16%, with compressive/flexural strength retention dropping to 75.2%, 71.2%, 63.4%, and 57.4% and 65.3%, 61.6%, 58.9%, and 49.5%, respectively; in NaOH (0.2/0.5/0.8/1.0 mol/L), 28-day mass change was +0.74%, +0.88%, −1.85%, and −2.06%, compressive strength declined in all cases (smallest drop 7.77% at 0.2 mol/L), and flexural strength increased at lower alkalinity, consistent with a pore-filling micro-densification effect before gel dissolution/cracking dominates. Practically, the recommended mix and curing window deliver structural-grade performance while improving high-temperature and acid/alkali resistance relative to non-optimized formulations, offering a scalable, lower-carbon route to utilize regional desert sand and industrial wastes in durable cementitious applications. Full article

To facilitate the sustainable recycling of retired wind turbine blades (RWTBs) and promote the green development of the wind energy sector in China, this study investigates the reuse of crushed RWTBs as composite fiber additives in asphalt mixtures. A systematic optimization of the incorporation process was conducted, and the effects of RWTB fibers on pavement performance were comprehensively evaluated. Using the entropy weight method, the optimal fiber content and particle size were identified as 0.15 wt% and 0.3–1.18 mm, respectively. The experimental results demonstrated that, under optimal conditions, the dynamic stability, low-temperature flexural tensile strain, Marshall stability after water immersion, and freeze-thaw splitting strength of the base asphalt mixture increased by 27.1%, 23.8%, 9.9%, and 8.1%, respectively. Microstructural analyses using SEM and EDS revealed that the reinforcing mechanism of RWTB fibers involves adsorption, bridging, and network formation, which collectively enhance the toughness and elasticity of the asphalt matrix. In addition, a comparative evaluation was performed using the Analytic Hierarchy Process (AHP), incorporating both performance and cost considerations. The comprehensive performance ranking of fiber-modified asphalt mixtures was consistent for both base and SBS-modified asphalt: BF AC-13 > RWTB AC-13 > GF AC-13 > PF AC-13 > unmodified AC-13. Overall, this study confirms the feasibility of high-value reuse of RWTB waste in road engineering and provides practical insights for advancing resource recycling and promoting sustainability within the wind power industry. Full article

This study evaluates the physical, mechanical, durability, and environmental properties of geopolymer mortars (GMs) produced using waste tire steel fibers (WTSFs), hemp fibers (HFs), waste marble powder (WMP), and recycled fine aggregates (RFAs). Within the scope of this study, fibers were incorporated as single and hybrid types at 0.5% and 1% by volume. The addition of HFs generally reduced dry unit weight, as well as compressive and flexural strength but increased fracture energy by nearly three times. The addition of WTSFs improved compressive and flexural strengths by up to 42% and enhanced fracture energy by 840%. Hybrid fibers increased the strength values by 21% and the fracture energy by up to four times, demonstrating a clear synergistic effect between HFs and WTSFs in enhancing crack resistance and structural stability. In the durability tests conducted within the scope of this study, HFs burnt at 600 °C, while WTSFs showed signs of corrosion under freeze–thaw and acid conditions; however, hybrid fibers combined the benefits of both materials, resulting in an effective preservation of internal structure. The fact that the materials used in the production of GM samples were waste or recycled products reduced the total cost to 188 USD/m³, and thanks to these materials and the carbon-negative properties of HFs, CO₂ emissions were reduced to 338 kg CO₂/m³. The presented study demonstrates the potential of using recycled and waste materials to create sustainable building materials in the construction industry. Full article

Micro-accelerometers are in high demand across many due to their compact size, low energy consumption, and excellent precision. Since gravity causes a large movement when the device is positioned vertically, measuring low gravitational acceleration is challenging. This study examines the intrinsic relationship between applied voltage levels and displacement in micro-accelerometers. The study introduces a novel design that integrates hybrid flexures, comprising both linear and angular configurations, with an out-of-plane overlap varying (OPOV) electrostatic actuation mechanism. This design aims to measure the micro-accelerometer’s movement and low frequency response. The proposed device with silicon material is designed and simulated using the IntelliSuite^® software, considering its small dimensions and 25 µm thickness. The norm value of 28.0916 μN from gravity’s reaction forces on the body, a resonant frequency of 179.668 Hz at the first desired mode, and a maximum stress of 24.7 MPa were obtained through the electro-mechanical analysis. A comparison of the proposed design was conducted with other configurations, measuring a frequency of 179.668 Hz at a minimum downward displacement of 7.69916 µm under the influence of gravity without electrostatic mechanisms. Following this, an electrostatic actuation mechanism was introduced to minimize displacement by applying different voltage levels, including 1 V, 1.5 V, and 3 V. At 3 V, a significant improvement in displacement reduction was observed compared to the other applied voltages. Additionally, dynamic and sensitivity analyses were carried out to validate the performance of the proposed design further. Full article

Basalt fibers possess high tensile strength and excellent corrosion resistance, properties that may enhance the chloride resistance of recycled aggregate concrete (RAC) structures. Nevertheless, the effects of basalt fibers on RAC structures under chloride attack remain poorly understood. This study investigates mass loss and the deterioration of key mechanical properties in basalt fiber-reinforced RAC composite slab–column assemblies (RAC composite assemblies) subjected to NaCl freeze–thaw cycles (F-Cs) and dry–wet alternations (D-As) and further explores the damage mechanisms of the concrete matrix through microscopic characterization. The results show that, compared with NaCl F-Cs, NaCl D-As have a more pronounced impact on the performance degradation of RAC composite slab–column assemblies. Moreover, basalt fibers effectively mitigate the deterioration of RAC composite assemblies in chloride-rich environments, particularly under NaCl D-As, where their protective effect is more evident. At 2.5 vol% fiber content, impact toughness peaked at an 83.7% improvement after 30 D-As, while flexural toughness showed a maximum enhancement of 773.6% after 100 F-Cs. Scanning electron microscopy energy-dispersive spectroscopy (SEM-EDS) analysis revealed a marked increase in Cl content within RAC, with NaCl D-As causing more severe erosion than NaCl F-Cs. Additionally, basalt fibers significantly inhibited chloride ion penetration and associated erosion in RAC. These findings provide valuable insights into utilizing basalt fibers to enhance the durability of RAC in coastal infrastructure exposed to chloride attacks. Further research on long-term performance and fiber parameter optimization is needed to support practical implementation. Full article

Composite materials are replacing traditional metals across various industries as they offer lighter weight and affordability, as well as excellent mechanical properties. In the present work, a hybrid composite was developed by combining randomly oriented S-glass fibers and coconut fibers within an epoxy matrix by using the hand lay-up method. The laminate was prepared by using two sheets of raw coconut fiber and eight layers of 200 GSM S-glass fiber, maintaining an epoxy-to-hardener ratio of 10:1. The laminate was cured under a hydraulic press at 80 °C for two hours and then post-cured at a temperature of 100 °C for four hours. In order to assess the performance of the composites, a series of tests, including mode II interlaminar fracture toughness, tensile strength, impact resistance, and hardness, as well as thermal conductivity, were performed. SEM analysis of the fracture surfaces confirmed the combined presence of fiber pull-out and good fiber–matrix bonding, supporting the observed improvements in mechanical properties. The results indicate that the hybrid composite has clear advantages over the composites reinforced with individual fibers alone. It showed a 358% higher tensile strength, a 30% increment in impact strength, and roughly 31% better flexural strength as compared to the coconut fiber composite. In comparison to the glass fiber composite, the hybrid composite offered enhanced toughness and better thermal stability, along with lower material costs and improved sustainability due to the addition of the natural fibers. Considering the rising need for lightweight, strong, and eco-friendly materials for industries, this fabricated hybrid composite appears to be a promising option for structural applications in fields like automotive, aerospace, and construction, where reducing weight without compromising strength is essential. Full article

This study aimed to evaluate mortar performance by substituting part of standard sand with recycled fine aggregates sourced from concrete waste, aiming to assess mechanical properties and durability. Moreover, this study examined the use of crystallizing agents to understand their impact on mortar properties. Four mortar series were prepared with sand substitution percentages ranging from 25% to 100% while adhering to the diverse fraction proportions within the standardized sand particle size distribution. Mechanical results indicate that incorporating recycled concrete sand significantly enhances mechanical properties with respect to standard sand. The study showed the technical feasibility of producing mortars with up to 100% recycled fine concrete aggregate with enhanced compressive strength, albeit requiring higher superplasticizer dosages. The addition of crystallizing agents provided an increase in flexural strength in specific conditions, while they did not provide a significant improvement to compressive strength. Full article

This research investigates the feasibility of producing eco-friendly self-compacting concrete (SCC) by partially replacing both fine and coarse natural aggregates with waste marble sludge (WMS), a byproduct of the marble industry. The objective is to evaluate whether this substitution enhances or compromises the concrete’s performance while contributing to sustainability. A comprehensive experimental program was conducted to assess fresh and hardened properties of SCC with varying WMS content. Fresh-state tests—including slump flow, T₅₀ time, and V-funnel flow time—were used to evaluate workability, flowability, and viscosity. Hardened properties were measured through compressive, flexural, and Brazilian tensile strengths, along with water absorption after 28 days of curing. The mix with 10% replacement of both sand and coarse aggregate showed the most balanced performance, achieving a slump flow of 690 mm and a V-funnel time of 6 s, alongside enhanced mechanical properties—compressive strength 48.6 MPa, tensile strength 3.9 MPa, and flexural strength 4.5 MPa—and reduced water absorption (4.9%). A complementary cost model quantified direct material cost per cubic meter and a performance-normalized efficiency metric (compressive strength per cost). The cost decreased monotonically from 99.1 $/m³ for the base mix to $90.7 $/m³ at 20% + 20% WMS (−8.4% overall), while the strength-per-cost peaked at the 10% + 10% mix (0.51 MPa/USD; +12% vs. base). Results demonstrate that WMS can simultaneously improve rheology and mechanical performance and reduce material cost, offering a practical pathway for resource conservation and circular economy concrete production. Full article

Basalt fiber reinforced polymer (BFRP) has been utilized as a corrosion-resistant substitute for steel rebar in concrete structures. However, embedded BFRP rebars may degrade over time within the alkaline concrete pore solution. While extensive literature has scrutinized BFRP degradation under highly alkaline conditions (e.g., pH~13 in normal concrete), comparatively few studies have addressed its behavior under lower alkalinity (e.g., pH~11–12 in carbonated/green concrete). To address this issue, this study systematically investigates the degradation mechanism of BFRP rebars under coupled factors of pH (7, 11, 12, and 13), temperature (23, 40, and 60 °C), and aging time (30, 60, and 90 days). Research outcomes indicate that a decrease in pH from 13 to 11 at 23 °C results in a reduction in diffusion coefficient from 7.071 × 10⁻⁷ mm²/s to 5.876 × 10⁻⁷ mm²/s. Moreover, lowering the temperature from 60 °C to 23 °C at pH 12 leads to a decline in the diffusion coefficient from 7.547 × 10⁻⁷ mm²/s to 6.758 × 10⁻⁷ mm²/s. Furthermore, following a 90-day immersion at 60 °C, decreasing the exposure pH from 13 to 11 can significantly improve tensile strength retention from 25.357% to 71.933%. In the same scenario, flexural strength retention (or interlaminar shear strength retention) increases from 20.930% to 87.638% (or 23.464% to 76.592%) in such a mildly alkaline environment. A comprehensive degradation mechanism is uncovered, linking macroscopic mechanical properties to microscopic characteristics (encompassing fiber corrosion, matrix cracking, and interfacial debonding). This degradation process can be expedited by alkali attack and thermal activation. These findings contribute valuable insights into the alkali-induced degradation process and furnish a comprehensive dataset regarding the durability performance of BFRP rebars. Full article

Lightweight PLA (LW-PLA) filaments enable material-saving designs in fused filament fabrication (FFF), yet optimizing their mechanical performance remains challenging due to temperature-sensitive foaming behavior. This study aims to enhance the structural strength and material efficiency of LW-PLA parts using a multi-objective statistical approach. Four key process parameters—infill density (Id), material flow rate (Mf), wall line count (Wlc), and infill pattern (Ip)—were systematically varied using a Taguchi L₁₆ orthogonal array. Tensile strength (Ts), flexural strength (Fs), and material consumption (Mc) were selected as the critical response metrics. Grey Relational Analysis (GRA) was used to aggregate these responses into a single performance index, and ANOVA determined each factor’s contribution. The optimal combination of 60% infill density, 70% material flow, 4 wall lines, and line infill pattern yielded a 9.02% improvement in the overall performance index compared to the baseline, with corresponding Ts and Fs values of 13.58 MPa and 20.51 MPa. Mf and Wlc were the most influential parameters on mechanical behavior, while Id mainly affected Mc. These findings confirm that integrating Taguchi and GRA enables effective parameter tuning for LW-PLA, balancing strength and efficiency. This work contributes to the development of lightweight, high-performance parts suitable for functional applications such as UAVs and prototyping. Full article

This study examines the effects of three polymer binders—polyvinyl alcohol (PVA), polyethylene glycol (PEG), and polyacrylic acid (PAA) on the mechanical properties and dry–wet cycle corrosion resistance of cement mortar at different dosages (1–4%). Mechanical testing combined with scanning electron microscopy (SEM) and molecular dynamics (MD) simulations was conducted to validate the experimental findings and reveal the underlying mechanisms. Results show that polymers reduce early-age strength but improve flexural performance, and at low dosage, enhance compressive strength. PVA and PAA exhibited a pronounced improvement in mechanical strength while PVA and PEG showed a significant improvement in wet cycle corrosion resistance. SEM observations indicated that polymers encapsulate cement particles, enhancing interfacial bonding while partially inhibiting hydration. MD simulations revealed that PVA and PAA interact with Ca²⁺ via Ca-O coordination, while PEG primarily forms hydrogen bonds, resulting in distinct water-binding capacities (PEG > PVA > PAA). These interactions explain the enhanced mechanism of mechanical and dry–wet cycle resistance properties. This work combined experimental and molecular-level validation to clarify how polymer–matrix and polymer–water interactions govern mechanical and durability, respectively. The findings provide theoretical and practical guidance for designing advanced polymer binders with tailored interfacial adhesion and water absorption properties to improve cementitious materials. Full article

Background: Three-dimensional (3D) printing has emerged as a valuable tool in dentistry for producing provisional restorations with high precision and reduced costs. However, the limited mechanical strength of temporary 3D-printed resins remains a clinical concern. This in vitro study aimed to enhance the mechanical properties of a 3D-printed temporary resin by incorporating functionalized niobium (Nb) nanoparticles and to compare its performance with a conventional resin composite and a permanent 3D-printed resin. Methods: Six groups were evaluated: bisacrylic resin (Protemp), resin composite (Z350), temporary 3D resin (Temp 3D), permanent 3D resin (Perm 3D), Temp 3D + 0.05% Nb, and Temp 3D + 0.1% Nb. Niobium oxyhydroxide nanoparticles were synthesized using a hydrothermal method, silanized, and incorporated into the Temp 3D at 0.05% and 0.1% by weight. The tested variables included flexural strength (FS), elastic modulus (EM), surface hardness (SH), and color stability (ΔE). Results: The Z350 resin showed the best mechanical results. The addition of 0.1% Nb nanoparticles significantly improved the FS, EM, and SH of the Temp 3D, reaching values comparable to the Perm 3D (p > 0.05). Color stability remained unaffected across all groups. Conclusions: These findings suggest that Nb reinforcement at a low concentration is a promising strategy for improving the performance of 3D-printed temporary restorations. Full article

Reducing environmental impacts and energy consumption in construction is increasingly important, prompting the use of renewable, ecological, and cost-effective materials. This research investigates an ecological building material combining clay and ground reed fibers, offering a promising alternative to conventional resources. A composite made of 50% clay and 50% ground reed was developed to study the influence of fiber size after grinding, as reed is typically used in its unprocessed form. Initial analyses included a physico-chemical characterization of both clay and reed. Thermal performance was then evaluated under steady-state and transient conditions to assess heat storage, heat transfer, and the material’s thermal inertia. The results showed a thermal conductivity of 0.38 W/m·K and an estimated 50% energy savings compared to clay alone, demonstrating the composite’s enhanced insulation capacity. Mechanical tests revealed compressive strengths of 2.48 MPa and flexural strengths of 0.79 MPa, with no significant effect from fiber size. The composite is lighter and more insulating than traditional clay blocks, indicating potential for reduced heating demand and improved indoor comfort. This study confirms the feasibility of incorporating ground reed fibers into clay-based composites to produce more sustainable building materials, supporting the transition toward energy-efficient and environmentally responsible construction practices. Full article
