Titanium dioxide (TiO₂) is a wide-bandgap semiconductor material with broad application potential, known for its excellent photocatalytic performance, high chemical stability, low cost, and non-toxicity. These properties make it highly attractive for applications in photovoltaic energy, environmental remediation, and optoelectronic devices. For instance, TiO₂ is widely used as a photocatalyst for hydrogen production via water splitting and for degrading organic pollutants, thanks to its efficient photo-generated electron–hole separation. Additionally, TiO₂ exhibits remarkable performance in dye-sensitized solar cells and photodetectors, providing critical support for advancements in green energy and photoelectric conversion technologies. Boron-doped diamond (BDD) is renowned for its exceptional electrical conductivity, high hardness, wide electrochemical window, and outstanding chemical inertness. These unique characteristics enable its extensive use in fields such as electrochemical analysis, electrocatalysis, sensors, and biomedicine. For example, BDD electrodes exhibit high sensitivity and stability in detecting trace chemicals and pollutants, while also demonstrating excellent performance in electrocatalytic water splitting and industrial wastewater treatment. Its chemical stability and biocompatibility make it an ideal material for biosensors and implantable devices. Research indicates that the combination of TiO₂ nanostructures and BDD into heterostructures can exhibit unexpected optical and electrical performance and transport behavior, opening up new possibilities for photoluminescence and rectifier diode devices. However, applications based on this heterostructure still face challenges, particularly in terms of photodetector, photoelectric emitter, optical modulator, and optical fiber devices under high-temperature conditions. This article explores the potential and prospects of their combined heterostructures in the field of optoelectronic devices such as photodetector, light emitting diode (LED), memory, field effect transistor (FET) and sensing. TiO₂/BDD heterojunction can enhance photoresponsivity and extend the spectral detection range which enables stability in high-temperature and harsh environments due to BDD’s thermal conductivity. This article proposes future research directions and prospects to facilitate the development of TiO₂ nanostructured materials and BDD-based heterostructures, providing a foundation for enhancing photoresponsivity and extending the spectral detection range enables stability in high-temperature and high-frequency optoelectronic devices field. Further research and exploration of optoelectronic devices based on TiO₂-BDD heterostructures hold significant importance, offering new breakthroughs and innovations for the future development of optoelectronic technology. Full article

In this work, floating-gate organic field-effect transistor memory using the n-type semiconductor poly-{[N,N′-bis(2-octyldodecyl) naphthalene-1,4,5,8-bis (dicarbo- ximide)-2,6-dili]-alt-5,5′-(2,2′-bithiophene)} (N2200) as a charge-trapping layer is presented. With the assistance of a technology computer-aided design (TCAD) tool (Silvaco-Atlas), the storage characteristics of the device are numerically simulated by using the carrier injection and Fower–Nordheim (FN) tunneling models. The shift in the transfer characteristic curves and the charge-trapping mechanism after programming/erasing (P/E) operations under different P/E voltages and different pulse operation times are discussed. The impacts of different thicknesses of the tunneling layer on storage characteristics are also analyzed. The results show that the memory window with a tunneling layer thickness of 8 nm is 16.1 V under the P/E voltage of ±45 V, 5 s. After 1000 cycle tests, the memory shows good fatigue resistance, and the read current on/off ratio reaches 10³. Full article

Hydrogel-gated synaptic transistors offer unique advantages, including biocompatibility, tunable electrical properties, being biodegradable, and having an ability to mimic biological synaptic plasticity. For processing massive data with ultralow power consumption due to high parallelism and human brain-like processing abilities, synaptic transistors have been widely considered for replacing von Neumann architecture-based traditional computers due to the parting of memory and control units. The crucial components mimic the complex biological signal, synaptic, and sensing systems. Hydrogel, as a gate dielectric, is the key factor for ionotropic devices owing to the excellent stability, ultra-high linearity, and extremely low operating voltage of the biodegradable and biocompatible polymers. Moreover, hydrogel exhibits ionotronic functions through a hybrid circuit of mobile ions and mobile electrons that can easily interface between machines and humans. To determine the high-efficiency neuromorphic chips, the development of synaptic devices based on organic field effect transistors (OFETs) with ultra-low power dissipation and very large-scale integration, including bio-friendly devices, is needed. This review highlights the latest advancements in neuromorphic computing by exploring synaptic transistor developments. Here, we focus on hydrogel-based ionic-gated three-terminal (3T) synaptic devices, their essential components, and their working principle, and summarize the essential neurodegenerative applications published recently. In addition, because hydrogel-gated FETs are the crucial members of neuromorphic devices in terms of cutting-edge synaptic progress and performances, the review will also summarize the biodegradable and biocompatible polymers with which such devices can be implemented. It is expected that neuromorphic devices might provide potential solutions for the future generation of interactive sensation, memory, and computation to facilitate the development of multimodal, large-scale, ultralow-power intelligent systems. Full article

In this study, a high-K material, aluminum oxide (AlO_x), as the dielectric of organic field-effect transistors (OFETs) was used to reduce the threshold and operating voltages, while focusing on achieving high-electrical-stability OFETs and retention in OFET-based memory devices. To achieve this, we modified the gate dielectric of OFETs using polyimide (PI) with different solid contents to tune the properties and reduce the trap state density of the gate dielectric, leading to controllable stability in the N, N’-ditridecylperylene-3,4,9,10-tetracarboxylic diimide (PTCDI-C₁₃)-based OFETs. Thus, gate field-induced stress can be compensated for by the carriers accumulated due to the dipole field created by electric dipoles within the PI layer, thereby improving the OFET’s performance and stability. Moreover, if the OFET is modified by PI with different solid contents, it can operate more stably under fixed gate bias stress over time than the device with AlO_x as the dielectric layer only can. Furthermore, the OFET-based memory devices with PI film showed good memory retention and durability. In summary, we successfully fabricated a low-voltage operating and stable OFET and an organic memory device in which the memory window has potential for industrial production. Full article

Electrospun nanofibers have become the most promising building blocks for future high-performance electronic devices because of the advantages of larger specific surface area, higher porosity, more flexibility, and stronger mechanical strength over conventional film-based materials. Moreover, along with the properties of ease of fabrication and cost-effectiveness, a broad range of applications based on nanomaterials by electrospinning have sprung up. In this review, we aim to summarize basic principles, influence factors, and advanced methods of electrospinning to produce hundreds of nanofibers with different structures and arrangements. In addition, electrospun nanofiber based electronics composed of both two-terminal and three-terminal devices and their practical applications are discussed in the fields of sensing, storage, and computing, which give rise to the further integration to realize a comprehensive and brain-like system. Last but not least, the emulation of biological synapses through artificial synaptic transistors and additionally optoelectronics in recent years are included as an important step toward the construction of large-scale, multifunctional systems. Full article

This short critical review is devoted to the synthesis and functionalization of various types of azaacenes, organic semiconducting compounds which can be considered as promising materials for the fabrication of n-channel or ambipolar field effect transistors (FETs), components of active layers in light emitting diodes (LEDs), components of organic memory devices and others. Emphasis is put on the diversity of azaacenes preparation methods and the possibility of tuning their redox and spectroscopic properties by changing the C/N ratio, modifying the nitrogen atoms distribution mode, functionalization with electroaccepting or electrodonating groups and changing their molecular shape. Processability, structural features and degradation pathways of these compounds are also discussed. A unique feature of this review concerns the listed redox potentials of all discussed compounds which were normalized vs. Fc/Fc⁺. This required, in frequent cases, recalculation of the originally reported data in which these potentials were determined against different types of reference electrodes. The same applied to all reported electron affinities (EAs). EA values calculated using different methods were recalculated by applying the method of Sworakowski and co-workers (Org. Electron. 2016, 33, 300–310) to yield, for the first time, a set of normalized data, which could be directly compared. Full article

Donor–acceptor-type organic semiconductor molecules are of great interest for potential organic field-effect transistor applications with ambipolar characteristics and non-volatile memory applications. Here, we synthesized an organic semiconductor, PDPPT-TT, and directly utilized it in both field-effect transistor and non-volatile memory applications. As-synthesized PDPPT-TT was simply spin-coated on a substrate for the device fabrications. The PDPPT-TT based field-effect transistor showed ambipolar electrical transfer characteristics. Furthermore, a gold nanoparticle-embedded dielectric layer was used as a charge trapping layer for the non-volatile memory device applications. The non-volatile memory device showed clear memory window formation as applied gate voltage increases, and electrical stability was evaluated by performing retention and cycling tests. In summary, we demonstrate that a donor–acceptor-type organic semiconductor molecule shows great potential for ambipolar field-effect transistors and non-volatile memory device applications as an important class of materials. Full article

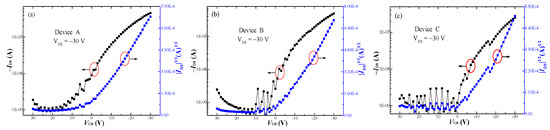

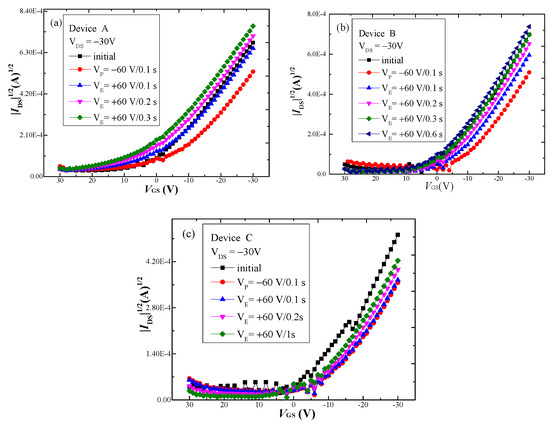

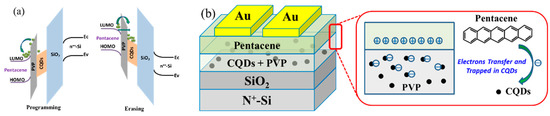

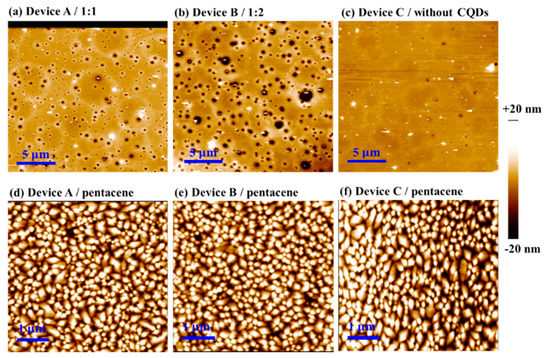

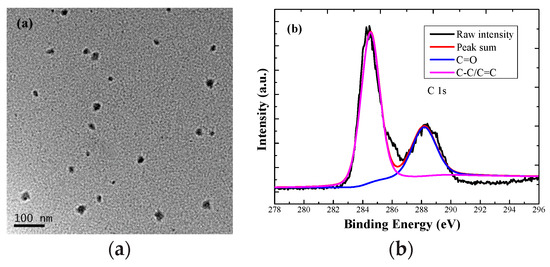

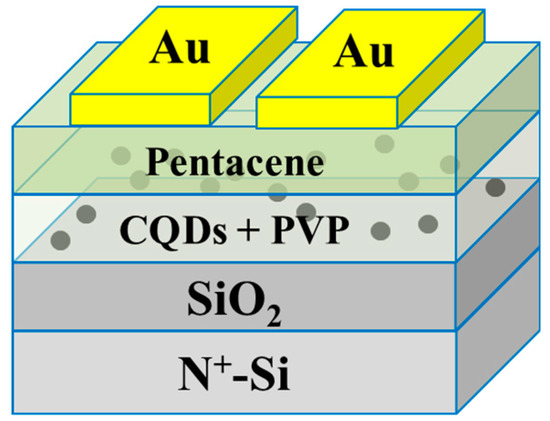

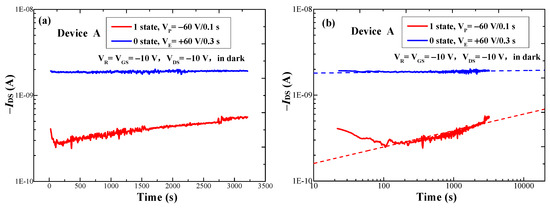

In this work, we present a pentacene-based organic field-effect transistor memory (OFETM) device, which employs one-step microwave-assisted hydrothermal carbon quantum dots (CQDs) embedded in a polyvinyl pyrrolidone (PVP) matrix, to form an integrated hybrid nanolayer as the charge trapping layer. The as-prepared CQDs are quasi-spherical amorphous C, with sizes ranging from 5 to 20 nm, with a number of oxygen-containing groups and likely some graphite-like domains that produce CQDs with excellent electron-withdrawing characteristics. The incorporation of CQDs into PVP dielectric materials results in a bidirectional storage property. By optimizing the concentration of CQDs embedded into the PVP matrix, the OFETM shows excellent memory characteristics with a large memory window of 8.41 V under a programming/erasing (P/E) voltage of $\pm$ 60 V and a retention time of up to 10⁴ s. Full article

Flexible organic ferroelectric field-effect transistors (Fe-FETs) have attracted attention for next-generation memory applications. A fundamental understanding of the electrical properties and mechanical stability of transistors is a prerequisite to realizing practical flexible electronics. Here, we demonstrate the solvent-dependent electrical characteristics and mechanical stability of flexible Fe-FETs. Poly(vinylidene fluoride-trifluoro-ethylene) (P(VDF-TrFE)) based Fe-FETs were fabricated by using dimethylformamide (DMF) and methyl ethyl ketone (MEK) solvents on a polyimide substrate. P(VDF-TrFE) from DMF formed a smoother surface than a surface from MEK; the surface property greatly affected the electrical properties and mechanical stability of the devices. Larger hysteresis and higher mobility were obtained from Fe-FET using DMF compared to those characteristics from using MEK. Furthermore, Fe-FET using DMF showed lower degradation of on-current and mobility under repetitive mechanical stress than an MEK-based Fe-FET, due to its excellent semiconductor-insulator interface. These results will guide appropriate solvent selection and contribute to the improvement of flexible Fe-FET electrical properties and mechanical stability in the next generation of memory devices. Full article

A one-transistor and one-resistor (1T1R) architecture with a resistive random access memory (RRAM) cell connected to an organic thin-film transistor (OTFT) device is successfully demonstrated to avoid the cross-talk issues of only one RRAM cell. The OTFT device, which uses barium zirconate nickelate (BZN) as a dielectric layer, exhibits favorable electrical properties, such as a high field-effect mobility of 2.5 cm²/Vs, low threshold voltage of −2.8 V, and low leakage current of 10⁻¹² A, for a driver in the 1T1R operation scheme. The 1T1R architecture with a TiO₂-based RRAM cell connected with a BZN OTFT device indicates a low operation current (10 μA) and reliable data retention (over ten years). This favorable performance of the 1T1R device can be attributed to the additional barrier heights introduced by using Ni (II) acetylacetone as a substitute for acetylacetone, and the relatively low leakage current of a BZN dielectric layer. The proposed 1T1R device with low leakage current OTFT and excellent uniform resistance distribution of RRAM exhibits a good potential for use in practical low-power electronic applications. Full article
