A sheet-type sinter-bonding material was developed to form thermally stable and highly heat-conductive joints suitable for wide-bandgap (WBG) semiconductor dies and high-heat-flux devices, and its bonding characteristics were investigated. To enhance the cost-competitiveness of the bonding material, Ag-coated Cu (Cu@Ag) particles were employed as fillers instead of conventional Ag particles. To facilitate accelerated sintering, a bimodal particle size distribution comprising several micron- and submicron-sized particles was adopted by synthesizing and mixing both size ranges. For sheet fabrication, a decomposable resin was used as the essential binder component, which could be removed during the bonding process via thermal decomposition. This approach enabled the formation of a sintered bond line composed entirely of Cu@Ag particles. Thermogravimetric and differential thermal analyses revealed that the decomposition of the resin in the sheet occurred within the temperature range of 290–340 °C. Consequently, sinter-bonding conducted at 350 °C and 370 °C exhibited significantly superior bondability compared to bonding at 330 °C. In particular, sinter-bonding at 350 °C for just 60 s resulted in a highly densified joint microstructure with a low porosity of 7.6% and high shear strength exceeding 25 MPa. The formation of the bond line was initiated by sintering between the outer Ag shells of the adjacent particles. However, with increasing bonding time or temperature, sintering driven by Cu diffusion from the particle cores to the outer Ag shells, particularly in the submicron-sized particles, was progressively enhanced. These results obtained from the fabricated sheet-type materials demonstrate that, even with the use of resin, rapid solid-state sintering between filler particles combined with the removal of resin through decomposition enables the formation of a metallic bond line with excellent thermal conductivity. Full article

The application of wide-bandgap semiconductors in next-generation power modules requires cost-effective Cu particles and a reduced bonding time in the die attachment process to enable efficient industrial-scale manufacturing. Therefore, this study aimed to analyze the effect of Cu particle size variation on pressure-assisted sinter-bondability and bond line shear strength. Cu particles were synthesized through a simple wet-chemical process, in which pH variation was employed to obtain submicrometer-sized Cu particles with average diameters of 500, 300, and 150 nm. The synthesized particles exhibited pure Cu composition, forming only a native oxide layer on their surfaces. In pastes containing these Cu particles, smaller particle sizes led to the delayed evaporation of the reducing solvent, which in turn delayed the exothermic reactions associated with particle sintering and oxidation. However, the sintering-induced exothermic peak became more pronounced as the particle size decreased, confirming that smaller particles improved sinterability. Pressure-assisted sinter bonding performed in air at 300 °C indicated that a decreased particle size contributed to the densification of the bond line structure and an increase in shear strength. Specifically, the paste containing 150 nm Cu particles achieved a highly dense microstructure and an exceptional shear strength of 36.7 MPa within just 30 s of sinter bonding. These findings demonstrate that reducing the particle size is essential for enhancing the sinter-bondability of cost-effective Cu particle-based sinter-bonding pastes. Full article

Pastes were prepared using dendritic Cu particles as fillers, and a compression die attachment process was implemented to establish a pure Cu joint using low-cost materials and high-speed sinter bonding. We aimed to grow an oxidation layer on the particle surface to improve sinter-bondability. Because the growth of the oxidation layer by general thermal oxidation methods makes it difficult to use as a filler owing to agglomeration between particles, we induced oxidation growth by wet surface treatment. Consequently, when the oxidation layer was appropriately grown by surface treatment using an acetic acid–ethanol solution, we obtained an improved joint strength, approximately 2.8 times higher than the existing excellent result based on a bonding time of 10 s. The joint formed in just 10 s at 300 °C in the air under 10 MPa compression showed a shear strength of 28.4 MPa. When the bonding time was increased to 60 s, the joint exhibited a higher strength (35.1 MPa) and a very dense microstructure without voids. These results were attributed to the acceleration of sintering by the in situ formation of more Cu nanoparticles, which effectively reduced the increased oxide layers in the particles using a reducing solvent. Full article

This study presents the development of a highly robust, pressureless, and void-free silver sinter-bonding technology for power semiconductor packaging. A bimodal silver paste containing silver nanoparticles and sub-micron particles was used, with polymethyl methacrylate (PMMA) as an additive to provide additional thermal energy during sintering. This enabled rapid sintering and the formation of a dense, void-free bonding joint. The effects of sintering temperature and PMMA content on shear strength and microstructure were systematically investigated. The results showed that the shear strength increased with rising sintering temperatures, achieving a maximum of 41 MPa at 300 °C, with minimal void formation due to enhanced particle necking facilitated by PMMA combustion. However, at 350 °C, the shear strength decreased to 35 MPa due to cracks and voids at the copper substrate–copper oxide interface caused by thermal expansion mismatch. The optimal PMMA content was found to be 5 wt.%, balancing sufficient thermal energy and void reduction. This pressureless sintering technology demonstrates significant potential for high-reliability applications in power semiconductor modules operating under high-temperature and high-stress conditions. Full article

Stacks consisting of titanium, platinum, and gold layers constitute a popular metallization system for the bond pads of semiconductor chips. Wire bonding on such layer stacks at different temperatures has extensively been investigated in the past. However, reliable information on the bondability of this metallization system after a high-temperature sintering process is still missing. When performing wire bonding after pressure sintering (at, e.g., 875 °C), bonding failures may occur that must be identified and analyzed. In the present study, a focused ion beam (FIB), scanning electron microscopy (SEM), and elemental mapping are utilized to characterize the root cause of failure. As a probable root cause, the infusion of metallization layers is found which causes an agglomerate formation at the interface of approximately 2 μm height difference on strain gauge contact pads and possibly an inhomogeneous mixing of layers as a consequence of the high-temperature sintering process. Potential treatment to tackle this agglomeration with the removal of the above-mentioned height difference during the process of contact pad structuring and alternative electrical interconnect methodologies are hereby suggested in this paper. Full article

Metal nanoparticles (NPs) have attracted growing attention in recent years for electronic packaging applications. Ag NPs have emerged as a promising low-temperature bonding material owing to their unique characteristics. In this study, we mainly review our research progress on the interconnection of using polyol-based Ag NPs for electronic packaging. The synthesis, sintering-bonding process, bonding mechanism, and high-temperature joint properties of Ag NP pastes are investigated. The paste containing a high concentration of Ag NPs was prepared based on the polyol method and concentration. A nanoscale layer of organic components coated on the NPs prevents the coalescence of Ag NPs. The effects of organic components on the bondability of the Ag NP paste were studied. Compared to the aqueous-based Ag NP paste, the polyol-based Ag NP with the reduction of organic component can improve the bondability, and the coffee ring effect was successfully depressed due to the increased Marangoni flow. The sintering behaviors of Ag NPs during the bonding process were investigated using the classical sphere-to-sphere approach. The mechanical property of joints using this Ag paste was better than that using Pb₉₅Sn₅ solders after storage at high temperatures. The sintering–bonding technology using polyol-based Ag NPs was helpful to the low-temperature interconnection for electronic packaging applications. Full article

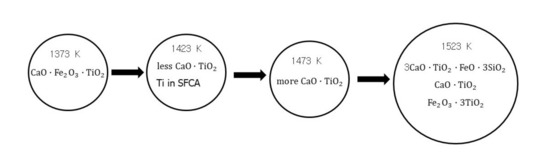

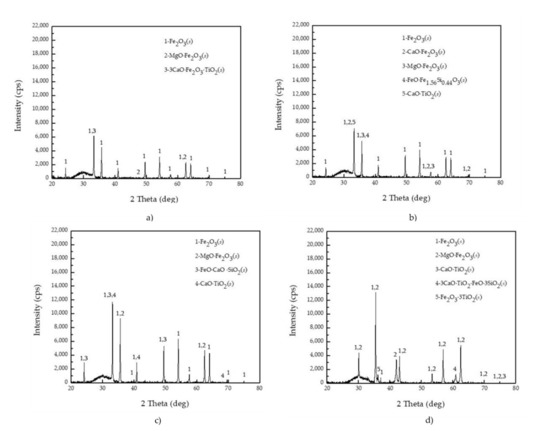

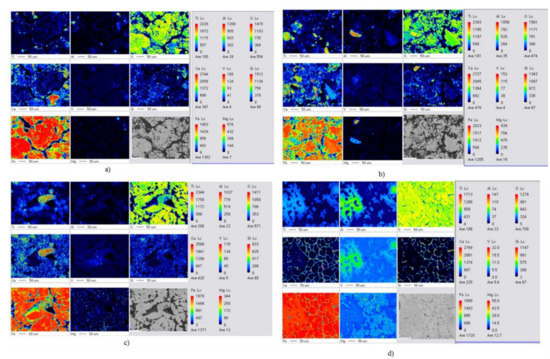

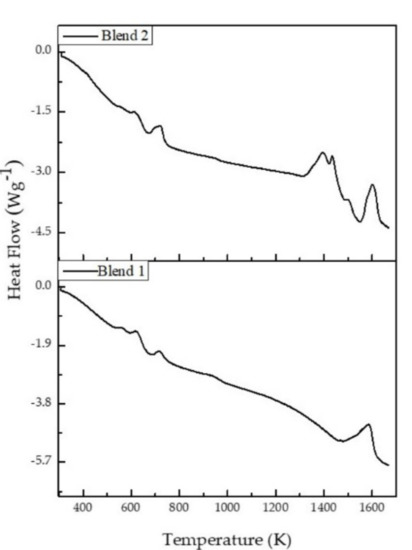

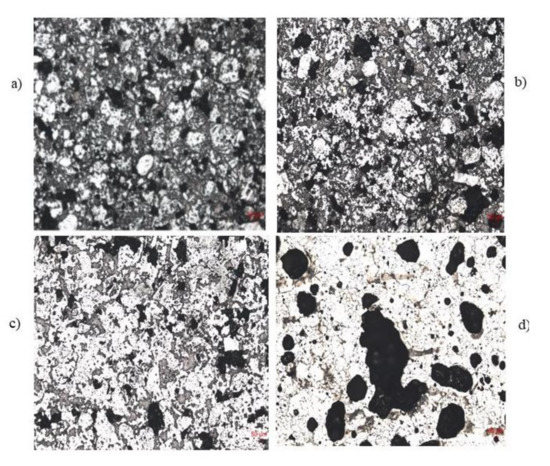

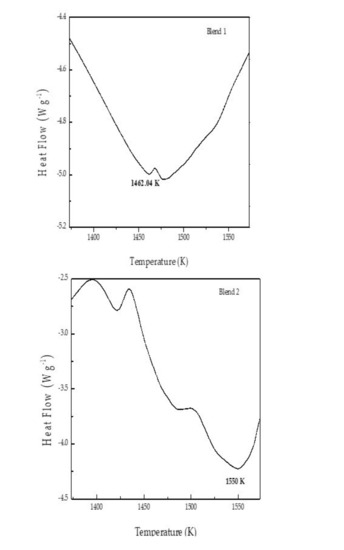

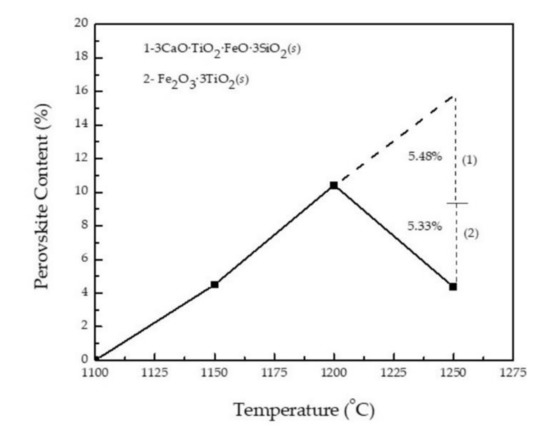

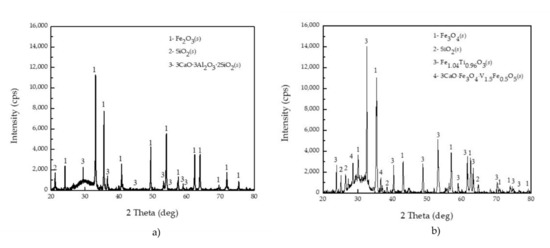

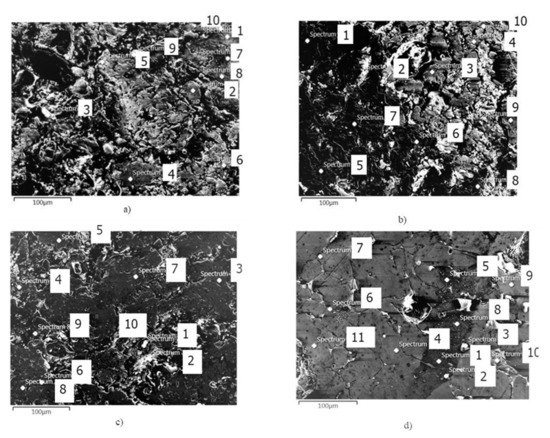

The use of low-grade iron ores has attracted a lot of interest where fines from these ores are sintered to improve their strength. Ti-containing ores are one of the abundantly available iron ores of low-grade. The sintering of the hematite–ilmenite ore blends has several challenges, which include the formation of perovskite. The sintering behavior of a hematite–ilmenite ore sinter blend was investigated in 75 vol% N₂, 24 vol% CO₂, and 1 vol% CO in the temperature range of 1373 to 1523 K. Phase development and distribution of metallic elements were investigated by x-ray diffraction (XRD), energy-dispersive X-ray spectroscopy (EDS), and electron probe microanalysis (EPMA). The addition of ilmenite ore to hematite ore increased the temperature of melt formation. More titanium (Ti) was distributed in the glass phase with increasing temperature. Morphological change showed that the amount of sinter-bonding phase generated was low, below 1473 K. Weak sinter bonding strength might be caused by the presence of Ti in the glass phase at high temperature. This might affect the fracture toughness of the glass phase. Full article

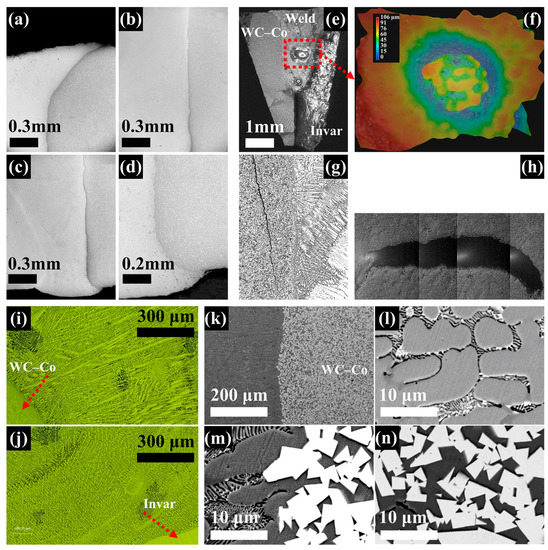

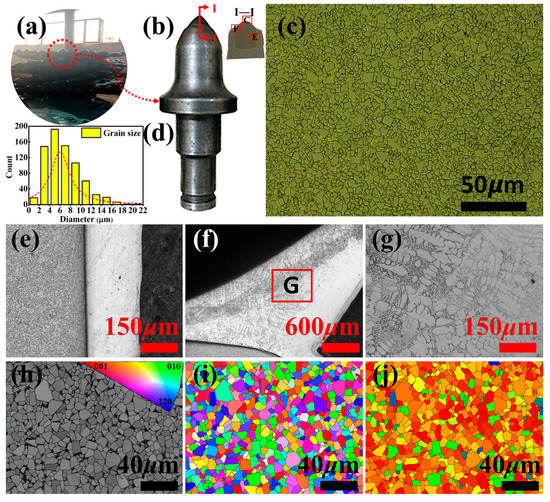

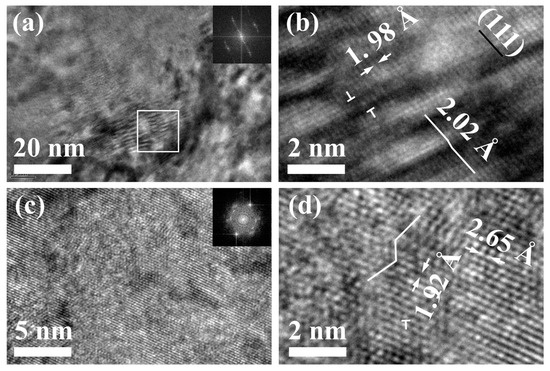

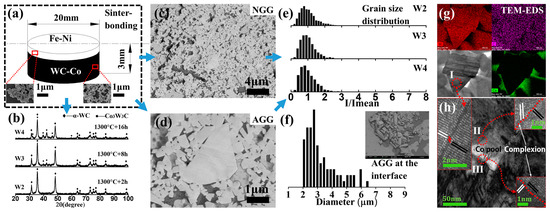

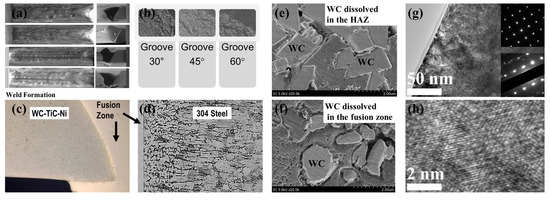

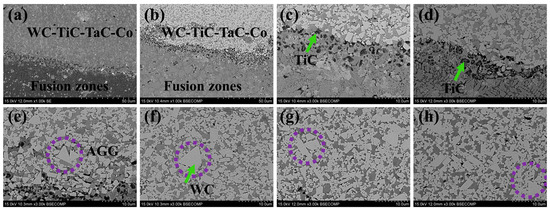

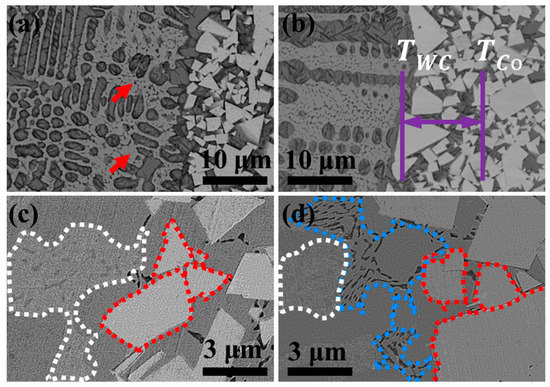

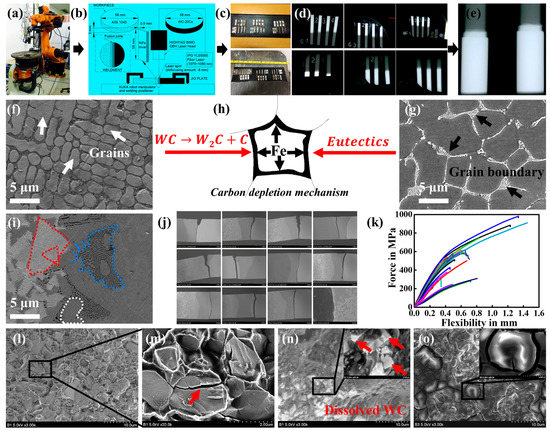

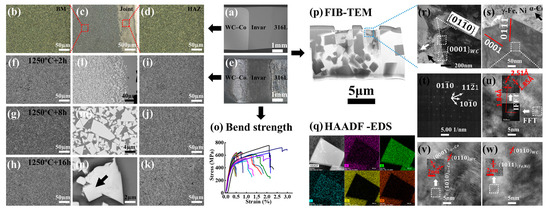

Cemented carbides have been widely used in aerospace, biomedical/wearable sensor, automobile, microelectronic, and other manufacturing industries owing to their superior physical and chemical properties at elevated temperatures. These superior properties, however, make it difficult to process these materials using conventional manufacturing methods. In this article, an overview of the welding and joining processes of cemented carbide and steel is given, followed by a few examples of welding processes. Cemented carbides can be successfully joined by sinter-bonding, brazing and soldering, laser beam welding, tungsten inert gas (TIG) welding, diffusion welding, friction welding, electron-beam welding, and chemical vapor deposition. An overview of the benefits and drawbacks of brazing and soldering of cemented carbide and steel is presented, including reports on joint design, processes, and selection of brazing filler metals. The laser welding of cemented carbide and steel is addressed and reviewed, including reports on gap bridging ability, the inclusion/absence of filler metals, interlayers, and laser/TIG hybrid welding. Finally, a section is devoted to explaining the main issues remaining in the welding and joining of cemented carbide, corresponding solutions, and future work required. Full article

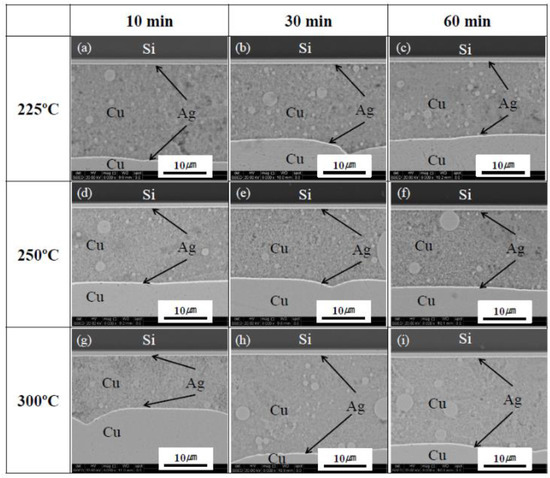

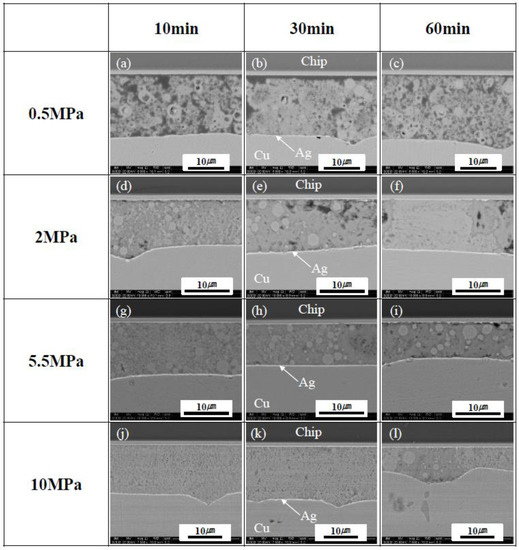

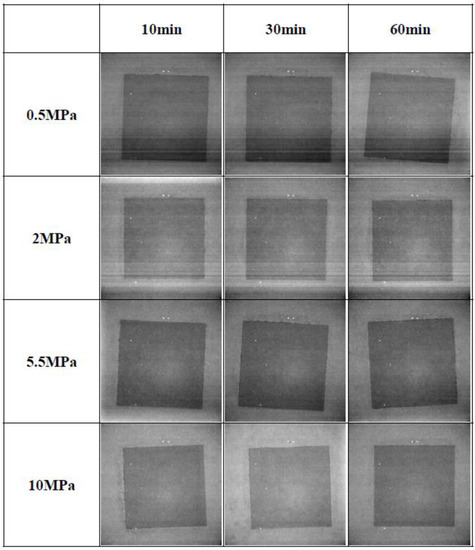

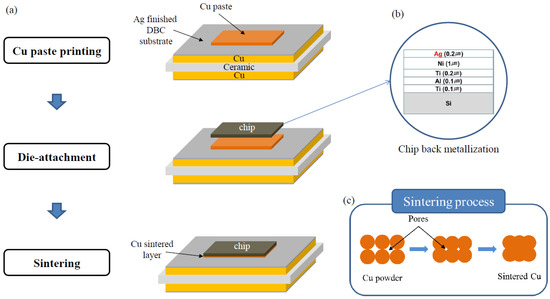

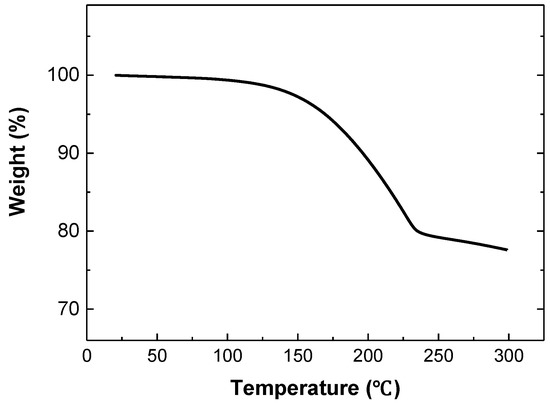

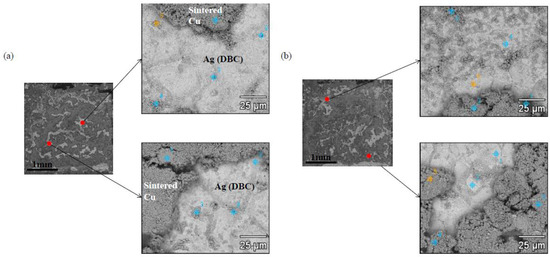

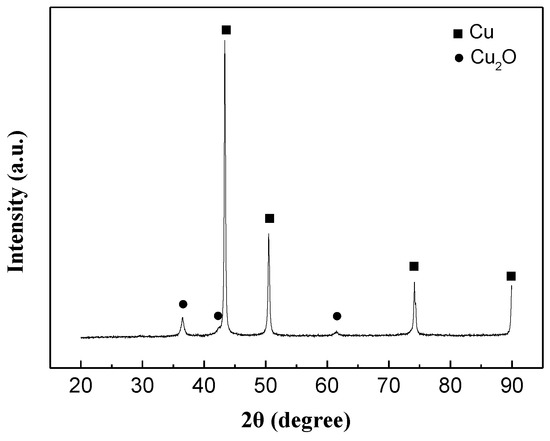

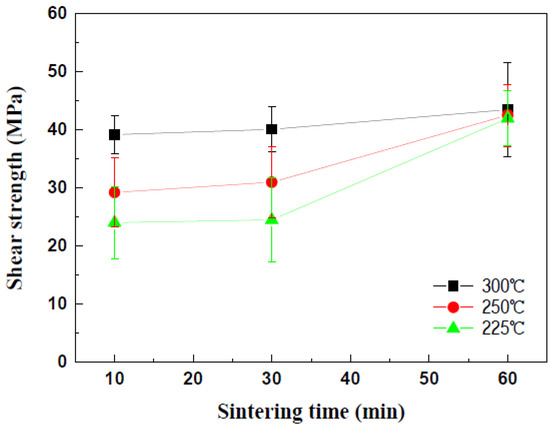

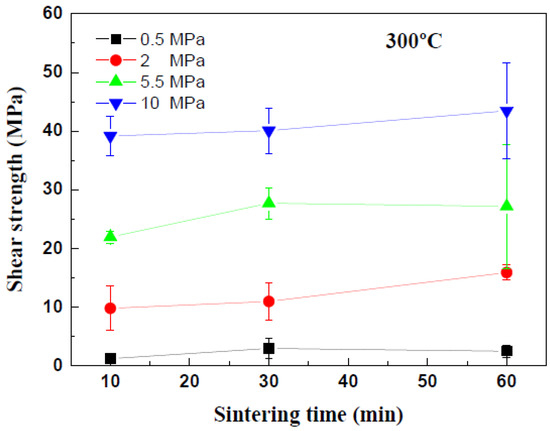

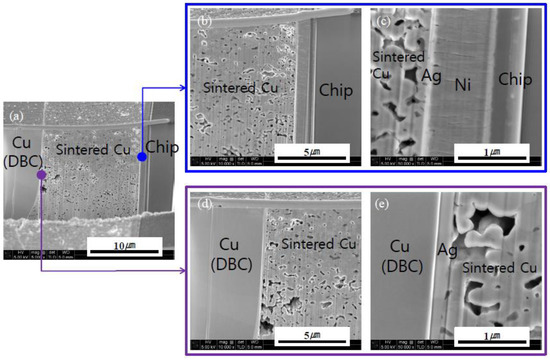

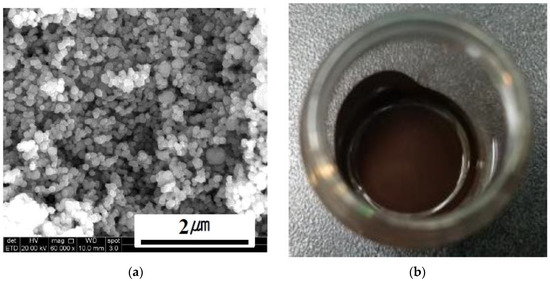

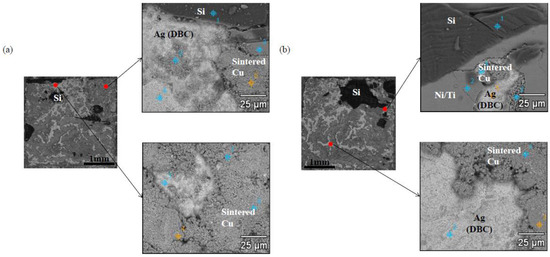

In this study, the feasibility of low-cost Cu-sintering technology for power electronics packaging and the effect of sintering conditions on the bonding strength of the Cu-sintered joint have been evaluated. A Cu paste with nano-sized Cu powders and a metal content of ~78% as a high-temperature bonding material was fabricated. The sinter-bonding reactions and mechanical strengths of Cu-sintered joints were evaluated at different sinter bonding pressures, temperatures, and durations during the sintering process. The shear strength of the Cu-sintered joints increased with increasing sintering pressure. Good interfacial uniformity and stable metallurgical microstructures were observed in the Cu joints sintered at a high sintering pressure of 10 MPa, irrespective of the sintering time. It was confirmed that a high-pressure-assisted sintering process could create relatively dense sintered layers and good interfacial uniformity in the Cu-sintered joints, regardless of the sintering temperatures being in the range of 225–300 °C. The influence of the sinter bonding pressure on the shear strengths of the Cu-sintered joints was more significant compared to that of the sintering temperature. Durations of 10 min (at 300 °C) and 60 min (at 225 and 250 °C) are sufficient for complete sintering reactions between the Si chip and the direct bond copper (DBC) substrate. Relatively good metallic bonding and dense sintered microstructures created by a high sintering pressure of 10 MPa resulted in high shear strength in excess of 40 MPa of the Cu-sintered joints. Full article
