Search Results (42)

In this study, based on previous fundamental research on weldability, we ultimately aim to propose a filler metal that enables hot crack-free repair welding of 247LC superalloy while minimizing compositional modification. First, we investigated the liquation cracking susceptibility of two candidate filler metals, namely Hf-free and B-free 247LC superalloy welds, by individually removing Hf and B and performing a spot-Varestraint test. As a result, the liquation cracking temperature range (LCTR) of B-free 247LC was 370 K and 230 K for Hf-free 247LC. The results indicated a significant reduction in the liquation cracking temperature range (LCTR) to 230 K for the Hf-free alloy, from 620 K for the Hf-containing standard 247LC alloy. Direct microstructural analysis of the liquation cracking surfaces revealed a higher liquation initiation temperature at the γ/MC interface in the Hf-free alloy, ranging from 1460 to 1600 K, compared to that of the original 247LC alloy composition, which contributed to the reduced LCTR. These findings indicate that Hf-free 247LC superalloys offer enhanced weldability—particularly for manufacturing and repairing critical components of tools with high-temperature applications, such as gas-turbine blades. Finally, assuming the Hf-free 247LC alloy as a filler metal and the original 247LC alloy composition as a base metal, double square groove welding was performed. This clearly confirmed the possibility of hot crack-free welding with Hf-free 247LC filler metal, effectively suppressing both liquation and solidification cracking simultaneously. Full article

This study investigated the impact of TiB grain refiner additions on the microstructural evolution, hot tearing susceptibility, and mechanical properties of Al-Cu 224 alloys to enhance their processing performance during the selective laser melting (SLM) process. A simple laser surface remelting method was utilized to simulate laser-based rapid solidification. The results revealed that the addition of appropriate amounts of TiB grain refiner could completely eliminate the solidification cracks during the laser surface remelting process. The introduction of TiB₂ particles in the melt pools through the TiB grain refiner addition changed the grain morphology from a coarse columnar to a fine equiaxed structure, and the grain sizes were reduced from 13 to 15 μm in the base alloys to 5.5 μm and 3.2 μm in the alloys with 0.34 wt% Ti (B-3TiB) and 0.65 wt% Ti (ZV-6TiB) additions, respectively. The hardness values of the modified B-3TiB and ZV-6TiB alloys reached 117 and 130 HV after a T6 heat treatment, which surpassed the hardness of conventional AlSi10Mg alloys by at least 15–30%. This improvement was attributed to the finer grains and nanoscale θ′/θ″ precipitates. The results demonstrate that the TiB grain refiner addition can significantly improve the processability and mechanical properties of Al-Cu 224 alloys for SLM applications, offering a promising solution to the challenge of high hot tearing susceptibility in high-strength aluminum alloys. Full article

One of the concepts behind Generation IV reactors is a molten salt coolant system, where the materials for the reactor itself and for the primary and secondary circuit components are subjected to extreme chemical and thermal stresses. Due to the unavailability of these materials, a nickel–molybdenum alloy known as MoNiCr has been developed in the Czech Republic. This paper discusses the manufacturing process for the MoNiCr alloy, covering conventional casting technology, forming, powder atomization, additive manufacturing (AM) using the directed energy deposition (DED-LB) process, and final heat treatment. Special attention was given to the quality of the input powders for additive manufacturing, particularly regarding the optimization of the chemical composition, which significantly influenced the quality of the additively manufactured components. AM enables the realization of complex structural designs that are critical for energy applications, despite the high susceptibility of the MoNiCr alloy to solidification cracking. Through AM, a test body was successfully produced with a maximum defect rate of 0.03% and the following mechanical properties: a yield strength (YS) of 279 MPa, an ultimate tensile strength (UTS) of 602 MPa, and an elongation (El) of 51%. Full article

Features of microstructure, mechanical properties, and cracking behaviour of the René 80-type superalloy manufactured by laser-based directed energy deposition (DED-LB) have been investigated. Different cracking behaviours were observed in two thin walls fabricated by DED-LB under different conditions. The defect-free thin wall was produced at low power and scanning speed, while increasing energy input during the process led to intensive cracking. Two types of cracks that developed in the René 80-type superalloy were identified: solidification hot cracking and ductility-dip cracking (DDC), caused by σ-phase particles. It was found that transition from an equiaxed structure to a columnar one increased the susceptibility to crack propagation. Full article

Hot cracking is a frequent and severe defect that occurs during laser additive manufacturing of superalloys. In this work, a pulsed-wave (PW) laser modulation process was employed to control the solidification microstructure and reduce the hot cracking susceptibility of laser additive manufactured cobalt-based superalloy. The effects of continuous-wave (CW) and PW laser processing modes on the dendrite morphology, element segregation, eutectic phase, and hot cracking of fabricated Co-based superalloys were investigated. Optical microscopy, scanning electron microscopy, and energy-dispersive X-ray spectroscopy were used to characterize the microstructural characteristics of samples. A two-color pyrometer was used to measure the molten pool temperature variation under different laser processing modes. The results show that coarse columnar dendrites, chain-like eutectic carbides, and hot cracks were observed in the CW sample. In contrast, the fine equiaxed crystals, discrete eutectic carbides, and low-level residual stresses were obtained to avoid hot cracks, owing to the high cooling rate and the periodic melting and solidification of the molten pool under the PW laser processing mode. This work provides a new method for controlling solidification structure and hot cracking of laser additive manufactured Co-based superalloy. Full article

Reducing hot cracking is essential for ensuring seamless production of nickel superalloys, which are extensively used in welded structures for aircraft engines. The prevalence of hot cracking in precipitation-strengthened alloy 718 is primarily governed by two factors: firstly, the chemical composition and the coarse microstructure formed during solidification, and secondly, the activation of hot cracking mechanisms, which is particularly critical in mushroom-shaped welding morphologies. In this study, different nickel-based superalloys welded using laser beam welding (LBW), more specifically bead on plate welding (BoP), specimens are compared. The cracking susceptibility of both wrought and two investment casting 718 alloys with tailored chemical compositions is examined through the application of both continuous and pulsed LBW. Additionally, various pre-weld treatments, including with and without Pre-HIP (hot isostatic pressing), are analyzed. The influences of chemical composition, LBW parameters and pre- and post-welding treatments on both internal and external cracks determined by conventional and advanced non-destructive tests are studied. A clear reduction of hot cracking susceptibility and overall welding quality improvement was observed in a tailored 718 alloy with relatively high Ni (55.6% wt) and Co (1.11% wt) contents. Full article

Research into the processability of NiTiHf high-temperature shape memory alloys (HTSMAs) via laser powder bed fusion (LPBF) is limited; nevertheless, these alloys show promise for applications in extreme environments. This study aims to address this limitation by investigating the printability of four NiTiHf alloys with varying Hf content (1, 2, 15, and 20 at. %) to assess their suitability for LPBF applications. Solidification cracking is one of the main limiting factors in LPBF processes, which occurs during the final stage of solidification. To investigate the effect of alloy composition on printability, this study focuses on this defect via a combination of computational modeling and experimental validation. To this end, solidification cracking susceptibility is calculated as Kou’s index and Scheil–Gulliver model, implemented in Thermo-Calc/2022a software. An innovative powder-free experimental method through laser remelting was conducted on bare NiTiHf ingots to validate the parameter impacts of the LPBF process. The result is the processability window with no cracking likelihood under diverse LPBF conditions, including laser power and scan speed. This comprehensive investigation enhances our understanding of the processability challenges and opportunities for NiTiHf HTSMAs in advanced engineering applications. Full article

Aluminum alloys 5083, 6061, and 7075 are prone to hot tearing under direct-chill casting conditions; the defects that form during solidification of those alloys are highly sensitive to variation in the alloying elements, with these elements commonly being Si, Fe, Cu, and Ti. This study investigates the influence of the morphology, content, and size of intermetallic compounds on the hot tearing behavior of the 5083, 6061, and 7075 aluminum alloys by combining a constrained rod casting technique, phase diagram calculation, and multiscale microstructural characterizations. The fishbone-shaped α-Al₁₅(Fe,Mn)₃Si₂ in 5083 can serve as a path for crack nucleation and growth, and an increase in Si content results in Mg₂Si assuming fishbone morphology, thereby increasing hot tearing susceptibility. The amount of plate-like β-Al₅FeSi is the primary factor controlling the hot tearing susceptibility of 6061. For 7075, increasing the Cu content can greatly enhance the remaining liquid fraction, feeding, and hot tearing susceptibility. For all three alloys, TiB₂ grain refiner minimizes hot tearing. This study elucidates the influences of the amounts of Fe, Si, Cu, and TiB₂ grain refiner on hot tearing susceptibility. The findings can help establish compositional control standards for the 5083, 6061, and 7075 aluminum alloy series, particularly when the recycling rate must be increased. Full article

Low sensitivity to hot cracking is very important not only for casting but also for ingots of wrought alloys. Doping of Al-Cu-(Mg) alloys by eutectic forming elements provides an increasing resistance to hot cracking susceptibility, but it also leads to a decrease in plasticity. The quasi-binary alloys based on an Al-Cu-REM system with an atomic ratio of Cu/REM = 4 have a high solidus temperature, narrow solidification range and fine microstructure. The detailed investigation of microstructure, precipitation and hot deformation behavior, and mechanical properties of novel Al-Cu-Y-Mg-Cr-Zr-Ti-Fe-Si alloy was performed in this study. The fine Al₈Cu₄Y, needle-shaped Al₁₁Cu₂Y₂Si₂, compact primary (Al,Ti)₈₄Cu_6.4Y_4.3Cr_5.3 and Q (Al₈Cu₂Mg₈Si₆) phases were identified in the as-cast microstructure. Near-spherical coarse Al₃(Zr,Y) and fine Al₄₅Cr₇ precipitates with a size of 60 nm and 10 nm were formed after 3 h of solution treatment at 580 °C. S′(Al₂CuMg) precipitates with an average diameter of 140 nm, thickness of 6 nm and calculated volume fraction of 0.033 strengthened 36 HV during aging at 210 °C for 3 h. Three-dimensional hot processing maps demonstrated an excellent and stable deformation behavior at 440–540 °C and strain rates of 0.01–10 s⁻¹. The rolled sheets had a good combination of yield strength (313 MPa) and plasticity (10.8%) in the recrystallized at 580 °C, with water quenched and aged at 210 °C for a 3 h state. The main calculated effect in the yield strength was contributed by Al₄₅Cr₇ precipitates. Full article

AA7075 is considered a ‘non-weldable’ alloy using fusion welding methods. In this study, laser welding is applied in pulse mode to weld 2 mm thick AA7075 aluminum alloy plates using different fillers. The aim is to identify the influence of welding parameters and fillers on solidification cracking susceptibility during laser welding using the circular patch test (CPT). X-ray radiography was used to detect and measure cracks in the CPT samples. Furthermore, the effects of the laser welding process and chemical composition of fillers on the accumulated crack length (CCL), microstructure, and mechanical properties were investigated. Moreover, the mechanical behavior and local deformation of the fusion zone (FZ) were investigated using micro-flat tensile tests with digital image correlation. The mechanical properties of the FZ were correlated with the CCL as well as with the microstructure of the FZ, which was investigated experimentally. The results show that the chemical composition of fillers and welding speed affect the CCL of solidification cracks. Changes in the microstructure were observed within the fusion zone, and the structure became uniform and finer with the formation of Mg₂Si and magnesium-rich, copper, and zinc (η-phase) particles. Full article

With the development of a free trade port on Hainan Island, the construction of tourist roads around the island is currently underway. However, the weather conditions on Hainan Island, which include strong typhoons and rainstorms, pose challenges for the construction of highway-cutting slopes on the coastal weak sandy terraces. These slopes are susceptible to sand loss and erosion from rainfall. To address this issue, MICP green spray irrigation solidification technology is used to strengthen the sandy cutting, and pore water pressure monitoring is carried out on the slope model during MICP solidification and rainfall scour. Combined with the model pore water pressure and flow slip failure pattern, a dynamic analysis was conducted. The results show that MICP sprinkler irrigation technology can solidify the surface of the slope model in a short time, and after three sets of rotation reinforcement, the model achieved a cementation depth of 4 cm, with a well-reinforced surface and closely connected sand samples. Under the erosion effect of simulated rainfall intensity, the sand loss of the slope was weakened, without damage to the sand binding, and the integrity was enhanced. The cementation between the sand grains facilitated the conversion of most of the rainfall into runoff. However, despite these efforts, the slope eventually slid after 150 s. During the sliding process, the leading edge of the slope model lost sand and became unloaded, and the failure mode was graded a creep slip failure. Finally, the slope was divided into several blocks due to the continuous expansion of cracks following the slope failure. The erosion stability of the sandy slope under heavy rains was optimized and the sand loss was prevented effectively. This study proposes a new method of MICP remediation techniques that serve as a new test basis for the practical application of MICP technology in engineering projects. Full article

High entropy CoCrFeNiCu_x alloys with a Cu molar ratio of x ≈ 0, 0.5, 1, 1.5 and 2 were arc welded. Solidification cracking occurred in the fusion zones of alloys with x ≈ 0.5, 1 and 1.5. Cu-rich material was observed around cracks, increasing in quantity with increasing Cu content. Liquation cracking occurred in the partially melted zone next to the fusion zone, and it propagated into the fusion zone as solidification cracking. A recently proposed index for the susceptibility to solidification cracking was tried, i.e., |dT/d(f_S)^1/2| near (f_S)^1/2 = 1, where T is temperature and f_S the solid fraction. The index was higher in alloys with x ≈ 0.5, 1.0 and 1.5, consistent with the solidification cracking observed. Full article

A sequentially coupled multi-phase thermo-mechanical model for laser powder bed fusion (LPBF) of Al-based composites reinforced by 1 wt.% random TiB₂ micron particles was established. Due to the remarkable difference in thermophysical properties, the maximum thermal stress was predicted at the TiB₂/Al matrix interface and formed at the liquid–solid transition stage. Meanwhile, complicated evolution curves of temperature, strain, and strain rate were predicted with the laser moving time during the solidification stage. To evaluate the interface cracking susceptibilities of micron-TiB₂/AlSi10Mg composites, the flow stress of the matrix was calculated, instead of ultimate tensile strength, based on the physical constitutive relationship. From the comparison between the calculated flow stress and the simulated Von Mise equivalent stress, it was found that an increase in TiB₂ particle size was inclined to induce a larger interfacial stress than the calculated flow stress, therefore increasing the interfacial crack tendency, which was also effectively verified by the experimental results. Full article

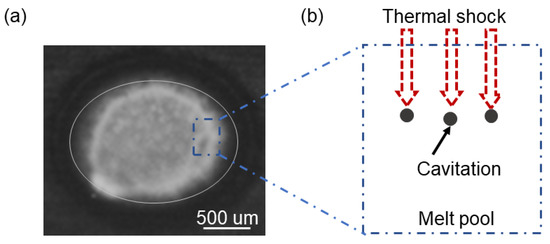

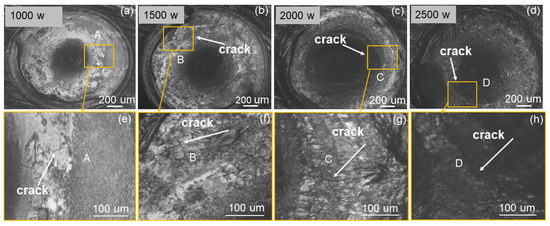

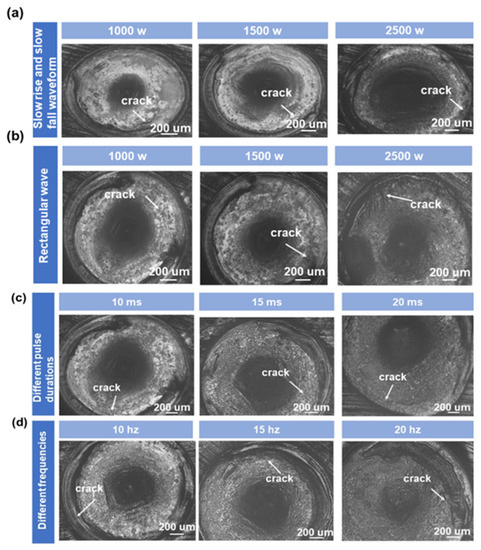

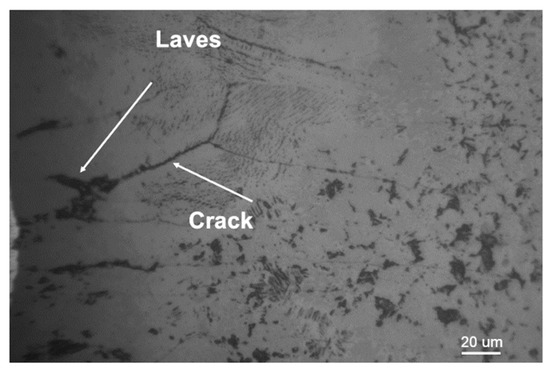

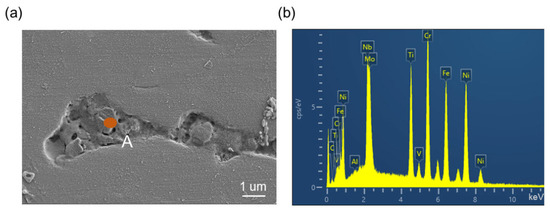

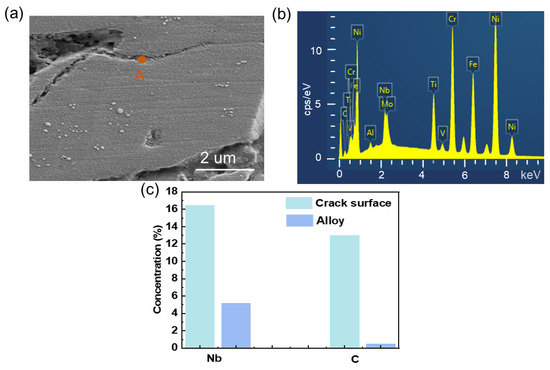

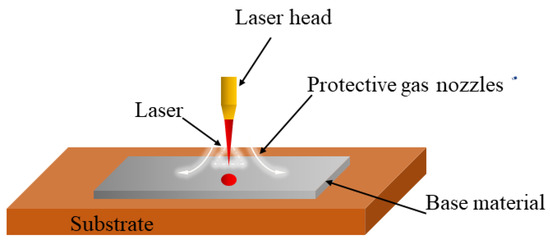

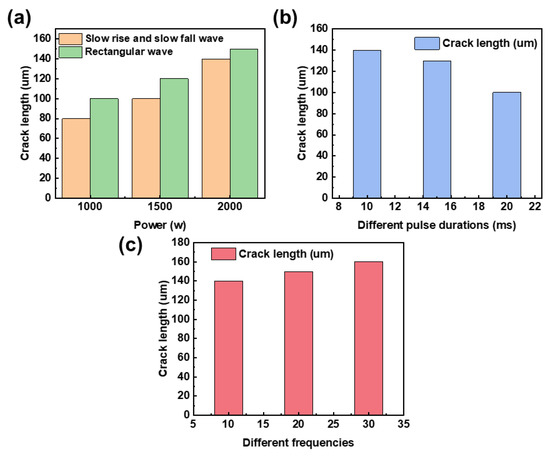

This paper investigates the change in solidification microcrack susceptibility under the influence of thermal-shock-induced effects for pulsed laser spot welding molten pools with different waveforms, powers, frequencies, and pulse widths. During the welding process, the temperature of the molten pool under the effect of thermal shock changes sharply, triggering pressure waves, creating cavities in the molten pool paste area, and forming crack sources during solidification. The microstructure near the cracks was analyzed using a SEM (scanning electron microscope) and EDS (electronic differential system), and it was found that bias precipitation occurred during the rapid solidification of the melt pool, and a large amount of Nb elements were enriched in the interdendritic and grain boundaries, which eventually formed a liquid film with a low melting point, known as a Laves phase. When cavities appear in the liquid film, the chance of crack source formation is further increased. Using a slow rise and slow fall waveform is good for reducing cracks; reducing the peak laser power to 1000 w is good for reducing cracks in the solder joint; increasing the pulse width to 20 ms reduces the degree of crack damage; reducing the pulse frequency to 10 hz reduces the degree of crack damage. Full article

The hot cracking behaviors of Mg-5Zn-xEr (x = 0.83, 1.25, 2.5, 5 wt.%) alloys are investigated by optimized hot cracking experimental apparatus, optical microscope, and scanning electron microscope, such as contraction behaviors, feeding behaviors, and permeability characteristics. It is found that the solid phase fraction at hot crack initiation and within the freezing range both increased with increasing Er contents up to 2.5 wt.% and then decreased at 5 wt.% Er content. The Mg-5Zn-5Er alloy exhibits the lowest solid phase fraction (87.4%) and a reduced freezing range (74.2 °C), which leads to more effective liquid feeding in the latter stages of solidification. Combined with the grain size, the permeability of the mushy zone, and fracture morphology, the overall permeability is optimal in the Mg-5Zn-5Er alloy, which is beneficial for feeding the cavities and micro-pores. Meanwhile, a large amount of W phase precipitated by the eutectic reaction (L→α-Mg + W phase), which facilitates healing of the incurred cracking. Conversely, the Mg-5Zn-2.5Er alloy shows inferior feeding ability due to the lowest solid phase fraction (98.3%), wide freezing range (199.5 °C), and lowest permeability. Therefore, the Mg-5Zn-2.5Er alloy exhibits maximal hot cracking susceptibility, and the Mg-5Zn-5Er alloy exhibits minimal hot cracking susceptibility. This work provides guidance for improving the hot cracking resistance of cast Mg-Zn-Er alloy and enables an understanding of the hot cracking behaviors of Mg-Zn-RE alloys. Full article
