Article

Evolution Characteristics of Complex Fund Network and Fund Strategy Identification

1
School of Business Administration, Hunan University, Changsha 410082, China
2
School of Business, State University of New York at Oswego, Oswego, NY 13126, USA
3
School of Economics and Management, Nanjing University of Science and Technology, Nanjing 210094, China
*
Author to whom correspondence should be addressed.
Entropy 2015, 17(12), 8073-8088; https://doi.org/10.3390/e17127861
Submission received: 29 October 2015 / Revised: 30 November 2015 / Accepted: 1 December 2015 / Published: 8 December 2015
(This article belongs to the Special Issue Computational Complexity)

Abstract

:
Earlier investment practices show that there lies a discrepancy between the actual fund strategy and stated fund strategy. Using a minimum spanning tree (MST) and planar maximally-filtered graph (PMFG), we build a network of open-ended funds in China’s market and investigate the evolution characteristics of the networks over multiple time periods and timescales. The evolution characteristics, especially the locations of clustering central nodes, show that the actual strategy of the open-ended funds in China’s market significantly differs from the original stated strategy. When the investment horizon and timescale extend, the funds approach an identical actual strategy. This work introduces a novel network-based quantitative method to help investors identify the actual strategy of open-ended funds.

1. Introduction

Investment funds provide investors many advantages, such as professional wealth management and more diversified portfolios. They are growing as a preferable option in today’s investment practices. To attract more investors, many fund companies spend tremendous efforts introducing their investment strategies to investors. These strategies, commonly called the stated strategy, are publicly available to investors. Many fund managers and companies, however, often change their stated strategies, aiming to earn higher profits. The actual strategies are not known by investors. Thus, the interests of the investors are hard to protect in practice. How to get efficient and reliable information about funds’ actual strategies has become a big challenge for researchers and practitioners.
As one well knows, the financial trading market is a complex system. To explore the nature of its components, a recent study has focused on financial networks [1]. Most financial networks in the literature are built on the correlation coefficient matrix R of asset returns. Nodes are used to represent assets or trade agents, while edges linking nodes denote their relationship or closeness. Current studies mostly concentrate on the topological properties of financial networks, but only a few research works explore the practical applications of financial networks [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18]. For example, Mantegna et al. [2] relate the minimum spanning tree of a stock and its hierarchical tree (HT) to a taxonomy application of assets. Onnela et al. [3,4] examine the dynamics of the minimum spanning tree (MST) and its application to asset portfolio. They find that the optimal Markowitz portfolio lies on the outskirts of the MST. Brida et al. [5] employ the MST and its HT to analyze stock returns and trading volume. Gilmore et al. [6] use the MST obtained from European Union stock market indexes to investigate the property of equity market. Lee et al. [8] discuss the properties of the Korean stock market through MST on high frequency returns.
In addition, timescale is found as a key determinant impacting the property of financial networks in the study of financial network [11]. Another strand of literature concentrates on the improvement of financial network accuracy, because there always exists much noise in the financial trade. This often leads to the bias of a financial network. To eliminate the influence from noise, researchers adopt some filtering methods, among which random matrix theory (RMT) [9,15,17] and planar maximally-filtered graphs [16,17,18] are two efficient tools. Garas et al. [9] study the Athens stock market by MST and RMT and discover that the Athens stock market is related to different economic sectors, including financial services, commerce, transport, manufacturing and constructions. Tumminello et al. apply planar maximally-filtered graph (PMFG) to explore the influence of timescale on the top 300 biggest stock portfolios in the New York Stock Exchange during 2001–2003 and find that PMFG is able to obtain a large amount of market effective information. They also show that the smaller the timescale, the more robust the PMFGs appear [18]. Further, Coronnello et al. [17] employ a variety of methods, including RMT, single linkage cluster analysis (SLCA), average linkage cluster analysis (ALSA), MST and PMFG to describe how timescale impacts stock industrial clustering.
The relevant network technologies used to analyze financial market have received much attention in the recent literature. However, few studies deeply touch the fields of fund networks and fund strategy identification. Miceli et al. [19,20] apply MST to examine the fund strategy. Although their study stays in a static state for a certain time period, it sheds light on the fields using network studies’ fund evolution and its strategy. Motivated by the previous contribution, we build up the correlation-based efficient fund network, such as MST and PMFG, to eliminate most trading noise and further help investors identify the actual investment strategy that the fund adopted. By studying the network evolution as time period lengthens and as the timescale expands, we also provide a quantitative identification for the dynamic fund’s actual strategy.
The remainder of this article is organized as follows: Section 2 discusses the sample of the open-ended fund in China’s market and our empirical methodology for the fund network. The results are presented and discussed in Section 3. Section 4 concludes.

2. Data and Methodology

2.1. Fund Data

The funds in China’s financial market are generally classified in the following categories: (1) open-ended and closed-ended funds based on whether funds can be added and redeemed; (2) corporate and contract funds according to the organization form; and (3) stock, bond, monetary and hybrid funds according to the investment target. These rough categories, however, only help investors grasp basic information, such as fund style, risk preference, etc. They lack the detailed investment strategy.
In order to deeply probe the fund strategy, we retrieved 94 actively-traded open-ended contract funds from the CSMAR database. The sample period ranges from 2005 to 2012. More details of the 94 funds are listed in Appendix Table A1. Before analyzing the fund strategy and its change, we first obtain the strategy published by Tencent Finance website and Sohu Finance website as the sample fund’s original stated strategy. The 94 open-ended contract funds are classified into five types of strategies: partial stock fund (56 funds), partial bond fund (21 funds), stock-bond balanced fund (12 funds), bond fund (3 funds) and principal guaranteed fund (2 funds). For the sake of clarity, the stated strategies are labeled by different colors in Appendix Table A1. Hereafter, the funds in our empirical analysis refer to the open-ended funds.
The following assumptions are made to obtain the identification from a fund network: funds with a same strategy will earn approximate returns over an identical investment horizon to a great extent. Hence, in a correlation-based network on funds’ return series, these funds become close neighbors. Observing the clustering of the fund network, we can identify the fund’s actual strategy. Compared to the original stated strategy, we further detect the discrepancy between a fund’s stated and its actual strategy.

2.2. Methodology

2.2.1. Selection of the Significant Correlation Coefficient

In a fund network, nodes are funds. The edges that link any two nodes are produced by their correlation coefficients. To remove most trading noise, our empirical networks only include those edges with significant correlation. Others are viewed as spuriously correlated edges and are excluded from the empirical fund networks. The financial information commonly can be expressed by the return data of the assets. In most financial analyses, the logarithm return is used to analyze the feature of trading and investment. Hence, we calculate the logarithm return of the fund net value and then get the correlation coefficient matrix R. The logarithm return r Δ t ( t ) is the percentage change of the fund daily net value Z at time t over timescale Δ t :
r Δ t ( t ) = ln Z ( t + Δ t ) ln Z ( t )
Based on Equation (1), we further gain the Pearson correlation coefficient ρ i j Δ t between fund i and j as follows:
ρ i j Δ t = r i Δ t r j Δ t r i Δ t r j Δ t ( ( r i Δ t ) 2 r i Δ t 2 ) ( ( r j Δ t ) 2 r j Δ t 2 )
where represents the expectation operator. The fund network is constructed on the correlation coefficient matrix R. The value of ρ i j Δ t ranges from −1 to 1. ρ i j Δ t = 1 means a completely positive correlation between nodes i and j and the corresponding funds have the same investment strategy. ρ i j Δ t = −1 means a completely negative correlation and the corresponding funds have a contrary investment strategy. ρ i j Δ t = 0 implies that there is no correlation between two funds and their strategies are independent. Therefore, from the characteristics of a correlation-based fund network obtained from R, we can deduce the fund’s actual strategy.
Next, we employ the following t-test under a confidence level of 1 − α = 0.95 to test the significance of correlation coefficients. If t > t 0.05 / 2 , we reject null hypothesis H 0 and view ρ i j as a significant coefficient, and ρ i j is viewed as an insignificant coefficient otherwise. Here, the matrix R only includes significant coefficients to construct a fund network after most of the trading noise is eliminated. The work in [11] adopts a similar t-test to identify significant coefficients. The expression of the t-test for a correlation coefficient is as follows:
H 0 : ρ = 0
H 1 : ρ 0
t = ρ i j n 2 1 ρ i j 2 t ( n 2 )
where n represents the number of observations. Hereafter, our empirical networks are constructed on the significant correlation coefficient matrix R e .

2.2.2. Network of MST and PMFG

The MST method is a commonly-accepted method that can efficiently filter the noise in the fund networks and extract the valuable information. It presently is widely used in a variety of social behavior networks. MST is the shortest distance tree of its corresponding network. It shows most characteristics of a network in the simplest form. To obtain the MST of a fund network, we first transform correlation coefficients to a distance framework. Using the transformation d i j = 2 ( 1 - ρ i j ) , we produce an N × N distance matrix D on which the MST is built. As one well knows, a network probably contains several different MST. This could cause error when analyzing certain fund features through a certain MST. To avoid the possible bias from multiple MSTs, we increase the precision of ρ i j up to a four digit decimal. The numerical simulations indicate that this treatment ensures a unique MST corresponding to each network in our analysis.
Since an MST only has the necessary edges that connect the shortest distance, it filters a considerable amount of the valid information of a corresponding network. A PMFG [16] method is used to excavate the information underlying a fund network. The PMFG contains 3N-6 edges, but only N-1 edges on an MST. Therefore, the PMFG preserves more useful information that might be missed by an MST. Using both PMFG and MST helps us better grasp the characteristics of a fund network. PMFG is mainly used as a supplementary method to overcome the non-unique shortage of MST.
In addition, we add a hierarchical tree (HT) [2,21] as a supplement to an MST. This combination accurately detects the correlation and taxonomy of funds. Figure 1 illustrates the advantage when combing an MST and its HT. For non-unique MSTs, their HT gives a unique expression to determine the potential relationship. Correspondingly, when the nodes on an HT exhibit identical distances, its MST can precisely tell whether or not the nodes are identical. For example, the HT in Figure 1 indicates that nodes c and e have the equal distance 1 to node a, but through the corresponding MSTs, we find that only node e is closer to node a compared to the others. The distance d i j < on the HT of Figure 1, a subdominant ultra-metric distance, represents the maximum value of the Euclidean distance linking the shortest route between nodes i and j [2,21].
Figure 1. Illustration of two minimum spanning trees (MSTs) and their hierarchical tree (HT).
Figure 1. Illustration of two minimum spanning trees (MSTs) and their hierarchical tree (HT).
Entropy 17 07861 g001

2.2.3. Characteristic Indicators of a Network

The correlation of nodes located on a fund network indicates the funds’ relationship and their actual strategy. We first compute the indicator of correlation coefficient mean ρ to limn the total correlation of MST and PMFG. The bigger the value of ρ , the more correlated the nodes in the network. Funds shown by nodes in the network with a high ρ have a more similar actual strategy. Equations (6) and (7) are used to compute ρ of MST and PMFG, respectively:
ρ 1 ( Δ t , T ) = 1 N 1 ρ i j R e , T Δ t ρ i j
ρ 2 ( Δ t , T ) = 1 3 N 6 ρ i j R e , T Δ t ρ i j
where ρ 1 ( Δ t , T ) and ρ 2 ( Δ t , T ) are the mean correlation coefficients of MST and PMFG on a timescale Δ t over a period T, respectively, N is the edge number of the fund network and R e , T Δ t is the matrix built by significant correlation coefficients. Next, to reflect the network stability, we calculate the correlation coefficient variance r. The correlation coefficient variances for MST and PMFG are respectively r 1 and r 2 , shown by Equations (8) and (9). A high variance denotes more diverse fund strategies.
r 1 ( Δ t , T ) = 1 N 1 ρ i j R e , T Δ t [ ρ i j ρ 1 ( Δ t , T ) ] 2
r 2 ( Δ t , T ) = 1 N 1 ρ i j R e , T Δ t [ ρ i j ρ 2 ( Δ t , T ) ] 2
where r 1 ( Δ t , T ) and r 2 ( Δ t , T ) represent the variance of the correlation coefficient of MST and PMFG on a timescale Δ t over a period T, respectively. The normalized tree length (NTL) is used to measure the closeness of the network. Equations (10) and (11) give the computation of NTL for the MST and PMFG, respectively:
L N T L 1 ( Δ t , T ) = 1 N 1 d i j D e , T Δ t d i j
L N T L 2 ( Δ t , T ) = 1 3 N 6 d i j D e , T Δ t d i j
where L N T L 1 ( Δ t , T ) and L N T L 2 ( Δ t , T ) are the normalized tree length of MST and PMFG on a timescale Δ t over a period T, respectively, D e , T Δ t is the distance matrix obtained from R e , T Δ t and d i j is the distance between nodes i and j. A shorter NTL generally denotes that the network has a greater closeness. In this case, the funds represented by network nodes exhibit a more similar strategy.
In addition, we introduce the average path length (APL) as a supplement of identifying the fund’s actual strategy. It is the mean of the edges linking the shortest route between both nodes and calculated as shown in Equation (12):
L A P L = 2 N ( N 1 ) i > j l i j
where l i j is the edge number of the shortest path between nodes i and j. A high APL reflects that a network has a stronger compactness. The funds, therefore, are likely to appear as having a more similar strategy.
Central nodes exhibit the characteristics of nodes on the network. A central node generally links a large number of other nodes and possesses a relatively high degree of network. It is often employed as a representative of nodes surrounding it. Through observing the feature of a central node, one has to get the partial information of its neighboring nodes. We define the central nodes of a network as follows: we rank the node degrees in descending order, as shown, K 1 > K 2 > , ... , > K n , and the nodes that satisfy the condition K i + 1 / K i > 0.75 are defined as central nodes of the network.

3. Results and Discussion

3.1. Evolution Characteristics and Strategy Identification over a Time Period

Identifying the dynamic evolution of an open-ended fund network helps investors learn the actual change of fund investment strategy. In this section, we use a fixed timescale Δ t = 1 day to calculate R e , T Δ t over four different sample periods: 2005–2009, 2005–2010, 2005–2011 and 2005–2012. We then construct MST from R e , T Δ t to briefly exhibit the characteristics of the fund network.
The details of 94 open-ended contract funds, including their original stated strategies, are presented in Appendix Table A1. Each color corresponds to a fund’s stated strategy, given in Appendix Table A1, to conveniently locate it in the network. We note that there are five different stated strategies in the sample: partial stock fund (red, 56 funds), partial bond fund (green, 21 funds), stock-bond balanced fund (blue, 12 funds), bond fund (yellow, three funds) and principal guaranteed fund (cyan, two funds). Figure 2, Figure 3, Figure 4 and Figure 5 show the MST of 94 funds for four time periods, respectively. We find that: (1) each group on the MST includes the funds with different stated strategies; some funds show different actual strategies from their original stated strategies; (2) each group includes a central node; others surrounding it exhibit a similar actual strategy; (3) as the time period lengthens, the actual strategy greatly changes, e.g., from three types of actual strategies for the period of 2005–2009 to two types for period of 2005–2012.

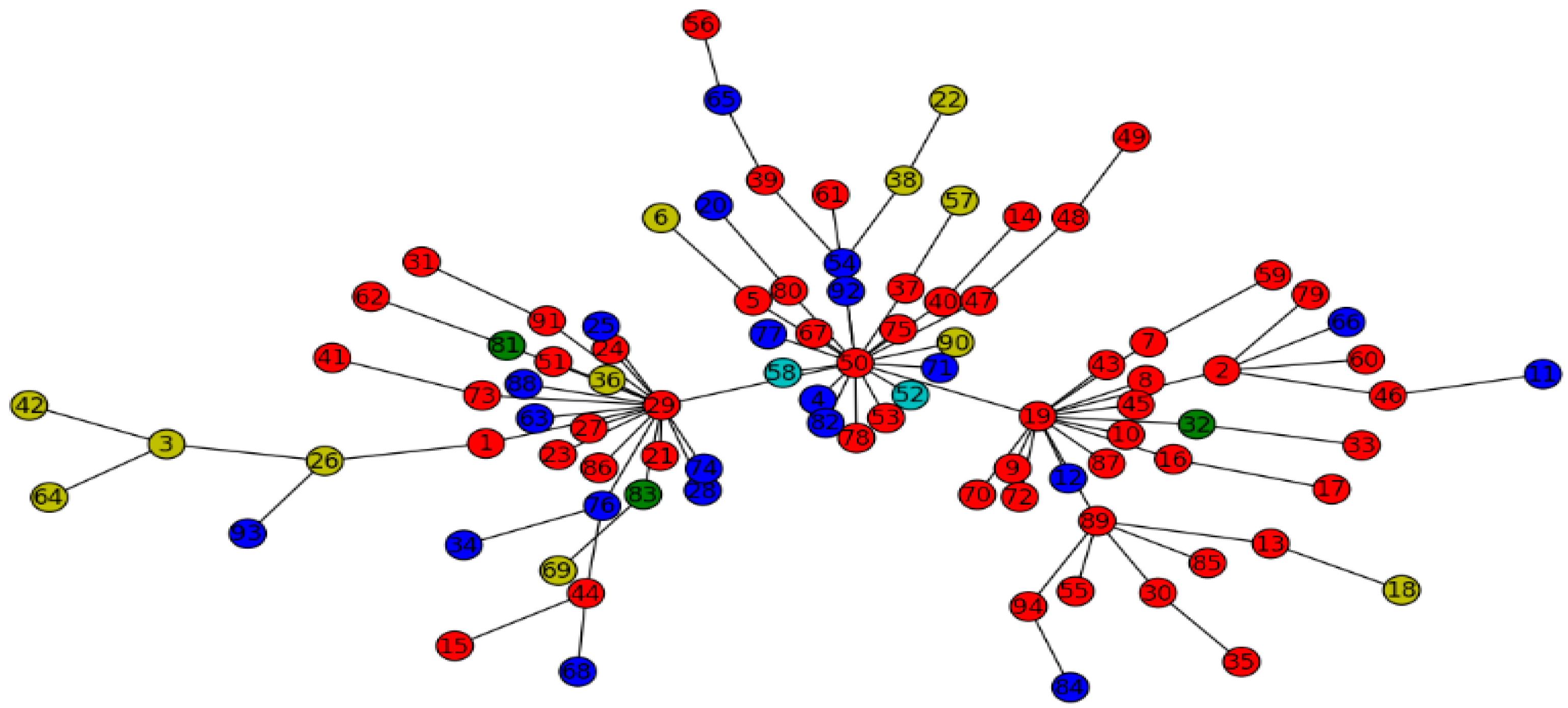

Figure 2. MST of 94 open-ended contract funds over the time period of 2005–2009.
Figure 2. MST of 94 open-ended contract funds over the time period of 2005–2009.
Entropy 17 07861 g002
Figure 3. MST of 94 open-ended contract funds over the time period of 2005–2010.
Figure 3. MST of 94 open-ended contract funds over the time period of 2005–2010.
Entropy 17 07861 g003
Figure 4. MST of 94 open-ended contract funds over the time period of 2005–2011.
Figure 4. MST of 94 open-ended contract funds over the time period of 2005–2011.
Entropy 17 07861 g004

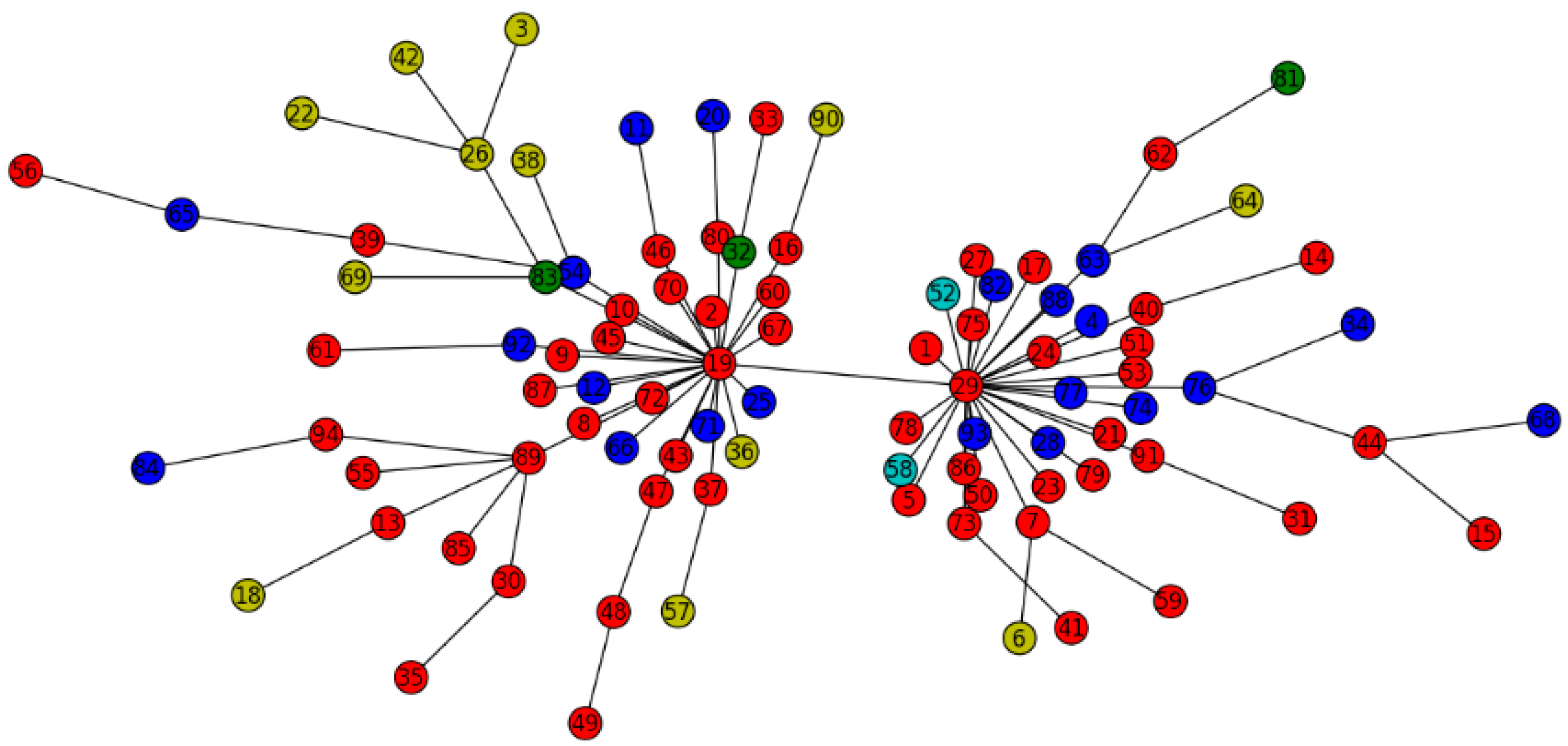

Figure 5. MST of 94 open-ended contract funds over the time period of 2005–2012.
Figure 5. MST of 94 open-ended contract funds over the time period of 2005–2012.
Entropy 17 07861 g005
To confirm the results above, we apply PMFG again to depict the dynamic characteristics of the fund network over the same four time periods. Figure 6 and Figure 7 illustrate the PMFG in the periods of 2005–2009 and 2005–2012, respectively. Figure 6 shows an approximate group with the MST in Figure 2. This evidence partially supports the results of Figure 2. There also exist different groups between Figure 6 and Figure 7, indicating that the strategies of sample funds change as the time period lengthens.

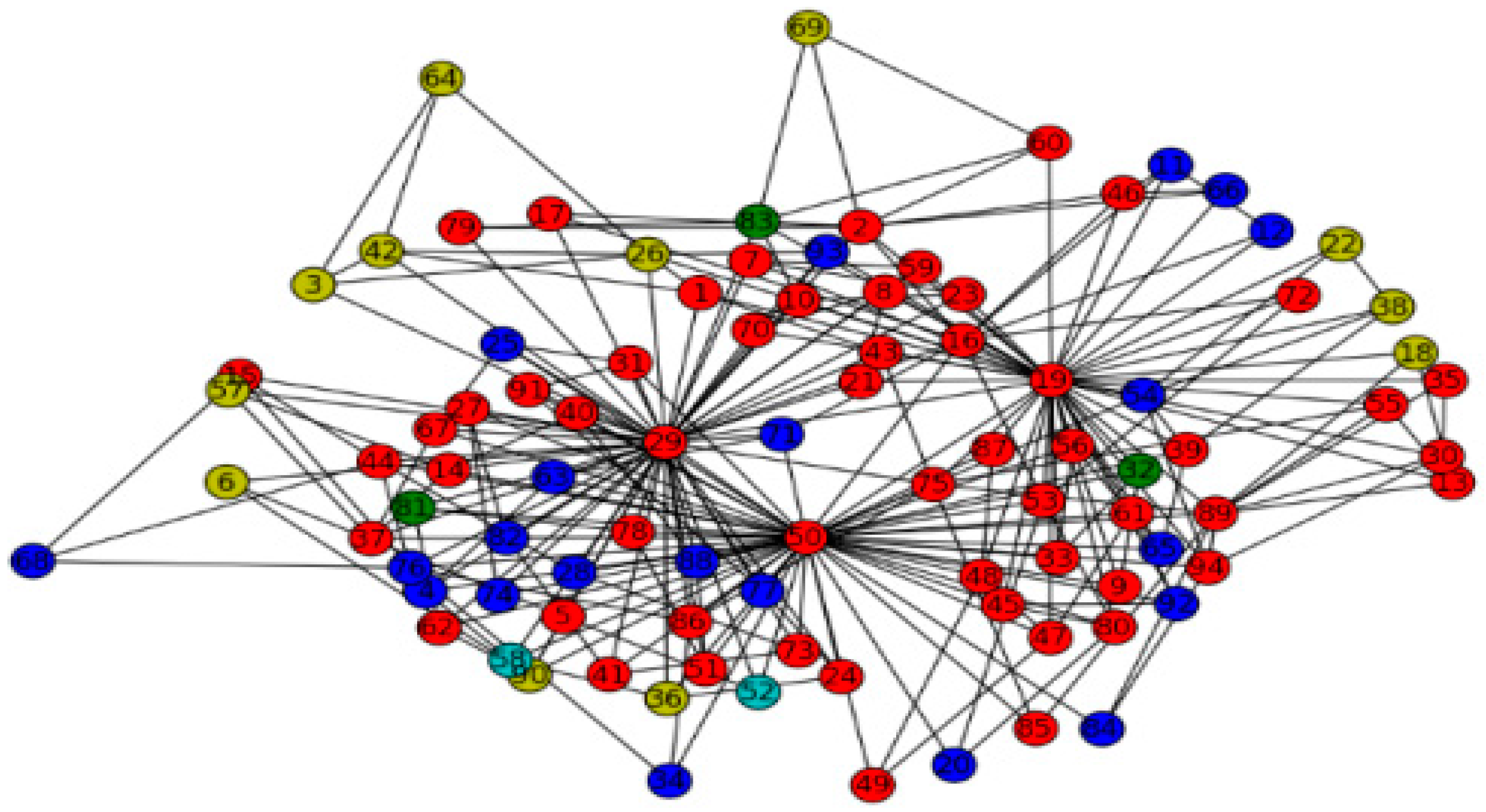

Figure 6. Planar maximally-filtered graph (PMFG) of 94 open-ended contract funds over the time period of 2005–2009.
Figure 6. Planar maximally-filtered graph (PMFG) of 94 open-ended contract funds over the time period of 2005–2009.
Entropy 17 07861 g006

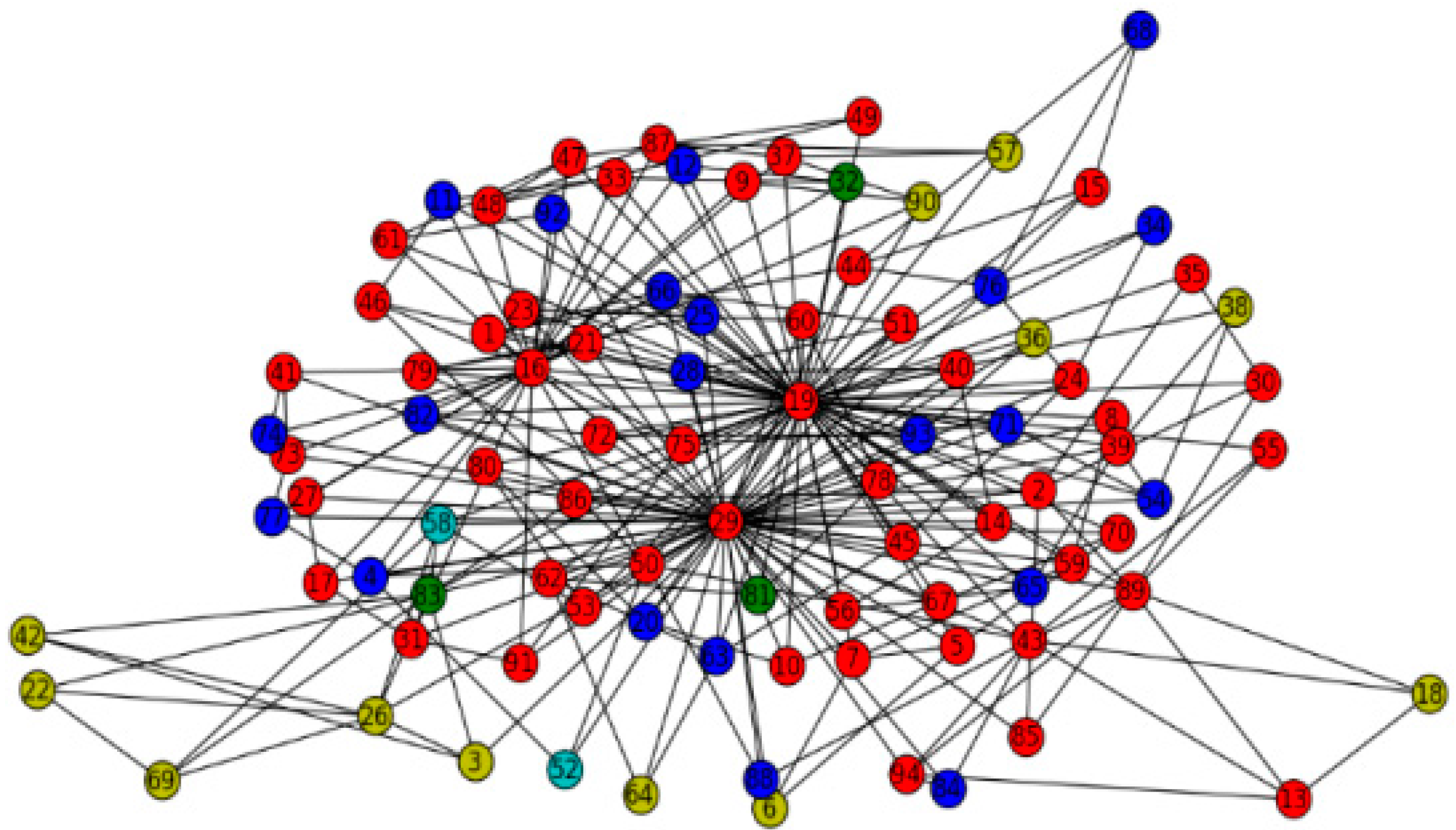

Figure 7. PMFG of 94 open-ended contract funds over the time period of 2005–2012.
Figure 7. PMFG of 94 open-ended contract funds over the time period of 2005–2012.
Entropy 17 07861 g007
Moreover, by comparing the characteristic indicators of MST with PMFG, like ρ , r , L N T L , L A P L , degree and central node, we further study the evolution of the fund network and the fund strategy as the time period changes. Table 1 and Table 2 show that as the time period lengthens: (1) the correlation of the fund network gradually increases, shown by the increasing ρ , and the fund network trends to be more stable, shown by the decreasing r ; (2) the degree of closeness of the fund network also gradually increases, shown by the decreasing L N T L and L A P L ; and (3) the central node of the fund network exhibits unstable behavior, shown by the changed three top central nodes, e.g., the different K i ( i = 1 , 2 , 3 ) and K i ( i = 1 , 2 , 3 ) . These results suggest that the funds’ actual strategies differ from their original stated strategies in investment practice and that as the time period lengthens, the closer network construction shows that the funds trend to a more identical actual strategy.
Table 1. The characteristics of the MST over four different time periods.
Table 1. The characteristics of the MST over four different time periods.
Time Period ρ 1 r 1 L N T L 1 L A P L 1 K 1 K 2 K 3
2005–20090.56420.03780.90254.010520(50)19(29)15(19)
2005–20100.57180.03470.89643.881323(29)20(50)13(19)
2005–20110.57840.03260.89163.924323(29)17(50)16(19)
2005–20120.57750.03230.89403.470630(29)27(19)6(89)
Note: The number, in the columns of Ki and in the parentheses, denotes the corresponding fund code of a central node on networks, and the outside number is its degree.
Table 2. The characteristics of PMFG over four different time periods.
Table 2. The characteristics of PMFG over four different time periods.
Time period ρ 2 r 2 L N T L 2 L A P L 2 K 1 K 2 K 3
2005–20090.48620.04160.98792.171657(50)55(29)47(19)
2005–20100.49630.03860.97962.164560(29)54(50)46(19)
2005–20110.50670.03630.97032.166160(29)49(50)47(19)
2005–20120.50390.03510.97502.108069(19)66(29)26(16)
Note: The number, in the columns of Ki and in the parentheses, denotes the corresponding fund code of a central node on networks, and the outside number is its degree.
Figure 8 corresponds to Table 1 and Table 2. In Figure 8, two curves of MST and PMFG make a parallel movement over the period of 2009–2012; for example, the identical increasing of ρ in Figure 8a, the identical decreasing of r , L N T L and L A P L in Figure 8b–d. This exhibits that both networks have identical evolution characteristics. Figure 8e shows that the central nodes of K i ( i = 1 , 2 , 3 ) and K i ( i = 1 , 2 , 3 ) on MST and PMFG exhibit a similar change as the time period lengthens. This hints that the actual strategies of funds, represented by their central nodes, continue to adjust during the whole investment horizon.

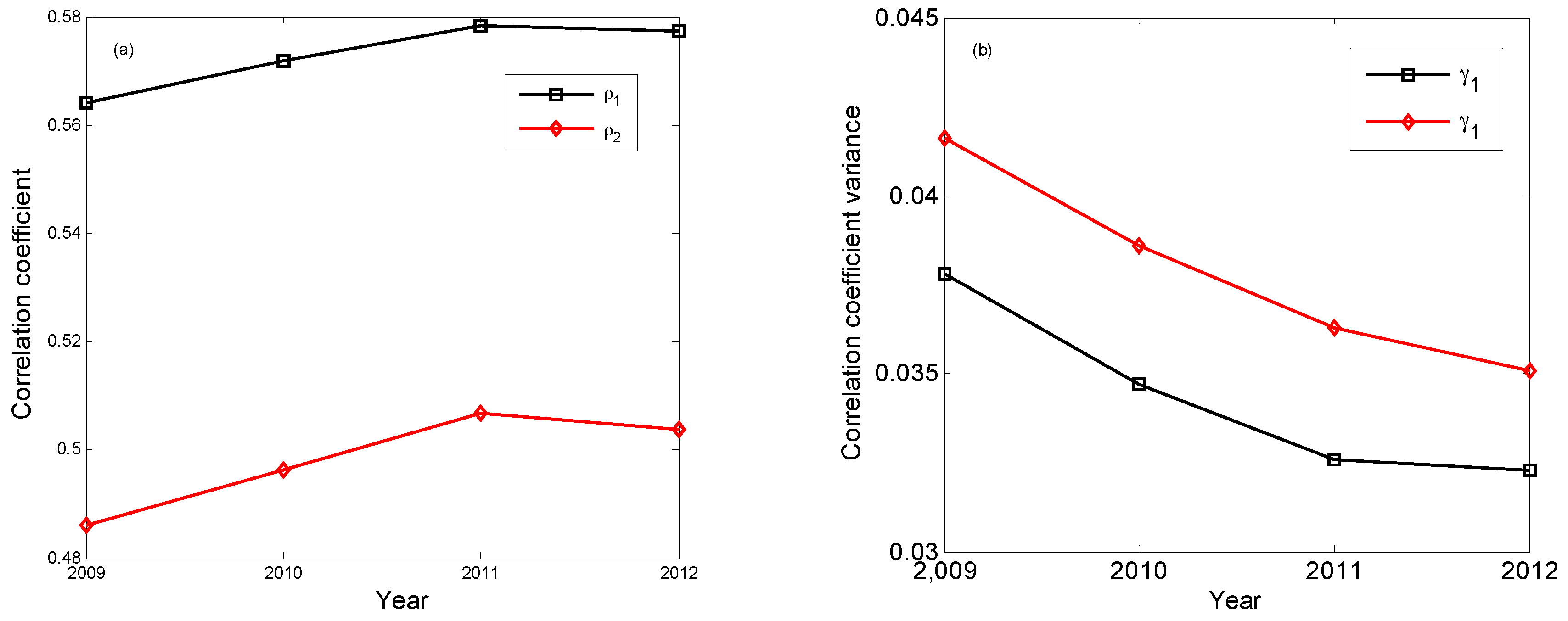

Figure 8. Comparison of the characteristic indicators of MST with PMFG over 2009–2012. (a) Evolution of correlation coefficient; (b) Evolution of correlation coefficient variance; (c) Evolution of normalized tree length; (d) Evolution of average path length; (e) Evolution of degree of central node.
Figure 8. Comparison of the characteristic indicators of MST with PMFG over 2009–2012. (a) Evolution of correlation coefficient; (b) Evolution of correlation coefficient variance; (c) Evolution of normalized tree length; (d) Evolution of average path length; (e) Evolution of degree of central node.
Entropy 17 07861 g008aEntropy 17 07861 g008b
Figure 9 and Figure 10 present the distributions of the node degree of MST and PMFG, respectively, over four different periods. The illustrations of Figure 9 and Figure 10 exhibit that the shapes of the degree distributions over all four periods are quite similar, especially when the degree is greater than five for MST and 10 for PMFG. In all four time periods, the number of nodes with a higher degree falls approximately into the range [1,3] for both MST and PMFG. This indicates that the nodes surround a few central nodes and conduct similar investment strategies with these dominant funds. As the time period lengthens, the nodes approach a certain node, and the funds trend to an identical strategy.
Figure 9. The distributions of the node degree for MST over four time periods.
Figure 9. The distributions of the node degree for MST over four time periods.
Entropy 17 07861 g009

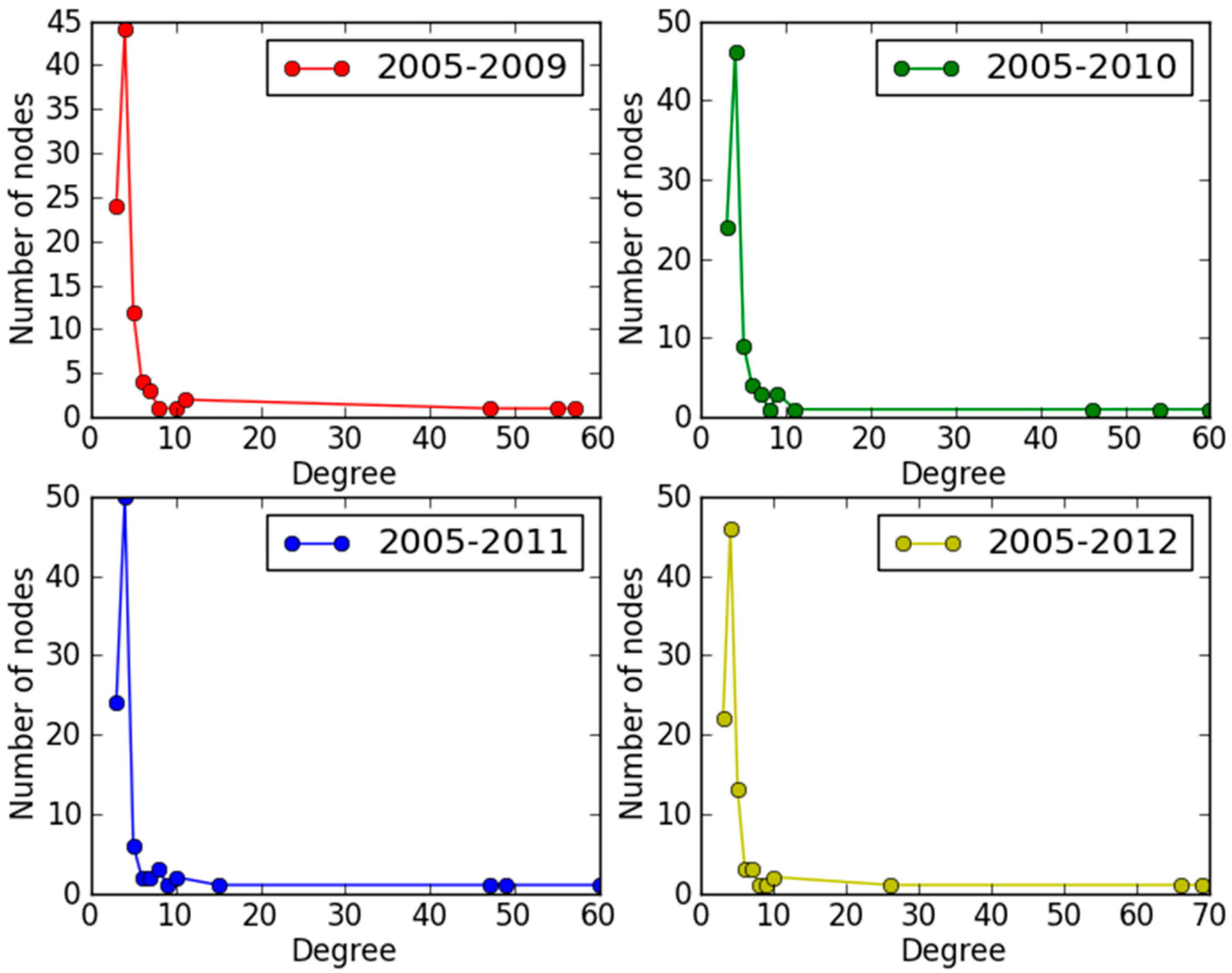

Figure 10. The distributions of the node degree for PMFG over four time periods.
Figure 10. The distributions of the node degree for PMFG over four time periods.
Entropy 17 07861 g010
In the wake of the financial crisis in 2008, China’s security markets were down in the dumps. Some fund managers prefer consistent strategies to defeat a higher risk together. The evidence above perfectly explains the practical phenomena. In the network built on the relevant funds, the correlation of nodes gradually increases; the structure of the whole network becomes more compact.

3.2. Evolution Characteristics and Strategy Identification over Timescales

Most financial networks in recent research are constructed by the correlation coefficient matrix of asset returns. The calculation of return, however, depends on a certain selected timescale. The return series obtained from different timescales have distinct statistical distributions and correlations [11,22,23]. The behavior of returns on different timescales also reflects the fund investment operation over different horizons. This makes timescale a crucial factor impacting the characteristics of a fund network. To investigate such an influence, we construct MST on four typical timescales, e.g., the daily, weekly, monthly and quarterly scale, for the period from 2009–2012.
Table 3 presents the evolution of fund networks over four timescales. As the timescale expands, the networks show an increasing correlation, a declining fluctuation and a decreasing distance. The results are similar to the results presented in Table 1 and Table 2, which indicate similar evolution characteristics between timescale and time period. As the timescale expands, the fund′s actual strategy trends accordingly. In Table 3, we also notice that L A P L 1 has an apparently increasing tendency, which differs from the changes in Table 1 and Table 2, in which L A P L 1 only slightly decreases. This shows that the compactness of the whole network significantly slows down as the timescale expands. The fund network exhibits higher correlation as the timescale expands. The investment strategy of funds gradually trends consistently. When comparing Figure 11 to Figure 12, being two significantly different scales, we find that the network structure varies dramatically over timescales. The central nodes appear to have a clear difference, supporting the evidence that funds continue to adjust their actual strategies.
Table 3. The characteristics of MST over four timescales.
Table 3. The characteristics of MST over four timescales.
Timescale ρ 1 r 1 L N T L 1 L A P L 1
daily0.57750.032250.89403.4706
weekly0.66310.02470.79475.2398
monthly0.80080.01970.59438.8161
quarterly0.99680.00030.02779.3811

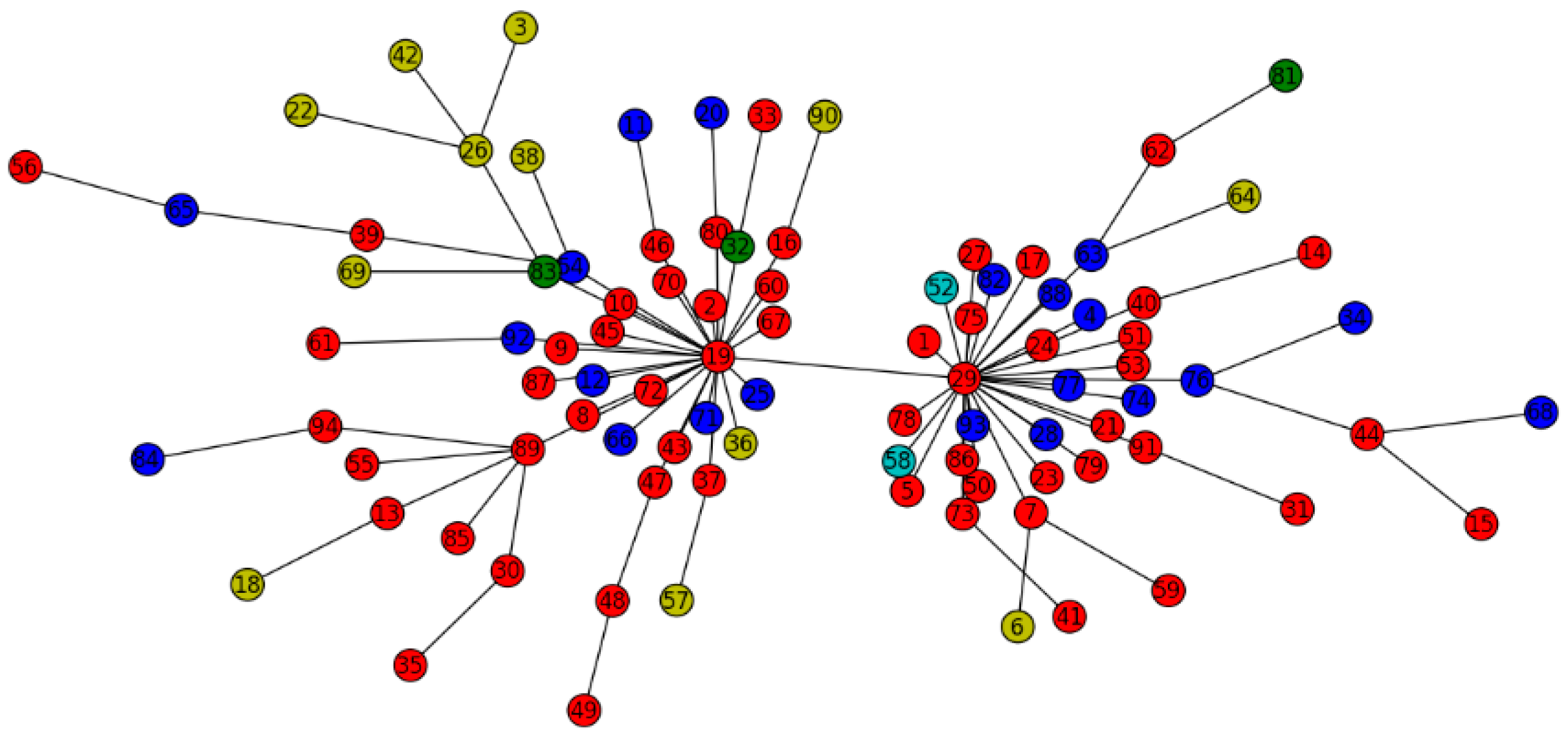

Figure 11. MST of 94 open-ended contract funds on a daily timescale over the time period of 2009–2012.
Figure 11. MST of 94 open-ended contract funds on a daily timescale over the time period of 2009–2012.
Entropy 17 07861 g011
Figure 12. MST of 94 open-ended contract funds on a quarterly timescale over the time period of 2009–2012.
Figure 12. MST of 94 open-ended contract funds on a quarterly timescale over the time period of 2009–2012.
Entropy 17 07861 g012
To clarify the details, we re-construct the HT in Figure 13 on a quarterly timescale, showing correspondence to the MST in Figure 12. According to Figure 13, one sees easily that the scattered nodes in Figure 12 surround a certain central node. Over 92 percent of nodes present very low HT distances. Their values of HT approach nearly zero. This suggests that the fund returns upon a quarterly timescale remain highly correlated. Most funds in this case conduct a consistent investment strategy, and funds do not appear to have a determinant node. The evidence from HT, shown by Figure 13, partially supports the results in Table 3 that the network becomes closer as the timescale increases. The funds, therefore, have a similar investment strategy. Figure 14, from the side of the degree distribution, also verifies the change of the central node indicated by Figure 11 and Figure 12.
According to the evolution features of the networks, investors can identify which funds have obviously different strategies over different timescales. Investors need to properly choose the funds according to their own realistic requirements and investment preference. Additionally, investors are able to combine the funds with different actual strategies as the portfolio to diversify the risk. In addition, utilizing the networks over different timescales, the actual strategies of the funds on different horizons are identified. Investors, therefore, can choose the suitable funds according to their own investment horizons and the preference.

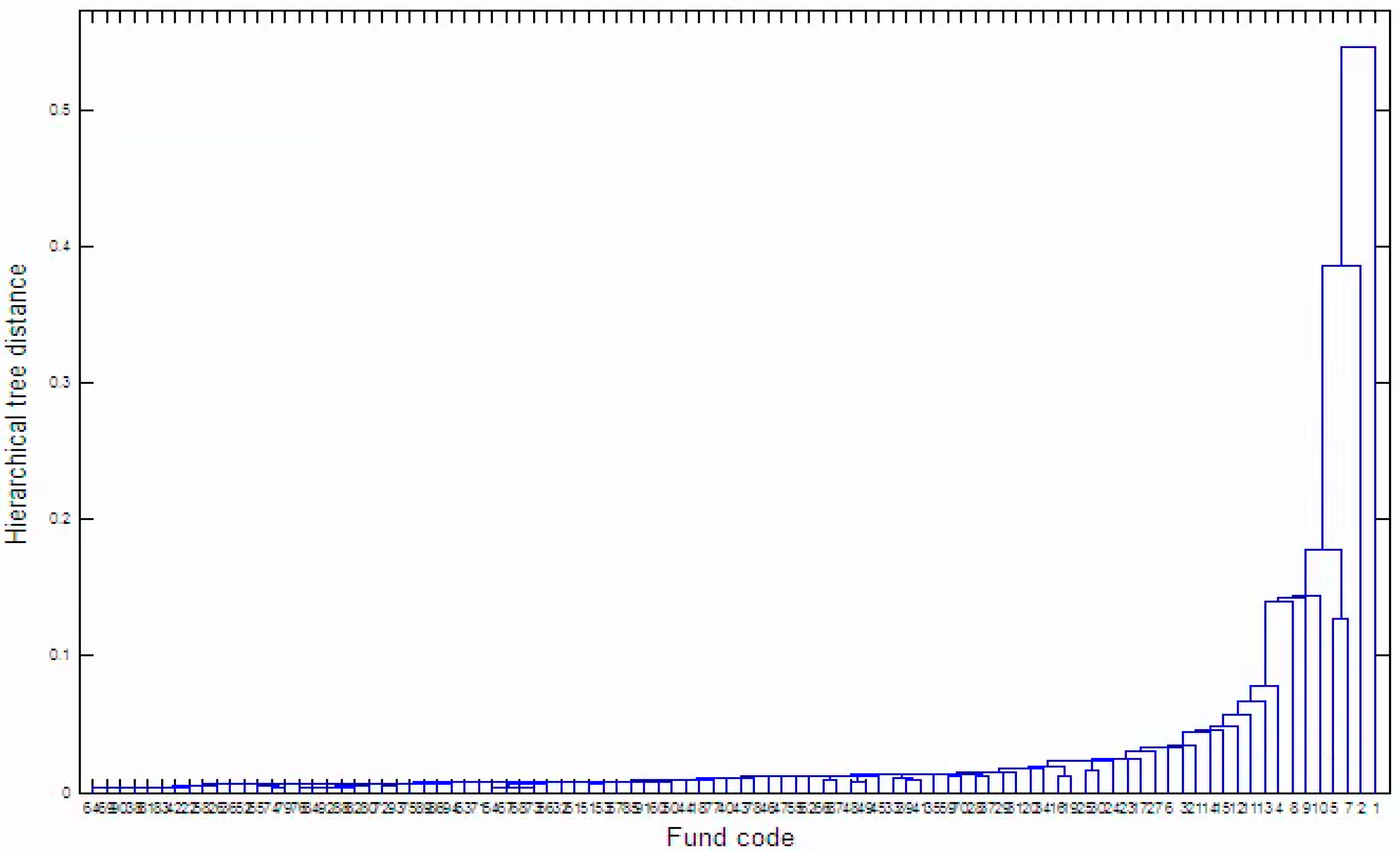

Figure 13. Hierarchical tree on a quarterly scale over the time period 2005–2012.
Figure 13. Hierarchical tree on a quarterly scale over the time period 2005–2012.
Entropy 17 07861 g013
Figure 14. The distribution of the node degree of MST on two timescales over the time period of 2009–2012.
Figure 14. The distribution of the node degree of MST on two timescales over the time period of 2009–2012.
Entropy 17 07861 g014

4. Conclusions

In this study, we examine the evolution of a fund network and a fund’s actual strategy using 94 open-ended funds in China’s finance market. Our results from the evolution of MST and PMFG are two-fold. Firstly, as the time period lengthens, the fund network presents a stronger correlation, a weaker fluctuation and a closer construction. The homogeneity of the network becomes evident. On short time periods, the network exhibits a few prominent central nodes. The fund strategy, indicated by its central node, varies as the time period changes. The fund’s actual strategy significantly differs from its original stated strategy. On a longer investment horizon, the funds trend to a certain identical actual strategy, and the central nodes reduce greatly. Secondly, as the timescale expands, the fund network exhibits a tendency similar to the one of time periods. The network exhibits more correlated, stable and closer construction on a wider timescale similar to the change over time periods. The fund strategy trends more accordingly, and there still exists the evident discrepancy between the actual and stated strategy. However, since there is a discrepancy in redemption and trading between the open-ended funds and the closed-ended funds, it is hard to directly apply the above conclusions to the closed-ended funds.

Acknowledgments

Aid from the National Natural Science Foundation of China under Grant Nos. 71571065, 71272208, 71073049 and 71210107022, the Program for New Century Excellent Talents in University under Grant No. NCET-13-0193 and the Ministry of Education in China of Humanities and Social Science Project under Grant No. 14YJA630077 is gratefully acknowledged. We also greatly thank the technical support from Xin Zhou at Hunan University.

Author Contributions

Honglin Yang shared the idea and developed the methods of this paper. Penglan Fang and Yucan Liu carried out the experiments, data analysis and results discussion. Hong Wan and Hui Lei wrote the paper. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix

Table A1. Ninety four sample open-ended contract funds and their stated strategies.
Table A1. Ninety four sample open-ended contract funds and their stated strategies.
Fund CodeFund Name AbbreviationFund TypeCorresponding Code in Network (Color)Fund CodeFund Name AbbreviationFund TypeCorresponding Code in Network (Color)
000001HXCZpartial stock fund1 (red)162202TDZQpartial stock fund48 (red)
000011HXDPpartial stock fund2 (red)162203TDWDpartial stock fund49 (red)
001001HXZQA/Bbond fund3 (yellow)162204TDJXpartial stock fund50 (red)
002001HXHBstock bond balanced fund4 (blue)180001YHYSpartial stock fund51 (red)
020001GTJYpartial stock fund5 (red)180002YHBBprincipal guaranteed fund52 (cyan)
020002GTZQAbond fund6 (yellow)180003YH88partial stock fund53 (red)
020003GTJXpartial stock fund7 (red)200001CCJHstock bond balanced fund54 (blue)
020005GTJMpartial stock fund8 (red)200002CCJTpartial stock fund55 (red)
040001HACXpartial stock fund9 (red)202001NFWJpartial stock fund56 (red)
040002HAAGpartial stock fund10 (red)202101NFBYbond fund57 (yellow)
040004HABLstock bond balanced fund11 (blue)202202NFBXprincipal guaranteed fund58 (cyan)
050001BSZZstock bond balanced fund12 (blue)206001PHCZpartial stock fund59 (red)
050002BSYFpartial stock fund13 (red)210001JYYXpartial stock fund60 (red)
050004BSJXpartial stock fund14 (red)213001BYHLpartial stock fund61 (red)
070001JSCZpartial stock fund15 (red)217001ZSGPpartial stock fund62 (red)
070002JSZZpartial stock fund16 (red)217002ZSPHstock bond balanced fund63 (blue)
070003JSWJpartial stock fund17 (red)217003ZSZQAbond fund64 (yellow)
070005JSZQbond fund18 (yellow)217005ZSXFstock bond balanced fund65 (blue)
070006JSFWpartial stock fund19 (red)233001DMJCstock bond balanced fund66 (blue)
080001CSCZstock bond balanced fund20 (blue)240001BKXFpartial stock fund67 (red)
090001DCJZpartial stock fund21 (red)240002BKPZstock bond balanced fund68 (blue)
090002DCZQA/Bbond fund22 (yellow)240003BKZQbond fund69 (yellow)
090003DCLCpartial stock fund23 (red)240005HBCLpartial stock fund70 (red)
090004DCJXpartial stock fund24 (red)255010WCWJstock bond balanced fund71 (blue)
100016FGTYstock bond balanced fund25 (blue)257010GLAJPpartial stock fund72 (red)
100018FGTLbond fund26 (yellow)260101JXGPpartial stock fund73 (red)
100020FGTYpartial stock fund27 (red)260103JXDLstock bond balanced fund74 (blue)
110001YJPWstock bond balanced fund28 (blue)260104JSZZpartial stock fund75 (red)
110002YJCLpartial stock fund29 (red)270001GFJFstock bond balanced fund76 (blue)
110003YJ50partial stock fund30 (red)270002GFWJstock bond balanced fund77 (blue)
110005YJJJpartial stock fund31 (red)288001HXJDpartial stock fund78 (red)
121001GTRHpartial bond fund32 (green)290002TXXXpartial stock fund79 (red)
121002GTJQpartial stock fund33 (red)310308SLJXpartial stock fund80 (red)
150103YHYTstock bond balanced fund34 (blue)310318SLPZpartial bond fund81 (green)
151001YHWJpartial stock fund35 (red)320001NAPHstock bond balanced fund82 (blue)
151002YHSYbond fund36 (yellow)340001XQCJpartial bond fund83 (green)
160105NFJPpartial stock fund37 (red)350001TZCFstock bond balanced fund84 (blue)
160602PTZQAbond fund38 (yellow)360001LHHXpartial stock fund85 (red)
160603PTSYpartial stock fund39 (red)375010STYSpartial stock fund86 (red)
160605PHZG50partial stock fund40 (red)398001ZHCZpartial stock fund87 (red)
161601XLCpartial stock fund41 (red)400001DFLstock bond balanced fund88 (blue)
161603RTZQAbond fund42 (yellow)51005050ETFpartial stock fund89 (red)
161604RTSZ100partial stock fund43 (red)510080CSZQbond fund90 (yellow)
161605RTLCpartial stock fund44 (red)510081CSJXpartial stock fund91 (red)
161606RTHYpartial stock fund45 (red)519003HFSYstock bond balanced fund92 (blue)
162102JYZXPpartial stock fund46 (red)519011HFJXstock bond balanced fund93 (blue)
162201TDCZpartial stock fund47 (red)519180WJ180partial stock fund94 (red)
Note: We use the number and color as a tag to label the fund and its stated strategy, respectively. An identical color represents the same fund stated strategy that investors can obtain publicly before investing.

References

  1. Mantegna, R.N.; Stanley, H.E. An Introduction to Econophysics: Correlations and Complexity in Finance; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
  2. Mantegna, R.N. Hierarchical structure in financial markets. Eur. Phys. J. B 1999, 5, 193–197. [Google Scholar] [CrossRef]
  3. Onnela, J.P.; Chakraborti, A.; Kaski, K.; Kertész, J. Dynamic asset trees and portfolio analysis. Eur. Phys. J. B 2002, 30, 285–288. [Google Scholar] [CrossRef]
  4. Onnela, J.P.; Chakraborti, A.; Kaski, K.; Kertész, J.; Kanto, A. Dynamics of market correlations: Taxonomy and portfolio analysis. Phys. Rev. E 2003, 68, 056110. [Google Scholar] [CrossRef] [PubMed]
  5. Brida, J.G.; Risso, W.A. Multidimensional minimal spanning tree: The Dow Jones case. Physica A 2008, 387, 5205–5210. [Google Scholar] [CrossRef]
  6. Gilmore, C.G.; Lucey, B.M.; Boscia, M. An ever-closer union? Examining the evolution of linkages of European equity markets via minimum spanning trees. Physica A 2008, 387, 6319–6329. [Google Scholar] [CrossRef]
  7. Jung, W.S.; Kwon, O.; Wang, F.; Kaizoji, T.; Moon, H.T.; Stanley, H.E. Group dynamics of the Japanese market. Physica A 2008, 387, 537–542. [Google Scholar] [CrossRef]
  8. Lee, J.; Youn, J.; Chang, W. Intraday volatility and network topological properties in the Korean Stock market. Physica A 2012, 391, 1354–1360. [Google Scholar] [CrossRef]
  9. Garas, A.; Argyrakis, P. Correlation study of the Athens stock exchange. Physica A 2007, 380, 399–410. [Google Scholar] [CrossRef]
  10. Pan, R.K.; Sinha, S. Collective behavior of stock price movements in an emerging market. Phys. Rev. E 2007, 76, 046116. [Google Scholar] [CrossRef] [PubMed]
  11. Emmert-Streib, F.; Dehmer, M. Influence of the time scale on the construction of Financial Networks. PLoS ONE 2010, 5, e12884. [Google Scholar] [CrossRef] [PubMed]
  12. Benjamin, M.T.; Thiago, R.S.; Daniel, O.C. The expectation hypothesis of interest rates and network theory: The case of Brazil. Physica A 2009, 388, 1137–1149. [Google Scholar]
  13. Matteo, T.D.; Aste, T.; Mantegna, R.N. An interest rates cluster analysis. Physica A 2004, 339, 181–188. [Google Scholar] [CrossRef]
  14. Naylor, M.J.; Rose, L.C.; Moyle, B.J. Topology of foreign exchange markets using hierarchical structure methods. Physica A 2007, 382, 199–208. [Google Scholar] [CrossRef]
  15. Plerou, V.; Gopikrishnan, P.; Rosenow, B.; NunesAmaral, L.A.; Guhr, T.H.; Stanley, H.E. Random matrix approach to cross correlations in financial data. Phys. Rev. E 2002, 65, 066126. [Google Scholar] [CrossRef] [PubMed]
  16. Tumminello, M.; Aste, T.; Matteo, T.D.; Mantegna, R.N. A tool for filtering information in complex systems. Proc. Natl. Acad. Sci. USA 2005, 102, 10421–10426. [Google Scholar] [CrossRef] [PubMed]
  17. Coronnello, C.; Tumminello, M.; Lillo, F.; Micciche, S.; Mantegna, R.N. Sector identification in a set of stock return time series traded at the London Stock Exchange. Acta Phys. Pol. B 2005, 36, 2653–2679. [Google Scholar]
  18. Tumminello, M.; Matteo, T.D.; Aste, T.; Mantegna, R.N. Correlation based networks of equity returns sampled at different time horizon. Eur. Phys. J. B 2007, 55, 209–217. [Google Scholar] [CrossRef]
  19. Miceli, M.; Susinno, G. Using trees to grow money. Risk 2003, 16, s11–s12. [Google Scholar]
  20. Miceli, M.; Susinno, G. Ultrametricity in fund of funds diversification. Physica A 2004, 344, 95–99. [Google Scholar] [CrossRef]
  21. Rammal, R.; Toulouse, G.; Virasoro, M.A. Ultrametricity for physicists. Rev. Mod. Phys. 1986, 58, 765–788. [Google Scholar] [CrossRef]
  22. Gopikrishnan, P.; Plerou, P.; Liu, Y.; Amaral, L.A.N.; Gabaix, X.; Stanley, H.E. Scaling and correlation in financial time series. Physica A 2000, 287, 362–373. [Google Scholar] [CrossRef]
  23. Yang, H.L.; Wan, H.; Zha, Y. Autocorrelation type, timescale and statistical property in financial time series. Physica A 2013, 392, 1681–1693. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Yang, H.; Fang, P.; Wan, H.; Liu, Y.; Lei, H. Evolution Characteristics of Complex Fund Network and Fund Strategy Identification. Entropy 2015, 17, 8073-8088. https://doi.org/10.3390/e17127861

AMA Style

Yang H, Fang P, Wan H, Liu Y, Lei H. Evolution Characteristics of Complex Fund Network and Fund Strategy Identification. Entropy. 2015; 17(12):8073-8088. https://doi.org/10.3390/e17127861

Chicago/Turabian Style

Yang, Honglin, Penglan Fang, Hong Wan, Yucan Liu, and Hui Lei. 2015. "Evolution Characteristics of Complex Fund Network and Fund Strategy Identification" Entropy 17, no. 12: 8073-8088. https://doi.org/10.3390/e17127861

Article Metrics

Back to TopTop
