Review

Synthetic Approaches and Biological Activities of 4-Hydroxycoumarin Derivatives

by
Jae-Chul Jung
1 and
Oee-Sook Park
2,*
1
Ewha Global Challenge, BK21 and Medical Research Institute, School of Medicine, Ewha Womans University, Seoul 158–710, Korea
2
Department of Chemistry, Institute for Basic Sciences, College of Natural Sciences, Chungbuk National University, Cheongju 361–763, Chungbuk, Korea
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(11), 4790-4803; https://doi.org/10.3390/molecules14114790
Submission received: 19 October 2009 / Revised: 16 November 2009 / Accepted: 18 November 2009 / Published: 23 November 2009
Browse Figures
Versions Notes

Abstract

:
The main purpose of this review is to summarize recent chemical syntheses and structural modifications of 4-hydroxycoumarin and its derivatives, of interest due to their characteristic conjugated molecular architecture and biological activities.

1. Introduction

4-Hydroxycoumarins (2H-1-benzopyran-2-ones, Figure 1) have evoked a great deal of interest due to their biological properties and characteristic conjugated molecular architecture. Many of them display important pharmacological effects, including analgesic [1], anti-arthritis [2], anti-inflammatory [3], anti-pyretic [4], anti-bacterial [5], anti-viral [6], and anti-cancer [7] properties. 4-Hydroxy-coumarin and its derivatives have been effectively used as anticoagulants for the treatment of disorders in which there is excessive or undesirable clotting, such as thrombophlebitis [8], pulmonary embolism [9], and certain cardiac conditions [10]. A number of comparative pharmacological investigations of the 4-hydroxycoumarin derivatives have shown good anticoagulant activity combined with low side effects and little toxicity [11].
Nowadays 4-hydroxycoumarin and its derivatives are widely used anticoagulant rodenticides as well as antithrombotic agents [12]. The 4-hydroxycoumarin anticoagulants are antagonists of vitamin K and their target is vitamin K 2,3-epoxide reductase in the liver microsomes. Finally, they are also useful key intermediates for many industrial products such as dyes [13] and liquid crystals [14].
The chemical synthesis, structural modification, and a wide variety of biological activities of 4-hydroxycoumarins have been reported in many papers [15,16,17]. The goal of this review is to summarize recent synthetic approaches to 4-hydroxycoumarin derivatives and their biological activities.

2. Results and Discussion

The 2H-1-benzopyran-2-one and tetrahydronaphthalen-1-ols skeletons are essential structural features in the second generation rodenticide 4-hydroxycoumarin derivatives. They have traditionally been coupled in acidic media. Although several improved condensation reactions of 4-hydroxy-coumarin (1) with compounds 8-9 using Bronsted-Lowry acids (HCl, H2SO4, p-TsOH) have been reported [18,19,20,21], these reactions led to preferential dehydrohalogenation, resulting in low yields. Thus, an efficient coupling condition was required to obtain better yield. Scheme 1 shows a representative retrosynthetic approach for this class of molecules. The tetrahydronaphthalen-1-ol 8 was coupled with 4-hydroxycoumarin (1) or 4-hydroxythiocoumarin (2) to generate the target 2H-1-benzopyran-2-one or 2H-1-benzothiopyran-2-one.
Our previous synthesis of flocoumafen (5) [18,19] is summarized in Scheme 2. Its main reactions were Friedel-Crafts acylation, Reformatsky reaction, and dehydration. Commercially available phenylacetyl chloride (10) was condensed with anisole (11) in the presence of AlCl3 to afford ketone 12, which was treated with ethyl bromoacetate to give hydroxyl ethyl ester 13 in 86% yield over two steps. Subsequent dehydroxylation of ethyl ester 13 was accomplished with triethylsilane and boron trifluoride to give the corresponding ester, which was smoothly hydrolyzed under basic conditions and cyclized using polyphosphoric acid to yield tetralone 14 in three steps. Reduction of tetralone 14 with sodium borohydride afforded secondary alcohol 15, which was then coupled with 4-hydroxycoumarin in the presence of p-toluenesulfonic acid to give compound 16. Demethylation of compound 16 was performed with hyrobromic acid in acetic acid to give phenol 17. Phenol 17 was O-alkylated with freshly prepared 3-(trifluoromethyl)benzyl bromide in sodium hydride/THF to generate flocoumafen (5) in good yield (overall yield was 25% in eight steps).
The Ferreira group [20] has developed to a new protocol for the synthesis of diphenacoum (29) and brodifacoum (30). The key step involves the stereospecific formation of one of the crucial bonds in the molecular backbone using asymmetric organocopper 1,4-addition to chiral imides. Wittig condensation of freshly prepared aldehydes 18, 19, and (carbethoxy)triphenylphosphonium chloride (20) in the presence of sodium methoxide in DMF gave the biphenyl esters 21, 22 in 92% and 87% yield, respectively. Organocopper methodology was then successfully applied to the synthesis of butanoate. 1,4-Michael addition with compounds 21, 22 and BnCu-TMEDA complex in the presence of TMS-Cl generated 23, 24 in 84% and 81% yield, respectively, and then subsequent ring cyclization by using AlCl3 in toluene to give tetralones 25 and 26 in 88% and 86% yield, respectively. The coupling reaction between 4-hydroxycoumarin 1 and secondary alcohol 27 or brominated compound 28 under an HCl atmosphere at 160 °C 30 min provided approximately equal quantities of the cis and trans isomers of 4-hydroxycoumarin derivatives 29 and 30 in 78% and 74% yield, respectively (Scheme 3).
The Yang group [21] reported the synthesis of novel diphenacoum analogues using base-catalyzed aldol condensation, ring cyclization, and coupling reactions. 2-Hydroxyacetophenone (31) was treated with aldehydes 32 or 33 under base-catalyzed aldol reaction conditions to produce ketones 34, 35, which were readily cyclized by phosphoric acid in ethanol to give 2-biphenylchroman-4-ones 36 and 37, respectively. Reduction of 36 and 37 with sodium borohydride in methanol gave quantitative yields of the corresponding alcohols 38 and 39, which were then condensed with 4-hydroxycoumarin (1) in 1,2-dichloroethane in the presence of a catalytic amounts of p-toluenesulfonic acid, to yield the target compounds 40 and 41, respectively (Scheme 4).
The Danchev group [22] reported a synthesis of 4-hydroxcoumarin derivatives and their anticoagulant activities. Their method involves a condensation reaction of 4-hydroxcoumarin (1) with unsaturated ketone 42 or substituted aromatic aldehydes 32-33 (Scheme 5). Warfarin type compound 43 showed similar anticoagulant effect as coumachlor or warfarin in vivo, while its acute toxicity was higher than that of woumachlor. Among their 4-hydroxcoumarin derivatives 3,3’-(4-chlorophenylmethylene)-bis-(4-hydroxy-2H-1-benzopyran-2-one), with low toxicity, is a prospective lead compound.
The Hamdi group [23] prepared benzopyranodicoumarins 46 and 49 and evaluated their antioxidative and antibacterial activities. Aromatic aldehydes 44 containing different groups in the ortho-, meta- or para- positions was condensed with 4-hydroxycoumarin (1) in ethanol and acetic acid to generate substituted 3,3’-arylidenebis-4-hydroxycoumarins 45 and tetrakis-4-hydroxycoumarin derivatives 48. Heating of compounds 45 and 48 in acetic anhydride transformed them into benzopyranodicoumarins 46 and 49 (Scheme 6).
On the other hand, the Raghunathan group [24] successfully established a pyrano[3-2c]coumarin framework using microwave accelerated intramolecular domino Knoevenagel-hetero Diels-Alder reactions. 4-Hydroxycoumarin (1) was treated with 2-(3-methyl-2-butenyloxy)benzaldehyde under microwave irradiation in ethanol for 15 s to give a 97:3 ratio of pyrano[3-2c]coumarin 51 and pyrano[3-2c]chromene derivative 52 in good yield (Scheme 7). This methodology is very useful, providing an easy access to the pyrano[3-2c]coumarin skeleton found in many natural products.
The Trkovnik group [25] synthesized substituted 4-hydroxycoumarins 54 and 56 from compounds 53 and 55 according to a modified Pauly and Lockemann method [26], respectively. They also prepared dicoumairn type moiety 59 in good yield (Scheme 8).
The Swenson group [27] recently published a unique procedure for preparation of 3-(p-azido, amino, and nitrobenzyl)-4-hydroxycoumarins 62-64 by the reaction of freshly prepared benzyl malonic acid 60 and phenol (61) in the presence of phosphorus trichloride and zinc chloride (Scheme 9). They also prepared various radiolabeled 3-substituted 4-hydroxycoumarin derivatives using commercially available [U-14C] phenol or [U-3H] in order to elucidate the binding photoaffinity. Compounds 62-64 serve as effective competitive inhibitors of the dicoumarol sensitive NADPH quinone reductase from rat liver [28,29].
Recently, stereoselective synthesis has been an important topic in the synthesis of biologically active substances. Efficient asymmetric syntheses of 4-hydroxycoumarin derivatives were demonstrated by two groups. The Ferreira group [30] firstly reported a highly stereo- and enantio- selective synthesis of diphenacoum (29) and brodifacoum (30). The key step involves a stereospecific 1,4-Michael addition using a chiral auxiliary and intramolecular ring cyclization. The esters 21, 22 were transformed into acid chlorides through hydrolysis and chlorination with KOH and SOCl2, and subsequently reacted with the lithium anion of the chiral auxiliary to afford the chiral imides 65-68 in 72%, 74%, 73%, and 70% yield, respectively, for three steps. Asymmetric 1,4-Michael addition of imides 65-68 was accomplished with Bn-Cu-TMEDA complex in the presence of Bu2BOTf to give diastereoisomeric ketones 69-72, which were effectively cyclized using trifluoromethanesulfonic acid to generate chiral tetralones 73-76 with 99% optical purity in 85%, 84%, 79%, and 80% yield, respectively. Reduction of tetralones 73-76 with sodium borohydride afforded the corresponding cis benzyl alcohols, which were condensed with 4-hydroxcoumarin (1) to give cis/trans diphenacoum and brodifacoum, respectively (Scheme 10). The stereoisomeric mixtures were readily separated by flash column chromatography. The configuration was established using spectroscopic analysis.
The Jorgensen group [31] reported a highly economical organocatalytic asymmetric 1,4-Michael addition of 4-hydroxycoumarin and α,β–unsaturated ketones to generate the widely used anticoagulants warfarin (Coumadin) and some related important compounds (Scheme 11). They attempted enantioselective 1,4-Michael addition by using well known benzylideneacetophenone (85) and 4-hydroxycoumarin (1) in the presence of optically active imidazolidine catalysts 86-88 to afford enantiopure warfarin moieties with 47 to 82% ee values in 22 to 96% yields. This asymmetric one-step method could be useful for the formation of a number of biologically active compounds.
The Tagliapietra group [32] developed an asymmetric two-step synthesis of non-racemic coumarin anticoagulants such like warfarin, coumachlor, and acenocoumarol through one-pot-three-component tandem Knoevenagel-hetero Diels-Alder cycloaddition reactions between in situ generated 3-arylidene-2,4-chromanediones 89 and isopropenyl ether 90 derived from (-)-menthol in 61% yield with 95% ee for (S)-warfarin, 56% yield with 93% ee for (S)-coumachlor, and 59% yield with 95% ee for (S)-acenocoumarol (Scheme 12). Knoevenagel adducts 91 were treated with 3N-HCl in the presence of SiO2 or TFA:H2O (19:1, v/v) as a reaction promotor to get the final asymmetric products 92 in nearly quantitative yields.

3. Biological Activity

A large number of 4-hydroxycoumarins and their derivatives have been synthesized and evaluated for their ability to play a positive role in the prevention of human and animal diseases. Various pharmacological activities for the representative compounds have been described in the literature (Table 1). Most 4-hydroxycoumarin derivatives showed representative anticoagulant effects, while compounds 3, 5, 30, 40, 46, and 64 exhibit a wide variety of activities including antiarthritis, anti-inflammatory, anticancer, antithrombosis, teratogenic, antibacterial, and photoaffinity effects.
Anticoagulant is the most prominent among many intriguing pharmacological effects observed for many 4-hydroxycoumarin derivatives. In particular warfarin, as first generation anticoagulant, and compounds like brodifacoum, bromadiolone, chlorophacinone, difenacoum, coumatetralyl, flocoumafen, and difethialone are effective anticoagulant rodenticides. The second generation anticoagulant rodenticides, difenacoum (29) and brodifacoum (30) showed a plasma elimination half-life of 91.7 days, while liver elimination half-lives varied from 15.8 days for coumatetralyl (4) to 307.4 days for brodifacoum. In general, the elimination half-lives in plasma for first-generation rodenticides were shorter than those for second-generation rodenticides. These results revealed that the so-called superwarfarins such as difenacoum (29), brodifacoum (30), flocoumafen (5), and difethialone (6) showed higher anticoagulant effects than warfarin [48]. The biological activities of compounds 40 and 41 indicate potent vitamin K 2,3-epoxide reductase (VKOR) inhibition effects with IC50 values of 0.4 μM, comparable with warfarin. Compound 40 was shown to be 2.5-fold more potent than warfarin, while compound 41 exhibited 10 times less activity than warfarin. These biological results imply that the hydrogen bonding has a major effect on enzyme site binding [21]. 4-Hydroxycoumarin derivatives 43 showed favorable anticoagulant effect compared with warfarin; especially a chlorine at the para-position in the aromatic ring resulted in potent anticoagulant activities compared to nitro or other halogen substituents at the para-position [22,49]. The dicoumarol related compounds 48-49 were evaluated for antimicrobial, antioxidant activities using MIC tests and radical scavenging activities. Also, compounds 48 and 49 showed favorable antimicrobial activity compared to warfarin and similar effects to each other for the antioxidant activity. In addition, the coumarol moiety showed more potent activity than a benzopyranocoumarol moiety due to the stable configuration and favorable binding activity through hydrogen bonding in the enzyme binding site [22]. 6-Bromo-4-hydroxycoumarin (54) and 4-hydroxy-6,7-benzocoumarin (56) exhibited significant anticoagulant effect with a rapid short duration. Especially 3,3’-alkylidene bis-6-bromo-4-hydroxycoumarin derivatives showed a potent anticoagulant activity in vitro [25].
A 4-hydroxycoumarin containing an azidobenzyl group at the 3-position − 3-(p-azidobenzyl)-4-hydroxycoumarin (64)—showed an inhibition constant of 6.6 × 10-8 M, a value comparable to that observed for dicoumarol (1.7 × 10-9 M), but significantly lower than that for warfarin (3.5 × 10-5 M). This result implies that compound 64 can be an effective photoaffinity probe in the identification of other proteins associated with the vitamin K-dependent carboxylation system that are similarly inhibited by 4-hydroxycoumarin derivatives [46].

4. Conclusions

The chemical syntheses and structural modifications of 4-hydroxycoumarin and its derivatives are of interest due to their biological activities and characteristic conjugated molecular architecture. This review summarized the recent synthetic approaches to 4-hydroxycoumarin derivatives and the current state of research into their biological activities.

Acknowledgments

This work was supported by a Chungbuk National University Grant in 2008.

References and Notes

  1. Adami, E.; Marazzi-Uberti, E.; Turba, C. Analgesic action of 4-hydroxycoumarin. Arch. Ital. Sci. Farmacol. 1959, 9, 61–69. [Google Scholar] [PubMed]
  2. Chiarino, D.; Grancini, G.C.; Frigeni, V.; Carenzi, A. Preparation and formulation of 4-(3-coumarinyl)thiazole derivatives with antiallergic, antianaphylactic and antiarthritic activity. Eur. Pat. Appl. EP 284017, 1988. [Google Scholar]
  3. Luchini, A.C.; Rodrigues-Orsi, P.; Cestari, S.H.; Seito, L.N.; Witaicenis, A.; Pellizzon, C.H.; Stasi, L.C.D. Intestinal anti-inflammatory activity of coumarin and 4-hydroxycoumarin in the trinitrobenzenesulphonic acid model of rat colitis. Biol. Pharm. Bull. 2008, 31, 1343–1350. [Google Scholar] [CrossRef] [PubMed]
  4. Stern, P.; Dezelic, M.; Kosak, R. Analgetic and antipyretic action of vitamin K and dicoumarol with special consideration of 4-hydroxycoumarin. Naunyn Schmiedebergs Arch. Exp. Pathol. Pharmakol. 1957, 232, 356–359. [Google Scholar] [CrossRef] [PubMed]
  5. Chohan, Z.H.; Shaikh, A.U.; Rauf, A.; Supuran, C.T. Antibacterial, antifungal and cytotoxic properties of novel N-substituted sulfonamides from 4-hydroxycoumarin. J. Enz. Inhib. Med. Chem. 2006, 21, 741–748. [Google Scholar] [CrossRef] [PubMed]
  6. Kirkiacharian, B.S.; Clercq, E.; Kurkjian, R.; Pannecouque, C. New synthesis and anti-HIV and antiviral properties of 3-arylsulfonyl derivatives of 4-hydroxycoumarin and 4-hydroxyquinolone. J. Pharm. Chem. 2008, 42, 265–270. [Google Scholar] [CrossRef]
  7. Velasco-Velàzquez, M.A.; Agramonte-Hevia, J.; Barrera, D.; Jiménez-Orozco, A.; García-Mondragón, M.J.; Mendoza-Patiño, N.; Landa, A.; Mandoki, J. 4-Hydroxycoumarin disorganizes the actin cytoskeleton in B16–F10 melanoma cells but not in B82 fibroblasts, decreasing their adhesion to extracellular matrix proteins and motility. Cancer Lett. 2003, 198, 179–186. [Google Scholar] [CrossRef]
  8. Shapiro, S.; Sherwin, B. Thromboembolization. II. The use of dicumarol (3,3’-methylenebis (4-hydroxycoumarin ) in embolization. Report of five cases. N. Y. State J. Med. 1943, 43, 45–52. [Google Scholar]
  9. Butsch, W.L.; Stewart, J.D. Administration of dicoumarin compound for prophylaxis of postoperative thrombosis and embolism. Arch. Surg. 1942, 45, 551–553. [Google Scholar] [CrossRef]
  10. Hintz, K.K.; Ren, J. Tetramethylpyrazine elicits disparate responses in cardiac contraction and intracellular Ca (2+) transients in isolated adult rat ventricular myocytes. Vascul. Pharmacol. 2003, 40, 213–217. [Google Scholar] [CrossRef] [PubMed]
  11. Manolov, I.; Maichle-Moessmer, C.; Danchev, N. Synthesis, structure, toxicological and pharmacological investigations of 4-hydroxycoumarin derivatives. Eur. J. Med. Chem. 2006, 41, 882–890. [Google Scholar] [CrossRef] [PubMed]
  12. Samama, M.M. A century of progress. From biology to antithrombotic agents. J. Mal. Vasc. 2001, 26, 165–168. [Google Scholar] [PubMed]
  13. Bulut, M.; Erk, C. Improved synthesis of some hydroxycoumarins. Dyes Pigments 1996, 30, 99–104. [Google Scholar] [CrossRef]
  14. Kang, H.; Kwon, K.S.; Kang, D.; Lee, J.C. Enhanced, perpendicular liquid-crystal alignment on rubbed films of a coumarin-containing polystyrene. Macromol. Chem. Phys. 2007, 208, 1853–1861. [Google Scholar] [CrossRef]
  15. Au, N.; Rettie, A.E. Pharmacogenomics of 4-hydroxycoumarin anticoagulants. Drug Metab. Rev. 2008, 40, 355–375. [Google Scholar] [CrossRef] [PubMed]
  16. Hamdi, N.; Saoud, M.; Romerosa, A. 4-Hydroxy Coumarine: A versatile reagent for the synthesis of heterocyclic and vanillin ether coumarins with biological activities. Top. Heterocycl. Chem. 2007, 11, 283–301. [Google Scholar]
  17. Hamdi, N.; Saoud, M.; Romerosa, A.; Hassen, R.B. Synthesis, spectroscopic and antibacterial investigations of new hydroxy ethers and heterocyclic coumarin derivatives. J. Heterocycl. Chem. 2008, 45, 1835–1841. [Google Scholar] [CrossRef]
  18. Park, O.S.; Jang, B.S. Synthesis of 4-hydroxycoumarin derivatives-1: An efficient synthesis of flocoumafen. Arch. Pharm. Res. 1995, 18, 277–281. [Google Scholar] [CrossRef]
  19. Jung, J.C.; Lee, J.H.; Oh, S.; Lee, J.G.; Park, O.S. Synthesis and antitumor activity of 4-hydroxycoumarin derivatives. Bioorg. Med. Chem. Lett. 2004, 14, 5527–5531. [Google Scholar] [CrossRef] [PubMed]
  20. Van Heerden, P.S.; Bezuidenhoudt, B.C.B.; Ferreira, D. Improved synthesis of the rodenticides diphenacoum and brodifacoum. J. Chem. Soc. Perkin Trans. 1 1997, 8, 1141–1146. [Google Scholar] [CrossRef]
  21. Chen, D.U.; Kuo, P.Y.; Yang, D.Y. Design and synthesis of novel diphenacoum-derived, conformation-restricted vitamin K 2,3-epoxide reductase inhibitors. Bioorg. Med. Chem. Lett. 2005, 15, 2665–2668. [Google Scholar] [CrossRef] [PubMed]
  22. Manolov, I.; Danchev, N.D. Synthesis, toxicological, and pharmacological assessment of some oximes and aldehyde condensation products of 4-hydroxycoumarin. Arch. Pharm. Pharm. Med. Chem. 1999, 332, 243–248. [Google Scholar] [CrossRef]
  23. Hamdi, N.; Puerta, M.C.; Valerga, P. Synthesis, structure, antimicrobial and antioxidant investigations of dicoumarol and related compounds. Euro. J. Med. Chem. 2008, 43, 2541–2548. [Google Scholar] [CrossRef] [PubMed]
  24. Shanmugasundaram, M.; Manikandan, S.; Raghunathan, R. High chemoselectivity in microwave accelerated intramolecular domino Knoevenagel hetero Diels-Alder reactions- an efficient synthesis of pyrano[3-2c]coumarin frameworks. Tetrahedron 2002, 58, 997–1003. [Google Scholar] [CrossRef]
  25. Dezelic, M.; Trkovnik, M. Syntheses of some 4-hydroxycoumarins and their condensation products with aldehydes and carboxylic acids. Anticoagulant activity of some 4-hydroxycoumarin derivatives. J. Med. Chem. 1964, 7, 284–288. [Google Scholar] [CrossRef] [PubMed]
  26. Pauly, H.; Lockemann, K. Methods of formation of monophenol ketones and a new synthesis of benzotetronic acid. Ber. Dtsch. Chem. Ges. 1915, 48, 28–32. [Google Scholar] [CrossRef]
  27. Myszka, D.G.; Swenson, R.P. Synthesis of the photoaffinity probe 3-(p-azidobenzyl)-4-hydroxycoumarin and identification of the dicoumarol binding site in rat liver NAD(P)H: Quinone reductase (EC 1.6.99.2). J. Biol. Chem. 1991, 266, 4789–4797. [Google Scholar] [PubMed]
  28. Almeda, S.; Bing, D.H.; Laura, R.; Friedman, P.A. Photoaffinity inhibition of rat liver NAD(P)H dehydrogenase by 3-(α-acetonyl-p-azidobenzyl)-4-hydroxycoumarin. Biochemistry 1981, 20, 3731–3737. [Google Scholar] [CrossRef] [PubMed]
  29. Obach, R.S.; Spink, D.C.; Chen, N.; Kaminsky, L.S. Azidowarfarin photoaffinity probes of purified rat liver cytochrome P4501A1. Arch. Biochem. Bioph. 1992, 294, 215–222. [Google Scholar] [CrossRef]
  30. Van Heerden, P.S.; Bezuidenhoudt, B.C.B.; Ferreira, D. Efficient asymmetric synthesis of the four diastereomers of diphenacoum and brodifacoum. Tetrahedron 1997, 53, 6045–6056. [Google Scholar] [CrossRef]
  31. Halland, N.; Hansen, T.; Jorgensen, K.A. Organocatalytic asymmetric Michael reaction of cyclic 1, 3-dicarbonyl compounds and α, β–unsaturated ketones-A highly atom-economic catalytic one-step formation of optically active warfarin anticoagulant. Angew. Chem. Int. Ed. 2003, 42, 4955–4957. [Google Scholar] [CrossRef] [PubMed]
  32. Cravotto, G.; Nano, G.M.; Palmisano, G.; Tagliapietra, S. An asymmetric approach to coumarin anticoagulants via hetero-Diels-Alder cycloaddition. Tetrahedron Asymmetry 2001, 12, 707–709. [Google Scholar] [CrossRef]
  33. Thumboo, J.; O’Duffy, J.D. A prospective study of the safety of joint and soft tissue aspirations and injections in patients taking warfarin sodium. Arthritis Rheum. 1998, 41, 736–739. [Google Scholar] [CrossRef]
  34. Eichbaum, F.W.; Slemer, O.; Zyngier, S.B. Antiinflammatory effect of warfarin and vitamin K1. Naunyn Schmiedeberg Arch. Pharmacol. 1979, 307, 185–190. [Google Scholar] [CrossRef]
  35. Colucci, M.; Delaini, F.; De Bellis Vitti, G.; Locati, D.; Poggi, A.; Semeraro, N.; Donati, M.B. Cancer cell procoagulant activity, Warfarin and experimental metastases. Dev. Oncol. 1980, 4, 90–94. [Google Scholar]
  36. Sutcliffe, F.A.; MacNicoll, A.D.; Gibson, G.G. Aspects of anticoagulant action: A review of the pharmacology, metabolism and toxicology of warfarin and congeners. Rev. Drug Metab. Drug Interact. 1987, 5, 225–272. [Google Scholar] [CrossRef] [PubMed]
  37. Wessler, S.; Gitel, S.N.; Bank, H.; Martinowitz, U.; Stephenson, R.C. An assay of the antithrombotic action of warfarin: Its correlation with the inhibition of stasis thrombosis in rabbits. Thromb. Haemost. 1979, 40, 486–498. [Google Scholar] [CrossRef] [PubMed]
  38. Marchini, S.; Turillazzi, P.G. Effect of an anticoagulant rodenticide on the female albino rat with offspring. Parassitologia 1978, 20, 59–70. [Google Scholar] [PubMed]
  39. Saxena, Y.; Bhasin, H. Novel second generation anticoagulants against field rodents. Natl. Acad. Sci. Lett. 1991, 14, 483–485. [Google Scholar]
  40. Khalifa, B.A.A.; Salem, F.M.S.; Menha, M.A. Embryotoxic and teratogenic effects of flocoumafen in chick embryos and white rats. J. Appl. Anim. Res. 1992, 2, 81–85. [Google Scholar] [CrossRef]
  41. Chaudhary, V.; Tripathi, R.S. Evaluation of single dose efficacy of difethialone - a second-generation anticoagulant for the control of rodents inhabiting arid ecosystem. Indian J. Agr. Sci. 2006, 76, 736–739. [Google Scholar]
  42. Shore, R.F.; Birks, J.D.S.; Afsar, A.; Wienburg, C.L.; Kitchener, A.C. Spatial and temporal analysis of second-generation anticoagulant rodenticide residues in polecats (Mustela putorius) from throughout their range in Britain, 1992-1999. Environ. Pollut. 2003, 122, 183–193. [Google Scholar] [CrossRef]
  43. Zurawski, J.M.; Kelly, E.A. Pregnancy outcome after maternal poisoning with brodifacoum, a long-acting warfarin-like rodenticide. Obstet. Gynecol. 1997, 90, 672–674. [Google Scholar] [CrossRef]
  44. Hadler, M.R.; Shadbolt, R.S. Novel 4-hydroxycoumarin anticoagulants active against resistant rats. Nature 1975, 253, 275–277. [Google Scholar] [CrossRef] [PubMed]
  45. Beier, A.P.; Popov, V.A.; Efremenko, V.I. The effect of anticoagulants on the transmission of plague causative agent. Med. Parazitol (Mosk) 1999, 2, 40–43. [Google Scholar]
  46. Myszka, D.G.; Swenson, R.P. Synthesis of 3-(4-azido-5-iodosalicylamido)-4- hydroxycoumarin: Photoaffinity labeling of rat liver dicoumarol-sensitive NAD(P)H: Quinone reductase. Biochem. Bioph. Res. Commun. 1990, 172, 415–422. [Google Scholar] [CrossRef]
  47. Rehman, A.B.; Ahmad, S.I. Studies on warfarin, coumatetralyl and difenacoum as anticoagulant agents. J. Pharm. 1982, 1, 1–13. [Google Scholar]
  48. Vandenbroucke, V.; Bousquet-Melou, A.; De Backer, P.; Croubels, S. Pharmacokinetics of eight anticoagulant rodenticides in mice affer single oral administration. J. Vet. Pharmacol. Ther. 2008, 31, 437–445. [Google Scholar] [CrossRef] [PubMed]
  49. Manolov, I.; Danchev, N.D. Synthesis, toxicological and pharmacological assessment of some 4-hydroxycoumarin derivatives. Eur. J. Med. Chem. 1995, 30, 531–535. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 1, 2, 5, 15, 16 and 17 are available from the authors.
Molecules 14 04790 g001 550

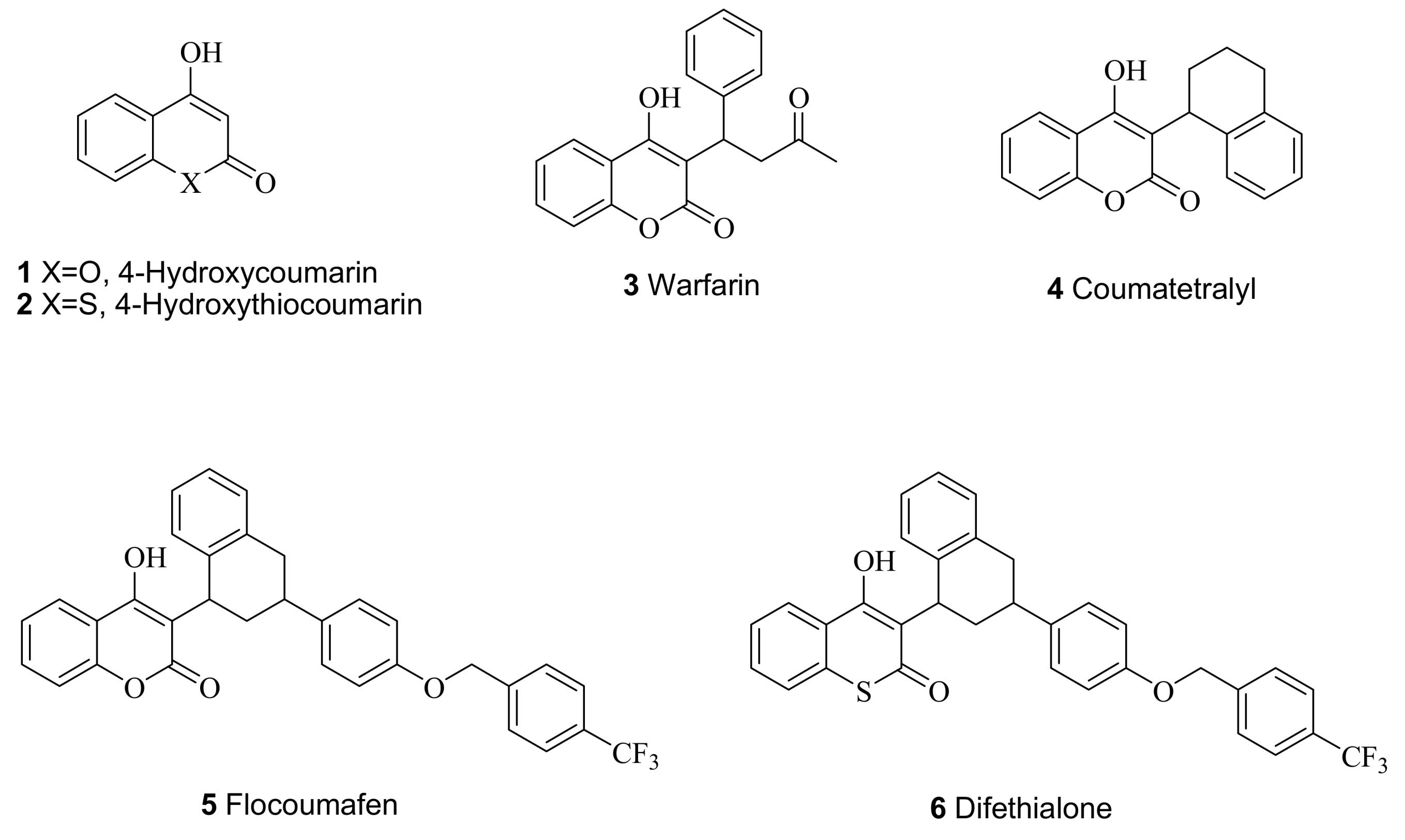

Figure 1. Structures of the 4-hydroxycoumarin (1), 4-hydroxythiocoumarin (2), and derivatives 3-6.
Figure 1. Structures of the 4-hydroxycoumarin (1), 4-hydroxythiocoumarin (2), and derivatives 3-6.
Molecules 14 04790 g001
Molecules 14 04790 sch001 550

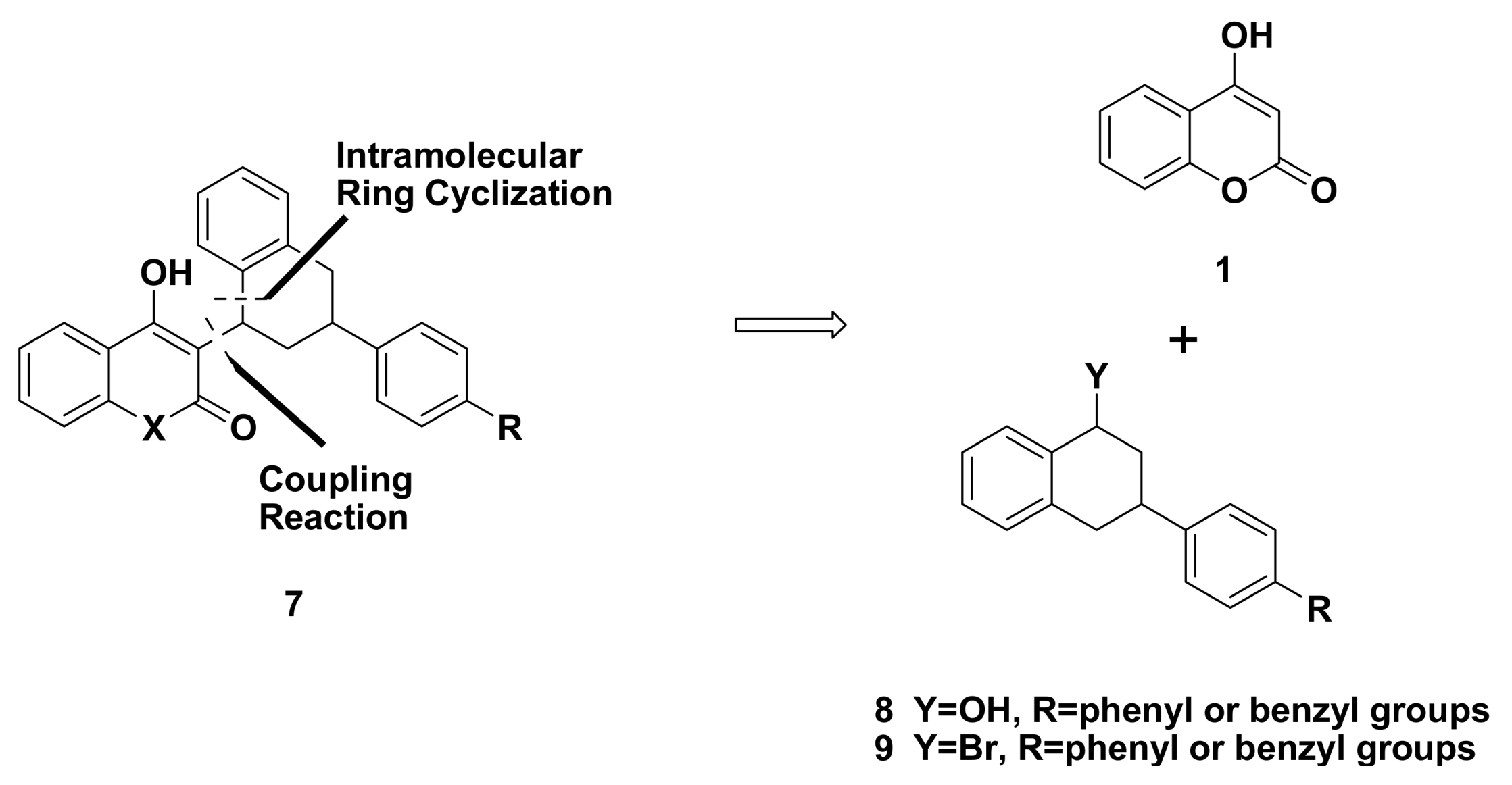

Scheme 1. Retrosynthetic analysis of the 4-hydroxycoumarin derivatives.
Scheme 1. Retrosynthetic analysis of the 4-hydroxycoumarin derivatives.
Molecules 14 04790 sch001
Molecules 14 04790 sch002 550

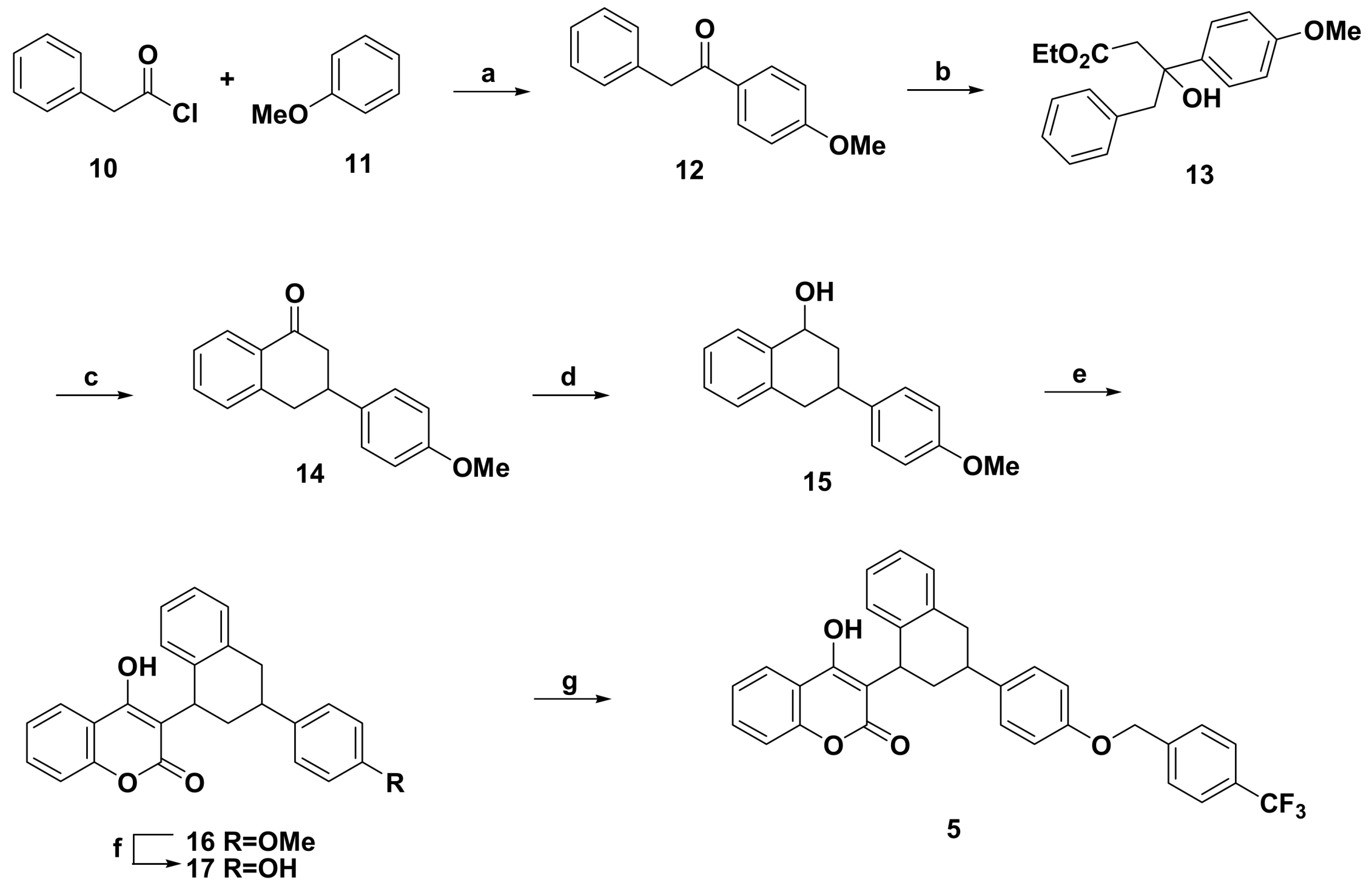

Scheme 2. Synthesis of flocoumafen (5).
Scheme 2. Synthesis of flocoumafen (5).
Molecules 14 04790 sch002
Reagents and conditions: (a) AlCl3, CH2Cl2, –10°C, 16 h; (b) Zinc, I2, BrCH2CO2Et, benzene, reflux, 1 h; (c) (Et)3SiH, TFA, BF3EtO2, CH2Cl2, reflux, 8 h; KOH/H2O, reflux, 8 h; and then PPA, 80 °C, 1 h; (d) NaBH4, MeOH, rt, 2 h; (e) 4-hydroxcoumarin, p-TsOH, 80 °C, 3 h; (f) HBr, AcOH, reflux, 6 h; (g) 3-(trifluoromethyl)benzyl bromide, sodium hydride, THF, 0 °C, 1 h
Molecules 14 04790 sch003 550

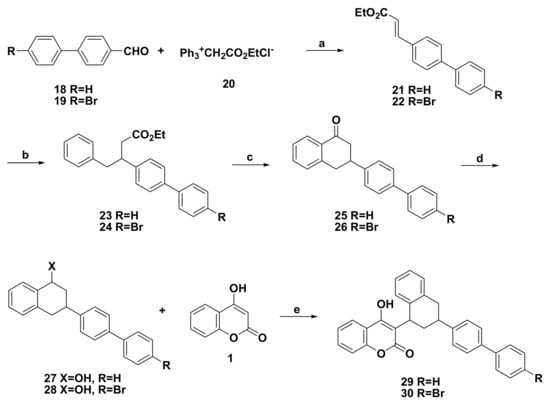

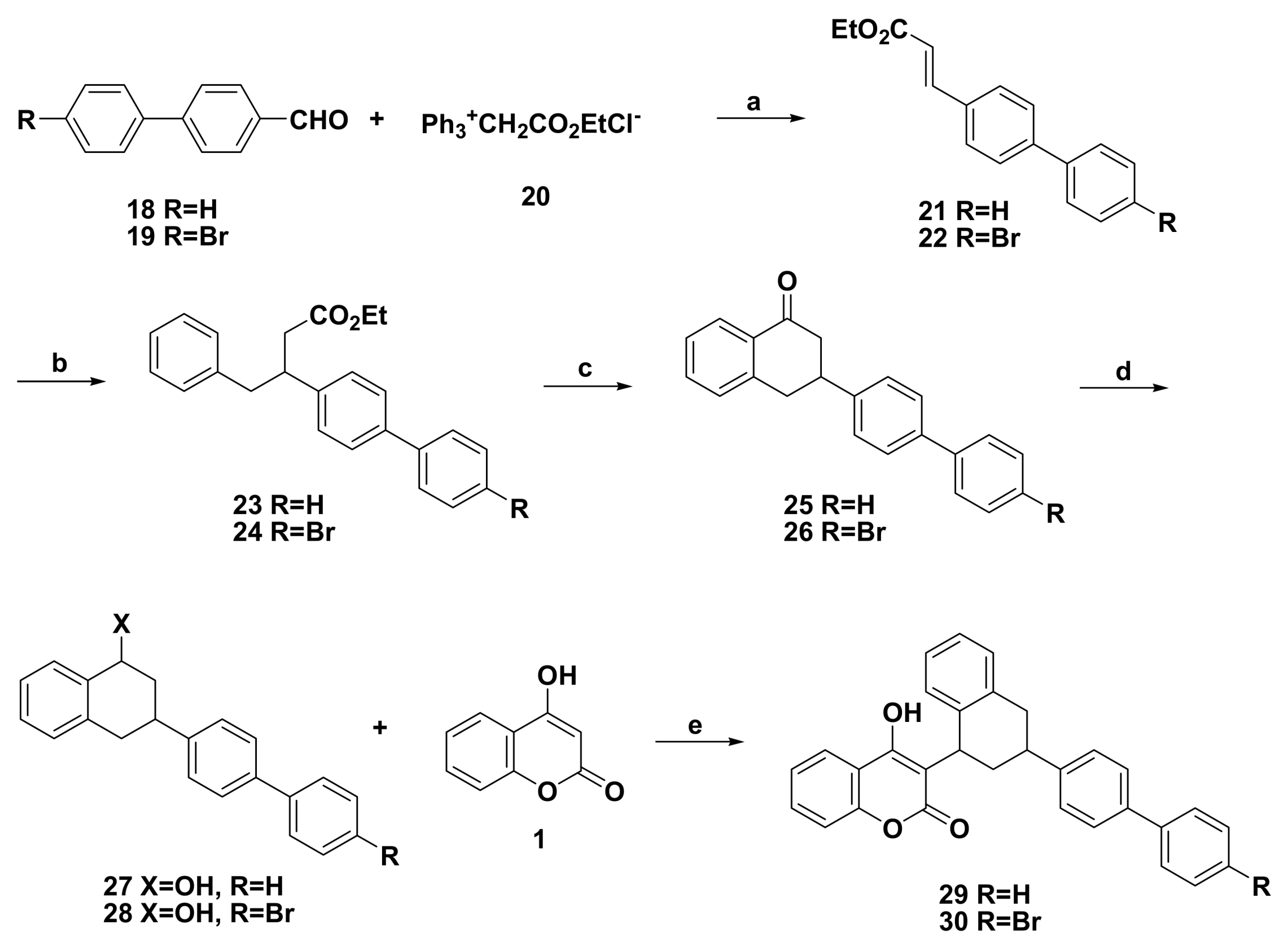

Scheme 3. Synthesis of diphenacoum (29) and brodifacoum (30).
Scheme 3. Synthesis of diphenacoum (29) and brodifacoum (30).
Molecules 14 04790 sch003
Reagents and conditions: (a) NaOMe, DMF; (b) BnCu-TMEDA, TMSCl, THF, –78 °C to 30 °C; (c) AlCl3, toluene, 90 °C; (d) NaBH4, EtOH/THF, rt, then PBr3, dichloromethane, 0 °C; (e) HCl(g), 160 °C.
Molecules 14 04790 sch004 550

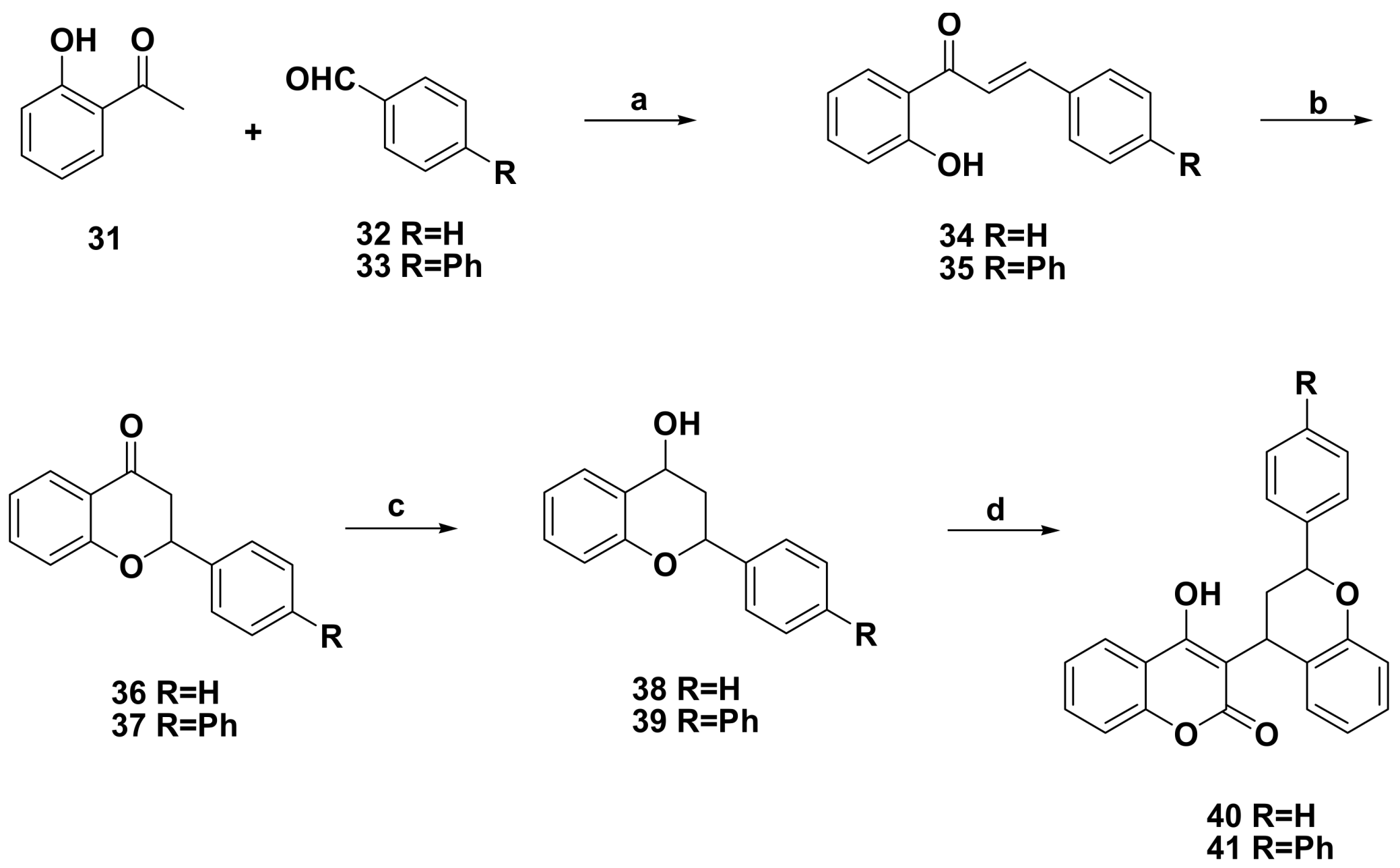

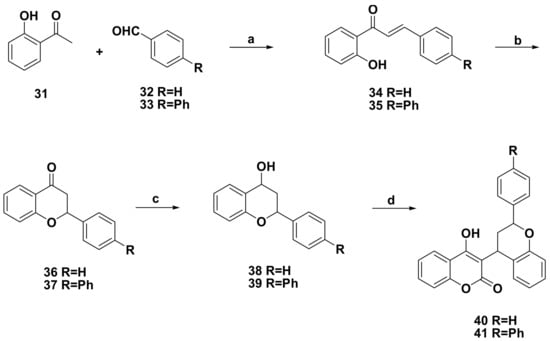

Scheme 4. Synthesis of novel diphenacoum analogues.
Scheme 4. Synthesis of novel diphenacoum analogues.
Molecules 14 04790 sch004
Reagents and conditions: (a) 40% KOH; (b) H3PO4, EtOH; (c) NaBH4, MeOH/THF; (d) 4-hydroxycoumarin, p-TsOH, 1,2-DCE.
Molecules 14 04790 sch005 550

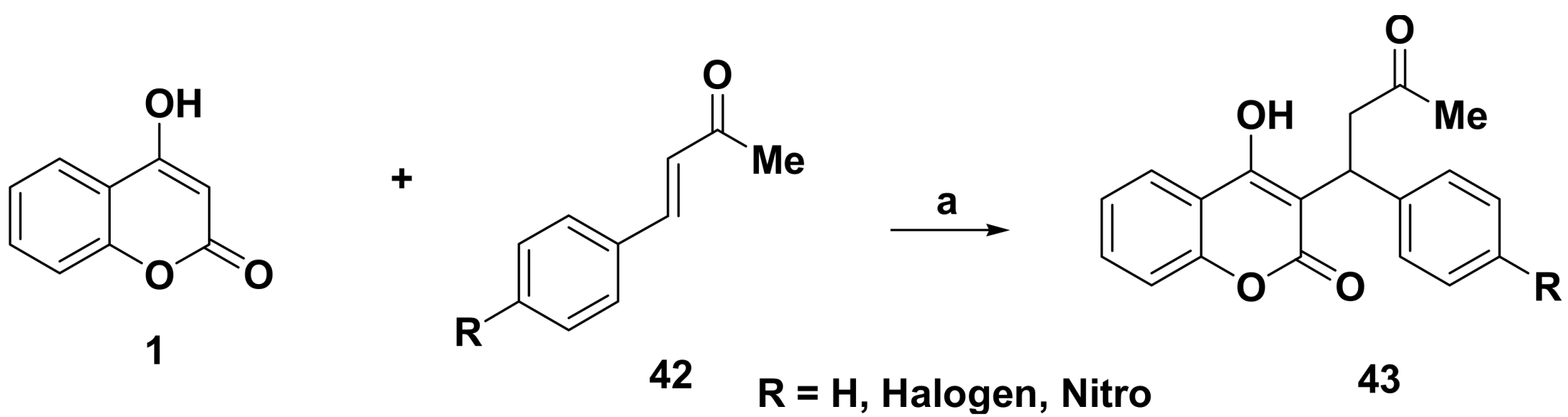

Scheme 5. Danchev synthesis of 4-hydroxcoumarin derivatives.
Scheme 5. Danchev synthesis of 4-hydroxcoumarin derivatives.
Molecules 14 04790 sch005
Reagents and conditions: (a) pyridine, sodium hydroxide, EtOH.
Molecules 14 04790 sch006 550

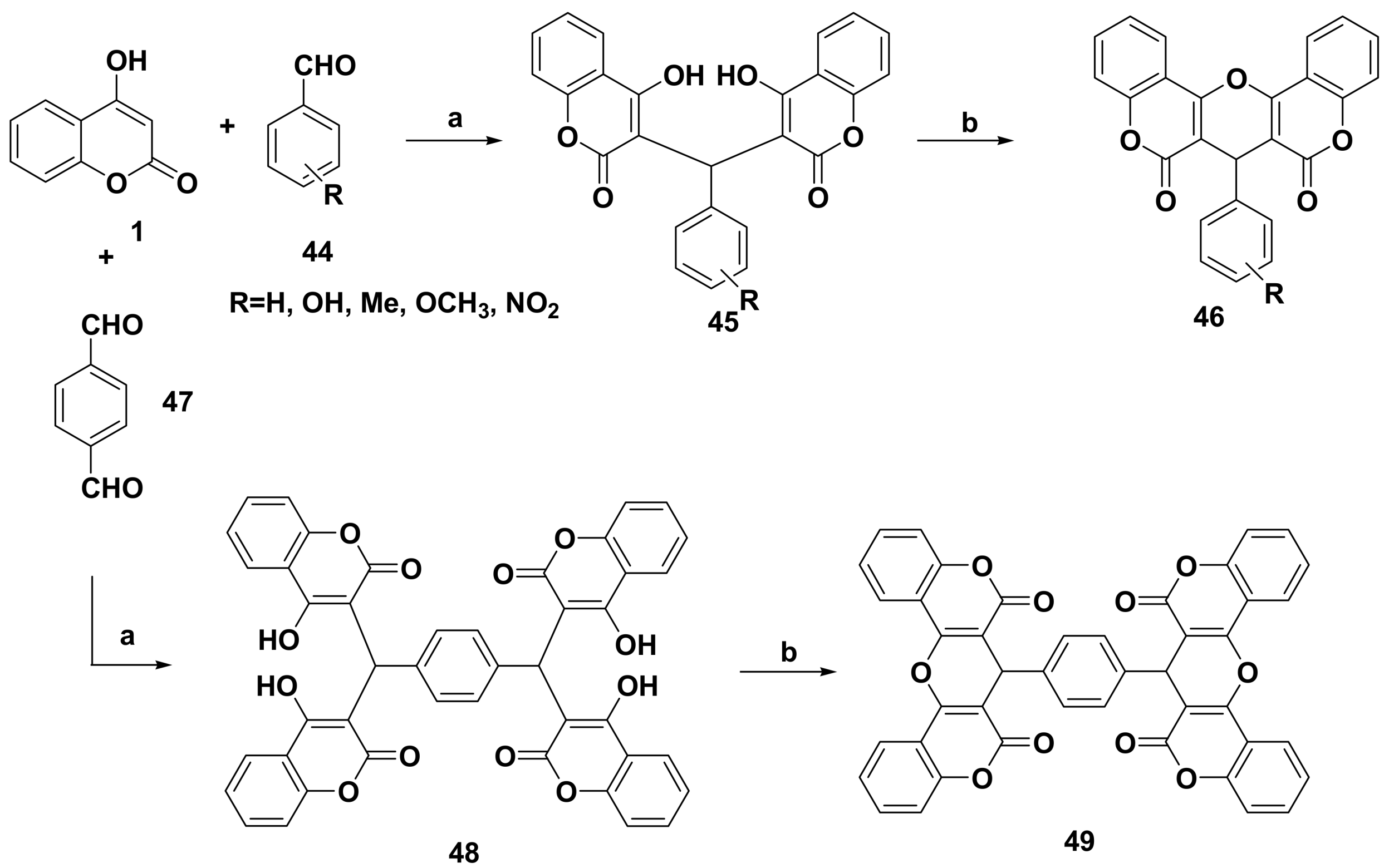

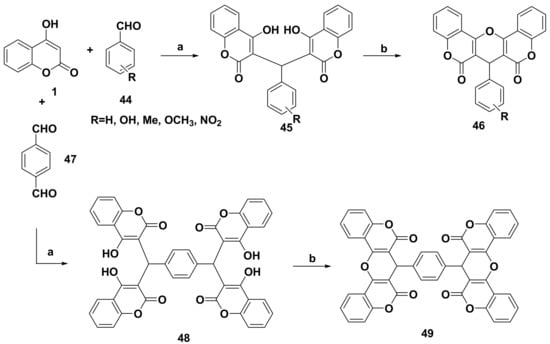

Scheme 6. Synthesis of benzopyranodicoumarins 46 and 49.
Scheme 6. Synthesis of benzopyranodicoumarins 46 and 49.
Molecules 14 04790 sch006
Reagents and conditions: (a) EtOH, AcOH, reflux; (b) (CH3CO)2CO, –2H2O.
Molecules 14 04790 sch007 550

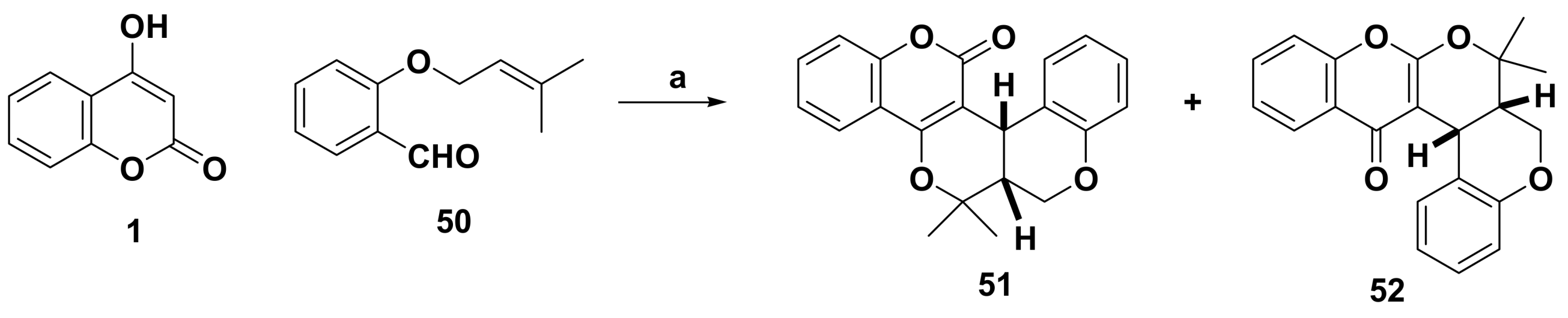

Scheme 7. Synthesis of pyrano[3-2c]coumarins.
Scheme 7. Synthesis of pyrano[3-2c]coumarins.
Molecules 14 04790 sch007
Reagents and conditions: (a) EtOH reflux 4 h, or microwave irradiation, 15 s.
Molecules 14 04790 sch008 550

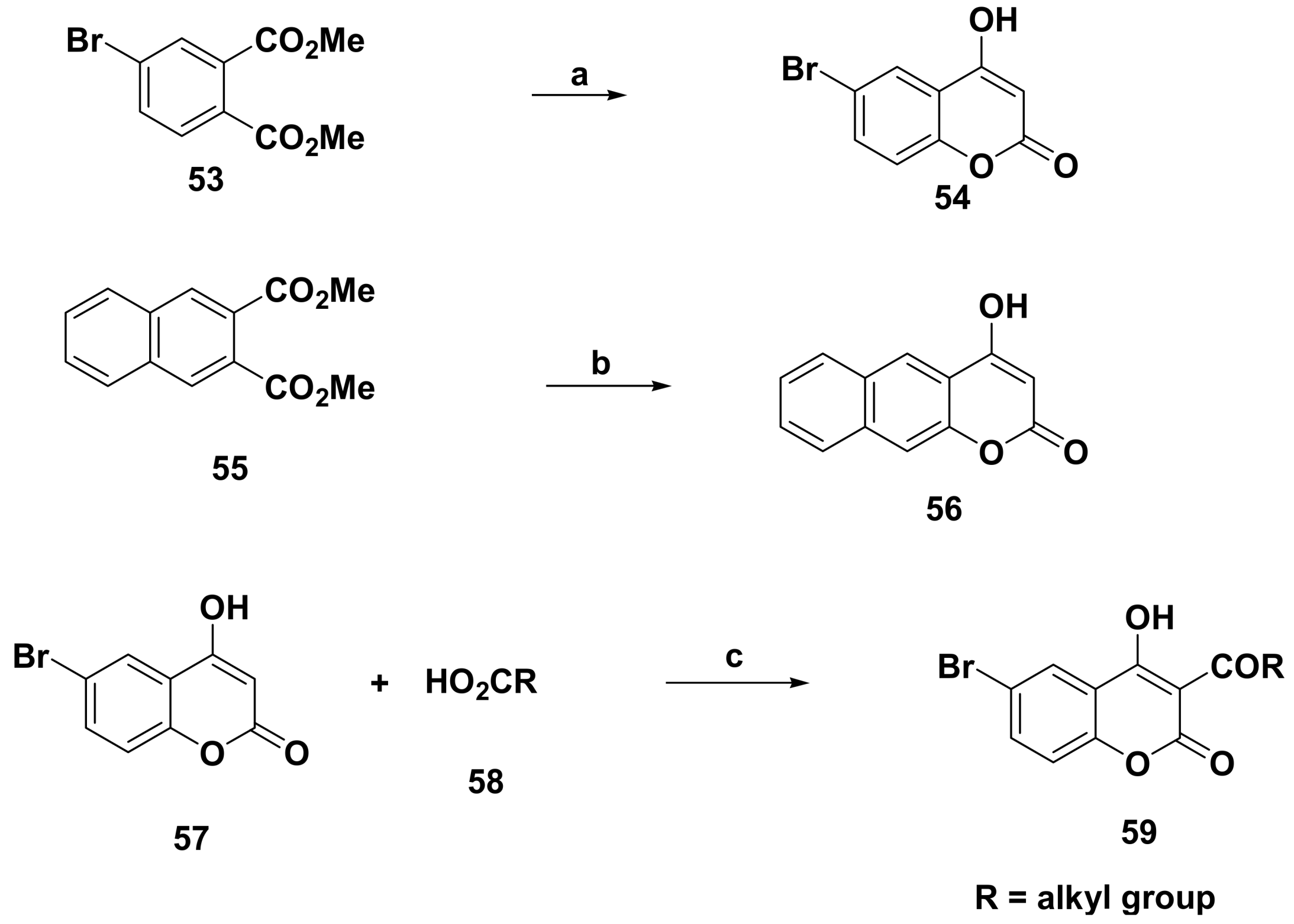

Scheme 8. Synthesis of substituted 4-hydroxycoumarins 54 and 56 and dicoumairn 59.
Scheme 8. Synthesis of substituted 4-hydroxycoumarins 54 and 56 and dicoumairn 59.
Molecules 14 04790 sch008
Reagents and conditions: (a) sodium, paraffin, 220-240 °C; (b) sodium, paraffin, 220-230 °C; (c) POCl3, reflux.
Molecules 14 04790 sch009 550

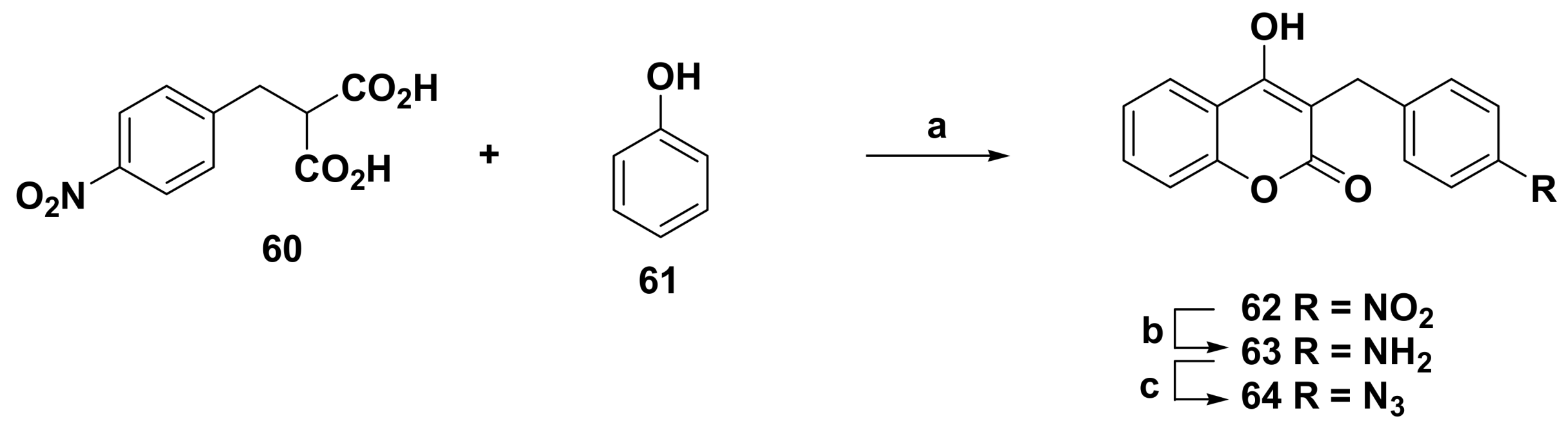

Scheme 9. Synthesis of 3-(p-azido, amino, and nitrobenzyl)-4-hydroxycoumarins 62-64.
Scheme 9. Synthesis of 3-(p-azido, amino, and nitrobenzyl)-4-hydroxycoumarins 62-64.
Molecules 14 04790 sch009
Reagents and conditions: (a) POCl3, ZnCl2, 75 °C; (b) FeSO4, H2O, NH4OH, 80 °C; (c) NaNO2, HCl, and then NaN3, 4 °C.
Molecules 14 04790 sch010 550

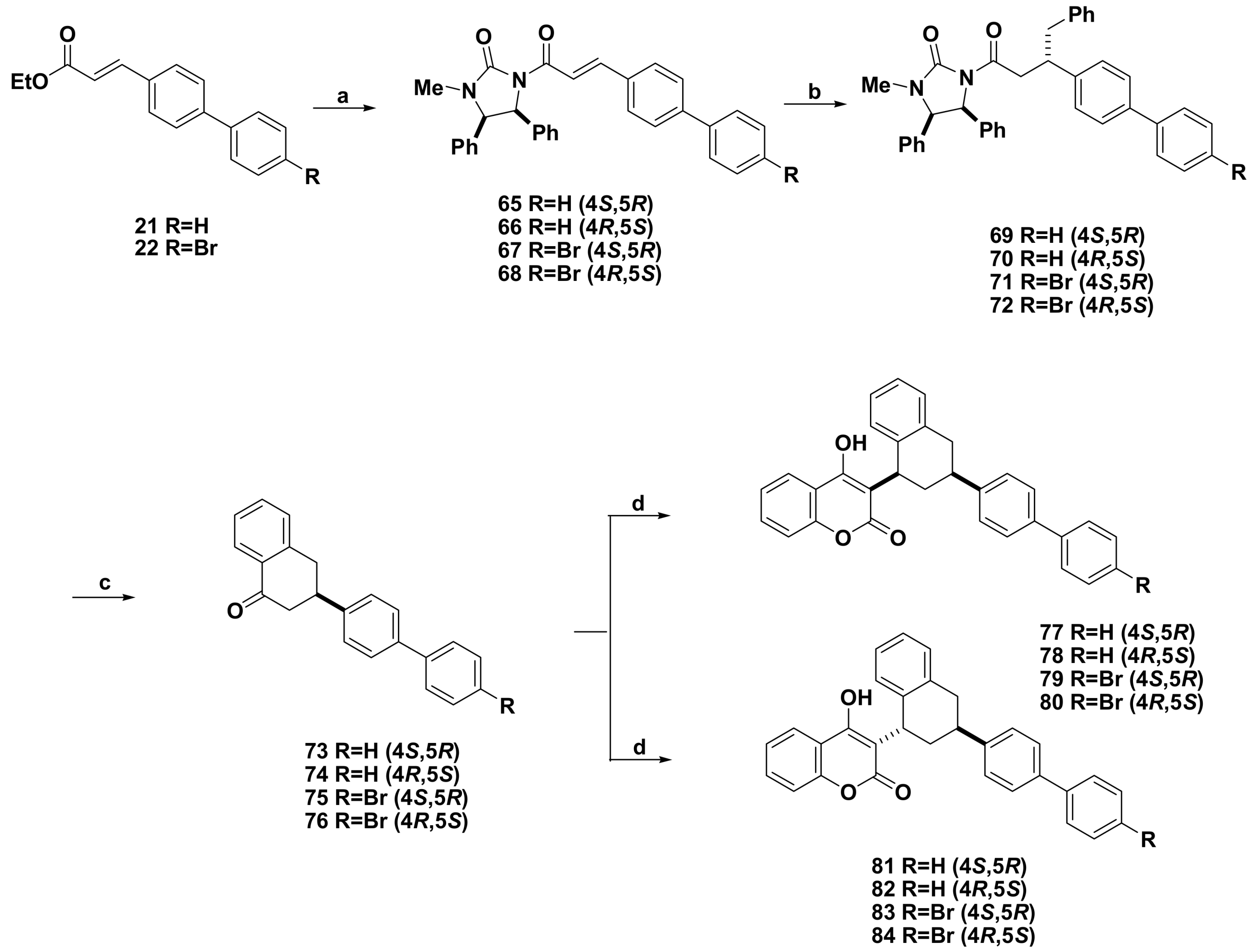

Scheme 10. Stereo- and enantioselective synthesis of diphenacoum (29) and brodifacoum (30).
Scheme 10. Stereo- and enantioselective synthesis of diphenacoum (29) and brodifacoum (30).
Molecules 14 04790 sch010
Reagents and conditions: (a) KOH, EtOH, 40 °C; SOCl2, rt, (+)- or (–)-1,5-dimethyl-4-phenyl-2-imidazolidinone, n-BuLi, Ph3CH, THF, 0 °C; (b) BnCu-TMEDA-n-Bu2BOTf, THF, –78 °C to 30 °C; (c) CF3SO3H, benzene, reflux; (d) NaBH4, EtOH/THF (1:1, v/v), then 4-hydroxycoumarin, HCl(g), 160 °C.
Molecules 14 04790 sch011 550

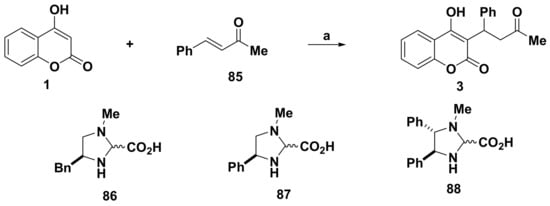

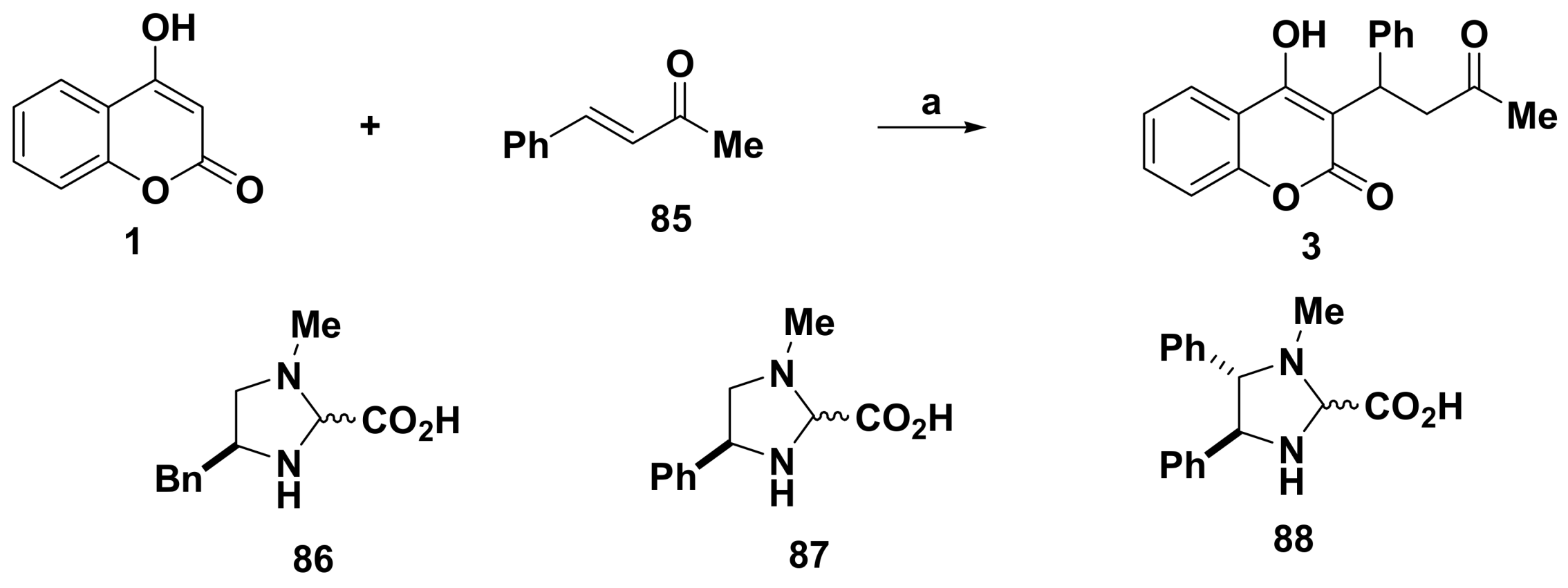

Scheme 11. Organocatalytic asymmetric 1,4-Michael addition of 4-hydroxycoumarin and α,β–unsaturated ketones.
Scheme 11. Organocatalytic asymmetric 1,4-Michael addition of 4-hydroxycoumarin and α,β–unsaturated ketones.
Molecules 14 04790 sch011
Reagents and conditions: (a) 10 mol % catalysts 86-88, dichloromethane, rt.
Molecules 14 04790 sch012 550

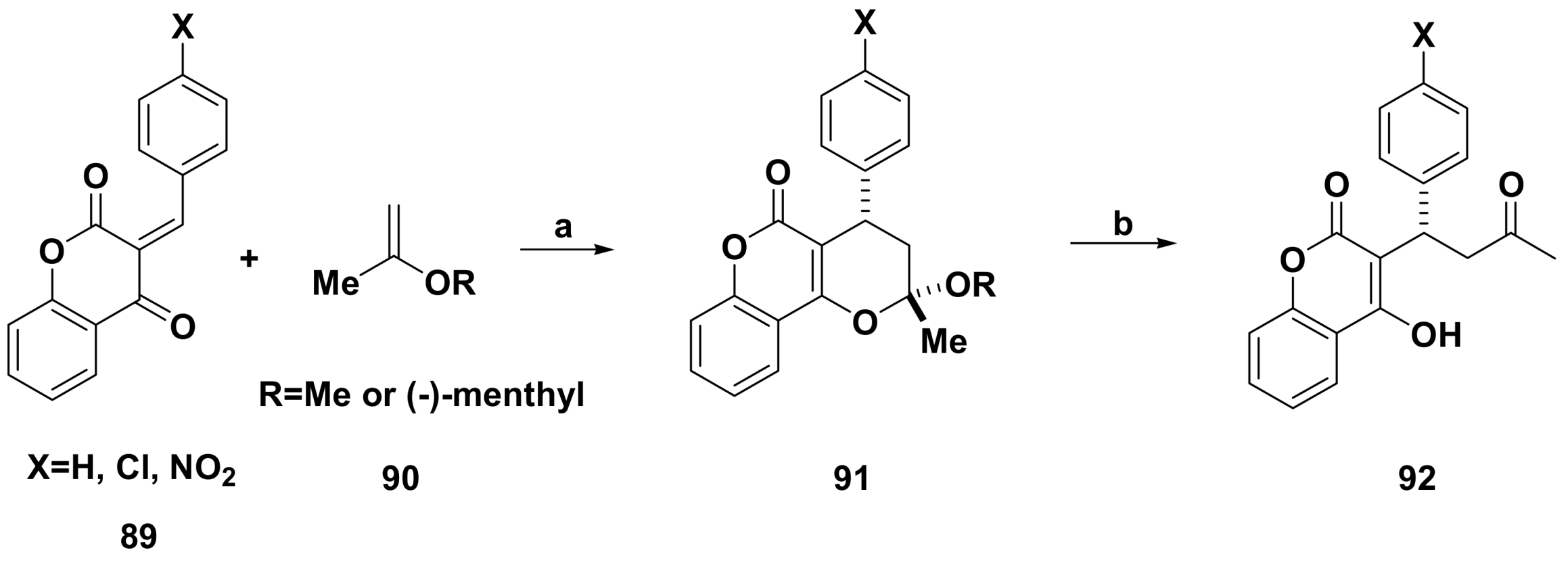

Scheme 12. Asymmetric two-step synthesis of non-racemic coumarin anticoagulants.
Scheme 12. Asymmetric two-step synthesis of non-racemic coumarin anticoagulants.
Molecules 14 04790 sch012
Reagents and conditions: (a) cat-ethylenediammonium diacetate (Tietze base), 5 A molecular sieves, dioxane, 90 °C, screw cap pressure tube; (b) 3N-HCl, SiO2, or TFA:H2O (19:1, v/v).
Table
Table 1. Biological activities for 4-hydroxycoumarin derivatives.
Table 1. Biological activities for 4-hydroxycoumarin derivatives.
4-HydroxycoumarinBiological activityReferences
3arthritis, anti-inflammatory
anti-cancer, anticoagulant
antithrombosis		[33,34]
[35,36]
[37]
4anticoagulant[38]
5anticoagulant, teratogenic[39,40]
6anticoagulant[41]
29anticoagulant[42]
30teratogenic[43]
40vitamin K 2,3-epoxide reductase (VKOR) inhibitors[21]
41anticoagulant[44]
43anticoagulant[45]
46anti-bacterial[23]
54anticoagulant[25]
56anticoagulant[25]
64photoaffinity[46]
92anticoagulant[47]
