Structure, Morphology and Optical Properties of Chiral N-(4-X-phenyl)-N-[1(S)-1-phenylethyl]thiourea, X= Cl, Br, and NO2

by
Werner Kaminsky
*,
Donald Responte
,
Dan Daranciang
,
Jose B. Gallegos
,
Bao-Chau Ngoc Tran
and
Tram-Anh Pham
Department of Chemistry, University of Washington, Seattle, Washington 98195, USA
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(1), 554-569; https://doi.org/10.3390/molecules15010554
Submission received: 22 December 2009 / Revised: 14 January 2010 / Accepted: 21 January 2010 / Published: 26 January 2010
Browse Figures
Versions Notes

Abstract

:
Three new enantiopure aryl-thioureas have been synthesized, N-(4-X-phenyl)-N-[1(S)-1-phenylethyl]thiourea, X= Cl, Br, and NO2 (compounds 1-3, respectively). Large single crystals of up to 0.5 cm3 were grown from methanol/ethanol solutions. Molecular structures were derived from X-ray diffraction studies and the crystal morphology was compared to calculations employing the Bravais-Friedel, Donnay-Harker model. Molecular packing was further studied with Hirshfeld surface calculations. Semi-empirical classical model calculations of refractive indices, optical rotation and the electro-optic effect were performed with OPTACT on the basis of experimentally determined refractive indices. Compound 3 (space group P 1 (No. 1)) was estimated to possess a large electro-optic coefficient r333 of approximately 30 pm/V, whereas 1 and 2 (space Group P 21 (No. 4) exhibit much smaller effects.

Graphical Abstract

1. Introduction

Physical features of crystals are governed by their composition and symmetries (Neumann principle: a physical feature possesses at least the symmetry of the material of consideration). In the absence of inversion symmetry, several non-linear optical properties can exist whereas the presence of inversion symmetry prohibits optical rotation or the linear electro-optic effect for example [1]. Within the context of our goal to predict non-linear optical properties from the data provided in molecular crystal structures obtained via X-ray diffraction we were studying closely related chiral compounds for the impact of small differences in chemical composition on the structure-feature relationship.
Crystals will grow in a way that minimizes as much as possible the sum of dipoles of all molecules inside a single unit cell. The same molecule may arrange in different ways to cancel out a net-dipole. Examples of polymorphs of the same chemical compound usually show a minimized dipole charge of the crystal [2]. Geometrical strategies to minimize a total dipole include dimers of a right handed and a left handed molecule of the same chemical composition, related to each other through inversion symmetry. But inversion symmetry inside the unit cell is not possible in case of enantiopure molecules which causes difficulties for some molecules to grow into larger crystals. A residual dipole charge of the crystal, in addition, may cause individuals to grow in form of twins where the dipoles of the twin components cancel out.
Here we study enantiopure compounds synthesized from the reaction of aryl isothiocyanates with enantiopure α-S-methylbenzylamine (aMBA), The products of aMBA when linked to isothiocynates will also be enantiopure. With some odds against our project to obtain useful crystals for the aforementioned reasons, thioureas are also known for the –H-N-C=S functional group to dimerize via the R22(8) ring formation, {…H-N-C=S}2 [3], structuring the packing of the molecule, minimizing the dipoles, and thereby enhancing crystal growth.
While aryl isothiocyanates have been studied in biological [4] and medicinal applications [5,6], structural or optical properties, and potential optical applications of chiral thioureas remain mostly unexplored. The point groups of compounds presented here are compatible with the aforementioned features that require the absence of inversion symmetry.
Molecules 15 00554 g006 550
Scheme 1. The compounds of this report.
Scheme 1. The compounds of this report.
Molecules 15 00554 g006
Some similar products from reacting isothiocyanates with alcohols are known, where Ar=H- or NO2-phenyl and R=Me, Et, i-propyl, i-butyl [7,8,9,10], Ar= H-, NO2-, C(+O)Me-, Cl-phenyl and R=CH3 [11] as well as R = i-propyl [12], mostly exhibiting the R22(8) dimer, also observed in another series of ureas by us [13,14,15,16,17,18,19,20,21,22,23]. However, this type of dimerization may not apply to all ureas [24]. Summarized in Scheme 1 are three enantiopure ureas 1-3, to the best of our knowledge not previously described in literature, which we will discuss with respect to synthesis, molecular structure, morphology, and non-linear optical properties.

2. Results

2.1. Synthesis and basic properties

Chemical reactions were based on the general procedure described elsewhere [25]. A stochiometric mixture of isothiocyanate and α-(S)-methylbenzylamine was gently stirred in excess of ethanol at 0 °C for 2 hours. The resulting solid product was filtered out and dissolved in 80% ethanol 20% methanol and left for slow evaporation to crystallize. Crystals of compound 3 are very soft and bend easily. Attempts to cut the crystals reveal cleavage on ( Molecules 15 00554 i011). Crystals of 1 cleave on (010).

2.2. Crystal morphology and twinning

Idiomorphically grown crystals were indexed via X-ray diffraction and by comparison with morphologies created with WinXmorph [26,27]. The individual indexing results are complemented with morphologies derived from the Bravais-Friedel, Donnay-Harker model (BFDH) [28,29,30].
Morphology predictions with BFDH are closer to the experimental observations in crystals with fewer directional bonds. BFDH predictions for compounds 1 and 2 deviate from the indexed shape significantly which indicates strong directional bonds, whereas compound 3 adds H...O2-N hydrogen bonds which dilute the directional character of the N..H-S formation and we observe a far better fit of the predicted morphology (cf. Figure 2). All faces of the indexed twin crystal are observed in the BFDH model, predicting (001) and ( Molecules 15 00554 i012) faces to be dominant in 3 and (010) as well as ( Molecules 15 00554 i013) largest in 1 and 2. If strong polarity is added to the calculation for 3 by which the central distances of (h k l) are extended and those of ( Molecules 15 00554 i014 ) are shortened as a simple approach to simulate the symmetry independence of Friedel pairs, the model can be made to exhibit exclusively the observed faces.
Several individuals of compound 3 were twinned after a twofold twin axis along [110] which eliminates any residual dipole perpendicular to that direction (Figure 1). Compound 1 grew frequently in the shape of conglomerates. 2 developed into non-twinned specimen.
Molecules 15 00554 g001 550

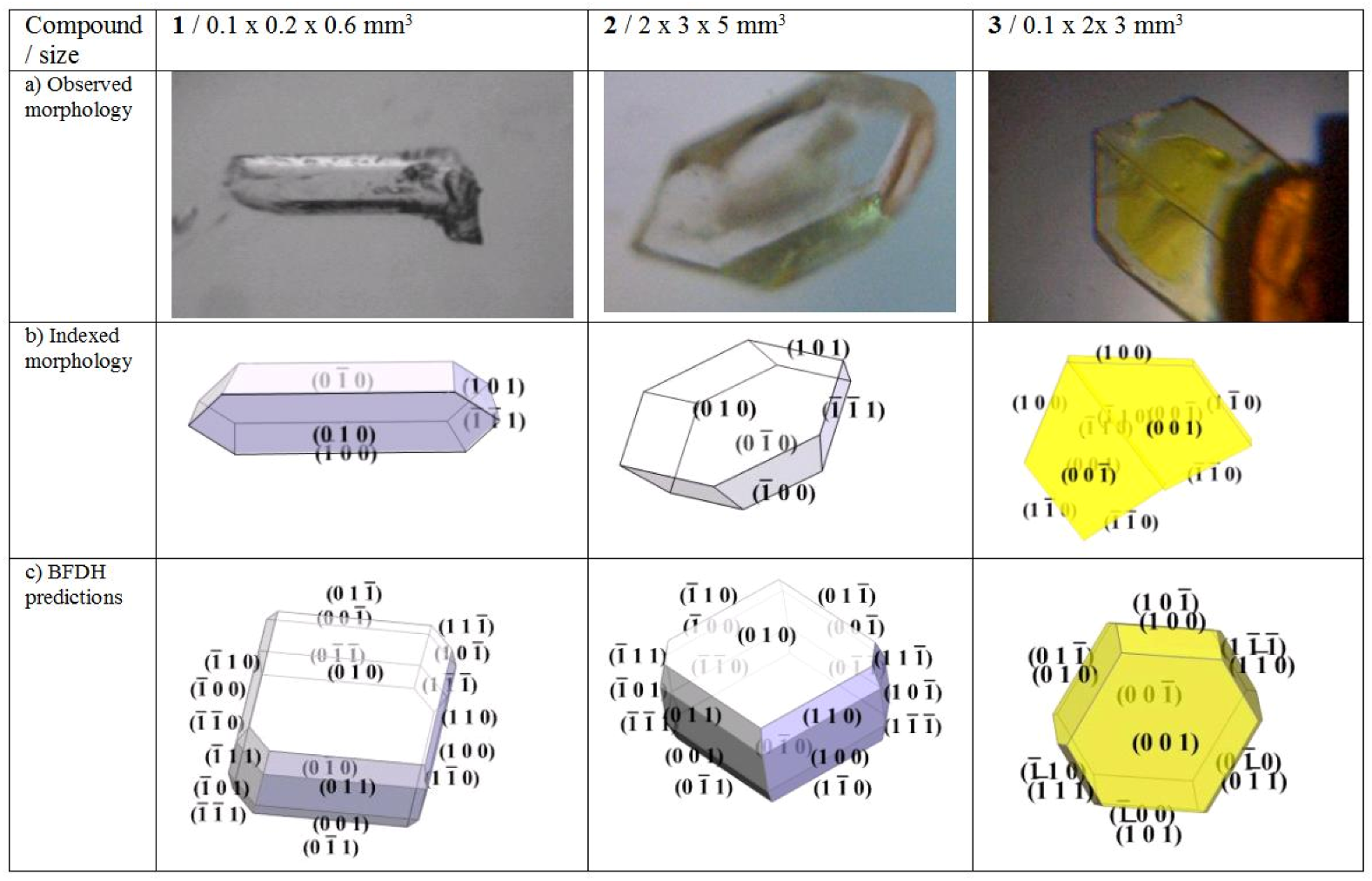

Figure 1. a) Photographs of idiomorphically grown specimen of 1: N-(4-chlorophenyl)-N-[1(S)-1-phenylethyl]thiourea, 2: N-(4-bromophenyl)-N-[1(S)-1-phenylethyl]thiourea, 3: N-(4-nitrophenyl)-N-[1(S)-1-phenylethyl]thiourea. b) indexed morphologies. c) estimated morphologies with the Bravais-Friedel, Donnay-Harker models.
Figure 1. a) Photographs of idiomorphically grown specimen of 1: N-(4-chlorophenyl)-N-[1(S)-1-phenylethyl]thiourea, 2: N-(4-bromophenyl)-N-[1(S)-1-phenylethyl]thiourea, 3: N-(4-nitrophenyl)-N-[1(S)-1-phenylethyl]thiourea. b) indexed morphologies. c) estimated morphologies with the Bravais-Friedel, Donnay-Harker models.
Molecules 15 00554 g001

2.3. X-ray diffraction studies

Crystals measuring 0.2 to 0.5 mm3 were mounted on glass capillaries with paratone oil. Diffraction patterns were collected at 130 K on a Nonius Kappa CCD FR590 single crystal X-ray diffractometer, Mo-radiation. Crystal-to-detector distances were 30 mm and exposure times ranged from 20 to 100 seconds per degree for all sets. The scan width was 1–2o. The data was integrated and scaled using hkl-SCALEPACK [31]. This program applies a multiplicative correction factor (S) to the observed intensities (I) and has the following form:
Molecules 15 00554 i001
S is calculated from the scale and the B factor determined for each frame and is then applied to I to give the corrected intensity (Icorr). Solution by direct methods (SIR97 [32,33] produced nearly complete heavy atom phasing models consistent with the proposed structures. The structures were completed by difference Fourier synthesis with SHELXL97 [34,35].. Scattering factors are from Waasmair and Kirfel [36]. All hydrogen atoms were located using a riding model. All non-hydrogen atoms were refined anisotropically by full-matrix least-squares. Table 1 summarizes the data collection details. ORTEP drawings of the structures for compounds 1-3 were rendered with ORTEP3 for Windows (see below, Figure 2) [37].
Table
Table 1. Crystallographic data and refinement details for crystals 1–3. (*) Compound 3 shows a doubled cell at 130 K with 4 independent molecules, where the cell parameters, a, b, c at room-temperature, presented here, are related to those at 130 K, A, B, C, via the transformation a = ½(A + B), b = ½(B−A), c = C.
Table 1. Crystallographic data and refinement details for crystals 1–3. (*) Compound 3 shows a doubled cell at 130 K with 4 independent molecules, where the cell parameters, a, b, c at room-temperature, presented here, are related to those at 130 K, A, B, C, via the transformation a = ½(A + B), b = ½(B−A), c = C.
Compound1 23
FormulaC15H15N2ClSC15H15N2BrSC15H15N3O2S
Formula weight290.80335.26301.36
Crystal systemmonoclinicmonoclinictriclinic
Space groupP21P21P1
T/K130130293*
Color / descriptioncolorless needlecolorless plateyellow plate
Size (mmm3)0.59x0.22x0.120.50x0.20x0.140.50x0.48x0.05
a/Å7.4610(3)7.6500(3)7.737(3)
b/ Å24.627(1)24.645(1)8.267(3)
c/ Å7.8620(3)7.7780(3)13.616(7)
α/º909091.43(2)
β/º100.478(2)101.113(2)102.06(2)
γ/º9090112.99(2)
V/Å31420.5(1)1438.9(1)778.5(3)
Z442
Dc/gcm_31.3601.5481.286
µ(Mo Kα)/mm-10.4032.9890.215
Measured / unique data4842 / 48425864 / 58644641 / 4641
Flack enantiopole-0.2(1)-0.02(2)-0.1(2)
Rlin, No. refined parameters0.061, 3450.096, 3450.088, 381
Observed data, I>2σ(I)383546862984
R, obs.; Rw all data0.0775; 0.22100.0672; 0.17300.0764; 0.2174
GOOF; compl. (ϑ=25º)1.111; 99.61.065; 99.41.026; 96.2

2.4. Refractive indices

As light passes from one transparent medium to another, it changes speed and the direction bends as a result of refraction. The degree to which this happens depends on the refractive index of the media along the light polarization, and the angle of incidence. Using a micron scale microscope and the “three height method” [38] which is derived from Snell’s law of refraction, we were able to determine some of the refractive indices in compound 3 directly in the visible spectral range. The refractive indices are computed approximately from the ratio of distances measured from top to bottom of a crystal plate and from the top to the bottom seen through the (001) crystal section.
The values and directions are approximately 1.61(2) along the a-axis and 1.49(2) perpendicular to that along b* in the projection of the crystal face.
Conoscopic images suggest that these two are to be extended by a third, bigger value. The material was too soft to prepare a prism or a plate thin enough to determine the third value quantitatively. The eigenmode of the largest refractive index is approximately parallel to the direction of the sulfur atom to the nitro group.

3. Discussion

3.1. Thioamide R22(8) {…H-N-C=S}2 dimer

All structures studied here organize via the thioamide {…H-N-C=S}2 dimer formation (Scheme 2).
Molecules 15 00554 g007 550

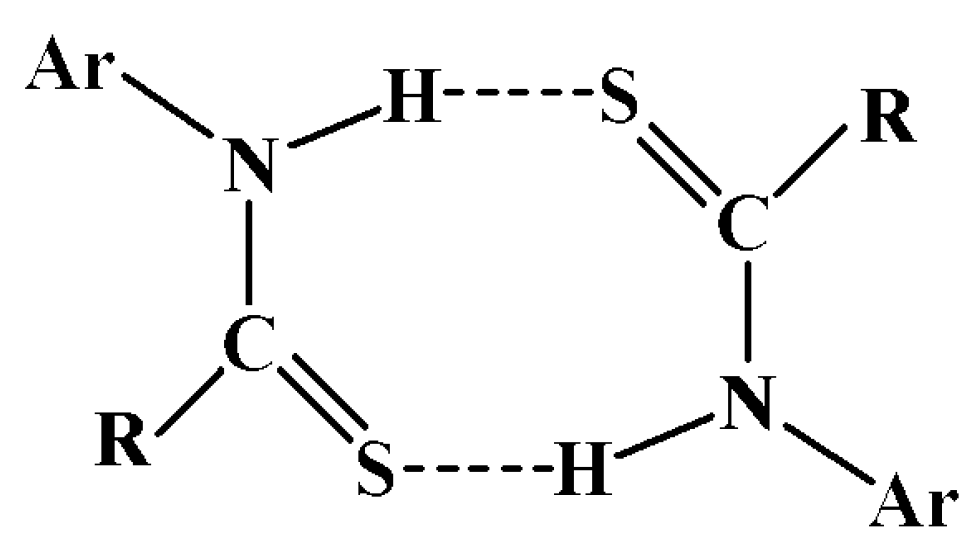

Scheme 2. General representation of the thioamide {…H-N-C=S}2 dimer formation with R = N-[1(S)-1-phenylethyl] and Ar = 4-Cl-phenyl, 4-Br-phenyl, 4-NO2-phenyl.
Scheme 2. General representation of the thioamide {…H-N-C=S}2 dimer formation with R = N-[1(S)-1-phenylethyl] and Ar = 4-Cl-phenyl, 4-Br-phenyl, 4-NO2-phenyl.
Molecules 15 00554 g007
Hydrogen bonds are most intuitively studied with Hirshfeld surfaces (HSs, Figure 2, Table 2) which are designed to smoothly enclose almost all available space around a molecule [39,40,41,42] Points r on a HSs are found where the sum of all spherically approximated electron densities of a molecule at r is twice the contribution of all atoms in the unit cell at point r. The surface can then be color-coded relative to the distances from points r to the nearest atoms.
Molecules 15 00554 g002 550

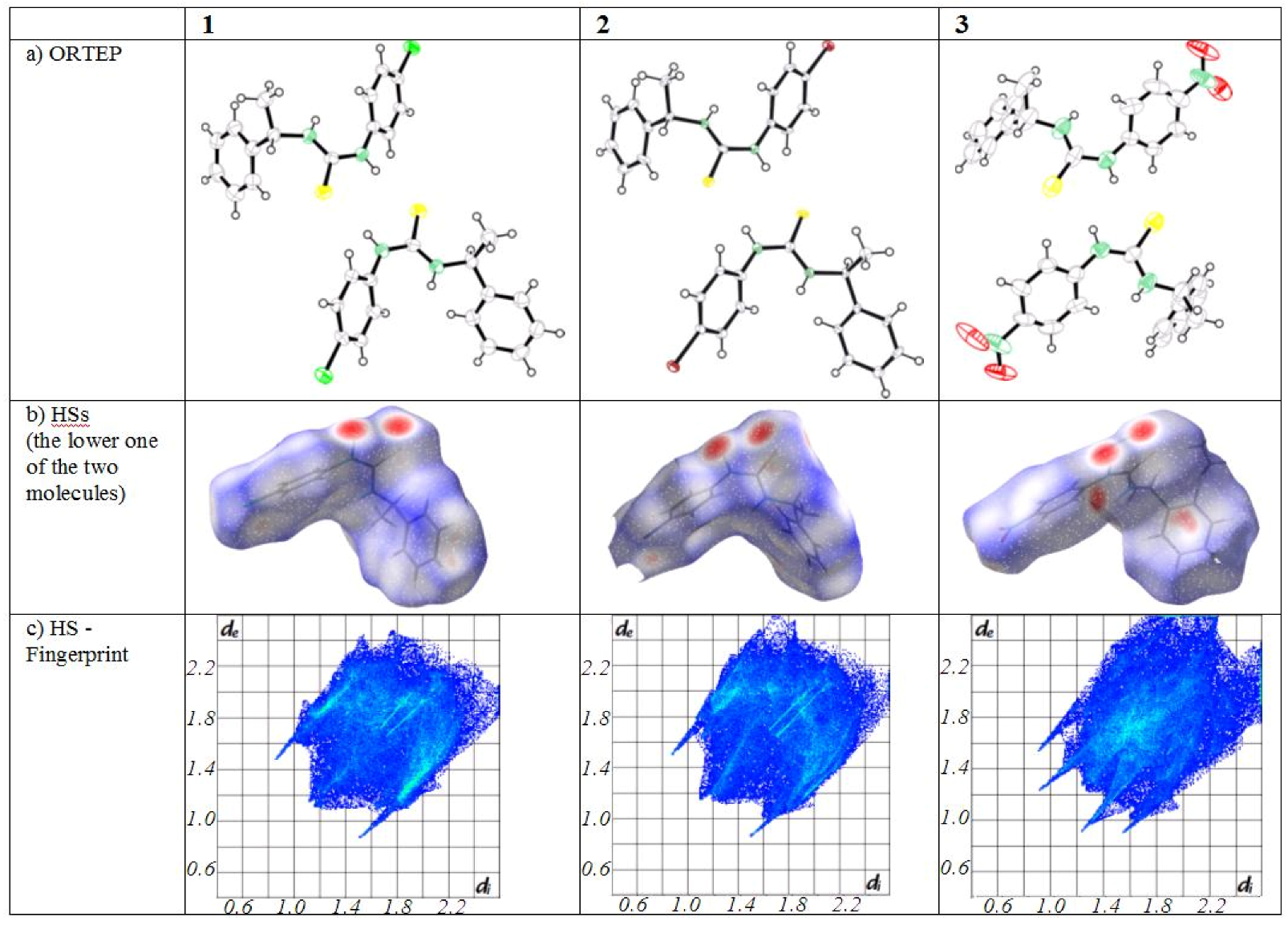

Figure 2. a) ORTEP representations of 1 - 3 with thermal ellipsoids at the 50% level. b) Hirshfeld surfaces. c) Hirshfeld surface fingerprints of atomic distances.
Figure 2. a) ORTEP representations of 1 - 3 with thermal ellipsoids at the 50% level. b) Hirshfeld surfaces. c) Hirshfeld surface fingerprints of atomic distances.
Molecules 15 00554 g002
When choosing a color scheme where red indicates short distances and blue large ones, hydrogen bonds or other close contacts of a molecule to a neighboring one are easily spotted. Figure 2 shows HSs of compounds 1– 3 in orientation similar to scheme 2. Clearly visible are two ‘red circles’ in close vicinity of sulfur and the corresponding hydrogen bonding nitrogen in each of the shown cases.
HSs can be studied further to establish fingerprint plots where the distance di to a point r on the surface to a close atom inside the surface is plotted against the related distance, de to an outside atom. Figure 2c presents such fingerprint plots for the compounds 1–3. N-H..S hydrogen bonds are contributing to the two outside spikes, H-C bonds occupy the diagonal and two more spikes related to O..H-C hydrogen bonds are found just inside the R22(8) formation spikes in 3.
Table
Table 2. Intermolecular hydrogen bonds documenting the thioamide {…H-N-C=S}2 dimer formation and NO2-H… donor (D) … acceptor (A) interactions in 3.
Table 2. Intermolecular hydrogen bonds documenting the thioamide {…H-N-C=S}2 dimer formation and NO2-H… donor (D) … acceptor (A) interactions in 3.
1: H…A, D…A, <(DHA)2: H…A, D…A, <(DHA)3: H…A, D…A, <(DHA)
N1-H1N…S22.51 Å, 3.345(6) Å, 158.4o2.50 Å, 3.338(9) Å, 159.1o2.59 Å, 3.395(7) Å, 155.2o
N3-H3N…S12.48 Å, 3.327(6) Å, 162.0o2.50 Å, 3.342(9) Å, 161.6o2.62 Å, 3.400(6) Å, 151.8o
N5-H5N…O2N/AN/A2.52 Å, 3.36(1) Å, 166.1o

3.2. Optical features

3.2.1. Model calculations

Properties of purely dispersive chiro-optical properties in crystals may be obtained using the dipole-dipole interaction theory [43,44,45,46,47,48] (Figure 3), which has been applied with success to ionic crystals using OPTACT [49]. Empirical electronic polarizability volumes of the different elements in a structure need to be modelled until the refractive indices calculated with the dipole-dipole model are close to the experimentally derived ones. Starting values for electronic polarizabilities, derived from refractive indices of many different compounds, are tabulated elsewhere [50]. Appendix 1 sketches the theory underlying the OPTACT program used here to calculate refractive indices and optical rotation.
While progress has been made in the application of quantum mechanics to the calculation of optical rotation in molecules [51,52], in crystals we chose above more reliable theory that embodies long range interactions and accommodates the periodicity of the crystal lattice. To calculate the higher order optical properties, classical polarizability theory was employed whereby an external electric field displaces the nuclei from the centers of the surrounding electron clouds in proportion to the atomic polarizabilities [53]. Here, the external electric field shifts the atomic nuclei of the kth atom by distance x approximated by its electronic polarizability (Figure 4) [54]:
Molecules 15 00554 i002
where e is the charge of an electron, εo is the permittivity of free space and Ejloc is the local electric field connected with the external field Eext via the effective relative dielectric constant ε' in the direction of the external field, where a spherical depolarization field (Lorentz-depolarization) is assumed:
Molecules 15 00554 i003
Molecules 15 00554 g003 550

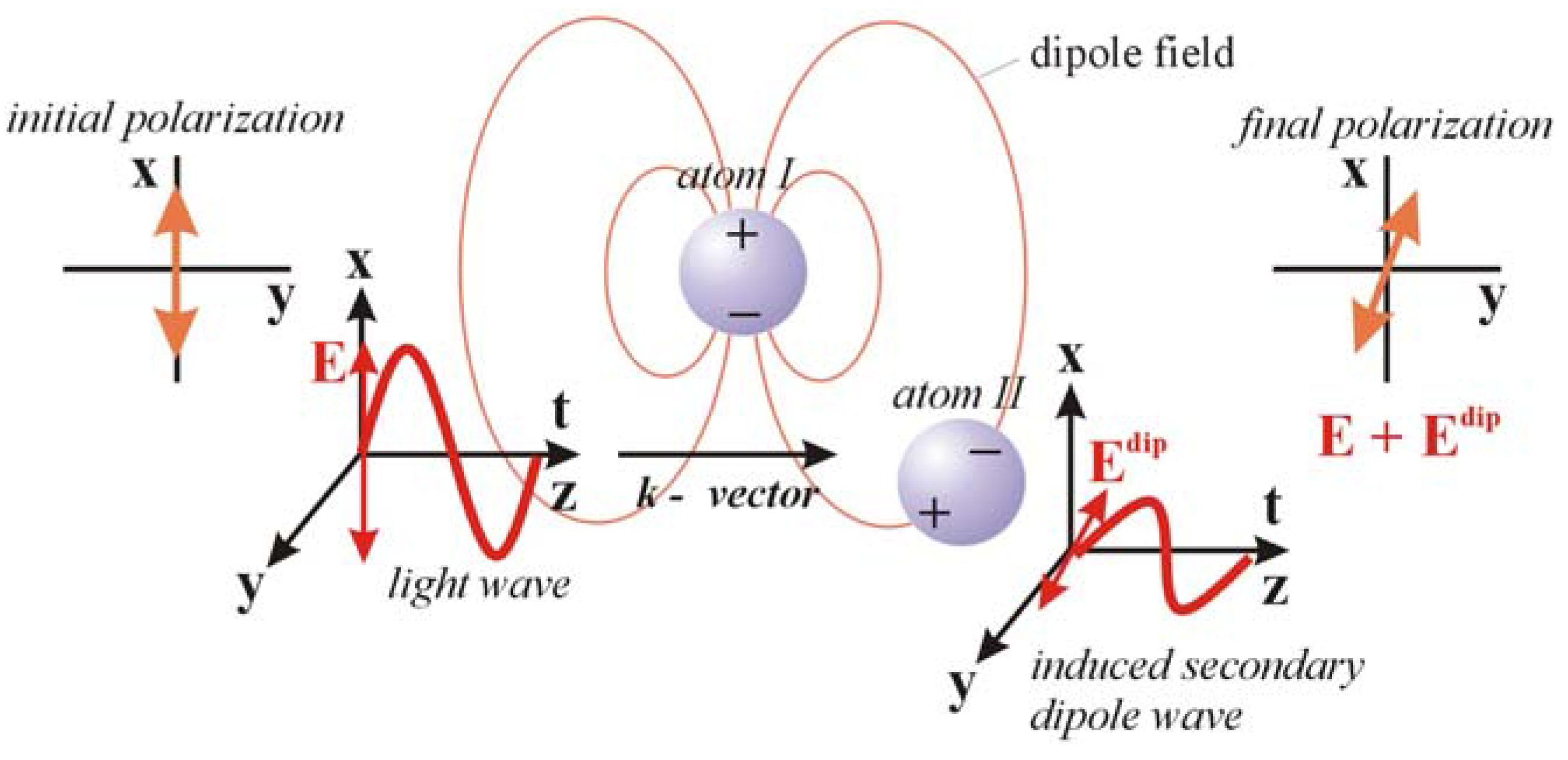

Figure 3. Illustration of the dipole-dipole interaction theory (image from [38], reproduced by permission of The Royal Society of Chemistry). When an initial wave with polarization E passes the first atom positioned at (x,0,0) in a Cartesian reference system (z//k, k is the wave vector), a dipole field is created which induces in a second atom at (0,y,z) a secondary dipole field. This field oscillates in a direction different to E for y, z ≠ 0. The interference of all induced waves with the initial wave (calculated via an Ewald sum) on passing through the crystal leads to a rotation of E when the atoms adopt a chiral arrangement.
Figure 3. Illustration of the dipole-dipole interaction theory (image from [38], reproduced by permission of The Royal Society of Chemistry). When an initial wave with polarization E passes the first atom positioned at (x,0,0) in a Cartesian reference system (z//k, k is the wave vector), a dipole field is created which induces in a second atom at (0,y,z) a secondary dipole field. This field oscillates in a direction different to E for y, z ≠ 0. The interference of all induced waves with the initial wave (calculated via an Ewald sum) on passing through the crystal leads to a rotation of E when the atoms adopt a chiral arrangement.
Molecules 15 00554 g003
Atoms with small electronic polarizabilities are less affected by a static electric field than heavy elements [55]. Although it seems to be inappropriate to use electronic instead of ionic polarizabilities, it is observed that if the sum of the molar polarizabilities is increased only by about a factor of three, the dielectric constant tends already to diverge to infinity, as is easily seen from the Clausius-Mossotti relation. Thus we can expect only a relatively small error by this approximation as long as the dielectric constant remains small.
Molecules 15 00554 g004 550
Figure 4. The shift of the nuclei relative to the electron clouds by an external electric field E (image from [38], reproduced by permission of The Royal Society of Chemistry). The radius of the clouds indicates the size of the polarizability. The external field induces a small change in the value of the electronic polarizability volumes, but this effect is neglected. Furthermore, in the hard-spheres approximation, the electronic clouds of different atoms are not free to move relative to each other. In a classical picture at optical frequencies, the atom’s nucleus is the center of the light-wave induced vibration of the shell.
Figure 4. The shift of the nuclei relative to the electron clouds by an external electric field E (image from [38], reproduced by permission of The Royal Society of Chemistry). The radius of the clouds indicates the size of the polarizability. The external field induces a small change in the value of the electronic polarizability volumes, but this effect is neglected. Furthermore, in the hard-spheres approximation, the electronic clouds of different atoms are not free to move relative to each other. In a classical picture at optical frequencies, the atom’s nucleus is the center of the light-wave induced vibration of the shell.
Molecules 15 00554 g004
The aforementioned OPTACT program was used to calculate the optical relative dielectric constant εij with and without the applied field, and with polarization tensor [56] aij=εij-1, linear electro-optic effects at constant strain rijk are calculated from:
Molecules 15 00554 i004
All tensors were calculated assuming no symmetry at all. Therefore, it was satisfying to discover that the resulting tensors conform to Neumann’s law.
When choosing electronic polarizabilities to calculate refractive indices and optical rotation we took the published values [50] first, but varying those of O, N, C and H for fitting the experimental refractive indices in 3. The best set found for elements S, Br, Cl, O, N, C, H was 5.3, 4.4, 3, 2.5, 0.005, 0.09, 0.8 Å3, respectively. Table 3 summarizes the extrapolated results [57].

3.2.2. Estimation of optical features

The measured refractive indices and directions in the projection of the (001) crystal face in compound 3 correspond roughly to calculated refractive indices nβ and nα, see Table 3.
Table
Table 3. Calculation of refractive indices, components of corresponding direction cosines (eox, eoy, eoz), optical rotation and normalized static electro-optic effect at constant strain. Realistic r-coefficients may be obtained from calculated rijk via r’ijp = ⅓(2+εpq) rijq, εpq static dielectric constants. Tensor components and directions are related to the physical reference system {x, y, z} via convention y // b*, z // c, x = y x z; a, b, c crystallographic axes.
Table 3. Calculation of refractive indices, components of corresponding direction cosines (eox, eoy, eoz), optical rotation and normalized static electro-optic effect at constant strain. Realistic r-coefficients may be obtained from calculated rijk via r’ijp = ⅓(2+εpq) rijq, εpq static dielectric constants. Tensor components and directions are related to the physical reference system {x, y, z} via convention y // b*, z // c, x = y x z; a, b, c crystallographic axes.
123
nα, eo1.513, (0.99,0,0.12)1.552, (0.98,0,0.21)1.504, (0.18,-0.88,-0.45)
nβ, e o1.606, (0, 1, 0)1.634, (0, 1, 0)1.573, (-0.97,-0.07,-0.24)
nγ, e o1.661, (0.12,0,-0.99)1.710, (0.21,0,-0.98)1.767, (0.18,0.45,-0.86)
Opt. rotation 2.9     0     -5.8 -4.3     0     -9.7 13.7     -10.7     4.8
0     -8.4     0 0     -8.0     0-10.7     -20.0     -21.3
ρ(ij) (o/mm)-5.8     0     9.1-9.7     0     -0.14.8     -21.3    32.4
normalizedr112-0.01r231-0.38r112-0.12r231-0.45r111-0.43r2212.40
r1210.07r233-0.48r121-0.18r233-0.35r112-0.15r222-1.82
El. Opt. effectr123-0.44r312-0.44r123-0.54r312-0.44r1130.11r2231.82
r’(ij)k/ε (pm/V)r2220.19r332-0.19r2220.16r332-0.16r121-0.04r231-1.00
r1220.22r2322.08
r1230.10r2330.94
r131-0.24r3311.27
r132-0.08r3320.03
r1330.04r333-3.07
In compound 2, the extinction angle of the largest refractive index in the (010) plane was determined to 11 degrees counter clockwise towards [001] when looking towards the b-axis. The calculated angle was 12.18o, in excellent agreement with the observation.
Molecules 15 00554 g005 550

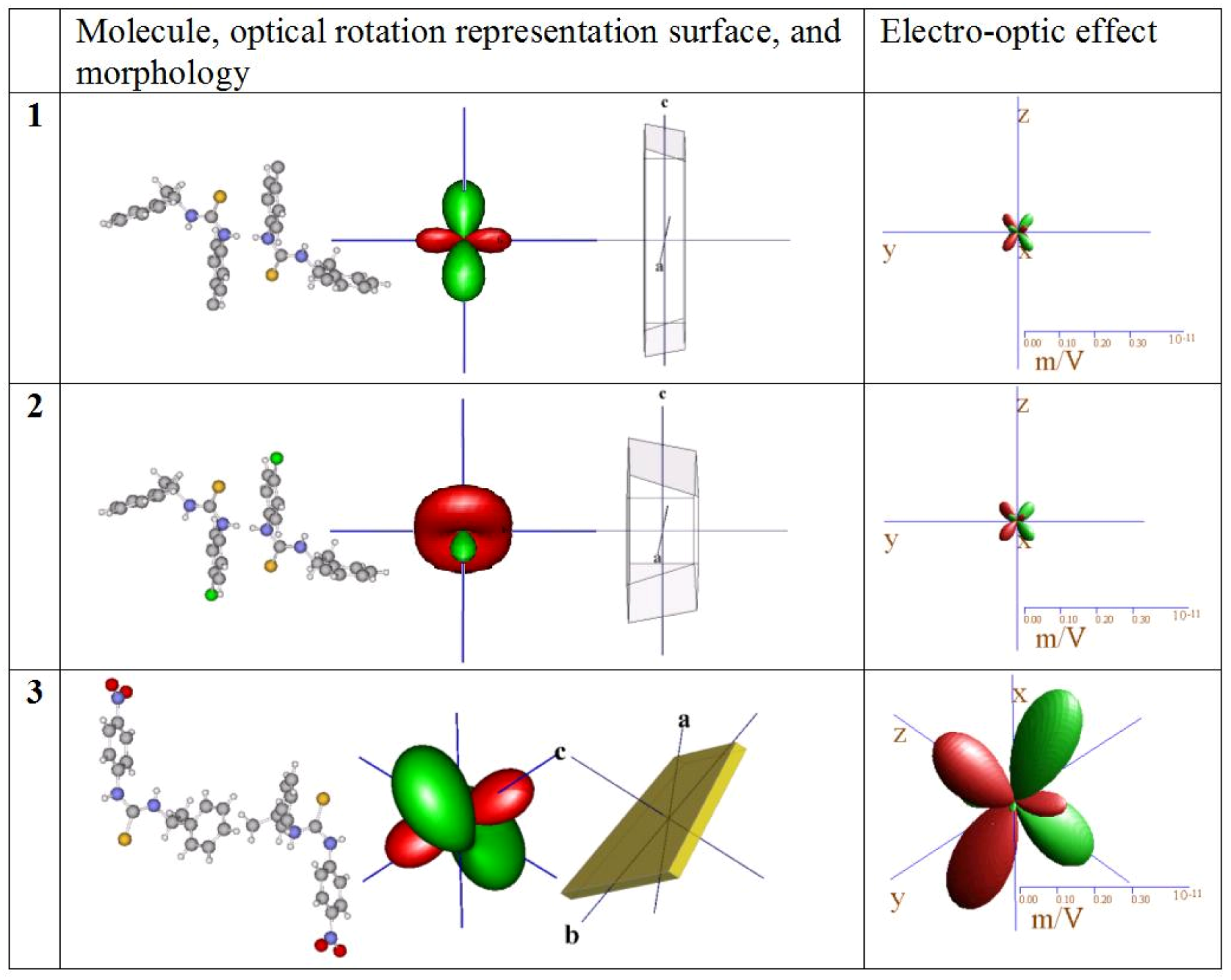

Figure 5. Molecules in similar orientation, representation surface for optical rotation, morphology of typical specimen, and the electro-optic effect, shown to scale to enhance comparison between compounds.
Figure 5. Molecules in similar orientation, representation surface for optical rotation, morphology of typical specimen, and the electro-optic effect, shown to scale to enhance comparison between compounds.
Molecules 15 00554 g005
Only weak similarities are observed between the calculated optical rotation of the three substances (Table 3, Figure 5). The coefficient ρ22 of optical rotation along the y-axis of the physical reference system is similar of size and negative in 1, 2 and the equivalent direction in 3 mainly normal to the aryl ring planes. Because there is no symmetry restriction in 3, we should expect the OR tensor to be different to that of 1 and 2. Evident is also the effect of the polarizability of the halides in the large differences between 1 and 2 even so their atomic structures are almost identical.
Compound 3 promises to be a photonic material of interest as it exhibits large calculated non-linear optical coefficients, is stable at ambient conditions and crystallizes well. It is evident that the orientation of the molecules and the anisotropy of the optical rotation and the electro-optic effect are coupled. For instance, when the molecules of 1 - 3 are aligned in a similar fashion as in Figure 5, the representation surfaces of the electro-optic effect are also similar in shape and orientation. Assuming a moderate relative dielectric coefficient of about 10, compound 3 could reach a r’333 coefficient of 30 pm/V which compares to other non-linear compounds of interest like LiNBO3 (r’333 = -30.9 pm/V) or KH2PO4 (r’123 =10.3 pm/V) [58].

Supplementary Data

CCDC 758977-758979 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html/ (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-Mail: [email protected]).

Acknowledgements

D.D. and J.B.G. are grateful for financial support from the NSF-STC Program under Agreement No. DMR-0120967. We also thank Douglas Xenon West for the donation of Chemicals for this project and Bart Kahr for providing wet-chemistry lab space.
  • Sample Availability: Samples of the compounds 1-3 are available from MDPI.

Appendix 1. Dipole-Dipole interaction model

Optical rotation is described by a totally symmetric tensor. Thus, there always exists a reference system in which optical rotation exhibits 222 point group symmetry. Although the two molecules in 3 are very roughly related by a twofold rotation along [110] there is no further clearly defined twofold rotation perpendicular to that direction. In addition, the two molecules are too close to be treated as individual molecules. An attempt to compare single molecule calculations of optical rotation via quantum mechanical methods with the data presented here would be meaningless.
Let an electrical potential, V, the Hertz vector potential, built from terms describing the frequency dependent incident wave, the interaction between all atoms in the unit cell and the interaction between all unit cells in the lattice, describe the cumulative effect of the dipole-dipole interactions between all atoms in the crystal lattice acting on an atom s in unit cell l at a position rsl:
Molecules 15 00554 i005
The term in braces has the periodicity of the lattice. The electric field E(rsl) at atom rsl originating from the dipole waves emanating from all other atoms (point dipoles) in the structure is described by [59]:
Molecules 15 00554 i006
where psl is the electronic polarization at position rsl and αs is the electronic polarizability volume of atom s. The imaginary part of Ass´ describes the phase shifts that result in radiative interference and optical rotation. The only conditionally convergent summation is decomposed into a Fourier series that can be separated into two absolutely convergent parts, one in real space and the other in reciprocal space according to the Ewald theorem [60]. A new matrix Css´ is defined from variables describing the electric field E(rsl):
Molecules 15 00554 i007

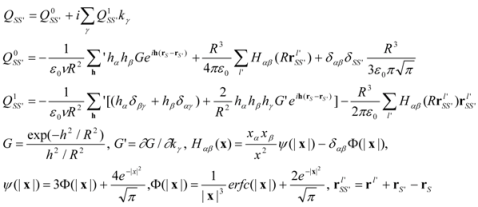

Molecules 15 00554 i008
where R is a parameter selected to ensure convergence. The optical rotation ρ(k) and optical dielectric constants εij are derived as follows:
Molecules 15 00554 i009
Molecules 15 00554 i010
where (erij = Levi-Civita symbol, k = wave vector, n = average refractive indices, v = unit volume and δij = Kronecker delta). The Levi-Civita operation erij accomplishes the cross product between the spatial coordinates of Css′ and the wave vector.
The rotatory power ρij is defined as the clockwise rotation of linear polarized light passing through a non-birefringent sample of 1 mm thickness as observed when looking towards the light source. This theoretical model reliably calculates optical rotation on the basis of the interacting forces in inorganic structures. It was further applied successfully to molecular crystals where the interacting fields within a molecule are more significant than those between the molecules [61].

References

  1. Kaminsky, W. Experimental and phenomenological aspects of circular birefringence and related properties in transparent crystals. Rep. Prog. Phys. 2000, 63, 1575–1640, The following review is only one of many examples. [Google Scholar] [CrossRef]
  2. Rohl, A.; Moret, M.; Kaminsky, W.; Claborn, K.; Kahr, B. Hirshfeld Surfaces Identify Errors in Computations of Intermolecular Interactions in Crystals: Pentamorphic 1,8-Dihydroxyanthraquinone. Cryst. Growth Design 2008, 8, 4517–4525, Dihydroxyanthraquinone, for example, is pentamorphic. [Google Scholar]
  3. Ho, S.Y.; Bettens, R.P.A.; Dakternieks, D.; Duthie, A.; Tiekink, E.R.T. Prevalence of the thioamide {…H–N–CLS}2 synthon—solid-state (X-ray crystallography), solution (NMR) and gas-phase (theoretical) structures of O-methyl-N-aryl-thiocarbamides. Cryst. Eng. Comm. 2005, 7, 682–689. [Google Scholar] [CrossRef]
  4. Humeres, E.; Zucco, C.; Nunes, M.; Debacher, N.; Nunes, R. Hydrolysis of N-aryl thioncarbamate esters. Modified Marcus equation for reactions with asymmetric intrinsic barriers. J. Phys. Org. Chem. 2002, 15, 570–575. [Google Scholar] [CrossRef]
  5. Fowke, J.; Chung, F.; Jin, F.; Qi, D.; Cai, Q.; Conaway, C.; Cheng, J.; Shu, X.; Gao, Y.; Zheng, W. Urinary isothiocyanate levels, brassica, and human breast cancer. Cancer Res. 2003, 63, 3980–3986. [Google Scholar]
  6. These thiocarbamates are typical of the structures often used (or found) in high-throughput screens and often have multiple activities. Something this small is often a fragment or part of the overall pharmacophore. It may have low (micromolar to millimolar) affinity for part of the receptor binding epitope and will eventually be complemented by a second fragment of approximately the same size that occupies the other part of the binding epitope. As far as for specific activity, these compounds are not part of a predictable class of biologically active compounds. Activity studies would require unbiased high throughput screens and fragment approaches.
  7. Taylor, R.; Tiekink, E.R.T. Crystal and molecular-structure of O-ethyl-N-phenylthiocarbamate. Z. Kristallogr. 1994, 209, 64–67. [Google Scholar] [CrossRef]
  8. Benson, R.E.; Broker, G.A.; Daniels, L.M.; Tiekink, E.R.T.; Wardell, J.L. (E)-O-Ethyl N-(4-nitrophenyl)thiocarbamate. Acta Cryst. 2006, E62, 4106–4108. [Google Scholar]
  9. Ellis, C.A.; Miller, M.A.; Spencer, J.; Zukerman-Schpector, J.; Tiekink, E.R.T. Co-crystallization experiments of thiocarbamides with bipyridine-type molecules. Cryst. Eng. Comm. 2009, 11, 1352–1361. [Google Scholar] [CrossRef]
  10. Jian, F.F.; Yu, H.Q.; Qiao, Y.B.; Liang, T.L. O-Isobutyl N-phenylthiocarbamate. Acta Cryst. 2006, E62, 3416–3417. [Google Scholar]
  11. Ho, S.Y.; Lai, C.S.; Tiekink, E. R. T. O-Methyl N-phenylthiocarbamate. Acta Cryst. 2003, E59, 1155–1156. [Google Scholar]
  12. Kuan, F.S.; Mohr, F.; Tadbuppa, P.P.; Tiekink, E.R.T. Principles of crystal packing in O-isopropyl-N-aryl-thiocarbamides: iPrOC(LS)N(H)C6H4-4-Y: Y 5 H, Cl, and Me. Cryst. Eng. Comm. 2007, 9, 574–581. [Google Scholar] [CrossRef]
  13. Kaminsky, W.; Goldberg, K.I.; West, D.X. Synthesis and structures of two N,N’-bis(2-pyridinyl)thioureas and N-(2-pyridinyl)-N’-(benzoyl)thiourea. J. Mol. Struct. 2002, 605, 9–15. [Google Scholar] [CrossRef]
  14. Hermetet, A.K.; Ackerman, L.J.; Eilts, K.K.; Johnson, T.K.; Swearingen, J.K.; Giesen, J.M.; Goldberg, K.I.; Kaminsky, W.; West, D.X. Structural, spectral and thermal studies of N-2-(4,6-lutidyl)-N’-chlorophenylthioureas. J. Mol. Struct. 2002, 605, 214–247. [Google Scholar]
  15. Valdes-Martinez, J.; Henandez-Ortega, S.; Espinosa-Perez, G.; Presto, C.A.; Hermetet, A.K.; Haslow, K.D.; Ackerman, L.J.; Szczepura, L.F.; Goldberg, K.I.; Kaminsky, W.; West, D.X. Structural, spectral and thermal studies of substituted N-(2-pyridyl)-N’-phenylthioureas. J. Mol. Struct. 2002, 608, 77–87. [Google Scholar] [CrossRef]
  16. Szczepura, L.F.; Kelman, D.R.; Hermetet, A.K.; Ackerman, L.J.; Goldberg, K.I.; Claborn, K.A.; Kaminsky, W.; West, D.X. Structural, spectral and thermal studies of N-2-(picolyl)-N’-4-chlorophenylthioureas. J. Mol. Struct. 2002, 608, 245–251. [Google Scholar] [CrossRef]
  17. Giesen, J.M.; Claborn, K.A.; Goldberg, K.I.; Kaminsky, W.; West, D.X. Structural, thermal and spectral studies of N-2-pyridyl-, N-2-picolyl- and N-2-(4,6-lutidyl)-N’-(3-methoxy-phenyl)thioureas. J. Mol. Struct. 2003, 613, 223–233. [Google Scholar]
  18. Kaminsky, W.; Kelman, D.R.; Giesen, J.M.; Goldberg, K.I.; Claborn, K.A.; Szczepura, L.F.; West, D.X. Structural and spectral studies of N-2-(pyridyl)-, N-2-(3-, 4-, 5-, and 6-picolyl)- and N-2-(4,6-lutidyl)-N’-2-thiomethoxyphenylthioureas. J. Mol. Struct. 2002, 616, 79–89. [Google Scholar] [CrossRef]
  19. Kelman, D.R.; Claborn, K.A.; Kaminsky, W.; Goldberg, K. I.; West, D. X. Structural, spectral and thermal studies of N-2-(pyridyl)- and N-2-(picolyl)-N’-(3-chlorophenyl)thioureas. J. Mol. Struct. 2002, 642, 119–127. [Google Scholar] [CrossRef]
  20. Kelman, D.R.; Claborn, K.A.; Kaminsky, W.; Goldberg, K.I.; Li, D.T.; West, D.X. Structural studies of N-2-(6-aminopyridine)-N’-arylthioureas. J. Mol. Struct. 2003, 654, 145–152. [Google Scholar] [CrossRef]
  21. Valdes-Martınez, J.; Hernandez-Ortega, S.; Rubio, S.M.; Li, D.T.; Swearingen, J.K.; Kaminsky, W.; Kelman, D.R.; West, D.X. Study of the sulfur atom as hydrogen bond acceptorin N(2)-pyridylmethyl-N’-arylthioureas. J. Chem. Crystallogr. 2004, 34, 533–540. [Google Scholar] [CrossRef]
  22. Valdes-Martınez, J.; Hernandez-Ortega, S.; Hermetet, A.K.; Ackerman, L.J.; Presto, C.A.; Swearingen, J.K.; Kelman, D.R.; Goldberg, K.I.; Kaminsky, W.; Douglas, X.; West, D.X. Structural studies of N-2-(3-picolyl)- and N-2-(4-picolyl)-N’-tolylthioureas. J. Chem. Crystallogr. 2002, 32, 431–438. [Google Scholar] [CrossRef]
  23. Hermetet, A.K.; Ackerman, L.J.; Swearingen, J.K.; Presto, C.A.; Kelman, D.R.; Giesen, J.M.; Goldberg, K.I.; Kaminsky, W.; West, D.X. Structural studies of N-2-(6-picolyl)-N’-tolylthioureas. J. Chem. Crystallogr. 2002, 32, 17–25. [Google Scholar] [CrossRef]
  24. Allen, F.H.; Motherwell, W.D.S.; Raithby, P.R.; Shields, G.P.; Taylor, R. Systematic analysis of the probabilities of formation of bimolecular hydrogen-bonded ring motifs in organic crystal structures. New J. Chem. 1999, 23, 25–34. [Google Scholar] [CrossRef]
  25. Avalos, M.; Babiano, R.; Cabanillas, A.; Cintas, P.; Higes, F.J.; Jimenez, J.L.; Palacios, J.C. Cycloaddition Chemistry of 1,3-Thiazolium-4-olate Systems. Reaction with Nitroalkenes and Interpretation of Results Using PM3 Calculations. J. Org. Chem. 1996, 61, 3738–3748. [Google Scholar]
  26. Kaminsky, W. From *.cif to virtual morphology: new aspects of predicting crystal shapes as part of the WinXMorph program. J. Appl. Cryst. 2007, 40, 382–385. [Google Scholar] [CrossRef]
  27. Kaminsky, W. WinXMorph: a computer program to draw crystal morphology, growth sectors and cross-sections with export files in VRML V2.0 utf8-virtual reality format. J. Appl. Crystallogr. 2005, 38, 566–567. [Google Scholar] [CrossRef]
  28. Bravais, A. du Cristal Considere Comme un Simple Assemblage de Points. In Etude Cristallographiques; Gauthier-Villars: Paris, France, 1866. [Google Scholar]
  29. Friedel, G. Studies on the law of Bravais. Bull. Soc. Franc. Mineral 1907, 22, 326–455. [Google Scholar]
  30. Donnay, J.D.H.; Harker, D. A new law of crystal morphology extending the law of Bravais. Am. Mineral. 1937, 22, 446–467. [Google Scholar]
  31. Otwinowsky, Z.; Minor, W. Methods in Enzymology; Carter, C.W., Jr., Sweet, R.M., Eds.; Academic Press: New York, NY, USA, 1997; Volume 276, pp. 307–326. [Google Scholar]
  32. Altomare, A.; Burla, C.; Camalli, M.; Cascarano, L.; Giacovazzo, C.; Guagliardi, A.; Moliterni, A.G.G.; Polidori, G.; Spagna, R. SIR97: a new tool for crystal structure determination and refinement. J. Appl. Cryst. 1999, 32, 115–119. [Google Scholar] [CrossRef]
  33. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A. J. Completion and refinement of crystal structures with SIR92. Appl. Cryst. 1993, 26, 343–350. [Google Scholar] [CrossRef]
  34. Sheldrick, G.M. SHELXL-97: Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  35. Mackay, S.; Edwards, C.; Henderson, A.; Gilmore, C.; Stewart, N.; Shankland, K.; Donald, A. MaXus: A Computer Program for the Solution and Refinement of Crystal Structures from Diffraction Data; University of Glasgow: Glasgow, UK, 1997. [Google Scholar]
  36. Waasmaier, D.; Kirfel, A. New analytical scattering-factor functions for free atoms and ions. Acta Crystallogr. A 1995, 51, 416–431. [Google Scholar] [CrossRef]
  37. Farrugia, L.J. WinGX suite for small-molecule single-crystal crystallography. J. Appl. Cryst. 1999, 32, 837–838. [Google Scholar] [CrossRef]
  38. Claborn, K.A.; Kahr, B.; Kaminsky, W. Calculation of optical properties of the tetraphenyl-X family of isomorphous crystals (X=C, Si, Ge, Sn, Pb). Cryst. Eng. Comm. 2002, 4, 252–256, Our approach is described in detail here. [Google Scholar] [CrossRef]
  39. McKinnon, J.J.; Mitchell, A.S; Spackman, M.A. Hirshfeld Surfaces: A New Tool for Visualising and Exploring Molecular Crystals. Chem. Eur. J. 1998, 11, 2136–2141. [Google Scholar]
  40. McKinnon, J.J.; Spackman, M.A.; Mitchell, A.S. Novel tools for visualizing and exploring intermolecular interactions in molecular crystals. Acta Crystallogr. B 2004, 60, 627–668. [Google Scholar] [CrossRef]
  41. Spackman, M.; McKinnon, J.J. Fingerprinting intermolecular interactions in molecular crystals. Cryst. Eng. Comm 2002, 4, 378–392. [Google Scholar] [CrossRef]
  42. McKinnon, J.J.; Spackman, M.A.; Mitchell, A.S. Novel tools for visualizing and exploring intermolecular interactions in molecular crystals. Acta Crystallogr. B 2004, 60, 627–668. [Google Scholar] [CrossRef]
  43. Beurskens-Kerssen, G.; Kroon, J.; Endemann, H.J.; van Laar, J.; Bijvoet, J.M. Crystallography and Crystal Perfection; Ramachandran, G., Ed.; Academic Press: London, UK, 1963; p. 225. [Google Scholar]
  44. Bijvoet, J.M.; Peerdeman, A.F.; Van Bomel, A.J. Determination of the absolute configuration of optically active compounds by means of X-rays. Nature 1951, 168, 271–272. [Google Scholar] [CrossRef]
  45. Born, M.; Goeppert-Mayer, M. Dynamische Gittertheorie der Kristalle. In Handbuch der Physik; Geiger, H., Scheel, K., Eds.; Springer-Verlag: Berlin, Germany, 1933; Vol. 24/2, p. 623. [Google Scholar]
  46. Bruhat, G.; Grivet, P. Rotatoire du quartz pour des rayons perpendiculaires a l'axe optique et sa dispersion dans l'ultra-violet. J. Phys. Radium 1935, 6, 12–26. [Google Scholar] [CrossRef]
  47. van Laar, J.; Endemann, H.J.; Bijvoet, J.M. Remarks on the relation between microscopic and macroscopic crystal optics. Acta Crystallogr. A 1968, 24, 52–56. [Google Scholar] [CrossRef]
  48. Reijnhart, R. Classical Calculations Concerning the Double Refraction, Optical Rotation and Absolute Configuration of Te, Se, Cinnabar (HgS) α- and β-Quartz, α-Cristobalite, NaNO2, NaClO3 and NaBrO3. PhD thesis, University of Delft, Delft, The Netherlands, 1970. [Google Scholar]
  49. Devarajan, V.; Glazer, A.M. Theory and computation of optical-rotatory power in inorganic crystals. Acta Crystallogr. A 1986, 42, 560. [Google Scholar] [CrossRef]
  50. Tessman, J.R.; Kahn, A.H.; Shokley, W. Electron polarizabilities of ions in crystals. Phys. Rev. 1953, 92, 891–895. [Google Scholar]
  51. Kondru, R.K.; Wipf, P.; Beratan, D.N. Atomic contributions to the optical rotation angle as a quantitative probe of molecular chirality. Science 1998, 282, 2247–2250. [Google Scholar] [CrossRef]
  52. Claborn, K.; Kaminsky, W.; Herreros-Cedres, J.; Weckert, E.; Kahr, B. Optical rotation of Achiral Pentaerythritol. J. Am. Chem. Soc. 2006, 128, 14746–14747. [Google Scholar]
  53. Kaminsky, W.; Glazer, A.M. Crystal optics of Mannitol, C6H14O6: Crystal growth, structure, basic physical properties, birefringence, optical activity, Faraday effect, electro-optic related effects and model calculations. Z. Kristallogr. 1997, 212, 283–296. [Google Scholar] [CrossRef]
  54. Kittel, C. Introduction to Solid State Physics, 5th ed; John Wiley & Sons Inc.: New York, NY, USA, 1976; p. 399. [Google Scholar]
  55. Ashcroft, N.W.; Mermin, N.D. Solid State Physics; Holt, Rinehart and Winston: London, UK, 1976; p. 546. [Google Scholar]
  56. Bohatý, L. Crystallographic aspects of the linear electrooptic effect. Z. Kristallogr. 1984, 166, 97–119. [Google Scholar] [CrossRef]
  57. One might be astonished by the large polarizability assigned to H, which only reflects the delocalized character of the C-H bonds.
  58. Haussuehl, S. Kristallphysik; Physik-Verlag: Verlag Chemie:: Weinheim, Germany, 1983. [Google Scholar]
  59. Jackson, J.D. Classical Electrodynamics, 2nd ed; John Wiley & Sons: New York, NY, USA, 1975; p. 220. [Google Scholar]
  60. Ewald, P.P. Die Berechnung optischer und elektrostatischer Gitterpotentiale. Ann. Phys. 1921, 64, 253–287. [Google Scholar] [CrossRef]
  61. Kaminsky, W.; Glazer, A.M. Comparison of experimental optical properties of TGS with calculations using the DES model. Phase Transit. 1997, 66, 1–21. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Kaminsky, W.; Responte, D.; Daranciang, D.; Gallegos, J.B.; Ngoc Tran, B.-C.; Pham, T.-A. Structure, Morphology and Optical Properties of Chiral N-(4-X-phenyl)-N-[1(S)-1-phenylethyl]thiourea, X= Cl, Br, and NO2. Molecules 2010, 15, 554-569. https://doi.org/10.3390/molecules15010554

AMA Style

Kaminsky W, Responte D, Daranciang D, Gallegos JB, Ngoc Tran B-C, Pham T-A. Structure, Morphology and Optical Properties of Chiral N-(4-X-phenyl)-N-[1(S)-1-phenylethyl]thiourea, X= Cl, Br, and NO2. Molecules. 2010; 15(1):554-569. https://doi.org/10.3390/molecules15010554

Chicago/Turabian Style

Kaminsky, Werner, Donald Responte, Dan Daranciang, Jose B. Gallegos, Bao-Chau Ngoc Tran, and Tram-Anh Pham. 2010. "Structure, Morphology and Optical Properties of Chiral N-(4-X-phenyl)-N-[1(S)-1-phenylethyl]thiourea, X= Cl, Br, and NO2" Molecules 15, no. 1: 554-569. https://doi.org/10.3390/molecules15010554

Article Metrics

Back to TopTop
