Communication

Antifouling Activity of Simple Synthetic Diterpenoids against Larvae of the Barnacle Balanus albicostatus Pilsbry

by
Jun-De Chen
1,2,
Rui-Zao Yi
1,
Cui-Ling Sun
3,
Dan-Qing Feng
4 and
Yi-Ming Lin
2,*
1
Research Center for the Chemistry and Chemical Engineering of Marine Biological Resource, The Third Institute of Oceanography of the State Oceanic Administration, Xiamen 361005, China
2
Department of Biology, School of Life Sciences, Xiamen University, Xiamen 361005, China
3
Department of Natural Products Chemistry, Institute for Biomedical Research, Xiamen University, Xiamen 361005, China
4
Department of Oceanography, College of Oceanography and Environmental Science, Xiamen University, Xiamen 361005, China
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(11), 8072-8081; https://doi.org/10.3390/molecules15118072
Submission received: 14 October 2010 / Revised: 3 November 2010 / Accepted: 8 November 2010 / Published: 9 November 2010
Browse Figures
Versions Notes

Abstract

:
Five new pimarane diterpenoids 1-5 were synthesized using ent-8(14)-pimarene-15R,16-diol as starting material. The structures were elucidated by means of extensive NMR and MS analysis. The antifouling activity against larval settlement of the barnacle Balanus albicostatus were evaluated using capsaicin as a positive control. Compounds 1-3 and 5 showed more potent antifouling activity than capsaicin. Compound 5, which exhibited almost the same antifouling activity as starting material, showed better stability than starting material. These compounds all showed antifouling activity in a non-toxic way against larval settlement of the barnacle B. albicostatus. Analysis of structure-activity relationships (SAR) demonstrated that the substituents on the C-15 and C-16 position of pimarane diterpenoid were responsible for the antifouling activity.

1. Introduction

It is well known that marine fouling organisms often cause technical and economic problems by settling on artificial surfaces submerged in seawaters [1]. Although antifouling paints containing organotin compounds such as tributyltin (TBT) and tributyltin oxide (TBTO) are very effective for controlling these fouling organisms, they have been found to be toxic to many non-target marine organisms [2], and The Marine Environment Protection Committee of the International Maritime Organization has proposed a ban on the application of TBT-based antifouling paints as of January 1, 2008 [3]. Currently, some booster biocides have been used in antifouling paint formulations, but they may also pollute the aquatic environments [4], thus there is an urgent demand for new antifouling agents which are both effective and environmentally friendly. A significant source of effective and environmentally friendly natural antifoulants, i.e., terpenoids, steroids, fatty acids, amino acids, heterocyclics, acetogenins, alkaloids, and polyphenolics, etc. have been reported [5,6,7,8,9,10]. Moreover, a series of terpenes have been synthesized and evaluated for antifouling activity against the larvae of the barnacle [11,12,13,14,15]. In the course of our investigations on environmentally friendly antifoulants, we observed that pimarane diterpenoids can exhibit non-toxic antifouling activities against larval settlement of the barnacle B. albicostatus [10]. The structure-activity relationship (SAR) analysis of these pimarane diterpenoids suggested that the antifouling activity might be due to the hydroxyl group on the C-15 and C-16 position of these compounds [10]. In order to further investigate the effect of free hydroxyl group and substituents on the C-15 and C-16 position of pimarane diterpenoid on the antifouling activity, we used ent-8(14)-pimarene-15R,16-diol as the starting material and then synthesized five new pimarane diterpenoids 1-5. These compounds were tested for their antifouling activity against larval settlement of the barnacle Balanus albicostatus, which is an important fouling organism in East Asian coastal waters. Capsaicin was used as a positive control to evaluate the antifouling activity of the synthetic compounds in our experiment because it was widely used for controlling fouling organisms in a non-toxic way around the World [16,17,18]. Moreover, the SAR of these compounds was also discussed.

2. Results and Discussion

2.1. Chemistry

Ent-8(14)-pimarene-15R,16-diol was used as starting material due to its potent antifouling activity with EC50 value of 0.04 µg/cm2 [10]. Compounds 1 and 2 were synthesized from the starting material by an acylation reaction with acetic anhydride in the presence of triethylamine. Alkylation of the starting material with methyl iodide in the presence of sodium hydride and tetrahydrofuran (THF) furnished compound 3. The starting material was treated with methanesulfonyl chloride (MsCl) in pyridine in the presence of NaOH and dimethyl sulfoxide (DMSO) to yield a mixture of compound 4 and the monosubstituted product. Compound 4 was finally purified by silica gel column chromatography, and the monosubstituted product was converted to the epoxide (compound 5) by treatment with sodium ethoxide in THF. The synthesis of all the above compounds are shown in Scheme 1 and discussed below and all reactions are carried out according to the literature protocols [19,20,21].
Molecules 15 08072 g002 550

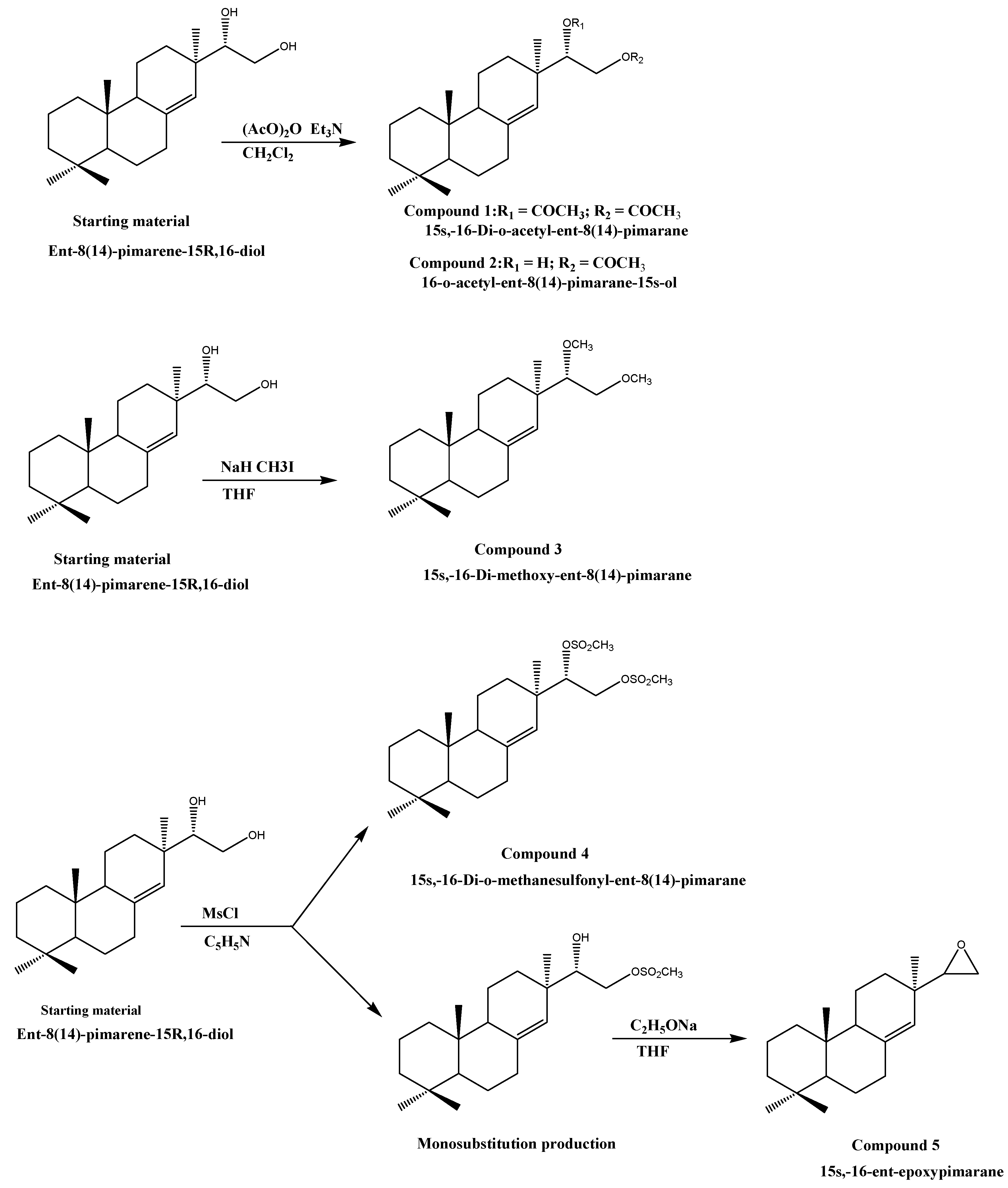

Scheme 1. Synthesis of the investigated diterpenoids.
Scheme 1. Synthesis of the investigated diterpenoids.
Molecules 15 08072 g002

2.2. Antifouling Assay

The effects of the synthesized compounds on settlement and mortality of B. albicostatus cyprids are shown in Figure 1 and their EC50 and LC50 values are summarized in Table 1. Capsaicin, with an EC50 value of 1.32 µg/cm2, was used as a positive standard (Figure 1 and Table 1). As shown in Figure 1, all of the compounds, with EC50 values ranging from 0.04 to 7.47 µg/cm2, significantly inhibited settlement compared with the control (P < 0.001) without significant toxicity (P > 0.05). Capsaicin significantly affected larval settlement at 5 µg/cm2 (P < 0.001), and the starting material significantly affected larval settlement at 0.5 µg/cm2 (P < 0.001). Moreover, compounds 1-5 significantly reduced larval settlement at 0.1-1 µg/cm2 (P < 0.001). Compounds 1, 2, 3, 5 were more active than capsaicin, while compound 4 showed an antifouling activity weaker than capsaicin. Furthermore, the non-toxicity compounds were defined as those that do not directly kill fouling organisms at or near the levels at which they deter fouling [22].
Molecules 15 08072 g001 550

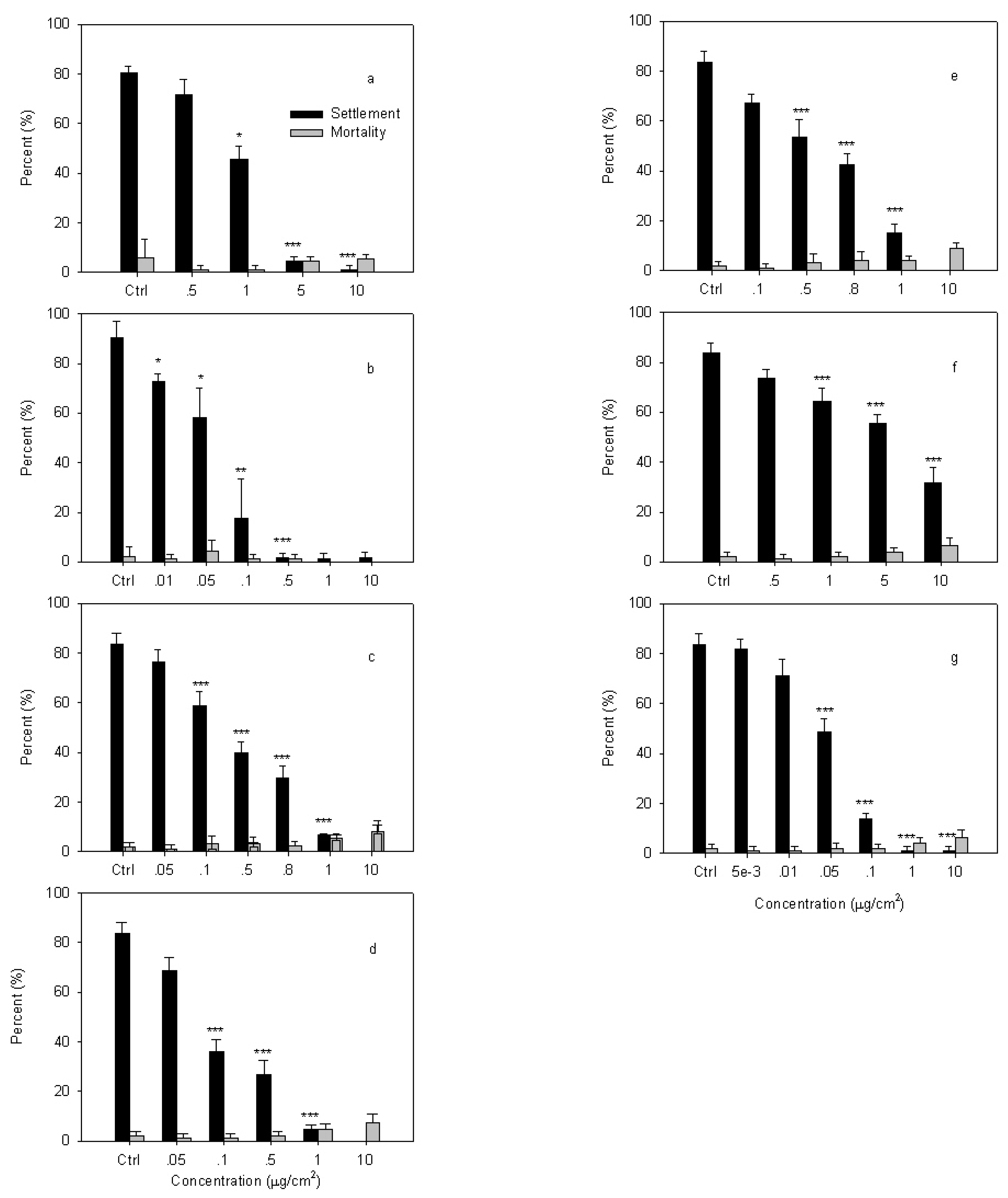

Figure 1. Effects of the compounds on settlement and survival of B. albicostatus cyprids. a: Capsaicin; b: ent-8(14)-Pimarene-15R,16-diol (starting material); c: 15s,-16-di-O-Acetyl-ent-8(14)-pimarane (1); d: 16-O-Acetyl-ent-8(14)-pimarane-15S-ol (2); e: 15S,-16-Dimethoxy-ent-8(14)-pimarane (3); f:15S,-16-di-O-Methanesulfonyl-ent-8(14)-pimarane (4); g: 15S,-16-ent-Epoxypimarane (5). Data were analyzed using one-way ANOVA, where *P < 0.05; **P < 0.01 and ***P < 0.001 were significantly different from the control.
Figure 1. Effects of the compounds on settlement and survival of B. albicostatus cyprids. a: Capsaicin; b: ent-8(14)-Pimarene-15R,16-diol (starting material); c: 15s,-16-di-O-Acetyl-ent-8(14)-pimarane (1); d: 16-O-Acetyl-ent-8(14)-pimarane-15S-ol (2); e: 15S,-16-Dimethoxy-ent-8(14)-pimarane (3); f:15S,-16-di-O-Methanesulfonyl-ent-8(14)-pimarane (4); g: 15S,-16-ent-Epoxypimarane (5). Data were analyzed using one-way ANOVA, where *P < 0.05; **P < 0.01 and ***P < 0.001 were significantly different from the control.
Molecules 15 08072 g001
Table
Table 1. Antifouling activity of the investigated compounds against B. albicostatus cyprid larvae.
Table 1. Antifouling activity of the investigated compounds against B. albicostatus cyprid larvae.
CompoundCompound nameEC50 (µg/cm2)LC50 (µg/cm2)
Positive controlCapsaicin1.32 ± 0.02> 10
Starting materialent-8(14)-Pimarene-15R,16-diol0.04 ± 0.00> 10
Compound 115s,-16-di-O-Acetyl-ent-8(14)-pimarane0.30 ± 0.01> 10
Compound 216-O-Acetyl-ent-8(14)-pimarane-15S-ol0.14 ± 0.01> 10
Compound 315S,-16-Dimethoxy-ent-8(14)-pimarane0.57 ± 0.01> 10
Compound 415S,-16-di-O-Methanesulfonyl-ent-8(14)-pimarane7.47 ± 0.13> 10
Compound 515S,-16-ent-Epoxypimarane0.05 ± 0.00> 10
The LC50 values of these compounds were all greater than their EC50, indicating that they all inhibited cyprid settlement in a non-toxic way. In addition, stability tests showed that over a 2-month exposure under FSW compounds 1, 2, 3, 4 and starting material were degraded, while compound 5 remained stable.
Our SAR analysis of these pimarane diterpenoids demonstrated that the substitution patterns at the C-15 and C-16 position of pimarane diterpenoid significantly affected their antifouling activity. The starting material, which possesses hydroxyl groups at the C-15 and C-16 positions, led to the most potent antifouling activity. When other substituents, such as the acetoxy, methoxy, or a methanesulfonyloxy group were introduced on the C-15 and C-16 of the pimarane diterpenoid, the corresponding compounds showed the less potent activity than the starting material. Moreover, the antifouling activity of the methylated compound 3 was lower than the acyl compounds 1 and 2, suggesting that the acetoxy group at the suitable position of pimarane diterpenoid might result in a more potent antifouling activity than the methoxy group. On the other hand, compound 4 showed weak antifouling activity when compared to the positive control and other pimarane diterpenoids, suggesting that the methanesulfonyloxy group has no significant impact on the antifouling activity of primarane diterpenoids. In addition, when the hydroxyl groups at the C-15 and C-16 position in pimarane diterpenoid were substituted by an epoxy group, the resulting compound (compound 5) showed similar antifouling activity as the starting material. Moreover, compound 5 showed better stability than starting material after 2-month exposure in filtered seawater (FSW 0.22 µm, salinity 30‰, and temperature 25 °C). These results suggest that the epoxy group might be another important functional group expressing potent antifouling activity in pimarane diterpenoids. Furthermore, all of the compounds were devoid of toxicity indicating that the substituent in the side chain of the compounds did not influence the toxicity of pimarane diterpenoids.

3. Experimental

3.1. General

1H- and 13C-NMR spectra were measured with a Varian INOVA 600 spectrometer (USA). ESI mass spectra data were recorded on an AB 3200Q TRAP spectrometer (USA). 200-300 mesh Silica gel (Qingdao Marine Chemical Factory, Qingdao, China) were used for column chromatography. Reactions were monitored by TLC on GF 254 silica gel (Qingdao Marine Chemical Factory, Qingdao, China). Capsaicin with purity above 95% was purchased from Sigma Chemical Co. (USA).
15S,-16-di-O-Acetyl-ent-8(14)-pimarane (1). The starting material (100 mg, 0.33 mmol) in anhydrous triethylamine (0.1 mL) was treated with acetic anhydride (0.023 mL, 0.24 mmol) at 0 °C. After stirring at room temperature for 10 h, the mixture was quenched after consumption of starting material (TLC monitoring). Then, the mixture was extracted with CH2Cl2 three times. The total extract was washed with saturated aqueous NaCl solution, and dried with Na2SO4. After evaporation, the residue was subjected to silica gel column chromatography eluting with petroleum ether-acetone (11:1) to obtain compound 1 as a colorless oil (37% yield). ESIMS m/z: 391.3 [M + 1]+; 1H-NMR (CDCl3): δH 5.18 (1H, dd, J = 2.5, 9.2 Hz, H-16), 5.14 (1H, s, H-14), 4.40 (1H, dd, J = 2.5, 11.8 Hz, H-15), 4.02 (1H, dd, J = 9.2, 11.7 Hz, H-16), 0.95 (3H, s, H-17), 0.87 (3H, s, H-18), 0.84 (3H, s, H-19), 0.81 (3H, s, H-20), 2.07 (3H, s, COCH3), 2.02 (3H, s, COCH3); 13C-NMR (CDCl3) δC 38.3 (C-1), 18.0 (C-2), 41.2 (C-3), 32.3 (C-4), 53.9 (C-5), 21.6 (C-6), 35.2 (C-7), 138.2 (C-8), 49.3 (C-9), 37.5 (C-10), 17.6 (C-11), 30.7 (C-12), 35.5 (C-13), 125.4 (C-14), 76.2 (C-15), 62.8 (C-16), 23.1 (C-17), 32.7 (C-18), 21.1 (C-19), 14.1 (C-20), 170.0 (C=O), 169.4 (C=O), 20.0 (CH3 of COCH3), 19.8 (CH3 of COCH3).
16-O-Acetyl-ent-8(14)-pimarane-15S-ol (2). Compound 2 was synthesized like compound 1 but isolated by chromatography (petroleum ether-acetone 13:1) as colorless oil (13% yield). ESIMS m/z: 349.5 [M + 1]+; 1H-NMR (CDCl3): δH 5.18 (1H, s, H-14), 4.16 (1H, dd, J = 2.5, 9.5 Hz, H-16), 3.89 (1H, dd, J = 2.5, 10.5 Hz, H-15), 3.62 (1H, dd, J = 9.5, 10.5 Hz, H-16), 0.82 (3H, s, H-17), 0.76 (3H, s, H-18), 0.72 (3H, s, H-19), 0.66 (3H, s, H-20), 1.98 (3H, s, COCH3); 13C-NMR (CDCl3) δC 39.2 (C-1), 19.0 (C-2), 42.1 (C-3), 33.3 (C-4), 54.9 (C-5), 22.7 (C-6), 36.3 (C-7), 139.9 (C-8), 50.3 (C-9), 38.5 (C-10), 18.8 (C-11), 32.1 (C-12), 37.3 (C-13), 126.9 (C-14), 76.2 (C-15), 66.5 (C-16), 23.4 (C-17), 33.8 (C-18), 22.1 (C-19), 15.1 (C-20), 21.1 (CH3 of COCH3), 171.4 (C=O).
15S,-16-Dimethoxy-ent-8(14)-pimarane (3). The starting material (50 mg, 0.16 mmol) in THF (1.5 mL) was treated with sodium hydride (9.32 mg, 0.39 mmol), and the reaction mixture was stirred at room temperature for 3 h. Then, methyl iodide (0.02 mL, 0.32 mmol) was added into the mixture with continuous stirring at room temperature for 8 h. After that, the mixture was poured into saturated aqueous NH4Cl solution and then extracted with ethyl acetate three times. The total extract was washed with saturated aqueous NaCl solution, dried with Na2SO4 and evaporated. The residue was chromatographed over silica gel (elution with 25:1 petroleum ether- acetone) yielded compound 3 as a colorless oil (93% yield). ESIMS m/z: 357.4 [M + Na]+; 1H-NMR (CDCl3): δH 5.26 (1H, s, H-14), 3.49 (1H, dd, J = 2.6, 10.3 Hz, H-16), 3.31 (1H, dd, J = 7.3, 10.3 Hz, H-16), 3.12 (1H, dd, J = 2.6, 7.3 Hz, H-15), 0.81 (3H, s, H-17), 0.80 (3H, s, H-18), 0.77 (3H, s, H-19), 0.74 (3H, s, H-20), 3.39 (3H, s,OCH3), 3.28 (3H, s, OCH3); 13C-NMR (CDCl3): δC 38.2 (C-1), 18.0 (C-2), 41.2 (C-3), 32.3 (C-4), 53.9 (C-5), 21.8 (C-6), 35.2 (C-7), 135.9 (C-8), 49.4 (C-9), 37.6 (C-10), 17.7 (C-11), 30.9 (C-12), 36.5 (C-13), 128.3 (C-14), 86.1 (C-15), 73.5 (C-16), 22.5 (C-17), 32.7 (C-18), 21.1 (C-19), 14.1 (C-20), 59.5 (OCH3), 58.0 (OCH3).
15S-16-di-o-Methanesulfonyl-ent-8(14)-pimarane (4). The starting material (50 mg, 0.16 mmol) in anhydrous pyridine (0.2 mL) was treated with methanesulfonyl chloride (0.015 mL, 0.19 mmol), and the reaction mixture was stirred at 0 °C for 10min. Then, a solution of NaOH (19.6 mg, 0.49 mmol) in water (0.2 mL) plus DMSO (0.13 mL) was added into the mixture over 5 min with continuous stirring at 0 °C for 10 min. After this time, the mixture was poured into ice-water and then extracted with aether. The total extract was washed with saturated aqueous NaCl solution, dried with Na2SO4 and evaporated. Column chromatography on silica gel (petroleum ether-acetone 10:1) gave the monosubstitution production (20% yield), and column chromatography on silica gel (petroleum ether-acetone 20:1) gave compound 4 as a white powder (37% yield). ESIMS m/z: 485.3 [M + Na]+; 1H-NMR (CDCl3): δH 5.22 (1H, s, H-14), 4.86 (1H, dd, J = 1.7, 8.6 Hz, H-16), 4.50 (1H, dd, J = 1.9, 11.5 Hz, H-15), 4.32 (1H, dd, J = 8.6, 11.3 Hz, H-16), 1.01 (3H, s, H-17), 0.88 (3H, s, H-18), 0.84 (3H, s, H-19), 0.81 (3H, s, H-20), 3.09 (3H, s, SO2CH3), 3.09 (3H, s, SO2CH3);13C-NMR (CDCl3): δC 38.2 (C-1), 17.9 (C-2), 41.0 (C-3), 32.3 (C-4), 53.8 (C-5), 21.5 (C-6), 36.9 (C-7), 139.7 (C-8), 49.2 (C-9), 38.2 (C-10), 17.5 (C-11), 30.6 (C-12), 37.6 (C-13), 125.0 (C-14), 85.3 (C-15), 67.0 (C-16), 23.1 (C-17), 32.7 (C-18), 21.1 (C-19), 14.0 (C-20), 36.2 (SO2CH3), 35.0 (SO2CH3).
15S,-16-ent-Epoxypimarane (5). The monosubstitution production (40 mg, 0.13 mmol) in THF (1.5 mL) was treated with sodium ethoxide (6.8 mg, 0.1 mmol), and the reaction mixture was stirred at room temperature for 90 min. The mixture was poured into ice-water, then extracted with saturated aqueous NH4Cl solution three times, and extracted with aether three times. The total extract was washed with saturated aqueous NaCl solution, dried with Na2SO4 and evaporated. Column chromatography on silica gel (petroleum ether-acetone 60:1) gave compound 5 as colorless oil (36% yield). ESIMS m/z: 289.8 [M + 1]+; 1H-NMR (CDCl3): δH 5.03 (1H, s, H-14), 2.79 (1H, dd, J = 2.8, 9 Hz, H-16), 2.56 (1H, dd, J = 4.5, 9 Hz, H-15), 2.51 (1H, dd, J = 2.8, 4.5 Hz, H-16), 0.88 (3H, s, H-17), 0.87 (3H, s, H-18), 0.85 (3H, s, H-19), 0.80 (3H, s, H-20); 13C-NMR (CDCl3): δC 41.2 (C-1), 18.2 (C-2), 41.5 (C-3), 33.2 (C-4), 53.8 (C-5), 21.5 (C-6), 35.0 (C-7), 139.3 (C-8), 49.7 (C-9), 38.5 (C-10), 18.0 (C-11), 32.7 (C-12), 37.1 (C-13), 123.9 (C-14), 32.3 (C-15), 57.8 (C-16), 24.0 (C-17), 33.4 (C-18), 21.1 (C-19), 13.7 (C-20).

3.2. Antifouling Assay

B. albicostatus adults were collected from the intertidal zone in Xiamen, China. Adults released the stage I and II nauplius upon immersion in seawater after drying for 12 h [10]. Naupilar larvae actively swimming towards the light were collected using a pipette. They were cultured in FSW by feeding with the diatom Chaetoceros muelleri at a concentration of 2.0 × 105 cells·mL-1. Each day seawater and diet were renewed. After 5~6 days, larvae reached the cyprid stage [10], and then the cyprids were collected within 24 h. Antifouling efficacies of the five synthetic diterpenoids were investigated according to the method of Hellio et al. with a minor modification [23]. Tested compounds were dissolved in CH2Cl2, and aliquots of the solution were added to the glass dishes and air-dried. To each glass dish were added 30 cyprids and 10 mL FSW. There were three replicates for the FSW control and each of the compound concentrations. The dishes were incubated in the dark at 25 °C for 48 h. After that, the numbers of larvae which settled, died or did not settle in each replicate were enumerated under a stereomicroscope. In addition, the stability of diterpenoid was demonstrated by means of their 2-month exposure in FSW. Each diterpene was applied to the dish, and then FSW was poured on the dish. Three replicates were set up for each of the experiment. After 2-month exposure in FSW, these compounds were dissolved in CH2Cl2, which was then evaporated. By comparison of these compounds, no differences were found in weight before and after 2-month exposure in FSW. These indicated that all of compounds were difficult to be dissolved in the FSW, and these compounds might be bound to the surface of the petri dish. Furthermore, the stabilities of these compounds were tested using the method of TLC, which were identified by comparison of the spots and Rf value of these compounds before and after 2-month exposure in FSW. Compound showing the same spots and Rf value as those before were regarded as stable. Compounds that showed the different spots and Rf values from those before were regarded as degraded. One-way ANOVA followed by a Dunnett's test for multiple comparisons of treatment means with a control, was used for the settlement or mortality percentages analysis. The significance level was set as 5%. The EC50 (the concentration that reduces the settlement rate by 50% relative to the control) and LC50 (the concentration that results in 50% mortality relative to the control) both with a 95% confidence interval were estimated using the Spearman-Karber method [24,25].

4. Conclusions

Five new pimarane diterpenoids were synthesized and evaluated against settlement of cyprid larvae of the barnacle B. albicostatus. These diterpenoids, which significantly reduced larval settlement at 0.1-1 µg/cm2 (P < 0.001), exhibited barnacle antifouling activities with EC50 values ranging from 0.04 to 7.47 µg/cm2. Compound 5, which exhibited almost the same antifouling activity as the starting material, showed better stability than the latter, indicating that compound 5 has better commercial potential than the starting material. Moreover, the SAR demonstrated that the functional groups on the C-15 and C-16 position of pimarane diterpenoid were responsible for the antifouling activity.

Acknowledgements

We express our sincere thanks to Zheng Xiao for his constructive suggestions. This work was supported by Program for National Key Technology R&D (2007BAB26B03), by grants from Scientific and Technological Key Projects of Fujian Province (2009N0038), Scientific and Technological Projects of Xiamen City (3502Z20102010), and Marine Science Foundation for Young Scientist of State Oceanic Administration (2010131).
  • Sample Availability: Samples of the compounds are available from the authors.

References

  1. Richmond, M.D.; Seed, R. A review of marine macrofouling communities with special reference to animal fouling. Biofouling 1991, 2, 151–168. [Google Scholar] [CrossRef]
  2. Ellis, D.V. New dangerous chemicals in the environment: lessons from TBT. Mar. Pollut. Bull. 1991, 22, 8–10. [Google Scholar] [CrossRef]
  3. Yebra, D.M.; Kiil, S.; Dam-Johansen, K. Antifouling technology-past, present and future steps towards efficient and environmentally friendly antifouling coatings. Prog. Org. Coating 2004, 50, 75–104. [Google Scholar] [CrossRef]
  4. Thomas, K.V. The environmental fate and behavior of antifouling paint booster biocides: A review. Biofouling 2001, 17, 73–86. [Google Scholar] [CrossRef]
  5. Qian, P.Y.; Xu, Y.; Fusetani, N. Natural products as antifouling compounds: recent progress and future perspectives. Biofouling 2010, 26, 223–234. [Google Scholar] [CrossRef]
  6. Yebra, D.M.; Kiil, S.; Dam-Johansen, K. Antifouling technology-past, present and future steps towards efficient and environmentally friendly antifouling coatings. Prog. Org. Coating 2004, 50, 75–104. [Google Scholar] [CrossRef]
  7. Raveendran, T.V.; Limna Mol, V.P. Natural product antifoulants. Curr. Sci. 2009, 97, 508–520. [Google Scholar]
  8. Qiu, Y.; Deng, Z.W.; Xu, M.J.; Li, Q.S.; Lin, W.H. New A-nor steroids and their antifouling activity from the Chinese marine sponge Acanthella cavernosa. Steroids 2008, 73, 1500–1504. [Google Scholar] [CrossRef]
  9. Wang, Z.C.; Lin, Y.M.; Feng, D.Q.; Ke, C.H.; Lin, P.; Yan, C.L.; Chen, J.D. A new atisane-type diterpene from the bark of the mangrove. Molecules 2009, 14, 414–422. [Google Scholar] [CrossRef]
  10. Chen, J.D.; Feng, D.Q.; Yang, Z.W.; Wang, Z.C.; Qiu, Y.; Lin, Y.M. Antifouling Metabolites from the Mangrove Plant Ceriops tagal. Molecules 2008, 13, 212–219. [Google Scholar] [CrossRef]
  11. Fusetani, N.; Hiroto, H.; Okino, T.; Tomono, Y.; Yoshumura, E. Antifouling activity of isocyanoterpenoids and related compounds isolated from a marine sponge and nudibranchs. J. Nat. Toxins 1996, 5, 249–259. [Google Scholar]
  12. Hirota, H.; Tomono, Y.; Fusetani, N. Terpenoids with antifouling activity against barnacle larvae from the marine sponge Acanthella cavernosa. Tetrahedron Lett. 1996, 52, 2359–2368. [Google Scholar]
  13. Okino, T.; Yoshimura, E.; Hirota, H.; Fusetani, N. Antifouling kalihinenes from the marine sponge Acanthella cavernosa. Tetrahedron Lett. 1995, 36, 8637–8640. [Google Scholar]
  14. Okino, T.; Yoshimura, E.; Hirota, H.; Fusetani, N. New antifouling kalihipyrans from the marine sponge Acanthella cavernosa. J. Nat. Prod. 1996, 59, 1081–1083. [Google Scholar] [CrossRef]
  15. Okino, T.; Yoshimura, E.; Hirota, H.; Fusetani, N. New antifouling sesquiterpenes from four nudibranchs of the family Phyllidiidae. Tetrahedron 1996, 52, 9447–9454. [Google Scholar] [CrossRef]
  16. Fischer, K.J. Marine organism repellent covering for protection of underwater objects and method of applying same. US Patent 1993. [Google Scholar]
  17. Watts, J.L. Anti-fouling coating composition containing capsaicin. US Patent 1995. [Google Scholar]
  18. Yu, L.M.; Zhang, Z.M.; Xu, H.Z. A novel copolymer containing capsaicin moiety and its application in environment-friendly antifouling paint. Rare Metal Mat. Eng. 2004, 33, 79–82. [Google Scholar]
  19. Tatiana, R.P.; Iván, L.; Susana, F.; Yogesh, S.S.; Migue, L.F.; Vicente, G. Novel and efficient chemoenzymatic synthesis of D-Glucose 6-Phosphate and molecular modeling studies on the selective biocatalysis. Eur. J. Org. Chem. 2007, 17, 2769–2778. [Google Scholar]
  20. Hajime, M.; Takafumi, M.; Yasunori, Y.; Shigeo, K. Highly activated vinyl hydrogen in a significantly twisted styrene. J. Org. Chem. 2006, 71, 9004–9012. [Google Scholar] [CrossRef]
  21. Clouet, A.; Darbre, T.; Reymond, J.L. Esterolytic peptide dendrimers with a hydrophobic core and catalytic residues at the surface. Adv. Synth. Catal. 2004, 346, 1195–1204. [Google Scholar] [CrossRef]
  22. Feng, D.Q.; Ke, C.H.; Li, S.J.; Lu, C.Y.; Guo, F. Pyrethroids as promising marine antifoulants: laboratory and field studies. Mar. Biotechnol. 2009, 11, 153–160. [Google Scholar] [CrossRef]
  23. Hellio, C.; Tsoukatou, M.; Maréchal, J.P.; Aldred, N.; Beaupoil, C.; Clare, A.S.; Vagias, C.; Roussis, V. Inhibitory effects of Mediterranean sponge extracts and metabolites on larval settlement of the barnacle Balanus amphitrite. Mar. Biotechnol. 2005, 7, 297–305. [Google Scholar] [CrossRef]
  24. Hamilton, M.A.; Russo, R.C.; Thurston, R.V. Trimmed Spearman-Karber method for estimating median lethal concentrations in toxicity bioassays. Environ. Sci. Technol. 1977, 11, 714–719. [Google Scholar] [CrossRef]
  25. Hamilton, M.A.; Russo, R.C.; Thurston, R.V. Trimmed Spearman-Karber method for estimating median lethal concentrations in toxicity bioassays. Environ. Sci. Technol. 1978, 12, 417. [Google Scholar] [CrossRef]
