Facile Synthesis of Functionalized Spiropyrrolizidine Oxindoles via a Three-Component Tandem Cycloaddition Reaction

by
Yong-Mei Xie
1,
Yu-Qin Yao
1,
Hong-Bao Sun
1,
Ting-Ting Yan
1,
Jie Liu
1,* and
Tai-Ran Kang
2,*
1
State Key Laboratory of Biotherapy, West China Hospital, West China Medical School, Sichuan University, Chengdu, 610041, China
2
Chemical Synthesis and Pollution Control Key Laboratory of Sichuan Province, College of Chemistry and Chemical Engineering, China West Normal University, Nanchong, 637002, China
*
Authors to whom correspondence should be addressed.
Molecules 2011, 16(10), 8745-8757; https://doi.org/10.3390/molecules16108745
Submission received: 26 August 2011 / Revised: 30 September 2011 / Accepted: 3 October 2011 / Published: 19 October 2011
(This article belongs to the Special Issue Heterocycles)
Browse Figures
Versions Notes

Abstract

:
An efficient synthesis of functionalized spiropyrrolizidine oxindoles via a three-component tandem cycloaddition has been achieved. This strategy can provide direct and rapid access to spiropyrrolizidine oxindoles in high yields (up to 99%) with excellent diastereoselectivities (up to 99:1 dr). The features of this procedure are the following: mild reaction conditions, high yields, high diastereoselectivities, one-pot procedure and operational simplicity.

1. Introduction

Spirocyclic oxindoles are valuable synthetic intermediates and constitute the core units of many pharmacological agents and alkaloids [1,2,3]. These compounds have attracted much attention from synthetic chemists due to their diverse biological activities including antimycobacterial [4,5,6,7,8,9], antitumor [10,11,12,13,14], antimicrobial [15], antibacterial [16,17], antifungal [18,19], antiviral [20,21], and local anesthetic [22] properties. Hence, a number of synthetic routes have been developed for the preparation of these structural frameworks [23,24,25,26,27,28,29,30,31,32,33]. 1,3-Dipolar cycloaddition provides an efficient approach for the synthesis of five-membered heterocycles [34,35] and spiro-heterocycles, such as poly functionalized pyrrolidines [36,37,38,39], pyrazolidines and pyrrolizines [40,41], which widely occur in natural products and biologically active compounds. Although there are reports of synthesis of these substituted heterocycles, the development of synthetically important functionalized new spiro-heterocycles is still a challenge and has become a much attempted research endeavor.
Spiropyrrolizidine oxindoles are important synthetic targets and several reports of such syntheses exist [42,43]. To the best of our knowledge, however, there are no reports concerning the synthesis of spiropyrrolizidine oxindoles 4 containing two ester groups or two amide groups, which could possess some interesting biological activities. Herein, we report a three-component tandem cycloaddition reaction between substituted isatins, L-proline and maleates (maleamide) that produces such structures.

2. Results and Discussion

From the mechanistic perspective, the azomethine ylides, a class of powerful reagents, have emerged in a number of 1,3-dipolar cycloaddition reactions. In combination with the experiences in previous work, we envisaged that an azomethine ylide could be generated in situ from isatin (1a) and L-proline (2), and then trapped with dimethyl maleate (3a) acting as dipolarophile to afford spiropyrrolizidine oxindole 4a. Hence, the 1,3-dipolar cycloaddition reaction would be facilitated (Scheme 1).
Molecules 16 08745 g002 550

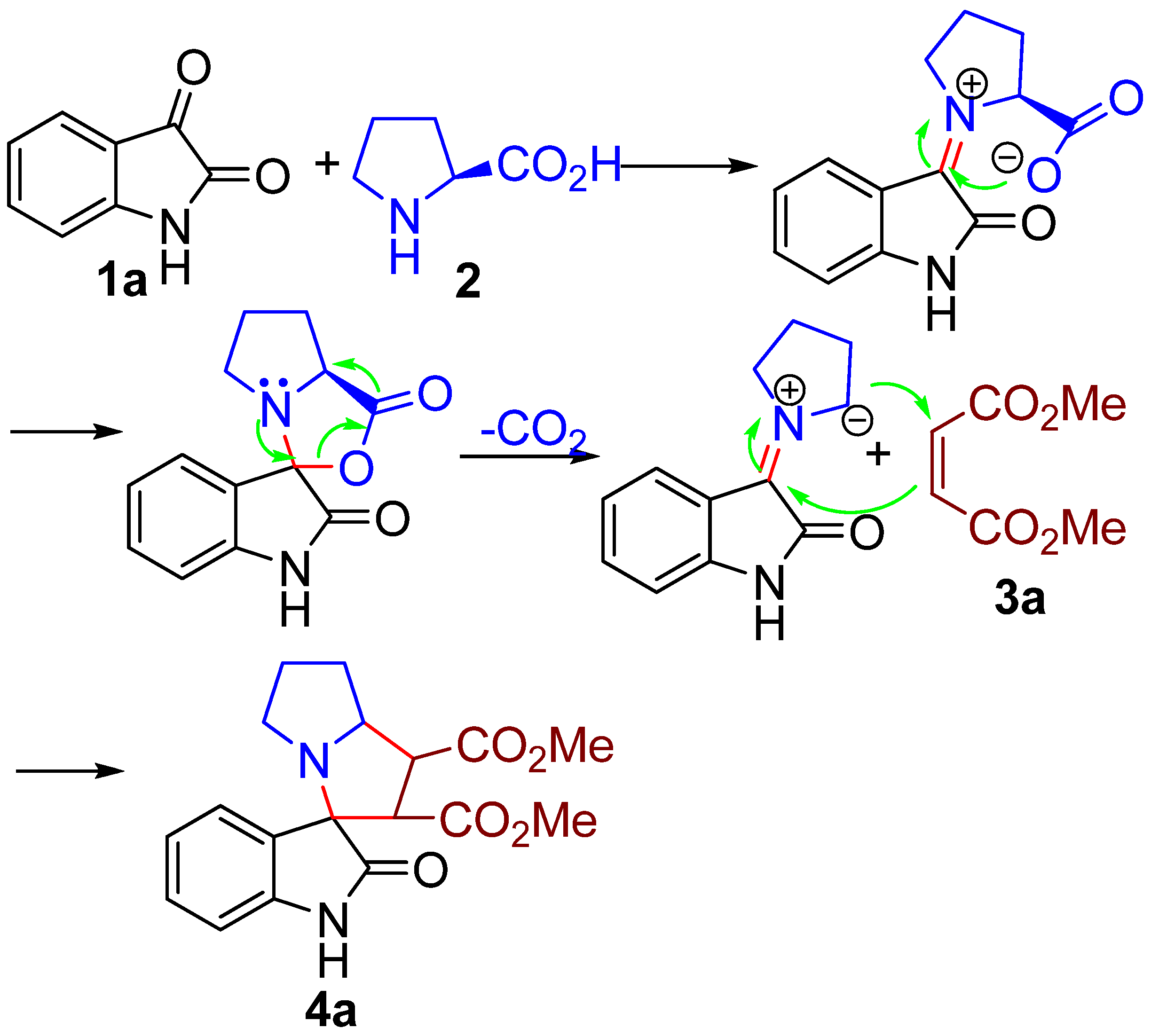

Scheme 1. Possible reaction mechanism for the synthesis of spiropyrrolidine oxindole.
Scheme 1. Possible reaction mechanism for the synthesis of spiropyrrolidine oxindole.
Molecules 16 08745 g002
In light of the above considerations, the reaction in methanol at 60 °C of dimethyl maleate with azomethine ylide (generated in situ by decarboxylative condensation of isatin and L-proline) was examined. After 3 h, the expected adduct 4a was obtained in 87% yield (Table 1, entry 1). We were pleased to see that our reaction afforded the adduct 4a with excellent diastereoselectivity (99:1, determined by 1H-NMR). The structure of 4a was further confirmed by a single crystal X-ray crystallographic study (Figure 1) [14]. The ORTEP diagram of 4a shows that: (i) the pair of linked pyrrole rings of pyrrolizidine nucleus adopts an envelope-like conformation, (ii) H-3, H-4 and H-5 are all cis and (iii) the two carbonyls linked to C-2 and C-3 of 4a have a trans stereochemical relationship. This can be explained by the fact that the corresponding endo transition state (A) would require less free energy of activation than the exo transition state (B) leading to 4a′ as the latter would result in electrostatic repulsion between the cis carbonyls increasing the free energy of activation (Scheme 2). Therefore, the relative configuration of 4a was assigned as shown in Table 1.
Table

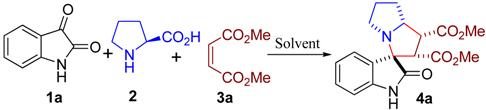

Table 1. Optimization of reaction conditionsa. Molecules 16 08745 i001
Table 1. Optimization of reaction conditionsa. Molecules 16 08745 i001
EntrySolventTemp / °CYield / % b
1methanol6087
2ethanol6063
3isopropanol6071
4acetonitrile6082
5chloroform6084
6tetrahydrofuran6094
71,4-dioxane6099
81,4-dioxane2537
9c1,4-dioxanereflux94
a Unless indicated otherwise, the reaction was carried out in 0.2 mmol scale in solvent (1 mL) at 60 °C for 3 h, and the ratio of 1a/2/3a is 1:1:1. b Isolated yield based on isatin. c 45 min.
Molecules 16 08745 g001 550

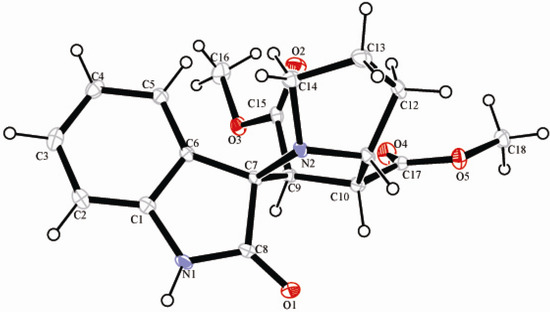

Figure 1. X-ray structure of racemiccompound 4a.
Figure 1. X-ray structure of racemiccompound 4a.
Molecules 16 08745 g001
Molecules 16 08745 g003 550

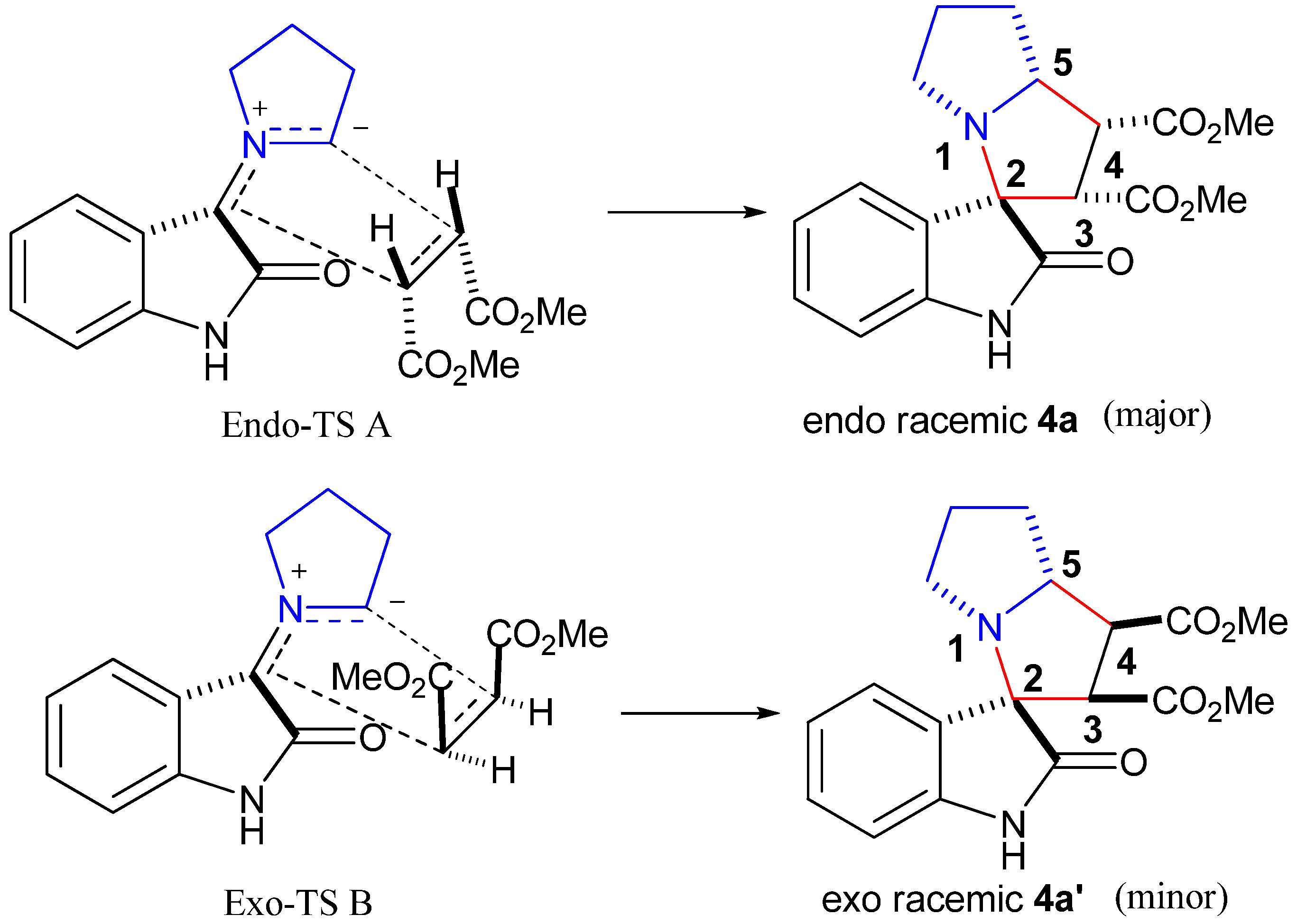

Scheme 2. Stereochemistry of cycloadducts differing in their relative configuration.
Scheme 2. Stereochemistry of cycloadducts differing in their relative configuration.
Molecules 16 08745 g003
To improve the yield, efforts were made to optimize other reaction parameters including solvents and reaction temperatures. Thus, the reaction was studied in different solvents that included ethanol, isopropanol, acetonitrile, chloroform, tetrahydrofuran and 1,4-dioxane (Table 1, entries 2–7). To our satisfaction, the reaction in 1,4-dioxane led to the desired product in almost quantitative yield (99%) and maintained stereoselectivity (Table 1, entry 7), while ethanol as solvent gave the product in only 63% yield (Table 1, entry 2). In general, reactions carried out in aprotic solvents were better yielding than those in protic solvents. Temperature influenced the rate of the reaction. Elevating the reaction temperature resulted in a high reactivity and the reaction time was shortened to 45 min (Table 1, entry 9). Based on the consideration of reaction time and yield, the optimized conditions were those shown in Table 1, entry 7.
To show the general nature of the reaction, isatin bearing different substituents and L-proline were reacted with maleates (maleamide) under optimized conditions. Various functional groups appeared to be well tolerated and gave the corresponding spiropyrrolizidine oxindoles in moderate to good yields (51–99%) with excellent diastereoselectivities (up to 99:1). The results are summarized in Table 2. For dimethyl maleate, the results showed that the reaction took place with excellent diastereo-selectivities of up to 99:1, regardless of the electronic and steric nature of the substituted isatins. However, the yields of the reaction were affected by the substitutent group on the isatins (Table 2, entries 1-6). 5-Bromoisatin resulted in low to 71% yield, with an extention of the reaction time to 8 h (Table 2, entry 3). The oxindole core may also be modified. Thus, the N-protecting group may be changed as well. Incorporating different protecting groups on the N1 of oxindole had little effects on reactivity and diastereoselectivity (Table 2, entries 7–8). For the diethyl maleate, a similar phenomenon was observed. Substituents on the isatins influenced the diastereoselectivities only slightly, but affected the yields to a greater extent (Table 2, entries 9–16). Generally, isatins with electron-withdrawing groups gave lower yields than those with electron-donating groups. However, when we further expanded the substrate scope to maleamide (Table 2, entries 17–18), the corresponding products were obtained in moderate yields (51–64%). The stereochemistry of the other products was assigned by analogy to the relative configuration of 4a.
Table

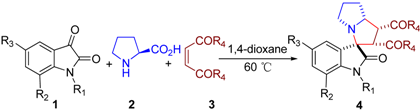

Table 2. Synthesis of racemic spiropyrrolizidine oxindolesa. Molecules 16 08745 i002
Table 2. Synthesis of racemic spiropyrrolizidine oxindolesa. Molecules 16 08745 i002
Entry134Time / hYield / % bdr c
1R1=R2=R3= HR4=Me4a39999/1
2R1=R2=H, R3=CH3R4=Me4b29597/3
3R1=R2=H, R3=BrR4=Me4c87195/5
4R1=H, R2=R3=FR4=Me4d39099/1
5R1=H, R2=R3=ClR4=Me4e38999/1
6R1=R2=H, R3=COOHR4=Me4f39599/1
7R1=Et, R2=R3=HR4=Me4g38899/1
8R1=benzyl,R2=R3=HR4=Me4h29399/1
9cR1=R2=R3=HR4=Et4i29794/6
10R1=R2=H, R3=CH3R4=Et4j29295/5
11R1=R2=H, R=BrR4=Et4k57092/8
12R1=H, R2=R3=FR4=Et4l38899/1
13R1=H, R2=R3=ClR4=Et4m39499/1
14R1=R2=H, R3=COOHR4=Et4n39199/1
15R1=Et, R2=R3=HR4=Et4o39299/1
16R1=benzyl,R2=R3=HR4=Et4p29599/1
17R1=R2=R3=HR4=NH24q26498/2
18R1=R2=H, R3=CH3R4=NH24r25185/5
a The reaction was carried out in 0.2 mmol scale in 1,4-dioxane (1 mL) at 60 °C, and the ratio of 1/2/3 is 1:1:1. b Isolated yield based on substituted isatins. c The dr refers to the diastereoselectivity and was determined by 1H-NMR.

3. Experimental

3.1. General

All chemicals were obtained from commercial sources and used without further purification. Column chromatography was carried out on silica gel (300–400 mesh, Qingdao Marine Chemical Ltd., Qingdao, China). Thin layer chromatography (TLC) was performed on TLC silica gel 60 F254 plates. 1H-NMR and 13C-NMR spectra were recorded on Varian Gemini 400 Bruker AVII-400 or Bruker AVII-600 spectrometers. The chemical shifts were recorded in ppm relative to tetramethylsilane and with the solvent resonance as the internal standard. Data are reported as follows: chemical shift, multiplicity (s = singlet, d = doublet, t = triplet, m = multiplet, br = broad), coupling constants (Hz), integration. Chemical shifts are reported in ppm from the tetramethylsilane with the solvent resonance as internal standard. Mass Spectra (MS) were measured by 3200 Q TRAP LC/MS/MS utilizing electrospray ionization (ESI).

3.2. Experimental Procedures

A mixture of isatin (0.2 mmol), L-proline (1 eq.), dimethyl maleate (1 eq.) in 1,4-dioxane (1 mL) was stirred for 3 h at 60 °C. After completion of the reaction (TLC), the solvent was removed under vacuum. The crude product was subjected to column chromatography on silica gel using CH2Cl2- ethyl acetate (2:1) as the eluent to give 4a (60 mg, 87% yield). Compounds 4b-r were synthesized by a similar procedure as described for compound 4a. For the separation of these compounds, the eluent of silica gel column chromatography consisted of appropriate mixtures of CH2Cl2 and ethyl acetate or CH2Cl2 and MeOH.

3.3. Spectral Data

Dimethyl 2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarboxylate (4a). Yield 99%; White solid; m.p. 194.5–197.8 °C; 1H-NMR (CDCl3, 400 MHz): δ 1.81–1.93 (m, 2H), 1.95–2.01 (m, 2H), 2.49–2.52 (m, 1H), 3.10–3.16 (m, 1H), 3.39 (s, 3H), 3.77 (s, 3H), 3.88–3.96 (m, 2H), 4.26–4.32 (m, 1H), 6.88 (d, J = 7.2 Hz, 1H), 7.00–7.04 (m, 1H), 7.23–7.25 (m, 1H), 7.64 (d, J = 7.6 Hz, 1H), 8.26 (s, 1H); 13C-NMR (CDCl3, 100 MHz): δ 27.3, 27.7, 47.3, 47.6, 51.5, 51.7, 56.1, 66.6, 71.1, 110.1, 122.2, 125.9, 127.9, 129.4, 141.8, 170.8, 172.4, 181.4; HRMS: calcd. for C18H20N2O5+ [M+H]+: 345.1472, found: 345.1447.
Dimethyl 5-methyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarbo -xylate (4b). Yield 95%; White solid; m.p. 187.2–189.6 °C; 1H-NMR (CDCl3, 600 MHz): δ 1.88–1.92 (m, 2H), 1.96–2.02(m, 2H), 2.31 (s, 3H), 2.51–2.54(m, 1H), 3.16–3.20 (m, 1H), 3.41 (s, 3H), 3.77 (s, 3H), 3.81 (d, J = 7.8 Hz, 1H), 4.01–4.04(m, 1H), 4.29 (q, J = 8.4 Hz, 1H), 6.80 (d, J = 7.8 Hz, 1H), 7.04 (d, J = 7.2 Hz, 1H), 7.37 (s, 1H), 9.33 (s, 1H). 13C-NMR (CDCl3, 150 MHz): δ 21.3, 27.3, 27.9, 47.5, 47.7, 51.5, 51.7, 55.4, 66.5, 71.2, 110.0, 12.6, 128.3, 129.8, 131.5, 139.5, 171.2, 172.2, 181.3; HRMS: calcd. for C19H22N2O5+ [M+H]+: 359.1529, found: 359.1626.
Dimethyl 5-bromo-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarbo -xylate (4c). Yield 71%; White solid; m.p. 119.3–121.6 °C; 1H-NMR (CDCl3, 400 MHz): δ 1.71–1.78 (m, 1H), 1.85–1.92 (m, 1H), 1.94–2.00 (m, 2H), 2.47–2.50 (m, 1H), 2.96–3.02 (m, 1H), 3.43 (s, 3H), 3.78 (s, 3H), 3.82–3.86 (m, 1H), 3.93–3.95 (m, 1H), 4.21–4.27 (m, 1H), 6.79 (d, J = 8.0 Hz, 1H), 7.38 (d, J = 8.0 Hz, 1H), 7.83 (s, 1H), 7.17 (s, 1H); 13C-NMR (CDCl3, 100 MHz): δ 27.4, 27.5, 46.7, 47.3, 51.7, 51.8, 56.6, 66.7, 70.7, 111.5, 115.1, 128.3, 131.0, 132.2, 140.7, 170.2, 172.1, 181.0; HRMS: calcd. for C18H19BrN2O5+ [M+H]+: 423.0477, 425.0457, found: 423.0596, 425.0580.
Dimethyl 5,7-difluoro-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dica -rboxylate (4d). Yield 90%; White solid; m.p. 193.9–195.5 °C; 1H-NMR (CDCl3, 600 MHz): δ 1.55–1.60 (m, 1H), 1.90–1.99 (m, 3H), 2.44–2.47 (m, 1H), 2.84–2.88 (m, 1H), 3.42(s, 3H), 3.68–3.71 (m, 1H), 3.78 (s, 3H), 4.09–4.10 (d, J = 8.4 Hz, 1H), 4.18–4.22 (m, 1H), 6.81–6.84 (m, 1H), 7.51 (q, J = 8.4, 1H), 8.21 (s, 1H); 13C-NMR (CDCl3, 150 MHz): δ 26.9, 27.4, 29.7, 45.6, 46.9, 51.8, 57.7, 66.7, 70.3, 104.6 (dd, J = 28, 21 Hz), 111.8 (dd, J = 25, 3 Hz), 124.9 (dd, J = 12, 3 Hz), 130.0 (dd, J = 9, 3 Hz), 146.1 (dd, J = 244, 11 Hz), 158.2 (dd, J = 243, 9 Hz), 169.6, 172.3, 179.9; HRMS: calcd. for C18H18F2N2O5+ [M+H]+: 381.1184, found: 381.1279.
Dimethyl 5,7-dichloro-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dica -rboxylate (4e). Yield 89%; White solid; m.p. 231.0–232.3 °C; 1H-NMR (CDCl3, 400 MHz): δ 1.56–1.62 (m, 1H), 1.90–2.01 (m, 3H), 2.43–2.47 (m, 1H), 2.86 (q, J =7.6 Hz, 1H), 3.44 (s, 3H), 3.69–3.73 (m, 1H), 3.78 (s, 3H), 4.04 (d, J = 8.0 Hz, 1H), 4.15–4.20 (m, 1H), 7.27 (m, 1H),7.74 (d, J = 1.6 Hz, 1H), 8.17 (s, 1H); 13C-NMR (CDCl3, 100 MHz): δ 26.9, 27.3, 45.6, 46.9, 51.8, 57.6, 66.6, 70.8, 115.2, 126.8, 128.1, 128.9, 129.5, 137.8, 169.6, 172.1, 179.5; HRMS: calcd. for C18H18Cl2N2O5+ [M+H]+: 413.0593, 415.0563, found: 413.0677, 415.0646.
1',2'-bis(methoxycarbonyl)-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-5-carboxylic acid (4f). Yield 95%; White solid; m.p. 250.0–253.0 °C; 1H-NMR (DMSO, 400 MHz): δ 1.84–1.92 (m, 4H), 2.31–2.34 (m, 1H), 3.11–3.16 (m, 1H), 3.40 (s, 3H), 3.49–3.57 (m, 1), 3.64 (d, J = 7.6 Hz, 1H), 3.70 (s, 3H), 4.02–4.12 (m, 1H), 6.83 (d, J = 8.0 Hz, 1H), 7.19 (d, J = 8.0 Hz, 1H), 7.33 (s, 1H), 10.43 (s, 1H), 12.30 (s, 1H); 13C-NMR (DMSO, 100 MHz): δ 27.1, 27.8, 41.1, 47.6, 51.7, 51.8, 54.8, 65.9, 70.4, 109.8, 125.8, 128.3, 128.5, 130.8, 142.0, 171.3, 172.0, 173.4, 179.5; HRMS: calcd. for C19H2N2O7+ [M+K]+: 427.1271, found: 427.1264.
Dimethyl 1-ethyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarbox -ylate (4g). Yield 88%; White solid; m.p. 98.6–100.1 °C; 1H-NMR (CDCl3, 400 MHz): δ 1.26 (t, J = 7.2 Hz, 3H), 1.80–1.88 (m, 2H), 1.94–1.98 (m, 2H), 2.42–2.45 (m, 1H), 3.09–3.12 (m, 1H), 3.35 (s, 3H), 3.67–3.72 (m, 1H), 3.76 (s, 3H), 3.78–3.94 (m, 3H), 4.28 (q, J = 8.0 Hz, 1H), 6.84 (d, J = 7.6 Hz, 1H), 7.02 (t, J = 3.6 Hz, 1H), 7.30 (t, J = 8.0 Hz, 1H), 7.69 (d, J = 7.2 Hz, 1H); 13C-NMR (CDCl3, 100 MHz): δ 12.4, 27.3, 27.5, 34.8, 47.1, 47.5, 51.4, 51.6, 56.4, 66.6, 70.3, 108.1, 122.1, 125.7, 127.8, 129.3, 143.5, 170.8, 172.4, 178.4; HRMS: calcd. for C20H24N2O5+ [M+H]+: 373.1685, found: 373.1772.
Dimethyl 1-benzyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarbo -xylate (4h). Yield 93%; White solid; m.p. 138.4–139.8 °C; 1H-NMR (CDCl3, 400 MHz): δ 1.73–1.78 (m, 1H), 1.88–2.01 (m, 3H), 2.44–2.47 (m, 1H), 3.05–3.10 (m, 1H), 3.26 (s, 3H), 3.78 (s, 3H), 3.83 (t, J = 8.0 Hz, 1H), 4.05 (d, J = 8.0 Hz, 1H), 4.30 (q, J = 7.2 Hz, 1H) , 4.76 (d, J = 15.6 Hz, 1H), 5.07 (d, J = 16.0 Hz, 1H), 6.67 (d, J = 7.6 Hz, 1H), 6.99 (t, J = 7.6 Hz, 1H), 7.16 (t, J = 7.6 Hz, 1H), 7.23–7.32 (m, 5H), 7.77 (d, J = 7.6 Hz, 1H); 13C-NMR (CDCl3, 100 MHz): δ 27.1, 27.4, 43.8, 46.8, 47.4, 51.4, 51.6, 57.3, 66.8, 70.2, 109.1, 122.4, 125.8, 127.1, 127.6, 127.7, 128.7, 129.2, 135.8, 143.4, 170.5, 172.5, 179.3; HRMS: calcd. for C25H26N2O5+ [M+H]+: 435.1842, found: 435.1880.
Diethyl 2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarboxylate (4i). Yield 97%; White solid; m.p. 180.4–183.0 °C; 1H-NMR (CDCl3, 400 MHz): δ 0.85 (t, J = 7.2 Hz, 3H), 1.32 (t, J = 7.2 Hz, 3H), 1.81–1.91 (m, 2H), 1.93–2.00 (m, 2H), 2.46–2.50 (m, 1H), 3.03–3.07 (m, 1H), 3.82–3.87 (m, 3H), 3.93–3.96 (m, 1H), 4.21–4.28 (m, 3H), 6.89 (d, J = 7.6 Hz, 1H), 7.00 (t, J = 7.6 Hz, 1H), 7.21–7.27 (m, 1H), 7.72 (d, J = 7.6 Hz, 1H), 8.91 (s, 1H);13C-NMR (CDCl3, 100 MHz): δ 13.6, 14.3, 27.3, 27.5, 47.1, 47.5, 56.5, 60.6, 66.7, 71.1, 110.0, 122.2, 126.2, 128.2, 129.3, 141.8, 170.1, 171.9, 181.6; HRMS: calcd. for C20H24N2O5+ [M+H]+: 373.1685, found: 373.1766.
Diethyl 5-methyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarbox -ylate (4j). Yield 92%; White solid; m.p. 155.0–157.3 °C; 1H-NMR (CDCl3, 600 MHz): δ 0.88 (t, J = 7.2 Hz, 3H), 1.31 (t, J = 7.2 Hz, 3H), 1.86–1.91 (m, 2H), 1.97–2.02 (m, 2H), 2.30 (s, 3H), 2.50–2.52 (m, 1H), 3.11–3.15 (m, 1H), 3.83–3.95 (m, 4H), 4.22–4.28 (m, 3H), 6.79 (d, J = 7.8 Hz, 1H), 7.04 (d, J = 8.4 Hz, 1H), 7.45 (s, 1H), 9.29 (s, 1H). 13C-NMR (CDCl3, 150 MHz): δ 13.6, 14.3, 21.3, 27.3, 27.7, 47.4, 47.6, 55.9, 60.51, 60.52, 66.6, 71.2, 109.9, 125.9, 128.6, 129.6, 131.4, 139.5, 170.5, 171.8, 181.6; HRMS: calcd. for C21H26N2O5+ [M+H]+: 387.1842, found: 387.1908.
Diethyl 5-bromo-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarbox -ylate (4k). Yield 70%; White solid; m.p. 174.3–176.5 °C; 1H-NMR (CDCl3, 400 MHz): δ 0.89 (t, J = 6.8 Hz, 3H), 1.31 (t, J = 7.2 Hz, 3H), 1.73–1.76 (m, 1H), 1.83–1.90 (m, 1H), 1.94–1.99 (m, 2H), 2.45–2.48 (m, 1H), 2.92–2.98 (m, 1H), 3.74–3.78 (m, 1H), 3.83–3.88 (m, 1H), 3.92–3.96 (m, 2H), 4.20–4.27 (m, 3H), 6.78 (d, J = 8.4 Hz, 1H), 7.35–7.37 (m, 1H), 7.89 (d, J = 1.6 Hz, 1H), 9.17 (s, 1H); 13C-NMR (CDCl3, 100 MHz): δ 13.6, 14.3, 27.3, 27.4, 46.6, 47.3, 56.9, 60.7, 60.8, 66.7, 70.8, 111.4, 115.1, 128.6, 131.2, 132.1, 140.8, 169.6, 171.6, 181.3; HRMS: calcd. for C20H23BrN2O5+ [M+H]+: 451.0790, 453.0770, found: 451.0746, 453.0753.
Diethyl 5,7-difluoro-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarb -oxylate (4l). Yield 88%; White solid; m.p. 119.3–121.8 °C; 1H-NMR (CDCl3, 600 MHz): δ 0.90 (t, J = 7.2 Hz, 3H), 1.33 (t, J = 6.6 Hz, 3H), 1.54–1.56 (m, 1H), 1.90–1.94 (m, 2H), 1.95–2.00 (m, 1H), 2.44–2.46 (m, 1H), 2.80–2.84 (m, 1H), 3.60–3.63 (m, 1H), 3.84–3.92 (m, 2H), 4.10 (d, J = 8.4 Hz, 1H), 4.17–4.20 (m, 1H), 4.23–4.26 (m, 2H), 6.80–6.84 (m, 1H), 7.60 (d, J = 8.4 Hz, 1H), 7.66 (s, 1H); 13C-NMR (CDCl3, 150 MHz): δ 13.6, 14.4, 26.8, 27.4, 45.4, 46.9, 58.2, 60.7, 60.8, 66.8, 70.2, 104.4 (dd, J = 28, 22 Hz), 112.2 (dd, J = 26, 3 Hz), 124.9 (dd, J = 12, 3 Hz), 130.5 (dd, J = 9, 3 Hz), 146.1 (dd, J = 243, 13 Hz), 158.3 (dd, J = 242, 10 Hz), 169.0, 171.8, 179.8; HRMS: calcd. for C20H22F2N2O5+ [M+H]+: 409.1497, found: 409.1551.
Diethyl 5,7-dichloro-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarb -oxylate (4m). Yield 94%; White solid; m.p. 197.6–199.1 °C; 1H-NMR (CDCl3, 600 MHz): δ 0.90 (t, J = 7.2 Hz, 3H), 1.33 (t, J = 7.2 Hz, 3H), 1.60–1.63 (m, 1H), 1.90–2.00 (m, 3H), 2.45–2.47 (m, 1H), 2.86 (m, 1H), 3.66 (t, J = 7.8 Hz, 1H), 3.84–3.87 (m, 1H), 3.92–3.95 (m, 1H), 4.07 (t, J = 12.0 Hz, 1H), 4.17–4.21 (m, 1H), 4.23–4.27 (m, 2H), 7.27–7.29 (m, 1H),7.82 (s, 1H), 8.79 (s, 1H); 13C-NMR (CDCl3, 150 MHz): δ 13.6, 14.3, 26.8, 27.4, 45.6, 46.9, 57.9, 60.7, 60.8, 66.7, 70.9, 115.3, 127.0, 128.0, 128.7, 129.7, 138.1, 169.1, 171.6, 180.3; HRMS: calcd. for C20H22Cl2N2O5+ [M+H]+: 441.0906, 443.0876, found: 441.0980, 443.0964.
1',2'-bis(ethoxycarbonyl)-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-5-carboxylic acid (4n). Yield 91%; White solid; m.p. 228.1–230.6 °C;1H-NMR (DMSO, 600 MHz): δ0.80 (t, J =7.2 Hz, 3H), 1.21 (t, J = 7.2 Hz, 3H), 1.71–1.76 (m, 1H), 1.84–1.89 (m, 2H), 2.23–2.26 (m, 1H), 3.01 (q, J = 7.2 Hz,1H), 3.42–3.48 (m, 1H), 3.63 (d, J = 8.4 Hz, 1H), 3.76–3.85 (m, 3H), 4.00–4.02 (m, 1H), 4.11–4.14 (m, 2H), 6.76 (d, J = 7.8 Hz,1H), 7.13 (d, J = 7.8 Hz,1H), 7.38 (s, 1H), 10.38 (s, 1H), 12.23 (brs, 1H); 13C-NMR (DMSO, 100 MHz): δ 13.9, 14.6, 27.2, 27.4, 47.2, 47.5, 55.6, 60.3, 60.4, 66.1, 70.4, 109.7, 126.2, 128.1, 128.8, 130.6, 142.1, 170.4, 171.6, 173.2, 179.9; HRMS: calcd. for C21H24N2O7+ [M+K]+: 455.1584, found: 455.1568.
Diethyl 1-ethyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarboxyl -ate (4o). Yield 92%; White solid; m.p. 66.1–68.4 °C; 1H-NMR (CDCl3, 600 MHz): δ 0.81 (t, J = 7.2 Hz, 3H), 1.27 (t, J = 7.2 Hz, 3H), 1.32 (t, J = 7.2 Hz, 3H), 1.75–1.82 (m, 1H), 1.85–1.90 (m, 1H), 1.95–1.97 (m, 2H), 2.40–2.43 (m, 1H), 3.05 (q, J = 6.0 Hz, 1H), 3.69–3.72 (m, 1H), 3.78–3.84 (m, 4H), 3.94 (d, J = 8.4 Hz, 1H), 4.22–4.27 (m, 3H), 6.84 (d, J = 7.8 Hz, 1H), 7.00–7.03 (m, 1H), 7.28–7.30 (m, 1H), 7.80 (d, J = 7.2 Hz, 1H); 13C-NMR (CDCl3, 150 MHz): δ 12.5, 13.5, 14.3, 27.2, 27.3, 34.8, 46.8, 47.5, 56.9, 60.4, 60.5, 66.7, 70.2, 108.0, 122.0, 126.1, 128.0, 129.2, 143.5, 170.1, 172.0, 178.7; HRMS: calcd. for C22H28N2O5+ [M+H]+: 401.1998, found: 401.2046.
Diethyl 1-benzyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarboxy -late (4p). Yield 95%; White solid; m.p. 97.2–99.3 °C; 1H-NMR (CDCl3, 400 MHz): δ 0.66 (t, J = 7.2 Hz, 3H), 1.26–1.35 (m, 3H), 1.71–1.78 (m, 1H), 1.95–1.98 (m, 3H), 2.41–2.46 (m, 1H), 3.02 (q, J = 8.0 Hz, 1H), 3.71–3.78 (m, 3H), 4.10 (d, J = 8.0 Hz, 1H), 4.24–4.29 (m, 3H), 4.78 (d, J = 16.0 Hz, 1H), 5.05 (d, J = 15.6 Hz, 1H), 6.67 (d, J = 8.0 Hz, 1H), 6.97–7.00 (m, 1H), 7.13–7.17 (m, 1H), 7.26–7.31 (m, 5H), 7.85 (d, J = 7.2 Hz, 1H); 13C-NMR (CDCl3, 100 MHz): δ13.4, 14.3, 26.9, 27.4, 29.7,43.9, 46.5, 47.4, 57.6, 60.4, 60.5, 66.8, 70.1, 108.9, 122.4, 126.2, 127.2, 127.5, 127.9, 128.7, 129.0, 135.8, 143.5, 169.8, 172.0, 179.5; HRMS: calcd. for C27H30N2O5+ [M+H]+: 463.2155, found: 463.2198.
2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarboxamide (4q). Yield 64%; White solid; m.p. 107.6–110.1 °C; 1H-NMR (DMSO, 600 MHz): δ 1.54–1.58 (m, 1H), 1.79–1.83 (m, 2H), 2.18–2.21 (m, 1H), 2.27–2.29 (m, 1H), 3.13–3.17 (m, 2H), 3.35–3.39 (m, 1H), 4.02–4.04 (m, 2H), 6.61 (s, 1H), 6.79–6.91 (m, 4H), 7.03(s, 1H), 7.51 (d, J = 8.4 Hz, 1H), 10.31 (s, 1H); 13C-NMR (DMSO, 150 MHz): δ 27.4, 28.0, 48.8, 49.0, 53.7, 65.9, 71.1, 109.7, 121.2, 125.7, 129.2, 129.4, 143.5, 172.7, 172.8, 180.1; HRMS: calcd. for C16H18N4O3+ [M+H]+: 315.1379, found: 315.1443.
5-methyl-2-oxo-1',2',5',6',7',7a'-hexahydrospiro[indoline-3,3'-pyrrolizine]-1',2'-dicarboxamide (4r). Yield 51%; White solid; m.p. 244.9–247.1 °C; 1H-NMR (DMSO, 400 MHz): δ 1.54–1.61 (m, 2H), 1.78–1.84 (m, 3H), 2.22 (s, 3H), 3.17 (d, J = 4.4 Hz, 2H), 3.99 (d, J = 4.0 Hz, 2H), 6.60 (s, 1H), 6.67 (d, J = 7.6 Hz, 1 H), 6.82 (d, J = 7.6 Hz, 2 H), 7.01(d, J = 8.0 Hz, 2H), 7.36 (s, 1H), 10.15(s, 1H); 13C-NMR (DMSO, 100 MHz): δ 21.5, 27.4, 27.9, 48.7, 49.1, 54.1, 65.9, 71.1, 109.3, 125.8, 129.7 129.9, 141.0, 172.7, 172.8, 180.3; HRMS: calcd. for C17H20N4O3+ [M+H]+: 329.1535, found: 329.1547.

4. Conclusions

In this work, we have developed an efficient method for the synthesis of potentially biologically active spiropyrrolizidine oxindoles via a three-component 1,3-dipolar cycloaddition reaction. A range of spiropyrrolizidine oxindoles bearing two ester or two amide groups were obtained in high yields (up to 99%) with excellent diastereoselectivities (up to 99:1 dr). The methodology is rapid, simple, and inexpensive affording complex compounds. Further study on the antibacterial, antiviral and antitumor activities of these compounds is underway. Supporting Information for this article is available online at https://www.mdpi.com/journal/molecules/. Included crystallographic data and molecular structure, 1H-, 13C-NMR and HRMS spectra of all compounds.

Supplementary Materials

Supplementary materials can be accessed at https://www.mdpi.com/1420-3049/16/10/8745/s1.

Acknowledgements

We appreciate the financial support of the Research Foundation for the Young Teachers of Sichuan University (2010SCU11033). We also thank Sichuan University Analytical & Testing Center for the NMR analysis.

References and Notes

  1. Usui, T.; Kondoh, M.; Cui, C.B.; Mayumi, T.; Osada, H. Tryprostatin A, a specific and novel inhibitor of microtubule assembly. Biochem. J. 1998, 333, 543–538. [Google Scholar]
  2. Hilton, S.T.; Ho, T.C.; Pljevaljcic, G.; Jones, K. A new route to spirooxindoles. Org. Lett. 2000, 2, 2639–2641. [Google Scholar]
  3. Marti, C.; Carreira, E.M. Construction of spiro[pyrrolidine-3,3-oxindoles]-recent applications to the synthesis of oxindole alkaloids. Eur. J. Org. Chem. 2003, 2003, 2209–2219. [Google Scholar] [CrossRef]
  4. Kumar, R.R.; Perumal, S.; Senthilkumar, P.; Yogeeswari, P.; Sriram, D. Discovery of antimycobacterial spiro-piperidin-4-ones: An atom economic, stereoselective synthesis, and biological intervention. J. Med. Chem. 2008, 51, 5731–5735. [Google Scholar] [CrossRef]
  5. Kumar, R.R.; Perumal, S.; Senthilkumar, P.; Yogeeswari, P.; Sriram, D. A facile synthesis and antimycobacterial evaluation of novel spiro-pyrido-pyrrolizines and pyrrolidines. Eur. J. Med. Chem. 2009, 44, 3821–3829. [Google Scholar] [CrossRef]
  6. Kumar, R.S.; Rajesh, S.M.; Perumal, S.; Banerjee, D.; Yogeeswari, P.; Sriram, D. Novel three-component domino reactions of ketones, isatin and amino acids: Synthesis and discovery of antimycobacterial activity of highly functionalised novel dispiropyrrolidines. Eur. J. Med. Chem. 2010, 45, 411–422. [Google Scholar]
  7. Maheswari, S.U.; Balamurugan, K.; Perumal, S.; Yogeeswari, P.; Sriram, D. A facile 1,3-dipolar cycloaddition of azomethine ylides to 2-arylidene-1,3-indanediones: Synthesis of dispiro-oxindolylpyrrolothiazoles and their antimycobacterial evaluation. Bioorg. Med. Chem. Lett. 2010, 20, 7278–7282. [Google Scholar]
  8. Prasanna, P.; Balamurugan, K.; Perumal, S.; Yogeeswari, P.; Sriram, D. A regio- and stereoselective 1,3-dipolar cycloaddition for the synthesis of novel spiropyrrolo-thiazolyloxindoles and their antitubercular evaluation. Eur. J. Med. Chem. 2010, 45, 5653–5661. [Google Scholar] [CrossRef]
  9. Karthikeyan, S.V.; Bala, B.D.; Raja, V.P.; Perumal, S.; Yogeeswari, P.; Sriram, D. A highly atom economic, chemo-, regio- and stereoselective synthesis and evaluation of spiro-pyrrolothiazoles as antitubercular agents. Bioorg. Med. Chem. Lett. 2010, 20, 350–353. [Google Scholar] [CrossRef]
  10. Yong, S.R.; Ung, A.T.; Pyne, S.G.; Skelton, B.W.; White, A.H. Synthesis of novel 3′-spirocyclic-oxindole derivatives and assessment of their cytostatic activities. Tetrahedron 2007, 63, 5579–5586. [Google Scholar] [CrossRef]
  11. Yu, S.; Qin, D.; Shangary, S.; Chen, J.; Wang, G.; Ding, K.; McEachern, D.; Qiu, S.; Nikolovska-Coleska, Z.; Miller, R.; Kang, S.; Yang, D.; Wang, S. Potent and orally active small-molecule inhibitors of the MDM2-p53 interaction. J. Med. Chem. 2009, 52, 7970–7973. [Google Scholar] [CrossRef]
  12. Girgis, A.S. Regioselective synthesis of dispiro[1H-indene-2,3'-pyrrolidine-2',3''-[3H]indole]-1,2''(1''H)-diones of potential anti-tumor properties. Eur. J. Med. Chem. 2009, 44, 91–100. [Google Scholar] [CrossRef]
  13. Silva, B.V.; Ribeiro, N.M.; Vargas, M.D.; Lanznaster, M.; Carneiro, J.W.; Krogh, R.; Andricopulo, A.D.; Dias, L.C.; Pinto, A.C. Synthesis, electrochemical studies and anticancer activity of ferrocenyl oxindoles. Dalton Trans. 2010, 39, 7338–7344. [Google Scholar]
  14. Kamal, A.; Ramakrishna, G.; Raju, P.; Rao, A.V.; Viswanath, A.; Nayak, V.L.; Ramakrishna, S. Synthesis and anticancer activity of oxindole derived imidazo[1,5-a]pyrazines. Eur. J.Med. Chem. 2011, 46, 2427–2435. [Google Scholar] [CrossRef]
  15. Periyasami, G.; Raghunathan, R.; Surendiran, G.; Mathivanan, N. Synthesis of novel spiropyrrolizidines as potent antimicrobial agents for human and plant pathogens. Bioorg. Med. Chem. Lett. 2008, 18, 2342–23425. [Google Scholar] [CrossRef]
  16. Mhaske, P.C.; Shelke, S.H.; Jadhav, R.P.; Raundal, H.N.; Patil, S.V.; Patil, A.A.; Bobade, V.D. Synthesis, characterization, and antimicrobial activity of 3′-(4-(2-substituted thiazol-4-yl)phenyl)spiro[indoline-3,2′-thiazolidine]-2,4′-diones. J. Heterocyclic Chem. 2010, 47, 1415–1420. [Google Scholar] [CrossRef]
  17. Prasanna, P.; Balamurugan, K.; Perumal, S.; Yogeeswari, P.; Sriram, D. A regio- and stereoselective 1,3-dipolar cycloaddition for the synthesis of novel spiropyrrolothiazolyloxindoles and their antitubercular evaluation. Eur. J. Med. Chem. 2010, 45, 5653–5661. [Google Scholar] [CrossRef]
  18. Raj, A.A.; Raghunathan, R.; Sridevi Kumari, M.R.; Raman, N. Synthesis, antimicrobial and antifungal activity of a new class of spiro pyrrolidines. Bioorg. Med. Chem. 2003, 11, 407–419. [Google Scholar] [CrossRef]
  19. Thangamani, A. Regiospecific synthesis and biological evaluation of spirooxindolopyrrolizidines via [3+2] cycloaddition of azomethine ylide. Eur. J. Med. Chem. 2010, 45, 6120–6126. [Google Scholar] [CrossRef]
  20. Jiang, T.; Kuhen, K.L.; Wolff, K.; Yin, H.; Bieza, K.; Caldwell, J.; Bursulaya, B.; Wu, T.Y.; He, Y. Design, synthesis and biological evaluations of novel oxindoles as HIV-1 non-nucleoside reverse transcriptase inhibitors. Part I. Bioorg. Med. Chem. Lett. 2006, 16, 2105–2108. [Google Scholar] [CrossRef]
  21. Jiang, T.; Kuhen, K.L.; Wolff, K.; Yin, H.; Bieza, K.; Caldwell, J.; Bursulaya, B.; Tuntland, T.; Zhang, K.; Karanewsky, D.; He, Y. Design, synthesis, and biological evaluations of novel oxindoles as HIV-1 non-nucleoside reverse transcriptase inhibitor. Part 2. Bioorg. Med. Chem. Lett. 2006, 16, 2109–2112. [Google Scholar] [CrossRef]
  22. Kornet, M.J.; Thio, A.P. Oxindole-3-spiropyrrolidines and piperidines. Synthesis and local anesthetic activity. J. Med. Chem. 1976, 19, 892–898. [Google Scholar] [CrossRef]
  23. Ardill, H.; Dorrity, M.J.R.; Grigg, R.; Leon-Ling, M.-S.; Malone, J.F.; Sridharan, V.; Thianpatanagul, S. X=Y-ZH compounds as potential 1,3-dipoles. Part 281,2 the iminium ion route to azomethine ylides. background and reaction of amines with bifunctional ketones. Tetrahedron 1990, 46, 6433–6448. [Google Scholar] [CrossRef]
  24. Ardill, H.; Grigg, R.; Sridharan, V.; Surendrakumar, S. X=Y-ZH Systems as potential 1,3-dipoles: Part 19. Intramolecular cycloadditions of non-stabilised azomethine ylides generated via the decarboxylative route from α- amino acids. Tetrahedron 1988, 44, 4953–4966. [Google Scholar] [CrossRef]
  25. Ganguly, A.K.; Seah, N.; Popov, V.; Wang, C.H.; Kuang, R.; Saksena, A.K.; Pramanik, B.N.; Chan, T.M.; McPhail, A.T. Solution- and solid-phase synthesis of enantiomerically pure spiro oxindoles. Tetrahedron Lett. 2002, 43, 8981–8983. [Google Scholar]
  26. Lo, M.M.C.; Neumann, C.S.; Nagayama, S.; Perlstein, E.O.; Schreiber, S.L. A library of spirooxindoles based on a stereoselective three-component coupling reaction. J. Am. Chem. Soc. 2004, 126, 16077–16086. [Google Scholar] [CrossRef]
  27. Teng, D.; Zhang, H.; Mendonca, A. An efficient synthesis of a spirocyclic oxindole analogue. Molecules 2006, 11, 700–706. [Google Scholar] [CrossRef]
  28. Ding, K.; Lu, Y.; Nikolovska-Coleska, Z.; Wang, G.; Qiu, S.; Shangary, S.; Gao, W.; Qin, D.; Stuckey, J.; Krajewski, K.; Roller, P.P.; Wang, S. Structure-based design of spiro-oxindoles as potent, specific small-molecule inhibitors of the MDM2-p53 interaction. J. Med. Chem. 2006, 49, 3432–3435. [Google Scholar]
  29. Miyamoto, H.; Okawa, Y.; Nakazaki, A.; Kobayashi, S. Highly diastereoselective one-pot synthesis of spirocyclic oxindoles through intramolecular Ullmann coupling and Claisen rearrangement. Angew. Chem. Int. Ed. 2006, 45, 2274–2277. [Google Scholar] [CrossRef]
  30. Basavaiah, D.; Reddy, K.R. Simple and one-pot protocol for synthesis of indene-spiro-oxindoles involving tandem Prins and Friedel-Crafts reactions. Org. Lett. 2007, 9, 57–60. [Google Scholar] [CrossRef]
  31. Bencivenni, G.; Wu, L.Y.; Mazzanti, A.; Giannichi, B.; Pesciaioli, F.; Song, M.P.; Bartoli, G.; Melchiorre, P. Targeting structural and stereochemical complexity by organocascade catalysis: Construction of spirocyclic oxindoles having multiple stereocenters. Angew. Chem. Int. Ed. 2009, 48, 7200–7203. [Google Scholar]
  32. Shanthi, G.; Perumal, P.T. An efficient one-pot synthesis of novel pyrazolophthalazinyl spirooxindoles. J. Chem. Sci. 2010, 122, 415–421. [Google Scholar] [CrossRef]
  33. Hazra, A.; Paira, P.; Sahu, K.B.; Naskar, S.; Saha, P.; Paira, R.; Mondal, S.; Maity, A.; Luger, P.; Weber, M.; Mondal, N.B.; Banerjee, S. Chemistry of andrographolide: formation of novel di-spiropyrrolidino and di-spiropyrrolizidino-oxindole adducts via one-pot three-component [3+2] azomethine ylide cycloaddition. Tetrahedron Lett. 2010, 51, 1585–1588. [Google Scholar]
  34. Gomes, P.J.S.; Nunes, C.M.; Pais, A.A.C.C.; Pinho e Melo, T.M.V.D.; Arnaut, L.G. 1,3-Dipolar cycloaddition of azomethine ylides generated from aziridines in supercritical carbon dioxide. Tetrahedron Lett. 2006, 47, 5475–5479. [Google Scholar] [CrossRef]
  35. Grigg, R.; Sarker, M.A.B. XY-ZH compounds as potential 1,3-dipoles. Part 63: Silver catalysed azomethine ylide cycloaddition-the synthesis of spiro homoserine lactone analogues. Tetrahedron 2006, 62, 10332–10343. [Google Scholar] [CrossRef]
  36. Watson, A.A.; Fleet, G.W.J.; Asano, N.; Molyneux, R.J.; Nash, R.J. Polyhydroxylated alkaloids-natural occurrence and therapeutic applications. Phytochemistry 2001, 56, 265–295. [Google Scholar]
  37. Shanmugam, P.; Viswambharan, B.; Madhavan, S. Synthesis of novel functionalized 3-spiropyrrolizidine and 3-spiropyrrolidine oxindoles from Baylis-Hillman adducts of isatin and heteroaldehydes with azomethine ylides via [3+2] cycloaddition. Org. Lett. 2007, 9, 4095–4098. [Google Scholar] [CrossRef]
  38. Yu, J.; He, L.; Chen, X.H.; Song, J.; Chen, W.J.; Gong, L.Z. Highly enantioselective catalytic 1,3-dipolar cycloaddition involving 2,3-allenoate dipolarophiles. Org. Lett. 2009, 11, 4946–4949. [Google Scholar] [CrossRef]
  39. Cheng, M.N.; Wang, H.; Gong, L.Z. Asymmetic organocatalytic 1,3-dipolar cycloaddition of azomethine ylide to methyl 2-(2-nitrophenyl)acrylate for the synthesis of diastereoisomers of spirotryprostatin A. Org. Lett. 2011, 13, 2418–2421. [Google Scholar] [CrossRef]
  40. Michael, J.P. Indolizidine and quinolizidine alkaloids. Nat. Prod. Rep. 1997, 14, 619–636. [Google Scholar] [CrossRef]
  41. Liddell, J.R. Pyrrolizidine alkaloids. Nat. Prod. Rep. 1998, 15, 363–370. [Google Scholar] [CrossRef]
  42. Rehn, S.; Bergman, J.; Stensland, B. The three-component reaction between isatin, α-amino acids, and dipolarophiles. Eur. J. Org. Chem. 2004, 2004, 413–418. [Google Scholar]
  43. Prasanna, R.; Purushothaman, S.; Raghunathan, R. Highly regioselective synthesis of glycospiro heterocycles through 1,3-dipolar cycloaddition reaction. Tetrahedron Lett. 2010, 51, 4538–4542. [Google Scholar] [CrossRef]
  44. Crystallographic data of 4a reported in this manuscript have been deposited with Cambridge Crystallographic Data Centre as supplementary publication no. CCDC-828257. Copies of the data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge, CB2 1EZ, UK; fax: +44 1223 336033; or [email protected]).
  • Sample Availability: Samples are available from the authors.
