Components and Insecticidal Activity against the Maize Weevils of Zanthoxylum schinifolium Fruits and Leaves

by
Cheng Fang Wang
1,
Kai Yang
2,
Hai Ming Zhang
1,
Jie Cao
1,
Rui Fang
1,
Zhi Long Liu
2,*,
Shu Shan Du
1,*,
Yong Yan Wang
1,
Zhi Wei Deng
3 and
Ligang Zhou
4
1
State Key Laboratory of Earth Surface Processes and Resource Ecology, Beijing Normal University, Beijing 100875, China
2
Department of Entomology, China Agricultural University, Haidian District, Beijing 100094, China
3
Analytical and Testing Center, Beijing Normal University, Haidian District, Beijing 100875, China
4
Department of Plant Pathology, China Agricultural University, Haidian District, Beijing 100094, China
*
Authors to whom correspondence should be addressed.
Molecules 2011, 16(4), 3077-3088; https://doi.org/10.3390/molecules16043077
Submission received: 6 March 2011 / Revised: 5 April 2011 / Accepted: 11 April 2011 / Published: 13 April 2011
Browse Figures
Versions Notes

Abstract

:
In our screening program for new agrochemicals from Chinese medicinal herbs and wild plants, Zanthoxylum schinifolium essential oils were found to possess strong insecticidal activity against the maize weevil Sitophilus zeamais. The essential oils of Z. schinifolium fruits and leaves were extracted via hydrodistillation and investigated by GC and GC-MS. Estragole (69.52%) was the major compound of the essential oil of fresh fruits, followed by linalool (8.63%) and limonene (4.34%) and 94.33% of the total components were monoterpenoids. The main components of the essential oil of fresh leaves were linalool (12.94%), ar-tumerone (8.95%), limonene (6.45%) and elixene (5.43%) and only 50.62% were monoterpenoids. However, the essential oil from purchased fruits contained linalool (33.42%), limonene (13.66%) and sabinene (5.72%), followed by estragole (4.67%), nerol (4.56%) and 4-terpineol (4.27%). Estragole, linalool and sabinene were separated and purified by silica gel column chromatography and preparative thin layer chromatography, and further identified by means of physicochemical and spectrometric analysis. The essential oil from the fresh fruits (LD50 = 15.93 μg/adult) possessed two times more toxicity to the insects compared with that of fresh leaves (LD50 = 35.31 μg/adult). Estragole, linalool and sabinene exhibited contact activity against S. zeamais with LD50 values of 17.63, 13.90 and 23.98 μg/adult, respectively. The essential oils of Z . schinifolium possessed strong fumigant toxicity against S. zeamais adults with LC50 values of 13.19 mg/L (fresh fruits), 24.04 mg/L (fresh leaves) and 17.63 mg/L (purchased fruits). Estragole, linalool and sabinene also exhibited strong fumigant toxicity against the maize weevils with LC50 values of 14.10, 10.46 and 9.12 mg/L, respectively.

1. Introduction

Fumigation plays a very important role in insect pest elimination in stored products [1]. Plant essential oils and their components have been shown to possess potential to be developed as new fumigants and they may have the advantage over conventional fumigants in terms of low mammalian toxicity, rapid degradation and local availability [2,3]. Essential oils derived from many plant species have been evaluated so far for fumigant toxicity against stored product insects (for a review, see [4]). During our screening program for new agrochemicals from Chinese medicinal herbs, green prickly ash, Zanthoxylum schinifolium Sieb. et Zucc (Family: Rutaceae) was found to possess significant insecticidal activities against the maize weevils (Sitophilus zeamais Motsch.).
Z. schinifolium, found in China, Japan and Korea, is an aromatic shrub with protective thorns and surprising culinary and pharmacological properties that has been cultivated in the southern provinces of China. In China, this ripe pericarp of the fruits is one of the sources of Perocarpium Zanthoxyli and widely consumed in Asia as a spice [5]. The fruit of this plant has been used in Chinese medicine for epigastric pain accompanied by cold sensation, vomiting, diarrhea and abdominal pain due to intestinal parasitosis, ascariasis and used externally for eczema [6]. The seeds of this species are very flavourful with strong anise, citrus, and pepper notes. Both the pericarp and black seeds are used in cooking. The chemical composition of essential oil derived from Z. schinifolium fruits has been widely studied [7,8,9,10]. However, most of the essential oils tested in the previous studies were extracted from the fruits purchased from the local market. In this paper, we report chemical composition of the essential oils derived from the fresh fruits and leaves of Z. schinifolium.
Aqueous extracts of Z. schinifolium fruitshave been used to control aphids on vegetables [11] and the ethanol extracts of Z. schinifolium fruits were found to possess high feeding deterrent activity against two aphids, Myzus persicae and Lipaphis erysimi [12]. Petroleum ether extracts of Z. schinifolium fruits possess strong contact toxicity and repellent activity against the aphids M. persicae and the diamond back moth (Plutella xylostella) [13,14]. Moreover, two alkaloids were isolated from Z. schinifolium fruits and identified that exhibited strong feeding deterrent activity against two stored product insects, Tribolium castaneum and S. zeamais [15]. In this paper, we report the contact and fumigant toxicity of the crude essential oils and three main components derived from the essential oils against S. zeamais adults.

2. Results and Discussion

2.1. Chemical Composition of the Essential Oils

The GC-MS results of Z. schinifolium essential oils are presented in Table 1. A total of 23 components were identified in the essential oil from the fresh fruits (Northeastern China), accounting for 98.56% of the total oil and the essential oil contained 94.33% monoterpenoids and only 4.23% sesquiterpenoids.
Table
Table 1. Chemical composition of the essential oils of Zanthoxylum schinifolium fruits and leaves.
Table 1. Chemical composition of the essential oils of Zanthoxylum schinifolium fruits and leaves.
CompoundsRI *Fresh FruitsFresh LeavesPurchased Fruits
Relative content (%)Relative content (%)Relative content (%)
α-Pinene9390.211.311.47
β-Thujene9670.110.213.43
Sabinene9772.623.225.72
β-Myrcene9922.112.043.58
(+)-4-Carene1002--0.54
Limonene10294.346.4513.66
(Z)-Ocimene10381.672.071.47
γ-Terpinene10570.430.062.93
Linalool10978.6312.9433.42
β-Thujone1114-0.330.41
cis-ρ-Menth-2-en-1-ol1126--0.39
neo-Alloocimene11390.041.210.84
4-Terpineol11772.343.564.27
γ-Terpinene11790.154.063.03
α-Terpineol1189 1.562.341.36
Estragole119569.524.754.67
Citronellol1226-1.582.71
Nerol12300.520.934.56
Piperitone12500.083.561.75
Elixene13130.235.430.13
β-Geranyl acetate1381-0.070.18
β-Elemene13920.623.320.53
Caryophyllene14200.644.492.96
γ-Elemene14370.491.980.13
α-Caryophyllene14540.753.281.56
Germacrene D14781.154.562.67
δ-Cadinene1520-0.340.27
Spathulenol15780.214.59-
Caryophyllene oxide15830.143.66-
Cubenol1643-2.950.05
τ-Muurolo1662-3.22-
a r-Tumerone1664-8.56-
Total identified 98.5697.0798.69
Monoterpenoids 94.3350.6290.21
Sesquiterpenoids 4.2346.458.48
* RI, retention index as determined on a HP-5MS column using the homologous series of n-hydrocarbons as reference.
Estragole (69.52%) was the major compound followed by linalool (8.63%) and limonene (4.34%). The chemical composition of the essential oil derived from the fresh fruits is quite different from that from the fresh leaves because a total of 30 components were identified in the essential oil from the fresh leaves, accounting for 97.07% of the total oil. The main components, in order of decreasing amounts, were linalool (12.94%), ar-tumerone (8.95%), limonene (6.45%) and elixene (5.43%) and 46.45% sesquiterpenoids and 50.62% monoterpenoids were found in the essential oil derived from the leaves (Table 1). However, a total of 28 components were identified in the essential oil from the purchased fruits (Southwestern China), accounting for 98.69% of the total oil. The main components, in order of decreasing amounts, were linalool (33.42%), limonene (13.66%) and sabinene (5.72%) followed by estragole (4.67%), nerol (4.56%) and 4-terpineol (4.27%).
The chemical composition of the essential oils was different from that reported in other studies. For example, the essential oil derived from South Korean plants contained geranyl acetate (29.8%), citronellal (15.8%), and sabinene (15.4%) as major components [16] while Lee et al. [9] reported that β-phellandrene (22.5%), citronellal (16.5%), and geranyl acetate (11.4%) were identified as the major constituents of the essential oils from South Korean Z. schinifolium. However, the essential oil derived from Chinese Z. schinifolium fruits was found to have linalool (29%), limonene (14%), and sabinene (13%) as the major components [17] while Jia et al. [18] also found that linalool (40.2%), limonene (18.8%), and sabinene (14.5%) were the three main components of essential oil of Chinese Z. schinifolium fruits. Great variations were observed in chemical composition of the essential oils of Z. schinifolium fruits due to different harvest time and different drying methods [19,20]. The above results showed wide variation in chemical composition and yield of Z. schinifolium essential oil, which may be related to the herbal source (climate, soil conditions and geographical location), herbal parts used, chemotype of the plant species, and/or the analytical methods used. The above findings suggest that further studies on plant cultivation and essential oil standardization are needed because the chemical composition of the essential oil of Z. schinifolium varies greatly with the plant population.
Sabinene, linalool and estragole were further separated and purified by silica gel column chromatography and preparative thin layer chromatography based on bioassay-guided fractionation and characterized from their 1H-, 13C-NMR and mass spectra. After comparing the physicochemical and spectrometric data with those reported in the literature [21,22,23,24,25,26], the identities of the three compounds were further confirmed.

2.2. Insecticidal Activity

The essential oils of Z. schinifolium exhibited strong contact toxicity against maize weevils (Table 2). The essential oils derived from the two kinds of fruits showed the same level of contact toxicity against insects. However, the essential oil from the fresh fruits (LD50 = 15.93 μg/adult) possessed two times more toxicity towards the insects compared with that of fresh leaves (LD50 = 35.31 μg/adult). The isolated compounds, estragole, linalool and sabinene also exhibited contact toxicity against S. zeamais with LD50 values of 17.63, 13.90 and 23.98 μg/adult, respectively (Table 2). Another main compound of the essential oils, limonene only exhibited contact toxicity to S. zeamais with a LD50 value of 29.86 μg/adult [27]. Compared with the famous botanical insecticide, pyrethrum extract (25% pyrethrine I and pyrethrine II), the essential oils were 4–8 times less active against S. zeamais adults because pyrethrum extract displayed a LD50 value of 4.29 μg/adult [28].
Table
Table 2. Contacttoxicity of essential oils of Zanthoxylum schinifolium and their main components against Sitophilus zeamais adults.
Table 2. Contacttoxicity of essential oils of Zanthoxylum schinifolium and their main components against Sitophilus zeamais adults.
Essential oilsConcentration (%)LD50 (μg/adult)95% FLSlope ± SEChi square (χ2 )
Fresh fruits1.86-10.0015.9313.92-17.963.04 ± 0.367.84
Fresh leaves3.72-20.0035.3131.19-39.333.46 ± 0.3712.32
Purchased fruits4.02-10.0018.5516.38-20..464.67 ± 0.6113.72
Estragole1.32-10.0017.6315.56-19.973.09 ± 0.3212.04
Linalool2.00-5.0013.9013.05-14.835.86 ± 0.559.80
Sabinene2.63-20.0023.9821.63-27.155.18 ± 0.6310.08
Limonene*-29.8627.28-30.107.38 ± 0.84 8.64
Pyrethrum extract**-4.29 3.86-4.72--
* data from Fang et al. [27]; ** data from Liu et al. [28].
Table
Table 3. Fumigant toxicity of essential oils of Zanthoxylum schinifolium and their main components against Sitophilus zeamais adults.
Table 3. Fumigant toxicity of essential oils of Zanthoxylum schinifolium and their main components against Sitophilus zeamais adults.
Essential oilsConcentration (%)LD50 (mg/L air)95% FLSlope ± SEChi square (χ2 )
Fresh fruits1.32-10.0013.1911.63-14.963.05 ± 0.3111.48
Fresh leaves2.64-20.0024.0421.87-26.232.59 ± 0.308.12
Purchased fruits2.64-20.0017.63 15.12-20.213.26 ± 0.397.13
Estragole1.32-10.0014.1012.45-15.973.09 ± 0.3212.04
Linalool1.32-10.0010.469.58-11.554.20 ± 0.4710.36
Sabinene0.9-10.009.12 8.17-9.312.59 ± 0.328.12
Limonene*-48.1845.29-51.043.74 ± 0.40 14.88
MeBr**-0.67---
* data from Fang et al. [27]; ** data from Liu and Ho [29].
The essential oils of Z. schinifolium also possessed strong fumigant toxicity against S. zeamais adults with LC50 values of 13.19 mg/L (fresh fruits), 24.04 mg/L (fresh leaves) and 17.63 mg/L (purchased fruits) (Table 3). The isolated compounds estragole, linalool and sabinene also exhibited strong fumigant toxicity against the maize weevils with LC50 values of 14.10, 10.46 and 9.12 mg/L, respectively (Table 3). Limonene was reported to possess fumigant toxicity against S. zeamais adults with a LC50 value of 48.18 mg/L [28]. The commercial grain fumigant, methyl bromide (MeBr) was reported to have fumigant activity against S. zeamais adults with a LC50 value of 0.67 mg/L [29], thus the essential oils were 20–36 times less toxic to S. zeamais adults compared with MeBr. However, compared with the other essential oils in the literature, the essential oils of Z. schinifolium exhibited the same level of fumigant toxicity against the maize weevils, e.g. essential oils of M. exotica (LC50 = 8.29 mg/L) [30], Artemisia lavandulaefolia (LC50 = 11.2 mg/L) [28], A. vestita (LC50 = 13.42 mg/L) [31], Illicium simonsii (LC50 = 14.95 mg/L) [32] and A. sieversiana (LC50 = 15.0 mg/L) [28].
In the previous reports, linalool was also found to have fumigant toxicity against the triatomine bug (Rhodnius prolixus) [33] and houseflies with a 24 h LC50 value of 13.6 mg/L air [34]. Moreover, linalool possessed both contact and fumigant toxicity against human head louse (Pediculus humanus capitis) [35] and showed a high acaricidal activity by vapor action against mobile stages of Tyrophagus putrescentiae [36]. Linalool was found to be a competitive inhibitor of acetyl-cholinesterase (AchE) [37]. Estragole was also demonstrated to exhibit contact and fumigant toxicity against several insects and mites, e.g. the houseflies [34], fruit flies (Ceratitis capitata, Bactrocera dorsalis, and Bactrocera cucurbitae) [38], house dust mites [39,40], stored product insects [41] and grasshoppers [26]. Considering the currently used fumigants are synthetic insecticides, fumigant activity of the crude essential oils and the three isolated compounds are quite promising and they show potential for development as possible natural fumigants for the control of stored product insects. For the practical use of Z. schinifolium essential oils and their constituents as novel fumigants or insecticides to proceed, further research is needed to establish their human safety. However, in traditional Chinese medicine, prickly ash is used in many chronic problems such a rheumatism and skin diseases; chilblains, cramp in the leg, varicose veins and varicose ulcers. It is also used for low blood pressure, fever, and inflammation. Externally it may be used as a stimulation liniment for rheumatism and fibrositis [6]. It seems that this medicinal herb is quite safe for human consumption because it has been used as a spice for hundreds of years. However, no experimental data about the safety of this herb is available so far. Additionally, their fumigant and insecticide modes of action need to be established and formulations for improving insecticidal potency and stability, thereby reducing costs, need to be developed.

3. Experimental

3.1. General

1H- and 13C-NMR spectra were recorded on Bruker Avance DRX 500 instruments using CDCl3 as solvent with TMS as internal standard. EIMS were determined on a ThermoQuest Trace 2000 mass spectrometer at 70 eV (probe). Silica gel (160–200 mesh) and pre-coated GF254 plates were purchased from Qingdao Marine Chemical Plant (Shandong Province, China). Fluon was purchased from ICI America Inc (USA). C8-C24 n-alkanes were purchased from Sigma-Aldrich (USA). All other unlabelled chemicals and reagents were of analytical grade.

3.2. Plant Material

Dried fruits of Z. schinifolium (2 kg, harvested from Jinyang, Sichuan Province, China) were purchased from Anguo Chinese Medicinal Herbs Market (Anguo 071200, Hebei Province, China). Fresh fruits (10 kg) and leaves (10 kg) of Z. schinifolium were collected at September 2010 from Anshan 114000, Liaoning Province, China. The voucher specimens (BNU-CMH-Dushuahan-2009-09-23-006, BNU-CMH-Dushushan-2010-08-18-003) were deposited at the Herbarium (BNU) of College of Life Sciences, Beijing Normal University. The fresh fruits and leaves were air-dried for one week. The fruits and leaves were ground to powder using a grinding mill (Retsch Muhle, Germany).

3.3. Insects

The maize weevils (S. zeamais) were obtained from laboratory cultures maintained in the dark in incubators at 29–30 °C and 70–80% r.h. The maize weevils were reared on whole wheat at 12–13% moisture content. Unsexed adult weevils used in all the experiments were about 2 weeks old.

3.4. Essential Oil Distillation

The ground powder of Z. schinifolium fruits and leaves was subjected to hydrodistillation for 6 h using a modified Clevenger-type apparatus. Anhydrous sodium sulphate was used to remove water after extraction. Essential oils were stored in airtight containers in a refrigerator at 4 °C. The oil yields of fresh fruits and purchased fruits were 6.92% and 8.14% v/w, respectively. The oil yields of fresh leaves were only 0.85% v/w.

3.5. Purification and Characterization of Sabinene, Linalool and Estragole

The crude essential oil of the purchased fruits was chromatographed on a silica gel column by gradient elution with n-hexane first, then with n-hexane-ethyl acetate, and last with acetone to obtain 20 fractions. Of these, fraction 5 and 7 were further separated by PTLC with petroleum ether-acetone (50:1, v/v) to afford two pure compounds, sabinene (1) and linalool (2), respectively. The crude essential oil of the fresh fruits was also chromatographed on a silica gel column by gradient elution to obtain estragole (3).

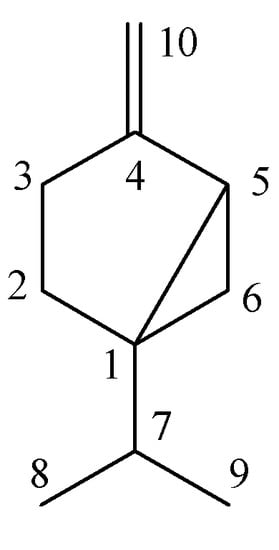

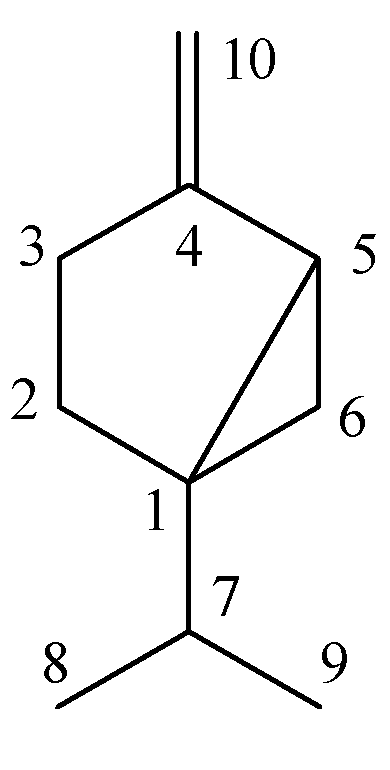

Sabinene (1, Figure 1). Colorless liquid, 1H-NMR (CDCl3) δ (ppm): 4.83 (1H, s, H-10), 4.65 (1H, s, H-10), 2.01–2.21 (2H, m, 3-CH2), 1.72–1.78 (2H, m, 2-CH2), 1.62(1H, m, H-5), 1.52(1H, m, H-7), 0.98 (3H, d, J = 6.81 Hz, 8-CH3), 0.92 (3H, d, J = 6.81 Hz, 9-CH3), 0.69 (1H, d, J = 5.2 Hz, 6-CH2), 0.68 (1H, d, J = 5.2 Hz, 6-CH2). 13C-NMR (CDCl3) δ (ppm): 154.38 (C-4), 101.52 (C-10), 37.63 (C-1), 32.58 (C-7), 30.12 (C-5), 28.96 (C-3), 27.46 (C-2) 19.79 (C-8), 19.70 (C-9), 16.03 (C-6). Its identity was confirmed by the EI-MS with the mass spectral fragmentation pattern [m/z (% abundance): 136 (M+, 16), 121 (25), 93 (100), 91 (17), 79 (22), 77 (30), 69 (16), 41 (18), 39 (10)]. The data matched with previous reports [21,23,24].
Molecules 16 03077 g001 550
Figure 1. Sabinene.
Figure 1. Sabinene.
Molecules 16 03077 g001

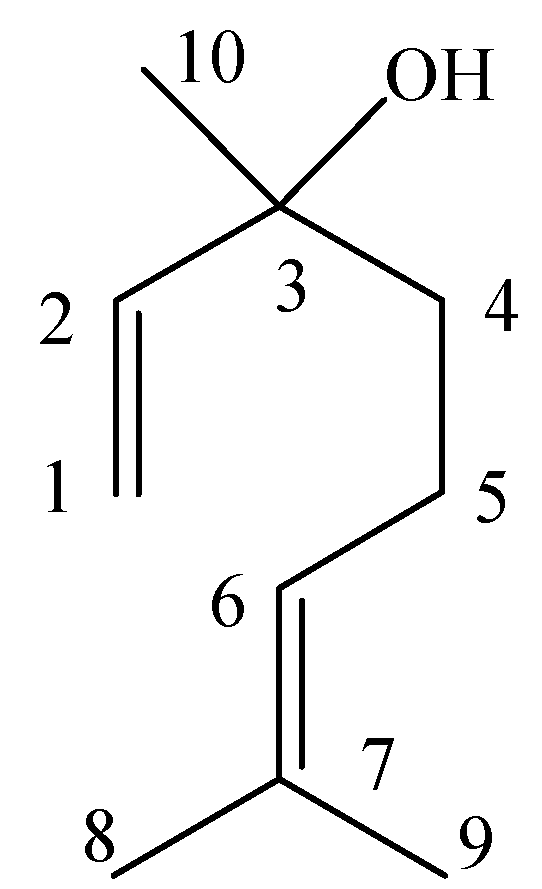

Linalool (2, Figure 2). Colorless oil, 1H-NMR (,CDCl3) δ (ppm): 5.90 (1H, dd, J = 17.3, 10.8 Hz, H-2), 5.21 (1H, d, J = 17.3 Hz, H-1,trans), 5.12(1H, t, H-6), 5.05 (1H, d, J = 10.7 Hz, H-1,cis), 2.01 (2H, m, 5-CH2), 1.83 (1H, br, 3-OH, which was removed in the deuterium exchange spectrum after adding a drop of deuterated water), 1.68 (3H, s, 9-CH3), 1.60 (3H, s, 8-CH3), 1.55 (2H, m, 4-CH2), 1.27 (3H, s, 10-CH3). 13C-NMR (CDCl3) δ (ppm): 145.03 (C-2), 131.81 (C-7), 124.33 (C-6), 111.63 (C-1), 73.40 (C-3), 42.05 (C-4), 27.79 (C-10), 25.66 (C-8), 22.77 (C-5), 17.65 (C-9). EI-MS m/z (%): 154 (M+, 5), 136 (15), 121 (25), 109 (11), 93 (80), 83 (18), 80 (30), 71 (100), 69 (50), 55 (45), 43 (39), 41(62), 27 (15). The data matched with previous reports [21,22].
Molecules 16 03077 g002 550
Figure 2. Linalool.
Figure 2. Linalool.
Molecules 16 03077 g002

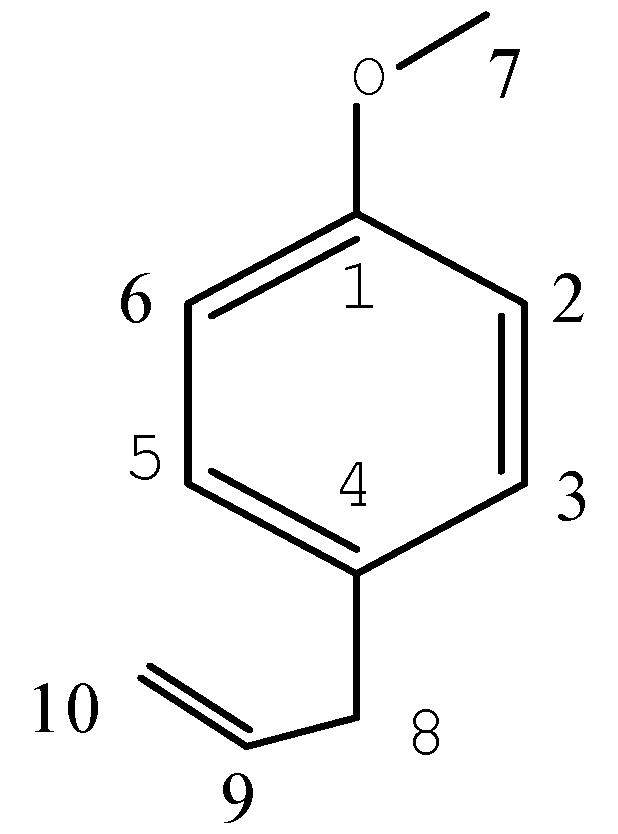

Estragole (3, Figure 3). Colorless oil, 1H-NMR (CDCl3) δ (ppm): δ 7.27 (1H, d, H-3, 5), 7.01 (1H, d, H-2, 6), 6.14 (1H, m, H-9), 5.26 (2H, d, H-10), 3.92 (3H, s, 7- CH3), 3.50 (2H, d, H-8). 13C-NMR (CDCl3) δ (ppm): 158.22 (C-9), 138.08 (C-1), 132.16 (C-10), 129.61 (C-4), 115.52 (C-3, C-5), 113.99 (C-2, C-6), 55.18(C-7), 39.52 (C-8). EI-MS m/z (%): 149.0(13), 148 (100), 147 (46), 133 (23), 121 (41), 117 (32), 115 (16), 105 (23), 103 (11), 91 (20), 79 (13), 79 (13), 78 (15), 77 (23), 51 (12), 9 (11). The data matched with previous reports [21,25,26].
Molecules 16 03077 g003 550
Figure 3. Estragole.
Figure 3. Estragole.
Molecules 16 03077 g003

3.6. Gas Chromatography and Mass Spectrometry

Gas chromatographic analysis was performed on an Agilent 6890N instrument equipped with a flame ionization detector and an HP-5MS (30 m × 0.25 mm × 0.25 μm) capillary column, while the essential oil components were identified on an Agilent Technologies 5973N mass spectrometer. The GC settings were as follows: the initial oven temperature was held at 60 °C for 1 min and ramped at 10 °C min−1 to 180 °C for 1 min, and then ramped at 20 °C min−1 to 280 °C for 15 min. The injector temperature was maintained at 270 °C. The samples (1 μL) were injected neat, with a split ratio of 1:10. The carrier gas was helium at flow rate of 1.0 mL min−1. Spectra were scanned from 20 to 550 m/z at 2 scans s−1. Most constituents were identified by gas chromatography by comparison of their retention indices with those of the literature or with those of authentic compounds available in our laboratories. The retention indices were determined in relation to a homologous series of n-alkanes (C8–C24) under the same operating conditions. Further identification was made by comparison of their mass spectra with those stored in NIST 05 and Wiley 275 libraries or with mass spectra from literature [42]. Component relative percentages were calculated based on GC peak areas without using correction factors.

3.7. Fumigant Toxicity

The fumigant activity of the essential oil and the pure compounds against S. zeamais adults was tested as described by Liu and Ho [29]. Range-finding studies were run to determine the appropriate testing concentrations. A serial dilution of the essential oil/compound (six concentrations) was prepared in n-hexane. A Whatman filter paper (diameter 2.0 cm) were each impregnated with 10 μL dilution, and then placed on the underside of the screw cap of a glass vial (diameter 2.5 cm, height 5.5 cm, volume 25 mL). The solvent was allowed to evaporate for 15 s before the cap was placed tightly on the glass vial, each of which contained 10 insects inside to form a sealed chamber. Fluon (ICI America Inc) was used inside glass vial to prevent insects from contacting the treated filter paper. Preliminary experiments demonstrated that 15 s was sufficient for the evaporation of solvents. n-Hexane was used as a control. Five replicates were carried out for all treatments and controls, and they were incubated for 24 h. The insects were then transferred to clean vials with some culture media and returned to the incubator and observed daily for determination of end-point mortality, which was reached after one week. The experiments were repeated in three times. The LC50 values were calculated by using Probit analysis [43].

3.8. Contact Toxicity

The contact toxicity of the essential oil/pure compounds against S. zeamais adults was measured as described by Liu and Ho [29]. Range-finding studies were run to determine the appropriate testing concentrations. A serial dilution of the essential oil/compound (six concentrations) was prepared in n-hexane. Aliquots of 0.5 μL of the dilutions were applied topically to the dorsal thorax of the insects. Controls were determined using n-hexane. Five replicates were carried out for all treatments and controls. Both treated and control insects were then transferred to glass vials (10 insects/vial) with culture media and kept in incubators. Mortality of insects was observed daily until end-point mortality was reached one week after treatment. The experiments were repeated in three times. The LD50 values were calculated by using Probit analysis [43].

4. Conclusions

Identified through mass screening, essential oils of Z. schinifolium fruits and leaves and their major components were examined for insecticidal activity against the maize weevil S. zeamais. The essential oils possessed strong fumigant toxicity against S. zeamais adults and they were 20 times less toxic compared to the commercial fumigant MeBr. The three isolated compounds also exhibited strong fumigant toxicity against S. zeamais adults. The essential oils and the three compounds also showed contact toxicity against S. zeamais. These findings, considered together, suggest that the essential oils and the three compounds show potential for development as natural fumigants for stored products.

Acknowledgements

This work was funded by National New-drug Innovation Project 2009ZX09501-014 and the Hi-Tech Research and Development of China 2011AA10A202. The authors thank Liu Q.R. from College of Life Sciences, Beijing Normal University, Beijing 100875, for the identification of the investigated medicinal herb.

References and Notes

  1. Zettler, J.L.; Arthur, F.H. Chemical control of stored product insects with fumigants and residual treatments. Crop Prot. 2000, 19, 577–582. [Google Scholar] [CrossRef]
  2. Isman, M.B. Plant essential oils for pest and disease management. Crop Prot. 2000, 19, 603–608. [Google Scholar] [CrossRef]
  3. Isman, M.B. Botanical insecticides, deterrents, and repellents in modern agriculture and an increasingly regulated world. Ann. Rev. Entomol. 2006, 51, 45–66. [Google Scholar] [CrossRef]
  4. Rajendran, S.; Srianjini, V. Plant products as fumigants for stored-product insects control. J. Stored Prod. Res. 2008, 44, 126–135. [Google Scholar] [CrossRef]
  5. The Pharmacopoeia Commission of PRChina, Pharmacopoeia of the People’s Republic of China; Guangdong Science and Technology Press: Guangzhou, China, 1995; Volume 1, pp. 135–136.
  6. Jiangsu New Medical College, Dictionary of Chinese Herbal Medicine; Shanghai Science & Technology Press: Shanghai, China, 1977; pp. 737–739.
  7. Iseli, V.; Potterat, O.; Hagmann, L.; Egli, J.; Hamburger, M. Characterization of the pungent principles and the essential oil of Zanthoxylum schinifolium pericarp. Pharmazie 2007, 62, 396–400. [Google Scholar]
  8. Yang, X.G. Aroma constituents and alkylamides of red and green Huajiao (Zanthoxylum bungeanum and Zanthoxylum schinifolium). J. Agric. Food Chem. 2008, 56, 1689–1696. [Google Scholar] [CrossRef]
  9. Lee, J.H.; Chang, K.M.; Kim, G.H. Composition and anti-inflammatory activities of Zanthoxylum schinifolium essential oil: suppression of inducible nitric oxide synthase, cyclooxygenase-2, cytokines and cellular adhesion. J. Sci. Food Agric. 2009, 89, 1762–1769. [Google Scholar] [CrossRef]
  10. Seo, H.Y.; Shim, S.L.; Ryu, K.Y.; Jung, M.S.; Hwang, I.M.; Shin, D.B.; Kwon, J.H.; Schreier, P.; Kim, K.S. Analysis of volatile compounds and enantiomeric separation of chiral compounds of dried sancho (Zanthoxylum schinifolium Siebold & Zucc). Food Sci. Biotechnol. 2009, 18, 18–24. [Google Scholar]
  11. Yang, R.Z.; Tang, C.S. Plants used for pest control in China: A literature review. Econ. Bot. 1988, 42, 376–406. [Google Scholar] [CrossRef]
  12. Zhou, Q.; Liang, G.W.; Zeng, L. Study on antifeedant effect of plant extracts on Myzus persicae (Sulzer) and Lipaphis erysimi (Kaltenbach). Nat. Prod. Res. Develop. 2004, 16, 521–524, (in Chinese with English abstract). [Google Scholar]
  13. Liu, S.; Pan, M.H.; Zhang, L.H.; He, Y.Z.; Zhang, L.; Zhao, Y. Studies on the bioactivity of Zanthoxylum schinifolium Sieb. et Zucc extraction to Myzus persicae (Sulzer). J. Agric. Univ. Heibei 2007, 30, 84–88, (in Chinese with English abstract). [Google Scholar]
  14. Liu, S.; He, Y.Z.; Zhao, Y.; Qin, Q.J.; Zheng, Y.Y. Bioactivity of extracts from Zanthoxylum schinifolium against Plutella xylostella. Chin. Agric. J. Sci. Bull. 2007, 23, 427–430, (in Chinese with English abstract). [Google Scholar]
  15. Liu, Z.L.; Chu, S.S.; Jiang, G.H. Feeding deterrents from Zanthoxylum schinifolium against two stored-product insects. J. Agric. Food Chem. 2009, 57, 10130–10133. [Google Scholar]
  16. Paik, S.Y.; Koh, K.H.; Beak, S.M.; Paek, S.H.; Kim, J.A. The essential oils from Zanthoxylum schinifolium pericarp induce apoptosis of HepG2 human hepatoma cells through increased production of reactive oxygen species. Biol. Pharm. Bull. 2005, 28, 802–807. [Google Scholar] [CrossRef]
  17. Yang, X.G. Aroma constituents and alkylamides of red and green Huajiao (Zanthoxylum bungeanum and Zanthoxylum schinifolium). J. Agric. Food Chem. 2008, 56, 1689–1696. [Google Scholar] [CrossRef]
  18. Jia, L.R.; Zhao, Z.F.; Lei, S.R.; Tan, Z. Analysis of chemical components of volatile oil from Hanyuan Zanthoxylum schinifolium Sieb. et Zucc. Food Machin. 2008, 24, 105–108, (in Chinese with English abstract). [Google Scholar]
  19. Wu, S.R.; Kan, J.Q.; Liu, B.; Chen, Z.D. Studies on the aroma components of Zanthoxylum schinifolium Sieb & Zucc by different drying. Flav. Frag. Cosmetics 2007, 12, 1–5, (in Chinese with English abstract). [Google Scholar]
  20. Wu, S.R.; Chen, Z.D. Study on the change of aroma components in Zanthoxylum schinifolium Sieb & Zucc by different harvest time. Sci. Tech. Food Ind. 2009, 30, 122–124, (in Chinese with English abstract). [Google Scholar]
  21. Bohlmann, F.; Zeisberg, R.; Klein, E. Naturally occurring terpene derivatives. 13CNMR spectra of monoterpenes. Org. Magn. Reson. 1975, 7, 426–432. [Google Scholar]
  22. Phutdhawong, W.; Kawaree, R.; Sanjaiya, S.; Sengpracha, W.; Buddhasukh, D. Microwave-assisted isolation of essential oil of Cinnamomum iners Reinw. ex Bl.: Comparison with conventional hydrodistillation. Molecules 2007, 12, 868–877. [Google Scholar]
  23. Adams, R.P.; Weyerstahl, P. Cis- and trans-sabinene hydrate: comparisons of quadrupole and ion trap mass spectra. J. Essent. Oil Res. 1991, 4, 197–200. [Google Scholar]
  24. Guerrini, A.; Sacchetti, G.; Muzzoli, M.; Moreno Rueda, G.; Medici, A.; Besco, E.; Bruni, R. Composition of the volatile fraction of Ocotea bofo Kunth (Lauraceae) calyces by GC-MS and NMR fingerprinting and its antimicrobial and antioxidant activity. J. Agric. Food Chem. 2006, 54, 7778–7788. [Google Scholar] [CrossRef]
  25. Skakovskii, E.D.; Kiselev, W.P.; Tychinskaya, L.Y.; Schutova, A.G.; Gonsharova, L.W.; Spiridowish, E.W.; Bovdey, N.A.; Kiselev, P.A.; Gaidukevich, O.A. Characterization of the essential oil of Agastache rugosa by NMR spectroscopy. J. Appl. Spectrosc. 2010, 77, 329–334. [Google Scholar] [CrossRef]
  26. Okunade, A.L.; Olaifa, J.I. Estragole: An acute toxic principle from the volatile oil of the leaves of Clausena anisata. J. Nat. Prod. 1987, 50, 990–991. [Google Scholar]
  27. Fang, R.; Jiang, C.H.; Wang, X.Y.; Zhang, H.M.; Liu, Z.L.; Zhou, L.G.; Du, S.S.; Deng, Z.W. Insecticidal activity of essential oil of Carum carvi fruits from China and its main components against two grain storage insects. Molecules 2010, 15, 9391–9402. [Google Scholar]
  28. Liu, Z.L.; Liu, Q.R.; Chu, S.S.; Jiang, G.H. Insecticidal activity and chemical composition of the essential oils of Artemisia lavandulaefolia and Artemisia sieversiana from China. Chem. Biodiv. 2010, 7, 2040–2045. [Google Scholar] [CrossRef]
  29. Liu, Z.L.; Ho, S.H. Bioactivity of the essential oil extracted from Evodia rutaecarpa Hook f. et Thomas against the grain storage insects, Sitophilus zeamais Motsch. and Tribolium castaneum (Herbst). J. Stored Prod. Res. 1999, 35, 317–328. [Google Scholar] [CrossRef]
  30. Li, W.Q.; Jiang, C.H.; Chu, S.S.; Zuo, M.X.; Liu, Z.L. Chemical composition and toxicity against Sitophilus zeamais and Tribolium castaneum of the essential oil of Murraya exotica aerial parts. Molecules 2010, 15, 5831–5839. [Google Scholar] [CrossRef]
  31. Chu, S.S.; Liu, Q.R.; Liu, Z.L. Insecticidal activity and chemical composition of the essential oil of Artemisia vestita from China against Sitophilus zeamais. Biochem. Syst. Ecol. 2010, 38, 489–492. [Google Scholar]
  32. Chu, S.S.; Liu, S.L.; Jiang, G.H.; Liu, Z.L. Composition and toxicity of essential oil of Illicium simonsii Maxim (Illiciaceae) fruit against the maize weevils. Rec. Nat. Prod. 2010, 4, 205–210. [Google Scholar]
  33. Sfara, V.; Zerba, E.N.; Alzogaray, R.A. Fumigant insecticidal activity and repellent effect of five essential oils and seven monoterpenes on first-instar nymphs of Rhodnius prolixus. J. Med. Entomol. 2009, 46, 511–515. [Google Scholar] [CrossRef]
  34. Palacios, S.M.; Bertoni, A.; Rossi, Y.; Santander, R.; Urzua, A. Efficacy of essential oils from edible plants as insecticides against the house fly, Musca domestica L. Molecules 2009, 14, 1938–1947. [Google Scholar]
  35. Yang, Y.C.; Lee, S.H.; Clark, J.M.; Ahn, Y.J. Ovicidal and adulticidal activities of Origanum majorana essential oil constituents against insecticide-susceptible and pyrethroid/malathion-resistant Pediculus humanus capitis (Anoplura: Pediculidae). J. Agric. Food Chem. 2009, 57, 2282–2287. [Google Scholar] [CrossRef]
  36. Sanchez-Ramos, I.; Castanera, P. Acaricidal activity of natural monoterpenes on Tyrophagus putrescentiae (Schrank), a mite of stored food. J. Stored Prod. Res. 2001, 37, 93–101. [Google Scholar] [CrossRef]
  37. Ryan, F.M.; Byrne, O. Plant-insect coevolution and inhibition of acetylcholinesterase. J. Chem. Ecol. 1988, 14, 1965–1975. [Google Scholar] [CrossRef]
  38. Chang, C.L.; Cho, I.K.; Li, Q.X. J. Econ. Entomol. 2009, 102, 203–209.
  39. Lee, H.S. Acaricidal activity of constituents identified in Foeniculum vulgare fruit oil against Dermatophagoides spp. (Acari: Pyroglyphidae). J. Agric. Food Chem. 2004, 52, 2887–2889. [Google Scholar] [CrossRef]
  40. Lee, H.S. Anisaldehyde: Acaricidal component of Pimpinella anisum seed oil against the house dust mites Dermatophagoides farinae and Dermatophagoides pteronyssinus. Planta Med. 2004, 70, 279–281. [Google Scholar]
  41. Kim, D.H.; Ahn, Y.J. Contact and fumigant activities of constituents of Foeniculum vulgare fruit against three coleopteran stored-product insects. Pest Manag. Sci. 2001, 57, 301–306. [Google Scholar] [CrossRef]
  42. Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Quadrupole Mass Spectroscopy; Allured: Carol Stream, IL, USA, 2001. [Google Scholar]
  43. Sakuma, M. Probit analysis of preference data. Appl. Entomol. Zool. 1998, 33, 339–347. [Google Scholar]
  • Samples Availability: Samples of the essential oil and pure compounds are available from the authors.
