Article

A Short Synthesis of Bisabolane Sesquiterpenes

1
College of Science, Northwest A&F University, Yangling, Shaanxi 712100, China
2
Key Laboratory of Protection and Utilization of Biological Resources in Tarim Basin, Talimu University, Alaer, Xinjiang 843300, China
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(9), 8053-8061; https://doi.org/10.3390/molecules16098053
Submission received: 31 August 2011 / Revised: 4 September 2011 / Accepted: 14 September 2011 / Published: 19 September 2011
(This article belongs to the Special Issue Terpenoids)

Abstract

:
A facile total synthesis of three members of the bisabolane sesquiterpene family, namely (±)-curcumene, (±)-xanthorrhizol and (±)-curcuhydroquinone had been achieved in high overall yield. The synthesis used bromobenzene derivatives as starting materials. The halogen-lithium exchange followed by addition of isoprenylacetone and reduction of the obtained carbinols are the key steps of the synthetic pathway. This synthetic approach provides a new route to the bisabolane sesquiterpenes.

1. Introduction

Among the various important classes of natural products, the bisabolane sesquiterpenes [1,2,3,4,5] refer to the C15 compounds which include a mono-aromatic ring skeleton (Figure 1). Among them, curcumene is the simplest aromatic one, and (+)-α-curcumene (1, Scheme 1) has been recognized as a constituent of the essential oil from the rhizomes of Curcuma aromatica by Simonsen and a number of essential oils [1].
Xanthorrhizol (2, Scheme 1), bearing only one phenolic hydroxyl group ortho to the methyl group, was firstly discovered from Curcuma xanthorrhiza, which was used as traditional medicine in Indonesia [6,7]. Afterward, xanthorrhizol (2) was isolated from the same plant again as an antitumor compound by Itokawa [8].

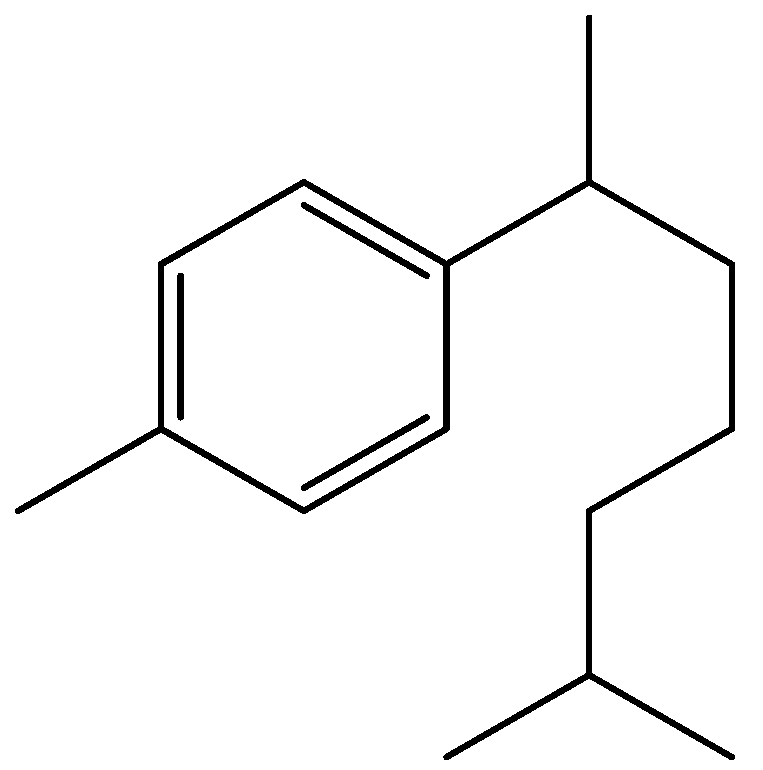

Figure 1. Aromatic bisabolane sesquiterpene skeleton.
Figure 1. Aromatic bisabolane sesquiterpene skeleton.
Molecules 16 08053 g001
Scheme 1. Synthesis of Curcumene 1, Xanthorrhizol 2 and Curcuhydroquinone 3.
Scheme 1. Synthesis of Curcumene 1, Xanthorrhizol 2 and Curcuhydroquinone 3.
Molecules 16 08053 g002
Xanthorrhizol (2) exhibits antibacterial activity against Streptococcus mutans, anticarcinogenic activity, as well as suppressing activity of cyclooxygenase-2 and inducible nitric oxide synthase enzyme which are related to the inflammation process. Moreover, xanthorrhizol was found to prolong pentobarbital-induced sleeping time, an effect due to inhibition of cytochrome P-450 activity [9,10,11,12]. Sirat reported synthesis of several bisabolane sesquiterpenoids using xanthorrhizol as a building block [13]. (−)-Curcuhydroquinone (4, Scheme 1) was isolated from the Caribbean gorgonian Pseudopterogorgia rigida and showed antibacterial activity against Staphylococcus aureus and the marine pathogen Vibro anguillarum [14]. Curcuhydroquinone can be used to synthesize several heliannuols [15,16], which are a class of natural allelochemicals. Because of its wide range of biological activities and its synthetical utility, this kind of naturally occurring products are attractive synthetic targets, especially to verify the usefulness of newly developed synthetic methodology. Some syntheses of curcumene (1), xanthorrhizol (2) and curcuhydroquinone (3) have been reported [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39]; however, they may suffer from some drawbacks, such as the use of toxic materials, commercially unavailable reagents or starting materials, too many chemical operations or limited applicability. In our synthetic approaching of heliannuols mentioned above, there was a need for a quick and labor-saving route to these compounds or their analogues as building blocks. Therefore, there is still a perceived demand for development of a practical synthetic route to them.
One of the most-used methods to construct C–C bonds is through addition of lithium reagents to carbonyls. As an extension of our continuous effort to synthesize those kinds of naturally occurring products and to test their potential application in agrochemicals [40,41,42,43,44], we wish to report herein a new and efficient total synthesis of curcumene (1), xanthorrhizol (2), and curcuhydroquinone (3) using cheap starting materials, where lithium reagent addition and selective carbinol reduction were used as key steps. The salient feature of our synthetic approach is that it combines two well-known chemical procedures.

2. Results and Discussion

As shown in Scheme 1, our synthesis is designed as a C7 + C8 strategy. Based the works of Boukouvalas [45], the connection step was mediated through a lithium reagent. It commenced from bromobenzene derivatives 6a–6c. Because of the derivatives of bromobenzene 6b are not commercially available, 4-bromo-2-aminotoulene (9) was diazotized, hydrolyzed [46] and then methylated to give 6b. Compound 6c was prepared in high yields according to the literature [47,48]. In order to construct the skeleton of our molecules, the alcohols 5a–5c can be obtained by the addition reaction between lithium reagent of compound 6a–6c and isoprenylacetone 7. With three key intermediates in hand, the alcohols 5a–5c were selectively reduced at the presence of BF3·Et2O/Et3SiH [23] to give curcumene (1), 4b and 4c respectively. (±)-Xanthorrhizol (2) and (±)-curcuhydroquinone (3) were obtained after a conventional demethylation protocol of the corresponding methyl ethers 4b and 4c, respectively. It is obvious that only three chemical operations are needed in the synthesis of curcumene (1). As far as the synthesis of (±)-xanthorrhizol (2) is concerned, our approach is still effective. In this way, we could accumulate large quantities of natural products, namely curcumene (1), xanthorrhizol (2) and curcuhydroquinone (3) in a short time.

3. Experimental Section

General

1H and 13C-NMR data were recorded in CDCl3 with Bruker-500 spectrometer if not noted otherwise. The chemical shifts were reported in ppm relative to TMS. Mass spectra were recorded on a HP-5988 mass spectrometer (EI), Thermo Scientific LCQ-FLEET (ESI) or Bruker FT-MS analyzer (HRMS), respectively. Column chromatography were generally performed on silica gel (200–300 mesh) eluting with petroleum ether-EtOAc (100:1–10:1 v/v) and TLC inspections on silica gel GF254 plates with petroleum ether-EtOAc (20:1–5:1 v/v) if not noted otherwise.
5-Bromo-2-methylphenol methyl ether (6b). A mixture of 5-bromo-2-methylaniline (8 g, 42.9 mmol) and sulfuric acid (48 mL) in water (600 mL) was heated to 120 °C for 3 h and then the reaction mixture was cooled with ice bath. NaNO2 (3.0 g, 44.6 mmol) was added portionwise at 0 °C to the above suspension, which was monitored by KI/starch indicator. The reaction mixture was added potionwise to sulfuric acid (48 mL) in water (600 mL) which had been preheated to 90 °C, and the mixture was maintained for 1 h and then poured into ice to give crude 5-bromo-2-methylphenol (8, 4.2 g, 52%). Then a mixture of crude 8 (1.87g, 10 mmol), anhydrous THF (20 mL), NaH in mineral oil (600 mg, 15 mmol) and MeI (2.8 g 20 mmol), was refluxed for 4 h. The mixture was quenched, poured into water, extracted with ether, and the combined extracts was washed with saturated Na2CO3, water, brine successively, dried, and purified through column chromatography to give 5-bromo-2-methyl phenol methyl ether (6b, 1.7 g, 85%) as a colorless oil. 1H-NMR: 2.36 (s, 3H), 3.84 (s, 3H), 6.39 (s, 1H), 6.78 (d, J = 7.6 Hz, 1H), 7.20 (d, J = 7.6 Hz, 1H).
6-Methyl-2-(p-tolyl)hept-5-en-2-ol (5a). At −20 °C, to a solution of 4-bromotoulene (500 mg, 2.9 mmol) in anhydrous THF (10 mL) was added BuLi (1.46 mL, 2.2 M) dropwise, and the reaction mixture was stirred for half an hour. The mixture was cooled to −78 °C, then isoprenylacetone (360 mg, 2.9 mmol) in anhydrous THF (10 mL) was added dropwise. Then the reaction mixture was stirred for 2 h at −40 °C, and then quenched with saturated NH4Cl, and extracted with ether (30 mL × 3). The combined organic layers were washed with brine, dried, filtered and evaporated under reduced pressure to afford crude product. Purification on silica gel yielded 6-methyl-2-(p-tolyl)-hept-5-en-2-ol (531 mg, 84%) as a viscous oil. 1H-NMR: 1.49 (s, 3H), 1.52 (s, 3H), 1.65 (s, 3H), 1.81–1.98 (m, 5H), 2.33 (s, 3H), 5.08 (t, J = 6.5 Hz, 1H), 7.14 (d, J = 8.0 Hz, 2H), 7.30 (d, J = 8.0 Hz, 2H). 13C-NMR: 17.6, 20.9, 23.0, 25.79, 30.5, 43.7, 74.8, 124.3, 124.7, 128.8, 132.1, 136.0, 145.0. ESP-MS: M+H−H2O = 201.
2-(3-Methoxy-4-methylphenyl)-6-methylhept-5-en-2-ol (5b). The method was identical to that described for the preparation of 5a. 1H-NMR: 1.43 (s, 3H), 1.46 (s, 3H), 1.65 (s, 3H), 1.91–2.04 (m, 4H), 2.17 (s, 3H), 3.84 (s, 3H), 4.92 (br s, 1H), 5.11 (t, J = 6.5 Hz, 1H), 6.30 (d, J = 8.0 Hz, 1H), 6.38 (s, 1H), 6.94 (d, J = 8.0 Hz, 1H). 13C-NMR: 10.7, 12.9, 18.7, 19.8, 21.0, 25.0, 34.4, 50.5, 63.4, 93.8, 101.5, 113.8, 119.3, 125.9, 127.4, 150.1, 153.9. ESP-MS: M+H−H2O = 231.
2-(2,5-Dimethoxy-4-methylphenyl)-6-methylhept-5-en-2-ol (5c). The method was identical to that described for the preparation of 5a. 1H-NMR: 1.52 (s, 3H), 1.56 (s, 3H), 1.65 (s, 3H), 1.81–1.98 (m, 4H), 2.21 (s, 3H), 3.80 (s, 3H), 3.82 (s, 3H), 3.94 (br, s, 1H), 5.09 (t, J = 6.5 Hz, 1H), 6.71 (s, 1H), 6.83 (s, 1H). 13C-NMR: 15.9, 17.5, 23.3, 25.6, 27.6, 42.0, 55.9, 56.0, 75.1, 109.8, 114.5, 124.6, 125.6, 131.4, 132.8, 150.3, 151.5. ESP-MS: M+H−H2O = 261.
Curcumene (1). At 0 °C, to a solution of 5a (0.4 g, 1.83 mmol) in dry dichloromethane (15 mL), triethylsilane (0.25 g, 2.2 mmol), was added boron trifluoride diethyl etherate (0.27, 1.9 mmol) with stirring. The mixture was stirred for half an hour, quenched with a few drops of water, and extracted with dichloromethane (20 mL × 3). The combined organic solutions were dried and evaporated. The residue was purified through silica gel column chromatography to give curcumene (1, 347 mg, 94%) as a colorless oil. IR(film/cm−1): 2,962, 2,923, 2,857, 1,516, 1,453, 1,376, 8,16; 1H-NMR: 1.21 (d, J = 7 Hz, 3H), 1.53 (s, 3H), 1.60–1.67 (m, 2H), 1.68 (s, 3H), 1.80–1.95 (m, 2H), 2.32 (s, 3H), 2.55–2.65 (m, 1H), 5.10 (t, J = 6.9 Hz, 1H), 7.03 (d, J = 7.8 Hz, 2H), 7.08 (d, J = 7.8 Hz, 2H). 13C-NMR: 17.6, 20.9, 22.4, 25.7, 26.1, 38.5, 39.0, 124.6, 126.9, 129.0, 131.3, 135.1, 144.6. MS (EI): 202 (M+, 27), 187 (4), 159 (22), 145 (27), 132 (76), 119 (100).
2-Methyl-6-(3-methoxy-4-methylphenyl)-heptene (4b). The method was identical to that described for the preparation of 1 (colorless oil, 93%). IR (film/cm−1): 2,958, 2,922, 1,612, 1,581, 1,508, 1,459, 1,414, 1,256, 1,135, 1,043, 851, 815. 1H-NMR (500 MHz, CDCl3): 1.23 (3H, d, J = 7.0 Hz), 1.51 (3H, s), 1.51–1.65 (2H, m), 1.66 (3H, s), 1.86–1.92 (2H, m), 2.18 (3H, s), 2.63–2.67 (1H, m), 3.82 (3H, s), 5.10 (1H, t, J = 7.1 Hz), 6.65 (1H, d, J = 1.1 Hz), 6.68 (1H, dd, J = 7.55 Hz, J = 1.45 Hz), 7.04 (1H, d, J = 7.55 Hz). 13C-NMR (125 MHz, CDCl3): 16.0 (CH3), 17.9 (CH3), 22.7 (CH3), 25.9 (CH3), 26.4 (CH2), 38.6 (CH2), 39.7 (CH), 55.4 (CH3), 109.1 (CH), 118.8 (CH), 124.7 (CH), 124.8 (CH), 130.5 (CH), 131.5(C), 146.9 (C), 157.8 (C). ESP-MS: M+H = 233.
2-Methyl-6-(2,5-dimethoxy-4-methylphenyl)-heptene (4c). The method was identical to that described for the preparation of 1 (94% yield as a colorless oil). 1H-NMR: 1.28 (d, J = 7.2Hz, 3H), 1.56 (s, 3H), 1.57–1.59 (m, 2H), 1.75 (s, 3H), 1.96–2.04 (m, 2H), 2.33 (s, 3H), 3.21–3.26 (m, 1H), 3.87 (s, 3H), 3.88 (s, 3H), 5.22 (t, J = 6.9Hz, 1H), 6.67 (s, 1H), 6.70 (s, 1H). 13C-NMR: 16.0, 17.5, 21.2, 25.6, 26.3, 31.8, 37.3, 56.0, 56.3, 111.6, 112.5, 122.0, 125.0, 126.7, 133.1, 136.8, 157.1. EIMS (m/z): 262, 247, 219, 192, 179, 149, 119, 91. HRMS: required C17H27O2 262.2013, found 262.2009.
Xanthorrhizol (2). To a solution of EtSH (0.8 mL, 10.82 mmol) in anhydrous DMF (35 mL) was added NaH (60% in mineral oil, 430 mg, 10.82 mmol), then compound 4b (500 mg, 2.15 mmol) in DMF (2 mL) was added, and the mixture was refluxed for 6 hours. After completion, the mixture was poured into ice water, and was acidified, and extracted. The extraction was condensed, and the residue was purified by common column chromatography to give xanthorrhizol (2, 410 mg, 87%). IR (cm−1): 3,392, 2,960, 2,922, 1,585, 1,453, 1,256, 1,176, 1,122, 880, 815. 1H-NMR (500 MHz, CDCl3): 1.18 (3H, d, J =7.0 Hz), 1.52 (3H, s), 1.51–1.65 (2H, m), 1.66 (3H, s), 1.86–1.92 (2H, m), 2.20 (3H, s), 2.56–2.63 (1H, m), 4.66 (1H, br, s), 5.06–5.09 (1H, m), 6.59 (1H, d, J = 1.5 Hz), 6.60 (1H, dd, J = 7.7 Hz, J = 1.50 Hz), 7.02 (1H, d, J = 7.7 Hz). 13C-NMR (125 MHz, CDCl3): 15.5 (CH3), 17.8 (CH3), 22.5 (CH3), 25.8 (CH3), 26.3 (CH2), 38.5 (CH2), 39.2 (CH), 113.7 (CH), 119.6 (CH), 120.9 (C), 124.7 (CH), 130.9 (CH), 131.6 (C), 147.4 (C), 153.7 (C). ESP(−)-MS: M−H = 217. HRMS: required C15H22O2, 218.1671, found 218.1673.
(±)-Curcuhydroquinone (3). To a suspension Mg (1.45 g, 60 mmol) in 10 mL of anhydrous diethyl ether was added slowly iodomethane (6.35 g, 45 mmol) in anhydrous diethyl ether at room temperature. After completion, the reaction mixture was refluxed for 1 h and then the mixture was evaporated in vacuum. The neat compound 4c (393mg, 1.5 mmol) was heated to 180 °C for 15 min, after cooled to room temperature and 100 mL 1.0 M HCl was added to quench the reaction. The mixture was extracted EtOAc (3 × 20mL); the combined organic layer was washed with brine and dried over Na2SO4. After evaporation the residue was purified through column chromatography to give 3 (316 mg, 90%) as a colorless oil. IR (neat): 3,545, 2,966, 2,927, 1,666, 1,615, 1,456, 1,417, 1,377, 1,306, 1,187, 1,003, 875, 833 cm−1. 1H-NMR: 1.20 (d, J = 7.2Hz, 3H), 1.53 (s, 3H), 1.50–1.63 (m, 2H), 1.68 (s, 3H), 1.92–1.95 (m, 2H), 2.17 (s, 3H), 2.94 (m, 1H), 4.65 (br, 1H), 5.15 (br, 1H), 6.56 (br, 1H), 6.71(br, 1H), 7.02 (d, J = 7.9Hz, 1H). 13C-NMR (CDCl3, 300 MHz): 15.4, 17.7, 21.1, 25.7, 26.0, 31.5, 37.4, 113.5, 118.0, 121.8, 124.6, 131.8, 132.1, 146.7, 147.8. MS (EI): 235 (M++1), 234, 217, 191, 177, 164, 151, 137, 124, 107, 95, 77. HRMS: required C15H22O2, 234.1700, found 234.1703.

4. Conclusions

In summary, we have reported an effective and facile route for the synthesis of (±)-curcumene (1), (±)-xanthorrhizol (2) and (±)-curcuhydroquinone (3) using cheap starting materials. Our approach can provide large quantities of these versatile natural products using simple starting materials. The combination of lithium reagent addition and selective reduction by BF3.Et2O/Et3SiH were the key features of our approach.

Acknowledgments

Financial support from Program for Excellent Young Talents in Northwest A&F University (No. 2111020712) and the opening project of Xinjiang Production & Construction Corps Key Laboratory of Protection and Utilization of Biological Resources in Tarim Basin (BRTD1004) as well as the National Natural Science Foundation of China (20802058) is greatly appreciated.

Conflict of Interest

The authors declare no conflict of interest.
  • Sample Availability: Samples of the all the compounds in this paper are available from the authors.

References

  1. Simonsen, S.J.; Barton, D.H.R. The Terpenes; Cambridge University Press: Cambridge, UK, 1952; Volume III. [Google Scholar]
  2. ApSimon, J. The Total Synthesis of Natural Products; John Wiley and Sons: Hoboken, NJ, USA, 1983; p. 35. [Google Scholar]
  3. Kitahara, T.; Furusho, Y.; Mori, K. Synthesis of (+)-Turmeronol A, an inhibitor of soybean lipoxygenase, and (+)-ar-Turmerone. Biosci. Biotech. Biochem. 1993, 57, 1137–1140. [Google Scholar] [CrossRef]
  4. Tanaka, K.; Nuruzzaman, M.; Yoshida, M.; Yang, N.A.X.-S.; Tsubaki, K.; Fuji, K. Use of 1,1'-Binaphthalene-8,8'-diol as a chiral auxiliary for asymmetric Michael addition. Application to the syntheses of turmeronol A and B. Chem. Pharm. Bull. 1999, 47, 1053–1055. [Google Scholar] [CrossRef]
  5. Hanessian, S.; Giroux, S.; Mascitti, V. The iterative synthesis of acyclic deoxypropionate units and their implication in polyketide-derived natural products. Synthesis 2006, 7, 1057–1076. [Google Scholar]
  6. Garcia, G.E.; Mendoza, V.; Guzman, B.A. Perezone and related sesquiterpenes from parvifolin. J. Nat. Prod. 1987, 50, 1055–1058. [Google Scholar] [CrossRef]
  7. Aguilar, M.I.; Delgado, G.; Hernandez, M.L.; Villarreal, M.L. Bioactive compounds from Iostephane heterophylla (Asteraceae). Nat. Prod. Lett. 2001, 15, 93–101. [Google Scholar] [CrossRef]
  8. Itokawa, H.; Hirayama, F.; Funakoshi, K.; Takeya, K. Studies on the antitumor bisabolane sesquiterpenoids isolated from curcuma Xanthorrhiza. Chem. Pharm. Bull. 1985, 33, 3488–3491. [Google Scholar]
  9. Campos, M.; Oropeza, M.; Villanueva, T.; Aguilar, M.I.; Delgado, G.; Ponce, H. Xanthorrhizol induces endothelium-independent relaxation of rat thoracic aorta. Life Sci. 2000, 67, 327–333. [Google Scholar]
  10. Hwang, J.; Shim, J.; Baek, N.; Pyun, Y. Xanthorrhizol: A potential antibacterial agent from curcuma xanthorrhiza against streptococcus mutans. Planta Med. 2000, 66, 196–197. [Google Scholar]
  11. Ponce-Monter, H.; Campos, M.G.; Aguilar, I.; Delgado, G. Effect of xanthorrhizol, xanthorrhizol glycoside and trachylobanoic acid isolated from cachani complex plants upon the contractile activity of uterine smooth muscle. Phyto. Res. 1999, 13, 202–205. [Google Scholar] [CrossRef]
  12. Yamazaki, M.; Maebayashi, Y.; Iwase, N.; Kaneko, T. Studies on pharmacologically active principles from indonesian curde durgs. I. Principle prolonging pentobarbital-induced sleeping time from curcuma xanthorrhiza ROXB. Chem. Pharm. Bull. 1988, 36, 2070–2074. [Google Scholar] [CrossRef]
  13. Sirat, H.M.; Hong, N.M.; Jauri, M.H. Chemistry of xanthorrhizol: Synthesis of several bisabolane sesquiterpenoids from xanthorrhizol. Tetrahedron Lett. 2007, 48, 457–460. [Google Scholar] [CrossRef]
  14. McEnroe, F.J.; Fenical, W. Structures and synthesis of some new antibacterial sesquiterpenoids from the gorgonian coral Pseudopterogorgia rigida. Tetrahedron 1978, 34, 1661–1664. [Google Scholar] [CrossRef]
  15. Macias, F.A.; Chinchilla, D.; Molinillo, J.M.G.; Marin, D.; Varela, R.M.; Torres, A. Synthesis of heliannane skeletons. Facile preparation of (+/−)-Heliannuol D. Tetrahedron 2003, 59, 1679–1683. [Google Scholar]
  16. Macias, F.A.; Torres, A.; Galindo, J.L.G.; Varela, R.M.; Alvarez, J.A.; Molinillo, J.M.G. Bioactive terpenoids from sunflower leaves cv. Peredovick (R). Phytochemistry 2002, 61, 687–692. [Google Scholar]
  17. Braun, N.A.; Spitzner, D. Synthesis and natural occurrence of (Z/E)-beta-and gamma-curcumen-12-ol. ARKIVOC 2007, 273–279. [Google Scholar]
  18. Serra, S. Bisabolane sesquiterpenes: Synthesis of (R)-(+)-Sydowic acid and (R)-(+)Curcumene ether. Synlett 2000, 890–892. [Google Scholar]
  19. Ono, M.; Yamamoto, Y.; Akita, H. Reaction of methyl 4,5-epoxy-(2E)-Pentenoate with arenes. II. Application to the synthesis of (±)-Curcudiol, (±)-Curcuphenol, (±)-Curcuhydroquinone, and (±)-Curcuquinone. Chem. Pharm. Bull. 1995, 43, 553–558. [Google Scholar]
  20. John, T.K.; Rao, G.S.K. Studies in terpenoids. Part LXIII. Absolute configuration of naturally occurring (−)-xanthorrhizol. Indian J. Chem. Sect. B 1985, 24B, 35–37. [Google Scholar]
  21. Krause, W.; Bohlmann, F. Synthesis of hydroxycadalene and hydroxycalamenene via 13-hydroxyxanthorrhizol, a possible precursor of parvifolin. Tetrahedron Lett. 1987, 28, 2575–2578. [Google Scholar] [CrossRef]
  22. Nagumo, S.; Irie, S.; Hayashi, K.; Akita, H. A formal total synthesis of xanthorrhizol based on nucleophilic opening of vinyloxirane by arylcopper reagent. Heterocycles 1996, 43, 1175–1178. [Google Scholar] [CrossRef]
  23. Meyers, A.I.; Stoianova, D. Short asymmetric synthesis of (+)-α-Curcumene and (+)-Xanthorrhizol. J. Org. Chem. 1997, 62, 5219–5221. [Google Scholar]
  24. Sato, K.; Bando, T.; Shindo, M.; Shishido, K. An enantiocontrolled total synthesis of (−)-Xanthorrhizol. Heterocycles 1999, 50, 11–15. [Google Scholar] [CrossRef]
  25. Jesus, L.M.A.; Adrian, C.Z.; Moises, R.O.; Jose, A.Z.G. An efficient synthesis of (+/−)-Xanthorrhizol. One-pot decyanation and demethylation. Lett. Org. Chem. 2008, 5, 470–472. [Google Scholar] [CrossRef]
  26. Fuganti, C.; Serra, S. Baker’s yeast-mediated enantioselective synthesis of the bisabolane sesquiterpenes (+)-Curcuphenol, (+)-Xanthorrhizol, (−)-Curcuquinone and (+)-Curcuhydroquinone. J. Chem. Soc. Perkin 1 2000, 3758–3764. [Google Scholar] [CrossRef]
  27. Montiel, L.E.; Zepeda, L.G.; Tamariz, J.N. Efficient total synthesis of racemic bisabolane sesquiterpenes curcuphenol and xanthorrhizol starting from substituted acetophenones. Helv. Chim. Acta 2010, 93, 1261–1273. [Google Scholar] [CrossRef]
  28. Vyvyan, J.R.; Brown, R.C.; Woods, B.P. Alkylation of 2-substituted (6-methyl-2-pyridyl)methyllithium species with epoxides. J. Org. Chem. 2009, 74, 1374–1376. [Google Scholar] [CrossRef]
  29. Vyvyan, J.R.; Loitz, C.; Looper, R.E.; Mattingly, C.S.; Peterson, E.A.; Staben, S.T. Synthesis of aromatic bisabolene natural products via palladium-catalyzed cross-couplings of organozinc reagents. J. Org. Chem. 2004, 69, 2461–2468. [Google Scholar] [CrossRef]
  30. Meyers, A.I.; Smith, R.K. A total asymmetric synthesis of (+)-ar-Turmerone. Tetrahedron Lett. 1979, 30, 2749–2752. [Google Scholar] [CrossRef]
  31. Nave, S.; Sonawane, R.P.; Elford, T.G.; Aggrawal, V.K. Protodeboronation of tertiary boronic esters: Asymmetric synthesis of tertiary alkyl stereogenic centers. J. Am. Chem. Soc. 2010, 132, 17096–17098. [Google Scholar]
  32. Fuganti, C.; Serra, S.; Dulio, A. Baker’s yeast mediated enantioselective synthesis of the bisabolane sesquiterpenes curcumene, turmerone, dehydrocurcumene and nuciferal. J. Chem. Soc. Perkin Trans. J. 1999, 279–282. [Google Scholar]
  33. Rowe, B.J.; Spilling, C.D. Stereospecific Pd(0)-catalyzed arylation of an allylic hydroxy phosphonate derivative: Formal synthesis of (S)-(+)-ar-Turmerone. J. Org. Chem. 2003, 68, 9502–9505. [Google Scholar] [CrossRef]
  34. Zhang, A.; RajanBabu, T.V. Chiral benzyl centers through asymmetric catalysis. A three-step synthesis of (R)-(−)-α-Curcumene via asymmetric hydrovinylation. Org. Lett. 2004, 6, 3159–3161. [Google Scholar] [CrossRef]
  35. Kamal, A.; Malik, M.S.; Azeeza, S.; Bajee, S.; Shaik, A.A. Total synthesis of (R)- and (S)-turmerone and (7S,9R)-bisacumol by an efficient chemoenzymatic approach. Tetrahedron: Asymmetry 2009, 20, 1267–1271. [Google Scholar] [CrossRef]
  36. Afewerki, S.; Breistein, P.; Pirttilä, K.; Deiana, L.; Dziedzic, P.; Ibrahem, I.; Córdova, A. Catalytic enantioselective β-alkylation of α,β-unsaturated aldehydes by combination of transition-metal- and aminocatalysis: Total synthesis of bisabolane sesquiterpenes. Chem. Eur. J. 2011, 17, 8784–8788. [Google Scholar]
  37. Serra, S. Lipase-mediated resolution of substituted 2-aryl-propanols: application to the enantioselective synthesis of phenolic sesquiterpenes. Tetrahedron: Asymmetry 2011, 22, 619–628. [Google Scholar] [CrossRef]
  38. Fuganti, C.; Serra, S. A new enantioselective route to bisabolane sesquiterpenes phenols: Synthesis of (S)-(+)-Curcuphenol and (S)-(+)-curcumene. Synlett 1998, 1252–1254. [Google Scholar] [CrossRef]
  39. Sanchez, I.H.; Lemini, C.; Joseph-Nathan, P. Short, high-yield syntheses of (+/−)-curcuhydroquinone and (+/−)-curcuquinone. J. Org. Chem. 1981, 46, 4666–4667. [Google Scholar]
  40. Du, Z.T.; Li, A.P.; Peng, K.; Wu, T.X.; Pan, X.F. Facile synthesis of (+/−)-parahigginone methyl ether and (+/−)-curcuphenol. J. Chin. Chem. Soc. 2004, 51, 571–574. [Google Scholar]
  41. Du, Z.T.; She, X.G.; Yue, G.R.; Ma, J.Y.; Li, Y.; Pan, X.F. Enantioselective synthesis of (+)-nuciferal, (+)-(E)-nuciferol and (+)-alpha-curcumene by chiral hydrogenesterification reaction. Chin. Chem. Lett. 2004, 15, 1389–1391. [Google Scholar]
  42. Du, Z.T.; Yu, H.R.; Xu, Y.; Li, Y.; Li, A.P. Synthesis of bisabolane sesquiterpenes: A Johnson-Claisen rearrangement approach. Chin. Chem. Lett. 2010, 21, 813–815. [Google Scholar] [CrossRef]
  43. Du, Z.T.; Yu, H.R.; Xu, Y.; Song, Q.L.; Li, A.P. Syntheses of (+/−)-curcuphenol, (+/−)-curcudiol and (+/−)-curcuhydroquinone: A Johnson-Claisen rearrangement approach. J. Chin. Chem. Soc. 2010, 57, 399–403. [Google Scholar]
  44. Du, Z.T.; Wang, Y.; Ma, W.L.; Lv, D.; Yu, H.R. Facile total synthesis of xanthorrhizol. Nat. Prod. Commun. 2011, 6, 167–169. [Google Scholar]
  45. Boukouvalas, J.; Pouliot, R.; Fréchette, Y. Concise synthesis of yingzhaosu C and epi-yingzhaosu C by peroxyl radical cyclization. Assignment of relative configuration. Tetrahedron Lett. 1995, 36, 4167–4170. [Google Scholar] [CrossRef]
  46. Susan, E.; Matilda, J.; Neil, A. 8-Azaibcyclo[3.2.1]octane derivatives useful as monoamine reuptake inhibitors. WO Patent 2007/063071, 7 June 2007. [Google Scholar]
  47. Wagner, J.M.; McElhinny, C.J.; Lewin, A.H.; Carroll, F.I. Stereospecific synthesis of amphetamines. Tetrahedron: Asymmetry 2003, 14, 2119–2125. [Google Scholar]
  48. Yoshida, M.; Shoji, Y.; Shishido, K. Total syntheses of enokipodins A and B utilizing palladium-catalyzed addition of an arylboronic acid to an allene. Org. Lett. 2009, 11, 1441–1443. [Google Scholar] [CrossRef]
