Article

Investigating Silver Coordination to Mixed Chalcogen Ligands

by
Fergus R. Knight
,
Rebecca A. M. Randall
,
Lucy Wakefield
,
Alexandra M. Z. Slawin
and
J. Derek Woollins
*
EaStCHEM School of Chemistry, University of St. Andrews, St Andrews, Fife KY16 9ST, UK
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(11), 13307-13329; https://doi.org/10.3390/molecules171113307
Submission received: 28 September 2012 / Revised: 31 October 2012 / Accepted: 5 November 2012 / Published: 8 November 2012
(This article belongs to the Special Issue Disulfide and Diselenide Chemistry)
Browse Figures
Versions Notes

Abstract

:
Six silver(I) coordination complexes have been prepared and structurally characterised. Mixed chalcogen-donor acenaphthene ligands L1–L3 [Acenap(EPh)(E'Ph)] (Acenap = acenaphthene-5,6-diyl; E/E' = S, Se, Te) were independently treated with silver(I) salts (AgBF4/AgOTf). In order to keep the number of variables to a minimum, all reactions were carried out using a 1:1 ratio of Ag/L and run in dichloromethane. The nature of the donor atoms, the coordinating ability of the respective counter-anion and the type of solvent used in recrystallisation, all affect the structural architecture of the final silver(I) complex, generating monomeric, silver(I) complexes {[AgBF4(L)2] (1 L = L1; 2 L = L2; 3 L = L3), [AgOTf(L)3] (4 L = L1; 5 L = L3), [AgBF4(L)3] (2a L = L1; 3a L = L3)} and a 1D polymeric chain {[AgOTf(L3)]n 6}. The organic acenaphthene ligands L1-L3 adopt a number of ligation modes (bis-monodentate μ2-η2-bridging, quasi-chelating combining monodentate and η6-E(phenyl)-Ag(I) and classical monodentate coordination) with the central silver atom at the centre of a tetrahedral or trigonal planar coordination geometry in each case. The importance of weak interactions in the formation of metal-organic structures is also highlighted by the number of short non-covalent contacts present within each complex.

Graphical Abstract

1. Introduction

Coordination chemistry is an integral feature of inorganic and bioinorganic chemistry [1,2,3,4], with many applications in polymer design and materials science [4,5,6,7]. Following the pioneering work on transition metal chemistry by Nobel Prize winning Swiss chemist Alfred Werner, the metal-ligand interaction emerged as an important tool for the manufacture of supramolecular metal complexes and is prominent in the design of organic solids and metal-organic frameworks (MOFs) [4,5,6,7,8,9,10,11,12,13,14].
Crystal engineering utilises the metal-ligand coordination bond to construct coordination networks, generally through the self-assembly of tuneable building blocks [4,5,6,7,8,9,10,11,12,13,14]. Bridging organic ligands acting as rigid supports are linked in an ordered lattice, building extended and often multidimensional networks with central metal ions. Modification of the functional groups within the ligand shell can control the properties, topology and geometry of the extended network and lead to potential applications as new functional materials [10,11,12,13,14].
Nevertheless, the unpredictability of the polymeric architecture is a major challenge when designing supramolecular complexes. Self-assembly, which dictates the structural motif of the final complex is controlled by experimental conditions [10,11,12,13,14]. Factors such as the central metal ion oxidation state, the coordination geometry, the metal-to-ligand ratio, the nature and spacer length of the bridging ligand, the presence of solvents and the type of counter-anions, all play a significant role [10,11,12,13,14]. A subtle variation to any one of these parameters can influence the geometry of the final solid state structure, generating for example extended three-dimensional networks, linear chain polymers or simple monomeric species [10,11,12,13,14,15].
Silver has become a fashionable building block for connecting organic ligands in supramolecular networks [1,2,3,4,10,11,12,13,14]. The lack of stereochemical preference of a d10 configuration enables silver(I) to adopt a variety of coordination geometries (coordination number 2–8) and generate interesting supramolecular polymers with unique structural motifs [1,2,3,4,10,11,12,13,14,16]. The silver(I) cation primarily adopts either linear, trigonal or tetrahedral configurations and has the ability to form short Ag···Ag contacts; an important factor in the construction of metal organic frameworks [17].The availability of a number of silver(I) salts makes it easy to analyse the effects counter-anions have on the structure of supramolecular networks, such as their ability to coordinate to the metal centre [12,13,14].
Naphthalenes [18,19,20,21] and related 1,2-dihydroacenaphthylenes (acenaphthenes)[22] provide the perfect framework from which to design tunable donor ligands for thc preparation of metal complexes [23,24]. The rigidity of the organic backbone and the geometric constraints unique to these compounds, imposed by a double substitution at the close peri-positions, ensures metal coordination is favoured in order to achieve a relaxed geometry [24]. We have previously utilised the naphthalene backbone to prepare a variety of chalcogen and phosphorus compounds and associated metal complexes [25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48]. Our current work has focussed on the acenaphthene backbone, preparing halogen-chalcogen and chalcogen-chalcogen derivatives [49,50,51] and a series of halogen-tin compounds [52]. Coupled with silver(I) salts, the series of bromo-chalcogen compounds {[Acenap(Br)(EPh)] (E = S, Se, Te)} [49,50,51] were shown to form a variety of monomeric complexes [53],whilst the bis-chalcogen derivatives {[Acenap(EPh)] (E = S, Se)} [49,50,51] proved ideal building blocks for the assembly of supramolecular networks and extended structures, acting as bridging organic donor ligands between diversely coordinating silver(I) centres [54]. Herein we present a comparative structural study of the self-assembly of mixed chalcogen-donor ligands Acenap[EPh][E'Ph] (Acenap = acenaphthene-5,6-diyl; EE' = SeS, TeS, TeSe) L1–L3 [49,50,51] (Figure 1) with silver tetrafluoroborate (AgBF4) and silver trifluoromethanesulfonate (AgOTf).
Molecules 17 13307 g001 550

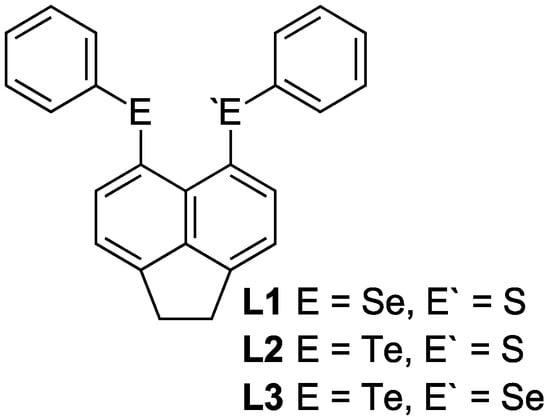

Figure 1. Acenaphthene chalcogen donor ligands Acenap[EPh][E'Ph] L1–L3 [49,50,51].
Figure 1. Acenaphthene chalcogen donor ligands Acenap[EPh][E'Ph] L1–L3 [49,50,51].
Molecules 17 13307 g001

2. Results and Discussion

The three mixed acenaphthene derivatives Acenap[EPh][E'Ph] (Acenap = acenaphthene-5,6-diyl; EE' = L1 SeS, L2 TeS, L3 TeSe [49,50,51], were each independently treated with silver tetrafluoroborate [AgBF4] and silver trifluoromethanesulfonate [AgOTf]. In order to keep the number of variables to a minimum, the reactions were carried out using a 1:1 ratio of Ag/L and run in dichloromethane under an oxygen- and moisture-free nitrogen atmosphere. The complexes 1–6 obtained were characterised by multinuclear NMR and IR spectroscopy and mass spectrometry and the homogeneity of the new compounds was where possible confirmed by microanalysis; 77Se and 125Te-NMR data can be found in Table 1. Crystal structures were determined for 1–6 and 2a and 3a (recrystallisation products of 2 and 3, respectively). A number of the silver(I) complexes were found to be unstable towards light whilst in solution. Selected interatomic distances, angles and torsion angles are listed in Table 2 and Table 3. Hydrogen-bond and other non-conventioanl weak inter- and intra-moleular interaction data can be found in Table S1 in the Electronic Supporting Information (ESI). Further crystallographic information can be found in Table 4,Table 5,Table 6 and in Figures S1–S4 and Tables S2 and S3 in the ESI.
Table
Table 1. 77Se and 125Te-NMR spectroscopic data [a].
Table 1. 77Se and 125Te-NMR spectroscopic data [a].
123456
Peri-atomsSe, STe, STe, SeSe, STe, STe, Se
77Se-NMR379.1-322.6369.9-321.6
125Te-NMR-567.0544.1-552.3537.2
L1L2L3
77Se-NMR433.7-340.7
125Te-NMR-689.4663.4
[a] Spectra of 2, 5 and 6 run in CD3CN, spectra of 1 and 3 run in (CD3)2CO, spectrum of 4 run in CDCl3; δ (ppm).
Table
Table 2. Selected interatomic distances [Å] and angles [°] for 1–6.
Table 2. Selected interatomic distances [Å] and angles [°] for 1–6.
Compound1 2 3456
Ligand; peri-atomsL1; Se,SL1; Se,SL2; TeSL2; TeSL3; TeSeL1; Se,SL2; TeSL3; TeSe
E···E'3.1122(15)3.1018(16)3.1502(16)3.1581(16)3.2342(18)3.14(4)3.1669(10)3.2417(11)
ΣrvdW—E···E' [a]; % ΣrvdW [a]0.588; 840.598; 840.710; 820.702; 820.726; 820.460; 870.693; 820.718; 82
Peri-region bond angles
E(1)-C(1)-C(10)122.1(4)122.1(4)122.4(4)123.9(4)124.9(7)122(8)122.6(2)124.7(6)
C(1)-C(10)-C(9)129.3(5)129.3(5)131.1(5)129.0(5)128.4(10)130(12)130.1(3)130.2(7)
E'(1)-C(9)-C(10)123.0(4)122.8(5)121.1(5)121.4(4)125.0(9)124(12)121.7(3)121.6(6)
Σ of bay angles374.4(11)374.2(11)374.6(11)374.3(11)378.3(20)376(24)374.4(6)376.5(16)
Splay angle [b]14.414.214.614.318.316.014.416.5
Out-of-plane displacement
E−0.298(1)−0.289(1)−0.332(1)−0.307(1)−0.267(1)0.375(1)0.400(1)0.173(1)
0.177(1)0.208(1)0.150(1)0.189(1)0.143(1)−0.183(1)−0.114(1)−0.393(1)
Central naphthalene ring torsion angles
C:(6)-(5)-(10)-(1)177.47(1)177.67(1)179.19(1)177.11(1)177.83(1)179.27(1)178.65(1)178.77(1)
C:(4)-(5)-(10)-(9)177.97(1)178.20(1)177.01(1)178.65(1)179.58(1)175.92(1)178.07(1)176.60(1)
[a] van der Waals radii used for calculations: rvdW(Br) 1.85Å, rvdW(S) 1.80Å, rvdW(Se) 1.90Å, rvdW(Te) 2.06Å [55]; [b] Splay angle: Σ of the three bay region angles—360.
Table
Table 3. Selected silver coordination interatomic distances [Å] and angles [°] for 1–6.
Table 3. Selected silver coordination interatomic distances [Å] and angles [°] for 1–6.
123456
Ag1-E12.6252(7)2.7053(9)2.7023(12)2.628(14)2.7304(8)
Ag1-E11 2.628(14)2.7304(8)
Ag1-E12 2.628(14)2.7304(8)
Ag1-E22.6236(7)2.7066(9)2.7023(12)
Ag1-cg(19-24)3.002(1)3.065(1)3.119(1)
Ag1-cg(49-54)2.982(1)3.054(1)3.119(1)
Ag1···Ag118.481(1)8.515(1)8.856(1)9.468(1)9.728(1)
E1-Ag1-E11 119.5(4)119.977(6)
E1-Ag1-E12 119.5(4)119.977(6)
E11-Ag1-E12 119.5(4)119.977(6)
E1-Ag1-E2135.14(3)140.40(3)144.55(6)
E1-Ag1-cg(19-24)105.67(1)104.67(1)106.65(1)
E1-Ag1-cg(49-54)89.80(1)88.57(1)87.74(1)
E2-Ag1-cg(19-24)89.43(1)88.13(1)106.65(1)
E2-Ag1-cg(49-54)105.90(1)104.83(1)87.74(1)
cg(19-24)-Ag1-cg(49-54)139.32(1)141.06(1)132.09(1)
Ag1-Te1 2.6807(11)
Ag1-Se11 2.6013(12)
Ag1-O1 2.360(6)
Ag1···Ag1 5.929(1)
Te1-Ag1-Se1 132.70(4)
Te1-Ag1-O1 111.72(15)
Se1-Ag1-O1 112.75(15)
Table
Table 4. Crystallographic data for 1–3.
Table 4. Crystallographic data for 1–3.
123
Empirical FormulaC48H36AgBF4S2Se2·2CH2Cl4C48H36AgBF4S2Te2·2CH2Cl4C48H36AgBF4Se2Te2·CH2Cl2
Formula Weight1199.391296.671305.54
Temperature (°C) −180(1)−180(1)−180(1)
Crystal Colour, Habitcolourless, prismcolourless, plateletcolourless, platelet
Crystal Dimensions (mm3)0.100 × 0.100 × 0.0200.100 × 0.100 × 0.0100.080 × 0.060 × 0.020
Crystal Systemmonoclinicmonoclinicmonoclinic
Lattice Parametersa = 11.783(3) Åa = 11.823(5) Åa = 11.923(6) Å
b = 28.585(5) Åb = 29.132(9) Åb = 29.68(2) Å
c = 14.459(3) Åc = 14.588(5) Åc = 14.794(7) Å
---
β = 106.853(5)°β = 107.227(9)°β = 105.833(11)°
---
Volume (Å3) V = 4661(2)V = 4799(3)V = 5037(4)
Space GroupP21/nP21/nC2/c
Z value444
Dcalc (g/cm3)1.7091.7951.721
F000238425282504
μ(MoKα) (cm−1)23.64619.71431.322
No. of Reflections Measured284632541115364
Rint0.04090.06910.1069
Min and Max Transmissions0.820–0.9540.633–0.9800.476–0.939
Observed Reflection (No. Variables)8467(577)8419(577)4395(285)
Reflection/Parameter Ratio14.6714.5915.42
Residuals: R1 (I > 2.00σ(I))0.05210.07030.0786
Residuals: R (All reflections)0.07120.10290.1527
Residuals: wR2 (All reflections)0.16030.20060.2629
Goodness of Fit Indicator1.0811.0831.029
Maximum peak in Final Diff. Map1.93 e−/Å32.39 e−/Å31.21 e−/Å3
Minimum peak in Final Diff. Map−0.98 e−/Å3−1.82 e−/Å3−0.75 e−/Å3
Table
Table 5. Crystallographic data for 4–6.
Table 5. Crystallographic data for 4–6.
456
Empirical FormulaC73H54AgF3O3S4Se3C73H54AgF3OS4Te3C25H18AgF3O3SSeTe·CH2Cl2
Formula Weight1509.211623.13854.83
Temperature (°C) −180(1)−180(1)−180(1)
Crystal Colour, Habitcolourless, prismyellow, prismcolourless, prism
Crystal Dimensions (mm3)0.200 × 0.100 × 0.1000.050 × 0.050 × 0.0500.030 × 0.030 × 0.030
Crystal Systemtrigonaltrigonalmonoclinic
Lattice Parametersa = 18.314(4) Åa = 18.369(5) Åa = 15.135(5) Å
--b = 10.141(3) Å
c = 33.789(8) Åc = 34.233(8) Åc = 17.970(5) Å
---
--β = 92.633(8)°
---
Volume (Å3) V = 9814(4)V = 10004(5)V = 2755(2)
Space GroupR-3R-3P21/n
Z value664
Dcalc (g/cm3)1.5321.6162.061
F000453647641640
μ (MoKα) (cm−1)21.60117.64334.070
No. of Reflections Measured207762151117001
Rint0.05220.05910.0700
Min and Max Transmissions0.507–0.8060.636–0.9160.531–0.903
Observed Reflection (No. Variables)3974(310)4060(283)5024(343)
Reflection/Parameter Ratio12.8214.3514.65
Residuals: R1 (I > 2.00σ(I))0.07970.07170.0535
Residuals: R (All reflections)0.09650.08770.0678
Residuals: wR2 (All reflections)0.24270.20920.1513
Goodness of Fit Indicator1.0611.2001.102
Maximum peak in Final Diff. Map1.88 e−/Å31.70 e−/Å31.49 e−/Å3
Minimum peak in Final Diff. Map−0.84 e−/Å3−1.70 e−/Å3−1.39 e−/Å3
Table
Table 6. Structural analysis of Ag(I) complexes 1–6, 2a, 3a constructed from the self-assembly of [Acenap(EPh)(E'Ph)] L1–L3 with AgBF4/AgOTf [a].
Table 6. Structural analysis of Ag(I) complexes 1–6, 2a, 3a constructed from the self-assembly of [Acenap(EPh)(E'Ph)] L1–L3 with AgBF4/AgOTf [a].
FormulaDonorAg(I) Ligand Structural Architecture
Geometrycoordination
1[Ag(L1)2BF4]SeSTetrahedralQuasi-chelating; Monomeric, mononuclear, 4-coordinate
2[Ag(L2)2BF4]TeSsilver(I) sandwich complex containing a
monodentate,
bent metallocene type fragment and two
3[Ag(L3)2BF4]TeSeη6-E(phenyl)η6- E(phenyl)-Ag interactions
4[Ag(L1)3CF3SO3]SeSTrigonal MonodentateMonomeric, mononuclear, 3-coordinate
5[Ag(L2)3CF3SO3]TeSplanarsilver(I) complex
6[Ag(L3)CF3SO3]nTeSeTrigonal Bis- monodentate 1D extended helical chain polymer
planarμ2-η2-bridging,containing one left-handed chain
[(-Ag-Te-C-C-C-Se-Ag-)n]
2a[Ag(L2)3BF4]TeSTrigonal MonodentateMonomeric, mononuclear, 3-coordinate
3a[Ag(L3)3BF4]TeSeplanarsilver(I) complex
[a] In order to keep the number of variables to a minimum, the reactions were carried out using a 1:1 ratio of Ag/L and run in dichloromethane.

2.1. Reactions of Silver(I) Tetrafluoroborate

2.1.1. [AgBF4(L1)2] 1, [AgBF4(L2)2] 2 & [AgBF4(L3)2] 3

Treatment of mixed-chalcogen ligands [Acenap(SePh)(SPh)] L1 and [Acenap(TePh)(SPh)] L2 with one molar equivalent of AgBF4 afforded two isomorphous, two-coordinate, monomeric silver(I) complexes [Ag(BF4){Acenap(L)}2] (1 (L1); 2 (L2); Figure 2). The corresponding reaction of [Acenap(TePh)(SePh)] L3 with AgBF4 afforded a comparable two coordinate monomeric silver(I) complex [Ag(BF4){Acenap(L3)}2] 3. Crystals suitable for X-ray diffraction were obtained in each case, by slow diffusion of hexane into a saturated dichloromethane solution of the respective product at room temperature in the absence of light. The two nearly identical asymmetric units of 1 and 2 contain four silver(I) centres, eight mixed-chalcogen ligands (L1/L2), four non-coordinating counter-anions (BF4−) and eight additional dichloromethane molecules. The asymmetric unit of 3 contains four silver(I) centres, eight L3 ligands and four non-coordinating counter-anions (BF4−), but only four solvent molecules.
Within the structural architecture of complexes 1 and 2, two crystallographically unique molecules of the unsymmetrical mixed-chalcogen acenaphthene donor (L1/L2) act as monodentate ligands, binding in each case via the least electronegative chalcogen atom (Se/Te; Figure 3). The two-coordinate central silver atom adopts a distorted bent coordination geometry, with E(1)-Ag(1)-E(2) angles of 135.14(3)° 1 and 140.40(3)° 2, respectively. An additional pair of weak η6-E(phenyl)···Ag interactions in the secondary coordination sphere completes a quasi-tetrahedral geometry around the central silver atom creating a bent metallocene type fragment within each sandwich complex [1 Ag1-Se1 2.6252(7) Å, Ag1-Se2 2.6236(7) Å; Ag1···cg(19-24) 3.003(1) Å, Ag1···cg(49-54) 2.982(1) Å; angles in the range 89.4(1)–139.3(1)°; 2 Ag1-Te1 2.7053(9) Å, Ag1-Te2 2.7066(9) Å; Ag1···cg(19-24) 3.065(1) Å, Ag1···cg(49-54) 3.054(1) Å; angles in the range 88.1(1)–141.1(1)°; Figure 4]. Complex 3 adopts a comparable motif to 1 and 2 but as a consequence of the symmetry (crystallising in the monoclinic C2/c space group) only one crystallographically independent L3 ligand is present within the crystal structure. [Ag1-Te1 2.7023(12) Å; Te1-Ag1-Te11 144.55(6)°; Ag1···cg(19-24) 3.119(1) Å; angles in the range 87.7(1)–155.4(1)°].
Molecules 17 13307 g002 550

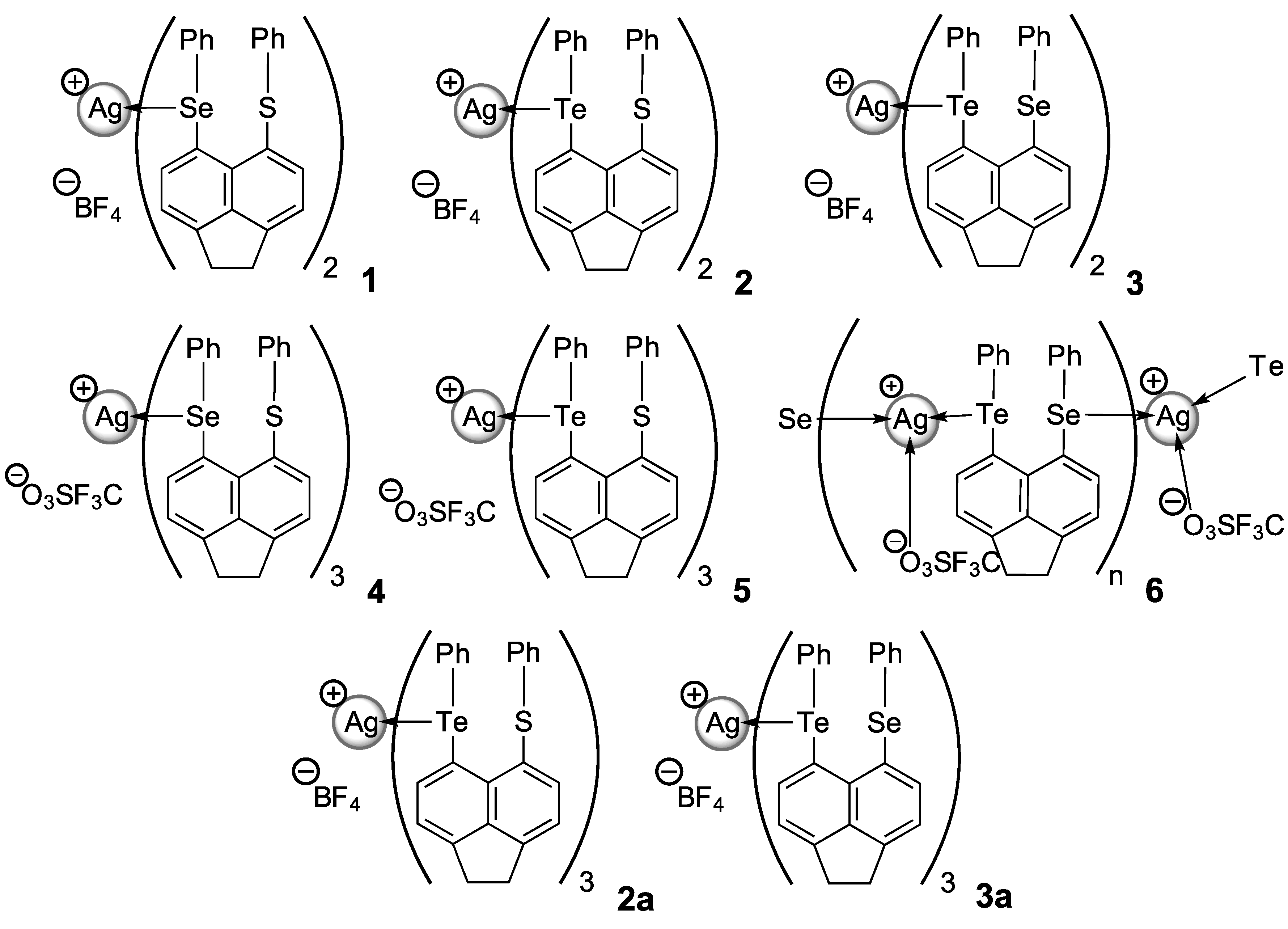

Figure 2. Silver(I) coordination complexes 1–6 (and 2a, 3a recrystallisation products of 2 and 3 respectively) prepared by the self-assembly of [Acenap(EPh)(E'Ph)] (E/E' = S, Se, Te) L1–L3 with AgBF4 and AgOTf.
Figure 2. Silver(I) coordination complexes 1–6 (and 2a, 3a recrystallisation products of 2 and 3 respectively) prepared by the self-assembly of [Acenap(EPh)(E'Ph)] (E/E' = S, Se, Te) L1–L3 with AgBF4 and AgOTf.
Molecules 17 13307 g002
Molecules 17 13307 g003 550

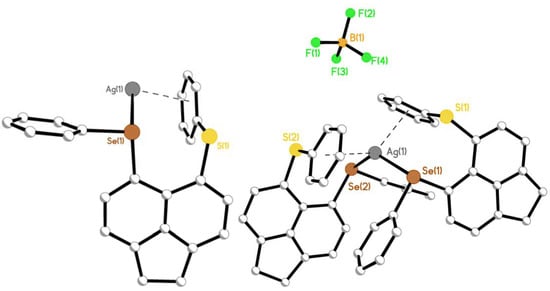

Figure 3. Two crystallographically distinct L1 ligands bind to the silver(I) center via monodentate selenium coordination (left) to form complex 1 (right; H atoms and solvent molecules omitted for clarity). The structures of 2 and 3 (adopting similar conformations to 1) are omitted here but can be found in Figure S1 in the ESI.
Figure 3. Two crystallographically distinct L1 ligands bind to the silver(I) center via monodentate selenium coordination (left) to form complex 1 (right; H atoms and solvent molecules omitted for clarity). The structures of 2 and 3 (adopting similar conformations to 1) are omitted here but can be found in Figure S1 in the ESI.
Molecules 17 13307 g003
Molecules 17 13307 g004 550

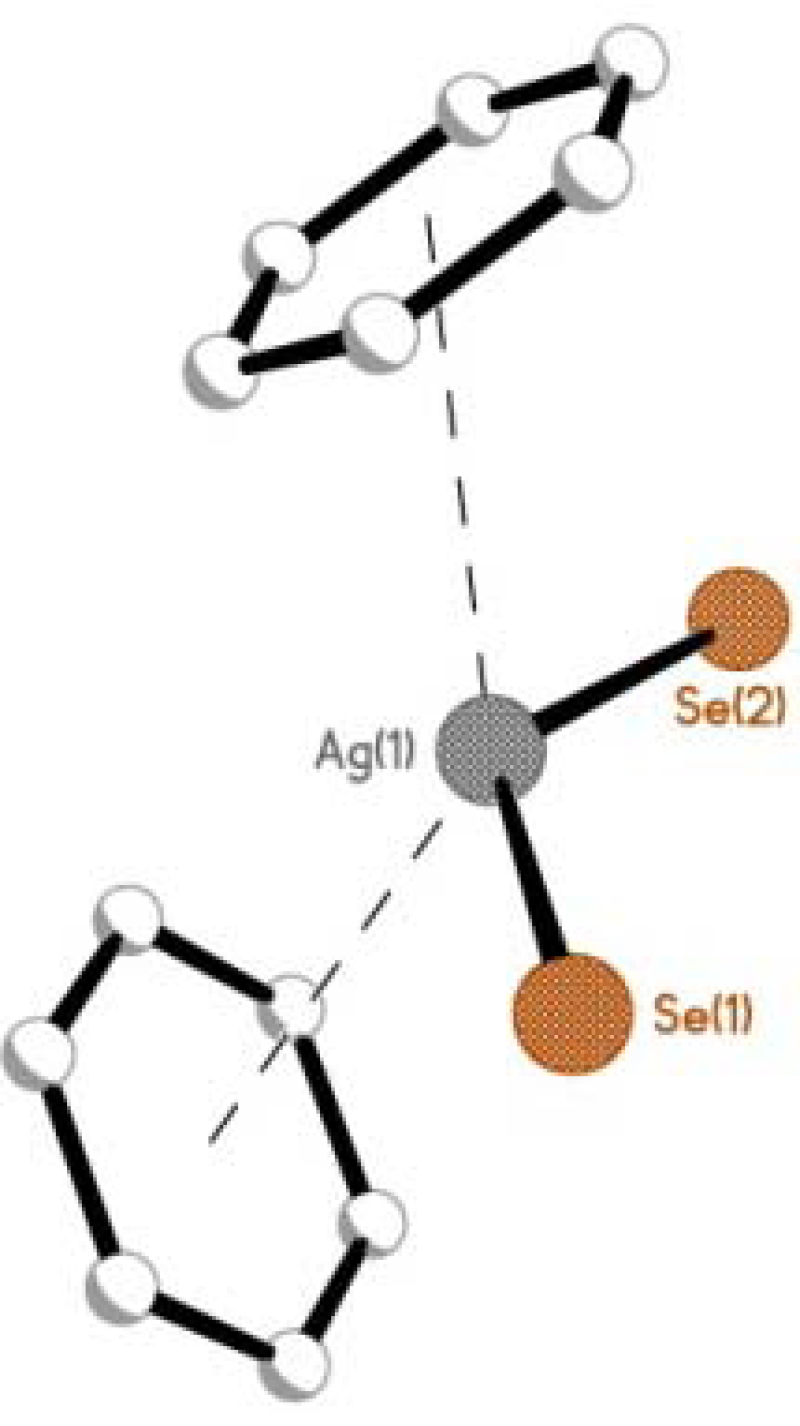

Figure 4. The bent metallocene motif found at the center of complex 1, formed from two η6-S(phenyl)···Ag interactions. Comparative fragments found in complexes 2 and 3 are displayed in Figure S1, ESI.
Figure 4. The bent metallocene motif found at the center of complex 1, formed from two η6-S(phenyl)···Ag interactions. Comparative fragments found in complexes 2 and 3 are displayed in Figure S1, ESI.
Molecules 17 13307 g004
In all three structures the geometry around the silver centre is governed by the conformation of the rigid acenaphthene supports. The axial-equatorial conformation of the aromatic rings in both acenaphthene fragments of each complex (type AB) [56,57,58,59,60,61,62,63,64,65,66,67,68], positions the E-CPh bonds close to the acenaphthene plane with the secondary (E'-CPh) bond aligned perpendicular to it [in each case χ(E) < χ(E'); E is the monodentate coordinating chalcogen donor]. The two facially bound axial E'(phenyl) rings are orientated parallel to their respective CAcenap-E'-CPh plane and subsequently linked to the adjacent silver centre via a η6-E'(phenyl)···silver type interaction to complete a quasi-chelate ring in each case (Figure 3). Coordination to silver has no significant effect on the conformation of the acenaphthene components or the degree of molecular distortion occurring within the organic frameworks of 1–3 compared with parent ligands L1–L3 [49,50,51].The degree of distortion is related to the size of the atoms residing in the bay-region, with an expected lengthening of the peri-gap observed as the heavier congeners are located at the 5,6-positions along the series [1 Se(1)···S(1) 3.1122(15) Å, Se(2)···S(2) 3.1018(16) Å (cf. 3.113(4) Å L1); 2 Te(1)···S(1) 3.1502(16) Å, Te(2)···S(2) 3.1581(16) Å (cf. 3.1576(15) Å L2); 3 Te(1)···Se(1) 3.2342(18) Å (cf. 3.2479(19) Å L3)] [49,50,51].
Neighbouring acenaphthene and phenyl rings in 1–3 stack along the z-axis and connect via weak CH···π interactions [2.73–2.95 Å] [69,70,71,72,73,74].Silver atoms subsequently align in columns, with the closest Ag···Ag distances between adjacent silver atoms of 1 8.481(1) Å, 2 8.515(1) Å, 3 8.856(1) Å. The non-coordinating BF4− counter-anions and dichloromethane solvent molecules interact via weak intermolecular CH···F interactions [2.27–2.52 Å], aligning to form weakly held 1D chains along the z-axis. The anion-solvent chains lie in the channels between the acenaphthene moieties and interact with the organic framework via additional CH···π, CH···F and CH···Cl interactions (Figure 5).
Molecules 17 13307 g005 550

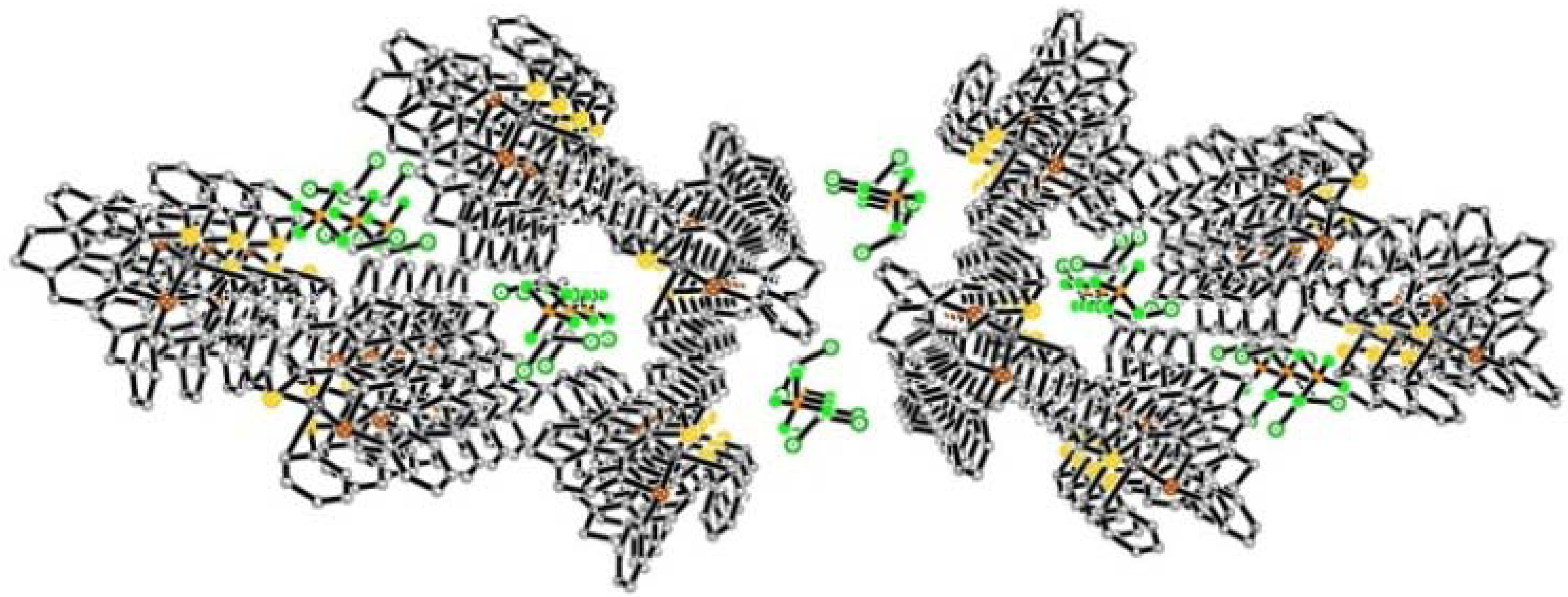

Figure 5. Complex 1 viewed down the z-axis; BF4− counter-anions and dichloromethane solvent molecules stack in channels between the acenaphthene fragments. The packing of complexes 2 and 3, viewed down the y-axis is displayed in Figure S, ESI2.
Figure 5. Complex 1 viewed down the z-axis; BF4− counter-anions and dichloromethane solvent molecules stack in channels between the acenaphthene fragments. The packing of complexes 2 and 3, viewed down the y-axis is displayed in Figure S, ESI2.
Molecules 17 13307 g005

2.2. Reactions of Silver(I) Trifluoromethanesulfonate

2.2.1. [AgOTf(L1)3] 4 & [AgOTf(L2)3] 5

In contrast to the reactions with AgBF4, treatment of L1 and L2 with one molar equivalent of AgOTf afforded two isomorphous three-coordinate, monomeric, silver(I) complexes [Ag(OTf){Acenap(L)}3] (4 (L1); 5 (L2); Figure 2 and Figure 6). Crystals suitable for X-ray diffraction were obtained by slow diffusion of hexane into a saturated dichloromethane (4), dichloromethane/methanol (5) solution of the respective product. Recrystallisations of both products were performed at room temperature, in the absence of light to prevent the complexes from decomposing. The two nearly identical asymmetric units contain six silver(I) centres, eighteen mixed-donor ligands (L1/L2) and interestingly six non-coordinating triflate counter-anions.
Molecules 17 13307 g006 550

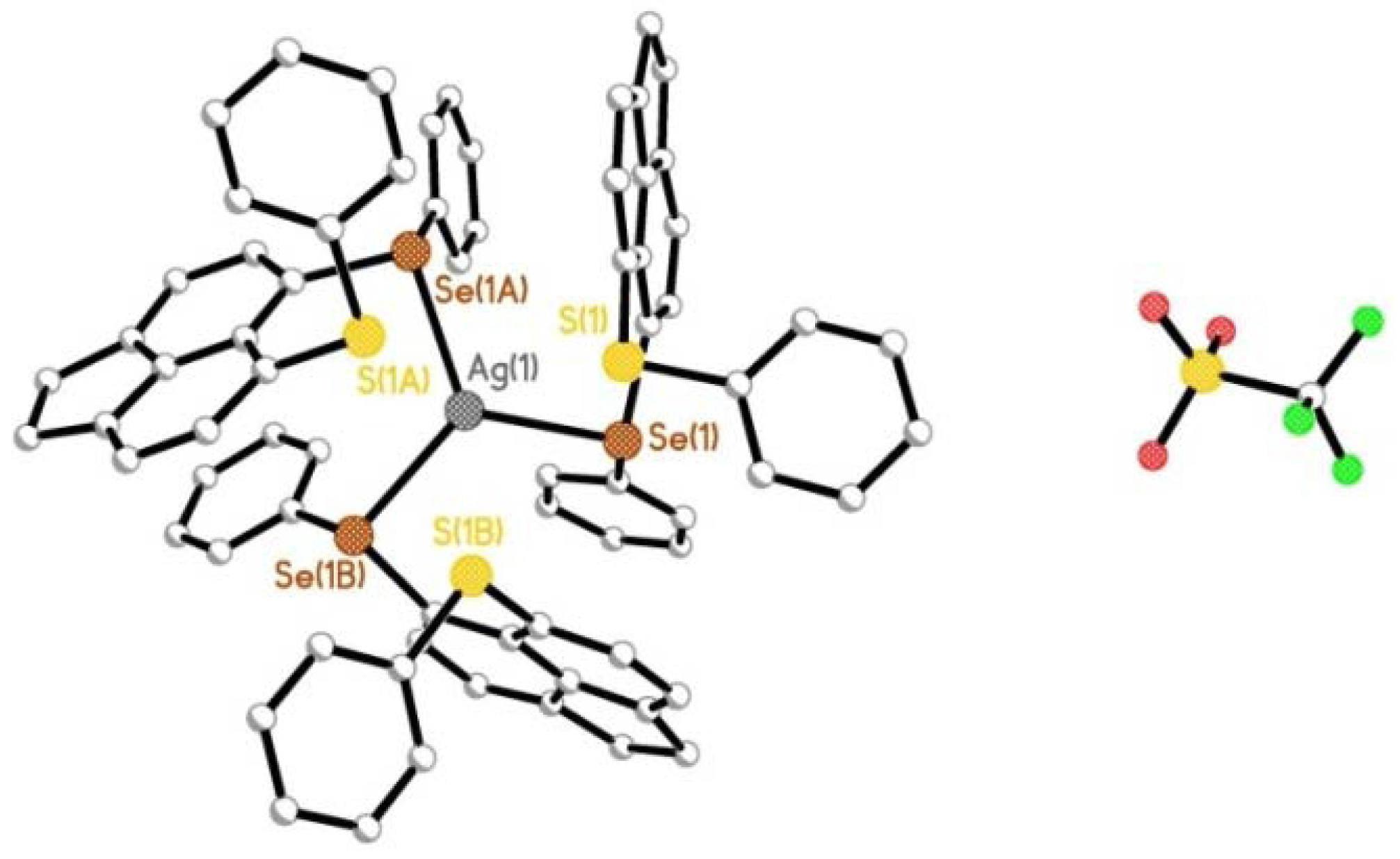

Figure 6. The three coordinate, mononuclear silver(I) complex 4 (H atoms omitted for clarity). The structure of 5 (adopting a similar conformation to 4) is omitted here but can be found in Figure S3 in the ESI.
Figure 6. The three coordinate, mononuclear silver(I) complex 4 (H atoms omitted for clarity). The structure of 5 (adopting a similar conformation to 4) is omitted here but can be found in Figure S3 in the ESI.
Molecules 17 13307 g006
Similar to 3, complexes 4 and 5 crystallise in the monoclinic C2/c space group ensuring only one crystallographically independent ligand is present in each crystal structure; three crystallographically identical molecules of the respective ligand (L1/L2) thus bind with silver via monodentate Se/Te coordination to afford the monomeric complex. The central silver atom adopts a classical trigonal planar coordination geometry, lying 0.179(1) Å and 0.042(1) Å above the mean E1-E11-E12 plane in 4 and 5, respectively [4 Ag1-Se1 2.628(14) Å, Se1-Ag1-Se11 119.5(4)°; 5 Ag1-Te1 2.7304(8) Å, Te1-Ag1-Te11 119.977(6)°; Figure 6]. In the secondary coordination sphere, additional intramolecular Ag1···S contacts [4 3.42(3) Å; 5 3.5986(10) Å], shorter than the sum of van der Waals radii for the two interacting atoms [55], complete a quasi-chelate ring with the central silver atom which assumes a distorted trigonal prismatic geometry [4 Se1-Ag1-S1 angles 60.88(1)°, 89.07(1)°, 130.97(1)°, S1-Ag1-S11 70.26(1)°; 5 Te1-Ag1-S1 angles 58.13(1)°, 86.07(1)°, 129.08(1)°, S1-Ag1-S11 71.38(1)°; Figure 7 and Figure 8]. The AgESC3 six-membered quasi-chelate rings subsequently formed adopt twisted envelope type conformations, hinged about the E···S vectors. In each case, E1, C1, C9, C10 are essentially coplanar with S1 lying 4 0.374(1) Å and 5 0.317(1) Å below the plane and Ag1 sitting in the peri-gap, displaced 4 2.378(1) Å and 5 2.554(1) Å above the plane. The Ag1-E1-S1 plane in 4 is inclined by 97.53(1)°, with a more acute angle of 93.90(1)° displayed by 5 (Figure 8).
Molecules 17 13307 g007 550

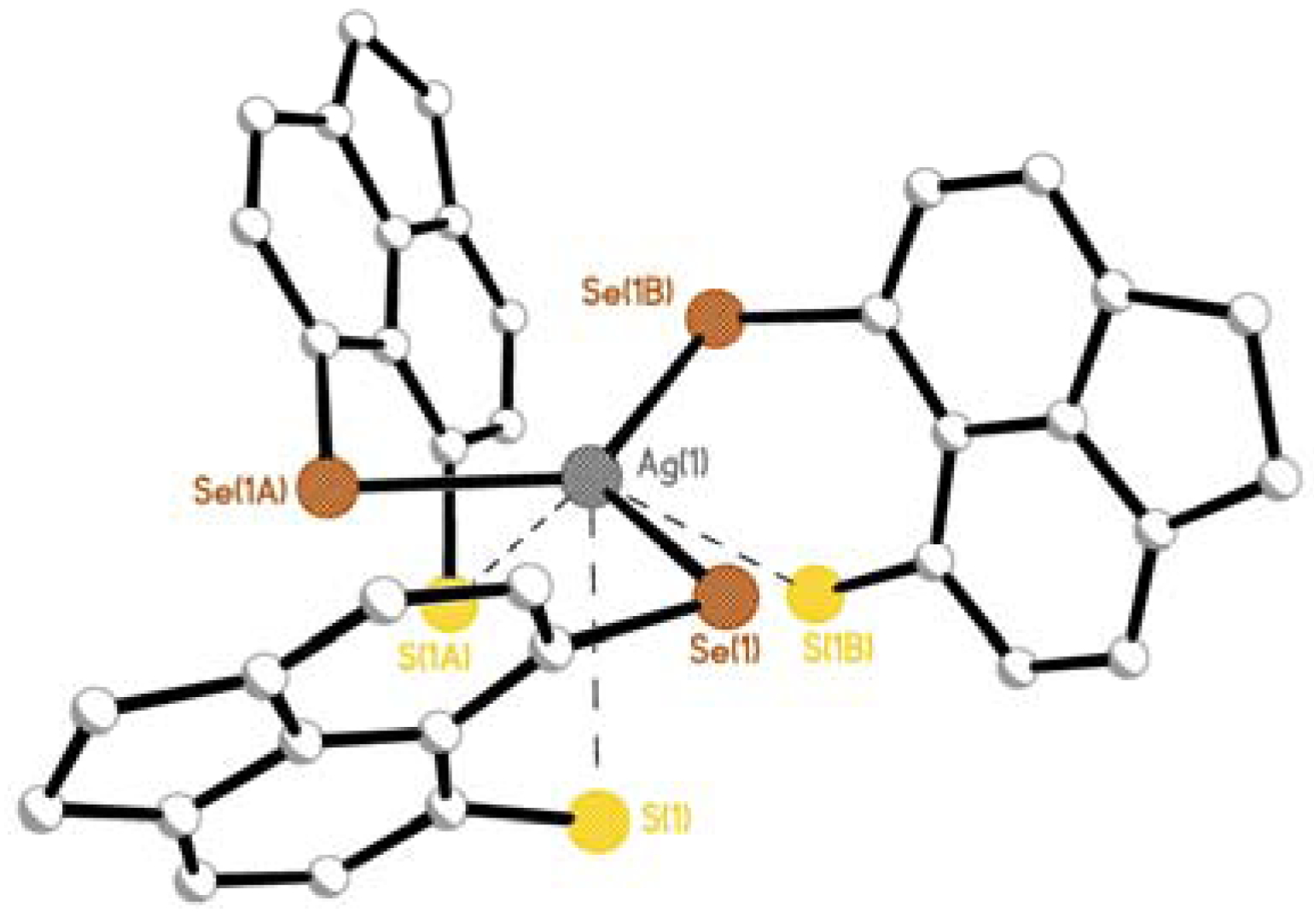

Figure 7. Weak Ag1···S1 contacts in the secondary coordination sphere affords a distorted quasi-trigonal prismatic geometry around the central silver atom in 4 and 5 (phenyl rings and H atoms omitted for clarity; complex 4 shown).
Figure 7. Weak Ag1···S1 contacts in the secondary coordination sphere affords a distorted quasi-trigonal prismatic geometry around the central silver atom in 4 and 5 (phenyl rings and H atoms omitted for clarity; complex 4 shown).
Molecules 17 13307 g007
Molecules 17 13307 g008 550

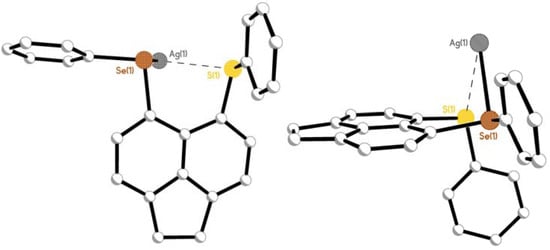

Figure 8. Short Ag1···S1 contacts in 4 and 5 construct 6-membered quasi-chelate rings which adopt twisted envelope type conformations (H atoms omitted for clarity; complex 4 shown).
Figure 8. Short Ag1···S1 contacts in 4 and 5 construct 6-membered quasi-chelate rings which adopt twisted envelope type conformations (H atoms omitted for clarity; complex 4 shown).
Molecules 17 13307 g008
Within the structural architecture adopted by complexes 4 and 5, each acenaphthene component adopts an axial-equatorial conformation of aromatic rings (type AB) [56,57,58,59,60,61,62,63,64,65,66,67,68], aligning the E-CPh bond along the organic backbone and the S-CPh bond perpendicular to the plane and directed away from the centre of the molecule. In both cases, coordination to silver has a limited impact on the degree of molecular distortion occurring in the organic backbone, with observed non-bonded intramolecular E1···S1 distances (4 3.14(4) Å; 5 3.1669(10) Å) comparable to those of the free ligands L1 (3.113(4) Å) and L2 (3.1576(15) Å).[49,50,51] Within the extended structure, adjacent molecules interact via weak CH···π interactions [C3-H3···cg(19-24) 4 2.62 Å, 5 2.68 Å; C8-H8···cg(19-24) 4 2.91 Å, 5 2.90 Å] [69,70,71,72,73,74], stacking neighbouring silver centres in columns along the z-axis, with closest intermolecular Ag···Ag contacts 4 9.468(1) Å and 5 9.728(1) Å.

2.2.2. [AgOTf(L3)]n 6

In stark contrast to the previously described set of reactions, treatment of the mixed selenium-tellurium ligand [Acenap(TePh)(SePh)] L3 with AgOTf afforded a mononuclear one-dimensional (1D) extended helical chain polymer [Ag(CF3SO3){Acenap(TePh)(SePh)}]n 6 (Figure 9). Crystals suitable for X-ray diffraction were obtained by slow diffusion of hexane into a saturated solution of 6 in dichloromethane, at room temperature in the absence of light. The asymmetric unit contains four silver(I) centres, four mixed tellurium-selenium L3 ligands, four coordinating triflate counter-anions and four dichloromethane solvent molecules.
Molecules 17 13307 g009 550

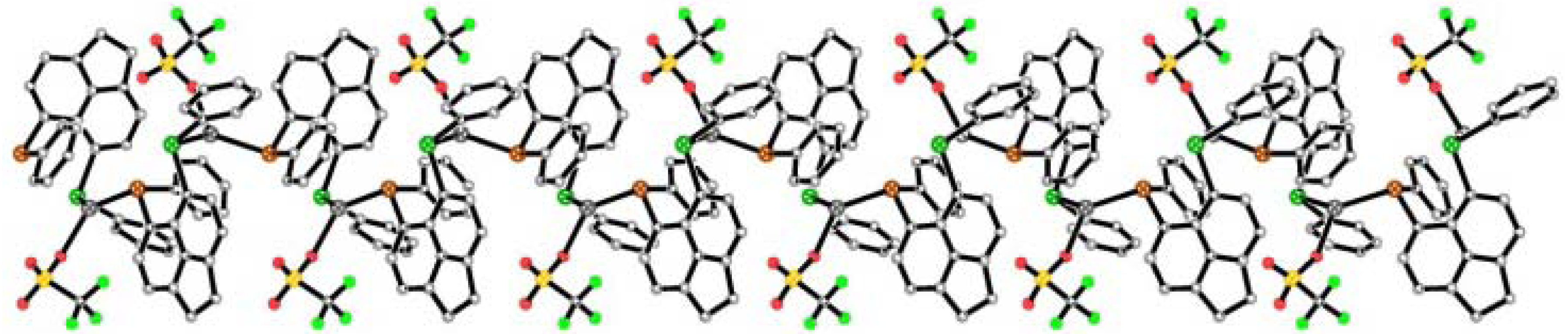

Figure 9. View of the 1D extended helical chain polymer 6 along the x-axis (H atoms and solvent molecules omitted for clarity).
Figure 9. View of the 1D extended helical chain polymer 6 along the x-axis (H atoms and solvent molecules omitted for clarity).
Molecules 17 13307 g009
Within the extended structure, the μ2-η2-bridging L3 ligand binds simultaneously through both tellurium and selenium to independent silver(I) ions via bis-monodentate coordination (Figure 10). In turn, each silver(I) centre is coordinated to a Te and Se atom from two independent L3 ligands, with the coordination of a single O atom of a neighbouring triflate molecule completing a quasi-trigonal planar geometry; Te1, Se1, O1, are coplanar with Ag1 displaced 0.246(1) Å above the mean Te1-Se11-O1 plane [Ag1-Te1 2.6807(11) Å, Ag1-Se11 2.6013(12) Å, Ag1-O1 2.360(6) Å; X-Ag1-Y 111.72(15)°-132.70(4)°; Figure 10].
Repeating (L3AgOTf)n units assembled from μ2-η2-bridging L3 ligands, propagate along the z-axis forming one-dimensional (1D) chains incorporating a single C-Te-Se-Ag helix (Figure 9,Figure 10,Figure 11). Silver(I) ions interconnect via Te-C-C-C-Se bridges from independent L3 ligands to form a left-handed helix [(-Ag-Te-C-C-C-Se-Ag-)n; Figure 11]. The silver atoms align in two columns with the closest non-bonding Ag···Ag distance 5.929(1) Å (Figure 12). Within each helical chain weak non-bonding intermolecular CH···π interactions [69,70,71,72,73,74] exist between H14 and centroid cg(19–24) of neighbouring acenaphthene fragments [2.81 Å]. Two additional weak CH···O type interactions between acenaphthene and triflate moieties also participate in the construction of the helix [H8···O1 2.56 Å; H23···O2 2.57 Å].
Molecules 17 13307 g010 550

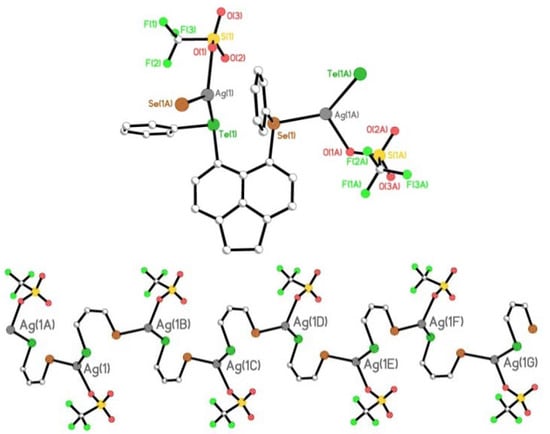

Figure 10. The repeating unit of extended helical chain polymer 6 (top; H atoms and solvent molecules omitted for clarity) and the central core of the repeating unit showing the three coordinate, trigonal planar silver(I) geometry (bottom).
Figure 10. The repeating unit of extended helical chain polymer 6 (top; H atoms and solvent molecules omitted for clarity) and the central core of the repeating unit showing the three coordinate, trigonal planar silver(I) geometry (bottom).
Molecules 17 13307 g010
Molecules 17 13307 g011 550

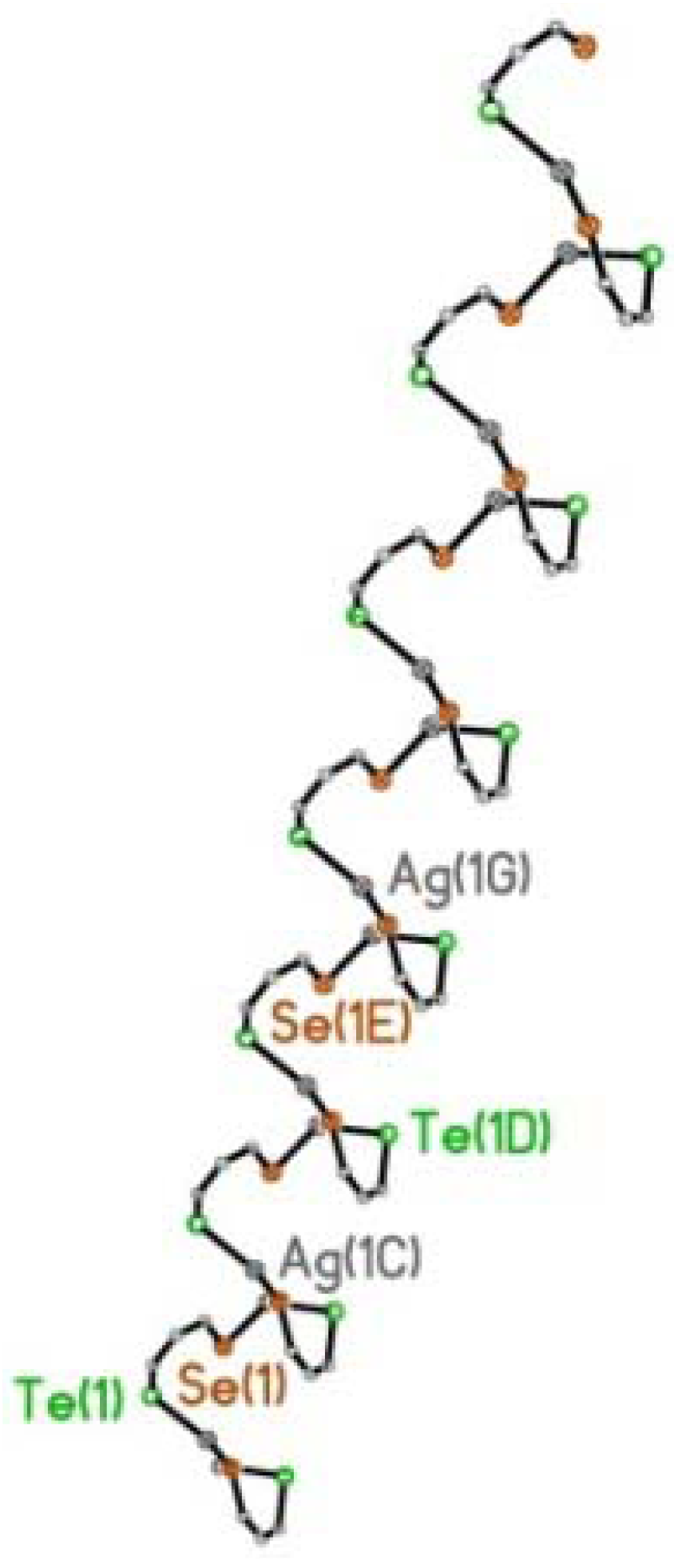

Figure 11. .Silver(I) ions interconnect via Te-C-C-C-Se bridges from independent L3 ligands to form a left-handed helix [(-Ag-Te-C-C-C-Se-Ag-)n].
Figure 11. .Silver(I) ions interconnect via Te-C-C-C-Se bridges from independent L3 ligands to form a left-handed helix [(-Ag-Te-C-C-C-Se-Ag-)n].
Molecules 17 13307 g011
Similarly, parallel helical chains aligning along the z-axis (Figure 12) also interact via weak CH···π interactions [69,70,71,72,73,74] between neighbouring acenaphthene fragments [C12-H12···cg(5-10) 2.92 Å], whilst CH···O interactions link acenaphthenes with triflate anions from the next helical chain [C11-H11···O1 2.40 Å]. Dichloromethane solvent molecules locate in channels formed by neighbouring helical chains and weakly coordinate to triflate anions via CH···O interactions [C26A-H26A···O3 2.68 Å].
Molecules 17 13307 g012 550

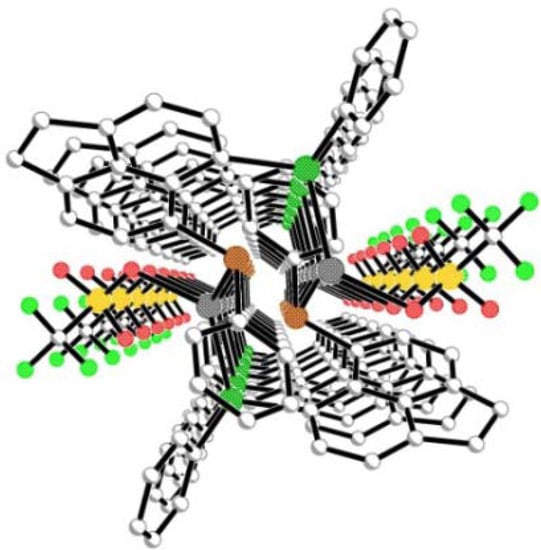

Figure 12. View of the 1D extended helical chain polymer 6 along the z-axis; silver atoms align in two columns with the closest non-bonding Ag···Ag distance 5.929(1) Å.
Figure 12. View of the 1D extended helical chain polymer 6 along the z-axis; silver atoms align in two columns with the closest non-bonding Ag···Ag distance 5.929(1) Å.
Molecules 17 13307 g012
Upon coordination to silver no significant alteration is observed to the acenaphthene backbone, with only a minor reduction in the non-bonding Te···Se distance from 3.2479(19) Å in the free ligand L3 [49,50,51] to 3.2417(11) Å in 6. The Te-CPh bond adopts an equatorial arrangement aligning along the mean plane with the Se-CPh bond occupying an axial orientation, perpendicular to the plane [68]. This configuration (type AB, comparable to L3) [56,57,58,59,60,61,62,63,64,65,66,67] aligns the Se(phenyl) ring close to the acenaphthene backbone promoting a close intramolecular CH···π interaction [H24···cg(5-10) 2.95 Å] [69,70,71,72,73,74].

2.2.3. [AgBF4(L2)3] 2a & [AgBF4(L3)3] 3a

Experimental conditions such as central metal ion oxidation state, the metal-to-ligand ratio, the nature and spacer length of the bridging ligand, the presence of solvents and the type of counter-anions can have a profound influence on the structural architecture of the final complex and adds unpredictability to the self-assembly process [10,11,12,13,14]. Techniques and solvents used in the recrystallisation process can also affect the outcome of the final product. A subtle adjustment to the recrystallisation solvent systems for complexes 2 and 3 afforded two nearly identical three-coordinate, mononuclear, monomeric silver(I) complexes [Ag(BF4){Acenap(TePh)(EPh)}3] (2a E = S, 3a E = Se) with structures analogous to complexes 4 and 5. Crystals suitable for X-ray diffraction were obtained by slow diffusion of hexane into saturated dichloromethane/methanol (2) and tetrahydrofuran (3) solutions of the respective product. Further information on the crystal structures of 2a and 3a can be found in the ESI.

3. Experimental

3.1. General

All experiments were carried out under an oxygen- and moisture-free nitrogen atmosphere using standard Schlenk techniques and glassware. Reagents were obtained from commercial sources and used as received. Dry solvents were collected from a MBraun solvent system. Elemental analyses were performed by Stephen Boyer at the London Metropolitan University. Infra-red spectra were recorded as KBr discs in the range 4000–300 cm−1 on a Perkin-Elmer System 2000 Fourier transform spectrometer. 1H- and 13C-NMR spectra were recorded on a Jeol GSX 270 MHz spectrometer with δ(H) and δ(C) referenced to external tetramethylsilane. 77Se and 125Te-NMR spectra were recorded on a Jeol GSX 270 MHz spectrometer with δ(Se) and δ(Te) referenced to external Me2Se and Me2Te respectively, with a secondary reference for δ(Te) to diphenyl ditelluride [δ(Te) = 428 ppm]. 19F-NMR spectra were recorded on a Bruker Ultrashield 400 MHz spectrometer with δ(F) referenced to external trichlorofluoromethane. Assignments of 13C and 1H-NMR spectra were made with the help of H-H COSY and HSQC experiments. All measurements were performed at 25 °C. All values reported for NMR spectroscopy are in parts per million (ppm). Coupling constants (J) are given in Hertz (Hz). Mass spectrometry was performed by the University of St. Andrews Mass Spectrometry Service. Electrospray Mass Spectrometry (ESMS) was carried out on a Micromass LCT orthogonal accelerator time of flight mass spectrometer.
[AgBF4{Acenap(SePh)(SPh)}2] (1). To a solution of AgBF4 (0.10 g, 0.53 mmol) in dichloromethane (20 mL) was added [Acenap(SePh)(SPh)] (0.22 g, 0.53 mmol) in one batch at −30 °C. The reaction mixture was stirred at this temperature for 3 h and then at room temperature for a further 12 h. The solvent was removed in vacuo. The crude product was washed with diethyl ether and the brown precipitate which formed was collected by filtration. An analytically pure sample was obtained by recrystallization from diffusion of hexane into a saturated dichloromethane solution of the product (0.28 g, 97%); m.p. 200–202 °C (decomp); 1H-NMR [270 MHz, (CD3)2CO, 25 °C, TMS] δ = 7.84 (2 H, d, 3J (H,H) = 7.3, 2 × Acenap 4-H), 7.66–7.59 (4 H, 2 × SePh 12,16-H), 7.59–7.50 (2 H, m, 2 × SePh 14-H), 7.50–7.36 (6 H, m, 2 × Acenap 7-H, 2 × SePh 13,15-H), 7.35–7.25 (4 H, m, 2 × SPh 19-21-H), 7.25–7.14 (4 H, m, 2 × Acenap 3-H, 2 × SPh 20-H), 7.14–7.00 (6 H, m, 2 × Acenap 8-H, 2 × SPh 18,22-H), 3.50–3.33 (8 H, m, 4 × CH2); 13C-NMR [67.9 MHz, (CD3)2CO, 25 °C, TMS]: δ = 149.5(q), 146.0(q), 143.3(q), 142.4(s), 140.9(q), 137.4(s), 133.5(s), 131.7(s), 131.4(s), 130.8(s), 130.2(q), 127.8(s), 127.5(s), 127.3(q), 122.5(s), 122.4(s), 118.5(q), 112.9(q), 31.4(s, CH2), 30.2(s, CH2); 77Se-NMR [51.5 MHz, (CD3)2CO, 25 °C, PhSeSePh]: δ = 379.1 (s); 19F-NMR [376.5 MHz, (CD3)2CO, 25 °C, CCl3F] −152.2(br s, 10BF4−) δ = − 152.3(br s, 11BF4−); IR (KBr disk): vmax cm−1: 2951w, 2930w, 2916w, 2840w, 2823w, 2376w, 2333w, 2118w, 2055w, 1636w, 1589s, 1574s, 1474s, 1436s, 1414s, 1325s, 1301s, 1282w, 1258w, 1234w, 1208w, 1157s, 1090vs, 1054vs, 838s, 816s, 745vs, 686vs, 625w, 606s, 552w, 519s, 459s, 401w, 351w, 309w; MS (ES+): m/z (%): 942.61 (100) [M+−BF4−]; elemental analysis calcd (%) for C48H36AgBF4S2Se2: C 55.9, H 3.5; Found: C 55.8, H 3.5.
[AgBF4{Acenap(TePh)(SPh)}2] (2). Complex 2 was obtained following the method described previously for 1 but with AgBF4 (0.12 g, 0.64 mmol), [Acenap(TePh)(SPh)] (0.30 g, 0.64 mmol). An analytically pure sample was obtained by recrystallization from diffusion of hexane into a saturated dichloromethane/methanol solution of the product (0.34 g, 94%); m.p. 125–127 °C (decomp); 1H-NMR [270 MHz, CD3CN, 25 °C, TMS] δ = 7.85 (1 H, d, 3J (H,H) = 7.2, Acenap 4-H), 7.53–7.46 (2 H, m, TePh 12,16-H), 7.44 (1 H, d, 3J (H,H) = 7.4, Acenap 3-H), 7.34 (1 H, d, 3J (H,H) = 7.2, Acenap 7-H), 7.32–7.12 (7 H, m, Acenap 8-H, TePh 13-15-H, SPh 19-21-H ), 7.03–6.95 (2 H, m, SPh 18,22-H), 3.35–3.22 (4 H, m, 2 × CH2); 13C-NMR [67.9 MHz, CD3CN, 25 °C, TMS]: δ = 151.6(q), 148.0(q), 144.0(q), 140.9(s), 139.6(s), 136.6(q), 134.9(q), 133.4(q), 132.7(q), 131.0(s), 129.7(s), 129.3(s), 129.1(s), 126.3(s), 126.1(s), 125.9(s), 121.4(s), 119.6(q), 29.7(s, CH2), 29.1(s, CH2); 125Te-NMR [81.2 MHz, CD3CN, 25 °C, PhTeTePh]: δ = 567.0(s); 19F-NMR [376.5 MHz, CD3CN, 25 °C, CCl3F]: δ = −152.3(br s, 10BF4−), -152.4(br s, 11BF4−); IR (KBr disk): vmax cm−1: 2989w, 2926w, 2828w, 2664w, 2531w, 2380w, 2266w, 1946s, 1881s, 1729w, 1631w, 1593s, 1572s, 1474s, 1434s, 1408w, 1333s, 1300w, 1272w, 1232w, 1210w, 1180w, 1155w, 1054vs, 996vs, 845s, 816w, 737vs, 689vs, 625w, 603w, 580w, 549w, 519w, 501w, 488w, 455w, 402w; MS (ES+): m/z (%): 1040.19 (100) [M+−BF4−]; elemental analysis calcd (%) for C48H36AgBF4S2Te2: C 51.0, H 3.2; Found: C 50.9, H 3.1.
[AgBF4{Acenap(TePh)(SePh)}2] (3). Complex 3 was obtained following the method described previously for 1 but with AgBF4 (0.12 g, 0.63 mmol), [Acenap(TePh)(SePh)] (0.32 g, 0.63 mmol). An analytically pure sample was obtained by recrystallization from diffusion of hexane into a saturated dichloromethane solution of the product (0.34 g, 88%); m.p. 100–105 °C (decomp); 1H-NMR [270 MHz, (CD3)2CO, 25 °C, TMS]: δ = 8.73 (1 H, d, 3J (H,H) = 7.6, Acenap 4-H), 8.15 (1 H, d, 3J (H,H) = 7.3, Acenap 7-H), 7.99 (1 H, d, 3J (H,H) = 7.6, Acenap 3-H), 7.79–7.65 (3 H, m, Acenap 8-H, TePh 12,16-H), 7.56–7.50 (1 H, m, TePh 14-H), 7.50–7.41 (2 H, m, TePh 13,15-H), 7.39–7.23 (3 H, m, SePh 19-21-H), 7.16–7.05 (2 H, m, SePh 18,22-H), 3.78–3.58 (4 H, m, 2 × CH2); 13C-NMR [67.9 MHz, (CD3)2CO, 25 °C, TMS]: δ = 153.8(q), 152.4(q), 140.6(s), 137.1(q), 134.6(s), 132.4(q), 132.1(s), 132.0(s), 130.6(q), 130.0(s), 129.9(s), 128.9(q), 128.7(s), 128.4(s), 122.4(q), 121.9(q), 30.3(s, CH2), 30.0(s, CH2); 77Se-NMR [51.5 MHz, (CD3)2CO, 25 °C, PhSeSePh]: δ = 322.6(s); 125Te-NMR (81.2 MHz, (CD3)2CO, 25 °C, PhTeTePh): δ = 544.1(s); 19F-NMR [376.5 MHz, (CD3)2CO, 25 °C, CCl3F]: δ = −151.6(br s, 10BF4−), −151.7(br s, 11BF4−); IR (KBr disk): vmax cm−1: 2859w, 2681w, 2366w, 2199w, 1692w, 1872w, 1814w, 1734w, 1720w, 1703w, 1655vs, 1641vs, 1589s, 1571s, 1553w, 1542w, 1505w, 1474s, 1435s, 1419s, 1352w, 1327s, 1296w, 1276w, 1257w, 1229w, 1183w, 1053vs, 1019vs, 996vs, 903w, 845s, 813s, 764w, 735vs, 687s, 665w, 637w, 614w, 598w, 572w, 519w, 489w, 471w, 452s, 394w, 337w; MS (ES+): m/z (%): 1134.24 (50) [M+−BF4−]; elemental analysis calcd (%) for C48H36AgBF4Se2Te2: C 47.2, H 3.0; Found: C 47.1, H 3.1.
[AgCF3SO3{Acenap(SePh)(SPh)}3] (4). To a solution of AgCF3SO3 (0.13 g, 0.51 mmol) in dichloromethane (20 mL) was added [Acenap(SePh)(SPh)] (0.22 g, 0.51 mmol) in one batch at −30 °C. The reaction mixture was stirred at this temperature for 3 h and then at room temperature for a further 12 h. The solvent was removed in vacuo to afford the product as a white crystalline solid. An analytically pure sample was obtained by recrystallization from diffusion of hexane into a saturated dichloromethane solution of the product (0.26 g, 67%); m.p. 72–74 °C (decomp); 1H-NMR [270 MHz, CDCl3, 25 °C, TMS]: δ = 7.79 (2 H, d, 3J (H,H) = 7.3, 2 x Acenap 4-H), 7.57–7.47 (4 H, 2 × SePh12,16-H), 7.38–7.28 (2 H, m, 2 × SePh 14-H), 7.28–7.18 (4 H, m, 2 × SePh 13,15-H), 7.13–7.00 (8 H, m, 2 × Acenap 3-H, 2 × SPh 19-21-H), 7.00–6.94 (4 H, m, 2 × SPh 18,22-H), 6.94–6.86 (4 H, m, 2 × Acenap 7,8-H), 3.25–3.11 (8 H, m, 2 × CH2CH2); 13C-NMR [67.9 MHz, CDCl3, 25 °C, TMS]: δ = 151.5(q), 148.3(q), 142.0(q), 141.9(s), 137.5(q), 136.8(s), 133.1(s), 131.8(q), 130.8(s), 130.5(s), 130.1(s), 128.1(q), 127.7(s), 127.6(s), 123.0(q), 121.6(s), 121.5(s), 118.5(q), 30.9(s, 2 x CH2), 30.3(s, 2 × CH2); 77Se-NMR [51.5 MHz, CDCl3, 25 °C, PhSeSePh]: δ = 369.9 (s); 19F-NMR [376.5 MHz, CDCl3, 25 °C, CCl3F]: δ = -77.9(s); IR (KBr disk): vmax cm−1: 2923w, 2833w, 2344w, 1955w, 1873w, 1803w, 1720w, 1656w, 1597s, 1575s, 1476s, 1439s, 1412s, 1358w, 1330s, 1289vs, 1232vs, 1162vs, 1112s, 1069s, 1023vs, 841s, 739vs, 687vs, 633vs, 572w, 514s, 463w, 401w, 349w, 311w; MS (ES+): m/z (%): 524.62 (20) [C24H18S2Ag+], 941.74 (100) [(C24H18S2)2Ag+]; elemental analysis calcd (%) for C73H54AgF3O3S4Se3: C 58.0, H 3.6; Found: C 57.9, H 3.5.
[AgCF3SO3{Acenap(TePh)(SPh)}3] (5). Complex 5 was obtained following the method described previously for 4 but with AgCF3SO3 (0.14 g, 0.54 mmol), [Acenap(TePh)(SPh)] (0.25 g, 0.54 mmol). An analytically pure sample was obtained by recrystallization from diffusion of hexane into a saturated dichloromethane/methanol solution of the product (0.21 g, 70%); m.p. 200–202 °C(decomp); 1H-NMR [270 MHz, CD3CN, 25 °C, TMS]: δ = 7.91 (3 H, d, 3J (H,H) = 7.2, 3 × Acenap 4-H), 7.83–7.72 (6 H, m, 3 × TePh 12,16-H), 7.61–7.50 (3 H, m, 3 × TePh 14-H), 7.44 (3 H, d, 3J (H,H) = 7.2, 3 × Acenap 7-H), 7.42–7.32 (6 H, m, 3 × TePh 13,15-H), 7.32–7.23 (6 H, m, 3 × SPh 19,21-H), 7.23–7.15 (3 H, m, 3 × SPh 20-H), 7.11–7.02 (6 H, m, 3 × Acenap 3,8-H), 7.02–6.94 (6 H, m, 3 × SPh 18,22-H), 3.45–3.31 (12 H, m, 6 × CH2); 13C-NMR [67.9 MHz, CD3CN, 25 °C, TMS]: δ = 151.8(q), 148.7(s, CF3), 141.0(s), 140.3(q), 140.2(s), 137.1(q), 135.5(q), 135.4(s), 130.5(s), 130.3(q), 130.1(s), 129.8(q), 129.6(s), 126.5(s), 126.2(s), 121.8(s), 121.2(s), 119.6(q), 100.0(q), 30.2(s, CH2), 29.6(s, CH2); 125Te-NMR [81.2 MHz, CD3CN, 25 °C, PhTeTePh]: δ = 552.3(s); 19F-NMR [376.5 MHz, CD3CN, 25 °C, CCl3F]: δ =-79.8(s); IR (KBr disk): vmax cm−1: 2921w, 2834w, 2720w, 2643w, 2521w, 2372w, 2345w, 2242w, 2154w, 1946s, 1923s, 1895s, 1682w, 1667w, 1647w, 1633w, 1595w, 1573w, 1583w, 1519w, 1475s, 1435s, 1409w, 1334s, 1293vs, 1229vs, 1165vs, 1111s, 1064w, 1023vs, 997s, 912w, 843s, 817w, 784w, 737vs, 689s, 634vs, 574s, 515s, 489w, 454w, 402w, 353w, 320w; MS (ES+): m/z (%):574.45 (100) [M+−CF3SO3−]; elemental analysis calcd (%) for C25H19AgF3O3S2Te: C 41.5, H 2.5; found: C 41.5, H 2.4.
[AgCF3SO3{Acenap(TePh)(SePh)}]n (6). Complex 6 was obtained following the method described previously for 4 but with AgCF3SO3 (0.09 g, 0.35 mmol), [Acenap(TePh)(SePh)] (0.18 g, 0.35 mmol). An analytically pure sample was obtained by recrystallization from diffusion of hexane into a saturated dichloromethane solution of the product (0.18 g, 67%); mp 125–127 °C (decomp); 1H-NMR [270 MHz, CDCl3, 25 °C, TMS]: δ = 7.97 (1 H, d, 3J (H,H) = 7.2, Acenap 4-H), 7.82–7.73 (2 H, m, TePh 12,16-H), 7.45–7.36 (1 H, m, TePh 14-H), 7.28–7.20 (2 H, m, TePh 13,15-H), 7.17–7.08 (4 H, m, Acenap 3-H, SePh 19-21-H), 7.08–7.01 (3 H, m, Acenap 7-H, SePh 18,22-H), 6.93 (1 H, d, 3J (H,H) = 7.5, Acenap 8-H), 3.30–3.20 (4 H, m, 2 × CH2); 13C-NMR [67.9 MHz, CDCl3, 25 °C, TMS]: δ = 151.5(q), 149.0(s, CF3), 142.9(s), 142.0(q), 140.7(s), 137.1(s), 135.3(q), 135.1(q), 131.0(s), 130.6(s), 130.5(s), 129.2(q), 128.8(s), 128.0(s), 122.2(s), 121.6(s), 120.5(q), 120.3(q), 117.2(q), 108.7(q), 30.8(s, CH2), 30.2(s, CH2); 77Se-NMR (51.5 MHz, CDCl3, 25 °C, PhSeSePh): δ = 321.6(s); 125Te-NMR [81.2 MHz, CDCl3, 25 °C, PhTeTePh]: δ = 537.2(s); 19F-NMR [376.5 MHz, CDCl3, 25 °C, CCl3F]: δ = −78.1(s); IR (KBr disk): vmax cm−1: 2926w, 2831w, 2373w, 2345w, 2244w, 1972w, 1873w, 1812w, 1739w, 1637w, 1595s, 1572s, 1474s, 1436s, 1420s, 1330s, 1283vs, 1224vs, 1171vs, 1104w, 1062w, 1021vs, 996s, 842s, 814w, 777w, 735vs, 688s, 665w, 633vs, 573w, 515s, 453w, 351w, 319w; MS (ES+): m/z (%): 620.30 (100) [M+−CF3SO3−]; elemental analysis calcd (%) for C25H18F3O3STeSe: C 39.0, H 2.4; Found: C 39.1, H 2.3.

3.2. Crystal Structure Analyses

X-ray crystal structures for 1–6, 2a were collected at −180(1) °C by using a Rigaku MM007 High brilliance RA generator (Mo Kα radiation, confocal optic) and Mercury CCD system. At least a full hemisphere of data was collected using ω scans. Data were collected for 3a at −148(1) °C using a Rigaku MM007 High brilliance RA generator (Mo Kα radiation, confocal optic) and Saturn CCD system. At least a full hemisphere of data was collected using ω scans. Intensities were corrected for Lorentz, polarisation and absorption. The data for the complexes was collected and processed using CrystalClear (Rigaku) [75]. The structures were solved by Patterson or direct methods [76] and expanded using Fourier techniques [77]. Non-hydrogen atoms were refined anisotropically, and hydrogen atoms were refined using a riding model. All calculations were performed using the CrystalStructure [78] and SHELXL-97 [79]. These X-ray data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html or from the Cambridge Crystallographic Data centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax (+44) 1223-336-033; e-mail: [email protected] using CCDC Nos: 873010, 873011, 873015-873019 and 873022.

4. Conclusions

Six silver(I) coordination complexes 1–6 have been prepared and structurally characterised, based on the self-assembly of mixed chalcogen-donor acenaphthenes [Acenap(EPh)(E'Ph)] (Acenap = acenaphthene-5,6-diyl; EE' = SeS, TeS, TeSe) L1–L3 [49,50,51] with silver(I) salts (AgBF4, AgOTf). Modification of the chalcogen donor functionalities within the ligand shell, the coordinating ability of the respective counter-anion and the solvents used during the recrystallisation process all have a significant impact on the structural architecture of the final complex, generating two- and three-coordinate monomeric, mononuclear silver(I) complexes (1–5, 2a, 3a) and a 1D polymeric chain incorporating a left-handed [(-Ag-Te-C-C-C-Se-Ag-)n] helix (6). Table 6 compares the structural characteristics of 1–6, 2a, 3a based on the silver(I) coordination geometry, the ligation modes of L1–L3 and the nature of the donor atoms. In the seven monomeric complexes 1–5, 2a, 3a, the acenaphthene ligand binds to the central silver atom via classical monodentate coordination and exclusively via the least electronegative chalcogen congener. In contrast, the tellurium-selenium L3 ligand in the polymeric chain 6 coordinates simultaneously via both chalcogen atoms in a bis-monodentate μ2-η2-bridging ligation mode. In all complexes silver adopts either a tetrahedral or trigonal planar geometry in the primary coordination sphere. In addition, the BF4− and CF3SO3− counteranions in monomeric complexes 1–5, 2a, 3a were shown to be strictly non-coordinating, whilst the triflate anion in 6 binds to the central silver atom via a single O atom to complete the trigonal planar geometry.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/11/13307/s1.

Acknowledgments

Elemental analyses were performed by Stephen Boyer at the London Metropolitan University. Mass Spectrometry was performed by Caroline Horsburgh. The work in this project was supported by the Engineering and Physical Sciences Research Council (EPSRC).

References

  1. Cotton, F.A.; Wilkinson, G. Advanced Inorganic Chemistry, 5th ed; Wiley: New York, NY, USA, 1988. [Google Scholar]
  2. Greenwood, N.N.; Earnshaw, A. Chemistry of the Elements, 2nd ed; Pergamon: Oxford, UK, 1984. [Google Scholar]
  3. Shriver, D.F.; Atkins, P.W. Inorganic Chemistry, 3rd ed; Oxford University Press: Oxford, UK, 1990. [Google Scholar]
  4. Venkataraman, D.; Du, Y.; Wilson, S.R.; Hirsch, K.A.; Zhang, P.; Moore, J.S. A Coordination Geometry Table of the d-Block Elements and Their Ions. J. Chem. Educ. 1997, 74, 915–918. [Google Scholar] [CrossRef]
  5. Chen, C.-T.; Suslick, K.S. One-dimensional coordination polymers: Applications to material science. Coord. Chem. Rev. 1993, 128, 293–322. [Google Scholar]
  6. Fujita, M.; Kwon, Y.J.; Washizu, S.; Ogura, K. Preparation, Clathration Ability, and Catalysis of a Two-Dimensional Square Network Material Composed of Cadmium(II) and 4,4'-Bipyridine. J. Am. Chem. Soc. 1994, 116, 1151–1152. [Google Scholar] [CrossRef]
  7. Hoskins, B.F.; Robson, R. Design and construction of a new class of scaffolding-like materials comprising infinite polymeric frameworks of 3D-linked molecular rods. A reappraisal of the zinc cyanide and cadmium cyanide structures and the synthesis and structure of the diamond-related frameworks [N(CH3)4][CuIZnII(CN)4] and CuI[4,4',4'',4'''-tetracyanotetraphenylmethane]BF4.xC6H5NO2. J. Am. Chem. Soc. 1990, 112, 1546–1554. [Google Scholar] [CrossRef]
  8. Carlucci, L.; Ciani, G.; Proserpio, D.M.; Sironi, A. 1-, 2-, and 3-Dimensional polymeric frames in the coordination chemistry of AgBF4 with pyrazine. The first example of three interpenetrating 3-dimensional triconnected nets. J. Am. Chem. Soc. 1995, 117, 4562–4569. [Google Scholar]
  9. Gardner, G.B.; Venkataraman, D.; Moore, J.S.; Lee, S. Spontaneous assembly of a hinged coordination network. Nature 1995, 374, 792–795. [Google Scholar] [CrossRef]
  10. Li, B.; Zang, S.-Q.; Liang, R.; Wu, Y.-J.; Mak, T.C.W. Silver(I)-Organic Networks Assembled with Propargyl-Functionalized Di- and Trihydroxybenzenes. Organometallics 2011, 30, 1710–1718. [Google Scholar] [CrossRef]
  11. Li, J.-R.; Bu, X.-He.; Jiao, J.; Du, W.-P.; Xu, X.-H.; Zhang, R.-H. Novel dithioether-silver(I) coordination architectures: Structural diversities by varying the spacers and terminal groups of ligands. Dalton Trans. 2005, 2005, 464–474. [Google Scholar]
  12. Burrows, A.D.; Kelly, D.J.; Mahon, M.F.; Raithby, P.R.; Richardson, C.; Stevenson, A.J. Silvercoordination networks and cages based on a semi-rigid bis(isoxazoylyl)ligand. Dalton Trans. 2011, 40, 5483–5493. [Google Scholar] [CrossRef]
  13. Bu, X.-H.; Chen, W.; Hou, W.-F.; Du, M.; Zhang, R.-H.; Brisse, F. Controlling the Framework Formation of Silver(I) Coordination Polymers with 1,4-Bis(phenylthio)butane by Varying the Solvents, Metal-to-Ligand Ratio, and Counteranions. Inorg. Chem. 2002, 41, 3477–3482. [Google Scholar] [CrossRef]
  14. Li, J.-R.; Zhang, R.-H.; Bu, X.-H. Synthesis and crystal structure of a 2D (6,3) coordination network, {[Ag(L)1.5]NO3}n [L = 1,3-bis(benzylthio)propane]. J. Chem. Crystallogr. 2004, 34, 501–505. [Google Scholar] [CrossRef]
  15. Booth, D.G.; Levason, W.; Quirk, J.J.; Reid, G.; Smith, S.M. Synthesis and characterisation of transition-metal complexes involving cyclic diselenoether ligands. Dalton Trans. 1997, 1997, 3493–3500. [Google Scholar]
  16. Young, A.G.; Hanton, L.R. Square planar silver(I) complexes: A rare but increasingly observed stereochemistry for silver(I). Coord. Chem. Rev. 2008, 252, 1346–1386. [Google Scholar] [CrossRef]
  17. Tan, C.-K.; Wang, J.; Leng, J.-D.; Zheng, L.-L.; Tong, M.-L. The Use of 2,1,3-Benzoselenadiazole as an Auxiliary Ligand for the Construction of New 2D Silver(I)/Benzene- or Cyclohexane-1,3,5-tricarboxylate Honeycomb Networks. Eur. J. Inorg. Chem. 2008, 2008, 771–778. [Google Scholar]
  18. Coulson, C.A.; Daudel, R.; Robertson, J.M. Bond Lengths in Naphthalene and Anthracene. Proc. R. Soc. London Ser. A 1951, 207, 306–320. [Google Scholar] [CrossRef]
  19. Cruickshank, D.W. A Detailed Refinement of the Crystal and Molecular Structure of Naphthalene. Acta Crystallogr. 1957, 10, 504–508. [Google Scholar] [CrossRef]
  20. Brock, C.P.; Dunitz, J.D. Temperature Dependence of Thermal Motion in Crystalline Naphthalene. Acta Crystallogr. B 1982, 38, 2218–2228. [Google Scholar] [CrossRef]
  21. Oddershede, J.; Larsen, S. Charge Density Study of Naphthalene Based on X-ray Diffraction Data at Four Different Temperatures and Theoretical Calculations. J. Phys. Chem. A 2004, 108, 1057–1063. [Google Scholar] [CrossRef]
  22. Hazell, A.C.; Hazell, R.G.; Norskov-Lauritsen, L.; Briant, C.E.; Jones, D.W. A neutron diffraction study of the crystal and molecular structure of acenaphthene. Acta Crystallogr. C 1986, 42, 690. [Google Scholar] [CrossRef]
  23. Kilian, P.; Knight, F.R.; Woollins, J.D. Naphthalene and Related Systems peri-Substituted by Group 15 and 16 Elements. Chem. Eur. J. 2011, 17, 2302–2328. [Google Scholar]
  24. Kilian, P.; Knight, F.R.; Woollins, J.D. Synthesis of ligands based on naphthalene peri-substituted by Group 15 and 16 elements and their coordination chemistry. Coord. Chem. Rev. 2011, 255, 1387–1413. [Google Scholar] [CrossRef]
  25. Aucott, S.M.; Milton, H.L.; Robertson, S.D.; Slawin, A.M.Z.; Walker, G.D.; Woollins, J.D. Platinum Complexes of Naphthalene-1,8-dichalcogen and Related Polyaromatic Hydrocarbon Ligands. Chem. Eur. J. 2004, 10, 1666–1676. [Google Scholar] [CrossRef]
  26. Aucott, S.M.; Milton, H.L.; Robertson, S.D.; Slawin, A.M.Z.; Woollins, J.D. Crystal Structures and Molecular Modelling Of 1,8 Chalcogenide Substituted Naphthalenes. Heteroat. Chem. 2004, 15, 531–542. [Google Scholar]
  27. Aucott, S.M.; Milton, H.L.; Robertson, S.D.; Slawin, A.M.Z.; Woollins, J.D. The preparation and characterisation of bimetallic Iridium(II) complexes containing derivatised bridging naphthalene-1,8-disulfur or 4,5-dithiolato acephenanthrylene ligands. Dalton Trans. 2004, 2004, 3347–3352. [Google Scholar]
  28. Aucott, S.M.; Kilian, P.; Milton, H.L.; Robertson, S.D.; Slawin, A.M.Z.; Woollins, J.D. Bis(cyclopentadienyl)titanium complexes of naphthalene-1,8-dithiolates, biphenyl 2,2' dithiolates and related ligands. Inorg. Chem. 2005, 44, 2710–2718. [Google Scholar]
  29. Aucott, S.M.; Kilian, P.; Robertson, S.D.; Slawin, A.M.Z.; Woollins, J.D. Platinum Complexes of Dibenzo[1,2]dithiine and Related Polyaromatic Hydrocarbon Ligands. Chem. Eur. J. 2006, 12, 895–902. [Google Scholar] [CrossRef]
  30. Aucott, S.M.; Duerden, D.; Li, Y.; Slawin, A.M.Z.; Woollins, J.D. The Preparation and Characterisation of Hetero and Homo-bimetallic Complexes Containing Bridging Naphthalene-1,8-dithiolato Ligands. Chem. Eur. J. 2006, 12, 5495–5504. [Google Scholar] [CrossRef]
  31. Kilian, P.; Slawin, A.M.Z.; Woollins, J.D. A structural study of 1,8-Bis(dimethyl phosphonito) naphthalene and related crowded chalcogeno derivatives. Dalton Trans. 2003, 2003, 3876–3885. [Google Scholar]
  32. Kilian, P.; Philp, D.; Slawin, A.M.Z.; Woollins, J.D. Use of Molecular Scaffolding for the Stabilization of an Intramolecular Dative PIII–PV System. Eur. J. Inorg. Chem. 2003, 2003, 249–254. [Google Scholar] [CrossRef]
  33. Kilian, P.; Slawin, A.M.Z.; Woollins, J.D. Naphthalene-1,8-diyl Bis(Halogenophosphanes): Novel Syntheses and Structures of Useful Synthetic Building Blocks. Chem. Eur. J. 2003, 9, 215–222. [Google Scholar] [CrossRef]
  34. Kilian, P.; Slawin, A.M.Z.; Woollins, J.D. New Mode of Sterically imposed Hypercoordination. Chem. Commun. 2003, 2003, 1174–1175. [Google Scholar]
  35. Kilian, P.; Milton, H.L.; Slawin, A.M.Z.; Woollins, J.D. Chlorides, oxochlorides and oxoacids of 1,8-diphospha naphthalene - A system with enforced close P···P interaction. Inorg. Chem. 2004, 43, 2252–2260. [Google Scholar] [CrossRef]
  36. Kilian, P.; Slawin, A.M.Z.; Woollins, J.D. Phosphonato-phosphinito peri-substituted naphthalenes. Inorg. Chim. Acta 2005, 358, 1719–1723. [Google Scholar] [CrossRef]
  37. Kilian, P.; Slawin, A.M.Z.; Woollins, J.D. Preparation and structures of 1,2-dihydro-1,2-diphosphaacenaphthenes and rigid backbone stabilised triphosphenium cation. Dalton Trans. 2006, 2006, 2175–2183. [Google Scholar]
  38. Knight, F.R.; Fuller, A.L.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Synthetic and Structural Studies of 1,8-Chalcogen Naphthalene Derivatives. Chem. Eur. J. 2010, 16, 7503–7516. [Google Scholar] [CrossRef]
  39. Knight, F.R.; Fuller, A.L.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Synthetic and Structural Studies of 1-Halo-8-(alkylchalcogeno)naphthalene Derivatives. Chem. Eur. J. 2010, 16, 7605–7616. [Google Scholar]
  40. Knight, F.R.; Fuller, A.L.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Hypervalent Adducts of Chalcogen-Containing peri-Substituted Naphthalenes; Reactions of Sulfur, Selenium, and Tellurium with Dihalogens. Inorg. Chem. 2010, 49, 7577–7596. [Google Scholar] [CrossRef]
  41. Fuller, A.L.; Knight, F.R.; Slawin, A.M.Z.; Woollins, J.D. 1-Bromo-8-(phenylselenyl)naphthalene. Acta Crystallogr. E 2007, E63, o3855. [Google Scholar]
  42. Fuller, A.L.; Knight, F.R.; Slawin, A.M.Z.; Woollins, J.D. 1-Bromo-8-(ethylsulfanyl)naphthalene. Acta Crystallogr. E 2007, E63, o3957. [Google Scholar]
  43. Fuller, A.L.; Knight, F.R.; Slawin, A.M.Z.; Woollins, J.D. 8-Bromonaphthalen-1-amine. Acta Crystallogr. E 2008, E64, o977. [Google Scholar]
  44. Knight, F.R.; Fuller, A.L.; Slawin, A.M.Z.; Woollins, J.D. Controlling Cu···Cu distances using halides: (8-Phenylthionaphth-1-yl)diphenylphosphine copper halide dimers. Dalton Trans. 2009, 2009, 8476–8478. [Google Scholar]
  45. Knight, F.R.; Fuller, A.L.; Slawin, A.M.Z.; Woollins, J.D. Preparation and compounds of (8-methoxynaphth-1-yl)diphenylphosphine. Polyhedron 2010, 29, 1849–1853. [Google Scholar] [CrossRef] [Green Version]
  46. Knight, F.R.; Fuller, A.L.; Slawin, A.M.Z.; Woollins, J.D. Synthesis and structural study of (8-phenylsulfanylnaphth-1-yl)diphenylphosphine metal complexes. Polyhedron 2010, 29, 1956–1963. [Google Scholar] [CrossRef] [Green Version]
  47. Knight, F.R.; Fuller, A.L.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Sterically Crowded peri-Substituted Naphthalene Phosphines and their PV Derivatives. Chem. Eur. J. 2010, 16, 7617–7634. [Google Scholar] [CrossRef]
  48. Fuller, A.L.; Knight, F.R.; Slawin, A.M.Z.; Woollins, J.D. Platinum Complexes of Aromatic Selenolates. Eur. J. Inorg. Chem. 2010, 2010, 4034–4043. [Google Scholar] [CrossRef]
  49. Aschenbach, L.K.; Knight, F.R.; Randall, R.A.M.; Cordes, D.B.; Baggott, A.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Onset of three-centre, four-electron bonding in peri-substituted acenaphthenes: A structural and computational investigation. Dalton Trans. 2012, 41, 3141–3153. [Google Scholar]
  50. Knight, F.R.; Athukorala Arachchige, K.S.; Randall, R.A.M.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Exploring hypervalency and three-centre, four-electron bonding interactions: Reactions of acenaphthene chalcogen donors and dihalogen acceptors. Dalton Trans. 2012, 41, 3154–3165. [Google Scholar] [CrossRef]
  51. Knight, F.R.; Randall, R.A.M.; Athukorala Arachchige, K.S.; Wakefield, L.; Griffin, J.M.; Ashbrook, S.E.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Noncovalent Interactions in Peri-Substituted Chalconium Acenaphthene and Naphthalene Salts: A Combined Experimental, Crystallographic, Computational, and Solid-State NMR Study. Inorg. Chem. 2012, 51, 11087–11097. [Google Scholar]
  52. Lechner, M.-L.; Athukorala Arachchige, K.S.; Randall, R.A.M.; Knight, F.R.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Sterically Crowded Tin Acenaphthenes. Organometallics 2012, 31, 2922–2930. [Google Scholar] [CrossRef]
  53. Knight, F.R.; Randall, R.M.; Wakefield, L.; Slawin, A.M.Z.; Woollins, J.D. Silver(I) coordination complexes and extended networks assembled from S, Se, Te substituted acenaphthenes. Dalton Trans. 2013. [Google Scholar] [CrossRef]
  54. Knight, F.R.; Randall, R.M.; Wakefield, L.; Slawin, A.M.Z.; Woollins, J.D. University of St Andrews, St Andrews, Fife, UK. Unpublished work, 2012. [Google Scholar]
  55. Bondi, A. Van der Waals Volumes and Radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  56. Nakanishi, W.; Hayashi, S.; Toyota, S. Structure of bis[8-(phenylselanyl)naphthyl] diselenide: First linear alignment of four Se atoms as a four-centre six-electron bond. Chem. Commun. 1996, 1996, 371–372. [Google Scholar]
  57. Nakanishi, W.; Hayashi, S.; Sakaue, A.; Ono, G.; Kawada, Y. Attraxtive Interaction Caused by the Linear F···Se-C Alignment in Naphthalene Peri Positions. J. Am. Chem. Soc. 1998, 120, 3635–3640. [Google Scholar] [CrossRef]
  58. Nakanishi, W.; Hayashi, S.; Toyota, S. Four-Center Six-Electron Interaction versus Lone Pair-Lone Pair Interaction between Selenium Atoms in Naphthalene Peri Positions. J. Org. Chem. 1998, 63, 8790–8800. [Google Scholar] [CrossRef]
  59. Hayashi, S.; Nakanishi, W. Novel Substituent Effect on 77Se-NMR Chemical Shifts Caused by 4c-6e versus 2c-4e and 3c-4e in Naphthalene Peri Positions: Spectroscopic and Theoretical Study. J. Org. Chem. 1999, 64, 6688–6696. [Google Scholar] [CrossRef]
  60. Nakanishi, W.; Hayashi, S.; Uehara, T. Successive Change in Conformation Caused by p-Y Groups in 1-(MeSe)-8-(p-YC6H4Se)C10H6: Role of Linear Se···Se-C Three-Center-Four-Electron versus n(Se)···n(Se) Two-Center-Four-Electron Nonbonded Interactions. J. Phys. Chem. A 1999, 103, 9906–9912. [Google Scholar] [CrossRef]
  61. Nakanishi, W.; Hayashi, S.; Uehara, T. Structure of 1-(Arylselanyl)naphthalenes—Y Dependence in 1-(p-YC6H4Se)C10H7. Eur. J. Org. Chem. 2001, 2001, 3933–3943. [Google Scholar] [CrossRef]
  62. Nakanishi, W.; Hayashi, S. Nonbonded P···P and P···Se Interactions in Naphthalene 1,8-Positions: Role of Lone-Pair Orbitals. Phosphorus Sulfur Silicon Relat. Elem. 2002, 177, 1833–1837. [Google Scholar] [CrossRef]
  63. Nakanishi, W.; Hayashi, S.; Arai, T. Linear alignment of four sulphur atoms in bis[(8-phenylthio)naphthyl] disulfude: Contribution of linear S4 hypervalent four-centre six-electron bond to the structure. Chem. Commun. 2002, 2002, 2416–2417. [Google Scholar]
  64. Hayashi, S.; Nakanishi, W. Structure of 1-(Arylselanyl)naphthalenes. 2. G Dependence in 8-G-1-(p-YC6H4Se)C10H6. J. Org. Chem. 2002, 67, 38–48. [Google Scholar] [CrossRef]
  65. Nakanishi, W.; Hayashi, S.; Itoh, N. First linear alignment of five C-Se···O···Se-C atoms in anthraquinone and 9-(methoxy)anthracene bearing phenylselanyl groups at 1,8-positions. Chem. Commun. 2003, 2003, 124–125. [Google Scholar]
  66. Hayashi, S.; Wada, H.; Ueno, T.; Nakanishi, W. Structures of 1-(Arylseleninyl)naphthalenes: O, G, and Y Dependences in 8-G-1-[p-YC6H4Se(O)]C10H6. J. Org. Chem. 2006, 71, 5574–5585. [Google Scholar]
  67. Hayashi, S.; Nakanishi, W. Noncovalent Z···Z (Z = O, S, Se and Te) Interactions: How Do They Operate to Control Fine Structures of 1,8-Dichalcogene-Substituted Naphthalenes. Bull. Chem. Soc. Jpn. 2008, 81, 1605–1615. [Google Scholar] [CrossRef]
  68. Nagy, P.; Szabó, D.; Kapovits, I.; Kucsman, Á.; Argay, G.; Kálmán, A. Intramolecular S⋯S and S⋯O close contacts in 1,8-bis(phenylsulfanyl)naphthalene derivatives of different sulfur valence state: An X-ray study. J. Mol. Struct. 2002, 606, 61–76. [Google Scholar] [CrossRef]
  69. Nishio, M. CH/π hydrogen bonds in crystals. CrystEngComm. 2004, 6, 130–158. [Google Scholar] [CrossRef]
  70. Fischer, C.; Gruber, T.; Seichter, W.; Schindler, D.; Weber, E. 5,11,17,23-Tetra-tert-butyl-25,26,27,28-tetramethoxycalix[4]arene dichloromethane hemisolvate. Acta Crystallogr. Sec. E 2008, E64, o673. [Google Scholar]
  71. Hirota, M.; Sakaibara, K.; Suezawa, H.; Yuzuri, T.; Ankai, E.; Nishio, M. Intramolecular CH-π interaction. Substituent effect as a probe for hydrogen bond-like character. J. Phys. Org. Chem. 2000, 13, 620–623. [Google Scholar]
  72. Tsubaki, H.; Tohyama, S.; Koike, K.; Saitoh, H.; Ishitani, O. Effect of intramolecular π-π and CH–π interactions between ligands on structure, electrochemical and spectroscopic properties of fac-[Re(bpy)(CO)3(PR3)]+ (bpy = 2,2'-bipyridine; PR3 = trialkyl or triarylphosphines). Dalton Trans. 2005, 2005, 385–395. [Google Scholar]
  73. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Cryst. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  74. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. D 2009, 65, 148–155. [Google Scholar] [CrossRef]
  75. Rigaku Corporation, 2010. CrystalClear Software User’s Guide, Molecular Structure Corporation, © 2000. Flugrath, J.W.P. The finer things in X-ray diffraction data collection. Acta Crystallogr. D, 1999; D55, 1718–1725.
  76. Altomare, A.; Burla, M.; Camalli, M.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A.; Moliterni, A.; Polidori, G.; Spagna, R. SIR97: A new tool for crystal structure determination and refinement. J. Appl. Cryst. 1999, 32, 115–119. [Google Scholar] [CrossRef]
  77. Beurskens, P.T.; Admiraal, G.; Beurskens, G.; Bosman, W.P.; de Gelder, R.; Israel, R.; Smits, J.M.M. The DIRDIF-99 Program System; Technical Report of the Crystallography Laboratory, University of Nijmegen: Nijmegen, The Netherlands, 1999; DIRDIF99. [Google Scholar]
  78. CrystalStructure 4.0, Crystal Structure Analysis Package, Rigaku and Rigaku/MSC (2009). 9009 New Trails Dr., The Woodlands, TX 77381, USA.
  79. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.

Share and Cite

MDPI and ACS Style

Knight, F.R.; Randall, R.A.M.; Wakefield, L.; Slawin, A.M.Z.; Woollins, J.D. Investigating Silver Coordination to Mixed Chalcogen Ligands. Molecules 2012, 17, 13307-13329. https://doi.org/10.3390/molecules171113307

AMA Style

Knight FR, Randall RAM, Wakefield L, Slawin AMZ, Woollins JD. Investigating Silver Coordination to Mixed Chalcogen Ligands. Molecules. 2012; 17(11):13307-13329. https://doi.org/10.3390/molecules171113307

Chicago/Turabian Style

Knight, Fergus R., Rebecca A. M. Randall, Lucy Wakefield, Alexandra M. Z. Slawin, and J. Derek Woollins. 2012. "Investigating Silver Coordination to Mixed Chalcogen Ligands" Molecules 17, no. 11: 13307-13329. https://doi.org/10.3390/molecules171113307

APA Style

Knight, F. R., Randall, R. A. M., Wakefield, L., Slawin, A. M. Z., & Woollins, J. D. (2012). Investigating Silver Coordination to Mixed Chalcogen Ligands. Molecules, 17(11), 13307-13329. https://doi.org/10.3390/molecules171113307

Article Metrics

Back to TopTop
