Convergent Synthesis of the Potent P2Y Receptor Antagonist MG 50-3-1 Based on a Regioselective Ullmann Coupling Reaction

by
Younis Baqi
and
Christa E. Müller
*
PharmaCenter Bonn, Pharmaceutical Institute, Pharmaceutical Chemistry I, Pharmaceutical Sciences Bonn (PSB), University of Bonn, An der Immenburg 4, D-53121 Bonn, Germany
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(3), 2599-2615; https://doi.org/10.3390/molecules17032599
Submission received: 25 January 2012 / Revised: 25 February 2012 / Accepted: 27 February 2012 / Published: 5 March 2012
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
MG 50-3-1 (3, trisodium 1-amino-4-{4-[4-chloro-6-(2-sulfophenylamino)-1,3,5-triazin-2-ylamino]-2-sulfophenylamino}-9,10-dioxo-9,10-dihydroanthracene 2-sulfonate) is the most potent and selective antagonist (IC50 4.6 nM) for “P2Y1-like” nucleotide-activated membrane receptors in guinea-pig taenia coli responsible for smooth muscle relaxation. Full characterization of the compound, however, e.g., at the human P2Y1 receptor, which is a novel potential target for antithrombotic drugs, as well as other P2 receptor subtypes, has been hampered due to difficulties in synthesizing the compound in sufficient quantity. MG 50-3-1 would be highly useful as a biological tool for detailed investigation of signal transduction in the gut. We have now developed a convenient, fast, mild, and efficient convergent synthesis of 3 based on retrosynthetic analysis. A new, regioselective Ullmann coupling reaction under microwave irradiation was successfully developed to obtain 1-amino-4-(4-amino-2-sulfophenylamino)-9,10-dioxo-9,10-dihydro­anthracene 2-sulfonate (8). Four different copper catalysts (Cu, CuCl, CuCl2, and CuSO4) were investigated at different pH values of sodium phosphate buffer, and in water in the absence or presence of base. Results showed that CuSO4 in water in the presence of triethylamine provided the best conditions for the regioselective Ullmann coupling reaction yielding the key intermediate compound 8. A new synthon (sodium 2-(4,6-dichloro-1,3,5-triazin-2-ylamino)benzenesulfonate, 13) which can easily be obtained on a gram scale was prepared, and 13 was successfully coupled with 8 yielding the target compound 3.

Graphical Abstract

1. Introduction

Extracellular nucleotides such as ATP, ADP, UTP or UDP are the physiological ligands for P2 purinergic receptors, which are localized in the cell membrane [1,2,3,4]. They are subdivided into G protein-coupled or metabotropic P2Y receptors (GPCRs), and ligand-gated ion channels (LGICs) or ionotropic receptors, termed P2X. Both families, GPCRs as well as LGICs constitute important novel drug targets [1,2,3,4]. In recent years, it was estimated that up to 50% of available drugs act via stimulation or blocking of GPCRs [5]. The P2Y1 and the P2Y12 receptor, for example, both of which are activated by ADP, are involved in platelet activation and aggregation [6,7,8,9]. The P2Y12 receptor is already an established target of antithrombotic drugs like clopidogrel (Plavix®) and ticagrelor (Brilinta®) [10,11,12]. P2Y1 antagonists may also have potential as novel antithrombotic drugs [6,7,13,14]. “P2Y1-like” receptors have been described in a number of early publications in the field to mediate smooth muscle relaxation in the intestine. Later on it was found that the intestinal preparations expressed both, P2Y1 and P2Y11 receptors [15].
The anthraquinone derivatives Reactive Blue 2 (RB-2, 1, Figure 1) and Cibacron Blue 3GA (2, Figure 1) have been identified as new lead compounds in drug discovery [16,17,18,19]. They have been found to interact with a variety of nucleotide-binding proteins in the human body [17,19], including a number of different P2Y and P2X receptor subtypes as well as ecto-nucleotidases [17,19,20].
Molecules 17 02599 g001 550

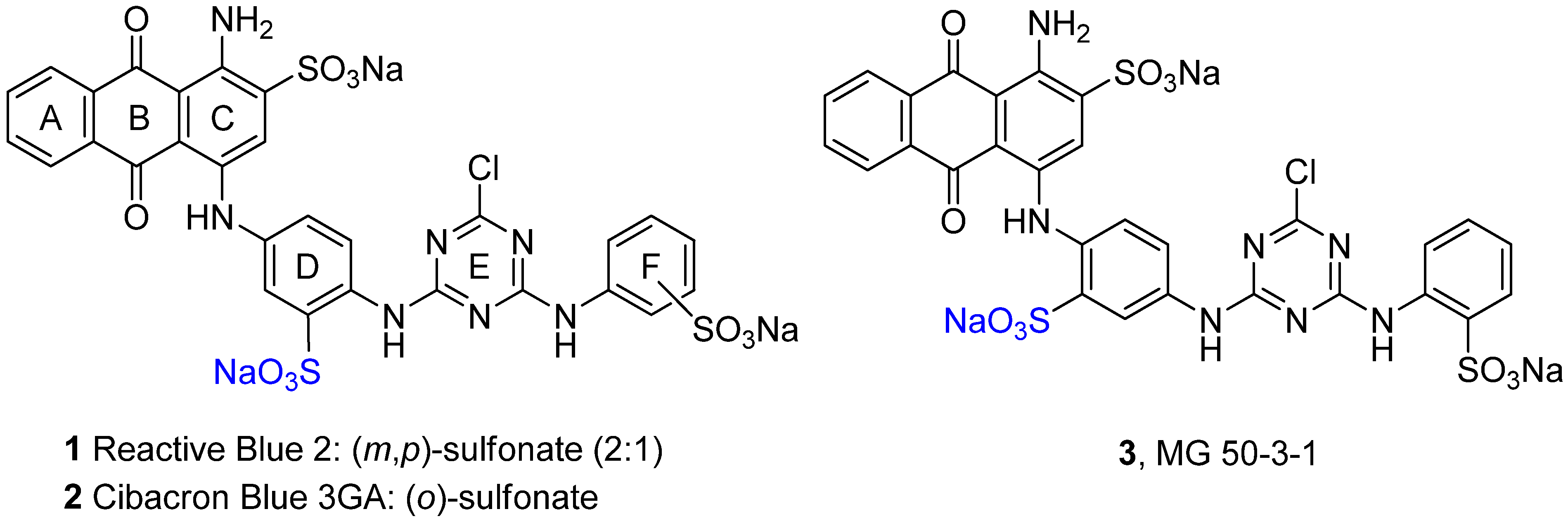

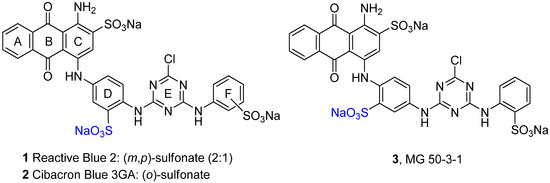

Figure 1. Structures of Reactive Blue 2 (RB-2, 1), Cibacron Blue 3GA (2) and MG 50‑3‑1 (3).
Figure 1. Structures of Reactive Blue 2 (RB-2, 1), Cibacron Blue 3GA (2) and MG 50‑3‑1 (3).
Molecules 17 02599 g001
MG 50-3-1 (3, Figure 1) is an isomer of compound 2, in which the sulfonate group in ring D is shifted from the meta- to the ortho-position with regard to the aminoanthraquinone substituent. Compound 3 has been described to be the most potent and selective antagonist for “P2Y1-like” receptors expressed in guinea-pig taenia coli, exhibiting an IC50 value of 4.6 nM [21]. Full characterization of the compound, however, has been hampered due to difficulties in synthesizing the compound in sufficient amounts, therefore, 3 could not be investigated so far at human P2Y1 receptors and at the other P2Y receptor subtypes. The compound could be a very useful pharmacological tool for basic research and target validation. The described linear synthesis, however, was reported to provide only 5.5% overall yield [21]. In our hands, the published approach was not successful at all. Therefore we developed a novel strategy for the preparation of the target compound 3. Herein we describe a convergent access towards compound 3 which will eventually allow full characterization and in vitro as well as in vivo evaluation of the drug, and thus may provide information valuable for the development of antagonists for P2Y1 and P2Y1-like receptors. Furthermore, the compound will be a useful biological tool for investigating purinergic signalling, for example in the intestine.

2. Results and Discussion

Previous studies showed that the substitution pattern in the 4–position of the anthraquinone moiety plays a crucial role for the ability of the compounds to antagonize P2Y receptor subtypes, such as P2X1 and P2Y1-like [21], P2X2 [22], P2Y2 [23], and P2Y12 receptors [24,25] and to inhibit nucleoside triphosphate diphosphohydrolase (NTPDase) isoenzymes [26] and ecto-5’-nucleotidase [27]. Recently we developed a microwave-assisted Ullmann coupling reaction of bromaminic acid with a diverse range of aniline derivatives in the presence of elemental copper (Cu0) in sodium phosphate buffer [28,29]. In the present study we examined the impact of the buffer pH, and the use of different copper catalysts at different pH values on the described microwave-assisted Ullmann coupling reaction. We were especially interested in the question of how regioselectivity could be achieved in the presence of two nonequivalent amino groups on the aromatic system. This is an important and challenging task, especially in case of the coupling reaction of bromaminic acid (4) with 2,5-diaminobenzenesulfonic acid (5) to yield 8, which represents a key step in the synthesis of MG 50-3-1 (3) [21] with typically low yield (10%) [21]. For direct comparison of the developed reaction we examined the coupling of bromaminic acid (4) with the isomeric 2,4-diaminobenzenesulfonic acid (6).

2.1. Optimization of the Ullmann Coupling Reaction of Bromaminic Acid with Aniline

In order to systematically optimize the microwave-catalyzed Ullmann coupling reaction [28] of bromaminic acid with anilines, we initially investigated the effects of the sodium buffer pH in the presence of four different copper catalysts having three different oxidation states (0, I and II) in a model reaction, namely the coupling reaction of bromaminic acid sodium salt (4) with aniline yielding Acid Blue 25 (AB-25, 7) as outlined in Table 1. It should be noted that the pH values were measured at the start of the reaction at 23 °C (see Table 1, Table 2 and Table 4) as the reaction mixtures turned acidic during the course of the reactions due to the formation of hydrogen bromide.
Table

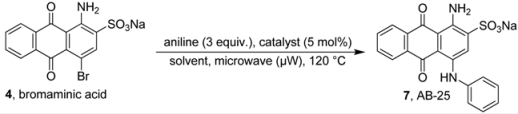

Table 1. Impact of different pH values on the synthesis of AB-25 in the presence of a copper catalyst. a
Table 1. Impact of different pH values on the synthesis of AB-25 in the presence of a copper catalyst. a
Molecules 17 02599 i001
EntrySolvent mixture (mL) bpH valueCuCuClCuCl2CuSO4
NaH2PO4 (0.12 M)Na2HPO4 (0.20 M)Time (min)Conversion (%) cTime (min)Conversion (%) cTime (min)Conversion (%) cTime (min)Conversion (%) c
1Water (5)7.020ca. 50150015001500
2504.825ca. 50150015001500
3417.051005100125ca. 50125ca. 50
4327.4510051006510035100
5237.8510051006510035100
6148.2510051003510035100
7059.4510051003510025100
a Reaction conditions: a mixture of bromaminic acid (40.5 mg, 0.1 mmol), aniline (27.5 µL, 3 eq), catalyst (5 mol %) and 5 mL of different solvent systems was irradiated under microwave conditions for 5–150 min. b See Table 2 and/or Table 4 for final pH values. c Conversion was estimated by RP-TLC using a mixture of acetone/water (1:4) as eluent; this was possible because all components (starting material and product) have different colors, bromaminic acid is red, while AB-25 is blue and the by-product is dark-red to violet.
Elemental copper (Cu) and copper(I) chloride (CuCl) gave almost the same results: they differed only in two cases, when water (pH 7, entry 1) was used as a solvent, or in acidic buffer (NaH2PO4, pH 4.8, entry 2), Cu being superior in both cases. The reaction occurred in the presence of Cu within 20–25 min with ca. 50% conversion. In the case of CuCl no conversion at all was observed in water or acidic media (pH 7 and 4.8, entry 1 and 2, respectively, Table 1), even when the mixture was harshly irradiated in the microwave oven for 150 min at 120 °C.
However, in the presence of different mixtures of phosphate buffer (entry 3-7, Table 1, neutral to basic pH values) the reaction went to completion within only 5 min (100% conversion). Next we examined the effect of the oxidation state II, represented by two different catalysts, copper(II) chloride (CuCl2) and copper(II) sulfate (CuSO4). Although both compounds are water-soluble salts and are therefore homogeneously distributed in the solution, they catalyzed the Ullmann coupling reaction less efficiently than the water-insoluble catalysts (Cu and CuCl), indicating that the Ullmann reaction can be catalyzed heterogeneously (Table 1). When water or acidic buffer were applied in the presence of a Cu(II) catalyst (entry 1 and 2, Table 1) product was not detectable on an RP-TLC plate, even when harsh conditions using the microwave oven at 120 °C for 2.5 h (150 min) were applied. At more alkaline pH values (Table 1, entry 3), ca. 50% conversion was achieved (entry 3, Table 1), but the reaction took more than 2 h (125 min) in the microwave oven. Further increases in the basicity of the sodium phosphate buffer (entries 4–7, Table 1) eventually resulted in 100% conversion also for the Cu(II) catalysts, but required longer reaction times in comparison to the reactions catalyzed by Cu or CuCl.
Mechanistic studies of Ullmann reactions have previously identified Cu(I) as the single active catalytic species under various conditions [30]. However, the formation of an organometallic intermediate from elemental copper is also conceivable [31]. In a recent study we found elemental copper (Cu) to be superior to CuCl and CuSO4 in three different protocols in the presence or absence of microwave irradiation [28]. Our current–extended–experimental results using a simple model reaction indicate and confirm [28] that Cu(0) appears to be the catalytic species in the performed Ullman coupling reactions.

2.2. Regioselective Ullmann Coupling Reaction of Bromaminic Acid with 2,5-Diaminobenzene Sulfonate

It had been previously reported that 1-amino-4-(4-amino-2-sulfophenylamino)-9,10-dioxo-9,10-dihydro–anthracene 2-sulfonate (8) could be obtained in 10% yield using CuCl as a catalyst in the presence of Na2SO3 in water at 40–60 °C in a reaction time of 8 h [21]. We closely followed the described procedure and tried it more than three times on different days, but all of our attempts failed, and we never observed any traces of 8; the meta–isomer 9 was also not formed. The reaction did not proceed and we isolated only the starting material bromaminic acid (4). Then we gradually increased the temperature up to 90 °C and prolonged reaction times (up to 24 h), but without any success. Besides the starting compound 4 we now also isolated the hydrolysis product sodium 1-amino-4-hydroxyanthraquinone-2-sulfonate [28].
Therefore we performed a systematic study of the coupling of 2,5-diaminobenzene sulfonic acid (5) with bromaminic acid (4) in the presence of different catalysts and in different solvent systems with the goal to obtain product 8 (Table 2). This reaction may lead to two different isomers containing an ortho- (8) or a meta-sulfonate group (9) on ring D (Figure 1 and Table 2). At first, we examined catalysis by elemental copper, which had been identified as the most powerful catalyst in the coupling of aniline with bromaminic acid (see Table 1), in the presence of different mixtures of the phosphate buffer. As outlined in Table 2 the meta–sulfonate 9 (meta with respect to the aminoanthraquinone) was the predominant product in most cases, especially when the yield was high (>50%; entries 3–6, Table 2). The best ratio to obtain the desired ortho-isomer 8 (ortho:meta 1:1) was observed at pH 4.8 and 7.0 (entry 1 and 2, Table 2), however conversion and yield were low. Next we examined the effects of CuCl and CuSO4 in a sodium phosphate buffer mixture (pH 7.0, entry 8 and 9, Table 2). Within 5 min of microwave irradiation at 120 °C 100% conversion and a very good yield (>75%) was observed, but the (ortho:meta) ratio was dramatically reduced to 1:6.
Table

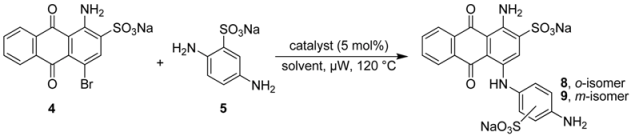

Table 2. Effects of different pH values on the copper-catalyzed coupling reaction of bromaminic acid (4) with 2,5-diaminobenzene sulfonic acid (5). a
Table 2. Effects of different pH values on the copper-catalyzed coupling reaction of bromaminic acid (4) with 2,5-diaminobenzene sulfonic acid (5). a
Molecules 17 02599 i002
EntrySolvent mixture (mL)pH valueTime (min)CatalystConversion (%) bortho:meta ratio bYield (%) c
NaH2PO4 (0.12 M)Na2HPO4 (0.20 M)
1504.810Cuca. 501:1ca. 25
2417.05Cuca. 501:1ca. 25
3327.45Cu1001:3> 50
4237.85Cu1001:3> 50
5148.25Cu1001:4> 75
6059.45Cu1001:4> 75
8417.05CuCl1001:6> 75
9417.05CuSO41001:6> 75
a Reaction conditions: A mixture of bromaminic acid (40.5 mg, 0.1 mmol), 2,5-diaminobenzene sulfonic acid (56.4 mg, 3 eq.), catalyst (5 mol %) and 5 mL of different buffer mixtures was irradiated in the microwave for 5–10 min at 120 °C. b Conversion and the ortho:meta sulfonate ratio was estimated by RP-TLC using a mixture of acetone/water (1:4) as eluent; this is possible because all components (starting material and product) have different colors: the starting material is red, while the product is blue and the by-product is dark-red or violet. c Yield was estimated based on RP-TLC results.
As a subsequent step we investigated the impact of triethylamine (Et3N) in water on the ortho:meta ratio of products 8 and 9 using three different catalysts (Table 3). The use of NEt3 in aqueous media is known to convert CuSO4 to the complex [Cu(NEt3)4]2+, which could then be reduced to Cu(I) [32,33].In the absence of Et3N the reaction was incomplete (30–60% conversion), but it was directed towards more ortho-isomer in the following sequence of catalysts: Cu > CuCl > CuSO4 (entries 1–3, Table 3). The use of three equivalents of Et3N improved the yield. However, the ortho:meta ratio was decreased; in case of Cu a ratio of 1:1 could be observed, but conversion and yield were relatively low compared to the use of CuCl and CuSO4 (entries 4–6, Table 3). In conclusion of this part, CuSO4 was found to be the best catalyst in the Ullmann coupling reaction of bromaminic acid with aniline derivative 5 in water in the presence of Et3N, since it showed quantitative conversion (100%) and an excellent yield (>75%) with an acceptable ortho:meta ratio of 1:3 (entry 6, Table 3).
Table

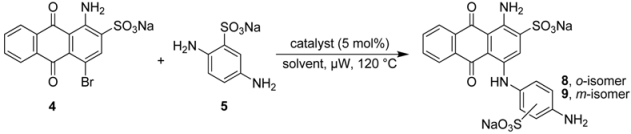

Table 3. Effects of different copper catalysts in the presence or absence of triethylamine (Et3N) in aqueous medium on the synthesis of compounds 8 and 9. a
Table 3. Effects of different copper catalysts in the presence or absence of triethylamine (Et3N) in aqueous medium on the synthesis of compounds 8 and 9. a
Molecules 17 02599 i003
EntrySolventTime (min)CatalystConversion (%)bortho:meta ratioYield (%)c
1water15Cuca. 603:1ca. 50
2water15CuClca. 402:1ca. 25
3water20CuSO4ca. 301.5:1ca. 20
4water/Et3N5Cuca. 701:1ca. 40
5water/Et3N5CuClca. 901:3> 50
6water/Et3N5CuSO41001:3> 75
a Reaction conditions: A mixture of bromaminic acid (40.5 mg, 0.1 mmol), 2,5-diaminobenzene sulfonic acid (56.4 mg, 3 eq.), catalyst (5 mol %) and 5 mL of water with or without Et3N (3 eq.) was irradiated by microwave for 5–20 min at 120 °C. b Conversion and the ortho:meta sulfonate ratio was estimated by RP-TLC using a mixture of acetone/water (1:4) as eluent; this is possible because all components (starting material and product) have different colors, the starting material is red, while the product is blue and the by-product is dark-red or violet. cYield was estimated based on the RP-TLC results.

2.3. Regioselective Ullmann Coupling Reaction of Bromaminic Acid with 2,4-Diaminobenzene Sulfonate

For a direct comparison and to further investigate the scope of the developed Ullmann coupling reaction and its regioselectivity we reacted bromaminic acid (4) with 2,4-diaminobenzenesulfonic acid (6) using different copper catalysts. At first we examined the effect of different pH values of the sodium phosphate buffer in the presence of elemental copper (Cu) heating the reagents in a microwave oven at 120 °C for 5–10 min (see Table 4). We noticed that the reaction in the presence of Cu as a catalyst produced both possible isomers, ortho- and para-substituted.
Especially under basic conditions (pH 8.2 and 9.4, entry 5 and 6 respectively, Table 4) 100% conversion was observed and the coupling was in favour of the para-isomer (with respect to the aminoanthraquinone) with an ortho:para ratio of 1:3. The isolation of both products (10 and 11) was easy due to the big difference in their Rf values. The purification and isolation of the two isomers proceeded by flash column chromatography using reversed phase silica gel. In neutral or acidic media the conversion was only about 25% or less (entries 1–3 Table 4) indicating the importance of basic conditions for the reaction.
Table

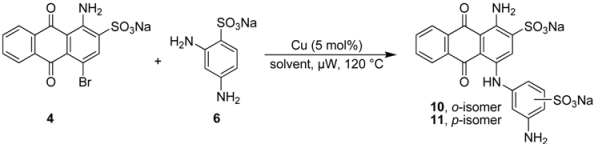

Table 4. Effects of different pH values on the coupling reaction of bromaminic acid (4) with 2,4-diaminobenzene sulfonic acid (6). a
Table 4. Effects of different pH values on the coupling reaction of bromaminic acid (4) with 2,4-diaminobenzene sulfonic acid (6). a
Molecules 17 02599 i004
EntrySolvent mixture (mL)pH valueTime (min)Conversion (%) bortho:para ratio bYield (%) c
NaH2PO4 (0.12 M)Na2HPO4 (0.20 M)
1504.810ca. 251.5:1ca. 25
2417.05ca. 251:1ca. 25
3327.45ca. 251:1.5ca. 25
4237.85ca. 501:2>50
5148.251001:3>50
6059.451001:3>50
aReaction conditions: A mixture of bromaminic acid (40.5 mg, 0.1 mmol), 2,5-diaminobenzene sulfonic acid (56.4 mg, 3 eq), Cu (5 mol %) and 5 mL of different buffer mixtures was irradiated by microwave for 5–10 min at 120 °C. b Conversion and the ortho:para sulfonate ratio was estimated by RP-TLC using a mixture of acetone/water (1:4) as eluent, this is possible because all components (starting material and product) have different colors: the starting material is red, while the product is blue and the by-product is dark-red or violet. c Yield was estimated based on the RP-TLC results.

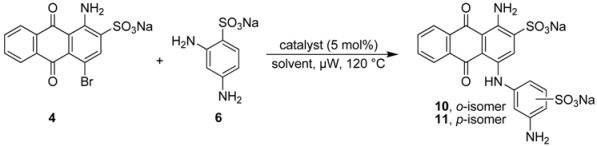

Finally we investigated water as a solvent in the presence or absence of triethylamine using different copper catalysts: elemental copper (Cu), copper(I) chloride (CuCl), and copper(II) sulfate (CuSO4). The mixture was irradiated by microwave at 120 °C for 5–20 min (Table 5). Interestingly only ortho-isomer was detected in the water system without triethylamine with an ortho:para ratio of >99:1. However, the reaction did not go to completion and only 50% conversion could be observed. The addition of triethylamine dramatically increased the conversion to 100% in case of CuCl or CuSO4 as catalysts, whereas in the case of elemental copper (Cu) it was still only about 80%. The ortho:para ratio was dramatically reduced to 5:1 by applying CuCl (entry 5, Table 5). Nevertheless, the CuCl procedure was favorable due to a reaction conversion of 100%, an estimated isolated yield of >75%, and the easiness of isolating and purifying both isomers by reversed phase column chromatography.
It can thus be concluded that the best choice of catalyst in the microwave-catalyzed Ullmann coupling reaction depends on several factors, including (i) the pH value of the reaction mixture, since the protonation state of the aniline and the redox potential of the copper species are pH-dependent; (ii) the chemical nature of the reaction partners; (iii) the presence of complexing agents; and (iv) the desired regioselectivity of the reaction. Therefore the reaction conditions have to be optimized in each case, and depending on the reaction sequence a different copper species may be preferred.
Table
Table 5. Effects of different copper catalysts in the presence or absence of triethylamine (Et3N) in water on the synthesis of compounds 8 and 9. a
Table 5. Effects of different copper catalysts in the presence or absence of triethylamine (Et3N) in water on the synthesis of compounds 8 and 9. a
Molecules 17 02599 i005
EntrySolventTime (min)CatalystConversion (%) bortho:para ratioYield (%) c
1water15Cuca. 50>99:1ca. 20
2water15CuClca. 50>99:1ca. 20
3water20CuSO4ca. 50>99:1ca. 20
4water/Et3N5Cuca. 801.5:1ca. 50
5water/Et3N5CuCl1005:1>75
6water/Et3N5CuSO41002:1>50
a Reaction conditions: A mixture of bromaminic acid (40.5 mg, 0.1 mmol), 2,5-diaminobenzene­sulfonic acid (56.4 mg, 3 eq), catalyst (5 mol %) and 5 mL of water with or without Et3N (3 eq) was irradiated by microwave for 5–20 min at 120 °C. b Conversion and the ortho:meta sulfonate ratio was estimated by RP-TLC using a mixture of acetone/water (1:4) as eluent. This is possible because all components (starting material and product) have different colors, the starting material is red, while the product is blue and the by-product is dark-red or violet. c Yield was estimated based on the RP-TLC results.

2.4. Synthesis of MG 50-3-1 (3)

After having improved the preparation of compound 8–the key step in the synthesis of MG 50-3-1 (3)–we analyzed the possible retrosynthetic pathways of 3. Two different strategies can be envisaged: (i) a linear synthesis (pathway A, blue color, Scheme 1), which has been previously described in the literature for the synthesis of 3 (total yield of 5.5%) [21], and (ii) a new, convergent synthesis (pathway B, red color, Scheme 1).
Using the linear synthesis described in the literature (pathway A) [21] the final coupling reaction failed in our hands. The precursor of product 3 (the dichlorotriazinyl derivative 12, Scheme 1) was found to be unstable under the conditions used for the coupling reaction (aqueous basic media), and 12 was either partially or completely hydrolyzed to the corresponding hydroxychlorotriazinyl- or dihydroxytriazinyl-anthraquinone derivative. This means that the described synthesis of MG 50-3-1 (3) according to pathway A failed in our hands at two critical steps, (i) the regioselective Ullmann coupling reaction described above; and (ii) the final coupling reaction step (pathway A, Scheme 1).
Molecules 17 02599 g002 550

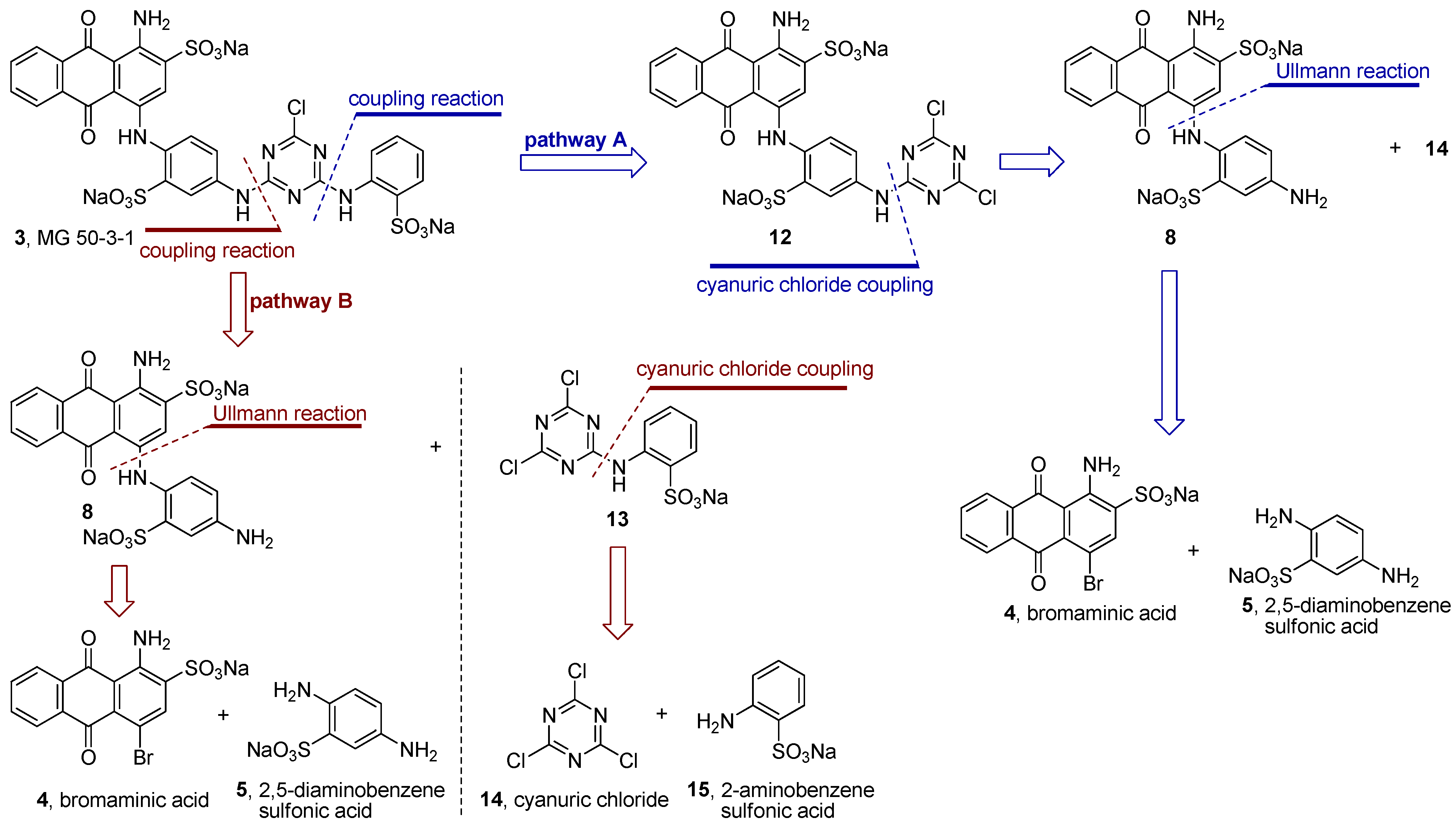

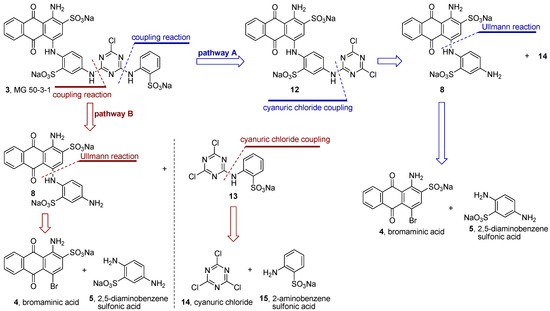

Scheme 1. Two proposed retrosynthetic analysis pathways for MG 50-3-1 (3): Linear synthesis (pathway A, blue color) and convergent synthesis (pathway B, red color).
Scheme 1. Two proposed retrosynthetic analysis pathways for MG 50-3-1 (3): Linear synthesis (pathway A, blue color) and convergent synthesis (pathway B, red color).
Molecules 17 02599 g002
Therefore we applied a new, convergent approach designed by retrosynthetic analysis as outlined in Scheme 1, pathway B, and finally succeeded in obtaining compound 3. As mentioned above we systematically improved the key step in the synthesis of compound 3, the Ullman coupling reaction of bromaminic acid (4) with 2,5-diaminobenzensulfonic acid (5) by applying CuSO4 (5 mol %) as a catalyst in water in the presence of 3 equivalents of triethylamine (entry 6, Table 3). The mixture was irradiated by microwave at 120 °C for 20 min. Product 8 (the Western part of the target molecule 3) was obtained in 13% isolated yield while its isomer 9 was obtained in 38% isolated yield (Scheme 2). The two isomers (ortho-isomer 8 and meta-isomer 9) where readily separated by flash column chromatography on reversed phase silica gel (RP-18) using a gradient of acetone/water as described in the experimental part. The Eastern part of the target structure 3 was synthesized by the coupling of cyanuric acid chloride (14) with 2-aminobenzenesulfonic acid (15) in the presence of sodium bicarbonate (NaHCO3) in acetone/water (2:1) at 0–5 °C in an ice-bath for 30 min. Compound 13 was isolated in 95% yield. The last challenge was the final coupling reaction of the Western part 8 and the Eastern part 13, which required basic conditions (K2CO3) that might lead to hydrolysis. Since we had developed a simple reaction yielding gram amounts of compound 13 with excellent yield (95%) the use of 13 in excess did not constitute any problem.
Finally 13 was successfully coupled with 8 in basic media (K2CO3) using acetone/water (1:1) as a solvent at room temperature in a reaction time of 7 h. In order to quantitatively convert the precious reagent 8, the use of 3 equivalents of compound 13 was essential. The target compound MG 50-3-1 (3) was obtained in excellent isolated yield (97%). The total isolated yield over three steps was 12%.
Molecules 17 02599 g003 550

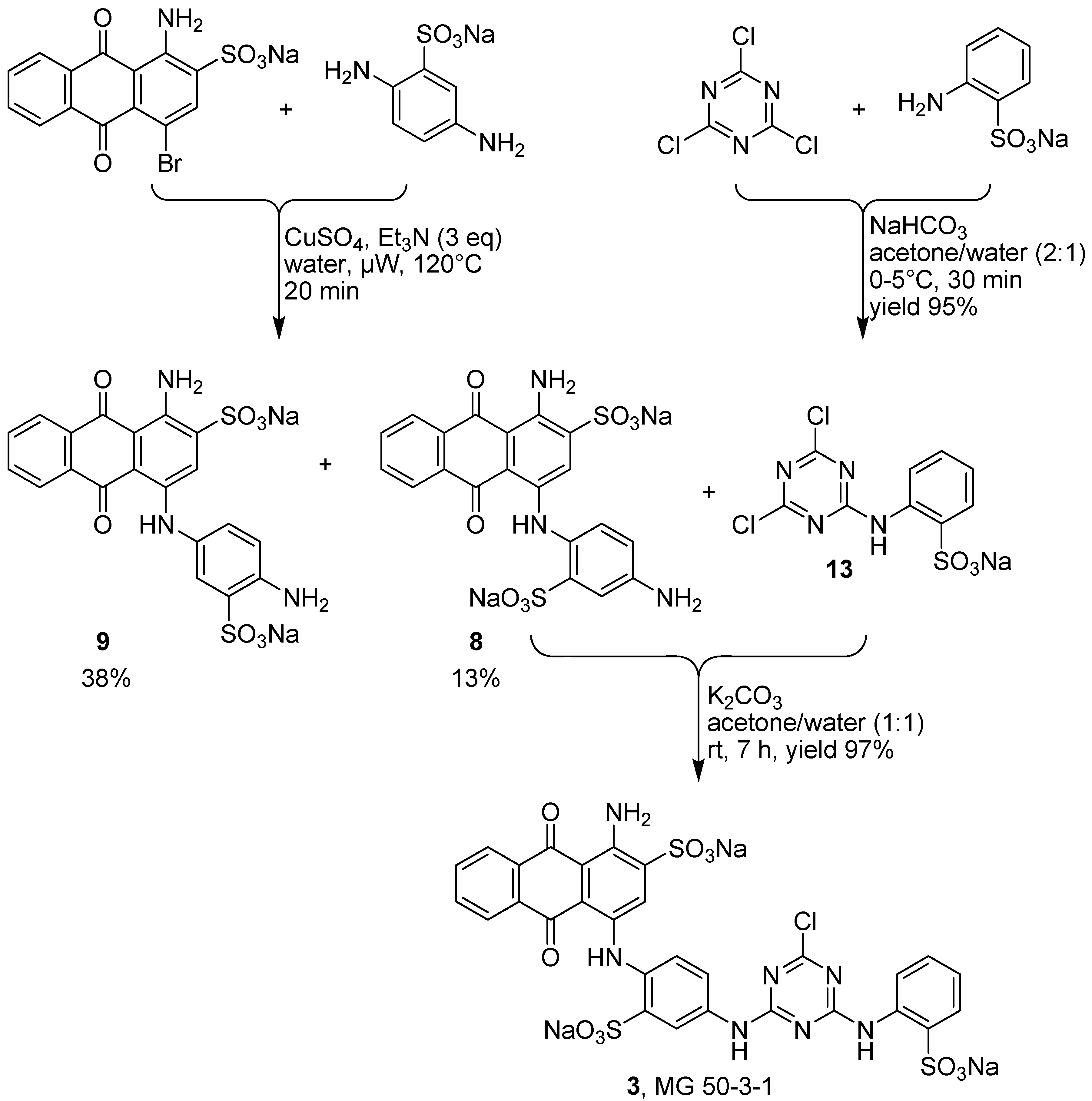

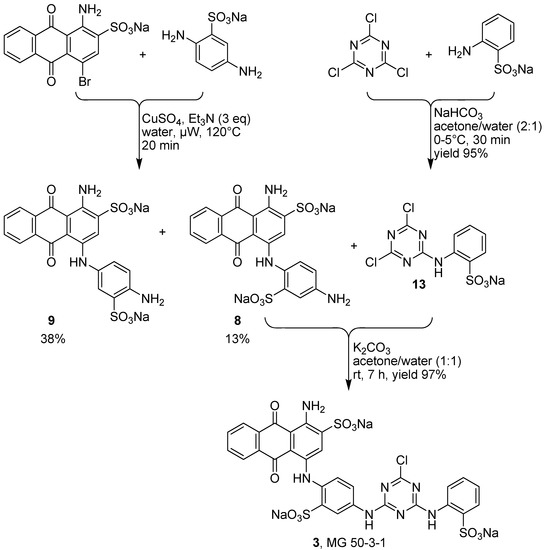

Scheme 2. Total synthesis of MG 50-3-1 (3) based on a newly developed convergent synthesis (pathway B).
Scheme 2. Total synthesis of MG 50-3-1 (3) based on a newly developed convergent synthesis (pathway B).
Molecules 17 02599 g003

3. Experimental

3.1. General

All solvents and reagents were used as purchased. Thin-layer chromatography was performed using TLC aluminum sheets with silica gel 60 F254, or TLC aluminum sheets RP silica gel 18 F254 (Merck, Darmstadt, Germany). Coloured compounds were visible at daylight; other compounds were visualized under UV light. Flash column chromatography was performed on a Büchi system using silica gel RP-18 (Merck, Darmstadt, Germany). 1H- and 13C-NMR data were collected on a Bruker Avance 500 MHz NMR spectrometer at 500 MHz (1H), or 126 MHz (13C), respectively. DMSO-d6 was used as a solvent. Chemical shifts are reported in parts per million (ppm) relative to the deuterated solvent, i.e., DMSO, δ 1H: 2.49 ppm, 13C: 39.7 ppm, coupling constants J are given in Hertz and spin multiplicities are given as s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet), br (broad). The purities of isolated products were determined by LC-ESI–MS (Applied Biosystems API 2000 LCMS/MS, HPLC Agilent 1100) using the following procedure: the compounds were dissolved at a concentration of 0.5 mg/mL in H2O-MeOH = 1:1, containing 2 mM NH4CH3COO. Then, 10 μL of the sample was injected into an HPLC column (Phenomenix Luna 3μm C18, 50 × 2.00 mm). Elution was performed with a gradient of water-methanol (containing 2 mM NH4CH3COO) from 90:10 to 0:100 for 30 min at a flow rate of 250 μL/min, starting the gradient after 10 min. UV absorption was detected from 200 to 950 nm using a diode array detector. Purity of the compounds was determined over the whole range (200 to 950 nm) and proved to be ≥95%. For microwave reactions a CEM FocusedTM Microwave Synthesis type Discover apparatus was used. A freeze dryer (CHRIST ALPHA 1-4 LSC) was used for lyophilization.

3.2. General Procedure A: Coupling Reaction of Bromaminic Acid with Aniline

To a 5 mL microwave reaction vial equipped with a magnetic stirring bar were added bromaminic acid sodium salt (4, 40.5 mg, 0.1 mmol), aniline (27.5 µL, 3 eq) and 5 mol % catalyst (Cu, CuCl, CuCl2, or CuSO4) followed by 5 mL of different solvent systems consisting of different concentrations of sodium phosphate buffer {Na2HPO4 (pH 9.4) [0.20 M] and NaH2PO4 (pH 4.8) [0.12 M]} or water (pH 7). The mixture was capped and irradiated in the microwave oven (100 W) for 5–150 min at 120 °C. Then the reaction mixture was cooled to rt, and the conversion was determined by RP-TLC using acetone/water (1:4) as the mobile phase.

3.3. General Procedure B: Coupling Reaction of Bromaminic Acid with 2,5-Diaminobenzensulfonic Acid (5) or with 2,4-Diaminobenzensulfonic Acid (6)

To a 5 mL microwave reaction vial equipped with a magnetic stirring bar were added bromaminic acid sodium salt (4, 40.5 mg, 0.1 mmol), 2,5-diaminobenzene sulfonic acid (5) or 2,4-diaminobenzene sulfonic acid (6) (56.4 mg, 3 eq), and 5 mol % catalyst (Cu, CuCl, or CuSO4) followed by 5 mL of different solvent systems consisting of different concentrations of sodium phosphate buffer {Na2HPO4 (pH 9.4) [0.20 M] and NaH2PO4 (pH 4.8) [0.12 M]}, water (pH 7) or water in the presence of three equivalents of triethylamine. The mixture was capped and irradiated in the microwave oven (100 W) for 5-20 min at 120 °C. Then the reaction mixture was cooled to rt, and the conversion was determined by RP-TLC using acetone/water (1:4) as eluent.

3.4. Synthesis of Disodium 1-Amino-4-(4-amino-2-sulfophenylamino)-9,10-dioxo-9,10-dihydro­anthracene 2-Sulfonate (8)

To an 80 mL microwave reaction vial equipped with a magnetic stirring bar were added bromaminic acid (4, 1.212 g, 3 mmol), 2,5-diaminobenzenesulfonic acid (5, 1.694 g, 3 eq.), CuSO4 (37.5 mg), Et3N (1.25 mL, 3 eq.) and water (45 mL) and heated in the microwave at 120 °C for 20 min, yielding a mixture of two isomers (ortho- and meta-sulfonate). The reaction mixture was cooled to rt, and the product was purified using the following procedure. The mixture was transferred to a 1000 mL separatory funnel and ca. 300 mL of water was added. The aqueous solution was extracted with dichloromethane (250 mL). The extraction procedure was repeated until the dichloromethane layer became colorless (3 times). Then the aqueous layer was reduced by rotary evaporation to ca. 20 mL, which was subsequently submitted to flash column chromatography (FCC) using RP-18 silica gel and water as an eluent. Then acetone/water (1:4) was applied at a relatively slow flow rate (10 mL·min−1). The first fractions containing blue product were collected. The pooled product-containing fractions were evaporated under vacuum to remove the acetone, and the remaining water was subsequently removed by lyophilization to yield the two isomers: compound 8 (210 mg, 13%) as a blue powder. The second fractions contained compound 9 (600 mg, 38%) were obtained. The total yield of both isomers (ortho- and meta-sulfonate) was 51%. Analytical data for compound 8: mp > 300 °C, 1H-NMR: δ 5.14 (bs, 2H, 4′-NH2), 6.54 (dd, 1H, 5′-H), 6.83 (d, 1H, 6′-H), 7.13 (d, 1H, 3′-H), 7.78 (m, 2H, 6-H, 7-H), 7.88 (s, 1H, 3-H), 8.26 (m, 2H, 5-H, 8-H), 10.25 (br, 2H, 1-NH2), 12.00 (s, 1H, 4-NH). 13C-NMR: δ 109.2, 110.6, 113.4, 114.5, 124.6, 124.8, 125.8, 125.9, 126.0, 132.3, 132.5, 134.2, 134.3, 141.8, 142.1, 142.2, 144.2, 145.4, 180.0, 181.6. LC-MS (m/z): 507 [M-2Na+NH4+]+, 490 [M-2Na]+, 488 [M-2Na]−, 244 [M-2Na]2−. Purity by HPLC-UV (200 to 950 nm)-ESI-MS: 95%.

3.5. Synthesis of Sodium 2-(4,6-dichloro-1,3,5-triazin-2-ylamino)benzenesulfonate (13)

A cold solution (0–5 °C) of 2-aminobenzene sulfonic acid (15, 0.935 g, 5.4 mmol) in 30 mL of a mixture of acetone/water (1:1) was dropwise added to a solution of cyanuric chloride (14, 1.0 g, 5.4 mmol) in acetone (15 mL) with stirring at 0–5 °C. Aqueous sodium hydrogen carbonate (NaHCO3, 0.3 M, 12 mL) was then added to the mixture while maintaining a temperature of 0–5 °C. The solution was stirred for 30 min (TLC monitoring methanol-dichloromethane 2:3). The acetone was evaporated under vacuum, then concd. aq. HCl solution was dropwise added with cooling in an ice bath until a white precipitate formed. The white solid was collected by suction filtration and washed with water. The solid was then dried in an oven at 70 °C, while the filtrate was extracted with ethyl acetate (3 x 150 mL), and the combined organic phase was washed, once with water and dried over magnesium sulfate (MgSO4) and evaporated under vacuum to obtain a white precipitate. Both white solids were combined and 1.67 g of 13 were obtained (yield 90%). Analytical data: mp > 300 °C, 1H-NMR: δ 7.17 (ddd, 1H, 5-H), 7.44 (ddd, 1H, 4-H), 7.73 (dd, 1H, 3-H), 8.15 (dd, 1H, 6-H), 11.03 (s, 1H, 2-NH). 13C-NMR: δ 121.2, 124.3, 127.3, 130.0, 137.2, 154.5, 163.4. LC-MS (m/z): 660 [2M-Na+NH4+]+, 643 [2M-Na]+, 338 [M-Na+NH4+]+, 321 [M-Na+]+, 319 [M-Na]−, 283 [M-Na-Cl]−. Purity by HPLC-UV (200 to 950 nm)-ESI-MS: 98%.

3.6. Synthesis of Trisodium 1-Amino-4-{4-[4-chloro-6-(2-sulfophenylamino)-1,3,5-triazin-2-ylamino]-2-sulfophenylamino}-9,10-dioxo-9,10-dihydroanthracene 2-Sulfonate (3, MG 50-3-1)

A solution of sodium 2-(4,6-dichloro-1,3,5-triazin-2-ylamino)benzenesulfonate (13, 34,5 mg, 0.1 mmol) in 20 mL of water/acetone (1:1) was added at room temperature (rt) to a stirred solution of disodium 1-amino-4-(4-amino-2-sulfophenylamino)-9,10-dioxo-9,10-dihydroanthracene 2-sulfonate (8, 53.5 mg, 0.1 mmol) and K2CO3 (14 mg, 1 eq) in 20 mL of water-acetone (1:1). The resulting mixture was stirred at rt for 1 h. Control of the reaction by RP-TLC using water-acetone (1:4) as eluent showed ca. 30% conversion. Then another equivalent of 13 (34.5 mg) and K2CO3 (14 mg) was added and the resulting mixture was stirred for 2 more h. The RP-TLC analysis then showed more product (ca. 90% conversion). Finally one further equivalent of 13 (34.5 mg) and K2CO3 (14 mg) was added and the resulting mixture was stirred for additional 4 h, until the RP-TLC analysis shows >99% conversion. The reaction stopped and the acetone was evaporated under vacuum. The aqueous mixture was then subjected to FCC using RP-18 silica gel and water-acetone (1:4) as an eluent. The polarity of the mobile phase was then gradually decreased by the addition of acetone in the following steps: 5, 20, 40, and 60%. Fractions containing blue product were collected. The pooled product-containing fractions were evaporated under vacuum to remove the acetone, and the remaining water was subsequently removed by lyophilization to yield MG 50-3-1 (3, 81.5 mg, 97%) as blue powder in a total yield of 12%. 1H-NMR (DMSO-d6) δ 7.13 (s, 1H, 4′′′-H), 7.17 (m, 1H, 5′-H), 7.23 (m, 1H, 6′′′-H), 7.42 (m, 1H, 5′′′-H), 7.65 (br, 1H, 3′′′-H), 7.73 (d, 1H, 6′-H), 7.83 (m, 2H, 6-H, 7-H), 7.91 (br, 1H, 3′-H), 8.05 (s, 1H, 3-H), 8.26 (m, 2H, 5-H, 8-H), 10.43 (s, 1H, 3′′-NH), 10.50 (s, 1H, 4′-NH), 11.81 (s, 1H, 4-NH). 13C-NMR (DMSO-d6) δ 109.9, 113.9, 122.5, 123.9, 124.5, 124.9, 125.0, 125.4, 126.10, 126.18, 126.5, 129.6, 130.8, 131.5, 132.9, 133.2, 133.9, 134.2, 135.5, 138.1, 138.7, 139.6, 141.7, 144.7, 147.8, 155.3, 155.6, 181.9, 182.4. LC-MS (m/z): 791 [M-3Na+NH4+]+, 774 [M-3Na]+, 772 [M-3Na]−, 385 [M-3Na]2−. Purity by HPLC-UV (200 to 950 nm)-ESI-MS: 96%.

4. Conclusions

In conclusion, we have developed a convenient, fast, mild, and efficient convergent procedure for the synthesis of MG 50-3-1 (3), a potent and selective antagonist at P2Y1-like receptors exhibiting high potency in the low nano-molar range (IC50 4.6 nM). P2Y1 receptors are considered as promising targets for novel anti-thrombotic drugs and for the treatment of vascular inflammation. The total synthesis of product 3 faced serious problems: a regioselective Ullmann coupling reaction was involved and successfully performed by carefully examining a variety of reaction conditions using four different copper catalysts in three different oxidation states (Cu, CuCl, CuCl2, and CuSO4) and by investigating the microwave-assisted reaction at different pH values. Results show the combination of CuSO4 in water as solvent and in the presence of triethylamine to provide the optimal conditions toward the synthesis of MG 50-3-1 precursor 8. The second challenge was the hydrolysis of the chlorotriazinyl moiety; we were able to eliminate this problem by synthesizing the new synthon 13, which could easily be obtained on a gram scale. It should be mentioned that compound 13 was also partially hydrolyzed during the reaction, but the use of three equivalents of the easily accessible 13 led to complete conversion of all starting material 8 yielding the target molecule (MG 50-3-1, 3) in 97% isolated yield.

Conflict of Interest

The authors declare no conflict of interest.

Acknowledgments

The authors of this manuscript would like to thank the DFG-funded research training group (GRK-804) for support. Y.B. acknowledges the Deutsche Akademischer Austauschdienst (DAAD) for financial support. We thank Samer Alshaibani, student of Pharmacy, and Meike Welz, student of Molecular Biomedicine, for performing some preliminary reactions.
  • Sample Availability: Samples of the compounds are available from the authors.
