Specific Binding of Anionic Porphyrin and Phthalocyanine to the G-Quadruplex with a Variety of in Vitro and in Vivo Applications

by
Hidenobu Yaku
1,2,3,*,
Takashi Murashima
2,3,
Daisuke Miyoshi
2,3 and
Naoki Sugimoto
2,3
1
Advanced Technology Research Laboratories, Panasonic Corporation, 3-4 Hikaridai, Seika-cho, Soraku-gun, Kyoto 619-0237, Japan
2
Frontier Institute for Biomolecular Engineering Research (FIBER), Konan University, 7-1-20 Minatojima-minamimachi, Chuo-ku, Kobe 650-0047, Japan
3
Faculty of Frontiers of Innovative Research in Science and Technology (FIRST), Konan University, 7-1-20 Minatojima-minamimachi, Chuo-ku, Kobe 650-0047, Japan
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(9), 10586-10613; https://doi.org/10.3390/molecules170910586
Submission received: 31 July 2012 / Revised: 27 August 2012 / Accepted: 29 August 2012 / Published: 5 September 2012
(This article belongs to the Special Issue Tetrapyrroles, Porphyrins and Phthalocyanines)
Browse Figures
Versions Notes

Abstract

:
The G-quadruplex, a four-stranded DNA structure with stacked guanine tetrads (G-quartets), has recently been attracting attention because of its critical roles in vitro and in vivo. In particular, the G-quadruplex functions as ligands for metal ions and aptamers for various molecules. Interestingly, the G-quadruplex can show peroxidase-like activity with an anionic porphyrin, iron (III) protoporphyrin IX (hemin). Importantly, hemin binds to G-quadruplexes with high selectivity over single-stranded DNA (ssDNA) and double-stranded DNA (dsDNA), which is attributable to an electrostatic repulsion of phosphate groups in ssDNA and dsDNA. The G-quadruplex and hemin-G-quadruplex complex allow development of sensing techniques to detect DNA, metal ions and proteins. In addition to hemin, anionic phthalocyanines also bind to the G-quadruplex formed by human telomere DNA, specifically over ssDNA and dsDNA. Since the binding of anionic phthalocyanines to the G-quadruplex causes an inhibition of telomerase activity, which plays a role in the immortal growth of cancer cells, anionic phthalocyanines are promising as novel anticancer drug candidates. This review focuses on the specific binding of hemin and anionic phthalocyanines to G-quadruplexes and the applications in vitro and in vivo of this binding property.

1. Introduction

The fabrication of functional nanomaterials, which includes functional dyes (porphyrins and phthalocyanines) [1,2,3], carbon nanomaterials (fullerenes, carbon nanotubes, or graphenes) [4,5,6] and nanoparticles (gold nanoparticles, magnetic nanoparticles, or quantum dots) [6,7,8,9], by biomolecules such as nucleic acids, proteins and lipids has recently been opening up an entire new and exciting research area. Among the biomolecules used, G-quadruplex DNA has been attracting attention because of its property of exhibiting peroxidase-like activity with iron (III) protoporphyrin IX, also known as hemin. The G-quadruplex is a four-stranded DNA structure with stacked guanine tetrads, G-quartets, which are held together via eight Hoogsteen hydrogen bonds (Figure 1A). Since the prediction of the existence of the G-quadruplex [10], G-quadruplexes formed by different guanine-rich (G-rich) sequences are found not only in genomic DNA but are also generated during in vitro screening for aptamers targeting molecules such as proteins [11,12,13,14]. Structural studies have demonstrated that the G-rich sequences can fold to form various types of G-quadruplex conformations depending on the sequences and the experimental conditions (e.g., coexisting metal ion, metal ion concentration and degree of molecular crowding) (Figure 1B) [11,12,13,14]. These findings combined with the peroxidase-like activity of the hemin-G-quadruplex complex have stimulated development of various applications, mainly detection techniques targeting DNA, proteins and metal ions [15,16,17,18]. The detection is composed of the following two steps. The first involves DNA conformational change to a catalytically active form of G-quadruplex from inactive DNA such as single-stranded DNA (ssDNA) and double-stranded DNA (dsDNA), depending on the target molecule. The second step is analysis of the peroxidase-like activity of the G-quadruplex with hemin (Figure 2A). The key point is the specific binding of hemin to the G-quadruplex because the system can not work if hemin binds to ssDNA and dsDNA nonspecifically and the complexes then exert peroxidase-like activity. Cationic p-conjugated molecules such as cationic porphyrins usually bind to G-quadruplexes via π-π interaction with G-quartets and via electrostatic interaction with anionic phosphate groups on G-quadruplexes [19,20,21,22,23,24,25,26]. However, the specificity of G-quadruplexes is usually low because the electrostatic interaction also causes non-specific binding to dsDNA and ssDNA [20,22,23,25,26]. In contrast, the specificity of hemin binding to G-quadruplexes is significantly high. This specific binding is attributable to an electrostatic repulsion between the carboxyl groups of hemin and the phosphate groups of DNA, leading to inhibition of hemin binding to ssDNA and dsDNA. In order to overcome the electrostatic repulsion, the large π-planar of hemin can form π-π stacking interactions with G-quartets of G-quadruplexes despite the electrostatic repulsion [27].
Molecules 17 10586 g001 550

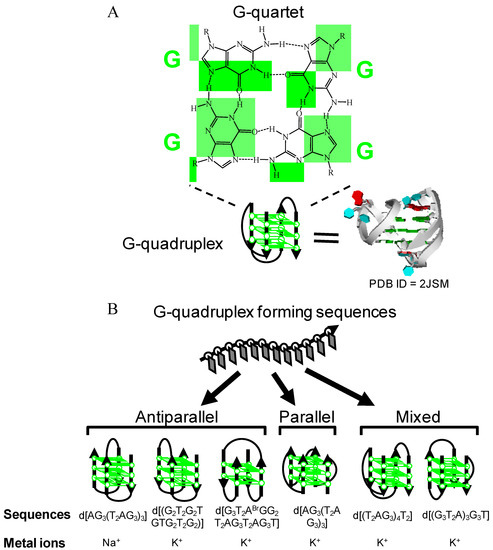

Figure 1. (A) Typical G-quadruplex and G-quartet structures. In the crystal structure of the G-quadruplex (right), the backbone is represented as a ribbon model. Thymine, adenine, and guanine bases are drawn in blue, red, and green, respectively; (B) Schematic diagram of relationship among sequences, metal ions and unimolecular G-quadruplex polymorphism.
Figure 1. (A) Typical G-quadruplex and G-quartet structures. In the crystal structure of the G-quadruplex (right), the backbone is represented as a ribbon model. Thymine, adenine, and guanine bases are drawn in blue, red, and green, respectively; (B) Schematic diagram of relationship among sequences, metal ions and unimolecular G-quadruplex polymorphism.
Molecules 17 10586 g001
G-quadruplexes play a role not only in the in vitro biosensing applications described above, but also in biological events in living cells [19,20,21,22,23,24,25,26]. G-quadruplexes, in particular those formed by human telomere sequences, have been investigated extensively. Human telomere DNA comprises tandem repeats of the sequence 5'-TTAGGG-3' with a 3' overhang of the G-rich strand at the ends of the chromosomes (Figure 2B) [28]. Telomere length shortening with each cell division limits the proliferative potential of normal somatic cells [28,29,30]. On the contrary, in 80%–85% of human tumor cells, functional telomerase elongates telomere DNA, which leads to immortal cell growth [31,32]. Human telomere G-quadruplex inhibits telomerase activity because the G-quadruplex can not function as a substrate for telomerase [33]; therefore, development of G-quadruplex-ligands that inhibit telomerase activity via induction or stabilization of the G-quadruplex has become a research area of great interest (Figure 2B) [19,20,21,22,23,24,25,26]. Ligands binding to the G-quadruplex have to be specific because any nonspecific binding to dsDNA in the genomic DNA could cause side effects. To date, it has been reported that various G-quadruplex-ligands such as bisquinolinium derivatives with a pyridodicarboxaminde core (PDC series) and phenanthroline dicarboxamide core (Phen-DC series), cationic pophyrin derivatives (Mn(III) porphyrin and Se2SAP), and telomestatin exhibit a G-quadruplex-over duplex-selectivity (Figure 3) [20]. Recent studies demonstrated that several phthalocyanines with functional groups including guanidinium group, quaternary ammonium group, and sulfo group are specific ligands of the G-quadruplex [24,25,26]. Notably, anionic phthalocyanines with sulfo groups bind to the G-quadruplex high specifically (Figure 3), which results in an efficient telomerase inhibition even in the presence of excess decoy dsDNA (Figure 2B) [25,26]. Thus, anionic phthalocyanines represent promising anticancer drug without side effects. Similar to hemin, the specificity of anionic phthalocyanines is attributable to an electrostatic repulsion with dsDNA.
Molecules 17 10586 g002 550

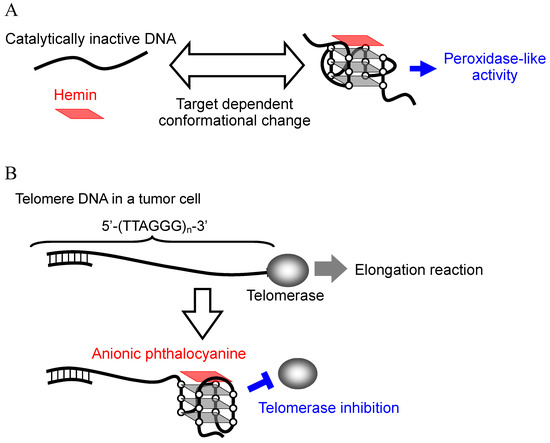

Figure 2. Schematic diagram illustrating the principle of the biosensing application utilizing hemin-G-quadruplex with peroxidase-like activity (A), and telomerase inhibition by anionic phthalocyanines (B).
Figure 2. Schematic diagram illustrating the principle of the biosensing application utilizing hemin-G-quadruplex with peroxidase-like activity (A), and telomerase inhibition by anionic phthalocyanines (B).
Molecules 17 10586 g002
Molecules 17 10586 g003 550

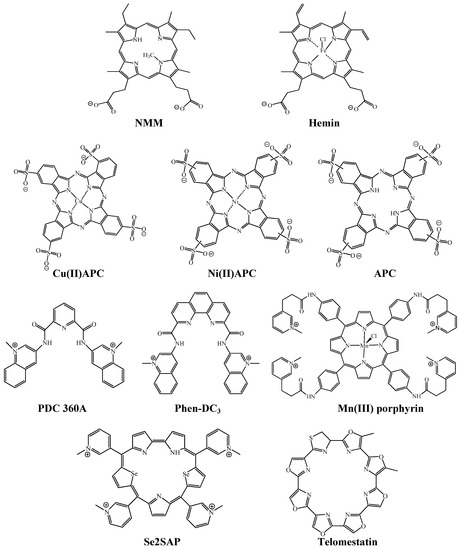

Figure 3. Chemical structures of anionic porphyrins (NMM and hemin), anionic phthalocyanines (Cu(II)APC, Ni(II)APC and APC), and other specific ligands for G-quadruplex (PDC 360A, Phen-DC3, Mn(III) porphyrin, Se2SAP and telomestatin).
Figure 3. Chemical structures of anionic porphyrins (NMM and hemin), anionic phthalocyanines (Cu(II)APC, Ni(II)APC and APC), and other specific ligands for G-quadruplex (PDC 360A, Phen-DC3, Mn(III) porphyrin, Se2SAP and telomestatin).
Molecules 17 10586 g003
In this review, we will focus our attention on the specific binding of anionic porphyrins and phthalocyanines to G-quadruplexes, and discuss recent studies with a view to elucidating the binding mechanism and various applications utilizing the complex’s specific binding property. We will also briefly describe the implications of some other interesting applications.

2. Hemin-G-quadruplex Interaction for in Vitro Applications

Hemin, which is an anionic porphyrin with two carboxyl groups (Figure 3), is used as a cofactor for a variety of enzymes such as catalases, peroxidases and monooxygenases in living cells. In the late 1990s, it was discovered that some G-quadruplexes bind to hemin and the complexes show peroxidase-like activity [27]. Importantly, no DNA structures than other the G-quadruplex has such properties. Moreover, the peroxidase-like activity depends on G-quadruplex polymorphisms [27,34]. Thus, the studies on the relationships among DNA structure, binding property of hemin and the peroxidase-like activity have been conducted extensively. Furthermore, many applications utilizing the hemin-G-quadruplex peroxidase activity have been reported recently. Here, we discuss recent advances based on these studies.

2.1. Mechanism of Induction of Peroxidase-Like Activity

In 1996 Sen’s group conducted an interesting investigation to find DNA aptamers for N-methylmesoporphyrin IX (NMM) (Figure 3) using an in vitro selection (Systematic Evolution of Ligands by Exponential enrichment, SELEX) method [35]. Surprisingly, the authors found that some G-rich DNAs including PS2 and PS5 bind to NMM despite the anionic properties of NMM (Table 1) [35]. More importantly, they showed that the G-rich DNAs are more than just NMM aptamers. NMM is a stable transition-state analogue for porphyrin-metallation reactions, implying that the NMM aptamers catalyze porphyrin metallation. In fact, it was demonstrated that PS2- and PS5-related DNAs have the ability to catalyze metallation [36,37]. Furthermore, since Sen’s group found that hemin, which is an anionic porphyrin utilized as a cofactor of peroxidase in nature, also binds to the NMM aptamers, the authors investigated the peroxidase-like activity of hemin-PS2.M and -PS5.M (Table 1) [27]. The investigation demonstrated that the observed catalytic velocity (Vobs) of PS2.M-hemin was 250 times greater than that of hemin alone when 2,2'-azino-bis(3-ethylbenzothiazoline-6-sulphonic acid) (ABTS) was used as a substrate in the presence of H2O2 (Figure 4) [27]. Interestingly, K+ was fundamental for the activity of PS2.M-hemin although Na+ and Mg2+ inhibited the activity [27]. The result implies that the catalytically-active form of PS2.M is a specific G-quadruplex structure that is stabilized by K+. The characteristic ability of hemin to bind specifically to the G-quadruplex is a key point for many applications described below.
Table
Table 1. G-rich sequences of G-quadruplexes with peroxidase-like activity.
Table 1. G-rich sequences of G-quadruplexes with peroxidase-like activity.
Name Sequences (5'→3')
PS2 TTGCC TAACC GTGAA GGTAA AACGA TTTAG TCAAA CGTGG GAGGG CGGTG GTGTT GACTG ATCGA TTTTA TTCCA
PS5 GTGTC GAAGA TCGTG GGTCA TTGTG GGTGG GTGTG GCTGG TCCGA TCCGC GATCT GCTGA CGCTG GTTAG GT
PS2.M GTGGG TAGGG CGGGT TGG
PS5.M GTGGG TCATT GTGGG TGGGT GTGG
CatG4 TGGGT AGGGC GGGTT GGGAA A
TBA GGTTG GTGTG GTTGG
AGRO100 GGTGG TGGTG GTTGT GGTGG TGGTG G
Molecules 17 10586 g004 550

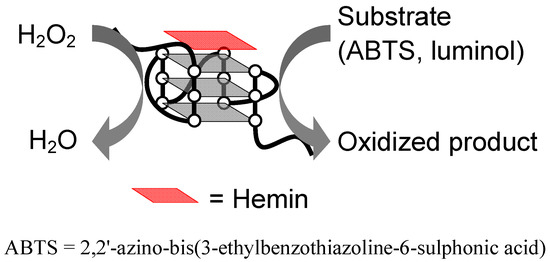

Figure 4. Peroxidase-like reaction of hemin-G-quadruplex.
Figure 4. Peroxidase-like reaction of hemin-G-quadruplex.
Molecules 17 10586 g004
The pioneering finding of the peroxidase-like activity of hemin-G-quadruplex has stimulated studies into the mechanisms of action, in particular the relationship among structural polymorphisms of G-rich sequences, the binding property of hemin and the peroxidase-like activity. However, the detail of the PS2.M structure remains to be completely elucidated and several models of the structure have been proposed to date [38,39,40,41]. Since the results of methylation protection assays indicate that G9, G17, and G18 in PS2.M are essential for forming G-quartets, and G10 and G12 participate in hemin binding, Sen’s group proposed two models of active forms of PS2.M: unimolecular antiparallel G-quadruplexes with two G-quartets including G9, G17, and G18; and two top and bottom protrusive loops including G10 and G12 (Figure 5A and 5B) [38]. However, it is impossible to determine the orientation of each strand in the G-quadruplex by methylation protection assay although the assay is an effect tool to demonstrate essential bases involved in G-quadruplex formation and hemin binding. Circular dichroism (CD) spectra give structural information on G-quadruplexes including the strand orientation. By employing CD analysis, it was found that, in the presence of K+, PS2.M forms an antiparallel G-quadruplex initially at optical concentrations, but with additional time or at higher initial strand concentrations an increasing amount of a multistranded parallel G-quadruplexes appear [39]. In contrast to K+, 140 mM Na+ or 140 mM Pb2+ caused a stable unimolecular antiparallel G-quadruplex of PS2.M (Figure 5C) [39]. Shangguan’s group also studied the structure and the peroxidase-like activity of PS2.M using CD analysis [41]. The authors suggested that, in the presence of 150 mM Na+ and 20 mM K+, PS2.M forms both parallel and antiparallel G-quadruplexes, or a hybrid type of G-quadruplex [41]. However, the CD spectrum of PS2.M observed by the authors is very similar to the spectrum for a parallel G-quadruplex. Thus, most of the G-quadruplexes under these conditions may be parallel G-quadruplexes. Furthermore, the authors also showed that the presence of as little as 20 mM K+ enhanced peroxidase-like activity of PS2.M with hemin (Figure 6). According to the results with PS2.M, K+ may be important for the formation of a parallel G-quadruplex of PS2.M, leading to higher peroxidase-like activity with hemin.
The relationship between the G-quadruplex structure and the peroxidase-like activity has also been investigated using other G-quadruplex-forming sequences [40,41,42]. As shown by the activity dependency on the coexisting cation, G-rich sequences forming a parallel G-quadruplex in the presence of K+ showed higher peroxidase-like activity (Figure 6) [40,41]. Not only the structural orientation, but also the structure of loop region are important for hemin binding and the enzymatic activity [41]. This is attributable as follows: for the unimolecular G-quadruplex, distribution of the loops on the sides of the G-quadruplex allows hemin end-stacking to G-quartets, but for the antiparallel G-quadruplex protrusion of the loops over the top and bottom G-quartets inhibits end-stacking. For the multistranded parallel G-quadruplexes formed by T4GnT4 (n = 6 or 8), T4 termini of the strands hinders the end-stacking of hemin [41]. Systematic studies on the structure-function relationship of d(G2Tn)3G2 and d(G3Tn)3G2 (n = 1 − 4) also demonstrated that the parallel G-quadruplexes in the presence of 100 mM K+ have high peroxidase-like activity although the antiparallel G-quadruplexes in the presence of 100 mM Na+ have little activity [42].
Molecules 17 10586 g005 550

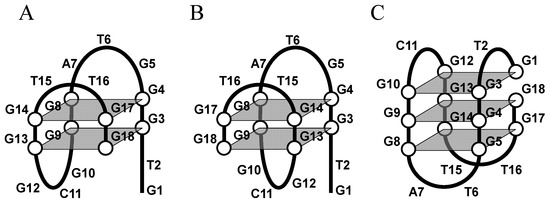

Figure 5. Proposed structures of the PS2.M G-quadruplex in 20 mM KCl (A and B) [38] and in 140 mM NaCl (C) [39].
Figure 5. Proposed structures of the PS2.M G-quadruplex in 20 mM KCl (A and B) [38] and in 140 mM NaCl (C) [39].
Molecules 17 10586 g005
Molecules 17 10586 g006 550

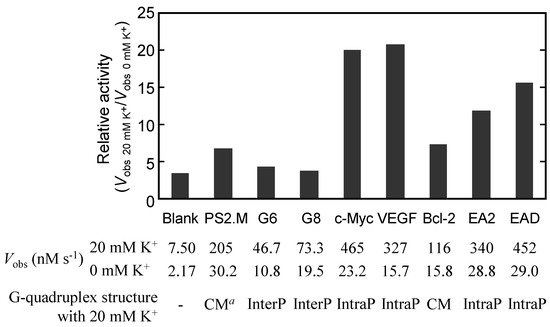

Figure 6. Enhancement of peroxidase-like activity by K+ [41]. Relative activity values were obtained from the equation (Vobs of each G-quadruplex with hemin in a buffer containing 20 mM K+)/(Vobs of each G-quadruplex with hemin in a buffer containing 0 mM K+), and Vobs values are from ref. 41. G-quadruplex structures were determined by CD spectra [41]. Blank means hemin with no G-quadruplex. The sequences of G-quadruplexes are as follows: G6 is 5'-T4G6T4-3', G8 is 5'-T4G8T4-3', c-Myc is 5'-TGAG3TG4AG3TG4A2-3', VEGF is 5'-(G3C)2CG5CG3-3', Bcl-2 is 5'-G3CGCG3AG2A2G5CG3-3', EA2 is 5'-CGAGG(TG3)3A-3', and EAD is 5'-C(TG3)4A-3'. CM, InterP, and IntraP mean “coexisting of parallel and antiparallel G-quadruplexes or mixed type hybrid G-quadruplex”, “intermolecular parallel G-quadruplex”, and “intramolecular parallel G-quadruplex”, respectively. a The CD spectrum is very similar to the typical one for a parallel G-quadruplex.
Figure 6. Enhancement of peroxidase-like activity by K+ [41]. Relative activity values were obtained from the equation (Vobs of each G-quadruplex with hemin in a buffer containing 20 mM K+)/(Vobs of each G-quadruplex with hemin in a buffer containing 0 mM K+), and Vobs values are from ref. 41. G-quadruplex structures were determined by CD spectra [41]. Blank means hemin with no G-quadruplex. The sequences of G-quadruplexes are as follows: G6 is 5'-T4G6T4-3', G8 is 5'-T4G8T4-3', c-Myc is 5'-TGAG3TG4AG3TG4A2-3', VEGF is 5'-(G3C)2CG5CG3-3', Bcl-2 is 5'-G3CGCG3AG2A2G5CG3-3', EA2 is 5'-CGAGG(TG3)3A-3', and EAD is 5'-C(TG3)4A-3'. CM, InterP, and IntraP mean “coexisting of parallel and antiparallel G-quadruplexes or mixed type hybrid G-quadruplex”, “intermolecular parallel G-quadruplex”, and “intramolecular parallel G-quadruplex”, respectively. a The CD spectrum is very similar to the typical one for a parallel G-quadruplex.
Molecules 17 10586 g006
These studies with various G-quadruplexes strongly suggest that the peroxidase-catalytically active form is the parallel conformation induced by K+. These findings are important for the biosensing application utilizing hemin-G-quadruplex peroxidase because conformational switching between the catalytically inactive and the active forms of the G-quadruplex is crucially important for this application. In the next section we will discuss representative applications, mainly DNA detection, utilizing the conformation switch.

2.2. DNA Detection

Hemin-G-quadruplex peroxidases have been widely applied to biosensing for various target molecules and ions. In particular, hemin-G-quadruplex peroxidases have been widely applied for sequence-specific DNA detection.

2.2.1. DNA Detection Utilizing Conformational Change of Probe DNA

In 2004, Willner’s group first reported a DNA detection technique using the hemin-G-quadruplex peroxidase. The technique utilizes two probe DNAs, which contain a complementary sequence (I, II) to the target DNA and a G-quadruplex forming sequence (III) (Figure 7A) [43]. In the absence of the target DNA, the catalytically-active G-quadruplex is formed by the two probe DNAs via self-assembly, although the binding of the probe DNAs to the target DNA inhibits G-quadruplex formation. The catalytically active G-quadruplex with hemin oxidizes luminol in the presence of H2O2, to chemiluminescence. Based on this scheme, the detection of the target oligonucleotide was possible to a detection limit of 0.6 μM (Table 2). The same group further developed the stem-loop type probe DNA with overhanging ssDNA at the end (Figure 7B) [44]. The stem-loop DNA sequence contains a complementary sequence (I) to the target DNA in the loop and a G-quadruplex forming sequence (II) in the stem and the overhanging part (Figure 7B). The hybridization between the target DNA and the loop DNA unfolds the stem-loop structure, leading to formation of a catalytically-active G-quadruplex involving the stem and DNA overhang. This sensing characteristic allows the detection of a target oligonucleotide with a detection limit of 0.2 μM using the luminol-H2O2 system (Table 2).

2.2.2. Signal Amplification by Polymerase Reaction

Since sensitive detection of DNA requires many copies of catalytically-active G-quadruplex, some DNA detection techniques utilizing amplification of the G-quadruplex by polymerase reaction have been proposed. Here the long target DNA is amplified by polymerase chain reaction (PCR) using primers with a 5' tail sequence, which includes a G-quadruplex forming sequence (I) tethered to the cytosine-rich (C-rich) complementary sequence (II) via an oxyethyleneglycol bridge (III) (Figure 8A) [45]. Before the PCR amplification occurs, the G-quadruplex forming sequence hybridizes with the C-rich complementary sequence. In the presence of the target DNA, however, the amplification reaction produces the replicated dsDNA structure including the target DNA sequence and the C-rich complementary sequence, which results in the release of the G-quadruplex forming sequence. This leads to the formation of a catalytically-active G-quadruplex with hemin. The G-quadruplex increases with the PCR amplification. The M13 phage DNA at a concentration of 1.2 aM was detectable with the luminol-H2O2 system after 30 PCR cycles (Table 2). The detection limit is the highest among those of DNA detection techniques utilizing hemin-G-quadruplex peroxidase. The authors further developed an isothermal technique for G-quadruplex amplification, in which nicking of the DNA by nicking endonuclease, and strand displacement polymerase extension occur repetitively (Figure 8B) [46]. Utilizing this technique with the ABTS-H2O2 system or luminol-H2O2 system, M13 phage DNA was detected up to a detection limit of 10 fM (Table 2) [46]. In addition, another isothermal DNA detection technique utilizing the rolling circle amplification (RCA) method, in which the target DNA functions as the primer and the catalytically-active G-quadruplex is amplified, was developed (Figure 8C) [47]. As little as 1 pM of the target DNA was detectable by analyzing peroxidase-like activity of the G-quadruplex with the ABTS-H2O2 system (Table 2).
Molecules 17 10586 g007 550

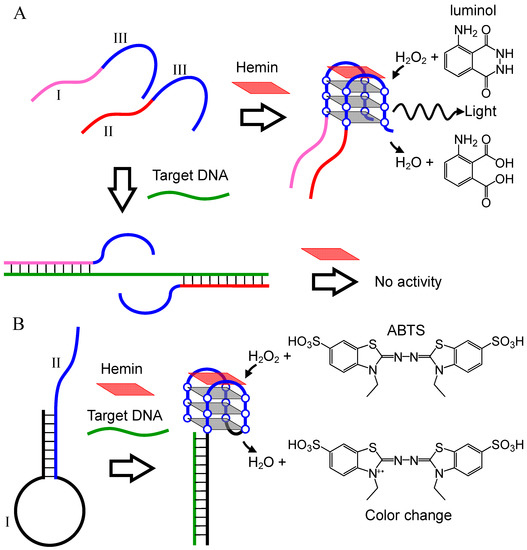

Figure 7. DNA detection techniques based on the G-quadruplex formed by two probe DNAs (A), and the conformational change of a stem-loop type probe DNA into G-quadruplex (B).
Figure 7. DNA detection techniques based on the G-quadruplex formed by two probe DNAs (A), and the conformational change of a stem-loop type probe DNA into G-quadruplex (B).
Molecules 17 10586 g007
Table
Table 2. DNA detection techniques using peroxidase-like activity of G-quadruplex with hemin.
Table 2. DNA detection techniques using peroxidase-like activity of G-quadruplex with hemin.
Ref.PrincipleTarget DNAIndicatorDetection LimitExperimental Conditions
[43]Figure 7A5'-TTGAG CATGC GCATT ATCTG AGCCA GTACC GAATC G-3'Luminol0.6 μM25 mM HEPES buffer, 20 mM KCl, 200 mM NaCl, 0.5 mM luminol, 30 mM H2O2, pH 9.0 a
[44]Figure 7B5'-AATGG CAGCA ATTTC ACCAG TACTA CAGTT AAGGC-3'ABTS0.2 μM0.1 M Tris buffer, 20 mM MgCl2, 0.43 μM hemin, 3.2 mM ABTS, 3.2 mM H2O2, pH 8.1
[45]Figure 8AM13 phage DNALuminol1.2 aM25 mM HEPES buffer, 20 mM KCl, 200 mM NaCl, 1 nM hemin, 0.5 mM luminol, 30 mM H2O2, pH 9.0
[46]Figure 8BM13 phage DNAABTS or luminol10 fMColorimetric measurements (ABTS) : 25 mM HEPES buffer, 20 mM KCl, 200 mM NaCl, 0.4 μM hemin, 182 μM ABTS, 44 μM H2O2, pH 7.4; Chemiluminescence measurements (luminol): 25 mM HEPES buffer, 20 mM KCl, 200 mM NaCl, 1 nM hemin, 0.5 mM luminol, 30 mM H2O2, pH 9.0
[47]Figure 8C5'-CTCAC ACGAA TTCAT CTGAC-3'ABTS1 pM15 mM Tris-HCl, 3 mM MgCl2, 1 mM (NH4)2SO4, 0.01 mg/mL BSA, 0.005% Triton X-100, 0.5 μM hemin, 1.17 mM ABTS, 2.82 mM H2O2
[48]Figure 9A5'-CCTCC CGGTG TTCGA TCC-3'Luminol76 aMb
[49]Figure 9B5'-TCGAA TAAGC ACTGA GGT-3'5'-ATAAA TTGCC AAGAT GAT-3'5'-TATCA ATACT CCCCC AGG-3'CRET (luminol)10 nM25 mM HEPES buffer, 20 mM KNO3, 200 mM NaNO3, 10 nM hemin, pH 9.0 c
[50]Figure 9C5'-TTGAG CATGC GCATT ATCTG AGCCA GTACC GAATC G-3'Luminol100 pM25 mM HEPES buffer, 20 mM KCl, 200 mM NaCl, 0.5 mM luminol, 30 mM H2O2, pH 9.0
[51]Figure 105'-TCGAA TAAGC ACTGA GGT-3'Electrocatalytic cathodic current1 pM10 mM HEPES buffer, 50 mM KCl, 150 mM NaCl, 1 μM hemin, 1 mM H2O2, pH 7.2
a The chemiluminescence measurement was performed by adding 3.3 mL of the measurement buffer to 15 μL of the sample solution containing the probe DNAs, the target DNA, and 12 μM hemin; b 200 μL of 10 mM phosphate buffer (pH 7.4) containing 10 mM NaCl and Fe3O4-Au nanoparticle modified with the probe DNA was reacted with 100 μL of the target DNA. Upon incubation, 1 μL of nicking endonuclease was added to the solution. After incubation, the resulting mixtures were heated to deactivate the nicking endonuclease, followed by the addition of hemin (10 nM), luminol (1 μM). The chemiluminescence reaction was triggered by adding 100 μL of H2O2 (0.75 mM); c The CRET measurement was performed by adding 50 μM luminol and 300 μM H2O2 to the measurement buffer containing samples.
Molecules 17 10586 g008 550

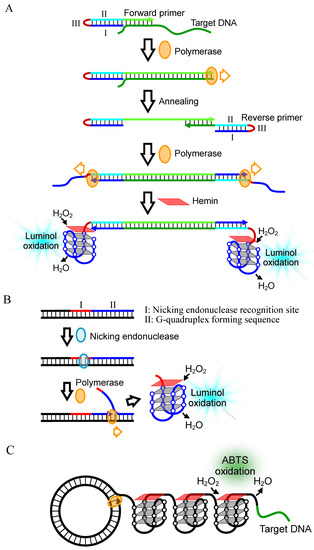

Figure 8. (A) DNA detection technique based on G-quadruplex amplification via PCR; (B) G-quadruplex amplification technique with nicking and strand displacement polymerase extension reactions, and (C) DNA detection technique based on G-quadruplex amplification via RCA.
Figure 8. (A) DNA detection technique based on G-quadruplex amplification via PCR; (B) G-quadruplex amplification technique with nicking and strand displacement polymerase extension reactions, and (C) DNA detection technique based on G-quadruplex amplification via RCA.
Molecules 17 10586 g008

2.2.3. Combination with Nanoparticle

Novel DNA detection techniques utilizing a probe DNA tethered to nanoparticles have been developed. Zhang’s group immobilized both ends of a stem-loop type probe DNA onto a Fe3O4-Au core shell nanoparticle (Figure 9A) [48]. The loop of the probe DNA contains two G-quadruplex forming sequences (I), and between the sequences a complementary sequence (II) to the target DNA is designed. Moreover, the loop hybridizing with the target DNA is nicked by a nicking endonuclease. The nicking of the loop DNA generates two catalytically-active G-quadruplexes and releases the target DNA. The released target DNA binds to the loop of another probe DNA, which initiates the same reaction described above. The repetitive successive reactions generate a number of copies of the G-quadruplexes. According to the principle, the target DNA at a concentration of 76 aM is detectable with the luminol-H2O2 system (Table 2).
Molecules 17 10586 g009 550

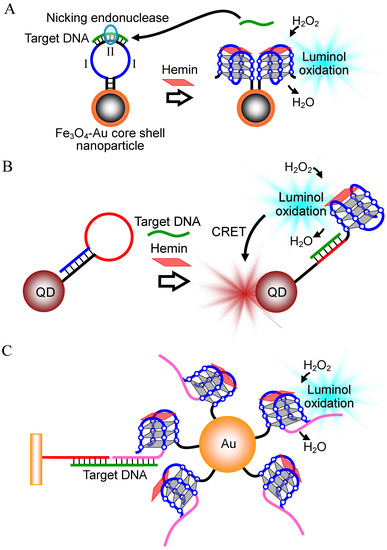

Figure 9. DNA detection techniques utilizing the Fe3O4-Au core shell nanoparticle (A); QDs (B), and Au nanoparticles (C).
Figure 9. DNA detection techniques utilizing the Fe3O4-Au core shell nanoparticle (A); QDs (B), and Au nanoparticles (C).
Molecules 17 10586 g009
Chemiluminescence resonance energy transfer (CRET) of the chemiluminescence from oxidized luminol to quantum dots (QDs) was further combined for DNA detection (Figure 9B) [49]. The probe DNA used to demonstrate this principle is a stem-loop type DNA, which is immobilized to CdSe/ZnS QDs. The hybridization of the target DNA with the loop region unfolds the stem-loop structure, which results in formation of the catalytically-active G-quadruplex. Luminol chemiluminescence produced by the G-quadruplex peroxidase-like activity excites the CdSe/ZnS ODs, leading to a CRET signal. Designing of probe DNA sequences and regulating the emission wavelength of CdSe/ZnS QDs depending on the target DNA sequence allows the detection of different target DNAs simultaneously with different CRET signals (Table 2). Willner’s group also modified the Au nanoparticle with a probe DNA, which contains a complementary sequence to the target DNA and a catalytically-active G-quadruplex (Figure 9C) [50]. The functionalized Au nanoparticles are gathered to a gold substrate via the target DNA. The detection limit for analyzing the activity of the G-quadruplex on the gold substrate with the luminol-H2O2 system is 100 pM (Table 2).

2.2.4. Electrochemical DNA Detection

For almost all DNA detection techniques using hemin-G-quadruplex peroxidase, ABTS and luminol are used as an indicator, leading to optical detection of the target DNA. However, in general an optical detection technique requires expensive and large equipment such as UV-Vis and fluorescent spectrophotometers. Li’s group, then, first demonstrated that direct electron transfer can occur between a hemin-G-quadruplex and an electrode in the presence of H2O2 using the pyrolytic graphite electrode coated with hemin-G-quadruplex-cetyltrimethylammonium bromide (CTAB) film [52]. After the findings, Willner’s group detected target DNA utilizing the direct electron transfer from an electrode to the hemin-G-quadruplex (Figure 10) [51]. They immobilized a stem-loop type probe DNA on an Au electrode. The loop sequence is complementary to the target DNA and the stem part is dsDNA, which is formed by a G-quadruplex forming sequence and the C-rich complementary sequence. Then, hybridization of the target DNA to the loop opens the stem-loop structure, leading to formation of the catalytically-active G-quadruplex. Finally, the electrocatalytic cathodic currents generated by theG-quadruplex in the presence of hemin and H2O2 can be observed. The currents depend on the target DNA concentration, and the detection limit of the target DNA is 1 pM (Table 2). Electrochemical detection techniques usually require inexpensive and smaller detection devices compared with optical systems. Furthermore, direct electron transfer does not need a substrate for hemin-G-quadruplex peroxidase. Thus, the technique should allow for an inexpensive and portable DNA sensor to be used anywhere.
Molecules 17 10586 g010 550

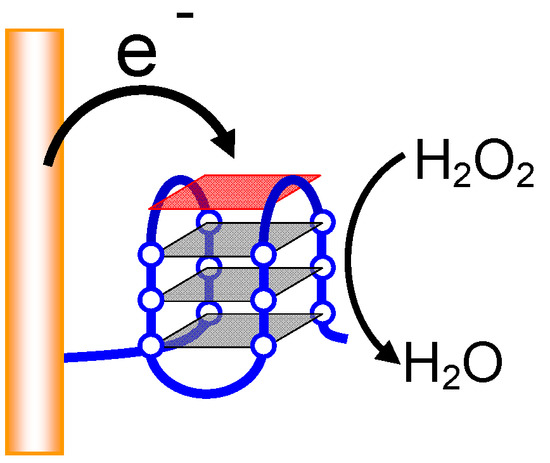

Figure 10. Electrochemical DNA detection in solid phase based on direct electron transfer from an Au electrode to the G-quadruplex.
Figure 10. Electrochemical DNA detection in solid phase based on direct electron transfer from an Au electrode to the G-quadruplex.
Molecules 17 10586 g010

2.3. Biosensors for Various Targets

2.3.1. Metal Ions

Metal ions play roles in biological systems and the concentrations must be maintained within a certain range. For example, a severe shortage of K+ in body fluids may cause a potentially fatal condition known as hypokalemia; in contrast, excess of K+ may increase the risk of high blood pressure and stroke [53,54]. Heavy metal ions including Ag+, Cd2+, Hg2+ and Pb2+ usually act as highly toxic environmental pollutants and have severe adverse effects on human health [55,56]. Thus, a measurement technique for metal ion concentration is essential. Conventional methods including ion chromatography, ion-selective electrodes and flame atomic adsorption spectrometry are complex and time-consuming; techniques that are simple, with short detection times and operation convenience are in demand. Metal ions critically affect conformation and thermal stability of G-quadruplexes, which enables the detection of the metal ions. K+ is one of the most studied coordination metal ions in G-quadruplexes. K+ enhances the peroxidase-like activity of various G-quadruplexes by changing and stabilizing the structures [27,40,41,42]. The analysis of change in activity as a function of K+ enables the measurement of K+ concentrations (Figure 11) [54,57,58]. Pb2+ and Tb3+ also are known to promote compact G-quadruplexes and influence the peroxidase-like activity in the presence of hemin. Based on this principle, several Pb2+ and Tb3+ detection techniques have been developed [59,60,61].
Molecules 17 10586 g011 550

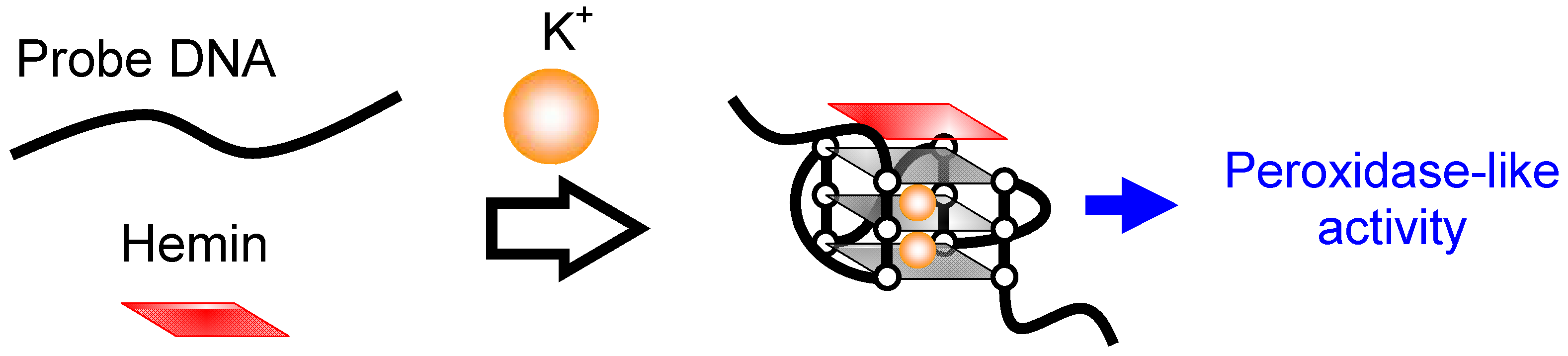

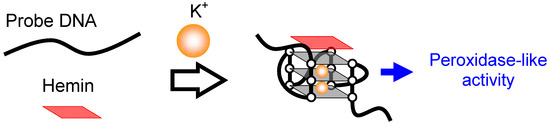

Figure 11. Common principle for detection of K+ using the hemin-G-quadruplex.
Figure 11. Common principle for detection of K+ using the hemin-G-quadruplex.
Molecules 17 10586 g011
Unlike the principle for the detection of K+ and Pb2+, the binding of Hg2+ to thymine (T) base is usually utilized in the detection of Hg2+ (Figure 12A) [62,63,64,65]. For example, Shen’s group developed a probe DNA that forms a stem-loop structure with two long ssDNAs at both ends (Form I) in the absence of Hg2+ and hemin (Figure 12B) [65]. The stem-loop structure is changed to the G-quadruplex with dsDNA containing three T-Hg2+-T base pairs (Form II) by the addition of Hg2+ and hemin. Peroxidase-like activity of the G-quadruplex with hemin enables the selective detection of Hg2+ over other metal ions. The binding of Ag+ to DNA bases can also be exploited for the detection of Ag+ [66,67]. For example, the binding of Ag+ to G base disrupts the G-quadruplex structure of CatG4 (Table 1), which has peroxidase-like activity with hemin (Figure 13) [66]. Thus, the monitoring of the reduction of peroxidase depending on this disruption allows the detection of Ag+. A similar principle for the detection of Hg2+ as shown in Figure 12 was also applied to the detection of Ag+ [67]. In the case of Ag+ detection, Form II contains dsDNA with two C-Ag+-C base pairs. In addition to the metal ion binding to natural bases, several artificial bases, which can bind strongly to some metal ions including Fe3+, Ni2+, Ag+ and Hg2+, have been developed [9,68,69,70,71,72,73]. The incorporation of these artificial bases into the probe DNA should not only improve the affinity and specificity but also expand the applications.
Molecules 17 10586 g012 550

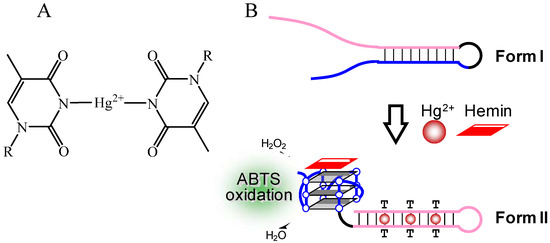

Figure 12. (A) Chemical structure of the T-Hg2+-T base pair; (B) Hg2+ detection is based on a conformational change from a stem-loop type probe DNA with long ssDNAs to a G-quadruplex with dsDNA containing T-Hg2+-T base pairs.
Figure 12. (A) Chemical structure of the T-Hg2+-T base pair; (B) Hg2+ detection is based on a conformational change from a stem-loop type probe DNA with long ssDNAs to a G-quadruplex with dsDNA containing T-Hg2+-T base pairs.
Molecules 17 10586 g012
Molecules 17 10586 g013 550

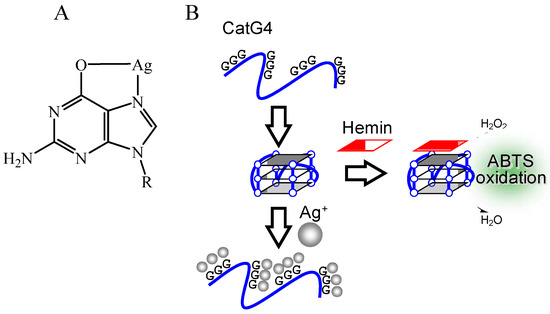

Figure 13. (A) Chemical structure of G-Ag+ interaction; (B) Ag+ detection based on disruption of the G-quadruplex by G-Ag+ interaction.
Figure 13. (A) Chemical structure of G-Ag+ interaction; (B) Ag+ detection based on disruption of the G-quadruplex by G-Ag+ interaction.
Molecules 17 10586 g013

2.3.2. Proteins

Detection of proteins is invaluable for disease diagnoses including cancer diagnosis. In general, an immunoassay technique is utilized for detection. However, it is cumbersome, time-consuming and expensive to develop the correct antibody and difficult to keep the antibody stable for a long time. In addition, immunoassay procedures have some complex processes such as bound/free (B/F) separation. In order to overcome these drawbacks, some protein detection techniques using hemin-G-quadruplex peroxidase have been developed to date. A DNA aptamer for thrombin, which plays a role in blood coagulation by catalyzing the conversion of fibrinogen to fibrin in blood coagulation, forms a G-quadruplex structure [16,74,75]. The thrombin aptamer (TBA, Table 1) forms a complex with thrombin and hemin, and the complex shows higher peroxidase-like activity than the hemin-TBA complex alone (Figure 14) [76]. According to these findings, optical and electrochemical detection techniques for thrombin were developed [76,77].
Molecules 17 10586 g014 550

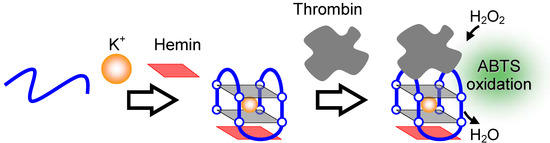

Figure 14. Detection of thrombin based on formation of a thrombin-TBA-hemin super complex.
Figure 14. Detection of thrombin based on formation of a thrombin-TBA-hemin super complex.
Molecules 17 10586 g014
A DNA aptamer, AGRO100 (Table 1), for nucleolin, which is a protein marker expressed at high levels at the cell membrane surface of human cancer cells, also forms a G-quadruplex structure and exhibits significantly high peroxidase-like activity with hemin in the presence of K+ [78,79]. Based on the specific interaction between hemin-AGRO100 and nucleolin, HeLa cells are labeled with hemin-AGRO100, which allows detection of 6000 HeLa cells using the luminol-H2O2 system (Figure 15A) [80].
Molecules 17 10586 g015 550

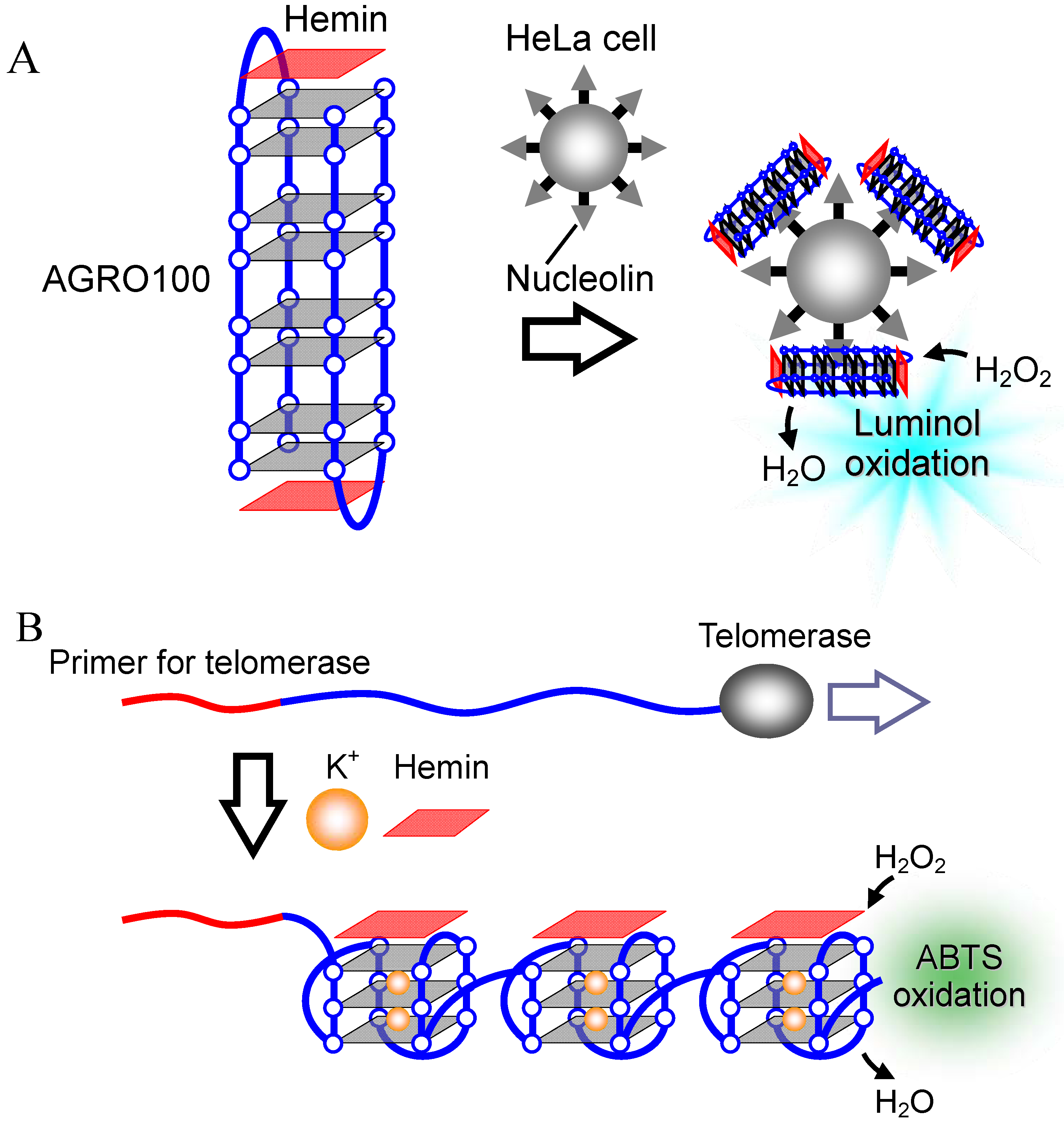

Figure 15. (A) Detection of HeLa cells based on hemin-G-quadruplex binding to nucleolin on the cell membrane; (B) Detection of telomerase activity based on a conformational change of telomerase reaction product into G-quadruplexes in long strands.
Figure 15. (A) Detection of HeLa cells based on hemin-G-quadruplex binding to nucleolin on the cell membrane; (B) Detection of telomerase activity based on a conformational change of telomerase reaction product into G-quadruplexes in long strands.
Molecules 17 10586 g015
Telomerase, an enzyme involved in cancer development, can also be detected using hemin-G-quadruplex peroxidase-like activity [81,82,83,84]. Telomerase can elongate the telomere DNA, which is a repetitive G-rich sequence composed of 5'-(TTAGGG)n-3' [31,32]. The telomere DNA forms a G-quadruplex, resulting in the peroxidase-like activity of the telomere DNA with hemin (Figure 15B) [82,83].

3. Anionic Phthalocyanine-G-Quadruplex Interaction for in Vivo Applications

Like hemin, anionic phthalocyanines also have a large π-planar core with anionic functional groups. The properties of binding to human telomere G-quadruplex and consequent telomerase inhibition, which could prevent immortal growth of cancer cells, have been demonstrated quantitatively [25,26]. Here, we provide an overview of these properties and discuss the potential of anionic phthalocyanines as a novel class of anticancer drug.

3.1. G-Quadruplex-Ligands as Telomerase Inhibitors

Since the discovery that the human telomere G-quadruplex inhibits telomerase activity, development of G-quadruplex-ligands that inhibit telomerase activity via induction or stabilization of the G-quadruplex has become an area of great interest (Figure 2B) [19,20,21,22,23,24,25,26]. Many of the ligands developed to date contain a large π-planar structure and cationic functional groups in order to form strong π-π stacking and electrostatic interactions with G-quartets and phosphate groups on the G-quadruplex, respectively [19,20,21,22,23,24,25,26]. The most extensively studied G-quadruplex-ligand with such structural features is 5,10,15,20-tetra-(N-methyl-4-pyridyl)porphine (TMPyP4), which is a cationic porphyrin derivative composed of four modified pyrrol units and four cationic functional groups [19,20,21,22,23,24,25,26]. Based on results from UV titration experiments, NMR and photocleavage assays, Hurley’s group reported for the first time that TMPyP4 binds to the human telomere G-quadruplex [19]. They further demonstrated that TMPyP4 inhibits telomerase activity in a cell-free system [19]. In accordance with these results, TMPyP4 inhibits proliferation of various tumor cells including human pancreatic, breast and prostate carcinomas [85,86,87,88,89,90,91]. However, the positive charges carried by TMPyP4 also mediate non-specific interactions with dsDNA [20,22,23,25]. These non-specific interactions with dsDNA could cause cytotoxicity to normal cells and reduce ligand binding to human telomere G-quadruplexes, resulting in reduction of the telomerase inhibitory function [86]. Actually, the half-maximal inhibitory concentration (IC50) of TMPyP4 for human telomerase is 3.7 μM in the absence of dsDNA, but the addition of dsDNA completely eliminates this inhibitory effect [25]. Thus, a novel strategy for designing G-quadruplex-ligands with higher selectivity over dsDNA is absolutely imperative. One solution to this issue is introducing anionic functional groups into the larger π planar core that should be able to completely eliminate electrostatic interactions with the anionic phosphate groups of dsDNA, while the large π planar core would enhance the affinity of π-π stacking interactions with the G-quadruplex. Anionic porphyrins with carboxyl groups, NMM and hemin (Figure 3), are known to bind to the human telomere G-quadruplex with high selectivity over ssDNA and dsDNA [27,92,93]. Notably, it was recently demonstrated that some anionic phthalocyanines also can bind to the human telomere G-quadruplex specifically over dsDNA and ssDNA, and inhibit telomerase activity efficiently even in the presence of excess dsDNA [25,26].

3.2. Selective Binding of Anionic Phthalocyanines to the Human Telomere G-quadruplex

Incorporation of anionic functional groups into phthalocyanines is a promising strategy for eliminating non-specific binding to dsDNA. The capacity of an anionic copper phthalocyanine containing four sodium salt forms of sulfo groups (Cu(II)APC, Figure 3) to bind to the human telomere G-quadruplex and its capacity to inhibit telomerase activity have been investigated [25,26]. Based on visible absorbance titration experiments, Cu(II)APC bound to a human telomere G-quadruplex (5'-GGG(TTAGGG)3-3') with a dissociation constant (Kd) of 42 μM in the presence of 100 mM KCl. On the contrary, little or no absorbance change was observed for ssDNA (5'-T21-3') or dsDNA (5'-AGAAGAGAAAGA-3'/5'-TCTTTCTCTTCT-3') (Table 3). These results indicate that Cu(II)APC can bind to the G-quadruplex with high selectivity over ssDNA and dsDNA. Notably, the Kd of Cu(II)APC for the G-quadruplex in the presence of excess decoy dsDNA, lambda DNA (a condition intended to mimic conditions in cell nuclei) was almost the same as that in the absence of lambda DNA (Table 3). Furthermore, to investigate the effect of a coordinating metal on anionic phthalocyanine binding to the G-quadruplex, binding assays were performed using nickel anionic phthalocyanine containing four sodium salt forms of sulfo groups (Ni(II)APC, Figure 3). Ni(II)APC also bound to the G-quadruplex and the Kd values in the absence and presence of lambda DNA were almost identical (Table 3).
Table
Table 3. Comparison of properties of anionic phthalocyanines and TMPyP4.
Table 3. Comparison of properties of anionic phthalocyanines and TMPyP4.
Kd/μM IC50/μM
G-quadruplex a (−Lambda DNA)ssDNA bdsDNA cG-quadruplex (+Lambda DNA) −Lambda DNA+Lambda DNA
Cu(II)APC 42>250>25036 1.21.2
Ni(II)APC 56>250>25071 1.91.4
APC ---- 2.42.3
TMPyP4 0.7--No binding d 3.7No inhibition e
a–c The sequences of G-quadruplex, ssDNA, and dsDNA are 5'-GGG(TTAGGG)3-3', 5'-T21-3', and 5'-AGAAGAGAAAGA-3'/5'-TCTTTCTCTTCT-3', respectively. d No change in absorbance spectra of TMPyP4 depending on G-quadruplex was observed. e No inhibition of telomerase activity was observed in the presence of TMPyP4 up to 10 μM.
Similar to hemin, the selective binding property of Cu(II)APC and Ni(II)APC is attributable to the electrostatic repulsion between anionic groups of anionic phthalocyanines and anionic phosphate groups of dsDNA. In contrast, lambda DNA prevented TMPyP4 from binding to the G-quadruplex, which is thought to be due to nonspecific binding of TMPyP4 to dsDNA (Table 3).

3.3. Telomerase Inhibition by Anionic Phthalocyanines

Its highly selective binding property suggests that Cu(II)APC can inhibit telomerase activity with or without excess dsDNA. Hence, the telomerase inhibitory effect was studied using a modified telomere repeat amplification protocol (TRAP), which comprises two reactions: a telomerase reaction in the presence of 63 mM KCl at 30 °C for 30 min, and a polymerase chain reaction (PCR) using a 50-fold diluted telomerase product as template (Figure 16) [25,26,94,95].
Molecules 17 10586 g016 550

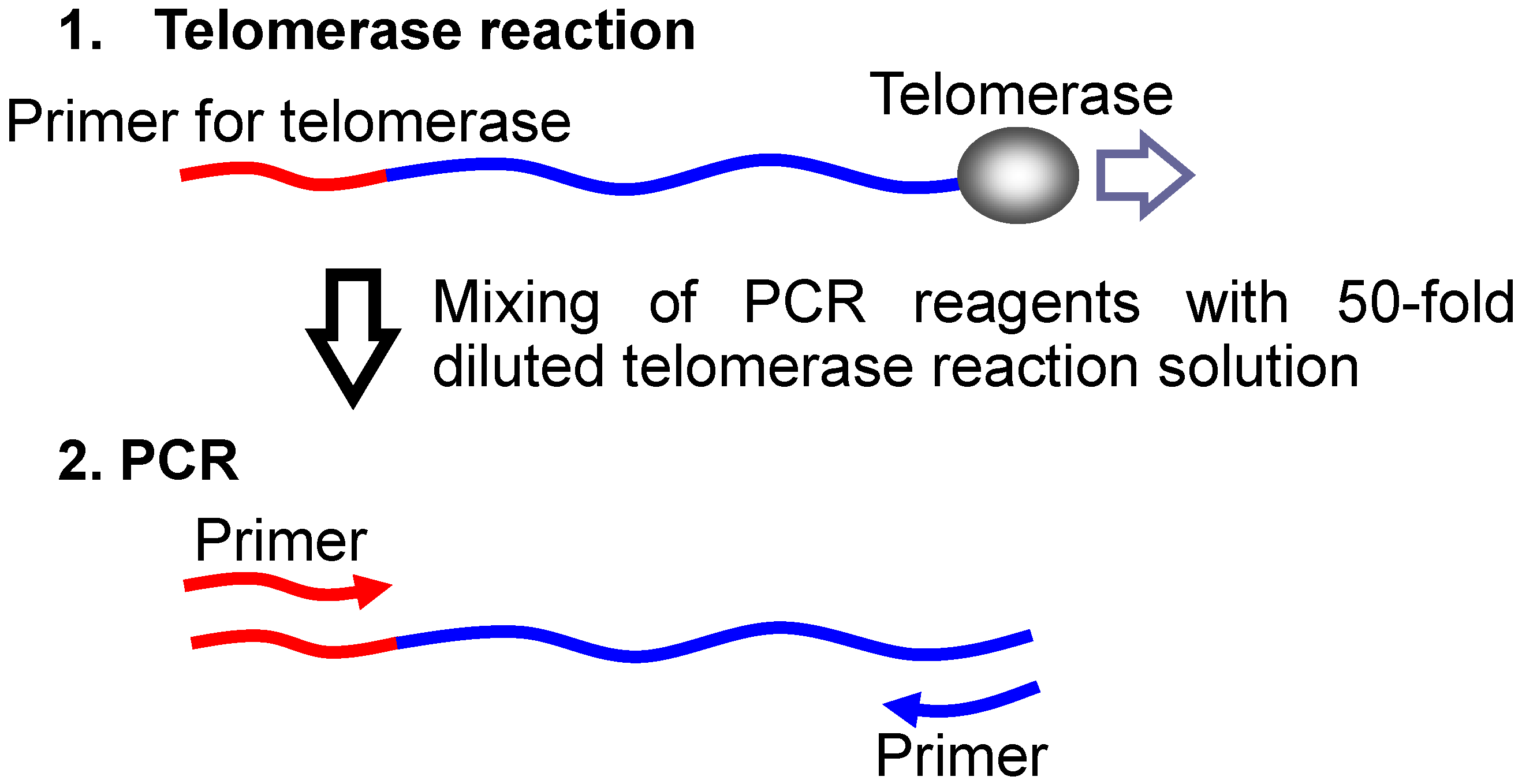

Figure 16. Schematic diagram of the two-step TRAP assay.
Figure 16. Schematic diagram of the two-step TRAP assay.
Molecules 17 10586 g016
The results from the TRAP assay were in accordance with the results of the binding studies; Cu(II)APC inhibited telomerase activity with an IC50 value of 1.2 μM in both the absence and presence of lambda DNA (Table 3). Furthermore, Ni(II)APC and metal-free anionic phthalocyanines containing four sulfo groups (APC, Figure 3) also inhibited telomerase activity in the absence and in the presence of lambda DNA. The IC50 values for Ni(II)APC in the absence and presence of lambda DNA were 1.9 μM and 1.4 μM, respectively, whereas those for APC in the absence and presence of lambda DNA were 2.4 μM and 2.3 μM, respectively (Table 3). These results indicate that the coordination metal has very little effect on anionic phthalocyanine-mediated telomerase inhibition. Based on these findings, it is possible to conclude that, even in the presence of excess genomic dsDNA in cell nuclei, anionic phthalocyanines could efficiently inhibit telomerase activity (Figure 17). On the contrary, TMPyP4 lost the telomerase inhibitory effect in the presence of lambda DNA, and the IC50 value was 3.7 μM in the absence of lambda DNA, indicating that TMPyP4 cannot exert an inhibitory effect in cell nuclei (Figure 17). To the best of our knowledge, no other anionic molecules have been studied to determine whether they inhibit telomerase. Large π-planar compounds with anionic groups, like anionic phthalocyanines, could represent a new starting-material for the development of G-quadruplex-ligands, probes for G-quadruplexes and telomerase inhibitors.

4. Summary and Outlook

Most G-quadruplex ligands are π-planar compounds with cationic groups for forming π-π stacking interactions with G-quartets and electrostatic interactions with anionic phosphate groups of G-quadruplexes [19,20,21,22,23,24,25,26]. However, the cationic ligands also nonspecifically bind to ssDNA and dsDNA electrostatically [20,22,23,25]. This nonspecific binding is not suitable for in vitro and in vivo applications related to G-quadruplexes because ssDNA and/or dsDNA coexist and could prevent the interaction between ligand and G-quadruplex in most applications. On the other hand, anionic porphyrins, hemin and NMM, and anionic phthalocyanines bind to G-quadruplexes with high selectivity [25,26,27,92,93]. Specific G-quadruplex-hemin complexes further exhibit peroxidase-like activity. All biosensing techniques utilizing the properties of the hemin-G-quadruplex do not require antibodies, and some of them do not even require enzymatic activity. Thus, such techniques have many advantages including inexpensive production costs, short production times and easy storage of materials. In addition to biosensing, novel logic gates utilizing hemin-G-quadruplex peroxidase have been developed recently [96,97,98]. Such technologies may open a new avenue for future nanoelectronics research. Moreover, studies have shown that some molecules other than ABTS and luminol also function as substrates of hemin-G-quadruplex peroxidase [99,100,101,102,103]. This expansion of substrates may allow in vivo application of hemin-G-quadruplex peroxidase. For example, the reactive oxygen species (ROS) scavenging system using peroxidases is crucial for cell resistance because ROS plays a role in various severe diseases including cancer [104,105]. Thus, smart oligonucleotides, which can form catalytically-active G-quadruplexes and oxidize biomolecular substrates in response to cellular oxidative stress, are promising as a novel type of environmentally-responsive antioxidant.
Molecules 17 10586 g017 550

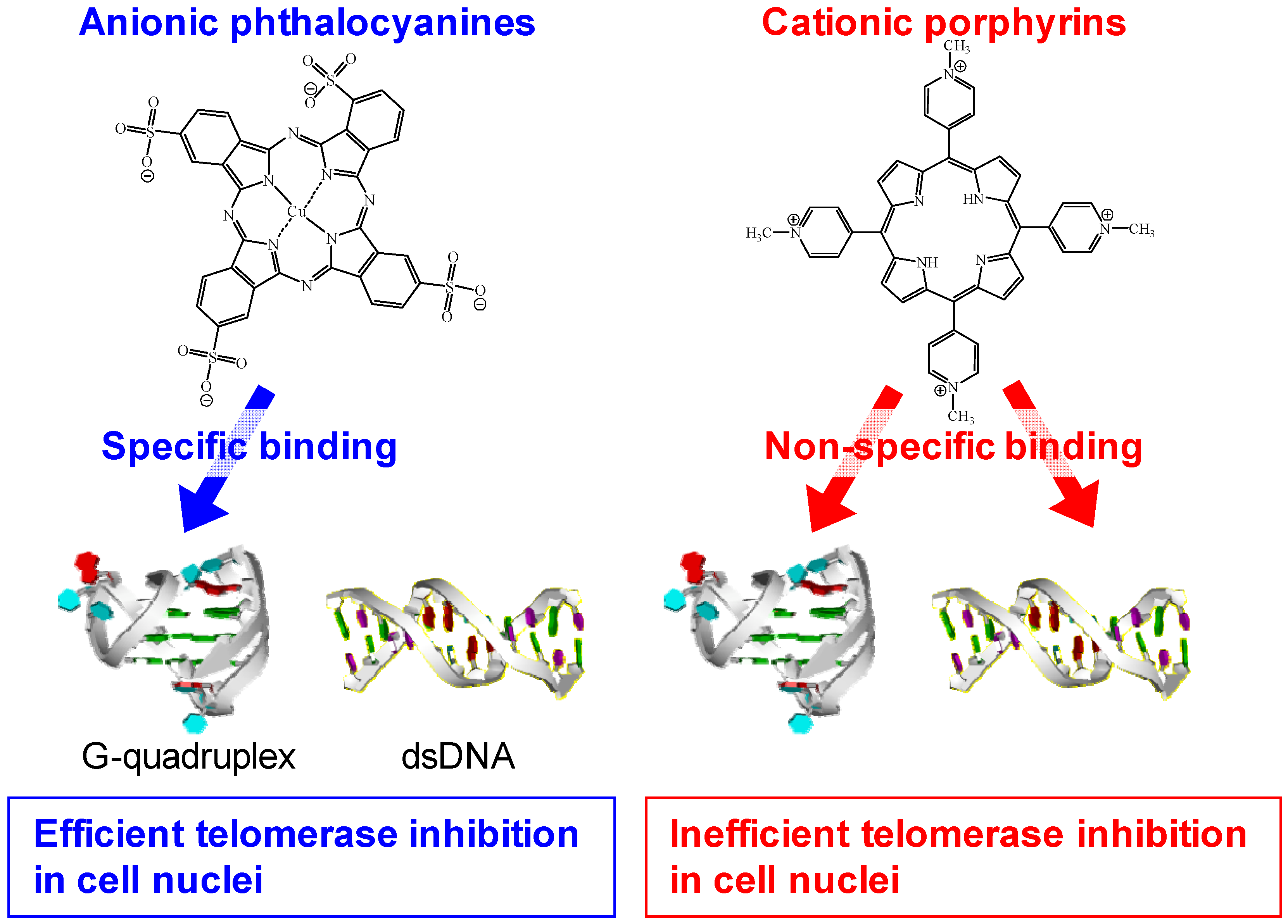

Figure 17. Schematic diagram of the properties of anionic phthalocyanines and cationic porphyrins for binding to the G-quadruplex and inhibiting telomerase activity.
Figure 17. Schematic diagram of the properties of anionic phthalocyanines and cationic porphyrins for binding to the G-quadruplex and inhibiting telomerase activity.
Molecules 17 10586 g017
For in vivo applications of the anionic ligand, the specificity of anionic phthalocyanines for the human telomere G-quadruplex over ssDNA and dsDNA is also essential for efficient telomerase inhibition in cell nuclei. Furthermore, recent bioinformatic studies have shown that many putative G-quadruplex-forming sequences in the genome are enriched in the promoter regions of oncogenes including C-MYC, C-KIT, H-RAS and K-RAS [20,22,23,24,106,107]. These bioinformatic studies strongly indicate that G-quadruplexes can influence carcinogenesis by modulating transcription of oncogenes. Importantly, some G-quadruplex ligands regulate the expression of these oncogenes by binding to G-quadruplexes in the promoter regions [20,22,23,24]. Thus, anionic phthalocyanines are also expected to bind to G-quadruplexes in the promoter regions of oncogenes and regulate their expression.
Finally, phthalocyanines also represent promising molecules in the area of organic electronics because of their physical properties. In particular, dye-sensitized solar cells using phthalocyanines have been attracting increasing attention [108,109]. However, it is difficult to control association state, orientation and localization of phthalocyanines in the functional films on the devices because of their aggregation property. Programmable DNA nanostructure technology may be a promising approach to solving this problem [9]. A recent study has shown that G-quadruplexes can be fabricated on DNA nanostructure scaffolds [110]. Therefore, the desired dispersion and localization of anionic phthalocyanines could be realized because of the specific binding to the G-quadruplexes on the scaffold. Thus, together, anionic phthalocyanines and G-quadruplexes will contribute not only to the biomedical field but also to the organic electronics field.

Acknowledgments

This work was supported in part by Grants-in-Aid for Scientific Research, Scientific Research on Innovative Areas “Nanomedicine Molecular Science” (No. 2306), and the “MEXT-Supported Program for the Strategic Research Foundation at Private Universities” (2009–2014) from the Ministry of Education, Culture, Sports, Science and Technology, Japan, and the Hirao Taro Foundation of the Konan University Association for Academic Research.

References

  1. Endo, M.; Shiroyama, T.; Fujitsuka, M.; Majima, T. Four-way-branched DNA-porphyrin conjugates for construction of four double-helix-DNA assembled structures. J. Org. Chem. 2005, 70, 7468–7472. [Google Scholar] [CrossRef]
  2. Liu, X.J.; Qi, C.; Bing, T.; Cheng, X.H.; Shangguan, D.H. Highly selective phthalocyanine-thymine conjugate sensor for Hg2+ based on target induced aggregation. Anal. Chem. 2009, 81, 3699–3704. [Google Scholar]
  3. Hammer, R.P.; Owens, C.V.; Hwang, S.H.; Sayes, C.M.; Soper, S.A. Asymmetrical, water-soluble phthalocyanine dyes for covalent labeling of oligonucleotides. Bioconjug.Chem. 2002, 13, 1244–1252. [Google Scholar] [CrossRef]
  4. Bianco, A.; Da Ros, T.; Prato, M.; Toniolo, C. Fullerene-based amino acids and peptides. J. Pept. Sci. 2001, 7, 208–219. [Google Scholar] [CrossRef]
  5. Yang, W.R.; Thordarson, P.; Gooding, J.J.; Ringer, S.P.; Braet, F. Carbon nanotubes for biological and biomedical applications. Nanotechnology 2007, 18, 412001–412012. [Google Scholar] [CrossRef]
  6. Wang, H.; Yang, R.H.; Yang, L.; Tan, W.H. Nucleic acid conjugated nanomaterials for enhanced molecular recognition. ACS Nano 2009, 3, 2451–2460. [Google Scholar] [CrossRef]
  7. Zhang, S.G. Fabrication of novel biomaterials through molecular self-assembly. Nat. Biotechnol. 2003, 21, 1171–1178. [Google Scholar] [CrossRef]
  8. Wang, Z.D.; Lu, Y. Functional DNA directed assembly of nanomaterials for biosensing. J. Mater. Chem. 2009, 19, 1788–1798. [Google Scholar] [CrossRef]
  9. Endo, M.; Sugiyama, H. Chemical approaches to DNA nanotechnology. ChemBioChem 2009, 10, 2420–2443. [Google Scholar] [CrossRef]
  10. Gellert, M.; Lipsett, M.N.; Davies, D.R. Helix formation by guanylic acid. Proc. Natl. Acad. Sci. USA 1962, 48, 2013–2018. [Google Scholar] [CrossRef]
  11. Keniry, M.A. Quadruplex structures in nucleic acids. Biopolymers 2001, 56, 123–146. [Google Scholar] [CrossRef]
  12. Davis, J.T. G-quartets 40 years later: From 5'-GMP to molecular biology and supramolecular chemistry. Angew. Chem. Int. Ed.Engl. 2004, 43, 668–698. [Google Scholar] [CrossRef]
  13. Dai, J.X.; Carver, M.; Yang, D.Z. Polymorphism of human telomeric quadruplex structures. Biochimie 2008, 90, 1172–1183. [Google Scholar] [CrossRef]
  14. Kaushik, M.; Kaushik, S.; Bansal, A.; Saxena, S.; Kukreti, S. Structural diversity and specific recognition of four stranded G-quadruplex DNA. Curr. Mol. Med. 2011, 11, 744–769. [Google Scholar] [CrossRef]
  15. Willner, I.; Shlyahovsky, B.; Zayats, M.; Willner, B. DNAzymes for sensing, nanobiotechnology and logic gate applications. Chem. Soc. Rev. 2008, 37, 1153–1165. [Google Scholar]
  16. Liu, J.W.; Cao, Z.H.; Lu, Y. Functional nucleic acid sensors. Chem. Rev. 2009, 109, 1948–1998. [Google Scholar] [CrossRef]
  17. Kosman, J.; Juskowiak, B. Peroxidase-mimicking DNAzymes for biosensing applications: A review. Anal. Chim. Acta 2011, 707, 7–17. [Google Scholar] [CrossRef]
  18. Sen, D.; Poon, L.C.H. RNA and DNA complexes with hemin Fe(III) heme are efficient peroxidases and peroxygenases: How do they do it and what does it mean? Crit. Rev. Biochem. Mol. 2011, 46, 478–492. [Google Scholar]
  19. Wheelhouse, R.T.; Sun, D.K.; Han, H.Y.; Han, F.X.G.; Hurley, L.H. Cationic porphyrins as telomerase inhibitors: The interaction of tetra-(N-methyl-4-pyridyl)porphine with quadruplex DNA. J. Am. Chem. Soc. 1998, 120, 3261–3262. [Google Scholar] [CrossRef]
  20. Monchaud, D.; Teulade-Fichou, M.P. A hitchhiker’s guide to G-quadruplex ligands. Org. Biomol. Chem. 2008, 6, 627–636. [Google Scholar] [CrossRef]
  21. De Cian, A.; Lacroix, L.; Douarre, C.; Temime-Smaali, N.; Trentesaux, C.; Riou, J.F.; Mergny, J.L. Targeting telomeres and telomerase. Biochimie 2008, 90, 131–155. [Google Scholar] [CrossRef]
  22. Luedtke, N.W. Targeting G-quadruplex DNA with small molecules. Chimia 2009, 63, 134–139. [Google Scholar] [CrossRef]
  23. Neidle, S. Human telomeric G-quadruplex: The current status of telomeric G-quadruplexes as therapeutic targets in human cancer. FEBS J. 2010, 277, 1118–1125. [Google Scholar] [CrossRef]
  24. Ou, T.M.; Lu, Y.J.; Tan, J.H.; Huang, Z.S.; Wong, K.Y.; Gu, L.Q. G-quadruplexes: Targets in anticancer drug design. ChemMedChem 2008, 3, 690–713. [Google Scholar] [CrossRef]
  25. Yaku, H.; Murashima, T.; Miyoshi, D.; Sugimoto, N. Anionic phthalocyanines targeting G-quadruplexes and inhibiting telomerase activity in the presence of excessive DNA duplexes. Chem. Commun. 2010, 46, 5740–5742. [Google Scholar]
  26. Yaku, H.; Fujimoto, T.; Murashima, T.; Miyoshi, D.; Sugimoto, N. Phthalocyanines: A new class of G-quadruplex-ligands with many potential applications. Chem. Commun. 2012, 48, 6203–6216. [Google Scholar]
  27. Travascio, P.; Li, Y.F.; Sen, D. DNA-enhanced peroxidase activity of a DNA aptamer-hemin complex. Chem. Biol. 1998, 5, 505–517. [Google Scholar] [CrossRef]
  28. Moyzis, R.K.; Buckingham, J.M.; Cram, L.S.; Dani, M.; Deaven, L.L.; Jones, M.D.; Meyne, J.; Ratliff, R.L.; Wu, J.R. A highly conserved repetitive DNA-sequence, (TTAGGG)n, present at the telomeres of human-chromosomes. Proc. Natl. Acad. Sci. USA 1988, 85, 6622–6626. [Google Scholar]
  29. Harley, C.B.; Futcher, A.B.; Greider, C.W. Telomeres shorten during ageing of human fibroblasts. Nature 1990, 345, 458–460. [Google Scholar]
  30. Harley, C.B.; Vaziri, H.; Counter, C.M.; Allsopp, R.C. The telomere hypothesis of cellular aging. Exp. Gerontol. 1992, 27, 375–382. [Google Scholar] [CrossRef]
  31. Greider, C.W.; Blackburn, E.H. Identification of a specific telomere terminal transferase-activity in tetrahymena extracts. Cell 1985, 43, 405–413. [Google Scholar] [CrossRef]
  32. Morin, G.B. The human telomere terminal transferase enzyme is a ribonucleoprotein that synthesizes TTAGGG repeats. Cell 1989, 59, 521–529. [Google Scholar] [CrossRef]
  33. Zahler, A.M.; Williamson, J.R.; Cech, T.R.; Prescott, D.M. Inhibition of telomerase by G-quartet DNA structures. Nature 1991, 350, 718–720. [Google Scholar]
  34. Travascio, P.; Bennet, A.J.; Wang, D.Y.; Sen, D. A ribozyme and a catalytic DNA with peroxidase activity: Active sites versus cofactor-binding sites. Chem. Biol. 1999, 6, 779–787. [Google Scholar] [CrossRef]
  35. Li, Y.F.; Geyer, C.R.; Sen, D. Recognition of anionic porphyrins by DNA aptamers. Biochemistry 1996, 35, 6911–6922. [Google Scholar] [CrossRef]
  36. Li, Y.F.; Sen, D. A catalytic DNA for porphyrin metallation. Nat. Struct. Biol. 1996, 3, 743–747. [Google Scholar] [CrossRef]
  37. Li, Y.F.; Sen, D. Toward an efficient DNAzyme. Biochemistry 1997, 36, 5589–5599. [Google Scholar] [CrossRef]
  38. Lee, H.W.; Chinnapen, D.J.F.; Sen, D. Structure-function investigation of a deoxyribozyme with dual chelatase and peroxidase activities. Pure Appl. Chem. 2004, 76, 1537–1545. [Google Scholar] [CrossRef]
  39. Majhi, P.R.; Shafer, R.H. Characterization of an unusual folding pattern in a catalytically active guanine quadruplex structure. Biopolymers 2006, 82, 558–569. [Google Scholar] [CrossRef]
  40. Kong, D.M.; Cai, L.L.; Guo, J.H.; Wu, J.; Shen, H.X. Characterization of the G-quadruplex structure of a catalytic DNA with peroxidase activity. Biopolymers 2009, 91, 331–339. [Google Scholar] [CrossRef]
  41. Cheng, X.H.; Liu, X.J.; Bing, T.; Cao, Z.H.; Shangguan, D.H. General peroxidase activity of G-quadruplex-hemin complexes and its application in ligand screening. Biochemistry 2009, 48, 7817–7823. [Google Scholar] [CrossRef]
  42. Kong, D.M.; Yang, W.; Wu, J.; Li, C.X.; Shen, H.X. Structure-function study of peroxidase-like G-quadruplex-hemin complexes. Analyst 2010, 135, 321–326. [Google Scholar] [CrossRef]
  43. Yi, X.; Pavlov, V.; Gill, R.; Bourenko, T.; Willner, I. Lighting up biochemiluminescence by the surface self-assembly of DNA-hemin complexes. ChemBioChem 2004, 5, 374–379. [Google Scholar] [CrossRef]
  44. Xiao, Y.; Pavlov, V.; Niazov, T.; Dishon, A.; Kotler, M.; Willner, I. Catalytic beacons for the detection of DNA and telomerase activity. J. Am. Chem. Soc. 2004, 126, 7430–7431. [Google Scholar]
  45. Cheglakov, Z.; Weizmann, Y.; Beissenhirtz, M.K.; Willner, I. Ultrasensitive detection of DNA by the PCR-induced generation of DNAzymes: The DNAzyme primer approach. Chem. Commun. 2006, 3205–3207. [Google Scholar]
  46. Weizmann, Y.; Beissenhirtz, M.K.; Cheglakov, Z.; Nowarski, R.; Kotler, M.; Willner, I. A virus spotlighted by an autonomous DNA machine. Angew. Chem. Int. Ed.Engl. 2006, 45, 7384–7388. [Google Scholar] [CrossRef]
  47. Tian, Y.; He, Y.; Mao, C.D. Cascade signal amplification for DNA detection. ChemBioChem 2006, 7, 1862–1864. [Google Scholar] [CrossRef]
  48. Bi, S.; Zhang, J.L.; Zhang, S.S. Ultrasensitive and selective DNA detection based on nicking endonuclease assisted signal amplification and its application in cancer cell detection. Chem. Commun. 2010, 46, 5509–5511. [Google Scholar]
  49. Freeman, R.; Liu, X.Q.; Winner, I. Chemiluminescent and chemiluminescence resonance energy transfer (CRET) detection of DNA, metal ions, and aptamer-substrate complexes using hemin/G-quadruplexes and CdSe/ZnS quantum dots. J. Am. Chem. Soc. 2011, 133, 11597–11604. [Google Scholar]
  50. Niazov, T.; Pavlov, V.; Xiao, Y.; Gill, R.; Willner, I. DNAzyme-functionalized Au nanoparticles for the amplified detection of DNA or telomerase activity. Nano Lett. 2004, 4, 1683–1687. [Google Scholar] [CrossRef]
  51. Pelossof, G.; Tel-Vered, R.; Elbaz, J.; Willner, I. Amplified biosensing using the horseradish peroxidase-mimicking DNAzyme as an electrocatalyst. Anal. Chem. 2010, 82, 4396–4402. [Google Scholar] [CrossRef]
  52. Yang, Q.L.; Nie, Y.J.; Zhu, X.L.; Liu, X.J.; Li, G.X. Study on the electrocatalytic activity of human telomere G-quadruplex-hemin complex and its interaction with small molecular ligands. Electrochim. Acta 2009, 55, 276–280. [Google Scholar] [CrossRef]
  53. Teixeira, M.F.S.; Freitas, B.H.; Seraphim, P.M.; Salmazo, L.O.; Nobre, M.A.; Lanfredi, S. Development of an electrochemical sensor for potassium ions based on KSr2Nb5O15 modified electrode. Proced. Chem. 2009, 1, 293–296. [Google Scholar] [CrossRef]
  54. Fan, X.Y.; Li, H.T.; Zhao, J.; Lin, F.; Zhang, L.; Zhang, Y.; Yao, S. A novel label-free fluorescent sensor for the detection of potassium ion based on DNAzyme. Talanta 2012, 89, 57–62. [Google Scholar] [CrossRef]
  55. Ratte, H.T. Bioaccumulation and toxicity of silver compounds: A review. Environ. Toxicol. Chem. 1999, 18, 89–108. [Google Scholar] [CrossRef]
  56. Jarup, L. Hazards of heavy metal contamination. Br. Med. Bull. 2003, 68, 167–182. [Google Scholar] [CrossRef]
  57. Li, T.; Wang, E.; Dong, S.J. G-quadruplex-based DNAzyme as a sensing platform for ultrasensitive colorimetric potassium detection. Chem. Commun. 2009, 580–582. [Google Scholar]
  58. Yang, X.; Li, T.; Li, B.L.; Wang, E.K. Potassium-sensitive G-quadruplex DNA for sensitive visible potassium detection. Analyst 2010, 135, 71–75. [Google Scholar] [CrossRef]
  59. Li, T.; Wang, E.; Dong, S. Lead(II)-induced allosteric G-quadruplex DNAzyme as a colorimetric and chemiluminescence sensor for highly sensitive and selective Pb2+ detection. Anal. Chem. 2010, 82, 1515–1520. [Google Scholar] [CrossRef]
  60. Li, C.L.; Liu, K.T.; Lin, Y.W.; Chang, H.T. Fluorescence detection of lead(II) ions through their induced catalytic activity of DNAzymes. Anal. Chem. 2011, 83, 225–230. [Google Scholar] [CrossRef]
  61. Zhang, J.; Gao, Q.L.; Chen, P.P.; Chen, J.H.; Chen, G.N.; Fu, F.F. A novel Tb3+-promoted G-quadruplex-hemin DNAzyme for the development of label-free visual biosensors. Biosens. Bioelectron. 2011, 26, 4053–4057. [Google Scholar] [CrossRef]
  62. Li, T.; Dong, S.J.; Wang, E. Label-free colorimetric detection of aqueous mercury ion (Hg2+) using Hg2+-modulated G-quadruplex-cased DNAzymes. Anal. Chem. 2009, 81, 2144–2149. [Google Scholar] [CrossRef]
  63. Kong, D.M.; Wu, J.; Wang, N.; Yang, W.; Shen, H.X. Peroxidase activity-structure relationship of the intermolecular four-stranded G-quadruplex-hemin complexes and their application in Hg2+ ion detection. Talanta 2009, 80, 459–465. [Google Scholar] [CrossRef]
  64. Li, T.; Li, B.L.; Wang, E.K.; Dong, S.J. G-quadruplex-based DNAzyme for sensitive mercury detection with the naked eye. Chem. Commun. 2009, 3551–3553. [Google Scholar]
  65. Jia, S.M.; Liu, X.F.; Li, P.; Kong, D.M.; Shen, H.X. G-quadruplex DNAzyme-based Hg2+ and cysteine sensors utilizing Hg2+-mediated oligonucleotide switching. Biosens. Bioelectron. 2011, 27, 148–152. [Google Scholar] [CrossRef]
  66. Zhou, X.H.; Kong, D.M.; Shen, H.X. Ag+ and cysteine quantitation based on G-quadruplex-hemin DNAzymes disruption by Ag+. Anal. Chem. 2010, 82, 789–793. [Google Scholar] [CrossRef]
  67. Zhou, X.H.; Kong, D.M.; Shen, H.X. G-quadruplex-hemin DNAzyme-amplified colorimetric detection of Ag+ ion. Anal. Chim. Acta 2010, 678, 124–127. [Google Scholar] [CrossRef]
  68. Tanaka, K.; Tengeiji, A.; Kato, T.; Toyama, N.; Shiro, M.; Shionoya, M. Efficient incorporation of a copper hydroxypyridone base pair in DNA. J. Am. Chem. Soc. 2002, 124, 12494–12498. [Google Scholar]
  69. Tanaka, K.; Yamada, Y.; Shionoya, M. Formation of silver(I)-mediated DNA duplex and triplex through an alternative base pair of pyridine nucleobases. J. Am. Chem. Soc. 2002, 124, 8802–8803. [Google Scholar]
  70. Tanaka, K.; Tengeiji, A.; Kato, T.; Toyama, N.; Shionoya, M. A discrete self-assembled metal array in artificial DNA. Science 2003, 299, 1212–1213. [Google Scholar] [CrossRef]
  71. Tanaka, K.; Clever, G.H.; Takezawa, Y.; Yamada, Y.; Kaul, C.; Shionoya, M.; Carell, T. Programmable self-assembly of metal ions inside artificial DNA duplexes. Nat. Nanotechnol. 2006, 1, 190–194. [Google Scholar] [CrossRef]
  72. Muller, J. Chemistry: Metals line up for DNA. Nature 2006, 444, 698–698. [Google Scholar] [CrossRef]
  73. Takezawa, Y.; Maeda, W.; Tanaka, K.; Shionoya, M. Discrete Self-Assembly of iron(III) ions inside triple-stranded artificial DNA. Angew. Chem. Int. Ed.Engl. 2009, 48, 1081–1084. [Google Scholar]
  74. Bock, L.C.; Griffin, L.C.; Latham, J.A.; Vermaas, E.H.; Toole, J.J. Selection of single-stranded-DNA molecules that bind and inhibit human thrombin. Nature 1992, 355, 564–566. [Google Scholar]
  75. Macaya, R.F.; Schultze, P.; Smith, F.W.; Roe, J.A.; Feigon, J. Thrombin-binding DNA aptamer forms a unimolecular quadruplex structure in solution. Proc. Natl. Acad. Sci. USA 1993, 90, 3745–3749. [Google Scholar] [CrossRef]
  76. Li, T.; Wang, E.K.; Dong, S.J. G-quadruplex-based DNAzyme for facile colorimetric detection of thrombin. Chem. Commun. 2008, 3654–3656. [Google Scholar]
  77. Shen, B.J.; Wang, Q.; Zhu, D.; Luo, J.J.; Cheng, G.F.; He, P.A.; Fang, Y.Z. G-quadruplex-based DNAzymes aptasensor for the amplified electrochemical detection of thrombin. Electroanalysis 2010, 22, 2985–2990. [Google Scholar] [CrossRef]
  78. Girvan, A.C.; Teng, Y.; Casson, L.K.; Thomas, S.D.; Jüliger, S.; Ball, M.W.; Klein, J.B.; Pierce, W.M., Jr.; Barve, S.S.; Bates, P.J. AGRO100 inhibits activation of nuclear factor-kappa B (NF-kappa B) by forming a complex with NF-kappa B essential modulator (NEMO) and nucleolin. Mol. Cancer Ther. 2006, 5, 1790–1799. [Google Scholar] [CrossRef]
  79. Ireson, C.R.; Kelland, L.R. Discovery and development of anticancer aptamers. Mol. Cancer Ther. 2006, 5, 2957–2962. [Google Scholar] [CrossRef]
  80. Li, T.; Shi, L.L.; Wang, E.K.; Dong, S.J. Multifunctional G-quadruplex aptamers and their application to protein detection. Chem.-Eur. J. 2009, 15, 1036–1042. [Google Scholar] [CrossRef]
  81. He, Y.; Tian, Y.; Mao, C.D. Human telomeric DNA sequences have a peroxidase apoenzyme activity. Mol. Biosyst. 2009, 5, 238–240. [Google Scholar] [CrossRef]
  82. Freeman, R.; Sharon, E.; Teller, C.; Henning, A.; Tzfati, Y.; Willner, I. DNAzyme-like activity of hemin-telomeric G-quadruplexes for the optical analysis of telomerase and its inhibitors. ChemBioChem 2010, 11, 2362–2367. [Google Scholar] [CrossRef]
  83. Stefan, L.; Denat, F.; Monchaud, D. Deciphering the DNAzyme activity of multimeric quadruplexes: Insights into their actual role in the telomerase activity evaluation assay. J. Am. Chem. Soc. 2011, 133, 20405–20415. [Google Scholar] [CrossRef]
  84. Kosman, J.; Juskowiak, B. Optimization study of the catalytic activity of DNAzymes based on telomeric G-quadruplexes. Cent. Eur. J. Chem. 2012, 10, 368–372. [Google Scholar] [CrossRef]
  85. Izbicka, E.; Wheelhouse, R.T.; Raymond, E.; Davidson, K.K.; Lawrence, R.A.; Sun, D.; Windle, B.E.; Hurley, L.H.; Von Hoff, D.D. Effects of cationic porphyrins as G-quadruplex interactive agents in human tumor cells. Cancer Res. 1999, 59, 639–644. [Google Scholar]
  86. Rha, S.Y.; Izbicka, E.; Lawrence, R.A.; Davidson, K.K.; Sun, D.; Moyer, M.P.; Roodman, G.D.; Hurley, L.H.; Von Hoff, D.D. Effect of telomere and telomerase interactive agents on human tumor and normal cell lines. Clin. Cancer Res. 2000, 6, 987–993. [Google Scholar]
  87. Kim, M.Y.; Gleason-Guzman, M.; Izbicka, E.; Nishioka, D.; Hurley, L.H. The different biological effects of telomestatin and TMPyP4 can be attributed to their selectivity for interaction with intramolecular or intermolecular G-quadruplex structures. Cancer Res. 2003, 63, 3247–3256. [Google Scholar]
  88. Liu, W.; Sun, D.; Hurley, L.H. Binding of G-quadruplex-interactive agents to distinct G-quadruplexes induces different biological effects in MiaPaCa cells. Nucleosides Nucleotides Nucleic Acids 2005, 24, 1801–1815. [Google Scholar] [CrossRef]
  89. Mikami-Terao, Y.; Akiyama, M.; Yuza, Y.; Yanagisawa, T.; Yamada, O.; Yamada, H. Antitumor activity of G-quadruplex-interactive agent TMPyP4 in K562 leukemic cells. Cancer Lett. 2008, 261, 226–234. [Google Scholar] [CrossRef]
  90. Mikami-Terao, Y.; Akiyama, M.; Yuza, Y.; Yanagisawa, T.; Yamada, O.; Kawano, T.; Agawa, M.; Ida, H.; Yamada, H. Antitumor activity of TMPyP4 interacting G-quadruplex in retinoblastoma cell lines. Exp. Eye Res. 2009, 89, 200–208. [Google Scholar] [CrossRef]
  91. Gunaratnam, M.; Swank, S.; Haider, S.M.; Galesa, K.; Reszka, A.P.; Beltran, M.; Cuenca, F.; Fletcher, J.A.; Neidle, S. Targeting human gastrointestinal stromal tumor cells with a quadruplex-binding small molecule. J. Med. Chem. 2009, 52, 3774–3783. [Google Scholar] [CrossRef]
  92. Arthanari, H.; Basu, S.; Kawano, T.L.; Bolton, P.H. Fluorescent dyes specific for quadruplex DNA. Nucleic Acids Res. 1998, 26, 3724–3728. [Google Scholar] [CrossRef]
  93. Ren, J.S.; Chaires, J.B. Sequence and structural selectivity of nucleic acid binding ligands. Biochemistry 1999, 38, 16067–16075. [Google Scholar] [CrossRef]
  94. Kim, N.W.; Piatyszek, M.A.; Prowse, K.R.; Harley, C.B.; West, M.D.; Ho, P.L.; Coviello, G.M.; Weinrich, S.L.; Shay, J.W. Specific association of human telomerase activity with immortal cells and cancer. Science 1994, 266, 2011–2015. [Google Scholar]
  95. Yu, H.Q.; Zhang, D.H.; Gu, X.B.; Miyoshi, D.; Sugimoto, N. Regulation of telomerase activity by the thermodynamic stability of a DNA·RNA hybrid. Angew. Chem. Int. Ed.Engl. 2008, 47, 9034–9038. [Google Scholar]
  96. Shlyahovsky, B.; Li, Y.; Lioubashevski, O.; Elbaz, J.; Willner, I. Logic gates and antisense DNA devices operating on a translator nucleic acid scaffold. ACS Nano 2009, 3, 1831–1843. [Google Scholar] [CrossRef]
  97. Li, T.; Wang, E.K.; Dong, S.J. Potassium-lead-switched G-quadruplexes: A new class of DNA logic gates. J. Am. Chem. Soc. 2009, 131, 15082–15083. [Google Scholar]
  98. Li, T.; Ackermann, D.; Hall, A.M.; Famulok, M. Input-dependent induction of oligonucleotide structural motifs for performing molecular logic. J. Am. Chem. Soc. 2012, 134, 3508–3516. [Google Scholar]
  99. Rojas, A.M.; Gonzalez, P.A.; Antipov, E.; Klibanov, A.M. Specificity of a DNA-based (DNAzyme) peroxidative biocatalyst. Biotechnol. Lett. 2007, 29, 227–232. [Google Scholar] [CrossRef]
  100. Golub, E.; Freeman, R.; Willner, I. A hemin/G-quadruplex acts as an NADH oxidase and NADH peroxidase mimicking DNAzyme. Angew. Chem. Int. Ed. Engl. 2011, 50, 11710–11714. [Google Scholar] [CrossRef]
  101. Nakayama, S.; Wang, J.X.; Sintim, H.O. DNA-based peroxidation catalyst—What is the exact role of topology on catalysis and is there a special binding site for catalysis? Chem.-Eur. J. 2011, 17, 5691–5698. [Google Scholar] [CrossRef]
  102. Yang, X.J.; Fang, C.L.; Mei, H.C.; Chang, T.J.; Cao, Z.H.; Shangguan, D.H. Characterization of G-quadruplex/hemin peroxidase: Substrate specificity and inactivation kinetics. Chem.-Eur. J. 2011, 17, 14475–14484. [Google Scholar]
  103. Poon, L.C.H.; Methot, S.P.; Morabi-Pazooki, W.; Pio, P.; Bennet, A.J.; Sen, D. Guanine-rich RNAs and DNAs that bind heme robustly catalyze oxygen transfer reactions. J. Am. Chem. Soc. 2011, 133, 1877–1884. [Google Scholar]
  104. Mates, J.M. Effects of antioxidant enzymes in the molecular control of reactive oxygen species toxicology. Toxicology 2000, 153, 83–104. [Google Scholar] [CrossRef]
  105. D'Autreaux, B.; Toledano, M.B. ROS as signalling molecules: Mechanisms that generate specificity in ROS homeostasis. Nat. Rev. Mol. Cell Biol. 2007, 8, 813–824. [Google Scholar] [CrossRef]
  106. Huppert, J.L.; Balasubramanian, S. Prevalence of quadruplexes in the human genome. Nucleic Acids Res. 2005, 33, 2908–2916. [Google Scholar] [CrossRef]
  107. Todd, A.K.; Johnston, M.; Neidle, S. Highly prevalent putative quadruplex sequence motifs in human DNA. Nucleic Acids Res. 2005, 33, 2901–2907. [Google Scholar]
  108. Schumann, S.; Hatton, R.A.; Jones, T.S. Organic photovoltaic: Devices based on water-soluble copper phthalocyanine. J. Phys. Chem. C 2011, 115, 4916–4921. [Google Scholar]
  109. Ryan, J.W.; Anaya-Plaza, E.; Escosura, A.D.; Torres, T.; Palomares, E. Small molecule solar cells based on a series of water-soluble zinc phthalocyanine donors. Chem. Commun. 2012, 48, 6094–6096. [Google Scholar] [CrossRef]
  110. Liu, Y.; Lin, C.X.; Li, H.Y.; Yan, H. Aptamer-directed self-assembly of protein arrays on a DNA nanostructure. Angew. Chem. Int. Ed. Engl. 2005, 44, 4333–4338. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Yaku, H.; Murashima, T.; Miyoshi, D.; Sugimoto, N. Specific Binding of Anionic Porphyrin and Phthalocyanine to the G-Quadruplex with a Variety of in Vitro and in Vivo Applications. Molecules 2012, 17, 10586-10613. https://doi.org/10.3390/molecules170910586

AMA Style

Yaku H, Murashima T, Miyoshi D, Sugimoto N. Specific Binding of Anionic Porphyrin and Phthalocyanine to the G-Quadruplex with a Variety of in Vitro and in Vivo Applications. Molecules. 2012; 17(9):10586-10613. https://doi.org/10.3390/molecules170910586

Chicago/Turabian Style

Yaku, Hidenobu, Takashi Murashima, Daisuke Miyoshi, and Naoki Sugimoto. 2012. "Specific Binding of Anionic Porphyrin and Phthalocyanine to the G-Quadruplex with a Variety of in Vitro and in Vivo Applications" Molecules 17, no. 9: 10586-10613. https://doi.org/10.3390/molecules170910586

APA Style

Yaku, H., Murashima, T., Miyoshi, D., & Sugimoto, N. (2012). Specific Binding of Anionic Porphyrin and Phthalocyanine to the G-Quadruplex with a Variety of in Vitro and in Vivo Applications. Molecules, 17(9), 10586-10613. https://doi.org/10.3390/molecules170910586

Article Metrics

Back to TopTop
