Synthetic Strategy and Anti-Tumor Activities of Macrocyclic Scaffolds Based on 4-Hydroxyproline

by
Guorui Cao
1,
Kun Yang
1,
Yue Li
1,
Longjiang Huang
1,2 and
Dawei Teng
1,*
1
College of Chemical Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
2
State Key Laboratory of Bioactive Substance and Function of Natural Medicines, Institute of Materia Medica, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100050, China
*
Author to whom correspondence should be addressed.
Molecules 2016, 21(2), 212; https://doi.org/10.3390/molecules21020212
Submission received: 10 January 2016 / Revised: 3 February 2016 / Accepted: 4 February 2016 / Published: 15 February 2016
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
A series of novel 13- to 15-member hydroxyproline-based macrocycles, which contain alkyl-alkyl ether and alkyl-aryl ether moieties, have been synthesized by the strategy of macrocyclization utilising azide-alkyne cycloaddition, Mitsunobu protocol and amide formation. Their anti-tumor activities towards A549, MDA-MB-231 and Hep G2 cells were screened in vitro by an MTT assay. The results indicated that 13-member macrocycle 33 containing alkene chain showed the best results, exhibiting the highest inhibitory effects towards lung cancer cell line A549, which was higher than that of the reference cisplatin (IC50 value = 2.55 µmol/L).

Graphical Abstract

1. Introduction

Macrocycles are commonly found in bioactive natural products and used as valuable source of bioactive molecules in drug discovery. They can demonstrate drug-like physicochemical and pharmacokinetic properties such as good solubility, lipophilicity, metabolite stability and bioavailability [1,2]. Macrocyclic structures could provide a compromise between structural pre-organization and sufficient flexibility to mould to a target protein surface and maximize binding interactions [3]. They also have a favorable impact on other essential properties required for drugs, such as membrane permeability, metabolic stability, increased potencies, better receptor selectivity and overall pharmacokinetics [4,5,6,7]. The aryl ether moiety is a common structural motif of many bioactive macrocyclic natural products such as vancomycin family of antibiotics [8,9,10,11], noncompetitive ACE inhibitor K-13 [12,13], piperazinomycin [14,15,16], and serine-based macrocycles representing β-turn mimetics [17,18,19,20]. Some hydroxyproline-based macrocycles have been introduced into important drugs, such as ACE inhibitor zizyphine [21,22,23], alkaloid paliurine E [24], and the echinocandin family including anidulafungin, caspofungin, and micafungin [25,26,27,28]. Recently, HCV NS3 protease inhibitors vaniprevir (MK-7009) [29,30], ITMN-191 [31], and BILN 2601 [32] were advanced into clinical development.
Inspired by the numerous aryl-ether moieties found in nature and hydroxyproline-based macrocycles discovered in drugs (Figure 1), we designed macrocyclic structures that incorporated aryl-ether and hydroxyproline fragments. Furthermore, another two fragments were introduced into the target structures to provide macrocycles of suitable size and conformation (Figure 2). It is well known that macrocycle size is carried out prior to the synthesis of macrocycles—large enough not to be strained and small enough to avoid clashes with the protein. As part of our previous efforts on exploring biologically important heterocyclic compounds and natural products [33,34,35], we herein report the successful synthesis of a collection of 13- to 15-member macrocyclic scaffolds, which incorporate 1,3-benzene rings and hydroxyproline, and evaluate their anti-tumor activities toward human tumor cell lines A549, MDA-MB-231 and Hep G2.
Molecules 21 00212 g001 550

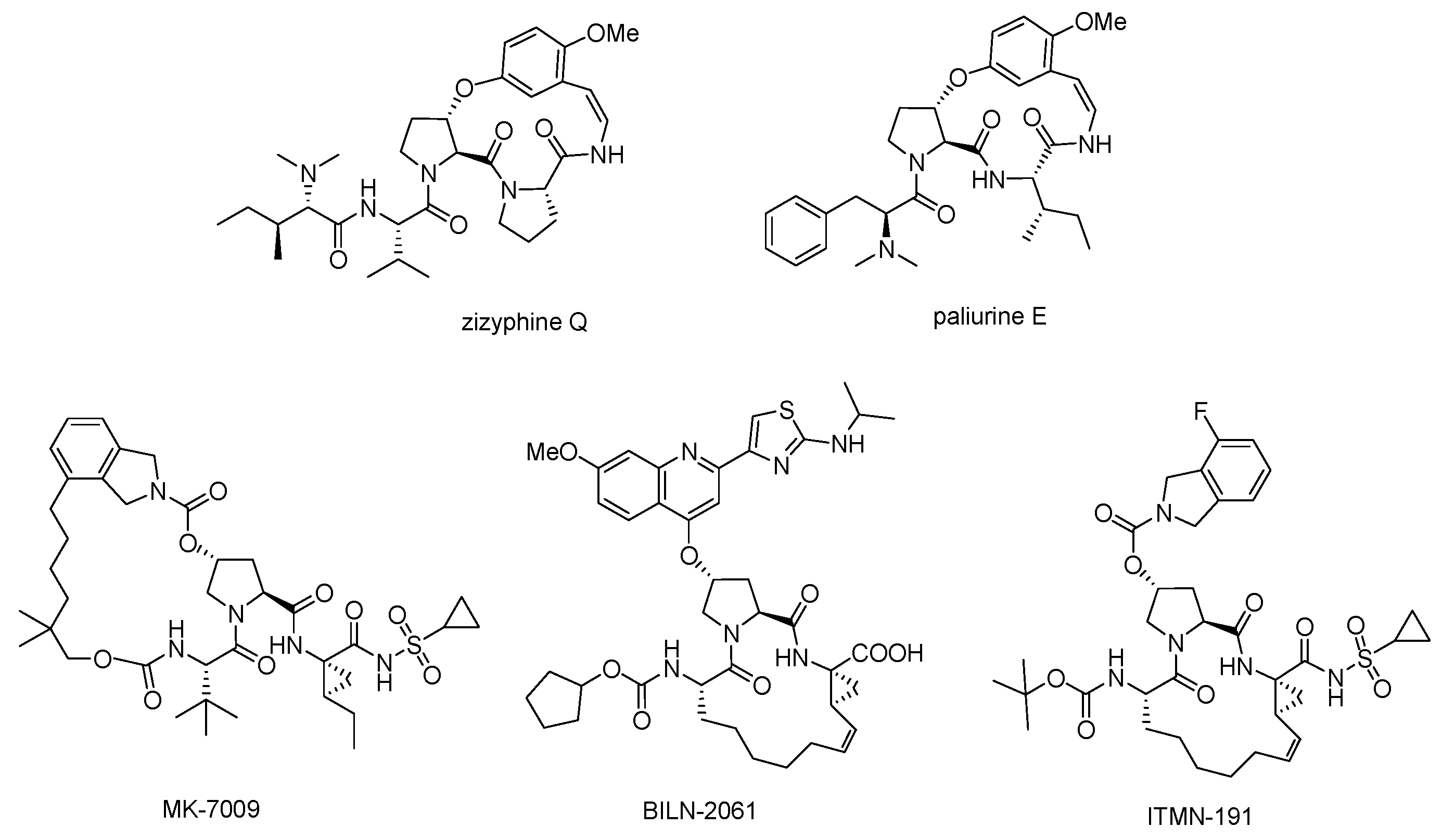

Figure 1. Hydroxyproline-containing nature products and drugs.
Figure 1. Hydroxyproline-containing nature products and drugs.
Molecules 21 00212 g001
Molecules 21 00212 g002 550

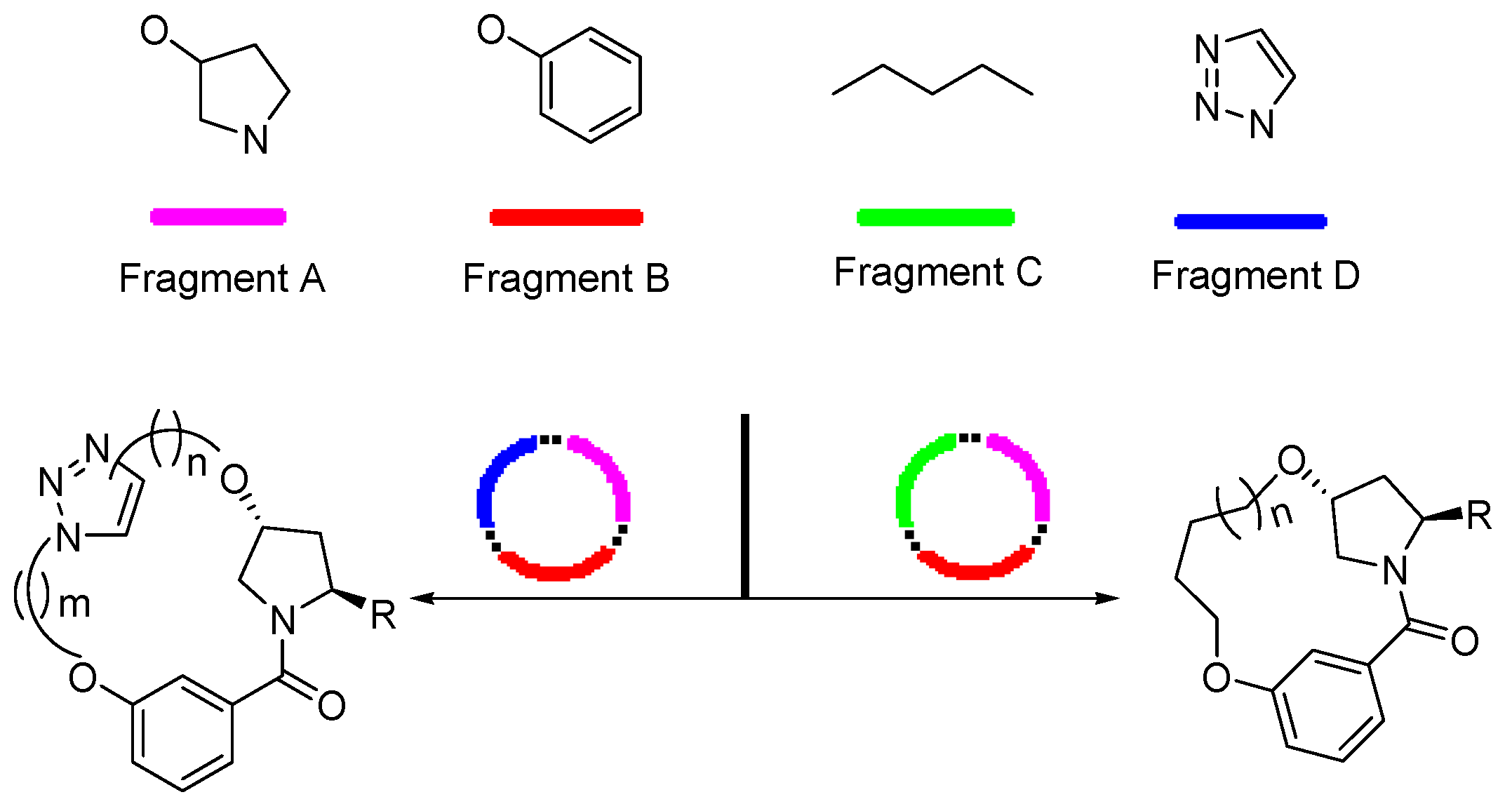

Figure 2. Target macrocyclic structures.
Figure 2. Target macrocyclic structures.
Molecules 21 00212 g002

2. Results and Discussion

2.1. Chemistry

Of all the macrocyclization methods, Huisgen 1,3-dipolar cycloaddition [36] of azides and alkynes is proposed to construct a triazole-linker to cyclize the macrocyclic ring. Apparently, it is straightforward and the ring size could be easily manipulated. Under thermal conditions, the reactions produce a mixture of 1,4- and 1,5-disubstituted 1,2,3-triazole regioisomers. This was overcome by the discovery of Cu(I)-catalyzed azide-alkyne cycloaddition (CuAAC) [37,38,39,40,41,42] and ruthenium-catalyzed azide-alkyne cycloaddition (RuAAC) [43,44,45], which could lead regioselectively to 1,4-disubstituted and 1,5-disubstituted 1,2,3-triazoles. The synthesis was illustrated in Scheme 1. trans-4-Hydroxy-l-proline (1) was sequentially esterified, N-protected with a Boc group, alkylated with 3-bromopropyne, and N-deprotected under acidic conditions to afford alkyne 2. 3-Hydroxybenzoic acid (3) was sequentially methylated with thionyl chloride in methanol, alkylated with 1-bromo-2-chloroethane, substituted by sodium azide, and hydrolysed to afford azide 4. Reaction of alkyne 2 with azide 4 affords 5 under amide formation conditions (Scheme 1).
Molecules 21 00212 g003 550

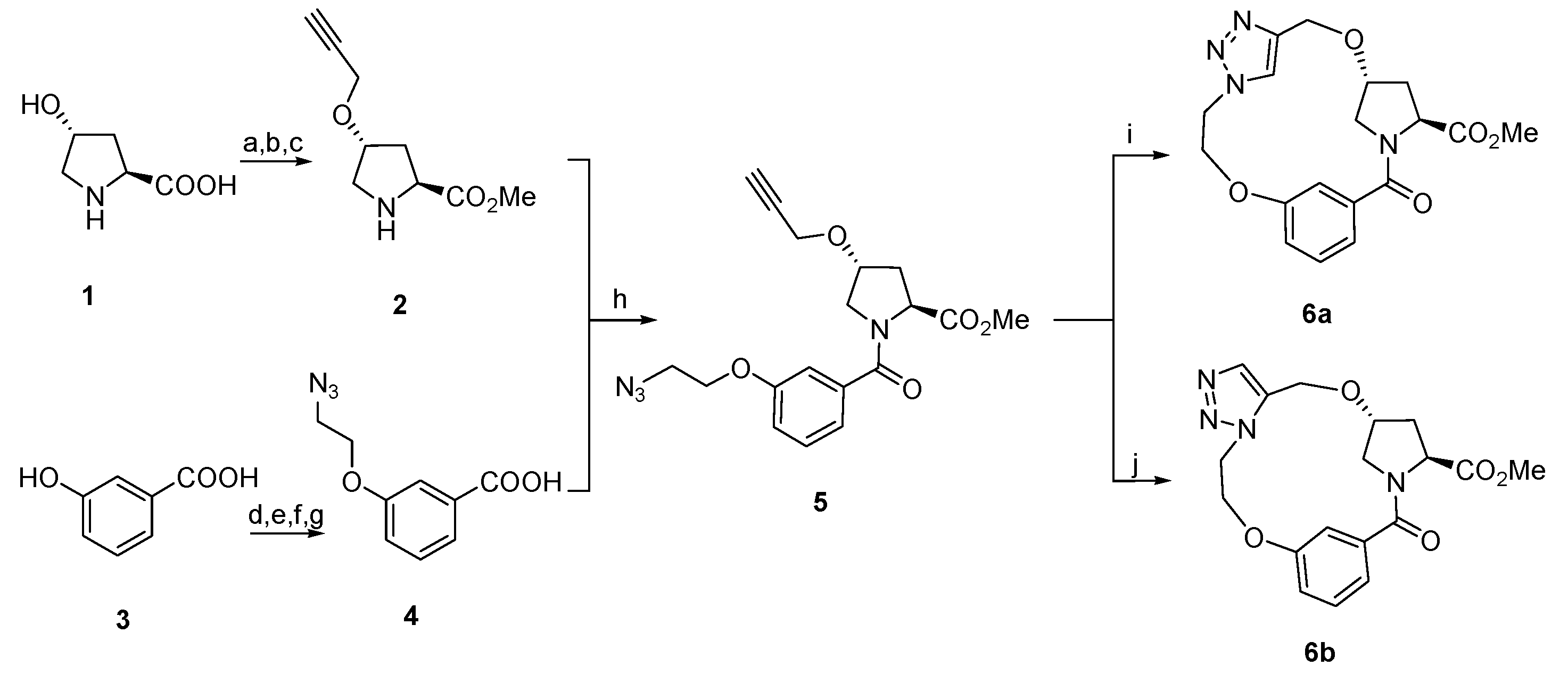

Scheme 1. Macrocyclization with azide-alkyne cycloaddition. Reagents and conditions: (a) (i) SOCl2, MeOH, reflux, 5 h; (ii) (Boc)2O, MeOH, 0 °C–r.t., 2 h, 85%; (b) 3-Bromo-propyne, NaH, DMF, 0 °C–r.t., overnight, 37%; (c) 3M HCl/EtOAc, r.t., 2 h, 95%; (d) SOCl2, MeOH, reflux, 5 h, 96%; (e) 1-Bromo-2-chloro-ethane, NaH, DMF, 0 °C–r.t., overnight, 34%; (f) NaN3, DMF, 50 °C, 2 h, 85%; (g) NaOH, MeOH/H2O, 3 h, 92%; (h) HOBt, EDCI, Et3N, CH2Cl2, 90%; (i) CuI, toluene, reflux, 2 h, 43%; (j) [Cp*RuCl]4, toluene, 80 °C, 4 h, 42%.
Scheme 1. Macrocyclization with azide-alkyne cycloaddition. Reagents and conditions: (a) (i) SOCl2, MeOH, reflux, 5 h; (ii) (Boc)2O, MeOH, 0 °C–r.t., 2 h, 85%; (b) 3-Bromo-propyne, NaH, DMF, 0 °C–r.t., overnight, 37%; (c) 3M HCl/EtOAc, r.t., 2 h, 95%; (d) SOCl2, MeOH, reflux, 5 h, 96%; (e) 1-Bromo-2-chloro-ethane, NaH, DMF, 0 °C–r.t., overnight, 34%; (f) NaN3, DMF, 50 °C, 2 h, 85%; (g) NaOH, MeOH/H2O, 3 h, 92%; (h) HOBt, EDCI, Et3N, CH2Cl2, 90%; (i) CuI, toluene, reflux, 2 h, 43%; (j) [Cp*RuCl]4, toluene, 80 °C, 4 h, 42%.
Molecules 21 00212 g003
With compound 5 in hand, the intramolecular 1,3-dipolar cycloaddition was conducted under various conditions (Table 1). Under thermal conditions, a mixture of 1,4- and 1,5-disubstituted triazole linkers was obtained in a ratio of 5:1 after refluxing in toluene (Entry 1). Under CuAAC conditions, the reaction led exclusively to the 1,4-disubstituted triazole linker 6a in 55% yield (Entry 2). Under RuAAC conditions, the cyclization failed employing Cp*RuCl(COD) as catalyst, possibly due to the thermal instability of the catalyst [46] (Entries 3, 4). After several attempts, we found that the macrocycle with 1,5-disubstituted triazole linker was formed using Cp*RuCl(PPh3)2 as catalyst (Entry 5). However, the product was hard to isolate from the phosphine oxide formed in the reaction [47]. Improved result was achieved with [Cp*RuCl]4 as catalyst in toluene at 80 °C in 48% yield (Entry 6). Compared to 15-membered macrocycle 6a, 14-membered product 6b was obtained in lower yield and the reaction needed longer time (Entries 2 and 7).
Table
Table 1. Macrocyclization with azide-alkyne cycloadditon a.
Table 1. Macrocyclization with azide-alkyne cycloadditon a.
EntryCatalystTemperature (°C)Time (h)Ring SizeYield (%) bRatio (1,4-:1,5-)
1Thermal1102415,14205:1
2CuI11021555>99:1
3Cp*RuCl(COD)5024140-
4Cp*RuCl(COD)11024140-
5Cp*RuCl(PPh3)28081433<1:99
6[Cp*RuCl]48041448<1:99
7[Cp*RuCl]411041441<1:99
a Reaction conditions: 0.3 mmol scale, 5 mol % of catalyst, toluene, 0.02 M; b Isolated yield.
Encouraged by the results of macrocyclizations with azide-alkyne cycloadditions, we continued our investigation by performing the transformation of trans-4-hydroxy-l-proline (1) to 10a. Retro-synthetic analysis indicates that 13-member macrocycle 10a could be cyclized in four ways by ring-closing metathesis (RCM) [48,49,50,51,52]/hydrogenation reaction (path a), intramolecular Mitsunobu reaction (path b,c) and by amide formation reaction (path d). As shown in Scheme 2. trans-4-Hydroxy-l-proline (1) was sequentially esterified, N-protected with Boc group, alkylated with 3-bromopropene, N-deprotected and condensed under amide formation conditions to afford dialkene 8. However, the cyclization of 8 failed under various conditions with both first and second generation Grubbs’ catalyst (path a). The results indicated that the conformation of 8 was not favored for the macrocyclization under RCM conditions. This is presumably caused by the rigid meta benzene junction that results in lower probability of encounter and increasing greater strain in the ansa-bridged macrocycles, which greatly reduces the effective morality (EM) of the terminal dienes [53,54,55].
Molecules 21 00212 g004 550

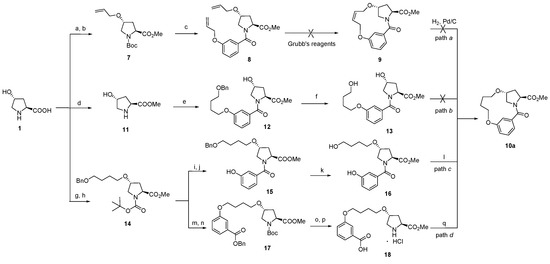

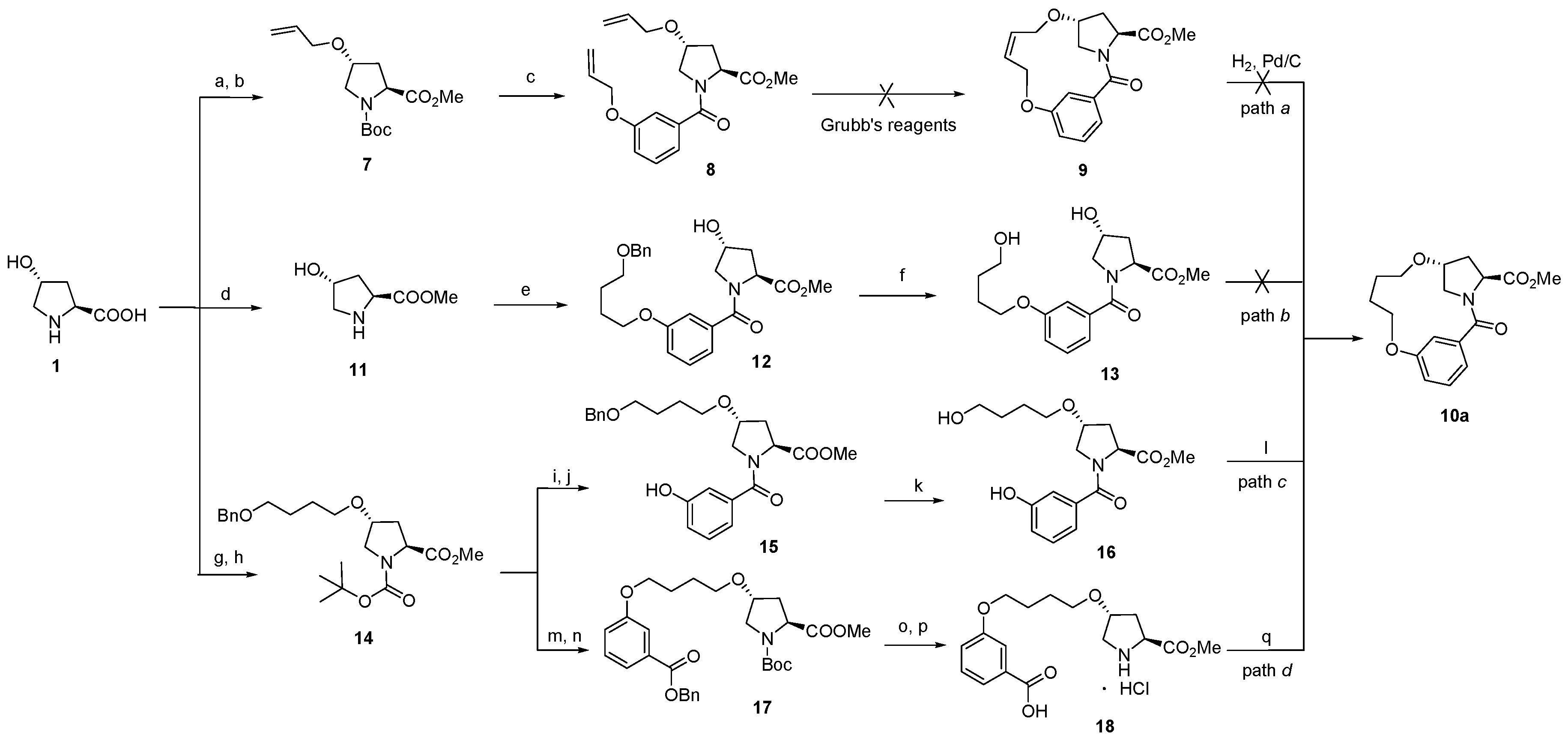

Scheme 2. Macrocyclization of 10a in four ways. Reagents and conditions: (a) (i) SOCl2, MeOH, reflux, overnight; (ii) (Boc)2O, Et3N, MeOH, 0 °C–r.t., 2 h, 96%; (b) 3-bromoprop-1-ene, NaH, DMF, 0 °C–r.t., 4 h, 35%; (c) (i) 3M HCl/EtOAc, r.t., 2 h; (ii) 3-(allyloxy)benzoic acid, HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 2 h, 71%; (d) SOCl2, MeOH, reflux, overnight, 96%; (e) 3-(4-(benzyloxy)butoxy)benzoic acid, HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 2 h, 75%; (f) H2, Pd/C, MeOH, r.t., 5 h, 92%; (g) (Boc)2O, Et3N, MeOH, 0 °C–r.t., 2 h, 95%; (h) (i) BnO(CH2)4Br, KI, NaH, DMF, 0 °C–r.t., overnight; (ii) CH3I, 50 °C, 2 h, 35%; (i) 3M HCl/EtOAc, r.t., 2 h, 94%; (j) 3-hydroxybenzoic acid, HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 2 h, 73%; (k) H2, Pd/C, MeOH, r.t., 5 h, 92%; (l) ADDP, TBP, CH2Cl2, r.t., 4 h, 23%; (m) H2, Pd/C, MeOH, r.t., overnight, 90%; (n) benzyl 3-hydroxybenzoate, ADDP, TBP, CH2Cl2, 65%; (o) H2, Pd/C, MeOH, r.t., 5 h, 95%; (p) 3M HCl/EtOAc, r.t., 2 h, 93%; (q) HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 1 h, 39%.
Scheme 2. Macrocyclization of 10a in four ways. Reagents and conditions: (a) (i) SOCl2, MeOH, reflux, overnight; (ii) (Boc)2O, Et3N, MeOH, 0 °C–r.t., 2 h, 96%; (b) 3-bromoprop-1-ene, NaH, DMF, 0 °C–r.t., 4 h, 35%; (c) (i) 3M HCl/EtOAc, r.t., 2 h; (ii) 3-(allyloxy)benzoic acid, HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 2 h, 71%; (d) SOCl2, MeOH, reflux, overnight, 96%; (e) 3-(4-(benzyloxy)butoxy)benzoic acid, HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 2 h, 75%; (f) H2, Pd/C, MeOH, r.t., 5 h, 92%; (g) (Boc)2O, Et3N, MeOH, 0 °C–r.t., 2 h, 95%; (h) (i) BnO(CH2)4Br, KI, NaH, DMF, 0 °C–r.t., overnight; (ii) CH3I, 50 °C, 2 h, 35%; (i) 3M HCl/EtOAc, r.t., 2 h, 94%; (j) 3-hydroxybenzoic acid, HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 2 h, 73%; (k) H2, Pd/C, MeOH, r.t., 5 h, 92%; (l) ADDP, TBP, CH2Cl2, r.t., 4 h, 23%; (m) H2, Pd/C, MeOH, r.t., overnight, 90%; (n) benzyl 3-hydroxybenzoate, ADDP, TBP, CH2Cl2, 65%; (o) H2, Pd/C, MeOH, r.t., 5 h, 95%; (p) 3M HCl/EtOAc, r.t., 2 h, 93%; (q) HOBt, EDCI, Et3N, CH2Cl2, 0 °C–r.t., 1 h, 39%.
Molecules 21 00212 g004
With the RCM results and the conformational characteristics of the macrocycles, we turned to explore the possibility of macrocyclization using the Mitsunobu protocol. Unfortunately, the macrocyclization of path b failed under various Mitsunobu conditions (Table 2, Entries 1–3). This is due to the fact the pKa values of the protons of both hydroxyl group are bigger than the pKa value of the betaine intermediate during the reaction. On the other hand, the intramolecular Mitsunobu reaction of path c works smoothly and the desired 13-member macrocycle 10a was obtained in a low yield of 7% using a mixture of triphenylphosphine and diethyl azodicarboxylate (DEAD) (Entry 4). Nevertheless, N,N,N′,N′-tetramethylazodicarboxamide (TMAD) was shown to enhance the reactivity of this nucleophile of pKa in inactivated systems, leading to higher overall yields (Entry 5). A combination of 1,1′-(azodicarbonyl)dipiperidine (ADDP) with tributyl phosphine (TBP) under argon atmosphere afforded a little better result with a 23% yield. (Entry 6). However, the desired macrocycle 10a was difficult to isolate from the phosphine oxide formed in the cyclization and was still obtained in low yield. This could also be ascribed to the rigid junction between meta-benzenes and hydroxyproline which limits the rotational freedom of the molecular framework.
Table
Table 2. Results of macrocyclization by Mitsunobu reactions and amide formation a.
Table 2. Results of macrocyclization by Mitsunobu reactions and amide formation a.
EntryPathReagentsTime (h)Yield (%) b
1bDEAD, PPh3240
2bTMAD, TBP240
3bADDP, TBP240
4cDEAD, PPh3410
5cTMAD, TBP421
6cADDP, TBP423
7dHOBt, EDCI, Et3N139
8dHATU, DIEA139
a Reactions were run on 0.3 mmol scale; b Isolated yield.
Excitingly, cyclization of 18 in path d works well with much higher yield and shorter time under standard amide formation conditions (Entry 7). No significant yield increase was found by using more effective HOAt-based reagent (Entry 8). The results indicate that the softer polymethylene linker between the rigid meta-benzene and hydroxyproline greatly reduces the strain in the ansa-bridged macrocycles and enhance the activity of head-to-tail cyclization. The effective morality of the terminal reactive groups is increased. The structure of 10a was confirmed by 1H-NMR, 13C-NMR and HRMS.
We next turned our attention to the reactivity scope of macrocycle 10. Under amide formation conditions, the formation of 14- and 15-member macrocycles 10b and 10c was achieved in moderate yields of 44% and 56%, respectively. The macrocyclization of 10 promoted us to reinvestigate the synthesis of 9 using the same macrocyclization strategy. Using trans-4-hydroxy-l-proline and cis-2-butene-1,4-diol as starting materials, macrocycle 9 was successfully obtained after five steps in 25% yield (Scheme 3).
Molecules 21 00212 g005 550

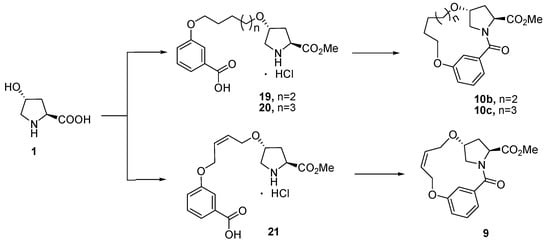

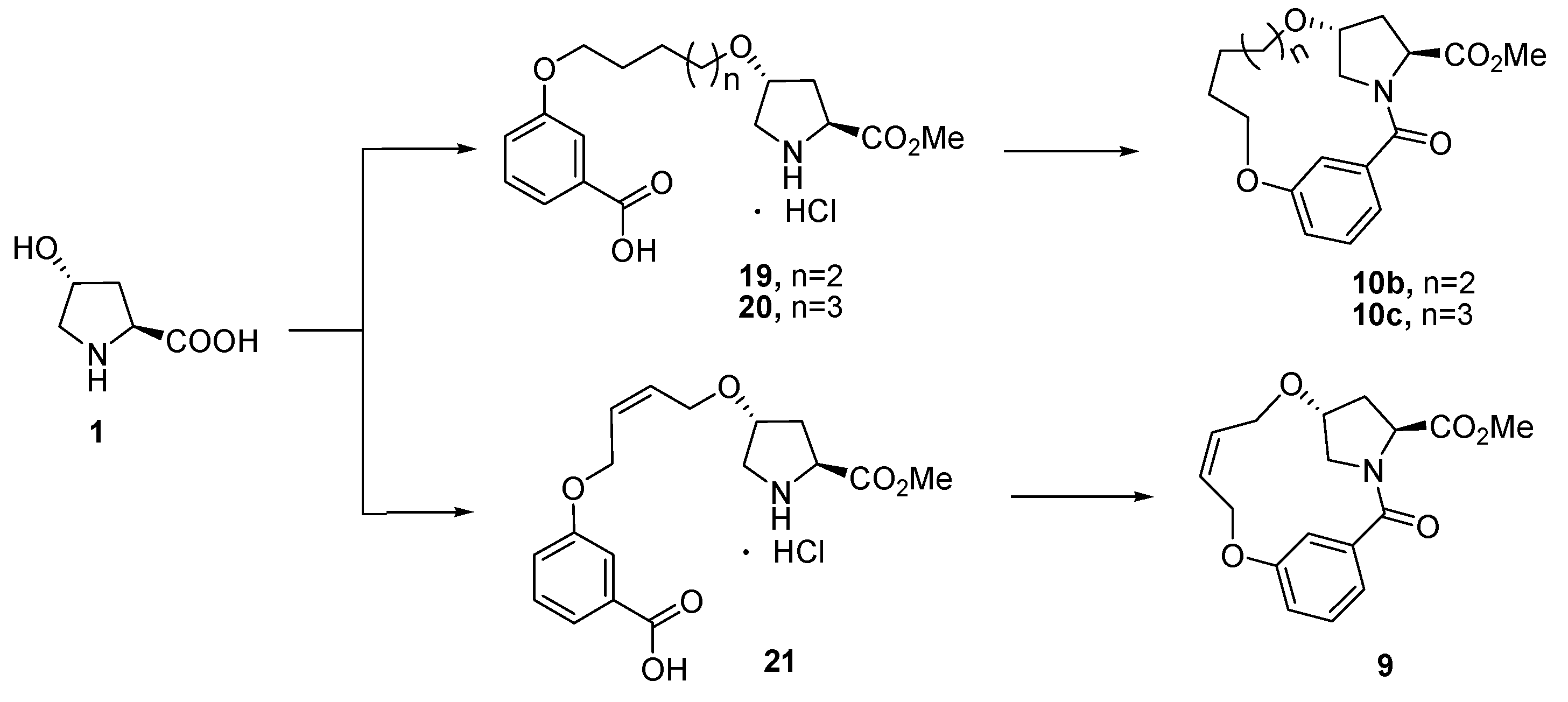

Scheme 3. Synthesis of 8, 9b and 9c under amide formation conditions.
Scheme 3. Synthesis of 8, 9b and 9c under amide formation conditions.
Molecules 21 00212 g005
The results indicate that the macrocyclization is not influenced by the configuration of the linear chain. Ring size is found to be an important factor that governs the yield of a head-to-tail macrocyclization. The yields of macrocycles increase with the increase of the rings in the range of 13–15 members because the strain energy of cyclization of 13-member macrocycles is much higher than that of 14- and 15-member rings, and the EM value of cyclization of 13-member macrocycles is much lower than that of 14- and 15-member rings.

2.2. In Vitro Anti-Tumor Screening

A small library derived from 6a–b, 9 and 10a–c was obtained by hydrolysis of the macrocycles and condensation with amines. The anti-tumor activities for lung cancer cell line A549, breast cancer cell line MDA-MB-231 and hepatocarcinoma cell line Hep G2 of all these new compounds were screened in vitro by an MTT assay. The IC50 values of the compounds are summarized in Table 3. Most of the compounds show some inhibitory activities against A549, MDA-MB-231 and Hep G2. Compounds 22–29 where the linker contains a triazole group showed moderate anti-tumor activity with IC50 values of 26.79–48.27 μmol/L. Compounds 30–33 containing alkene chains have antiproliferative effects on all three human tumor cell lines with IC50 values near 10 μmol/L, in particular compound 33 which showed the best activity against A549 cells with an IC50 value of 2.55 μmol/L, much better than the reference drug cisplatin with an IC50 value of 15.42 μmol/L. However, compounds 34–45 containing alkyl chains showed weaker anti-tumor activity than compounds 30–33. In the future, further structure–activity relationship studies will be performed to determine how the substituents affected the anti-tumor activity and to design the best chemical structure in the future.
Table
Table 3. Anti-tumor activities of macrocycles.
Table 3. Anti-tumor activities of macrocycles.
CompoundRIC50 (μmol/L)
A549MDA-MB-231Hep G2

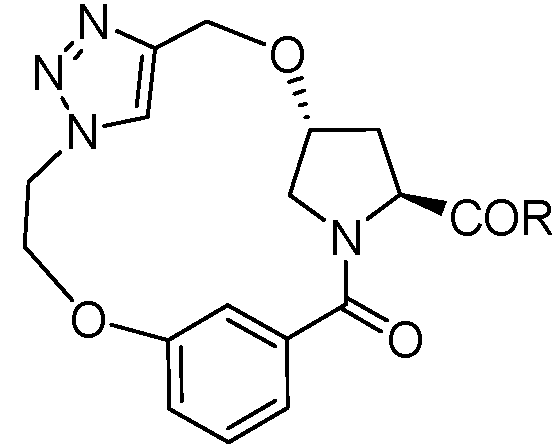

Molecules 21 00212 i00122OH32.2445.1444.17
23NH226.7929.9437.28
24NHPh45.7335.5846.26
25NHCH2CH(CH3)237.7342.4748.27
Molecules 21 00212 i00226OH37.1134.2844.88
27NH241.2827.9934.71
28NHPh46.2943.6836.28
29NHCH2CH(CH3)232.1843.1937.31
Molecules 21 00212 i00330OH11.2310.2623.21
31NH25.2112.3331.94
32NHPh4.769.6726.26
33NHCH2CH(CH3)22.5511.8741.10
Molecules 21 00212 i00434OH>10096.1596.16
35NH289.5490.5491.47
36NHPh54.3185.3295.39
37NHCH2CH(CH3)277.9386.2773.06
Molecules 21 00212 i00538OH>10092.34>100
39NH263.7457.33>100
40NHPh87.9976.3668.39
41NHCH2CH(CH3)234.9147.28>100
Molecules 21 00212 i00642OH>100>10087.39
43NH269.7465.9664.88
44NHPh98.2423.1188.13
45NHCH2CH(CH3)293.5788.6989.58
Cisplatin15.4219.6817.35

3. Materials and Methods

3.1. General Information

Pentamethylcyclopentadienylbis(triphenylphosphine)ruthenium(II) chloride [Cp*RuCl(PPh3)2], diethyl azodicarboxylate (DEAD), tri-n-butylphosphine (TBP), N,N,N′,N′-tetramethylazo-dicarboxamide (TMAD) and 1,1-(azodicarbonyl)-dipiperidine (ADDP), N-[(dimethylamino)-H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate (HATU) were purchased from Aldrich Chemical Company (Shanghai, China). Toluene was dried overnight over calcium chloride, filtered and distilled from sodium/benzophenone ketyl and degassed by three evacuation/refill cycles under Ar before use. Unless stated otherwise, other reagents and solvents were all purchased from commercial suppliers and were used without further purification. All reactions were monitored by TLC. Chromatography refers to open column chromatography (200–300 mesh). Melting points were recorded on a RY-1 microscopic melting apparatus (Tianjin, China) and are uncorrected. 1H-NMR and 13C-NMR spectra were recorded on Bruker 500 MHz and 125 Hz instruments (Bruker, Rheinstetten, Germany). Chemical shifts were reported in parts per million δ relative to tetramethylsilane. Mass spectra were performed on an Ultima Global spectrometer (Waters Corporation, Worcester, MA, USA) equipped with an ESI source.

3.2. Synthesis

3.2.1. Procedure for the Preparation of Methyl (12R,14S)-16-Oxo-2,11-dioxa-5,6,7,15-tetraaza-tetracyclo[15.3.1.112,15.05,9]docosane-6,8,1(21),17,19-pentaene-14-carboxylate (6a)

A solution of compound 5 (0.11 g, 0.3 mmol) and copper(I) iodide (2.1 mg, 0.015 mmol) in anhydrous toluene (15 mL) was stirred at reflux under argon atmosphere for 2 hours. The solvent was removed under reduced pressure and the residue was subjected to column chromatography on silica gel (100–200 mesh) using petroleum/ethyl acetate as eluent to afford 1,4-disubstituted 1,2,3-triazole 6a (0.061 g, 55%). The physical and spectral data for compound 6a are listed below. 1H-NMR and 13C-NMR spectra are provided in the Supplementary Materials.White solid, m.p. 186–189 °C; 1H-NMR (-CDCl3): δ 7.74 (s, 1H), 7.25 (t, 1H, J = 7.9 Hz), 6.98 (dd, 1H, J1 = 2.2 Hz, J2 = 8.3 Hz), 6.91 (d, 1H, J = 7.4 Hz), 6.21 (s, 1H), 4.95 (d, 1H, J = 14.1 Hz), 4.83–4.77 (m, 3H), 4.57–4.53 (m, 1H), 4.49–4.44 (m, 2H), 4.23–4.22 (m, 1H), 3.78 (s, 3H), 3.24–3.17 (m, 2H), 2.53–2.48 (m, 1H), 2.14–2.10 (m, 1H); 13C-NMR (-CDCl3): δ 172.7, 169.9, 158.8, 145.5, 137.5, 130.5, 124.2, 119.8, 119.3, 111.4, 80.2, 68.3, 64.5, 56.7, 55.0, 52.3, 51.8, 37.5; HRMS (ESI-TOF+): m/z Calcd. for C18H21N4O5 [M + H]+: 373.1512. Found: 373.1514.

3.2.2. Procedure for the Preparation of Methyl (11R,13S)-15-Oxo-2,10-dioxa-5,6,7,14-tetraaza-tetracyclo[14.3.1.15,8.111,14]docosane-6,8(21),1(20),16,18-pentaene-13-carboxylate (6b)

A solution of compound 5 (0.11 g, 0.3 mmol) and [Cp*RuCl]4 (0.016 g, 0.015 mmol) in anhydrous toluene (15 mL) was stirred at 80 °C under argon atmosphere for 4 hours. The solvent was removed under reduced pressure and the resulting residue was purified by column chromatography with petroleum/ethyl acetate as eluting solvent to afford 6b (0.054 g, 48%). The physical and spectral data for compound 6b are listed below. 1H-NMR and 13C-NMR spectra are provided in the Supplementary Materials. White solid, m.p. 203–205 °C; 1H-NMR (CDCl3): δ 7.74 (s, 1H), 7.42 (t, 1H, J = 7.9 Hz), 7.22 (d, 1H, J = 7.5 Hz), 7.07 (dd, 1H, J1 = 2.3 Hz, J2 = 8.7 Hz), 7.00 (s, 1H), 5.10–5.04 (m, 1H), 4.94–4.91 (m, 1H), 4.74 (d, 1H, J = 11.5 Hz), 4.62–4.55 (m, 2H), 4.42 (d, 1H, J = 11.5 Hz), 4.36–4.31 (m, 1H), 4.22–4.21 (m, 1H), 4.04 (d, 1H, J = 13.6 Hz), 3.82 (s, 3H), 3.52 (dd, 1H, J1 = 2.9 Hz, J2 = 12.7 Hz), 2.64–2.59 (m, 1H), 2.41–2.36 (m, 1H). 13C-NMR (CDCl3): δ 172.5, 169.9, 137.9, 134.1, 132.9, 131.3, 120.3, 119.6, 109.9, 79.0, 64.6, 59.9, 56.4, 54.4, 53.4, 52.5, 43.4, 36.6. HRMS (ESI-TOF+): m/z Calcd. for C18H21N4O5 [M + H]+: 373.1512. Found: 373.1521.

3.2.3. General Procedure for the Preparation of Methyl (4Z,8R,10S)-12-Oxo-2,7-dioxa-11-aza-tricyclo [11.3.1.18,11]octadecane-4,1(17),13,15-tetraene-10-carboxylate (9) and Compounds 10a–c

To a solution of 18–21 (0.3 mmol) in dichloromethane (15 mL), HOBt (0.36 mmol) was added slowly followed by EDCI (0.36 mmol) at 0 °C After stirring at r.t. for half an hour, a solution of triethylamine (0.75 mmol) in dichloromethane (2 mL) was added dropwise at 0 °C. Then the mixture was stirred at r.t. for half an hour. After adding 10 mL of water, the mixture was extracted with dichloromethane (3 × 5 mL). The combined organic extracts were dried over anhydrous sodium sulfate and concentrated in vacuo. The residue was subjected to column chromatography on silica gel (100–200 mesh) using petroleum/ethyl acetate as eluent to afford 9 and 10a–c, with yields ranging from 25% to 56%. The physical and spectral data for compounds 9 and 10a–c are listed below. 1H-NMR and 13C-NMR spectra are provided in the Supplementary Materials.
9: Yellow oil, yield 25%, 1H-NMR (CDCl3): δ 7.23 (t, 1H, J = 7.9 Hz), 7.07 (d, 1H, J = 7.4 Hz), 6.94 (s,1H), 6.84 (d, 1H, J = 8.0 Hz), 5.76–5.72 (m, 1H), 5.68–5.66 (m, 1H), 4.74 (s, 1H, J = 8.2 Hz), 4.39 (d, 2H, J = 6.0 Hz), 4.07–4.03 (m, 1H), 3.99–3.90 (m, 2H), 3.71 (s, 3H), 3.64–3.52 (m, 2H), 2.42–2.38 (m, 1H), 2.06–2.02 (m, 1H). 13C-NMR (CDCl3): δ 172.7, 169.6, 158.2, 140.0, 129.5, 128.0, 119.9, 116.9, 113.3, 64.8, 63.8, 57.7, 54.3, 52.4, 35.2.; HRMS (ESI-TOF+): m/z Calcd. for C17H20NO5 [M + H]+: 318.1341. Found: 318.1343.
Methyl (8R,10S)-12-oxo-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-1(17),13,15-triene-10-carboxylate (10a): White solid, m.p. 142–144 °C, yield 39%, 1H-NMR (CDCl3): δ 7.26 (t, 1H, J = 8.2 Hz), 7.09 (d, 1H, J = 7.4 Hz), 7.01 (s, 1H), 6.84 (dd, 1H, J1 = 2.3 Hz, J2 = 8.3 Hz), 4.85 (t, 1H, J = 8.5 Hz), 4.01 (br, 1H), 3.87–3.82 (m, 2H), 3.77 (s, 3H), 3.64 (s, 2H), 3.54–3.48 (m, 1H), 3.26–3.24 (m, 1H), 2.48–2.44 (m, 1H), 2.11–2.05 (m, 1H), 1.76–1.67 (m, 2H), 1.64–1.62 (m, 2H). 13C-NMR (CDCl3) δ 172.8, 170.0, 158.7, 137.0, 129.2, 119.4, 117.0, 112.6, 68.4, 67.5, 57.6, 54.8, 52.3, 35.3, 26.3, 25.8.; HRMS (ESI-TOF+): m/z Calcd. for C17H22NO5 [M + H]+: 320.1498. Found: 320.1505.
Methyl (9R,11S)-13-oxo-2,8-dioxa-12-aza-tricyclo[12.3.1.19,12]nonadecane-1(18),14,16-triene-11-carboxylate (10b): Yellow oil, yield 44%, 1H-NMR (CDCl3): δ 7.18 (t, 1H, J = 7.8 Hz), 7.01 (d, 1H, J = 7.6 Hz), 6.98 (s, 1H), 6.85 (d, 1H, J = 8.0 Hz) , 4.68 (t, 1H, J = 8.1 Hz), 3.97 (br, 1H), 3.89–3.85 (m, 1H), 3.83–3.80 (m, 1H), 3.69 (s, 3H), 3.65 (dd, 1H, J1 = 4.0 Hz, J2 = 11.5 Hz), 3.47 (d, 1H, J = 11.3 Hz), 3.38–3.36 (m, 1H), 3.19–3.14 (m, 1H), 2.37 (t, 1H, J = 10.5 Hz), 2.03–1.97 (m, 1H), 1.68–1.64 (m, 2H), 1.49–1.44 (m, 2H), 1.42–1.38 (m, 2H). 13C-NMR (CDCl3): δ 172.6, 169.9, 158.9, 136.8, 129.1, 119.3, 117.5, 112.0, 68.7, 67.7, 57.7, 54.9, 52.2, 34.6, 29.3, 28.8, 22.8.; HRMS (ESI-TOF+): m/z Calcd. for C18H24NO5 [M + H]+: 334.1654. Found: 334.1653.
Methyl (10R,12S)-14-oxo-2,9-dioxa-13-aza-tricyclo[13.3.1.110,13]eicosane-1(19),15,17-triene-12-carboxylate (10c) Yellow oil, yield 54%, 1H-NMR (CDCl3): δ 7.21 (t, 1H, J = 7.8 Hz), 7.03 (d, 1H, J = 7.6 Hz), 7.00 (s, 1H), 6.85 (dd, 1H, J1 = 2.0 Hz, J2 = 8.3 Hz), 4.73 (t, 1H, J = 8.2 Hz), 3.96 (br, 1H), 3.87–3.83 (m, 2H), 3.71 (s, 3H), 3.63–3.60 (m, 1H), 3,54-3.51 (m, 1H), 3.38–3.35 (m, 1H), 3.16–3.12 (m, 1H), 2.36 (t, 1H, J = 10.0 Hz), 2.04–1.98 (m, 1H), 1.67–1.63 (m, 2H), 1.46–1.41 (m, 3H), 1.34–1.30 (m, 3H). 13C-NMR (CDCl3): δ 172.7, 169.9, 158.9, 136.9, 129.2, 119.3, 116.8, 112.9, 68.8, 67.8, 57.7, 54.7, 52.3, 35.1, 29.5, 29.0, 25.8, 25.6.; HRMS (ESI-TOF+): m/z Calcd. for C19H26NO5 [M + H]+: 348.1811. Found: 348.1813.

3.2.4. General Procedure for the Preparation of Compounds 22–45

To a suspension of macrocyclic ester 6a–b, 9 or 10a–c (1 mmol) in methanol (2 mL), a solution of NaOH (4.8 mg, 1.2 mmol) in water (0.5 mL) was added slowly. After stirring at r.t. for 3 h, the mixture was evaporated to remove solvent and acidified with 3N HCl to pH = 3, the precipitated product 22, 26, 30, 34, 38 or 42 was isolated by filtration and dried under reduced pressure.
To a solution of macrocyclic acid 22, 26, 30, 34, 38 or 42 (0.1 mmol) in dichloromethane (0.5 mL), HOBt (0.15mmol) was added slowly followed by EDCI (0.15 mmol) at 0 °C After stirring at r.t. for half an hour, a solution of amine (0.12 mmol) and triethylamine (0.25 mmol) in dichloromethane (0.2 mL) was added dropwise at 0 °C. Then the mixture was stirred at r.t. for 1 h. After adding 1 mL of water, the mixture was extracted with dichloromethane (3 × 0.3 mL). The combined organic extracts were dried over anhydrous sodium sulfate and concentrated in vacuo. The residue was subjected to column chromatography on silica gel (100–200 mesh) using petroleum/ethyl acetate as eluent to afford macrocyclic amide 23–25, 27–29, 31–33, 35–37, 39–41 or 43–45. The physical and spectral data for compounds 22–45 are listed below. 1H-NMR spectra are provided in the Supplementary Materials.
(11R,13S)-15-Oxo-2,10-dioxa-5,6,7,14-tetraaza-tetracyclo[14.3.1.15,8.111,14]docosane-6,8(21),1(20),16,18-pentaene-13-carboxylic acid (22): White solid, m.p. 210–212 °C, yield 91%, 1H-NMR (DMSO-d6): δ 8.24 (s, 1H), 7.23 (t, 1H, J = 7.8 Hz), 6.93 (d, 1H, J = 7.4 Hz), 6.64 (d, 1H, J = 7.2 Hz), 6.07 (s, 1H), 4.89–4.86 (m, 1H), 4.84–4.82 (m, 1H), 4.65 (s, 2H), 4.38–4.20 (m, 4H), 3.07–3.04 (m, 1H), 2.95–2.93 (m, 1H), 2.35–2.31 (m, 1H), 2.03–1.98 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C17H19N4O5 [M + H]+: 359.1355. Found: 359.1364.
(11R,13S)-15-Oxo-2,10-dioxa-5,6,7,14-tetraaza-tetracyclo[14.3.1.15,8.111,14]docosane-6,8(21),1(20),16,18-pentaene-13-carboxamide (23): White solid, m.p. 257–259 °C, yield 75%, 1H-NMR (DMSO-d6): δ 8.18 (s, 1H), 7.40–6.81 (m, 4H), 6.09 (s, 1H), 6.64 (d, 1H, J = 7.2 Hz), 5.75 (s, 1H), 4.91–4.90 (m, 1H), 4.82–4.79 (m, 1H), 4.64 (s, 2H), 4.41–4.15 (m, 4H), 3.14–3.12 (m, 1H), 2.96–2.94 (m, 1H), 2.25–2.24 (m, 1H), 1.98–1.94 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C17H20N5O4 [M + H]+: 358.1515. Found: 358.1512.
(11R,13S)-15-Oxo-N-phenyl-2,10-dioxa-5,6,7,14-tetraaza-tetracyclo[14.3.1.15,8.111,14]docosane-6,8(21),1(20),16,18-pentaene-13-carboxamide (24): White solid, m.p. 258–260 °C, yield 82%, 1H-NMR (CDCl3): δ 9.57 (s, 1H), 7.40–6.81 (m, 4H), 7.59 (s, 1H), 7.55–7.53 (m, 2H), 7.31–7.21 (m, 3H), 7.08 (t, 1H, J = 7.5 Hz), 7.02 (d, 1H, J = 7.9 Hz), 6.76 (d, 1H, J = 7.3 Hz), 6.31 (s, 1H), 5.00 (t, 1H, J = 7.3 Hz), 4.91 (d, 1H, J = 14.0 Hz), 4.81–4.78 (m, 2H), 4.57–4.55 (m, 2H), 4.38 (d, 1H, J = 14.1 Hz), 4.25–4.24 (m, 1H), 3.37–3.21 (m, 2H), 2.93–2.91 (m, 1H), 2.27–2.22 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C23H24N5O4 [M + H]+: 434.1828. Found: 434.1822.
(11R,13S)-15-Oxo-N-isobutyl-2,10-dioxa-5,6,7,14-tetraaza-tetracyclo[14.3.1.15,8.111,14]docosane-6,8(21),1(20),16,18-pentaene-13-carboxamide (25): White solid, m.p. 270–272 °C, yield 79%, 1H-NMR (CDCl3): δ 7.56 (s, 1H), 7.31 (s, 1H), 7.23–7.22 (m, 1H), 7.01 (d, 1H, J = 7.6 Hz), 6.74 (d, 1H, J = 7.2 Hz), 6.29 (s, 1H), 4.90–4.79 (m, 4H), 4.55–4.54 (m, 2H), 4.36 (d, 1H, J = 14.1 Hz), 4.20 (s, 1H), 3.31–3.28 (m, 1H), 3.20–3.15 (m, 2H), 3.04–3.01 (m, 1H), 2.85–2.80 (m, 1H), 2.20–2.16 (m, 1H), 1.79–1,76 (m, 1H), 0.89 (d, 6H, J = 6.3 Hz). HRMS (ESI-TOF+): m/z Calcd. for C21H28N5O4 [M + H]+: 414.2141. Found: 414.2135.
(12R,14S)-16-Oxo-2,11-dioxa-5,6,7,15-tetraaza-tetracyclo[15.3.1.112,15.05,9]docosane-6,8,1(21),17,19-pentaene-14-carboxylic acid (26): White solid, m.p. 222–225 °C, yield 90%, 1H-NMR (DMSO-d6): δ 7.83 (s, 1H), 7.44 (t, 1H, J = 7.8 Hz), 7.09 (d, 1H, J = 8.2 Hz), 7.04 (d, 1H, J = 7.3 Hz), 6.82 (s, 1H), 4.89–4.83 (m, 1H), 4.73–4.65 (m, 3H), 4.56–4.49 (m, 2H), 4.36–4.32 (m, 1H), 4.26–4.25 (m, 1H), 4.02–4.00 (m, 1H), 3.28–3.26 (m, 1H), 2.47–2.42 (m, 1H), 2.30–2.26 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C17H19N4O5 [M + H]+: 359.1355. Found: 359.1346.
(12R,14S)-16-Oxo-2,11-dioxa-5,6,7,15-tetraaza-tetracyclo[15.3.1.112,15.05,9]docosane-6,8,1(21),17,19-pentaene-14-carboxamide (27): White solid, m.p. 258–260 °C, yield 77%, 1H-NMR (DMSO-d6): δ 7.82 (s, 1H), 7.50 (s, 1H), 7.44 (t, 1H, J = 7.8 Hz), 7.12–7.08 (s, 3H), 6.76 (s, 1H), 4.85–4.83 (m, 1H), 4.70–4.58 (m, 3H), 4.52–4.51 (m, 2H), 4.38–4.37 (m, 1H), 4.21 (s, 1H), 3.92–3.90 (m, 1H), 3.29–3.26 (m, 1H), 2.34–2.25 (m, 2H). HRMS (ESI-TOF+): m/z Calcd. for C17H20N5O4 [M + H]+: 358.1515. Found: 358.1516.
(12R,14S)-16-Oxo-N-phenyl-2,11-dioxa-5,6,7,15-tetraaza-tetracyclo[15.3.1.112,15.05,9]docosane-6,8,1(21),17,19-pentaene-14-carboxamide (28): White solid, m.p. 229–232 °C, yield 80%, 1H-NMR (CDCl3): δ 9.95 (s, 1H), 7.72 (s, 1H), 7.62–7.60 (m, 2H), 7.44–7.33 (m, 3H), 7.17 (d, 1H, J = 7.4 Hz), 7.14–7.08 (m, 3H), 5.10–5.07 (m, 1H), 5.04–5.01 (m, 1H), 4.80 (d, 1H, J = 11.6 Hz), 4.72–4.66 (m, 1H), 4.61–4.59 (m, 1H), 4.48 (d, 1H, J = 11.6 Hz), 4.31–4.26 (m, 2H), 4.04–4.01 (d, 1H), 3.29–3.23 (m, 2H), 2.33–2.28 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C23H24N5O4 [M + H]+: 434.1828. Found: 434.1833.
(12R,14S)-16-Oxo-N-isobutyl-2,11-dioxa-5,6,7,15-tetraaza-tetracyclo[15.3.1.112,15.05,9]docosane-6,8,1(21),17,19-pentaene-14-carboxamide (29): White solid, m.p. 200–202 °C, yield 68%, 1H-NMR (CDCl3): δ 7.70 (s, 1H), 7.67 (s, 1H), 7.41(t, 1H, J = 7.8 Hz), 7.11 (d, 1H, J = 7.3 Hz), 7.07–7.06 (m, 2H), 5.03–4.99 (m, 1H), 4.92–4.90 (m, 1H), 4.77 (d, 1H, J = 11.6 Hz), 4.68–4.66 (m, 1H), 4.60–4.56 (m, 1H), 4.44 (d, 1H, J = 11.6 Hz), 4.32–4.28 (m, 1H), 4.23–4.22 (m, 1H), 3.96–3.94 (m, 1H), 3.25–3.22 (m, 1H), 3.21–3.07 (m, 3H), 2.25–2.21 (m, 1H), 1.85–1.79 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C21H28N5O4 [M + H]+: 414.2141. Found: 414.2147.
(4Z,8R,10S)-12-Oxo-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-4,1(17),13,15-tetraene-10-carboxylic acid (30): White solid, m.p. 176–178 °C, yield 93%, 1H-NMR (CDCl3): δ 7.15 (t, 1H, J = 7.7 Hz), 6.67 (d, 1H, J = 7.2 Hz), 6.84 (s, 1H), 6.77 (d, 1H, J = 7.0 Hz), 5.63–5.59 (m, 2H), 4.62 (t, 1H, J = 7.9 Hz), 4.33–4.32 (m, 2H), 4.00 (s, 1H), 3.87–3.86 (m, 2H), 3.55–3.54 (m, 1H), 3.45–3.42 (m, 1H), 2.33–2.31 (m, 1H), 2.03–2.02 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C16H18NO5 [M + H]+: 304.1185. Found: 304.1176.
(4Z,8R,10S)-12-Oxo-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-4,1(17),13,15-tetraene-10-carboxamide (31): Colorless oil, yield 84%, 1H-NMR (CDCl3): δ 7.31 (d, 1H, J = 7.3 Hz), 7.15 (d, 1H, J = 7.5 Hz), 7.02 (s, 1H), 6.94 (t, 1H, J = 8.3 Hz), 5.74–5.73 (m, 2H), 5.49 (s, 1H), 4.93 (t, 1H, J = 8.2 Hz), 4.63–4.55 (m, 2H), 4.05–3.97 (m, 2H), 3.92–3.89 (m, 1H), 3.69 (s, 1H), 2.63–2.59 (m, 1H), 2.36–2.31 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C16H19N2O4 [M + H]+: 303.1345. Found: 303.1340.
(4Z,8R,10S)-12-Oxo-N-phenyl-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-4,1(17),13,15-tetraene-10-carboxamide (32): White solid, m.p. 190–194 °C, yield 77%, 1H-NMR (CDCl3): δ 9.90 (s, 1H), 7.36–7.31 (m, 3H), 7.18 (d, 1H, J = 7.4 Hz), 7.00–6.98 (m, 1H), 6.95 (s, 1H), 6.91–6.88 (m, 2H), 6.73 (t, 1H, J = 7.3 Hz), 5.73–5.64 (m, 2H), 5.16–5.12 (m, 1H), 5.02–4.98 (m, 1H), 4.63–4.60 (m, 1H), 4.43–4.39 (m, 1H), 4.14–4.13 (m, 1H), 3.88–3.85 (m, 1H), 3.75–3.73 (m, 1H), 3.55 (d, 1H, J = 11.7 Hz), 2.72–2.68 (m, 1H), 2.31–2.26 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C22H23N2O4 [M + H]+: 379.1658. Found: 379.1662.
(4Z,8R,10S)-12-Oxo-N-isobutyl-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-4,1(17),13,15-tetraene-10-carboxamide (33): White solid, m.p. 201–204 °C, yield 71%, 1H-NMR (DMSO-d6): δ 7.96 (s, 1H), 7.33 (t, 1H, J = 7.9Hz), 7.10 (d, 1H, J = 7.6 Hz), 6.99 (s, 1H), 6.95 (d, 1H, J = 8.3 Hz), 5.70–5.66 (m, 2H), 4.54 (t, 1H, J = 8.5 Hz), 4.78–4.47 (m, 2H), 4.07 (s, 1H), 4.01–3.94 (m, 2H), 3.67–3.65 (m, 1H), 3.49 (d, 1H, J = 11.8 Hz), 2,98–2.94 (m, 1H), 2.87–2.85 (m, 1H), 2.28–2.27 (m, 1H), 1.71–1.68 (m, 1H), 0.82 (d, 6H, J = 6.5 Hz). HRMS (ESI-TOF+): m/z Calcd. for C20H27N2O4 [M + H]+: 359.1971. Found: 359.1977.
(8R,10S)-12-Oxo-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-1(17),13,15-triene-10-carboxylic acid (34): White solid, m.p. 187–190 °C, yield 90%, 1H-NMR (DMSO-d6): δ 7.33 (t, 1H, J = 7.8 Hz), 7.02 (d, 1H, J = 7.6 Hz), 6.99 (s, 1H), 6.94 (d, 1H, J = 8.2 Hz), 4.52 (t, 1H, J = 8.8 Hz), 4.00 (s, 1H), 3.85–3.83 (m, 2H), 3.58–3.56 (m, 1H), 3.51–3.46 (m, 2H), 3.17–3.14 (m, 1H), 2.37–2.33 (m, 1H), 2.03–1.98 (m, 1H), 1.66–1.64 (m, 1H), 1.50–1.43 (m, 3H). HRMS (ESI-TOF+): m/z Calcd. for C16H20NO5 [M + H]+: 306.1341. Found: 306.1344.
(8R,10S)-12-Oxo-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-1(17),13,15-triene-10-carboxamide (35): White solid, m.p. 60–63 °C, yield 69%, 1H-NMR (DMSO-d6): δ 7.48 (s, 1H), 7.33 (t, 1H, J = 7.4 Hz), 7.15 (d, 1H, J = 7.0 Hz), 7.03 (d, 1H, J = 6.3 H), 6.94 (d, 1H, J = 8.1 Hz), 4.49 (t, 1H, J = 8.5 Hz), 3.95 (s, 1H), 3.84–3.79 (m, 2H), 3.60–3.58 (m, 1H), 3.47–3.45 (m, 2H), 3.16–3.12 (m, 1H), 2.30–2.25 (m, 1H), 1.94–1.90 (m, 1H), 1.67–1.64 (m, 1H), 1.48–1.43 (m, 3H). HRMS (ESI-TOF+): m/z Calcd. for C16H21N2O4 [M + H]+: 305.1501. Found: 305.1508.
(8R,10S)-12-Oxo-N-phenyl-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-1(17),13,15-triene-10-carboxamide (36): White solid, m.p. 119–123 °C, yield 76%, 1H-NMR (CDCl3): δ 9.63 (s, 1H), 7.59 (m, 2H), 7.32–7.30 (m, 3H), 7.12–7.10 (m, 2H), 7.00 (d, 1H, J = 7.5 Hz), 6.93–6.91 (m, 1H), 5.15 (t, 1H, J = 7.7 Hz), 4.02 (s, 1H), 3.93–3.89 (m, 2H), 3.80–3.78 (m, 1H), 3.56–3.54 (m, 1H), 3.48–3.46 (m, 1H), 3.20–3.16 (m, 1H), 2.90–2.85 (m, 1H), 2.28–2.24 (m, 1H), 1.81–1.78 (m, 1H), 1.69–1,64 (m, 4H). HRMS (ESI-TOF+): m/z Calcd. for C22H25N2O4 [M + H]+: 381.1814. Found: 381.1811.
(8R,10S)-12-Oxo-N-isobutyl-2,7-dioxa-11-aza-tricyclo[11.3.1.18,11]octadecane-1(17),13,15-triene-10-carboxamide (37): White solid, m.p. 207–210 °C, yield 79%, 1H-NMR (CDCl3): δ 7.36 (t, 1H, J = 5.6 Hz), 7.30–7.29 (m, 1H), 7.07 (s, 1H), 6.97 (d, 1H, J = 7.4 Hz), 6.90 (d, 1H, J = 7.8 Hz), 4.96 (t, 1H, J = 8.3 Hz), 3.97 (s, 1H), 3.88–3.85 (m, 2H), 3,72–3.69 (m, 1H), 3.54–3.52 (m, 1H), 3.44–3.43 (m, 1H), 3.16–3.08 (m, 3H), 3.79–3.94 (m, 1H), 2.22–2.18 (m, 1H), 1.83–1.79 (m, 1H), 1.69–1,61 (m, 4H), 0.92 (d, 6H, J = 6.4 Hz). HRMS (ESI-TOF+): m/z Calcd. for C20H29N2O4 [M + H]+: 361.2127. Found: 361.2130.
(9R,11S)-13-Oxo-2,8-dioxa-12-aza-tricyclo[12.3.1.19,12]nonadecane-1(18),14,16-triene-11-carboxylic acid (38): White solid, m.p. 187–190 °C, yield 93%, 1H-NMR (CDCl3): δ 7.32 (t, 1H, J = 7.4 Hz), 7.10 (s, 1H), 7.06 (d, 1H, J = 6.5 Hz), 6.99 (d, 1H, J = 7.2 Hz), 4.90 (t, 1H, J = 7.4 Hz), 4.05-3.97 (m, 2H), 4.01–3.97 (m, 1H), 3.93–3.91 (m, 1H), 3.71–3.66 (m, 1H), 3.62–3.60 (m, 1H), 3.48–3.47 (m, 1H), 3.26–3.25 (m, 1H), 2.45–2.43 (m, 2H), 1.78–1.76 (m, 2H), 1.60–1.57 (m, 2H), 1.48–1.45 (m, 2H). HRMS (ESI-TOF+): m/z Calcd. for C17H22NO5 [M + H]+: 320.1498. Found: 320.1495.
(9R,11S)-13-Oxo-2,8-dioxa-12-aza-tricyclo[12.3.1.19,12]nonadecane-1(18),14,16-triene-11-carboxamide (39): White solid, m.p. 53–55 °C, yield 68%, 1H-NMR (DMSO-d6): δ 7.45 (s, 1H), 7.36–7.32 (m, 1H), 7.35 (d, 1H, J = 8.9 Hz), 7.04–7.02 (m, 1H), 7.01 (s, 2H), 4.42 (t, 1H, J = 8.4 Hz), 4.02–4.01 (m, 1H), 3.97–3.96 (m, 1H), 3.92–3.91 (m, 1H), 3.61–3.59 (m, 1H), 3.46–3.44 (m, 2H), 3.17–3.16 (m, 1H), 2.38–2.36 (m, 1H), 2.01–1.95 (m, 1H), 1.45–1.44 (m, 4H), 1.38–1.34 (m, 2H). HRMS (ESI-TOF+): m/z Calcd. for C17H23N2O4 [M + H]+: 319.1658. Found: 319.1651.
(9R,11S)-13-Oxo-N-phenyl-2,8-dioxa-12-aza-tricyclo[12.3.1.19,12]nonadecane-1(18),14,16-triene-11-carboxamide (40): White solid, m.p. 88–91 °C, yield 65%, 1H-NMR (CDCl3): δ 9.62 (s, 1H), 7.60-7.58 (m, 2H), 7.32–7.29 (m, 3H), 7.14 (s, 1H), 7.10 (d, 1H, J = 7.2 Hz), 7.02–6.98 (m, 2H), 5.11 (t, 1H, J = 8.0 Hz), 4.07–4.06 (m, 1H), 4.03–4.00 (m, 1H), 3.95–3.93 (m, 1H), 3.75–3.72 (m, 1H), 3.53–3.50 (m, 1H), 3.45–3.43 (m, 1H), 3.24–3.18 (m, 1H), 2.87–2.82 (m, 1H), 2.78–2.23 (m, 1H), 1.79–1.76 (m, 2H), 1.60–1.55 (m, 2H), 1.51–1.47 (m, 1H), 1.44–1.41 (m, 1H). HRMS (ESI-TOF+): m/z Calcd. for C23H27N2O4 [M + H]+: 395.1971. Found: 395.1972.
(9R,11S)-13-Oxo-N-isobutyl-2,8-dioxa-12-aza-tricyclo[12.3.1.19,12]nonadecane-1(18),14,16-triene-11-carboxamide (41): White solid, m.p. 176–179 °C, yield 71%, 1H-NMR (CDCl3): δ 7.31–7.29 (m, 1H), 7.08 (s, 1H), 6.98–6.96 (m, 2H), 4.91 (t, 1H, J = 8.0 Hz), 4.02–3.97 (m, 2H), 3.93–3.89 (m, 1H), 3.66–3.64 (m, 1H), 3.51–3.49 (m, 1H), 3.42–3.39 (m, 1H), 3.16–3.08 (m, 3H), 2.73–2.69 (m, 1H), 2.21–2.17 (m, 1H), 1.82–1.80 (m, 1H), 1.78–1.74 (m, 2H), 1.57–1.53 (m, 2H), 1.48–1.37 (m, 2H), 0.92 (d, 6H, J = 6.7 Hz). HRMS (ESI-TOF+): m/z Calcd. for C21H31N2O4 [M + H]+: 375.2284. Found: 375.2287.
(10R,12S)-14-Oxo-2,9-dioxa-13-aza-tricyclo[13.3.1.110,13]eicosane-1(19),15,17-triene-12-carboxylic acid (42): White solid, m.p. 201–203 °C, yield 91%, 1H-NMR (DMSO-d6): δ 7.36 (t, 1H, J = 7.9 Hz), 7.05–7.00 (m, 2H), 6.95 (s, 1H), 4.47 (t, 1H, J = 8.3 Hz), 4.00 (s, 1H), 3.91–3.89 (m, 2H), 3.60–3.47 (m, 3H), 3.15–3.14 (m, 1H), 2.36–2.32 (m, 1H), 1.99–1.98 (m, 1H), 1.62–1.61 (m, 1H), 1.42–1.38 (m, 2H), 1.30–1.15 (m, 4H). HRMS (ESI-TOF+): m/z Calcd. for C18H24NO5 [M + H+]: 334.1654. Found: 334.1658.
(10R,12S)-14-Oxo-2,9-dioxa-13-aza-tricyclo[13.3.1.110,13]eicosane-1(19),15,17-triene-12-carboxamide (43): White solid, m.p. 51–53°C, yield 66%, 1H-NMR (DMSO-d6): δ 7.47 (s, 1H), 7.34 (t, 1H, J = 7.5 Hz), 7.14 (d, 1H, J = 6.0 Hz), 7.03–7.00 (m, 3H), 4.46 (t, 1H, J = 8.5 Hz), 4.03–4.00 (m, 2H), 3.95 (s, 1H), 3.90–3.88 (m, 2H), 3.61–3.45 (m, 3H), 3.08–3.07 (m, 1H), 2.27–2.23 (m, 1H), 1.93–1.91 (m, 1H), 1.62–1.61 (m, 2H), 1.37–1.36 (m, 2H), 1.28–1.27 (m, 2H), 1.18–1.15 (m, 2H). HRMS (ESI-TOF+): m/z Calcd. for C18H25N2O4 [M + H]+: 333.1814. Found: 333.1819.
(10R,12S)-14-Oxo-N-phenyl-2,9-dioxa-13-aza-tricyclo[13.3.1.110,13]eicosane-1(19),15,17-triene-12-carboxamide (44): White solid, m.p. 102–104 °C, yield 69%, 1H-NMR (CDCl3): δ 9.66 (s, 1H), 7.59–7.57 (m, 2H), 7.33–7.28 (m, 3H), 7.11 (s, 1H), 7.08 (t, 1H, J = 7.4 Hz), 7.01–6.97 (m, 2H), 5.12 (t, 1H, J = 8.1 Hz), 4.02 (s, 1H), 3.99–3.94 (m, 2H), 3.76–3.74 (m, 1H), 3.47–3.44 (m, 2H), 3.17–3.13 (m, 1H), 2.88–2.83 (m, 1H), 2.27–2.22 (m, 1H), 1.79–1.77 (m, 2H), 1.52–1.51 (m, 2H), 1.42–1.37 (m, 2H), 1.29–1.26 (m, 2H). HRMS (ESI-TOF+): m/z Calcd. for C24H29N2O4 [M + H+]: 409.2127. Found: 409.2130.
(10R,12S)-14-oxo-N-Isobutyl-2,9-dioxa-13-aza-tricyclo[13.3.1.110,13]eicosane-1(19),15,17-triene-12-carboxamide (45): White solid, m.p. 83–85 °C, yield 74%, 1H-NMR (CDCl3): δ 7.34 (t, 1H, J = 5.5 Hz), 7.32–7.28 (m, 1H), 7.07 (s, 1H), 6.97–6.95 (m, 2H), 4.93 (t, 1H, J = 8.1 Hz), 3.97–3.90 (m, 3H), 3.67 (m, 1H), 3.43–3.41 (m, 2H), 3.17–3.06 (m, 3H), 2.76–2.71 (m, 1H), 2.20–2.16 (m, 1H), 1.83–1.79 (m, 1H), 1.50–1.48 (m, 2H), 1.40–1.38 (m, 4H), 1.26–1.23 (m, 2H), 0.92 (d, 6H, J = 6.4 Hz). HRMS (ESI-TOF+): m/z Calcd. for C22H33N2O4 [M + H]+: 389.2440. Found: 389.2439.

3.3. Cytotoxicity Assays

The human lung cancer cell line A549, breast cancer cell line MDA-MB-231 and hepatocarcinoma cell line Hep G2 were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with antibiotics (penicillin 50 U/mL; streptomycin 50 µg/mL) and 10% FCS. The incubation was at 37 °C in a humidified atmosphere of 5% CO2 in air before experiments. Cells were first seeded at a density of 8000 cells/well in a 96-well plate for 48 hours. Solutions containing respective concentrations of compounds were added into wells and incubation continued for another 24 hours. After that, the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) dye stock solution (10 μL, 5 mg/mL) was added to each well. After 4 h, the supernatant was removed and DMSO (100 μL) was added to solubilize the MTT. The absorbance was measured at a wave length of 490 nm (A490nm) on an ELISA microplate reader. Results were expressed as IC50 values.

4. Conclusions

In summary, we have established the cyclization of 13- to 15-member macrocycles which contain alkyl-alkyl ether and alkyl-aryl ether linkers based on incorporation of 1,3-(meta)-benzene rings into hydroxyproline under azide-alkyne cycloaddition and amide formation conditions. The macrocyclization strategy will be further used to expand the scope and diversity of these macrocyclic derivatives. The initial biological results provided preliminary basis for further structural optimization of hydroxyproline-based macrocycles as promising inhibitors against lung cancer cell line A549, breast cancer cell line MDA-MB-231 and hepatocarcinoma cell line Hep G2. Efforts to optimize the structure of compound 33 to further improve its potency are ongoing.

Supplementary Materials

Supplementary materials are available online at www.mdpi.com/1420-3049/21/2/212/s1.

Acknowledgments

Financial support from the Natural Science Foundation of Shandong Province (No. ZR2014BL028) and the opening research funding of State Key Laboratory of Bioactive Substance and Function of Natural Medicines, Institute of Materia Medica, Chinese Academy of Medical Sciences and Peking Union Medical College is gratefully acknowledged.

Author Contributions

D.T., G.C., and L.H. designed the research; G.C., K.Y. and Y.L. performed the synthetic work, L.H. was responsible for the direction of the biological research. D.T. was also responsible for the correspondence of the manuscript, whereas G.C. and L.H. mainly wrote the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Giordanetto, F.; Kihlberg, J. Macrocyclic drugs and clinical candidates: What can medicinal chemists learn from their properties. J. Med. Chem. 2014, 57, 278–295. [Google Scholar] [CrossRef] [PubMed]
  2. Wessjohann, L.A.; Ruijter, E.; Daniel, G.R.; Brandt, W. What can a chemist learn from nature’s macrocycles?—A brief, conceptual view. Mol. Dive. 2005, 9, 171–186. [Google Scholar] [CrossRef]
  3. Driggers, E.M.; Hale, S.P.; Lee, J.; Terrett, N.K. The exploration of macrocycles for drug discovery—An underexploited structural class. Nat. Rev. Drug Discov. 2008, 7, 608–624. [Google Scholar] [CrossRef] [PubMed]
  4. Mallinson, J.; Collins, I. Macrocycles in new drug discovery. Future Med. Chem. 2012, 4, 1409–1438. [Google Scholar] [CrossRef] [PubMed]
  5. Bogden, A.R.; Davies, N.L.; James, K. Comparison of diffusion coefficients for matched pairs of macrocyclic and linear molecules over a drug-like molecular weight range. Org. Biomol. Chem. 2011, 9, 7727–7733. [Google Scholar] [CrossRef] [PubMed]
  6. Marsanlt, E.; Peterson, M.I. Macrocycles are great cycles: Applications, opportunities, and challenges of synthetic macrocycles in drug discovery. J. Med. Chem. 2011, 54, 1961–2004. [Google Scholar] [CrossRef] [PubMed]
  7. Kohll, R.M.; Walsh, C.T.; Burkart, M.D. Biomimetic synthesis and optimization of cyclic peptide antibiotics. Nature 2002, 418, 658–661. [Google Scholar] [CrossRef] [PubMed]
  8. Nagarajan, R. Structure-activity relationships of vancomycin-type glycopeptides antibiotics. J. Antibiot. 1993, 46, 1181–1195. [Google Scholar] [CrossRef] [PubMed]
  9. Gerhard, U.; Mackay, R.A.; Williams, D.H. The role of the sugar and chlorine substituents in the dimerization of vancomycin antibiotics. J. Am. Chem. Soc. 1993, 115, 232–237. [Google Scholar] [CrossRef]
  10. Walsh, C.T. Vancomycin resistance: Decoding the molecular logic. Science 1993, 261, 308–309. [Google Scholar] [CrossRef] [PubMed]
  11. Wright, G.D.; Walsh, C.T. d-Alanyl-d-alanine ligases and the molecular mechanism of vancomycin resistance. Acc. Chem. Res. 1992, 25, 468–473. [Google Scholar] [CrossRef]
  12. Yasuzawa, T.; Shirahata, K.; Sano, H. K-13, a novel inhibitir of angiotensin I converting enzyme produced by micromonospora halophytica subsp. exilisia. II. Structure determination. J. Antibiot. 1987, 40, 455–458. [Google Scholar] [CrossRef] [PubMed]
  13. Bigot, A.; Bois-Choussy, M.; Zhu, J. An efficient total synthesis of K-13, a non-competitive inhibitor of ACE I. Tetrahedron Lett. 2000, 41, 4573–4578. [Google Scholar] [CrossRef]
  14. Tamai, S.; Kaneda, M.; Nakamura, S. Piperazinomycin, a new antifungal antibiotic I. Fermentation, isolation, characterization and biological properties. J. Antibiot. 1982, 35, 1130–1136. [Google Scholar] [CrossRef] [PubMed]
  15. Morita, H.; Yamamiya, T.; Takeya, K.; Itokawa, H. New antitumor bicyclic hexapeptides, RA-XI, -XII and -XIV from Rubia cordifolia. Chem. Pharm. Bull. 1992, 40, 1352–1354. [Google Scholar] [CrossRef] [PubMed]
  16. Itokawa, H.; Takeya, K. Antitumor Substtances from Higher Plants. Heterocycles 1993, 35, 1467–1501. [Google Scholar] [CrossRef]
  17. Pyluck, A.; Yuan, R.; Galligan, E., Jr.; Primakoff, P.; Myles, D.; Sampson, N.S. ECD peptides inhibit in vitro fertilization in mice. Bioorg. Med. Chem. Lett. 1997, 7, 1053–1058. [Google Scholar] [CrossRef]
  18. Feng, Y.; Wang, Z.; Jin, S.; Burgess, K. SNAr cyclizations to from cyclic peptidomimetics of-turus. J. Am. Chem. Soc. 1998, 120, 10768–10769. [Google Scholar] [CrossRef]
  19. Virgilio, A.; Bray, A.A.; Zhang, W.; Trinh, L.; Snyder, M.; Morrissey, M.M. Synthesis and evaluation of a library of peptidomimetics based upon the β-turn. Tetrahedron 1997, 53, 6635–6644. [Google Scholar] [CrossRef]
  20. Burgess, K.; Lim, D.; Bois-Choussy, M.; Zhu, J. Rapid and efficient solid phase syntheses of cyclic peptides with endocyclic biaryl ether bonds. Tetrahedron Lett. 1997, 38, 3345–3348. [Google Scholar] [CrossRef]
  21. Tschcsche, R.; Kaufßmann, E.U.; Eckhardt, G. Alkaloide aus rhamnaceen, XVI. Über die struktur des zizyphins-a. Tetrohedron Lett. 1973, 28, 2577–2580. [Google Scholar] [CrossRef]
  22. Schmidt, U.; Lieberknecht, A.; Bökens, H.; Griesser, H. Total synthesis of zizyphin A and N-acetylzizyphin B. Angew. Chem. Int. Ed. Engl. 1981, 20, 1026–1027. [Google Scholar] [CrossRef]
  23. Lin, H.-Y.; Chen, C.H.; You, B.J.; Lin, K.C.S.C.; Le, S.-S. Cyclopeptide Alkaloids from Paliurus ramossisimus. J. Nat. Prod. 2000, 63, 1338–1343. [Google Scholar] [CrossRef] [PubMed]
  24. Toumi, M.; Couty, F.; Evano, G. Total synthesis of the cyclopeptide alkaloid paliurine E. Insights into Macrocyclization by Ene-Enamide RCM. J. Org. Chem. 2008, 73, 1270–1281. [Google Scholar] [CrossRef] [PubMed]
  25. Lexi-Comp Online. Medical Database; Lexi-Comp, Inc.: Hudson, OH, USA, 2013. [Google Scholar]
  26. Chen, S.C.A.; Slavin, M.A.; Sorrell, T.C. Echinocandin antifungal drugs in fungal infections: A Comparison. Drugs 2011, 71, 11–41. [Google Scholar] [CrossRef] [PubMed]
  27. Holt, S.L.; Drew, R.H. Echinocandins: Addressing outstanding questions surrounding treatment of invasive fungal infections. Am. J. Health Syst. Pharm. 2011, 68, 1207–1220. [Google Scholar] [CrossRef] [PubMed]
  28. Wiederhold, N.P.; Lewis, R.E. The echinocandin antifungals: An overview of the pharmacology, spectrum and clinical efficacy. Expert Opin. Investig. Drugs 2003, 12, 1313–1333. [Google Scholar] [CrossRef] [PubMed]
  29. McCauley, J.A.; McIntyre, C.J.; Rudd, M.T.; Nguyen, K.T.; Romano, J.J.; Butcher, J.W.; Gilbert, K.F.; Bush, K.J.; Holloway, M.K.; Swestock, J.; et al. Discovery of vaniprevir (MK-7009), a macrocyclic hepatitis C virus NS3/4a protease inhibitor. J. Med. Chem. 2010, 53, 2443–2463. [Google Scholar] [CrossRef] [PubMed]
  30. Song, Z.J.; Tellers, D.M.; Journet, M.; Kuethe, J.T.; Lieberman, D.; Humphrey, G.; Zhang, F.; Peng, Z.; Waters, M.S.; Zewge, D.; et al. Synthesis of vaniprevir (MK-7009): Lactamization to Prepare a 22-Membered Macrocycle. J. Org. Chem. 2011, 76, 7804–7815. [Google Scholar] [CrossRef] [PubMed]
  31. Seiwert, S.D.; Andrews, S.W.; Jiang, Y.; Serebryany, V.; Tan, H.; Kossen, K.; Rajagopalan, P.T.; Misialek, S.; Stevens, S.K.; Stoycheva, A.; et al. Preclinical Characteristics of the Hepatitis C Virus NS3/4A Protease Inhibitor ITMN-191 (R7227). Antimicrob. Agents Chemother. 2008, 52, 4432–4441. [Google Scholar] [CrossRef] [PubMed]
  32. Hinrichsen, H.; Benhamou, Y.; Wedemeyer, H.; Reiser, M.; Sentjens, R.E.; Calleja, J.L.; Forns, X.; Erhardt, A.; Cronlein, J.; Chaves, R.L.; et al. Short-term antiviral efficacy of BILN 2061, a hepatitis C virus serine protease inhibitor, in hepatitis C genotype 1 patients. Gastroenterology 2004, 127, 1347–1355. [Google Scholar] [CrossRef] [PubMed]
  33. Hong, H.; Huang, L.J.; Teng, D.W. A spirocyclic oxindole analogue: Synthesis and Antitumor Activities. Chin. Chem. Lett. 2011, 9, 1009–1012. [Google Scholar] [CrossRef]
  34. Huang, L.J.; Teng, D.W. An improved and scalable process for 3,8-diazabicyclo[3.2.1]octane analogues. Chin. Chem. Lett. 2011, 5, 523–526. [Google Scholar] [CrossRef]
  35. Cao, G.; Long, F.; Zhao, Y.; Wang, Y.; Huang, L.; Teng, D. Synthesis of spiropyrrolidinyl-benzoisothiazoline derivatives by 1,3-dipolar cycloaddition of benzoisothiazole-2,2-dioxide-3-ylidenes and azomethine ylide. Tetrahedron 2014, 70, 9359–9365. [Google Scholar] [CrossRef]
  36. Huisgen, R. 1,3-Dipor Cycloadditions. Past and Future. Angew. Chem. Int. Ed. 1963, 2, 565–598. [Google Scholar] [CrossRef]
  37. Rostovtsev, V.V.; Green, L.G.; Fokin, V.V.; Sharpless, K.B. A Stepwise Huisgen Cycloaddition Process: Copper(I)-Catalyzed Regioselective “Ligation” of Azides and Terminal Alkynes. Angew. Chem. Int. Ed. 2002, 41, 2596–2599. [Google Scholar] [CrossRef]
  38. Tornøe, C.W.; Christensen, C.; Meldal, M. Peptidotriazoles on Solid Phase: [1,2,3]-Triazoles by Regiospecific Copper(I)-Catalyzed 1,3-Dipolar Cycloadditions of Terminal Alkynes to Azides. J. Org. Chem. 2002, 67, 3057–3064. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, Q.; Chan, T.R.; Hilgraf, R.; Fokin, V.V.; Sharpless, K.B.; Finn, M.G. Bioconjugation by Copper(I)-Catalyzed Azide-Alkyne [3+2] Cycloaddition. J. Am. Chem. Soc. 2003, 125, 3192–3193. [Google Scholar] [CrossRef] [PubMed]
  40. Wu, P.; Feldman, A.K.; Nugent, A.K.; Hawker, C.J.; Scheel, A.; Voit, B.; Pyun, J.; Fréchet, J.M.J.; Sharpless, K.B.; Fokin, V.V. Efficiency and Fidelity in a Click-Chemistry Route to Triazole Dendrimers by the Copper(I)-Catalyzed Ligation of Azides and Alkynes. Angew. Chem. Int. Ed. 2004, 43, 3928–3932. [Google Scholar] [CrossRef] [PubMed]
  41. Yoo, E.J.; Ahlquist, M.; Kim, S.H.; Bae, I.; Fokin, V.V.; Sharpless, K.B.; Chang, S. Copper-Catalyzed Synthesis of N-Sulfonyl-1,2,3-triazoles: Controlling Selectivity. Angew. Chem. Int. Ed. 2007, 46, 1730–1733. [Google Scholar] [CrossRef] [PubMed]
  42. Kumar, D.; Reddy, V.B.; Varma, R.S. A facile and regioselective synthesis of 1,4-disubstituted 1,2,3-triazoles using click chemistry. Tetrahedron Lett. 2009, 50, 2065–2068. [Google Scholar] [CrossRef]
  43. Zhang, L.; Chen, X.; Xue, P.; Sun, H.H.U.; Williams, I.D.; Sharpless, K.B.; Fokin, V.V.; Jia, G.J. Ruthenium-Catalyzed Cycloaddition of Alkynes and Organic Azides. J. Am. Chem. Soc. 2005, 127, 15998–15999. [Google Scholar] [CrossRef] [PubMed]
  44. Boren, B.C.; Narayan, S.; Rasmussen, L.K.; Zhang, L.; Zhao, H.; Lin, Z.; Jia, G.; Fokin, V.V. Ruthenium-Catalyzed Azide—Alkyne Cycloaddition: Scope and Mechanism. J. Am. Chem. Soc. 2008, 130, 8923–8930. [Google Scholar] [CrossRef] [PubMed]
  45. Rasmussen, L.K.; Boren, B.C.; Fokin, V.V. Ruthenium-Catalyzed Cycloaddition of Aryl Azides and Alkynes. Org. Lett. 2007, 9, 5337–5339. [Google Scholar] [CrossRef] [PubMed]
  46. Wu, P.; Fokin, V.V. Catalytic azide-alkyne cycloaddition: Reactivity and applications. Aldrichim. Acta 2007, 40, 7–17. [Google Scholar] [CrossRef]
  47. Kelly, A.R.; Wei, J.; Kesavan, S.; Marié, J.-C.; Windmon, N.; Young, D.W.; Marcaurelle, L.A. Accessing Skeletal Diversity Using Catalyst Control: Formation of n and n + 1 Macrocyclic Triazole Rings. Org. Lett. 2009, 11, 2257–2260. [Google Scholar] [CrossRef] [PubMed]
  48. Grubbs, R.H. Handbook of Metathesis; Wiley-VCH: Weinheim, Germany, 2003. [Google Scholar]
  49. Fürstner, A.; Langemann, K. Conformationally Unbiased Macrocyclization Reactions by Ring Closing Metathesis. J. Org. Chem. 1996, 61, 3942–3943. [Google Scholar] [CrossRef] [PubMed]
  50. Kulkarni, A.K.; Diver, S.T. Ring Synthesis by Stereoselective, Methylene-Free Enyne Cross Metathesis. J. Am. Chem. Soc. 2004, 126, 8110–8111. [Google Scholar] [CrossRef] [PubMed]
  51. Fürstner, A.; Davies, P.W. Alkyl methathesis. Chem. Commun. 2005, 18, 2307–2320. [Google Scholar] [CrossRef] [PubMed]
  52. Gradillas, A.; Pérez-Castells, J. Macrocyclization by Ring-Closing Metathesis in the Total Synthesis of Natural Products: Reaction Conditions and Limitations. Angew. Chem. Int. Ed. 2006, 45, 6086–6101. [Google Scholar] [CrossRef] [PubMed]
  53. Illuminati, G.; Mandolini, L. Ring closure reactions of bifunctional chain molecules. Acc. Chem. Res. 1981, 14, 95–102. [Google Scholar] [CrossRef]
  54. Galli, L.C.; Mandolini, L. The Role of Ring Strain on the Ease of Ring Closure of Bifunctional Chain Molecules. Eur. J. Org. Chem. 2000, 18, 3117–3125. [Google Scholar] [CrossRef]
  55. Conrad, J.C.; Eelman, M.D.; Silva, J.A.D.; Monfette, S.; Parnas, H.H.; Snelgrove, J.L.; Fogg, D.E. Oligomers As Intermediates In Ring-Closing Metathesis. J. Am. Chem. Soc. 2007, 129, 1024–1025. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds 16–39 are available from the authors.

Share and Cite

MDPI and ACS Style

Cao, G.; Yang, K.; Li, Y.; Huang, L.; Teng, D. Synthetic Strategy and Anti-Tumor Activities of Macrocyclic Scaffolds Based on 4-Hydroxyproline. Molecules 2016, 21, 212. https://doi.org/10.3390/molecules21020212

AMA Style

Cao G, Yang K, Li Y, Huang L, Teng D. Synthetic Strategy and Anti-Tumor Activities of Macrocyclic Scaffolds Based on 4-Hydroxyproline. Molecules. 2016; 21(2):212. https://doi.org/10.3390/molecules21020212

Chicago/Turabian Style

Cao, Guorui, Kun Yang, Yue Li, Longjiang Huang, and Dawei Teng. 2016. "Synthetic Strategy and Anti-Tumor Activities of Macrocyclic Scaffolds Based on 4-Hydroxyproline" Molecules 21, no. 2: 212. https://doi.org/10.3390/molecules21020212

Article Metrics

Back to TopTop
