Vegetable Oils as Alternative Solvents for Green Oleo-Extraction, Purification and Formulation of Food and Natural Products

by
Edinson Yara-Varón
1,2,*,
Ying Li
3,*,
Mercè Balcells
2,
Ramon Canela-Garayoa
2,
Anne-Sylvie Fabiano-Tixier
1 and
Farid Chemat
1
1
Laboratoire GREEN, Université d’Avignon et des Pays de Vaucluse, INRA, UMR408, GREEN Extraction Team, F-84000 Avignon, France
2
Department of Chemistry, University of Lleida, Av. Alcalde Rovira Roure 191, 25198 Lleida, Spain
3
Department of Food Science and Engineering, College of Science and Engineering, Jinan University, Guangzhou 510632, China
*
Authors to whom correspondence should be addressed.
Molecules 2017, 22(9), 1474; https://doi.org/10.3390/molecules22091474
Submission received: 14 August 2017 / Revised: 28 August 2017 / Accepted: 2 September 2017 / Published: 5 September 2017
(This article belongs to the Section Green Chemistry)
Browse Figures
Versions Notes

Abstract

:
Since solvents of petroleum origin are now strictly regulated worldwide, there is a growing demand for using greener, bio-based and renewable solvents for extraction, purification and formulation of natural and food products. The ideal alternative solvents are non-volatile organic compounds (VOCs) that have high dissolving power and flash point, together with low toxicity and less environmental impact. They should be obtained from renewable resources at a reasonable price and be easy to recycle. Based on the principles of Green Chemistry and Green Engineering, vegetable oils could become an ideal alternative solvent to extract compounds for purification, enrichment, or even pollution remediation. This review presents an overview of vegetable oils as solvents enriched with various bioactive compounds from natural resources, as well as the relationship between dissolving power of non-polar and polar bioactive components with the function of fatty acids and/or lipid classes in vegetable oils, and other minor components. A focus on simulation of solvent-solute interactions and a discussion of polar paradox theory propose a mechanism explaining the phenomena of dissolving polar and non-polar bioactive components in vegetable oils as green solvents with variable polarity.

1. Historical Evolution of Vegetable Oils Applications

At the beginning of human civilization, animal fats like butter produced from milk of horses, goats, sheep and cattle were probably used instead of vegetable oils before the discovery of oil pressing and extraction from olives or seeds afterwards [1]. In Egypt, Mesopotamia, Greece and Rome, olive oil became the primary source of oil for cooking or use as a condiment. Nevertheless, prior to their use of olive oils, the Egyptians extracted oil largely from radishes or flax seeds, and the Mesopotamians extracted it primarily from sesame seeds [1,2]. Likewise, archaeological and documentary records evidenced that sesame oil competed with the olive oil in the Mediterranean basin and India from at least 1137 BC [3]. Ancient Egyptians firstly produced infusions of medicinal or aromatic plants in vegetable oils as solvents for therapeutic, nutritional, aesthetic and spiritual purposes. They used vegetable oils in the formulation of cosmetics providing emollience, moisturizers and grooming, or acting as solvents and vehicles to carry other agents [4]. They also invented frying in oils or fats for the preservation of meat and vegetables around 2500 BC [5]. In addition, recorded pictorial documents have pointed that edible vegetable oils were used as lubricating liquids as well by Egyptian pyramid builders when rolling large pieces of rocks on wooden rollers [6].
Subsequently, other ancestors such as those from ancient Greece, where wild olives were probably native, had mastered infusion of olive oils with flowers or herbs for beauty and medical treatments. The ancient Romans spread the application of such oils into ordinary lives (e.g., wall coverings, personal care, etc.) after they took over control from the Greeks. European civilizations also used oils or fats infused with aromatic plants such as cinnamon and clove to prevent plagues in the medieval period. In relation to the ancient American civilizations, oils pressed from chia and amaranth seeds were used as body emollients rather than frying. The Aztecs produced groundnut oil in South America long before the arrival of European settlers in the 15th century [3]. Other edible oils like palm oil, originated in West Africa, were spread to the Americas and Indonesia in the 16th century, but the biggest change occurred in the global lipid consumption over the last centuries. In the 18th century, the enfleurage developed in Grasse (France) used odourless animal fats to capture fragrant substances exuded by plants, which led to the production of high-grade concentrates for delicate floral botanicals such as jasmine and tuberose. However, the fats used in this out-dated method were superseded extensively by petroleum-based solvents (e.g., hexane, benzene, etc.) in the 19th century.
In addition to those mentioned above, Asians, especially the Chinese, have also made remarkable contributions to the use of animal fats and vegetable oils. According to historical records, the use of animal fats mostly for cuisine and sacrificial ceremonies remounts to the Xia-Shang-Zhou Dynasties (2070–1600 BC), and lasted till the first appearance of vegetable oil from primitive pressing or extraction in the Western Zhou Dynasty (1046–771 BC). However, the variety of vegetable oils was very limited, i.e., most were sesame oils at that time. This situation got better in the Song (960–1279 AD), Ming (1368–1644 AD) and Qing (1612–1912 AD) dynasties, during which the development (e.g., oil-bearing plant cultivation, extraction and application) of vegetable oils flourished as never before. Indeed, during the Song period the gradual encouragement of Buddhism and vegetarianism initiated by temporal scholar-bureaucrats pushed these uses. Besides, the legendary Chinese namely Shennong experienced oils or fats infused with more than hundreds of herbal medicines as long ago as 2800 BC. His oral traditions written between about 300 BC and 200 AD had been collected, sorted out and edited in “Divine Farmer’s Materia Medica” [7]. From this codex to the following classic “Compendium of Materia Medica” written by Li Shizhen (1518–1593) [8], the application of infused oils had gone through a thousand years’ development and evolvement. Until now, the acupuncture and moxibustion assisted by oils infused with medicinal plants have still shown their miraculous effectiveness in traditional Chinese medicine.
Nowadays, vegetable oils play an important role in our ordinary diet, consumed directly in their refined or virgin forms, or via many food industrial products. Such oily products could also be used as ingredients or components in many other fields such as cosmetics, nutraceuticals, paints, lubricants and biodiesel. Therefore, the restudy of vegetable oils as alternative solvents in the 21st century will prompt the development of efficient strategies for their promising future applications such as extraction, purification and formulation.

2. Vegetable Oils Are Not Only Triglycerides

2.1. Major Components in Vegetable Oils

Vegetable oils are usually produced from plant seeds or fruits (e.g., rapeseed, sunflower, olive, etc.), simply by pressing and/or solvent extraction. They are considered nonpolar and lipophilic systems whose composition is highly variable and complex, depending on their origin, quality and producing methods. Vegetable oils have a relatively high flash point, a selective dissolving power and an attractive price (≈0.5–5 €/kg) [9].

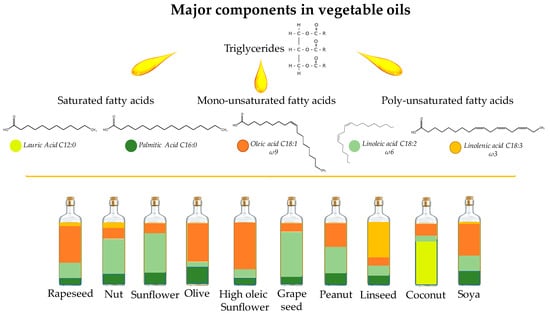

Triglycerides (Figure 1), which are composed of three fatty acid molecules esterified to one glycerol molecule, are the main building blocks of vegetable oils (95–98%). The characteristics of triglycerides are determined by the types, proportions and positions of fatty acids on the glycerol backbone. The fatty acid composition of triglycerides in vegetable oils varies depending on varieties, cultivations, agronomic, and climatic conditions. Typically, even-numbered carbon atoms dominate the fatty acid chains’ length in vegetable oils due to their bio-syntheses pathways. According to the saturation degree of fatty acids, they can be generally classified into saturated, mono- and poly-unsaturated fatty acids, which may have different configurations, resulting in different physical and chemical properties.

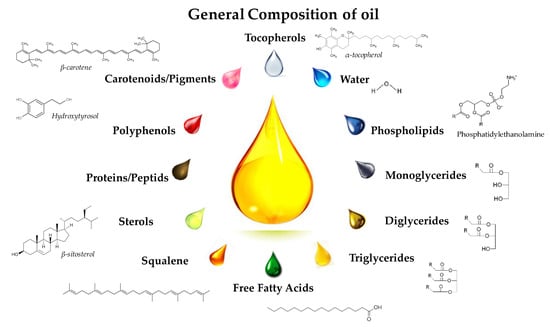

2.2. Minor Components in Vegetable Oils

In addition to triglycerides, the presence of minor components (less than 5%) in vegetable oils (Figure 2) cannot be ignored due to their interesting biological properties and nutritional values for pharmaceutical and nutraceutical industries, particularly in virgin oils [10,11]. They can be divided into two types: glycerolipids such as mono- and diglycerides, phospholipids, and non-glycerolipids including sterols, tocopherols/tocotrienols, free fatty acids, vitamins, pigments, proteins, phenolic compounds, water, etc. [12,13]. Although some undesirable minor components must be removed by most consumers and food manufacturers during the refining processes, there is no completely efficient and selective process, which will give rise to consequent colloidal structures formed by residual minor components in oils [14].

2.2.1. Mono- and Di-Glycerides

Partial glycerides, i.e., mono- and diglycerides, are mono- or diesters of glycerol with fatty acids (Figure 2), which are well known for their emulsifying properties. They are authorized food additives (E471), which can be obtained by partial hydrolysis of triglycerides during the extraction of vegetable oils. They are naturally present in virgin oils due to the action of endogenous lipases in fruits or oilseeds. The enzymatic hydrolysis leads to the formation of both partial glycerides and free fatty acids, in which partial glycerides account for 1–6 wt % depending on oil types, for instance, the concentration of di glycerides ranges from 1 to 2.8% in the virgin olive oil and monoglycerides present at much lower levels (less than 0.25%) [15]. The content of diglycerides in olive and palm oils is higher than that in virgin oils. Moreover, the neutralization and washing stages in the oil refining processes cannot eliminate partial glycerides in their refined forms. Mono- and diglycerides are amphiphilic molecules due to the presence of free hydroxyls, which give them a certain hydrophilicity with a hydrophilic-lipophilic balance (HLB) of about 3.4–3.8 and 2–5, respectively [16,17].

2.2.2. Phospholipids

Phospholipids are considered polar lipids present in plant cell membranes, which co-extract with neutral triglycerides during squeezing or solvent extractions of both seeds and waste virgin oils using hexane. The main plant sources are soybean, rapeseed and sunflower. Most phospholipids are removed in the degumming step of the oil refining process in order to avoid foaming or browning during technological processing operations for edible oil uses. Phospholipids consist of a glycerol backbone, two fatty acids and one polar phosphate group associated itself with an amino alcohol (choline, ethanolamine, serine) or a sugar (inositol) as shown in Figure 2. Lecithins (phosphatidyl choline) are authorized food additives (E322) with wide applications, specifically in baking industry. This feature is because of their significant surfactant effect (HLB ≈ 2–8) [16,18]. Moreover, lamellar structures can be formed in the presence of phospholipids and other surface active compounds such as sterols, which are hard to characterize.

2.2.3. Free Fatty Acids

Free fatty acids are generated from the hydrolysis of triglycerides or phospholipids. They are usually eliminated during deodorization and physical refining processes due to their impacts on foaming and the smoke point of oils. Normally, virgin and refined vegetable oils or fats have free fatty acid contents of less than 5% and 0.1%, respectively. However, their contents are higher when oils have high mono- and diglyceride percentages. Free fatty acids with a low HLB value of approximately 1.0 can assist the formation of reverse micelles so as to stabilize water-in-oil emulsions. Most fatty acids of natural origin have an alkyl chain comprising between 4 (C4) and 22 (C22) carbon atoms. The most common unsaturated fatty acids are C16 and C18. Short or medium chain fatty acids are normally recognized below these lengths whereas fatty acid chains with more than 18 carbons are often deemed to be long chain fatty acids [19].

2.2.4. Sterols

Apart from the very low content of cholesterol in vegetable oils, plant sterols, namely phytosterols, are not only some of the important minor compounds with considerable biological activities [20,21], but also the predominant compounds in the unsaponifiable fraction of vegetable oils. In general, β-sitosterol is the most abundant phytosterol in vegetable oils, along with variable amounts of other sterols (e.g., stigmasterol, campesterol, ∆5-avenasterol, brassicasterol, etc.) depending on the oil type [22]. Phytosterols are affected by several oil refining processes, in which deodorization can significantly reduce the total sterols due to distillations and esterifications of free sterols [11]. Since phytosterols are rather hydrophobic and poorly soluble in fats, they are usually esterified to make them liposoluble for easily processing handling in the food industries [23].

2.2.5. Tocopherols and Tocotrienols

Tocopherols and tocotrienols are well-known vitamin E compounds, which are vital for enhancing the oxidative stability of vegetable oils because of their strong inhibitory effects against lipid oxidation [24,25]. Naturally, tocopherols are presented as free alcohols while tocotrienols are in esterified forms [26]. There are four common types of tocopherols and tocotrienols (α, β, γ and δ), in which the number and the position of methyl groups on chromanol skeletons are different. The content of tocopherols and tocotrienols in different types is dependent on the oil type, which may also be influenced by their unintentional removal during the oil refining, especially in the deodorization [27,28].

2.2.6. Water

A water content of less than 0.05% is generally controlled in commercial vegetable oils, which may change during preservation periods after opening as moisture absorption or loss happen according to the storage environment [29]. Since water is known for its immiscibility with oils, it can probably provide oil-water interfaces in vegetable oils where endogenous or exogenous surface active compounds with low HLB values migrate, preferably concentrate to form and to stabilize association colloids such as reverse micelles and lamellar structures [30]. These energetically preferential structures enable the coexistence of both hydrophilic and lipophilic compounds, which may inspire a novel solution for the extraction of water-soluble compounds in vegetable oils.

2.2.7. Other Minor Compounds

A wide range of phenolic compounds were reported at varying levels in vegetable oils (particularly in olive oils) depending on the oil type, ripeness, storage and processing conditions [31]. These polar compounds possessing free radical scavenging activity are important for the oxidative stability of the polyunsaturated fatty acids in vegetable oils. They tend to stay in the polar region of association colloids. Squalene is a triterpenoid hydrocarbon of thirty carbons, which presents in vegetable oils at a very low level [32]. It can be used in healthy foods and its hydrogenated form can be applied as a moisturizing agent in cosmetics. Pigments such as carotenoids in most virgin oils appear as a conjugated system with alternated double bonds in a long chain of forty carbons. They can be classified in nonpolar (e.g., α- or β-carotene and lycopene) and more polar carotenoids with oxygen at one or both end groups. Chlorophylls usually mask the colour of carotenoids in freshly pressed virgin oils, whose variable contents are determined by the oilseed maturity and the oil extraction method. Furthermore, the presence of proteins and peptides has also been investigated as minor components in virgin oils, which has attracted increasing concerns on the stability and the allergenicity of oils [33,34]. Besides, trace quantities of other components such as metals, hydrocarbons and amphiphilic lipid oxidation products are deleterious to oil quality so that they should be reduced to the minimum [22].

3. Why Choose Vegetable Oils as Alternative Solvents?

Although no official standards exist so far for the alternatives to petroleum-based solvents, the ideal properties of a green solvent to minimize environmental impacts during its complete life cycle have been summarized [35]. These bio-sourced or agro-based solvents should be non-volatile, safe, easy to regenerate and economically viable. Most importantly, they must have considerable dissolving power and selectivity. Hence, vegetable oils may have the potential of being a green alternative solvent due to their good consistency with ideal solvent properties.
Empirical infusion or maceration of medicinal and aromatic plants in vegetable oils as solvents dates back to ancient civilizations as already mentioned. In recent years, edible commercial vegetable oils have been successfully enriched or aromatized with bioactive compounds from herbs, spices or other plant materials in order to improve their nutritional values and organoleptic qualities, and to prolong shelf-life as well. The resulting oils can be defined as “flavoured oil” or “gourmet oil” named as the plant extracted. As the consumption of these products has drawn more interest due to their particular capacities for the prevention of diseases through a healthy diet, their versatility, convenience, and wide range of tastes have made them diffuse rapidly among traditional and non-traditional consumers across many countries in the world. Therefore, it is meaningful to explore more on their characteristics and applications as they are gaining an increasing popularity in diets, which can help to establish a sound labelling standard for strict regulations [36]. Nowadays, various enriched or aromatized oils are available in the market as seasonings. Moreover, considering that the solvent is often the major ingredient of a formulation, a reaction, or an extraction [37], vegetable oils are excellent alternatives for the substitution of petroleum solvents, such as hexane, in the extraction of bioactive compounds, and finally, they allow a better integration in the formulation of products. Table 1 shows different applications of various vegetable oils as solvents in natural product extractions, enriched oil preparations, and the formulation of products with applications in food and cosmetic industries.
As summarized above, most laboratory studies have proved the good dissolving power of vegetable oils, as well as better organoleptic quality and oxidative stability of their enriched forms. Since using vegetable oils as solvents in the direct extraction of carotenoids from shrimp by-products and microalgae has been successfully applied in several studies [38,45,48,49,50,53], vegetable oils have proved their effectiveness in retaining high concentration of carotenoids under optimal conditions without any loss or degradation of carotenoids, or changes in the fatty acid profiles of the oil. Moreover, vegetable oils are usually enriched or flavoured with antioxidants or aromatic extracts from plants or by-products, which are obtained by means of traditional (infusion, one-step solvent extraction, etc.) or innovative methods such as ultrasound and supercritical CO2 using petroleum-derived organic solvents. This is consistent with a previously reported finding indicating that vegetable oil was a remarkably good solvent for a wide variety of food aroma compounds [67,68]. Although these organic solvents have been evaporated afterwards in enriched oils, it has also drawn an increasing concern on their safety in food-related applications and environment. In addition, the selectivity of vegetable oils is dependent on their types and components inside, resulting in variable extraction efficiency and enrichment factors. For vegetable oil solvents targeting to six major aroma extracts (i.e., linalool, estragole, eucalyptol, trans-anethole and limonene) from basil, refined sunflower oils was theoretically and experimentally proven as the most suitable solvent among ten vegetable oils [68]. Notwithstanding, such sunflower oil was not the optimal in the extraction of phenolic compounds from olive leaves as compared to its virgin form and several other vegetable oils like avocado, flaxseed and castor oils [69]. The extraction yield of total phenolic compounds was found to be more related to the type of vegetable oils and endogenous amphiphilic minor compounds rather than the polyunsaturated degree of vegetable oil triglycerides.

3.1. How to Select a Good Solvent?

A solvent is defined as “a liquid that has the property to dissolve, dilute or extract other materials without causing chemical modification of these substances or itself. Solvents are able to implement, apply, clean or separate products” [70]. These compounds play an important role in great number of unit operations in chemistry and chemical engineering. In fact, nowadays there is no production process in perfume, cosmetic, pharmaceutical, food ingredients, nutraceuticals, biofuel or fine chemicals industries without a solvation step [71]. Solvents can be used as diluents or additives in paints and inks, as cleaning agents or solvents for syntheses and extractions. From a macroscopic point of view, a solvent is a continuum characterized by physical constants (e.g., boiling point, melting point, vapour pressure, relative permittivity, thermal conductivity, surface tension, density, viscosity, refractive index, etc.) [72], whereas from a microscopic point of view, it is a discontinuum that consists of individual solvent interacting molecules characterized by molecular properties (e.g., dipole moment, electronic polarizability, hydrogen bond donor or acceptor character, electron donor or acceptor character, etc.). These different properties are at the origin of solute/solvent interactions during the solvation process.
The problem with most commonly used solvents is their negative impacts on health, safety and environment (HSE) as most solvents currently available in the world market come from the petrochemical industry and are volatile organic compounds (VOCs), such as the example of hexane used for oil extraction. In 2009, the global market of chemical compounds represented around 100 billion dollars, in which only 3% of these chemicals were obtained from renewable resources, after chemical processing, fermentation or enzymatic conversion. This share is predicted to attain around 15% by 2025, when the global market is estimated to reach 3000 billion dollars [73]. With the geopolitical environment (increased oil prices and decrease of reserves), societal demand for more sustainable products and the arrival of the new regulations and guidelines (e.g., REACH, etc.), much interest has been generated to the development of new eco-friendly ways of replacing conventional solvents. In other words, alternatives to petrochemical solvents have to fulfill the principles of Green Chemistry.
Replacing one solvent by another does not necessarily mean eliminating all the hazards and issues related to the implementation of a process. Indeed, the modification of a process is generally associated with new risks. Precautions should therefore be taken into account in the selection of an alternative solvent as for physicochemical, environmental or sanitary criteria, the eco-compatibility of the process and the price of the solvent, but also techno-economic criteria related to the properties of the solvent like dissolving power and energy consumption [74]. The dissolving power is a key criterion that can be evaluated using various methods such as the Kauri-butanol index, Kamlet-Taft scale, or Hildebrand and Hansen solubility parameters (HSP), but also thanks to a much more powerful tool, COnductor like Screening MOdel for Real Solvents (COSMO-RS), that can be used as a real decision tool for the choice of alternative solvents (Figure 3). On the other hand, pharmaceutical companies such as GSK [75], Sanofi [76], AstraZeneca [77,78] and Pfizer [79] developed their own solvent selection guides that provide technical data and clear instructions for the development of more sustainable processes. This allows the involvement and commitment of industries in the investigation on greener alternative solvents and proves their concern for the integration of sustainable development approaches.

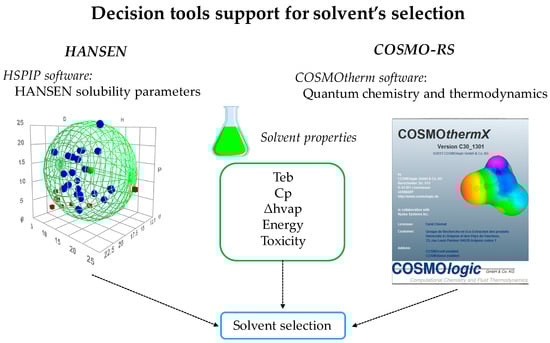

To sum up, an ideal alternative solvent must fulfill the following requirements: (a) does not emit VOC; (b) be of low toxicity for humans; (c) have a limited impact on environment (be eco-friendly); (d) be obtained from renewable resources; (e) have a high dissolving power; (f) be easy to recover; and (g) does not change the process set-up significantly. To this end, new technologies such as solvent-free methods, aqueous formulations or alternative solvents, appear to be good candidates. Among these solutions the use of greener solvents, such as bio-based solvents, constitutes one of the most important alternative routes for the substitution of petrochemical solvents. The term “sustainable” or “green” is used to describe different types of solvents including the ones that are produced from biomass feedstock and eco-friendly petrochemical-based solvents that are non-toxic and/or biodegradable [80].
There are seven classes of solvents generally claimed as “green” solvents [81], including (1) bio-based solvents (from renewable resources), (2) eco-friendly (good HSE profile), (3) water (renewable and non-toxic), (4) liquid polymers (non-volatile, biocompatible, non-toxic), (5) fluorinated solvents (non-flammable and non-toxic), (6) ionic liquids/eutectic mixtures (non-volatile, thermally stable. e.g., imidazolium salts, choline acetate) and (7) supercritical fluids (CO2, inert, recyclable, non-flammable, non-toxic). It is worth noticing that the greenness of some solvents is questionable with regard to toxicity (e.g., ionic liquids) or biodegradability (fluorinated solvents and silicones).
In this context, vegetable oils used as solvents belong to the bio-based solvent class, which have the advantage of offering a positive impact on the environment and health (no emission of volatile organic compounds, biodegradable and non-toxic). Vegetable oils are non-polar lipophilic systems whose composition varies considerably according to their origins, quality and methods from which they were obtained. Commonly used in cosmetics or in food industry, they can also be applied to extraction field as for example to achieve bioactive phytochemicals from natural resources. Vegetable oils have successfully been used as solvents for the extraction of carotenoids from by-products of crustaceans [38,49,53] or from fresh carrots [82], and also for the extraction of aromas from basil [68]. Likewise, vegetable oils have been enriched with diverse products such as aromas, polyphenols, antioxidants and pigments, which confer to the oils better oxidative stability and notable organoleptic qualities. Recently, extractions with vegetable oil solvents have been associated with various innovative technologies: ultrasound, microwave and supercritical CO2. The extraction of carotenoids from fresh carrots assisted by ultrasound showed similar yields to that obtained with hexane, under optimized conditions [82]. Sunflower oil as the solvent allowed the simplification of the extraction process, by the absence of the evaporation step or solvent separation. This greener technique also offered significant advantages in terms of cost, time and energy. Otherwise, supercritical carbon dioxide extractions of carotenoids using various vegetable oils as co-solvents have also been widely studied. The beneficial role of the addition of vegetable oil co-solvents was demonstrated, as it improved the solvation performance and prevented the degradation of target carotenoids during the extraction. In addition, a work performed by Chevereau [83] determined that using vegetable oils as solvents and microwave as the extraction method provided an improvement in the extraction efficiency of bioactive extracts without degradations or contaminations of the oil. The improved dissolving power (high yields, optimized organoleptic properties) of vegetable oils by association with ultrasound and microwave was also presented in the work of Rossignol-Castera [84]. As the application of vegetable oils as alternative solvents has emerged in many areas, a good investigation of various components in vegetable oils is necessary for better understanding their underlying dissolving mechanism, which could lead to a green strategy for extraction techniques.

3.2. Can Nonpolar Vegetable Oils Be Good Solvents for Polar Antioxidants?

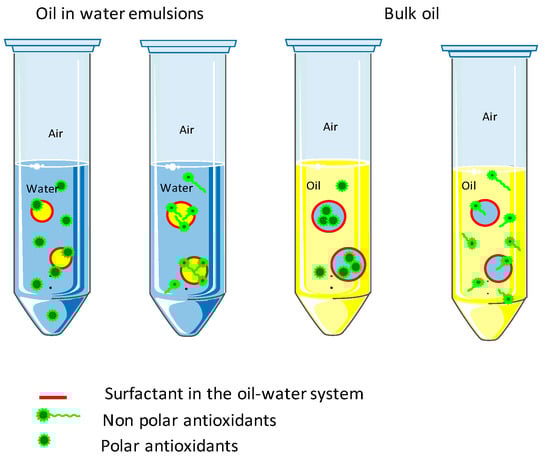

Knowledge developed during the last two decades helped us to gradually find out that the effectiveness of antioxidants in the lipid oxidative inhibition is depending on both chemical reactions and physical molecular orientations, self-assembled microenvironments in particular. According to the “polar paradox” breakthrough [85,86], polar or hydrophilic antioxidants with high HLB values are more effective in non-polar media such as vegetable oils with a low surface/volume (LSV) ratio whereas nonpolar or lipophilic antioxidants with low HLB values tend to be more effective in more polar media such as oil-water emulsions with a high surface/volume (HSV) ratio. This hypothesis was turned from an empirical observation into a putative theory thanks to the explanation by the interfacial phenomenon [87,88]. The previously believed assumption on oxidation in vegetable oils as homogeneous media was questioned because oil is more polar than air. Since polar antioxidants, amphiphilic molecules and trace amounts of water coexist in whatever vegetable oils, they will aggregate to form different types of colloidal associations (e.g., reverse micelle, lamellar structure, etc.), which are considered oxidation sites [22]. The polar antioxidants distributing at the oil-air interface are indeed preferentially located at the oil-water interface of colloids, hence perform more effective in oxidative inhibitions than nonpolar ones that are dissolved in the lipid phase (Figure 4). The polar paradox was found not applicable for the overall concentration range of antioxidants as more evidences have indicated a non-linear cut-off effect for nonpolar antioxidants that are more effective below a critical concentration than polar antioxidants in vegetable oils because the solubility effect outweighs the interfacial phenomena. The reversed trend occurred after this critical concentration is the polar paradox case, which depends more on the micellar effect [89].
Paradoxes and inconsistencies are constantly emerging. Supramolecular chemistry as a new paradigm may shed light on lipid oxidation and antioxidant effectiveness now by reconsidering molecular shape, supramolecular interactions and the distribution of polar and nonpolar regions [90]. In vegetable oils, water inside or from atmosphere and other polar compounds are located in the core of reverse micelles. A depletion layer almost without surfactants exists next to the core and the outermost monolayer was comprised of surfactants, which solubility could be increased with the help of co-surfactants (e.g., short or medium chain alcohols, glycerol, sorbitol, etc.). These self-assembled micelles are considered as thermodynamically stable nano-reactors, which have different sizes and allow the dissolution of a desirable amount of polar and non-polar compounds [91]. Hydrophilic lipophilic balance (HLB) is empirically used to describe the antioxidant solubility in lipid systems. Endogenous or exogenous surfactants with low or intermediate HLB values, for instance, phospholipids, free fatty acids, mono- and diacylglycerides, are more favoured to form and to stabilize reversed micelles [22]. Traces of these minor compounds in virgin or refined vegetable oils play a vital role in micellization and further lipid preservation. Nonetheless, there are still other influencing factors (e.g., pH, log P, double bond position in unsaturated fatty acids, acyl chain length, ionicity and packing parameter of surfactants, etc.) for antioxidant effects and micelle stabilization in lipid systems, among which water activity is of paramount importance.
Inspired by the paradoxical behaviour of polar antioxidants in bulk lipids, vegetable oils can not only be the solvents for the lipophilic antioxidants in light of the “like dissolve like” principle. The self-assembled micellization in vegetable oils may help to develop an in-site direct extraction of hydrophilic antioxidants [69], where extraction efficiency, selectivity and enrichment factors are variable depending on the oil type and composition, as well as surfactant type and dosage [92]. The spherical reverse micelles could be formed by a simply intentional addition of food-grade surfactants and proved by small angle X-ray scattering (SAXS). However, the appropriate dosage of surfactants should be further evaluated to make sure their critical micellization concentrations and interactions in a supramolecular microenvironment. Likewise, this novel extraction may provide a more efficient strategy for the lipid oxidative prevention in further formulations.

3.3. Which Kind of Molecules Can Be Solubilized in Vegetable Oils?

Determining the different molecules that can be solubilized into vegetable oils seems relatively easy if we know the polarity of the target molecules. However, there are some considerations in the prediction of the dissolving power of vegetable oils such as their supramolecular complexity, various extraction methods, target solute, acylglycerol and fatty acid composition, etc. Today, one way to predict the solubilization of one molecule into different solvents including vegetable oils, avoiding the waste of time in resorting to trial and error experiments, is the use of efficient predictive tools, among which the most powerful one is the COSMO-RS that we have currently paid particular attention on.

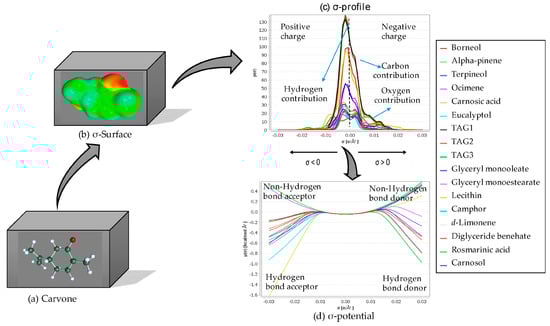

COSMO-RS Approach

The significant improvement in computational power and sophistication of recent algorithms led to the possibility to extensively use quantum descriptors of the solvent effect. Cartier et al. showed that quantum chemistry provides a more accurate and more detailed description of electronic effects than empirical methods [93]. Thanks to a combination of a dielectric continuum solvation model and a thermodynamic treatment of the molecular interactions, Klamt developed a general approach in which a solvent can be treated in the liquid state [94]. In the first step of the COnductor-like Screening MOdel, usually denoted as COSMO, the solute molecule is considered to be embedded in a cavity that is surrounded by a virtual conductor. In this environment the molecule induced a polarization charge density on its surface depicted on the σ-surface. During the quantum calculation, the solute molecule is converged to its energetically optimal state in the conductor with respect to its electron density and geometry. In the second step, with the extension RS for “Real Solvent”, a combination of an electrostatic theory, COSMO-RS, with the statistical thermodynamics treatment of interacting surfaces is used. The spatial distribution of the polarization charge σ of the molecule is then converted into a surface composition function (σ-profile). This σ-profile provides information about the molecular polarity distribution (Figure 5).
The thermodynamics of molecular interactions is used to calculate the chemical potential of the surface segment (σ-potential) using COSMOthermX program (version C30 release 14.10). The σ-potential (Figure 5) can be interpreted as the affinity between a solvent and the surface σ via electrostatic interactions and hydrogen bonds. The part of the negative charge of the molecule is located on the right side (acceptor hydrogen bonds) with positive σ values while the part of the positive charges is located on the left side (donor hydrogen bonds) with negative σ-values. Generally, the region σ ± 1 e/nm2 is considered to be non-polar or weakly polar. The σ-profile and the σ-potential are used to firstly interpret the affinity of the solvent for surface polarity, and then to understand the interaction between the solute compound and a list of solvents. The thermodynamic properties of the system could finally be estimated. In addition, the software COSMOthermX allows the calculation of the affinity between the solute and the solvent in terms of logarithm of the solubility in mole fractions (log10(x_solub)). The logarithm of the best solubility (i.e., solute and solvent are miscible) is equal to 0 and all other solvents are predicted relative to the best solvent(s).
Despite the fact that vegetable oils have been used as solvents in the extraction of natural compounds, as well as their enrichment with diverse bioactive compounds, predictive methods such as COSMO-RS have not been used to determine the potential of these alternative bio-based solvents. In this context, we have performed the simulation of the solubility of various bioactive products with different polarities in sunflower oils, from lipophilic β-carotene to hydrophilic compounds with higher polarity as antioxidants like hydroxytyrosol. In addition, we have also evaluated the relative solubility of these bioactive compounds in the sunflower oil with surfactants and conventional solvents such as n-hexane, ethyl acetate, acetone, ethanol and water. n-Hexane, the most commonly employed solvent in the extraction field, was used as the reference. The simulation results showed that the theoretical solubility of the bioactive compounds in general was better in sunflower oil or sunflower oil with 1% w/w of surfactant than in n-hexane. Li et al. performed a direct extraction of phenolic compounds from olive leaves using vegetable oils as solvents and food additives (soy lecithin, diglycerides, unsaturated or saturated mono glycerides) as surfactants [69]. The experimental results showed a significant difference on the extraction yield of phenolic compounds among various refined and unrefined oils, which were mainly dependent on their composition instead of the unsaturation degree of fatty acids. This work concluded that appropriate surfactant additions could significantly improve the extraction yield for refined sunflower oils, where the 1% w/w addition of glyceryl oleate was determined as the optimal. Furthermore, 5% w/w addition of lecithin performed the best in such enrichments compared with mono- and di-glycerides. The exception in the simulation results was with β-carotene, whose solubility prediction was slightly better in the reference solvent. However, experimental results have shown that vegetable oils are good solvents for the extraction of this sort of natural products. Sun and Temelli [95] carried out a comparison of conventional solvent extraction with supercritical CO2 (SC-CO2) extraction using canola oil as the co-solvent to extract carotenoids from carrots. It was found that the yield of total carotenoids by SC-CO2 extraction with 5% (w/w of CO2) canola oil was higher than that by conventional solvent extraction using hexane or acetone. The triglycerides here can increase β-carotene solubility in supercritical CO2, and additionally, vegetable oils help to improve the stability of pigments [96]. Therefore, the use of different vegetable oils as co-solvents in SC-CO2 is a new approach for carotenoids recovery with promising results [94,97,98,99,100,101]. Likewise, Li et al. applied sunflower oil as a substitute for organic solvents in carotenoids extraction from fresh carrots using an ultrasound-assisted extraction (UAE) process [82]. This procedure was compared with conventional solvent extraction (CSE) using hexane as the solvent. The results showed that the green UAE process using sunflower oil as the solvent gave the best yield of β-carotene in comparison with CSE.

4. Innovative Techniques for Intensified Extraction Using Vegetable Oils as Solvents

Bioactive compounds from plants, algae, yeast and fungi can be extracted by various classical extraction techniques such as maceration, solvent extraction, steam or hydrodistillation, cold pressing, squeezing, and others. Most of these techniques are based on the extracting power of different solvents and the application of heat and/or mixing. Nonetheless, the design of more efficient extraction processes that may address the requirements for process intensification (i.e., faster and more effective energy use, increased mass and heat transfer, reduced equipment size, reduction of processing steps and increase of yields and product quality) has been one of the main research topics in recent years. All safety, sustainability, environmental and economic factors are forcing laboratories and industries to turn to nonconventional technologies and greener protocols. Moreover, due to toxicity and the growing price of fossil resources, the replacement of petroleum-origin solvents is desirable. Consequently, in the last two decades, the use of efficient, innovative and intensified extraction techniques is amenable to automation such as widely used ultrasound, microwave and supercritical fluid assisted extraction. In addition, the combination of ultrasound with conventional Soxhlet extraction [102,103], Clevenger distillation [104] and innovative techniques [105,106,107,108,109,110] has been reported as well [111].
Due to the fact that several special phytochemicals are either destroyed or lost during distillation, or are very difficult to extract resulting in a low yield of essential oils, herbal infused oils are indispensable for obtaining such compounds. Therefore, the solvent property of vegetable oils and their applications with innovative techniques (e.g., ultrasound, microwave, supercritical fluids, etc.) have been explored in bioactive phytochemicals’ extractions from natural bio-resources, which helped to achieve a greener extraction procedure and novel value-added end-products with great potential in food, nutraceutical and cosmetics industries. Table 2 presents some applications of innovative techniques for the extraction of different kind of compounds from various plant materials using vegetable oils as solvents or co-solvents to be enriched with bioactive compounds. In this context, the ultrasound-assisted extraction (UAE) based on Green Extraction and bio-refinery concepts using sunflower oil as the solvent has recently been designed for the extraction of carotenoids from fresh carrots. The extraction yield under optimized UAE conditions was similar to that of conventional extraction using hexane as the solvent [82]. Furthermore, this greener technique also offered significant benefits in terms of cost, time, energy and environment; and showed its potential for an industrial-scale application in relevant fields. In addition, supercritical carbon dioxide extractions of different carotenoids and derivatives using various vegetable oils as co-solvents have also been widely studied. The beneficial role of adding vegetable oils as co-solvent has been demonstrated to enhance the yield, and to avoid the degradation of the target carotenoids during the extraction [95,97,100,101,112]. Apart from this, Chevereau [83] has applied microwaves to improve the extraction efficiency of bioactive extracts in vegetable oils without lipid degradation and product contaminations. Furthermore, Rossignol-Castera [84] proposed a greener extraction procedure intensified by both microwaves and ultrasounds, which could improve the solvent power of oils in order to ensure a good reproducibility of produced extracts with high yields and optimal organoleptic properties. These novel developed techniques have already been put into real production on an industrial scale.

5. Conclusions and Future Perspectives

Alternative solvents from renewable resources for extraction, purification and formulation of natural and food products have attracted a lot of attention in recent years. In this sense, this review gives an overview about the use of different vegetable oils as solvents in the extraction of natural products, preparation of enriched oils with various bioactive compounds from natural sources and formulation of products with applications in food and cosmetic industries. Subsequently, this review presents a discussion of polar paradox theory that illustrates the paradoxical behavior of antioxidants in different media and explains the fact that polar or hydrophilic antioxidants with high HLB values are more effective in non-polar media such as vegetable oils whereas nonpolar or lipophilic antioxidants with low HLB values tend to be more effective in more polar media such as oil-water emulsions. Likewise, the use of a powerful and time-saving COSMO-RS simulation tool is presented to combine a dielectric continuum solvation model and a thermodynamic treatment of the molecular interactions, which could help to predict the solubilization of one molecule in different complex solvents like vegetable oils. In addition, the solvent property of vegetable oils and their applications with innovative techniques (e.g., ultrasound, microwave, supercritical fluids, etc.) for the extraction of different compounds from natural bio-resources has also been reviewed. These greener techniques could offer significant benefits in terms of cost, time, energy and environment, and have shown their potential for an industrial-scale application in food, nutraceutical and cosmetics industries. On the other hand, the excellent natural properties of vegetable oils such as global wide availability, biodegradability, low cost and excellent environmental aspects (i.e., low ecotoxicity and low toxicity toward humans), are advantages in the development of value-added products, for instance, the preparation of oils enriched with medium or high polarity bioactive compounds. To achieve this goal, vegetable oils can be modified in order to modulate their polarity and increase their dissolving power in the extraction of polar bioactive compounds with applications in different industrial sectors.
Vegetable oils have been used as solvents for extraction, purification and formulation by ancient civilizations such as Egyptians and Phoenicians, Indians and Chinese, and even Mayas and Aztecs. The challenges launched by the environmental protection and competitiveness of the globalized market strongly require innovations that break away from the past rather than simple continuity. Vegetable oils could be one of the solutions coming from the past and acting as a future of humanity as an ecologic and an economic alternative to petroleum and hazardous solvents, and turning to sustainability in the 21th century. We are totally convinced that this review is only a starting point for future scientific innovations in this new area “vegetable oils as functional ingredients, reagents and solvents” which is already a success story of collaboration between research, industry and education, covering large ecologic and economic applications: perfume, cosmetic, pharmaceutical, food ingredients, nutraceuticals, biofuels, or fine chemicals industries, for processes such as extraction, formulation, purification, pollution remediation, lubrication, and so on.

Acknowledgments

Edinson Yara Varón thanks to fellowship funding (No. TECSPR14-2-0029) from the People Programme (Marie Curie Actions) of the Seventh Framework Programme of the European Union (FP7/2007-2013) under REA grant agreement No. 600388 (TECNIOspring programme), and from the Agency for Business Competitiveness of the Government of Catalonia, ACCIÓ. Ying Li would like to thank the National Natural Science Foundation of China (Grant 31701633) and the Fundamental Research Funds for the Central Universities (Grant 17817028), as well as special funds from “SanWu Talent 2014” and sixth “100-Talent” Programs. The academic and technical support from Avignon University (France), Jinan University (China) and Lleida University (Spain) are also gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.
