Recent Advances in the Chemistry of Glycoconjugate Amphiphiles

by
Laurent Latxague
,
Alexandra Gaubert
and
Philippe Barthélémy
*
ARNA Laboratory, Inserm U1212, CNRS UMR 5320, Université de Bordeaux, F-33000 Bordeaux, France
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(1), 89; https://doi.org/10.3390/molecules23010089
Submission received: 30 November 2017 / Revised: 22 December 2017 / Accepted: 28 December 2017 / Published: 2 January 2018
(This article belongs to the Special Issue Nanometer-Size Glyconanoparticles: Synthesis and Biomedical Applications)
Browse Figures
Versions Notes

Abstract

:
Glyconanoparticles essentially result from the (covalent or noncovalent) association of nanometer-scale objects with carbohydrates. Such glyconanoparticles can take many different forms and this mini review will focus only on soft materials (colloids, liposomes, gels etc.) with a special emphasis on glycolipid-derived nanomaterials and the chemistry involved for their synthesis. Also this contribution presents Low Molecular Weight Gels (LMWGs) stabilized by glycoconjugate amphiphiles. Such soft materials are likely to be of interest for different biomedical applications.

1. Introduction

Carbohydrates are found in all living systems as simple sugars, polysaccharides or glycoconjugates. Thanks to their molecular complexity and connectivity, this class of biomolecules represents the third alphabet of life beside proteins and nucleic acids [1,2]. They are involved in numerous biological processes and events, including bacterial/viral interactions, immune response, cell proliferation/differentiation, growth regulation, cell signaling, recognition, adhesion, routing etc. [3,4,5,6,7,8,9]. At the molecular level, carbohydrates interact with other molecular partners to form supramolecular complexes, which serve as markers for signal transduction. Importantly, carbohydrates fully express their molecular code in these complexes by interacting with ligands such as proteins via multivalent contacts. These cooperative interactions, named the “glyco cluster effect” [4,10], provide strong binding affinity and specificity to the carbohydrates-ligands complexes, which are required to mediate the different biochemical and/or biological processes.
Very often carbohydrates are conjugated with lipids in living systems. The resulting amphiphilic properties of the glycolipid conjugates favor their anchoring to biological membranes, where they form supramolecular assemblies through morphological changes with sugar-clustered architectures, for example [11]. Thus, biomimetic approaches have been developed to emulate natural glycolipids anchored in biological membranes [12]. In this field, many different synthetic glycoconjugate amphiphiles have been investigated, including glycoliposomes [13], glycodendrimers [14], or self-assembled monolayers (SAM) [15].
In this contribution, we will present recent advances on bioinspired glycoconjugates based amphiphiles. We wish to underline that these bioinspired molecules offer new perspectives in the fields of biomedicine or soft materials. Metal-based (Au, Ag, etc.) glyconanoparticles, glycosylated quantum dots or glycopolymers will not be addressed here. Comprehensive reviews can be found elsewere [16,17,18,19]. In the first section, the synthetic access to this class of amphiphiles is presented. Second, we summarize recent contributions on functionalized carbohydrate scaffolds. This part includes: (1) glycocyclodextrins (2) glycocalixarenes and (3) glycodendrimers. Vesicles and liposomes featuring glycoconjugates are highlighted in the third section. This article culminates in the last section with very recent developments on soft materials and in particular promising gels for biomedical applications.

2. Glycolipids Synthesis Overview

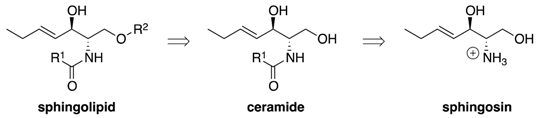

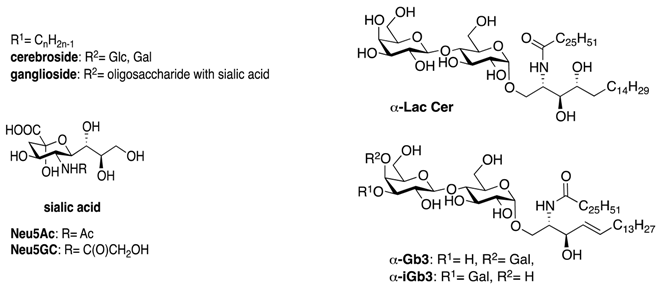

Glycolipids (GLs) are sugar-containing lipids and as such, are amphiphilic molecules able to self-assemble in supramolecular structures giving rise to various soft materials. Conjugation of carbohydrates to a lipid scaffold relies on a few general methods illustrated below for simple GLs (Table 1). Copper catalyzed azido-alkyne cycloaddition (CuAAC) also known as “click”-chemistry with its high chemo- and region-selectivity, its tolerance to a wide variety of solvents (including water) offers mild reaction conditions particularly useful in glycoconjugate synthesis [20]. When copper catalysis is not desirable owing to the metal cytotoxicity or its difficult elimination from the reaction medium, a strain-promoted azide-alkyne cycloaddition (SPAAC) with cyclooctynes, also termed ‘copper-free’ click-chemistry, has been developped by Bertozzi et al. [21] This strategy is based on the distorted sp-bond angles in cyclooctyne derivatives (~160° vs. 180° in a linear alkyne) which dramatically accelerates the azide-alkyne cycloaddition rate [22]. Beside CuAAC and its variants—the thiol-yne/ene click-chemistry (a radical mediated addition of thiols to alkynes) may also be appointed—a Staudinger reaction between glycosylated alkyl azides and fatty acid chlorides is also interesting (not to be confused with the Staudinger ligation, see Section 4). Finally, GLs are still often formed in accordance with standard glycosidation reactions with carbohydrate donors (thioglycosides, halogenoglycosides, peracetylated glycosides, etc.) or a combination of one of the above methods.
We will go into more details on the synthesis of more complex GLs featuring several sugar units. Some of them—that can fall in that respect into the glycocluster category—are glycosphingolipids with potent immunostimulant properties. They act as ligands of CD1d (a presentation protein of antigen-presenting cells) and the resulting binding complex is recognized by the natural killer T (NKT) cells which in turn secrete large quantities of various cytokines that mediate and regulate the immune response [28]. For example, α-Lac Cer, Gb3 and iGb3 were synthesized by the Wang [29] and Savage [30] groups (Table 2). Glycosphingolipids are found naturally in the cell membranes of almost all living organisms. Their lipidic moiety is made of sphingosine. Once acetylated by a fatty acid on their amino group, they give ceramide which in turn can be connected to one or several sugar residues on their primary hydroxyl group. The resulting GL also known as sphingolipid is called cerebroside with one Glc or Gal residue, or ganglioside when attached to an oligosaccharide featuring at least one sialic acid (N-acetylneuraminic acid Neu5Ac or N-glycosylneuraminic acid Neu 5Gc).

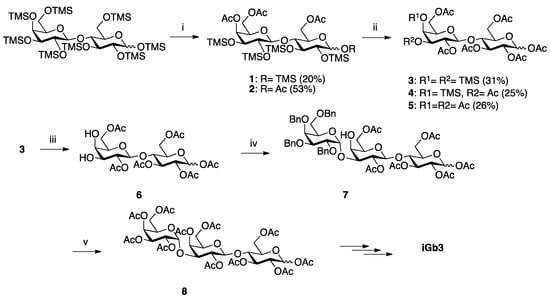

Recently, the saccharide moiety 8 of isoglobotriaosyl ceramide (iGb3) was synthesized following the emergent concept of step-economy [31,32,33,34] avoiding multiple protection/deprotection steps and is therefore especially promising in glycoconjugate chemistry. In this context, the regioselective silyl exchange technology (ReSET) gives partially acetylated and silylated carbohydrates easily transformed in either glycosyl donors or acceptors [35], which greatly simplifies complex GLs synthesis (Scheme 1) [36].
Basically, per-O-silylated lactose undergoes selective exchange of TMS ethers for acetate protecting groups in pyridine with acetic anhydride, depending on the amount of excess AcOH added and the microwave reaction time. Compound 3 was thus obtained in two steps and selective deprotection of the silyl ethers yielded the acceptor 6. Glycosidation with in situ prepared per-OBn galactosyl iodide with silver triflate afforded the trisaccharide 7 further acetylated to give the iGb3 trisaccharide scaffold 8. This new strategy, giving better yields and stereoselectivity in fewer steps, should represent an attractive alternative to more conventional methods.

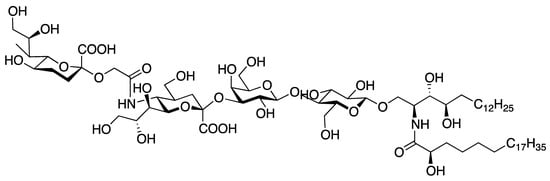

Complex glycosyl ceramides, namely gangliosides, which are present in the nerve cells [37], are mainly enzymatically synthesized with the help of glycosyl transferase. For example, the starfish ganglioside LLG-3 featuring a tetrasaccharide sphingolipid has been bioenzymatically prepared by an engineered endoglycoceramidase II glycosynthase (Figure 1).

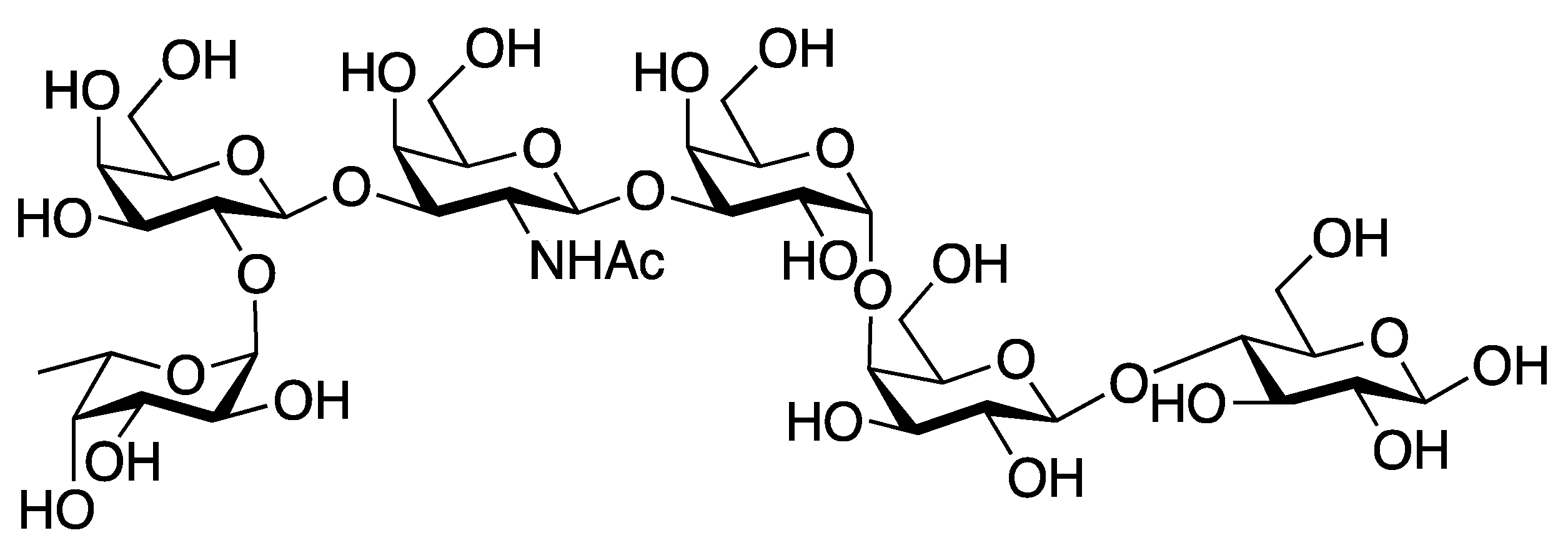

Likewise, Globo-H (Figure 2), a tumor-associated antigen, has induced the development of a therapeutic vaccine based on this synthetic hexasaccharide chemically [38] or enzymatically synthesized [39].

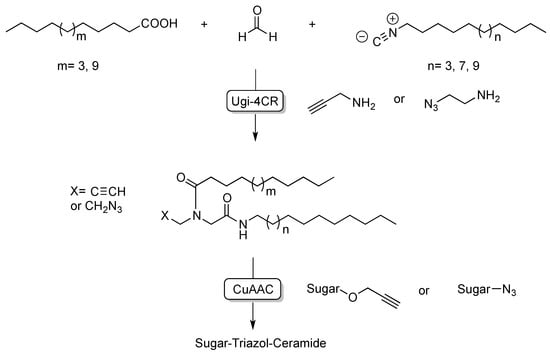

Glycosphingolipids featuring various mono- and trisaccharide moieties were synthesized by a combined multicomponent/click approach [40]. The ceramide skeleton synthesis involves a fatty acid, a lipidic isocyanide, para formaldehyde and an amine (either alkynyl or azido-amine) in a one-pot Ugi-four component reaction. The resulting ceramide mimic is then conjugated with a glycosyl azide (or alkyne) through CuAAC “click” chemistry as illustrated below (Scheme 2).
This novel approach to complex GLs turned out to be very efficient with average yields of nearly 80% for both sequential steps, facilitating the rapid creation of libraries for this class of Ugi/click glycolipids.

3. Functionalized Carbohydrate Scaffolds

Functionalized carbohydrate scaffolds are often related to the concept of multivalency. Multivalency can be defined as the “ability of a particle (or molecule) to bind another particle (or molecule) via multiple and simultaneous non-covalent interactions” [41]. Knowing that: (1) carbohydrates are involved in a wide range of biological processes via non covalent interactions with lectins (which are specific carbohydrate proteins found inside and outside cells in animals, plants and microorganisms) [42,43,44,45]; (2) the binding affinity between carbohydrates and proteins is very weak, then, the multivalency concept a.k.a. “cluster effect” becomes perfectly obvious: multiple and simultaneous interactions occurring between lectins and their sugar ligands will result in a considerably stronger binding [46,47]. In this regard, functionalized carbohydrate scaffolds are well suited for ligand presentation as multivalent glycoconjugates. Recent reviews have described such multivalent glycoconjugates and their therapeutic efficiency [48,49]. Cyclodextrins and calixarenes, for example, offer intrinsic scaffolds for this purpose, owing to their numerous functionalization opportunities, whereas dendrimers can be tailored to the desired generation and functionality.

3.1. Glycocyclodextrins

Cyclodextrins (CDs) are torus-like cyclic oligosaccharides, α-, β- and γ-CD being the most well-known of them. Thus, α-CD is composed of six glucopyranose units linked via an α-1,4 glycosidic bond, β-CD is the most often used and comprises seven Glc units compared to eight units for the larger γ-CD [50]. Their internal cavity is hydrophobic and CDs can form inclusion complexes with guest molecules.
A β-cyclodextrin scaffold has been used to synthesize a multivalent polycationic glyco-amphiphile cyclodextrin (pGaCD) as a gene delivery system [51,52]. The upper rim of the CD is functionalized with a glyco-cationic moiety while the lower rim exhibits lipophilic tails (Scheme 3).

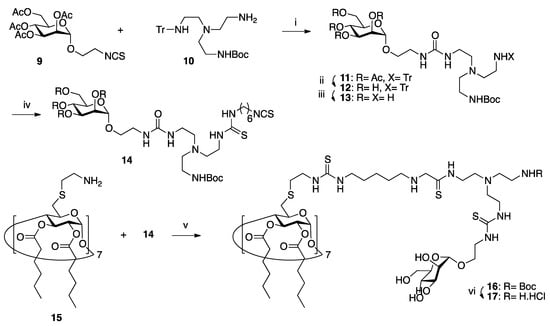

Starting from the known 2-azidoethyl peracetylated-α-d-mannopyranoside and bis(2-aminoethyl)-(2-N-BOC-ethyl)amine respectively, the isocyanato sugar derivative 9 and the orthogonally protected 10 were readily obtained. They were reacted with TEA to afford the adduct 11 in almost quantitative yield. Acetyl and then trityl cleavage were conducted with the same efficiency to give the amine 13 subsequently reacted with the spacer 1,6-hexamethylene diisocyanate to afford the glyco-cationic moiety 14. A thiourea linkage between the known β-CD derivative 15 and compound 14 was formed under TEA catalysis, and carbamate deprotection gave the final pGaCD 17 in excellent yield. Here, the chemistry involved in this synthesis uses an amine-isothiocyanate reaction for the high yields it delivers and to provide a thiourea belt, which is expected to interact favorably with the phosphate groups of the plasmid chain. This pGaCD was indeed able to self-assemble in the presence of plasmid DNA leading to stable nanoparticles ranging from 70 to 150 nm in size.

3.2. Glycocalixarenes

Calix[n]arenes are macrocyclic compounds composed of n phenolic units connected by methylene bridges [53]. They possess a vase shape with a cylindrical hydrophobic cavity able to accomodate inclusion compounds much like CDs. Both sides of the calixarene (upper and lower rim) can be easily derivatized—for what we are concerned here—with saccharide units giving rise to glycocalixarenes [54].

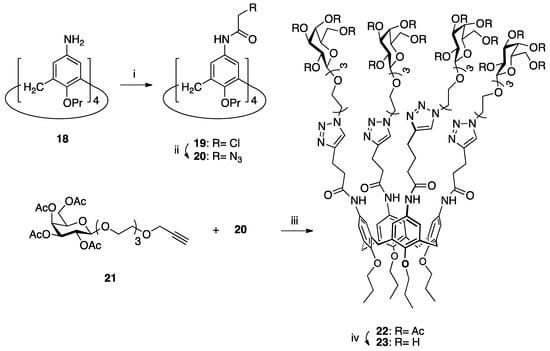

A typical example is the synthesis of galactosyl- and lactosylcalix[4]arenes from tetraamino calixarenes with a CuAAC coupling as the key-step (Scheme 4) [55].
Calixarene derivative 18 was first treated with chloroacetylchloride and then with sodium azide to give the tetraazido calixarene 20. Peracetylated galactopyranose was reacted with monopropargyl triethylene glycol in the presence of BF3·OEt2 to yield the azidosugar derivative 21. Coupling the later compound with 20 under click-chemistry conditions yielded 22 further deacetylated to the final calixarene 23. The lactosyl cluster derivative was similarly prepared. An interesting feature with calixarenes is their relative mobility from a conformational viewpoint. Depending on the size of the alkyl substituents on the phenolic OH lower rim, they can actually exist in four main conformations (the so-called cone, partial cone, 1,2-alternate and 1,3-alternate) [56]. In this regard, the 1,3-alternate conformation was also prepared with both saccharides by the authors. Surface plasmon resonance (SPR) experiments were then carried out on surface immobilized His-tagged Galectin-3 showing that a better affinity was observed with the lactosyl cluster and the cone conformation over the 1,3-alternate one.

3.3. Glycodendrimers

Glycodendrimers are currently emerging as an area of growing activity as multivalent glycoclusters as evidenced by the numerous surveys recently dedicated to this field (see reference [49] for the most recent review).
In a recent contribution [57], a library of 12 amphiphilic Janus glycodendrimers [58] composed of variable carbohydrate head groups and hydrophobic tail groups linked to an azobenzene core have been synthesized using successive Steglich esterification and Hüisgen cycloaddition reactions. The general synthesis is outlined below for one of the dendrimers 31 bearing branched alkyl chains on one side and a d-mannose derivative on the opposite side (Scheme 5).

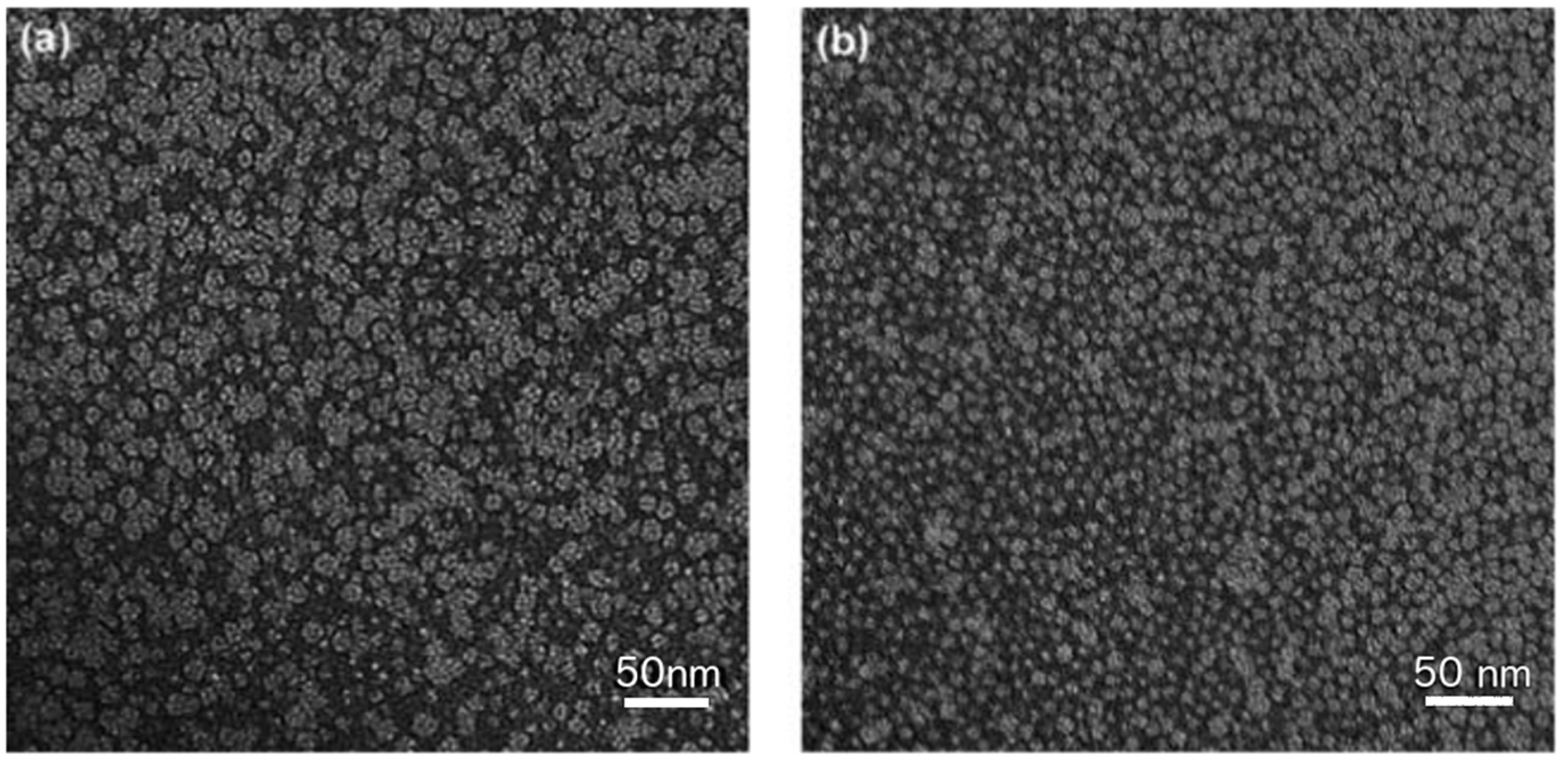

The resulting glycodendrimers self-assembled in water to give uniform cylindrical micelles of various size as evidenced by differential light scattering (DLS) and small angle neutron scattering. The azo-benzene core exhibiting trans-cis isomerism under UV-light, was used here to make the glycodendrimer micelles phototunable, allowing to evaluate their potency as inhibitors of LecA and LecB bacterial lectins. Only a moderate activity was recorded, though, a result imputed to a low light penetration inside the micelle to reach its core.
Chevolot, Morvan et al. targeted the same Lectin A with a family of 32 glycodendrimers of generation 0 and 1 constructed by CuAAC coupling with azido-functionalized glycosides [59]. High affinity values were obtained when aromatic aglycones were used with the carbohydrate motif, confirming that the topology of the glycocluster is equally important as multivalency itself.

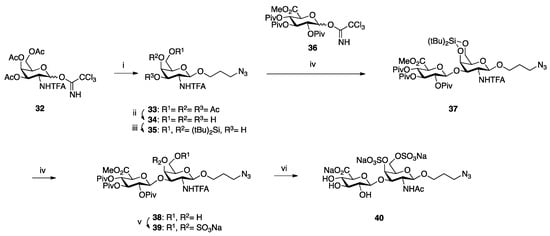

Interestingly, multivalency of small saccharide units can also be used to mimic the effect of larger polysaccharides. Chondroitin sulfate (CS) for example, is a heterogeneous polysaccharide involved in several diseases. CS binds to many proteins via the disaccharide GlcA-GalNAc (4,6-di-OSO3) unit. The need for homogeneous synthetic CS is thus clear but its synthesis is challenging. Therefore, glycodendrimers featuring the sulfated disaccharide group may be a good alternative for this purpose. The dissacharide unit synthesis begins with the trichloroacetimidate 32 treated with 3-azidopropanol and TMSOTf as promoter (Scheme 6). Compound 6 was then protected in two steps with a 4,6-O-di-tert-butylsilylene group leaving the 3-OH free for glycosidation with the donor 36.
The disaccharide 37 was then selectively deprotected on its 4- and 6-OH positions to allow their subsequent sulfonation using a large excess of sulfur trioxide trimethylamine, to eventually afford the desired compound 40 after basic hydrolysis and deacetylation. Tri-, tetra- and hexavalent dendritic cores were then reacted with the disaccharide units under CuAAC conditions illustrated below for the hexavalent glycodendrimer 41 (Scheme 7).
All glycodendrimers were then successfully investigated for their multivalent properties against midkine (an heparin-binding growth factor) to give IC50 up to 1.2 µM for the hexavalent compound 42. On the other hand, the disaccharide itself exhibited a very low affinity for midkine (250 µM) confirming the value of the glucomimetics approach developped in this work.

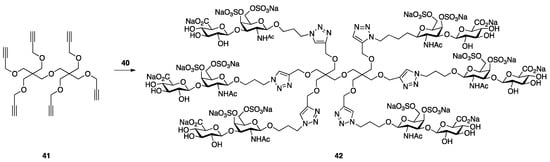

Many glucodendrimer syntheses take advantage of the CuAAC coupling [60,61,62], and not only for connecting the saccharide moiety. Thus, Das and Mukhopadhyay [63] for example, synthesized a propargyl-functionalized Zn-porphyrin, further conjugated with the separately constructed azido-functionalized mannose dendritic building blocks. Synthesis of the 1st and 2nd generation carbohydrate dendrimers involved a click reaction, as well as the coupling step with the porphyrin core.
Finally, thiol-yne coupling (TYC) or thiol-ene coupling (TEC) are mild and high-yielding reactions which proved especially useful in glycosidation synthesis and this topic has recently been reviewed [64].

4. Vesicles, Liposomes

It is known that the overall shape of an aggregate is driven by the shape of the amphiphilic molecule that produced it. When the amphiphiles are wedge-shape (cross section of the polar head is greater than that of the side chain—a typical situation for a single lipidic chain surfactant) their self-association produces a spherical micellar structure. For truncated-cone shapes, aggregation gives cylindrical micelles. Finally, for cylindrical amphiphiles (cross-section of the polar head roughly equals that of the side-chain, usually when a double fatty acid chain is involved) a planar bilayer sheet is formed. Then, closure of the bilayer sheet yields spherical structures called vesicles, entrapping an aqueous domain isolated from the outer aqueous medium. Artificially constructed vesicles are called liposomes. Depending on experimental conditions, several types of liposomes are obtained: multilamellar vesicles (MLV), small unilamellar vesicles (SUV), large unilamellar vesicles (LUV) or giant unilamellar vesicles (GUV) [65,66,67].

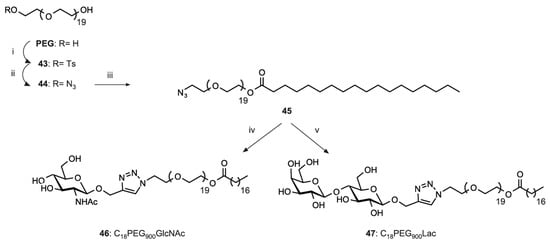

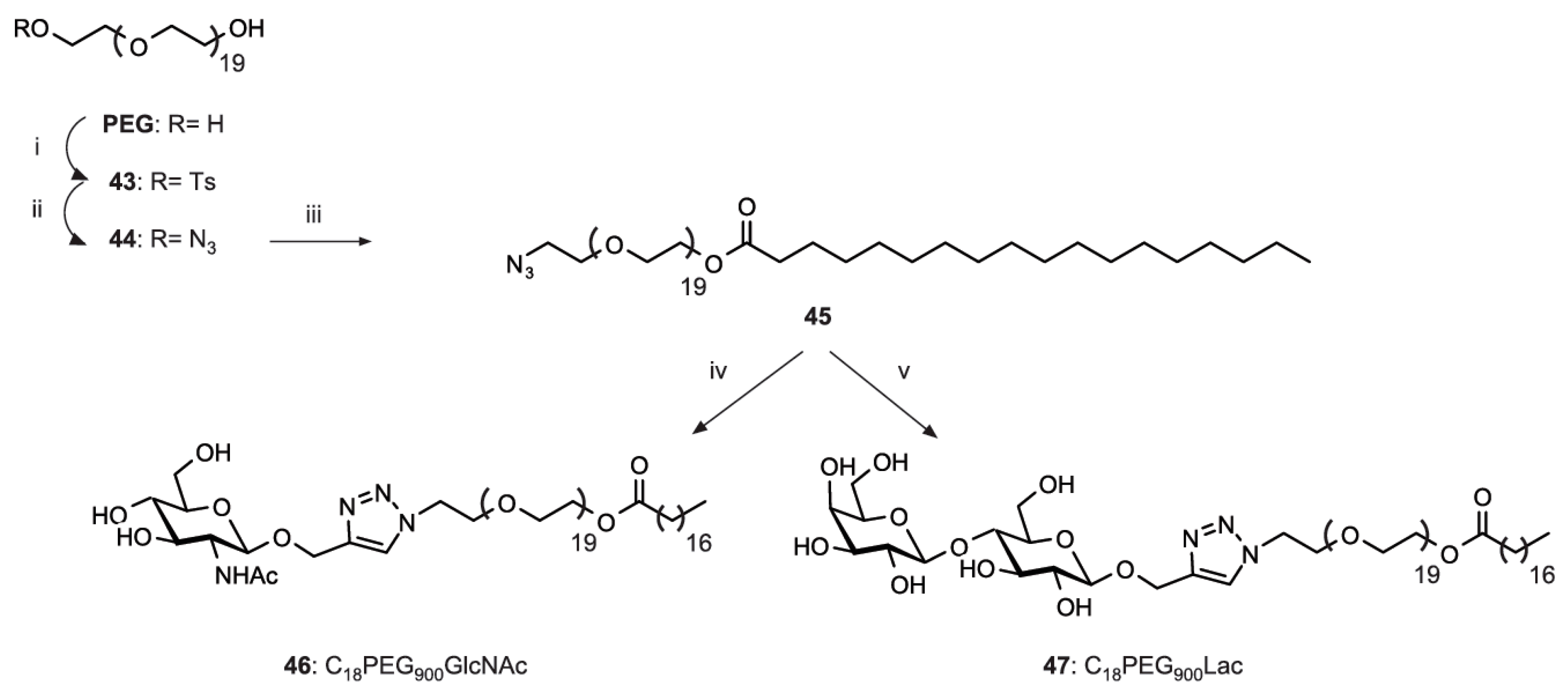

Spherical micelles have been obtained from the self-assembly in water of a series of macromolecular glycosylated amphiphiles. They have been prepared by CuAAC coupling of 1-O-propargyl saccharides (N-acetyl glucosamine and lactose) and various azido-terminated PEG900 esters [68,69,70,71]. In a representative work, C18PEG900GlcNAc 46 and C18PEG900Lac 47 were obtained from a common intermediate 45 (Scheme 8). This stearate derivative was prepared in a few steps from PEG900 by monotosylation followed by substitution of the tosyl group with sodium azide.
Both glycoconjugates 46 and 47 spontaneously self-assembled in water into spherical micelles with a mean diameter of 10 nm (Figure 3).
Specific interactions of both 46 and 47 with lectins (Wheat Germ Agglutinin and Peanut Agglutinin) proved the presence of the sugar residues at the surface of the micelles demonstrating their potential application in drug delivery mediated by carbohydrate-protein interactions.

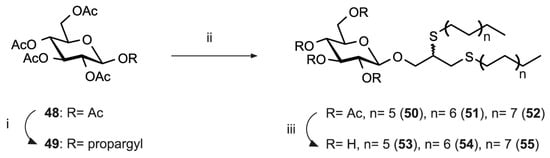

To efficiently link a sugar derivative to a lipidic tail, thiol-yne/ene click-chemistry already quoted in Section 3.3) can be considered as a complementary tool to the Hüisgen (CuAAC) reaction [72]. In a recent publication, Goyard et al. [24] reacted 1-propargyl-2,3,4,6-tetra-O-acetyl-β-d-glucopyranoside 49 with dodecane-, tetradecane- and hexadecanethiols in the presence of AIBN to give the expected GL derivatives (as 1:1 diastereoisomer mixtures) in very high yields (Scheme 9).
The Gal (56), Man (57) and Lac (58) derivatives have been prepared similarly. The GLs were capable of self-assembling into vesicles. Among them, vesicles prepared from 53 and 57 formed multivalent interactions with concanavalin A (ConA) used as a model lectin. Furthermore, 57 was able to bind to murin dendritic cells and to encapsulate hydrophobic compounds like Taxol, thus paving the way to the vectorization of active substances to specific cells.

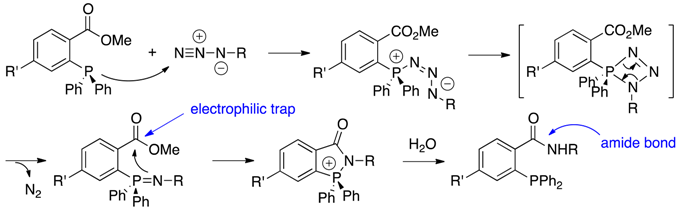

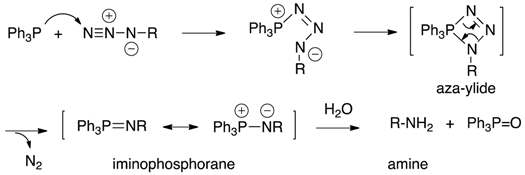

A method of choice for the surface functionalization of liposomes calls on the Staudinger ligation [73] named after the well-known Staudinger reaction between a phosphine and an azide giving an iminophosphorane which hydrolizes into an amine [74]. Here, to avoid the iminophosphorane hydrolysis, the phosphine features an electrophilic trap such as a methyl ester producing an amide bond (Table 3) [75,76].

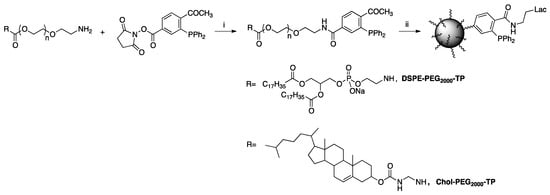

The chemically-selective surface glyco-functionalization of liposomes through Staudinger ligation was popularized by Sun and co-workers [78,79,80]. They recently evaluated this reaction with a lactosyl azide and different ratios of two types of anchoring lipids in DPPC liposomes [81]. Lipids were synthesized from cholesterol-PEG2000-NH2 and commercially available DSPE-PEG2000-NH2 with 3-diphenylphosphino-4-methoxycarbonylbenzoic acid active ester (Scheme 10) to give functional vesicles with respect to their stability, encapsulation and release capacity, and their lectin binding efficiency.

5. Gels

Hydrogels are found in our everyday life in a variety of forms and products. For example hydrated gel materials can be used as cosmetics (shampoo, hair gel, soaps etc.). Importantly most of the gels, if not all, are derived from polymers. This type of gels has been known for many years with different applications in the fields of materials science, medicine, cosmetics, etc. Low molecular weight gels (LMWGs), which were developed more recently, offer an interesting alternative to polymer-based gels. Indeed, thanks to their supramolecular nature LMWGs are thermoreversible and allow a rapid response to external stimuli. Also, LMWGs can be used as biodegradable systems because of an easier clearance and/or elimination from the body compared to regular polymeric gels. Nevertheless, the supramolecular assemblies obtained using LMWGs are still poorly controlled and it is still difficult to properly predict the gel behaviours depending on the molecular structure of the components. In this regard, several LMWG based bioconjugates have been investigated recently for their supramolecular gel properties, including lipids, carbohydrates, nucleosides, amino acids or peptide derivatives. Among them, glycoconjugates have been discovered to be interesting gelators for biomedical applications. In this section, we present several examples of synthetic sugar based amphiphiles forming LMWGs.
A gel can be defined as a molecular network able to immobilize a fluid (organic solvent or water) in a very large amount (up to more than 99% w/w) giving rise to a soft, jelly-like material [82,83]. Such material can be made of polymeric chains or from the self-assembly of small molecules (a.k.a. low molecular weight gelators) a process driven by weak molecular interactions [84]. It is commonly believed now that gelation is a stepwise process, starting from the molecular level to the macroscopic structure. First, non-covalent interactions (H-bonding, π-π stacking, hydrophobic forces) must take place between gelling molecules, leading to their nanostructuration in a one-dimensional fashion (fibers formation). Then, the growing fibers form a continuous three-dimensional entangled network in the solvent under the same non-covalent set of forces, to eventually give rise to a macroscopic soft material, i.e., a gel. The exact mechanism of self-organization of the gelling agents is still poorly understood especially in water. Nevertheless, a simple packing model to mimic fiber formation during self-assembly was recently developed [85]. The fiber is considered as the stacking of discrete prisms exhibiting various hydrophobic and hydrophilic faces corrected with several weighting coefficients representing free energy penalties. Use of this model demonstrated that for selected classes of LMWGs, the fiber structure represents the thermodynamic minimum.

5.1. Glycoconjugate Based Gels

Hydrogels possess many applications in tissue engineering [86,87], biosensing, drug or gene delivery [88,89,90], water depollution [91], etc. The most relevant gelling agents for biomedical applications are biologically-inspired molecules such as peptide-amphiphiles, oligonucleotide-amphiphiles or glycosylated-amphiphiles. In the context of this survey, only low molecular weight glycosylated-amphiphiles will be addressed with a particular interest in glyconucleolipid amphiphiles.

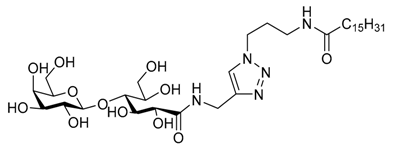

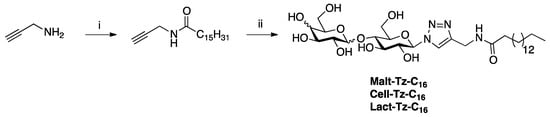

For example, monolipidic disaccharides have been prepared by CuAAC cycloaddition of the corresponding sugar azides with N-propargylpalmytoyl amide (Scheme 11) [92,93].
The resulting disaccharidic GLs were efficient hydrogelators (0.5 to 1 wt %). The contribution of the triazole ring (giving π-π stacking) and the amide-NH moiety (H-bonding) in the hydrogelation process was evidenced by nuclear magnetic resonance (NMR). Furthermore, field emission scanning electron microscopy (FESEM) images of a single ribbon of Cell-Tz-C16 exhibited a right-handed twist whereas Lact-Tz-C16 showed a left-handed twist suggesting that the nature of the disaccharide polar head influences the supramolecular chirality (Figure 4).
Another aspect of GLs is their ability to self-aggregate with a long-range molecular ordering giving rise to a crystal-like structure while retaining a liquid behaviour. This state of matter is the distinctive feature of liquid crystals (LCs). Thus, simple GLs regarded as rod-like molecules self-aggregate into lamellar assemblies with a tendancy to form columnar or spherical structures according to their tail to head volume ratio [94]. This phase change can be induced by an increase in temperature (thermotropic LCs) but also if their concentration is varied in a solvent (lyotropic LCs) resulting in more mobile structures giving rise to additional phase changes. At temperatures above 90 °C, Malt-Tz-C16 in the previous example exhibits a LC behaviour. For Cell-Tz-C16 and Lact-Tz-C16 the liquid crystalline phases (mesophases) appeared above 150 °C, and Smectic A phase (molecules are directionally ordered into layers) for the latter compounds was evidenced by X-ray diffraction. Of course, dealing with LC properties of GLs is beyond the scope of this account and further reading and examples can be found elsewhere [95,96,97]. Note, however, that thermotropic LC phases were much less studied than LC structures formed in water, and other biomolecules can form such materials [98].
Original asymmetric glyco bola-amphiphiles were obtained by Ochi et al. [99] by reacting 4-aminophenylgluco-, galacto- and manno- pyranosides with an aminododecanoic acid derivative (Scheme 12). Despite the presence of an activated ester at one end of the hydrocarbon chain, chlorine displacement on the maleimide moiety unexpectedly occurred with good yields.
All bolaform GLs turned out to be excellent hydrogelators with a critical gelation concentration (CGC) < 0.1 wt %. Interestingly, the π-conjugated 2-anilino-3-chloromaleimide is a known chromophore with a λmax value appearing near 400 nm. As a result, the chloromaleimide GLs exhibited color change upon gelation from warm orange (sol) to yellow (gel). Furthermore, the color change was also observed upon gel incubation with the corresponding glycosidases, thanks to the proximity of the chromophore with the glycoside moiety. The enzyme selectivity is therefore retained in the gel state and makes these gels usable as sensing materials to detect an enzymatic activity by the naked eyes.

5.2. Mechanical Characterization of Gels

The increasing number of supramolecular gels require a characterization at the microscopic and the macroscopic levels. Specific information about the structure and dynamics of the self-assembling will be obtained. Gels are not only molecules solvated in water, oil or solvent, for hydrogels, oleogels or organogels respectively, but also secondary and tertiary structures. These structures responsible of the gelation phenomenom need to be highlighted, especially the number, type and strength of the interactions. One way to investigate the viscoelactic behaviour of such material is rheology. This technique analyses samples at their native state enabling a better understanding of the gel macroscopic organization. Different types of setup are available for rheological studies, cone and plate systems, parallel plates and concentric cylinders, depending of the material viscosity. In each case, thin layer of gel will be spread between the movable and the stationary plates. The response of the supramolecular gels to applied oscillatory stress quantifies its viscoelastic properties by three major variables: G* (complex modulus), G’ (storage or elastic modulus) and G” (loss or viscosity modulus). The evolution of theses variables function of the imposed stress, the frequency, the time or the temperature will contribute to the characterization of gelation key points (i.e., linear viscoelastic region (LVER), strength of the gel, thixotropic behaviour, Tgelsol, etc.) [82,83]. Almost all mechanical properties are determined within the LVER. In this domain, the evolution of moduli will be independent of the magnitude of imposed stress or strain [100]. So the macroscopic behaviour observed will only be due to the variant factors. When this factor is the temperature, the most often reported parameter will be determined: temperature of gelation (Tgelsol). During the experiment, the temperature increases and the macroscopic properties of the supramolecular gel evolve until a break of the tertiary structure. The point when the sample goes from a gel-like state to a liquid-like state is called Tgel or Tgelsol [82,83]. Another rheological property determines for supramolecular system, especially gel composed of glycolipids, is the thixotropic behaviour. This unique behaviour is investigated by a time dependent experiment. Supramolecular assembly undergoes a mechanically stimulus leading to a collapse of the tertiary structure and to a gel-sol transition. When the external force is withdrawn, the supramolecular gel can rebuilt to its initial state (sol-gel transition). The reversibility of the system is called thixotropy. This phenomenon is essentially due to modifications at the macroscopic level without chemical alterations. Supramolecular assemblies are essentially based on weak interactions (π stacking, hydrophobic effect, H bonding) which can be disrupted and can recover from external stress enabling this thixotropic behaviour.
All these rheological parameters are crucial for the characterization of gels and is unambiguously required. The strength of gels could have an impact on its application, for example in the biomedical field allowing cell proliferation and differentiation [101,102,103]. Supramolecular assemblies are often compared to polymeric gels on various criteria and especially mechanical strength. Mei et al. [83] classify hydrogels in two categories: the polymeric and the supramolecular one. Among the polymeric classes, they distinguish the polymeric hydrogels based on covalent crosslink (Type I) or on noncovalent crosslink (Type II). The hydrogels are compared function of numerous criteria and especially the mechanical strength. Polymeric hydrogels are characterized by strong mechanical strength (extremely strong for Type I/relatively strong for type II) and supramolecular systems by weak mechanical strength.

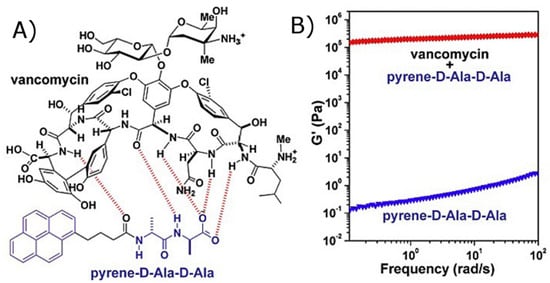

However, the mechanical properties of a supramolecular system could be improved by the addition to the biomaterial of a ligand. Zhang et al. [104] incorporated vancomycin in a supramolecular hydrogel of self-assembled pyrene-d-Ala-d-Ala resulting in a 106 fold increase of the elastic modulus (Figure 5).
Another way to improve the mechanical strength of supramolecular gels is the synthesis of new generations of low molecular weight hydrogelators which present high elastic modulus up to 104–105 Pa [105,106,107,108].

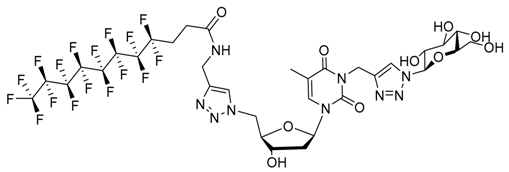

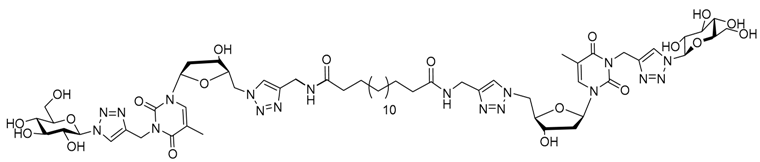

The molecules used to obtain such results are glycolipids based. Full rheological data about supramolecular assemblies composed of glycoconjugates are not always found but is very useful for the characterization of glycolipids based gels. The rheological data of self-assembled glycoconjugate based gels are summarized in Table 4.

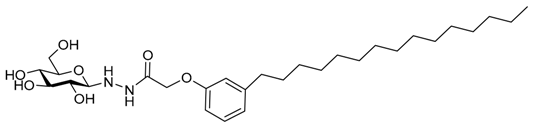

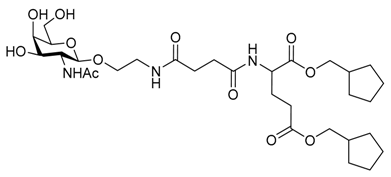

Except for the molecule developed by Prasad et al. [107], the glycolipids are solvated in water allowing potential applications in the medical field. They are all prepared with low concentrations of gelator molecules (<10% (w/w)) compared to the polymeric gels. Fitremann et al. [109] developed a weak hydrogel presenting a low biocompatibility for neural cell culture. It’s a first approach for this generation of glycolipids, which will need tuning to improve the biocompatibility but also the Tgelsol for biomedical applications. Barthélémy’s group found a way to design specific glycolipids allowing biomedical applications and personalization of the biomaterial with various mechanical strengths. The incorporation of a nucleoside in the glycolipid structure add a coding information and these inspired molecules present high cytocompatibility [101,102]. The glyconucleolipid is the basic structure and different generations were synthetized from this skeleton: Glycosyl-Nucleoside Fluorinated amphiphiles (GNF) [101,102,110,111] and also Glycosyl-Nucleoside Bola-Amphiphiles (GNBA) [103,105,106]. Each hydrogel obtained with this glyconucleolipid structure presents specific rheological parameters, which were used to tune the molecule design. This tuning was done to improve the mechanical strength essentially to widen the biomedical applications (scaffold for stem cells, osteoblastic cells, etc.) [102,103,104,107]. These modifications could also affect other parameters such as the Tgelsol. Indeed, for the GNBA carbamate, an increase of the mechanical strength was observed compared to the previously synthetized GNBA [105] but also a decrease of the Tgelsol (36.3 °C) preventing biomedical applications for the moment. That’s why the association of organic chemistry and physico-chemical characterization (rheology) is essential to guide the design of new glycolipid molecules able to self-assemble.
The viscoelastic behaviour could also be analyzed by indentation and not only rheology. Ikeda et al. used atomic force microscopy (AFM) indentation to characterize the elastic modulus of their strong hydrogel for an application on prostate cancer cells [108].
Glycoconjugate are not only forming gel in water but also in various solvents and vegetal oils. The organogel obtain in cyclohexane exhibits a mechanical strength comparable to polymeric gels at very low concentrations (0.6% (w/w)) [107]. Even if no real applications are proposed for this new LMWG, it is a very promising new way to obtain glycolipids from renewable resources. The gelification of such molecules in vegetable oils open the way to new applications in the pharmaceutical and cosmetic fields for example.
The rheological parameters of a gel are very important for the potential biological applications: scaffold for cell’s culture, drug delivery systems, and regenerative medicine. Moreover with the examples presented here, the impact of the chemical structure on the LMWGs is clearly identified. Rheological characterization need to be compulsory for supramolecular gels allowing molecular screening and fine-tuning to adapt the chemical structure to the application.

6. Conclusions

Despite the substantial progress in the synthesis of soft materials, i.e., the formation of supramolecular gels with low molecular weight gelators, there is still a significant need to design, synthesize, and evaluate new glycoconjugate amphiphiles for an access to biomaterials possessing the required properties for different biomedical fields, including regenerative medicine, drug delivery or tissue engineering. Much of this activity is mainly driven by the current weak viscoelastic properties of the synthetic amphiphile gelators as well as the lack of biocompatibility for in vivo applications. With this in mind, polymer-free biomaterials that can overcome these two major hurdles are highly sought after. It is clear that the modulation of the elastic modulus (G’) and the thixotropy propreties are important limiting parameters of supramolecular biomaterials. Therefore, the design of glycoconjugate that self-assemble in a controlled manner would provide new biomaterials for constructing sophisticated supramolecular gels.
Although the control of supramolecular gel properties is still under investigation, it is important to avoid inflammatory response once this type of bioinspired material is injected or implanted in vivo. Nevertheless the chemistry of glycoconjugate amphiphiles has much to offer to the vast domain of biomedicine. Indeed, playing with the chemical diversity of the sugar code can modulate and/or trigger biological responses. The role of synthetic carbohydrate chemistry for designing and synthesizing carbohydrate derivatives featuring biological properties can be illustrated in the context of vaccines with two recent reports. In a recent publication Gauthier et al. hypothesized that the chemical modification of lipopolysaccharide (LPS)-based vaccines antigen could have a strong impact on immune responses [112]. To validate this hypothesis they prepared several oligosaccharides with the aim of deciphering the immunogenic epitopes of surface polysaccharides. They demonstrated that synthetic chemistry and sugar modifications were crucial for recognition. In another recent report Guler et al. investigated the physico and biological properties of novel mannosylated glycopeptides. Interestingly, the nanofibers resulting from the self-assemblies of these amphiphiles were well adapted for the delivery of immunogenic mimetic antigens [113].
The future development of the glycoconjugate amphiphiles, in particular the synthetic access to a large diversity of molecular and supramolecular structures, will certainly witness exciting discoveries in different biomedical areas, including biomaterials, medicinal chemistry or vaccination.

Acknowledgments

This work, realized within the framework of the Laboratory of Excellence AMADEus with the reference ANR-10-LABX-0042-AMADEUS, has benefitted from aid by the “French National Research Program for Environmental and occupational Health of ANSES” (2015/1/072).

Author Contributions

L.L., A.G. and P.B. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Delbianco, M.; Bharate, P.; Varela-Aramburu, S.; Seeberger, P.H. Carbohydrates in Supramolecular Chemistry. Chem. Rev. 2016, 116, 1693–1752. [Google Scholar] [CrossRef] [PubMed]
  2. Gabius, H.-J.; André, S.; Jiménez-Barbero, J.; Romero, A.; Solís, D. From Lectin Structure to Functional Glycomics: Principles of the Sugar Code. Trends Biochem. Sci. 2011, 36, 298–313. [Google Scholar] [CrossRef] [PubMed]
  3. Bertozzi, C.R.; Kiessling, L.L. Chemical glycobiology. Science 2001, 291, 2357–2364. [Google Scholar] [CrossRef] [PubMed]
  4. Mammen, M.; Choi, S.K.; Whitesides, G.M. Polyvalent Interactions in Biological Systems: Implications for Design and Use of Multivalent Ligands and Inhibitors. Angew. Chem. Int. Ed. 1998, 37, 2754–2794. [Google Scholar] [CrossRef]
  5. Taylor, M.E.; Drickamer, K. Introduction to Glycobiology, 1st ed.; Oxford University Press: New York, NY, USA, 2003; pp. 122–154. [Google Scholar]
  6. Lepenies, B.; Yin, J.; Seeberger, P.H. Applications of Synthetic Carbohydrates to Chemical Biology. Curr. Opin. Chem. Biol. 2010, 14, 404–411. [Google Scholar] [CrossRef] [PubMed]
  7. Roy, R. Syntheses and Some Applications of Chemically Defined Multivalent Glycoconjugates. Curr. Opin. Struct. Biol. 1996, 6, 692–702. [Google Scholar] [CrossRef]
  8. Bhat, R.; Belardi, B.; Mori, H.; Kuo, P.; Tam, A.; Hines, W.C.; Le, Q.-T.; Bertozzi, C.R.; Bissell, M.J. Nuclear Repartitioning of Galectin-1 by an Extracellular Glycan Switch Regulates Mammary Morphogenesis. Proc. Natl. Acad. Sci. USA 2016, 113, E4820–E4827. [Google Scholar] [CrossRef] [PubMed]
  9. Thurston, T.L.M.; Wandel, M.P.; Muhlinen, N.; von Foeglein, A.; Randow, F. Galectin 8 Targets Damaged Vesicles for Autophagy to Defend Cells against Bacterial Invasion. Nature 2012, 482, 414–418. [Google Scholar] [CrossRef] [PubMed]
  10. Lundquist, J.J.; Toone, E.J. The Cluster Glycoside Effect. Chem. Rev. 2002, 102, 555–578. [Google Scholar] [CrossRef] [PubMed]
  11. Taylor, M.E.; Drickamer, K. Contribution to Ligand Binding by Multiple Carbohydrate-Recognition Domains in the Macrophage Mannose Receptor. J. Biol. Chem. 1992, 267, 1719–1726. [Google Scholar] [PubMed]
  12. Sherman, S.E.; Xiao, Q.; Percec, V. Mimicking Complex Biological Membranes and Their Programmable Glycan Ligands with Dendrimersomes and Glycodendrimersomes. Chem. Rev. 2017, 117, 6538–6631. [Google Scholar] [CrossRef] [PubMed]
  13. Jayaraman, N.; Maiti, K.; Naresh, K. Multivalent Glycoliposomes and Micelles to Study Carbohydrate–Protein and Carbohydrate–Carbohydrate Interactions. Chem. Soc. Rev. 2013, 42, 4640–4656. [Google Scholar] [CrossRef] [PubMed]
  14. Roy, R.; Kim, J.M. Amphiphilic P-Tert-Butylcalix[4]arene Scaffolds Containing Exposed Carbohydrate Dendrons. Angew. Chem. Int. Ed. 1999, 38, 369–372. [Google Scholar] [CrossRef]
  15. Yokota, S.; Kitaoka, T.; Sugiyama, J.; Wariishi, H. Cellulose I Nanolayers Designed by Self-Assembly of its Thiosemicarbazone on a Gold Substrate. Adv. Mater. 2007, 19, 3368–3370. [Google Scholar] [CrossRef]
  16. Cunha, C.R.A.; Oliveira, A.D.P.R.; Firmino, T.V.C.; Tenório, D.P.L.A.; Pereira, G.; Carvalho, L.B., Jr.; Santos, B.S.; Correia, M.T.S.; Fontes, A. Biomedical applications of glyconanoparticles based on quantum dots. Biochim. Biophys. Acta. 2017, 1862, 427–439. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, B.; Lu, X.; Ruan, H.; Cui, J.; Li, H. Synthesis and Applications of Glyconanoparticles. Curr. Org. Chem. 2016, 20, 1502–1511. [Google Scholar] [CrossRef]
  18. Wang, Y.; Quan, S.; Kumar, P.; Narain, R. Glyconanoparticles: Synthesis and biomedical applications. In RSC Polymer Chemistry Series, Glycopolymer Code: Synthesis of Glycopolymers and their Applications; Becer, C.R., Hartmann, L., Eds.; Royal Society of Chemistry: London, UK, 2015; Volume 15, pp. 196–220. ISBN 978-1-84973-978-8. [Google Scholar]
  19. Sunasee, R.; Adokoh, C.K.; Darkwa, J.; Narain, R. Therapeutic potential of carbohydrate-based polymeric and nanoparticle systems. Expert Opin. Drug Deliv. 2014, 11, 867–884. [Google Scholar] [CrossRef] [PubMed]
  20. Breinbauer, R.; Köhn, M. Azide-Alkyne Coupling: A Powerful Reaction for Bioconjugate Chemistry. ChemBioChem 2003, 4, 1147–1149. [Google Scholar] [CrossRef] [PubMed]
  21. Sletten, E.M.; Bertozzi, C.R. A Hydrophilic Azacyclooctyne for Cu-Free Click Chemistry. Org. Lett. 2008, 10, 3097–3099. [Google Scholar] [CrossRef] [PubMed]
  22. Jewett, J.C.; Bertozzi, C.R. Cu-Free click cycloaddition reactions in chemical biology. Chem. Soc. Rev. 2010, 39, 1272–1279. [Google Scholar] [CrossRef] [PubMed]
  23. Song, S.X.; Zhang, H.L.; Kim, C.G.; Sheng, L.; He, X.P.; Long, Y.T.; Li, J.; Chen, G.R. Expeditious preparation of triazole-linked glycolipids via microwave accelerated click chemistry and their electrochemical and biological assessments. Tetrahedron 2010, 66, 9974–9980. [Google Scholar] [CrossRef]
  24. Goyard, D.; Shiao, T.C.; Fraleigh, N.L.; Vu, H.-Y.; Lee, H.; Diaz-Mitoma, F.; Le, H.T.; Roy, R. Expedient synthesis of functional single-component glycoliposomes using thiol-yne chemistry. J. Mater. Chem. B 2016, 4, 4227–4233. [Google Scholar] [CrossRef]
  25. Salman, S.M.; Heidelberg, T.; Tajuddin, H.A.B. N-linked glycolipids by Staudinger coupling of glycosylated alkyl diazides with fatty acids. Carbohydr. Res. 2013, 375, 55–62. [Google Scholar] [CrossRef] [PubMed]
  26. Ogunsina, M.; Samadder, P.; Idowu, T.; Arthur, G.; Schweizer, F. Design, synthesis and evaluation of cytotoxic properties of bisamino glucosylated antitumor ether lipids against cancer cells and cancer stem cells. Med. Chem. Commun. 2016, 7, 2100–2110. [Google Scholar] [CrossRef]
  27. Gatard, S.; Nasir, M.N.; Deleu, M.; Klai, N.; Legrand, V.; Bouquillon, S. Bolaamphiphiles Derived from Alkenyl L-Rhamnosides and Alkenyl D-Xylosides: Importance of the Hydrophilic Head. Molecules 2013, 18, 6101–6112. [Google Scholar] [CrossRef] [PubMed]
  28. Kulkarni, S.S.; Gervay-Hague, J. Synthesis of glycolipid antigens. In Chemical Glycobiology; ACS Symposium Series; Chen, X., Halcomb, R.L., Wang, P.G., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2008; Volume 990, pp. 153–166. ISBN 978-0-8412-7440-2. [Google Scholar]
  29. Zhang, W.; Zheng, X.; Xia, C.; Perali, R.S.; Yao, Q.; Liu, Y.; Zheng, P.; Wang, P.G. Alpha-lactosylceramide as a novel “sugar-capped” CD1d ligand for natural killer T cells: Biased cytokine profile and therapeutic activities. ChemBioChem 2008, 9, 1423–1430. [Google Scholar] [CrossRef] [PubMed]
  30. Yin, N.; Long, X.; Goff, R.D.; Zhou, D.; Cantu, C.; Mattner, J.; Saint Mezard, P.; Teyton, L.; Bendelac, A.; Savage, P.B. Alpha anomers of iGb3 and Gb3 stimulate cytokine production by natural killer T cells. ACS Chem. Biol. 2009, 4, 199–208. [Google Scholar] [CrossRef] [PubMed]
  31. Zhang, T.Y. Process Chemistry: The Science, Business, Logic, and Logistics. Chem. Rev. 2006, 106, 2583–2595. [Google Scholar] [CrossRef] [PubMed]
  32. Hudlicky, T. Design Constraints in Practical Syntheses of Complex Molecules:  Current Status, Case Studies with Carbohydrates and Alkaloids, and Future Perspectives. Chem. Rev. 1996, 96, 3–30. [Google Scholar] [CrossRef] [PubMed]
  33. Wender, P.A.; Verma, V.A.; Paxton, T.J.; Pillow, T.H. Function-Oriented Synthesis, Step Economy, and Drug Design. Acc. Chem. Res. 2008, 41, 40–49. [Google Scholar] [CrossRef] [PubMed]
  34. Wender, P.A.; Miller, B.L. Synthesis at the molecular frontier. Nature 2009, 460, 197–201. [Google Scholar] [CrossRef] [PubMed]
  35. Hsieh, H.W.; Schombs, M.W.; Witschi, M.A.; Gervay-Hague, J. Regioselective silyl/acetate exchange of disaccharides yields advanced glycosyl donor and acceptor precursors. J. Org. Chem. 2013, 78, 9677–9688. [Google Scholar] [CrossRef] [PubMed]
  36. Hsieh, H.W.; Schombs, M.W.; Gervay-Hague, J. Integrating ReSET with glycosyl iodide glycosylation in step-economy syntheses of tumor-associated carbohydrate antigens and immunogenic glycolipids. J. Org. Chem. 2014, 79, 1736–1748. [Google Scholar] [CrossRef] [PubMed]
  37. Schnaar, R.L.; Gerardy-Schahn, R.; Hildebrand, H. Sialic acids in the brain: Gangliosides and polysialic acid in nervous system development, stability, disease, and regeneration. Physiol. Rev. 2014, 94, 461–518. [Google Scholar] [CrossRef] [PubMed]
  38. Danishefsky, S.J.; Shue, Y.-K.; Chang, M.N.; Wong, C.-H. Development of Globo-H cancer vaccine. Acc. Chem. Res. 2015, 48, 643–652. [Google Scholar] [CrossRef] [PubMed]
  39. Tsai, T.I.; Lee, H.Y.; Chang, S.H.; Wang, C.H.; Tu, Y.C.; Lin, Y.C.; Hwang, D.R.; Wu, C.Y.; Wong, C.H. Effective sugar nucleotide regeneration for the large-scale enzymatic synthesis of Globo H and SSEA4. J. Am. Chem. Soc. 2013, 135, 14831–14839. [Google Scholar] [CrossRef] [PubMed]
  40. Pérez-Labrada, K.; Brouard, I.; Méndez, I.; Pérez, C.S.; Gavín, J.A.; Rivera, D.G. Combined Ugi-4CR/CuAAC approach to triazole-based neoglycolipids. Eur. J. Org. Chem. 2014, 3671–3683. [Google Scholar] [CrossRef]
  41. Jebali, A.; Nayeri, E.K.; Roohana, S.; Aghaei, S.; Ghaffari, M.; Daliri, K.; Fuente, G. Nano-carbohydrates: Synthesis and application in genetics, biotechnology, and medicine. Adv. Colloid Interface Sci. 2017, 240, 1–14. [Google Scholar] [CrossRef] [PubMed]
  42. Sharon, N.; Lis, H. History of lectins: From hemagglutinins to biological recognition molecules. Glycobiology 2004, 14, 53R–62R. [Google Scholar] [CrossRef] [PubMed]
  43. Nangia-Makker, P.; Conklin, J.; Hogan, V.; Raz, A. Carbohydrate-binding proteins in cancer, and their ligands as therapeutic agents. Trends Mol. Med. 2002, 8, 187–192. [Google Scholar] [CrossRef]
  44. Brewer, C.F.; Miceli, M.C.; Baum, L.G. Clusters, bundles, arrays and lattices: Novel mechanisms for lectin-saccharide-mediated cellular interactions. Curr. Opin. Struct. Biol. 2002, 12, 616–623. [Google Scholar] [CrossRef]
  45. Wang, J.L.; Gray, R.M.; Haudek, K.C.; Patterson, R.J. Nucleocytoplasmic lectins. Biochim. Biophys. Acta 2004, 1673, 75–93. [Google Scholar] [CrossRef] [PubMed]
  46. Bojarova, P.; Kren, V. Sugared biomaterial binding lectins: Achievements and perspectives. Biomater. Sci. 2016, 4, 1142–1160. [Google Scholar] [CrossRef] [PubMed]
  47. Roy, R.; Murphy, P.V.; Gabius, H.J. Multivalent Carbohydrate-Lectin Interactions: How Synthetic Chemistry Enables Insights into Nanometric Recognition. Molecules 2016, 21, 629. [Google Scholar] [CrossRef] [PubMed]
  48. Fernández-Bolaños, J.G.; Maya, I.; Oliete, A. Multivalent glycoconjugates in medicinal chemistry. In Carbohydrate Chemistry; Rauter, A.P., Lindhorst, T., Eds.; The Royal Society of Chemistry: Cambrige, UK, 2012; Volume 38, pp. 303–337. ISBN 978-1-84973-439-4. [Google Scholar]
  49. Roy, R.; Shiao, T.C.; Rittenhouse-Olson, K. Glycodendrimers: Versatile tools for nanotachnology. Braz. J. Pharm. Sci. 2013, 49, 85–108. [Google Scholar] [CrossRef]
  50. Szejtli, J. Introduction and General Overview of Cyclodextrin Chemistry. Chem. Rev. 1998, 98, 1743–1753. [Google Scholar] [CrossRef] [PubMed]
  51. Guilloteau, N.; Bienvenu, C.; Charrat, C.; Jimenez Blanco, J.L.; Diaz-Moscoso, A.; Ortiz Mellet, C.; Garcia Fernandez, J.M.; Vierling, P.; Di Giorgio, C. Cell uptake mechanisms of glycosylated cationic pDNA-cyclodextrin nanoparticles. RSC Adv. 2015, 5, 29135–29144. [Google Scholar] [CrossRef]
  52. Diaz-Moscoso, A.; Guilloteau, N.; Bienvenu, C.; Méndez-Ardoy, A.; Jiménez Blanco, J.L.; Benito, J.M.; Le Gourriérec, L.; Di Giorgio, C.; Vierling, P.; Defaye, J.; et al. Mannosyl-coated nanocomplexes from amphiphilic cyclodextrins and pDNA for site-specific gene delivery. Biomaterials 2011, 32, 7263–7273. [Google Scholar] [CrossRef] [PubMed]
  53. Gutsche, C.D. Calixarenes, 2nd ed.; The Royal Society of Chemistry: Cambrige, UK, 2008; ISBN 978-0854042586. [Google Scholar]
  54. Sansone, F.; Rispoli, G.; Casnati, A.; Ungaro, R. Multivalent Glycocalixarenes. In Synthesis and Biological Applications of Glycoconjugates; Renaudet, O., Spinelli, N., Eds.; Bentham Science Publishers Ltd.: Sharjah, UAE, 2011; pp. 36–63. ISBN 978-1-60805-537-1. [Google Scholar]
  55. Bernardi, S.; Fezzardi, P.; Rispoli, G.; Sestito, S.E.; Peri, F.; Sansone, F.; Casnati, A. Clicked and long spaced galactosyl- and lactosylcalix[4]arenes: New multivalent galectin-3 ligands. Beilstein J. Org. Chem. 2014, 10, 1672–1680. [Google Scholar] [CrossRef] [PubMed]
  56. Gutsche, C.D. Synthesis of calixarenes and thiacalixarenes. In Calixarenes 2001; Asfari, Z., Böhmer, V., Harrowfield, J., Vicens, J., Eds.; Kluwer Academic Publishers: Dordrecht, The Netherlands; Boston, MA, USA; London, UK, 2001; pp. 1–25. ISBN 0-7923-6960-2. [Google Scholar]
  57. Hu, Y.; Beshr, G.; Garvey, C.J.; Tabor, R.F.; Titz, A.; Wilkinson, B.L. Photoswitchable Janus Glycodendrimer Micelles as Multivalent Inhibitors of LecA and LecB from Pseudomonas aeruginosa. Colloids Surf. B 2017, 159, 605–612. [Google Scholar] [CrossRef] [PubMed]
  58. Caminade, A.M.; Laurent, R.; Delavaux-Nicot, B.; Majoral, J.P. “Janus” dendrimers: Synthesis and properties. New J. Chem. 2012, 36, 217–226. [Google Scholar] [CrossRef]
  59. Angeli, A.; Li, M.; Dupin, L.; Vergoten, G.; Noël, M.; Madaoui, M.; Wang, S.; Meyer, A.; Géhin, T.; Vidal, S.; et al. Design and Synthesis of Galactosylated Bifurcated Ligands with Nanomolar Affinity for Lectin LecA from Pseudomonas aeruginosa. ChemBioChem 2017, 18, 1036–1047. [Google Scholar] [CrossRef] [PubMed]
  60. L’Haridon, L.; Mallet, J.-M. Carbohydrate-based dendrimers. In Carbohydrate Chemistry; Rauter, A.P., Lindhorst, T., Queneau, Y., Eds.; The Royal Society of Chemistry: Cambrige, UK, 2014; Volume 40, pp. 257–269. ISBN 978-1-84973-965-8. [Google Scholar]
  61. Sharma, R.; Naresh, K.; Chabre, Y.M.; Rej, R.; Saadeh, N.K.; Roy, R. “Onion peel” dendrimers: A straightforward synthetic approach towards highly diversified architectures. Polym. Chem. 2014, 5, 4321–4331. [Google Scholar] [CrossRef]
  62. Thomas, B.; Pifferi, C.; Daskhan, G.C.; Fiore, M.; Berthet, N.; Renaudet, O. Divergent and convergent synthesis of GalNAc-conjugated dendrimers using dual orthogonal ligations. Org. Biomol. Chem. 2015, 13, 11529–11538. [Google Scholar] [CrossRef] [PubMed]
  63. Das, R.; Mukhopadhyay, B. Use of ‘click chemistry’ for the synthesis of carbohydrate-porphyrin dendrimers and their multivalent approach toward lectin sensing. Tetrahedron Lett. 2016, 57, 1775–1781. [Google Scholar] [CrossRef]
  64. McSweeney, L.; Dénès, F.; Scanlan, E.M. Thiyl-Radical Reactions in Carbohydrate Chemistry: From Thiosugars to Glycoconjugate Synthesis. Eur. J. Org. Chem. 2016, 2080–2095. [Google Scholar] [CrossRef]
  65. Jesorka, A.; Orwar, O. Liposomes: Technologies and Analytical Applications. Annu. Rev. Anal. Chem. 2008, 1, 801–832. [Google Scholar] [CrossRef] [PubMed]
  66. Monteiro, N.; Martins, A.; Reis, R.L.; Neves, N.M. Liposomes in tissue engineering and regenerative medicine. J. R. Soc. Interface 2014, 11, 20140459. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Bozzuto, G.; Molinari, A. Liposomes as nanomedical devices. Int. J. Nanomed. 2015, 10, 975–999. [Google Scholar] [CrossRef] [PubMed]
  68. Dos Santos, M.C.; Micheletto, Y.M.S.; da Silveira, N.P.; da Silva Pinto, L.; Giacomelli, F.C.; de Lima, V.R.; Frizon, T.E.A.; Dal-Bó, A.G. Self-assembled carbohydrate-based vesicles for lectin targeting. Colloids Surf. B 2016, 148, 12–18. [Google Scholar] [CrossRef] [PubMed]
  69. Dal Bo, A.G.; Soldi, V.; Giacomelli, F.C.; Jean, B.; Pignot-Paintrand, I.; Borsali, R.; Fort, S. Self-assembled carbohydrate-based micelles for lectin targetting. Soft Matter 2011, 7, 3453–3461. [Google Scholar] [CrossRef]
  70. Micheletto, Y.M.S.; da Silveira, N.P.; Barboza, D.M.; Dos Santos, M.C.; de Lima, V.R.; Giacomelli, F.C.; Martinez, J.C.V.; Frizon, T.E.A.; Dal-Bó, A.G. Investigation of self-association between new glycosurfactant N-acetyl-β-d-glucosaminyl-PEG-docosanate and soybean phosphatidylcholine into vesicles. Colloids Surf. A 2015, 467, 166–172. [Google Scholar] [CrossRef]
  71. Dal-Bó, A.G.; Soldi, V.; Giacomelli, F.C.; Travelet, C.; Borsali, R.; Fort, S. Synthesis, micellization and lectin binding of new glycosurfactants. Carbohydr. Res. 2014, 397, 31–36. [Google Scholar] [CrossRef] [PubMed]
  72. Lowe, A.B. Thiol-yne ‘click’ coupling chemistry and recent applications in polymer and materials synthesis and modification. Polymer 2014, 55, 5517–5549. [Google Scholar] [CrossRef]
  73. Saxon, E.; Bertozzi, C.R. Cell surface engineering by a modified Staudinger reaction. Science 2000, 287, 2007–2010. [Google Scholar] [CrossRef] [PubMed]
  74. Gololobov, Y.G.; Kasukhin, L.F. Recent advances in the Staudinger reaction. Tetrahedron 1992, 48, 1353–1406. [Google Scholar] [CrossRef]
  75. Köhn, M.; Breinbauer, R. The Staudinger Ligation—A Gift to Chemical Biology. Angew. Chem. Int. Ed. 2004, 43, 3106–3116. [Google Scholar] [CrossRef] [PubMed]
  76. Liu, S.; Edgar, K.J. Staudinger Reactions for Selective Functionalization of Polysaccharides: A Review. Biomacromolecules 2015, 16, 2556–2571. [Google Scholar] [CrossRef] [PubMed]
  77. Nilsson, B.L.; Kiessling, L.L.; Raines, R.T. Staudinger Ligation: A Peptide from a Thioester and Azide. Org. Lett. 2000, 2, 1939–1941. [Google Scholar] [CrossRef] [PubMed]
  78. Zhang, H.; Ma, Y.; Sun, X.-L. Chemically-selective surface glyco-functionalization of liposomes through Staudinger ligation. Chem. Commum. 2009, 0, 3032–3034. [Google Scholar] [CrossRef] [PubMed]
  79. Ma, Y.; Zhang, H.; Gruzdys, V.; Sun, X.L. Azide-Reactive Liposome for Chemoselective and Biocompatible Liposomal Surface Functionalization and Glyco-Liposomal Microarray Fabrication. Langmuir 2011, 27, 13097–13103. [Google Scholar] [CrossRef] [PubMed]
  80. Ma, Y.; Jiang, R.; Zhang, H.; Gruzdys, V.; Sun, X.-L. Chemoselectively surface funtionalizable tethered bilayer lipid membrane for versatile membrane mimetic systems fabrication. J. Mater. Chem. 2012, 22, 6148–6155. [Google Scholar] [CrossRef]
  81. Vabbilisetty, P.; Sun, X.-L. Liposome surface functionalization based on different anchoring lipids via Staudinger ligation. Org. Biomol. Chem. 2014, 12, 1237–1244. [Google Scholar] [CrossRef] [PubMed]
  82. Estroff, L.A.; Hamilton, A.D. Water Gelation by Small Organic Molecules. Chem. Rev. 2004, 104, 1201–1218. [Google Scholar] [CrossRef] [PubMed]
  83. Du, X.; Zhou, J.; Shi, J.; Xu, B. Supramolecular Hydrogelators and Hydrogels: From Soft Matter to Molecular Biomaterials. Chem. Rev. 2015, 115, 13165–13307. [Google Scholar] [CrossRef] [PubMed]
  84. Krieg, E.; Bastings, M.M.C.; Besenius, P.; Rybtchinski, B. Supramolecualr Polymers in Aqueous Media. Chem. Rev. 2016, 116, 2414–2477. [Google Scholar] [CrossRef] [PubMed]
  85. Ramos Sasselli, I.; Halling, P.J.; Ulijn, R.V.; Tuttle, T. Supramolecular Fibers in Gels Can Be at Thermodynamic Equilibrium: A Simple Packing Model Reveals Preferential Fibril Formation versus Crystallization. ACS Nano 2016, 10, 2661–2668. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Zhou, J.; Xuewen Du, J.L.; Xu, B. Supramolecular biofunctional materials. Biomaterials 2017, 129, 1–27. [Google Scholar] [CrossRef] [PubMed]
  87. Mei, L.; Xin, Z.; Chao, M.; Huan, Y.; Zceshan, A.; Xianbo, M.; Song, L.; Yan, D.; Nongyue, H. Injectable hydrogels for cartilage and bone tissue engineering. Bone Res. 2017, 5, 17014. [Google Scholar] [CrossRef]
  88. Nguyen, M.K.; Jeon, O.; Krebs, M.D.; Schapira, D.; Alsberg, E. Sustained localized presentation of RNA interfering molecules from in situ forming hydrogels to guide stem cell osteogenic differentiation. Biomaterials 2014, 35, 6278–6286. [Google Scholar] [CrossRef] [PubMed]
  89. Amin, M.C.I.M.; Ahmad, N.; Pandey, M.; Abeer, M.M.; Mohamad, N. Recent advances in the role of supramolecular hydrogels in drug delivery. Expert Opin. Drug Deliv. 2015, 12, 1149–1161. [Google Scholar] [CrossRef] [PubMed]
  90. Xiang, Y.; Oo, N.N.L.; Lee, J.P.; Li, Z.; Loh, X.J. Recent development of synthetic nonviral systems for sustained gene delivery. Drug Discov. Today 2017, 22, 1318–1335. [Google Scholar] [CrossRef] [PubMed]
  91. Khan, M.; Lo, I.M.C. A holistic review of hydrogel applications in the adsorptive removal of aqueous pollutants: Recent progress, challenges, and perspectives. Water Res. 2016, 106, 259–271. [Google Scholar] [CrossRef] [PubMed]
  92. Clemente, M.J.; Fitremann, J.; Mauzac, M.; Serrano, J.L.; Oriol, L. Synthesis and Characterization of Maltose-Based Amphiphiles as Supramolecular Hydrogelators. Langmuir 2011, 27, 15236–15247. [Google Scholar] [CrossRef] [PubMed]
  93. Clemente, M.J.; Romero, P.; Serrano, J.L.; Fitremann, J.; Oriol, L. Supramolecular Hydrogels Based on Glycoamphiphiles: Effect of the Disaccharide Polar Head. Chem. Mater. 2012, 24, 3847–3858. [Google Scholar] [CrossRef]
  94. Goodby, J.; Cowling, S.; Davis, E.; Queneau, Y. Liquid Crystal Glycolipids. In Carbohydrate Chemistry; Rauter, A.P., Lindhorst, T., Queneau, Y., Eds.; The Royal Society of Chemistry: Cambrige, UK, 2014; Volume 40, pp. 312–340. ISBN 978-1-84973-965-8. [Google Scholar]
  95. Goodby, J.W.; Görtz, V.; Cowling, S.J.; Mackenzie, G.; Martin, P.; Plusquellec, D.; Benvegnu, T.; Boullanger, P.; Lafont, D.; Queneau, Y.; et al. Thermotropic liquid crystalline glycolipids. Chem. Soc. Rev. 2007, 36, 1971–2032. [Google Scholar] [CrossRef] [PubMed]
  96. Hashim, R.; Sugimura, A.; Minamikawa, H.; Heidelberg, T. Nature-like synthetic alkyl branched-chain glycolipids: A review on chemical structure and self-assembly properties. Liq. Cryst. 2012, 39, 1–17. [Google Scholar] [CrossRef]
  97. Garidel, P.; Kaconis, Y.; Heinbockel, L.; Wulf, M.; Gerber, S.; Munk, A.; Vill, V.; Brandenburg, K. Self-Organisation, Thermotropic and Lyotropic Properties of Glycolipids Related to their Biological Implications. Open Biochem. J. 2015, 9, 49–72. [Google Scholar] [CrossRef] [PubMed]
  98. Liu, K.; Chen, D.; Marcozzi, A.; Zheng, L.; Su, J.; Pesce, D.; Zajaczkowski, W.; Kolbe, A.; Pisula, W.; Müllen, K.; et al. Thermotropic liquid crystals from biomacromolecules. Proc. Natl. Acad. Sci. USA 2014, 111, 18596–18600. [Google Scholar] [CrossRef] [PubMed]
  99. Ochi, R.; Kurotani, K.; Ikeda, M.; Kiyonaka, S.; Hamachi, I. Supramolecular hydrogels based on bola-amphiphilic glycolipids showing color change in response to glycosidases. Chem. Commun. 2013, 49, 2115–2117. [Google Scholar] [CrossRef] [PubMed]
  100. Dawn, A.; Kumari, H. Low Molecular Weight Supramolecular Gels Under Shear: Rheology as the Tool for Elucidating Structure-Function Correlation. Chem. Eur. J. 2017, 23, 1–16. [Google Scholar] [CrossRef] [PubMed]
  101. Godeau, G.; Brun, C.; Arnion, H.; Staedel, C.; Barthlémy, P. Glycosyl-nucleoide fluorinated amphiphiles as components of nanostructures hydrogels. Tetrahedron Lett. 2010, 1, 1012–1015. [Google Scholar] [CrossRef]
  102. Ziane, S.; Schlaubitz, S.; Miraux, S.; Patwa, A.; Lalande, C.; Bilem, I.; Lepreux, S.; Rousseau, B.; Le Meins, J.F.; Latxague, L.; et al. A thermosensitive low molecular weight hydrogel as scaffold for tissue engineering. Eur. Cells Mater. 2012, 23, 147–160. [Google Scholar] [CrossRef]
  103. Latxague, L.; Ramin, M.A.; Appavoo, A.; Berto, P.; Maisani, M.; Ehret, C.; Chassande, O.; Barthélémy, P. Control of Stem-Cell Behavior by Fine Tuning the Supramolecular Assemblies of Low-Molecular-Weight Gelators. Angew. Chem. Int. Ed. 2015, 54, 4517–4521. [Google Scholar] [CrossRef] [PubMed]
  104. Zhang, Y.; Yang, Z.; Yuan, F.; Gu, H.; Gao, P.; Xu, B. Molecular recognition remolds the self-assembly of hydrogelators and increases the elasticity of the hydrogel by 106-fold. J. Am. Chem. Soc. 2004, 126, 15028–15029. [Google Scholar] [CrossRef] [PubMed]
  105. Latxague, L.; Gaubert, A.; Maleville, D.; Baillet, J.; Ramin, M.A.; Barthélémy, P. Carbamate-based bolaamphiphile as low-molecular-weight hydrogelators. Gels 2016, 2, 25. [Google Scholar] [CrossRef]
  106. Ramin, M.A.; Latxague, L.; Sindhu, K.R.; Chassande, O.; Barthélémy, P. Low molecular weight hydrogels derived from urea based-bolaamphiphiles as new injectable biomaterials. Biomaterials 2017, 145, 72–80. [Google Scholar] [CrossRef] [PubMed]
  107. Prasad, Y.S.; Miryala, S.; Lalitha, K.; Ranjitha, K.; Barbhaiwala, S.; Sridharan, V.; Maheswari, C.U.; Srinandan, C.S.; Nagarajan, S. Disassembly of Bacterial Biofilms by the SelfAssembled Glycolipids Derived from Renewable Resources. ACS Appl. Mater. Interfaces 2017, 9, 40047–40058. [Google Scholar] [CrossRef] [PubMed]
  108. Ikeda, M.; Ochi, R.; Wadaa, A.; Hamachi, I. Supramolecular hydrogel capsule showing prostate specific antigen-responsive function for sensing and targeting prostate cancer cells. Chem. Sci. 2010, 1, 491–498. [Google Scholar] [CrossRef]
  109. Fitremann, J.; Lonetti, B.; Fratini, E.; Fabing, I.; Payré, B.; Boulé, C.; Loubinoux, I.; Vaysse, L.; Oriol, L. A shear-induced network of aligned wormlike micelles in a sugar-based molecular gel. From gelation to biocompatibility assays. J. Colloid Interface Sci. 2017, 504, 721–730. [Google Scholar] [CrossRef] [PubMed]
  110. Maisani, M.; Ziane, S.; Ehret, C.; Levesque, L.; Siadous, R.; Le Meins, J.F.; Chevalier, P.; Barthélémy, P.; De Oliviera, H.; Amédée, J.; et al. A new composite hydrogel combining the biological properties of collagen with the mechanical proerties of a supramolecular scaffold for bone tissue engineering. J. Tissue Eng. Regen. Med. 2017. [Google Scholar] [CrossRef] [PubMed]
  111. Patwa, A.; Labille, J.; Bottero, J.Y.; Thiéry, A.; Barthélémy, P. Decontamination of nanoparticles from aqueous samples using supramolecular gels. Chem. Commun. 2015, 51, 2547–2550. [Google Scholar] [CrossRef] [PubMed]
  112. Tamigney Kenfack, M.; Mazur, M.; Nualnoi, T.; Shaffer, T.L.; Ngassimou, A.; Blériot, Y.; Marrot, J.; Marchetti, R.; Sintiprungrat, K.; Chantratita, N.; et al. Deciphering minimal antigenic epitopes associated with Burkholderia pseudomallei and Burkholderia mallei lipopolysaccharide O-antigens. Nat. Commun. 2017, 8, 115. [Google Scholar] [CrossRef] [PubMed]
  113. Gunay, G.; Sardan Ekiz, M.; Ferhati, X.; Richichi, B.; Nativi, C.; Tekinay, A.B.; Guler, M.O. Antigenic GM3 Lactone Mimetic Molecule Integrated Mannosylated Glycopeptide Nanofibers for the Activation and Maturation of Dendritic Cells. ACS Appl. Mater. Interfaces 2017, 9, 16035–16042. [Google Scholar] [CrossRef] [PubMed]
Molecules 23 00089 sch001 550
Scheme 1. Synthesis of the saccharide moiety 8 of isoglobotriaosyl ceramide (iGb3). Reagents and Conditions: (i) Ac2O, Py, 3 eq. AcOH, MW, 125 °C, 1.25 h; (ii) excess Ac2O, Py, 3 eq. AcOH, MW, 125 °C, 1.25 h; (iii) Pd(OH)2/C, H2 1 atm, MeOH, 0.5 h, 91%; (iv) 1-acetyl-2,3,4,6-benzyloxy-β-d-galatopyranoside, TMSI, DCM, 0 °C, 0.5 h then AgOTf, 4A MS, DCM, −78 to −30 °C, 4 h, 44%; (v) Pd(OH)2/C, H2 1 atm, MeOH, 1 h then Ac2O, TEA, cat DMAP, DCM, 3 h, 85%.
Scheme 1. Synthesis of the saccharide moiety 8 of isoglobotriaosyl ceramide (iGb3). Reagents and Conditions: (i) Ac2O, Py, 3 eq. AcOH, MW, 125 °C, 1.25 h; (ii) excess Ac2O, Py, 3 eq. AcOH, MW, 125 °C, 1.25 h; (iii) Pd(OH)2/C, H2 1 atm, MeOH, 0.5 h, 91%; (iv) 1-acetyl-2,3,4,6-benzyloxy-β-d-galatopyranoside, TMSI, DCM, 0 °C, 0.5 h then AgOTf, 4A MS, DCM, −78 to −30 °C, 4 h, 44%; (v) Pd(OH)2/C, H2 1 atm, MeOH, 1 h then Ac2O, TEA, cat DMAP, DCM, 3 h, 85%.
Molecules 23 00089 sch001
Molecules 23 00089 g001 550
Figure 1. LLG-3 ganglioside structure.
Figure 1. LLG-3 ganglioside structure.
Molecules 23 00089 g001
Molecules 23 00089 g002 550
Figure 2. Globo-H.
Figure 2. Globo-H.
Molecules 23 00089 g002
Molecules 23 00089 sch002 550
Scheme 2. Synthetic pathway of sugar-triazol-ceramides.
Scheme 2. Synthetic pathway of sugar-triazol-ceramides.
Molecules 23 00089 sch002
Molecules 23 00089 sch003 550
Scheme 3. Synthetic pathway of a multivalent polycationic glyco-amphiphile cyclodextrin. Reagents and Conditions: (i) DCM, TEA, 98%; (ii) NaOMe/MeOH, 97%; (iii) 2% TFA, 99%; (iv) SCN(CH2)6NCS, acetone-H2O, 52%; (v) DMF, TEA, 40 °C, 48 h, 84%; (vi) TFA-DCM, r.t., 3 h, freeze-drying from diluted HCl, 99%.
Scheme 3. Synthetic pathway of a multivalent polycationic glyco-amphiphile cyclodextrin. Reagents and Conditions: (i) DCM, TEA, 98%; (ii) NaOMe/MeOH, 97%; (iii) 2% TFA, 99%; (iv) SCN(CH2)6NCS, acetone-H2O, 52%; (v) DMF, TEA, 40 °C, 48 h, 84%; (vi) TFA-DCM, r.t., 3 h, freeze-drying from diluted HCl, 99%.
Molecules 23 00089 sch003
Molecules 23 00089 sch004 550
Scheme 4. Synthesis of glycosyl calix[4]arenes from tetraamino calixarenes. Reagents and Conditions: (i) ClC(O)CH2Cl, DIPEA, DCM, room temperature, 6 h (55%); (ii) NaN3, MeOH/DMF, reflux, 1 h (75%); (iii) CuSO4.5H2O, Na-ascorbate, DMF/H2O, MW (150 W), 80 °C, 20 min (81%); (iv) NaOMe/MeOH, room temperature, 1 h (quantitative).
Scheme 4. Synthesis of glycosyl calix[4]arenes from tetraamino calixarenes. Reagents and Conditions: (i) ClC(O)CH2Cl, DIPEA, DCM, room temperature, 6 h (55%); (ii) NaN3, MeOH/DMF, reflux, 1 h (75%); (iii) CuSO4.5H2O, Na-ascorbate, DMF/H2O, MW (150 W), 80 °C, 20 min (81%); (iv) NaOMe/MeOH, room temperature, 1 h (quantitative).
Molecules 23 00089 sch004
Molecules 23 00089 sch005 550

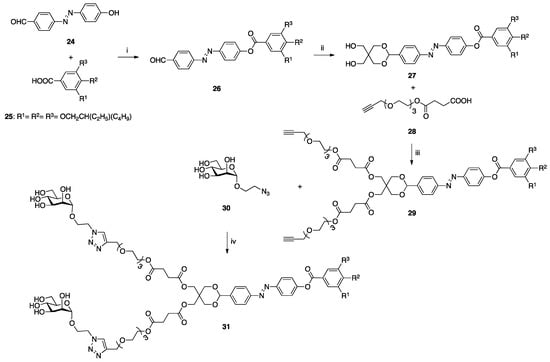

Scheme 5. Synthesis of a d-mannose dendrimer amphiphile Reagents and Conditions: (i) 4-(dimethylamino)pyridinium p-toluenesulfonate, DCC, DCM, 56–61%; (ii) pentaerythritol, PTSA, DMF, 50 °C, 46–61%; (iii) 4-(dimethylamino)pyridinium p-toluenesulfonate, DCC, DCM, 46–67%; (iv) CuSO4, sodium ascorbate, THF/water (2:1 v/v), 40 °C, 31–54%.
Scheme 5. Synthesis of a d-mannose dendrimer amphiphile Reagents and Conditions: (i) 4-(dimethylamino)pyridinium p-toluenesulfonate, DCC, DCM, 56–61%; (ii) pentaerythritol, PTSA, DMF, 50 °C, 46–61%; (iii) 4-(dimethylamino)pyridinium p-toluenesulfonate, DCC, DCM, 46–67%; (iv) CuSO4, sodium ascorbate, THF/water (2:1 v/v), 40 °C, 31–54%.
Molecules 23 00089 sch005
Molecules 23 00089 sch006 550
Scheme 6. Synthesis of a dissacharide unit starting from trichloroacetimidate 32. Reagents and Conditions: (i) 3-Azidopropanol, TMSOTf, DCM, 0 °C, 81%; (ii) NaOMe, MeOH, 96%; (iii) tBu2Si(OTf)2, Py, 94%; (iv) TMSOTf, DCM, 0 °C, 80%; (v) (HF)n·Py, THF, 0 °C, 95%; (vi) SO3·Me3N, DMF, 100 °C, MW, 85%; (vi) LiOH, H2O2, THF; NaOH, MeOH/H2O; Ac2O, Et3N, MeOH/H2O, 73%.
Scheme 6. Synthesis of a dissacharide unit starting from trichloroacetimidate 32. Reagents and Conditions: (i) 3-Azidopropanol, TMSOTf, DCM, 0 °C, 81%; (ii) NaOMe, MeOH, 96%; (iii) tBu2Si(OTf)2, Py, 94%; (iv) TMSOTf, DCM, 0 °C, 80%; (v) (HF)n·Py, THF, 0 °C, 95%; (vi) SO3·Me3N, DMF, 100 °C, MW, 85%; (vi) LiOH, H2O2, THF; NaOH, MeOH/H2O; Ac2O, Et3N, MeOH/H2O, 73%.
Molecules 23 00089 sch006
Molecules 23 00089 sch007 550
Scheme 7. Synthesis of a hexavalent glycodendrimer via CuAAC coupling Reagents and Conditions: CuSO4·5H2O, sodium ascorbate, TBTA, DMSO/PBS buffer, room temperature, overnight, quantitative.
Scheme 7. Synthesis of a hexavalent glycodendrimer via CuAAC coupling Reagents and Conditions: CuSO4·5H2O, sodium ascorbate, TBTA, DMSO/PBS buffer, room temperature, overnight, quantitative.
Molecules 23 00089 sch007
Molecules 23 00089 sch008 550
Scheme 8. Synthesis of stearoyl amphiphiles, GlcNAc 46 and Lac 47. Reagents and Conditions: (i) TsCl, Ag2O, KI, DCM, 55%; (ii) NaN3, DMF, 85%; (iii) DCC, DMAP, stearic acid, DCM, 82%; (iv) CuSO4, sodium ascorbate, propargyl-2-N-acetamido-2-deoxy-β-d-glucopyranoside, THF/H2O, 72%; (v) CuSO4, sodium ascorbate, propargyl-β-lactopyranoside, THF/H2O, 67%.
Scheme 8. Synthesis of stearoyl amphiphiles, GlcNAc 46 and Lac 47. Reagents and Conditions: (i) TsCl, Ag2O, KI, DCM, 55%; (ii) NaN3, DMF, 85%; (iii) DCC, DMAP, stearic acid, DCM, 82%; (iv) CuSO4, sodium ascorbate, propargyl-2-N-acetamido-2-deoxy-β-d-glucopyranoside, THF/H2O, 72%; (v) CuSO4, sodium ascorbate, propargyl-β-lactopyranoside, THF/H2O, 67%.
Molecules 23 00089 sch008
Molecules 23 00089 g003 550
Figure 3. Transmission electronic microscopy (TEM) images for the self-assemblies of 46 (a) and 47 (b) (taken with permission from reference [69]).
Figure 3. Transmission electronic microscopy (TEM) images for the self-assemblies of 46 (a) and 47 (b) (taken with permission from reference [69]).
Molecules 23 00089 g003
Molecules 23 00089 sch009 550
Scheme 9. Thiol-yne/ene chemistry for the synthesis of GLs. Reagents and Conditions: (i) Propargyl alcohol, BF3·OEt2, DCM, 0 °C to room temperature, 2 h, 91%; (ii) CH3CH2(CH2CH2)nSH, AIBN, dioxane, 100 °C, 1 h, 95%; (iii) MeONa, MeOH, room temperature, 1 h, 96%.
Scheme 9. Thiol-yne/ene chemistry for the synthesis of GLs. Reagents and Conditions: (i) Propargyl alcohol, BF3·OEt2, DCM, 0 °C to room temperature, 2 h, 91%; (ii) CH3CH2(CH2CH2)nSH, AIBN, dioxane, 100 °C, 1 h, 95%; (iii) MeONa, MeOH, room temperature, 1 h, 96%.
Molecules 23 00089 sch009
Molecules 23 00089 sch010 550
Scheme 10. Chemically-selective glycol-functionalization of liposomes by Staudinger ligation. Reagents and Conditions: (i) DCM, TEA (50% Chol-PEG2000-TP, 30% DSPE-PEG2000-TP); (ii) Liposome formulation then Staudinger ligation with 1-(2-azido)ethyl lactopyranoside.
Scheme 10. Chemically-selective glycol-functionalization of liposomes by Staudinger ligation. Reagents and Conditions: (i) DCM, TEA (50% Chol-PEG2000-TP, 30% DSPE-PEG2000-TP); (ii) Liposome formulation then Staudinger ligation with 1-(2-azido)ethyl lactopyranoside.
Molecules 23 00089 sch010
Molecules 23 00089 sch011 550
Scheme 11. Synthesis of lipidic disaccharides by CuAAC cycloaddition Reagents and Conditions: (i) C15H31CO2H, THF, DCC/HOBt, room temperature, 2 days, 75%; (ii) Malt(OAc)7-N3 or Cell(OAc)7-N3 or Lact(OAc)7-N3, CuBr, PMDETA, 87%, 80% and 81% resp. then MeONa, MeOH, 85–90%, 77% and 80% resp.
Scheme 11. Synthesis of lipidic disaccharides by CuAAC cycloaddition Reagents and Conditions: (i) C15H31CO2H, THF, DCC/HOBt, room temperature, 2 days, 75%; (ii) Malt(OAc)7-N3 or Cell(OAc)7-N3 or Lact(OAc)7-N3, CuBr, PMDETA, 87%, 80% and 81% resp. then MeONa, MeOH, 85–90%, 77% and 80% resp.
Molecules 23 00089 sch011
Molecules 23 00089 g004 550
Figure 4. FESEM images of a single ribbon of Cell-Tz-C16 (0.5 wt % water) xerogel on the left and of Lact-Tz-C16 on the right (1 wt % water) (taken with permission from reference [93]).
Figure 4. FESEM images of a single ribbon of Cell-Tz-C16 (0.5 wt % water) xerogel on the left and of Lact-Tz-C16 on the right (1 wt % water) (taken with permission from reference [93]).
Molecules 23 00089 g004
Molecules 23 00089 sch012 550

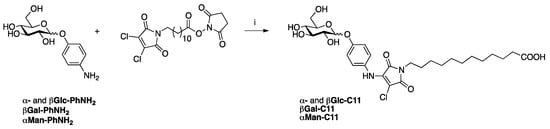

Scheme 12. Synthesis of asymmetric glycol bola-amphiphiles. Reagents and Conditions: (i) DIEA, DMF, room temperature, 24 h, 64% βGlc-C11, αGlc-C11 and βGal-C11, 80% αMan-C11.
Scheme 12. Synthesis of asymmetric glycol bola-amphiphiles. Reagents and Conditions: (i) DIEA, DMF, room temperature, 24 h, 64% βGlc-C11, αGlc-C11 and βGal-C11, 80% αMan-C11.
Molecules 23 00089 sch012
Molecules 23 00089 g005 550
Figure 5. (A) Structure of the complex Vancomycin—pyrene d-Ala-d-Ala contained in the self-assembling system; (B) Evolution of the elastic modulus (G’) function of the frequency for the hydrogel with or without vancomycin (taken with permission from [86,104]).
Figure 5. (A) Structure of the complex Vancomycin—pyrene d-Ala-d-Ala contained in the self-assembling system; (B) Evolution of the elastic modulus (G’) function of the frequency for the hydrogel with or without vancomycin (taken with permission from [86,104]).
Molecules 23 00089 g005
Table
Table 1. Some illustrative synthetic strategies for GL formation. More detailed examples will be discussed in the following paragraphs.
Table 1. Some illustrative synthetic strategies for GL formation. More detailed examples will be discussed in the following paragraphs.
Molecules 23 00089 i001[23]CuAAC click-chemistry
Molecules 23 00089 i002[24]Thiol-yne click chemistry
Molecules 23 00089 i003[25]Staudinger reaction + activated carbonyl
Molecules 23 00089 i004[26]Thioglycosidation method
Molecules 23 00089 i005[27]Fisher glycosidation + metathesis
Table
Table 2. Examples of sphingolipids with α-Lac Cer, α-Gb3 and α-iGb3.
Table 2. Examples of sphingolipids with α-Lac Cer, α-Gb3 and α-iGb3.
Molecules 23 00089 i006
Molecules 23 00089 i007
Table
Table 3. Mechanisms for the Staudinger reaction and ligation in water. Note that the Staudinger ligation leaves a diphenylphosphine residue in the molecule. The “traceless” Staudinger ligation (especially useful in peptide synthesis) [77] is not depicted here.
Table 3. Mechanisms for the Staudinger reaction and ligation in water. Note that the Staudinger ligation leaves a diphenylphosphine residue in the molecule. The “traceless” Staudinger ligation (especially useful in peptide synthesis) [77] is not depicted here.
Staudinger reduction
Molecules 23 00089 i008
Staudinger ligation
Molecules 23 00089 i009
Table
Table 4. Rheological characterization of low molecular weight hydrogelators self assembled of glycolipids and their applications.
Table 4. Rheological characterization of low molecular weight hydrogelators self assembled of glycolipids and their applications.
SolventConcentration % (w/w)Morphological StructureG’ (Pa)Thixotropic BehaviourTgelsol (°C)ApplicationsRef.
Molecules 23 00089 i010
Water2Wormlike micelles≈500 Yes29Reduced biocompatibility[109]
Molecules 23 00089 i011
Water1.5Nanofibers800 Yes52Matrix for cell culture Biomaterial Decontamination[101,102,110,111]
Molecules 23 00089 i012
Water11.55 mMNanofibers5 × 103Yes62Injection in mice Biomaterial[106]
Molecules 23 00089 i013
Water11.55 mMNanofibers12 × 103Yes79Injection in mice No foreign body reaction[106]
Molecules 23 00089 i014
Water2Nanofibers30 × 103Yes46Scaffold for stem cells[103]
Molecules 23 00089 i015
Water4Nanofibers57 × 103Yes36No biomedical application for the moment[105]
Molecules 23 00089 i016
Water5Nanofibers63 × 103--Enzyme/cell responsive capsule[108]
Molecules 23 00089 i017
Cyclohexane0.6Nanofibers100 × 103-49No application for the moment[107]

Share and Cite

MDPI and ACS Style

Latxague, L.; Gaubert, A.; Barthélémy, P. Recent Advances in the Chemistry of Glycoconjugate Amphiphiles. Molecules 2018, 23, 89. https://doi.org/10.3390/molecules23010089

AMA Style

Latxague L, Gaubert A, Barthélémy P. Recent Advances in the Chemistry of Glycoconjugate Amphiphiles. Molecules. 2018; 23(1):89. https://doi.org/10.3390/molecules23010089

Chicago/Turabian Style

Latxague, Laurent, Alexandra Gaubert, and Philippe Barthélémy. 2018. "Recent Advances in the Chemistry of Glycoconjugate Amphiphiles" Molecules 23, no. 1: 89. https://doi.org/10.3390/molecules23010089

Article Metrics

Back to TopTop
