Article

Synthesis of Pyridazine Derivatives by Suzuki-Miyaura Cross-Coupling Reaction and Evaluation of Their Optical and Electronic Properties through Experimental and Theoretical Studies

by
Sara S. M. Fernandes
1,
João Aires-de-Sousa
2,
Michael Belsley
3 and
M. Manuela M. Raposo
1,*
1
Centro de Química, Universidade do Minho, Campus de Gualtar, 4710-057 Braga, Portugal
2
LAQV and Departamento de Química, Faculdade de Ciências e Tecnologia, Universidade Nova de Lisboa, 2829-516 Caparica, Portugal
3
Centro de Física, Universidade do Minho, Campus de Gualtar, 4710-057 Braga, Portugal
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(11), 3014; https://doi.org/10.3390/molecules23113014
Submission received: 1 October 2018 / Revised: 2 November 2018 / Accepted: 11 November 2018 / Published: 18 November 2018
(This article belongs to the Special Issue Frontiers in Metal-Catalysed Cross-Coupling Reactions for the Synthesis and Functionalisation of Heterocycles)
Browse Figures
Versions Notes

Abstract

:
A series of π-conjugated molecules, based on pyridazine and thiophene heterocycles 3a–e, were synthesized using commercially, or readily available, coupling components, through a palladium catalyzed Suzuki-Miyaura cross-coupling reaction. The electron-deficient pyridazine heterocycle was functionalized by a thiophene electron-rich heterocycle at position six, and different (hetero)aromatic moieties (phenyl, thienyl, furanyl) were functionalized with electron acceptor groups at position three. Density Functional Theory (DFT) calculations were carried out to obtain information on the conformation, electronic structure, electron distribution, dipolar moment, and molecular nonlinear response of the synthesized push-pull pyridazine derivatives. Hyper-Rayleigh scattering in 1,4-dioxane solutions, using a fundamental wavelength of 1064 nm, was used to evaluate their second-order nonlinear optical properties. The thienylpyridazine functionalized with the cyano-phenyl moiety exhibited the largest first hyperpolarizability (β = 175 × 10−30 esu, using the T convention) indicating its potential as a second harmonic generation (SHG) chromophore.

Graphical Abstract

1. Introduction

Few reactions have contributed to enhancing the efficiency of organic synthesis as much as the palladium-catalyzed cross-couplings. The reactions are used in research worldwide as well as in the commercial production of pharmaceuticals and a variety of molecules are utilized in the electronics industry, amongst other examples.
Among a diverse number of palladium-catalyzed cross couplings, the Suzuki-Miyaura cross-coupling reaction offers, at present, one of the most efficient ways to prepare π-conjugated heterocyclic systems through the formation of carbon–carbon bonds. Suzuki coupling is a versatile method of synthesis, possessing a large number of advantages. It employs readily available reagents (about 1800 compounds: Boronic acids, boronate esters, etc.) that are commercially available, it occurs under mild reaction conditions, it is largely unaffected by the presence of water, it tolerates a wide variety of functional groups, it generally proceeds regio- and stereoselectively, while the inorganic by-products are non-toxic and easily removed from the reaction mixture. All of these qualities contribute to make the Suzuki coupling suitable not only for laboratories, but also for myriad industrial processes [1,2,3,4,5,6,7].
Recently, research targeting molecules based on pyridazine heterocycles has grown considerably due to their numerous applications as therapeutic agents [8,9], chemiluminescent materials [10,11,12], ligands for heterogeneous catalysis [13,14], in supramolecular chemistry [15], and nonlinear optical [16,17,18,19,20,21,22,23,24] and photovoltaic materials [25]. This wide array of interesting applications has motivated the development of procedures for the preparation of differently substituted pyridazines. In general, two methods are reported which consist of: (i) Cyclisation reactions using 1,4-dicarbonilic precursors and hydrazine [26,27,28,29,30,31,32], in order to construct the pyridazine ring or (ii) by functionalization through nucleophilic substitution [33,34,35,36,37,38], ortho-metallation [39,40,41] and cross-couplings reactions (Suzuki, Stille, Sonogashira, etc.) [42,43,44,45,46,47,48,49,50] or a combination of cyclisation and cross-coupling reactions [51].
The synthesis of pyridazine derivatives through palladium cross-coupling reactions is quite advantageous compared to cyclisation methodology. This is due to the ready availability of the coupling components as well as the versatility of this synthetic method. Additionally, the electronic deficient nature of the pyridazine heterocycle facilitates the oxidative addition of palladium to a halogen–carbon bond without the use of specific and expensive ligands [18,46]. This is a great advantage given the widespread commercial availability of halogenated pyridazine derivatives, or alternatively, their relatively easy preparation.
Whereas several series of pyridazine derivatives have been reported as efficient two-photon absorption (TPA) fluorophores [18,20,23], studies describing nonlinear optics (NLO) second harmonic generation properties (SHG) remain limited to a restricted number of compounds [16,19,21,22,24], which included organometallic compounds bearing pyridazine ligands [21]. Furthermore, it is noteworthy fact that none of these publications report the synthesis and evaluation of SHG pyridazine NLOphores constituted by pyridazine and thiophene heterocyclic moieties, which act simultaneously as π-bridge and auxiliary electron acceptor or electron donor groups, respectively.
Among the many classes of π-conjugated organic systems, donor-acceptor substituted heterocyclic compounds are of great interest because it has been experimentally and theoretically demonstrated that they increase the first hyperpolarizabilities of push-pull chromophores with respect to aryl analogues. The incorporation of different heterocycles into the π-conjugated systems can be a powerful approach for tuning the system to obtain specific optoelectronic properties. The heterocycles convey higher polarizability, modulate the conjugation pathway, promote thermal and chemical robustness, and behave as auxiliary electron donors/acceptors as well as π-bridges, in addition to serving as components for further modification. It is well known that electron-rich heterocycles such as thiophene and pyrrole, and electron-deficient heterocycles such as azole and azine and diazine derivatives: (Benzo)thiazole benzothiadiazole, pyridine, pyridazine etc. can act simultaneously as π-bridges and electron donors or acceptors, respectively [16,17,18,19,20,21,22,23,24,38,52,53,54,55,56,57,58,59,60,61,62,63].
During the past 14 years, our research group has reported several series of push-pull π-conjugated heterocyclic compounds bearing electron-deficient azines (pyridine, quinoline, phenanthroline), diazines (pyridazine, phthalazine) or azoles (thiazole, benzothiazole, benzimidazole and benzothiadiazole). These systems have applications as SHG chromophores [52,53,54,55,56,57,58,59,60,61,62,63], organic sensitizers for dye sensitized solar cells (DSSCs), organic fluorophores for organic light emitting diodes (OLEDs), optical chemosensors, DNA intercalations, heterogeneous catalysts, etc.
In the present work we intended to employ the electron-rich thiophene heterocycle as an auxiliary electron donor group, and simultaneously as an efficient π-bridge. Alternatively, pyridazine, being an electron deficient heterocycle, linked directly to the aryl or heteroaryl moieties functionalized with the acceptor group can play the dual roles of auxiliary acceptor group and π-bridge connector.
Based on the above arguments, we were motivated to expand our investigation, concerning push–pull heterocyclic systems as SHG NLOphores, to a series of six new thienylpiridazine derivatives which were synthesized through palladium catalyzed Suzuki-Miyaura coupling, using a 3-bromo-6-(thiophen-2-yl)pyridazine [51] derivative and several hetero(aromatic) boronic acids as coupling components. The new pyridazine NLOphores were functionalized with an electron-rich thiophene heterocycle as electron donor group/π-spacer, and a hetero(aryl) moiety functionalized with several groups with different electron ability. This research was conducted with the purpose of studying the relationship between their structure and second harmonic generation efficiency.

2. Results and Discussion

2.1. Synthesis and Characterization

A new series of six thienylpyridazine derivatives 3a–e were synthesized through palladium catalyzed Suzuki–Miyaura coupling, using 3-bromo-6-(thiophen-2-yl)pyridazine 2 [51] as the halogenated coupling component, which was prepared by the reaction of thienylpyridazinone 1 with POBr3. On the other hand, compound 2 was prepared by Friedel-Crafts acylation of thiophene with 3-carbomethoxypropionyl chloride, giving methyl 4-(2-thienyl)-4-oxobutanoate. This precursor was subsequently cyclized giving the thienylpyridazinone 2 [51,64,65] by condensation with hydrazine hydrate in ethanol at reflux.
The final push-pull thienylpyridazine derivatives 3a–e were synthesized by Suzuki-Miyaura cross-coupling reaction of 3-bromo-6-(thiophen-2-yl)pyridazine 2 with commercially available (hetero)aryl-boronic acids in fair-to-low yields (14% to 28%) (Table 1, Scheme 1).
The low yields of compounds 3a–e might be explained by the possible homocoupling of the brominated thienylpyridazine precursor 2, or the competitive hydrolytic deboronation of the hetero(aryl) boronic acids, especially because the hetero(aryl)boronic acids bears electron-attracting groups [43,45]. Due to instability, the hydrolysis of the C-Br bond of the thienylpiridazine 2 could also occur, giving the precursor pyridazinone 2 [51]. The novel compounds were characterized by standard spectroscopic techniques.

2.2. Study of the Optical (Linear and Nonlinear) Properties

The linear optical properties of thienylpyridazines 3a–e were studied in ethanol at room temperature (Table 1, Figure 1). All compounds exhibited a strong and broad absorption band with high molar extinction coefficients in the range of 24,100 to 29,800 M−1·cm−1 with maximum absorption peaks found between 314 and 357 nm. The variation of the maximum absorption wavelength amongst the thienylpyridazine derivatives depended on the electronic nature of the spacer and the electron withdrawing moieties, thus bathochromic shifts were found when substituting the phenyl ring for the furan (22 nm) or thiophene (25 nm) heterocycles due to the increase in the electron donating ability, and when substituting the nitro group in the meta position for the cyano (9 nm) or formyl (18 nm) groups in the para position. This was due to the electron withdrawing strength of these groups.
The fluorescence properties of thienylpyridazines 3a–e were studied by exciting the compounds at the wavelength of maximum absorption, at room temperature (Table 1). All thienylpyridazines showed very weak emissive properties; with relatively low quantum yields in the range of 0.003 to 0.006. Given that the molar extinction coefficients are all greater than 24,000 M−1·cm−1, indicating that the transitions have reasonable oscillator strength, the low quantum yields are likely to be an indication of strong quenching, perhaps induced by hydrogen bonding of the solvent with the nitrogen atoms [68]. However, the molar extinction coefficients of compounds 3d and 3e were identical whether dissolved in ethanol (Table 1) or 1,2-dioxane (Table 2). Furthermore, any strong excited state quenching is unlikely to affect greatly the second order nonlinear response of these molecules, which is produced dominantly by virtual transitions, at least in the absence of any multiphoton absorption.
The hyper-Rayleigh scattering (HRS) technique was used to determine the first hyperpolarizabilities β of thienylpyridazines 3a–e, at a fundamental wavelength of 1064 nm [69,70]. The hyperpolarizabilty β values were measured against a reference solution of p-nitroaniline (pNA), using 1,4-dioxane as a solvent [71,72]. Proper care was taken to account for possible fluorescence of the thienylpyridazines 3a–e [73].
The static hyperpolarizabilty β0 values [74,75,76] for the thienylpyridazines 3a–e showed the same trend as the measured values, however these values are only indicative and should be treated with discretion, as they were calculated using a simple two-level model neglecting damping.
The data in Table 2 show an enhancement of the SHG response with an increase of the auxiliary electron donating ability of the spacer upon changing the phenyl ring (β = 54 × 10−30 esu for 3c) with furan heterocycle (β = 100 × 10−30 esu for 3b), and then for a thiophene moiety (β = 155 × 10−30 esu for 3a). For compound 3e, with the nitro group at the meta position, it was not possible to quantify the SHG signal due to interference resulting from competing fluorescence from multiphoton absorption. The highest measured hyperpolarizability value was achieved by thienylpyridazine 3d having a phenyl ring substituted at position four with a cyano group (β = 175 × 10−30 esu).

2.3. Theoretical Calculations

Density functional theory (DFT) calculations were performed to understand the structural differences and the variation of the electronic properties of these thienylpyridazines, and to establish a comparative computational basis for this series. The dipole moments and hyperpolarizabilities β were calculated for thienylpyridazines 3a–e, as well as the energy levels and the respective electron density maps that were computed in a polarized solvent continuum of 1,4-dioxane. The results are shown in Table 3 and Figure 2.
Each thienylpyridazine derivative can exist as several different conformers, depending on the relative arrangement of their components. We present the lowest energy forms, which are responsible for the calculated properties. Coplanarity was observed between the three rings in molecules 3a and 3b, while the replacement of a substituted thiophene by a functionalized phenyl ring reduced the planarization of the conjugated system in molecules 3c–e.
The maps of frontier orbitals showed diffuse and overlapping highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) densities, the HOMO density slightly more concentrated on the thiophene donor group and the LUMO density slightly more concentrated on the (hetero)aromatic acceptor moiety, except in chromophore 3e. In 3e the LUMO was essentially localized on the meta-nitrophenyl acceptor group. No significant correlation was observed between HOMO-LUMO gaps and maxima of absorption spectra.
The estimated dipole moments for the five molecules range between 4.3 and 8.9 Debye (in 1,4-dioxane), and exhibit a higher correlation with the experimentally determined hyperpolarizabilities than the calculated hyperpolarizabilities. However, the moderate experimental β values are in good agreement with their calculated small values.

3. Experimental

3.1. Materials and Methods

Phosphorous (V) oxybromide and boronic acids were procured from Sigma Aldrich Chemie, Steinheim, Germany and Acros Organics, Geel, Belgium. Other commercial reagents (NaCl, NaOH, quinine sulfate, ammonia, MgSO4, Na2CO3, Pd(PPh3)4), and solvents (dimethoxyethane, ethanol, dichloromethane, chloroform, n-hexane, dioxane, light petroleum (40–60 °C), acetone-d6) were obtained from Panreac Quimica S.L.U., Barcelona, Spain) and were used without further purification. The progress of the reaction was checked by means of thin layer chromatography on 0.25 mm thick precoated silica plates (Merck Fertigplatten Kieselgel 60 F254; Merck, Darmstadt, Germany); and the spots were visualized using UV light. Silica gel column chromatography (Merck Kieselgel, 230 to 400 mesh; Merck, Darmstadt, Germany) was used in the purification of the compounds. NMR spectra were performed on a BruckerG Avance II 400 (Bruker Daltonics, Bremen, Germany), working frequency of 400 MHz for 1H and 100.6 MHz for 13C, and the solvent peak was used as internal reference. The solvents are specified in parenthesis before the chemical shifts values (δ relative to tetramethylsilane (TMS)—tetramethylsilane). Peak assignments were obtained by comparison of chemical shifts, peak multiplicities, and J values, and were sustained by spin decoupling-double resonance and bidimensional heteronuclear HMBC (Heteronuclear Multiple Bond Correlation) and HMQC (Heteronuclear Multiple-Quantum Correlation) techniques. Infrared spectra were obtained on a BOMEM MB 104 spectrophotometer (BOMEM, Québec, QC, Canada). UV-vis absorption spectra were recorded with a Shimadzu UV/2501PC spectrophotometer (Shimadzu Coorporation, China). Fluorescence spectra were obtained with a FluoroMax-4 spectrofluorometer (Horiba Jobin Yvon, Edison, New Jersey, USA). Luminescence quantum yields were obtained in comparison with a solution of quinine sulfate in 0.05 M H2SO4 as standard and corrected for the refraction index of the solvents [66,67]. Melting points were determined on a Gallenkamp machine (Gallenkamp, UK). Mass spectrometry analyses were performed at the C.A.C.T.I.—Unidad de Espectrometria de Masas of the University of Vigo, Spain (Bruker Daltonics, Bremen, Germany).

3.2. Synthesis and Characterization

3.2.1. Procedure for the Synthesis of Thienylpyridazine Precursor 2

A mixture of 6-(thiophen-2-yl)pyridazin-3(2H)-one 1 (2.8 mmol, 0.5 g) and POBr3 (5.5 mmol, 1.6 g) was heated for 6 h at 110 to 120 °C. The mixture was cooled till room temperature and then poured onto ice-water, basified with a solution of ammonia (2 M), and stirred for 30 min to give a brown solid. The suspension was filtered and the solid washed with water and light petroleum to give the pure thienylpyridazine 2 as brown solid (76%). 1H-NMR (Acetone-d6, 400 MHz) δ 7.26 (dd, 1H, H-4′, J = 5.2 Hz, J = 3.6 Hz), 7.76 (dd, 1H, H-5′, J = 5.2 Hz, J = 1.2 Hz), 7.94 (dd, 1H, H-3′, J = 3.6 Hz, J = 1.2 Hz), 7.96 (d, 1H, H-5, J = 9.2 Hz), 8.14 (d, 1H, H-4, J = 9.2 Hz) ppm.

3.2.2. General procedure for the Synthesis of Thienylpyridazines 3a–e through Suzuki-Miyaura Cross Coupling

3-Bromo-6-(thiophen-2-yl)pyridazine 2 (0.5 mmol) was coupled with the appropriate (hetero)aromatic boronic acids (0.6 mmol) in a mixture of DME (8 mL), ethanol (2 mL), aqueous 2 M Na2CO3 (1 mL), and Pd(PPh3)4 (5 mol %) at 80 °C, under nitrogen. The reaction time (48 h) was determined by thin layer chromatography (TLC). The reaction mixture was extracted, after cooling, with chloroform (3 × 20 mL) followed by extraction with a saturated solution of NaCl (20 mL). After the separation of the phases, the organic layer was washed with water (3 × 10 mL) and with a solution of NaOH (10%) (10 mL). The organic phase obtained was dried (MgSO4), filtered, and the solvent removed, giving a crude mixture which was purified using silica gel column chromatography and mixtures of dichloromethane in light petroleum of (40–60 °C) increasing polarity. Evaporation of the solvent gave the coupled products as solids that were recrystallized from dichloromethane/hexane giving the pure pyridazines 3a–e.
5-(6′-Thiophen-2″-yl)pyridazin-3′-yl)thiophene-2-carbaldehyde 3a. Light brown solid (28%). Mp: 247–250 °C. UV (ethanol): λmax nm (ε, M−1·cm−1) 357, (29,790). IR ν 1,657 (C=O) cm−1. 1H-NMR (Acetone-d6, 400 MHz) δ 7.28 (dd, 1H, H-4″, J = 5.2 Hz, J = 3.6 Hz), 7.77 (dd, 1H, H-5″, J = 5.2 Hz, J = 1.2 Hz), 7.98 (dd, 1H, H-3″, J = 3.6 Hz, J = 1.2 Hz), 8.06–8.10 (m, 2H, H-3, H-4, J = 0.8 Hz), 8.27 (d, 1H, H-5′, J = 9.2 Hz), 8.33 (d, 1H, H-4′, J = 9.2 Hz), 10.06 (s, 1H, CHO) ppm. 13C-NMR (Acetone-d6, 400 MHz) δ 123.6, 124.5, 128.1, 128.2, 129.2, 130.9, 138.3, 141.4, 146.2, 150.0, 153.6, 155.5, 184.5 ppm. MS (EI) m/z (%) = 273 ([M + 1]+, 6), 272 ([M]+, 35), 244 (3), 135 (12), 108 (100). HRMS: m/z (EI) for C13H8N2OS2; calcd 272.0078; found 272.0073.
5-(6′-(Thiophen-2″-yl)pyridazin-3′-yl)furan-2-carbaldehyde 3b. Yellow solid (14%). Mp: 207–210 °C. UV (chloroform): λmax nm (ε, M−1·cm−1) 354 (27,790). IR ν 1,664 (C=O) cm−1. 1H-NMR (Acetone-d6, 400 MHz) δ 7.29 (dd, 1H, H-4″, J = 4.9 Hz, J = 3.6 Hz), 7.58 (d, 1H, H-4, J = 3.9 Hz), 7.68 (d, 1H, H-3, J = 3.9 Hz), 7.78 (dd, 1H, H-5″, J = 4.9 Hz, J = 0.9 Hz), 8.00 (dd, 1H, H-3″, J = 3.6 Hz, J = 1.2 Hz), 8.18 (d, 1H, H-4′, J = 8.7 Hz), 8.31 (d, 1H, H-5′, J = 9.3 Hz), 9.81 (s, 1H, CHO) ppm. 13C-NMR (Acetone-d6, 400 MHz) δ 112.4, 123.5, 124.2, 128.3, 129.3, 131.0, 141.4, 150.6, 154.5, 155.2, 156.3, 178.6 ppm. MS (EI) m/z (%) = 257 ([M + 1]+, 6), 256 ([M]+, 78), 228 (6), 171 (12), 108 (100). HRMS: m/z (EI) for C13H8N2O2S; calcd 256.0306; found 256.0302.
4-(6′-(Thiophen-2″-yl)pyridazin-3′-yl)benzaldehyde 3c. Yellow solid (15%). Mp: 214–216 °C. UV (ethanol): λmax nm (ε, M−1·cm−1) 332 (25,990). IR ν 1,639 (C=O) cm−1. 1H-NMR (Acetone-d6, 400 MHz) δ 7.29 (dd, 1H, H-4″, J = 5.2 Hz, J = 3.6 Hz), 7.77 (dd, 1H, H-5″, J = 4.8 Hz, J = 1.2 Hz), 7.99 (dd, 1H, H-3″, J = 3.6 Hz, J = 1.2 Hz), 8.14 (d, 2H, H-2, H-6, J = 8.4 Hz), 8.30 (d, 1H, H-4′, J = 9.2 Hz), 8.35 (d, 1H, H-5′, J = 8.8 Hz), 8.48 (d, 2H, H-3, H-5, J = 8.4 Hz), 10.19 (s, 1H, CHO) ppm. 13C-NMR (Acetone-d6, 400 MHz) δ 123.6, 125.8, 128.1, 128.2, 129.2, 130.6, 130.8, 138.3 141.6, 142.6, 155.1, 157.2, 192.6 ppm. MS (EI) m/z (%) = 267 ([M + 1]+, 5), 266 ([M]+, 30), 238 (4), 129 (5), 108 (100). HRMS: m/z (EI) for C15H10N2OS; calcd 266.0514; found 266.0512.
4-(6′-(Thiophen-2″-yl)pyridazin-3′-yl)benzonitrile 3d. Yellow solid (28%). Mp: 249–252 °C. UV (ethanol): λmax nm (ε, M−1·cm−1) 323, (26,086). IR (liquid film) ν 2,233 (C≡N) cm−1. 1H-NMR (Acetone-d6, 400 MHz) δ 7.29 (dd, 1H, H-4″, J = 5.2 Hz, J = 3.6 Hz), 7.76 (dd, 1H, H-5″, J = 5.0 Hz, J = 1.2 Hz), 7.98 (dd, 1H, H-3″, J = 3.8 Hz, J = 1.2 Hz), 8.00 (d, 2H, H-2, H-6, J = 8.8 Hz), 8.29 (d, 1H, H-5′, J = 9.2 Hz), 8.34 (d, 1H, H-4′, J = 9.2 Hz), 8.46 (d, 2H, H-3, H-5, J = 8.8 Hz) ppm. 13C-NMR (Acetone-d6, 400 MHz) δ 114.1, 119.1, 123.7, 125.7, 128.2, 128.3, 129.2, 130.7, 133.6, 141.5, 155.3, 156.7, 206.1 ppm. MS (EI) m/z (%) = 264 ([M + 1]+, 5), 263 ([M]+, 31), 127 (6), 109 (6), 108 (100). HRMS: m/z (EI) for C15H9N3S; calcd 263.0517; found 263.0516.
3-(3′-Nitrophenyl)-6-(thiophen-2″-yl)pyridazine 3e. Yellow solid (25%). Mp: 245–248 °C. UV (ethanol): λmax nm (ε, M−1·cm−1) 314, (24,105). IR (liquid film) ν 3409, 2094, 1639, 1524, 1444, 1402, 1351, 1311, 1276, 1111, 1081, 1056, 838, 812, 727 cm−1. 1H-NMR (Acetone-d6, 300 MHz) δ 7.29 (dd, 1H, H-4″, J = 5.2 Hz, J = 3.6 Hz), 7.78 (dd, 1H, H-5″, J = 5.2 Hz, J = 0.8 Hz), 7.92 (t, 1H, H-5′, J = 8.2 Hz), 8.00 (dd, 1H, H-3″, J = 3.2 Hz, J = 1.2 Hz), 8.33 (d, 1H, H-5, J = 9.2 Hz), 8.42 (dd, 1H, H-6′, J = 8.0 Hz, J = 1.2 Hz), 8.43 (d, 1H, H-4, J = 9.2 Hz), 8.70 (dd, 1H, H-4′, J = 7.8 Hz, J = 0.8 Hz), 9.10 (t, 1H, H-2′, J = 1.8 Hz) ppm. 13C-NMR (Acetone-d6, 300 MHz) δ 122.1, 123.8, 125.1, 125.6, 128.2, 129.2, 130.7, 131.3, 133.5, 139.0, 141.4, 149.8, 155.4, 156.2 ppm. MS (EI) m/z (%) = 284 ([M + 1]+, 4), 283 ([M]+, 47), 253 (27), 117 (70), 108 (100). HRMS: m/z (EI) for C14H9N3O2S; calcd 283.0415; found 283.0414.

3.2.3. Nonlinear Optical Measurements

Hyper-Rayleigh scattering (HRS) was used to measure the orientationally averaged first hyperpolarizability β of the push–pull chromophores 3a–e. The experimental set-up for HRS measurements is identical to that described in detail in reference [73].
Following reference [72] we have chosen to report our values using the so-called T (Taylor expansion) convention. Taking into account the most recent hyper-Rayleigh scattering measurement from CCl4 signal which was used as a reference [77], the corrected reference value for the first hyperpolarizatibity tensor element β333 of pNA in dioxane at 1064 nm is 40 × 10−30 esu. The standard two-level model, that ignores damping, was used to estimate the magnitude of the static first-order hyperpolarizability β0 [74,75,76]. Given the model’s simplicity, these extrapolated values should be viewed with caution.

3.2.4. Theoretical Calculations

All theoretical calculations were performed in Gaussian 09 (Gaussian, Inc., Wallingford CT, USA, 2010) [78]. The geometry of individually molecule was optimized by the density functional theory (DFT) at the B3LYP level by employing the 6-311G** basis set and using polarizable continuum model using dioxane as the solvent. [keyword: SCRF = (PCM, Solvent = 1,4-Dioxane)]. Frequency calculations were achieved in order to ensure the absence of negative frequencies. Hyperpolarizability factors were estimated at the same level of theory using an incident wavelength of 1064 nm (keywords: freq = raman, cphf = rdfreq, polar) and with a polarized solvent continuum model using dioxane as the solvent.

4. Conclusions

A series of novel thienylpyridazines were prepared through palladium catalyzed Suzuki-Miyaura cross-coupling in low yields due to the possibility of competitive secondary reactions. The new molecules were functionalized with different electron acceptor groups, and the structures were confirmed by standard spectroscopic techniques.
All compounds exhibited strong and broad absorption bands that showed bathochromic shifts with the increase of the electron donating and electron accepting abilities of the donor/π-bridge and the electron-withdrawing group, respectively. All thienylpyridazines showed very weak emissive properties.
The potential of the synthesized thienylpyridazines as second harmonic generators was evaluated by hyper-Rayleigh scattering showing an enhancement of the hyperpolarizability β with the increase of the auxiliary electron donating ability of the donor group/π-spacer, with highest measured hyperpolarizability value being achieved by the thienylpyridazine functionalized with 4-cyanophenyl group (β = 175 × 10−30 esu).
DFT calculations were also carried out, showing coplanarity between the thienylpyridazine part of the molecule with the formyl- thiophene or furan end-cap, reduced planarization with the phenyl-based substituents, and generally diffuse and overlapping HOMO and LUMO densities. The estimated dipole moments for the five molecules range between 4.3 and 8.9 Debye (in 1,4-dioxane), and exhibit a higher correlation with the experimentally determined hyperpolarizabilities than the calculated hyperpolarizabilities.

Author Contributions

Conceptualization, M.M.M.R.; Funding acquisition, M.M.M.R.; Investigation, S.S.M.F.; M.B., J.A.-d.-S.; Methodology, M.M.M.R.; Supervision, M.M.M.R.; Writing—original draft, M.M.M.R. and S.S.M.F.; Writing—review and editing, M.M.M.R., S.S.M.F., M.B.

Funding

The authors thank the Fundação para a Ciência e Tecnologia (Portugal) and FEDER-COMPETE for financial support through the Centro de Química and Centro de Física das Universidades do Minho e do Porto in the framework of the Strategic Funding (UID/QUI/0686/2016 and UID/FIS/04650/2013). Thanks are also due to Fundação para a Ciência e Tecnologia (FCT) for a Ph.D. grant to Sara S. M. Fernandes (SFRH/BD/87786/2012). This work was also supported by the Associated Laboratory for Sustainable Chemistry—Clean Processes and Technologies—LAQV which is financed by Portuguese national funds from FCT/MEC (UID/QUI/50006/2013) and co-financed by the ERDF under the PT2020 Partnership Agreement (POCI-01-0145-FEDER–007265). The NMR spectrometers are part of the National NMR Network (PTNMR) and are partially supported by Infrastructure Project Nº 022161 (co-financed by FEDER through COMPETE 2020, POCI and PORL and FCT through PIDDAC). The pulsed laser system was acquired within the framework of the grant (PTDC/CTM/105597/2008) from the Fundação para a Ciência e Tecnologia (FCT) with funding from FEDER-COMPETE.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Biffis, A.; Centomo, P.; Del Zotto, A.; Zecca, M. Pd metal catalysts for cross-couplings and related reactions in the 21st century: A critical review. Chem. Rev. 2018, 118, 2249–2295. [Google Scholar] [CrossRef] [PubMed]
  2. Roy, D.; Uozumi, Y. Recent advances in palladium-catalyzed cross-coupling reactions at ppm to ppb molar catalyst loadings. Adv. Synth. Catal. 2018, 360, 602–625. [Google Scholar] [CrossRef]
  3. Maluenda, I.; Navarro, O. Recent developments in the Suzuki-Miyaura reaction: 2010–2014. Molecules 2015, 20, 7528–7557. [Google Scholar] [CrossRef] [PubMed]
  4. Lennox, A.J.J.; Lloyd-Jones, G.C. Selection of boron reagents for Suzuki-Miyaura coupling. Chem. Soc. Rev. 2014, 43, 412–443. [Google Scholar] [CrossRef] [PubMed]
  5. Suzuki, A. Cross-coupling reactions of organoboranes: an easy way to construct C-C bonds. Angew. Chem. Int. Ed. Engl. 2011, 50, 6722–6737. [Google Scholar] [CrossRef] [PubMed]
  6. Suzuki, A. Recent advances in the cross-coupling reactions of organoboron derivatives with organic electrophiles. J. Organomet. Chem. 1999, 576, 147–168. [Google Scholar] [CrossRef]
  7. Miyaura, N.; Suzuki, A. Palladium-catalyzed cross-coupling reactions of organoboron compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  8. Jaballah, M.Y.; Serya, R.T.; Abouzid, K. Pyridazine based scaffolds as privileged structures in anti-cancer therapy. Drug. Res. 2017, 67, 138–148. [Google Scholar] [CrossRef] [PubMed]
  9. Coates, W.J. Pyridazines and their benzo derivatives. In Comprehensive Heterocyclic Chemistry II; Katritzky, A.R., Rees, C.W., Scriven, E.F.V., Eds.; Pergamon Press: Oxford, UK, 1996; Volume 6, pp. 1–91. ISBN 0-08-042072-9. [Google Scholar]
  10. Lincker, F.; Kreher, D.; Attias, A.-J.; Do, J.; Kim, E.; Hapiot, P.; Lemaître, N.; Geffroy, B.; Ulrich, G.; Ziessel, R. Rodlike fluorescent π-conjugated 3,3′-bipyridazine ligand: optical, electronic, and complexation properties. Inorg. Chem. 2010, 49, 3991–4001. [Google Scholar] [CrossRef] [PubMed]
  11. Achelle, S.; Plé, N.; Kreher, D.; Mathevet, F.; Turck, A.; Attias, A.-J. Oligomers containing ethynylpyridazine moieties: synthesis, fluorescence and liquid crystalline properties. Diazines 50. Heterocycles 2008, 75, 357–374. [Google Scholar]
  12. Cheng, Y.; Ma, B.; Wudl, F. Synthesis and optical properties of a series of pyrrolopyridazine derivatives: Deep blue organic luminophors for electroluminescent devices. J. Mater. Chem. 1999, 9, 2183–2188. [Google Scholar] [CrossRef]
  13. Figueiredo, H.; Silva, B.; Raposo, M.M.M.; Fonseca, A.M.; Neves, I.C.; Quintelas, C.; Tavares, T. Immobilization of Fe(III) complexes of pyridazine derivatives prepared from biosorbents supported on zeolites. Microporous Mesoporous Mater. 2008, 109, 163–171. [Google Scholar] [CrossRef] [Green Version]
  14. Figueiredo, H.; Silva, B.; Quintelas, C.; Raposo, M.M.M.; Parpot, P.; Fonseca, A.M.; Lewandowska, A.E.; Bañares, M.A.; Neves, I.C.; Tavares, T. Immobilization of chromium complexes in zeolite Y obtained from biosorbents: synthesis, characterization and catalytic behaviour. Appl. Catal. B Environ. 2010, 94, 1–7. [Google Scholar] [CrossRef] [Green Version]
  15. Brooker, S.; Davidson, T.C.; Hay, S.J.; Kelly, R.J.; Kennepohl, D.K.; Plieger, P.G.; Moubaraki, B.; Murray, K.S.; Bill, E.; Bothe, E. Doubly pyridazine-bridged macrocyclic complexes of copper in +1, +2 and mixed valent oxidation states. Coordin. Chem. Rev. 2001, 216, 3–30. [Google Scholar] [CrossRef]
  16. Cheng, T.R.; Huang, C.H.; Gan, L.B.; Luo, C.P.; Yu, A.C.; Zhao, X.S. The investigation of second harmonic generation from novel molecules [(E)-N-alkyl-4-{2-[4-(dialkylamino)phenyl]ethenyl}pyridazinium iodide]. J. Mater. Chem. 1998, 8, 931–935. [Google Scholar] [CrossRef]
  17. Ortiz, R.P.; Casado, J.; Hernández, V.; Navarrete, J.T.L.; Letizia, J.A.; Ratner, M.A.; Facchetti, A.; Marks, T.J. Thiophene–diazine molecular semiconductors: synthesis, structural, electrochemical, optical, and electronic structural properties; implementation in organic field-effect transistors. Chem. Eur. J. 2009, 15, 5023–5039. [Google Scholar] [CrossRef] [PubMed]
  18. Achelle, S.; Plé, N.; Turck, A. Incorporation of pyridazine rings in the structure of functionalized π-conjugated materials. RSC Adv. 2011, 1, 364–388. [Google Scholar] [CrossRef]
  19. Dhas, S.S.J.; Das, S.J.; Dhas, S.M.B. Linear and nonlinear optical studies on 3,6-bis-(2-pyridyl)pyridazine. Optik 2013, 124, 5968–5971. [Google Scholar] [CrossRef]
  20. Mei, Q.-B.; Weng, J.-N.; Tong, B.-H.; Tian, R.-Q.; Jiang, Y.-Z.; Hua, Q.-F.; Huang, W. Progress in the application of diazine compounds in optoelectronic functional materials. Acta Phys. Chim. Sin. 2014, 30, 595–607. [Google Scholar]
  21. Marques, S.; Castro, M.A.; Leão, S.A.; Fonseca, T.L. Second hyperpolarizability of the calcium-doped lithium salt of pyridazine Li–H3C4N2⋯Ca. Chem. Phys. Lett. 2016, 659, 76–79. [Google Scholar] [CrossRef]
  22. Klikar, M.; Le Poul, P.; Růžička, A.; Pytela, O.; Barsella, A.; Dorkenoo, K.D.; Robin-le Guen, F.; Bureš, F.; Achelle, S. Dipolar NLO chromophores bearing diazine rings as π-conjugated linkers. J. Org. Chem. 2017, 82, 9435–9451. [Google Scholar] [CrossRef] [PubMed]
  23. Huang, P.-H.; Shen, J.-Y.; Pu, S.-C.; Wen, Y.-S.; Lin, J.T.; Chou, P.-T.; Yeh, M.-C.P. Synthesis and characterization of new fluorescent two-photon absorption chromophores. J. Mater. Chem. 2006, 16, 850–857. [Google Scholar] [CrossRef]
  24. Achelle, S.; Barsella, A.; Baudequin, C.; Caro, B.; Robin-le Guen, F. Synthesis and photophysical investigation of a series of push−pull arylvinyldiazine chromophores. J. Org. Chem. 2012, 77, 4087–4096. [Google Scholar] [CrossRef] [PubMed]
  25. Veronese, L.; Procopio, E.Q.; De Rossi, F.; Brown, T.M.; Mercandelli, P.; Mussini, P.; D’Alfonso, G.; Panigati, M. New dinuclear hydrido-carbonyl rhenium complexes designed as photosensitizers in dye-sensitized solar cells. New J. Chem. 2016, 40, 2910–2919. [Google Scholar] [CrossRef] [Green Version]
  26. Lichtenthaler, F.W.; Brust, A.; Cuny, E. Sugar-derived building blocks. Part 26. Hydrophilic pyrroles, pyridazines and diazepinones from fructose and isomaltulose. Green Chem. 2001, 3, 201–209. [Google Scholar] [CrossRef]
  27. Brulé, C.; Bouillon, J.-P.; Nicolaï, E.; Portella, C. Fluorinated ketene dithioacetals. Part 10. Synthesis of new perfluorinated (2H)-pyridazin-3-ones and 3-(alkyl- or arylamino) substituted pyridazines. Synthesis 2003, 2003, 436–442. [Google Scholar] [CrossRef]
  28. Lee, M.-S.; Kim, E.-S.; Moon, A.R.; Park, M.S. Synthesis of novel allylthio heterocyclo(or aryl)alkylaminopyridazines and their anticancer activity against SK-Hep-1 cells. Bull. Korean Chem. Soc. 2009, 30, 83–91. [Google Scholar] [CrossRef]
  29. Sun, R.; Zhang, Y.; Bi, F.; Wang, Q. Design, synthesis, and bioactivity study of novel benzoylpyridazyl ureas. J. Agric. Food. Chem. 2009, 57, 6356–6361. [Google Scholar] [CrossRef] [PubMed]
  30. Gao, Q.; Zhu, Y.; Lian, M.; Liu, M.; Yuan, J.; Yin, G.; Wu, A. Unexpected C–C bond cleavage: a route to 3,6-diarylpyridazines and 6-arylpyridazin-3-ones from 1,3-dicarbonyl compounds and methyl ketones. J. Org. Chem. 2012, 77, 9865–9870. [Google Scholar] [CrossRef] [PubMed]
  31. Lenden, P.; Entwistle, D.A.; Willis, M.C. An alkyne hydroacylation route to highly substituted furans. Angew. Chem. Int. Ed. 2011, 50, 10657–10660. [Google Scholar] [CrossRef] [PubMed]
  32. Stetter, H.; Jonas, F. Addition von aldehyden an aktivierte doppelbindungen XXV synthesen und reaktionen von verzweigten tricarbonyl-verbindungen. Chem Ber. 1981, 114, 564–580. [Google Scholar] [CrossRef]
  33. Cecchi, M.; Micoli, A.; Giomi, D. Nucleophilic aromatic substitutions on 4,5-dicyanopyridazine. Pyrrole and indole systems as carbon nucleophiles. Tetrahedron 2006, 62, 12281–12287. [Google Scholar] [CrossRef]
  34. Shin, M.S.; Kang, Y.J.; Chung, H.A.; Park, J.W.; Kweon, D.H.; Lee, W.S.; Yoon, Y.J.; Kim, S.K. Synthesis of some 3,6-disubstituted pyridazines. J. Heterocycl. Chem. 1999, 36, 1135–1142. [Google Scholar] [CrossRef]
  35. Coad, P.; Coad, R.A.; Clough, S.; Hyepock, J.; Salisbury, R.; Wilkins, C. Nucleophilic substitution at the pyridazine ring carbons. I. Synthesis of iodopyridazines. J. Org. Chem. 1963, 28, 218. [Google Scholar] [CrossRef]
  36. Coad, P.; Coad, R.A. Nucleophilic substitution at the pyridazine ring carbons. II. Synthesis of pyridazinonyl- and bispyridazinonylpyridazines. J. Org. Chem. 1963, 28, 1919. [Google Scholar] [CrossRef]
  37. Coad, P.; Coad, R.A.; Hyepock, J. Nucleophilic substitution at the pyridazine ring carbons. III. Alkoxide exchange. J. Org. Chem. 1964, 29, 1751. [Google Scholar] [CrossRef]
  38. Vieira, L.M.C.; Fonseca, A.M.; Raposo, M.M.M.; Kirsch, G. Electrochemical and spectroscopic studies of pyridazine derivatives. Port. Electrochim. Acta 2004, 22, 11–18. [Google Scholar] [CrossRef]
  39. Turck, A.; Plé, N.; Mongin, F.; Queguiner, G. Advances in the directed metallation of azines and diazines (pyridines, pyrimidines, pyrazines, pyridazines, quinolines, benzodiazines and carbolines). Part 2: Metallation of pyrimidines, pyrazines, pyridazines and benzodiazines. Tetrahedron 2001, 57, 4489–4506. [Google Scholar] [CrossRef]
  40. Chevallier, F.; Mongin, F. Functionalization of diazines and benzo derivatives through deprotonated intermediates. Chem. Soc. Rev. 2008, 37, 595–609. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Turck, A.P.; Plé, N.; Mojovic, L.; Quéguiner, G. Diazines VII. Nouvelle voie de synthèse d’un antidepresseur en serie pyridazinique, la minaprine, utilisant les reactions de metallation ortho dirigée et de couplage croisé de Suzuki. Bull. Soc. Chim. Fr. 1993, 130, 488. [Google Scholar]
  42. Draper, T.L.; Bailey, T.R. Synthesis of unsymmetrical 3,6-disubstituted pyridazines. A palladium-catalyzed approach from 3-iodopyridazines. J. Org. Chem. 1995, 60, 748–750. [Google Scholar] [CrossRef]
  43. Parrot, I.; Rival, Y.; Wermuth, C.G. Synthesis of substituted 3-amino-6-arylpyridazines via Suzuki reaction. Synthesis 1999, 1999, 1163–1168. [Google Scholar] [CrossRef]
  44. Maes, B.U.; Lemier, G.L.; Dommisse, R.; Augustyns, K.; Haemers, A. A new approach towards the synthesis of 3-amino-6-(hetero)arylpyridazines based on palladium catalyzed cross-coupling reaction. Tetrahedron 2000, 56, 1777–1781. [Google Scholar] [CrossRef]
  45. Guery, S.; Parrot, I.; Rival, Y.; Wermuth, C.G. Efficient one-step synthesis of 3-amino-6-arylpyridazines. Tetrahedron Lett. 2001, 42, 2115–2117. [Google Scholar] [CrossRef]
  46. Littke, A.F.; Fu, G.C. Palladium-catalyzed coupling reactions of aryl chlorides. Angew. Chem. Int. Ed. 2002, 41, 4176–4211. [Google Scholar] [CrossRef]
  47. Maes, B.U.W.; Kosmrly, J.; Lemier, G.L. Palladium catalyzed reactions on chloropyridazines. J. Heterocycl. Chem. 2002, 39, 535–543. [Google Scholar] [CrossRef]
  48. Maes, B.U.W.; Tapolcsányi, P.; Meyers, C.; Mátyus, P. Palladium-catalyzed reactions on 1,2-diazines. Curr. Org. Chem. 2006, 10, 377–417. [Google Scholar] [CrossRef]
  49. Nara, S.; Martinez, J.; Wermuth, C.-G.; Parrot, I. Palladium-catalysed cross-coupling reactions on pyridazine moieties. Synlett 2006, 2006, 3185–3204. [Google Scholar]
  50. Organ, M.G.; Avola, S.; Dubovyk, I.; Hadei, N.; Kantchev, E.A.B.; O’Brien, C.J.; Valente, C. A user-friendly, all-purpose Pd–NHC (NHC=N-Heterocyclic carbene) precatalyst for the Negishi reaction: A step towards a universal cross-coupling catalyst. Chem. Eur. J. 2006, 12, 4749–4755. [Google Scholar] [CrossRef] [PubMed]
  51. Sosabowski, M.; Powell, P. Coupling of organotin reagents with aryl, acyl and heteroaryl halides: Synthesis of pyridazine and quinoxalone derivatives. J. Chem. Res. 1995, 10, 402–403. [Google Scholar] [CrossRef]
  52. Costa, S.P.; Batista, R.M.; Cardoso, P.; Belsley, M.; Raposo, M.M.M. 2-arylthienyl-substituted 1,3-benzothiazoles as new nonlinear optical chromophores. Eur. J. Org. Chem. 2006, 2006, 3938–3946. [Google Scholar] [CrossRef] [Green Version]
  53. Batista, R.M.; Costa, S.P.; Malheiro, E.L.; Belsley, M.; Raposo, M.M.M. Synthesis and characterization of new thienylpyrrolyl-benzothiazoles as efficient and thermally stable nonlinear optical chromophores. Tetrahedron 2007, 63, 4258–4265. [Google Scholar] [CrossRef] [Green Version]
  54. Batista, R.M.; Costa, S.P.; Belsley, M.; Raposo, M.M.M. Synthesis and second-order nonlinear optical properties of new chromophores containing benzimidazole, thiophene, and pyrrole heterocycles. Tetrahedron 2007, 63, 9842–9849. [Google Scholar] [CrossRef] [Green Version]
  55. Batista, R.M.; Costa, S.P.; Belsley, M.; Lodeiro, C.; Raposo, M.M.M. Synthesis and characterization of novel (oligo)thienyl-imidazo-phenanthrolines as versatile π-conjugated systems for several optical applications. Tetrahedron 2008, 64, 9230–9238. [Google Scholar] [CrossRef]
  56. Batista, R.M.; Costa, S.P.; Belsley, M.; Raposo, M.M.M. Synthesis and optical properties of novel, thermally stable phenanthrolines bearing an arylthienyl-imidazo conjugation pathway. Dyes Pigments 2009, 80, 329–336. [Google Scholar] [CrossRef]
  57. Raposo, M.M.M.; Castro, M.C.R.; Belsley, M.; Fonseca, A.M.C. Push–pull bithiophene azo-chromophores bearing thiazole and benzothiazole acceptor moieties: Synthesis and evaluation of their redox and nonlinear optical properties. Dyes Pigments 2011, 91, 454–465. [Google Scholar] [CrossRef] [Green Version]
  58. Raposo, M.M.M.; Fonseca, A.M.C.; Castro, M.C.R.; Belsley, M.; Cardoso, M.F.S.; Carvalho, L.M.; Coelho, P.J. Synthesis and characterization of novel diazenes bearing pyrrole, thiophene and thiazole heterocycles as efficient photochromic and nonlinear optical (NLO) materials. Dyes Pigments 2011, 91, 62–73. [Google Scholar] [CrossRef] [Green Version]
  59. Raposo, M.M.M.; Castro, M.C.R.; Fonseca, A.M.C.; Schellenberg, P.; Belsley, M. Design, synthesis, and characterization of the electrochemical, nonlinear optical properties, and theoretical studies of novel thienylpyrrole azo dyes bearing benzothiazole acceptor groups. Tetrahedron 2011, 67, 5189–5198. [Google Scholar] [CrossRef] [Green Version]
  60. Castro, M.C.R.; Schellenberg, P.; Belsley, M.; Fonseca, A.M.C.; Fernandes, S.S.; Raposo, M.M.M. Design, synthesis and evaluation of redox, second order nonlinear optical properties and theoretical DFT studies of novel bithiophene azo dyes functionalized with thiadiazole acceptor groups. Dyes Pigments 2012, 95, 392–399. [Google Scholar] [CrossRef] [Green Version]
  61. Batista, R.M.; Isakov, D.; Raposo, M.M.M.; Belsley, M.; Bdikin, I.; Kholkin, A.L.; Costa, S.P.; Gomes, E. Ferroelectric nanofibers with an embedded optically nonlinear benzothiazole derivative. J. Nanopart. Res. 2014, 16, 2502. [Google Scholar] [CrossRef] [Green Version]
  62. Castro, M.C.R.; Belsley, M.; Raposo, M.M.M. Push–pull second harmonic generation chromophores bearing pyrrole and thiazole heterocycles functionalized with several acceptor moieties: syntheses and characterization. Dyes Pigments 2016, 128, 89–95. [Google Scholar] [CrossRef]
  63. Fernandes, S.S.; Belsley, M.; Ciarrocchi, C.; Licchelli, M.; Raposo, M.M.M. Terpyridine derivatives functionalized with (hetero)aromatic groups and the corresponding Ru complexes: Synthesis and characterization as SHG chromophores. Dyes Pigments 2018, 150, 49–58. [Google Scholar] [CrossRef]
  64. Steck, E.A.; Brundage, R.P. Pyridazine derivatives. V. Some ethers and thioethers derived from 3,6-dichloropyridazine 1959, 81, 6511–6514. [CrossRef]
  65. Raposo, M.M.M.; Kirsch, G. A combination of the Friedel-Crafts and Lawesson reactions to 5-substituted 2,2-bithiophenes. Heterocycles 2001, 8, 1487–1497. [Google Scholar] [CrossRef]
  66. Montalti, M.; Credi, A.; Prodi, L.; Gandolfi, M.T. (Eds.) Handbook of Photochemistry, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2006; ISBN 97808247237742006. [Google Scholar]
  67. Demas, J.N.; Crosby, G.A. Measurement of photoluminescence quantum yields. Review. J. Phys. Chem. 1971, 75, 991–1024. [Google Scholar]
  68. Valeur, B.; Berberan-Santos, M.N. Molecular Fluorescence: Principles and Applications, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2012; ISBN 978-3-527-32837-6. [Google Scholar]
  69. Clays, K.; Persoons, A. Hyper-Rayleigh scattering in solution. Rev. Sci. Instrum. 1992, 63, 3285–3289. [Google Scholar] [CrossRef]
  70. Clays, K.; Persoons, A. Hyper-Rayleigh scattering in solution. Phys. Rev. Lett. 1991, 66, 2980. [Google Scholar] [CrossRef] [PubMed]
  71. Kaatz, P.; Shelton, D.P. Polarized hyper-Rayleigh light scattering measurements of nonlinear optical chromophores. J. Chem. Phys. 1996, 105, 3918–3929. [Google Scholar] [CrossRef]
  72. Reis, H. Problems in the comparison of theoretical and experimental hyperpolarizabilities revisited. J. Chem. Phys. 2006, 125, 014506. [Google Scholar] [CrossRef] [PubMed]
  73. Fernandes, S.S.; Herbivo, C.; Aires-de-Sousa, J.; Comel, A.; Belsley, M.; Raposo, M.M.M. Theoretical and experimental studies of aryl-bithiophene based push-pull π-conjugated heterocyclic systems bearing cyanoacetic or rhodanine-3-acetic acid acceptors for SHG nonlinear optical applications. Dyes Pigments 2018, 149, 566–573. [Google Scholar] [CrossRef]
  74. Oudar, J.L. Optical nonlinearities of conjugated molecules: stilbene derivatives and highly polar aromatic compounds. J. Chem. Phys. 1977, 67, 446–457. [Google Scholar] [CrossRef]
  75. Oudar, J.L.; Chemla, D.S. Hyperpolarizabilities of the nitroanilines and their relations to the excited state dipole moment. J. Chem. Phys. 1977, 66, 2664–2668. [Google Scholar] [CrossRef]
  76. Oudar, J.L.; Zyss, J. Structural dependence of nonlinear-optical properties of methyl-(2,4-dinitrophenyl)-aminopropanoate crystals. Phys. Rev. A 1982, 26, 2016. [Google Scholar] [CrossRef]
  77. Pyatt, R.D.; Shelton, D.P. Hyper-rayleigh scattering from CH4, CD4, CF4, and CCl4. J. Chem. Phys. 2001, 114, 9938–9946. [Google Scholar] [CrossRef]
  78. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09; Revision B.01 Edition; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
Sample Availability: Samples of the compounds 1–3 are available from the authors.
Molecules 23 03014 sch001 550
Scheme 1. Synthesis of thienylpyridazines 2–3: (i) POBr3, Δ; (ii) DME (1,2-dimethoxyethane), R-B(OH)2, Ethanol, Pd(PPh3)4, Na2CO3 2 M, 80 °C, N2.
Scheme 1. Synthesis of thienylpyridazines 2–3: (i) POBr3, Δ; (ii) DME (1,2-dimethoxyethane), R-B(OH)2, Ethanol, Pd(PPh3)4, Na2CO3 2 M, 80 °C, N2.
Molecules 23 03014 sch001
Molecules 23 03014 g001 550

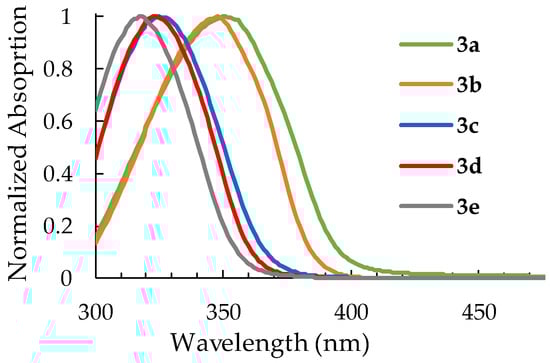

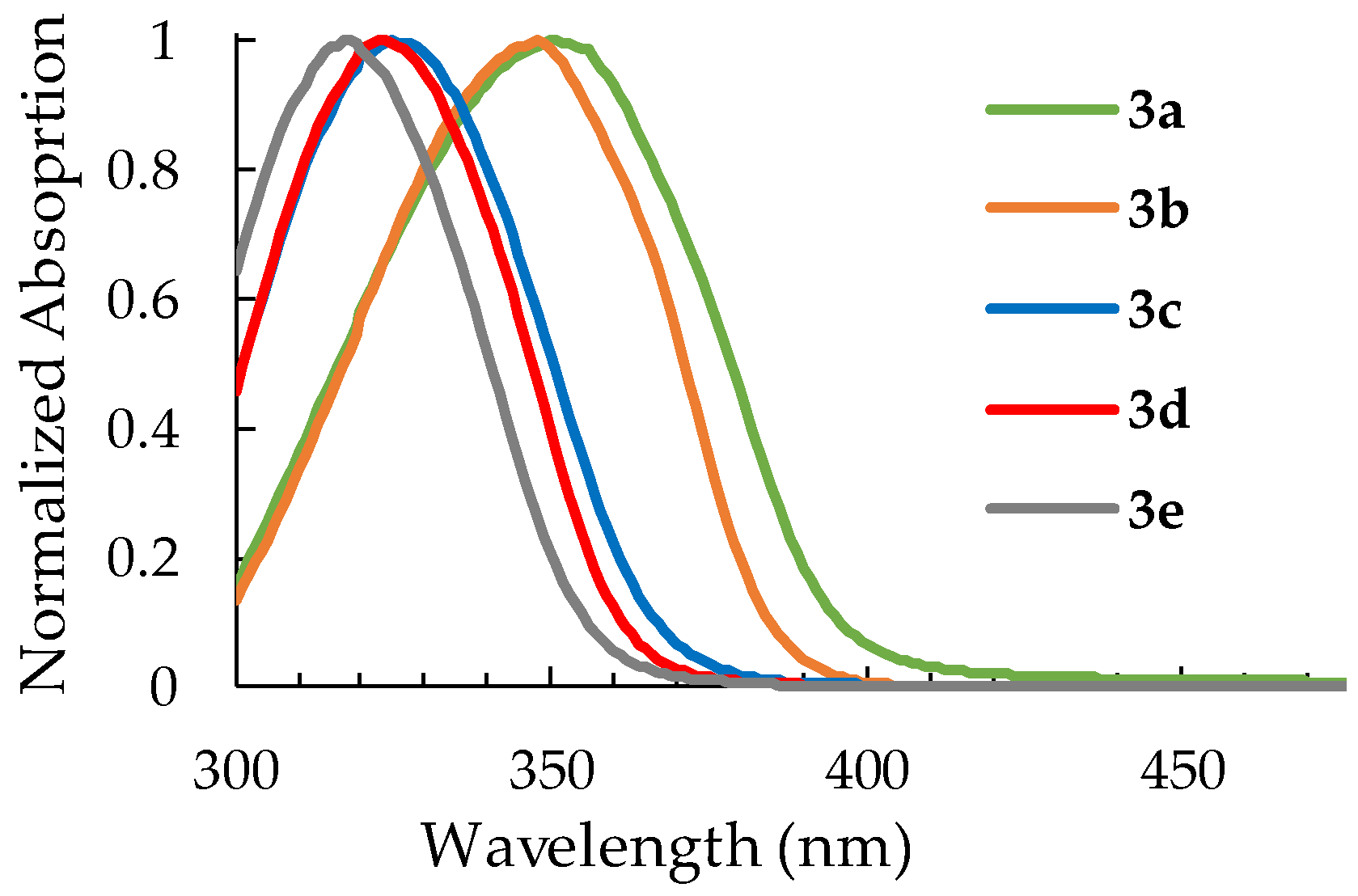

Figure 1. Normalized absorption spectra of compounds 3a–e in ethanol: 3a λmax = 357 nm; 3b λmax = 354 nm; 3c λmax = 332 nm; 3d λmax = 323 nm; 3e λmax = 314 nm.
Figure 1. Normalized absorption spectra of compounds 3a–e in ethanol: 3a λmax = 357 nm; 3b λmax = 354 nm; 3c λmax = 332 nm; 3d λmax = 323 nm; 3e λmax = 314 nm.
Molecules 23 03014 g001
Molecules 23 03014 g002 550
Figure 2. Optimized geometry of the lowest energy conformer, and frontier molecular orbitals of thienylpyridazines 3a–e (HOMO: Highest Occupied Molecular Orbital; LUMO: Lowest Unoccupied Molecular Orbital).
Figure 2. Optimized geometry of the lowest energy conformer, and frontier molecular orbitals of thienylpyridazines 3a–e (HOMO: Highest Occupied Molecular Orbital; LUMO: Lowest Unoccupied Molecular Orbital).
Molecules 23 03014 g002
Table
Table 1. Yields, UV-Visible absorption and emission data for thienylpyridazines 3a–e.
Table 1. Yields, UV-Visible absorption and emission data for thienylpyridazines 3a–e.
Cpds.YieldAbsorption 1Emission 2
λmax (nm)ε (M−1·cm−1)λem (nm)Stokes’ Shift (cm−1)ΦF
3a2835729,80042846500.006
3b1435427,80043251000.006
3c1533226,00040554300.003
3d2832326,10040462100.004
3e2531424,10040873400.005
1 Absorption spectra were recorded in ethanol solutions, at room temperature. 2 Emission spectra were recorded in ethanol solutions, at room temperature, using a solution of quinine sulfate in 0.05 M H2SO4 as a quantum yield standard (ΦF = 0.51 for excitation at 347 nm) [66,67].
Table
Table 2. UV-Visible absorption, β values, β0 values for thienylpyridazines 3a–e and p-nitroaniline reference.
Table 2. UV-Visible absorption, β values, β0 values for thienylpyridazines 3a–e and p-nitroaniline reference.
Cpds.Absorption 1β 2 (10−30 esu)β0 3 (10−30 esu)
λmax (nm)ε (M−1·cm−1)
3a34824,10015575
3b34831,10010050
3c32624,9005430
3d32326,100175100
3e31424,100--
pNA370-6228
1 Absorption data and experimental first hyperpolarizabilities β were measured in 1,2-dioxane solution. 2 All compounds are transparent at the 1064 nm fundamental wavelength and the hyperpolarizability values are reported using the T-convention [77]. 3 Data corrected for resonance enhancement at 532 nm using the two-level model with β0 = β [1 − (λmax/1064)2][1 − (λmax/532)2]; damping factors not included 1064 nm.
Table
Table 3. Computational results summary of thienylpyridazines 3a–e hyperpolarizability calculations.
Table 3. Computational results summary of thienylpyridazines 3a–e hyperpolarizability calculations.
Cpds.μ (D) 1βII (10−30 esu) 2βtot (10−30 esu) 3EHOMO (eV) 4ELUMO (eV) 5Eg (eV) 6
3a8.9853.1788.61−6.27−2.733.54
3b5.5642.6370.97−6.24−2.633.61
3c5.3356.3893.89−6.35−2.563.79
3d8.0441.4869.06−6.40−2.503.90
3e4.3429.0748.33−6.41−2.793.62
1 Dipole moment; 2 Parallel hyperpolarizability; 3 Total hyperpolarizability; 4 Energy of the Highest Occupied Molecular Orbital; 5 Energy of the Lowest Unoccupied Molecular Orbital. 6 LUMO-HOMO energy gap.

Share and Cite

MDPI and ACS Style

Fernandes, S.S.M.; Aires-de-Sousa, J.; Belsley, M.; Raposo, M.M.M. Synthesis of Pyridazine Derivatives by Suzuki-Miyaura Cross-Coupling Reaction and Evaluation of Their Optical and Electronic Properties through Experimental and Theoretical Studies. Molecules 2018, 23, 3014. https://doi.org/10.3390/molecules23113014

AMA Style

Fernandes SSM, Aires-de-Sousa J, Belsley M, Raposo MMM. Synthesis of Pyridazine Derivatives by Suzuki-Miyaura Cross-Coupling Reaction and Evaluation of Their Optical and Electronic Properties through Experimental and Theoretical Studies. Molecules. 2018; 23(11):3014. https://doi.org/10.3390/molecules23113014

Chicago/Turabian Style

Fernandes, Sara S. M., João Aires-de-Sousa, Michael Belsley, and M. Manuela M. Raposo. 2018. "Synthesis of Pyridazine Derivatives by Suzuki-Miyaura Cross-Coupling Reaction and Evaluation of Their Optical and Electronic Properties through Experimental and Theoretical Studies" Molecules 23, no. 11: 3014. https://doi.org/10.3390/molecules23113014

Article Metrics

Back to TopTop
