Anti-Inflammatory Effects of Aurantio-Obtusin from Seed of Cassia obtusifolia L. through Modulation of the NF-κB Pathway

by
Jingyi Hou
1,2,
Yu Gu
1,2,
Shuai Zhao
1,2,
Mengqi Huo
1,2,
Shifeng Wang
1,2,
Yanling Zhang
1,2,*,
Yanjiang Qiao
1,2,* and
Xi Li
1,2
1
Research Center of Traditional Chinese Medicine Information Engineering, School of Chinese Materia Medica, Beijing University of Chinese Medicine, Beijing 100102, China
2
Beijing Key Laboratory of Traditional Chinese Medicine Basics and New Drug Research, Research Center of Traditional Chinese Medicine Information Engineering, Beijing University of Chinese Medicine, Beijing 100102, China
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(12), 3093; https://doi.org/10.3390/molecules23123093
Submission received: 5 November 2018 / Revised: 18 November 2018 / Accepted: 21 November 2018 / Published: 27 November 2018
Browse Figures
Review Reports Versions Notes

Abstract

:
Aurantio-obtusin, an anthraquinone compound, isolated from dried seeds of Cassia obtusifolia L. (syn. Senna obtusifolia; Fabaceae) and Cassia tora L. (syn. Senna tora). Although the biological activities of Semen Cassiae have been reported, the anti-inflammatory mechanism of aurantio-obtusin, its main compound, on RAW264.7 cells, remained unknown. We investigated the anti-inflammatory effect of aurantio-obtusin on lipopolysaccharide- (LPS)-induced RAW264.7 cells in vitro and elucidated the possible underlying molecular mechanisms. Nitric oxide production (NO) and prostaglandin E2 (PGE2) were measured by the Griess colorimetric method and enzyme-linked immunosorbent assay (ELISA), respectively. Protein expression levels of cyclooxygenase 2 (COX-2) were monitored by cell-based ELISA. Interleukin 6 (IL-6) and tumor necrosis factor-alpha (TNF-α) synthesis were analyzed using ELISA. The mRNA expression of nitric oxide synthase (iNOS), COX-2, and the critical pro-inflammatory cytokines (IL-6 and TNF-α) were detected by quantitative real-time PCR. Aurantio-obtusin significantly decreased the production of NO, PGE2, and inhibited the protein expression of COX-2, TNF-α and IL-6, which were similar to those gene expression of iNOS, COX-2, TNF-α and IL-6 (p < 0.01). Consistent with the pro-inflammatory gene expression, the Aurantio-obtusin efficiently reduced the LPS-induced activation of nuclear factor-κB in RAW264.7 cells. These results suggested that aurantio-obtusin may function as a therapeutic agent and can be considered in the further development of treatments for a variety of inflammatory diseases. Further studies may provide scientific evidence for the use of aurantio-obstusin as a new therapeutic agent for inflammation-related diseases.

1. Introduction

Inflammation is essential in the complex network of immunological and physiological defense processes which occur following noxious stimulation. The stimulations include infection, toxin exposure, tissue injury, or exposure to endotoxins [1,2,3,4]. Unwanted and prolonged inflammatory responses are harmful to the body and function as a potential risk and pivotal drivers, in a number of major diseases. Cancer [5], diabetes [6], rheumatoid arthritis [7], chronic inflammatory bowel disease [8], cardiovascular disease [9], multiple sclerosis [10], and psoriasis [11] are some of the major diseases that may be affected by these responses. One of the key events involved in the inflammatory process includes the expression of inflammatory cytokines, chemokines, the signaling pathway, and other mediators (inducible NOS) [12].
Macrophages, a well-known inflammatory and immune effector cell type, play crucial roles in the immune response, in inflammatory diseases, and in host defense mechanisms, through the production of pro-inflammatory cytokines and inflammatory mediators [13]. Lipopolysaccharide (LPS), one of the most powerful activators of macrophages, activate these cells via the release of inflammatory mediators, cytokines and chemotactic factors. Toll-like receptor 4 (TLR4), one of the LPS recognition receptor, which triggers downstream of nuclear factor kappaB (NF-κB) [14]. NF-κB, a five-membered collection of transcription factors, is involved in physiological and patho- physiological responses [15]. In addition, this protein regulates the expression of genes and cytokines which play crucial roles in apotheosis, inflammation, proliferation, and calcium homeostasis [16,17,18]. NF-κB p50/p65, two subunits of NF-κB [19], once encountered inflammatory stimuli such as LPS, which increase the nuclear p65 protein, decreases cytosolic I-κB protein, promotes the expression of its downstream pro-inflammatory mediators and cytokines (i.e., inducible NOS, cyclooxygenase-2 (COX-2), moocyte chemoattractant protein 1(MCP-1), IL-6, IL-1β, tumor necrosis factor—α (TNF-α) and others [19,20]), and eventually induces an inflammatory response [21]. Therefore, the NF-κB pathway is emerging as potential therapeutic targets for the remedy the inflammatory diseases [22].
Over the past century, natural products, especially anthraquinone compounds, have become valuable products for achieving chemical diversity in the molecules used for inflammation relief [23,24]. 1,3,7-Trihydroxy-2,8-dimethoxy-6-methyl-9,10-anthracenedione (aurantio-obtusin, Figure 1), is a reported anthraquinone derivative, and is the major bioactive compound obtained from the dried seeds of Cassia obtusifolia L. (syn. Senna obtusifolia; Fabaceae) and Cassia tora L. (syn. Senna tora) [25,26,27] as well as a phytochemical marker of quality control in the Chinese Pharmacopeia (Version 2015) [28].
Accumulated evidences have shown that aurantio-obstusin exhibits a number of biological properties including anti-oxidative, anti-hypertension, anti-mutagenic, anti-genotoxic, anti-allergic and neuroprotective effects [3,29,30,31,32]. Semen Cassiae is widely used in Chinese folk medicine and has been demonstrated to exhibit significant anti-inflammatory effects [33,34]. Whether aurantio-obtusin plays a pivotal role in the anti-inflammatory effects exhibited by Semen Cassiae, remains unclear. Likewise, the underlying intracellular mechanisms whereby aurantio-obtusin exhibit its anti-inflammatory effect require further investigation. In this study, LPS-stimulated RAW264.7 cells were used as an inflammatory model to investigate the anti-inflammatory potency of the compound, aurantio-obtusin, isolated from Semen Cassiae. In addition, we investigated the underlying mechanism involved in the anti-inflammatory effects exhibited by this compound. Several chemokines, cytokines, and enzymes involved in the inflammatory process including NO, IL-6, iNOS, TNF-α, PGE2 and COX-2, were investigated to demonstrate these anti-inflammatory effects. We also investigated whether aurantio-obtusin exerts its anti-inflammatory activity by modulating the NF-κB pathway.

2. Results

2.1. Effect of Aurantio-Obtusin on Cell Cytotoxicity

MTT cell viability assays were used to measure the cytotoxicity of aurantio-obtusin in RAW264.7 cells. As shown in Figure 2, the cell viability of RAW264.7 was not significantly affected by aurantio-obtusin at concentrations up to 100 μM, while concentrations below 100 μM did not affect the cells (p < 0.05). As a result, the RAW264.7 cells were treated with aurantio-obtusin concentrations ranging from 6.25 to 50 μM for all subsequent experiments.

2.2. Effect of Aurantio-Obtusin on NO Production in RAW264.7 Cells

The effect of aurantio-obtusin on NO production in LPS-treated RAW264.7 cells were measured to investigate its anti-inflammatory effects. The concentrations of nitrite accumulated in the culture medium was tested using Griess reagent to serve as an index for NO.
The RAW264.7 cells were pretreated with different concentrations of aurantio-obtusin (6.25–50 μM) for 2 h, and stimulated with 0.2 μg/mL LPS (Figure 3A). Furthermore, laser scanning microscopy also shown aurantio-obtusin to be a stronger inhibitor of intracellular NO production than that in single LPS stimulation (Figure 3B). Dexamethasone, a NO inhibitor, used as a positive control, also inhibited the production of NO in the activated RAW264.7 cells (Figure 3).

2.3. Effect of Aurantio-Obtusin on the LPS-Induced Cytokines, TNF-α, IL-6, COX-2 and PEG2

Pro-inflammatory cytokines, such as TNF-α and IL-6, have been shown to pose a multitude of biological effects linked to autoimmunity, and acute or chronic inflammatory diseases. Thus, we evaluated the inhibitory effects of aurantio-obtusin (6.25–50 μM) on pro-inflammatory cytokines in LPS-induced RAW264.7 cells. As shown in Figure 4A,B, pretreatment of RAW264.7 cells with aurantio-obtusin (25, 50 μM) significantly suppressed the IL-6 production, while TNF-α was only significantly reduced when the aurantio-obtusin concentration was 25 μM (p < 0.01).
PGE2 is synthesized by the catalytic conversion of arachidonic acid to prostaglandin H2 by COX-2, PGE2 function as another import mediator in the pathogenesis of inflammation. To investigate the inhibitory activities of aurantio-obtusin on PGE2 and the protein expression of COX-2, RAW264.7 cells were cultured in a 96-well plate treated with the indicated concentrations of aurantio-obtusin (6.25–50 μM) and stimulated with 0.2 μg/mL LPS for 24 h. As shown in Figure 4C, LPS treatment significantly increased PGE2 production, while 50 μM aurantio-obtusin exhibited a significant inhibitory effect on PGE2 production (p < 0.01).
To examine whether the suppression of PGE2 can be attributed to the decreased protein expression of COX-2, the effect of aurantio-obtusin (6.25–50 μM) on COX-2 protein expression was determined. As shown in Figure 4D, the LPS-stimulated high expression of COX-2 was significantly inhibited in cells pretreated with aurantio-obtusin in a concentration-dependent manner. In addition, only 50 μM concentration of aurantio-obtusin significantly inhibited the protein expression of COX-2 (p < 0.01).

2.4. Effect of Aurantio-Obtusin on LPS-Induced mRNA Expression of TNF-α, IL-6, iNOS and COX-2 in LPS-Stimulated RAW264.7 Cells

IL-6, TNF-α, and pro-inflammatory mediators such as NO and PGE2, produced in the cell supernatant, were significantly inhibited (after LPS stimulation) by the addition of aurantio-obtusin in a concentration-dependent manner. To investigate the effects of aurantio-obtusin on LPS-induced mRNA expression, real-time PCR was performed. The inhibitory effects of aurantio-obtusin on LPS-induced mRNA expression of IL-6, iNOS, COX-2, and TNF-α were observed (Figure 5). The results suggested that the effect of aurantio-obtusin on mRNA expression of IL-6, TNF-α, iNOS, and COX-2 (p < 0.01) using all tested concentrations; a 56.41%, 54.54%, 92.02% and 76.95% significant inhibition were observed for IL-6, TNF-α, iNOS, and COX-2, respectively. In addition, the mRNA expression of IL-6, TNF-α, iNOS, COX-2 coincided with the secretion of IL-6, TNF-α, NO, PEG2 and COX-2 in the culture medium.

2.5. Effects of Aurantio-Obtusin on Proteins, with the Inhibition of NF-κB in LPS-Stimulated RAW264.7 Mouse Macrophages

To further confirm the anti-inflammatory properties of aurantio-obtusin, we evaluated its effect on the phosphorylation of inhibitor of NF-κB (IκB), and the protein expression of NF-κB p65, using a western blot assay. These components were selected for evaluation as they are involved in the pathogenesis of inflammation-related diseases. The β-actin protein was used as the internal control. LPS markedly induced the phosphorylation of IκB when the RAW264.7 cells were exposed to 0.2 μg/mL LPS for 12 h. Pretreatment with aurantio-obtusin effectively suppressed these processes in a dose-dependent manner, and significantly inhibited the protein expression of NF-κB p65. These results suggest that aurantio-obtusin inhibited the NF-κB-dependent inflammation pathway in RAW264.7 cells (Figure 6). Inhibitor of nuclear factor kappa-B kinase (IKK) can phosphorylate IκB, by acting as the upstream kinase of IκB in the NF-κB signaling pathway. Thus, the effects of aurantio-obtusin on LPS-induced IKK-α, -β activation were observed; aurantio-obtusin (12.5, 25, 50 μM) inhibited the expressions of IKK-α and IKK-β. As shown in Figure 7, LPS treatment resulted in the translocation of NF-κB from the cytoplasm to the nucleus as indicated by the detection of the Cy3-conjugated anti-NF-κB antibody and the blue fluorescence of nuclear counterstain DAPI. In contrast, the translocation of NF-κB was reduced in aurantio-obtusin treated cells.

3. Discussion

In this study, aurantio-obstuin, isolated from Semen Cassiae, was used to investigate its effects on LPS-induced inflammatory responses in the murine macrophage cell line, RAW264.7, model. aurantio-obtusin was shown to prevent inflammation through an underlying mechanism involved in the activation of NF-κB in LPS-stimulated RAW264.7 cells.
Inflammation, a basic defense mechanism, serves a variety of physiological purposes that include host defenses, tissue repair response, and recovery of the homeostatic state [35]. LPS, a major inducer of the outer cell membrane of gram-negative bacteria, promotes the activation of monocytes and macrophages. This in turn promotes inflammatory pathogenesis via stimulating the TLR4 and releasing of many inflammatory cytokines and mediators such as TNF-α, IL-6, IL-1β, and IL-18 [36].
A considerable amount of attention has been directed at aurantio-obtusin, an anthraquinone isolated from Semen Cassiae, as a result of its anti-oxidative and neuroprotective properties [27]. Our study was, however, the first conducted to investigate the underlying effects of aurantio-obtusin on the production of pro-inflammatory cytokines and the activation of inflammation in RAW264.7 macrophages. The inflammatory model of RAW264.7 macrophages stimulated by LPS, is considered a canonical model for inflammation research. This is because this model can be used to investigate the effects of pharmacological treatment on the systemic inflammatory response. The experimental data demonstrated that aurantio-obtusin exhibited non-cytotoxic effects on RAW264.7 cells when combined with 0.2 μg/mL LPS stimulation.
NO, an intracellular messenger and regulator of inflammatory responses, was produced in high amounts by the up regulation of iNOS expression in activated inflammatory cells [37]. However, pretreatment with aurantio-obtusin was found to significantly suppress LPS-stimulated NO production in a concentration-dependent manner. In addition, the inhibitor, aurantio-obtusin (12.5–50 μM), was observed to exhibit stronger inhibition than dexamethasone (100 μM), the positive control. The mRNA expression of iNOS was also inhibited by aurantio-obtusin. This suggests that the suppressing effect of aurantio-obtusin on LPS-induced iNOS expression can be attributed to the transcriptional inhibition of the iNOS gene [38].
During the inflammation process, LPS has been reported to stimulate macrophage activation, resulting in the release of pro-inflammatory cytokines [39]. TNF-α and IL-6 are considered as critical cytokines involved in the inflammatory responses and their suppression can be regarded as a therapeutic strategy for inflammation-related disorders [40,41]. Hence, we selected TNF-α and IL-6 as the critical indicators of the inflammatory response, to investigate the anti-inflammatory effect of aurantio-obtusin. In the present study, pre-treatment with aurantio-obtusin suppressed TNF-α and IL-6 production and their mRNA expression. More importantly, the suppression of IL-6 production and its mRNA expression, were more significant than that of TNF-α when pretreated with aurantio-obtusin. This suggested the potential therapeutic effect of aurantio-obtusin for the treatment of inflammatory-related diseases. Since many anti-inflammatory actions have been attributed to the inhibition of prostaglandin synthesis, PGE2 was considered as one of the strongest inflammatory mediators in inflammation [42]. PGE2 is transformed from arachidonic acid via the COX-2 catalytic reaction, which may be affected by iNOS [42]. Aurantio-obtusin was shown to significantly suppress PGE2 production, and inhibit the COX-2 mRNA expression and protein expression in a dose dependent manner. These results attributed to the inhibitory effect of aurantio-obtusin on PGE2 production via blocking COX-2 gene and protein expression [43].
The accumulated evidence haa confirmed that interference NF-κB for studying the suppression of LPS-stimulated inflammatory cytokines (i.e., the encoding cytokines, IL-6 and TNF-α, and the inflammation-related enzymes, COX-2 and iNOS) [44,45]. Through investigating the specific mechanism whereby aurantio-obtusin inhibit the activation of NF-κB the phosphorylation of IκB and IKK, and protein expressions of NF-κB p65, three vital events of NF-κB to the nucleus was inhibited by aurantio-obtusin, in a concentration-dependent manner. In addition, we saw that the degradation and phosphorylation of IκB-α were also inhibited, thus, indicating that aurantio-obtusin may inhibit NF-κB activation by suppressing the phosphorylation of IκBα and IκBα, in LPS-induced RAW264.7 cells. The phosphorylation of the IκB protein is a vital step in the activation of NF-κB and is regulated by IκB kinase (IKKs). The IKK activity is also induced by activators of the NF-κB pathways [46,47]. In the present study, we observed that aurantio-obtusin suppressed the activation of IKK-α and IKK-β; this underlies its inhibitory activity on NF-κB activation.

4. Materials and Methods

4.1. Materials and Reagents

Aurantio-obtusin (98.3% purity) was purchased from Chinese Materials Research Center (Beijing, China). Dulbecco’s modified Eagle’s medium-high glucose (DMEM) and fetal bovine serum (FBS) were purchased from Biological Industries (Shanghai, China). Bacterial LPS (Escherichia coli serotype 026:B6, L8274), Dexamethasone and 2-(4,5-dimethyl- thiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) were obtained from Sigma-Aldrich Co. (St. Louis, MO, USA). Griess reagent system, Cy3-labeled Goat Anti-Rabbit IgG, and DAPI were obtained from Beyotime (Beijing, China). IL-6 Mouse ELISA Kit and TNF-α Mouse ELISA Kit were obtained from eBioscience (San Diego, CA, USA). The Prostaglandin E2 Parameter Assay Kit was obtained from R&D Systems Inc. (Minneapolis, MN, USA). COX-2 In-Cell ELISA Colorimetric Detection kit was purchased from ThermoFisher Scientific (Waltham, MA, USA), and the mouse COX-2 antibody was obtained from BD Pharmingen (San Diego, CA, USA). Trizol reagent was obtained from Invitrogen (Paisely, UK). The PrimeScript II 1st Strand cDNA Synthesis Kit and SYBR premix were purchased from Takara Bio Inc. (Tokyo, Japan). The BCA Protein Assay Kit was obtained from Pierce (Waltham, MA, USA). Thermo Fisher Scientific provided the NE-PER Nuclear and Cytoplasmic Extraction Kit. Cell Signaling Technology (Beverly, MA, USA) provided the following antibodies: IKKβ, p-IKKα/β, NF-κB p65, IκBα, p-IκBα, Anti-rabbit IgG, and β-actin.

4.2. Cell Culture

RAW264.7 macrophages were obtained from Cell Culture Center of Chinese Academy of Medical Sciences (Beijing, China). Cells were cultured in DMEM supplemented with 10% FBS, 100 units/mL penicillin and 100 μg/mL streptomycin (Invitrogen, Carlsbad, CA, USA) at 37 °C, in a fully humidified incubator containing 5% CO2. For all experiments, cells were grown between 80%–90% confluence, and were subjected to no more than ten cell passages.

4.3. Cell Viability Assay

Cell viability was assessed using an MTT assay. RAW264.7 cells were seeded in a 96-well plate (5 × 104 per well) and incubated overnight at 37 °C. The RAW264.7 cells were then treated with various concentrations of aurantio-obtusin (6.25–100 μM). After an additional 24 h of incubation at 37 °C, 10 μL of MTT (stock solution of 5 mg/mL) was added to arrive at a final concentration of 0.5 mg/mL in each well; additional incubation followed. The medium was discarded after 4 h and 100 μL DMSO added to every well to dissolve the formazan precipitate. Absorption at a wavelength of 570 nm was used to measure the using a multifunctional microplate reader (FlexStation 3, Molecular Devices, Silicon Valley, CA, USA).

4.4. Nitrite Assay

RAW264.7 macrophages were cultured in 96-well plates at a density of 1 × 104 cells/well, containing 100 μL DMEM and 10% FBS; incubation was performed for 24 h. The cells were then pre-treated with various concentrations of aurantio-obtusin (6.25–50 μM) for 2 h, followed by stimulation with 0.2 μg/mL LPS for 24 h at 37 °C, in a 5% CO2 atmosphere. The Griess assay was used to measure the NO concentration in the medium. Fifty μL of the cell culture supernatant was added to an equal volume of Griess reagent (0.1% naphthylethylenediamine dihydrochloride and 1% sulphanilamide in 5% phosphoric acid) in a 96-well plate for mins, and the 540 nm (OD540) absorbance was detected. The quantity of nitrite was determined using a sodium nitrite standard curve. The results are presented as mean ± standard deviation (SD) of 6 replicates per representative experiment. 4-amino-5-methylamino-2′,7′-difluorescein (DAF-FM) which enhanced the intensity of fluorescence reacting with NO, on a laser scanning microscopy (LEICA, Frankfurt, Germany). RAW264.7 cells were seeded in 35-mm dishes at a density of 3 × 104 cells for 24 h at 37 °C and 5% CO2. The cells were pretreated with aurantio-obtusin (50 μM) for 2 h, then stimulated with 0.2 μg/mL LPS for 24 h. Discarded the culture medium, then, 10 μM DAF-FM diacetate was incubated for 30 min and washed with PBS for three times. Digital images were generated with a LEICA laser scanning microscope with an excitation wavelength of 495 nm and an emission wavelength of 515 nm.

4.5. Determination of IL-6, TNF-α, COX-2 and PGE2 Production

RAW264.7 cells were cultured in 24-well plates (at a density of 2 × 104 cells per well) and incubated for 24 h. Before stimulated with 0.2 μg/mL LPS for 24 h, the cells were treated with aurantio-obtusin (6.25–50 μM) for 2 h. The production of IL-6, TNF-α, COX-2 and PGE2 in the supernatant was determined using commercially ELISA Kits according to the manufacturer’s instructions [20,37,48,49].

4.6. Quantitative Real-Time PCR Analysis

Cells were cultured in 6-well plates (at a density of 10 × 105 cells/well) for 24 h. The cells were pre-treated with various concentrations of aurantio-obtusin (6.25–50 μM) for 2 h, followed by stimulation with LPS (0.2 μg/mL) for 24 h. Total RNA was extracted using the TRIZOL reagent according to the manufacturer’s instruction. The PrimeScript II 1st Strand cDNA Synthesis Kit was used for reverse transcription according to the manufacture’s protocol. Real-time PCR detection system (MA-Smart, Suzhou, China) and SYBR were used for RT-PCR amplification of iNOS, IL-6, TNF-α, COX-2 and β-actin using the following conditions: 95 °C for 30 s, and 40 cycles of 95 °C for 5 s, and 60 °C for 34 s. A melt curve analysis was performed to verify the accuracy of the amplification at the end of each experiment. The primer sequences are listed in Table 1. Samples were compared using the relative CT method. The fold increase or decrease was dependent on a blank control after the elimination of the housekeeping gene according to 2−∆∆CT [50,51].

4.7. Western Blot Analysis

RAW264.7 cells were seeded in 6-well plates (10 × 105 cells/well) for 24 h. The cells were pretreated with or without aurantio-obtusin (6.25–50 μM) for 2 h, followed by exposure to 0.2 μg/mL LPS for 12 h. The supernatants were discarded, and the cells washed with cold PBS (pH 7.4). The cells were then resuspended in lysis buffer (50 mM HEPES pH 7.0, 250 mM NaCl, 5 mM EDTA, 0.1% Nonidet P-40, 1 mM PMSF, 0.5 mM DTT, 5 mM NaF and 0.5 mM sodium orthovanadate) containing 5 mg/L leupeptin and aprotinin, and incubated for 20 min at 4 °C. The cell debris was removed by centrifugation and the supernatant collected. The protein concentrations of the cell lysates were detected by the BCA method (Pierce, Waltham, MA, USA). The cytosol and nuclear fractions were extracted using an NE-PER Nuclear and Cytoplasmic Extraction Kit (Thermo Fisher Scientific, San Jose, CA, USA) according to the manufacture’s protocol. Each cell lysate was loaded onto an 8% or 10% sodium dodecyl sulfate (SDS) polyacrylamide gel, followed by transfer of proteins to the PVDF membranes. After blocking the membrane in 0.01 % Tween 20 (TBST) containing 5% skimmed milk powder for 1 h, the membrane was incubated with the appropriate primary antibody (targeting IKKβ, p-IKKα/β, NF-κB p65, IκBα, p-IκBα, and β-actin; Cell Signaling Technology, MA, USA) at 1:1000 dilution overnight at 4 °C. The membrane was washed in TBST and incubated with the Anti-rabbit IgG secondary antibody (Cell Signaling Technology) at a 1:1000 dilution for 1 h. After three rounds of membrane washing in TBST, the immunoreactive bands were visualized and quantified using Gel Image system ver. 4.00 (Tanon, Shanxi, China).

4.8. Immunofluorescence Assay

RAW264.7 cells were seeded onto a 4-well chamber slide at a density of 5 × 103 cells/mL. The cells were stimulated with LPS and then incubated with indicated concentrations of aurantio-obtusin. The cells then washed with PBS and fixed in 4.0% formaldehyde for 10 min at room temperature. Afterwards, the cells were permeabilized with 0.1% Triton X-100 for 4 min and washed twice with PBS. Then, the cells were incubated with anti-NF-κB p65 antibodies (1:100 with 2% BSA) overnight at 4 °C, followed by incubation with Cy3-labeled Goat Anti-Rabbit IgG for 1h at room temperature in the dark. Finally, the cells were washed with PBS and incubated with DAPI mounting medium for 10 min. The samples were then analyzed through fluorescence microscopy [52].

4.9. Statistical Analysis

Data represented as mean ± S.E.M with at least three independent experiments conducted. One-way ANOVA and two-tailed Student’s t-test were performed. p values < 0.05 were considered statistically significant. All statistical tests were carried out using the GraphPad Prism software (5.0, GraphPad Inc., San Diego, CA, USA).

5. Conclusions

In conclusion, the present study showed the potential of aurantio-obtusin as an anti-inflammatory agent. For the RAW264.7 macrophages that had been activated by LPS, aurantio-obtusin suppressed the LPS-induced production of TNF-α, IL-6, iNOS, COX-2 and PGE2, by inhibiting the activation of the NF-κB pathway. These results suggest that aurantio-obtusin may be a therapeutic agent that can be considered for further development of treatments for a variety of inflammation-related diseases. In addition, aurantio-obtusin may provide a new interpretation of the function of Semen Cassiae in inflammation. Further detailed and comprehensive studies on the anti-inflammatory effects of aurantio-obtusin in both in vitro and in vivo models of inflammatory diseases, are required to evaluate the therapeutic potential of aurantio-obtusin.

Author Contributions

Conceptualization, Y.Q. and Y.Z.; formal analysis, Y.G.; data curation, S.W.; writing—original draft preparation, J.H. and S.Z.; writing—review and editing, M.H. and S.W.; software, X.L.; supervision, S.W. and Y.Z.; project administration, Y.Z.

Funding

This work was supported by the National Natural Science Foundation of China (No. 81430094; No. 81573831).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zitti, B.; Bryceson, Y.T. Natural killer cells in inflammation and autoimmunity. Cytokine Growth Factor Rev. 2018, 42, 37–46. [Google Scholar] [CrossRef] [PubMed]
  2. Jayasooriya, R.G.; Lee, K.T.; Lee, H.J.; Choi, Y.H.; Jeong, J.W.; Kim, G.Y. Anti-inflammatory effects of β-hydroxyisovalerylshikonin in BV2 microglia are mediated through suppression of the PI3K/Akt/NF-kB pathway and activation of the Nrf2/HO-1 pathway. Food Chem. Toxicol. 2014, 65, 82–89. [Google Scholar] [CrossRef] [PubMed]
  3. Kim, M.; Lim, S.J.; Lee, H.J.; Nho, C.W. Cassia tora Seed Extract and Its Active Compound Aurantio-obtusin Inhibit Allergic Responses in IgE-Mediated Mast Cells and Anaphylactic Models. J. Agric. Food Chem. 2015, 63, 9037–9046. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, E.J.; Park, J.S.; Lee, Y.Y.; Kim, D.Y.; Kang, J.L.; Kim, H.S. Anti-inflammatory and anti-oxidant mechanisms of an MMP-8 inhibitor in lipoteichoic acid-stimulated rat primary astrocytes: Involvement of NF-κB, Nrf2, and PPAR-γ signaling pathways. J. Neuroinflamm. 2018, 15, 326. [Google Scholar] [CrossRef] [PubMed]
  5. Zambirinis, C.P.; Pushalkar, S.; Saxena, D.; Miller, G. Pancreatic cancer, inflammation, and microbiome. Cancer J. 2014, 20, 195–202. [Google Scholar] [CrossRef] [PubMed]
  6. Muriach, M.; Flores-Bellver, M.; Romero, F.J.; Barcia, J.M. Diabetes and the brain: Oxidative stress, inflammation, and autophagy. Oxid. Med. Cell. Longev. 2014, 2014, 102158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Kourilovitch, M.; Galarza-Maldonado, C.; Ortiz-Prado, E. Diagnosis and classification of rheumatoid arthritis. J. Autoimmun. 2014, 48–49, 26–30. [Google Scholar] [CrossRef] [PubMed]
  8. Monajemi, H.; Meenan, J.; Lamping, R.; Obradov, D.O.; Radema, S.A.; Trown, P.W.; Tytgat, G.N.; Van Deventer, S.J. Inflammatory bowel disease is associated with increased mucosal levels of bactericidal/permeability-increasing protein. Gastroenterology 1996, 110, 733–739. [Google Scholar] [CrossRef] [PubMed]
  9. Engds, P.; Silvares, R.R.; Flores, E.E.I.; Rodrigues, K.L.; Ramos, I.P.; da Silva, I.J.; Machado, M.P.; Miranda, R.A.; Pazos-Moura, C.C.; Gonçalves-de-Albuquerque, C.F.; et al. Hepatic microvascular dysfunction and increased advanced glycation end products are components of non-alcoholic fatty liver disease. PLoS ONE 2017, 12, e0179654. [Google Scholar]
  10. Walker, M.C. Hippocampal Sclerosis: Causes and Prevention. Semin. Neurol. 2015, 35, 193–200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Grozdev, I.; Korman, N.; Tsankov, N. Psoriasis as a systemic disease. Clin. Dermatol. 2014, 32, 343–350. [Google Scholar] [CrossRef] [PubMed]
  12. Baggiolini, M. Chemokines and leukocyte traffic. Nature 1998, 392, 565–568. [Google Scholar] [CrossRef] [PubMed]
  13. Zhao, C.; Liu, G.; Li, X.; Guan, Y.; Wang, Y.; Yuan, X.; Sun, G.; Wang, Z.; Li, X. Inflammatory mechanism of Rumenitis in dairy cows with subacute ruminal acidosis. BMC Vet. Res. 2018, 14, 135. [Google Scholar] [CrossRef] [PubMed]
  14. Pan, M.H.; Hong, H.M.; Lin, C.L.; Jhang, A.Z.; Tsai, J.H.; Badmaev, V.; Nagabhushanam, K.; Ho, C.T.; Chen, W.J. Se-methylselenocysteine inhibits lipopolysaccharide-induced NF-κB activation and iNOS induction in RAW 264.7 murine macrophages. Mol. Nutr. Food Res. 2011, 55, 723–732. [Google Scholar] [CrossRef] [PubMed]
  15. Zha, L.; Chen, J.; Sun, S.; Mao, L.; Chu, X.; Deng, H.; Cai, J.; Li, X.; Liu, Z.; Cao, W. Soyasaponins can blunt inflammation by inhibiting the reactive oxygen species-mediated activation of PI3K/Akt/NF-kB pathway. PLoS ONE 2014, 9, e107655. [Google Scholar] [CrossRef] [PubMed]
  16. Lawrence, T.; Gilroy, D.W.; Colville-Nash, P.R.; Willoughby, D.A. Possible new role for NF-kappaB in the resolution of inflammation. Nat. Med. 2001, 7, 1291–1297. [Google Scholar] [CrossRef] [PubMed]
  17. DiDonato, J.A.; Mercurio, F.; Karin, M. NF-κB and the link between inflammation and cancer. Immunol. Rev. 2012, 246, 379–400. [Google Scholar] [CrossRef] [PubMed]
  18. Yates, L.L.; Górecki, D.C. The nuclear factor-kappaB (NF-kappaB): From a versatile transcription factor to a ubiquitous therapeutic target. Acta Biochim. Pol. 2006, 53, 651–662. [Google Scholar] [PubMed]
  19. Deshmane, S.L.; Kremlev, S.; Amini, S.; Sawaya, B.E. Monocyte chemoattractant protein-1 (MCP-1): An overview. J. Interferon. Cytokine Res. 2009, 29, 313–326. [Google Scholar] [CrossRef] [PubMed]
  20. Covarrubias, A.J.; Horng, T. IL-6 strikes a balance in metabolic inflammation. Cell Metab. 2014, 19, 898–899. [Google Scholar] [CrossRef] [PubMed]
  21. Song, Y.; Liu, X.; Yue, H.; Ji, J.; Dou, H.; Hou, Y. Anti-inflammatory effects of benzenediamine derivate FC-98 on sepsis injury in mice via suppression of JNK, NF-κB and IRF3 signaling pathways. Mol. Immunol. 2015, 67 Pt B, 183–192. [Google Scholar] [CrossRef]
  22. Hwang, P.A.; Chien, S.Y.; Chan, Y.L.; Lu, M.K.; Wu, C.H.; Kong, Z.L.; Wu, C.J. Inhibition of Lipopolysaccharide (LPS)-induced inflammatory responses by Sargassum hemiphyllum sulfated polysaccharide extract in RAW 264.7 macrophage cells. J. Agric. Food Chem. 2011, 59, 2062–2068. [Google Scholar] [CrossRef] [PubMed]
  23. Lin, Y.Y.; Tsai, S.J.; Chiang, M.Y.; Wen, Z.H.; Su, J.H. Anti-inflammatory anthraquinones from the crinoid Himerometra magnipinna. Nat. Prod. Commun. 2015, 10, 317–318. [Google Scholar] [PubMed]
  24. Yang, X.; Kang, M.C.; Li, Y.; Kim, E.A.; Kang, S.M.; Jeon, Y.J. Anti-inflammatory activity of questinol isolated from marine-derived fungus Eurotium amstelodami in lipopolysaccharide-stimulated RAW 264.7 macrophages. J. Microbiol. Biotechnol. 2014, 24, 1346–1353. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, L.; Chan, C.O.; Lau, C.C.; Yu, Z.; Mok, D.K.; Chen, S. Simultaneous determination of eight anthraquinones in Semen Cassiae by HPLC-DAD. Phytochem. Anal. 2012, 23, 110–116. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, C.; Wang, R.; Liu, B.; Tu, G. Structure elucidation of a sodium salified anthraquinone from the seeds of Cassia obtusifolia by NMR technique assisted with acid-alkali titration. Magn. Reson. Chem. 2011, 49, 529–532. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, Q.; Xu, Z.; Yu, P.; Cen, P. [Advances in biochemical study of active anthraquinone constituents in Chinese traditional herb semen Cassiae]. Zhong Yao Cai 2002, 25, 442–445. [Google Scholar] [PubMed]
  28. Diao, Y.L.; Wang, R.F.; Zhang, C.; Chen, J.X.; Liu, B. A new comprehensive procedure for the quality control of Semen Cassiae and its application in evaluating commercially available material in China. Chin. J. Nat. Med. 2013, 11, 433–441. [Google Scholar] [CrossRef] [PubMed]
  29. Ju, M.S.; Kim, H.G.; Choi, J.G.; Ryu, J.H.; Hur, J.; Kim, Y.J.; Oh, M.S. Cassiae semen, a seed of Cassia obtusifolia, has neuroprotective effects in Parkinson’s disease models. Food Chem. Toxicol. 2010, 48, 2037–2044. [Google Scholar] [CrossRef] [PubMed]
  30. Kim, D.H.; Kim, S.; Jung, W.Y.; Park, S.J.; Park, D.H.; Kim, J.M.; Cheong, J.H.; Ryu, J.H. The neuroprotective effects of the seeds of Cassia obtusifolia on transient cerebral global ischemia in mice. Food Chem. Toxicol. 2009, 47, 1473–1479. [Google Scholar] [CrossRef] [PubMed]
  31. Kitanaka, S.; Nakayama, T.; Shibano, T.; Ohkoshi, E.; Takido, M. Antiallergic agent from natural sources. Structures and inhibitory effect of histamine release of naphthopyrone glycosides from seeds of Cassia obtusifolia L. Chem. Pharm. Bull. (Tokyo) 1998, 46, 1650–1652. [Google Scholar] [CrossRef] [PubMed]
  32. Li, S.; Li, Q.; Lv, X.; Liao, L.; Yang, W.; Li, S.; Lu, P.; Zhu, D. Aurantio-obtusin relaxes systemic arteries through endothelial PI3K/AKT/eNOS-dependent signaling pathway in rats. J. Pharmacol. Sci. 2015, 128, 108–115. [Google Scholar] [CrossRef] [PubMed]
  33. Yi, J.H.; Park, H.J.; Lee, S.; Jung, J.W.; Kim, B.C.; Lee, Y.C.; Ryu, J.H.; Kim, D.H. Cassia obtusifolia seed ameliorates amyloid β-induced synaptic dysfunction through anti-inflammatory and Akt/GSK-3β pathways. J. Ethnopharmacol. 2016, 178, 50–57. [Google Scholar] [CrossRef] [PubMed]
  34. Luo, X.; Xu, X.; Huang, C.; Wu, X.; Liu, J.; Lan, B.; Xu, J. [Experiment study of total anthraquinone in cassiae semen on lipid peroxidation and PPAR-gamma expression in liver tissues of rats with alcoholic fatty liver]. Zhongguo Zhong Yao Za Zhi 2011, 36, 1654–1659. [Google Scholar] [PubMed]
  35. Hwang, J.H.; Kim, K.J.; Ryu, S.J.; Lee, B.Y. Caffeine prevents LPS-induced inflammatory responses in RAW264.7 cells and zebrafish. Chem. Biol. Interact. 2016, 248, 1–7. [Google Scholar] [CrossRef] [PubMed]
  36. Rayner, B.S.; Zhang, Y.; Brown, B.E.; Reyes, L.; Cogger, V.C.; Hawkins, C.L. Role of hypochlorous acid (HOCl) and other inflammatory mediators in the induction of macrophage extracellular trap formation. Free Radic. Biol. Med. 2018, 129, 25–34. [Google Scholar] [CrossRef] [PubMed]
  37. Nakanishi, M.; Rosenberg, D.W. Multifaceted roles of PGE2 in inflammation and cancer. Semin. Immunopathol. 2013, 35, 123–137. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, Q.S.; Cui, Y.L.; Dong, T.J.; Zhang, X.F.; Lin, K.M. Ethanol extract from a Chinese herbal formula, “Zuojin Pill”, inhibit the expression of inflammatory mediators in lipopolysaccharide-stimulated RAW 264.7 mouse macrophages. J. Ethnopharmacol. 2012, 141, 377–385. [Google Scholar] [CrossRef] [PubMed]
  39. Kopf, M.; Bachmann, M.F.; Marsland, B.J. Averting inflammation by targeting the cytokine environment. Nat. Rev. Drug Discov. 2010, 9, 703–718. [Google Scholar] [CrossRef] [PubMed]
  40. Burger, D.; Dayer, J.M.; Palmer, G.; Gabay, C. Is IL-1 a good therapeutic target in the treatment of arthritis. Best Pract. Res. Clin. Rheumatol. 2006, 20, 879–896. [Google Scholar] [CrossRef] [PubMed]
  41. Vanamee, É.S.; Faustman, D.L. Structural principles of tumor necrosis factor superfamily signaling. Sci. Signal. 2018, 11. [Google Scholar] [CrossRef] [PubMed]
  42. Vane, J.R. Inhibition of prostaglandin synthesis as a mechanism of action for aspirin-like drugs. Nat. New Biol. 1971, 231, 232–235. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, Q.S.; Xiang, Y.; Cui, Y.L.; Lin, K.M.; Zhang, X.F. Dietary blue pigments derived from genipin, attenuate inflammation by inhibiting LPS-induced iNOS and COX-2 expression via the NF-κB inactivation. PLoS ONE 2012, 7, e34122. [Google Scholar] [CrossRef] [PubMed]
  44. Qureshi, A.A.; Guan, X.Q.; Reis, J.C.; Papasian, C.J.; Jabre, S.; Morrison, D.C.; Qureshi, N. Inhibition of nitric oxide and inflammatory cytokines in LPS-stimulated murine macrophages by resveratrol, a potent proteasome inhibitor. Lipids Health Dis. 2012, 11, 76. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. You, R.; Long, W.; Lai, Z.; Sha, L.; Wu, K.; Yu, X.; Lai, Y.; Ji, H.; Huang, Z.; Zhang, Y. Discovery of a potential anti-inflammatory agent: 3-oxo-29-noroleana-1,9(11),12-trien-2,20-dicarbonitrile. J. Med. Chem. 2013, 56, 1984–1995. [Google Scholar] [CrossRef] [PubMed]
  46. Yen, I.C.; Shi, L.S.; Chung, M.C.; Ahmetaj-Shala, B.; Chang, T.C.; Lee, S.Y. Antrolone, a Novel Benzoid Derived from Antrodia cinnamomea, Inhibits the LPS-Induced Inflammatory Response in RAW264.7 Macrophage Cells by Balancing the NF-[Formula: See text]B and Nrf2 Pathways. Am. J. Chin. Med. 2018, 46, 1–17. [Google Scholar] [CrossRef] [PubMed]
  47. Torres, C.M.; Siebert, M.; Bock, H.; Mota, S.M.; Castan, J.U.; Scornavacca, F.; de Castro, L.A.; Saraiva-Pereira, M.L.; Bianchin, M.M. Tyrosine receptor kinase B gene variants (NTRK2 variants) are associated with depressive disorders in temporal lobe epilepsy. Epilepsy Behav. 2017, 71 Pt A, 65–72. [Google Scholar] [CrossRef]
  48. Gano, L.B.; Donato, A.J.; Pasha, H.M.; Hearon, C.M.; Sindler, A.L.; Seals, D.R. The SIRT1 activator SRT1720 reverses vascular endothelial dysfunction, excessive superoxide production, and inflammation with aging in mice. Am. J. Physiol. Heart Circ. Physiol. 2014, 307, H1754–H1763. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, Q.S.; Cui, Y.L.; Wang, Y.F.; Chi, W. Effects of compounds from bi-qi capsule on the expression of inflammatory mediators in lipopolysaccharide-stimulated RAW 264.7 macrophages. J. Ethnopharmacol. 2011, 136, 480–487. [Google Scholar] [CrossRef] [PubMed]
  50. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  51. De Gois, S.; Schäfer, M.K.; Defamie, N.; Chen, C.; Ricci, A.; Weihe, E.; Varoqui, H.; Erickson, J.D. Homeostatic scaling of vesicular glutamate and GABA transporter expression in rat neocortical circuits. J. Neurosci. 2005, 25, 7121–7133. [Google Scholar] [CrossRef] [PubMed]
  52. Islam, S.U.; Lee, J.H.; Shehzad, A.; Ahn, E.M.; Lee, Y.M.; Lee, Y.S. Decursinol Angelate Inhibits LPS-Induced Macrophage Polarization through Modulation of the NFκB and MAPK Signaling Pathways. Molecules 2018, 23, 1880. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 03093 g001 550

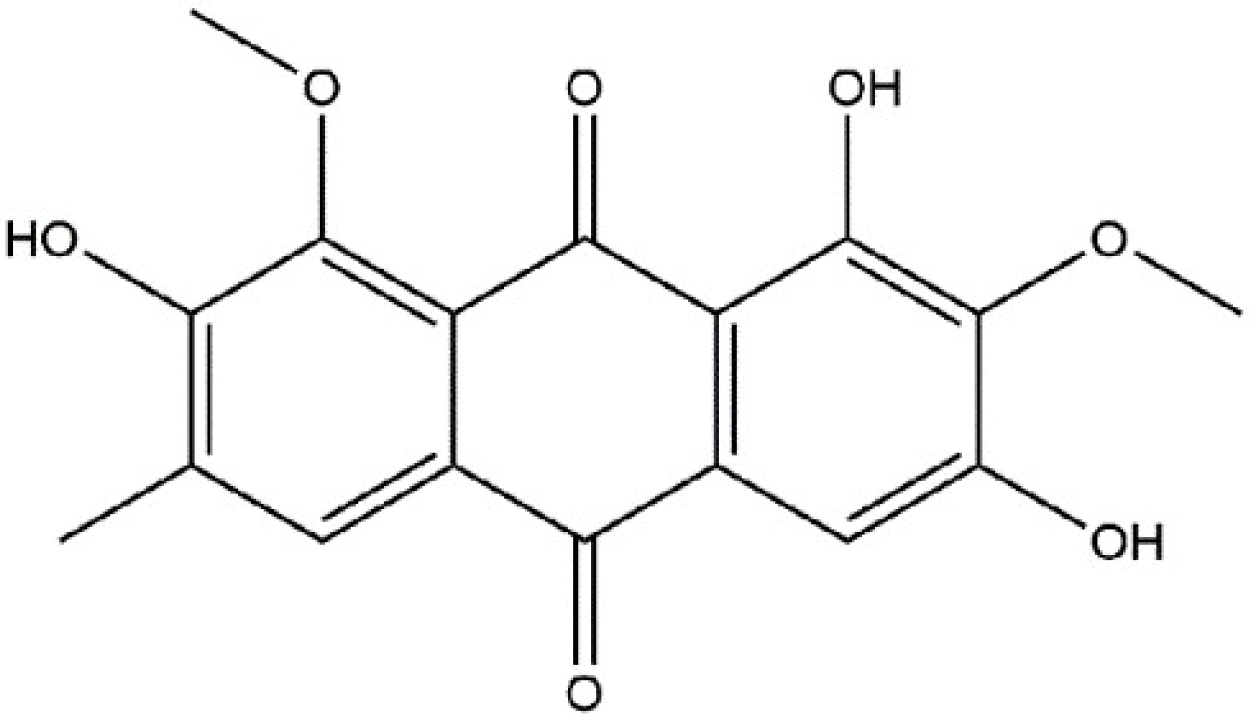

Figure 1. The chemical structure of aurantio-obtusin.
Figure 1. The chemical structure of aurantio-obtusin.
Molecules 23 03093 g001
Molecules 23 03093 g002 550

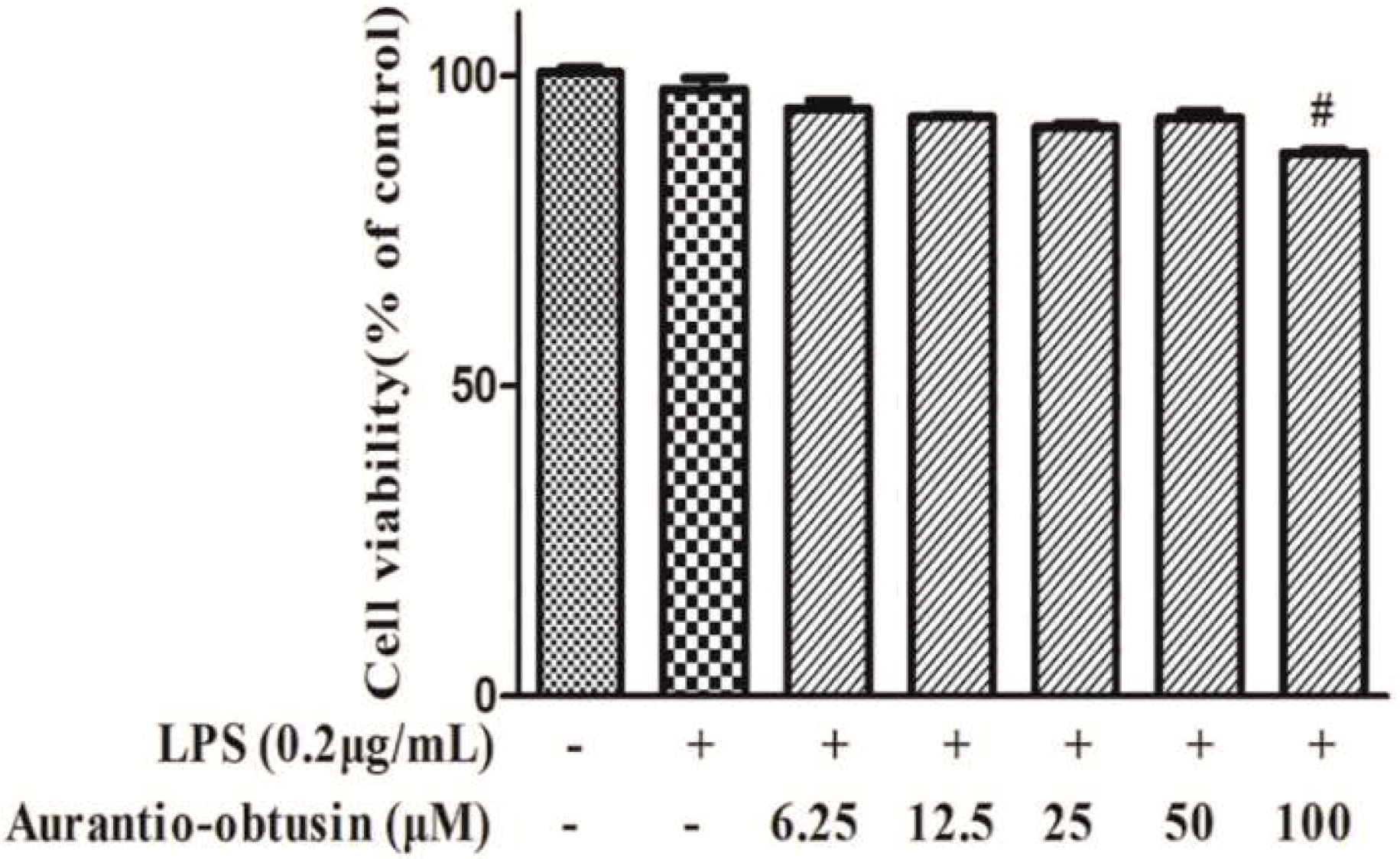

Figure 2. Effects of aurantio-obtusin on the cell viability of RAW264.7 cells. RAW264.7 cells incubated with various concentrations of aurantio-obtusin (6.25–100 μM) for 24 h followed by 0.2 μg/mL LPS stimulation. Cell viability was then measured using an MTT assay. # p < 0.05 represent significance when compared to the control cells.
Figure 2. Effects of aurantio-obtusin on the cell viability of RAW264.7 cells. RAW264.7 cells incubated with various concentrations of aurantio-obtusin (6.25–100 μM) for 24 h followed by 0.2 μg/mL LPS stimulation. Cell viability was then measured using an MTT assay. # p < 0.05 represent significance when compared to the control cells.
Molecules 23 03093 g002
Molecules 23 03093 g003 550

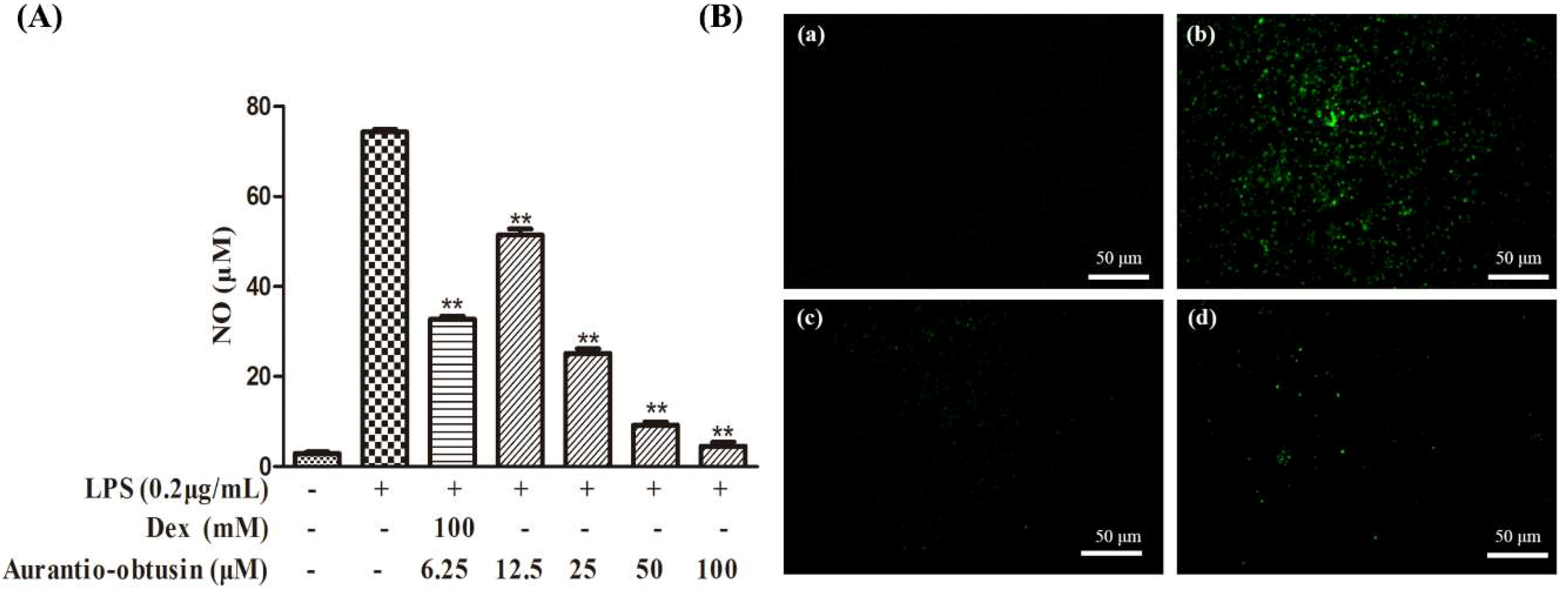

Figure 3. Effect of aurantio-obtusin on nitric oxide (NO) production in lipopolysaccharide (LPS)-activated RAW264.7 cells. (A) The RAW264.7 cells were treated with various concentrations (6.25–50 μM) of aurantio-obtusin for 2 h and then incubated with LPS (0.2 μg/mL) for 24 h. Data are presented as mean ± SD (n = 6). ** p < 0.01 represent significance when compared to LPS-only treated cells. (B) RAW264.7 cells were incubated with the indicated concentrations of aurantio-obtusin and 0.2 μg/mL LPS for 24 h. Intracellular NO production was evaluated with DAF-FM diacetate by laser scanning microscopy; (a) control (cells alone); (b) cells stimulated with LPS; (c) aurantio-obtusin (50 μM) was added under the condition of part (b); (d) 100 μM dexamethasone was added under the condition of part (b).
Figure 3. Effect of aurantio-obtusin on nitric oxide (NO) production in lipopolysaccharide (LPS)-activated RAW264.7 cells. (A) The RAW264.7 cells were treated with various concentrations (6.25–50 μM) of aurantio-obtusin for 2 h and then incubated with LPS (0.2 μg/mL) for 24 h. Data are presented as mean ± SD (n = 6). ** p < 0.01 represent significance when compared to LPS-only treated cells. (B) RAW264.7 cells were incubated with the indicated concentrations of aurantio-obtusin and 0.2 μg/mL LPS for 24 h. Intracellular NO production was evaluated with DAF-FM diacetate by laser scanning microscopy; (a) control (cells alone); (b) cells stimulated with LPS; (c) aurantio-obtusin (50 μM) was added under the condition of part (b); (d) 100 μM dexamethasone was added under the condition of part (b).
Molecules 23 03093 g003
Molecules 23 03093 g004 550

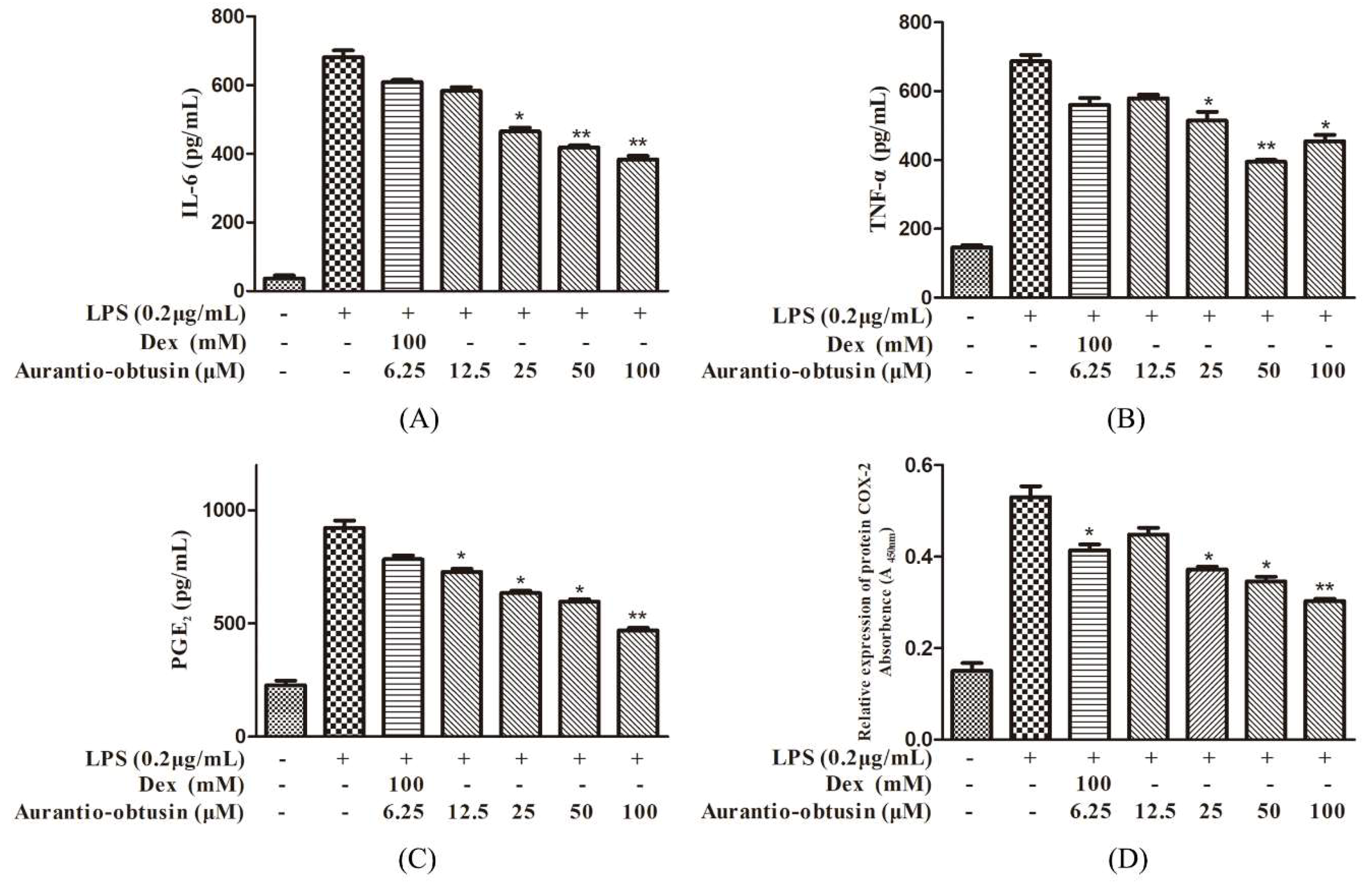

Figure 4. Effect of aurantio-obtusin on IL-6, TNF-α, PGE2 production and COX-2 protein expression in LPS-treated RAW264.7 cells. The cells were treated with various concentrations of aurantio-obtusin (6.25–50 μM) for 2 h, followed by stimulation with LPS (0.2 μg/mL) for 24 h. IL-6 (A), TNF-α (B) and PGE2 (C) production in the culture medium was determined by ELISA, and the COX-2 protein expression (D) analyzed by cell-based ELISA. The data are presented as mean ± SD (n = 3). * p < 0.05 and ** p < 0.01 represent significance when compared to LPS-only treated cells.
Figure 4. Effect of aurantio-obtusin on IL-6, TNF-α, PGE2 production and COX-2 protein expression in LPS-treated RAW264.7 cells. The cells were treated with various concentrations of aurantio-obtusin (6.25–50 μM) for 2 h, followed by stimulation with LPS (0.2 μg/mL) for 24 h. IL-6 (A), TNF-α (B) and PGE2 (C) production in the culture medium was determined by ELISA, and the COX-2 protein expression (D) analyzed by cell-based ELISA. The data are presented as mean ± SD (n = 3). * p < 0.05 and ** p < 0.01 represent significance when compared to LPS-only treated cells.
Molecules 23 03093 g004
Molecules 23 03093 g005 550

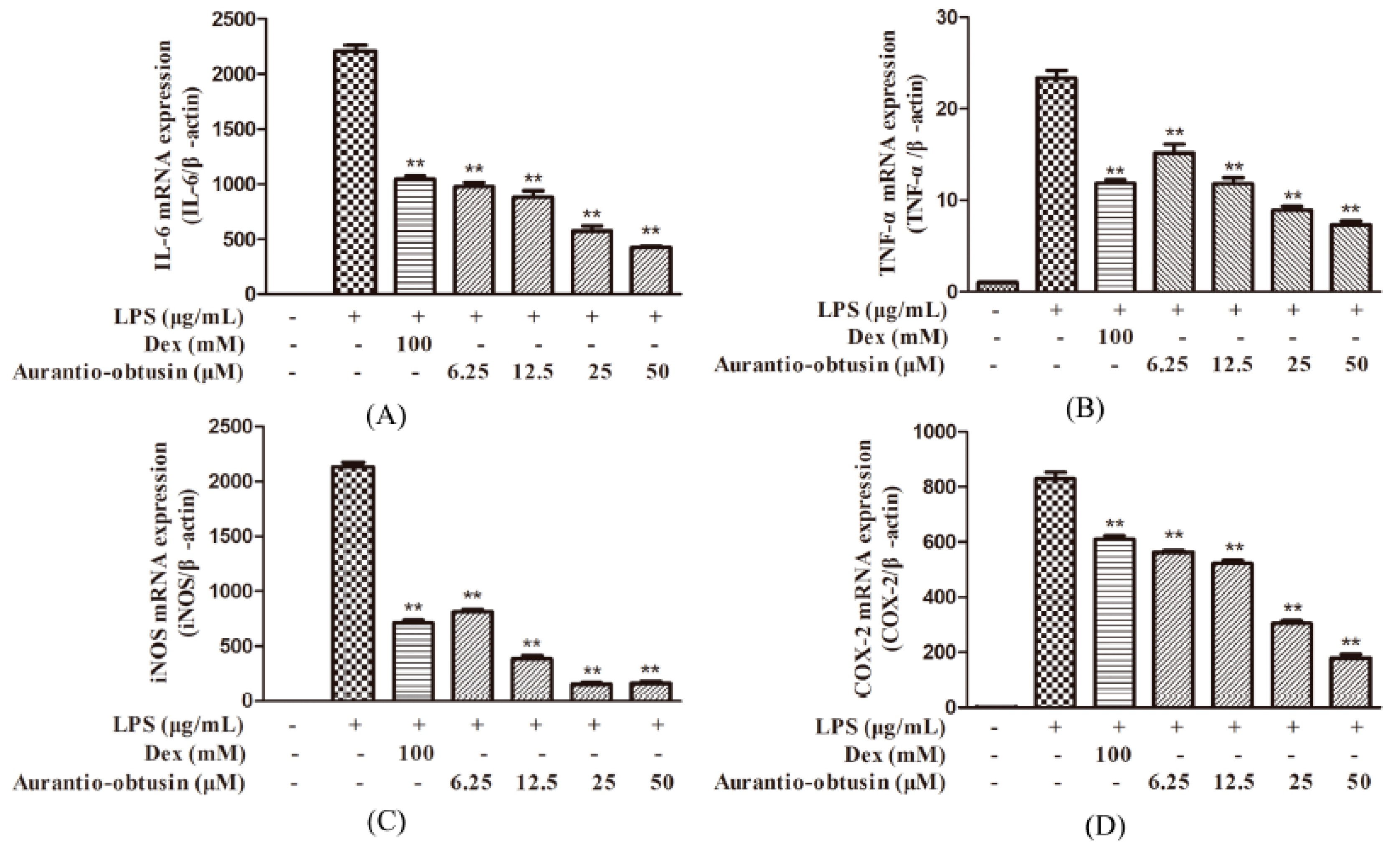

Figure 5. Effect of aurantio-obtusin on LPS-stimulated mRNA expression of IL-6, TNF-α, iNOS, and COX-2. RAW264.7 cells were pre-incubated with various concentrations of aurantio-obtusin (6.25–50 μM) for 2 h followed by stimulation with LPS (0.2 μg/mL) for 24 h. The mRNA expression ofIL-6 (A), TNF-α (B), iNOS (C) and COX-2 (D) was analyzed using Real-time RT-PCR. The data are presented as mean ± SDs (n = 3), **p < 0.01 represent significance when compared to LPS-only treated cells.
Figure 5. Effect of aurantio-obtusin on LPS-stimulated mRNA expression of IL-6, TNF-α, iNOS, and COX-2. RAW264.7 cells were pre-incubated with various concentrations of aurantio-obtusin (6.25–50 μM) for 2 h followed by stimulation with LPS (0.2 μg/mL) for 24 h. The mRNA expression ofIL-6 (A), TNF-α (B), iNOS (C) and COX-2 (D) was analyzed using Real-time RT-PCR. The data are presented as mean ± SDs (n = 3), **p < 0.01 represent significance when compared to LPS-only treated cells.
Molecules 23 03093 g005
Molecules 23 03093 g006 550

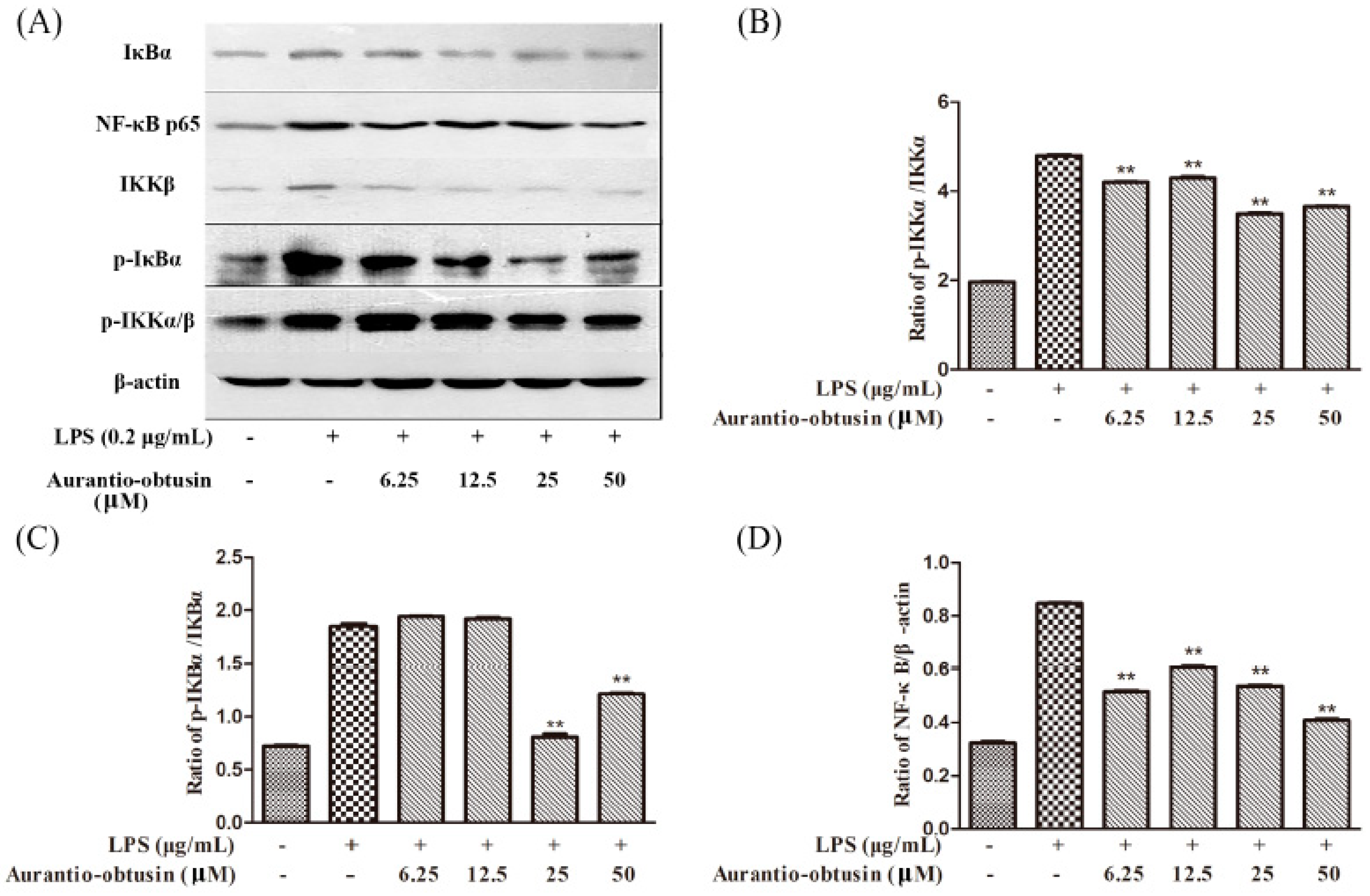

Figure 6. Effects of aurantio-obtusin on the expression of proteins associated with inhibition of NF-κB in LPS-stimulated RAW264.7 mouse macrophages. RAW264.7 cells were pre-incubated with various concentrations (6.25–50 μM) of aurantio-obstusin for 2 h, and stimulated with LPS (0.2 μg/mL) for 12 h. The β-actin protein was used as the internal control. (A) Expression of proteins associated with the inhibition of NF-κB was detected by a western blot analysis; Comparison of the levels of phosphorylated protein relative to the levels of their non-phosphorylated counterparts in the grey scale: p-IKKα/ IKKα (B) and p-IKBα/ IKBα (C); (D) Comparison of the levels of p65 relative to the level of their actin counterparts in the grey scale. **p < 0.01 represent significance when compared to LPS-only treated cells.
Figure 6. Effects of aurantio-obtusin on the expression of proteins associated with inhibition of NF-κB in LPS-stimulated RAW264.7 mouse macrophages. RAW264.7 cells were pre-incubated with various concentrations (6.25–50 μM) of aurantio-obstusin for 2 h, and stimulated with LPS (0.2 μg/mL) for 12 h. The β-actin protein was used as the internal control. (A) Expression of proteins associated with the inhibition of NF-κB was detected by a western blot analysis; Comparison of the levels of phosphorylated protein relative to the levels of their non-phosphorylated counterparts in the grey scale: p-IKKα/ IKKα (B) and p-IKBα/ IKBα (C); (D) Comparison of the levels of p65 relative to the level of their actin counterparts in the grey scale. **p < 0.01 represent significance when compared to LPS-only treated cells.
Molecules 23 03093 g006
Molecules 23 03093 g007 550
Figure 7. Nuclear localization of the p65 subunit of NF-κB was analyzed through immunofluorescence. Briefly, cells were fixed with 4.0% formaldehyde and permeabilized by incubating them with 0.1% Triton X-100. The cells were incubated with anti-NF-κB p65 antibodies overnight at 4 °C, and then with Cy3-labeled Goat Anti-Rabbit IgG for 1h at room temperature in the dark. Next, the cells were incubated with DAPI mounting medium for 10 min and the images were captured under a microscope. Fluorescent images of the cytoplasmic and nuclear fractions were merged to locate p65. Aurantio-obtusin inhibited the trans-location of p65 into the nucleus.
Figure 7. Nuclear localization of the p65 subunit of NF-κB was analyzed through immunofluorescence. Briefly, cells were fixed with 4.0% formaldehyde and permeabilized by incubating them with 0.1% Triton X-100. The cells were incubated with anti-NF-κB p65 antibodies overnight at 4 °C, and then with Cy3-labeled Goat Anti-Rabbit IgG for 1h at room temperature in the dark. Next, the cells were incubated with DAPI mounting medium for 10 min and the images were captured under a microscope. Fluorescent images of the cytoplasmic and nuclear fractions were merged to locate p65. Aurantio-obtusin inhibited the trans-location of p65 into the nucleus.
Molecules 23 03093 g007
Table
Table 1. Primers used for the quantitative real-time PCR.
Table 1. Primers used for the quantitative real-time PCR.
GenePrimerSequence (5′-3′)PCR Product (bp)
β-ActinForwardTGTTACCAACTGGGACGACA165
(NM_007393.3)ReverseGGGGTGTTGAAGGTCTCAAA
iNOSForwardCACCTTGGAGTTCACCCAGT170
(NM_010927.3)ReverseACCACTCGTACTTGGGATGC
COX-2ForwardTGAGTACCGCAAACGCTTCTC151
(NM_031168.1)ReverseTGGACGAGGTTTTTCCACCAG
TNF-αForwardTAGCCAGGAGGGAGAACAGA127
(NM_013693.2)ReverseTTTTCTGGAGGGAGATGTGG
