Three New Cytotoxic Steroidal Alkaloids from Sarcococca hookeriana

Abstract

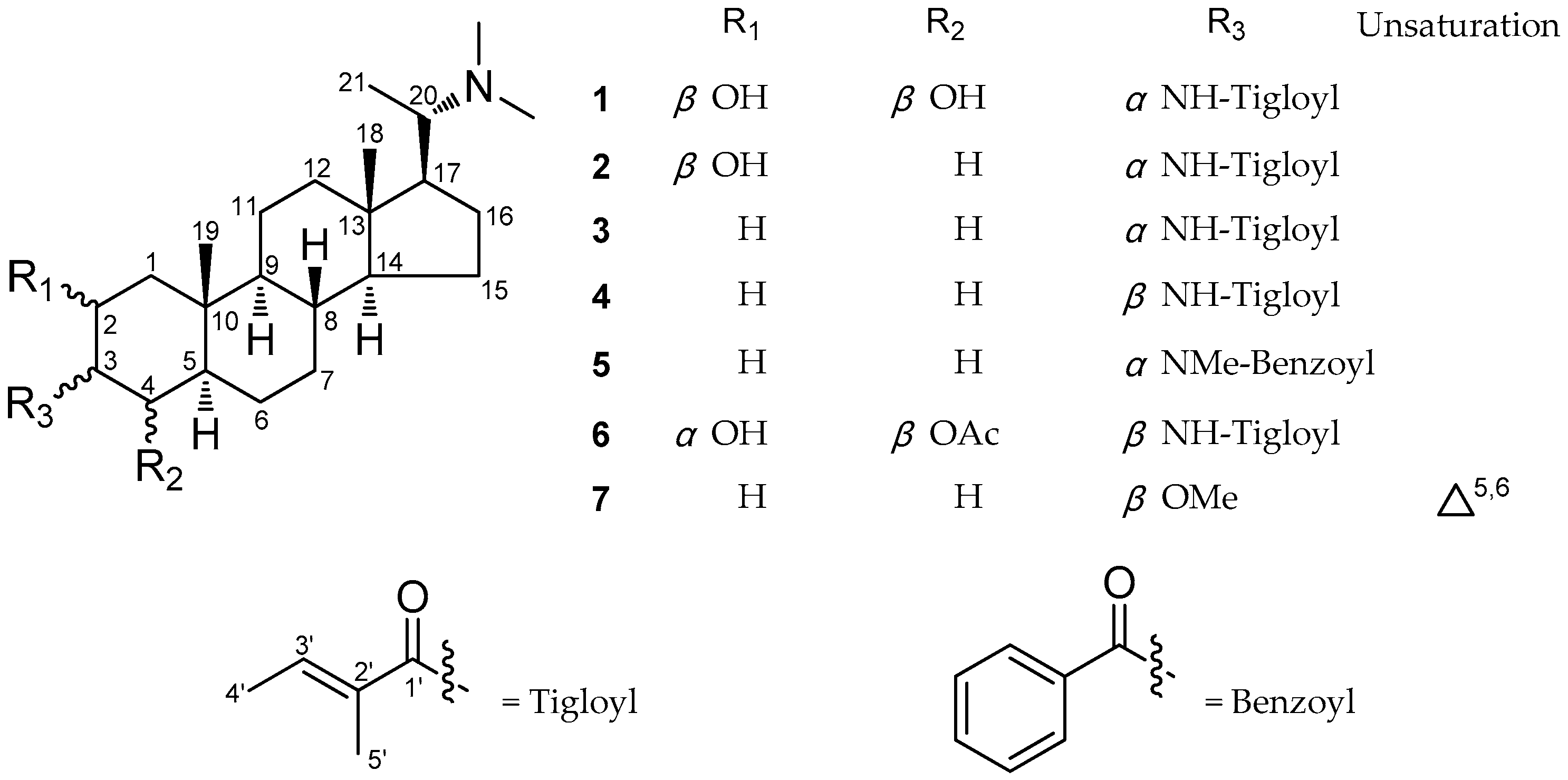

Three new steroidal alkaloids with an unusual 3α tigloylamide group, named sarchookloides A–C (1–3), were isolated along with four known compounds (4–7) from the roots of Sarcococca hookeriana. Their structures and relative configuration were elucidated on the basis of spectroscopic methods including MS, UV, IR, 1D, and 2D NMR data. The isolated compounds were evaluated for their cytotoxicity against five human cancer cell lines: Hela, A549, MCF-7, SW480, and CEM in vitro. All three amide substituted steroidal alkaloids exhibited significant cytotoxic activities with IC₅₀ values of 1.05–31.83 μM.

1. Introduction

The genus Sarcococca (Buxaceae) includes about 20 species, eight of which are found in China [1]. Some of them are used in TCM and traditional folk medicine to treat stomach pain, rheumatism, swollen sore throat, and bruises [2,3,4]. Previous studies on this genus revealed that the steroidal alkaloids were the main chemical components, and possessed a range of bioactivities (e.g., cholinesterase inhibiting, antitumor, antibacterial, antiulcer, antiplasmodial, and antidiabetic) [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]. For the search of bioactive metabolites from this genus, our previous investigation on Sarcococca ruscifolia resulted in the discovery of two new steroidal alkaloids [16]. As part of our continuous exploration of active alkaloids, three new steroidal alkaloids, namely sarchookloides A–C (1–3) along with four known compounds, pachysamine G (4), pachysamine H (5), sarcovagine B (6), and pachyaximine A (7) (Figure 1), were isolated from the roots of Sarcococca hookeriana. The new compounds, sarchookloides A–C (1–3), were shown to possess a 3α substituent, which has rarely been reported [17]. The cytotoxicity assay on human cancer cell lines Hela, A549, MCF-7, SW480, and CEM in vitro demonstrated that these steroidal alkaloids exhibited potent antitumor activities. This paper describes the isolation, structure elucidation, and cytotoxicity activities of the isolates.

2. Results and Discussion

2.1. Structure Elucidation of Compounds

Compound 1 showed a quasi-molecular ion peak [M + H]⁺ at m/z 461.3731 (calculated to be 461.3738) in the HR-ESI-MS (spectrum showed in Supplementary material), which corresponds to the molecular formula C₂₈H₄₈N₂O₃. The IR spectrum showed absorption bands at 3424 (hydroxyl group), 1662 (amide carbonyl group), and 1623 (double bond) cm^–1. The ¹H and ¹³C NMR (DEPT) spectra (

Table 1. ¹H (600 MHz) and ¹³C (150 MHz) NMR data of compounds 1−3 in CDCl₃.

Position	1		2		3
	δH (J in Hz)	δC	δH (J in Hz)	δC	δH (J in Hz)	δC
1	1.67, 1.69, m	44.2	1.16, 1.87, m	40.6	0.95, 1.56, m	33.6
2	3.88, ddd (13.4, 6.7, 6.8)	69.0	3.97, brs (W1/2 14.8)	69.6	1.64, 1.71, m	26.2
3	3.99, ddd (7.8, 6.8, 5.1)	58.4	4.03, m	50.8	4.14, m	44.8
4	3.78, dd, (7.8, 3.9)	76.3	1.23, 2.04, m	28.8	1.39, 1.55, m	33.0
5	1.26, m	45.5	1.07, m	41.8	1.11, m	41.5
6	1.41, 1.79, m	24.4	1.48, 1.85, m	27.9	1.48, 1.87, m	27.8
7	1.01, 1.77, m	32.2	0.91, 1.68, m	32.1	0.88, 1.68, m	32.1
8	1.37, m	35.3	1.39, m	34.9	1.36, m	35.5
9	0.71, m	57.0	1.05, m	56.8	0.68, m	54.7
10	-	36.0	-	35.9	-	36.2
11	1.35, 1.44, m	21.0	1.30, 1.50, m	21.0	1.22, 1.51, m	20.9
12	1.12, 1.90, m	39.9	1.09, 1.90, m	40.0	1.08, 1.88, m	40.0
13	-	42.1	-	41.8	-	41.5
14	1.03, m	56.8	0.66, m	55.6	1.04, m	56.8
15	1.10, 1.60, m	24.2	1.06, 1.58, m	24.2	1.03, 1.57, m	24.2
16	1.50, 1.84, m	27.9	1.35, 1.44, m	28.4	1.19, m	28.6
17	1.34, m	54.8	1.32, m	54.8	1.33, m	54.7
18	0.67, s	12.6	0.64, s	12.6	0.63, s	12.5
19	1.21, s	19.3	1.02, s	14.5	0.79, s	11.6
20	2.50, m	61.6	2.45, m	61.6	2.45, m	61.6
21	0.92, d, (6.4)	10.2	0.89, d, (6.4)	10.2	0.88, d, (6.4)	10.3
NMe2	2.23, s	39.8	2.20, s	39.9	2.20, s	39.9
C=O	-	170.6	-	169.2	-	168.8
2′	-	131.4	-	132.2	-	132.6
3′	6.45, q, (6.9)	132.1	6.37, q, (6.9)	130.8	6.36, q, (6.9)	130.2
4′	1.76, d, (6.9)	14.3	1.75, d, (6.9)	14.2	1.73, d, (6.9)	14.1
5′	1.84, s	12.6	1.84, s	12.7	1.83, s	12.7
NH	6.09, d, (5.1)	-	5.82, d, (7.4)	-	5.93, d, (6.6)	-
2-OH	2.84, d, (7.2)	-	-	-	-	-
4-OH	4.40, d, (3.0)	-	-	-	-	-

) displayed 28 carbon resonances due to four quaternary carbons, 10 methines, seven methylenes, and seven methyl groups, which revealed one amide carbonyl group and one double bond. The presence of five methyl signals [δ_H 0.67 (3H, s, H-18), 1.21 (3H, s, Me-19), 0.92 (3H, d, J = 6.4 Hz, Me-21), 2.23 (6H, s, N,N-dimethyl)] and one nitric proton signal [δ_H 6.09 (1H, d, J = 5.1 Hz, NH-3)] in the ¹H NMR (CDCl₃) spectrum in combination with 2D NMR data suggested that compound 1 belongs to the 20α-dimethylamino-3-amino-5α-pregnane type steroidal alkaloids [21].

The presence of two methyl [δ_H 1.76 (3H, d, J = 6.9 Hz, H-4′), 1.84 (3H, s, H-5′)] and an olefinic proton [δ_H 6.45 (1H, q, J = 6.9 Hz, H-3′)] signals in the ¹H NMR spectrum together with two methyl [δ_C 14.3 (C-4′), 12.6 (C-5′)], one double bond [δ_C 131.4 (C-2′), 132.1 (C-3′)], and one carbonyl [δ_C 170.6 (C-1′)] signals in the ¹³C NMR spectrum led to the deduction of a tigloyl moiety, which was supported by the ¹H–¹H COSY-correlated signal of H-4′/H-3′ and the HMBC correlations of H-5′/C-3′, C-1′ and H-3′/C-1′ (Figure 2). Furthermore, the HMBC correlations of NH/C-2′ (Figure 2) proposed that the location of the tigloyl group was at N-3. In addition, the two hydroxyl groups assigned at the C-2 (δ_C 69.0) and C-4 (δ_C 76.3) positions were deduced from the ¹H NMR [δ_H 2.84 (1H, d, J = 7.2 Hz, OH-2), 4.40 (1H, d, J = 3.0 Hz, OH-4)] and ¹³C NMR [δ_C 69.0 (C-2), 76.3 (C-4)] data in combination with the ¹H–¹H COSY [OH-2 /H-2 (δ_H 3.88) and OH-4 /H-4 (δ_H 3.78)] and HMBC [OH-2/C-1 (δ_C 44.2), C-3 (δ_C 58.4) and OH-4/C-3, C-5 (δ_C 45.5)] experiments. Therefore, the planar structure of compound 1 was constructed.

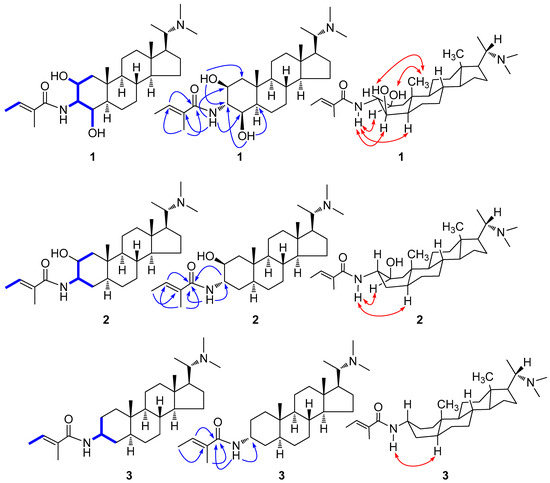

The ¹³C NMR data of the ring A, coupling constants of H-2, H-3 and H-4 and NOESY data clearly indicated that compound 1 differs from the previously reported compounds of hookerianamide M [10] and sarcovagine A [18] with respect to the stereochemistry at C-2, C-3, and C-4 positions. In the ROESY spectrum (Figure 2), the correlations of H-19 [δ_H 1.21 (3H, s)] with OH-2 and OH-4 indicated the β orientations of the two hydroxyl groups. Furthermore, the obvious ROESY correlations (Figure 2) of HN with H-2, H-4 and H-5 [δ_H 1.26 (1H, m)] implied the α orientation of the tigloylamide group. The ring A of compound 1 may exist mainly as a stable boat conformation due to the substitution of 3α tigloylamide group [17]. Consequently, the structure and relative configuration of compound 1 was determined as (20S)-20-N,N-dimethylamino-2β,4β-dihydroxyl-3α-tigloylamino-5α-pregnane, which was named sarchookloide A (Figure 1).

Compound 2 had a molecular formula of C₂₈H₄₈N₂O_2, which was determined by HR-ESI-MS (m/z 445.3775 [M + H]⁺), suggesting six degrees of unsaturation. The IR spectrum displayed absorptions indicating a hydroxyl group (3443 cm^–1), amide carbonyl group (1664 cm⁻¹) and double bond (1629 cm⁻¹). In the ¹³C NMR and DEPT spectra (Table 1), 28 carbon signals were observed, including 23 carbon resonances assigned to a 20α-dimethylamino-3-amino-5α-pregnane type steroidal alkaloid skeleton and 5 carbon resonances for a tigloyl group [21]. The ¹H–¹H COSY correlated signal of H-4′ [δ_H 1.75 (3H, d, J = 6.9 Hz)]/H-3′ [δ_H 6.37 (1H, q, J = 6.9 Hz)] and the HMBC correlations of H-5′ [δ_H 1.84 (1H, s)]/C-3′ [δ_C 130.8], C-1′ [δ_C 169.2], H-3′/C-1′ and HN [δ_H 5.82 (1H, d, J = 7.4 Hz)]/C-1′ (Figure 2) suggested that the tigloyl group were attached to N-3. The COSY correlations of H-2 [δ_H 3.97 (1H, brs)]/H-1 [δ_H 1.16, 1.87 (2H, m)], H-3 [δ_H 4.03 (1H, m)] proposed that the location of the hydroxyl group was at C-2.

The similarity of the NMR data of compounds 2 and 20α-dimethylamino-2α-hydroxyl-3β-tigloylamino-5α-pregnane [16] suggested that they possessed the same planar structure. The ROESY correlations (Figure 2) of HN with H-2 and H-5 [δ_H 1.07 (1H, m)] implied the α orientation of the tigloylamide group and the β orientation of the hydroxyl group. This was also supported by the discrepant W_1/2 (14.8) of H-2 [10] and the ¹³C NMR data of the ring A in 2 compared with the data of reported compounds [16]. The substitution of 3α tigloylamide group led to the main boat conformation of the ring A in compound 2. Consequently, the structure and relative configuration of compound 2 was determined as (20S)-20-N,N-dimethylamino-2β-hydroxyl-3α-tigloylamino-5α-pregnane, which was named sarchookloide B (Figure 1).

Compound 3 was given the molecular formula C₂₈H₄₈N₂O according to its HR-ESI-MS data at m/z 429.3829 [M + H]⁺ (calculated as 429.3839), corresponding to six degrees of unsaturation. The IR spectrum of compound 3 included the absorption bands for amide carbonyl group (1665 cm⁻¹) and double bond (1625 cm⁻¹). The ¹³C NMR and DEPT spectra (Table 1) of compound 3 exhibited 28 carbon signals corresponding to four quaternary carbons, eight methines, nine methylene, and seven methyl groups, of which 23 carbon resonances were ascribed to 20α-dimethylamino-3-amino-5α-pregnane type steroidal alkaloid skeleton and five carbon resonances were attributed to a tigloyl group [21].

Compound 3 and pachysamine G [19] exhibited the same planar structure, which was supported by the similar NMR data found for both of them. The α-orientations of the tigloylamide group was assigned by the ROESY correlations (Figure 2) of HN [δ_H 5.93 (1H, d, J = 6.6 Hz)] with H-5 [δ_H 1.11 (1H, m)] in combination with the different shift of the ring A in compound 3 compared with the data of pachysamine G in ¹³C NMR spectrum. Similar to compounds 1 and 2, the boat conformation of the ring A in compound 3 was the main conformation [17]. Therefore, the structure and relative configuration of compound 3 was determined as (20S)-20-N,N-dimethylamino-3α-tigloylamino-5α-pregnane, which was named sarchookloide C (Figure 1).

The known compounds 4–7 were identified as pachysamine G (4) [19], pachysamine H (5) [19], sarcovagine B (6) [18], and pachyaximine A (7) [20] through a comparison of their spectroscopic data with those reported in the literature.

2.2. Results of the Cytotoxicity Test

All compounds were evaluated using a MTT cytotoxicity assay against human cervical cancer cell line Hela, lung adenocarcinoma cell line A549, breast cancer cell line MCF-7, colon cancer cell line SW480, and leukemia CEM cells (adriamycin was used as the positive control). The IC₅₀ values of all compounds against the indicated cancer cells are summarized in

Table 2. Cytotoxicity of compounds 1−7 ^a against Hela, A549, MCF-7, SW480, and CEM cells in vitro (IC₅₀ ^b, μM).

Compounds	Cell Lines
	Hela	A549	MCF-7	SW480	CEM
1	4.13 ± 0.14	2.53 ± 0.15	4.47 ± 0.06	6.42 ± 0.10	4.26 ± 0.11
2	7.93 ± 0.09	8.73 ± 0.16	28.53 ± 0.17	8.97 ± 0.10	31.83 ± 0.25
3	1.24 ± 0.10	2.87 ± 0.14	2.53 ± 0.12	3.08 ± 0.14	3.43 ± 0.13
4	2.43 ± 0.11	2.98 ± 0.17	3.70 ± 0.26	26.04 ± 0.21	3.05 ± 0.13
5	1.06 ± 0.14	1.18 ± 0.11	2.23 ± 0.15	1.49 ± 0.10	1.05 ± 0.06
6	1.38 ± 0.09	4.96 ± 0.12	1.65 ± 0.09	3.76 ± 0.14	6.06 ± 0.16
7	>100	>100	>100	>100	>100
Adriamycin c	0.62 ± 0.08	0.77 ± 0.06	1.26 ± 0.05	1.19 ± 0.11	0.98 ± 0.08

^a All results are expressed as mean ± SD; n = 3 for all groups. ^b IC₅₀: 50% inhibitory concentration. ^c Adriamycin was the positive control.

. Compound 5 had the greatest cytotoxicity to all cells, as its range of IC₅₀ values was approximately 1.05–2.23 μM. All three amide-substituted compounds, except for pachyaximine A, exhibited significant cytotoxic activity on all cells, which suggests that the amide group of these compounds was the necessary group for the cytotoxicity. In addition, Hela and A549 were the more sensitive cell lines to these types of compounds compared to all tested cancer cells because the IC₅₀ values of all compounds were less than 10 μM. Furthermore, all active compounds showed effects that were comparable to the chemotherapeutic drug adriamycin in inhibiting the growth of all cancer cells, which suggests that three amide-substituted pregnane-type steroidal alkaloids might have the potential to be anticancer agents.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were obtained on a JASCO model 1020 polarimeter (Horiba, Tokyo, Japan). UV spectra were measured on a Shimadzu UV-2401PC spectrophotometer (Shimadzu, Kyoto, Japan). IR (KBr) spectra were measured on a Bio-Rad FTS-135 spectrometer (Bio-Rad, Hercules, CA, USA). The 1D and 2D NMR spectra were recorded on Bruker AVANCE III-600 spectrometers with TMS used as an internal standard (Bruker, Bremerhaven, Germany). The mass spectra were obtained on a Waters AutoSpec Premier P776 (Waters, NY, USA). The silica gel (200–300 mesh) for column chromatography and the TLC plates (GF₂₅₄) were obtained from Qingdao Marine Chemical Factory (Qingdao, Shandong, China). The Sephadex LH-20 (20–150 μm) used for chromatography was purchased from Pharmacia Fine Chemical Co. Ltd. (Pharmacia, Uppsala, Sweden). Fractions were visualized by heating silica gel plates sprayed with Dragendorff’s reagent. The cell lines Hela, A549, MCF-7, SW480, and CEM were obtained from the Cell Bank of the Chinese Academy of Sciences (Shanghai, China), while MTT were obtained from Sigma Company.

3.2. Plant Material

The plants of Sarcococca hookeriana Baill. were collected in Hezhang County, Guizhou Province, China, in April 2012 and identified by Prof. Qingwen Sun, Guiyang College of Traditional Chinese Medicine. A voucher specimen (No. 20120401401) was deposited at the Key Laboratory of Miao Medicine of Guizhou Province, Guiyang College of Traditional Chinese Medicine.

3.3. Extraction and Isolation

The air-dried and powdered roots of S. hookeriana Baill. (2.5 kg) were extracted with 95% (25 L) EtOH under reflux three times, with an extraction time of 2 h. The combined extracts (443 g) were concentrated and suspended in H₂O (3 L). The suspension was extracted with CHCl₃ to obtain the CHCl₃ fraction (94 g). The CHCl₃ fraction was subjected to silica gel column chromatography (Si CC) and eluted with petroleum ether-diethylamine (100:1, 95:5, 9:1, 8:2) to yield four fractions (Fractions A−D). Fraction B (1.6 g) was subjected to Si CC and eluted with petroleum ether-diethylamine (100:2, 9:1) to yield the fractions B1−B3. Fraction B2 (330 mg) was chromatographed using Si CC and was developed with petroleum ether-diethylamine (100:2) to yield compounds 3 (21 mg) and 4 (35 mg). Si CC was performed on Fraction C (12.3 g) with a gradient eluent of petroleum ether-diethylamine (100:5, 9:1, 8:2) to yield four fractions (fractions C1−C4). Fraction C2 (1.4 g) was first subjected to Si CC (petroleum ether-diethylamine, 100:5), before being purified on Sephadex LH-20. This yielded compounds 2 (26 mg), 5 (30 mg) and 7 (31 mg). Fraction C4 (985 mg) was purified on Sephadex LH-20, before Si CC was used (petroleum ether-diethylamine, 9:1) to separate compounds 1 (33 mg) and 6 (19 mg).

3.3.1. Sarchookloide A (1)

This was a white amorphous powder with a HR-ESI-MS m/z of 461.3731 [M + H]⁺ (calculated for C₂₈H₄₉N₂O₃, 461.3738). The [α]${}_{\mathrm{D}}^{22}$ was +52.99 (c 0.58, MeOH); UV (MeOH) had a λ_max of 209.4 nm; and IR (KBr) had a ν_max of 3424, 2931, 2867, 1662 and 1623 cm^–1. The ¹H and ¹³C NMR data are shown in Table 1.

3.3.2. Sarchookloide B (2)

This was a white amorphous powder with a HR-ESI-MS m/z of 445.3775 [M +H]⁺ (calculated for C₂₈H₄₉N₂O₂, 445.3789). The [α]${}_{\mathrm{D}}^{22}$ was +30.18 (c 0.57, MeOH); UV (MeOH) had a λ_max of 205.8 nm; and IR (KBr) had a ν_max of 3442, 2930, 2966, 1664 and 1629 cm^–1. The ¹H and ¹³C NMR data are shown in Table 1.

3.3.3. Sarchookloide C (3)

This was a white amorphous powder with a HR-ESI-MS m/z of 429.3829 [M + H]⁺ (calculated for C₂₈H₄₉N₂O, 429.3839). The [α]${}_{\mathrm{D}}^{22}$ was +7.10 (c 0.62, MeOH); UV (MeOH) had a λ_max of 207.2 nm; and IR (KBr) had a ν_max of 3454, 2930, 2853, 1665 and 1625 cm^–1. The ¹H and ¹³C NMR data are shown in Table 1.

3.4. Cytotoxicity Assay

The cytotoxicity of compounds 1–7 was tested on the human cervical cancer cell line Hela, lung adenocarcinoma cell line A549, breast cancer cell line MCF-7, colon cancer cell line SW480 and leukemia CEM cells. All cells were cultured in a RPMI-1640 or DMEM medium (Hyclone, Logan, UT, USA), which was supplemented with 10% fetal bovine serum (Hyclone) in 5% CO₂ at 37 °C. The cytotoxicity assay was performed using the MTT method in 96-well microplates [22]. Briefly, the adherent cells (100 μL) were seeded into each well of 96-well cell culture plates and allowed to adhere for 12 h before the addition of the drug. The suspended cells were seeded just before the addition of the drug at an initial density of 1 × 10⁵ cells/mL. Each tumor cell line was exposed to the tested compound at different concentrations for 48 h. The experiments were performed in triplicate. Adriamycin (Sigma, St. Louis, MO, USA) was used as a positive control. After treatment, cell viability was measured and the cell growth curve was plotted. The IC₅₀ values were calculated by the Reed and Muench method [23].

4. Conclusions

We obtained three new pregnane-type steroidal alkaloids, sarchookloides A–C (1–3), along with four known compounds, pachysamine G (4), pachysamine H (5), sarcovagine B (6), and pachyaximine A (7), from the roots of Sarcococca hookeriana. The new compounds, sarchookloides A–C (1–3), were shown to possess a 3α substituent, which has rarely been reported. By performing a cytotoxic assay on Hela, A549, MCF-7, SW480 and CEM cell lines in vitro, all three amide substituted compounds exhibited significant cytotoxic activities on all cells, which suggests that the three amide group of these compounds was the necessary group for the cytotoxicity. The most active compound, pachysamine H (5), inhibited all cancer cells with IC₅₀ values in the range of approximately 1.05–2.23 μM. The results suggested that these types of steroidal alkaloids merit further biological evaluation of their cytotoxic activities and might have the potential to be studied for anticancer activity.
