Green Synthesis of Privileged Benzimidazole Scaffolds Using Active Deep Eutectic Solvent

by
Maria Luisa Di Gioia
1,*,
Roberta Cassano
1,
Paola Costanzo
2,*,
Natividad Herrera Cano
3,
Loredana Maiuolo
4,
Monica Nardi
2,
Fiore Pasquale Nicoletta
1,
Manuela Oliverio
2 and
Antonio Procopio
2
1
Dipartimento di Farmacia e Scienze della Salute e della Nutrizione, Dipartimento di Eccellenza L. 232/2016, Edificio Polifunzionale, Università della Calabria, 87036 Rende (CS), Italy
2
Department of Health Sciences, Magna Græcia University, Viale Europa, 88100 Germaneto CZ, Italy
3
ICYTAC, CONICET and Universidad Nacional de Córdoba, Facultad de Ciencias Químicas, Departamento. Química Orgánica. Ciudad Universitaria, Bv. Juan Filloy s/n, 5000 Córdoba, Argentina
4
Dipartimento di Chimica e Tecnologie Chimiche, Via P. Bucci, cubo 12C, Università della Calabria, 87036 Rende (CS), Italy
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(16), 2885; https://doi.org/10.3390/molecules24162885
Submission received: 9 July 2019 / Revised: 2 August 2019 / Accepted: 7 August 2019 / Published: 8 August 2019
(This article belongs to the Special Issue Deep Eutectic Solvents in Organic Synthesis)
Browse Figures
Versions Notes

Abstract

:
The exploitation and use of alternative synthetic methods, in the face of classical procedures that do not conform to the ethics of green chemistry, represent an ever-present problem in the pharmaceutical industry. The procedures for the synthesis of benzimidazoles have become a focus in synthetic organic chemistry, as they are building blocks of strong interest for the development of compounds with pharmacological activity. Various benzimidazole derivatives exhibit important activities such as antimicrobial, antiviral, anti-inflammatory, and analgesic activities, and some of the already synthesized compounds have found very strong applications in medicine praxis. Here we report a selective and sustainable method for the synthesis of 1,2-disubstituted or 2-substituted benzimidazoles, starting from o-phenylenediamine in the presence of different aldehydes. The use of deep eutectic solvent (DES), both as reaction medium and reagent without any external solvent, provides advantages in terms of yields as well as in the work up procedure of the reaction.

Graphical Abstract

1. Introduction

Among the heterocyclic pharmacophores, the benzimidazole ring is one of the most widespread systems in nature. It is indicated as a “privileged nucleus” due to its occurrence in molecules essential for the life cycle of organisms [1]. The 5,6-dimethylbenzimidazole moiety in the structure of vitamin B12 [2] is an important example (Figure 1).
Bioactive compounds with a benzimidazole nucleus are heterogeneous molecules in structure and activity. This diversification is to be found in the derivatization of the basic core, followed by a structure–activity relationship for each compound. The first example of a clinically available benzimidazole-based drug is thiabendazole, capable of acting as a fungicide and antiparasitic [3]. Over the years, many other derivatives have been developed: The antihistamine Clemizole, the anti-ulcerative Omeprazole, the antihypertensive Telmisartan, antifungal Thiabendazol, analgesic Bezitramide, antiviral Hoechst 33342, anticancer Bendastumide, and antiemetic KB-R-6933 (Figure 2) [4].
More recently, the treatment potency of benzimidazoles in diseases such as ischemia-reperfusion injury or hypertension, have also been reported [5].
Due to their properties and roles in various diseases, special interest has been devoted to benzimidazole-based chemistry [6,7,8,9]. A lot of synthetic methodologies are available for the preparation of benzimidazole and its derivatives. Generally, the reaction between o-phenylenediamines and carboxylic acids or their derivatives has been used [10,11].
A different and widely used procedure for the same synthesis is the condensation of o-phenylenediamine with differently substituted aldehydes affording 2-substituted and 1,2-di-substituted benzimidazoles derivatives. However, these protocols suffer some drawbacks such as long reaction times, expensive reagents, use of toxic organic solvents, difficulties in the preparation of the catalyst, non-recoverability of the catalyst, and tedious work-up procedures. Moreover, most of them lack selectivity [12,13,14,15,16,17]. Therefore, the introduction of simple, efficient, and mild procedures with easily separable and recyclable catalysts, and in particular, greater selectivity is still in demand. Recently, the use of water [18,19,20,21] or ionic liquids (ILs) as green media, and/or the use of readily available organometallic catalysts, have been exploited [22,23,24,25,26,27,28].
Although these protocols provide improvement, it is well-known that ILs are (eco)toxic and harmful to the environment [29]. Further, their synthesis and purification is often expensive and time-consuming [30].
In the last decade, the most important drug manufacturing industries have been influenced by green chemistry principles introducing “greener” raw materials, less use of toxic organic solvents, cuts in waste production, and alternative organic synthetic methods [31].
In this regard, as the pharmaceutical industry is known to use a large amount of solvents to produce active pharmaceutical ingredient (API), most of the investigations are currently focusing on the replacement of hazardous conventional solvents with more sustainable alternatives such as water [32,33,34,35,36,37,38,39,40], supercritical fluids [41,42], ionic liquids [43,44,45,46,47,48,49,50], and solvents derived from biomass [51,52,53].
Deep eutectic solvents (DES) are considered the green solvents of the 21st century with tremendous applicability in all areas of the chemical industry [54]. They can be defined as a mixture of two or more compounds, that at certain molar ratios exhibit a high depression of the melting point, becoming liquid at or near room temperature. At these conditions, the compounds that form the deep eutectic solvents interact between themselves, mainly through hydrogen bonding, thus enabling the components to behave as one single entity [55,56,57].
Because the production of these deep eutectic solvents relies solely on the physical mixture of two or more natural components, their production has virtually no impact on the environment. Moreover, because deep eutectic solvents do not need any complex processing and equipment, they are also cheap alternatives to most common green solvents such as ionic liquids [55].
In our continuous efforts towards green organic chemistry, here we present a new synthetic route to benzimidazole derivatives. The novel feature of the procedure proposed is that in the first step, a DES is formed consisting of o-phenylendiamine (o-PDA) and choline chloride (ChCl). Therefore, we explored a double role of the DES: Solvent and reactant.

2. Results and Discussion

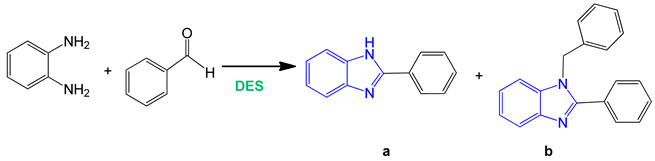

The pilot reaction between o-phenylenediamine and benzaldehyde, as reported in literature, involves indiscriminately the formation of monosubstituted and disubstituted benzimidazole derivatives: It is a nonselective synthesis [58].
Thus, we started our investigation conducting the model reaction with the most explored DES choline chloride/urea (ChCl:urea) as an eco-alternative solvent.
Choline chloride is one of the most commonly used hydrogen bond acceptors (HBA) used for the formation of DES [56] and its combination with a suitable HBD (usually sugars, natural organic acids, amides, etc.) produces eutectic mixtures that are liquid at ambient temperature and have unusual solvent properties [57].
It is an economic, biodegradable, nontoxic, and even edible quaternary salt that can be extracted from biomass or easily synthesized from fossil reserves. Similarly, urea has a low cost, is easily available, and is absolutely nontoxic. Both compounds are constitutively present in our body. Choline is a ubiquitous molecule, mainly responsible for the structural integrity of cell membranes (it is a component of membrane phospholipids) and for the synthesis of the neuronal chemical mediator acetylcholine; urea is one of the products of protein metabolism, mainly developed by the liver and kidneys, and eliminated by them. A solvent characterized by such a composition can only be defined as absolutely nontoxic. It is noteworthy that to obtain the eutectic mixture, the two compounds are simply mixed and left in the right heating conditions; urea, through the formation of hydrogen bonds, is easily associated with choline chloride.
The model reaction was performed dissolving o-phenylenediamine (1 mmol) in 1.0 mL of ChCl:urea DES and then adding benzaldehyde in an equimolar ratio. The reaction mixture was left under magnetic stirring at 60 °C or 80 °C and monitored by thin layer chromatography (TLC) and gas chromatography/mass spectrometry (GC/MS) analysis. The GC/MS analysis confirmed the complete conversion of the reagents within 10 min affording, at the higher temperature, the 2-substituted benzimidazole derivative 1a and the 1,2-disubstituted benzimidazole derivative 1b in 88% and 12% yields respectively (entries 1 and 2 in Table 1).
The reaction in DES was replicated by varying the molar ratios of the reagents using the diamine and benzaldehyde in a 1:2 ratio. In this case, a selectivity towards the double-condensation product b was observed by GC/MS analysis. After 10 min of reaction the conversion of the reagents went almost completely in favor of the product b that was obtained in 87% yield while a was afforded in 13% yield.
The same reaction performed in DES at 60 °C provided, after 15 min, a mixture of products a and b both in the case of a molar ratio diamine:benzaldehyde 1:1 and in the case of the molar ratio 1:2 (Table 1, entries 1 and 2).
The high selectivity observed in DES let us hope that we had developed one of the most promising and green methods for obtaining benzimidazole derivatives. DESs as an alternative to ILs, not only have similar characteristics to traditional imidazolium based ILs, but also have several benefits such as ease of preparation and availability from bulk renewable resources. In addition, the use of choline chloride/urea enables an easy work-up as the products can be recovered by simple extraction with ethyl acetate, followed by separation and removal of the solvent under reduced pressure.
To further improve our green procedure, we decided at this stage to explore a double role of the DES. In fact, the use of solvents as reagents is an efficient and widely explored way to minimize waste formation [59]. The use of urea to form type III eutectic solvents where choline chloride is mostly taken as quaternary ammonium cation has been known for a considerable time. This principle, however, is not limited to amides, but can be applied to a wide variety of other hydrogen bond donors (HBDs) such as organic acids, alcohols, and amines. To date, only a few example of DESs based on ChCl and amine group bearing compounds have been reported [60,61] and only one example of DESs based on ChCl and solid aromatic amines has been described [62]. Nevertheless, none of these DESs have been used for organic synthetic applications.
In the light of the above statement, our approach was to explore o-phenylendiamine (o-PDA) as HBD to combine with choline chloride, thus forming a eutectic mixture: The diamine would therefore be part of the solvent and at the same time reactant.
Thus, a ChCl: o-PDA based DES was prepared by mixing the components in a molar ratio amine: ChCl 1:1 at ambient temperature and then heated up to 80 °C for 2 h, to obtain a liquid product. The final mixture was a light yellow colored liquid, gradually becoming green on air, and that after preparation slightly increased its viscosity. A differential scanning calorimetry (DSC) analysis of the mixture was performed, as well as for the individual components, to demonstrate the formation of the DES. ChCl and o-phenylendiamine are solid components melting at 302 °C and 102 °C, respectively: The DSC analysis of the mixture resulted in a eutectic that melts at 32 °C. This result demonstrated the successful formation of a eutectic with a melting point significantly lower than that of its individual components. The eutectic temperature for ChCl: o-PDA DES is shown in Table 2 and graphically in Figure 3.
In the thermogram of o-phenylendiamine melting is observed with Tm of 102 °C. From the thermogram of ChCl:o–PDA (1:1) DES shown in Figure 3 it is clear that the thermal behavior of the DES is different from the behavior of the individual components, thus providing evidence of interaction established between choline chloride and the diamine, which make the DES behave like a different entity.
Abbott et al. suggested that the depression of the freezing point is dependent on the lattice energies of the DESs and low melting mixtures (LMMs), the interaction of the anion and HBD, and the entropy changes arising from forming a liquid [63,64,65]. In our situation, the influence of the amine structure on the physical properties of ChCl/o-PDA can be interpreted based on available results for DESs formed by ChCl mixtures with other aromatic hydrogen bond donors, such as phenols [62,66]. In fact, Zhu et al. [66] showed that the structure of phenols is responsible for hydrogen bond formation between the phenolic group and Cl anion of ChCl. In accordance, Spychaj et al. [62] assumed that aromatic NH2 can interact with choline chloride, thus affecting the physicochemical properties of DES.
The obtained DES (ChCl:o–PDA) was studied as solvent and, at the same time, reactant in the pilot reaction for the synthesis of benzimidazole derivatives. To this end, 1 mol of benzaldehyde with respect to the DES component o-PDA, was added and magnetically stirred for 10 min at 80 °C.
GC/MS analysis of the mixture revealed the formation of compound 1a as the only product of reaction (95% yield, Scheme 1). Employing 2 mol of benzaldehyde for the same reaction, the 1,2-disubstituted benzimidazole 1b was selectively obtained in 97% yield as a single product (Scheme 1). The reaction conditions were finally optimized as follows: 1 mol benzaldehyde in ChCl:o–PDA (1:1) DES at 80 °C to give the monosubstituted benzimidazole derivative 1a (Scheme 1); 2 mol benzaldehyde in the same reaction conditions to afford the 1,2-disubstituted benzimidazole 1b (Scheme 1).
An important advantage of this solvent system is that the use of the new DES, enables an easy work-up without using any chromatographic or other purification methods. In fact, the reaction products were recovered by simple dilution of the mixture with water followed by extraction with ethyl acetate.
The application scope of this reaction was then examined by subjecting different aldehydes to the same protocol. By using this reactive DES solvent and varying the molar ratio of the aldehyde, 2-substituted or 1,2-disubstituted benzimidazoles with various functional groups can be obtained in excellent selectivity and yields (Table 3 and Table 4).
All reactions were complete and the reaction times were always short, generally between 8 and 10 min. The reaction yields related to the formation of the 2-substituted benzimidazoles derivative ranged from 89% to 97%. The reaction yields related to the formation of the disubstituted benzimidazoles derivative were between 91% and 98%.
As it can be seen from Table 3, good reaction yields were obtained with aldehydes containing electron donor groups (entries 2–6), and also electron withdrawing groups (entries 7–8).
The generality of the selective formation of 1,2-disubstituted benzimidazoles was demonstrated through the reaction of o-phenylendiamine with 2 molar amount of various aldehydes (Table 4). The expected 1,2-disubstituted products were obtained in 90%–98% yields. The reaction, as already reported in the literature, proceeds through a bis-imine formation, a rearrangement, and a 1,3-hydride shift pathway that finally afford the 1,2-disubstituted derivatives [67]. The DES formed by choline chloride and the diamine possibly increases the electrophilic character at aldehyde carbon, which will facilitate the nucleophilic addition of o-phenylenediamine to obtain the benzimidazole derivatives. The intermediate formed could be stabilized through hydrogen bonding and electronic interaction with DES components, thereby exalting the electrophilic character of the aldehydes.
However, the reactions performed with 2 molar amount of aldehydes containing electron withdrawing groups such as p-chloro or p-nitro benzaldehyde (Table 4, entries 7–8) afforded exclusively the corresponding 2-monosubstituted benzimidazoles (7a and 8a) in good yields, without observing the formation of disubstituted derivative. This result is in accordance with the data reported in the literature [21]. Electron deficient aldehydes, as they possess a lower density of negative charge on the oxygen atom of the carbonyl group, do not simply coordinate with the DES components to form the hydrogen bonding interaction. As a consequence, the formation of the disubstituted product is not favored. Additionally, the highly electrophilic character of the carbonyl carbon of aldehydes with a chloro or nitro substituent is responsible, after the formation of the mono-imine, for the fast formation of the monosubstituted benzimidazole derivative 7a and 8a via the corresponding intermediate imidazoline [67].
Finally, in order to demonstrate the potential industrial applicability of this green procedure, the pilot reaction to give 1a was carried out in a scale of 20 mol (entry 1, Table 3, footnote c). The reaction was completed in 30 min with 93% isolated yield after simple water addition (10 mL) and extraction with 10 mL ethyl acetate.
In the development of a green procedure, solvent recyclability and reusability is an essential feature. In this case, after completion of the reactions, ChCl is dissolved in water and can be recycled easily by water distillation under vacuum. However, as water distillation consumes a lot of energy and is not an advantageous process from an economical point of view and, since choline chloride is a very cheap and nondangerous substance (500 g € 49.80 MERCK, 2019), at the end of reaction the aqueous solution can be simply thrown away.

3. Materials and Methods

3.1. General Information

All chemicals and solvents were purchased from common commercial sources and were used as received without any further purification. All reactions were monitored by GC/MS analysis and TLC on silica Merck 60 F254 precoated aluminum plates (KGaA, Darmstadt, Germany). The GC-MS Shimadzu workstation was constituted by a GC 2010 (equipped with a 30 m-QUADREX 007-5MS capillary column (BGB Analytik AG, CH-4461 Boeckten, Switzerland) operating in “split” mode, 1 mL min−1 flow of He as carrier gas) and a 2010 quadrupole mass-detector. Proton nuclear magnetic resonance (1H NMR) spectra were recorded on a Brüker spectrometer (Auckland, New Zealand) at 300 MHz. Chemical shifts are reported in δ units (ppm) with TMS as reference (δ 0.00). All coupling constants (J) are reported in Hertz. Multiplicity is indicated by one or more of the following: s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet). Carbon nuclear magnetic resonance (13C NMR) spectra were recorded on a Brüker at 75 MHz. Chemical shifts are reported in δ units (ppm) relative to CDCl3 (δ 77.0) (more information see Supplementary Materials).

3.2. General Procedure for DESs Preparation

The ChCl:urea (1:2) DES was prepared as follows: Choline chloride (6.98 g, 50 mmol) and urea (6.00 g, 100 mmol) were added in a round-bottom flask under inert atmosphere. The mixture was magnetically stirred for 60 min at 80 °C until a clear colorless liquid was obtained. The obtained DES was used without need of purification.
For the preparation of ChCl:o–PDA (1:1) DES the following procedure was used: Choline chloride (6.98 g, 50 mmol) and o-phenylendiamine (5.40 g, 50 mmol) were mixed in a round-bottom flask under inert atmosphere. The mixture was magnetically stirred for 2 h at 80 °C until a clear yellow liquid was obtained. The obtained DES was characterized by DSC analysis and used without further purification.

3.3. General Procedure for the Synthesis of 2-Substituted Benzimidazoles 1a–8a in the DES ChCl:o–PDA (1:1)

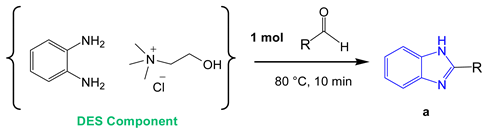

The appropriate aldehyde (1 mmol) was added to the ChCl:o–PDA (1:1) eutectic mixture (1 mL) under magnetic stirring. The resulting mixture was stirred at 80 °C for 8–10 min. The reaction was monitored by TLC and GC/MS analysis. After this time, 2 mL of H2O were added. The resulting aqueous suspension was then extracted with AcOEt (3 × 2 mL). The organic phases were dried over Na2SO4, followed by evaporation under reduced pressure to give the corresponding products 1a–8a. Spectral data were in accordance with the literature [21].

3.4. General Procedure for the Synthesis of 1,2-Substituted Benzimidazoles 1b–8b in the DES ChCl:o–PDA (1:1)

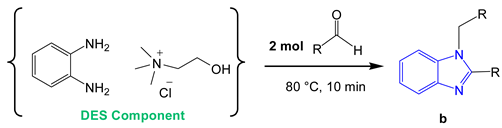

The appropriate aldehyde (2 mmol) was added to the ChCl:o–PDA (1:1) eutectic mixture (1 mL) under magnetic stirring. The resulting mixture was stirred at 80 °C for 8–10 min. The reaction was monitored by TLC and GC/MS analysis. After this time, 2 mL of H2O were added. The resulting aqueous suspension was then extracted with AcOEt (3 × 2 mL). The organic phases were dried over Na2SO4, followed by evaporation under reduced pressure to give the corresponding products 1b–8b. Spectral data were in accordance with the literature [21].

3.5. Differential Scanning Analysis (DSC)

The ChCl:o–PDA DES mixture and raw chemicals were characterized by DSC analysis (model DSC NETZSCH 200) on the temperature range from −80 °C to 350 °C, at 10 °C/min, after equilibration for 5 min at −80 °C. The experiments were performed under nitrogen atmosphere (50 mL/min), with 15 mg of the sample in aluminum pans with covering lids.

4. Conclusions

For the first time a type III DES based on ChCl as quaternary ammonium salt and a HBD such as o-phenylendiamine (ChCl:o–PDA, 1:1) was prepared and used as medium, and at the same time as a reagent, for the synthesis of benzimidazole derivatives.
The methodology proved to be complete in terms of eco-sustainability, ecotoxicity, reaction, and economics.
In summary, it can be asserted that the high reaction yield, the selectivity of the process, the easy preparation of the solvent, the economy, the short reaction times, and the absence of chromatographic purification are the salient aspects of our approach.
The use of easy-to-handle and environment-friendly chemicals with low toxicity and without using any external solvent makes this method a potential approach for obtaining benzimidazole derivatives, even on a large scale, and perfectly fulfills several requirements, as formulated by Anastas et al. in the twelve principles of green chemistry [68].

Supplementary Materials

The following are available online, MS(EI) spectra of products, DSC thermograms and general synthetic procedures.

Author Contributions

Conceptualization, M.L.D.G. and P.C.; formal analysis, R.C., N.H.C., and F.P.N.; project administration, M.L.D.G. and P.C.; validation, L.M., M.N., and M.O.; Supervision, A.P.

Funding

This research received funding from Dipartimento di Farmacia e Scienze della Salute e della Nutrizione, Dipartimento di Eccellenza L. 232/2016, Arcavacata di Rende (CS).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alaqeel, S.I. Synthetic approaches to benzimidazoles from o-phenylenediamine: A literature review. J. Saudi Chem. Soc. 2017, 21, 229–237. [Google Scholar] [CrossRef]
  2. Emerson, G.; Brink, N.G.; Holly, F.W.; Koniuszy, F.; Heyl, D.; Folker, K. Vitamin B12. VIII. Vitamin B12-Like activity of 5,6-dimethylbenzimidazole and tests on related compounds. J. Am. Chem. Soc. 1950, 72, 3084–3085. [Google Scholar] [CrossRef]
  3. Yadav, G.; Ganguly, S. Structure activity relationship (SAR) study of benzimidazole scaffold for different biological activities: A mini-review. Eur. J. Med. Chem. 2015, 97, 419–443. [Google Scholar] [CrossRef] [PubMed]
  4. Narasimhan, B.; Sharma, D.; Kumar, P. Benzimidazole: A medicinally important heterocyclic moiety. Med. Chem. Res. 2012, 21, 269–283. [Google Scholar] [CrossRef]
  5. Algul, O.; Karabulut, A.; Canacankatan, N.; Gorur, A.; Sucu, N.; Vezir, O. Apoptotic and anti-angiogenic effects of benzimidazole compounds: Relationship with oxidative stress mediated ischemia/reperfusion injury in rat hind limb. Antiinflamm. Antiallergy Agents Med. Chem. 2012, 11, 267–275. [Google Scholar] [CrossRef]
  6. Zhu, G.-D.; Gandhi, V.B.; Gong, J.; Thomas, S.; Luo, Y.; Liu, X.; Shi, Y.; Klinghofer, V.; Johnson, E.F.; Frost, D.; et al. Synthesis and SAR of novel, potent and orally bioavailable benzimidazole inhibitors of poly(ADP-ribose) polymerase (PARP) with a quaternary methylene-amino substituent. Bioorg. Med. Chem. Lett. 2008, 18, 3955–3958. [Google Scholar] [CrossRef]
  7. Ogino, Y.; Ohtake, N.; Nagae, Y.; Matsuda, K.; Moriya, M.; Suga, T.; Ishikawa, M.; Kanesaka, M.; Mitobe, Y.; Ito, J.; et al. Design, syntheses, and structure-activity relationships of novel NPY Y5 receptor antagonists: 2-{3-Oxospiro[isobenzofuran-1(3H),4′-piperidin]-1′-yl} benzimidazole derivatives. Bioorg. Med. Chem. Lett. 2008, 18, 5010–5014. [Google Scholar] [CrossRef]
  8. Bansal, Y.; Silakari, O. The therapeutic journey of benzimidazoles: A review. Bioorg. Med. Chem. 2012, 20, 6208–6236. [Google Scholar] [CrossRef]
  9. Rathod, C.P.; Rajurkar, R.M.; Thonte, S.S. Benzimidazole synthesis and biological evaluation: A review. Indo Am. J. Pharm. Res. 2013, 3, 2323–2329. [Google Scholar]
  10. Thakuria, H.; Das, G. An expeditious one-pot solvent-free synthesis of benzimidazole derivatives. Arkivoc 2008, 15, 321–328. [Google Scholar]
  11. Rithe, S.R.; Jagtap, R.S.; Ubarhande, S.S. One pot synthesis of substituted benzimidazole derivatives and their characterization. RASAYAN J. Chem. 2015, 8, 213–217. [Google Scholar]
  12. Saberi, A. Efficient synthesis of Benzimidazoles using zeolite, alumina and silica gel under microwave irradiation. Iran. J. Sci. Technol. 2015, 39, 7–10. [Google Scholar]
  13. Mobinikhaledi, A.; Hamta, A.; Kalhor, M.; Shariatzadeh, M. Simple Synthesis and Biological Evaluation of Some Benzimidazoles Using Sodium Hexafluroaluminate, Na3 AlF6, as an Efficient Catalyst. Iran. J. Pharm. Res. 2014, 13, 95–101. [Google Scholar] [PubMed]
  14. Birajdar, S.S.; Hatnapure, G.D.; Keche, A.P.; Kamble, V.M. Synthesis of 2-substituted-1 H-benzo[d]imidazoles through oxidative cyclization of O-phenylenediamine and substituted aldehydes using dioxanedibromide. Res. J. Pharm. Biol. Chem. Sci. 2014, 5, 487–493. [Google Scholar]
  15. Srinivasulu, R.; Kumar, K.R.; Satyanarayana, P.V.V. Facile and efficient method for synthesis of benzimidazole derivatives catalyzed by zinc triflate. Green Sustain. Chem. 2014, 4, 33–37. [Google Scholar] [CrossRef]
  16. Sehyun, P.; Jaehun, J.; Eun, J.C. Visible-Light-Promoted Synthesis of Benzimidazoles. J. Org. Chem. 2014, 2014, 4148–4154. [Google Scholar]
  17. Vishvanath, D.P.; Ketan, P.P. Synthesis of Benzimidazole and Benzoxazole Derivatives Catalyzed by Nickel Acetate as Organometallic Catalyst. Int. J. ChemTech Res. 2014, 8, 457–465. [Google Scholar]
  18. Wan, J.P.; Gan, S.F.; Wu, J.M.; Pan, Y. Water mediated chemoselective synthesis of 1,2-disubstituted benzimidazoles using o-phenylenediamine and the extended synthesis of quinoxalines. Green Chem. 2009, 11, 1633–1637. [Google Scholar] [CrossRef]
  19. Carr, A.G.; Mammucari, R.; Foster, N.R. A review of subcritical water as a solvent and its utilization for the processing of hydrophobic organic compounds. Chem. Eng. J. 2011, 172, 1–17. [Google Scholar] [CrossRef]
  20. Aniket, P.; Shantanu, D.S.; Anagha, O.B.; Ajinkya, P.S. Iodine catalyzed convenient synthesis of 2-aryl-1-arylmethyl-1 H-benzimidazoles in aqueous media. Int. J. ChemTech Res. 2015, 8, 496–500. [Google Scholar]
  21. Herrera Cano, N.; Uranga, J.G.; Nardi, M.; Procopio, A.; Wunderlin, D.A.; Santiago, A.N. Selective and eco-friendly procedures for the synthesis of benzimidazole derivatives. The role of the Er(OTf)3 catalyst in the reaction selectivity. Beilstein J. Org. Chem. 2016, 12, 2410–2419. [Google Scholar] [CrossRef] [PubMed]
  22. Hussey, C.L. Room temperature haloaluminate ionic liquids. Novel solvents for transition metal solution chemistry. Pure Appl. Chem. 1988, 60, 1763–1772. [Google Scholar] [CrossRef]
  23. Plechkova, N.V.; Seddon, K.R. Applications of ionic liquids in the chemical industry. Chem. Soc. Rev. 2008, 37, 123–150. [Google Scholar] [CrossRef]
  24. Kubisa, P. Potential for the use of ionic liquids in polymer chemistry. Int. Polym. Sci. Technol. 2006, 33, 445–450. [Google Scholar] [CrossRef]
  25. Maton, C.; De Vos, N.; Stevens, C.V. Ionic liquid thermal stabilities: Decomposition mechanisms and analysis tools. Chem. Soc. Rev. 2013, 42, 5963–5977. [Google Scholar] [CrossRef] [PubMed]
  26. Ellis, B.; Keim, W.; Wasserscheid, P. Linear dimerisation of but-1-ene in biphasic mode using buffered chloroaluminate ionic liquid solvents. Chem. Commun. 1999, 4, 337–338. [Google Scholar] [CrossRef]
  27. Pernak, J.; Sobaszkiewicz, K.; Mirska, I. Anti-microbial activities of ionic liquids. Green Chem. 2003, 5, 52–56. [Google Scholar] [CrossRef]
  28. Sapkal, S.B.; Shelke, K.F.; Sonar, S.S.; Shingate, B.B.; Shingare, M.S. Acidic ionic liquid catalyzed environmentally friendly synthesis of benzimidazole derivatives. Bull. Catal. Soc. India 2009, 2, 78–83. [Google Scholar]
  29. Ranke, J.; Stolte, S.; Stormann, R.; Arning, J.; Jastorff, B. Design of sustainable chemical products–the example of ionic liquids. Chem. Rev. 2007, 107, 2183–2206. [Google Scholar] [CrossRef]
  30. Deetlefs, M.; Seddon, K.R. Assessing the greenness of some typical laboratory ionic liquid preparations. Green Chem. 2010, 12, 17–30. [Google Scholar] [CrossRef]
  31. Clark, J.H.; Tavener, S.J. Alternative solvents: shades of green. Org. Process Res. Dev. 2007, 11, 149–155. [Google Scholar] [CrossRef]
  32. Procopio, A.; Gaspari, M.; Nardi, M.; Oliverio, M.; Tagarelli, A.; Sindona, G. Simple and efficient MW-assisted cleavage of acetals and ketals in pure water. Tetrahedron Lett. 2007, 48, 8623–8627. [Google Scholar] [CrossRef]
  33. Procopio, A.; Gaspari, M.; Nardi, M.; Oliverio, M.; Rosati, O. Highly efficient and versatile chemoselective addition of amines to epoxides in water catalyzed by erbium(III) triflate. Tetrahedron Lett. 2008, 49, 2289–2293. [Google Scholar] [CrossRef]
  34. Simon, M.O.; Li, C.J. Green chemistry oriented organic synthesis in water. Chem. Soc. Rev. 2012, 41, 1415–1427. [Google Scholar] [CrossRef] [PubMed]
  35. Procopio, A.; Costanzo, P.; Curini, M.; Nardi, M.; Oliverio, M.; Paonessa, R. An eco-sustainable erbium(III) triflate catalyzed formation and cleavage of tert -butyl ethers. Synthesis 2011, 1, 73–78. [Google Scholar] [CrossRef]
  36. Nardi, M.; Herrera Cano, N.; Costanzo, P.; Oliverio, M.; Sindona, G.; Procopio, A. Aqueous MW eco-friendly protocol for amino group protection. RSC Adv. 2015, 5, 18751–18760. [Google Scholar] [CrossRef]
  37. Oliverio, M.; Costanzo, P.; Paonessa, R.; Nardi, M.; Procopio, A. Catalyst-free tosylation of lipophilic alcohols in water. RSC Adv. 2013, 3, 2548–2552. [Google Scholar] [CrossRef]
  38. Nardi, M.; Di Gioia, M.L.; Costanzo, P.; De Nino, A.; Maiuolo, L.; Oliverio, M.; Olivito, F.; Procopio, A. Selective acetylation of small biomolecules and their derivatives catalyzed by Er(OTf)3. Catalysts 2017, 7, 269. [Google Scholar] [CrossRef]
  39. Nardi, M.; Costanzo, P.; De Nino, A.; Di Gioia, M.L.; Olivito, F.; Sindona, G.; Procopio, A. Water excellent solvent for the synthesis of bifunctionalized cyclopentenones from furfural. Green Chem. 2017, 19, 5403–5411. [Google Scholar] [CrossRef]
  40. Olivito, F.; Costanzo, P.; Di Gioia, M.L.; Nardi, M.; Oliverio, M.; Procopio, A. Efficient synthesis of organic thioacetate in water. Org. Biomol. Chem. 2018, 16, 7753–7759. [Google Scholar] [CrossRef]
  41. Leitner, W.; Poliakoff, M. Supercritical fluids in green chemistry. Green Chem. 2008, 10, 730. [Google Scholar]
  42. Carlès, P. A brief review of the thermophysical properties of supercritical fluids. J. Supercrit. Fluid. 2010, 53, 2–11. [Google Scholar] [CrossRef]
  43. Di Gioia, M.L.; Barattucci, A.; Bonaccorsi, P.; Leggio, A.; Minuti, L.; Romio, E.; Temperini, A.; Siciliano, C. Deprotection/reprotection of the amino group in α-amino acids and peptides. A one-pot procedure in [Bmim][BF4] ionic liquid. RSC Adv. 2014, 4, 2678–2686. [Google Scholar] [CrossRef]
  44. De Nino, A.; Maiuolo, L.; Merino, P.; Nardi, M.; Procopio, A.; Roca-López, D.; Russo, B.; Algieri, V. Efficient organocatalyst supported on a simple ionic liquid as a recoverable system for the asymmetric diels-alder reaction in the presence of water. Chem. Cat. Chem. 2015, 7, 830–835. [Google Scholar]
  45. Belsito, E.L.; De Marco, R.; Di Gioia, M.L.; Liguori, A.; Perri, F.; Viscomi, M.C. N-(4-nitrophenylsulfonyl)- and N-(fluorenylmethoxycarbonyl)-N-ethyl amino acid methyl esters. Eur. J. Org. Chem. 2010, 22, 4245–4252. [Google Scholar] [CrossRef]
  46. De Marco, R.; Di Gioia, M.L.; Leggio, A.; Liguori, A.; Perri, F.; Siciliano, C.; Viscomi, M.C. A new non-natural arginine-like amino acid derivative with a sulfamoyl group in the side-chain. Amino Acids 2010, 38, 691–700. [Google Scholar] [CrossRef]
  47. Di Gioia, M.L.; Gagliardi, A.; Leggio, A.; Leotta, V.; Romio, E.; Liguori, A. N-Urethane protection of amines and amino acids in an ionic liquid. RSC Adv. 2015, 5, 63407–63420. [Google Scholar] [CrossRef]
  48. Di Gioia, M.L.; Costanzo, P.; De Nino, A.; Maiuolo, L.; Nardi, M.; Olivito, F.; Procopio, A. Simple and efficient Fmoc removal in ionic liquid. RSC Adv. 2017, 7, 36482–36491. [Google Scholar] [CrossRef] [Green Version]
  49. Leggio, A.; Di Gioia, M.L.; Perri, F.; Liguori, A. N-Nosyl-α-amino acids in solution phase peptide synthesis. Tetrahedron 2007, 63, 8164–8173. [Google Scholar] [CrossRef]
  50. De Nino, A.; Merino, P.; Algieri, V.; Nardi, M.; Di Gioia, M.L.; Russo, B.; Tallarida, M.A.; Maiuolo, L. Synthesis of 1,5-functionalized 1,2,3-triazoles using ionic liquid/iron(III) chloride as an efficient and reusable homogeneous catalyst. Catalysts 2018, 8, 364–376. [Google Scholar]
  51. Procopio, A.; Costanzo, P.; Curini, M.; Nardi, M.; Oliverio, M.; Sindona, G. Erbium(III) chloride in ethyl lactate as a smart ecofriendly system for efficient and rapid stereoselective synthesis of trans-4,5-diaminocyclopent-2-enones. ACS Sustain Chem. Eng. 2013, 1, 541–544. [Google Scholar] [CrossRef]
  52. Nardi, M.; Oliverio, M.; Costanzo, P.; Sindona, G.; Procopio, A. Eco-friendly stereoselective reduction of α,β-unsaturated carbonyl compounds by Er(OTf)3/NaBH4 in 2-MeTHF. Tetrahedron 2015, 71, 1132–1135. [Google Scholar] [CrossRef]
  53. Nardi, M.; Cano, N.H.; De Nino, A.; Di Gioia, M.L.; Maiuolo, L.; Oliverio, M.; Santiago, A.; Sorrentino, D.; Procopio, A. An eco-friendly tandem tosylation/Ferrier N-glycosylation of amines catalyzed by Er(OTf)3 in 2-MeTHF. Tetrahedron Lett. 2017, 58, 1721–1726. [Google Scholar] [CrossRef]
  54. Smith, E.L.; Abbott, A.P.; Ryder, K.S. Deep eutectic solvents (DESs) and their applications. Chem. Rev. 2014, 114, 11060–11082. [Google Scholar] [CrossRef] [PubMed]
  55. Di Gioia, M.L.; Nardi, M.; Costanzo, P.; De Nino, A.; Maiuolo, L.; Oliverio, M.; Procopio, A. Biorenewable deep eutectic solvent for selective and scalable conversion of furfural into cyclopentenone derivatives. Molecules 2018, 23, 1891. [Google Scholar] [CrossRef] [PubMed]
  56. Abbott, A.P.; Capper, G.; Davies, D.L.; Rasheed, R.K.; Tambyrajah, V. Novel solvent properties of choline chloride/urea mixtures. Chem. Commun. 2003, 7, 70–71. [Google Scholar] [CrossRef]
  57. Maugeri, Z.; Dominguez de Maria, P. Novel choline-chloride-based deep-eutectic-solvents with renewable hydrogen bond donors: Levulinic acid and sugar-based polyols. RSC Adv. 2012, 2, 421–425. [Google Scholar] [CrossRef]
  58. Nagata, K.; Itoh, T.; Ishikawa, H.; Ohsawa, A. Synthesis of 2-substituted benzimidazoles by reaction of o-phenylenediamine with aldehydes in the presence of Sc (OTf). Heterocycles 2003, 61, 93–96. [Google Scholar] [CrossRef]
  59. Clarke, C.J.; Tu, W.-C.; Levers, O.; Bröhl, A.; Hallett, J.P. Green and sustainable solvents in chemical processes. Chem. Rev. 2018, 118, 747–800. [Google Scholar] [CrossRef]
  60. Faggian, M.; Sut, S.; Perissutti, B.; Baldan, V.; Grabnar, I.; Dall’Acqua, S. Natural Deep Eutectic Solvents (NADES) as a Tool for Bioavailability Improvement: Pharmacokinetics of Rutin Dissolved in Proline/Glycine after Oral Administration in Rats: Possible Application in Nutraceuticals. Molecules 2016, 21, 1531. [Google Scholar] [CrossRef]
  61. Adeyemi, I.; Abu-Zahra, M.R.M.; Alnashef, I. Novel green solvents for CO2 capture. Energy Procedia 2017, 114, 2552–2560. [Google Scholar] [CrossRef]
  62. Piotr, S.; Tadeusz, S. New aromatic diamine-based deep eutectic solvents designed for epoxy resin curing. Polimery 2018, 63, 453–458. [Google Scholar]
  63. Abbot, A.; Capper, G.; Davies, L.; Rasheed, K. Ionic liquid analogues formed from hydrated metal salts. Chem. Eur. J. 2004, 10, 3769–3774. [Google Scholar] [CrossRef] [PubMed]
  64. Abbot, A.; Capper, G.; Davies, L.; Rasheed, K.; Archer, J.; John, C. Electrodeposition of chromium black from ionic liquids. Trans. Inst. Met. Finish 2004, 82, 14–17. [Google Scholar] [CrossRef]
  65. Abbott, A.; Capper, G.; McKenzie, K.J.; Ryder, K.S. Electrodeposition of zinc–tin alloys from deep eutectic solvents based on choline chloride. J. Electroanal. Chem. 2007, 599, 288–294. [Google Scholar] [CrossRef]
  66. Zhu, J.; Yu, K.; Zhu, Y.; Zhu, R.; Ye, F.; Song, N.; Xu, Y. Physicochemical properties of deep eutectic solvents formed by choline chloride and phenolic compounds at T = (293.15 to 333.15) K: The influence of electronic effect of substitution group. J. Mol. Liq. 2017, 232, 182–187. [Google Scholar] [CrossRef]
  67. Kumar, D.; Kommi, D.N.; Chebolu, R.; Garg, S.K.; Kumar, R.; Chakraborti, A.K. Selectivity control during the solid supported protic acids catalysed synthesis of 1,2-disubstituted benzimidazoles and mechanistic insight to rationalize selectivity. RSC Adv. 2013, 3, 91–98. [Google Scholar] [CrossRef]
  68. Anastas, P.T.; Warner, J.C. Green Chemistry: Theory and Practice; Oxford University Press: Oxford, UK, 1998; ISBN 0-19-850234-6. [Google Scholar]
Sample Availability: Samples of the compounds 1a–8a, 1b–6b are available from the authors.
Molecules 24 02885 g001 550

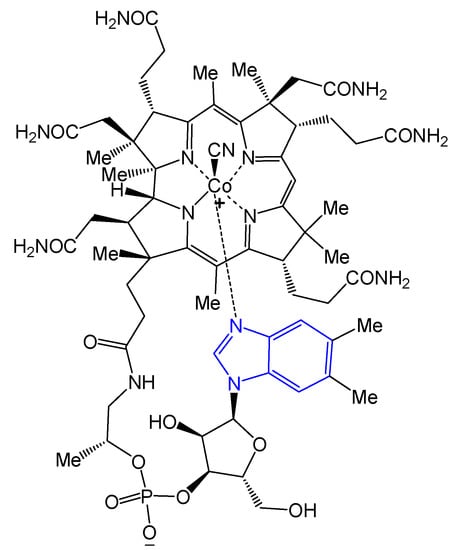

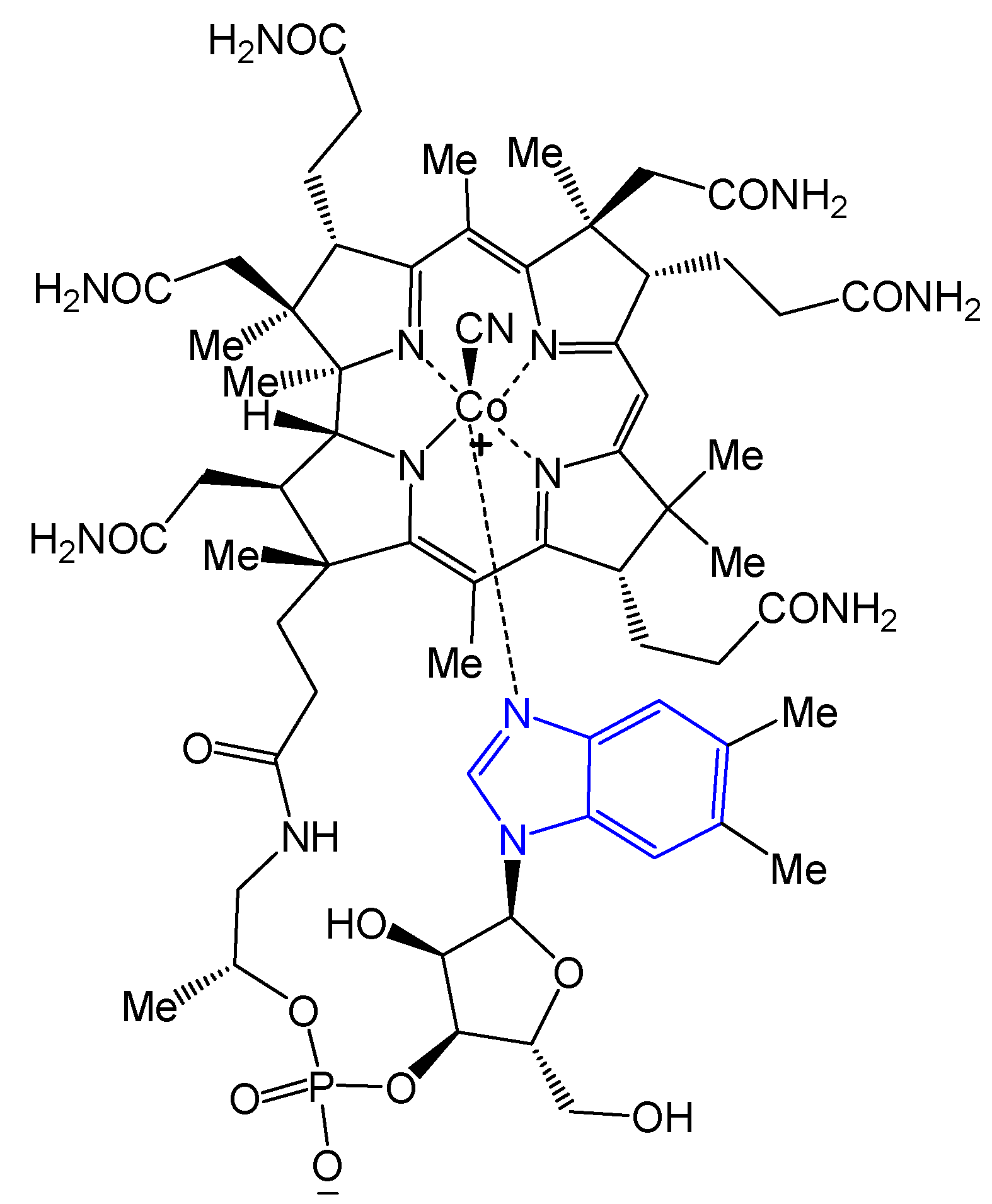

Figure 1. Benzimidazole nucleus in vitamin B12.
Figure 1. Benzimidazole nucleus in vitamin B12.
Molecules 24 02885 g001
Molecules 24 02885 g002 550

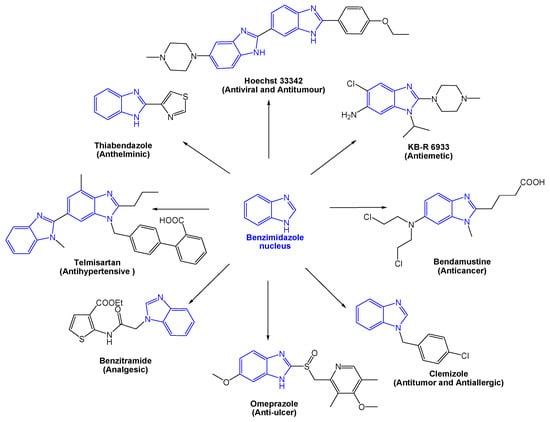

Figure 2. Examples of important drugs containing a benzimidazole nucleus.
Figure 2. Examples of important drugs containing a benzimidazole nucleus.
Molecules 24 02885 g002
Molecules 24 02885 g003 550

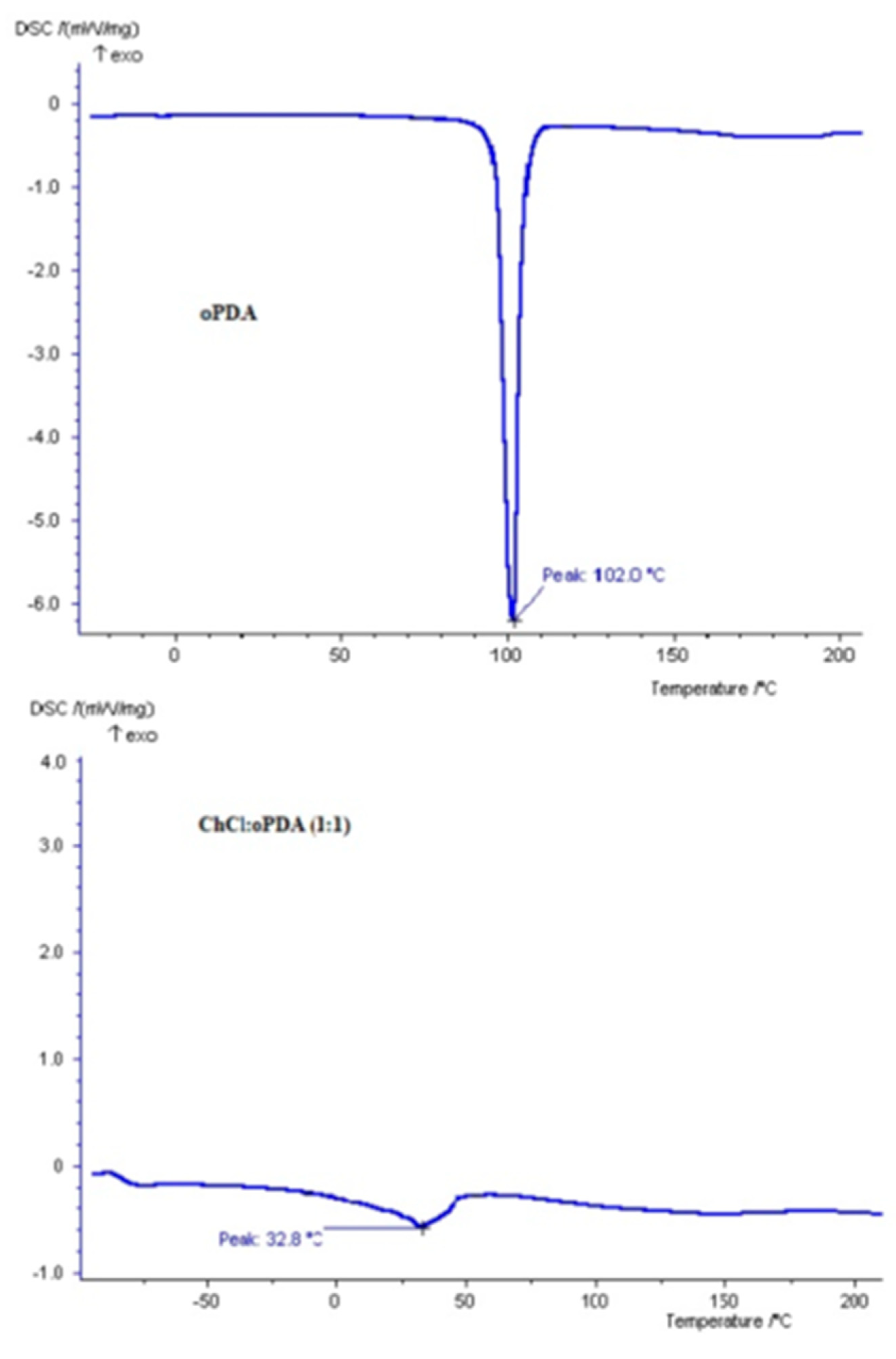

Figure 3. Eutectic temperature (Tf) of ChCl with o-phenylendiamine (o-PDA). The melting point of pure ChCl is 302 °C.
Figure 3. Eutectic temperature (Tf) of ChCl with o-phenylendiamine (o-PDA). The melting point of pure ChCl is 302 °C.
Molecules 24 02885 g003
Molecules 24 02885 sch001 550

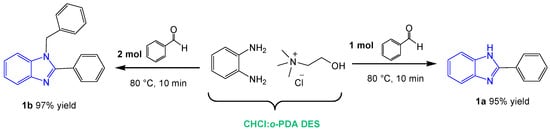

Scheme 1. Optimized conditions for the pilot reaction. GC/MS analysis showed the formation of compound a as the only product (95% yield) when using 1 mol of benzaldehyde and the formation of compound b as the only product (97% yield) when using 2 mol benzaldehyde.
Scheme 1. Optimized conditions for the pilot reaction. GC/MS analysis showed the formation of compound a as the only product (95% yield) when using 1 mol of benzaldehyde and the formation of compound b as the only product (97% yield) when using 2 mol benzaldehyde.
Molecules 24 02885 sch001
Table
Table 1. Optimization of the reaction conditions in pilot reaction.
Table 1. Optimization of the reaction conditions in pilot reaction.
Molecules 24 02885 i001
Entry SolventMolar Ratio
o-PDA:Benzaldehyde		T (°C)Time (min)Yield (%) 3
a:b
1 1ChCl:urea (1:2)1:1601567:33
2 2ChCl:urea (1:2)1:2601530:70
3 1ChCl:urea (1:2)1:1801088:12
4 2ChCl:urea (1:2)1:2801013:87
1 General reaction conditions: o-phenylendiamine (1 mmol) and benzaldehyde (1 mmol) were dissolved in 1.0 mL DES and stirred for 10–15 min at different temperatures. 2 General reaction conditions: o-phenylendiamine (1 mmol) and benzaldehyde (2 mmol) were dissolved in 1.0 mL DES and stirred for 10–15 min at different temperatures. 3 The complete conversion of the reagents was observed. Ratio (a:b) determined by GC/MS.
Table
Table 2. Structure, composition, and eutectic temperature (Tf) of the deep eutectic solvents (DES) with the corresponding melting point (Tm*) of the pure hydrogen bond donor (HBD). The temperature is given in °C.
Table 2. Structure, composition, and eutectic temperature (Tf) of the deep eutectic solvents (DES) with the corresponding melting point (Tm*) of the pure hydrogen bond donor (HBD). The temperature is given in °C.
ChClHBDMolar RatioTf
(°C)		Tm HBD
(°C)		Δ
(°C)		Appearance
Molecules 24 02885 i002 Molecules 24 02885 i0031:13210270Light yellow liquid that tends to become greenish.
Table
Table 3. Synthesis of 2-substituted benzimidazoles a.
Table 3. Synthesis of 2-substituted benzimidazoles a.
Molecules 24 02885 i004
EntryRProduct Yields b (%)
1Ph Molecules 24 02885 i0051a95 (93) c
2p-MePh Molecules 24 02885 i0062a97
3p-MeOPh Molecules 24 02885 i0073a92
4CH3CH2 Molecules 24 02885 i0084a95
5CH3 Molecules 24 02885 i0095a96
6CH2Ph Molecules 24 02885 i0106a91
7p-ClPh Molecules 24 02885 i0117a90
8p-NO2Ph Molecules 24 02885 i0128a89
a General reaction conditions: 1 mmol of aldehyde was dissolved under stirring in ChCl: o-PDA (1:1) DES at 80 °C for 10 min. b Percent yield calculated from GC/MS data. The corresponding monosubstituted benzimidazole derivative was recovered as the sole product. c The reaction was carried out in a scale of 20 mol and furnished 1a in 93% yield.
Table
Table 4. Synthesis of 1,2-disubstituted benzimidazoles a.
Table 4. Synthesis of 1,2-disubstituted benzimidazoles a.
Molecules 24 02885 i013
EntryRProduct Yields b (%)
1Ph Molecules 24 02885 i0141b97
2p-MePh Molecules 24 02885 i0152b98
3p-MeOPh Molecules 24 02885 i0163b93
4CH3CH2 Molecules 24 02885 i0174b90
5CH3 Molecules 24 02885 i0185b91
6CH2Ph Molecules 24 02885 i0196b91
7 cp-ClPh Molecules 24 02885 i0207b0
8 cp-NO2Ph Molecules 24 02885 i0218b0
a General reaction conditions: 2 mol of aldehyde was dissolved under stirring in ChCl:o–PDA (1:1) DES at 80 °C for 10 min. b Percent yield calculated from GC/MS data. The corresponding disubstituted benzimidazole derivative was recovered as the sole product. c Product b was not detected. Only the corresponding 2-substituted derivative (7a 93% yield and 8a 93% yield) was afforded.

Share and Cite

MDPI and ACS Style

Di Gioia, M.L.; Cassano, R.; Costanzo, P.; Herrera Cano, N.; Maiuolo, L.; Nardi, M.; Nicoletta, F.P.; Oliverio, M.; Procopio, A. Green Synthesis of Privileged Benzimidazole Scaffolds Using Active Deep Eutectic Solvent. Molecules 2019, 24, 2885. https://doi.org/10.3390/molecules24162885

AMA Style

Di Gioia ML, Cassano R, Costanzo P, Herrera Cano N, Maiuolo L, Nardi M, Nicoletta FP, Oliverio M, Procopio A. Green Synthesis of Privileged Benzimidazole Scaffolds Using Active Deep Eutectic Solvent. Molecules. 2019; 24(16):2885. https://doi.org/10.3390/molecules24162885

Chicago/Turabian Style

Di Gioia, Maria Luisa, Roberta Cassano, Paola Costanzo, Natividad Herrera Cano, Loredana Maiuolo, Monica Nardi, Fiore Pasquale Nicoletta, Manuela Oliverio, and Antonio Procopio. 2019. "Green Synthesis of Privileged Benzimidazole Scaffolds Using Active Deep Eutectic Solvent" Molecules 24, no. 16: 2885. https://doi.org/10.3390/molecules24162885

Article Metrics

Back to TopTop
