Abstract

:
RNA structure and dynamic studies by NMR spectroscopy suffer from chemical shift overlap and line broadening, both of which become worse as RNA size increases. Incorporation of stable isotope labels into RNA has provided several solutions to these limitations. Nevertheless, the only method to circumvent the problem of spectral overlap completely is the solid-phase chemical synthesis of RNA with labeled RNA phosphoramidites. In this review, we summarize the practical aspects of this methodology for NMR spectroscopy studies of RNA. These types of investigations lie at the intersection of chemistry and biophysics and highlight the need for collaborative efforts to tackle the integrative structural biology problems that exist in the RNA world. Finally, examples of RNA structure and dynamic studies using labeled phosphoramidites are highlighted.

1. Introduction

RNAs are involved in numerous cellular functions, such as gene regulation, catalysis, signaling, and retroviral infection [1,2,3,4,5,6]. RNA owes this functional diversity, in part, to its ability to change its structure on a wide range of timescales [7,8,9,10]. Therefore, biophysical techniques that characterize RNA structure and dynamics at atomic-resolution are needed to fully elucidate their function. Although X-ray crystallography and cryo-electron microscopy (cryo-EM) provide insight into RNA structure, nuclear magnetic resonance (NMR) spectroscopy is the only high-resolution structural technique capable of probing RNA dynamics on functionally relevant timescales in solution [7,8,9,11,12,13]. However, NMR studies of RNA face two challenges: narrow chemical shift dispersion and broad linewidths, both of which worsen in large RNAs [14,15,16]. A widely-used method to address these challenges is the selective incorporation of stable isotope labels such as fluorine-19 (19F), carbon-13 (13C), hydrogen-2 (2H), and nitrogen-15 (15N) into RNA [15,17,18,19,20,21,22,23,24,25,26,27,28,29].
Isotope labeled RNAs are predominantly prepared by in vitro transcription with T7 RNA polymerase (T7 RNAP) using well established protocols [30,31]. This approach is applicable to large RNA sequences and allows for uniform or nucleotide-specific labeling by mixing labeled with unlabeled ribonucleoside-5′-triphosphates (rNTPs). Although this method produces pure material in quantities amenable to NMR analysis (~0.1–1 μmol), signal overlap presents a significant problem for large RNAs. Moreover, T7 RNAP requires one or more guanosine (G) or adenosine (A) residues at the 5′-end for efficient in vitro RNA transcription [30,31,32]. In some cases, the addition of the 5′-G overhang(s) can alter the function of the RNA [33]. Additionally, the first 3 nucleotides (nts) at the transcription start site have a significant effect on the 5′-heterogeneity of the RNA transcripts and care must be taken when choosing these sequences [34]. To overcome the non-specificity of T7 RNAP-based in vitro transcription, three methods to prepare position-specifically labeled RNAs have emerged. In the first, Keyhani et al. developed a chemo-enzymatic synthesis that involves a single incorporation of a modified nucleoside-3′,5′-bisphosphate to the 3′-end of an RNA fragment followed by DNA-splinted ligation to complete the desired internally labeled RNA sequence [19]. This method was used to introduce photocaged, photoswitchable, and isotopically labeled nucleosides into RNAs up to 392 nts. Furthermore, this method uses standard laboratory equipment and commercially available enzymes T4 RNA ligase 1, shrimp alkaline phosphatase, and T4 RNA ligase 2, making it readily accessible to most biochemical/biophysical research groups. However, the relatively low yields from both bis-phosphorylation of the modified nucleosides (6%–22%) and DNA-splinted ligation of the RNA fragments (9%–49%) are a major drawback of this approach.
Secondly, Liu et al. developed a hybrid solid-liquid phase transcription technique using an automated robotic platform known as PLOR (position selective labeling of RNA) to prepare isotopically labeled RNAs up to 104 nts and fluorescently and heavy atom labeled RNAs up to 71 nts [35,36,37]. In this approach, the DNA template is attached to a bead and transcription is initiated by the addition of T7 RNAP and a mixture missing one (or more) of the four rNTPs, causing RNA elongation to stall at the first position where the missing rNTP would be incorporated. The beads are then washed to remove unincorporated rNTPs and T7 RNAP. Elongation is then resumed by the addition of a new mixture containing the previously omitted rNTP. Repetition of the elongation, stalling and reinitiation steps enables synthesis of position-selectively labeled RNA. The main drawbacks of this method are the inaccessibility of the automated synthesizer and the need for large, stoichiometric amounts of T7 RNAP and DNA template. Additionally, a nucleotide within a stretch of the same residues (e.g., an A in a GAAA tetraloop) cannot be individually labeled with PLOR. Lastly, at least the first ~10 nts of the RNA sequence must be composed of only 3 of the 4 residues to ensure proper formation of the processive elongation complex and subsequently stall it.
The final method, solid-phase chemical synthesis of RNAs with nucleoside phosphoramidites, is the main focus of this review. This approach allows for position-specific labeling that greatly reduces NMR spectral complexity and simplifies resonance assignment (Figure 1). Furthermore, solid-phase synthesis has no sequence requirements, unlike T7 RNAP and PLOR. Despite these advantages, solid-phase synthesis is currently limited to labeling RNAs less than 76 nts [38]. Fortunately, many biologically relevant RNAs fall within this size limit [6]. For RNAs larger than 76 nts, ligation of smaller RNA strands is required [39]. As will be described, the most effective RNA labeling strategies require a combination of solid-phase and chemo-enzymatic synthesis, RNA ligation, and T7-RNAP-based transcription.

2. Solid-Phase Chemical RNA Synthesis

2.1. The Phosphoramidite Method

The solid-phase chemical synthesis of RNA via the phosphoramidite method is a four-step process that is carried out in an automated synthesizer (Figure 2A) [40,41]. Although originally developed for DNA synthesis by Beaucage and Caruthers, the phosphoramidite method has since been adapted for RNA synthesis [42]. This strategy utilizes the reaction between an activated nucleoside phosphoramidite and a solid-support bound nucleoside to synthesize the desired RNA sequence in the 3′ to 5′ direction (Figure 2B). During the first step, the 4,4′-dimethoxytrityl (DMTr) protecting group at the 5′-hydroxyl (OH) of the tethered 3′-nucleoside is removed with trichloroacetic acid or dichloroacetic acid. The nucleophilic 5′-OH then attacks and removes the activated phosphoramidite to couple the two nucleosides with a phosphite triester bond. To minimize the amount of undesired RNA sequences, the unreacted tethered 3′-nucleosides are capped by acetylation of the 5′-OH groups. The final step is the oxidation of the phosphite triester to a phosphotriester with either iodine (I2) or tert-butylhydroperoxide. After the entire sequence has been synthesized, the RNA is deprotected and cleaved from the solid-support. This strategy provides a powerful alternative to other methods of producing synthetic RNAs such as enzymatic ligation [43,44,45,46].
The efficiency of the chemical synthesis of RNA by the phosphoramidite method depends on the protecting groups used, specifically at the exocyclic amino groups of the nucleobase (A, C, and G), and the 2′- and 5′-OH functionalities of the ribose sugar (Figure 3) [40]. Typically, the 5′-OH group is protected with DMTr and the nucleobase exocyclic amino groups are protected with acetyl (Ac), phenoxyacetyl (Pac), benzoyl (Bz), or isobutyryl (iBu) groups (Figure 3). In contrast to the 5’-OH and exocyclic amino protecting groups originally developed for DNA, the 2′-OH protecting groups are unique to RNA. The 2′-OH protecting groups must: (1) be stable under all reaction conditions (acidic conditions of de-tritylation, basic conditions of deprotection of the nucleobase and cleavage from the solid-support), (2) be quantitatively removed under mild conditions that do not degrade the RNA, and (3) not interfere with the phosphoramidite coupling reaction [40,47,48,49]. In the next section, we briefly summarize the commonly used 2′-OH protecting groups along with their comparative advantages and disadvantages.

2.2. Choice of RNA Phosphoramidite 2’-OH Protecting Groups

There is currently no consensus RNA 2′-OH protecting group, but the available groups can be broadly categorized into acid-, photo-, and fluoride-labile groups [40,50,51,52,53,54]. For generating isotope labeled RNAs, the fluoride-labile 2′-OH protecting groups tert-butyldimethylsilyl (tBDMS), [(triisopropylsilyl)oxy]methyl (TOM), and 2′-cyanoethoxymethyl (CEM) group are preferred. Despite the stability under acidic conditions and ease of addition and removal, tBDMS suffers from a low coupling efficiency, long coupling time, and migration from the 2′- to 3′-OH during RNA synthesis [40]. Despite its limitations, 2′-O-tBDMS phosphoramidites have been successfully used to synthesize labeled RNAs up to 53 nts [55]. Compared to tBDMS, TOM has shorter coupling times (~6 min) and does not migrate from 2′- to 3′-OH [40]. With TOM, labeled RNAs as large as 55 nts have been successfully prepared [56]. The CEM group has a high coupling efficiency (~99%), short coupling time (2–4 min), and minimal steric hindrance that allows synthesis of RNAs as large as 170 nts [57,58]. In terms of labeled RNA, sequences up to 76 nts have been successfully prepared for NMR analysis with 2′-O-CEM phosphoramidites [38]. Two other 2′-OH protecting groups that have not yet been applied to RNA labeling are the photolabile 2-nitrobenzyloxymethyl (NBOM) group and the acid-labile bis(acetoxyethoxy)methyl ether (ACE) group [47,53,54]. The NBOM group is stable under acidic and basic conditions, has a short coupling time (2 min), and high coupling efficiency. However, its removal is not quantitative [40]. While the ACE group has a short coupling time (1 min) and is capable of generating RNAs in high yield and purity, it is acid labile and therefore not compatible with 5′-DMTr deprotection. Thus, fluoride-labile 5′-OH protecting groups are required and the synthesizer has to be modified to handle triethylamine/trihydrofluoride (TEA-3HF) as a deprotection agent [40]. Nevertheless, the ACE group is commercially successful at preparing RNAs in large quantities even with modified nucleosides (e.g., inosine, N6-methyladenosine, pseudouridine, 2’-fluoro-A,U,G,C) [47,53].
Given the advantages and disadvantages of each 2′-OH protecting group, the choice of which to use typically depends on the downstream application. However, few 2′-OH protecting groups are capable of making RNA in high enough quantity and purity for NMR spectroscopy. As will be discussed, 2′-O-tBDMS and 2′-O-TOM phosphoramidites have been used to great success to study RNA structure and dynamics by NMR spectroscopy [56,59,60,61,62]. However, phosphoramidite synthesis with these protecting groups is limited to RNAs less than 60 nts. Nevertheless, unlabeled 2′-O-tBDMS and 2′-O-TOM phosphoramidites are commercially available, so researchers only need to synthesize isotope labeled phosphoramidites in-house, dramatically simplifying sample preparation. The commercially unavailable 2′-O-CEM is the only protecting group that can accommodate larger RNAs, but both unlabeled and labeled phosphoramidites must be synthesized in-house. In practice, 2′-O-tBDMS phosphoramidites are used for NMR structure and dynamics studies of RNAs prepared by solid-phase synthesis, unless the RNA under investigation is greater than 60 nts. Still, very few research groups have the resources (organic laboratory and solid-phase synthesizer) and expertise (NMR spectroscopy) necessary to fully exploit these technologies. One goal of this review is to motivate the collaboration of organic chemists with biophysicists to unlock the power of this method to study RNA structure, dynamics, and function.

3. Stable Isotope Labeling of RNA Phosphoramidites

In principle, any method to incorporate isotope labels into nucleobases, nucleosides, or rNTPs can be converted into phosphoramidites, using one or more of the synthetic routes described herein. The diverse methodologies to generate such labeled molecules were recently reviewed [20]. Once synthesized, phosphoramidites are characterized by 1H/13C/31P NMR and mass spectrometry. The latter technique is complicated by the acid-labile nature of the phosphoramidites, which requires specialized electro-spray ionization techniques in non-aqueous buffers with lithium chloride for accurate mass determination [63,64]. Several groups have developed synthetic strategies to obtain 13C/15N-labeled RNA phosphoramidites with a variety of 2′-OH protecting groups [38,39,55,56,59,60,61,62,65,66,67,68]. This section will highlight the many efforts employed to synthesize labeled RNA phosphoramidites.
Jones and colleagues developed a chemo-enzymatic synthetic strategy to prepare 2′-O-tBDMS phosphoramidites from isotope labeled nucleosides prepared by de novo biosynthesis [69,70,71,72,73,74]. Starting from labeled adenosine or guanosine, the phosphoramidites were prepared in 7 steps with overall yields of 60% [66,74]. Furthermore, 85%–90% regioselective 2′-silylation was achieved by concomitant treatment of N-Pac-,5′-DMTr-adenosine or -guanosine with a mixture of phenyl-H-phosphonate, tert-butyldimethylsilyl chloride (tBDMS-Cl), and 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) [66,74]. The [7,NH2-15N2]-adenosine was prepared in 7 steps with 45% yield starting from an inexpensive pyrimidine, 6-amino-2-thioxo-1,2-dhydro-4(3H)-pyrimidone, and [15N]-NaNO2 and [15N]-NH4Cl as 15N sources for N7 and NH2, respectively [69]. As an intermediate, [7-15N]-hypoxanthine was generated in 81% yield and is readily converted to [7-15N]-6-chloropurine for enzymatic transglycosylation with commercially available purine nucleoside phosphorylase (EC 2.4.2.1) and 7-methylguanosine as the ribose source. Selective amination at C6 was achieved with [15N]-NH4Cl. [8-13C-1,7,NH2-15N3]-adenosine was prepared similarly, except during the ring closure of the 4,5-diaminopyrimidine intermediate the 13C label was introduced by [13C]-sodium ethyl xanthate [73]. Either [8-13C-1,7,NH2-15N3]-adenosine or -guanosine can be synthesized starting with [8-13C-7,NH2-15N2]-adenosine in 5 steps with 60%–62% yield and 4 steps with 65%–70% yield, respectively. Although this synthetic strategy is well suited for purine nucleoside phosphoramidites, the 2′-O-tBDMS regioselectivity is not applicable to pyrimidines [74]. Virtually any labeled nucleobase can be readily coupled to ribose via commercially available purine nucleoside phosphorylase, as recently demonstrated [75]. Although labeled nucleobase is readily coupled to ribose using phosphorylases, the introduction of labeled ribose remains a challenge.
Wenter and Pitsch developed a convenient approach to obtain [1-15N]-purines and [3-15N]-pyrimidines by N1/N3 nitration of unlabeled protected nucleoside precursors and subsequent substitution with in situ generated 15NH3 [56,65,76]. Wenter and Pitsch synthesized [1-15N]-adenosine and -guanosine and [3-15N]-uridine and -cytidine 2′-O-TOM phosphoramidites starting from commercially available unlabeled N6-Ac,5′-O-DMTr,2′-O-TOM-adenosine and 5′-O-DMTr,2′-O-TOM-uridine, respectively, with [15N]-NH4Cl as the 15N source [65]. In this approach, [1-15N]-adenosine was prepared in 5 steps with 37% yield and an inosine intermediate was used as a starting point to synthesize [1-15N]-guanosine in 6 steps with 24% yield. [3-15N]-uridine was obtained in 3 steps with 49% yield and was converted to [3-15N]-cytidine with 81% yield in two additional steps. The isotope labeled, N-Ac,5′-O-DMTr,2′-O-TOM-nucleosides were then converted into phosphoramidites with 2-cyanoethyl diisopropylphosphoramidochloridite (CEP-Cl) in 1 step with at least 90% yield. The main advantage of this synthesis is that the incorporation of 15N occurs after the low yielding 2′-O-TOM protection.
Building on the work of Wenter and Pitsch, Neuner et al. prepared [1-15N]-purine and [3-15N]-pyrimidine phosphoramidites with either 2′-O-tBDMS or 2′-O-TOM protection [56]. Neuner et al. started their purine and pyrimidine syntheses with a tri-acetylated inosine and tri-tBDMS uridine, respectively. From the inosine precursor, the [1-15N]-adenosine phosphoramidite was prepared in 8 steps with 16% yield. During this synthesis, a nitroso-inosine intermediate was used to synthesize the [1-15N]-guanosine phosphoramidite in 11 steps and 9% yield. As far as the pyrimidines were concerned, [3-15N]-uridine was synthesized starting from unlabeled 2′-O-tBDMS-uridine in 6 steps with 22% yield. The [3-15N]-cytidine was obtained from 2′-O-tBDMS-[3-15N]-uridine in 5 steps with 25% yield and [3,NH2-15N2]-cytidine was synthesized in 6 steps with 16% yield. This protocol circumvents the need for the expensive starting materials used by Wenter and Pitsch but at the expense of lower reaction yields [65].
From isotope labeled nucleobases [25,26,27,38,55,60,77], the groups of Kreutz and Micura prepared 2′-O-tBDMS and 2′-O-TOM phosphoramidites for NMR studies [59,60,61,62]. For example, uracil was synthesized, following procedures developed by Santa Lucia and Tinoco [77]. First, 13C was installed at C6 from [13C]-KCN, C5 from [2-13C]-bromoacetic acid, C4 from [1-13C]-bromoacetic acid, C2 from [13C]-urea, and 15N was inserted at N1 and N3 with [15N]-urea [77]. The labeled uracil was then coupled to 1′-O-acetyl-(2′,3′,5′-O-tribenzoyl)-β-d-ribofuranose under Vorbrüggen conditions using Lewis acids such as trimethylsilyl trifluoromethanesulfonate (TMSOTf) as a selective catalyst [59,60]. The ribose-protected uridine nucleoside was fully deprotected and the 5′-OH was DMTr protected with 60% yield. From the 5′-O-DMTr-uridine, either the 2′-O-tBDMS or 2′-O-TOM phosphoramidites were obtained in 2 steps with 46% or 26% yield, respectively [59,60]. The 2′-O-TOM-cytidine phosphoramidite was readily accessible from the 5′-O-DMTr,2′-O-TOM-uridine intermediate in 4 steps with 45% yield. The 13C-purine phosphoramidites were synthesized from morpholine using [13C]-thiourea and [13C]-formic acid to install 13C at adenine C2 and purine C8, respectively [27,55,77].
Finally, Kremser et al. synthesized isotope labeled 2′-O-CEM phosphoramidites using a protocol similar to Ohgi et al., using sequential 3′,5′-O-(tetraisopropyldisiloxane-1,3-diyl) (TIPDS)-protection, 2′-O-CEM protection, 3′,5′-O-TIPDS deprotection, 5′-O-DMTr protection, and phosphoramidite conversion [38,48,52]. Kremser et al. prepared [8-13C]-adenosine and -guanosine and [6-13C-5-2H]-uridine and -cytidine 2′-O-CEM phosphoramidites [38]. Starting from 3′,5′-O-TIPDS-adenosine, [8-13C]-adenosine was synthesized in 5 steps with 29% yield. The [8-13C]-guanosine 2′-O-CEM phosphoramidite was synthesized de novo from the labeled nucleobase in 9 steps with 14% yield. Synthesis of [6-13C-5-2H]-uridine 2′-O-CEM phosphoramidite began from the unprotected labeled nucleoside, and proceeded to the phosphoramidite in 5 steps with 13% yield. Finally, [6-13C-5-2H]-cytidine 2′-O-CEM phosphoramidite was synthesized from 3′,5′-O-TIPDS-uridine in 6 steps with 44% yield. The major disadvantage of 2′-O-CEM phosphoramidites is the need to synthesize both unlabeled and stable isotope-labeled material since they are not commercially available. There are also more synthesis steps compared to tBDMS and TOM labeling protocols. Taken together, many stable isotope labeled RNA phosphoramidites have been synthesized with diverse labeling patterns. The next section is devoted to highlighting a few examples of how these labels can be exploited to study RNA structure and dynamics by NMR spectroscopy.

4. Applications to NMR Spectroscopy

4.1. Facile RNA Resonance Assignments and Base Pair Interactions

An unparalleled advantage of phosphoramidite solid-phase chemical synthesis over in vitro transcription is the ability to make RNA with position-specific isotope labels that dramatically simplifies unambiguous resonance assignments (Figure 1). For example, a 40 nt RNA can be assigned with 40 samples, each containing one of the 40 residues labeled. While assigning all RNA resonances with this methodology is too cumbersome for most groups, phosphoramidites are a great tool to confirm assignments from orthogonal NMR experiments or to resolve overlapped peaks in a given NMR spectra. In addition to assigning RNA resonances, various research groups have utilized 13C/15N-labeled phosphoramidites to monitor both Watson-Crick and non-canonical base pairs in RNA [56,62].
Incorporation of 15N-labels into RNA provides information on both canonical Watson-Crick and non-canonical base pairs in RNA [56,62,78,79,80]. [1,NH2-15N2]- and [2-13C-1,NH2-15N2]-guanosine were position-specifically incorporated into short (8–12 nts) RNA fragments to compare spectral properties of GU to GC base pairs [79]. Similarly, [2-13C-1,NH2-15N2]-guanosine and [7,NH2-15N2]-adenosine were position-specifically incorporated into short (8 nts) RNAs to study face-to-face and sheared GA base pairs [78]. Additionally, [2-13C-1,7,NH2-15N3]-guanosine and [8-13C-1,7,NH2-15N3]-adenosine were incorporated into loop A and B domains (14–24 nts) from the hairpin ribozyme found in the satellite RNA of tobacco ringspot virus [80]. In these examples, the 13C isotopes were used as tags to distinguish between the residues in doubly labeled samples since 1JH2C2 or 1JH8C8 splits the 1H resonances for residues that contain 13C directly coupled to 15N. Wenter and Pitsch incorporated [1-15N]-adenosine and -guanosine and [3-15N]-uridine and -cytidine labels into 5 sites of the 32 nt bistable RNA [65]. An HNN correlation spectroscopy (COSY) experiment was used to correlate the hydrogen bond donor and acceptor N-atoms within a base pair formed by two 15N-labeled residues [65,81,82]. With this approach, Wenter and Pitsch were able to unambiguously assign each HNN correlation to a particular base pair within one of the two co-existing conformers [65].
Neuner et al. probed the conformational flexibility of the P3 stem of PreQ1 class-II riboswitch interaction with a single-labeled 15N(3)-U:15N(1)-A base pair using their [3-15N]-uridine and [1-15N]-adenosine labels [56]. Base pair formation for different conformers were unequivocally observed based on HNN-COSY experiments, suggesting that the P3 stem is closed in the ligand-bound and unbound RNA (Figure 4A). Secondly, Neuner et al. synthesized [7-15N]-adenosine phosphoramidite to verify the formation of a base triplet near the active site of the env22 twister ribozyme [62]. The A49-N(7)HN(3)-U4 hydrogen-bond interaction was directly monitored with HNN-COSY experiments using chemically synthesized twister ribozyme RNA with [3-15N]-uridine and [7-15N]-adenosine incorporated at U4 and A49, respectively (Figure 4B). Unfortunately, a correlation signal between H-15N(3)-U4 and 15N(7)-A49 was lacking in the HNN-COSY spectra. Nevertheless, the use of [7-15N]-adenosine in HNN-COSY experiments is a straightforward way to demonstrate non-canonical base pairing interactions in RNA.
To date, two high-resolution NMR structures have been solved using position-specific labeled RNAs by solid-phase synthesis [83,84]. Traditional NMR assignment strategies are optimized for largely helical RNAs and often fail for non-canonical tertiary structural regions. Wolter et al. solved the structure of a 34-nt GTP-binding RNA aptamer that forms exotic structural features including a trans A:A base pair, a novel GACG quartet, a protonated adenine, and a GCA base triplet [83]. To assign the resonances from these unique regions, 10 site-specifically [6-13C]-uridine and -cytidine and [8-13C]-adenosine and -guanosine samples were prepared by solid-phase synthesis. A similar strategy was applied by Weickhmann et al. to solve the structure of the 43 nt SAM/SAH-binding riboswitch bound to SAH [84]. The riboswitch adopts an H-type pseudoknot characterized by extensive base pairing between bulge residues and a flexible 3′ tail. To assign residues within this region, 15 site-specifically [1,3-15N2]- uridine, [6-13C]-uridine and [6-13C]-cytidine and [2,8-13C2]-, [8-13C]-adenosine and [8-13C]-guanosine RNA samples were chemically synthesized [84,85]. The use of position-specific labeling was essential for the assignments and subsequent structure determinations of both the GTP-binding RNA aptamer and the SAM/SAH-binding riboswitches.

4.2. Incorporating Isolated Spin-Pairs for Artifact Free RNA Dynamic Probing

In addition to NMR structural experiments, isotope labeled phosphoramidites have been used with great success to study RNA dynamics [39,55,59,60,61]. The isolated 1H-13C spin-pair of the [6-13C]-pyrimidine and [8-13C]-purine phosphoramidites remove the 13C-13C scalar and dipolar coupling interactions and thus facilitate straightforward probing of functional dynamics in RNA. Strebitzer and Nußbaumer et al. demonstrated the potential of atom-specific 13C-labeling to probe conformational dynamics in the ε-element of the duck Hepatitis B virus RNA (dHBVε) [55]. Wijmenga and co-workers previously showed that an RNA construct that represented the upper stem undergoes conformational fluctuations from the fast (pico- and nanosecond) to intermediate (microsecond) timescale [86]. To cross-validate this previous study, a dHBVε construct was made with [2,8-13C2]-adenosine incorporated at residues A20, A22, and A41. The kinetics of the unfolding process (kex = 1522 ± 128 s-1) were quantified via a 13C-CPMG relaxation dispersion (RD) experiment utilizing the 13C-adenosine labels (Figure 5A). In addition to 13C RD experiments, the absence of nearby protons makes purine 1H8-13C8 and pyrimidine 1H6-13C6 spin-pairs well suited for 1H RD experiments. In the latter case, pyrimidine 1H5 must be selectively deuterated. With this in mind, Juen et al. probed the milli- to microsecond dynamics in the 27 nt A-site RNA with 1H RD experiments, owing to the incorporation of [6-13C-5-2H]-uridine and -cytidine and [8-13C]-adenosine and -guanosine labels at various sites (Figure 5B) [61]. The overall exchange rate constant (kex = 1880 ± 140 s−1) between the major and minor RNA states was obtained from the 1H RD profiles of C7, C9, A10, A93, G94, and U95. Moreover, these data agreed with the previously reported 13C RD experiments, validating the 1H RD approach to study milli- to microsecond dynamics in RNA. These approaches are limited to RNAs less than 70 nts and only labeled nucleobase is readily coupled to unlabeled ribose. The introduction of labeled ribose using this method remains a challenge.
Two strategies to overcome the inherent size limitations of solid-phase RNA synthesis involve ligation of small chemically synthesized fragments to a larger in vitro transcribed segment and use of chemo-enzymatic methodology to incorporate both isotope labeled nucleobase and ribose moieties. This approach was recently applied to interrogate the dynamics of 96 nt CCR5 RNA that stimulates -1 programmed ribosomal frameshifting upon binding to a microRNA (Figure 6A) [39]. Chen et al. divided the 96 nt construct into a 72 nt acceptor fragment and a 24 nt donor fragment (Figure 6B). Eight donor fragments, each containing a different [1′,8-13C2]-adenosine-labeled residue were prepared by solid-phase synthesis and ligated to an unlabeled acceptor fragment with T4 DNA ligase (Figure 6B,C). Not only did this approach allow for the unambiguous resonance assignment of each of the 8 A residues, it also facilitated dynamics measurements by a 1H1′-13C1′ CMPG RD experiment. Of the 7 A residues measured, 5 showed evidence of chemical exchange on the millisecond time-scale attributed to base pair opening and closing. Chen et al. identified a sparsely populated (~10%) excited state with a chemical shift matching that of the CCR5:microRNA complex. Chen et al. concluded that the CCR5 samples free and bound conformations in solution and the addition of cognate microRNA stabilizes the bound conformation.

5. Conclusions

In summary, we present an overview of past and current RNA phosphoramidite isotope labeling methodologies and their applications in RNA structure and dynamic analysis by NMR spectroscopy. The biggest practical considerations in the solid-phase chemical synthesis of labeled phosphoramidites is 2′-OH protection and stable isotope labeling pattern, both of which are specified by the RNA of interest. Most NMR studies discussed herein were with RNAs prepared with 2′-O-tBDMS and 2′-O-TOM phosphoramidites, owing to the commercial availability of the unlabeled material. From the developments made by Kreutz and co-workers, Silantes has made the following labeled phosphoramidites commercially available: [3-15N]-, [1,3-15N2]-, and [6-13C-5-2H]-uridine and -cytidine, and [1-15N]-, [8-13C]-adenosine and -guanosine (Figure 7). The availability of 13C/15N-labeled 2′-O-tBDMS phosphoramidites will increase the accessibility of these methods. Thus far, analysis of RNAs greater than 60 nts is only possible with 2′-O-CEM phosphoramidites or enzymatic ligation of smaller RNA fragments. However, RNA structural biology is moving toward larger and larger RNAs—especially as cryo-EM gains popularity. Therefore, attention must center on: (1) synthetic approaches to incorporate isotope labels into the ribose and (2) solid-phase synthetic conditions that accommodate RNAs larger than 100 nts.

Author Contributions

Conceptualization, writing, editing, and reviewing, O.B., L.T.O.; and funding, T.K.D.

Funding

This research was funded by the National Science Foundation (NSF 1808705).

Acknowledgments

We are grateful for ongoing collaboration with the research group of Christoph Kreutz (University of Innsbruck). We are also grateful to Serge Beaucage (FDA) and his research fellows Andrzej Grajkowski and Harsh Jain for training L.T.O. and O.B. in phosphoramidite synthesis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. DeRose, V.J. Two decades of RNA catalysis. Chem. Biol. 2002, 9, 961–969. [Google Scholar] [CrossRef]
  2. Neilson, J.R.; Sharp, P.A. Small RNA Regulators of Gene Expression. Cell 2008, 134, 899–902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Poltronieri, P.; Sun, B.; Mallardo, M. RNA viruses: RNA roles in pathogenesis, coreplication and viral load. Curr. Genom. 2015, 16, 327–335. [Google Scholar] [CrossRef] [PubMed]
  4. Wilson, T.J.; Lilley, D.M.J. RNA catalysis—Is that it? RNA 2015, 21, 534–537. [Google Scholar] [PubMed]
  5. Nelson, J.W.; Breaker, R.R. The lost language of the RNA World. Sci. Signal 2017, 10, eaam8812. [Google Scholar] [CrossRef] [Green Version]
  6. Cech, T.R.; Steitz, J.A. The noncoding RNA revolution-trashing old rules to forge new ones. Cell 2014, 157, 77–94. [Google Scholar] [CrossRef]
  7. Rinnenthal, J.; Buck, J.; Ferner, J.; Wacker, A.; Fürtig, B.; Schwalbe, H. Mapping the landscape of RNA dynamics with NMR spectroscopy. Acc. Chem. Res. 2011, 44, 1292–1301. [Google Scholar] [CrossRef]
  8. Bottaro, S.; Di Palma, F.; Bussi, G. The role of nucleobase interactions in RNA structure and dynamics. Nucleic Acids Res. 2014, 42, 13306–13314. [Google Scholar] [CrossRef]
  9. Dagenais, P.; Girard, N.; Bonneau, E.; Legault, P. Insights into RNA structure and dynamics from recent NMR and X-ray studies of the Neurospora Varkud satellite ribozyme. Wiley Interdiscip. Rev. RNA 2017, 8, e1421. [Google Scholar] [CrossRef]
  10. Sponer, J.; Bussi, G.; Krepl, M.; Banas, P.; Bottaro, S.; Cunha, R.A.; Gil-Ley, A.; Pinamonti, G.; Poblete, S.; Jurečka, P.; et al. RNA structural dynamics as captured by molecular simulations: A comprehensive overview. Chem. Rev. 2018, 118, 4177–4338. [Google Scholar] [CrossRef]
  11. Dominguez, C.; Schubert, M.; Duss, O.; Ravindranathan, S.; Allain, F.H.T. Structure determination and dynamics of protein-RNA complexes by NMR spectroscopy. Prog. Nucl. Magn. Reson. Spectrosc. 2011, 58, 1–61. [Google Scholar] [CrossRef] [PubMed]
  12. Ganser, L.R.; Kelly, M.L.; Herschlag, D.; Al-Hashimi, H.M. The roles of structural dynamics in the cellular functions of RNAs. Nat. Rev. Mol. Cell Biol. 2019, 20, 474–489. [Google Scholar] [CrossRef] [PubMed]
  13. Barnwal, R.P.; Yang, F.; Varani, G. Applications of NMR to structure determination of RNAs large and small. Arch. Biochem. Biophys. 2017, 628, 42–56. [Google Scholar] [CrossRef] [PubMed]
  14. Fürtig, B.; Richter, C.; Wöhnert, J.; Schwalbe, H. NMR spectroscopy of RNA. ChemBioChem 2003, 4, 936–962. [Google Scholar] [CrossRef] [PubMed]
  15. Dayie, K.T. Key labeling technologies to tackle sizeable problems in RNA structural biology. Int. J. Mol. Sci. 2008, 9, 1214–1240. [Google Scholar] [CrossRef] [PubMed]
  16. Wijmenga, S.S.; Van Buuren, B.N.M. The use of NMR methods for conformational studies of nucleic acids. Prog. Nucl. Magn. Reson. Spectrosc. 1998, 32, 287–387. [Google Scholar] [CrossRef]
  17. Batey, R.T.; Battiste, J.L.; Williamson, J.R. Preparation of isotopically enriched RNAs for heteronuclear NMR. Methods Enzymol. 1995, 261, 300–322. [Google Scholar]
  18. LeBlanc, R.M.; Longhini, A.P.; Le Grice, S.F.J.; Johnson, B.A.; Dayie, T.K. Combining asymmetric 13C-labeling and isotopic filter/edit NOESY: A novel strategy for rapid and logical RNA resonance assignment. Nucleic Acids Res. 2017, 45, e146. [Google Scholar] [CrossRef]
  19. Keyhani, S.; Goldau, T.; Blümler, A.; Heckel, A.; Schwalbe, H. Chemo-enzymatic synthesis of position-specifically modified RNA for biophysical studies including light control and NMR spectroscopy. Angew. Chemie Int. Ed. 2018, 57, 12017–12021. [Google Scholar] [CrossRef]
  20. Asadi-Atoi, P.; Barraud, P.; Tisne, C.; Kellner, S. Benefits of stable isotope labeling in RNA analysis. Biol. Chem. 2019, 400, 847–865. [Google Scholar] [CrossRef]
  21. Nikonowicz, E.P.; Sirr, A.; Legault, P.; Jucker, F.M.; Baer, L.M.; Pardi, A. Preparation of 13C and 15N labelled RNAs for heteronuclear multi-dimensional NMR studies. Nucleic Acids Res. 1992, 20, 4507–4513. [Google Scholar] [CrossRef] [PubMed]
  22. Nelissen, F.H.T.; van Gammeren, A.J.; Tessari, M.; Girard, F.C.; Heus, H.A.; Wijmenga, S.S. Multiple segmental and selective isotope labeling of large RNA for NMR structural studies. Nucleic Acids Res. 2008, 36, e89. [Google Scholar] [CrossRef] [PubMed]
  23. Duss, O.; Maris, C.; Von Schroetter, C.; Allain, F.H.T. A fast, efficient and sequence-independent method for flexible multiple segmental isotope labeling of RNA using ribozyme and RNase H cleavage. Nucleic Acids Res. 2010, 38, e188. [Google Scholar] [CrossRef] [PubMed]
  24. Duss, O.; Lukavsky, P.J.; Allain, F.H.-T. Isotope labeling and segmental labeling of larger RNAs for NMR structural studies. Adv. Exp. Med. Biol. 2012, 992, 121–144. [Google Scholar] [PubMed]
  25. Alvarado, L.J.; Longhini, A.P.; LeBlanc, R.M.; Chen, B.; Kreutz, C.; Dayie, T.K. Chemo-enzymatic synthesis of selectively 13C/15N-labeled RNA for NMR structural and dynamics studies. Methods Enzymol. 2014, 549, 133–162. [Google Scholar]
  26. Alvarado, L.J.; LeBlanc, R.M.; Longhini, A.P.; Keane, S.C.; Jain, N.; Yildiz, Z.F.; Tolbert, B.S.; D’Souza, V.M.; Summers, M.F.; Kreutz, C.; et al. Regio-selective chemical-enzymatic synthesis of pyrimidine nucleotides facilitates RNA structure and dynamics studies. Chembiochem 2014, 15, 1573–1577. [Google Scholar] [CrossRef] [PubMed]
  27. Longhini, A.P.; LeBlanc, R.M.; Becette, O.; Salguero, C.; Wunderlich, C.H.; Johnson, B.A.; D’Souza, V.M.; Kreutz, C.; Dayie, T.K. Chemo-enzymatic synthesis of site-specific isotopically labeled nucleotides for use in NMR resonance assignment, dynamics and structural characterizations. Nucleic Acids Res. 2016, 44, e52. [Google Scholar] [CrossRef]
  28. Longhini, A.P.; LeBlanc, R.M.; Dayie, T.K. Chemo-enzymatic labeling for rapid assignment of RNA molecules. Methods 2016, 103, 11–17. [Google Scholar] [CrossRef] [Green Version]
  29. Scott, L.G.; Hennig, M. 19F-Site-Specific-Labeled Nucleotides for Nucleic Acid Structural Analysis by NMR. Methods Enzymol. 2016, 566, 59–87. [Google Scholar]
  30. Milligan, J.F.; Groebe, D.R.; Witherell, G.W.; Uhlenbeck, O.C. Oligoribonucleotide synthesis using T7 RNA-polymerase and synthetic DNA templates. Nucleic Acids Res. 1987, 15, 8783–8798. [Google Scholar] [CrossRef]
  31. Milligan, J.F.; Uhlenbeck, O.C. Synthesis of small RNAs using T7 RNA-polymerase. Methods Enzymol. 1989, 180, 51–62. [Google Scholar] [PubMed]
  32. Coleman, T.M.; Wang, G.; Huang, F. Superior 5’ homogeneity of RNA from ATP-initiated transcription under the T7 2.5 promoter. Nucleic Acids Res. 2004, 32, e14. [Google Scholar] [CrossRef] [PubMed]
  33. Kharytonchyk, S.; Monti, S.; Smaldino, P.J.; Van, V.; Bolden, N.C.; Brown, J.D.; Russo, E.; Swanson, C.; Shuey, A.; Telesnitsky, A.; et al. Transcriptional start site heterogeneity modulates the structure and function of the HIV-1 genome. Proc. Natl. Acad. Sci. USA 2016, 113, 13378–13383. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Salvail-Lacoste, A.; Di Tomasso, G.; Piette, B.L.; Legault, P. Affinity purification of T7 RNA transcripts with homogeneous ends using ARiBo and CRISPR tags. RNA 2013, 19, 1003–1014. [Google Scholar] [PubMed] [Green Version]
  35. Liu, Y.; Holmstrom, E.; Zhang, J.; Yu, P.; Wang, J.; Dyba, M.A.; Chen, D.; Ying, J.; Lockett, S.; Nesbitt, D.J.; et al. Synthesis and applications of RNAs with position-selective labelling and mosaic composition. Nature 2015, 522, 368–372. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Liu, Y.; Yu, P.; Dyba, M.; Sousa, R.; Stagno, J.R.; Wang, Y.X. Applications of PLOR in labeling large RNAs at specific sites. Methods 2016, 103, 4–10. [Google Scholar] [CrossRef]
  37. Stagno, J.R.; Yu, P.; Dyba, M.A.; Wang, Y.X.; Liu, Y. Heavy-atom labeling of RNA by PLOR for de novo crystallographic phasing. PLoS ONE 2019, 14, e0215555. [Google Scholar] [CrossRef]
  38. Kremser, J.; Strebitzer, E.; Plangger, R.; Juen, M.A.; Nußbaumer, F.; Glasner, H.; Breuker, K.; Kreutz, C. Chemical synthesis and NMR spectroscopy of long stable isotope labelled RNA. Chem. Commun. 2017, 53, 12938–12941. [Google Scholar] [CrossRef] [Green Version]
  39. Chen, B.; Longhini, A.P.; Nußbaumer, F.; Kreutz, C.; Dinman, J.D.; Dayie, T.K. CCR5 RNA pseudoknots: Residue and site-specific labeling correlate internal motions with microRNA binding. Chem. Eur. J. 2018, 24, 5462–5468. [Google Scholar] [CrossRef]
  40. Somoza, A. Protecting groups for RNA synthesis: An increasing need for selective preparative methods. Chem. Soc. Rev. 2008, 37, 2668–2675. [Google Scholar] [CrossRef]
  41. Muller, S.; Wolf, J.; Ivanov, S.A. Current Strategies for the Synthesis of RNA. Curr. Org. Synth. 2004, 1, 293–307. [Google Scholar] [CrossRef]
  42. Beaucage, S.L.; Caruthers, M.H. Deoxynucleoside phosphoramidites—A new class of key intermediates for deoxypolynucleotide synthesis. Tetrahedron Lett. 1981, 22, 1859–1862. [Google Scholar] [CrossRef]
  43. Kim, I.; Lukavsky, P.J.; Puglisi, J.D. NMR study of 100 kDa HCV IRES RNA, using segmental isotope labeling. J. Am. Chem. Soc. 2002, 124, 9338–9339. [Google Scholar] [CrossRef] [PubMed]
  44. Romaniuk, P.J.; Uhlenbeck, O.C. Joining of RNA molecules with RNA ligase. Methods Enzymol. 1983, 100, 52–59. [Google Scholar] [PubMed]
  45. Tzakos, A.G.; Easton, L.E.; Lukavsky, P.J. Preparation of large RNA oligonucleotides with complementary isotope-labeled segments for NMR structural studies. Nat. Protoc. 2007, 2, 2139–2147. [Google Scholar] [CrossRef] [PubMed]
  46. Stark, M.R.; Pleiss, J.A.; Deras, M.; Scaringe, S.A.; Rader, S.D. An RNA ligase-mediated method for the efficient creation of large, synthetic RNAs. RNA 2006, 12, 2014–2019. [Google Scholar] [PubMed] [Green Version]
  47. Scaringe, S.A.; Kitchen, D.; Kaiser, R.J.; Marshall, W.S. Preparation of 5’-silyl-2’-orthoester ribonucleosides for use in oligoribonucleotide synthesis. Curr. Protoc. Nucleic Acid Chem. 2004, 16, 2.10.1–2.10.16. [Google Scholar]
  48. Ohgi, T.; Kitagawa, H.; Yano, J. Chemical synthesis of oligoribonucleotides with 2’-O-(2-cyanoethoxymethyl)-protected phosphoramidites. Curr. Protoc. Nucleic Acid Chem. 2008, 34, 2.15.1–2.15.19. [Google Scholar]
  49. Wenter, P.; Reymond, L.; Auweter, S.D.; Allain, F.H.T.; Pitsch, S. Short, synthetic and selectively 13C-labeled RNA sequences for the NMR structure determination of protein-RNA complexes. Nucleic Acids Res. 2006, 34, e79. [Google Scholar] [CrossRef]
  50. Ogilvie, K.K.; Sadana, K.L.; Thompson, E.A.; Quilliam, M.A.; Westmore, J.B. Use of silyl groups in protecting hydroxyl functions of ribonucleosides. Tetrahedron Lett. 1974, 15, 2861–2863. [Google Scholar] [CrossRef]
  51. Pitsch, S.; Weiss, P.A.; Jenny, L.; Stutz, A.; Wu, X. Reliable chemical synthesis of oligoribonucleotides (RNA) with 2’O-[(triisopropylsilyl)oxy]methyl(2’-O-tom)-protected phosphoramidites. Helv. Chim. Acta 2001, 84, 3773–3795. [Google Scholar] [CrossRef]
  52. Ohgi, T.; Masutomi, Y.; Ishiyama, K.; Kitagawa, H.; Shiba, Y.; Yano, J. A new RNA synthetic method with a 2’-O-(2-cyanoethoxymethyl) protecting group. Org. Lett. 2005, 7, 3477–3480. [Google Scholar] [CrossRef] [PubMed]
  53. Scaringe, S.A. RNA oligonucleotide synthesis via 5’-silyl-2’-orthoester chemistry. Methods 2001, 23, 206–217. [Google Scholar] [CrossRef] [PubMed]
  54. Schwartz, M.E.; Breaker, R.R.; Asteriadis, G.T.; Debear, J.S.; Gough, G.R. Rapid synthesis of oligoribonucleotides using 2’-O-(ortho-nitrobenzyloxymethyl)-protected monomers. Bioorg. Med. Chem. Lett. 1992, 2, 1019–1024. [Google Scholar] [CrossRef]
  55. Strebitzer, E.; Nußbaumer, F.; Kremser, J.; Tollinger, M.; Kreutz, C. Studying sparsely populated conformational states in RNA combining chemical synthesis and solution NMR spectroscopy. Methods 2018, 148, 39–47. [Google Scholar] [CrossRef] [PubMed]
  56. Neuner, S.; Santner, T.; Kreutz, C.; Micura, R. The “speedy” synthesis of atom-specific 15N imino/amido-labeled RNA. Chem. Eur. J. 2015, 21, 11634–11643. [Google Scholar] [CrossRef] [PubMed]
  57. Shiba, Y.; Masuda, H.; Watanabe, N.; Ego, T.; Takagaki, K.; Ishiyama, K.; Ohgi, T.; Yano, J. Chemical synthesis of a very long oligoribonucleotide with 2-cyanoethoxymethyl (CEM) as the 2’-O-protecting group: Structural identification and biological activity of a synthetic 110mer precursor-microRNA candidate. Nucleic Acids Res. 2007, 35, 3287–3296. [Google Scholar] [CrossRef] [PubMed]
  58. Nagata, S.; Hamasaki, T.; Uetake, K.; Masuda, H.; Takagaki, K.; Oka, N.; Wada, T.; Ohgi, T.; Yano, J. Synthesis and biological activity of artificial mRNA prepared with novel phosphorylating reagents. Nucleic Acids Res. 2010, 38, 7845–7857. [Google Scholar] [CrossRef]
  59. Wunderlich, C.H.; Spitzer, R.; Santner, T.; Fauster, K.; Tollinger, M.; Kreutz, C. Synthesis of (6-13C) pyrimidine nucleotides as spin-labels for RNA dynamics. J. Am. Chem. Soc. 2012, 134, 7558–7569. [Google Scholar] [CrossRef]
  60. Wunderlich, C.H.; Juen, M.A.; Leblanc, R.M.; Longhini, A.P.; Dayie, T.K.; Kreutz, C. Stable isotope-labeled RNA phosphoramidites to facilitate dynamics by NMR. Methods Enzymol. 2015, 565, 461–494. [Google Scholar]
  61. Juen, M.A.; Wunderlich, C.H.; Nußbaumer, F.; Tollinger, M.; Kontaxis, G.; Konrat, R.; Hansen, D.F.; Kreutz, C. Excited states of nucleic acids probed by proton relaxation dispersion NMR spectroscopy. Angew. Chem. Int. Ed. 2016, 55, 12008–12012. [Google Scholar] [CrossRef] [PubMed]
  62. Neuner, S.; Kreutz, C.; Micura, R. The synthesis of 15N(7)-Hoogsteen face-labeled adenosine phosphoramidite for solid-phase RNA synthesis. Mon. Fur Chem. 2017, 148, 149–155. [Google Scholar] [CrossRef] [PubMed]
  63. Kele, Z.; Kupihár, Z.; Kovács, L.; Janáky, T.; Szabó, P.T. Electrospray mass spectrometry of phosphoramidites, a group of acid-labile compounds. J. Mass Spectrom. 1999, 34, 1317–1321. [Google Scholar] [CrossRef]
  64. Kupihár, Z.; Timár, Z.; Darula, Z.; Dellinger, D.J.; Caruthers, M.H. An electrospray mass spectrometric method for accurate mass determination of highly acid-sensitive phosphoramidites. Rapid Commun. Mass Spectrom. 2008, 22, 533–540. [Google Scholar] [CrossRef] [PubMed]
  65. Wenter, P.; Pitsch, S. Synthesis of selectively 15N-labeled 2’-O-{ [(triisopropylsilyl)oxy]methyl}(=tom)-protected ribonucleoside phosphoramidites and their incorporation into a bisTable 32Mer RNA sequence. Helv. Chim. Acta 2003, 86, 3955–3974. [Google Scholar] [CrossRef]
  66. Gaffney, B.L.; Jones, R. Regioselective 2’-silylation of purine ribonucleosides for phosphoramidite RNA synthesis. Curr. Protoc. Nucleic Acid Chem. 2001, 6, 2.8.1–2.8.13. [Google Scholar]
  67. Saito, Y.; Nyilas, A.; Agrofoglio, L.A. Synthesis of isotopically labeled d-[1’-13C]ribonucleoside phosphoramidites. Carbohydr. Res. 2001, 331, 83–90. [Google Scholar] [CrossRef]
  68. Baral, B.; Kumar, P.; Anderson, B.A.; Østergaard, M.E.; Sharma, P.K.; Hrdlicka, P.J. Optimized synthesis of [3-15N]-labeled uridine phosphoramidites. Tetrahedron Lett. 2009, 50, 5850–5852. [Google Scholar] [CrossRef]
  69. Pagano, A.R.; Lajewski, W.M.; Jones, R.A. Synthesis of [6,7-15N]-adenosine, [6,7-15N]-2’-deoxyadenosine, and [7-15N]-hypoxanthine. J. Am. Chem. Soc. 1995, 117, 11669–11672. [Google Scholar] [CrossRef]
  70. Zhao, H.; Pagano, A.R.; Wang, W.M.; Shallop, A.; Gaffney, B.L.; Jones, R.A. Use of a 13C atom to differentiate two 15N-labeled nucleosides. Syntheses of [15NH2]-adenosine, [1,NH2-15N2]- and [2-13C-1,NH2-15N2]-guanosine, and [1,7,NH2-15N3]- and, [2-13C-1,7,NH2-15N3]-2’-deoxyguanosine. J. Org. Chem. 1997, 62, 7832–7835. [Google Scholar] [CrossRef]
  71. Pagano, A.R.; Zhao, H.; Shallop, A.; Jones, R.A. Syntheses of [1,7-15N2]- and [1,7,NH2-15N3]-adenosine and 2’-deoxyadenosine via an N-1-alkoxy-mediated Dimroth rearrangement. J. Org. Chem. 1998, 63, 3213–3217. [Google Scholar] [CrossRef]
  72. Abad, J.L.; Gaffney, B.L.; Jones, R.A. 15N-multilabeled adenine and guanine nucleosides. Syntheses of [1,3,NH2-15N3]- and [2-13C-1,3,NH2-15N3]-labeled adenosine, guanosine, 2’-deoxyadenosine, and 2’-deoxyguanosine. J. Org. Chem. 1999, 64, 6575–6582. [Google Scholar] [CrossRef] [PubMed]
  73. Shallop, A.J.; Gaffney, B.L.; Jones, R.A. Use of 13C as an indirect tag in 15N specifically labeled nucleosides. Syntheses of [8-13C-1,7,NH2-15N3]-adenosine, -guanosine, and their deoxy analogues. J. Org. Chem. 2003, 68, 8657–8661. [Google Scholar] [CrossRef] [PubMed]
  74. Song, Q.L.; Wang, W.M.; Fischer, A.; Zhang, X.H.; Gaffney, B.L.; Jones, R.A. High yield protection of purine ribonucleosides for phosphoramidite RNA synthesis. Tetrahedron Lett. 1999, 40, 4153–4156. [Google Scholar] [CrossRef]
  75. Zhang, W.; Turney, T.; Surjancev, I.; Serianni, A.S. Enzymatic synthesis of ribo- and 2’-deoxyribonucleosides from glycofuranosyl phosphates: An approach to facilitate isotopic labeling. Carbohydr. Res. 2017, 449, 125–133. [Google Scholar] [CrossRef] [PubMed]
  76. Ariza, X.; Bou, V.; Vilarrasa, J. A new route to 15N-labeled, N-alkyl, and N-amino nucleosides via N-nitration of uridines and inosines. J. Am. Chem. Soc. 1995, 117, 3665–3673. [Google Scholar] [CrossRef]
  77. Santalucia, J.; Shen, L.X.; Cai, Z.; Lewis, H.; Tinoco, I. Synthesis and NMR of RNA with selective isotopic enrichment in the bases. Nucleic Acids Res. 1995, 23, 4913–4921. [Google Scholar] [CrossRef]
  78. Zhang, X.H.; Gaffney, B.L.; Jones, R.A. 15N NMR of RNA fragments containing specifically labeled tandem GA pairs. J. Am. Chem. Soc. 1998, 120, 6625–6626. [Google Scholar] [CrossRef]
  79. Zhang, X.; Gaffney, B.L.; Jones, R.A. 15N NMR of RNA fragments containing specifically labeled GU and GC pairs. J. Am. Chem. Soc. 1998, 120, 615–618. [Google Scholar] [CrossRef]
  80. Shallop, A.J.; Gaffney, B.L.; Jones, R.A. Use of both direct and indirect 13C tags for probing nitrogen interactions in hairpin ribozyme models by 15N NMR. Nucleosides Nucleotides Nucleic Acids 2004, 23, 273–280. [Google Scholar] [CrossRef]
  81. Dingley, A.J.; Grzesiek, S. Direct observation of hydrogen bonds in nucleic acid base pairs by internucleotide 2J(NN) couplings. J. Am. Chem. Soc. 1998, 120, 8293–8297. [Google Scholar] [CrossRef]
  82. Dallmann, A.; Simon, B.; Duszczyk, M.M.; Kooshapur, H.; Pardi, A.; Bermel, W.; Sattler, M. Efficient detection of hydrogen bonds in dynamic regions of RNA by sensitivity-optimized NMR pulse sequences. Angew. Chem. Int. Ed. 2013, 52, 10487–10490. [Google Scholar] [CrossRef] [PubMed]
  83. Wolter, A.C.; Weickhmann, A.K.; Nasiri, A.H.; Hantke, K.; Ohlenschläger, O.; Wunderlich, C.H.; Kreutz, C.; Duchardt-Ferner, E.; Wöhnert, J. A stably protonated adenine nucleotide with a highly shifted pKa value stabilizes the tertiary structure of a GTP-binding RNA aptamer. Angew. Chem. Int. Ed. 2017, 56, 401–404. [Google Scholar] [CrossRef] [PubMed]
  84. Weickhmann, A.K.; Keller, H.; Wurm, J.P.; Strebitzer, E.; Juen, M.A.; Kremser, J.; Weinberg, Z.; Kreutz, C.; Duchardt-Ferner, E.; Wöhnert, J. The structure of the SAM/SAH-binding riboswitch. Nucleic Acids Res. 2019, 47, 2654–2665. [Google Scholar] [CrossRef] [PubMed]
  85. Weickhmann, A.K.; Keller, H.; Duchardt-Ferner, E.; Strebitzer, E.; Juen, M.A.; Kremser, J.; Wurm, J.P.; Kreutz, C.; Wöhnert, J. NMR resonance assignments for the SAM/SAH-binding riboswitch RNA bound to S-adenosylhomocysteine. Biomol. NMR Assign. 2018, 12, 329–334. [Google Scholar] [CrossRef] [PubMed]
  86. Ampt, K.A.M.; Van Der Werf, R.M.; Nelissen, F.H.T.; Tessari, M.; Wijmenga, S.S. The unstable part of the apical stem of duck hepatitis B virus epsilon shows enhanced base pair opening but not pico-to nanosecond dynamics and is essential for reverse transcriptase binding. Biochemistry 2009, 48, 10499–10508. [Google Scholar] [CrossRef]
Molecules 24 03476 g001 550
Figure 1. Schematic of the utility of using isotope labeled RNA phosphoramidites and solid-phase synthesis to investigate RNA structure and dynamics. This methodology incorporates labels site-specifically into RNA, resolving NMR spectral overlap and ambiguities in NMR spectra interpretation. Magenta circle indicates a 13C atom, D indicates a 2H atom, and PG refers to a 2′-OH protecting group.
Figure 1. Schematic of the utility of using isotope labeled RNA phosphoramidites and solid-phase synthesis to investigate RNA structure and dynamics. This methodology incorporates labels site-specifically into RNA, resolving NMR spectral overlap and ambiguities in NMR spectra interpretation. Magenta circle indicates a 13C atom, D indicates a 2H atom, and PG refers to a 2′-OH protecting group.
Molecules 24 03476 g001
Molecules 24 03476 g002 550
Figure 2. Overview of the solid-phase chemical RNA synthesis cycle. (A) Schematic of the solid-phase synthesis cycle of RNA, with the coupling of residue n-1 and n shown. PG refers to the 5′-OH protecting group, which is generally DMTr. PG-2 refers to the 2′-OH protecting group, which comes in many varieties, as discussed in this review. Additional cycles can be added to the synthetic cycle to grow the RNA polymer from 3′–5′ (B).
Figure 2. Overview of the solid-phase chemical RNA synthesis cycle. (A) Schematic of the solid-phase synthesis cycle of RNA, with the coupling of residue n-1 and n shown. PG refers to the 5′-OH protecting group, which is generally DMTr. PG-2 refers to the 2′-OH protecting group, which comes in many varieties, as discussed in this review. Additional cycles can be added to the synthetic cycle to grow the RNA polymer from 3′–5′ (B).
Molecules 24 03476 g002
Molecules 24 03476 g003 550
Figure 3. The phosphoramidite building blocks can have different nucleobase (exocyclic amino) and 2′-OH protecting groups (PG and PG-2, respectively). Common nucleobase protecting groups are acetyl (Ac), phenoxyacetyl (Pac), benzoyl (Bz), and isobutyryl (iBu). The different 2′-OH protecting groups are discussed throughout this review, but common groups include [(triisopropylsilyl)oxy]methyl (TOM), tert-butyldimethylsilyl (tBDMS), 2′-cyanoethoxymethyl (CEM), bis(acetoxyethoxy)methyl ether (ACE), and photolabile 2-nitrobenzyloxymethyl (NBOM).
Figure 3. The phosphoramidite building blocks can have different nucleobase (exocyclic amino) and 2′-OH protecting groups (PG and PG-2, respectively). Common nucleobase protecting groups are acetyl (Ac), phenoxyacetyl (Pac), benzoyl (Bz), and isobutyryl (iBu). The different 2′-OH protecting groups are discussed throughout this review, but common groups include [(triisopropylsilyl)oxy]methyl (TOM), tert-butyldimethylsilyl (tBDMS), 2′-cyanoethoxymethyl (CEM), bis(acetoxyethoxy)methyl ether (ACE), and photolabile 2-nitrobenzyloxymethyl (NBOM).
Molecules 24 03476 g003
Molecules 24 03476 g004 550
Figure 4. Example of NMR structural analysis of RNAs made from isotope labeled phosphoramidites. (A) [3-15N]-uridine and [1-15N]-adenosine labeled preQ1 (class-II) RNA facilitated the probing of the 19U-A51 base pair by HNN COSY experiments [56] (B) [3-15N]-uridine and [7-15N]-adenosine labeling has the potential to identify base triples in RNAs [62]. Magenta colors indicate labeled residues and the cyan squares refer to 15N atoms.
Figure 4. Example of NMR structural analysis of RNAs made from isotope labeled phosphoramidites. (A) [3-15N]-uridine and [1-15N]-adenosine labeled preQ1 (class-II) RNA facilitated the probing of the 19U-A51 base pair by HNN COSY experiments [56] (B) [3-15N]-uridine and [7-15N]-adenosine labeling has the potential to identify base triples in RNAs [62]. Magenta colors indicate labeled residues and the cyan squares refer to 15N atoms.
Molecules 24 03476 g004
Molecules 24 03476 g005 550
Figure 5. Example of dynamic probing of RNAs made from isotope labeled phosphoramidites. (A) Incorporation of [2,8-13C2]-adenosine into dHBVε RNA enabled 13C CPMG investigation of residues A20, A22, and A41 and the overall kinetic rate of unfolding to be quantified [55]. (B) Incorporation of [8-13C]-adenosine and –guanosine and [6-13C-5-2H]-uridine and –cytidine into A-site RNA allowed for the use of 1H CPMG studies and revealed the overall exchange rate with a minor populated state [61]. Magenta colors indicate labeled residues and magenta circles refer to 13C atoms.
Figure 5. Example of dynamic probing of RNAs made from isotope labeled phosphoramidites. (A) Incorporation of [2,8-13C2]-adenosine into dHBVε RNA enabled 13C CPMG investigation of residues A20, A22, and A41 and the overall kinetic rate of unfolding to be quantified [55]. (B) Incorporation of [8-13C]-adenosine and –guanosine and [6-13C-5-2H]-uridine and –cytidine into A-site RNA allowed for the use of 1H CPMG studies and revealed the overall exchange rate with a minor populated state [61]. Magenta colors indicate labeled residues and magenta circles refer to 13C atoms.
Molecules 24 03476 g005
Molecules 24 03476 g006 550

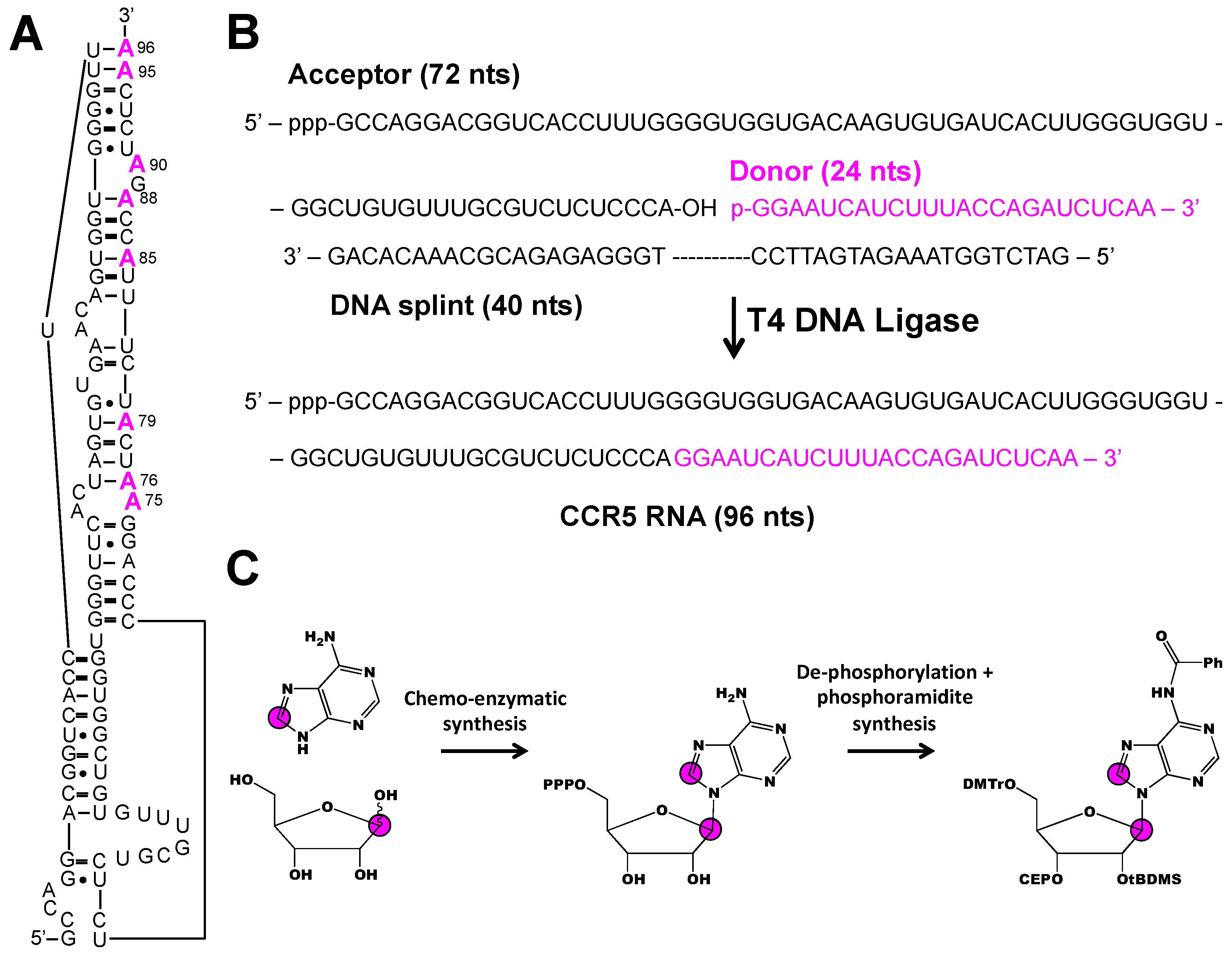

Figure 6. Combining chemo-enzymatic synthesis, chemical ligation, and phosphoramidite synthesis to make nucleobase and ribose isotope labeled CCR5 RNA [39]. (A) Secondary structure of the 96 nt CCR5 RNA. (B) Outline of ligation method. The unlabeled 72 nt acceptor fragment was made by in vitro transcription and the 24 nt donor fragment (colored in magenta) was made by solid-phase synthesis to incorporate individual [1′,8-13C2]-adenosine labels, as shown in (A). (C) Schematic of the combined chemo-enzymatic synthesis and phosphoramidite synthesis to build the [1′,8-13C2]-adenosine phosphoramidite. Magenta color indicates labeled residues, magenta circles refer to 13C atoms, and Ph refers to phenyl group.
Figure 6. Combining chemo-enzymatic synthesis, chemical ligation, and phosphoramidite synthesis to make nucleobase and ribose isotope labeled CCR5 RNA [39]. (A) Secondary structure of the 96 nt CCR5 RNA. (B) Outline of ligation method. The unlabeled 72 nt acceptor fragment was made by in vitro transcription and the 24 nt donor fragment (colored in magenta) was made by solid-phase synthesis to incorporate individual [1′,8-13C2]-adenosine labels, as shown in (A). (C) Schematic of the combined chemo-enzymatic synthesis and phosphoramidite synthesis to build the [1′,8-13C2]-adenosine phosphoramidite. Magenta color indicates labeled residues, magenta circles refer to 13C atoms, and Ph refers to phenyl group.
Molecules 24 03476 g006
Molecules 24 03476 g007 550

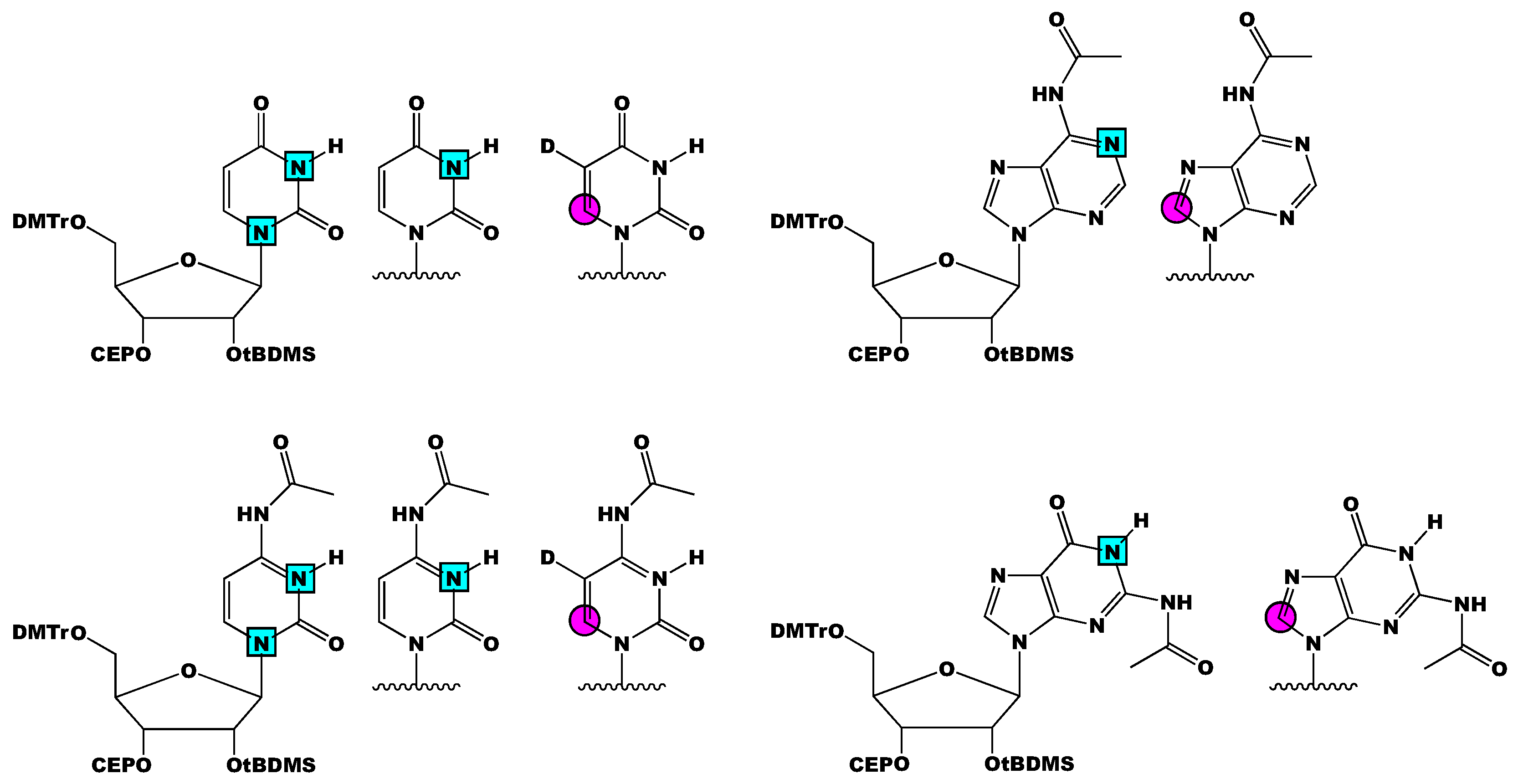

Figure 7. Schematic of all the isotope labeled 2′-O-tBDMS RNA phosphoramidites made commercially available by Silantes. [1,3-15N2]-, [3-15N]-, and [6-13C-5-2H]-uridine and [1-15N]- and [8-13C]-adenosine are shown on the top. [1,3-15N2]-, [3-15N]-, and [6-13C-5-2H]-cytidine and [1-15N]- and [8-13C]-guanosine are shown on the bottom. All phosphoramidites (except uridine) are N-Ac protected. Magenta circles represent 13C atoms, cyan squares represent 15N atoms, and D represents 2H atoms.
Figure 7. Schematic of all the isotope labeled 2′-O-tBDMS RNA phosphoramidites made commercially available by Silantes. [1,3-15N2]-, [3-15N]-, and [6-13C-5-2H]-uridine and [1-15N]- and [8-13C]-adenosine are shown on the top. [1,3-15N2]-, [3-15N]-, and [6-13C-5-2H]-cytidine and [1-15N]- and [8-13C]-guanosine are shown on the bottom. All phosphoramidites (except uridine) are N-Ac protected. Magenta circles represent 13C atoms, cyan squares represent 15N atoms, and D represents 2H atoms.
Molecules 24 03476 g007

Share and Cite

MDPI and ACS Style

Becette, O.; Olenginski, L.T.; Dayie, T.K. Solid-Phase Chemical Synthesis of Stable Isotope-Labeled RNA to Aid Structure and Dynamics Studies by NMR Spectroscopy. Molecules 2019, 24, 3476. https://doi.org/10.3390/molecules24193476

AMA Style

Becette O, Olenginski LT, Dayie TK. Solid-Phase Chemical Synthesis of Stable Isotope-Labeled RNA to Aid Structure and Dynamics Studies by NMR Spectroscopy. Molecules. 2019; 24(19):3476. https://doi.org/10.3390/molecules24193476

Chicago/Turabian Style

Becette, Owen, Lukasz T. Olenginski, and Theodore K. Dayie. 2019. "Solid-Phase Chemical Synthesis of Stable Isotope-Labeled RNA to Aid Structure and Dynamics Studies by NMR Spectroscopy" Molecules 24, no. 19: 3476. https://doi.org/10.3390/molecules24193476

Article Metrics

Back to TopTop
