Article

Hybrid Boron-Carbon Chemistry

by
Josep M. Oliva-Enrich
1,*,
Ibon Alkorta
2 and
José Elguero
2
1
Instituto de Química-Física “Rocasolano” (CSIC), Serrano 119, E-28006 Madrid, Spain
2
Instituto de Quimica Médica (CSIC), Juan de la Cierva, 3, E-28006 Madrid, Spain
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(21), 5026; https://doi.org/10.3390/molecules25215026
Submission received: 18 September 2020 / Revised: 23 October 2020 / Accepted: 26 October 2020 / Published: 29 October 2020
(This article belongs to the Special Issue Boron in Catalysis and Materials Chemistry: A Themed Issue in Honor of Professor Todd B. Marder on the Occasion of His 65th Birthday)
Browse Figures
Review Reports Versions Notes

Abstract

:
The recently proved one-to-one structural equivalence between a conjugated hydrocarbon CnHm and the corresponding borane BnHm+n is applied here to hybrid systems, where each C=C double bond in the hydrocarbon is consecutively substituted by planar B(H2)B moieties from diborane(6). Quantum chemical computations with the B3LYP/cc-pVTZ method show that the structural equivalences are maintained along the substitutions, even for non-planar systems. We use as benchmark aromatic and antiaromatic (poly)cyclic conjugated hydrocarbons: cyclobutadiene, benzene, cyclooctatetraene, pentalene, benzocyclobutadiene, naphthalene and azulene. The transformation of these conjugated hydrocarbons to the corresponding boranes is analyzed from the viewpoint of geometry and electronic structure.

Graphical Abstract

1. Introduction

Planar conjugated hydrocarbons played a key role in the early days of quantum mechanics, when computers were not available, and physical models were needed in order to understand the electronic structure of molecules [1], the attractive nature of the chemical bond [2], the nature of ground and excited states in atoms and molecules [3,4,5], and mechanistical studies of chemical reactions [6].
On the other hand, a relevant quantity in chemistry is the energy gap between the lowest-lying singlet and triplet electronic states in a molecule, directly related to the reactivity of the system, and useful, e.g., for the design of photochemical molecular devices [7]. For instance, methylene CH2 is a very reactive species with a triplet ground state and a singlet-triplet experimental energy gap of 38 kJ·mol−1 [8]. On the other hand, water H2O has a singlet ground state with an experimental singlet-triplet energy gap of 675 kJ·mol−1 [9]. Hence, the larger the singlet-triplet energy gap the more stable a molecule.
The chemistry of boron compounds has evolved along the second half of the XXth century and beginning of the XXIst century in a generalised dual fashion since the original works of Stock [10] on BnHm boranes syntheses in the beginning of the XXth century: (i) organoboron [11] and metal-boron [12] chemistry and (ii) the chemistry of 3D polyhedral (metalla)heteroborane structures [13,14,15,16,17]. Given the huge and magnificent efforts done towards the synthesis of new boron derivatives in the last decades, a complete literature citation here is impractical.
The recent experimental isolation of borophane layers [18], a 2D (BH)1 system structurally equivalent to graphene and the characterisation of chemical structures where one C=C double bond is substituted by one B(H2)B moiety [19,20,21,22,23] calls for the possibility of creating a new field of research within boron chemistry, namely, the synthesis of finite planar neutral borane molecules. We have recently proved that there is a one-to-one structural correspondence between any planar conjugated hydrocarbon CnHm and the planar borane BnH(m+n), indeed with the same number of electrons and n more hydrogen atoms in the latter [24]. This transformation can be carried out by substituting all C=C double bonds by a perpendicular planar B(H2)B moiety, which is the central rhombus of diborane(6). Up to this date we have not found any exception so far to this transformation and is extended here to non-planar systems.
The problems that we would like to tackle in this work, dedicated to Professor Todd B. Marder on the occasion of his 65th birthday, are related to the stability of hybrid boron-carbon isoelectronic chemical structures built by consecutive substitution of C=C by B(H2)B moieties in (poly)cyclic conjugated hydrocarbons. Particularly, we have chosen examples with 4n π electrons: cyclobutadiene, cyclooctatetraene, pentalene and benzocyclobutadiene, and examples with (4n + 2) π electrons: benzene, naphthalene and azulene. The question we would like to answer here is: Given a (poly)cyclic conjugated hydrocarbon CnHm with an even number of carbon atoms or π electrons, how similar or different are the hybrid systems C(n−2k)B(2k)H(m+2k), with k = {0, 1, 2, …, n/2}, to the original hydrocarbon from the structural and electronic structure point of view? In Scheme 1 we gather the conjugated hydrocarbons considered in this work.

2. Results

Table 1, Table 2, Table 3, Table 4 and Table 5 gather the formula, structure, electronic energy, vertical singlet-triplet energy gaps and point-group symmetry (PGS) for all the systems included in this work, derived from a conjugated hydrocarbon CnHm with an even number of carbon atoms or π electrons and the structures derived from consecutive k { C=C ↔ B(H2)B } substitutions, with 1 ≤ k ≤ n/2. The triplet energy is computed with optimized geometry of the singlet ground state due to considerable geometrical changes in triplet optimizations, and therefore singlet-triplet energies are vertical. From cyclooctatetraene onwards, all C(n-2k)B(2k)H(m+2k) structures have more than one isomer, for 1 ≤ k < n/2. Hence, one might inquire the extent of change in energy differences and singlet-triplet energies in different isomers of a given structure. When isomers arise under k {C=C ↔ B(H2)B} substitutions in a given structure, these are labelled as {(I), (II), …} and ordered in increasing energy, as displayed in Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5. All structures and isomers correspond to planar structures, except for cyclooctatetraene C8H8 (k = 0) and structures C(8−2k)B(2k)H(8+2k) (k = 1–4). All structures and isomers presented in this work, as computed with the B3LYP/cc-pVTZ model, correspond to energy minima. B3LYP/cc-pVTZ optimised geometries, in cartesian coordinates (Å), of the systems included in the work are presented in Supplementary Materials.
At this point we should emphasize the geometrical changes that a CnHm conjugated hydrocarbon undergoes through k {C=C ↔ B(H2)B} substitutions, with k = {0, 1, 2, …, n/2}, in a given hybrid boron-carbon C(m−2k)B(2k)H(n+2k) structure.
In Table 1 and Figure 1, we gather the structures, energies and singlet-triplet gaps for cyclobutadiene, benzene and cyclooctatetraene and the corresponding C(n-2k)B(2k)H(m+2k) structures. We start off with the series for n = 4 in cyclobutadiene: C(4−2k)B(2k)H(4+2k), with k = {0, 1, 2}. Given the antiaromatic nature of cyclobutadiene, this molecule is very reactive with tendency to dimerize and can be observed by matrix isolation below 35 K [26]. Substitution of one {C=C} moiety by one {B(H2)B} moiety in C4H4 (k = 1) leads to a C2B2H6 cyclic structure, with a singlet-triplet energy gap 140 kJ·mol−1 larger than in C4H4. A second {C=C ↔ B(H2)B } substitution in C4H4 (k = 2) leads to cyclic tetraborane(8), with a even larger singlet-triplet energy gap, 170 kJ·mol−1 higher than in C4H4.
The next system to be analyzed is aromatic benzene (n = 6) and the boron-carbon hybrids: C(6−2k)B(2k)H(6+2k), with k = {0, 1, 2, 3}, as gathered in Table 1 and Figure 1. Benzene is a colorless liquid, with a characteristic odor, volatile, very flammable and carcinogenic. This molecule is the paradigm of Hückel theory [1] and the concept of aromaticity itself, with a very interesting debate reaching our days on the role of its correlation energy and the π electron spin-pairing [27]. As opposed to the previous example, the singlet-triplet energy gaps for benzene and cyclic hexaborane(12) B6H12 are quite similar, 8 kJ·mol−1 larger in benzene, due to the aromatic nature of the latter. The first {C=C ↔ B(H2)B} substitution in benzene leading to C4B2H8 (k = 1) decreases the singlet-triplet energy gap by more than 100 kJ·mol−1—due to aromaticity loss—but with further {C=C ↔ B(H2)B} substitutions the singlet-triplet energy gaps increase by 35 kJ·mol−1 and 60 kJ·mol−1 for C2B4H10 (k = 2) and B6H12 (k = 3) respectively. This is a clear indication that breaking the aromaticity of benzene leads, to a first instance, to a less stable structure. However, this stability is increased by along the series for k = {2, 3}, and three {C=C ↔ B(H2)B} substitutions leads to a structure—D3h cyclic hexaborane(12) B6H12—with a singlet-triplet energy gap which is only 8 kJ·mol−1 lower as compared to benzene. This result is striking and remains at the very origin of the recent proposal we have put forward [24]: To every (poly)cyclic planar conjugated hydrocarbon CnHm there corresponds a boron equivalent structure BnHm+n which is also an energy minimum.
Inclusion of empirical dispersion corrections with the B97D functional [28] shows a systematic decrease of the singlet-triplet energy gaps as compared to the B3LYP results, following a similar tendency, except for the complete borane structures BnHm+n with considerably lowering of 47 kJ·mol−1 for cyclic hexaborane(12), as compared to the B3LYP results. For the cyclooctatetraene series the lowering is also noteworthy when including dispersion corrections in the functional; the structure of the stationary points—energy minima—is maintained with both functionals. As described below in the Discussion section, the bond distances are slightly elongated when dispersion corrections are included, which is in agreement with lower singlet-triplet energy gaps.
In order to highlight the electronic structure differences in benzene and its borane hybrids we have plotted in Table 1 the molecular electrostatic potential (MEP) for the benzene series C(6−2k)B(2k)H(6+2k), with k = {0, 1, 2, 3}: The blue and red colors in the MEP indicate negative and positive charge attraction areas: clearly, the benzene π-electron cloud is a positive-charge attraction area [29,30] and the borane substituted areas are negative-charge attraction areas, with a complete blue area above the boron-atoms plane in cyclic hexaborane(12) B6H12. Just below the MEP in Table 1 we show the anisotropy of the induced current density (ACID) [31] for the same systems, with a clear blocking of the current in the region where a {C=C ↔ B(H2)B} substitution is carried out; therefore π electron delocalization lowers considerably as k increases.
We turn now to an antiaromatic system with n = 8 π electrons, cyclooctatetraene and the structural isoelectronic series summarized in Table 1 and Figure 1: C(8−2k)B(2k)H(8+2k), with k = {0, 1, 2, 3, 4}. Cyclooctetraene is a colorless to light yellow flammable liquid at room temperature and adopts a non-planar D2d structure in the ground state [32,33]. We should emphasize that cyclooctatetraene C8H8 (k = 0) and the corresponding borane equivalent B8H16 (k = 4) are transition state structures in the planar D4h conformation with energy barriers of 44.0 kJ·mol−1 [34] and 55.8 kJ·mol−1 respectively (B3LYP/cc-pVTZ computations), and thus the barrier for the D2d → D4h process is larger for the borane compound. Both energy minima correspond to D2d structures, and this is the only series of non-planar hydrocarbon and hybrid boron-carbon structures included in this work. The main purpose of including cyclooctatetraene is due to the non-planarity of the system, which was not considered before [21].
Consecutive {C=C ↔ B(H2)B} substitutions in cyclooctatetraene C8H8 (k = 0) leads to C(6−2k)B(2k)H(6+2k) structures with a larger singlet-triplet energy gap as k increases from zero to 4, with a final gap which is 170 kJ·mol−1 larger as compared to the original hydrocarbon. Cyclooctatetraene is the first instance where we have two different positional isomers in C4B4H12 (k = 2): Isomers I and II, with lower energy and larger singlet-triplet gap for the more symmetric structure I with C2v symmetry. We define Niso as the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). For instance, for azulene and k = 2—see Table 5 below, we have a set of ten C6B4H12 isomers: {I, II, III, …, Niso}, with Niso =10 in Roman numerals, i.e., Niso = X.
We consider next the pentalene molecule C8H6, a two-pentagon one-side fused conjugated system, also with n = 8 π electrons, and therefore antiaromatic. Pentalene dimerizes at 173 K [35], and its derivative, 1,3,5-tri-tert-butylpentalene, has been synthesized [36], as a stabilized planar 8π electron system. In Table 2 and Figure 2 we gather the results for the pentalene series: C(8−2k)B(2k)H(6+2k), with k = {0, 1, 2, 3, 4}. Again, due to the antiaromatic nature of the hydrocarbon, the singlet-triplet energy gap in the equivalent boron structure (k = 4) is 157 kJ·mol−1 higher in energy, as in the previous antiaromatic cases for cyclobutadiene and cyclooctatetraene, and the energy gap in pentalene is the lowest along the whole series of structures and isomers derived from C(8−2k)B(2k)H(6+2k) and 1 < k ≤ 4, as the encircled value shown at the top of Figure 2.
The singlet-triplet energy gaps increase along the series for 0 ≤ k ≤ 3; the equivalent boron structure B8H14 (k = 4) has a lower gap as compared to the previous (k = 3) molecule C2B6H12. There are striking differences in the energy gaps as function of k, the number of {C=C ↔ B(H2)B} substitutions, and also within the set of isomers of a given k, as shown in Figure 2. The largest and lowest singlet-triplet energy gaps in the whole series are shown in Figure 2 as encircled numbers and with the corresponding structure. All structures and isomers for 1 ≤ k ≤ 4 have a larger singlet-triplet energy gap as compared to original pentalene (k = 0), a clear indication on how unstable this conjugated hydrocarbon is as compared to the boron-carbon hybrid series.
A shown in Table 2 and Figure 2 the isomer energies for a given structure (k) follow the same order as the singlet-triplet gaps, except isomer IV for k = 2 with an increase of 100 kJ·mol−1. It is striking that isomers with very close electronic energies might have such different singlet-triplet gaps. The energy difference between isomers III and IV for k = 2 is only 7 kJ·mol−1. Hence positional {C=C ↔ B(H2)B} substitutions might have important changes in the interaction of these hybrid boron-carbon isomers with external perturbations, such as photochemical processes.
We follow with another conjugated hydrocarbon with n = 8 π electrons: benzocyclobutadiene and the hybrid boron-carbon series C(8−2k)B(2k)H(6+2k), with k = {0, 1, 2, 3, 4}, similar to pentalene, and displayed in Table 3a–c and Figure 3a–c. Benzocyclobutadiene polymerises readily and reacts as a dienophile in Diels-Alder reactions [37]. As opposed to the previous n = 8 systems, in this particular case we need to consider different Kekulé structures, K1, K2 and K3 (Scheme 1) since they give different structural isomers on consecutive k {C=C ↔ B(H2)B} substitutions. The energy gap in the original hydrocarbon is 195 kJ·mol−1 (the same for K1, K2 and K3) and we find for the first time that {C=C ↔ B(H2)B} substitutions lead to hybrid systems with lower gaps, e.g., isomer IV with k = 2 in Table 3a with a gap of 108 kJ·mol−1, the lowest among all as shown in Figure 3a, clearly due to the presence of the strained cyclobutadiene ring in the structure. Only isomers from Kekulé structures K1 and K3 keep this tendency as shown in Table 3a–c respectively. There is an exception to this behavior: for the Kekulé structure K2—Table 3b—the gaps are always larger in the substituted isomers, as compared to benzocyclobutadiene. This is striking and due to the presence of only one double bond C=C in the rectangular cyclobutadiene, hence lowering the strain energy on any further {C=C ↔ B(H2)B} substitution. Another noteworthy result is the singlet-triplet energy gap differences in the boron equivalent structures of K1, K2 and K3, always fairly above benzocyclobutadiene by 70 kJ·mol−1, 115 kJ·mol−1 and 180 kJ·mol−1 respectively, as shown in Figure 3a–c.
There are many isomers with larger energy gaps as compared to benzocyclobutadiene: The borane structure for planar (k = 4) B8H14 in the K3 configuration—Table 3c and Figure 3c—has the largest gap of all structures and isomers, 374 kJ·mol−1. When strain is released from the rectangular cyclobutadiene moiety in the original hydrocarbon, many isomers have gaps above 300 kJ·mol−1, with the interesting case of isomer I of K2 with k = 2—Table 4b—a cis-butadiene system fused with two diborane molecules and energy gap 368 kJ·mol−1 and the lowest ground state energy. The experimental vertical singlet-triplet gap in butadiene is 310.7 kJ·mol−1 [38] (318.9 kJ·mol−1 with a B3LYP/cc-pVTZ computation). Therefore, the two diborane molecules fused to the cis-butadiene moiety in isomer I of C4B4H10 (k = 2) and Kekulé structure K2 stabilise the system further by 50 kJ·mol−1. We do not intend to give spectroscopic accuracy in these examples, but rather an explanation of the tendency in energy and stability changes upon {C=C ↔ B(H2)B} substitutions in conjugated hydrocarbons. We should emphasize here that all structures and isomers remain planar upon these substitutions in benzocyclobutadiene, checked through frequency computations, thus following the previous examples with the exception of cyclooctatetraene, which is not planar.
Given the topological distribution of single and double bonds in benzocyclobutadiene, only Kekulé structures K1 and K3 retain the cyclobutadiene ring in the hybrid boron-carbon series. Hence, for K1—Table 3a and Figure 3a—one has isomer III from C6B2H8 (k = 1), with an energy gap of 118 kJ·mol−1 and isomer IV from C4B6H10 (k = 2) with a gap of 108 kJ·mol−1 (lowest gap). These isomers are equivalent in K3—Table 3c and Figure 3c—to isomer II from C6B2H8 (k = 1), and isomer IV from C4B6H10 (k = 2). The presence of the cyclobutadiene ring explains why these hybrid boron-carbon isomers have such low singlet-triplet energy gaps.
We turn now to the next aromatic system, naphthalene, with n = 10 π electrons, and the series C(10−2k)B(2k)H(8+2k), with k = {0, 1, 2, 3, 4}. Naphthalene is a white crystalline solid with a characteristic odor and detectable at very low concentrations and reacts more readily than benzene in electrophilic aromatic substitution reactions [37]. The two Kekulé structures K1 and K2 shown in Scheme 1 are also necessary in order to include all possible different isomers upon consecutive {C=C ↔ B(H2)B} substitutions. Table 4a,b and Figure 4a,b include the energies and energy gaps for all isomers derived from Kekulé structures K1 and K2 in naphthalene, respectively. What differs notably, viz., the energy gaps as compared to antiaromatic systems (n = 4, 8)—see above also benzene—is the small difference between the gaps in the original conjugated hydrocarbon C10H8 and the equivalent borane structure B10H18, 10 kj·mol−1 and 3 kJ·mol−1 higher for Kekulé structures K1 and K2 respectively. Therefore, from a thermochemical point of view, the synthesis of the planar borane structures derived from benzene and naphthalene, B6H12 and B10H18 respectively, should be affordable.
Again, for an aromatic system, consecutive {C=C ↔ B(H2)B} substitutions lead to larger energy gaps compared to naphthalene, with a striking increase for the k = 2 isomer I in structures K1 and K2—both are equivalent—C6B4H12 (k = 2)—Table 4a—which corresponds to a fusion of two diborane molecules to benzene, and giving a further stability to the molecule. Isomers with lower gaps than naphthalene appear both in K1 and K2 structures. The two lowest gaps in K1 correspond to isomers II from C6B4H12 (k = 2) and isomer I from C4B6H14 (k = 3). The lowest gap in K2—Table 4b—correspond to the k = 1 isomer III from structure C8B2H10; this destabilisation is clearly due to the loss of aromaticity in the whole system on substituting one C=C bond by a B(H2)B moiety on the right ending of the molecule, thus quenching the resonance energy.
We should also emphasize that K1 set has more isomers than the K2 set with a gap larger than naphthalene, and all isomers are planar structures corresponding to energy minima for all set of Kekulé structures.
Finally, the last system included in this work, aromatic azulene with n = 10 π electrons follows the same series as in naphthalene: C(10−2k)B(2k)H(8+2k), with k = {0, 1, 2, 3, 4, 5}. Two terpenoids of azulene appear in Nature and offer a rich organic chemistry [39]. In azulene we have one, 5 and 10 isomers for k = {0, 5}, k = {1, 4} and k = {2, 3} respectively, as shown in Table 5 and Figure 5. There is only one Kekulé structure leading to different isomers, and the presence of a seven-membered ring fused to a five-membered ring entails a different electronic structure as depicted by the lower energy gap in the original hydrocarbon as compared to benzene and naphthalene.
The azulene equivalent borane structure B10H18 has a singlet-triplet energy gap 100 kJ·mol−1 above the original system and again there are isomers with lower and higher energy gaps as compared to azulene. The largest and lowest gaps correspond to 335 kJ·mol−1 and 163 kJ·mol−1 for isomer III of structure C4B6H14 (k = 3) and isomer X of structure C6B4H12 (k = 2), respectively, as displayed in Figure 5, with the encircled numbers. The general rule is that the average gap increases with k for 1 < k < 4, namely, the more {C=C ↔ B(H2)B} substitutions, the more stable the system on average. One {C=C ↔ B(H2)B} substitution in azulene, leading to five C8B2H10 isomers (k = 1), shows two isomers (I, III) with an energy gap above azulene and three isomers (II, IV and V) with energy gaps below azulene. The energy gap in isomer III is only 4 kJ·mol−1 higher than in azulene. Note that the structural difference between isomer I and isomer V of structure C8B2H10 (k = 1) stems from the boron substitution site: pentagon and heptagon respectively, and both on the bridge atomic site. Boron substitution on the pentagon cycle at the bridge position leads to the least reactive species (k = 1) C8B2H10 (I) as compared to azulene. However, this situation is inverted when the boron substitution site is on the bridge position of the heptagon cycle, leading to the more reactive isomer V for C8B2H10 (k = 1) as compared to azulene. As commented above, complete boron substitution of azulene (k = 4) leads to a more stable structure, with a singlet-triplet gap 100 kJ·mol−1 above azulene. This is remarkable if we take into account that B10H18 has never been synthesized.

3. Discussion

The experimental CC and BB distances in ethylene and diborane(6) are 1.340 Å and 1.736 Å respectively. These are considerable differences which are due mainly to the presence of two bridge hydrogen atoms in diborane(6), changing the electronic structure of the substituted systems considerably. However, the role of these two bridge hydrogen atoms in the B(H2)B moiety correspond, from a structural and electronic point of view, to the two π electrons in ethylene: Every {C=C ↔ B(H2)B} substitution in the original conjugated CnHm hydrocarbon leads to a hybrid planar or nonplanar equivalent structure, as we have seen above in the description of the results. The aromaticity and antiaromaticity of a conjugated CnHm system according to Hückel’s 4n+2 and 4n rule for π electrons, respectively, does not necessarily apply by consecutive {C=C ↔ B(H2)B} substitutions, leading to the hybrid systems C(n−2k)B(2k)H(m+2k), with k = {0, 1, 2, …, n/2}. The geometrical parameters for cyclobutadiene, benzene and cyclooctatetraene and the hybrid boron-carbon systems are gathered in Table 6.
According to Table 6, inclusion of empirical dispersion corrections in the B97D functional leads to slightly larger distances in a systematic way as compared to the B3LYP results, without changing the minimum energy nature of the stationary points for the conjugated hydrocarbon structures and the corresponding boron-carbon hybrids.
As regards to the singlet-triplet energy gaps in the same three model systems, we gathered in Table 1 the B3LYP and B97D energy gaps, with a systematic lowering when including dispersion corrections, and following the same trend; since our goal here is a tentative prediction, from a theoretical point of view, of the stabilities in hybrid boron-carbon systems which are experimentally unknown, the qualitative description is valid, without pretending spectroscopic accuracy.
A further assessment on the degree of aromaticity in the hybrid boron-carbon systems included in this work can be tackled with the comparison of the nucleus-independent chemical shifts (NICS) [40], at the centre of ring—NICS(0)—and 1 Å above this point, perpendicular to the ring—NICS(1). NICS is a computational method which provides the extent of absolute magnetic shielding at the centre of a ring. The values are reported with a reversed sign to make them compatible with the chemical shift conventions of NMR spectroscopy, and negative NICS values indicate aromaticity and positive values antiaromaticity. In Table 7 we gather the NICS(0) and NICS(1) values for cyclobutadiene and benzene with the corresponding hybrids.
Cyclobutadiene is the most antiaromatic system, and the NICS values decrease with more {C=C ↔ B(H2)B} substitutions. Clearly, benzene is the most aromatic system considered here and the first hybrid with one {C=C ↔ B(H2)B} substitution retains certain degree of aromaticity. A further {C=C ↔ B(H2)B} substitution leads to a positive NICS(0) and a small negative NICS(1). Complete {C=C ↔ B(H2)B} substitutions in benzene leads to a non-aromatic cyclic hexaborane(12) B6H12. The ACID plots (Table 1) of the benzene derivatives show that each {C=C ↔ B(H2)B} substitution produces gaps in the isosurface as indication of reduced aromaticity. In Figure 6 we display the correlation between the singlet-triplet energy gap vs. NICS(0) and NICS(1) from Table 7. The correlations are quite linear except for the two encircled hybrid structures.
The most noticeable changes upon {C=C ↔ B(H2)B} substitutions for a given conjugated hydrocarbon CnHm, from an energy point of view and singlet-triplet gap, is in the loss of aromaticity or in the inclusion or permanence of very unstable moieties, such as cyclobutadiene. For instance, for antiaromatic cyclobutadiene and cyclooctatetraene—Table 1 and Figure 1—the minimum and maximum singlet-triplet energy gaps correspond respectively to the conjugated hydrocarbon CnHm and the corresponding borane systems BnHm+n respectively, namely, with all k = n/2 {C=C ↔ B(H2)B} substitutions. This is remarkable, since planarity of borane molecules is an exception rather a rule. The loss of aromaticity in benzene upon one {C=C ↔ B(H2)B} substitution leads to the minimum energy gap structure, with the largest gap for benzene itself. Pentalene has the lowest energy gap as shown in Table 2 and Figure 2, as an antiaromatic system, with the larger gap for the k = 3 isomer (I), where only one C=C double bond remains in the structure, releasing the constrained hydrocarbon structure due to longer BB and B(Hb)2B distances. The particular case of benzocyclobutadiene, also antiaromatic, is remarkable due to the three different Kekulé structures leading to different isomers, Table 3a–c and Figure 3a–c. Thus, for K1, the minimum singlet-triplet gap comes from the k = 2, isomer (IV), which is nothing but a cyclobutadiene molecule with two diborane(6) moieties attached to one of the C=C double bonds forming a six-member cycle: This isomer has a gap which is even lower than in cyclobutadiene itself! On the other hand, and following the cases of cyclobutadiene and cyclooctatetraene, the complete borane structure (k = 4) B6H14 has the largest gap. For Kekulé structure K2, benzocyclobutadiene itself has the lowest gap and the largest gap corresponds to k = 2 isomer (I), a cis-butadiene molecule with two diborane(6) molecules fused and forming a six- and four-member ring on the =CH2 and =CH- moieties respectively. Hence the conjugation of the two double bonds is maintained even with the inclusion of diborane moieties. As for K3, the minimum gap corresponds to the k = 2 isomer (IV) which is cyclobutadiene with two fused diborane molecules forming a six-member ring; note that whenever a cyclobutadiene is maintained in the {C=C ↔ B(H2)B} substitutions the energy gap is very, thus predicting a very reactive system. Again, the maximum energy gap corresponds the completed borane structure with four {C=C ↔ B(H2)B} substitutions: This is a rule for antiaromatic systems.
We now turn to aromatic naphthalene with the K1 and K2 Kekulé structures as displayed in Table 4a–b and Figure 4a,b. Due to the indistinguishable nature of the two valence-bond Kekulé structures in benzene, the k = 2 isomer (I) is equivalent for K1 and K2 and corresponds to a benzene molecule with two diborane molecules fused forming an additional six-member ring. If we use a valence-bond or multiconfigurational wave function, these isomers would have a different energy due to the different spin-coupling patterns. In our approximation, this isomer has the largest energy gap due to the aromaticity of benzene, which is only 14 kJ·mol−1 higher than in benzene. The lowest energy gaps correspond to structures where the cyclic aromaticity is somehow broken due to {C=C ↔ B(H2)B} substitutions in concrete places: for K1 this corresponds to k = 2 isomer (II), with three consecutive C=C bonds passing through the bridge C=C bond but with two B(H2)B moieties on opposite rings, thus destroying the cyclic aromaticity. As for K2, the lowest gap corresponds to the k = 1 isomer (III) and similarly the aromaticity is destroyed by one {C=C ↔ B(H2)B} substitution on the ending edge. We should emphasize that in this latter case the energy gap is much lower as compared to the minimum gap structure for K1 since the three consecutive alternating C=C bonds gives further stability of the k = 2 isomer (II) structure.
Finally, azulene boron-carbon hybrids give a range of singlet-triplet gaps from 163 kJ·mol-1 to 335 kJ.mol−1, corresponding to structures k = 2 isomer (X) and k = 3 isomer (III) respectively, as shown in Table 5 and Figure 5. Due to the larger seven-member ring the structures are less constrained, but the presence of a cyclopentadiene ring lowers the stability. The lowest energy gap structure—k = 2 isomer (X)—consists of a cyclopentadiene ring where one of the connecting atoms is a boron atom; this structure should be very reactive indeed.

4. Computational Methods

The quantum-chemical computations of the structures and isomers included in this work were carried out with the B3LYP/cc-pVTZ model [41,42,43,44] and with the scientific software Gaussian16 [45]. All geometries correspond to energy minima, checked through frequency computations, with geometry optimisation thresholds of 0.00045 Hartree/Bohr and 0.00030 Hartree/Bohr for maximum force and root-mean-square (RMS) force respectively, and 0.0018 Bohr and 0.0012 Bohr for maximum displacement and RMS displacement respectively. For the computations of the D2d → D4h barriers in cyclooctatetraene C8H8 and the boron substituted system B8H16, the optimized geometries showed zero and one imaginary frequency for the D2d and D4h geometries, respectively. The MEP and ACID plots for benzene and the C(6-2k)B(2k)H(6+2k) series, k = {1–3} (Table 1), were also computed with Gaussian16.

5. Conclusions

The goal of this work was to check the structural stability from any conjugated hydrocarbon CnHm through the boron-carbon hybrid series C(n-2k)B(2k)H(m+2k), obtained upon k {C=C ↔ B(H2)B} substitutions for k = {0, 1, 2, …, n/2}, leading to the structurally equivalent complete borane BnHm+n structure, for k = n/2. We have chosen planar and non-planar conjugated hydrocarbons: cyclobutadiene (n = 4), benzene (n = 6), cyclooctatetraene (n = 8), pentalene (n = 8), naphthalene (n = 10) and azulene (n = 10). As a result, all hybrid boron-carbon structures appear as energy minima from the quantum-chemical computations and therefore, from a thermodynamic point of view, they should be a synthetic target for experimentalists working on planar boron chemistry. This is unusual if we consider that borane polyhedral molecules are 3D curved structures. In the particular case of cyclooctatetraene C8H8, a non-planar structure, we have shown that the one-to-one structural equivalence CnHm ↔ BnHm+n also holds; the energy barrier for loss of planarity from a planar transition state structure (D4h) to an energy minimum twisted structure (D2d) is larger for the cyclic borane B8H16, as compared to cyclic octatetraene. Structural isomers appear for a given number k of {C=C ↔ B(H2)B} substitutions in an isoelectronic series C(n-2k)B(2k)H(m+2k) with k = {0, 1, 2, …, n/2} for all conjugated hydrocarbons, except for cyclobutadiene and benzene, with a maximum number of isomers of 10 for azulene structures with C6B4H12 (k = 2) and C4B6H14 (k = 3) formulae. These isomers are ordered in increasing energy {I, II, …, Niso}. Striking energy differences in an isomeric series stem from one {C=C ↔ B(H2)B} substitution in the cyclobutadiene cycle from benzocyclobutadiene with an energy jump of 125 kJ·mol−1. As regards to the energy order of vertical singlet-triplet energy gaps, they do not necessarily follow the same trend as compared to the energy profile for the isomers of a given k in a C(n-2k)B(2k)H(m+2k) structure.
The vertical singlet-triplet energy gaps in conjugated hydrocarbons CnHm vs. BnHm+n change strikingly in antiaromatic systems, when the number of π electrons is 4n, with the energy gap always much larger for the borane systems. On the other hand, for conjugated hydrocarbons with (4n + 2) electrons—Hückel rule for aromaticity—the difference in vertical singlet-triplet energy gaps between CnHm and BnHm+n is minor for benzene and naphthalene and larger for azulene. From these results a potential rule arises, which will be thoroughly checked in a future work and holds for the systems included here: the lowest and largest singlet-triplet energy gap for a C(n-2k)B(2k)H(m+2k) series of structures—with n multiple of 4—always corresponds to the k = 0 and k = n/2 structure respectively, namely, to the original conjugated hydrocarbon CnHm and the complete borane structure BnHm+n. We should also emphasize that, if aromatic structures—e.g., π sextets in six-member rings—are maintained in a given isoelectronic C(n-2k)B(2k)H(m+2k) series, then the singlet-triplet energy gap is large and similar to the original conjugated hydrocarbon and the structure is predicted to be stable. On the other hand, the presence of an antiaromatic structure—e.g., cyclobutadiene moieties with 4π electrons—in any C(n-2k)B(2k)H(m+2k) system, lowers considerably the energy gap thus predicting an unstable structure. Finally, the existence of similar structures derived from phenanthrene derivatives with one {C=C ↔ B(H2)B} substitution in the conjugated hydrocarbon [19,20,21,22,23], gives support to the possibility of synthesizing or characterizing the hybrid boron-carbon isoelectronic C(n-2k)B(2k)H(m+2k) structures presented in this work.

Supplementary Materials

B3LYP/cc-pVTZ optimised geometries, in cartesian coordinates (Å), of the systems included in the work.

Author Contributions

Conceptualization, J.M.O.-E., I.A. and J.E., writing—review and editing J.M.O.-E., I.A. and J.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Spanish MICINN, grant number CTQ2018-094644-B-C22 and Comunidad de Madrid, grant number P2018/EMT-4329 AIRTEC-CM.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hückel, E. Quantentheoretische Beiträge zum Benzolproblem. Z. Phys. 1931, 70, 204–286. [Google Scholar] [CrossRef]
  2. Pauling, L. The Nature of the Chemical Bond and the Structure of Molecules and Crystals, 3rd ed.; Cornell University Press: Ithaca, NY, USA, 1960. [Google Scholar]
  3. Heitler, W.; London, F. Wechselwirkung neutraler Atome und homöopolare Bindung nach der Quantenmechanik. Z. Phys. 1927, 44, 455–472. [Google Scholar] [CrossRef]
  4. Hund, F. Zur Deutung einiger Erscheinungen in den Molekelspektren. Z. Phys. 1926, 36, 657. [Google Scholar] [CrossRef]
  5. Mulliken, R.S. Electronic states and band spectrum structure in diatomic Molecules. I. Statement of the postulates. Interpretation of CuH, CH, and Co band-types. Phys. Rev. 1926, 28, 481. [Google Scholar] [CrossRef]
  6. Woodward, R.B.; Hoffmann, R. Stereochemistry of electrocyclic reactions. J. Am. Chem. Soc. 1965, 87, 395–397. [Google Scholar] [CrossRef]
  7. Kamtekar, K.T.; Monkman, A.P.; Bryce, M.R. Recent advances in white organic light-emitting materials and devices (WOLEDs). Adv. Mater. 2010, 22, 572–582. [Google Scholar] [CrossRef] [PubMed]
  8. Shavitt, I. Geometry and singlet-triplet energy gap in methylene: A critical review of experimental and theoretical determinations. Tetrahedron 1985, 41, 1531–1542. [Google Scholar] [CrossRef]
  9. Chutjian, A.; Hall, R.I.; Trajmar, S. Electron-impact excitation of H2O and D2O at various scattering angles and impact energies in the energy-loss range 4.2–12 eV. J. Chem. Phys. 1975, 63, 892–898. [Google Scholar] [CrossRef]
  10. Stock, A. The Hydrides of Boron and Silicon; Cornell University Press: Ithaca, NY, USA, 1933. [Google Scholar]
  11. Brown, H.C. From little acorns to tall oaks from boranes through organoboranes. In Nobel Lecture, 8 December 1979; World Scientific Publishing Co.: Singapore, 1993. [Google Scholar]
  12. Marder, T.B.; Lin, Z. (Eds.) Contemporary Metal Boron Chemistry I.: Borylenes, Boryls, Borane Sigma-Complexes, and Borohydrides; Springer: Berlin, Germany, 2008. [Google Scholar]
  13. Lipscomb, W.N. Boron Hydrides; Dover Publications Inc.: Mineola, NY, USA, 2012. [Google Scholar]
  14. Štíbr, B. Carboranes other than C2B10H12. Chem. Rev. 1992, 92, 225–250. [Google Scholar] [CrossRef]
  15. Grimes, R.N. Carboranes, 3rd ed.; Academic Press: Cambridge, MA, USA, 2016. [Google Scholar]
  16. Saxena, A.K.; Hosmane, N.S. Recent advances in the chemistry of carborane metal complexes incorporating d- and f-block elements. Chem. Rev. 1993, 93, 1081–1124. [Google Scholar] [CrossRef]
  17. Poater, J.; Viñas, C.; Bennour, I.; Escayola, S.; Solà, M.; Teixidor, F. Too persistent to give up: Aromaticity in boron clusters survives radical structural changes. J. Am. Chem. Soc. 2020, 142, 9396–9407. [Google Scholar] [CrossRef] [PubMed]
  18. Nishino, H.; Fujita, T.; Cuong, N.T.; Tominaka, S.; Miyauchi, M.; Iimura, S.; Hirata, A.; Umezawa, N.; Okada, S.; Nishibori, E.; et al. Formation and characterization of hydrogen boride sheets derived from MgB2 by cation exchange. J. Am. Chem. Soc. 2017, 139, 13761–13769. [Google Scholar] [CrossRef] [PubMed]
  19. Wrackmeyer, B.; Thoma, P.; Kempe, R.; Glatz, G. 9-Borafluorenes—NMR spectroscopy and DFT calculations. Molecular structure of 1,2-(2,2′-diphenylylene)-1,2-diethyldiborane. Collect. Czech. Chem. Commun. 2010, 75, 743–756. [Google Scholar] [CrossRef]
  20. Das, A.; Hübner, A.; Weber, M.; Bolte, M.; Lerner, H.-W.; Wagner, M. 9-H-9-Borafluorene dimethyl sulfide adduct: A product of a unique ring-contraction reaction and a useful hydroboration reagent. Chem. Commun. 2011, 47, 11339–11341. [Google Scholar] [CrossRef] [PubMed]
  21. Hübner, A.; Qu, Z.-W.; Englert, U.; Bolte, M.; Lerner, H.-W.; Holthausen, M.C.; Wagner, M. Main-chain boron-containing oligophenylenes via ring-opening polymerization of 9-H-9-borafluorene. J. Am. Chem. Soc. 2011, 133, 4596–4609. [Google Scholar] [CrossRef] [PubMed]
  22. Hübner, A.; Diefenbach, M.; Bolte, M.; Lerner, H.-W.; Holthausen, M.C.; Wagner, M. Confirmation of an early postulate: B-C-B two-electron–three-center bonding in organo(hydro)boranes. Angew. Chem. Int. Ed. 2012, 51, 12514–12518. [Google Scholar] [CrossRef] [PubMed]
  23. Kaese, T.; Hübner, A.; Bolte, M.; Lerner, H.-W.; Wagner, M. Forming B−B Bonds by the Controlled Reduction of a Tetraaryldiborane(6). J. Am. Chem. Soc. 2016, 138, 6224–6233. [Google Scholar] [CrossRef] [Green Version]
  24. Oliva-Enrich, J.M.; Kondo, T.; Alkorta, I.; Elguero, J.; Klein, D.J. Concatenation of diborane leads to new planar boron chemistry. Chem. Phys. Chem. 2020. [Google Scholar] [CrossRef]
  25. Rashid, Z.; van Lenthe, J.H. Generation of Kekulé valence structures and the corresponding valence bond wave function. J. Comput. Chem. 2010, 32, 696–708. [Google Scholar] [CrossRef]
  26. Cram, D.J.; Tanner, M.E.; Thoams, R. The taming of cyclobutadiene. Angew. Chem. Int. Ed. 1991, 30, 1024–1027. [Google Scholar] [CrossRef]
  27. Liu, Y.; Kilby, P.; Frankcombe, T.J.; Schmidt, T.W. The electronic structure of benzene from a tiling of the correlated 126-dimensional wavefunction. Nature 2020, 11, 1–5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comp. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef] [PubMed]
  29. Ma, J.C.; Dougherty, D.A. The cation–π interaction. Chem. Rev. 1997, 97, 1303–1324. [Google Scholar] [CrossRef] [PubMed]
  30. Alkorta, I.; Rozas, I.; Elguero, J. Interaction of anions with perfluoro aromatic compounds. J. Am. Chem. Soc. 2002, 124, 8593–8598. [Google Scholar] [CrossRef]
  31. Geuenich, D.; Hess, K.; Köhler, F.; Herges, R. Anisotropy of the induced current density (ACID), a general method to quantify and visualize electronic delocalization. Chem. Rev. 2005, 105, 3758–3772. [Google Scholar] [CrossRef]
  32. Claus, K.H.; Krüger, C. Structure of cyclooctatetraene at 129 K. Acta Cryst. Sect. C 1988, 44, 1632–1634. [Google Scholar] [CrossRef]
  33. Krygowski, T.M.; Pindelska, E.; Cyrański, M.K.; Häfelinger, G. Planarization of 1,3,5,7-cyclooctatetraene as a result of a partial rehybridization at carbon atoms: An MP2/6-31G* and B3LYP/6-311G** study. Chem. Phys. Lett. 2002, 359, 158–162. [Google Scholar] [CrossRef]
  34. Nishinaga, T.; Ohmae, T.; Iyoda, M. Recent studies on the aromaticity and antiaromaticity of planar cyclooctatetraene. Symmetry 2010, 2, 76. [Google Scholar] [CrossRef] [Green Version]
  35. Bally, T.; Chai, S.; Neuenschwander, M.; Zhu, Z. Pentalene: Formation, electronic, and vibrational structure. J. Am. Chem. Soc. 1997, 119, 1869–1875. [Google Scholar] [CrossRef]
  36. Hafner, K.; Süss, H.U. 1,3,5-Tri-tert-butylpentalene. A stabilized planar 8π electron system. Angew. Chem. Int. Ed. Engl. 1973, 12, 575–577. [Google Scholar] [CrossRef]
  37. Carey, F.A.; Sundberg, R.J. Advanced Organic Chemistry. Part A: Structure and Mechanisms, 2nd ed.; Plenum Press: New York, NY, USA, 1984. [Google Scholar]
  38. Mosher, O.A.; Flicker, W.M.; Kuppermann, A. Triplet states in 1,3-butadiene. Chem. Phys. Lett. 1973, 19, 332–333. [Google Scholar] [CrossRef]
  39. Gordon, M. The Azulenes. Chem. Rev. 1952, 50, 127–200. [Google Scholar] [CrossRef]
  40. Schleyer, P.V.R.; Maerker, C.; Dransfeld, A.; Jiao, H.; Hommes, J.R.V.E. Nucleus-independent chemical shifts: A simple and efficient aromaticity probe. J. Am. Chem. Soc. 1996, 118, 6317–6318. [Google Scholar] [CrossRef] [PubMed]
  41. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  42. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Green Version]
  43. Vosko, S.H.; Wilk, L.; Nusair, M. Accurate spin-dependent electron liquid correlation energies for local spin density calculations: A critical analysis. Can. J. Phys. 1980, 58, 1200–1211. [Google Scholar] [CrossRef] [Green Version]
  44. Stephens, P.J.; Devlin, F.J.; Chabalowski, C.F.; Frisch, M.J. Ab initio calculation of vibrational absorption and circular dichroism spectra using density functional force fields. J. Phys. Chem. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  45. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16; Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
Molecules 25 05026 sch001 550

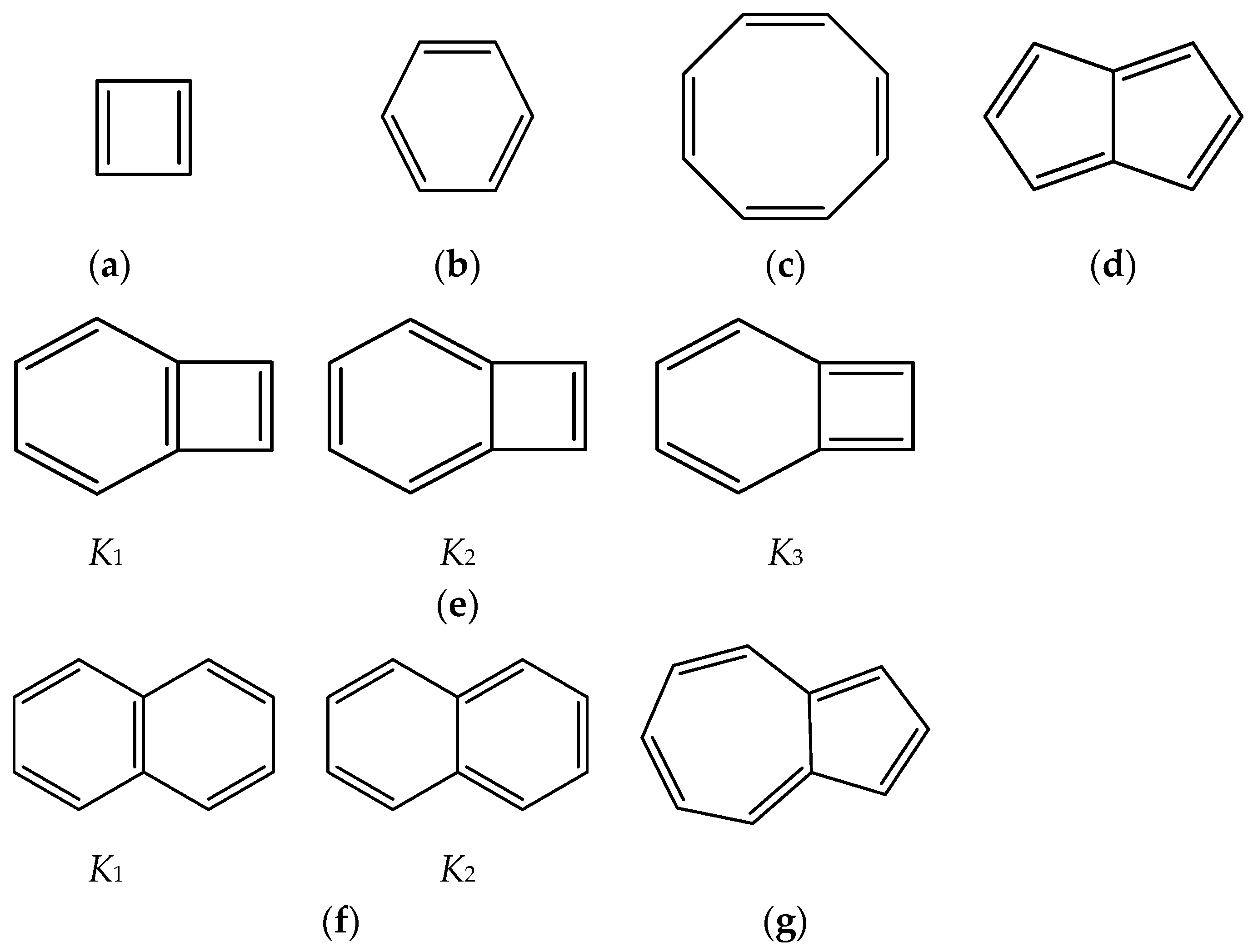

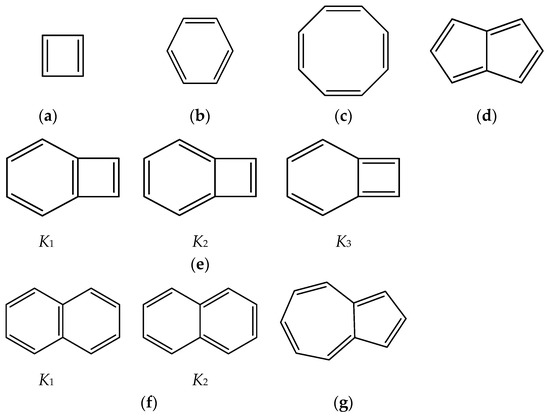

Scheme 1. Conjugated hydrocarbons included in this work. Kekulé structures Ki [25] are also included for those structures leading to different hybrid isomers on {C=C ↔ B(H2)B} substitutions. (a) cyclobutadiene, (b) benzene, (c) cyclooctatetraene, (d) pentalene, (e) benzocyclobutadiene with Kekulé structures K1, K2 and K3, (f) naphthalene with Kekulé structures K1 and K2, and (g) azulene. All systems are planar, except for cyclooctatetraene (c) with a D2d symmetry energy minimum.
Scheme 1. Conjugated hydrocarbons included in this work. Kekulé structures Ki [25] are also included for those structures leading to different hybrid isomers on {C=C ↔ B(H2)B} substitutions. (a) cyclobutadiene, (b) benzene, (c) cyclooctatetraene, (d) pentalene, (e) benzocyclobutadiene with Kekulé structures K1, K2 and K3, (f) naphthalene with Kekulé structures K1 and K2, and (g) azulene. All systems are planar, except for cyclooctatetraene (c) with a D2d symmetry energy minimum.
Molecules 25 05026 sch001
Molecules 25 05026 g001 550

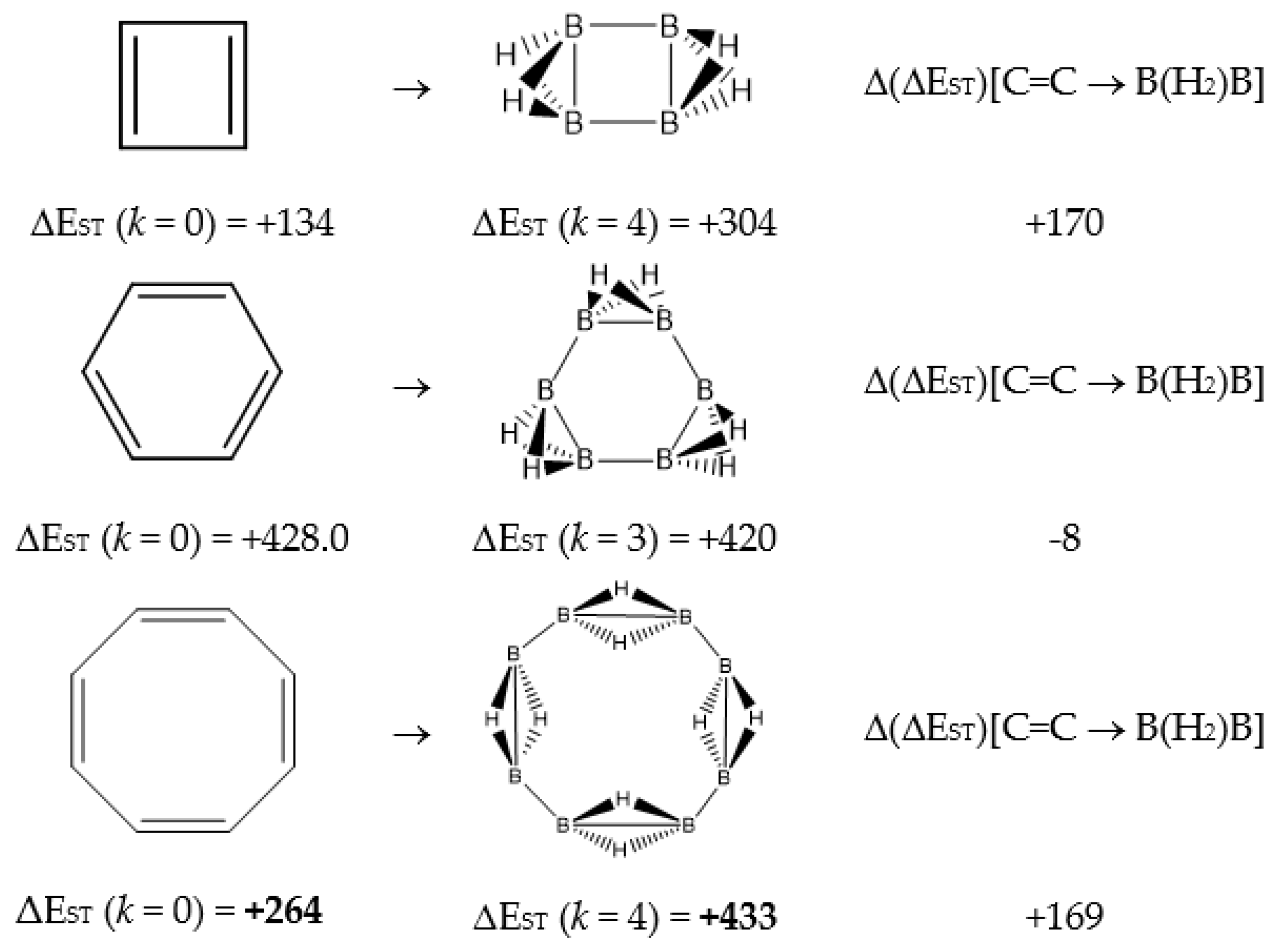

Figure 1. Singlet-triplet gap ΔEST(kJ·mol−1) for cyclobutadiene, benzene and cyclooctatetraene and the equivalent BnHm+n structures, and the differences Δ(ΔEST)[C=C → B(H2)B] = ΔEST(BnHm+n) − ΔEST(CnHm).
Figure 1. Singlet-triplet gap ΔEST(kJ·mol−1) for cyclobutadiene, benzene and cyclooctatetraene and the equivalent BnHm+n structures, and the differences Δ(ΔEST)[C=C → B(H2)B] = ΔEST(BnHm+n) − ΔEST(CnHm).
Molecules 25 05026 g001
Molecules 25 05026 g002 550

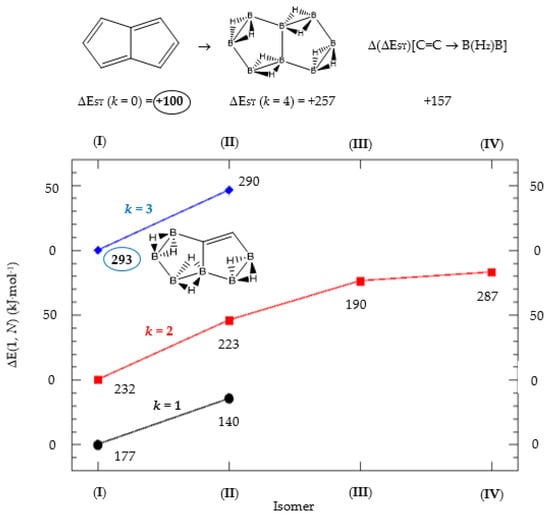

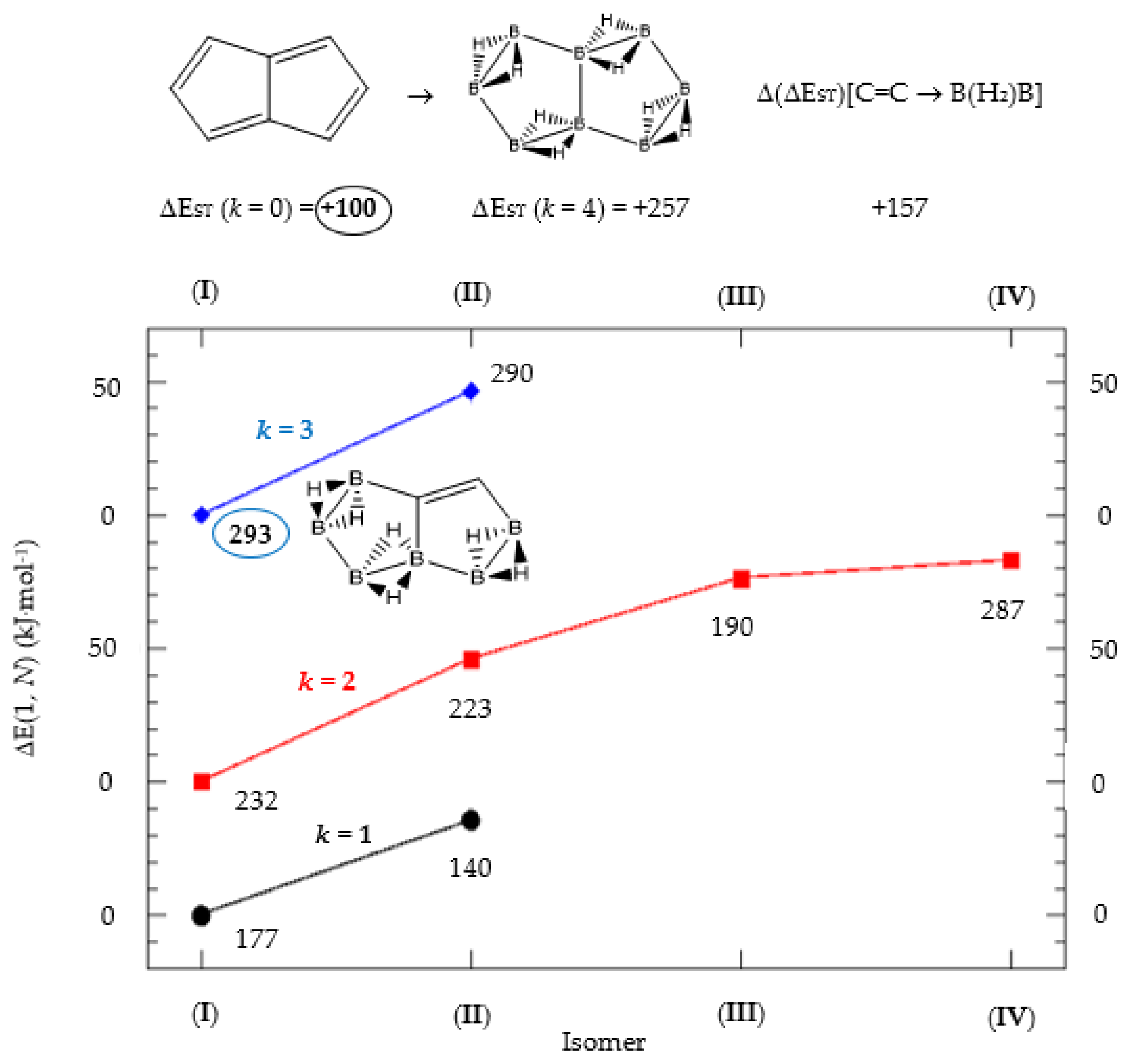

Figure 2. Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for pentalene, with ΔE(I, N) = E(Niso) − E(I). Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet energy gaps correspond to the maximum and minimum values.
Figure 2. Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for pentalene, with ΔE(I, N) = E(Niso) − E(I). Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet energy gaps correspond to the maximum and minimum values.
Molecules 25 05026 g002
Molecules 25 05026 g003a 550Molecules 25 05026 g003b 550

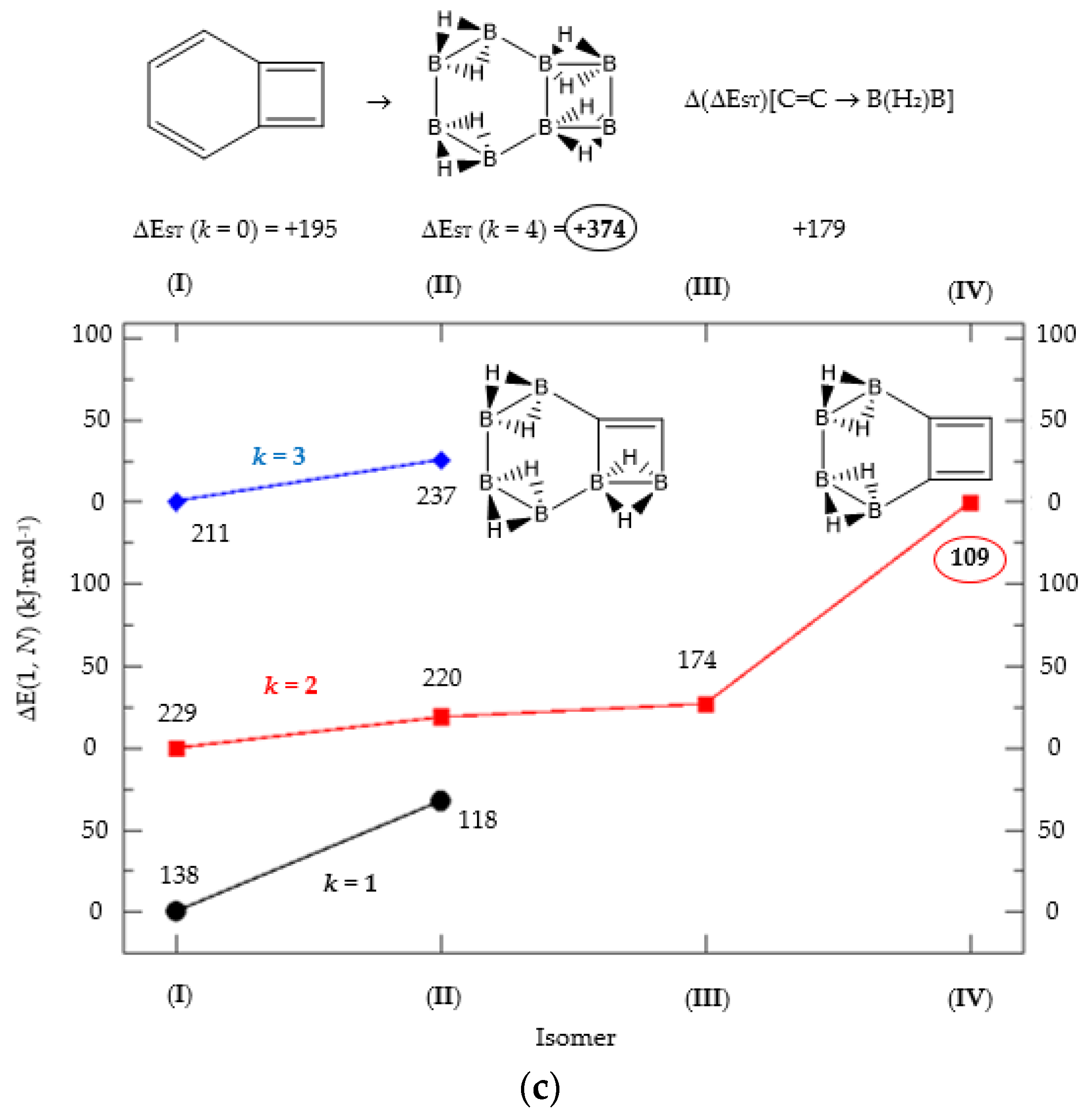

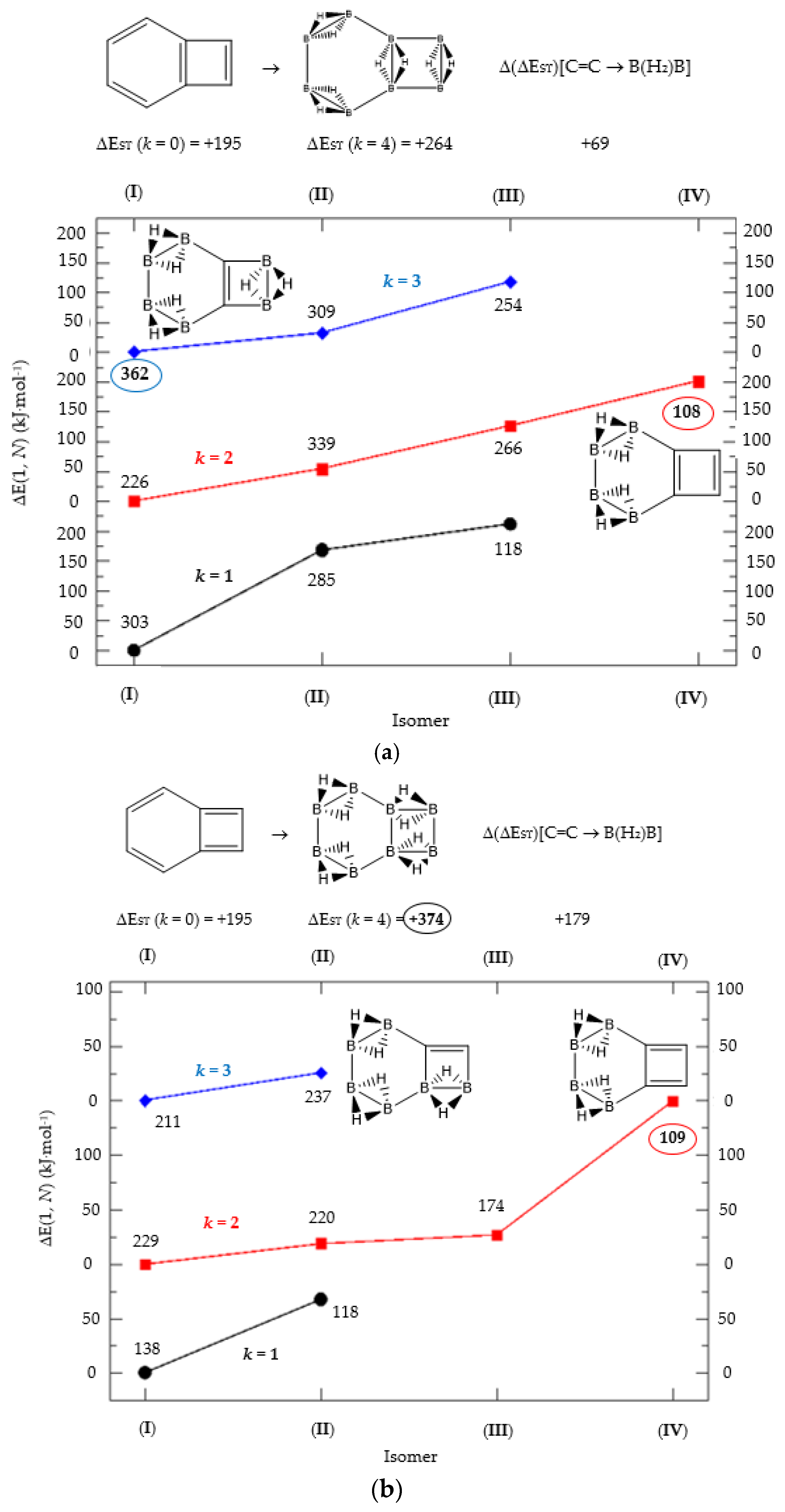

Figure 3. (a) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for benzocyclobutadiene Kekulé structure K1, with ΔE(I, Niso) = E(Niso) − E(I). (b) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for benzocyclobutadiene Kekulé structure K2. (c) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for benzocyclobutadiene Kekulé structure K3. Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet gaps correspond to the maximum and minimum values.
Figure 3. (a) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for benzocyclobutadiene Kekulé structure K1, with ΔE(I, Niso) = E(Niso) − E(I). (b) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for benzocyclobutadiene Kekulé structure K2. (c) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for benzocyclobutadiene Kekulé structure K3. Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet gaps correspond to the maximum and minimum values.
Molecules 25 05026 g003aMolecules 25 05026 g003b

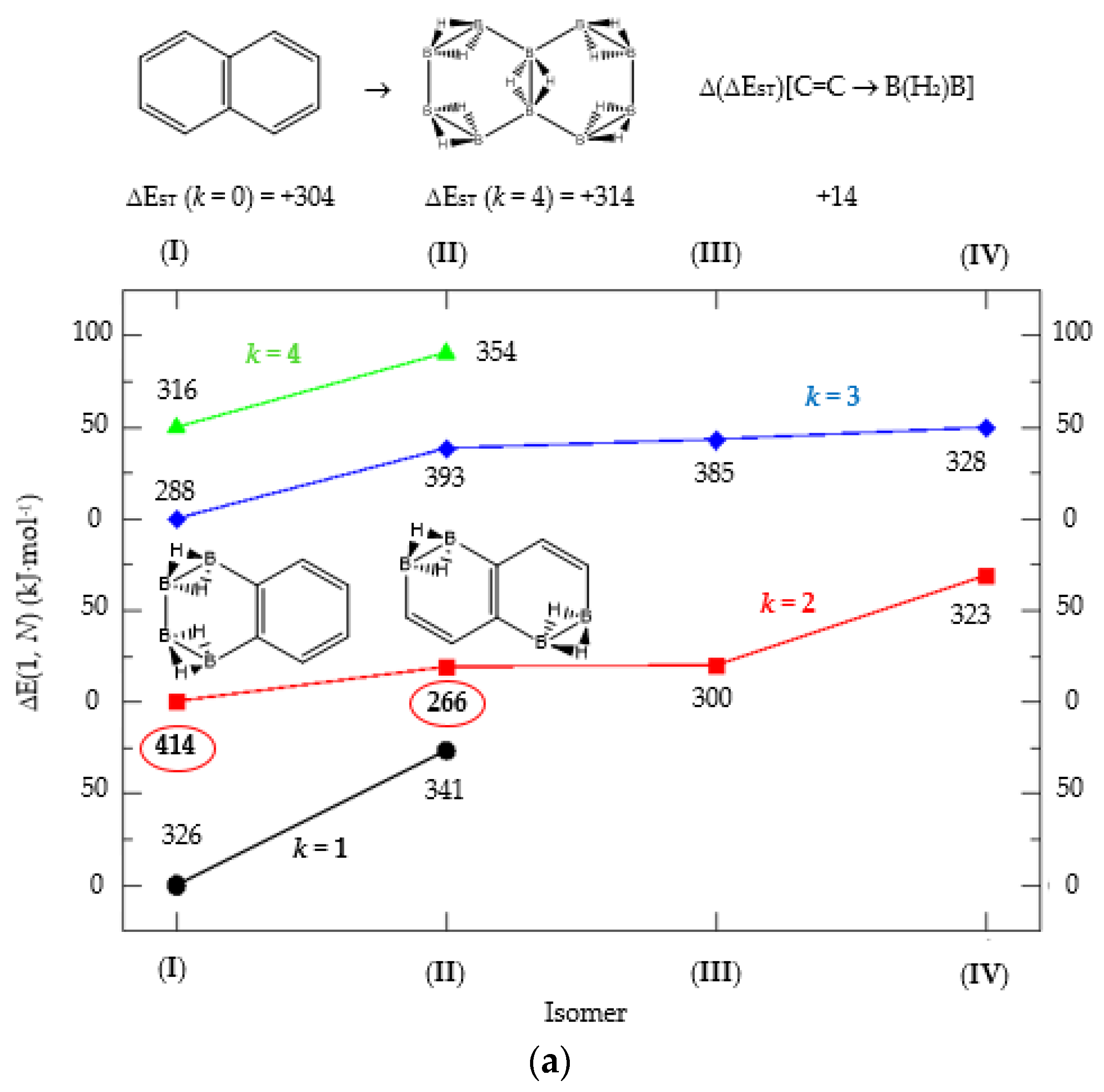

Molecules 25 05026 g004a 550Molecules 25 05026 g004b 550

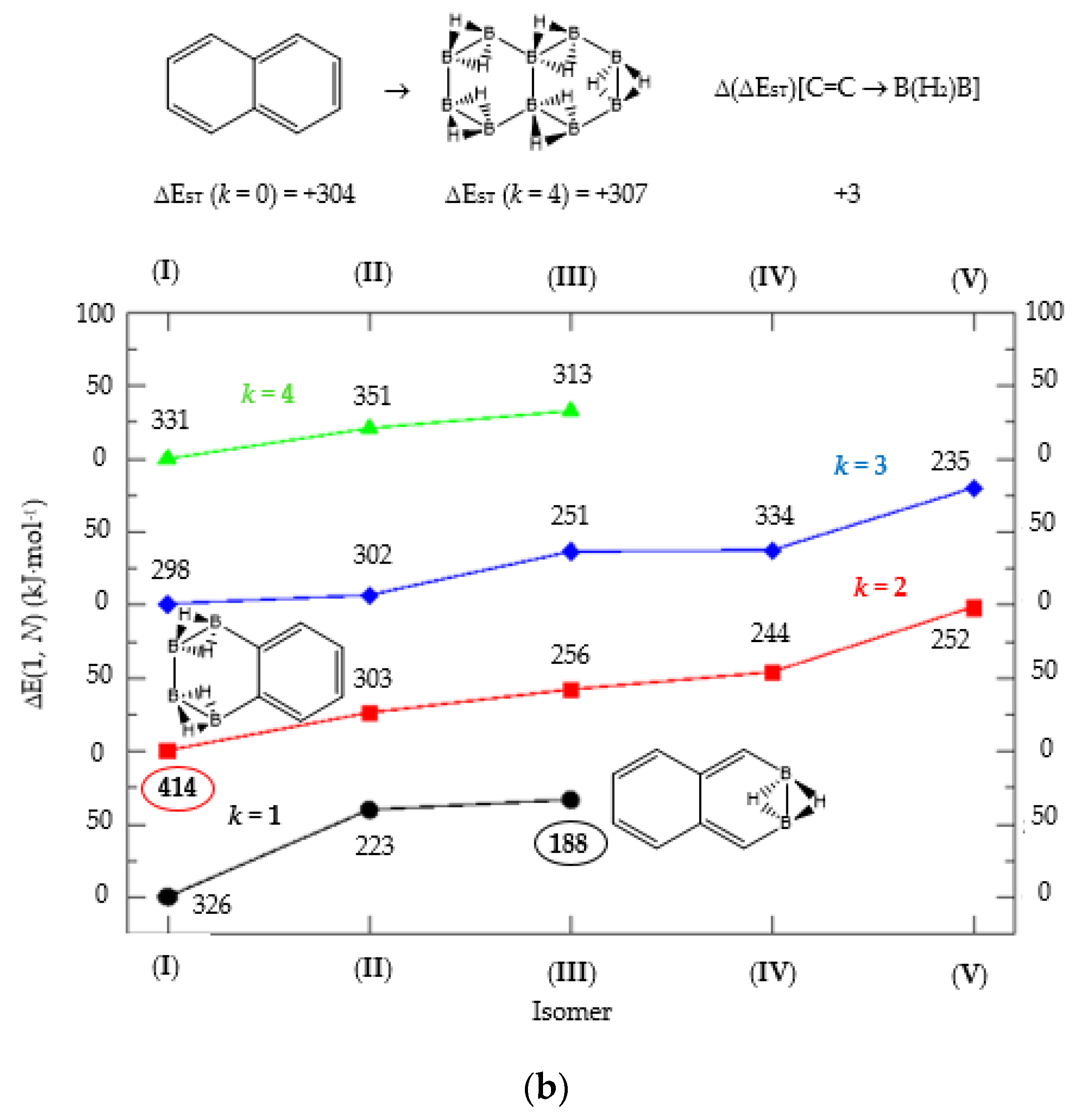

Figure 4. (a) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for naphthalene Kekulé structure K1, with ΔE(I, Niso) = E(Niso) − E(I). (b) Isomer structure vs. ΔE(1, N) (kJ·mol−1) for naphthalene Kekulé structure K2. Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet gaps correspond to the maximum and minimum values.
Figure 4. (a) Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for naphthalene Kekulé structure K1, with ΔE(I, Niso) = E(Niso) − E(I). (b) Isomer structure vs. ΔE(1, N) (kJ·mol−1) for naphthalene Kekulé structure K2. Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet gaps correspond to the maximum and minimum values.
Molecules 25 05026 g004aMolecules 25 05026 g004b
Molecules 25 05026 g005 550

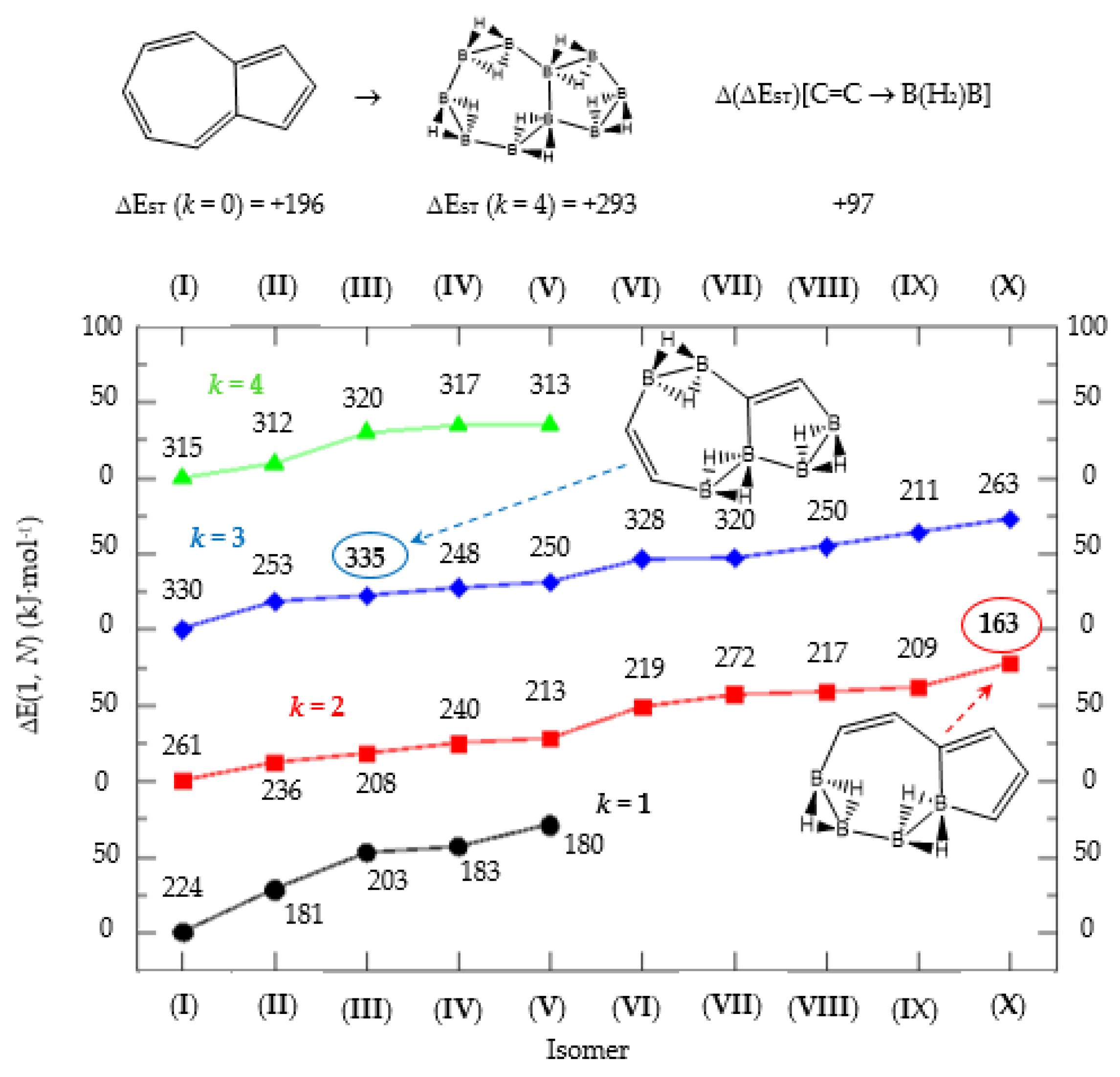

Figure 5. Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for azulene, with ΔE(I, Niso) = E(Niso) − E(I). Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet gaps correspond to the maximum and minimum values.
Figure 5. Isomer structure vs. ΔE(I, Niso) (kJ·mol−1) for azulene, with ΔE(I, Niso) = E(Niso) − E(I). Niso is the number of isomers for a given k in C(n−2k)B(2k)H(m+2k). In addition, for each structure the singlet-triplet gap is shown (kJ·mol−1). The encircled singlet-triplet gaps correspond to the maximum and minimum values.
Molecules 25 05026 g005
Molecules 25 05026 g006 550

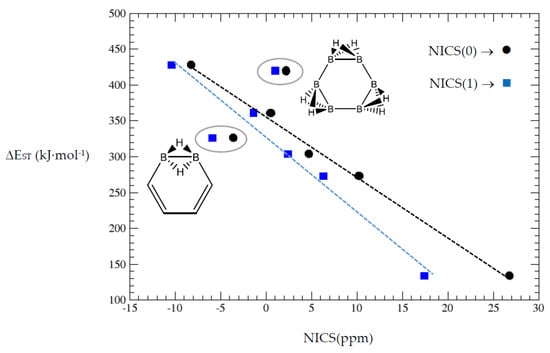

Figure 6. Singlet-triplet energy gaps vs. NICS(0) and NICS(1) for cyclobutadiene and benzene series.
Figure 6. Singlet-triplet energy gaps vs. NICS(0) and NICS(1) for cyclobutadiene and benzene series.
Molecules 25 05026 g006
Table
Table 1. Cyclobutadiene, benzene, cyclooctatetraene and the corresponding hybrids C(n−2k)B(2k)H(m+2k), with formula (k), structure, energies (B3LYP/cc-pVTZ, in au), singlet-triplet vertical energy gaps (kJ·mol−1) with the B3LYP and B97D functionals, ΔEST,B3LYP and ΔEST,B97D (italic) respectively, and point-group symmetry (PGS) in parentheses. For benzene and hybrids we also show the molecular electrostatic potential (MEP) on the 0.001 au electron density isosurface (blue and red colors indicate values V(r) > +0.015 au and V(r) < −0.015 au, respectively), and the anisotropy of the induced current density (ACID). Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity. B3LYP/cc-pVTZ computations.
Table 1. Cyclobutadiene, benzene, cyclooctatetraene and the corresponding hybrids C(n−2k)B(2k)H(m+2k), with formula (k), structure, energies (B3LYP/cc-pVTZ, in au), singlet-triplet vertical energy gaps (kJ·mol−1) with the B3LYP and B97D functionals, ΔEST,B3LYP and ΔEST,B97D (italic) respectively, and point-group symmetry (PGS) in parentheses. For benzene and hybrids we also show the molecular electrostatic potential (MEP) on the 0.001 au electron density isosurface (blue and red colors indicate values V(r) > +0.015 au and V(r) < −0.015 au, respectively), and the anisotropy of the induced current density (ACID). Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity. B3LYP/cc-pVTZ computations.
Cyclobutadiene C(4−2k)B(2k)H(4+2k)
Formula (k)C4H4 (0)C2B2H6 (1)B4H8 (2)
Structure Molecules 25 05026 i001 Molecules 25 05026 i002 Molecules 25 05026 i003
Energy−154.734983−129.488436−104.182558
ΔEST,B3LYP (PGS)133.5 (D2h)272.9 (C2v)303.6 (D2h)
ΔEST,B97D124.8265.2272.3
Benzene C(6−2k)B(2k)H(6+2k)
C6H6 (0)C4B2H8 (1)C2B4H10 (2)B6H12 (3)
Molecules 25 05026 i004 Molecules 25 05026 i005 Molecules 25 05026 i006 Molecules 25 05026 i007
Molecules 25 05026 i008 Molecules 25 05026 i009 Molecules 25 05026 i010 Molecules 25 05026 i011
Molecules 25 05026 i012 Molecules 25 05026 i013 Molecules 25 05026 i014 Molecules 25 05026 i015
−232.333368−206.929239−181.596841−156.324833
428.0 (D6h)325.9 (C2v)361.2 (C2v)419.8 (D3h)
414.4312.9353.1373.2
Cyclooctatetraene C(8−2k)B(2k)H(8+2k)
C8H8 (0)C6B2H10 (1)C4B4H12 (2)C2B6H14 (3)B8H16 (4)
Molecules 25 05026 i016 Molecules 25 05026 i017 Molecules 25 05026 i018 Molecules 25 05026 i019 Molecules 25 05026 i020
−309.697808−284.398420−259.096253−233.769903−208.442935
264.4 (D2d)312.2 (Cs)(I) 377.1 (C2v)375.3 (Cs)433.1 (D2d)
234.3284.1344.2364.4381.0
Molecules 25 05026 i021
−259.084995
(II) 355.7 (C2)
332.9
Table
Table 2. Pentalene and the corresponding hybrids C(8−2k)B(2k)H(6+2k), with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity. B3LYP/cc-pVTZ computations.
Table 2. Pentalene and the corresponding hybrids C(8−2k)B(2k)H(6+2k), with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity. B3LYP/cc-pVTZ computations.
Pentalene C(8−2k)B(2k)H(6+2k)
C8H6 (0)C6B2H8 (1)C4B4H10 (2)C2B6H12 (3)B8H14 (4)
Molecules 25 05026 i022 Molecules 25 05026 i023 Molecules 25 05026 i024 Molecules 25 05026 i025 Molecules 25 05026 i026
−308.476075−283.193095−257.898516−232.562207−207.215121
100.1 (C2h)(I) 176.7 (Cs)(I) 232.3 (C2h)(I) 292.9 (Cs)257.3 (C2h)
Molecules 25 05026 i027 Molecules 25 05026 i028 Molecules 25 05026 i029
−283.179450−257.881067−232.544645
(II) 140.2 (Cs)(II) 222.5 (Cs)(II) 290.4 (Cs)
Molecules 25 05026 i030
−257.869529
(III) 189.9 (Cs)
Molecules 25 05026 i031
−257.866865
(IV) 286.8 (C2h)
Table
Table 3. a. Benzocyclobutadiene Kekulé structures K1 and the corresponding hybrid boranes, with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. b. Kekulé structures K2. c. Kekulé structures K3. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. B3LYP/cc-pVTZ computations. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity.
Table 3. a. Benzocyclobutadiene Kekulé structures K1 and the corresponding hybrid boranes, with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. b. Kekulé structures K2. c. Kekulé structures K3. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. B3LYP/cc-pVTZ computations. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity.
(a)
Benzocyclobutadiene Kekulé Structure K1: C(8−2k)B(2k)H(6+2k)
C8H6 (0)C6B2H8 (1)C4B4H10 (2)C2B6H12 (3)B8H14 (4)
Molecules 25 05026 i032 Molecules 25 05026 i033 Molecules 25 05026 i034 Molecules 25 05026 i035 Molecules 25 05026 i036
−308.466884−283.206069−257.868229−232.534049−207.187765
195.3 (C2v)(I) 303.0 (C2v)(I) 225.8 (Cs)(I) 361.7 (C2v)264.0 (C2v)
Molecules 25 05026 i037 Molecules 25 05026 i038 Molecules 25 05026 i039
−283.141948−257.847770−232.521784
(II) 285.1 (C2v)(II) 338.7 (C2v) (II) 308.5 (Cs)
Molecules 25 05026 i040 Molecules 25 05026 i041 Molecules 25 05026 i042
−283.125618−257.820144−232.488989
(III) 117.7 (Cs)(III) 265.9 (Cs)(III) 254.3 (C2v)
Molecules 25 05026 i043
−257.791707
(IV) 108.4 (C2v)
(b)
Benzocyclobutadiene Kekulé Structure K2: C(8−2k)B(2k)H(6+2k)
C6H6 (0)C6B2H8 (1)C4B4H10 (2)C2B6H12 (3)B6H14 (4)
Molecules 25 05026 i044 Molecules 25 05026 i045 Molecules 25 05026 i046 Molecules 25 05026 i047 Molecules 25 05026 i048
−308.466884−283.206069−257.880840−232.542344−207.194531
195.3 (C2v)(I) C2v 302.9 = (I) in K1(I) C2v 367.5(I) Cs 342.3C2v 310.3
Molecules 25 05026 i049 Molecules 25 05026 i050 Molecules 25 05026 i051
−283.162243−257.869238−232.529224
(II) C2v 267.2(II) Cs 280.1(II) C2v 323.8
Molecules 25 05026 i052 Molecules 25 05026 i053 Molecules 25 05026 i054
−283.161645−257.848002−232.517824
(III) Cs 220.2(III) Cs 280.4(III) C2v 348.8
Molecules 25 05026 i055
−257.842989
(IV) C2v 328.5
(c)
Benzocyclobutadiene Kekulé Structure K3: C(8−2k)B(2k)H(6+2k)
C8H6 (0)C6B2H8 (1)C4B4H10 (2)C2B6H12 (3)B6H14 (4)
Molecules 25 05026 i056 Molecules 25 05026 i057 Molecules 25 05026 i058 Molecules 25 05026 i059 Molecules 25 05026 i060
−308.466884−283.151132−257.848644−232.527701−207.196234
195.3 (C2v)(I) 137.7 (Cs)(I) 229.1 (Cs)(I) 210.9 (Cs)374.0 (C2v)
Molecules 25 05026 i061 Molecules 25 05026 i062 Molecules 25 05026 i063
−283.125618−257.841430−232.517894
(II) 117.6 (Cs)(II) 219.6 (C2v)(II) 237.0 (Cs)
Molecules 25 05026 i064
−257.838383
(III) 173.8 (Cs)
Molecules 25 05026 i065
−257.791707
(IV) 108.5 (C2v)
Table
Table 4. a. Naphthalene Kekulé structures K1 and the corresponding hybrid boranes, with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. b. Kekulé structures K2. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. B3LYP/cc-pVTZ computations. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity.
Table 4. a. Naphthalene Kekulé structures K1 and the corresponding hybrid boranes, with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. b. Kekulé structures K2. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. B3LYP/cc-pVTZ computations. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity.
(a)
Naphthalene Kekulé Structure K1: C(10−2k)B(2k)H(8+2k)
C10H8 (0)C8B2H10 (1)C6B4H12 (2)C4B6H14 (3)C2B8H16 (4)B10H18 (5)
Molecules 25 05026 i066 Molecules 25 05026 i067 Molecules 25 05026 i068 Molecules 25 05026 i069 Molecules 25 05026 i070 Molecules 25 05026 i071
−386.025545−360.701217−335.372607−310.030119−284.691550−259.335521
304.3 (D2h)(I) 325.9 (Cs)(I) 414.4 (C2v)(I) 287.8 (Cs)(I) 316.1 (D2h)313.6 (D2h)
Molecules 25 05026 i072 Molecules 25 05026 i073 Molecules 25 05026 i074 Molecules 25 05026 i075
−360.673209−335.365370−310.015638−284.676167
(II) 340.7 (D2h)(II) 266.4 (C2h)(II) 393.0 (C2v)(II) 353.7 (Cs)
Molecules 25 05026 i076 Molecules 25 05026 i077
−335.364766−310.013813
(III) 300.4 (C2v)(III) 385.0 (C2h)
Molecules 25 05026 i078 Molecules 25 05026 i079
−335.346472−310.011145
(IV) 322.7 (Cs)(IV) 327.6 (C2v)
(b)
Naphthalene Kekulé Structure K2: C(10−2k)B(2k)H(8+2k)
C8B2H10 (1)C6B4H12 (2)C4B6H14 (3)C2B8H16 (4)B10H18 (5)
Molecules 25 05026 i080 Molecules 25 05026 i081 Molecules 25 05026 i082 Molecules 25 05026 i083 Molecules 25 05026 i084
−360.701217−335.372607−310.028387−284.687476−259.338265
(I) 325.9 (Cs)
= (I) in K1		(I) 414.4 (C2v)
= (I) in K1		(I) 297.5 (C2v)(I) 331.2 (Cs)307.0 (C2v)
Molecules 25 05026 i085 Molecules 25 05026 i086 Molecules 25 05026 i087 Molecules 25 05026 i088
−360.678565−335.362684−310.025977−284.679641
(II) 223.1 (Cs)(II) Cs 303.3(II) 301.6 (Cs)(II) C2v 351.0
Molecules 25 05026 i089 Molecules 25 05026 i090 Molecules 25 05026 i091 Molecules 25 05026 i092
−360.675945−335.356631−310.014490−284.675123
(III) C2v 187.8(III) 256.1 (Cs)(III) Cs 251.0(III) 313.2 (Cs)
Molecules 25 05026 i093 Molecules 25 05026 i094
−335.352046−310.014211
(IV) 244.0 (Cs)(IV) 333.7 (Cs)
Molecules 25 05026 i095 Molecules 25 05026 i096
−335.335292−309.998099
(V) C2v 252.3(V) C2v 234.9
Table
Table 5. Azulene the corresponding hybrid boranes, with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. B3LYP/cc-pVTZ computations. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity. All structures and isomers have Cs symmetry except azulene C10H8 and the equivalent boron structure B10H18 both with C2v symmetry.
Table 5. Azulene the corresponding hybrid boranes, with formula (k), structure, energies (au), singlet-triplet vertical energy gaps ΔEST (kJ·mol−1) and point-group symmetry (PGS) in parentheses. Different isomers of a given structure are labelled as {(I), (II), …} and ordered in increasing energy. B3LYP/cc-pVTZ computations. All geometries correspond to energy minima. In-plane exo hydrogen atoms bound to carbon and boron not shown for clarity. All structures and isomers have Cs symmetry except azulene C10H8 and the equivalent boron structure B10H18 both with C2v symmetry.
Azulene C(10−2k)B(2k)H(8+2k)
C10H8 (0)C8B2H10 (1)C6B4H12 (2)C4B6H14 (3)
Molecules 25 05026 i097 Molecules 25 05026 i098 Molecules 25 05026 i099 Molecules 25 05026 i100
−385.971486−360.664485−335.342898−310.017400
196.3 (C2v)(I) 224.4 (Cs)(I) 260.7 (Cs)(I) 329.9 (Cs)
Molecules 25 05026 i101 Molecules 25 05026 i102 Molecules 25 05026 i103
−360.653691−335.338375−310.010310
(II) 180.5 (Cs)(II) 235.9 (Cs)(II) 252.5 (Cs)
Molecules 25 05026 i104 Molecules 25 05026 i105 Molecules 25 05026 i106
−360.644455 −335.335924−310.009032
(III) 203.1 (Cs)(III) 207.6 (Cs)(III) 335.1 (Cs)
Molecules 25 05026 i107 Molecules 25 05026 i108 Molecules 25 05026 i109
−360.643019−335.333474−310.006879
(IV) 183.3 (Cs)(IV) 239.7 (Cs)(IV) 248.1 (Cs)
Molecules 25 05026 i110 Molecules 25 05026 i111 Molecules 25 05026 i112
−360.637439−335.332218−310.005650
(V) 179.7 (Cs)(V) 212.6 (Cs)(V) 250.4 (Cs)
Azulene C(10−2k)B(2k)H(8+2k)
C6B4H12 (2)C4B6H14 (3)
Molecules 25 05026 i113 Molecules 25 05026 i114
−335.324248−309.999674
(VI) 219.3 (Cs)(VI) 327.6 (Cs)
Molecules 25 05026 i115 Molecules 25 05026 i116
−335.321141−309.999405
(VII) 272.0 (Cs)(VII) 319.5 (Cs)
Molecules 25 05026 i117 Molecules 25 05026 i118
−335.320601−309.996626
(VIII) 217.0 (Cs)(VIII) 249.8 (Cs)
Molecules 25 05026 i119 Molecules 25 05026 i120
−335.319266−309.992937
(IX) 208.9 (Cs)(IX) 210.9 (Cs)
Molecules 25 05026 i121 Molecules 25 05026 i122
−335.313370−309.989768
(X) 163.1 (Cs)(X) 262.6 (Cs)
Azulene C(10−2k)B(2k)H(8+2k)
C2B8H16 (4)B10H18 (5)
Molecules 25 05026 i123 Molecules 25 05026 i124
−284.679284−259.332171
(I) 315.4 (Cs)(I) 293.3 (Cs)
Molecules 25 05026 i125
−284.675773
(II) 311.6 (Cs)
Molecules 25 05026 i126
−284.667945
(III) 320.1 (Cs)
Molecules 25 05026 i127
−284.666066
(IV) 317.1 (Cs)
Molecules 25 05026 i128
−284.666006
(V) 313.2 (Cs)
Table
Table 6. Geometrical distances (Å) in optimised geometries of C(n−2k)B(2k)H(m+2k) systems for cyclobutadiene, benzene and cyclooctatetraene: d(C-C), d(C=C), d(C-H), d(B-B), d(B(Hb)2B)b, d(B-H), and d(Hb-Hb). Hb corresponds to a bridge hydrogen atom, i.e., diborane(6) can be drawn as H2B(Hb)2BH2. The first and second (italic) value for each distance corresponds respectively to B3LYP/cc-pVTZ and B97D/cc-pVTZ computations, the latter with a functional including dispersion corrections.
Table 6. Geometrical distances (Å) in optimised geometries of C(n−2k)B(2k)H(m+2k) systems for cyclobutadiene, benzene and cyclooctatetraene: d(C-C), d(C=C), d(C-H), d(B-B), d(B(Hb)2B)b, d(B-H), and d(Hb-Hb). Hb corresponds to a bridge hydrogen atom, i.e., diborane(6) can be drawn as H2B(Hb)2BH2. The first and second (italic) value for each distance corresponds respectively to B3LYP/cc-pVTZ and B97D/cc-pVTZ computations, the latter with a functional including dispersion corrections.
d(C-C)d(C=C)d(C-H)d(B-B)d(B(Hb)2B)d(B-H)d(Hb-Hb)
Ethylene---1.3241.083------------
1.3321.089
Diborane(6)--------- 1.7581.1851.948
1.7771.1951.973
Cyclobutadiene (k)d(C-C)d(C=C)d(C-H)d(B-B)d(B(Hb)2B)d(B-H)d(Hb-Hb)
C4H4 (0)1.5751.3291.079------------
1.5821.3371.085
C2B2H6 (1)---1.3381.083---1.7411.1851.858
1.3471.091.7491.1941.886
B4H8 (2)---------1.7281.761.1891.856
1.7391.7711.1991.883
Benzene (k)d(C-C)d(C=C)d(C-H)d(B-B)d(B(Hb)2B)d(B-H)d(Hb-Hb)
C6H6 (0)1.3911.3911.082------------
1.3991.3991.087
C4B2H8 (1)1.4391.3591.085---1.7991.1861.926
1.4421.3691.091.8231.1961.951
C2B4H10 (2)---1.351.0881.6951.7891.1881.926
1.3591.0941.7081.8121.1981.952
B6H12 (3)---------1.7131.7931.191.923
1.7241.8121.21.948
Cyclooctatetraene (k)d(C-C)d(C=C)d(C-H)d(B-B)d(B(Hb)2B)d(B-H)d(Hb-Hb)
C8H8 (0)1.4691.3351.087------------
1.4711.3431.092
C6B2H10 (1)1.471.3381.088---1.771.1911.944
1.4711.3471.0931.7881.2021.972
C4B4H12 (2) (I)---1.3411.09---1.7851.191.94
1.3491.0961.8041.2021.966
C4B4H12 (2) (II)1.4751.341.0891.6941.7761.1911.941
1.4761.3481.0951.7061.7911.2021.969
C2B6H14 (3)---1.3431.0911.6961.7771.1911.938
1.3511.0961.7061.7961.2021.964
B8H16 (4)---------1.6981.7861.1911.934
1.7081.81.2021.96
Table
Table 7. NICS(0) and NICS(1), in ppm for cyclobutadiene and benzene and the corresponding hybrids.
Table 7. NICS(0) and NICS(1), in ppm for cyclobutadiene and benzene and the corresponding hybrids.
CyclobutadieneNICS(0)NICS(1)BenzeneNICS(0)NICS(1)
Molecules 25 05026 i12926.817.4 Molecules 25 05026 i130−8.2−10.4
Molecules 25 05026 i13110.26.3 Molecules 25 05026 i132−3.6 −5.9
Molecules 25 05026 i1334.72.4 Molecules 25 05026 i1340.5−1.4
Molecules 25 05026 i1352.21.0
Sample Availability: Samples of the compounds are not available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Oliva-Enrich, J.M.; Alkorta, I.; Elguero, J. Hybrid Boron-Carbon Chemistry. Molecules 2020, 25, 5026. https://doi.org/10.3390/molecules25215026

AMA Style

Oliva-Enrich JM, Alkorta I, Elguero J. Hybrid Boron-Carbon Chemistry. Molecules. 2020; 25(21):5026. https://doi.org/10.3390/molecules25215026

Chicago/Turabian Style

Oliva-Enrich, Josep M., Ibon Alkorta, and José Elguero. 2020. "Hybrid Boron-Carbon Chemistry" Molecules 25, no. 21: 5026. https://doi.org/10.3390/molecules25215026

Article Metrics

Back to TopTop
