A Highly Water-Soluble and Solid State Emissive 1,8-Naphthalimide as a Fluorescent PET Probe for Determination of pHs, Acid/Base Vapors, and Water Content in Organic Solvents

by
Nikolai I. Georgiev
*,
Paoleta V. Krasteva
,
Ventsislav V. Bakov
and
Vladimir B. Bojinov
*
Department of Organic Synthesis, University of Chemical Technology and Metallurgy, 8 Kliment Ohridsky Str., 1756 Sofia, Bulgaria
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(13), 4229; https://doi.org/10.3390/molecules27134229
Submission received: 13 June 2022 / Revised: 24 June 2022 / Accepted: 28 June 2022 / Published: 30 June 2022
(This article belongs to the Special Issue Stimuli-Responsive Chromophores and Luminophores)
Browse Figures
Review Reports Versions Notes

Abstract

:
A new highly water-soluble 1,8-naphthalimide fluorophore designed on the “fluorophore-spacer-receptor1-receptor2” model has been synthesized. Due to the unusually high solubility in water, the novel compound proved to be a selective PET-based probe for the determination of pHs in aqueous solutions and rapid detection of water content in organic solvents. Based on the pH dependence of the probe and its high water solubility, the INH logic gate was achieved using NaOH and water as chemical inputs, where NaOH is the disabler and the water is an enabler. In addition, the probe showed effective fluorescence “off-on” reversibility on glass support after exposure to acid and base vapors, which defines it as a promising platform for rapid detection of acid/base vapors in the solid-state, thus extending the molecular sensing concept from solution to the solid support.

1. Introduction

In the past years, the development of fluorescent sensors and fluorescent sensing materials has been a topic of research in chemistry [1,2,3,4,5]. The fluorescence signaling output attracts due to several advantages such as cheap equipment with high sensitivity, immediate response, harmless and non-invasiveness suitable for real-time bioimaging and diagnostic medicine [6,7,8,9,10,11]. Consequently, major attention has been focused on the design and synthesis of fluorescent probes for a variety of analytes [12,13,14,15]. The used approaches were based on intramolecular charge transfer (ICT), photoinduced electron transfer (PET), twisted intramolecular charge transfer (TICT), fluorescence resonance energy transfer (FRET), excited-state intramolecular proton transfer (ESIPT), and aggregation-induced emission [16,17,18,19,20,21,22,23,24]. Notably, the PET using the “fluorophore-spacer-receptor” format was recognized as the most popular platform for the design of fluorescence chemosensing probes [25,26,27,28]. This model was distinguished by simple construction and easier and predictable communication between the receptor (recognition part) and the fluorophore (signaling part). As a result, the PET process was recently tested extensively in the most common fluorophores and a large number of PET-based probes were reported. In addition, the PET process and the “fluorophore-spacer-receptor” format were involved even in the more complicated molecular logic devices for multicomponent analysis [29,30,31,32]. However, the synthesis of PET chemosensing probes with improved properties and better applicability is still a major task.
Generally, the organic fluorescent probes are well soluble in organic solvents and practically are insoluble in water. At the same time, the chemical analysis in the solution is mostly performed in water. Additionally, water-soluble probes were preferred for real-time monitoring of living objects due to their lower toxicity and higher biocompatibility. That is why in the last years, more and more attention has been paid to the design and synthesis of fluorescent probes with higher water solubility [33,34,35,36,37].
Herein we are reporting on a highly water-soluble probe based on 1,8-naphthalimide fluorophore (Scheme 1). This work is an extension of our previous report, where two amidoamine containing 1,8-naphthalimides with water solubility in a concentration of 10−5 mol/L was described [38]. In contrast, the novel compound showed higher water solubility resulting in stable water solutions even at concentrations 10−2 mol/L. Furthermore, due to the unusual solubility in water, the synthesized 1,8-naphthalimide was successfully applied as a PET sensing probe for the detection of water content in organic solvents.
The rapid detection of water in organic solvents is very important in large areas such as industrial production, food processing, and biomedical and environmental monitoring [39,40,41,42]. Nevertheless, the PET probes for water content are unusual and rare [43,44,45]. Hence, the synthesis of PET fluorescent probes for water content currently could be of great interest. In addition, the novel compound showed PET fluorescence sensing properties in a solid-state toward acid/base vapors. Extending the molecular sensing concept from solution to solid support currently is a major task, which opens possibilities in new directions and practical applications [46,47,48]. However, only a few PET sensing compounds were reported as solid-state emissive probes [49,50]. That is why we believe that the present work should be of theoretical and practical significance in PET chemosensing studies for the development of novel, simple, and low-cost PET-based sensors for rapid detection of pH, acid/base vapors, and water content in organic solvents.

2. Results and Discussion

2.1. Design and Synthesis

The novel probe 4 was designed on a classic “fluorophore-spacer-receptor” model, as the methylpiperazine unit containing two electron-rich amino groups is the receptor and the 1,8-naphthalimide unit is the fluorophore. The introduction of amines in the N-position of the 1,8-naphthaimides significantly increases their hydrophilicity [51,52,53]. That is why to obtain a water-soluble compound, the piperazine receptor in compound 4 was bound to the N-position of the fluorophore. We chose an unsubstituted 1,8-naphthaimide unit instead of the commonly used 4-amino or 4-oxy substituted one due to the push-pull ICT nature of the 1,8-naphthaimide derivatives. It is well known that in the 1,8-naphthaimide exited state occurs charge transfer from the C-4 electron-donating position to the carbonyl electron-accepting groups that generate an electron-rich field around the imide [54,55]. The strong repulsive character of the resulted field seriously restricts the PET process from N-position to the fluorophore in the electron-rich architecture such as 4-amino-1,8-naphthalimides [56,57,58]. This effect was reduced in the unsubstituted electron poorer derivatives that generated a weaker repulsive field around the imide cycle of the fluorophore [59].
The synthesis of the PET-based 1,8-naphthalimide probe 4 is illustrated in Scheme 2. It was performed in three steps using 1,8-naphthalic anhydride as a starting material. In the first step, equimolar amounts of hydrazine monohydrate and 1,8-naphthalic anhydride were condensed in a methanol solution. Then the so-prepared N-amino-1,8-naphthalimide 2 was reacted with chloroacetyl chloride at 70 °C in dioxane for 3 h to afford intermediate 3. In the last step, the desired compound 4 was obtained after a nucleophilic substitution of the chlorine in the intermediate 3 with a methylpiperazine moiety. The reaction was performed in boiling DMF for 2.5 h.

2.2. Chemosensing Properties in Aqueous Solution

2.2.1. pH Sensing Properties

The synthesized probe 4 showed unusually high water solubility for the 1,8-naphthalimide derivatives. It was found that clear and stable probe solutions are formed even at a concentration of 5 × 10−2 mol/L. This encouraged us to investigate the photophysical behavior of the probe in a pure water solution. Due to the ICT nature of the 1,8-naphthalimide unit, compound 4 showed absorption long-wavelength band from 290 nm to 380 nm with maximal intensity at 344 nm (Figure 1) and fluorescence signaling output in the range between 350 nm and 480 nm with a maximum at 397 nm (Figure 2) [38,53]. The observed absorption spectra were pH-independent, which is illustrated in Figure 1, where the absorption spectra of probe 4 at pH 3, pH 7, and pH 11 are depicted as an example. In contrast to the absorption spectra, high pH-dependent fluorescence intensity was observed in the corresponding fluorescent spectra. This behavior was expected and attributed to the PET phenomenon, which occurs only in the excited state and does not affect the fluorophore ground state, respectively, its absorption spectra.
Because of the PET process from the electron-rich piperazine amines to the excited state of the 1,8-naphthalimide unit, the fluorescence emission of compound 4 was completely quenched in an alkaline media. Upon protonation of the piperazine amines in an acid media, the fluorescence quenching PET was impossible, and compound 4 showed bright fluorescence. Owing to the stepwise protonation of both piperazine amines, the observed pH titration plot of probe 4 consisted of two S-shaped curves (Inset of Figure 2).
According to the titration plot in Figure 2, the first piperazine amine protonation occurred in a pH window of 12–7.7, that logically could be attributed to the quaternization of the methylamino group possessing electron-donating methyl fragment (Scheme 3).
From the obtained curve, a pKa value of 9.09 for the first protonation of probe 4 was calculated using Hendersen–Hasselbalch Equation (1) [60]. This value is consistent with the reported tertiary alkylamine pKa values.
pH = p K a + log I m a x − I I − I m i n
where Imax and Imin are the maximum and minimum fluorescence intensity, respectively, and I is the fluorescence intensity at the corresponding pH value.
Furthermore, Figure 2 reveals a second quaternization process in the piperazine moiety of probe 4 occurring in a pH window of 7.7–3, which analysis according to Equation (1) gives pKa = 7.33. This pKa value is slightly lower than the usual values for tertiary alkylamines and could be attributed to the protonation of the methylene-bound amine in 4. The methylene amine in 4 is connected with the electron-withdrawing amide that decreased the electron density around neighboring groups and increased their acidity.
The influence of the most common cations and anions on the fluorescence output of the novel probe 4, such as Co2+, Cu2+, Fe3+, Ni2+, Pb2+, Cd2+, Zn2+, Hg2+, Cl−, NO3−, SO42−, HSO4−, CO32−, CH3COO−, Br−, NO2−, SO32−, PO43−, and F− were also tested as potential analytes. The study was performed at pH 4.5, pH 7.3, pH 8, and pH 10. However, in all cases, the tested ions (10−4 mol/L) caused only a minor quenching of the probe’s fluorescence intensity. This observation shows that the examined compound 4 could be used as a selective probe for the determination of pHs in aqueous solutions.

2.2.2. Detection of Water Content in Organic Solvents

The pKa values of the tertiary alkyl amines are usually about pKa ≈ 9 [61,62,63]. At the same time, under normal conditions, the water pHs are in a range of pH 6~pH 8, which allows protonation of the classical PET alkylamino receptors. This statement makes the PET sensors a promising platform for the design of fluorescent probes for the detection of water content in organic solvents. However, most PET probes are water-insoluble, which results in a mixed signaling output—fluorescent enhancement due to the prevention of the PET process and fluorescent quenching due to the aggregation caused by quenching. That is why the reports of PET probes for the detection of water content in organic solvents are very rare and unusual. The recent research progress in PET sensors is limited to a few number of probes for the detection of water content in organic solvents using amino acids as a receptor fragment [64,65,66].
Similarly, the synthesized compound 4 is highly water-soluble and possesses a PET receptor containing both an amino group and an acid fragment (acid amide). This encouraged us to investigate the ability of probe 4 to detect water content in organic solvents. For this purpose, the fluorescent spectra of 4 were recorded in dry ethanol and mixtures of ethanol/water (Figure 3A). As can be seen from Figure 3, the fluorescent intensity of probe 4 increased gradually with the increase in water content in the solutions under study. This is due to both the changes in pH and the microenvironment around the fluorophore. Since the main effect is pH, which is well defined only in pure water, the solution pH value is strongly dependent on the water content in the organic solvent. From the fluorescent changes at 390 nm, a calibration plot was constructed, which showed a linear range from 4% to 40% of water content (Figure 3B). Based on the linear calibration plot, the limit of detection LOD = 3% was calculated using the equation LOD = 3 σ/b, where b is the slope and σ is the standard deviation of 10 measurements in the dry solvent [67].

2.2.3. Molecular Logic

To confirm our statement that the observed fluorescence enhancement of probe 4 in the presence of water was due to a blocked PET process after protonation of the tertiary alkyl amines in the probes PET receptor fragment, the fluorescence spectra of probe 4 were investigated in mixtures of ethanol and water containing 10−6 mol/L NaOH or NH3. As we expected, a fluorescent enhancement was not observed due to the lowered acidity of the water, which is not able to prevent the PET process in probe 4 under these conditions. Based on this behavior of compound 4, an INH molecular logic gate was constructed (Figure 4).
As chemical inputs in this logic gate, NaOH (10−6 mol/L) and water (50% content) in an ethanol solution containing 10−5 mol/L of probe 4 were used. The obtained signaling output of the achieved logic gate was depicted in Figure 4. As can be seen, higher emission of 4, coded in binary as 1, is observed only in the presence of water as an input, while the presence of NaOH blocks the effect of water and the system shows low fluorescence, coded in binary as 0, in all other input combinations. This behavior mimics very well the INH logic gate, where the water is the enabler and NaOH is the disabler [68,69,70].

2.2.4. Detection of Acid/Base Vapors in Solid State

In our recent research, we have found that thin films of some classical PET-based 1,8-naphthalimides could be used effectively for the detection of acid or basic vapors due to the switching between PET process and solid-state emission in the signaling fluorophore after exposure of acid/base vapors [49]. This was the reason for preparing a thin film of compound 4 on a glass support after spraying of ethanol solution of 4 onto a glass plate and evaporation of the solvent in air. The resulted film was exposed for 2 s to HCl and then to NH3 vapors. The glass samples were photographed (Figure 5) and their fluorescence spectra were recorded after each exposure (Figure 6A).
Before exposure, the fluorescence emission of the examined film showed low fluorescence due to the possible PET quenching process in probe 4. After the exposure to HCl vapors, the PET process was disallowed and the fluorescence was amplified, which was visible even by a naked eye (Figure 5). Furthermore, the high fluorescence output of 4 was “turned off” again after exposure to NH3 vapor for 2 s (Figure 6A) due to the deprotonation of the fluorescent quaternary ammonium salt of compound 4.
The observed fluorescence enhancement (FE) was calculated to be FE = 10. Also, it was found that the studied thin film of probe 4 could be transferred between “off” and “on” states reversibly at least seven times without changes in the fluorescence intensity in both “off” and “on” states (Figure 6B). These results clearly showed that compound 4 could be used as an efficient platform for rapid detection of acid/base vapors in the solid-state.

3. Materials and Methods

3.1. Materials

The starting commercial reagents 1,8-naphthalic anhydride (Sigma-Aldrich Product No.: N1607; CAS No.: 81-84-5; EC No.: 201-380-2, Sigma-Aldrich Co., St. Louis, MO, USA), hydrazine monohydrate 99 + % (Fisher Scientific Product No.: AA1665136; CAS No.: 7803-57-8, Fisher Scientific, Waltham, MA, USA), 1-methylpiperazine 99% (Sigma-Aldrich Product No.: 130001; CAS No.: 109-01-3; EC No.: 203-639-5, Sigma-Aldrich Co., St. Louis, MO, USA) and chloroacetyl chloride 98% (Sigma-Aldrich Product No.: 104493; CAS No.: 79-04-9; EC No.: 201-171-6, Sigma-Aldrich Co., St. Louis, MO, USA) were used without purification. The intermediate compounds N-amino-1,8-naphthalimide 2 and N-Chloroacetamide-1,8-naphthalimide 3 were synthesized as we described before [38]. The Sigma-Aldrich salts at p.a. grade Hg(NO3)2.H2O (CAS No.: 7783-34-8), Cu(NO3)2.H2O (CAS No.: 10031-43-3), Zn(NO3)2.6H2O (CAS No.: 10196-18-6), Ni(NO3)2.6H2O (CAS No.: 13478-00-7), Co(NO3)2.6H2O (CAS No.: 10026-22-9), Cd(NO3)2.4H2O (CAS No.: 13477-34-4), Fe(NO3)3. 9H2O (CAS No.: 7782-61-8) and Pb(NO3)2 (CAS No.: 10099-74-8) were used as a source of metal cations. The Sigma-Aldrich salts at p.a. grade KCl (CAS No.: 7447-40-7), NaNO3 (CAS No.: 7631-99-4), Na2SO4 (CAS No.: 7757-82-6), NaHSO4 (CAS No.: 7681-38-1), Na2CO3 (CAS No.: 497-19-8), CH3COONa (CAS No.: 127-09-3), KBr (CAS No.: 7758-02-3), NaNO2 (CAS No.: 7632-00-0), Na2SO3 (CAS No.: 7757-83-7), K3PO4.H2O (CAS No.: 27176-10-9) and NaF (CAS No.: 7681-49-4) were used as a source of anions.

3.2. Methods

FT-IR spectra were recorded on a Thermo Scientific Nicolet iS20 FTIR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). The 1H NMR analysis was performed on a Bruker AV-600 spectrometer with an operating frequency of 600 MHz. Electrospray ionization mass spectra (ESI-MS) were obtained on a BRUKER micrOTOF-Q system. The TLC monitoring was performed on silica gel, ALUGRAM®SIL G/UV254, 40 × 80 mm, 0.2 mm silica gel 60. A Hewlett Packard 8452A spectrophotometer was used for the UV-VIS absorption measurements. The photophysical study was performed at room temperature (25.0 °C) in 1 × 1 cm quartz cuvettes. The fluorescence spectra were recorded using a Scinco FS-2 spectrofluorimeter. The quantum yields of fluorescence (ΦF) were calculated relatively to 9,10-Diphenylanthracene (ΦF = 0.95 in ethanol) [71]. The HANNA®instruments HI-2211 Bench Top pH meter was used in the pH monitoring. A very small amount of hydrochloric acid and sodium hydroxide was used to adjust the pH. The influence of metal cations and anions on the fluorescence emission was studied by adding portions of ion stock solution to 10 mL of the fluorophore solution. The addition was limited to 100 μL so that dilution remains insignificant. The ions were added gradually up to 10 equivalents (10−4 mol/L) to a fluorophore solution (10−5 mol/L). The effect of ions was studied at constant pH in the presence of 10 µM phosphate (pH 6), 10 µM HEPES (pH 7.2), 10 µM Tris-HCl (pH 8), or 10 µM ammonia/ammonium chloride (pH 10) buffer solutions.

3.3. Synthetic Procedures

3.3.1. Synthesis of N-Amino-1,8-Naphthalimide 2

A hydrazine monohydrate (0.5 mL, 0.01 mol) was added to a solution of 1,8-naphthalic anhydride (2 g, 0.01 mol) in 30 mL of methanol. The resulting mixture was heated under reflux for 2 h. After cooling, the precipitate was filtered off, washed with methanol, and dried to give pale yellow crystals of N-amino-1,8-naphthalimide (1.5 g, 71%). FT-IR (KBr) cm−1: 3310 and 3233 (ν NH2); 1704 (νas N-C=O); 1648 (νs N-C=O).

3.3.2. Synthesis of N-Chloroacetamide-1,8-Naphthalimide 3

1.5 g of N-amino-1,8-naphthalimide 2 (0.007 mol) were added to 7 mL of dry dioxane. The resulted suspension was heated to 70 °C and then 2.8 mL of chloroacetyl chloride (0.035 mol) was added dropwise. The mixture was stirred at the same temperature for 3 h and the solid that precipitated after cooling was filtered off to give intermediate 3 as white crystals (0.88 g, 45%). 1H NMR (CHCl3-d, 600.13 MHz) δ ppm: 9.00 (s, 1H, NHCO); 8.58 (d, 2H, J = 7.3 Hz, naphthalimide H-2 and H-7); 8.22 (d, 2H, J = 8.2 Hz, naphthalimide H-4 and H-5); 7.73 (t, 2H, J = 7.7 Hz, naphthalimide H-3 and H-6); 4.28 (s, 2H, COCH2Cl).

3.3.3. Synthesis of Probe 4

To the solution of N-chloroacetamide-1,8-naphthalimide 3 (0.88 g, 0.003 mol) in 5 mL of DMF, 1.4 mL of methylpiperazine (0.012 mol) were added. Then the resulted solution was heated under reflux for 2.5 h. The precipitated solid after cooling was filtered off and dried to give white crystals of the desired probe 4 (0.54 g, 60%). FT-IR (KBr) cm−1: 3357 (ν NH); 1725 (ν N-C=O); 1698 (νas N-C=O); 1662 (νs N-C=O). 1H NMR (D2O, 600.13 MHz) ppm: 8.29 (d, 2H, J = 7.3 Hz, naphthalimide H-2 and H-7), 8.13 (d, 2H, J = 8.1 Hz, naphthalimide H-4 and H-5), 7.61 (t, 2H, J = 7.7 Hz, naphthalimide H-3 and H-6), 3.67 (s, 2H, -COCH2-), 3.63 (m, 2H, CH2 piperazine), 3.36 (m, 2H, CH2 piperazine), 3.31 (m, 2H, CH2 piperazine), 2.98 (s, 3H, CH3), 2.84 (m, 2H, CH2 piperazine). Elemental analysis: Calculated for C19H20N4O3 (MW 352.39) C 64.76, H 5.72, N 15.90%; Found C 64.83, H 5.68, N 16.05%. Positive-ion ESI-MS at m/z: 353.0176 [M + H]+.

4. Conclusions

In summary, we presented here the synthesis of the novel 1,8-naphthalimide fluorophore as a selective PET-based probe for the determination of pH in aqueous solutions, designed on a “fluorophore-spacer-receptor1-receptor2” architecture. Because of the PET process from the electron-rich piperazine amines to the excited state of the 1,8-naphthalimide unit, the fluorescence emission of the probe was completely quenched in alkaline media, while upon protonation of the piperazine receptors, the probe restored its bright fluorescence. Owing to the stepwise quaternization of both piperazine amines, two S-shaped curves with pKa values of 9.09 and 7.33, corresponding to lower and higher fluorescent intensities, respectively, were calculated. Due to the unusual high solubility in water, the synthesized compound was successfully applied as a PET sensing probe for the detection of water content in organic solvents with a limit of detection LOD = 3%. In addition, using NaOH and water as chemical inputs, an INH logic gate was achieved, where the water is the enabler and NaOH is the disabler. The probe also showed reversible “off-on” PET-dependent fluorescence on solid support when exposed to acid and base vapors. The studied thin film of the probe was found to be able to switch between “off” and “on” states reversibly at least 6 times without changes in the fluorescence intensity in both “off” and “on” states. The results obtained clearly show that the novel compound could be used as an efficient solid-state emissive probe.

Author Contributions

Conceptualization, V.B.B. and N.I.G.; methodology, N.I.G.; formal analysis, N.I.G., P.V.K. and V.V.B.; investigation, P.V.K. and V.V.B. (synthesis and photochemistry); writing—original draft preparation, N.I.G.; writing—review and editing, V.B.B.; supervision, V.B.B.; funding acquisition, V.B.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Science Fund of Bulgaria, grant number KP-06-H39/3.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The authors declare that the data supporting the findings of this study are available within the article.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Steinegger, A.; Wolfbeis, O.S.; Borisov, S.M. Optical Sensing and Imaging of pH Values: Spectroscopies, Materials, and Applications. Chem. Rev. 2020, 120, 12357–12489. [Google Scholar] [CrossRef] [PubMed]
  2. García, Á.L.; Ochoa-Terán, A.; Tirado-Guízar, A.; Jara-Cortés, J.; Pina-Luis, G.; Santacruz Ortega, H.; Labastida-Galván, V.; Ordoñez, M.; Peón, J. Experimental and theoretical study of novel aminobenzamide–aminonaphthalimide fluorescent dyads with a FRET mechanism. RSC Adv. 2022, 12, 6192–6204. [Google Scholar] [CrossRef] [PubMed]
  3. Georgiev, N.I.; Bryaskova, R.G.; Ismail, S.R.; Philipova, N.D.; Uzunova, V.P.; Bakov, V.V.; Tzoneva, R.D.; Bojinov, V.B. Aggregation induced emission in 1,8-naphthalimide embedded nanomicellar architecture as a platform for fluorescent ratiometric pH-probe with biomedical applications. J. Photochem. Photobiol. A Chem. 2021, 418, 113380. [Google Scholar] [CrossRef]
  4. Aderinto, S.; Imhanria, S. Fluorescent and colourimetric 1,8-naphthalimide-appended chemosensors for the tracking of metal ions: Selected examples from the year 2010 to 2017. Chem. Pap. 2018, 72, 1823–1851. [Google Scholar] [CrossRef]
  5. Dian, J.; Jindřich, J.; Jelínek, I. Functionalized materials with fluorescent dyes for chemosensor applications. Monatsh. Chem. 2017, 148, 1929–1935. [Google Scholar] [CrossRef]
  6. Huang, J.; Chen, Y.; Qi, J.; Zhou, X.; Niu, L.; Yana, Z.; Wang, J.; Zhao, G. A dual-selective fluorescent probe for discriminating glutathione and homocysteine simultaneously. Spectrochim. Acta Part A 2018, 201, 105–111. [Google Scholar] [CrossRef]
  7. Huang, L.; Chen, Y.; Zhao, Y.; Wang, Y.; Xiong, J.; Zhang, J.; Wu, X.; Zhou, Y. A ratiometric near-infrared naphthalimide-based fluorescent probe with high sensitivity for detecting Fe2+ in vivo. Chin. Chem. Lett. 2020, 31, 2941–2944. [Google Scholar] [CrossRef]
  8. Yang, X.; Lovell, J.F.; Murthy, N.; Zhang, Y. Organic Fluorescent Probes for Diagnostics and Bio-Imaging. Top. Med. Chem. 2020, 34, 33–53. [Google Scholar]
  9. Georgiev, N.; Bryaskova, R.; Tzoneva, R.; Ugrinova, I.; Detrembleur, C.; Miloshev, S.; Asiri, A.; Qusti, A.; Bojinov, V. A novel pH sensitive water soluble fluorescent nanomicellar sensor for potential biomedical applications. Bioorg. Med. Chem. 2013, 21, 6292–6302. [Google Scholar] [CrossRef]
  10. Yang, Y.; Li, R.; Zhang, S.; Zhang, X. A fluorescent nanoprobe based on cell-penetrating peptides and quantum dots for ratiometric monitoring of pH fluctuation in lysosomes. Talanta 2021, 227, 122208. [Google Scholar] [CrossRef]
  11. Li, C.; Wang, Y.; Huang, S.; Zhang, X.; Kang, X.; Sun, Y.; Hu, Z.; Han, L.; Du, L.; Liu, Y. A photostable fluorescent probe for long-time imagining of lysosome in cell and nematode. Talanta 2018, 188, 316–324. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, W.; Ma, X.; Chen, H.; Liu, S.; Yin, J. Fluorescent probes for pH and alkali metal ions. Coord. Chem. Rev. 2021, 427, 213584. [Google Scholar] [CrossRef]
  13. Hamilton, G.; Sahoo, S.; Kamila, S.; Singh, N.; Kaur, N.; Hyland, B.; Callan, J. Optical probes for the detection of protons, and alkali and alkaline earth metal cations. Chem. Soc. Rev. 2015, 44, 4415–4432. [Google Scholar] [CrossRef] [PubMed]
  14. Jain, N.; Kaur, N. A comprehensive compendium of literature of 1,8-naphthalimide based chemosensors from 2017 to 2021. Coord. Chem. Rev. 2022, 459, 214454. [Google Scholar] [CrossRef]
  15. Said, A.; Georgiev, N.; Hamdan, S.; Bojinov, V. A chemosensoring molecular lab for various analytes and its ability to execute a molecular logical digital comparator. J. Fluoresc. 2019, 29, 1431–1443. [Google Scholar] [CrossRef]
  16. Hayashi, Y.; Suzuki, N.; Maeda, T.; Fujiwara, H.; Yagi, S. Photophysical properties of 4-(5-methylthiophen-2-yl)pyridinium-cyclic enolate betaine dyes tuned by control of twisted intramolecular transfer. New J. Chem. 2021, 45, 9770–9779. [Google Scholar] [CrossRef]
  17. Zhang, H.; Xu, Z.; Tao, F.; Yu, W.W.; Cui, Y. Enhanced photostability of aggregation induced emission by hydrophobic groups. Anal. Chim. Acta 2021, 1186, 339076. [Google Scholar] [CrossRef]
  18. Zheng, P.; Abdurahman, A.; Zhang, Z.; Feng, Y.; Zhang, Y.; Ai, X.; Li, F.; Zhang, M. A simple organic multi-analyte fluorescent prober: One molecule realizes the detection to DNT, TATP and Sarin substitute gas. J. Hazard. Mater. 2021, 409, 124500. [Google Scholar] [CrossRef]
  19. Singh, H.; Bhargav, G.; Kumar, S.; Singh, P. Quadruple-signaling (PET, ICT, ESIPT, -C=N- rotation) mechanism-based dual chemosensor for detection of Cu2+ and Zn2+ ions: TRANSFER, INH and complimentary OR/NOR logic circuits. J. Photochem. Photobiol. A Chem. 2018, 357, 175–184. [Google Scholar] [CrossRef]
  20. Anand, T.; Kumar, S.K.A.; Sahoo, S.K. A new Al3+ selective fluorescent turn-on sensor based on hydrazide-naphthalic anhydride conjugate and its application in live cells imaging. Spectrochim. Acta Part A 2018, 204, 105–112. [Google Scholar] [CrossRef]
  21. Georgiev, N.; Asiri, A.; Qusti, A.; Alamry, K.; Bojinov, V. A pH sensitive and selective ratiometric PAMAM wavelength-shifting bichromophoric system based on PET, FRET and ICT. Dye. Pigment. 2014, 102, 35–45. [Google Scholar] [CrossRef]
  22. Li, S.; Zhao, B.; Kan, W.; Wang, L.; Song, B.; Chen, S. A off–on pH fluorescence probe derived from phenanthro[9,10-d]imidazol-fluorescein based on ESIPT and ICT. Res. Chem. Intermed. 2018, 44, 491–502. [Google Scholar] [CrossRef]
  23. Srivastava, P.; Srivastava, P.; Patra, A.K. Biological perspectives of a FRET based pH-probe exhibiting molecular logic gate operation with altering pH. New J. Chem. 2018, 42, 9543–9549. [Google Scholar] [CrossRef]
  24. Ozdemir, M. Two Colorimetric and Fluorescent Dual-Channel Chemosensors for the Selective Detection of pH in Aqueous Solutions. ChemistrySelect 2020, 5, 14340–14348. [Google Scholar] [CrossRef]
  25. Seraj, S.; Rouhani, S.; Faridbod, F. Naphthalimide-based optical turn-on sensor for monosaccharide recognition using boronic acid receptor. RSC Adv. 2019, 9, 17933–17940. [Google Scholar] [CrossRef] [Green Version]
  26. Yao, C.; Lin, H.; Crory, H.; de Silva, A.P. Supra-Molecular Agents Running Tasks Intelligently (SMARTI): Recent Developments in Molecular Logic-based Computation. Mol. Syst. Des. Eng. 2020, 5, 1325–1353. [Google Scholar] [CrossRef]
  27. Georgiev, N.I.; Dimitrova, M.D.; Krasteva, P.V.; Bojinov, V.B. A novel water-soluble 1,8-naphthalimide as a fluorescent pH-probe and a molecular logic circuit. J. Lumin. 2017, 187, 383–391. [Google Scholar] [CrossRef]
  28. Panchenko, P.A.; Fedorov, Y.V.; Fedorova, O.A. Selective fluorometric sensing of Hg2+ in aqueous solution by the inhibition of PET from dithia-15-crown-5 ether receptor conjugated to 4-amino-1,8-naphthalimide fluorophore. J. Photochem. Photobiol. A Chem. 2018, 364, 124–129. [Google Scholar] [CrossRef]
  29. Georgiev, N.I.; Sakr, A.R.; Bojinov, V.B. Design and synthesis of a novel PET and ICT based 1,8-naphthalimide FRET bichromophore as a four-input Disabled-Enabled-OR logic gate. Sens. Actuators B Chem. 2015, 221, 625–634. [Google Scholar] [CrossRef]
  30. Spiteri, J.C.; Johnson, A.D.; Denisov, S.A.; Jonusauskas, G.; McClenaghan, N.D.; Magri, D.C. A fluorescent AND logic gate based on a ferrocene-naphthalimide-piperazine format responsive to acidity and oxidizability. Dye. Pigment. 2018, 157, 278–283. [Google Scholar] [CrossRef] [Green Version]
  31. Wright, G.D.; Yao, C.; Moody, T.S.; de Silva, A.P. Fluorescent molecular logic gates based on photoinduced electron transfer (PET) driven by a combination of atomic and biomolecular inputs. Chem. Commun. 2020, 56, 6838–6841. [Google Scholar]
  32. Chi, W.; Chen, J.; Qiao, Q.; Gao, Y.; Xu, Z.; Liu, X. Revealing the switching mechanisms of an OFF-ON-OFF fluorescent logic gate system. Phys. Chem. Chem. Phys. 2019, 21, 16798–16803. [Google Scholar] [CrossRef] [PubMed]
  33. Johnson, A.D.; Zammit, R.; Vella, J.; Valentino, M.; Buhagiar, J.A.; Magri, D.C. Aminonaphthalimide hybrids of mitoxantrone and amonafide as anticancer and fluorescent cellular imaging agents. Bioorg. Chem. 2019, 93, 103287. [Google Scholar] [CrossRef] [PubMed]
  34. Jung, J.M.; Kang, J.H.; Han, J.; Lee, H.; Lim, M.H.; Kim, K.-T.; Kim, C. A novel “off-on” type fluorescent chemosensor for detection of Zn2+ and its zinc complex for “on-off” fluorescent sensing of sulfide in aqueous solution, in vitro and in vivo. Sens. Actuators B Chem. 2018, 267, 58–69. [Google Scholar] [CrossRef]
  35. Zhang, Y.; Zhao, Y.; Song, B.; Huang, C. Spectroscopic behavior and intracellular application of a highly sensitive UV-fluorescence double ratio probe based on water-soluble indole for detection acid pH. Dye. Pigment. 2021, 188, 109205. [Google Scholar] [CrossRef]
  36. Georgiev, N.I.; Said, A.I.; Toshkova, R.A.; Tzoneva, R.D.; Bojinov, V.B. A novel water-soluble perylenetetracarboxylic diimide as a fluorescent pH probe: Chemosensing, biocompatibility and cell imaging. Dye. Pigment. 2019, 160, 28–36. [Google Scholar] [CrossRef]
  37. Li, X.; Gao, X.; Shi, W.; Ma, H. Design strategies for water-soluble small molecular chromogenic and fluorogenic probes. Chem. Rev. 2014, 114, 590–659. [Google Scholar] [CrossRef]
  38. Georgiev, N.I.; Dimitrova, M.D.; Mavrova, A.T.; Bojinov, V.B. Synthesis, fluorescence-sensing and molecular logic of two water-soluble 1,8-naphthalimides. Spectrochim. Acta Part A 2017, 183, 7–16. [Google Scholar] [CrossRef]
  39. Mishra, S.; Singh, A.K. Optical sensors for water and humidity and their further applications. Coord. Chem. Rev. 2021, 445, 214063. [Google Scholar] [CrossRef]
  40. Jung, H.S.; Verwilst, P.; Kim, W.Y.; Kim, J.S. Fluorescent and colorimetric sensors for the detection of humidity or water content. Chem. Soc. Rev. 2016, 45, 1242–1256. [Google Scholar] [CrossRef]
  41. Jouyban, A.; Rahimpour, E. Optical sensors for determination of water in the organic solvents: A review. J. Iran. Chem. Soc. 2022, 19, 1–22. [Google Scholar] [CrossRef]
  42. Ooyama, Y.; Sumomogi, M.; Nagano, T.; Kushimoto, K.; Komaguchi, K.; Imae, I.; Harima, Y. Detection of water in organic solvents by photo-induced electron transfer method. Org. Biomol. Chem. 2011, 9, 1314–1316. [Google Scholar] [CrossRef] [PubMed]
  43. Ooyama, Y.; Egawa, H.; Yoshida, K. The design of a novel fluorescent PET sensor for proton and water: A phenylaminonaphtho[1,2-d]oxazol-2-yl-type fluorophore containing proton donor and acceptor groups. Dye. Pigment. 2009, 82, 58–64. [Google Scholar] [CrossRef] [Green Version]
  44. Ooyama, Y.; Furue, K.; Uenaka, K.; Ohshita, J. Development of highly-sensitive fluorescence PET (photo-induced electron transfer) sensor for water: Anthracene-boronic acid ester. RSC Adv. 2014, 4, 25330–25333. [Google Scholar] [CrossRef]
  45. Ooyama, Y.; Matsugasako, A.; Oka, K.; Nagano, T.; Sumomogi, M.; Komaguchi, K.; Imae, I.; Harima, Y. Fluorescence PET (photo-induced electron transfer) sensors for water based on anthracene-boronic acid esterw. Chem. Commun. 2011, 47, 4448–4450. [Google Scholar] [CrossRef]
  46. McKinney, B.O.; Daly, B.; Yao, C.; Schroeder, M.; de Silva, A.P. Consolidating Molecular Logic with New Solid-Bound YES and PASS1 Gates and Their Combinations. ChemPhysChem 2017, 18, 1760–1766. [Google Scholar] [CrossRef] [Green Version]
  47. Refalo, M.V.; Spiteri, J.C.; Magri, D.C. Covalent attachment of a fluorescent ‘Pourbaix sensor’ onto a polymer bead for sensing in water. New J. Chem. 2018, 42, 16474–16477. [Google Scholar] [CrossRef]
  48. de Silva, A.P.; James, M.R.; McKinney, B.O.; Pears, D.A.; Weir, S.M. Molecular computational elements encode large populations of small objects. Nat. Mater. 2006, 5, 787–790. [Google Scholar] [CrossRef]
  49. Georgiev, N.I.; Bakov, V.V.; Bojinov, V.B. A Solid-State-Emissive 1,8-Naphthalimide Probe Based on Photoinduced Electron Transfer and Aggregation-Induced Emission. ChemistrySelect 2019, 4, 4163–4167. [Google Scholar] [CrossRef]
  50. Tan, L.; Mo, S.; Fang, B.; Cheng, W.; Yin, M. Dual fluorescence switching of a Rhodamine 6G-naphthalimide conjugate with high contrast in the solid state. J. Mater. Chem. C 2018, 6, 10270–10275. [Google Scholar] [CrossRef]
  51. Georgiev, N.I.; Yaneva, I.; Surleva, A.; Asiri, A.; Bojinov, V.B. Synthesis, sensor activity and logic behavior of a highly water-soluble naphthalimide derivative. Sens. Actuators B Chem. 2013, 184, 54–63. [Google Scholar] [CrossRef]
  52. Xie, J.; Chen, Y.; Yang, W.; Xu, D.; Zhang, K. Water soluble 1,8-naphthalimide fluorescent pH probes and their application to bioimagings. J. Photochem. Photobiol. A Chem. 2011, 223, 111–118. [Google Scholar] [CrossRef]
  53. Georgiev, N.I.; Dimov, S.; Asiri, A.; Alamry, K.; Obaid, A.; Bojinov, V.B. Synthesis, selective pH-sensing activity and logic behavior of highly water-soluble 1,8-naphthalimide and dihydroimidazonaphthalimide derivatives. J. Lumin. 2014, 149, 325–332. [Google Scholar] [CrossRef]
  54. Wang, L.; Wang, G.; Shang, C.; Kang, R.; Fang, Y. Naphthalimide-Based Fluorophore for Soft Anionic Interface Monitoring. ACS Appl. Mater. Interfaces 2017, 9, 35419–35426. [Google Scholar] [CrossRef]
  55. Georgiev, N.I.; Marinova, N.V.; Bojinov, V.B. Design and synthesis of light-harvesting rotor based on 1,8-naphthalimide units. J. Photochem. Photobiol. 2020, 401, 112733. [Google Scholar] [CrossRef]
  56. Liu, J.; de Silva, A.P. Path-selective photoinduced electron transfer (PET) in a membrane-associated system studied by pH-dependent fluorescence. Inorg. Chim. Acta 2012, 381, 243–246. [Google Scholar] [CrossRef]
  57. Georgiev, N.I.; Bojinov, V.B.; Nikolov, P.S. The design, synthesis and photophysical properties of two novel 1,8-naphthalimide fluorescent pH sensors based on PET and ICT. Dye. Pigment. 2011, 88, 350–357. [Google Scholar] [CrossRef]
  58. de Silva, A.P.; Rice, T. A small supramolecular system which emulates the unidirectional, path-selective photoinduced electron transfer (PET) of the bacterial photosynthetic reaction centre (PRC). Chem. Commun. 1999, 1999, 163–164. [Google Scholar] [CrossRef]
  59. Dimov, S.M.; Georgiev, N.I.; Asiri, A.M.; Bojinov, V.B. Synthesis and Sensor Activity of a PET-based 1,8-naphthalimide Probe for Zn2+ and pH Determination. J. Fluoresc. 2014, 24, 1621–1628. [Google Scholar] [CrossRef]
  60. Jiao, C.; Pang, J.; Shen, L.; Lu, W.; Zhang, P.; Liu, Y.; Li, J.; Jia, X.; Wang, Y. A “weak acid and weak base” type fluorescent probe for sensing pH: Mechanism and application in living cells. RSC Adv. 2019, 9, 20982–20988. [Google Scholar] [CrossRef] [Green Version]
  61. Georgiev, N.I.; Lyulev, M.P.; Alamry, K.A.; El-Daly, S.A.; Taib, L.A.; Bojinov, V.B. Synthesis, sensor activity, and logic behavior of a highly water-soluble 9,10-dihydro-7H-imidazo[1,2-b]benz[d,e]isoqionolin-7-one dicarboxylic acid. J. Photochem. Photobiol. A Chem. 2014, 297, 31–38. [Google Scholar] [CrossRef]
  62. Daffy, L.; de Silva, A.P.; Gunaratne, H.; Huber, C.; Lynch, P.; Werner, T.; Wolfbeis, O. Arenedicarboximide building blocks for fluorescent photoinduced electron transfer pH sensors applicable with different media and communication wavelengths. Chem. Eur. J. 1998, 4, 1810–1815. [Google Scholar] [CrossRef]
  63. Zheng, S.; Lynch, P.L.; Rice, T.E.; Moody, T.S.; Gunaratne, H.Q.; de Silva, A.P. Structural effects on the pH-dependent fluorescence of naphthalenic derivatives and consequences for sensing/switching. Photochem. Photobiol. Sci. 2012, 11, 1675–1681. [Google Scholar] [CrossRef] [Green Version]
  64. Ooyama, Y.; Egawa, H.; Yoshida, K. A New Class of Fluorescent Dye for Sensing Water in Organic Solvents by Photo-Induced Electron Transfer—A (Phenylamino)naphtho[1,2-d]oxazol-2-yl-Type Fluorophore with both Proton-Binding and Proton-Donating Sites. Eur. J. Org. Chem. 2008, 2008, 5239–5243. [Google Scholar] [CrossRef] [Green Version]
  65. Kim, K.; Lee, W.; Kim, J.N.; Kim, H.J. An off-on Fluorescent Sensor for Detecting a Wide Range of Water Content in Organic Solvents. Bull. Korean Chem. Soc. 2013, 34, 2261–2266. [Google Scholar] [CrossRef] [Green Version]
  66. Ooyama, Y.; Matsugasako, A.; Nagano, T.; Oka, K.; Kushimoto, K.; Komaguchi, K.; Imae, I.; Harima, Y. Fluorescence PET (photo-induced electron transfer) sensor for water based on anthracene-amino acid. J. Photochem. Photobiol. A Chem. 2011, 222, 52–55. [Google Scholar] [CrossRef]
  67. Tang, J.; Li, C.; Li, Y.; Lu, X.; Qi, H. A highly sensitive and selective fluorescent probe for trivalent aluminum ion based on rhodamine derivative in living cells. Anal. Chim. Acta 2015, 888, 155–161. [Google Scholar] [CrossRef]
  68. Marinova, N.V.; Georgiev, N.I.; Bojinov, V.B. Facile synthesis, sensor activity and logic behaviour of 4-aryloxy substituted 1,8-naphthalimide. J. Photochem. Photobiol. A: Chem. 2013, 254, 54–61. [Google Scholar] [CrossRef]
  69. Balzani, V.; Credi, A.; Venturi, M. Molecular Logic Circuits. ChemPhysChem 2003, 3, 49–59. [Google Scholar] [CrossRef]
  70. Qian, J.; Qian, X.; Xu, Y.; Zhang, S. Multiple molecular logic functions and molecular calculations facilitated by surfactant’s versatility. Chem. Commun. 2008, 2008, 4141–4143. [Google Scholar] [CrossRef]
  71. Morris, J.; Mahaney, M.; Huber, J. Fluorescence quantum yield determinations 9,10-diphenylanthracene as a reference-standard in different solvents. J. Phys. Chem. 1976, 80, 969–974. [Google Scholar] [CrossRef]
Molecules 27 04229 sch001 550

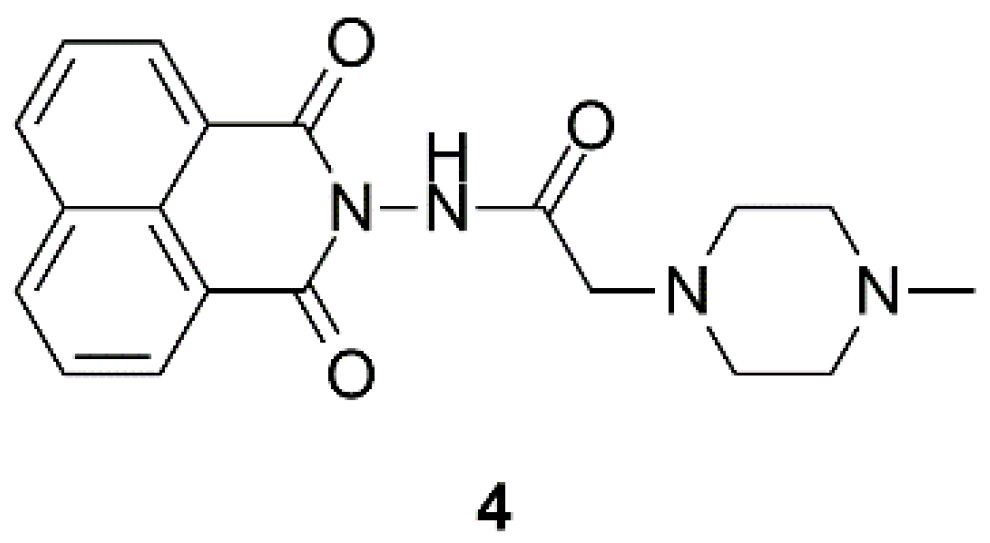

Scheme 1. Chemical structure of 1,8-naphthalimide-based probe 4.
Scheme 1. Chemical structure of 1,8-naphthalimide-based probe 4.
Molecules 27 04229 sch001
Molecules 27 04229 sch002 550

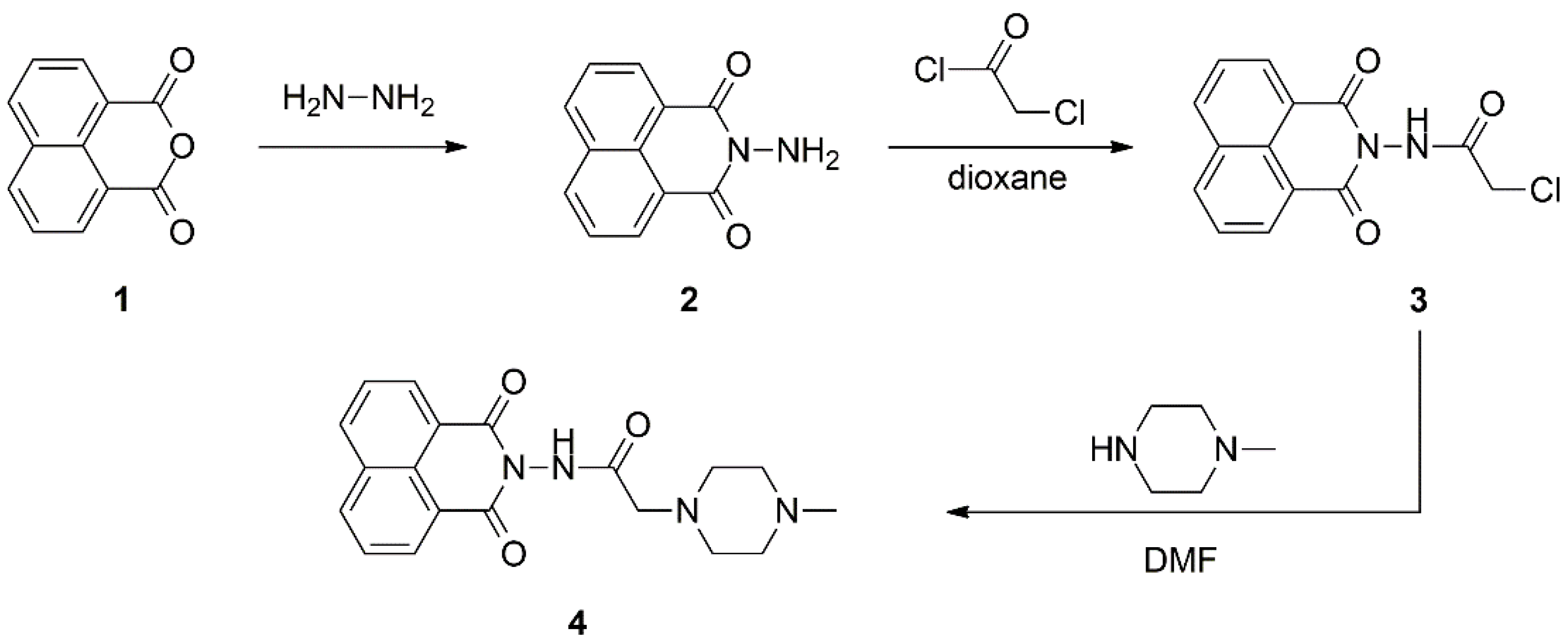

Scheme 2. Synthesis of probe 4.
Scheme 2. Synthesis of probe 4.
Molecules 27 04229 sch002
Molecules 27 04229 g001 550

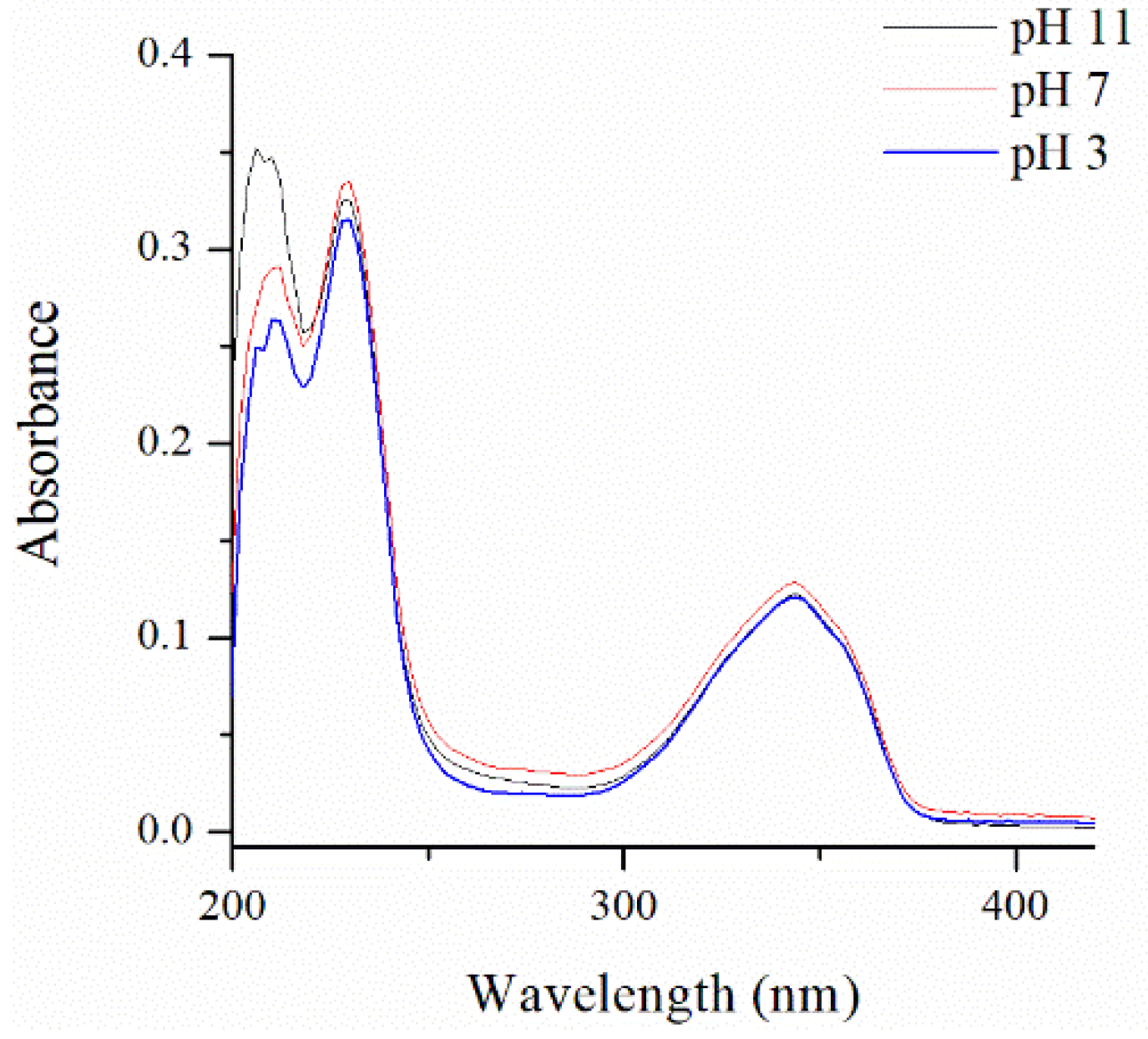

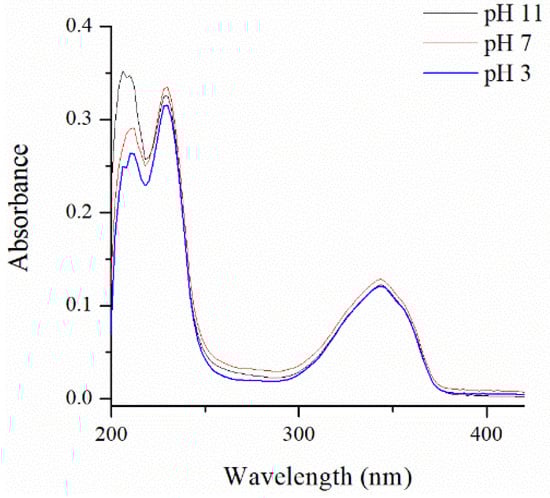

Figure 1. Absorption spectra of probe 4 in aqueous solution at different pHs.
Figure 1. Absorption spectra of probe 4 in aqueous solution at different pHs.
Molecules 27 04229 g001
Molecules 27 04229 g002 550

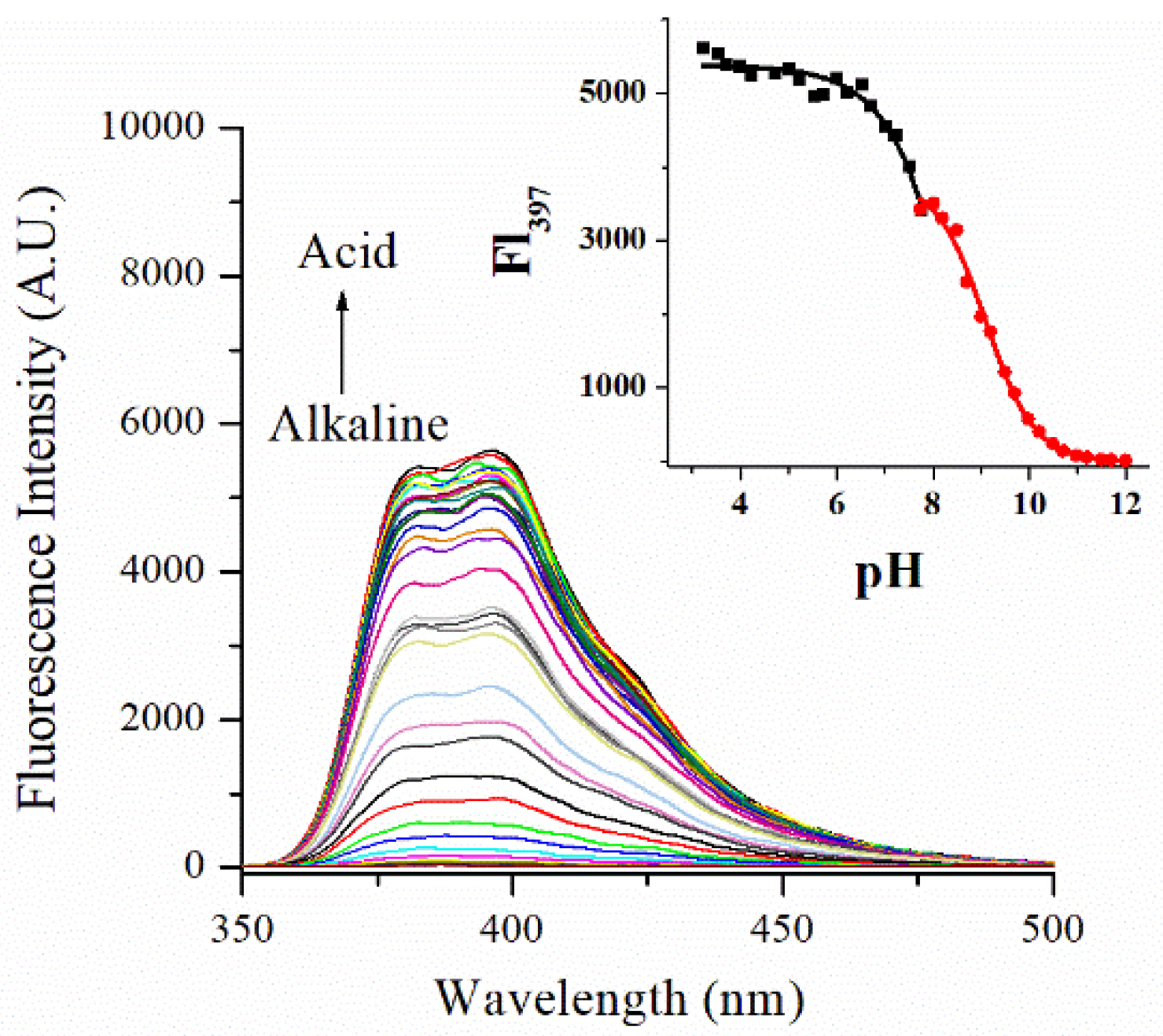

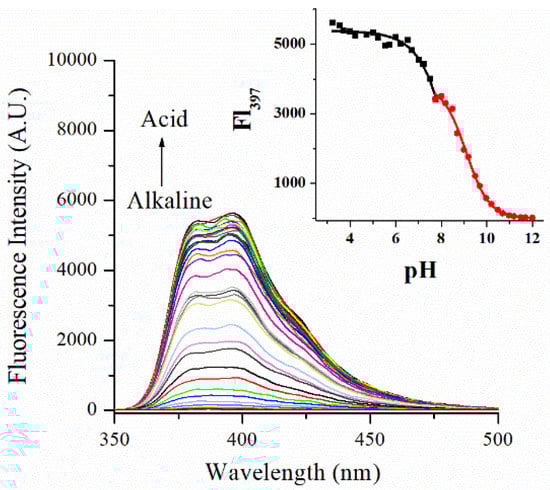

Figure 2. Fluorescent spectra of probe 4 in 100% aqueous solution in a pH-interval 2–12 (λex = 340 nm). Inset: pH titration plot of the probe 4 fluorescence intensity at 397 nm.
Figure 2. Fluorescent spectra of probe 4 in 100% aqueous solution in a pH-interval 2–12 (λex = 340 nm). Inset: pH titration plot of the probe 4 fluorescence intensity at 397 nm.
Molecules 27 04229 g002
Molecules 27 04229 sch003 550

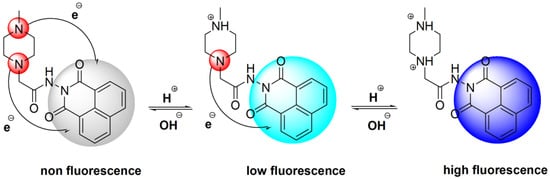

Scheme 3. Photophysical behavior of probe 4 under transition from alkaline (pH = 12) to neutral (pH = 7.7) medium and from pH = 7.7 to strong acid environment (pH = 3).
Scheme 3. Photophysical behavior of probe 4 under transition from alkaline (pH = 12) to neutral (pH = 7.7) medium and from pH = 7.7 to strong acid environment (pH = 3).
Molecules 27 04229 sch003
Molecules 27 04229 g003 550

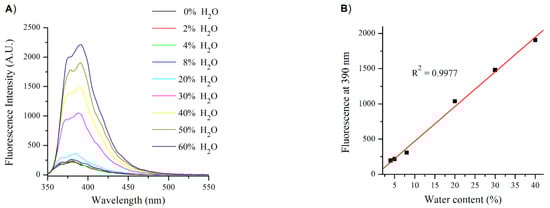

Figure 3. (A) Fluorescent spectra of probe 4 as a function of water content in ethanol (λex = 340 nm); (B) Calibration plot of fluorescent changes of probe 4 at 390 nm.
Figure 3. (A) Fluorescent spectra of probe 4 as a function of water content in ethanol (λex = 340 nm); (B) Calibration plot of fluorescent changes of probe 4 at 390 nm.
Molecules 27 04229 g003
Molecules 27 04229 g004 550

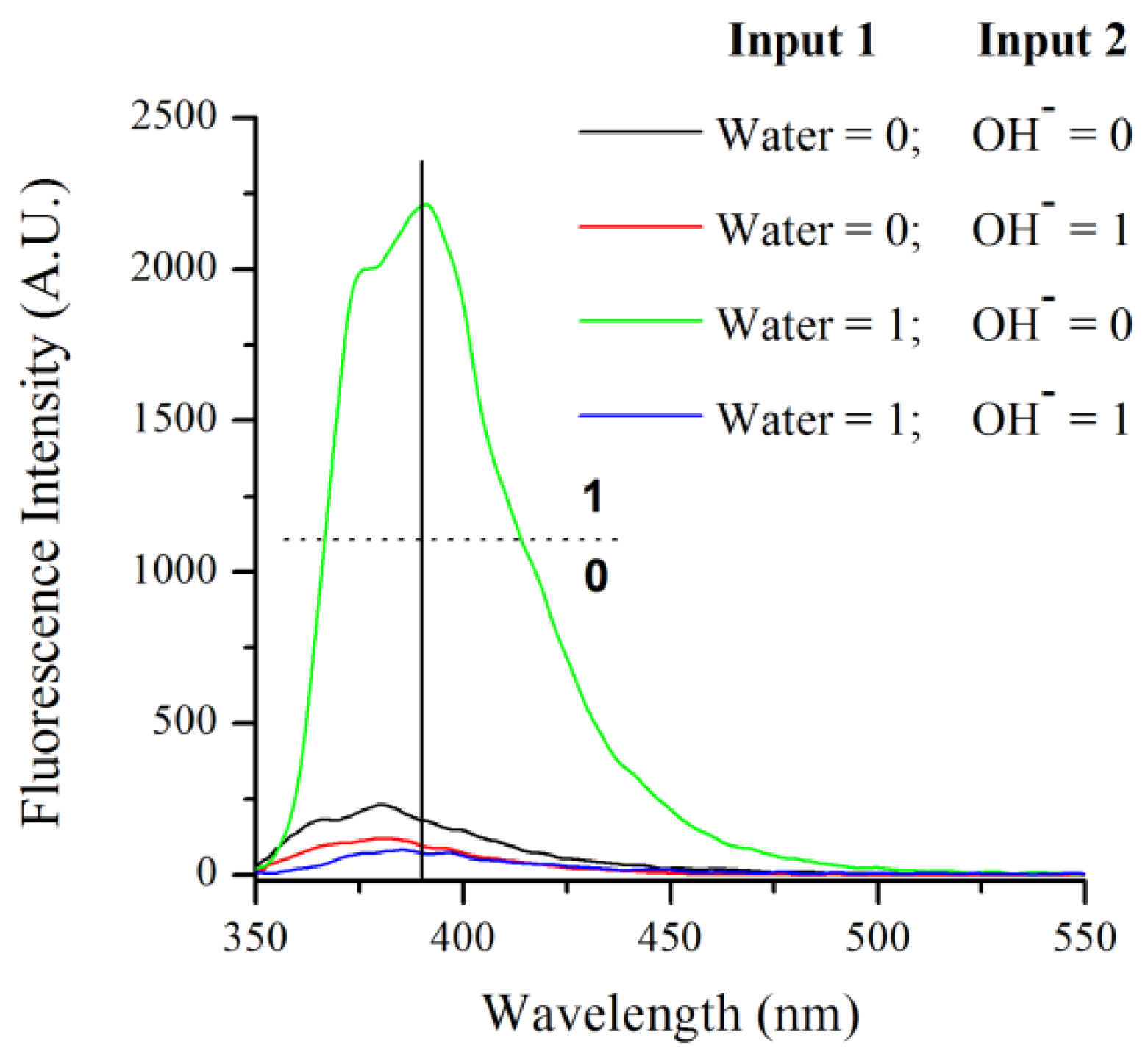

Figure 4. The changes in the fluorescent intensity (λex = 340 nm) of probe 4 (C = 10−5 mol/L) in ethanol, with Water (50% content) and Base (C = 10−6 mol/L) as chemical inputs.
Figure 4. The changes in the fluorescent intensity (λex = 340 nm) of probe 4 (C = 10−5 mol/L) in ethanol, with Water (50% content) and Base (C = 10−6 mol/L) as chemical inputs.
Molecules 27 04229 g004
Molecules 27 04229 g005 550

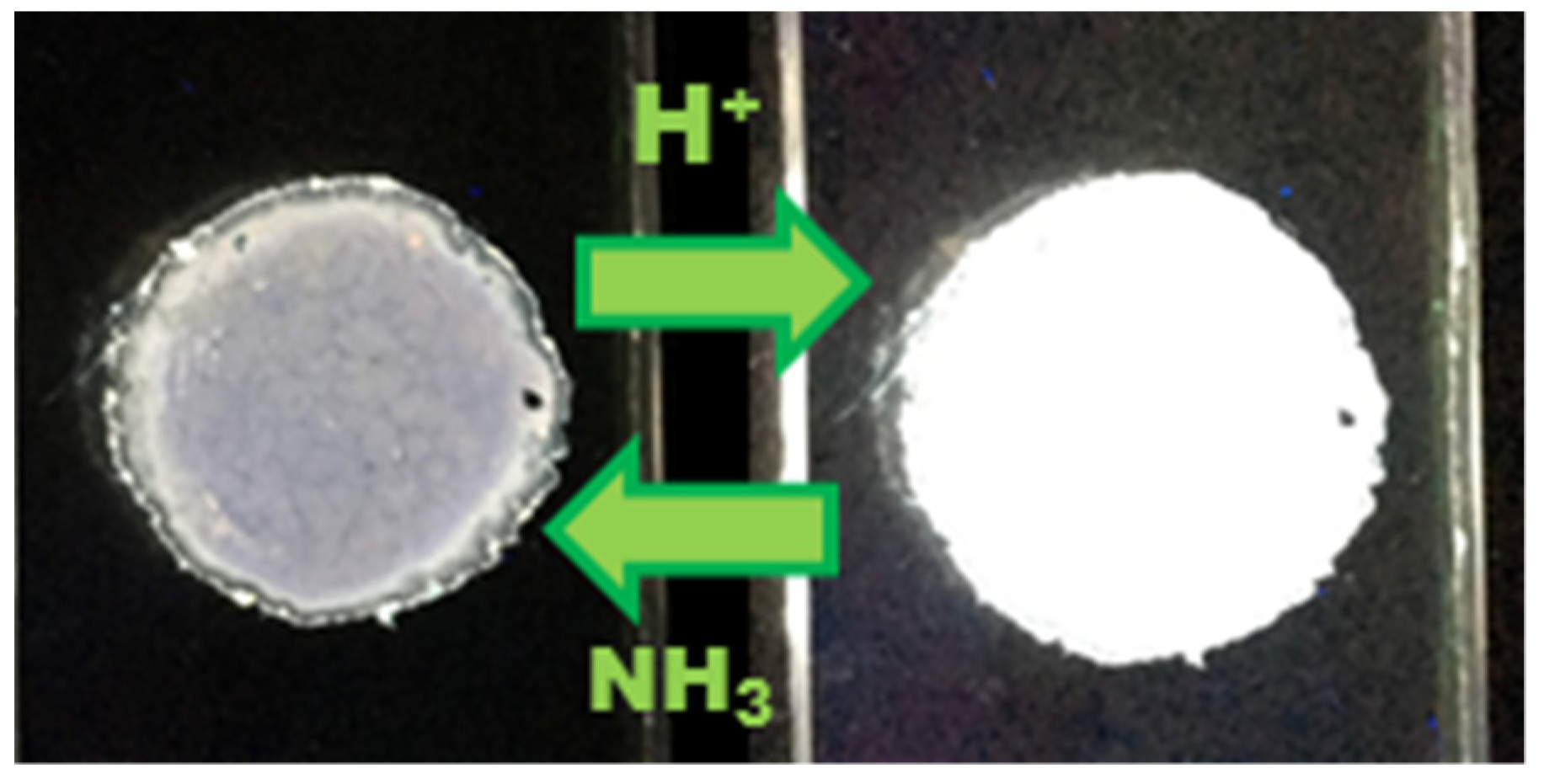

Figure 5. Filmed with 1,8-naphthalimide 4 glass exposed to HCl and NH3 vapors.
Figure 5. Filmed with 1,8-naphthalimide 4 glass exposed to HCl and NH3 vapors.
Molecules 27 04229 g005
Molecules 27 04229 g006 550

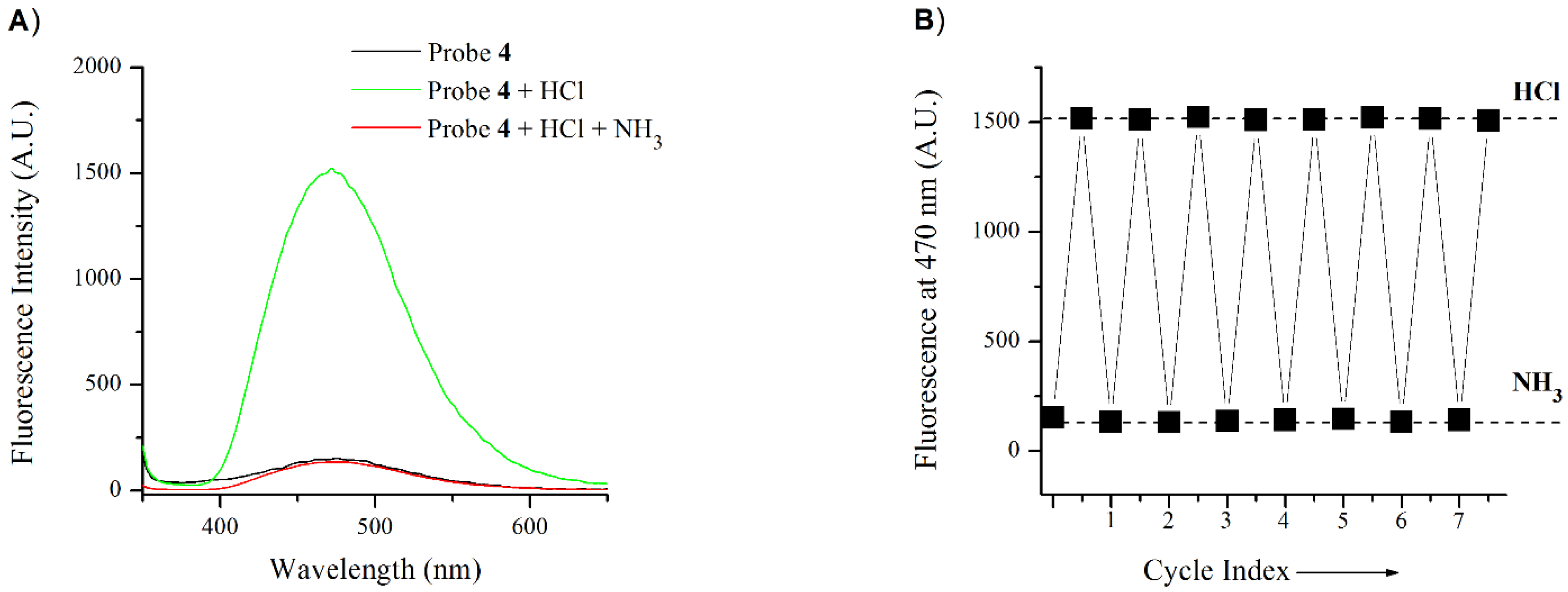

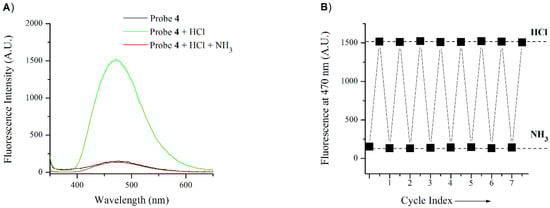

Figure 6. (A) Fluorescence spectra of a solid film of probe 4, exposed first on HCl and then on NH3 vapors (λex = 340 nm); (B) Cycle Index of a solid film of probe 4.
Figure 6. (A) Fluorescence spectra of a solid film of probe 4, exposed first on HCl and then on NH3 vapors (λex = 340 nm); (B) Cycle Index of a solid film of probe 4.
Molecules 27 04229 g006
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Georgiev, N.I.; Krasteva, P.V.; Bakov, V.V.; Bojinov, V.B. A Highly Water-Soluble and Solid State Emissive 1,8-Naphthalimide as a Fluorescent PET Probe for Determination of pHs, Acid/Base Vapors, and Water Content in Organic Solvents. Molecules 2022, 27, 4229. https://doi.org/10.3390/molecules27134229

AMA Style

Georgiev NI, Krasteva PV, Bakov VV, Bojinov VB. A Highly Water-Soluble and Solid State Emissive 1,8-Naphthalimide as a Fluorescent PET Probe for Determination of pHs, Acid/Base Vapors, and Water Content in Organic Solvents. Molecules. 2022; 27(13):4229. https://doi.org/10.3390/molecules27134229

Chicago/Turabian Style

Georgiev, Nikolai I., Paoleta V. Krasteva, Ventsislav V. Bakov, and Vladimir B. Bojinov. 2022. "A Highly Water-Soluble and Solid State Emissive 1,8-Naphthalimide as a Fluorescent PET Probe for Determination of pHs, Acid/Base Vapors, and Water Content in Organic Solvents" Molecules 27, no. 13: 4229. https://doi.org/10.3390/molecules27134229

Article Metrics

Back to TopTop
