Triel Bonds between BH3/C5H4BX and M(MDA)2 (X = H, CN, F, CH3, NH2; M = Ni, Pd, Pt, MDA = Enolated Malondialdehyde) and Group 10 Transition Metal Electron Donors

by
Xin Wang
1,
Zhihao Niu
1,
Sean A. C. McDowell
2,* and
Qingzhong Li
1,*
1
The Laboratory of Theoretical and Computational Chemistry, School of Chemistry and Chemical Engineering, Yantai University, Yantai 264005, China
2
Department of Biological and Chemical Sciences, The University of the West Indies, Cave Hill Campus, Bridgetown BB11000, Barbados
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(7), 1602; https://doi.org/10.3390/molecules29071602
Submission received: 3 March 2024 / Revised: 30 March 2024 / Accepted: 1 April 2024 / Published: 3 April 2024
(This article belongs to the Special Issue Multiconfigurational and DFT Methods Applied to Chemical Systems—2nd Edition)
Browse Figures
Versions Notes

Abstract

:
A systematic theoretical study was conducted on the triel bonds (TrB) within the BH3∙∙∙M(MDA)2 and C5H4BX∙∙∙M(MDA)2 (M = Ni, Pd, Pt, X = H, CN, F, CH3, NH2, MDA = enolated malondialdehyde) complexes, with BH3 and C5H4BX acting as the electron acceptors and the square-coordinated M(MDA)2 acting as the electron donor. The interaction energies of these systems range between −4.71 and −33.18 kcal/mol. The larger the transition metal center M, the greater the enhancement of the TrB, with σ–hole TrBs found to be stronger than π–hole TrBs. In the σ–hole TrB complex, an electron-withdrawing substituent on the C opposite to the B atom enhances the TrB, while an electron-donating substituent has little effect on the strength of TrB in the Pd and Pt complexes but enhances the TrB in the Ni-containing complexes. The van der Waals interaction plays an important role in stabilizing these binary systems, and its contribution diminishes with increasing M size. The orbital effect within these systems is largely due to charge transfer from the dz2 orbital of M into the empty pz orbital of B.

1. Introduction

The interaction formed between a group 13 element acting as a Lewis acid center and a Lewis base is called a triel bond (TrB) [1], and it may be considered to be a noncovalent interaction. The noncovalent interaction has always been a “hot” research topic, having important applications in molecular assembly [2,3], protein structure regulation [4,5], organic catalysis [6,7,8], molecular recognition [9], and other fields. When triel atoms bond with other atoms, they usually undergo sp2 hybridization to form a planar triangular configuration. This special structure and the excellent properties of triel bonds (with a wide range of strength adjustment) give rise to important applications in catalysis [10], crystal material construction [11], dye synthesis [12], hydrogen storage materials [11], and other fields. Due to the electron deficiency of the pz orbitals above the sp2-hybridized Tr atom, a positive electrostatic potential develops above the center of the triangular plane, known as a π–hole [13]. This positive region can interact with a series of nucleophilic molecules.
In the 1960s, 1:1 van der Waals dimers were discovered by infrared spectroscopic studies of mixtures of ethylene/propylene and BF3 and the electron-deficient site above B bound to the C=C double bond [14]. Subsequent studies found that a similar interaction also existed between BF3 and other Lewis bases (NH3, HCN, PhCN, N(CH3)3) [15,16,17]. In addition, spectral and theoretical studies of X-CH3CN-BF3 (X = F, Cl, Br, I) found that the complex possessed a very weak coordination bond in the gas phase and a very short N-B distance in the solid phase. These all indicated the existence of N-B interactions [18]. In the theoretical study of the TrB between TrF3- (Tr = B, Al) and LP-type N-containing electron donors, Grabowski found that some C3V symmetric complexes were formed, where N interacts with B and Al [19,20]. In subsequent research, he defined this interaction as a TrB [1]. This type of interaction is often very strong, and its stability mainly depends on the charge transfer caused by the coordination. The properties of Lewis base centers and the electron-absorbing ability of substituents, as well as the feedback bond effect, are also closely related to the strength of the interaction. Studies have also been conducted on the other group 13 elements. By comparison, the TrB formed by B was found to be the weakest, and different Tr atoms have different properties when used as Lewis acid centers. Michalczyk et al. conducted a systematic study on the factors affecting the strength of TrBs [21]. Theoretical research on the TrB between TrR3 (R = H, F, Cl, Br) and pyrazine found that when Tr = Al or Ga, the TrB strength varies with the electron-withdrawing ability of the substituent, with F > Cl > Br > H, whereas for Tr = B, the order is reversed. Orbital interactions play an important role in the formation of TrBs. B-containing systems have the strongest orbital interactions, and the orbital interactions are comparable in magnitude to electrostatic interactions. For the systems containing Al or Ga, the electrostatic interaction plays the dominant role in the formation of TrBs, followed by orbital interactions.
Transition metals (TM) seem anomalous since they often exhibit Lewis acid behavior due to their unfilled d orbitals and the 18-electron rule. The Lewis base properties of transition metals are usually observed in the feedback phenomenon from metal to ligand, but TMs can exhibit pure Lewis base behavior when interacting with Lewis acids [22,23]. In the 1960s, it was first proposed that metals could act as hydrogen-bond acceptors based on the liquid-phase infrared spectroscopy of ferrocene alcohols [24,25,26,27]. At the same time, the existence of interactions between boranes and metals was also predicted, but the structures were not validated [28,29]. In 1979, Burlitch and his colleagues reported the first evidence of the interaction between TM and triel atoms, obtained via crystallographic confirmation. They found that Al in AlPh3 can coordinate with Fe in [FeCp(CO2)]− [30]. Subsequently, a crystallographic study confirmed the interaction between heavier Tr atoms (Al, Ga, In) and TM [31], accompanied by short TM-Tr distances and a clear pyramiding of the chemical environment around the Tr atoms. The TrBs formed by B and TM are weak, making it difficult to form stable dimers between B and TM. With the development of Lewis acid-base strategies with rigid multi-toothed frameworks in 1999, Hill and his colleagues synthesized and validated the first pillar TM-B complex. The shorter Ru-B distance and the chemical environment surrounding B showed the presence of a Ru-B interaction [32].
The group 10 transition metals are relatively common TrB electron donors. A study on the interaction between [Pt(PCy3)2] and the heavier Tr atoms shows that Al atoms can directly coordinate with Pt [33]. For Ga, the binding form of the complex depends on the properties of the halogen ligand. Among the three Lewis acids, GaCl3, GaBr3, and GaI3, only GaCl3 forms the target complex with [Pt(PCy3)2] [34]. X-ray diffraction confirmed the T-shaped geometric shape formed by the P-Pt-P framework and Tr atoms in the corresponding complexes of AlCl3 and GaCl3. Theoretical work on [TM(PMe3)2(TrX3)] (TM = Ni, Pd, Pt, Tr = F, Cl, Br, I, X = F, Cl, Br, I) provided more information on this interaction. The interaction between B and TM is the weakest, with the dissociation energy not exceeding 27 kcal/mol. The metallaboratranes with a triangular biconical structure for Ni [35], Pd, Pt [36] were prepared via a rigid multi-toothed framework strategy. The three common ligands of TM and B fix TM directly above the B, and the chemical environment around B undergoes significant tapering. The influence of metal centers on the TM–B interaction has also been studied. In the d8 DPB composite, the position of the 11B NMR signal in the Pt system is higher than that of Pd, indicating that the interaction with Pd is weaker than with Pt. The TM-B binding distance also indicates the same issue, with Pd having a longer TM-B binding distance and a significant decrease in NBO delocalization energy [23].
For the crystal research on d8 Ni, it was found that Ni can act as an electron donor to form Ni∙∙∙I halogen bonds, with a halogen bond strength of 4.5 kcal/mol [37,38]. Further research showed that Pd and Pd could also be considered as halogen bond receptors [39]. Subsequently, various types of TM∙∙∙I interactions were identified [40,41,42,43]. Ni and Pt metal nanoparticles can interact with Na+, HF, and H2O, due to the attraction between local positive and negative electrostatic potential regions on the two monomers. On this basis, the author also demonstrated the correlation between electrostatic potential and binding energy [44]. Recently, Zierkiewicz et al. investigated the ability of Pt and Pd atoms in square–planar coordination geometries to act as σ–hole acceptors. The σ–hole bond is quite strong and varies in the range 6 to 20 kcal/mol. The σ–hole bond involving Pt is stronger than the corresponding bond for Pd, and this difference increases as the size of the Lewis acid atom increases [45]. The π–hole interaction between C6F6 and the square–planar [M(II)] (M = Pd, Pt) coordination complex has also been studied. There is a weak negative potential region on the M surface, and the bond critical point between C∙∙∙M in QTAIM analysis indicates the presence of a [M(II)]∙∙∙π–hole interaction [46]. Malenov et al. investigated the stacking interactions between acac-type chelates of Ni, Pd, and Pt, where the ligands in these chelates are formate anions and enolated forms of malondialdehyde. The stacking interaction between chelates ranges from −9.21 to −9.70 kcal/mol, and the strength of the interaction increases with an increase in the metal’s atomic number [47]. They also investigated the stacking interactions of acac-type chelates of Ni, Pd, Pt with benzene. The stacking interaction ranges from −5.36 to −5.75 kcal/mol, and the strength of the interaction decreases with an increase in the metal’s atomic number [48].
To the best of our knowledge, there are currently no reports on the use of group 10 metals in square–planar coordination geometries acting as triel bond acceptors. In addition, although the π–hole interaction between the group 13 elements and M (M = Ni, Pd, Pt) with linear geometric coordination has been studied before [49], the presence of strong secondary interactions between halogen ligands and M causes a significant twist in the target structure of the T-type, thus making it difficult for the full strength of the Tr∙∙∙M interaction to be manifested. In order to reduce the influence of secondary interactions and maintain good directionality between B∙∙∙M, we used [M(II)] atoms coordinated in a square–planar geometry as electron donors interacting with BH3 in order to more accurately study π–hole Tr∙∙∙M interactions. In the present work, the triel bonds in the dimers of BH3∙∙∙M (MDA)2 and C5H4BX∙∙∙M (MDA)2 (M = Ni, Pd, Pt, X = H, CN, F, CH3, NH2, MDA = enolated malondialdehyde) were systematically studied. To investigate substituent effects on the strength of triel bonds, the H on the para-C was replaced by different functional groups in C5H5B. The properties of triel bonds in the system were studied, and their formation mechanism was explained through structural analysis, interaction energy calculations, AIM, IRI, and NOCV analyses.

2. Results

2.1. MEP Analysis

Figure 1 shows the electrostatic potential maps for M(MDA)2 (M = Ni, Pd Pt), while those of BH3 and C5H4BX (X = H, CH3) are plotted in Figure S1. Table 1 collects the most positive electrostatic potential value (Vs,max) corresponding to the π–hole on BH3 and σ–hole on C5H4BX. From the results, the π–hole is weaker than the σ–hole. For C5H4BX, the presence of electron-withdrawing groups increases the Vs,max values, and this increase in value is positively correlated with its electron-withdrawing ability. The introduction of electron-donating groups has little effect on Vs,max values. Although the most negative electrostatic potential value was not found in the metal center, it can be seen from the figure that there is a weak negative potential region above the metal atom, and this region eventually turns blue as the atomic mass of M increases. This means that the heavier M Lewis base center has a more negative electrostatic potential region, which may form stronger triel bonds than does the lighter M center.

2.2. Structural Analyses

All B atoms in the system are stably bound above the metal atoms, and there is a clear directionality between B∙∙∙M. Figure 2 is a schematic diagram of the structure of BH3∙∙∙Pd(MDA)2 and C5H5B∙∙∙Pd(MDA)2. For the π–hole system, all system configurations are similar to BH3∙∙∙Pd(MDA)2, with the BH3 plane parallel to the M(MDA)2 plane. The configuration of the σ–hole system is similar to that of C5H5B∙∙∙Pd(MDA)2, with the line connecting the para-C and B pointing towards the metal atom and perpendicular to the M(MDA)2 plane. Table 2 shows that the B∙∙∙M binding distance R in the π–hole system is longer than in the σ–hole system. All B∙∙∙M binding distances lie between the sum of the covalent radii of B and M and the sum of their van der Waals radii, and vary with a change of X substituents. The introduction of electron-withdrawing substituents shortens the B∙∙∙M binding distance, and the greater the electron withdrawing-ability of X, the greater the shortening of the B∙∙∙M binding distance. The addition of electron-donating groups also shortens the binding distance between B and M but to a lesser extent. For the Ni-centered system, substitution at the para-C position in C5H5B by the -CH3 and -NH2 groups shortens the B∙∙∙M binding distance by about 0.18 Å; the B∙∙∙M distances in C5H4BCH3∙∙∙Ni(MDA)2 and in C5H4BNH2∙∙∙Ni(MDA)2 are 2.604 Å and 2.611 Å, respectively, differing by no more than 0.007 Å. However, substitution of the -CH3 and -NH2 in the Pd and Pt systems has little effect on the B∙∙∙M binding distance, which does not change by more than 0.01 Å. The B∙∙∙M binding distance is generally in the order C5H4BCN < C5H4BF < C5H5B < C5H4BNH2 < C5H4BCH3 < BH3. For fixed Lewis acid, the heavier metal centers correspond to a shorter binding distance, indicating enhancement of the corresponding TrB.

2.3. Interaction Energy

In addition to the B∙∙∙M binding, the interaction energy Eint, binding energy Eb, and deformation energy DE between all monomers in the complexes were also calculated. Both Eint and Eb display similar variations. The interaction energy ranges between −4.71 and −33.18 kcal/mol. For the fixed Lewis acid, Eint increases as M gets larger, which is consistent with the results for the B∙∙∙M binding distance and electrostatic potential analysis; i.e., the heavier group 10 metals tend to form stronger TrBs. For the fixed M, the interaction energy increases and the B∙∙∙M binding distance decreases with an increase in the electron-withdrawing ability of the X substituent; i.e., when M = Ni, C5H4BCN > C5H4BF > C5H4BNH2 > C5H4BCH3 > C5H5B > BH3 for Eint and the reverse order for the B∙∙∙M distance, whereas when M = Pd or Pt, C5H4BCN > C5H4BF > C5H4BNH2 > C5H5B > C5H4BCH3 > BH3 for Eint and the reverse order for the intermolecular separation, with the computed values for C5H5B ≈ C5H4BCH3 ≈ C5H4BNH2. The σ–hole TrB is thus stronger than the π–hole TrB, and the electron-withdrawing substituents enhance the system’s interaction energy, while the electron-donating substituents have little effect. The deformation energy DE ranges from 0.24 to 7.96 kcal/mol, and also increases with the atomic mass of M, indicating that systems with heavier metal centers undergo greater polarization and have stronger orbital interactions.

2.4. AIM Analysis

In order to further verify the presence of TrBs in the complexes and explore their properties, we conducted AIM analyses on all dimers. Figure 3 shows the AIM diagram of two systems. Taking BH3∙∙∙Pd(MDA)2 and C5H5B∙∙∙Pd(MDA)2 as examples, there are clear bond critical points (BCPs) between all B∙∙∙M. With reference to the σ–hole system, in addition to the bond path of the target TrB, there are also two other bond paths between H∙∙∙C, connecting the two H atoms on the C atoms adjacent to and on either side of B to the two C atoms on the (MDA)2 ring to which they point, indicating the existence of secondary interactions such as H-bonds in these systems. Table 3 shows the electron density of the B∙∙∙M BCP (ρ), the Laplacian of the electron density (∇2ρ), and the total energy density (H). The electron density ρ increases as M gets larger, and ρ for the π–hole system is smaller than for the σ–hole system. The electron-withdrawing substituents increase ρ at the BCP, but there is little to no change in ρ due to the electron-donating groups (CH3, NH2). At the BCP in the Ni systems, ∇2ρ is positive and H negative, indicating that their TrBs exhibit partially covalent characteristics. For the Pd and Pt systems, except for BH3∙∙∙Pd(MDA)2 and BH3∙∙∙Pt(MDA)2 (where ∇2ρ is positive and H is negative), both ∇2ρ and H are negative, indicating that the TrBs in these systems have covalent characteristics.

2.5. IRI Analysis

In order to study the interactions within the system more intuitively, we also conducted IRI analyses to visualize the interactions within the system. Figure 4 shows the IRI diagram of the systems. The isosurface between B∙∙∙M continuously turns blue with an increase in the M atomic mass, and for the systems containing BH3, this change is most pronounced, going from dark green between B∙∙∙Ni to blue between B∙∙∙Pd and then to dark blue between B∙∙∙Pt. This suggests that the TrB of these three systems transitions from interactions slightly stronger than those due to van der Waals forces to moderately strong interactions and then finally to strong interactions closer in strength to covalent bonds. In C5H4BX∙∙∙M(MDA)2, two light green isosurfaces on both sides of the target TrB are evident, which correspond to the bond path between H∙∙∙C in AIM analysis, thereby confirming the existence of secondary H-bond interactions. However, from the perspective of color, their intensities are small and comparable to van der Waals forces.

2.6. EDA Analysis

In order to assess the energetic contributions to B∙∙∙M TrBs, we conducted EDA analysis on all systems, which decomposed the interaction energy into six terms: electrostatic energy Eele, exchange energy Eex, repulsion energy Erep, polarization energy Epol, dispersion energy Edisp, and electron correlation energy Ecorr. Table 4 presents these data. The total interaction energy obtained from the EDA method has almost the same magnitude as that obtained from the supermolecular method, suggesting that each energy term obtained by EDA is reliable. The Erep term has a relatively large positive value and correlates with decreasing Tr∙∙∙M distance as M gets larger. On the other hand, the exchange energy is the largest attractive term, usually coexisting with the Erep term (confirmed by the strong linear relationship shown in Figure S2), which causes both terms to offset each other, thereby diminishing their net effect on the interaction energy; thus, these terms are not discussed in detail. No good linear relationship is obtained between the total interaction energy and each term; thus, there appears to be no consistent trend for each energetic term in all complexes. The sum of Edisp and Ecorr reflects the van der Waals interaction, while the orbital interaction is partly reflected by Epol. The van der Waals interaction dominates in the Ni and Pd systems, followed by the electrostatic interaction, with the orbital interaction being the weakest. The variation of each energetic term in the Pt systems is not straightforward. Most Pt systems are dominated by the orbital interaction, and the van der Waals interactions are weakest, while the reverse result is found for BH3∙∙∙Pt(MDA)2. As M gets larger, the proportion of electrostatic and orbital interactions contributing to the TrB strength increases, whereas the Edisp/corr variation (for the same Lewis acid) is irregular.

2.7. NOCV Analysis

Figure 5 shows the density difference plot of NOCV in the complexes, and the orbital effect of TrB in all systems, which mainly comes from the charge transfer from the dz2 orbital of M into the empty pz orbital of B. Table 5 shows the NOCV energy in different systems. From the table, it can be seen that the NOCV energy of the σ–hole system is stronger than that of the π–hole system. The electron-withdrawing substituents increase the NOCV energy, and do so to a much greater extent than do the electron-donating substituents, relative to the C5H5B. In fact, for the Pd and Pt systems, there is hardly any change in the NOCV energy due to CH3 or NH2 substitution in C5H5B. For all complexes, as M goes from Ni to Pd to Pt, the NOCV energy increases continuously. Thus, overall, electron-withdrawing substituents and heavier metal centers are more conducive to charge transfer between monomers, while electron-donating substituents only promote charge transfer in the Ni systems and have little effect on the other systems.

3. Discussion

The MEP analysis shows that there is a weak negative potential region in the center of the group 10 metal square–planar moiety, which increases with an increase in M atomic mass. Rozhkov et al. studied the electrostatic potential of similar structures [46], but their research focused only on Pd and Pt metal centers; their conclusions are consistent with those from this present work. Although the most negative electrostatic potential value was not obtained, the weak negative potential region at the metal center still gives a good indication of the possible B∙∙∙M binding site.
In the study of B∙∙∙M interactions, the possibility of large secondary effects can often be a complicating factor since they may cause displacement of the preferred B∙∙∙M target binding site [49]. In this work, there is a clear directionality between B∙∙∙M in all designed dimers, with the B atom located above the M atom. The B∙∙∙M binding distance R ranges between 2.233 and 2.842 Å, these values all lying between the sum of the van der Waals radii of B and M and the sum of their covalent radii, which conforms to a defining characteristic of noncovalent interactions. For the fixed Lewis acid, R decreases with an increase in the M atomic mass, indicating that heavier metal centers are more conducive for the enhancement of TrBs and consistent with the MEP results. For the fixed M, the binding distance between B and M exhibits two effects as the type of X substituent changes. Firstly, electron-withdrawing substituents cause a decrease in the B∙∙∙M binding distance with the increase in electron-withdrawing ability, consistent with the MEP analysis. These types of substituents reduce the electron density on the six-membered Lewis acid ring, thereby increasing the magnitude of the σ–hole; consequently, the greater the electron-withdrawing ability of the substituent, the stronger the TrB.
Surprisingly, the σ–hole should have been diminished by the presence of the electron-donating substituents, but their influence was found to be negligible in the Pd and Pt systems, where the B∙∙∙M binding distance hardly changes (decreasing by no more than 0.003 Å). However, in the Ni systems, the binding distances are significantly shortened; for example, the B∙∙∙Ni distance in C5H4BCH3∙∙∙Ni(MDA)2 is shortened by 0.182 Å relative to C5H4B∙∙∙Ni(MDA)2. The B∙∙∙M binding distance in BH3∙∙∙M(MDA)2 is longer than in C5H4BX∙∙∙M (MDA)2, which means that the π–hole B∙∙∙M TrB is weaker than the σ–hole B∙∙∙M TrB.
The interaction energy of the B∙∙∙M TrB ranges between −4.71 and −33.18 kcal/mol, spanning weak and strong noncovalent interactions. The interaction energy increases as the central metal atom gets larger, consistent with the MEP and structural analyses, as mentioned earlier. The π–hole interaction energy is smaller in magnitude than the σ–hole interaction energy. For the fixed Lewis base, electron-withdrawing substituents enhance the interaction energy, while electron-donating substituents hardly change the interaction energy.
AIM analysis is one of the powerful tools for studying noncovalent interactions. AIM analysis shows that, in addition to the presence of BCPs between the target B∙∙∙M region, there are also two other BCPs in the C5H4BX systems, which correspond to two weak hydrogen-bonding secondary interactions. The interaction energy is the sum of all interaction strengths within the system. Will the presence of secondary interactions hinder the accurate description of the target TrB’s binding strength? In previous studies, good correlations between the electron density at the BCP and the corresponding interaction strength were reported [50,51], so the correlation between the TrB and the interaction energy can be used to measure the impact of secondary interactions on the total interaction energy. Figure 6 shows a good linear relationship between the electron density (ρ) at the B∙∙∙M BCP in C5H4BX∙∙∙M(MDA)2 and interaction energy (Eint). The scatter plot shows a very good correlation between Eint and ρ, with a correlation coefficient of 0.96, indicating that the contribution of secondary effects to the total interaction energy is very small.
The results of the IRI analysis and the AIM analysis are consistent with each other, and the presence of two light green regions at the weak hydrogen bond positions in the C5H4BX system also indicates that the secondary effect is quite weak. There is a clear density gradient isosurface between B∙∙∙M, which further indicates the presence of a TrB. The isosurface turns blue with the increase in M atomic mass, indicating enhancement of the TrB. The large green isosurfaces in the Ni system indicate the important role of the van der Waals interaction in the formation of its TrB.
The type of interaction can also be judged from the results of the EDA analysis. For example, for tetrel bonds formed by C60 and SnI4 [52] and triangular coinage metal complexes of (M3 = Cu, Ag, and Au) and C60 [53], the dispersion energy makes the largest contribution, followed by electrostatic energy, suggesting a van der Waals nature; however, for N-heterocyclic carbene(NHC)-M∙∙∙OEt2 complexes (M = Cu, Ag, Au) [54] and NHC-M pyrazine bond (M = Cu, Ag, Au) interactions [55], the contribution of electrostatic energy exceeds 60%, and orbital interaction is close to 30%; thus, these interactions show electrostatic character. In this paper, EDA results show that a van der Waals interaction is dominant in the formation of TrBs in the Ni/Pd-containing systems (electrostatic and orbital interactions are more important in the Pd systems than in the Ni systems). In the Pt systems, orbital interactions dominate, followed by electrostatic interactions, with the van der Waals interactions being the weakest.
The unexpected positive values obtained by EDA for the polarization energy contribution to the interaction energy in the Ni systems may be due to the introduction of the electron correlation energy term. Compared to LMO-EDA [56], a portion of the newly added Ecorr term in the GKS-EDA method comes from the Epol term. The orbital interaction in the Ni system is weak, and after deducting the Ecorr term, Epol becomes positive. As the atomic mass of M increases, the proportion of electrostatic and orbital interactions contributing to the interaction energy increases, ultimately surpassing the contribution of the van der Waals interactions. The NOCV analysis confirms this phenomenon, showing that the NOCV energy increases as M gets larger, which indicates that the orbital interaction between the systems is being enhanced accordingly (Table 5). The orbital interaction between the systems mainly comes from the charge transfer from the dz2 orbital on M into the pz orbital of B.

4. Theoretical Methods

All calculations were performed using the Gaussian suite of programs [57] at the B3LYP-D3(BJ)/aug-cc-pVTZ(PP) [58,59,60] level of theory, using the basis set aug-cc-pVTZ-PP for Pd, Pt, and aug-cc-pVTZ for the other atoms. All structures were fully optimized, with the absence of any imaginary frequencies confirmed by vibrational frequency calculations at the same level. The interaction energy and binding energy were calculated using the supermolecular method, and the basis set superposition error (BSSE) correction was performed using the equilibrium method proposed by Boys and Bernardi [61]. The Multiwfn program [62] was used to perform topological analysis of the bond critical point (BCP) electron density of the complexes using the atoms in molecules (AIM) theory [63]. The interaction region indicator function (IRI) method [64] was used to visualize the TrBs in the complexes. The orbital interactions in the complexes were analyzed using the Extended Transition State-Natural Orbitals for Chemical Valence (ETS-NOCV) method [65]. IRI and ETS-NOCV analyses also utilized the Multiwfn program [62]. In order to predict the binding site, the molecular electrostatic potential (MEP) of the monomers on the 0.001 a.u. electron density isosurface was analyzed using the Multiwfn program [62]. Energy decomposition calculations were performed using XEDA [66] software (https://xacs.xmu.edu.cn, accessed on 10 January 2024) combined with GKS-EDA [67] theory, and XEDA input files were generated using the Mokit program [68].

5. Conclusions

A systematic theoretical study was conducted on the triel bonds within BH3∙∙∙M(MDA)2 and C5H4BX∙∙∙M(MDA)2 complexes at the B3LYP-D3 (BJ)/aug-cc-pVTZ(PP) level. The interaction energy of the system ranges between −4.71 and −33.18 kcal/mol and can be regulated so as to span the two extremes of weak and strong noncovalent interactions. The TrB is enhanced by an increase in the size of the metal center M, with the σ–hole TrB found to be stronger than the π–hole TrB. For the σ–hole TrB complexes, electron-withdrawing substituents at the C position para to B strengthen the B∙∙∙M TrB, while electron-donating substituents have little effect in the Pd and Pt complexes, but have a significant enhancing effect in the Ni complexes. Weak hydrogen bonds are present as secondary interactions in the σ–hole TrB systems; however, their contribution to the net binding is insignificant. The van der Waals force plays an important role in stabilizing these systems, and dominates in the Ni complexes, with its contribution to the interaction energy consistently diminishing as the metal gets larger. In the Pd system, it is comparable in magnitude to the orbital and electrostatic contributions, while in the Pt system, the orbital interactions dominate. The orbital interaction arises mainly from the charge transfer from the dZ2 orbital of M into the empty pz orbital of B, which increases as the metal gets larger, going from Ni to Pd to Pt.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29071602/s1, Figure S1. The MEP maps on the 0.001 electrons Bohr−3 surface of the Lewis acids. Red and blue regions represent positive and negative MEPs, respectively. Figure S2. Linear relationship between the exchange energy (Eex, kcal/mol) and the repulsion energy (Erep, kcal/mol) in BH3/C5H4BX∙∙∙M(MDA)2.

Author Contributions

Conceptualization, Q.L.; Methodology, X.W. and Q.L.; Software, Q.L.; Validation, X.W., Z.N., S.A.C.M. and Q.L.; Formal analysis, X.W., Z.N., S.A.C.M. and Q.L.; Investigation, X.W., Z.N. and Q.L.; Resources, Q.L.; Data curation, X.W., Z.N. and Q.L.; Writing—original draft, X.W., Z.N. and Q.L.; Writing—review & editing, S.A.C.M. and Q.L.; Visualization, X.W., Z.N. and Q.L.; Supervision, Q.L.; Project administration, Q.L.; Funding acquisition, Q.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Shandong Province (ZR2021MB123) and Yantai University Innovation Funding (GGIFYTU2327).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and the Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Grabowski, S.J. π-Hole bonds: Boron and aluminum Lewis acid centers. ChemPhysChem 2015, 16, 1470–1479. [Google Scholar] [CrossRef]
  2. Liu, K.; Kang, Y.T.; Wang, Z.; Zhang, X. Reversible and adaptive functional supramolecular materials: “Noncovalent interaction” matters. Adv. Mater. 2013, 25, 5530–5548. [Google Scholar] [CrossRef]
  3. Karabıyık, H.; Ocak; İskeleli, N. Hydrogen-bridged chelate ring-assisted π-stacking interactions. Acta Crystallogr. Sect. B Struct. Sci. 2012, 68, 71–79. [Google Scholar] [CrossRef]
  4. Mundlapati, V.R.; Sahoo, D.K.; Bhaumik, S.; Jena, S.; Chandrkar, A.S.; Biswal, H. Noncovalent carbon-bonding interactions in proteins. Angew. Chem. Int. Ed. 2018, 57, 16496–16500. [Google Scholar] [CrossRef]
  5. Walker, M.G.; Mendez, C.G.; Ho, P.S. Non-classical non-covalent σ-hole interactions in protein structure and function: Concepts for potential protein engineering applications. Chem.–Asian J. 2023, 18, e202300026. [Google Scholar] [CrossRef]
  6. de las Nieves-Piña, M.; Frontera, A.; Mooibroek, T.J.; Bauza, A. Frustrated Lewis pairs based on carbon∙∙∙carbon+ tetrel bonds: A DFT study. ChemPhysChem 2021, 22, 2478–2483. [Google Scholar] [CrossRef]
  7. Wang, W.; Li, X.X.; Zhou, P.P.; Wang, Y. Catalysis with supramolecular carbon-bonding interactions. Angew. Chem. Int. Ed. 2021, 133, 22899–22903. [Google Scholar] [CrossRef]
  8. Wang, J.Z.; Young, T.A.; Duarte, F.; Lusby, P.J. Synergistic noncovalent catalysis facilitates base-free Michael addition. J. Am. Chem. Soc. 2020, 142, 17743–17750. [Google Scholar] [CrossRef]
  9. Park, S.; Kim, H.J. Highly activated Michael acceptor by an intramolecular hydrogen bond as a fluorescence turn-on probe for cyanide. Chem. Commun. 2010, 46, 9197–9199. [Google Scholar] [CrossRef]
  10. Bhunya, S.; Malakar, T.; Ganguly, G.; Paul, A. Combining protons and hydrides by homogeneous catalysis for controlling the release of hydrogen from ammonia–borane: Present status and challenges. ACS Catal. 2016, 6, 7907–7934. [Google Scholar] [CrossRef]
  11. Hamilton, C.W.; Baker, R.T.; Staubitz, A.; Manners, I. B–N compounds for chemical hydrogen storage. Chem. Soc. Rev. 2009, 38, 279–293. [Google Scholar] [CrossRef]
  12. Bismillah, A.N.; Aprahamian, I. Fundamental studies to emerging applications of pyrrole-BF2(BOPHY) fluorophores. Chem. Soc. Rev. 2021, 50, 5631–5649. [Google Scholar] [CrossRef]
  13. Bauzá, A.; Mooibroek, T.J.; Frontera, A. The bright future of unconventional σ/π-hole interactions. ChemPhysChem 2015, 16, 2496–2517. [Google Scholar] [CrossRef]
  14. Herrebout, W.A.; Van der Veken, B.J. Van der Waals complexes between unsaturated hydrocarbons and boron trifluoride: An infrared and ab Initio study of etheneBF3 and propeneBF3. J. Am. Chem. Soc. 1997, 119, 10446–10454. [Google Scholar] [CrossRef]
  15. Fiacco, D.L.; Mo, Y.; Hunt, S.W.; Ott, M.E.; Roberts, A.; Leopold, K.R. Dipole moments of partially bound Lewis acid−base adducts. J. Phys. Chem. A 2001, 105, 484–493. [Google Scholar] [CrossRef]
  16. Reeve, S.W.; Burns, W.A.; Lovas, F.J.; Suenram, R.D.; Leopold, K.R. Microwave spectra and structure of hydrogen cyanide-boron trifluoride: An almost weakly bound complex. J. Phys. Chem. 1993, 97, 10630–10637. [Google Scholar] [CrossRef]
  17. Phillips, J.A.; Giesen, D.J.; Wells, N.P.; Halfen, J.A.; Kuntson, C.C.; Wrass, J.P. Condensed-phase effects on the structural properties of C6H5CN−BF3 and (CH3)3CCN−BF3: IR spectra, crystallography, and computations. J. Phys. Chem. A 2005, 109, 8199–8208. [Google Scholar] [CrossRef]
  18. Phillips, J.A.; Halfen, J.A.; Wrass, J.P.; Knutson, C.C.; Cramer, C.J. Large gas− solid structural differences in complexes of haloacetonitriles with boron trifluoride. Inorg. Chem. 2006, 45, 722–731. [Google Scholar] [CrossRef]
  19. Grabowski, S.J. Boron and other triel Lewis acid centers: From hypovalency to hypervalency. ChemPhysChem 2014, 15, 2985–2993. [Google Scholar] [CrossRef]
  20. Grabowski, S.J. The nature of triel bonds, a case of B and Al centres bonded with electron rich sites. Molecules 2020, 25, 2703. [Google Scholar] [CrossRef]
  21. Michalczyk, M.; Zierkiewicz, W.; Scheiner, S. Triel-bonded complexes between TrR3 (Tr= B, Al, Ga; R= H, F, Cl, Br, CH3) and pyrazine. ChemPhysChem 2018, 19, 3122–3133. [Google Scholar] [CrossRef]
  22. Shriver, D.F. Transition metal basicity. Acc. Chem. Res. 1970, 3, 231–238. [Google Scholar] [CrossRef]
  23. Werner, H. Electron-rich half-sandwich complexes—Metal bases par excellence. Angew. Chem. Int. Ed. 1983, 22, 927–949. [Google Scholar] [CrossRef]
  24. Baker, A.W.; Bublitz, D.E. Enthalpies of intramolecular interactions in ferrocenyl alcohols. Spectrochim. Acta 1966, 22, 1787–1799. [Google Scholar] [CrossRef]
  25. Hill, E.A.; Richards, J.H. Carbonium ion stabilization by metallocene nuclei. III. Evidence for metal participation1. J. Am. Chem. Soc. 1961, 83, 4216–4221. [Google Scholar] [CrossRef]
  26. Hill, E.A.; Richards, J.H. Carbonium ion stabilization by metallocene nuclei. II. α-Metallocenylcarbonium ions. J. Am. Chem. Soc. 1961, 83, 3840–3846. [Google Scholar] [CrossRef]
  27. Trifan, D.S.; Bacskai, R. Metal-hydrogen bonding in metallocene compounds. J. Am. Chem. Soc. 1960, 82, 5010–5011. [Google Scholar] [CrossRef]
  28. Shriver, D.F. Lewis basicity of a transition metal. A boron trifluoride adduct of biscyclopentadienyltungsten dihydride. J. Am. Chem. Soc. 1963, 85, 3509–3510. [Google Scholar] [CrossRef]
  29. Scott, R.N.; Shriver, D.F.; Vaska, L. Lewis acid adducts of planar four-coordinated d8 complexes. Boron trifluoride-chlorocarbonylbis(triphenylphosphine)iridium and related systems. J. Am. Chem. Soc. 1968, 90, 1079–1080. [Google Scholar] [CrossRef]
  30. Burlitch, J.M.; Leonowicz, M.E.; Petersen, R.B.; Hughes, E.R. Coordination of metal carbonyl anions to triphenylaluminum, -gallium, and-indium and the crystal structure of tetraethylammonium triphenyl ((η5-cyclopentadienyl)dicarbonyliron) aluminate (Fe-Al). Inorg. Chem. 1979, 18, 1097–1105. [Google Scholar] [CrossRef]
  31. Fischer, R.A.; Weiß, J. Coordination chemistry of aluminum, gallium, and indium at transition metals. Angew. Chem. Int. Ed. 1999, 38, 2830–2850. [Google Scholar] [CrossRef]
  32. Hill, A.F.; Owen, G.R.; White, A.J.P.; Williams, D.J. The sting of the scorpion: A metallaboratrane. Angew. Chem. Int. Ed. 1999, 38, 2759–2761. [Google Scholar] [CrossRef]
  33. Braunschweig, H.; Gruss, K.; Radacki, K. Interaction between d-and p-block metals: Synthesis and structure of platinum–alane adducts. Angew. Chem. Int. Ed. 2007, 46, 7782–7784. [Google Scholar] [CrossRef]
  34. Braunschweig, H.; Gruss, K.; Radacki, K. Reactivity of Pt0 complexes toward gallium(III) halides: Synthesis of a platinum gallane complex and oxidative addition of gallium halides to Pt0. Inorg. Chem. 2008, 47, 8595–8597. [Google Scholar] [CrossRef]
  35. Senda, S.; Ohki, Y.; Hirayama, T.; Toda, D.; Chen, J.L.; Matsumoto, T.; Kawaguchi, H.; Ttsumi, K. Mono{hydrotris(mercaptoimidazolyl)borato} complexes of manganese(II), iron(II), cobalt(II), and nickel(II) halides. Inorg. Chem. 2006, 45, 9914–9925. [Google Scholar] [CrossRef]
  36. Pang, K.; Tanski, J.M.; Parkin, G. Reactivity of the Ni→B dative σ-bond in the nickel boratrane compounds [κ4-B (mimBut)3] NiX (X= Cl, OAc, NCS, N3): Synthesis of a series of B-functionalized tris(2-mercapto-1-tert-butylimidazolyl)borato complexes, [YTmBut]NiZ. Chem. Commun. 2008, 1008–1010. [Google Scholar] [CrossRef]
  37. Bikbaeva, Z.M.; Ivanov, D.M.; Novikov, A.S.; Ananyev, I.V.; Bokach, N.A.; Kukushkin, V.Y. Electrophilic–nucleophilic dualism of nickel(II) toward Ni∙∙∙I noncovalent interactions: Semicoordination of iodine centers via electron belt and halogen bonding via σ-hole. Inorg. Chem. 2017, 56, 13562–13578. [Google Scholar] [CrossRef]
  38. Ivanov, D.M.; Bokach, N.A.; Kukushkin, V.Y.; Frontera, A. Metal centers as nucleophiles: Oxymoron of halogen bond-involving crystal engineering. Chem.–A Eur. J. 2022, 28, e202103173. [Google Scholar] [CrossRef]
  39. Bauzá, A.; Frontera, A. Supramolecular assemblies based on σ-hole interactions. In Supramolecular Assemblies Based on Electrostatic Interactions; Springer International Publishing: Cham, Switzerland, 2022; pp. 203–241. [Google Scholar] [CrossRef]
  40. Katlenok, E.A.; Rozhkov, A.V.; Levin, O.V.; Haukka, M.; Kuznetsov, M.L.; Kukushkin, V.Y. Halogen bonding involving palladium(II) as an XB acceptor. Cryst. Growth Des. 2020, 21, 1159–1177. [Google Scholar] [CrossRef]
  41. Bulatov, E.; Eskelinen, T.; Ivanov, A.Y.; Tolstoy, M.; Kalenius, E.; Hirva, P.; Huukka, M. Noncovalent axial I∙∙∙Pt∙∙∙I interactions in platinum(II) complexes strengthen in the excited state. ChemPhysChem 2021, 22, 2044–2049. [Google Scholar] [CrossRef]
  42. Freindorf, M.; Yannacone, S.; Oliveira, V.; Verma, N.; Kraka, E. Halogen bonding involving I2 and d8 transition-metal pincer complexes. Crystals 2021, 11, 373. [Google Scholar] [CrossRef]
  43. Eliseeva, A.A.; Khazanova, M.A.; Cheranyova, A.M.; Aliyarova, I.S.; Kravchuk, R.I.; Oganesyan, E.S.; Ryabykh, A.V.; Maslova, O.A.; Ivanov, D.M.; Bezonsyuk, S.A. Metal-involving halogen bonding confirmed using DFT calculations with periodic boundary conditions. Crystals 2023, 13, 712. [Google Scholar] [CrossRef]
  44. Li, G.; Stenlid, J.H.; Ahlquist, M.S.G.; Brinck, T. Utilizing the surface electrostatic potential to predict the interactions of Pt and Ni nanoparticles with Lewis acids and bases—σ-lumps and σ-holes govern the catalytic activities. J. Phys. Chem. C 2020, 124, 14696–14705. [Google Scholar] [CrossRef]
  45. Zierkiewicz, W.; Kizior, B.; Michalczyk, M.; Jazierska, A.; Scheiner, S. Pd and Pt Metal atoms as electron donors in σ-hole bonded complexes. Phys. Chem. Chem. Phys. 2023, 25, 26172–26184. [Google Scholar] [CrossRef]
  46. Rozhkov, A.V.; Krykova, M.A.; Ivanov, D.M.; Novikov, A.S.; Sinelshchikova, A.A.; Volostnykh, M.V.; Konovalov, M.A.; Grigoriev, M.S.; Gorbunova, Y.G.; Kukushkin, V.Y. Reverse arene sandwich structures based upon π-hole∙∙∙ [MII](d8 M= Pt, Pd) interactions, where positively charged metal centers play the role of a nucleophile. Angew. Chem. Int. Ed. 2019, 131, 4208–4212. [Google Scholar] [CrossRef]
  47. Malenov, D.P.; Zarić, S.D. Chelated metal ions modulate the strength and geometry of stacking interactions: Energies and potential energy surfaces for chelate–chelate stacking. Phys. Chem. Chem. Phys. 2018, 20, 14053–14060. [Google Scholar] [CrossRef]
  48. Malenov, D.P.; Michael, B.H.; Zarić, S.D. Influence of metal ion on chelate–aryl stacking interactions. Int. J. Quantum Chem. 2018, 118, e25629. [Google Scholar] [CrossRef]
  49. Goedecke, C.; Hillebrecht, P.; Uhlemann, T. The Dewar–Chatt–Duncanson model reversed—Bonding analysis of group-10 complexes [(PMe3)2M–EX3](M= Ni, Pd, Pt; E= B, Al, Ga, In, Tl; X= H, F, Cl, Br, I). Can. J. Chem. 2009, 87, 1470–1479. [Google Scholar] [CrossRef]
  50. Liu, N.; Li, Q.Z.; Scheiner, S.; Xie, X.Y. Resonance-assisted intramolecular triel bonds. Phys. Chem. Chem. Phys. 2022, 24, 15015–15024. [Google Scholar] [CrossRef]
  51. Niu, Z.H.; McDowell, S.A.C.; Li, Q.Z. Triel bonds with Au atoms as electron donors. ChemPhysChem 2023, 24, e202200748. [Google Scholar] [CrossRef]
  52. Murcia, R.A.; MacLeod-Carey, D.; Hurtado, J.J.; Muñoz-Castro, A. Formation of C60-SnI4 adducts. Insights of the role of σ-hole and tetrel-bonding in the strength and interaction nature from DFT calculations. Inorg. Chim. Acta 2023, 545, 121277. [Google Scholar] [CrossRef]
  53. Ulloa, C.O.; Ponce-Vargas, M.; Munoz-Castro, A. Formation of coinage-metal···fullerene adducts. Evaluation of the interaction nature between triangular coinage metal complexes (M3 = Cu, Ag, and Au) and C60 through relativistic density functional theory calculations. J. Phys. Chem. C 2018, 122, 25110–25117. [Google Scholar] [CrossRef]
  54. Muñoz-Castro, A.; Wang, G.; Ponduru, T.T.; Dias, H.V.R. Synthesis and characterization of N-heterocyclic carbene-M∙∙∙OEt2 complexes (M = Cu, Ag, Au). Analysis of solvated auxiliary-ligand free [(NHC)M]+ species. Phys. Chem. Chem. Phys. 2021, 23, 1577–1583. [Google Scholar] [CrossRef]
  55. Ulloa, C.O.; Guajardo-Maturana, R.; Rodríguez-Kessler, P.L.; Muñoz-Castro, A. Nature of the dative nitrogen-coinage metal bond in molecular motors. Evaluation of NHC-M pyrazine bond (M= Cu, Ag, Au) from relativistic DFT. Inorg. Chim. Acta 2023, 549, 121401. [Google Scholar] [CrossRef]
  56. Su, P.; Li, H. Energy decomposition analysis of covalent bonds and intermolecular interactions. J. Chem. Phys. 2009, 131, 014102. [Google Scholar] [CrossRef]
  57. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision A.02; Gaussian Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  58. Becke, A.D. Density-functional thermochemistry. I. The effect of the exchange-only gradient correction. J. Chem. Phys. 1992, 96, 2155–2160. [Google Scholar] [CrossRef]
  59. Peterson, K.A.; Shepler, B.C.; Figgen, D.; Stoll, H. On the spectroscopic and thermochemical properties of ClO, BrO, IO, and their anions. J. Phys. Chem. A 2006, 110, 13877. [Google Scholar] [CrossRef]
  60. Wilson, A.K.; Woon, D.E.; Peterson, K.A.; Dunning, T.H., Jr. Gaussian basis sets for use in correlated molecular calculations. IX. The atoms gallium through krypton. J. Chem. Phys. 1999, 110, 7667. [Google Scholar] [CrossRef]
  61. Boys, S.F.; Bernardi, F. The calculation of small molecular interactions by the differences of separate total energies. Some procedures with reduced errors. Mol. Phys. 2002, 19, 553–566. [Google Scholar] [CrossRef]
  62. Lu, T.; Chen, F.W. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  63. Bader, R.F.W. Atoms in molecules. Acc. Chem. Res. 1985, 18, 9–15. [Google Scholar] [CrossRef]
  64. Lu, T.; Chen, Q. Interaction region indicator: A simple real space function clearly revealing both chemical bonds and weak interactions. Chemistry-Methods 2021, 1, 231–239. [Google Scholar] [CrossRef]
  65. Mitoraj, M.P.; Michalak, A.; Ziegler, T. A combined charge and energy decomposition scheme for bond analysis. J. Chem. Theory Comput. 2009, 5, 962–975. [Google Scholar] [CrossRef] [PubMed]
  66. Tang, Z.; Song, Y.L.; Zhang, S.; Wang, W.; Xu, Y.; Wu, D.; Wu, W.; Su, P.F. XEDA, a fast and multipurpose energy decomposition analysis program. J. Comput. Chem. 2021, 42, 2341–2351. [Google Scholar] [CrossRef] [PubMed]
  67. Su, P.F.; Tang, Z.; Wu, W. Generalized Kohn-Sham energy decomposition analysis and its applications. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2020, 10, e1460. [Google Scholar] [CrossRef]
  68. Zou, J.X. MOKIT Program. Available online: https://gitlab.com/jxzou/mokit (accessed on 28 December 2023).
Molecules 29 01602 g001

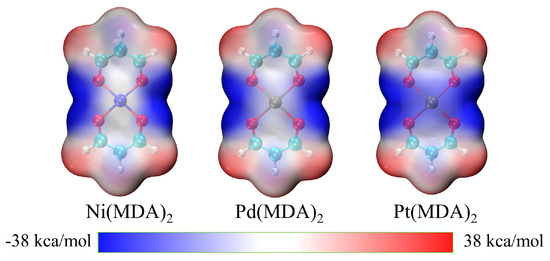

Figure 1. The MEP maps on the 0.001 electrons Bohr−3 surface of M(MDA)2 (M = Ni, Pd Pt). Red and blue regions represent positive and negative MEPs, respectively.
Figure 1. The MEP maps on the 0.001 electrons Bohr−3 surface of M(MDA)2 (M = Ni, Pd Pt). Red and blue regions represent positive and negative MEPs, respectively.
Molecules 29 01602 g001
Molecules 29 01602 g002

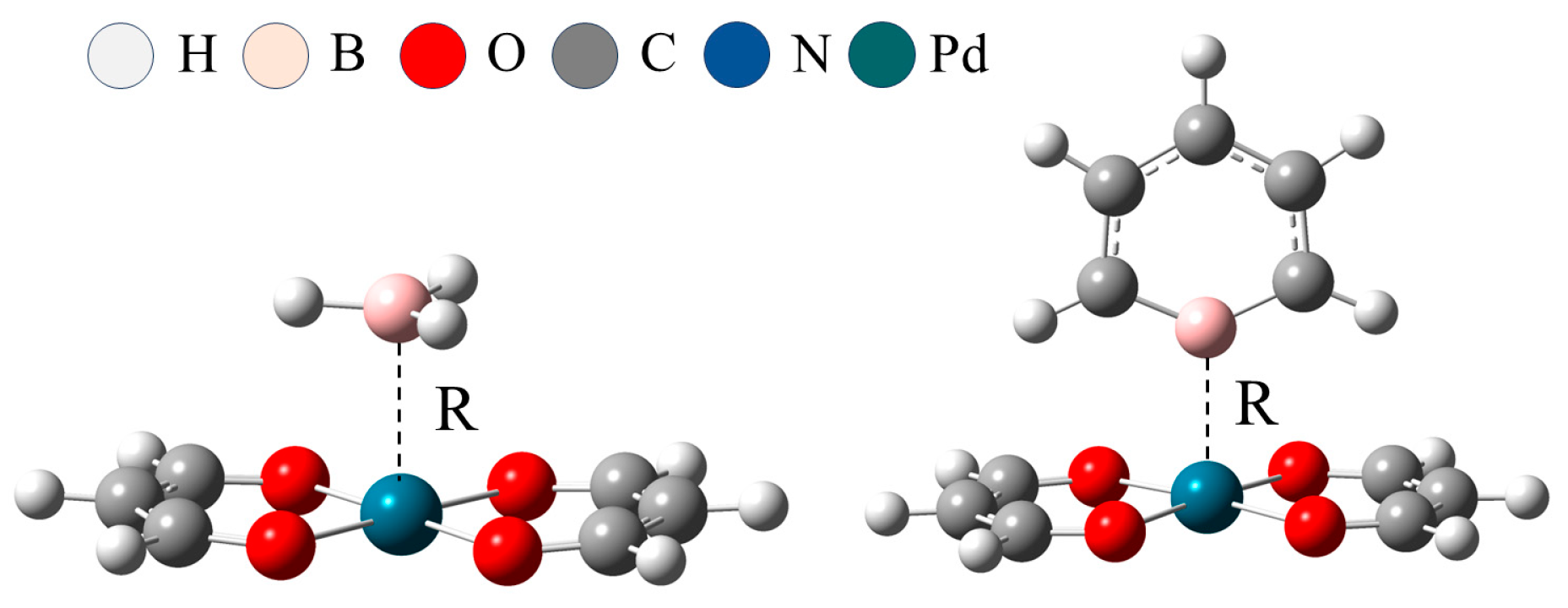

Figure 2. Optimized structures of BH3∙∙∙Pd(MDA)2 (left) and C5H5B∙∙∙Pd(MDA)2 (right), marked with the B∙∙∙M distance (R, Å).
Figure 2. Optimized structures of BH3∙∙∙Pd(MDA)2 (left) and C5H5B∙∙∙Pd(MDA)2 (right), marked with the B∙∙∙M distance (R, Å).
Molecules 29 01602 g002
Molecules 29 01602 g003

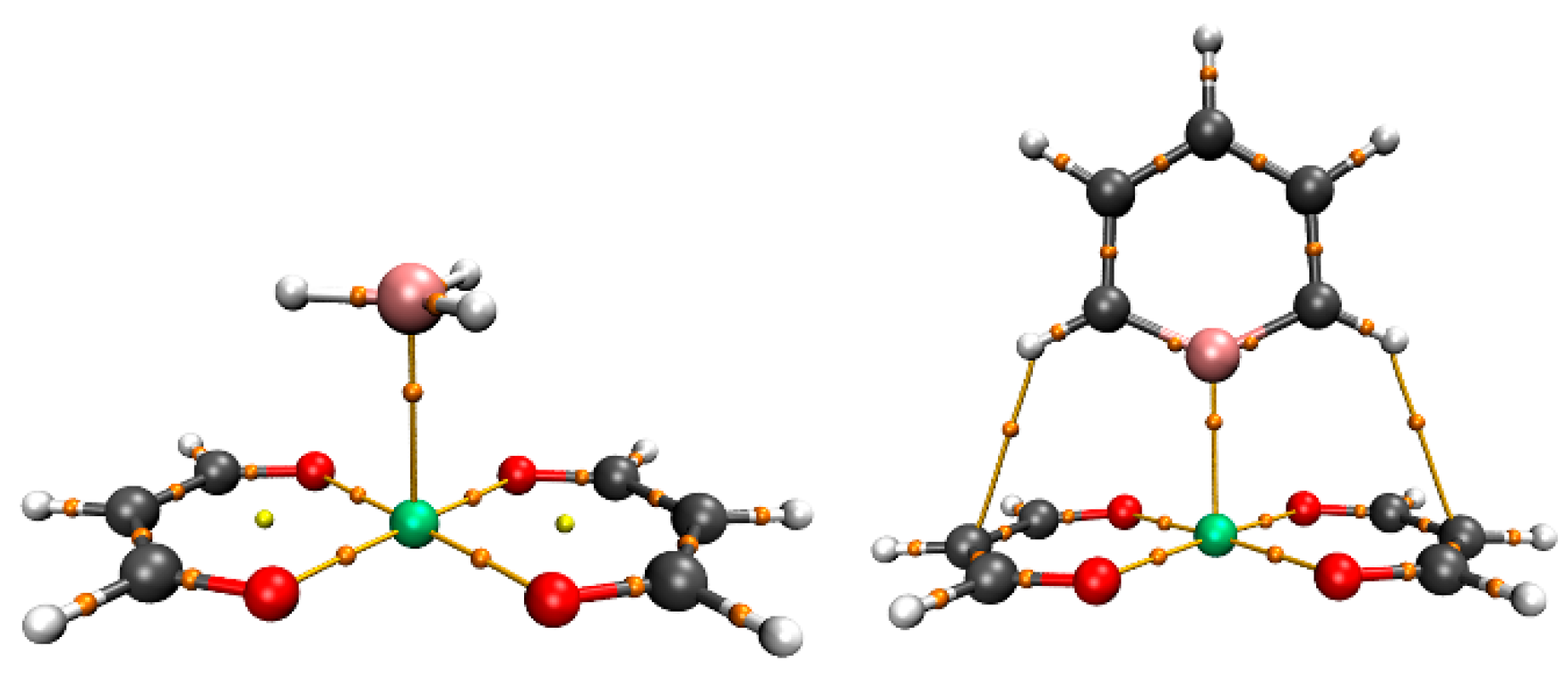

Figure 3. AIM diagrams of BH3∙∙∙Pd(MDA)2 (left) and C5H5B∙∙∙Pd(MDA)2 (right); bond paths are indicated by broken lines with bond critical point represented by small orange dots.
Figure 3. AIM diagrams of BH3∙∙∙Pd(MDA)2 (left) and C5H5B∙∙∙Pd(MDA)2 (right); bond paths are indicated by broken lines with bond critical point represented by small orange dots.
Molecules 29 01602 g003
Molecules 29 01602 g004

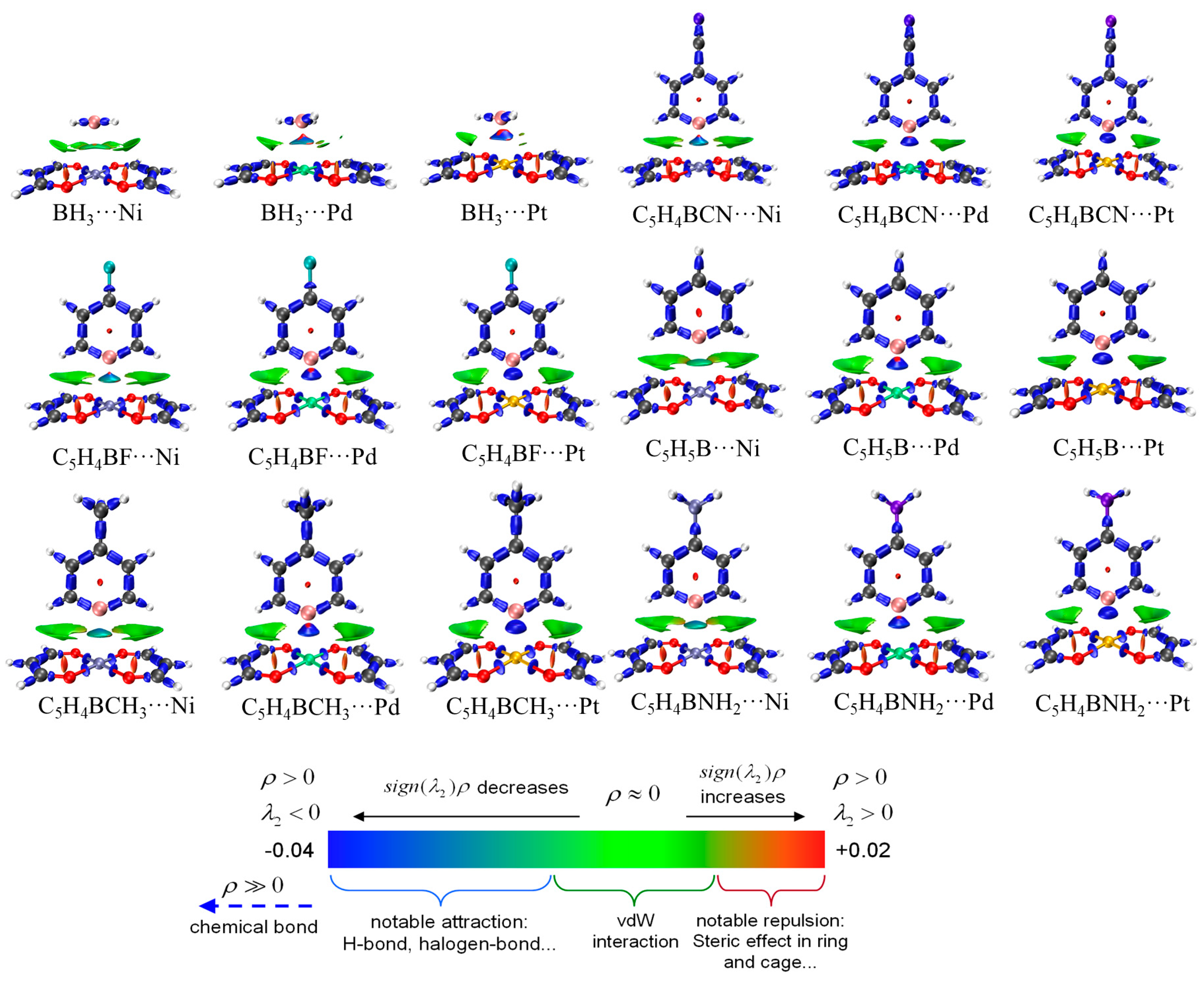

Figure 4. IRI diagrams of BH3∙∙∙M(MDA)2 and C5H4BX∙∙∙M(MDA)2 (M = Ni, Pd, Pt, X = H, CN, F, CH3, NH2).
Figure 4. IRI diagrams of BH3∙∙∙M(MDA)2 and C5H4BX∙∙∙M(MDA)2 (M = Ni, Pd, Pt, X = H, CN, F, CH3, NH2).
Molecules 29 01602 g004
Molecules 29 01602 g005

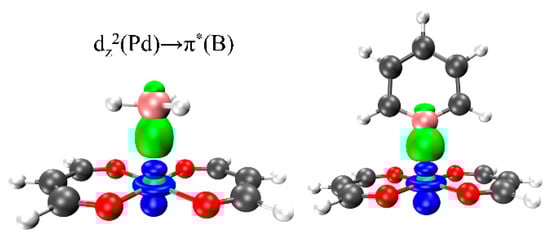

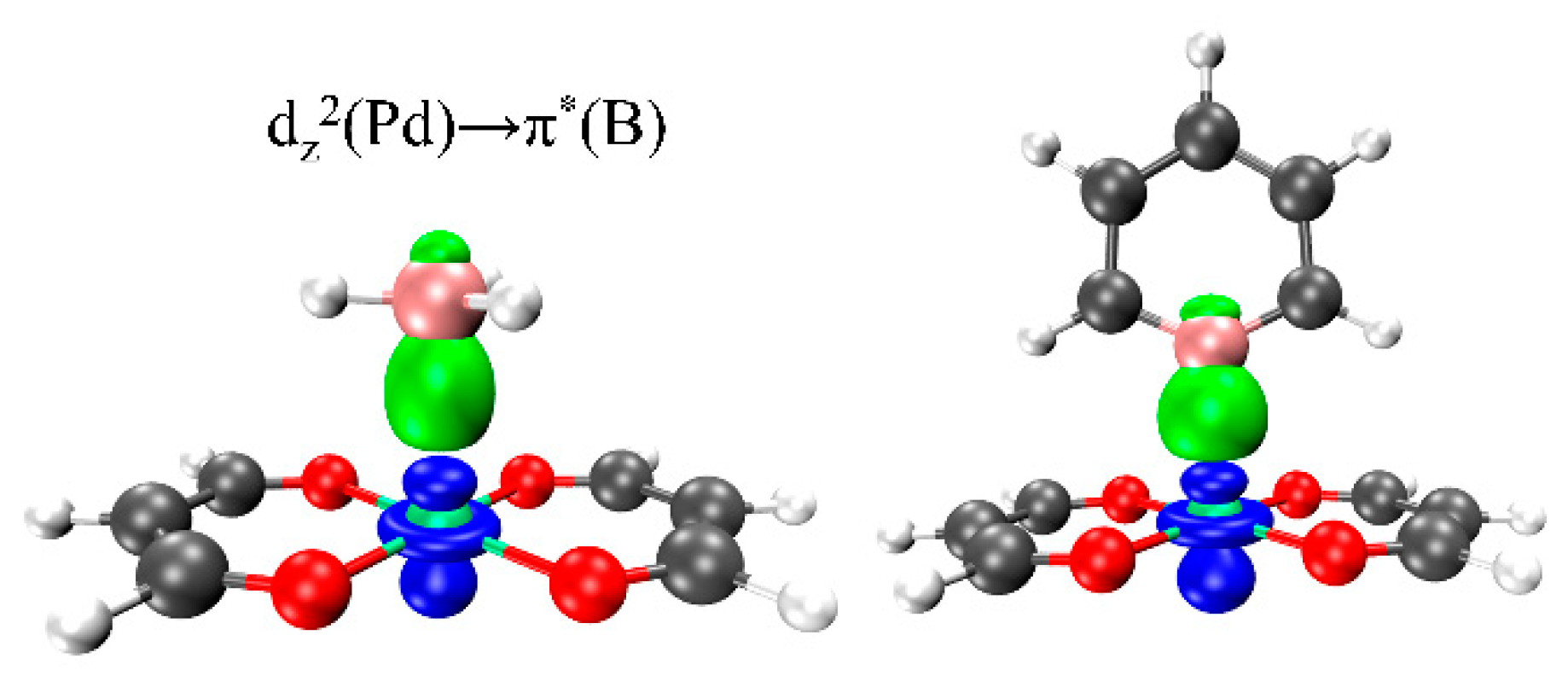

Figure 5. NOCV diagram of BH3∙∙∙Pd(MDA)2 (left) and C5H4BCN∙∙∙Pd(MDA)2 (right); the green electron cloud represents accepted electrons, while the blue electron cloud represents donated electrons. The symbol * denotes the empty B orbital.
Figure 5. NOCV diagram of BH3∙∙∙Pd(MDA)2 (left) and C5H4BCN∙∙∙Pd(MDA)2 (right); the green electron cloud represents accepted electrons, while the blue electron cloud represents donated electrons. The symbol * denotes the empty B orbital.
Molecules 29 01602 g005
Molecules 29 01602 g006

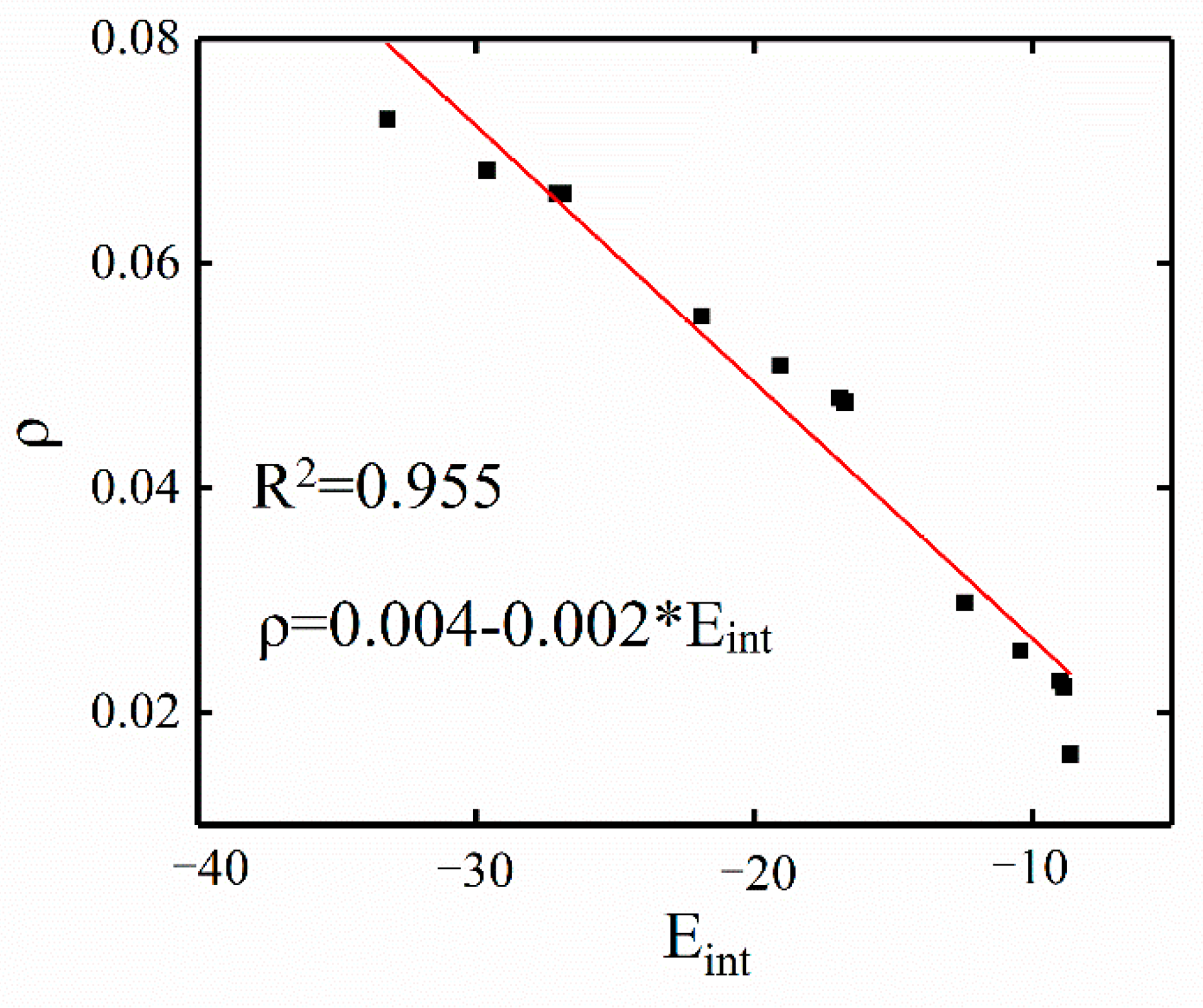

Figure 6. Linear relationship between the electron density (ρ, a.u.) at the B∙∙∙M BCP and the interaction energy (Eint, kcal/mol) in C5H4BX∙∙∙M(MDA)2.
Figure 6. Linear relationship between the electron density (ρ, a.u.) at the B∙∙∙M BCP and the interaction energy (Eint, kcal/mol) in C5H4BX∙∙∙M(MDA)2.
Molecules 29 01602 g006
Table 1. The most positive MEP (Vs,max, kcal/mol) on the π–hole of BH3 and the σ–hole of C5H4BX (X = H, CN, F, CH3, NH2).
Table 1. The most positive MEP (Vs,max, kcal/mol) on the π–hole of BH3 and the σ–hole of C5H4BX (X = H, CN, F, CH3, NH2).
Vs,max
BH341.35
C5H5B44.07
C5H4BF52.08
C5H4BCN59.58
C5H4BCH343.35
C5H4BNH244.02
Table 2. Binding distance (R, Å), interaction energy (Eint, kcal/mol), binding energy (Eb, kcal/mol), and deformation energy (DE, kcal/mol) in the complexes.
Table 2. Binding distance (R, Å), interaction energy (Eint, kcal/mol), binding energy (Eb, kcal/mol), and deformation energy (DE, kcal/mol) in the complexes.
REintEbDE
BH3-Ni2.842−4.71−4.470.24
BH3-Pd2.544−8.60−7.561.04
BH3-Pt2.447−14.09−11.382.71
C5H5B-Ni2.786−8.66−8.000.66
C5H5B-Pd2.356−16.76−13.163.60
C5H5B-Pt2.271−26.91−20.176.74
C5H4BF-Ni2.528−10.44−8.851.59
C5H4BF-Pd2.323−19.07−15.024.05
C5H4BF-Pt2.254−29.61−22.617.00
C5H4BCN-Ni2.466−12.46−10.302.15
C5H4BCN-Pd2.293−21.89−17.084.80
C5H4BCN-Pt2.233−33.18−25.227.96
C5H4BCH3-Ni2.604−8.88−7.711.17
C5H4BCH3-Pd2.354−16.72−13.163.56
C5H4BCH3-Pt2.269−26.89−20.206.69
C5H4BNH2-Ni2.611−9.03−7.861.18
C5H4BNH2-Pd2.346−16.93−13.383.55
C5H4BNH2-Pt2.265−27.11−20.546.57
Table 3. Electron densities (ρ), Laplacians (∇2ρ), and total energy densities (H) at the B∙∙∙M BCP in the complexes, all in a.u.
Table 3. Electron densities (ρ), Laplacians (∇2ρ), and total energy densities (H) at the B∙∙∙M BCP in the complexes, all in a.u.
ρ∇2ρH
BH3-Ni0.01300.0264−0.0004
BH3-Pd0.03010.0354−0.0064
BH3-Pt0.04370.0200−0.0162
C5H5B-Ni0.01630.0196−0.0018
C5H5B-Pd0.0476−0.0067−0.0205
C5H5B-Pt0.0662−0.0489−0.0427
C5H4BF-Ni0.02550.0140−0.0059
C5H4BF-Pd0.0509−0.0156−0.0244
C5H4BF-Pt0.0683−0.0502−0.0463
C5H4BCN-Ni0.02980.0100−0.0079
C5H4BCN-Pd0.0553−0.0268−0.0282
C5H4BCN-Pt0.0728−0.0640−0.0509
C5H4BCH3-Ni0.02230.0179−0.0041
C5H4BCH3-Pd0.0477−0.0070−0.0208
C5H4BCH3-Pt0.0662−0.0476−0.0431
C5H4BNH2-Ni0.02280.0193−0.0040
C5H4BNH2-Pd0.0480−0.0082−0.0217
C5H4BNH2-Pt0.0662−0.0440−0.0439
Table 4. Electrostatic (Eele), exchange (Eex), repulsion (Erep), polarization (Epol), sum of dispersion and electron correlation (Edisp/corr), and total interaction energies (Etotal) in the complexes, all in kcal/mol.
Table 4. Electrostatic (Eele), exchange (Eex), repulsion (Erep), polarization (Epol), sum of dispersion and electron correlation (Edisp/corr), and total interaction energies (Etotal) in the complexes, all in kcal/mol.
EeleEexErepEpolEdispEcorrEdisp/corrEtotal
BH3-Ni−3.13−14.522.464.64−4.56−9.56−14.12−4.65
BH3-Pd−9.47−35.2658.77−2.38−5.64−14.52−20.16−8.50
BH3-Pt−18.24−54.5294.45−15.85−5.95−13.87−19.82−13.98
C5H5B-Ni−6.03−21.6235.083.38−8.26−11.12−19.38−8.58
C5H5B-Pd−16.20−55.4796.10−13.02−9.74−18.28−28.02−16.61
C5H5B-Pt−28.82−80.19143.69−37.28−10.31−13.83−24.14−26.73
C5H4BF-Ni−6.53−30.2950.215.07−8.28−20.51−28.79−10.34
C5H4BF-Pd−16.61−57.2299.85−15.62−9.85−19.47−29.32−18.92
C5H4BF-Pt−28.93−80.15144.23−39.92−10.36−14.30−24.66−29.43
C5H4BCN-Ni−7.79−33.6356.564.27−8.44−23.31−31.75−12.34
C5H4BCN-Pd−17.91−59.75105.48−19.38−10.02−20.16−30.18−21.73
C5H4BCN-Pt−30.47−82.44149.99−45.72−10.48−13.88−24.36−33.00
C5H4BCH3-Ni−6.71−28.1746.324.70−8.16−16.76−24.92−8.78
C5H4BCH3-Pd−16.19−55.6896.38−12.93−9.76−18.40−28.16−16.57
C5H4BCH3-Pt−28.80−80.38143.89−37.06−10.34−14.02−24.36−26.71
C5H4BNH2-Ni−8.22−29.6449.033.90−8.17−15.84−29.32−8.93
C5H4BNH2-Pd−16.12−56.1697.17−13.27−9.75−18.65−28.40−16.78
C5H4BNH2-Pt−28.68−80.53143.94−37.01−10.33−14.32−24.65−26.93
Table 5. NOCV orbital energies (E, kcal/mol) in the complexes.
Table 5. NOCV orbital energies (E, kcal/mol) in the complexes.
NiPdPt
BH3−4.75−14.07−23.04
C5H5B−5.73−22.70−34.99
C5H4BF−12.29−25.32−37.06
C5H4BCN−15.03−28.27−40.35
C5H4BCH3−9.47−22.74−35.01
C5H4BNH2−9.05−23.16−35.21
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, X.; Niu, Z.; McDowell, S.A.C.; Li, Q. Triel Bonds between BH3/C5H4BX and M(MDA)2 (X = H, CN, F, CH3, NH2; M = Ni, Pd, Pt, MDA = Enolated Malondialdehyde) and Group 10 Transition Metal Electron Donors. Molecules 2024, 29, 1602. https://doi.org/10.3390/molecules29071602

AMA Style

Wang X, Niu Z, McDowell SAC, Li Q. Triel Bonds between BH3/C5H4BX and M(MDA)2 (X = H, CN, F, CH3, NH2; M = Ni, Pd, Pt, MDA = Enolated Malondialdehyde) and Group 10 Transition Metal Electron Donors. Molecules. 2024; 29(7):1602. https://doi.org/10.3390/molecules29071602

Chicago/Turabian Style

Wang, Xin, Zhihao Niu, Sean A. C. McDowell, and Qingzhong Li. 2024. "Triel Bonds between BH3/C5H4BX and M(MDA)2 (X = H, CN, F, CH3, NH2; M = Ni, Pd, Pt, MDA = Enolated Malondialdehyde) and Group 10 Transition Metal Electron Donors" Molecules 29, no. 7: 1602. https://doi.org/10.3390/molecules29071602

Article Metrics

Back to TopTop
