Molecular Imprinted Polymer of Methacrylic Acid Functionalised β-Cyclodextrin for Selective Removal of 2,4-Dichlorophenol

by
Hemavathy Surikumaran
,
Sharifah Mohamad
* and
Norazilawati Muhamad Sarih
Department of Chemistry, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2014, 15(4), 6111-6136; https://doi.org/10.3390/ijms15046111
Submission received: 21 December 2013 / Revised: 20 February 2014 / Accepted: 21 February 2014 / Published: 10 April 2014
(This article belongs to the Section Molecular Recognition)

Abstract

:
This work describes methacrylic acid functionalized β-cyclodextrin (MAA-βCD) as a novel functional monomer in the preparation of molecular imprinted polymer (MIP MAA-βCD) for the selective removal of 2,4-dichlorophenol (2,4-DCP). The polymer was characterized using Fourier Transform Infrared (FTIR) spectroscopy, Brunauer-Emmett-Teller (BET) and Field Emission Scanning Electron Microscopy (FESEM) techniques. The influence of parameters such as solution pH, contact time, temperature and initial concentrations towards removal of 2,4-DCP using MIP MAA-βCD have been evaluated. The imprinted material shows fast kinetics and the optimum pH for removal of 2,4-DCP is pH 7. Compared with the corresponding non-imprinted polymer (NIP MAA-βCD), the MIP MAA-βCD exhibited higher adsorption capacity and outstanding selectivity towards 2,4-DCP. Freundlich isotherm best fitted the adsorption equilibrium data of MIP MAA-βCD and the kinetics followed a pseudo-second-order model. The calculated thermodynamic parameters showed that adsorption of 2,4-DCP was spontaneous and exothermic under the examined conditions.

1. Introduction

Water quality control is one of the most critical issues in environmental analytical chemistry today. Phenols are one of the consequential toxic pollutants classified under organic aromatic contaminants [1]. Phenols can be released into the environment directly and indirectly [2], thus they appear to be one of the problematic groups globally. Chlorophenols are hazardous wastes mainly produced during chemical processing of pesticides, herbicides, paint, paper production and wood preservations [3]. The chlorination of natural waters for disinfection produce small amounts of chlorinated phenols [4]; particularly, 2,4-dichlorophenol (2,4-DCP)s are very common and have been highlighted as priority pollutants to be monitored in the aquatic environment by the US EPA in the Clean Water Act [57]. Carcinogenic and mutagenic effects to living things may occur because 2,4-DCP can incite perturbances in the cellular structure of phospholipid bilayers [8]. Generally, 2,4-DCPs are weak acids, which are resistant to biodegradation. Before discharging 2,4-DCP into receiving water bodies, they have to be decomposed so that the deleterious effects of bio magnifications to aquatic flora and fauna can be obviated [9]. Complicated problems such as unpleasant odor and taste in drinking water, inhibition of the mundane activities of microbial population in wastewater treatment plants etc., also occur upon existence of 2,4-DCP in bodies of water. Prolonged consumption of excessive phenol concentrations will results in loss of appetite, malnutrition, headache, rapid tiredness and severe insomnia in human beings [10]. Concentration of chlorophenols as low as 0.1 mg·L−1 can exhibit harmful effects in drinking water [11].
Several physical, chemical and biological methods including activated carbon adsorption [12], ion exchange [13,14], biodegradation [15,16], advanced oxidation processes such as photo-Fenton reactions and ozonation [1720] have been reported for removal of chlorophenols. Among these methods, adsorption is a well-known removal technique for organic compounds from water [21] due to its simple design, facile operation and relatively low cost [22]. The utilization of activated carbon as adsorbents for the removal of phenolic compounds [23] is a very common practice. However, adsorptions using activated carbon have high treatment costs, including possibilities of causing secondary pollution and considerable loss during chemical or thermal regeneration [24]. Moreover, these methods are normally non-selective and this has led researchers to continue searching for more reliable, cost-effective and highly selective materials for removal of chlorophenols. In this context, molecular imprinting techniques could serve as a versatile platform for creating polymer matrix with molecule-specific recognition properties besides its simple, inexpensive and stable nature [25].
Molecularly imprinted polymers (MIPs) are new kinds of smart materials with promising selective molecular recognition abilities. The functional monomer and cross-linker are copolymerized in the existence of a template molecule. Extraction of the template molecule from the prepared polymer brings out binding sites that are similar to the target molecule in size, shape and physicochemical properties, which can differentiate the template from its structural analogues [26,27]. MIPs have been attractive in many fields such as sensors [28], analytical applications [29,30], biomedical applications and enantiomeric separations. Till now, MIPs were mostly synthesized utilizing typical functional monomers, methacrylic acid (MAA) and non-polar solvents such as porogen, in which interactions such as hydrogen bonds and electrostatic interaction were only responsible for imprinting effect. It is hard to use these MIPs directly in aqueous samples, because interactions between the template and monomers will be disturbed by water molecules [31]. Therefore, a novel water insoluble imprinted material was prepared via polymerization of new functional monomer, methacrylic acid functionalized β-cyclodextrin (MAA-βCD) and trimethylolpropane trimethacrylate (TRIM) as a cross linker in the presence of 2,4-DCP (template molecule) to overcome this problem.
Cyclodextrins (CDs) are torus-shaped cyclic oligosaccharides consisting of several α-1,4-linked d-glucopyranose units. β-cyclodextrin (β-CD) has been chosen for this study since its hydrophobic cavity can accommodate a variety of compounds to form inclusion complexes by various kinds of intermolecular interactions [32]. In recent years, they have received considerable attention in molecular imprinting techniques [33,34]. This inclusion interaction within β-CD cavities is one of the driving forces to be considered in the case of β-CD MIPs besides interaction with the cross-linking network [35]. To the best of our knowledge, only limited numbers of studies had described the use of 2,4-DCP as template for MIP synthesis in literature [36,37]. Pan and co-workers recently reported on MIP microspheres using β-cyclodextrin/attapulgite composites for adsorption of 2,4-DCP from aqueous solution. But the idea of the present study is totally different from their work since modified β-CD was utilized as a functional monomer rather than using composites as support in imprinting technique. In the current work, the primary objectives are: (1) to synthesize and characterize new functional monomers (MAA-βCD) and imprinted polymers (MIP MAA-βCD); (2) to evaluate the influences of adsorption parameters (i.e., pH, contact time, initial concentrations of 2,4-DCP and temperature); (3) to establish a kinetic and isotherm model that best described the adsorption process of 2,4-DCP and (4) to calculate the thermodynamic parameters of the adsorption of 2,4-DCP by MIP MAA-βCD.

2. Results and Discussion

2.1. Characterization of MIP MAA-βCD and NIP MAA-βCD

2.1.1. Fourier Transform Infrared (FTIR) Analysis

FTIR analysis permits identification of the functional groups on the adsorbent surface in the range 400–4000 cm−1 [38]. The IR spectra of MIP MAA-βCD, NIP MAA-βCD and their monomers are shown in Figure 1. The spectrum of MAA-βCD (Figure 1b) shows the complete disappearance of N=C=O, (isocyanate peak of toluene-2,4-diisocyanate,TDI) at 2283 cm−1 and formation of a new carbamate group (–NH) at 3327 cm−1 after reacting with β-CD. The absence of N=C=O group shows that it has been reacted with –OH group of β-CD. Presence of a C=C bond of MAA at 1616 cm−1 indicate that the double bond of MAA is intact. This is very important because this double bond will be used in the cross-linking process with TRIM during polymerization. Therefore, this result is evidence for the formation of new monomer (MAA-βCD) formed between MAA-TDI and β-CD. Compared with the spectrum of NIP MAA-βCD (Figure 1d), there were only slight changes such as broadening of some bands and small spectral shifts in the spectrum of MIP MAA-βCD. Strong peaks around 3371, 2953, 1724, 1462, 1257 and 1141 cm−1 were observed in the spectrum of MIP MAA-βCD (Figure 1c). The peak at 3371 cm−1 was due to the formation of –NH group between –OH (β-CD) and N=C=O (MAA-βCD) from monomer. The band at around 2953 cm−1 was due to the symmetric and asymmetric C–H stretching vibrations. The bands around 1462 cm−1 were suggested to be the aromatic ring stretching vibrations of 2,4-DCP. The band located at 1257 cm−1 assigned to the stretching vibration of the C–OH of alcoholic groups and carboxylic acids from MAA-βCD. A band centered at 1141 cm−1 was due to C–O stretching of 2,4-DCP. The obvious absorption band (C=O) of TRIM located at 1724 cm−1 indicates the cross-linking reaction successfully occurred. However, the new absorption bands were not observed in the spectrum of MIP MAA-βCD when 2,4-DCP was loaded onto the polymer. Only small shifts were observed in some absorption bands. This is an indication for inclusion complex formation between 2,4-DCP and β-CD in MIP MAA-βCD during the imprinting process.

2.1.2. Particle Size and Brunauer-Emmett-Teller (BET) Analysis

MIP and NIP particles were subjected to small angle x-ray scattering to determine the particle size. The size of the MIP particle after extraction is 122.6 A while for the NIP particle it is 311.8 A. Particle size of MIP after extraction was smaller than NIP. This suggests that after extraction MIP MAA-βCD had more vacancy sites and porosity surface for adsorption of 2,4-DCP whereas NIP MAA-βCD did not contain them.

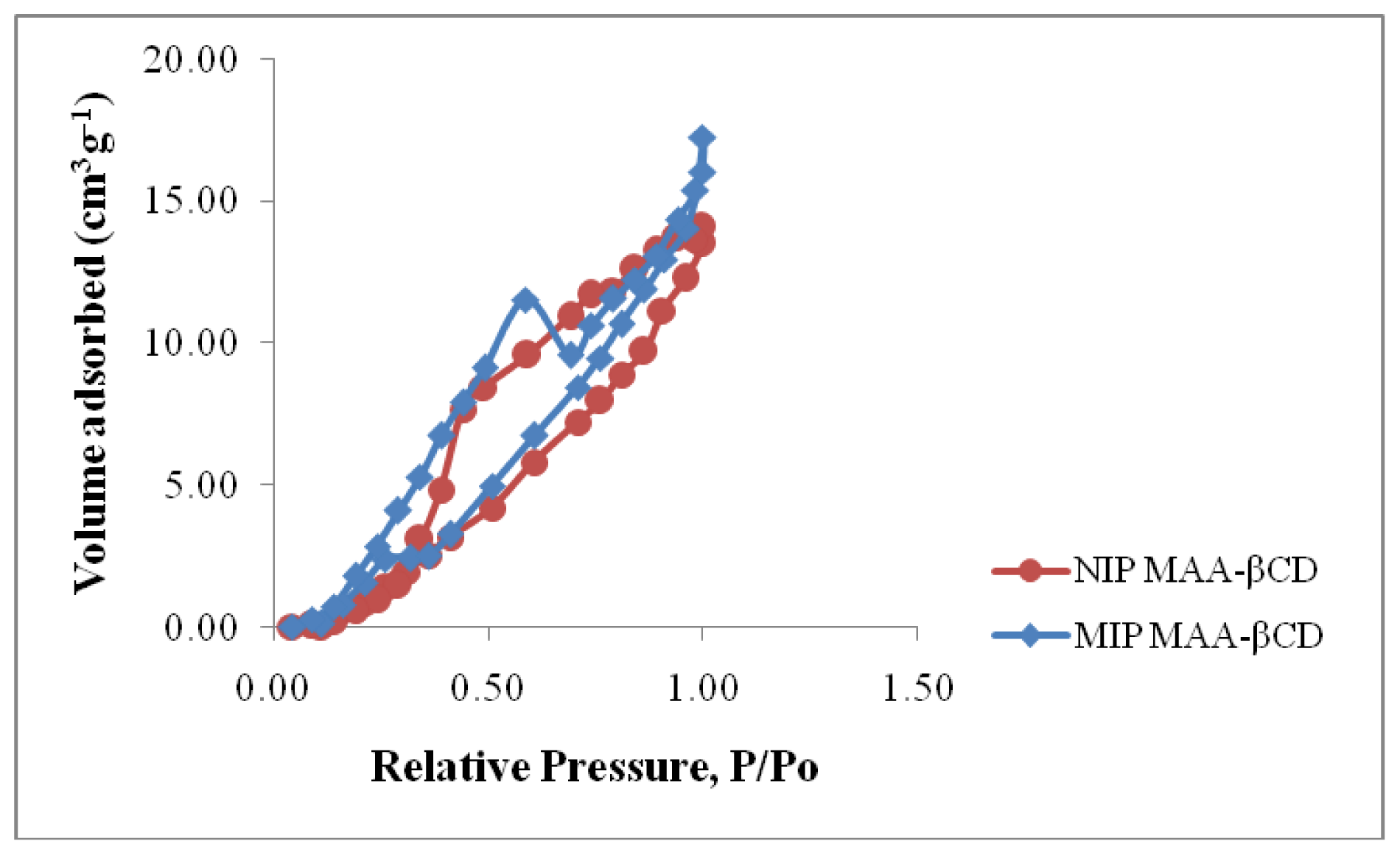

Meanwhile, nitrogen adsorption/desorption analysis was used to evaluate Brunauer-Emmett-Teller (BET) surface area, total pore volume and pore size. The total pore volume and average pore diameter of the polymers was quantified using Barrett-Joyner-Halenda (BJH) method. The corresponding isotherm profiles are presented in Figure 2; the shape of their N2 adsorption/desorption isotherm was a mixture of types I and IV, suggesting that both MIP MAA-βCD and NIP MAA-βCD had a mixed microporous and mesoporous structure. The BET surface area, total pore volume and average pore size of MIP MAA-βCD were 2.441 m2·g−1, 0.022 cm3·g−1, 1.587 nm respectively, while these parameters were not obviously different from those of NIP MAA-βCD (2.225 m2·g−1, 0.019 cm3·g−1, 1.465 nm). Therefore, the distinguishable adsorption properties of MIP MAA-βCD and NIP MAA-βCD were not caused by the morphological differences, but due to the imprinting effect of template molecule. Referring to the IUPAC definition, MIP MAA-βCD and NIP MAA-βCD mainly possessed micropores (pore size < 2 nm) [38]. MIP MAA-βCD had many imprinted cavities and should have more surface area and pore volume. However, the functional monomers (MAA-βCD) were distributed in an orderly fashion at the surface of pores in the MIP MAA-βCD via the imprinting process. As a result, the MIP MAA-βCD could absorb much more water molecules and had less surface area and pore volume.

2.1.3. Morphological Structure

Field Emission Scanning Electron Microscopy (FESEM) was used to characterize MIP MAA-βCD and NIP MAA-βCD morphologically as shown in Figure 3. Significant differences can be noticed in the FESEM images of the polymers. The surface of the MIP MAA-βCD exhibits a more porous structure than NIP MAA-βCD. The regular structure of the NIP MAA-βCD was due to the fact that no specific binding sites had been created for the polymer. The cavities in the MIP MAA-βCD were probably caused by the structure of the 2,4-DCP molecules. This phenomenon explains well the experimental results of the MIP MAA-βCD, which gave high adsorption capacity to 2,4-DCP.

2.2. Effect of pH on the Adsorption of 2,4-DCP

The effect of pH on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD was examined (Figure 4). The result showed that the adsorption was not pH-dependent. The initial pH of the solutions was adjusted from pH 2 to 10. Removal of 2,4-DCP by MIP MAA-βCD was not significantly different than that of NIP MAA-βCD at all pH solutions studied. The removal efficiency of 2,4-DCP increased gradually with the increase in initial pH and reached optimum value of 83% at pH 7 and decreased slightly at basic pH region (8–10). Therefore all the other sorption tests in this work were performed at pH 7.
At neutral pH, the adsorbed 2,4-DCP was mostly in the non-ionized form. The sorption mechanism was probably dominated by van der Waals force, inclusion complex formation and hydrogen bonding simultaneously. Some researchers had proved that 2,4-DCP could form inclusion complex with β-CD [39,40]. Since MIP MAA-βCD does not have functional groups with proton dissociation, the adsorption of 2,4-DCP is thus pH-independent and mainly due to hydrophobic interactions.

2.3. Effect of Initial 2,4-DCP Concentrations on the Adsorption Process

Figure 5 shows the plot of removal percentage versus initial concentrations for the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD at three different temperatures (298, 318 and 338 K). The isotherm data of 2,4-DCP showed that the binding isotherm at first elevates sharply, indicating that few numbers of readily accessible sites are available in the beginning for adsorption. However, after achieving equilibration, a plateau is reached demonstrating that no more sites are available for further adsorption as the adsorbent was saturated. The increase in initial concentration from 5 to 100 mg·L−1 leads to an increase in removal efficiency generally from 62% to about 87%. The effect of temperature on the percentage of removal is not very obvious. The percentage of removal decreases slightly with the increase in temperature. This implies that the adsorption of MIP MAA-βCD towards 2,4-DCP is an exothermic process [35].

2.4. Adsorption Isotherms

The adsorption isotherm is studied to describe the interactive behavior between the adsorbate and the adsorbent. Isotherm data analysis is important for estimating the adsorption capacity and for describing the adsorbent surface properties and affinity. Four most commonly used isotherm models, Langmuir [41], Freundlich [42], Temkin [43] and Dubinin-Radushkevich [44] were used to describe relationships between the amount of 2,4-DCP adsorbed onto MIP MAA-βCD and its equilibrium concentration in solutions at different temperatures. The applicability of the isotherm models was studied by judging the correlation coefficients, R2 values. The Freundlich isotherm model is most frequently employed to describe sorption onto heterogeneous surfaces from aqueous solution and reversible adsorption, which is not restricted to monolayer formations. It can be expressed in linear form as Equation (1):
log qe = log  K F + ( 1 / n ) log Ce
where KF (mg·g−1) (L·mg−1)1/n and 1/n are Freundlich constants related to adsorption capacity and adsorption intensity of the adsorbent respectively. The value of n indicates a favorable adsorption when 1 < n < 10 and it is more favorable as 1/n < 1 [45].
The Langmuir isotherm model is predicated on the postulation that a structure of the adsorbent is homogeneous, where all sorption sites are similar and energetically equivalent. The general Langmuir equation is given as Equation (2):
Ce qe = 1 Q m b + 1 Q m Ce
where Ce is the equilibrium concentration of the 2,4-DCP (mg·L−1), qe is the equilibrium adsorption capacity (mg·g−1), b is the Langmuir adsorption constant (L·mg−1) and Qm is the maximum adsorption amount (mg·g−1), which can be obtained from the slope and intercept of a plot Ce/qe versus Ce. The favorability of an adsorption process is determined in terms of Langmuir isotherm, “RL” a dimensionless constant referred as separation factor or equilibrium parameter [46] is calculated using Equation (3):
R L = 1 1 + bC 0
where b is the Langmuir isotherm constant (L·mg−1) and C0 is the highest initial 2,4-DCP concentration (mg·L−1). The RL value indicates the favorability of adsorption system. When 0 < RL < 1.0, it shows a good adsorption.
Temkin and Pyzhev explain the effects of indirect adsorbent/adsorbate interactions on adsorption isotherms. This isotherm postulates that (1) the adsorption heat of all the molecules in the layer reduces with coverage due to adsorbent-adsorbate interactions and that (2) the adsorption is explained by an even distribution of binding energies, up to some maximum binding energy [43]. The linear form of the Temkin isotherm model is described in Equation (4):
qe = ( RT / b ) ln  ( A ) + ( RT / b ) ln Ce
where B = RT/b, A = KT is the equilibrium binding constant (L·mg−1) related to the maximum binding energy and constant B is corresponds to the heat of adsorption. The values of KT and B are determined using the intercept and slope of the linear plot of qe versus ln Ce.
Another model is Dubinin-Radushkevich (D-R) isotherm model, which is shown in the following linearized form as Equation (5):
ln Qe = ln  Q m - K DR ɛ 2
The work required to remove a molecule to infinity from its location in the sorption space, which is not subject to control of temperature, is referred to as the Polanyi sorption potential, ɛ. The Polanyi sorption theory assumes fixed volume of sorption sites proximate to the sorbent surface and presence of sorption potential over these sites [47]. Polanyi sorption potential, ɛ is equal to Equation (6):
ɛ = RT ln  ( 1 + 1 / Ce )
R is a gas constant (8.314 J mol·K−1) and T is the temperature in Kelvin. This model explains about the sorption energies within this space, which is heterogenous. The constant KDR is related with free energy (E, kJ·mol−1) of adsorption per molecule of the adsorbate when it is transferred to the surface of the solid from infinity in the solution and the value of sorption energy, E, can be correlated to KDR utilizing the following relationship as shown in Equation (7). A plot of ln qe versus ɛ2 enables the constants, KDR and E to be determined.
E = ( 2 K DR ) - 1 / 2
Linearized forms of Langmuir, Freundlich, Temkin and Dubinin-Radushkevich isotherm models were applied to fit the equilibrium data. The adsorption isotherm constants for MIP MAA-βCD at three temperatures were listed in Table 1. The experimental data of 2,4-DCP adsorption onto MIP MAA-βCD fitted well to the Freundlich equation, which was statistically confirmed by greater R2 values more proximate to unity (0.999). KF, Freundlich constant for adsorption capacity showed a decrease tendency with the rise of temperature determined as 2.244, 0.475 and 0.404 for 298, 318 and 338 K, respectively. Meanwhile the n values (indicator for adsorption intensity) calculated from the Freundlich model were in the range of 1 < n < 10, indicating favorable adsorption. The adsorption of 2,4-DCP is most favorable at 298 K followed by 318 K since the values of 1/n calculated less than 1 as shown in Table 1. This result suggests that the 2,4-DCP could be readily absorbed by MIP MAA-βCD. Temkin and Dubinin-Radushkevich isotherm models also showed relatively good agreement with the R2 > 0.94 and R2 > 0.97 respectively. The calculated value of KDR < 1.0 represents the rough surface with many cavities. This finding further supports the fit of isotherm data for the Freundlich model, which suggests a heterogeneous surface.
While the Langmuir model is used for a description of homogeneous systems, the adsorption interaction on the monolayer coverage of 2,4-DCP onto MIP MAA-βCD particles showed very poor fit with R2 of only 0.512. Therefore, the Freundlich model was the most appropriate model to describe the adsorption of 2,4-DCP onto MIP MAA-βCD. This suggests that the adsorption occurred on a heterogeneous surface, which also directly indicates that the surface of MIP MAA-βCD is heterogeneous. The heterogeneity is due to the various functional groups on the MIP MAA-βCD as well as the multiple adsorbent-adsorbate interactions such as hydrogen bonding and formation of inclusion complexes between β-CD and 2,4-DCP. Moreover, it has been reported in the scientific literature that adsorption equilibriums of phenol and chlorophenols fitted Freundlich isotherm better than the Langmuir [24]. As a conclusion, the adsorption equilibrium data fitted the isotherm models in the order of: Freundlich > Dubinin-Radushkevich > Temkin > Langmuir.

2.5. Adsorption Kinetics

2.5.1. Adsorption Kinetic Models

The rate at which adsorbates are removed from aqueous solution onto adsorbent surface was described by adsorption kinetics. The adsorption kinetics of 2,4-DCP was evaluated using three kinetic models, namely the pseudo-first-order, pseudo-second-order and Elovich models. The pseudo-first-order model is widely used and this kinetic equation postulates that the rate of change of solute uptake with time is directly proportional to the difference in saturation concentration and the amount of solid adsorbed with time [48].
dqt dt = k 1 ( qe - qt )
When qt = 0 at t = 0, Equation (8) can be integrated into the following equation Equation (9):
log  ( qe - qt ) = log qe - k 1 2.303 t
where qe and qt are the amount of 2,4-DCP adsorbed (mg·g−1) at equilibrium and at time t, t is the contact time (min) and k1 is the rate constant (min−1). The values of k1 and qe were calculated from a plot of log (qe − qt) versus t. A pseudo-second-order kinetic equation was defined by Ho and McKay [49] as:
dqt dt = k 2 ( qe - qt ) 2
Integrating Equation (10) and noting that when qt = 0 at t = 0, the linearized form of the pseudo-second-order model given as Equation (11):
t qt = 1 k 2 q 2 e + 1 qe t            where , h = k 2 q 2 e
where h represents the initial adsorption rate (mg·g−1 min), and k2 is the pseudo-second-order rate constant (g·mg−1 min). The values of qe, k2 and h can be obtained by a linear plot of t/qt versus t.
The elovich model represented in Equation (12) as follows:
qt = 1 β Ln ( α β ) + 1 β Ln t
where α (mg·g−1·min−1): initial sorption rate and β (g·mg−1): related to the extended of surface coverage and activation energy for chemisorption. This model is applicable when plot of qt versus ln t represents a straight line [50].

2.5.2. Validation of Kinetic Models

The suitability of the model to describe the adsorption kinetics was further justified predicated on the normalized standard deviation value, Δq (%) and relative error (%) which is defined as Equations (13) and (14):
Δ q ( % ) = [ ( q exp - q cal ) / q exp ] 2 N - 1 × 100
Relative error  ( % ) = | qe , cal - qe , exp | qe , exp × 100
where N is the number of data points, qe exp and qe cal (mg·g−1) are the experimental and calculated adsorption capacity respectively. Generally, the model fits better if the value of Δq is lower [51].

2.5.3. Intraparticle Diffusion

For a solid-liquid adsorption process, the solute transfer is usually characterized through external diffusion, intraparticle diffusion, or both [52]. Basically, the adsorption kinetics is controlled by three steps related with the adsorption of solute from the solution by an adsorbent. These include (1) film diffusion; (2) intraparticle or pore diffusion; and (3) sorption into interior sites. The last step is very fast and considered to be negligible, hence the overall rate of adsorption is controlled by the slowest step, which would be either film or pore diffusion [53]. The kinetic data can be used to confirm the presence of intraparticle diffusion to determine whether intraparticle diffusion is the sole rate-inhibiting step. Weber and Morris described a functional relationship of intraparticle diffusion [54] in Equation (15)
qt = k i t 1 / 2 + C
where qt (mg·g−1) is the uptake of 2,4-DCP at time t (min), ki (mg·g−1·min1/2) is the intraparticle diffusion rate constant and the intercept C, obtained by extrapolation of the linear plot of qt versus t1/2 is a constant that gives a conception of the thickness of the boundary layer.

2.5.4. External Diffusion

External diffusion or film diffusion model described as follows in Equation (16):
Ln Ct C 0 = - k ext t
where C0 and Ct (mg·L−1) are the concentrations of the solute in the initial solution and in the liquid phase at time t, respectively, and kext (min−1) is a diffusion rate parameter. The plot of ln (Ct/C0) against t should give a linear line with zero intercept if external diffusion is applicable [50].
Adsorption kinetics explains the rate of adsorbate uptake on MIP MAA-βCD and controls the equilibrium time. Pseudo-first-order, pseudo-second-order and Elovich kinetic models were applied to gain insight about the kinetics of adsorption process of 2,4-DCP. Intraparticle and external diffusion models were utilized to study the diffusion mechanism of the adsorption. The kinetic parameters calculated from the slopes and intercepts of the plots of these models were listed in Table 2. If the plots of the log (qe − qt) versus t were to be linear with good R2, the pseudo-first-order equation is appropriate to the experimental data of the adsorption process. On the other hand, if the correlation coefficient for the pseudo-second-order model higher and its calculated equilibrium adsorption capacity (qe calculated) is consistent with qe experimental, these suggests that the pseudo-second-order adsorption mechanism is predominant and that the overall rate of the adsorption process is controlled by the chemisorption process [49]. It can be clearly seen that the pseudo-second-order model best fitted with extremely high R2 (0.999) almost equal to unity and a good agreement is also achieved between the qe calculated and qe experimental values which was 4.587 and 4.585 respectively as shown in Table 2, further supports the statement mentioned earlier which is the adsorption process follows chemisorption when calculated equilibrium adsorption capacity (qe calculated) is consistent with experimental value (qe experimental). The pseudo-first-order kinetic curve did not give a good fit to the experimental kinetic data with relatively lower R2 value (0.670) and the experimental qe value (4.585) did not agree with the calculated ones (0.561). So, the adsorption of 2,4-DCP onto MIP MAA- βCD obviously follows second-order reaction.
The best fit to the pseudo-second-order indicated that the adsorption mechanism might depend on both the adsorbate and the adsorbent and the rate-limiting step is chemisorption involving valence forces through the sharing or exchange of electrons [38]. The solute molecules can react with two kinds of adsorption sites. First, 2,4-DCP can be imprinted by active sites in the polymer network. Second, 2,4-DCP can form inclusion complex with β-CD in molecular recognition process. The kinetic data was additionally well described by the Elovich model. The plot of qt versus ln t yields the R2 value of 0.886 for this model. The α and β value is 1.799 g·mg−1 and 25.498 mg·g−1·min−1 respectively and these values were obtained from the slope and intercept of the plot. The models fits the kinetic data on the order of pseudo-second-order kinetics > elovich > pseudo-first-order kinetics. The accuracy and validity of the reported kinetic models were compared using R2 values, normalized standard deviation Δq (%) and relative error (%) which were listed in Table 2. It was found that the pseudo-second-order model fits the kinetic adsorption curve better than other models since the calculated Δq (%) and relative error (%) for this model were extremely low in comparison.
External and intraparticle diffusion models were used to gain an insight into the mechanism of the adsorption process and to predict the rate-controlling step. The Weber and Morris model is adopted since this is a widely used intraparticle diffusion model. The values of ki and C obtained are 0.117 and 3.288 respectively. The R2 of 0.525 was obtained for this model. In order to say that the intraparticle diffusion is the only rate-controlling step, the plot of qt versus t1/2 should be linear and pass through the origin. However in this study, the plot did not pass through the origin and this is probably due to the difference in the beginning and final stages of adsorption in terms of the mass transfer rate [54]. The external diffusion model was studied to investigate whether other mechanisms were involved. A linear plot with the R2 (0.459) and the intercept value of −1.136 suggested that the external diffusion is also not the only rate-limiting step in the adsorption process. Hence, it can be concluded that both external and intraparticle diffusion occurred simultaneously during the adsorption of 2,4-DCP onto MIP MAA-βCD. Rate constants for both diffusion models were given in Table 2.

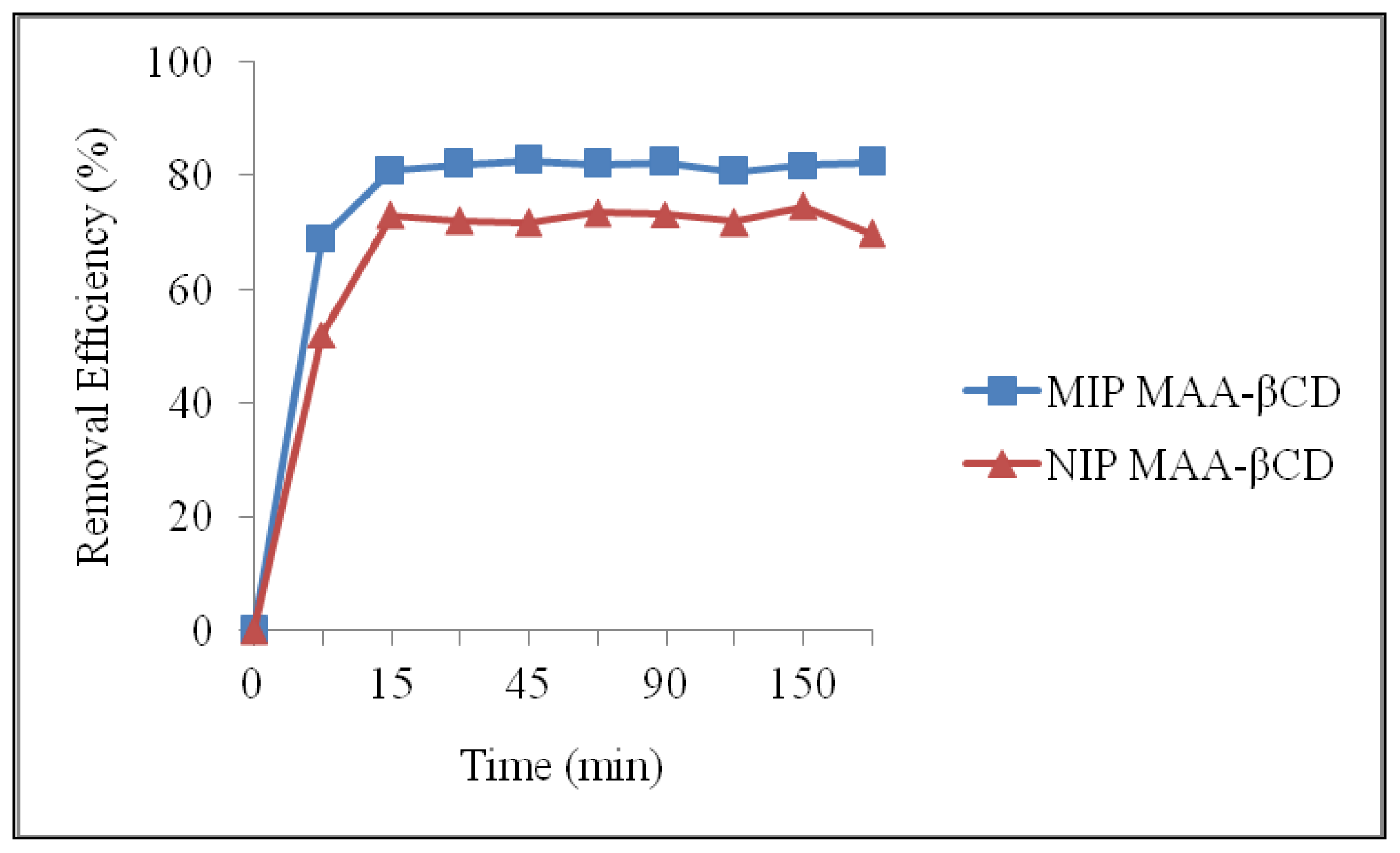

Figure 6 depicts the effect of contact time (0–180 min) of MIP MAA-βCD and NIP MAA-βCD towards the removal of 2,4-DCP. Compared with NIP MAA-βCD, it was obvious that a much higher adsorption capacity was achieved on MIP MAA-βCD. The adsorption process of 2,4-DCP could be divided into two steps. In the beginning step, the adsorption rate was fast; rapid increases in removal percentage was achieved during the first 45 min and reached equilibrium with the maximum percentage removal of 83%. The fast adsorption at the initial stage may be due to the availability of the uncovered surface area and the remaining active sites on the MIP MAA-βCD [55]. Hence, 2,4-DCP molecules can reach the imprint sites easily and quickly during the rebinding step. Therefore, MIP MAA-βCD showed good site accessibility for 2,4-DCP and equilibrium was achieved quickly. After 45 min, there is no significant difference in adsorption. This is attributed to the fact that at this stage the imprinted sites for 2,4-DCP molecules maybe fully saturated. As a conclusion, higher adsorption efficiency was obtained in a shorter time for 2,4-DCP removal.

2.6. Adsorption Thermodynamics

Adsorption thermodynamics were studied to gain idea about the adsorption behaviors [56]. Thermodynamic behavior of the adsorption of 2,4-DCP on MIP MAA-βCD was evaluated by the thermodynamic parameters such as change in Gibb’s free energy (ΔG°), enthalpy (ΔH°) and entropy (ΔS°). The Gibbs free energy change ΔG°, denoting the degree of the spontaneity of the adsorption process is calculated using Equation (17):
Δ G = Δ H - T Δ S
The enthalpy change (ΔH°) and the entropy change (ΔS°) are calculated using Equation (18) respectively:
ln K = Δ S R - Δ H RT
where K (−1) is from Langmuir equation, R is the gas constant (8.314 ) and T is the temperature in Kelvin [57]. The values of ln K were plotted against 1/T, the ΔH° and ΔS° values were calculated from the slope and intercept of the plot.
The dependence of adsorption with temperature has been evaluated and the numerical values of ΔH° and ΔS° were obtained from the slope of plot ln K versus 1/T. The calculated thermodynamic parameters were listed in Table 3. The calculated Gibbs free energy change, ΔG° values are −3.501, −3.734, −3.966 kJ·mol−1 at 298, 318 and 338 K respectively. The ΔG° value generally increases as temperature elevates. This is due to the increase in feasibility of adsorption at higher temperatures. Negative ΔG° values for studied temperatures, revealed the thermodynamically spontaneous and feasible nature of this adsorption. The calculated enthalpy change, ΔH° is −32.090 kJ·mol−1. The negative value of ΔH° demonstrating the adsorption of MIP MAA-βCD towards 2,4-DCP is an exothermic process which agrees with the equilibrium isotherm data. ΔH° value also gives information on the type of adsorption, which can be either physical or chemical [54]. The obtained ΔH° is not in the range of physisorption. Therefore, the ΔH° value shows that the adsorption of 2,4-DCP onto MIP MAA-βCD was taken place via chemisorption. The calculated entropy change, ΔS° value is 11.640 J·mol−1·K−1. Generally positive ΔS° value suggests the adsorbate at the solid/solution interface organized more randomly. It is additionally supposed that the change of ΔS° value is related to the displacement of the adsorbed water molecules by the adsorbate [56]. Hence in this study, the positive ΔS° value suggested incrementation in randomness of adsorbate-solution interface during the adsorption process and displacement of water molecules by 2,4-DCP on MIP MAA-βCD.

2.7. Selective Adsorption of MIP MAA-βCD towards 2,4-DCP

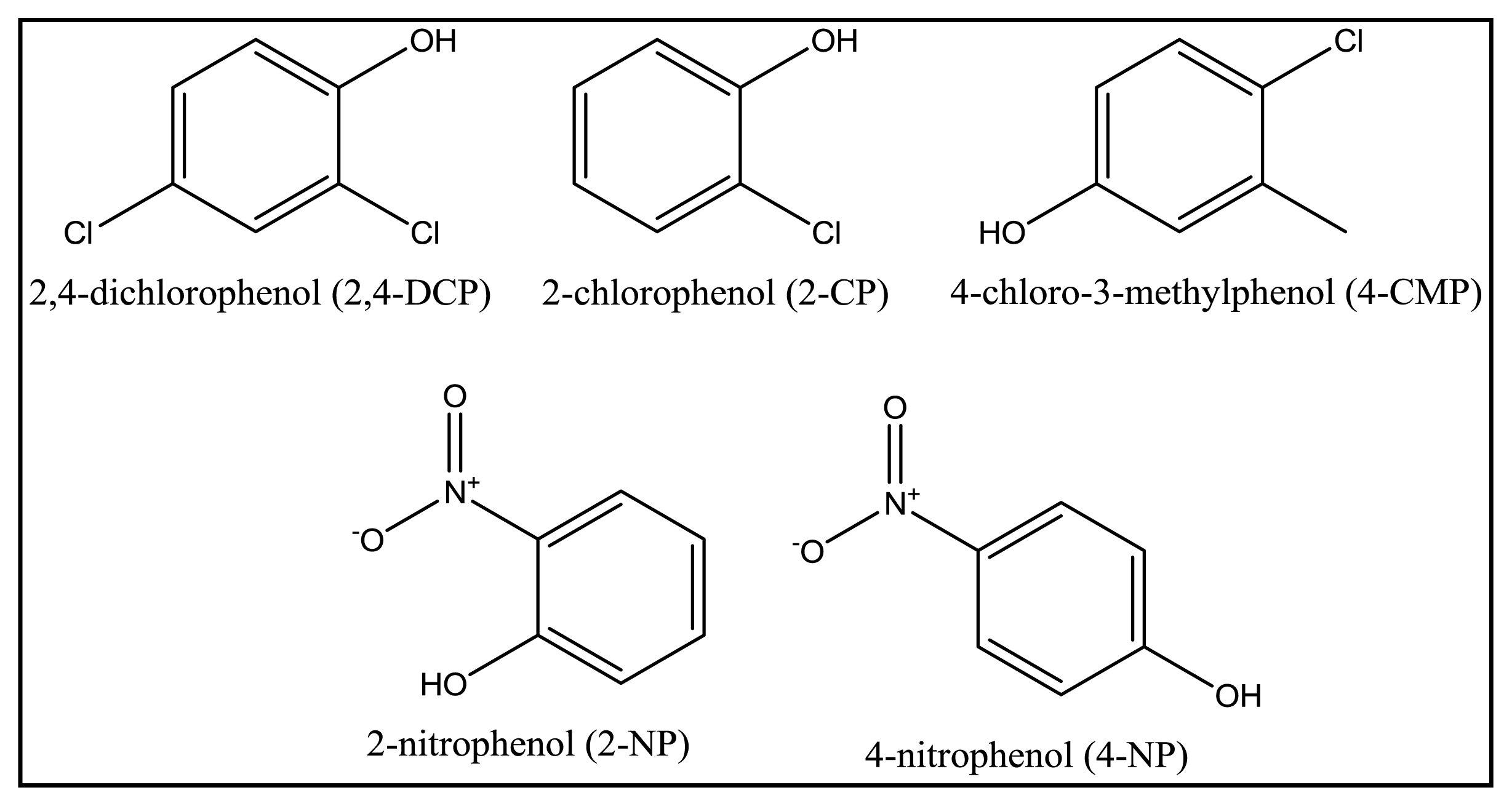

Competitive adsorptions of 2,4-DCP, 4-CMP, 2-CP, 4-NP and 2-NP from their mixtures were studied using MIP MAA-βCD and NIP MAA-βCD to test the selectivity and the details of the experiment were given in Section 3.6. Selectivity experiments over the interference compounds can be evaluated by using the following equation:
K d = [ C i - C f ] × v M
where Kd is referred as distribution coefficient, Ci and Cf is the initial and final concentration. v (L) is the volume used and M (g) is the weight of MIP. The selectivity coefficient for the binding of 2,4-DCP in the presence of interfering species can be estimated by using the following equation:
k = K d ( 2 , 4 - DCP ) K d ( phenolic )
where k is the selectivity coefficient and (phenolic) represents the 4-CMP, 2-CP, 4-NP and 2-NP compounds. Effect of imprinting on selectivity is estimated by comparing k values of the imprinted polymers with other phenolic compounds. k′, a relative selectivity coefficient can be defined as:
k = k imprinted k non - imprinted
MIP MAA-βCD had higher selectivity to its template (2,4-DCP) compared to NIP MAA-βCD. Table 4 summarizes Kd, k, k′ values of 4-CMP, 2-CP, 4-NP and 2-NP with reference to 2,4-DCP. The NIP MAA-βCD is not as selective as MIP MAA-βCD probably due to the non-specific interaction and absence of imprinted sites. The results of the present study suggested that MIP MAA-βCD can selectively remove 2,4-DCP even in the presence of interferences. So, it can be concluded that the selectivity of MIP MAA-βCD was due to the existence of imprinted cavities with definite size, shape and distinct binding interactions with template molecules [58].

2.8. Comparison with Other Adsorbents

Table 5 summarizes the comparison of the adsorption capacities of different types of adsorbents for 2,4-DCP that has been reported in literature. The high adsorption capacity, qe of MIP MAA-βCD for 2,4-DCP in this study is relatively comparable with some previous works. Thus, MIP MAA-βCD can be considered as one of the promising adsorbents for removing 2,4-DCP from aqueous solutions.

2.9. Possible Interaction between 2,4-DCP and MAA-βCD

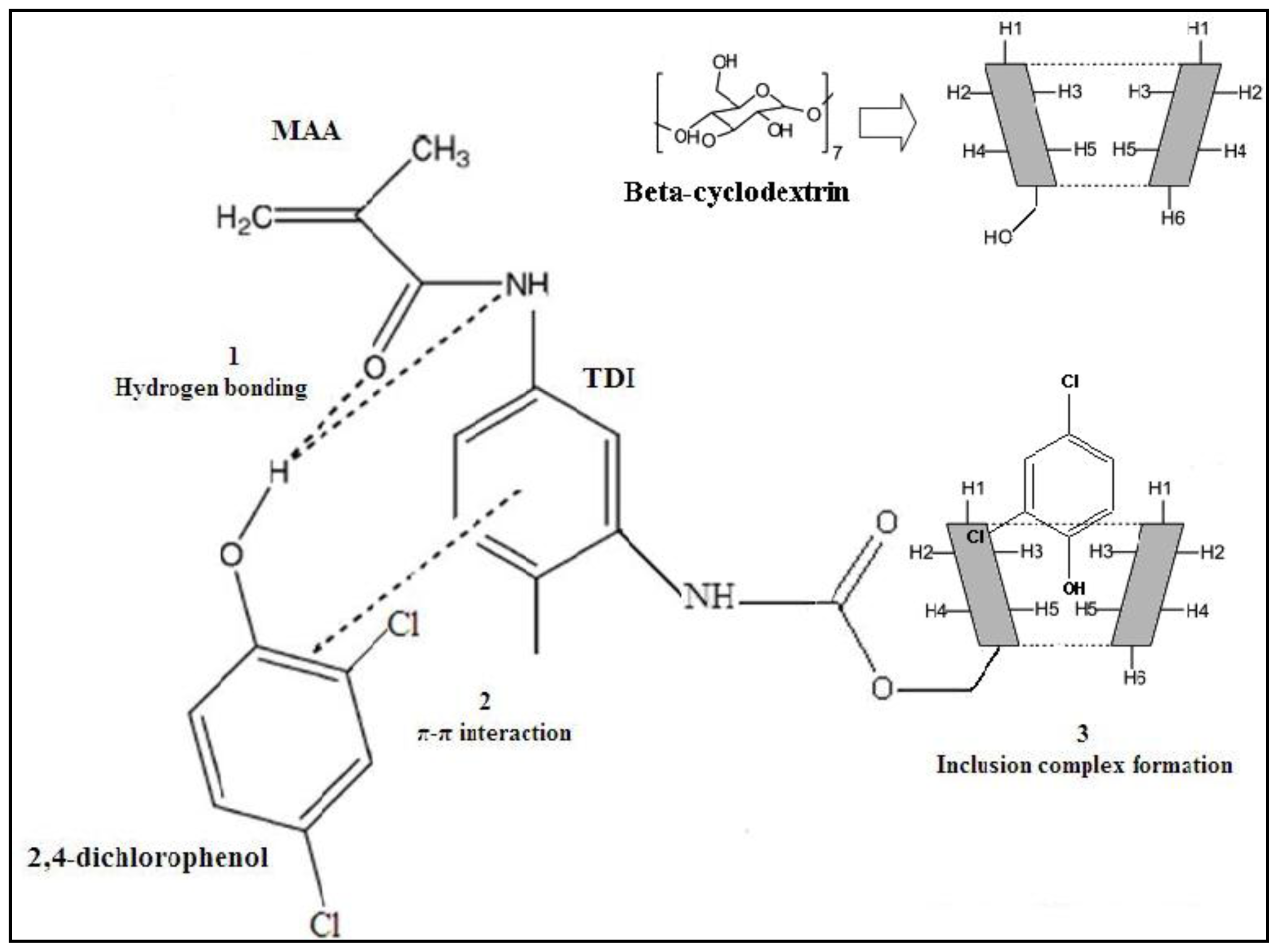

There are various types of possible interactions between MAA-βCD monomer and 2,4-DCP as shown in Figure 7. (1) Formation of hydrogen bonding between hydrogen atom of 2,4-DCP and nitrogen or oxygen atom in MAA-βCD monomer; (2) π-π interaction between the aromatic ring of 2,4-DCP and the benzene ring of TDI in MAA-βCD monomer; (3) Inclusion complex formation between β-CD cavity in MAA-βCD and 2,4-DCP molecule. Hydrophobic effects play an important role in the process of adsorption. Due to the hydrophobic nature of the 2,4-DCP and the hydrophobic core of β-CD cavity, the 2,4-DCP molecule could be inserted into the cavity of the β-CD residues in the rebinding process in aqueous media. 1H NMR analysis of MAA-βCD monomer, 2,4-DCP and inclusion complex (MAA-βCD-DCP) was carried out (Refer to Figure S1). A comparison of 1H NMR chemical shifts for 2,4-DCP, MAA-βCD and their inclusion complex was shown (Refer to Table S1). 1H NMR result reveals that obvious chemical shifts occurred at H3 and H5 protons, which are located inside the β-CD cavity, and that the OH proton of 2,4-DCP had penetrated into the cavity. Even though similar inclusion complex formation can occur in NIP MAA-βCD, the absence of imprinted sites for 2,4-DCP and different orientation of the adsorption sites such as β-CD cavity from MIP MAA-βCD explains the decrease in adsorption efficiency of NIP MAA-βCD. In conclusion, the presence of triple interactions between MAA-βCD and 2,4-DCP is responsible for high recognition ability of the MIP MAA-βCD, which resulted from modification of MAA monomer using β-CD.

3. Experimental Section

3.1. Chemicals

Methacrylic acid (MAA), toluene-2,4-diisocyanate (TDI), benzoyl peroxide (BPO) and trimethylolpropane trimethacrylate (TRIM) were obtained from Sigma Aldrich, USA. β-cyclodextrin (β-CD) is purchased from MP Biomedical, France. 2,4-dichlorophenol (2,4-DCP), 2-chlorophenol (2-CP), 4-chloro-3-methylphenol (4-CMP), 4-nitrophenol (4-NP) and 2-nitrophenol (2-NP) were supplied by Fluka, Switzerland. All the chemicals were of the highest quality available and used without further purification. Dimethylacetamide (DMAC) solvent used was of analytical reagent grade. Ultrapure water (18 MΩ cm, Millipore Corporation, Rockland, MA, USA) was used for the preparation of aqueous solutions. Stock solutions were prepared by dissolving 1.0 g of 2,4-DCP in 1.0 L of methanol and was stored at 4 °C in the dark to prevent photodegradation. Working solutions were prepared daily by diluting the stock solutions using water just before use.

3.2. Instruments

Infrared spectra (IR) were recorded at 4000–400 cm−1 by using a Fourier Transform Infrared (FT-IR) spectrometer (Perkin-Elmer RX1, Perkin-Elmer Waltham, MA, USA). The Brunauer-Emmett-Teller (BET) surface area and porous properties of MIP MAA-βCD and NIP MAA-βCD were determined from the nitrogen adsorption-desorption analysis at 77 K on surface area analyzer (Quantachrome, Boynton Beach, FL, USA). The samples were previously degassed at 393 K, overnight. BET equation was used to calculate the specific surface area. Field Emission Scanning Electron Microscopy (FESEM) images were performed on Quanta FEG 450 (FEI, Hillsboro, OR, USA) to analyze the morphology and surface structure of the polymers. The particle size analysis was done using small angle X-ray scattering with a PANalytical EMPYREAN (Almelo, The Netherlands) X-ray diffractometer (voltage, 40 kV; current 100 mA). UV-Vis spectrophotometer (Shimadzu, Japan) equipped with 1 cm quartz cells was used for the quantification of the 2,4-DCP at λmax = 285 nm. For selectivity studies, mixture of phenols was analyzed using an Agilent 7890A Gas Chromatography (GC) system with an Agilent 5975C Series GC/FID from Agilent Technologies Inc. (Santa Clara, CA, USA). The GC column used was a Agilent HP-5MS column (30 m × 0.32 mm i.d. and 0.25 μm film thickness). The GC oven temperature program used was as follows: 35 °C held for 1 min, 35 °C/min to 220 °C, held for 8 °C ·min−1. The injector temperature was 250 °C (splitless). The detector temperature was 300 °C. The carrier gas was Helium with a flow rate of 1.1 mL·min−1 and nitrogen was used as the make-up gas with a flow rate of 32.4 mL·min−1. The data were processed using Agilent Chemstation (Agilent Technologies, Santa Clara, CA, USA).

3.3. Synthesis of MAA-βCD Monomer

The molar concentration is chosen in such a way to react only one –OH group of β-CD. The stoichiometry ratio is 0.5 M MAA: 1 M TDI: 0.5 M β-CD. The MAA-βCD monomer was synthesized according to some literature with slight modification [6668]. Firstly, MAA and toluene-2,4-diisocyanate (TDI) were allowed to mix in 40 mL DMAC; 0.1% dibutyltin dilaurate (catalyst) was then added and the solution was stirred magnetically for 1 h at room temperature in the presence of nitrogen gas. A few drops of this solution were subjected to FTIR analysis. Lastly, a calculated amount of β-CD was added to this solution together with 10 mL DMAC and further stirred for about 2 h. The final product was also characterized using FTIR. The possible mechanism for this reaction is shown in Figure 8.
From Figure 8, it can be seen that intermediate I’ contains an anhydride and a carbamate group had formed at the consumption of carboxyl group in MAA. Intermediate I’ is unstable and it converts to methacrylic amide containing an isocyanate, N=C=O group as shown in Intermediate I. At first, only one of the N=C=O group in TDI took part in the reaction. The remaining unreacted N=C=O in Intermediate I used for further isocyanation with one of the primary –OH of β-CD to yield MAA-βCD (monomer). This monomer later on will be utilized in imprinting technique to produce MIP MAA-βCD and NIP MAA-βCD. Structural analysis confirmed that the new monomer was successfully prepared using this two-step isocyanation.

3.4. Synthesis of MIP MAA-βCD and NIP MAA-βCD

Imprinted and non-imprinted polymers were prepared according to the procedure reported earlier [69]. Molecular imprinted polymer (MIP MAA-βCD) was prepared using the non-covalent approach. The template, 2,4-DCP (0.14 mmol) was dissolved in 60 mL DMAC in a flask. The functional monomer, MAA-βCD (0.56 mmol), the cross-linker, TRIM (2.80 mmol) and the initiator benzoyl peroxide (BPO, 1 g) were then added to the flask. The flask was sealed after purging with nitrogen for 10 min. The contents were allowed to polymerize in a water bath at 70 °C for 24 h. The obtained bulk polymer was crushed and ground to get regular sized particles. The template molecules were removed using methanol/acetic acid (3:1 v/v) solution six times. The particles were then washed a few times with water until no more 2,4-DCP was detected. The evidence for the complete removal of the template molecule is given in the Figure S2. Non-imprinted polymer (NIP MAA-βCD) was prepared in a same way as MIP MAA-βCD, but without the addition of template molecule. The molecular imprinting technique using 2,4-DCP is shown in Figure 9.

3.5. Batch Adsorption Studies

The effect of solution pH, contact time, concentration and temperature on the removal of 2,4-DCP was investigated. Adsorption experiments were performed by shaking 20 mg of MIP MAA-βCD with 10 mL of 10 mg·L−1 2,4-DCP solution at 298 K in a water bath shaker (Daihan Scientific, Seoul, Korea). Continuous mixing was provided during the experiment, with a constant agitation speed of 180 rpm. The solution pH was measured by pH meter (Hanna Instruments, Carrolton, TX, USA) and the initial pH of the solutions were adjusted from pH 2 to 10 by adding 0.1 M HCl or 0.1 M NaOH solutions as needed. Kinetic studies were used to study the effect of contact time and to calculate the kinetic parameters. To determine the effect of time on the removal of 2,4-DCP, the adsorption process was conducted for the time interval of (5, 15, 30, 45, 60, 90, 120, 150 and 180) min. Meanwhile to study the equilibrium isotherm of the adsorption, various initial concentrations of 2,4-DCP were studied (5, 10, 20, 30, 40, 50, 60, 80, 100 mg·L−1) under three different temperatures (298, 318, 338 K). For this purpose, the pH values of the solutions studied were adjusted to pH 7 and were shaken in a water bath for 45 min. Finally at the end of contact time, all the sample solutions were filtered and the residual 2,4-DCP concentration in each supernatant solutions was analyzed using a UV-Vis spectrophotometer at a maximum wavelength of 285 nm. Each test was done three times as parallel experiments and the experimental data was the mean of their results. The 2,4-DCP uptake at equilibrium defined as adsorption capacity, qe (mg·g−1) and the percentage of removal, % removal were calculated by using Equations (22) and (23) respectively:
Qe = V × ( C 0 - Ce ) M
% Removal = ( C 0 - Ce ) C 0 × 100
where C0 and Ce are the initial and equilibrium concentrations of 2,4-DCP (mg·L−1). V is the volume of the solution (L) and M is the weight of MIP MAA-βCD (g).

3.6. Selectivity Experiments

To evaluate the selectivity of MIP MAA-βCD for 2,4-DCP, selective adsorption experiments were carried out in aqueous solution containing mixtures of phenols (2,4-DCP, 2-CP, 4-CMP, 2-NP and 4-NP). Their molecular structures are shown in Figure 10. A 10 mL solution containing 10 mg·L−1 (of each phenol) was mixed together and treated with MIP MAA-βCD (20 mg) at 298 K. The concentration of the phenol compounds after treatment was measured by GC-FID.

4. Conclusions

In this work, the molecular imprinting technique has been successfully utilized in conjunction with bulk polymerization method to produce MIP MAA-βCD. This novel material showed high affinity, selectivity and fast kinetics for the adsorption of 2,4-DCP. The adsorption of 2,4-DCP onto MIP MAA-βCD is pseudo-second-order kinetics, which indicates a chemisorption process. The equilibrium data was best fitted to the Freundlich model with a correlation coefficient value of (R2 > 0.99) and the order of isotherm fit is as follows: Freundlich > Dubinin-Radushkevich > Temkin > Langmuir. MIP MAA-βCD could be considered a promising sorbent for the removal of chlorophenols from aqueous solutions and could provide possibilities for applications in water treatments, especially for the removal of trace phenols from drinking water. Future studies will be made to verify whether the observed behavior is generally applicable.

Supplementary Information

ijms-15-06111-s001.pdf

Acknowledgments

The authors wish to acknowledge University of Malaya Research Grant (RG 169/12 SUS) and (RP 006A-13SUS). High impact research grant UM.C/625/1/HIR/MOHE/F000031 from the Ministry of Higher Education Malaysia), IPPP grant (PV 076/2012A), the Department of Chemistry, University of Malaya and Ministry of Higher Education Malaysia for its financial support through MyPhD scholarship to Hemavathy Surikumaran.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sahiner, N.; Ozay, O.; Aktas, N. Aromatic organic contaminant removal from an aqueous environment by p (4-VP)-based materials. Chemosphere 2011, 85, 832–838. [Google Scholar]
  2. Feng, Q.Z.; Zhao, L.X.; Yan, W.; Lin, J.M.; Zheng, Z.X. Molecularly imprinted solid-phase extraction combined with high performance liquid chromatography for analysis of phenolic compounds from environmental water samples. J. Hazard. Mater 2009, 167, 282–288. [Google Scholar]
  3. Antizar-Ladislao, B.; Galil, N.I. Biosorption of phenol and chlorophenols by acclimated residential biomass under bioremediation conditions in a sandy aquifer. Water Res 2004, 38, 267–276. [Google Scholar]
  4. Radhika, M.; Palanivelu, K. Adsorptive removal of chlorophenols from aqueous solution by low cost adsorbent-Kinetics and isotherm analysis. J. Hazard. Mater. B 2006, 138, 116–124. [Google Scholar]
  5. Keith, L.H.; Telliard, W.A. Priority pollutants: I-a perspective view. Environ. Sci. Technol 1979, 13, 416–423. [Google Scholar]
  6. Lin, C.H.; Tseng, S.K. Electrochemically reductive dechlorination of pentachlorophenol using a high overpotential zinc cathode. Chemosphere 1999, 39, 2375–2389. [Google Scholar]
  7. Ersoz, A.; Denizli, A.; Sener, I.; Atilir, A.; Diltemiz, S.; Say, R. Removal of phenolic compounds with nitrophenol-imprinted polymer based on π-π and hydrogen-bonding interactions. Sep. Purif. Technol 2004, 38, 173–179. [Google Scholar]
  8. Bukowska, B. Effects of 2, 4-D and its metabolite 2, 4-dichlorophenol on antioxidant enzymes and level of glutathione in human erythrocytes. Comp. Biochem. Physiol 2003, 135, 435–441. [Google Scholar]
  9. Wang, J.P.; Chen, Y.Z.; Feng, H.M.; Zhang, S.J.; Yu, H.Q. Removal of 2,4-dichlorophenol from aqueous solution by static-air-activated carbon fibers. J. Colloid Interface Sci 2007, 313, 80–85. [Google Scholar]
  10. Denizli, A.; Ozkan, G.; Ucar, M. Removal of chlorophenols from aquatic systems with dye-affinity microbeads. Sep. Purif. Technol 2001, 24, 255–262. [Google Scholar]
  11. Mahajan, S.P. Pollution Control in Process Industries; Tata McGraw-Hill: New Delhi, India, 1991; p. 18. [Google Scholar]
  12. Rengaraj, S.; Moon, S.H.; Sivabalan, R.; Arabindoo, B.; Murugesan, V. Agricultural solid waste for the removal of organics adsorption of phenol from water and wastewater by palm seed coat activated carbon. Waste Manag 2002, 22, 543–548. [Google Scholar]
  13. Klumpp, E.; Contreras-Ortega, C.; Klahre, P.; Tino, F.J.; Yapar, S.; Portillo, C.; Stegen, S.; Queirolo, F.; Schwuger, M.J. Sorption of 2,4-dichlorophenol on modified hydrotalcites. Colloids Surf. A 2003, 230, 111–116. [Google Scholar]
  14. Shu, H.T.; Li, D.; Scala, A.A.; Ma, Y.H. Adsorption of small organic pollutants from aqueous streams by aluminosilicate-based microporous materials. Sep. Purif. Technol 1997, 11, 27–36. [Google Scholar]
  15. Gallizia, I.; McClean, S.; Banat, I.B. Bacterial biodegradation of phenol and 2,4-dichlorophenol. J. Chem. Tech. Biotech 2003, 78, 959–963. [Google Scholar]
  16. Wang, C.C.; Lee, C.M.; Kuan, C.H. Removal of 2,4-dichlorophenol by suspended and immobilized. Bacillus insolitus. Chemosphere 2000, 41, 447–452. [Google Scholar]
  17. Pera-Titus, M.; Garcia-Molina, V.; Banos, M.A.; Gimenez, J.; Esplugas, S. Degradation of chlorophenols by means of advanced oxidation processes: a general review. Appl. Catal. B 2004, 47, 219–256. [Google Scholar]
  18. Koyama, O.; Kamagat, Y.; Nakamura, K. Degradation of chlorinated aromatics by Fenton oxidation and methanogenic digester sludge. Water Res 1994, 28, 895–899. [Google Scholar]
  19. Fukushima, M.; Tatsumi, K. Degradation pathways of pentachlorophenol by photo-Fenton systems in the presence of iron(III), humic acid and hydrogen peroxide. Environ. Sci. Technol 2001, 35, 1771–1778. [Google Scholar]
  20. Esplugas, S.; Gimenez, J.; Contreras, S.; Pascual, E.; Rodriguez, M. Comparison of different advanced oxidation processes for phenol degradation. Water Res 2002, 36, 1034–1042. [Google Scholar]
  21. Dutta, S.; Basu, J.K.; Ghar, R.N. Studies on adsorption of p-nitrophenol on charred saw-dust. Sep. Purif. Technol 2001, 21, 227–235. [Google Scholar]
  22. Chin, Y.K.; Mohamad, S.; Abas, M.R. Removal of parabens from aqueous solution using β-cyclodextrin cross-linked polymer. Int. J. Mol. Sci 2010, 11, 3459–3471. [Google Scholar]
  23. Furuya, E.G.; Chang, H.T.; Miura, Y.; Noll, K.E. A fundamental analysis of the isotherm for the adsorption of phenolic compounds on activated carbon. Sep. Purif. Technol 1997, 11, 69. [Google Scholar]
  24. Wu, J.; Yu, H.Q. Biosorption of 2,4-dichlorophenol from aqueous solution by Phanerochaete chrysosporium biomass: Isotherms, kinetics and thermodynamics. J. Hazard. Mater. B 2006, 137, 498–508. [Google Scholar]
  25. Li, Y.; Li, X.; Li, Y.; Qi, J.; Bian, J.; Yuan, Y. Selective removal of 2,4-dichlorophenol from contaminated water using non-covalent imprinted microspheres. Environ. Pollut 2009, 157, 1879–1885. [Google Scholar]
  26. Yan, H.; Row, K.H. Characteristic and synthetic approach of molecularly imprinted polymer. Int. J. Mol. Sci 2006, 7, 155–178. [Google Scholar]
  27. Suedee, R.; Seechamnanturakit, V.; Suksuwan, A.; Canyuk, B. Recognition Pproperties and competitive assays of a dual dopamine/serotonin selective molecularly imprinted polymer. Int. J. Mol. Sci 2008, 9, 2333–2356. [Google Scholar]
  28. Valero-Navarro, A.; Salinas-Castillo, A.; Fernandez-Sanchez, J.F.; Segura-Carretero, A.; Mallavia, R.; Fernandez-Gutierrez, A. The development of a MIP MAA-β-CD-optosensor for the detection of monoamine naphthalenes in drinking water. Biosens. Bioelectron 2009, 24, 2305–2311. [Google Scholar]
  29. Asman, S.; Yusof, N.A.; Abdullah, A.H.; Haron, M.J. Synthesis and characterization of a molecularly imprinted polymer for methylene blue. Asian J. Chem 2011, 23, 4786–4794. [Google Scholar]
  30. Abdul Raof, S.F.; Mohamad, S.; Abas, M.R. Synthesis and evaluation of molecularly imprinted silica gel for 2-hydroxybenzoic acid in aqueous solution. Int. J. Mol. Sci 2013, 14, 5952–5965. [Google Scholar]
  31. Guo, L.; Deng, Q.; Fang, G.; Gao, W.; Shuo, W. Preparation and evaluation of molecularly imprinted ionic liquids polymer as sorbent for on-line solid-phase extraction of chlorsulfuron in environmental water samples. J. Chromatogr. A 2011, 1218, 6271–6277. [Google Scholar]
  32. Mohamad, S.; Surikumaran, H.; Raoov, M.; Marimuthu, T.; Chandrasekaram, K.; Subramaniam, P. Conventional study on novel dicationic ionic liquid inclusion with β-cyclodextrin. Int. J. Mol. Sci 2011, 12, 6329–6345. [Google Scholar]
  33. Suzuki, I.; Egawa, Y.; Mizukawa, Y.; Hoshi, T.; Anzai, J. Construction of positively-charged layered assemblies assisted by cyclodextrin complexation. Chem. Commun 2002, 13, 164–165. [Google Scholar]
  34. Pariot, N.; Edwards-Levy, F.; Andry, M.C.; Levy, M.C. Cross-linked β-cyclodextrin microcapsules. II. Retarding effect on drug release through semi-permeable membranes. Int. J. Pharm 2002, 232, 175–181. [Google Scholar]
  35. Garcia-Zubiri, I.X.; Gonzalez-Gaitano, G.; Isasi, J.R. Isosteric heats of sorption of 1-naphthol and phenol from aqueous solutions by β-cyclodextrin polymers. J. Colloid Interface Sci 2007, 307, 64–70. [Google Scholar]
  36. Pan, J.; Zou, X.; Wang, X.; Guan, W.; Yan, Y.; Han, J. Selective recognition of 2,4-dichlorophenol from aqueous solution by uniformly sized molecularly imprinted microspheres with β-cyclodextrin/attapulgite composites as support. Chem. Eng. J 2010, 162, 910–918. [Google Scholar]
  37. Li, Y.; Li, X.; Dong, C.; Li, Y.; Jin, P.; Qi, J. Selective recognition and removal of chlorophenols from aqueous solution using molecularly imprinted polymer prepared by reversible addition-fragmentation chain transfer polymerization. Biosens. Bioelectron 2009, 25, 306–312. [Google Scholar]
  38. Wang, L.; Zhang, J.; Zhao, R.; Zhang, C.; Li, C.; Li, Y. Adsorption of 2,4-dichlorophenol on Mn-modified activated carbon prepared from Polygonum orientale Linn. Desalination 2011, 266, 175–181. [Google Scholar]
  39. Li, N.; Mei, Z.; Ding, S.G. 2,4-Dichlorophenol sorption on cyclodextrin polymers. J. Incl. Phenom. Macrocycl. Chem 2010, 68, 123–129. [Google Scholar]
  40. Leyva, E.; Moctezuma, E.; Strouse, J.; Garcia-Garibay, M.A. Spectrometric and 2D NMR studies on the complexation of chlorophenols with cyclodextrins. J. Incl. Phenom. Macrocycl. Chem 2001, 39, 41–46. [Google Scholar]
  41. Langmuir, I. The constitution and fundamental properties of solids and liquids. J. Am. Chem. Soc 1916, 38, 2221–2295. [Google Scholar]
  42. Freundlich, H.M.F. U ber die adsorption in losungen. Z. Phys.Chem 1906, 57, 385–470. [Google Scholar]
  43. Temkin, M.J.; Phyzev, V. Recent modifications to Langmuir isotherms. Acta Phys. Chim 1940, 12, 217–222. [Google Scholar]
  44. Dubinin, M.M.; Radushkevich, L.V. Equation of the characteristic curve of activated charcoal. Chem. Zentr 1947, 1, 875. [Google Scholar]
  45. Halif, N.A.; Daud, W.M.A.W.; Noor, I.M.; Hassan, C.R.C. The effect of temperature on the adsorption of 4-nitrophenol onto palm shell based activated carbon. AEESEAP J 2007, 31, 23–29. [Google Scholar]
  46. Weber, T.W.; Chakkravorti, R.K. Pore and solid diffusion models for fixed bed absorbers. Am. Inst. Chem. Eng. J 1974, 20, 228. [Google Scholar]
  47. Akhtar, M.; Bhanger, M.I.; Iqbal, S.; Hasany, S.M. Sorption potential of rice husk for the removal of 2,4-dichlorophenol from aqueous solutions: Kinetic and thermodynamic investigations. J. Hazard. Mater. B 2006, 128, 44–52. [Google Scholar]
  48. Langergen, S.; Svenska, B.K. About the theory of so-called adsorption of soluble substances. Handlingar 1898, 24, 1–39. [Google Scholar]
  49. Ho, Y.S.; Mckay, G. Pseudo-second order model for sorption processes. Process Biochem 1999, 34, 451–465. [Google Scholar]
  50. Castro Lopez, M.M.; Cela Perez, M.C.; Dopico Garcia, M.S.; Lopez Vilarino, J.S.; Gonzalez Rodriguez, M.V.; Barral Losada, L.F. Preparation, evaluation and characterization of quercetin-molecularly imprinted polymer for preconcentration and clean-up of catechins. Anal. Chim. Acta 2012, 721, 68–78. [Google Scholar]
  51. Shaarani, F.W.; Hameed, B.H. Ammonia-modified activated carbon for the adsorption of 2,4-dichlorophenol. Chem. Eng. J 2011, 169, 180–185. [Google Scholar]
  52. Ahmaruzzaman, M. Adsorption of phenolic compounds on low-cost adsorbents: A review. Adv. Colloid Interface Sci 2008, 143, 48–67. [Google Scholar]
  53. Bhatnagar, A.; Minocha, A.K. Adsorptive removal of 2,4-dichlorophenol from water utilizing Punica granatum peel waste and stabilization with cement. J. Hazard. Mater 2009, 168, 1111–1117. [Google Scholar]
  54. Ahmed, M.J.; Theydan, S.K. Equilibrium isotherms, kinetics and thermodynamics studies of phenolic compounds adsorption on palm-tree fruit stones. Ecotoxic. Environ. Saf 2012, 84, 39–45. [Google Scholar]
  55. Aroua, M.K.; Leong, S.P.P.; Teo, L.Y.; Daud, W.M.A.W. Real time determination of kinetics of adsorption of lead(II) onto shell based activated carbon using ion selection electrode. Bioresour. Technol 2008, 99, 5786–5792. [Google Scholar]
  56. Liu, Q.S.; Zheng, T.; Wang, P.; Jiang, J.P.; Li, N. Adsorption isotherm, kinetic and mechanism studies of some substituted phenols on activated carbon fibers. Chem. Eng. J 2010, 157, 348–356. [Google Scholar]
  57. Rojas, G.; Silva, J.; Flores, J.; Rodriguez, A.; Ly, M.; Maldonado, H. Adsorption of chromium onto cross-linked chitosan. Sep. Purif. Technol 2005, 44, 31–36. [Google Scholar]
  58. Chang, Y.; Ko, T.; Hsu, T.; Syu, M. Synthesis of an imprinted hybrid organic-inorganic polymeric sol-gel matrix toward the specific binding and isotherm kinetics investigation of creatinine. Anal. Chem 2009, 81, 2098–2105. [Google Scholar]
  59. Sathishkumar, M.; Binupriya, A.R.; Kavitha, D.; Selvakumar, R.; Jayabalan, R.; Choi, J.G.; Yun, S.E. Adsorption potential of maize cob carbon for 2,4-dichlorophenol removal from aqueous solutions: equilibrium, kinetics and thermodynamics modeling. Chem. Eng. J 2009, 147, 265–271. [Google Scholar]
  60. Sathishkumar, M.; Binupriya, A.R.; Kavitha, D.; Yun, S.E. Kinetic and isothermal studies on liquid-phase adsorption of 2,4-dichlorophenol by palm pith carbon. Bioresour. Technol 2007, 98, 866–873. [Google Scholar]
  61. Alam, M.Z.; Muyibi, S.A.; Toramae, J. Statistical optimization of adsorption processes for removal of 2,4-dichlorophenol by activated carbon derived from oil palm empty fruit bunches. J. Environ. Sci 2007, 19, 674–677. [Google Scholar]
  62. Calace, N.; Nardi, E.; Petronio, B.M.; Pietroletti, M. Adsorption of phenols by papermill sludges. Environ. Pollut 2002, 118, 315–319. [Google Scholar]
  63. Xiaoli, C.; Youcai, Z. Adsorption of phenolic compound by aged-refuse. J. Hazard. Mater. B 2006, 137, 410–417. [Google Scholar]
  64. Denizli, A.; Okan, G.; Ucar, M. Dye-affinity microbeads for removal of phenols and nitrophenols from aquatic systems. J. Appl. Polym. Sci 2002, 83, 2411–2418. [Google Scholar]
  65. Jain, A.K.; Gupta, V.K.; Jain, S.; Has, S. Removal of chlorophenols using industrial wastes. Environ. Sci. Technol 2004, 38, 1195–1200. [Google Scholar]
  66. Sreenivasan, K. Synthesis and evaluation of a beta-cyclodextrin-based molecularly imprinted copolymer. J. Appl. Polym. Sci 1998, 70, 15–18. [Google Scholar]
  67. Sreenivasan, K. Grafting of a β-cyclodextrin-modified 2-hydroxyethyl methacrylate onto polyurethane. J. Appl. Polym. Sci 1996, 60, 2245–2249. [Google Scholar]
  68. Liu, N.; Pan, J.Q.; Lau, W.W.Y. Preparations and properties of new monomeric light stabilizers. Polym. Degrad. Stable 1999, 63, 71–77. [Google Scholar]
  69. Zakaria, N.D.; Yusof, N.A.; Haron, J.; Abdullah, A.H. Synthesis and evaluation of a molecularly imprinted polymer for 2,4-dinitrophenol. Int. J. Mol. Sci 2009, 10, 354–365. [Google Scholar]
Figure 1. IR spectra of (a) MAA-TDI; (b) MAA-βCD; (c) MIP MAA-βCD; and (d) NIP MAA-βCD.
Figure 1. IR spectra of (a) MAA-TDI; (b) MAA-βCD; (c) MIP MAA-βCD; and (d) NIP MAA-βCD.
Ijms 15 06111f1
Figure 2. Nitrogen adsorption/desorption profiles of MIP MAA-βCD and NIP MAA-βCD.
Figure 2. Nitrogen adsorption/desorption profiles of MIP MAA-βCD and NIP MAA-βCD.
Ijms 15 06111f2
Figure 3. FESEM images of (a) MIP MAA-βCD and (b) NIP MAA-βCD. (Magnification: ×10,000).
Figure 3. FESEM images of (a) MIP MAA-βCD and (b) NIP MAA-βCD. (Magnification: ×10,000).
Ijms 15 06111f3
Figure 4. Effect of pH on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD (Adsorption conditions: adsorbent dose = 20 mg, initial concentration = 10 mg·L−1, solution volume = 10 mL, T =298 K, time = 2 h).
Figure 4. Effect of pH on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD (Adsorption conditions: adsorbent dose = 20 mg, initial concentration = 10 mg·L−1, solution volume = 10 mL, T =298 K, time = 2 h).
Ijms 15 06111f4
Figure 5. Effect of initial concentrations on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD under different temperatures (Adsorption conditions: adsorbent dose = 20 mg, solution volume = 10 mL, time = 45 min, pH = 7.0).
Figure 5. Effect of initial concentrations on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD under different temperatures (Adsorption conditions: adsorbent dose = 20 mg, solution volume = 10 mL, time = 45 min, pH = 7.0).
Ijms 15 06111f5
Figure 6. Effect of time on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD (Adsorption conditions: adsorbent dose = 20 mg, initial concentration = 10 mg·L−1, solution volume = 10 mL, T = 298 K, pH = 7.0).
Figure 6. Effect of time on the adsorption of 2,4-DCP onto MIP MAA-βCD and NIP MAA-βCD (Adsorption conditions: adsorbent dose = 20 mg, initial concentration = 10 mg·L−1, solution volume = 10 mL, T = 298 K, pH = 7.0).
Ijms 15 06111f6
Figure 7. The proposed interaction mechanism between functional monomer, MAA-βCD and 2,4-DCP (template).
Figure 7. The proposed interaction mechanism between functional monomer, MAA-βCD and 2,4-DCP (template).
Ijms 15 06111f7
Figure 8. The synthetic route of the MAA-βCD monomer.
Figure 8. The synthetic route of the MAA-βCD monomer.
Ijms 15 06111f8

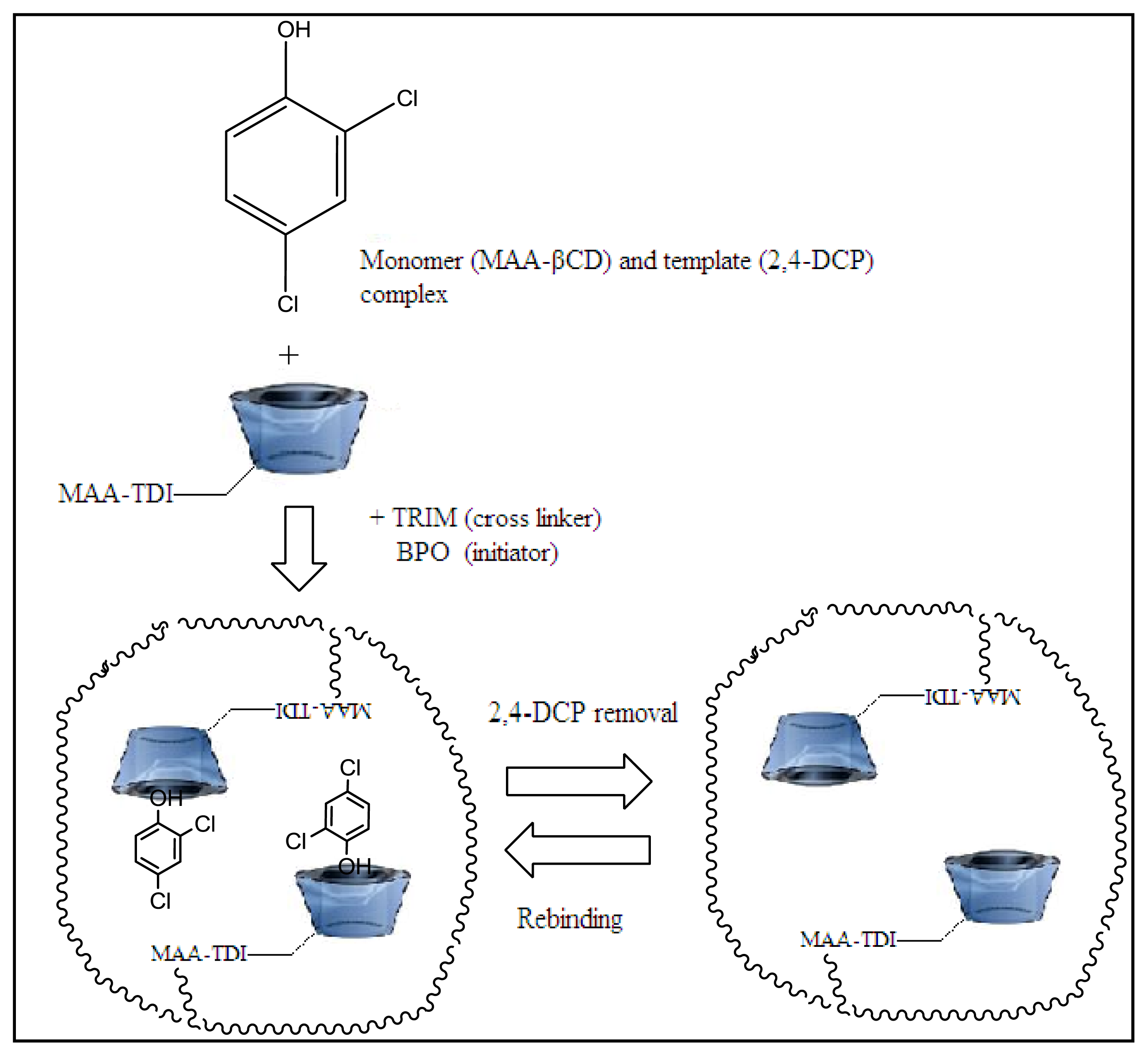

Figure 9. Molecular imprinting of MIP MAA-βCD using 2,4-DCP as template.
Figure 9. Molecular imprinting of MIP MAA-βCD using 2,4-DCP as template.
Ijms 15 06111f9
Figure 10. 2,4-dichlorophenol and its structural analogues.
Figure 10. 2,4-dichlorophenol and its structural analogues.
Ijms 15 06111f10
Table 1. Isotherm constants of four isotherm models for 2,4-DCP adsorption onto MIP MAA-βCD.
Table 1. Isotherm constants of four isotherm models for 2,4-DCP adsorption onto MIP MAA-βCD.
Isotherm ConstantsTemperature (K)

298318338
Langmuir
Q max (mg·g−1)−90.909−125−90.909
b (L·mg−1)−0.004−0.003−0.004
RL1.651.421.59
R20.5410.5570.512

Freundlich
KF (mg·g−1(L·mg−1)1/n)2.2440.4750.404
n1.0251.0090.975
1/n0.9760.9911.026
R20.9990.9950.999

Temkin
KT (L·mg−1)0.0710.0710.071
B20.1819.618.54
R20.9620.9480.967

Dubinin-Radushkevich
KDR (mol2 kJ2)0.0230.0240.021
E (kJ·mol−1)4.6624.5644.879
R20.9810.9920.978
Table 2. Kinetic parameters for 2,4-DCP adsorption onto MIP MAA-βCD.
Table 2. Kinetic parameters for 2,4-DCP adsorption onto MIP MAA-βCD.
Kinetic ModelConstantsMIP MAA-βCD
Pseudo-first-order modelqe, experimental (mg·g−1)4.585
qe, calculated (mg·g−1)0.561
k1 (min−1)0.016
Δq (%)43.882
Relative error (%)87.764
R20.67

Pseudo-second-order modelqe, experimental (mg·g−1)4.585
qe, calculated (mg·g−1)4.587
h (mg·g−1 min )4.367
k2 (g·mg−1 min)0.207
Δq (%)0.017
Relative error (%)0.046
R20.999

Elovich modelqe, experimental (mg·g−1)4.585
qe, calculated (mg·g−1)4.243
B (g·mg−1)1.799
α (mg·g−1·min−1)25.498
Δq (%)3.725
Relative error (%)7.451
R20.886

Intraparticle diffusionqe, experimental (mg·g−1)4.585
C (mg·g−1)3.288
ki (mg·g−1·min1/2)0.117
Δq (%)12.651
Relative error (%)28.288
R20.525

External Diffusionkext (min−1)0.003
C−1.136
R20.459
Table 3. Thermodynamic adsorption parameters.
Table 3. Thermodynamic adsorption parameters.
SorbentThermodynamic Parameters

ΔH° (kJ·mol−1)ΔS° (J·mol−1·K−1)T (K)ΔG° (kJ·mol−1)
MIP MAA-βCD−32.0911.64298−3.501
318−3.734
338−3.966
Table 4. Selectivity parameters of the MIP MAA-βCD and NIP MAA-βCD.
Table 4. Selectivity parameters of the MIP MAA-βCD and NIP MAA-βCD.
PhenolsMIP MAA-βCDNIP MAA-βCDk


Kd (mg·g−1)kKd (mg·g−1)k
2,4-DCP5.192.76
4-CMP2.542.042.341.181.73
2-CP1.772.931.941.422.06
2-NP1.92.731.791.541.77
4-NP2.651.962.251.231.59
Table 5. Comparison of the adsorption capacities for 2,4-DCP by MIP MAA-βCD in this study and various adsorbents reported in literature.
Table 5. Comparison of the adsorption capacities for 2,4-DCP by MIP MAA-βCD in this study and various adsorbents reported in literature.
AdsorbentAdsorption Capacity, qe (mg·g−1)Reference
MIP MAA-βCD45.67This study
Maize cob carbon17.94[59]
Palm pith carbon19.16[60]
Oil palm empty fruit bunch carbon27.25[61]
Paper mill sludge4.49[62]
Aged refuse in biofilter1.53[63]
Poly HEMA microbead16.1[64]
Blast furnace sludge29.1[65]
β-CD Attalpugite composites19.04[36]
β-CD epichlorohydrin polymer15.7[39]

Share and Cite

MDPI and ACS Style

Surikumaran, H.; Mohamad, S.; Sarih, N.M. Molecular Imprinted Polymer of Methacrylic Acid Functionalised β-Cyclodextrin for Selective Removal of 2,4-Dichlorophenol. Int. J. Mol. Sci. 2014, 15, 6111-6136. https://doi.org/10.3390/ijms15046111

AMA Style

Surikumaran H, Mohamad S, Sarih NM. Molecular Imprinted Polymer of Methacrylic Acid Functionalised β-Cyclodextrin for Selective Removal of 2,4-Dichlorophenol. International Journal of Molecular Sciences. 2014; 15(4):6111-6136. https://doi.org/10.3390/ijms15046111

Chicago/Turabian Style

Surikumaran, Hemavathy, Sharifah Mohamad, and Norazilawati Muhamad Sarih. 2014. "Molecular Imprinted Polymer of Methacrylic Acid Functionalised β-Cyclodextrin for Selective Removal of 2,4-Dichlorophenol" International Journal of Molecular Sciences 15, no. 4: 6111-6136. https://doi.org/10.3390/ijms15046111

APA Style

Surikumaran, H., Mohamad, S., & Sarih, N. M. (2014). Molecular Imprinted Polymer of Methacrylic Acid Functionalised β-Cyclodextrin for Selective Removal of 2,4-Dichlorophenol. International Journal of Molecular Sciences, 15(4), 6111-6136. https://doi.org/10.3390/ijms15046111

Article Metrics

Back to TopTop
