Review

Effects of Radiographic Contrast Media on the Micromorphology of the Junctional Complex of Erythrocytes Visualized by Immunocytology

by
Ralf-Peter Franke
1,
Anne Krüger
2,
Tim Scharnweber
3,
Folker Wenzel
4 and
Friedrich Jung
2,*
1
Department of Biomaterials, University of Ulm, 89081 Ulm, Germany
2
Institute of Biomaterial Science and Berlin-Brandenburg Center for Regenerative Therapies, Helmholtz-Zentrum Geesthacht, 14513 Teltow, Germany
3
Institute for Biological Interfaces, Karlsruhe Institute of Technology (KIT), 76344 Eggenstein-Leopoldshafen, Germany
4
Institute for Transplantation Diagnostics and Cell Therapeutics, Medical Center of University, 40225 Düsseldorf, Germany
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2014, 15(9), 16134-16152; https://doi.org/10.3390/ijms150916134
Submission received: 17 June 2014 / Revised: 1 September 2014 / Accepted: 3 September 2014 / Published: 12 September 2014
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Effects of radiographic contrast media (RCM) application were demonstrated in vitro and in vivo where the injection of RCM into the A. axillaris of patients with coronary artery disease was followed by a significant and RCM-dependent decrease of erythrocyte velocity in downstream skin capillaries. Another study in pigs revealed that the deceleration of erythrocytes coincided with a significant reduction of the oxygen partial pressure in the myocardium—supplied by the left coronary artery—after the administration of RCM into this artery. Further reports showed RCM dependent alterations of erythrocytes like echinocyte formation and exocytosis, sequestration of actin or band 3 and the buckling of endothelial cells coinciding with a formation of interendothelial fenestrations leading to areas devoid of endothelial cells. Key to morphological alterations of erythrocytes is the membrane cytoskeleton, which is linked to the band 3 in the erythrocyte membrane via the junctional complex. Fundamental observations regarding the cell biological and biochemical aspects of the structure and function of the cell membrane and the membrane cytoskeleton of erythrocytes have been reported. This review focuses on recent results gained, e.g., by advanced confocal laser scanning microscopy of different double-stained structural elements of the erythrocyte membrane cytoskeleton.

1. Introduction

In 1985 Dawson described morphological alterations of erythrocytes after contact with radiographic contrast media (RCM) which he attributed to chemotoxic effects [1]. It is still unclear which mechanisms underlie the described cellular alterations like echinocyte formation [2,3,4,5,6], exocytosis and the buckling of endothelial cells coinciding with a formation of interendothelial fenestrations often leading to cell free, denuded areas [7,8,9]. Effects of RCM application were demonstrated in vitro and in vivo where the injection of RCM into the A. axillaris of patients with coronary artery disease was followed by a significant and RCM-dependent decrease of erythrocyte velocity in downstream skin capillaries [10,11]. A following study in pigs revealed that the deceleration of erythrocytes coincided with a significant reduction of the oxygen partial pressure in the myocardium—supplied by the left coronary artery—following the administration of RCM into this artery [12]. The varying extent of the morphological alterations observed in vitro was well correlated to varying deteriorations of the local microcirculation in vivo. Since heart rate, cardiac output and blood pressure practically remained constant it can be assumed that the local deterioration of the microcirculation was mainly based on the morphological alterations of erythrocytes and endothelial cells in the microcirculation. Plasma viscosity, too, influences the capillary perfusion [13]. Since the viscosities of RCM are much higher than that of blood plasma, there is a clear increase of viscosity of the blood plasma/RCM mixture in the downstream microcirculation after arterial injection of RCM—depending on the duration of the injection and the amount of RCM applied. There were differences in the capillary perfusion clearly due to differences in RCM viscosity, but these became obvious only after a RCM was applied (Iopentol, η = 1.7 mPa.s) with a viscosity nearly as low as the plasma viscosity [11]. Those RCM mostly used in coronary angiography have viscosities which do not differ enough from one another—η varying between 7 and 11 mPa.s—and hence do not suggest to attribute the RCM-dependent strongly differing morphological and pathophysiological effects to the variation in RCM viscosity. This became obvious by the strong morphological differences in echinocyte formation and endothelial cell buckling in vitro after addition of Iopromide to plasma or cell culture media, while the addition of Iodixanol did not affect the cells negatively. Since both RCM have similarly elevated viscosities it is assumed that the different morphological changes observed seem to be responsible for the microcirculatory deteriorations.
Endothelial cell buckling—the cell thickness increased after application of Iopromide for almost 50%, with practically no increase in cell thickness after Iodixanol application [7]—in conjunction with the echinocyte formation [4]—which is accompanied by a marked rigidification of the erythrocytes [14,15]—were assumed to be the reason for the short-termed cessations of blood flow in the local microcirculation [16].
Key to morphological alterations of erythrocytes is the membrane cytoskeleton, which is linked to the band 3 (AE1) in the erythrocyte membrane via the junctional complex. Basic results about the cell biology and biochemistry [17,18,19] of structure and function of the cell membrane and the membrane cytoskeleton of erythrocytes have recently been characterized further using immunocytochemical methods for the double staining of different elements of the membrane cytoskeleton [20,21,22,23].

2. Amount of Echinocyte Formation in Plasma Supplemented with Radiographic Contrast Media (RCM)

Figure 1 shows microphotographs taken in a transmission light microscope at a primary magnification of 1:40 of the echinocyte formation after suspension of erythrocytes in autologous plasma (Figure 1A), in an Iodixanol320/plasma mixture (40% v/v; Figure 1B) and in an Iopromide350/plasma mixture (40% v/v; Figure 1C). This concentration was chosen based on an estimate of the RCM concentration in the vasculature after a bolus injection of RCM in an artery [24,25].
Ijms 15 16134 g001 1024

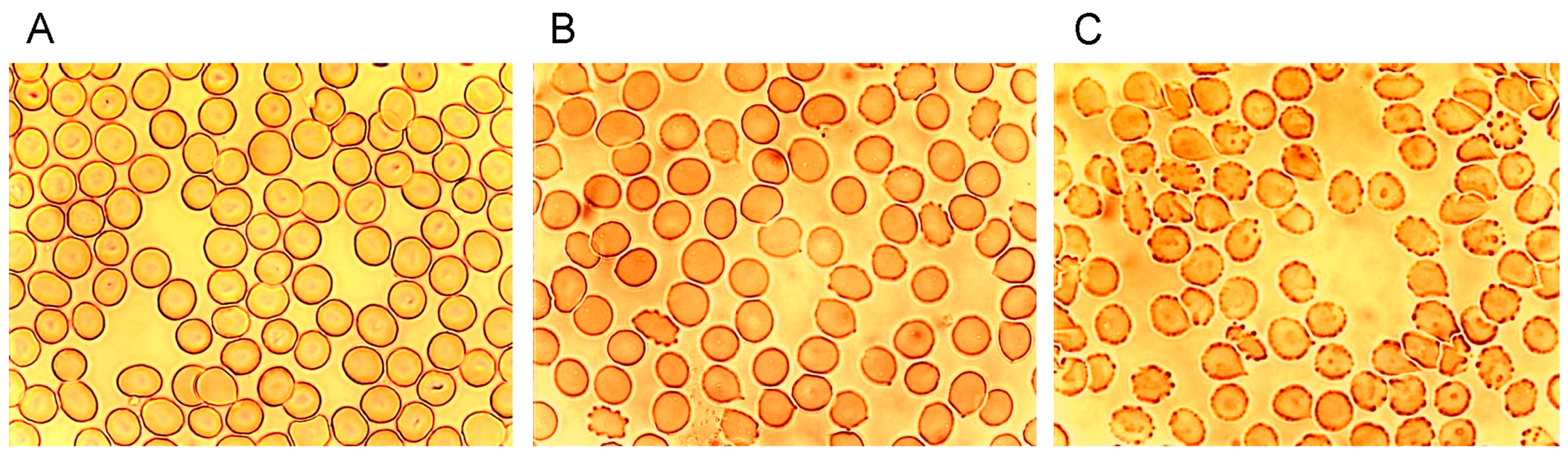

Figure 1. Radiographic contrast media (RCM)-induced echinocyte formation (reprinted from reference [6], Copyright 2008, with permission from IOS Press); (A) Erythrocytes resuspended in autologous plasma (40% v/v); (B) Erythrocytes resuspended in an Iodixanol/plasma mixture (40% v/v); (C) Erythrocytes resuspended in an Iopromide/plasma mixture (40% v/v).
Figure 1. Radiographic contrast media (RCM)-induced echinocyte formation (reprinted from reference [6], Copyright 2008, with permission from IOS Press); (A) Erythrocytes resuspended in autologous plasma (40% v/v); (B) Erythrocytes resuspended in an Iodixanol/plasma mixture (40% v/v); (C) Erythrocytes resuspended in an Iopromide/plasma mixture (40% v/v).
Ijms 15 16134 g001
While in autologous plasma 4.6% ± 4.5% echinocytes were found, 24.3% ± 29.6% of echinocytes appeared after adding Iodixanol and this number increased to 80.6% ± 17.4% of echinocytes after addition of Iopromide [6]. This study revealed a significantly higher number (3.3-fold) of echinocytes after Iopromide. Table 1 shows the percentages of echinocytes in different stages according to Bessis [26].

3. Stages of Echinocyte Formation in Plasma Supplemented with RCM

Table 1 shows that not only the numbers of echinocytes were significantly higher after incubation of erythrocytes in an Iopromide/plasma mixture but also the stages according to Bessis differed significantly. While there were only very few stage II echinocytes and no stage III echinocytes at all in the Iodixanol/plasma mixture, there were 21.7% stage II echinocytes and 0.53% stage III echinocytes in the Iopromide/plasma mixture.
Table
Table 1. Bessis stages in (%) of echinocytes suspended in autologous plasma, in an Iodixanol/plasma mixture (40% v/v), and in an Iopromide/plasma mixture (40% v/v).
Table 1. Bessis stages in (%) of echinocytes suspended in autologous plasma, in an Iodixanol/plasma mixture (40% v/v), and in an Iopromide/plasma mixture (40% v/v).
Bessis StagesEchinocytes in Autologous PlasmaEchinocytes in an Iodixanol/Plasma MixtureEchinocytes in an Iopromide/Plasma Mixture
Stage I4.1 ± 4.522.2 ± 19.958.4 ± 10.0
Stage II0.46 ± 1.131.90 ± 3.0521.7 ± 13.5
Stage III0 ± 00 ± 00.53 ± 0.93

4. Reversibility of Echinocyte Formation after Contact with RCM

The examination of the reversibility of the echinocyte formation by resuspension of echinocytes in autologous plasma, after they had been suspended in RCM/plasma mixture in a previous step, showed that only erythrocytes initially exposed to Iopromide remained in higher stages according to Bessis, particularly in stage III (see Figure 2, [6]).
Ijms 15 16134 g002 1024

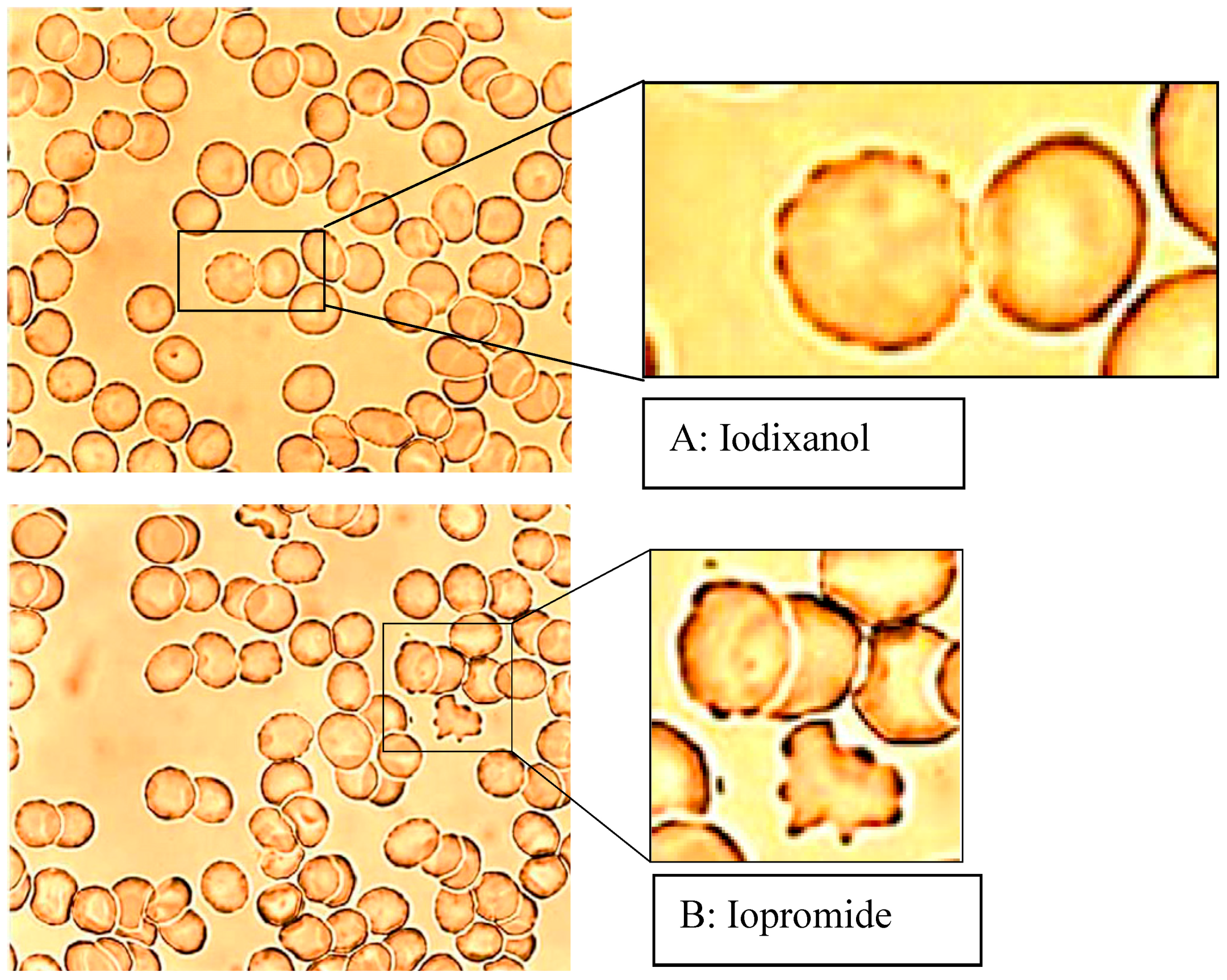

Figure 2. Erythrocytes in an Iodixanol/plasma mixture (A) or Iopromide/plasma mixture (B) 40% v/v each after resuspension in autologous RCM-free plasma (modified according to reference [6], Copyright 2008, with permission from IOS Press).
Figure 2. Erythrocytes in an Iodixanol/plasma mixture (A) or Iopromide/plasma mixture (B) 40% v/v each after resuspension in autologous RCM-free plasma (modified according to reference [6], Copyright 2008, with permission from IOS Press).
Ijms 15 16134 g002
Therefore, it is important to note, that different RCM (e.g., Iopromide versus Iodixanol) had a different influence on echinocyte formation, first on the total number of echinocytes, second on the different stages of echinocytes and third on differences in the reversibility of echinocytes to discocytes.

5. Membrane Cytoskeleton of Human Erythrocytes in Autologous Plasma

Changes of erythrocyte morphology are effected by their membrane cytoskeleton. Backbone of the membrane cytoskeleton are tetramers of heterodimeric α-, β-spectrins usually found in a pentagonal or hexagonal configuration [27,28]. Actin is beside spectrin a main component of the membrane cytoskeleton [27] and seems to be an essential component together with other elements in a complex linking the membrane cytoskeleton to the erythrocyte cell membrane. Immunocytological double staining enabled the visualization of the distributions of the cytoskeletal spectrin and actin at the same time in identical cells [20].
The single erythrocyte in the center of Figure 3A displays the typical homogeneous spectrin distribution found in human erythrocytes incubated in autologous plasma, with slightly enhanced stain intensity at the cell rim. Contrary to the spectrin distribution, the distribution of actin was clearly non-homogenous showing strongly enhanced stain intensity at the cell rim. It was assumed that this might be due to elevated stresses in strongly curved cell regions [29].
Ijms 15 16134 g003 1024

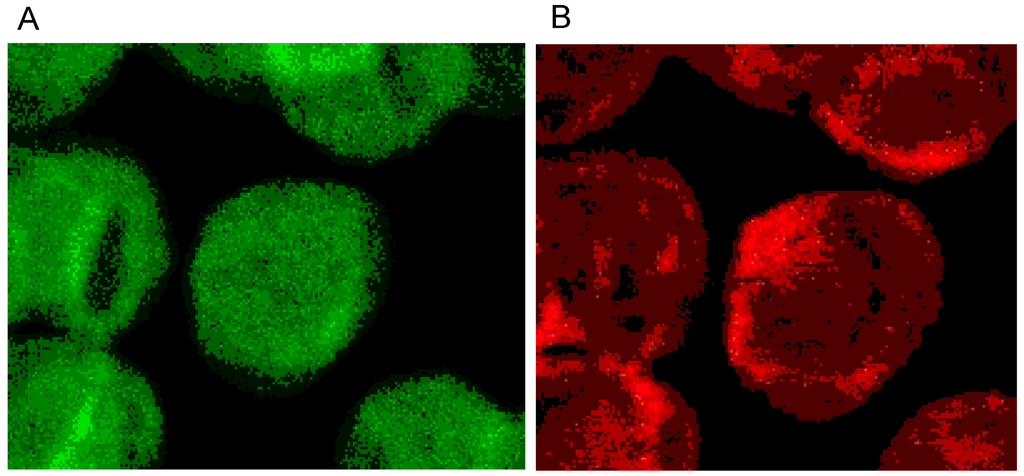

Figure 3. (A) Spectrin and (B) Actin (stained with antibody against β-actin) distribution in erythrocytes in autologous plasma (reprinted from reference [20], Copyright 2013, with permission from IOS Press) (Primary magnification: 1:63; zoom factor: 5).
Figure 3. (A) Spectrin and (B) Actin (stained with antibody against β-actin) distribution in erythrocytes in autologous plasma (reprinted from reference [20], Copyright 2013, with permission from IOS Press) (Primary magnification: 1:63; zoom factor: 5).
Ijms 15 16134 g003
Phalloidin–Rhodamin interacts with and allows us to visualize actin polymers assumed to consist of at least 16 monomers. It was thought that there is almost no highly polymerized actin in sessile discocytes [27,28]. Phalloidin–Rhodamin stained actin (see Figure 4) revealed that longer actin polymers occurred in cell regions characterized by prominent curvatures: these are the cell rim (see arrow B in Figure 4) and the periphery of the central cell dip (see arrow A in Figure 4). The distribution of all the actin revealed by the use of an antibody against β-actin (see Figure 3B) differed strongly from the actin distribution assessed by Phalloidin–Rhodamin.
It should be considered that “Fluorescence Microscopy” as applied earlier, usually did not grant images as rich in contrast as those produced nowadays applying “Confocal Laser Scanning Microscopy”. It can be assumed, therefore, that there are some larger actin polymers already in discocytes.
Ijms 15 16134 g004 1024

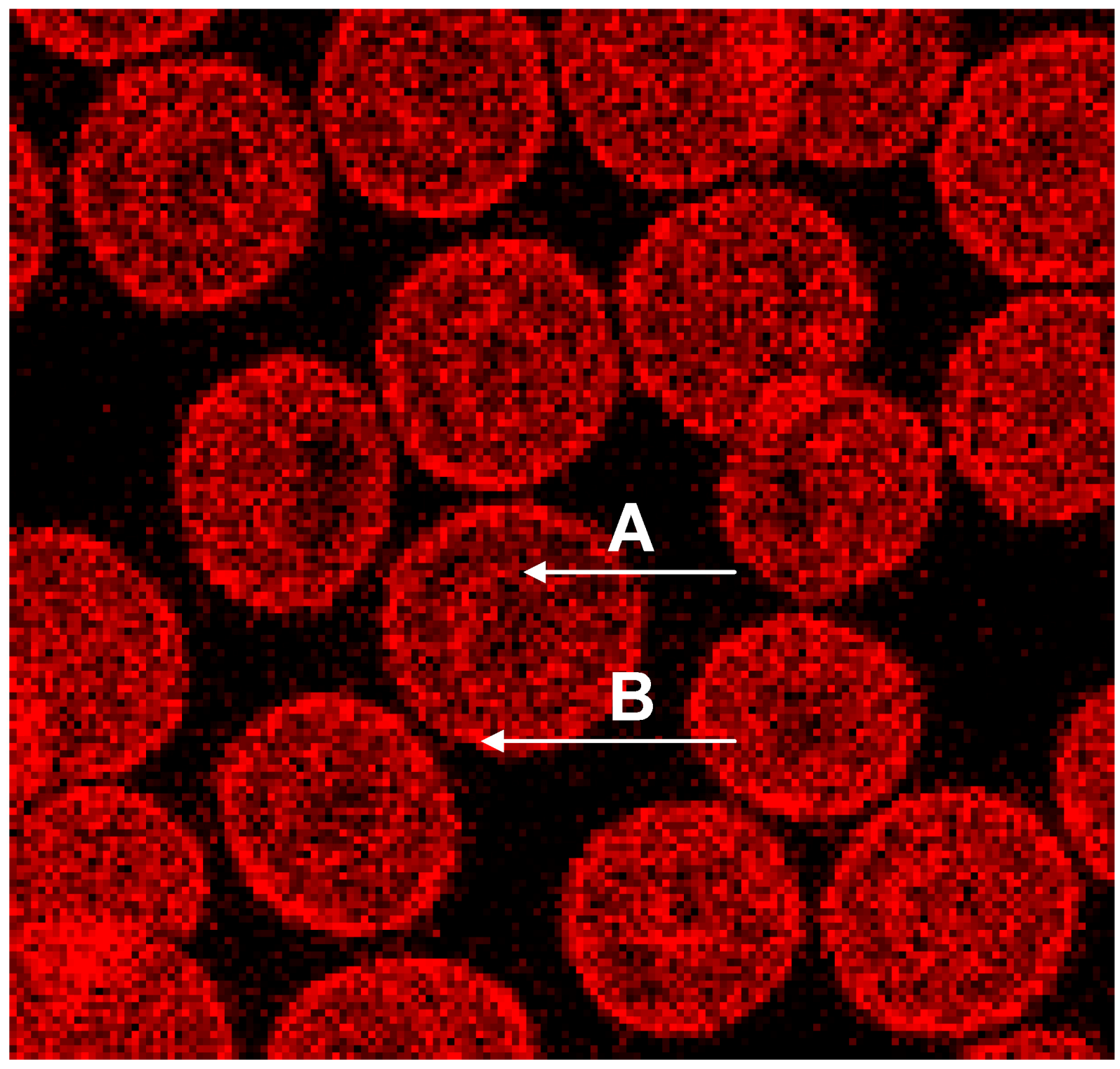

Figure 4. Phalloidin–Rhodamin stained actin in erythrocytes after suspension in autologous plasma; “A” marked arrow pointing at the periphery of the central dip, “B” marked arrow at the cell rim (reprinted from reference [23], Copyright 2013, with permission from IOS Press) (Primary magnification 1:63, zoom factor: 5).
Figure 4. Phalloidin–Rhodamin stained actin in erythrocytes after suspension in autologous plasma; “A” marked arrow pointing at the periphery of the central dip, “B” marked arrow at the cell rim (reprinted from reference [23], Copyright 2013, with permission from IOS Press) (Primary magnification 1:63, zoom factor: 5).
Ijms 15 16134 g004
The merger of red (actin) and green (spectrin) channels of the confocal microscope revealed that the spectrin-/actin-distribution in singularized erythrocytes differed from the distribution in aggregated discocytes (see Figure 5). As main aspect in aggregated erythrocytes spectrin appeared to be the more or less homogeneously distributed over the whole cell (see Figure 5C), whereas in singularized erythrocytes the red stained actin in central parts of cells was a noticeable aspect (see Figure 5B).
The spectrin stain in the green channel revealed that there is a reformation of the spectrin network in aggregating erythrocytes as more and denser spectrin stain appeared at the cell periphery and more or less visible bands of stained spectrin developed in central parts of the cells (see Figure 6A). In the contact zone of aggregating cells, the spectrin nets of adjacent cells seemed to get very near to one another.
Double staining disclosed that there were many red pixels (actin) in the contact zone of cells, which could be observed already after staining of actin (see Figure 3B). Aggregated cells sometimes gave the impression as if cell fusion occurred (see Figure 6A (white arrow) and B). This is thought to be less probable since the formation of erythrocyte aggregates is regarded to be reversible [30,31,32,33]. If there would be cell fusion, the consecutive reformation of the discocytic state of the cells would afford energy. This point cannot be solved at the moment. There were reports, however, that metabolically depleted erythrocytes, whose rate of energy conversion was reduced drastically, clearly aggregated less and were also less deformable [34].
Ijms 15 16134 g005 1024

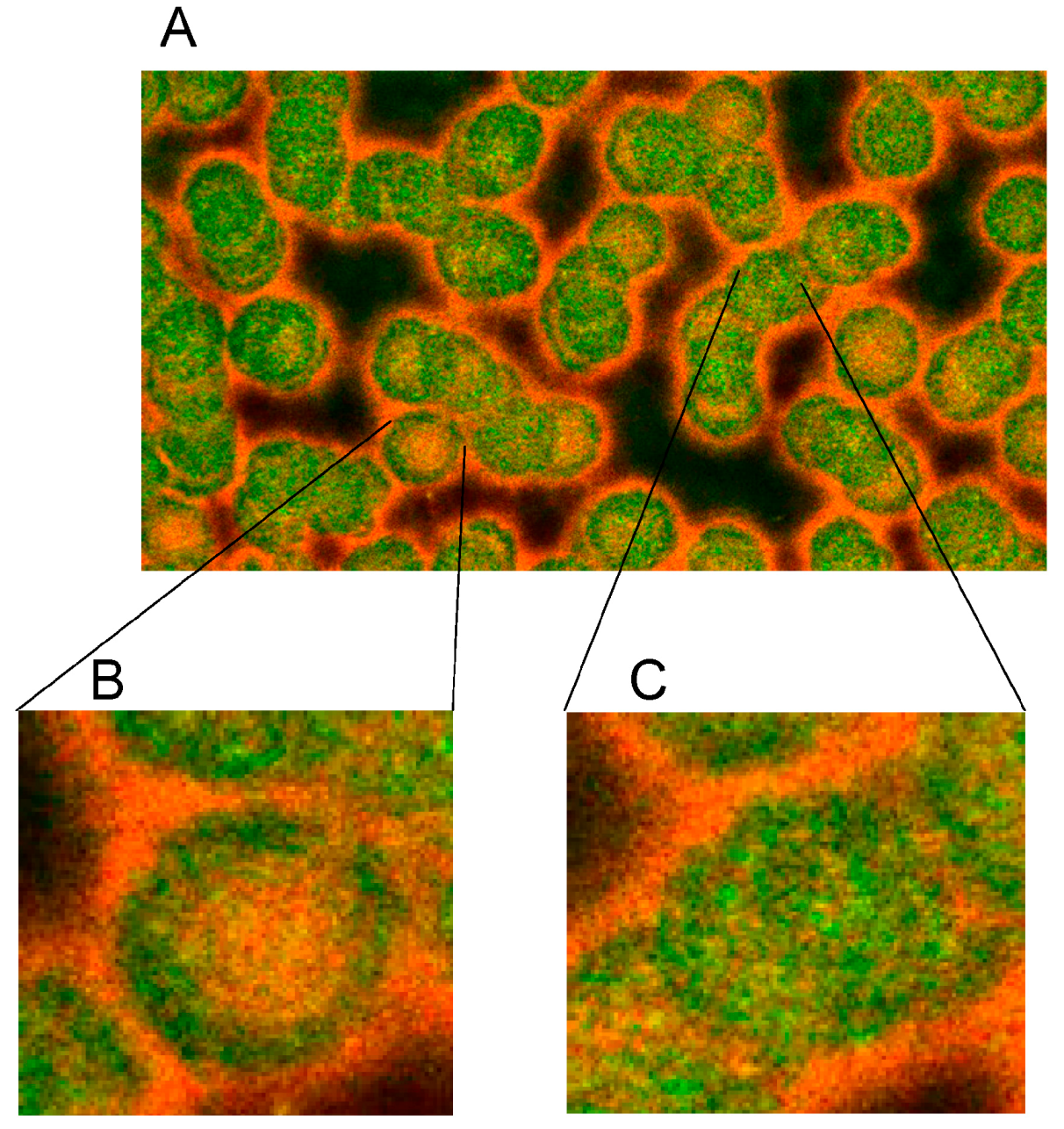

Figure 5. Merger of red (actin) and green (spectrin) channels of the confocal microscope showing erythrocytes after examination in autologous plasma (A–C) with details of magnified single (B) or aggregated erythrocytes (C) (reprinted from reference [20], Copyright 2013, with permission from IOS Press) (A) primary magnification 1:63; zoom factor 2.5; (B) primary magnification 1:63; zoom factor 5; (C) primary magnification 1:63; zoom factor 5.
Figure 5. Merger of red (actin) and green (spectrin) channels of the confocal microscope showing erythrocytes after examination in autologous plasma (A–C) with details of magnified single (B) or aggregated erythrocytes (C) (reprinted from reference [20], Copyright 2013, with permission from IOS Press) (A) primary magnification 1:63; zoom factor 2.5; (B) primary magnification 1:63; zoom factor 5; (C) primary magnification 1:63; zoom factor 5.
Ijms 15 16134 g005
Ijms 15 16134 g006 1024

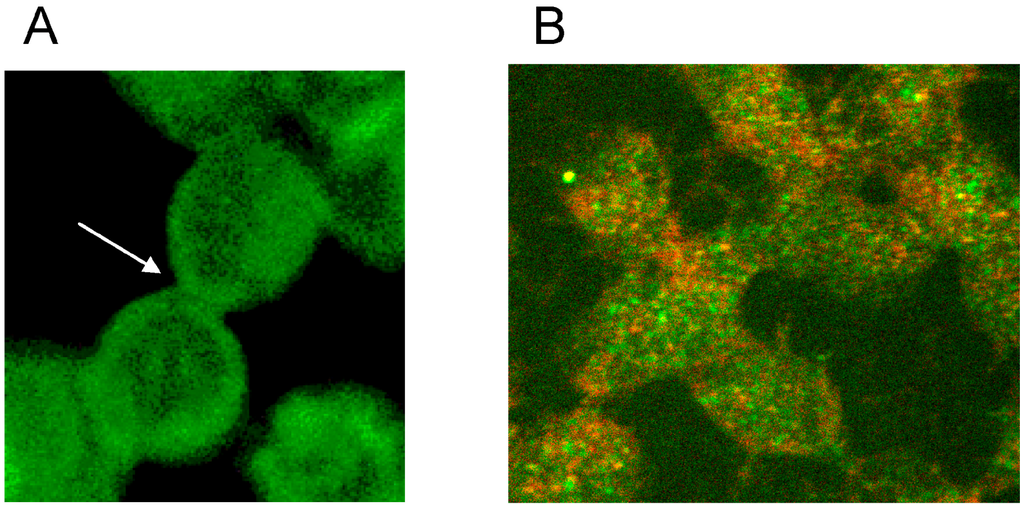

Figure 6. Spectrin reorganization in aggregated erythrocytes suspended in autologous plasma (reprinted from reference [20], Copyright 2013, with permission from IOS Press) (A) spectrin-stained erythrocytes; (B) Merger of red and green channels of the confocal microscope of spectrin–actin double stained erythrocytes. (Primary magnification 1:63; zoom factor 3.5).
Figure 6. Spectrin reorganization in aggregated erythrocytes suspended in autologous plasma (reprinted from reference [20], Copyright 2013, with permission from IOS Press) (A) spectrin-stained erythrocytes; (B) Merger of red and green channels of the confocal microscope of spectrin–actin double stained erythrocytes. (Primary magnification 1:63; zoom factor 3.5).
Ijms 15 16134 g006
This study revealed that erythrocyte aggregation is accompanied by a reorganization of the spectrin network [20]. It might be speculated that this could be the main reason for the limitation in erythrocyte life time of 120 days in the blood circulation. If energy would be needed for the constantly afforded deformation work, this would lead to ATP depletion and to a break-down of energy supply, resulting in a rigidification of the erythrocyte [35] and its elimination in the sinusoid vessels of the spleen [36].

6. Effects of RCM on the Membrane Cytoskeleton of Human Erythrocytes

Supplementation of autologous plasma with RCM and suspension of erythrocytes in the RCM/plasma mixture induced—especially in the case of Iopromide—considerable alterations in the membrane cytoskeleton in comparison to erythrocytes suspended in an Iodixanol/plasma mixture [20]. There were practically no differences between erythrocytes suspended in autologous plasma (Figure 5 and Figure 6) or in a plasma/Iodixanol mixture (Figure 7A) [20] (except a slightly enhanced tendency for erythrocyte aggregation compared to erythrocytes suspended in autologous plasma).
Figure 7B demonstrates that on one hand there was a clear dissociation of red and green stained components in central cell parts and on the other hand there was a marked association of spectrin and actin components at the cell rim coinciding with a spectrin–actin co-localization revealed by the appearance of light yellow-green color bands.
Ijms 15 16134 g007 1024

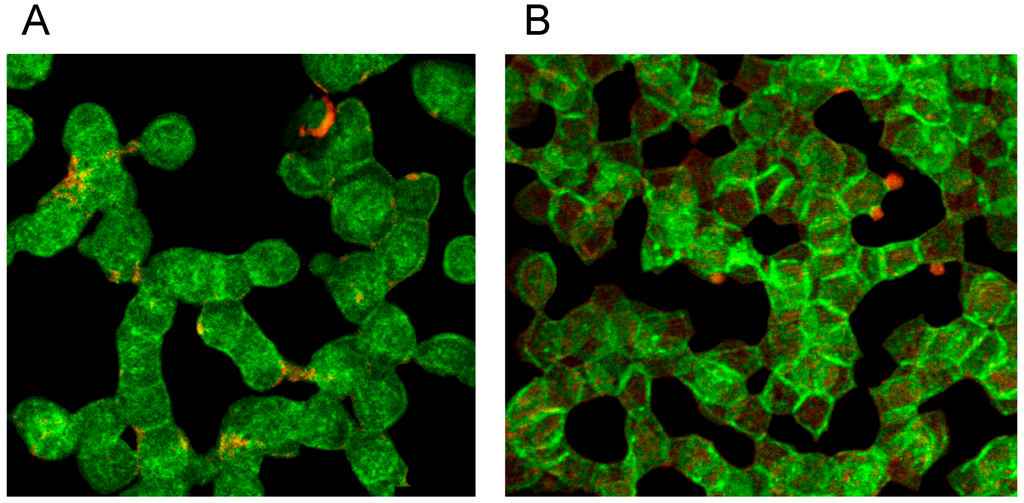

Figure 7. Spectrin reorganization in aggregated erythrocytes (reprinted from reference [20], Copyright 2013, with permission from IOSPress) (A) Merger of red (actin) and green (spectrin) channels of the confocal microscope after examination of spectrin–actin double stained erythrocytes suspended in plasma supplemented with Iodixanol320 (30% v/v). (B) Merger of red (actin) and green (spectrin) channels of the confocal microscope after examination of spectrin–actin double stained erythrocytes suspended in a mixture of plasma and Iopromide370 (30% v/v). (Primary magnification 1:63; zoom factor 3.5).
Figure 7. Spectrin reorganization in aggregated erythrocytes (reprinted from reference [20], Copyright 2013, with permission from IOSPress) (A) Merger of red (actin) and green (spectrin) channels of the confocal microscope after examination of spectrin–actin double stained erythrocytes suspended in plasma supplemented with Iodixanol320 (30% v/v). (B) Merger of red (actin) and green (spectrin) channels of the confocal microscope after examination of spectrin–actin double stained erythrocytes suspended in a mixture of plasma and Iopromide370 (30% v/v). (Primary magnification 1:63; zoom factor 3.5).
Ijms 15 16134 g007
Plasma supplemented with Iopromide370 (30% v/v) induced changes of the erythrocyte membrane which can be described as rounded bubble-like protrusions (see red protrusions in Figure 7B). Acuate spicules—as described in light-microscopic or REM images—could not be observed here. The actin–spectrin double staining revealed that the well rounded protrusions were (at least) coated with actin.
White arrows (see Figure 8) mark neighbored double bands of spectrin at the cell rim also showing more intensely stained knob-like structures with spectrin bands [20]. In central parts of the erythrocyte also thin spectrin filaments (see arrow heads) are recognizable as well as singularized knobs of spectrin (see yellow arrow).
Ijms 15 16134 g008 1024

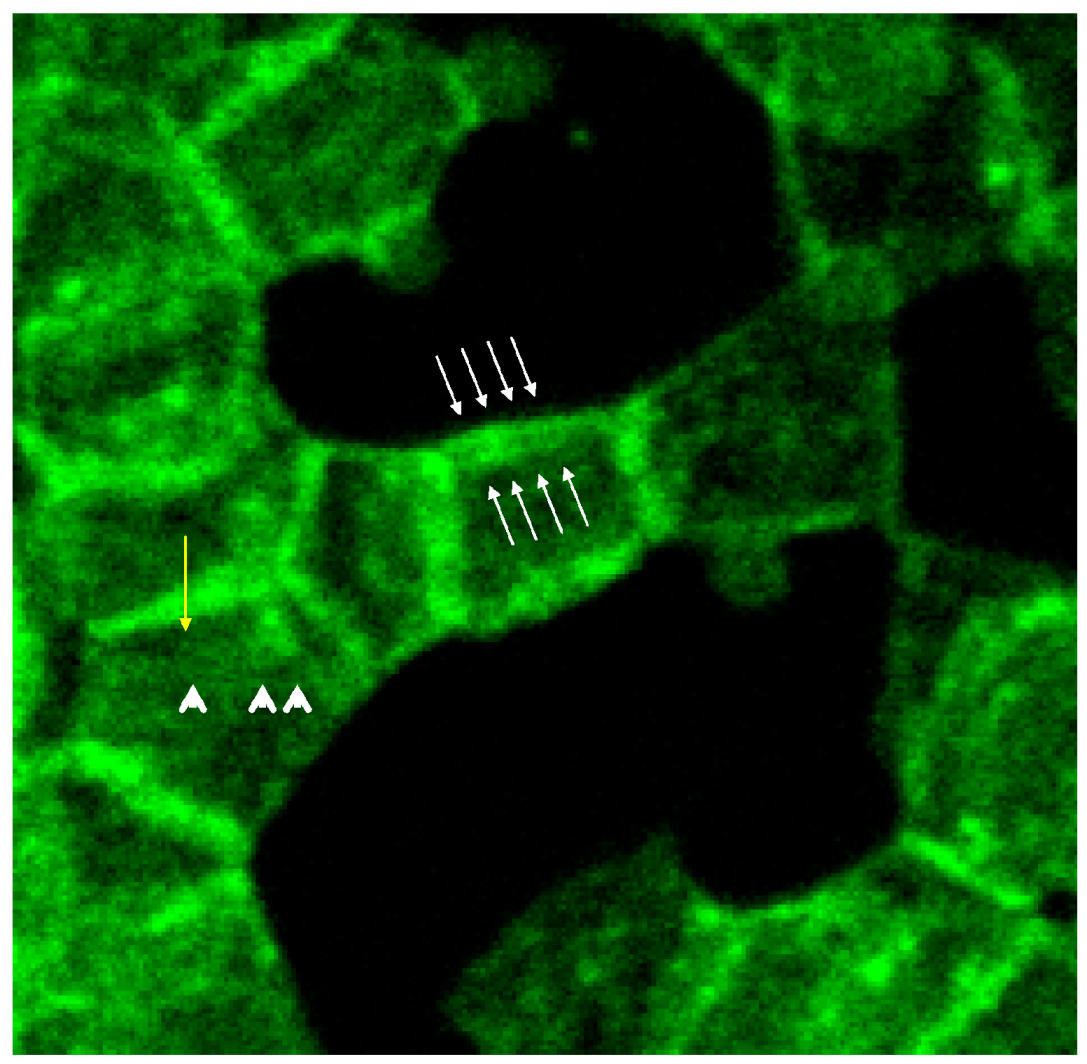

Figure 8. Spectrin stained erythrocytes suspended in a plasma/Iopromide 370 mixture (reprinted from reference [20], Copyright 2013, with permission from IOS Press; primary magnification 1:63; zoom factor 4.5).
Figure 8. Spectrin stained erythrocytes suspended in a plasma/Iopromide 370 mixture (reprinted from reference [20], Copyright 2013, with permission from IOS Press; primary magnification 1:63; zoom factor 4.5).
Ijms 15 16134 g008
The box-like arrangement of the membrane cytoskeleton was often rectangularly deformed mainly showing spectrin and co-localized actin which can be deduced from the light yellow-green colored bands. Co-localized spectrin–actin bands were visible also at the membrane roots of the protrusions. Such membrane-anchored actin rings are assumed to support contractile forces in different somatic cell types to enact the exocytotic process [37].
Thick bundles of long actin filaments at least coated the protrusions (see Figure 9; diameter: 1.7 µm) which initially were oriented perpendicular to the membrane. This could indicate that the schematic representation of the membrane cytoskeleton given by Drenckhahn [28] in which actin was arranged perpendicularly to the cell membrane seems to be closer to reality than schematic drawings where actin was arranged in parallel to the membrane.
Ijms 15 16134 g009 1024

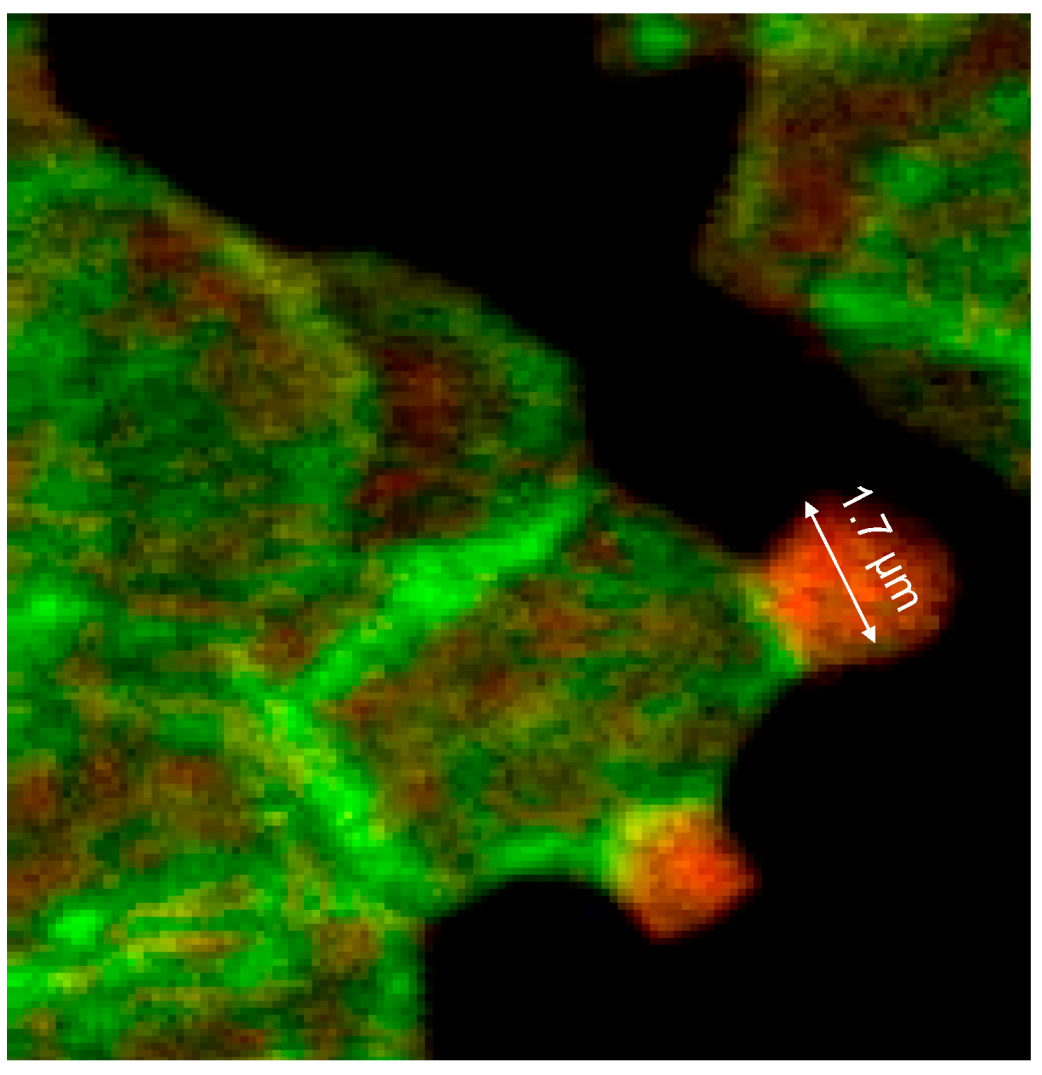

Figure 9. Merger of the red (actin) and green (spectrin) channels of the confocal microscope after examination of double-stained erythrocytes after incubation in a plasma/Iopromide370 mixture (reprinted from reference [20], Copyright 2013, with permission from IOS Press; primary magnification 1:63; zoom factor 5).
Figure 9. Merger of the red (actin) and green (spectrin) channels of the confocal microscope after examination of double-stained erythrocytes after incubation in a plasma/Iopromide370 mixture (reprinted from reference [20], Copyright 2013, with permission from IOS Press; primary magnification 1:63; zoom factor 5).
Ijms 15 16134 g009
At the membrane root of the protrusions circular spectrin–actin bands were found whose light yellow-green colors indicated co-localized spectrin and actin (see Figure 9).
There was not only a different arrangement of actin in the membrane cytoskeleton of erythrocytes after incubation in different plasma/RCM mixtures. Actin oligomers could be found outside of erythrocytes mainly when cells were suspended in a plasma/Iopromide mixture (see Figure 10A, white arrows). Not only were actin oligomers found outside erythrocytes, but also band 3 oligomers, which had been described in a former study (see Figure 10B) [21].
Ijms 15 16134 g010 1024

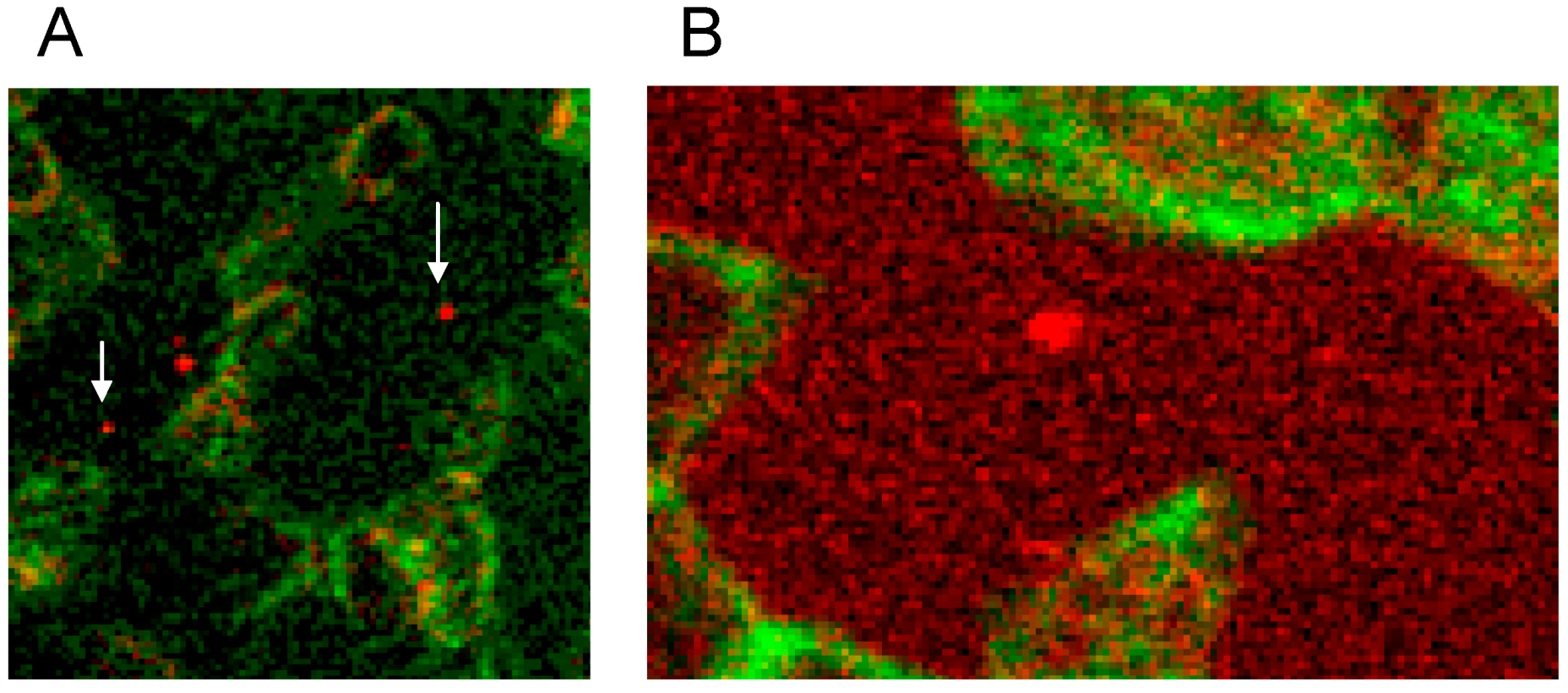

Figure 10. (A) Antibody stained actin particles outside erythrocytes marked by white arrows, Particles stained with antibodies against β-actin (reprinted from reference [22], Copyright 2014, with permission from IOS Press); (B) Particles stained with antibodies against band 3 (reprinted from reference [21]).
Figure 10. (A) Antibody stained actin particles outside erythrocytes marked by white arrows, Particles stained with antibodies against β-actin (reprinted from reference [22], Copyright 2014, with permission from IOS Press); (B) Particles stained with antibodies against band 3 (reprinted from reference [21]).
Ijms 15 16134 g010
This demonstrated that RCM can not only induce echinocyte formation but seemingly induce also an exocytosis-like process to export cell contents from the inside of erythrocytes to the outside.
In the immunofluorescence, the membrane cytoskeleton of many cells was presented in a more or less well rounded conformation, although in the case of erythrocyte contact with Iopromide about 80% of erythrocytes were transformed to echinocytes [6]. Figure 11 shows (see blue arrow) the echinocytic transformation of the membrane cytoskeleton.
Ijms 15 16134 g011 1024

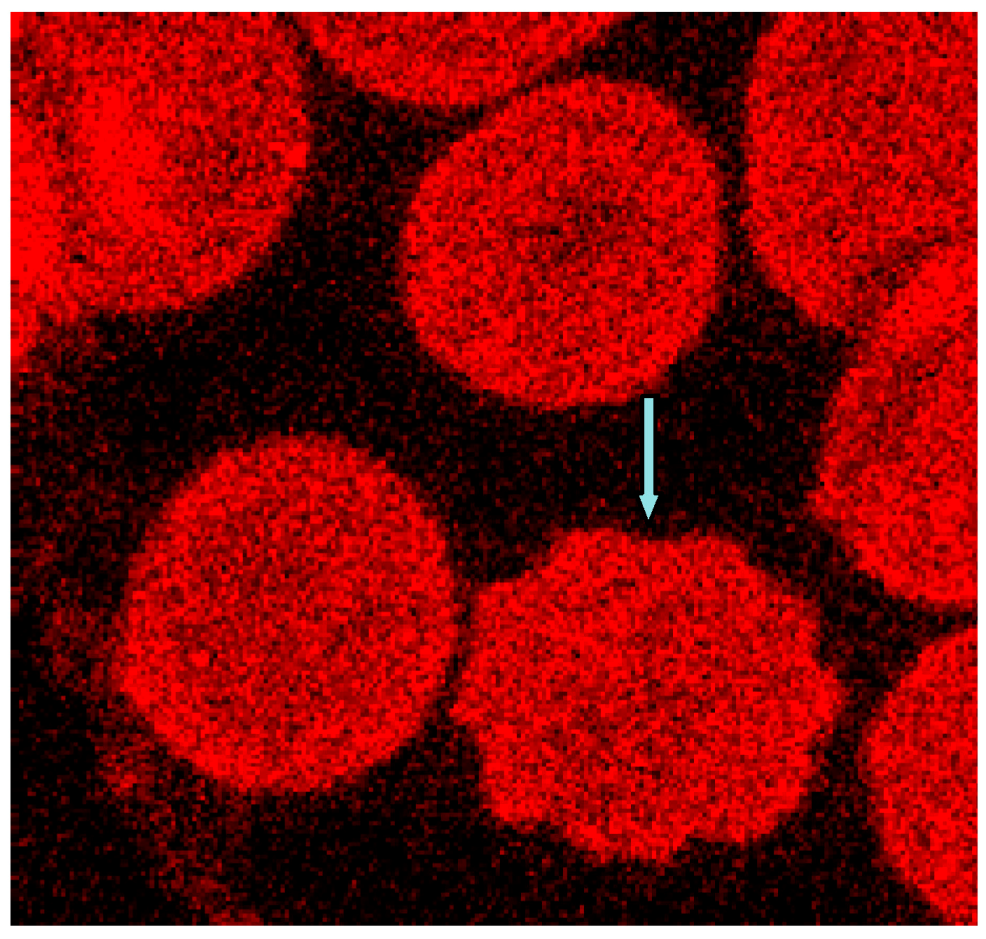

Figure 11. Phalloidin–Rhodamin stained erythrocytes, echinocytic shape change marked by the blue arrow (reprinted from reference [23], Copyright 2013, with permission from IOS Press; primary magnification 1:63, zoom factor: 5).
Figure 11. Phalloidin–Rhodamin stained erythrocytes, echinocytic shape change marked by the blue arrow (reprinted from reference [23], Copyright 2013, with permission from IOS Press; primary magnification 1:63, zoom factor: 5).
Ijms 15 16134 g011
Shape changes of the erythrocyte cell membrane—visualized by light microscopy—are thought to coincide with the uncoupling of links between cell membrane and membrane cytoskeleton. There is a high number of these links in the well rounded erythrocytes suspended in autologous plasma, but there are considerably less numbers of these links in erythrocytes suspended in an Iopromide/plasma mixture where the actin/spectrin network is box-like arranged [20] while the cell membrane is rounded, somehow carrying also small and large more or less rounded protrusions. There are different types of links between cell membrane and the membrane skeleton. Looking at the results presented, there have to be elements in the membrane cytoskeleton, which can execute local shape changes in vitro and in the absence of external shear forces. These elements have to expend the energy on the local deformation work. One of these structures engaged in coupling of the membrane cytoskeleton to the cell membrane and through the positioning of its actin component—perpendicular to the cell membrane—suited to exert local shape changes, is the junctional complex. The membrane bilayer together with the membrane-associated proteins binding the cytoskeleton were described to regulate the characteristic shape, the membrane stability as well as the elastic properties of erythrocytes [19]. The core of the cytoskeleton consists of, e.g., spectrin, actin, adducin, band 4.1 and band 4.9 (also known as dematin [38]). Dematin—located at the vertices of the mostly hexagonal spectrin filament network [38]—is a component of the junctional complex recently shown to anchor the tail-end of spectrin to the glucose transporter 1 (GLUT1) in the erythrocyte membrane [17,18,39]. In addition, dematin is a potent actin bundling protein in vitro and probably also in vivo [40] where actin-binding sites were assumed to be contained in the headpiece domain and in the intrinsically disordered core domain [34,40].
In addition the polymerization of actin is thought to be necessary leading to a considerable lengthening of the actin oligomers. In discocytes long actin filaments were shown recently whose length had increased and exceeded 1/3 of the cell diameter [20] (see Figure 9 and Figure 12).
Ijms 15 16134 g012 1024

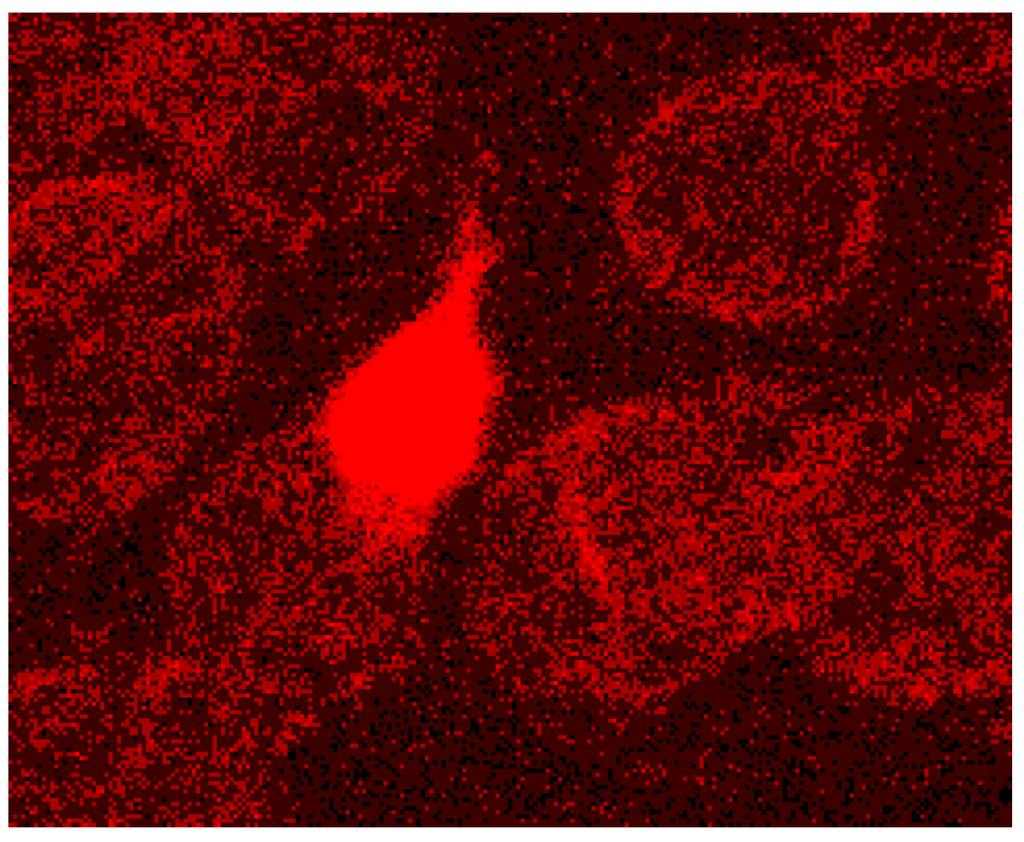

Figure 12. Protrusion, at least coated by bundled actin filaments, with a protrusion length of nearly the complete cell diameter (reprinted from reference [23], Copyright 2013, with permission from IOS Press).
Figure 12. Protrusion, at least coated by bundled actin filaments, with a protrusion length of nearly the complete cell diameter (reprinted from reference [23], Copyright 2013, with permission from IOS Press).
Ijms 15 16134 g012
The distribution of band 4.9 in the cytoskeleton of erythrocytes is shown in Figure 13. A knob-like structure and a less homogenous distribution of band 4.9 in erythrocytes suspended in autologous plasma were found. In most cells an almost unstained, circular area appeared in the rim of the cells surrounded by a peripheral narrow green-stained band (see Figure 13A). While actin usually prevailed in the strongly curved cell regions (see Figure 13B), band 4.9 appeared also in the central regions of erythrocytes. This gave for the first time evidence that band 4.9 is not only associated with actin but possibly also with other elements in the cell center which might serve as a band 4.9 depot. It might be hypothesized that such a depot enables exocytotic processes or fast shape changes of erythrocytes.
Ijms 15 16134 g013 1024

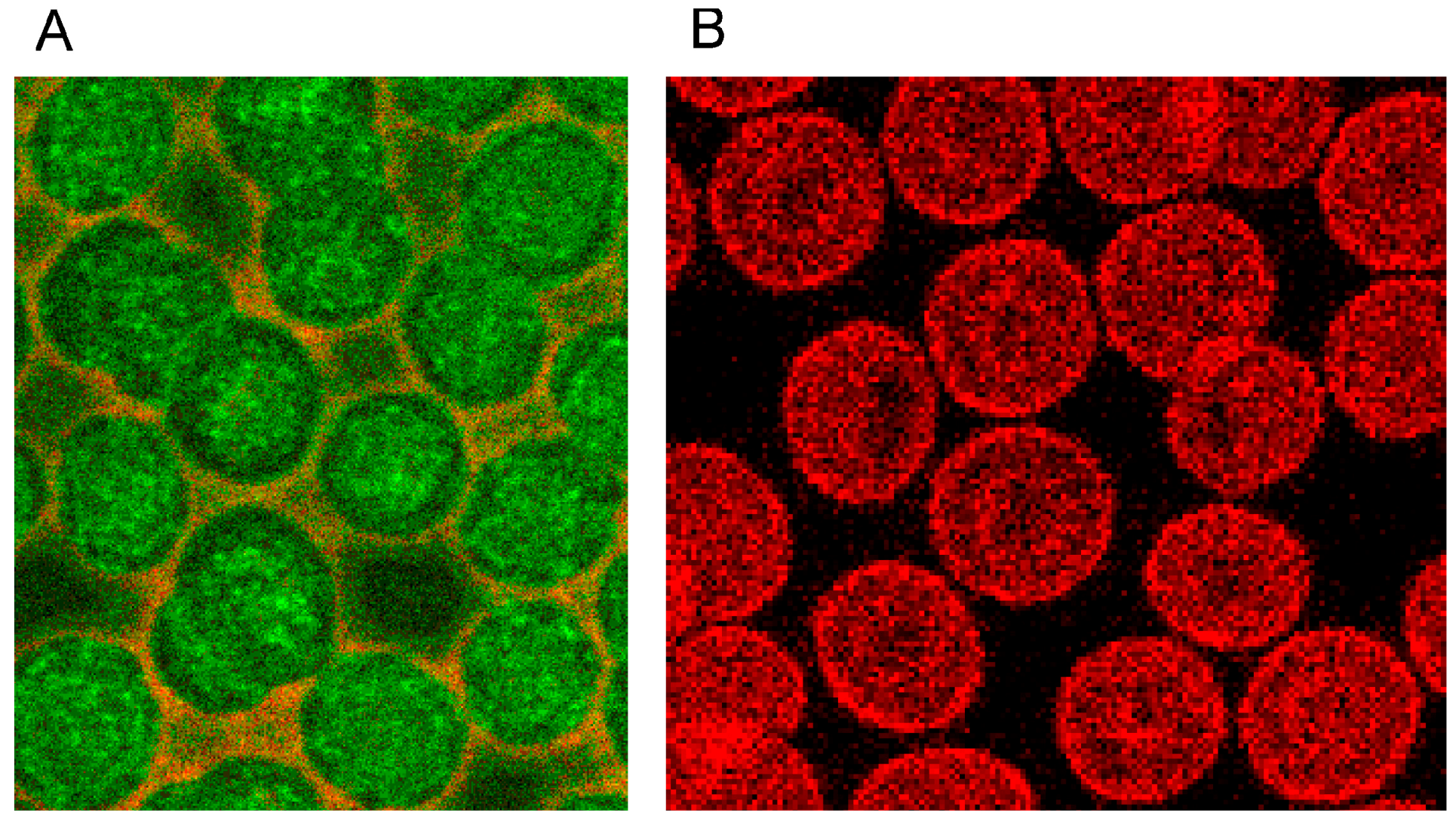

Figure 13. (A) Band 4.9—stained erythrocytes after suspension in autologous plasma (B) Phalloidin–Rhodamin stained actin in erythrocytes after suspension in autologous plasma ((A) reprinted from reference [22], Copyright 2014, with permission from IOS Press; (A) reprinted from reference [23], Copyright 2013, with permission from IOS Press; primary magnification 1:63; zoom factor: 5).
Figure 13. (A) Band 4.9—stained erythrocytes after suspension in autologous plasma (B) Phalloidin–Rhodamin stained actin in erythrocytes after suspension in autologous plasma ((A) reprinted from reference [22], Copyright 2014, with permission from IOS Press; (A) reprinted from reference [23], Copyright 2013, with permission from IOS Press; primary magnification 1:63; zoom factor: 5).
Ijms 15 16134 g013
Both RCM translocated band 4.9 out of central cell regions and into the rim of erythrocytes (see Figure 14A,B). While incubation of erythrocytes in an Iodixanol/plasma mixture induced relatively thick bands with great numbers of knob-like structures at the cell rim (see Figure 14A), the incubation in an Iopromide/plasma mixture induced a formation of thin band 4.9 bands with only few knob-like structures at the cell rim and with cell bodies almost completely devoid of band 4.9 (see Figure 14B).
Ijms 15 16134 g014 1024

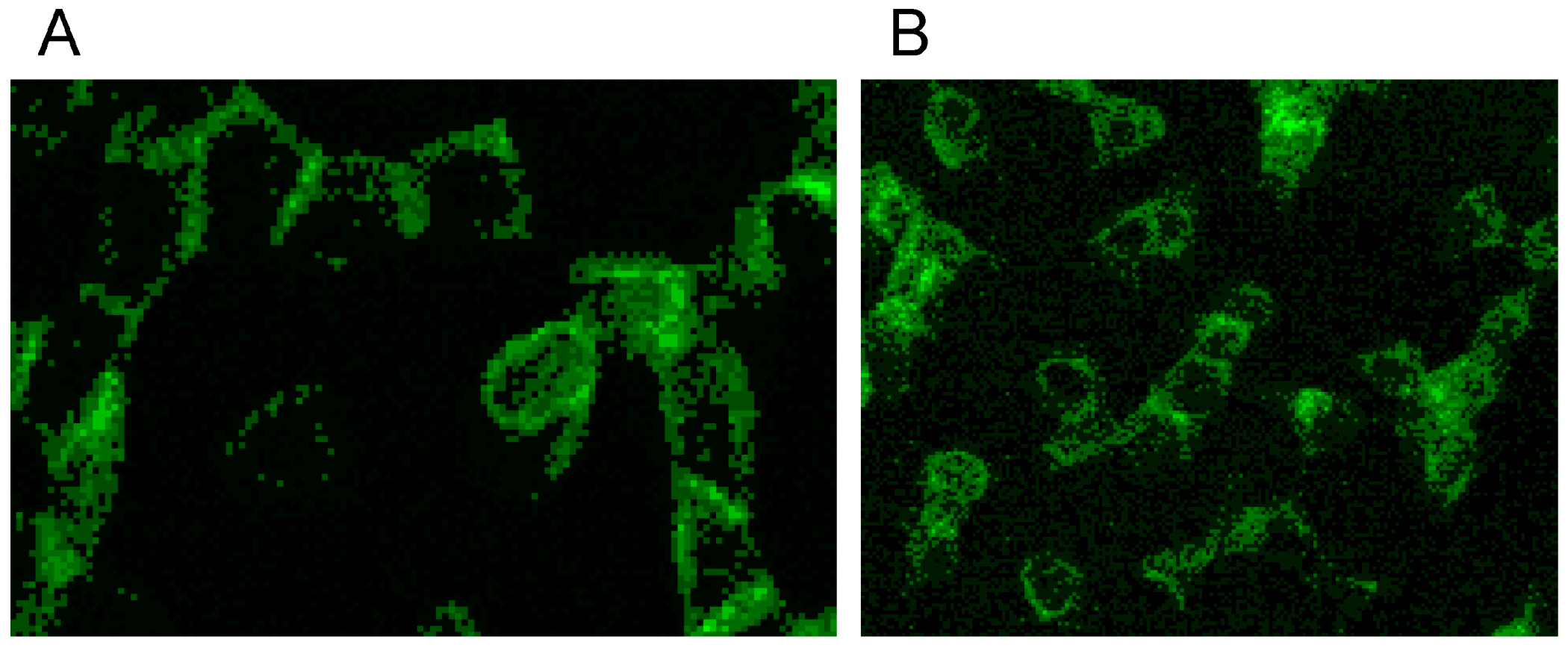

Figure 14. Band 4.9 stained erythrocytes after suspension of erythrocytes in (A) an Iodixanol/plasma mixture or (B) in an Iopromide/plasma mixture (RCM 30% v/v) (reprinted from reference [23], Copyright 2013, with permission from IOS Press).
Figure 14. Band 4.9 stained erythrocytes after suspension of erythrocytes in (A) an Iodixanol/plasma mixture or (B) in an Iopromide/plasma mixture (RCM 30% v/v) (reprinted from reference [23], Copyright 2013, with permission from IOS Press).
Ijms 15 16134 g014
Double staining of actin and band 4.9 revealed that only in erythrocytes suspended in an Iopromide/plasma mixture bands of actin appeared—probably through actin polymerization and bundling—passing through the whole cells (see white arrows in Figure 15B).
Ijms 15 16134 g015 1024

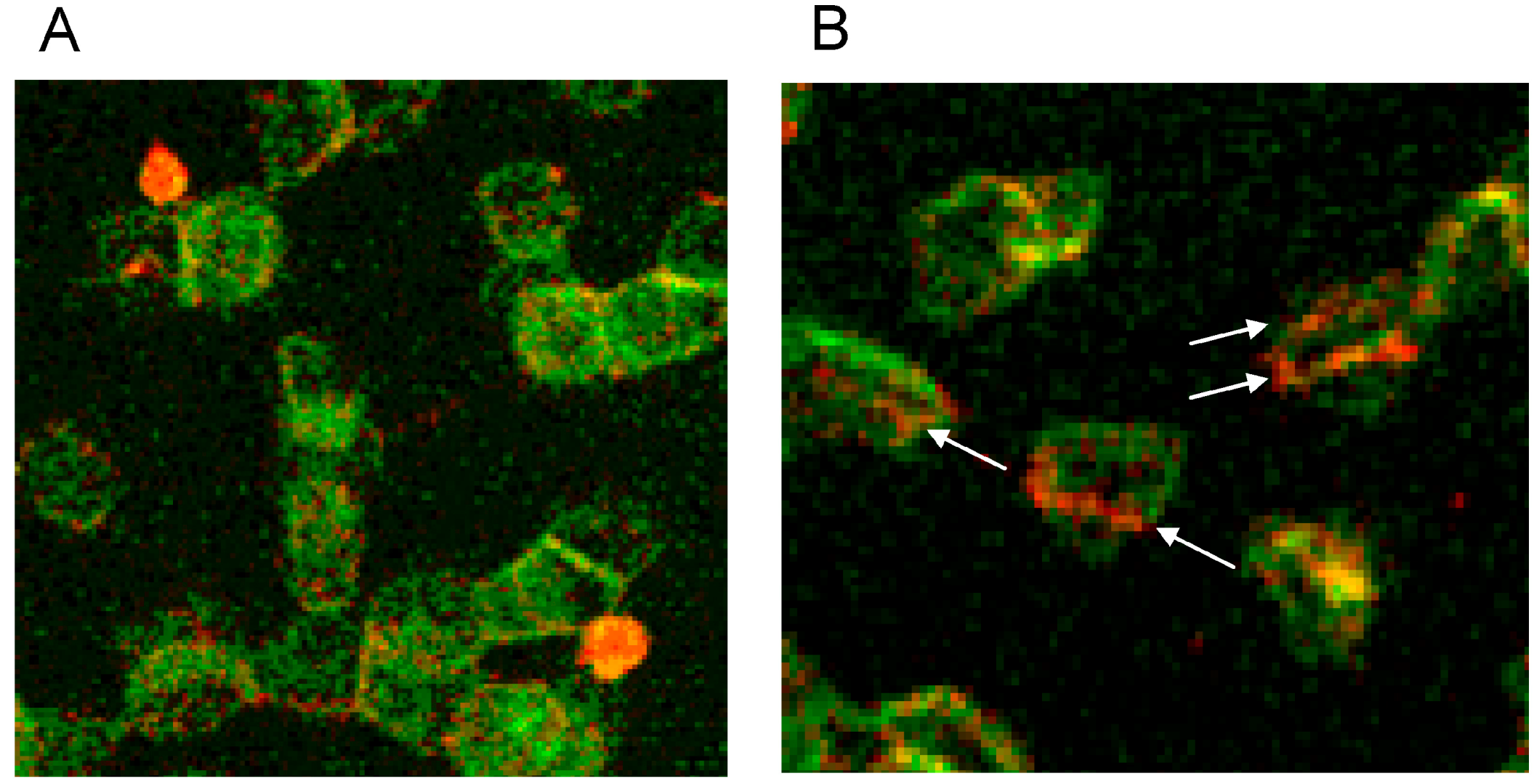

Figure 15. (A) Antibody stained Actin protrusions in erythrocytes suspended in a plasma/Iodixanol mixture (30% v/v) or (B) Band 4.9 bands in erythrocytes in a plasma/Iopromide mixture (30% v/v) (reprinted from reference [23], Copyright 2013, with permission from IOS Press).
Figure 15. (A) Antibody stained Actin protrusions in erythrocytes suspended in a plasma/Iodixanol mixture (30% v/v) or (B) Band 4.9 bands in erythrocytes in a plasma/Iopromide mixture (30% v/v) (reprinted from reference [23], Copyright 2013, with permission from IOS Press).
Ijms 15 16134 g015
The junctional complex is coupled to the erythrocyte membrane via band 3 [27]. Band 3 is found in three distinct protein complexes in erythrocyte membrane: an ankyrin-dependent tetrameric band 3 complex, a dimeric band 3 complex bound to the protein 4.1-glycophorin C junctional complex and a freely diffusing dimeric band 3 complex. The distribution of band 3 in erythrocytes suspended in autologous plasma is shown in Figure 16 after double staining with antibodies against spectrin and band 3. Spectrin and band 3 were practically distributed homogenously. Co-localizations of spectrin and band 3 were not observed.
Ijms 15 16134 g016 1024

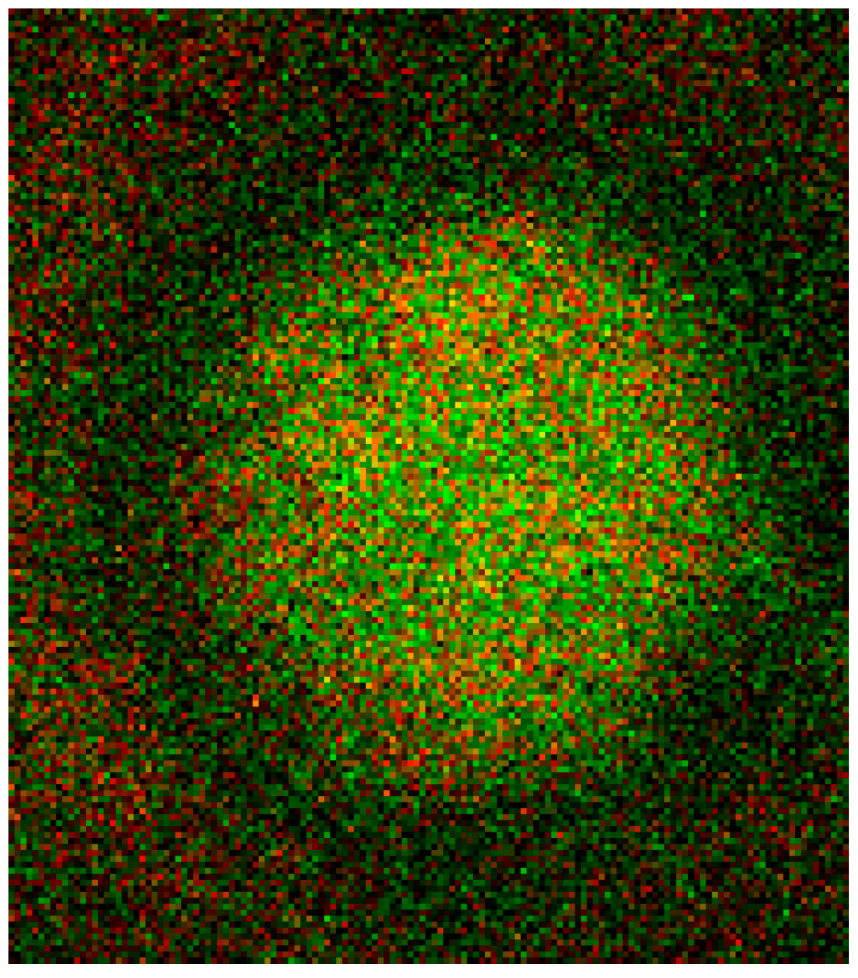

Figure 16. Merger of red (band 3) and green (spectrin) channels of the confocal microscope after examination of double stained erythrocytes suspended in autologous plasma (reprinted from reference [21]; Primary magnification: 1:63; zoom factor 5).
Figure 16. Merger of red (band 3) and green (spectrin) channels of the confocal microscope after examination of double stained erythrocytes suspended in autologous plasma (reprinted from reference [21]; Primary magnification: 1:63; zoom factor 5).
Ijms 15 16134 g016
Different from strong changes in the distribution of band 4.9, there were only weak changes in the distribution of band 3 after erythrocyte suspension in an Iodixanol/plasma mixture (see Figure 17A). Changes in band 3 localization were remarkable after erythrocyte contact with Iopromide. A condensation of knoblike structures at the cell rim was observed coinciding with a strong decrease in stain intensity in the cell center and a slight increase of band 3 and spectrin co-localization (yellow shift) in the knob-like structures (see Figure 17B).
Ijms 15 16134 g017 1024

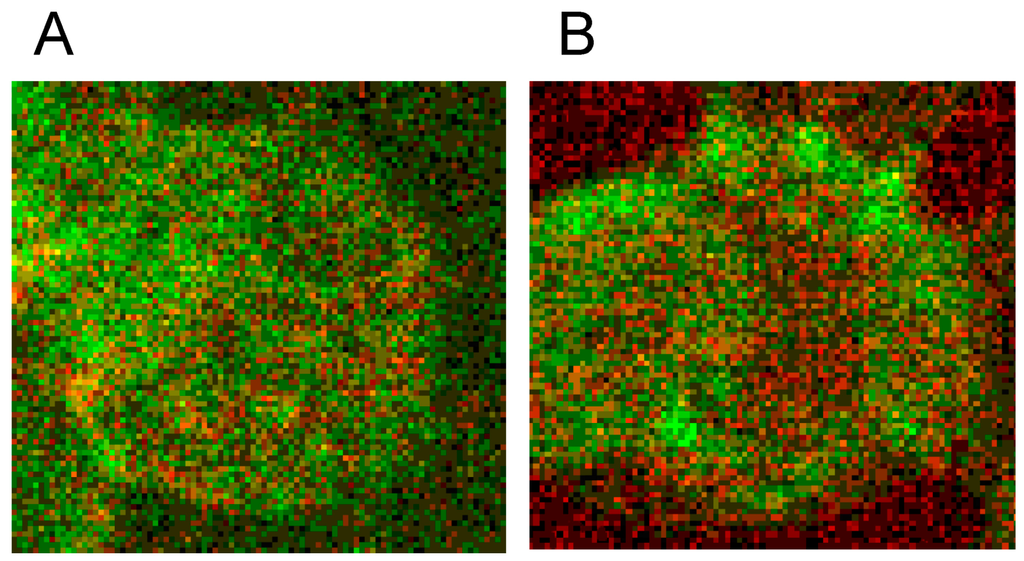

Figure 17. Merger of red (band 3) and green (spectrin) channels of the confocal microscope after examination of double stained erythrocytes suspended in RCM/plasma mixtures (reprinted from reference [21]). (A) Erythrocyte suspended in Iodixanol/plasma mixture (30% v/v); (B) Erythrocyte suspended in Iopromide/plasma mixture (30% v/v). (Primary magnification: 1:63; zoom factor 5).
Figure 17. Merger of red (band 3) and green (spectrin) channels of the confocal microscope after examination of double stained erythrocytes suspended in RCM/plasma mixtures (reprinted from reference [21]). (A) Erythrocyte suspended in Iodixanol/plasma mixture (30% v/v); (B) Erythrocyte suspended in Iopromide/plasma mixture (30% v/v). (Primary magnification: 1:63; zoom factor 5).
Ijms 15 16134 g017
Well rounded and larger invaginations appeared in the cell membrane resembling the formation of caveolae in some cells as well as slender, narrow and very pointed protrusions of the cell membrane to the outside [26]. These big differences in the shape change of erythrocytes are possibly due to different effective mechanisms.
Band 3 is described to constitute a center organized into complexes for gas transport [41,42,43,44], anion exchanger, for glycolysis [43,45,46], for the control of cell volume [47] and of erythrocyte life span (senescence) [48], where most probably further complexes exist to cope with mechanical deformation [49], and haemostatic stimuli [50,51]. The drastic reorganization of the band 3—spectrin network affected by suspension of erythrocytes in an Iopromide/plasma mixture coincided with a strong alteration of the spectrin network and a clustering of band 3 in very few highly condensed centers at the rim of the cells (see Figure 18). This is most probably accompanied by a strong increase in membrane stiffness (contributing to microcirculatory disorders shown in patients with coronary artery disease after Iopromide application during coronary angiography [10]). Together with translocation of band 3 particles out of erythrocytes, a strong decrease of centers for gas transport can be expected, contributing to hypo-oxygenation of the tissue, as was shown after Iopromide application in the myocardium of pigs [12] but not after Iodixanol application [52]. The clustering of band 3 is assumed to lead to a shortening of the lifespan and removal of erythrocytes by offering senescence signals. The remarkable loss of band 3, revealed by a sequestration of band 3 out of the tips of the spicules, is thought to give clear evidence that the echinocyte formation provoked by RCM is associated with an exocytotic process—a mechanism which was not described up to now.
Ijms 15 16134 g018 1024

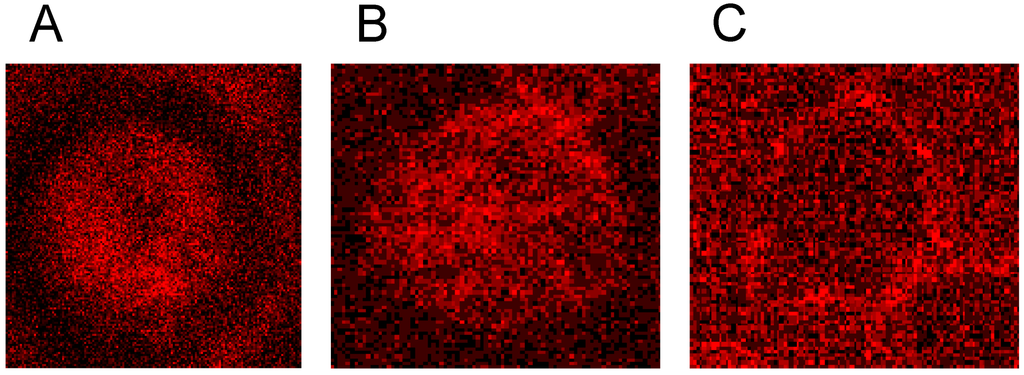

Figure 18. Representative erythrocytes stained with antibodies against band 3 (reprinted from reference [21]). (A) erythrocyte suspended in autologous plasma; (B) erythrocyte suspended in Iodixanol/plasma mixture (30% v/v); (C) erythrocyte suspended in Iopromide/Plasma mixture (30% v/v) (Primary magnification: 1:63; zoom factor 5).
Figure 18. Representative erythrocytes stained with antibodies against band 3 (reprinted from reference [21]). (A) erythrocyte suspended in autologous plasma; (B) erythrocyte suspended in Iodixanol/plasma mixture (30% v/v); (C) erythrocyte suspended in Iopromide/Plasma mixture (30% v/v) (Primary magnification: 1:63; zoom factor 5).
Ijms 15 16134 g018

7. Conclusions

RCM induced—beside the well-known and often demonstrated echinocyte formation—a clear alteration of the membrane cytoskeleton. In four co-localization studies we could demonstrate for the first time that Iopromide induced a rectangularly arranged spectrin configuration completely different from the spectrin network in erythrocytes in autologous plasma or in an Iodixanol/plasma mixture. The Iopromide-induced box-like rectangular arrangement of the spectrin configuration is composed of thick spectrin bands which evidently afford loosening of many linkages between the cytoskeleton and the membrane and which is coincident with a completely different distribution of band 3, now mostly found in few knob-like structures. The bundling of band 3 alone could lead to a loss of function of the band 3 complex and therefore of the whole cell because it might restrict the exchange of breathing gas and anions. Iopromide also altered the distribution of band 4.9 drastically (from a more or less homogeneous distribution with knobs to a banded distribution concentrated at the cell rim), which seemed to enable or even foster the box-like arrangement of the membrane cytoskeleton. Since band 4.9 is an element of the junctional complex linking the membrane cytoskeleton to the membrane this is a clear indicator that a considerable number of links is lost allowing for a transition of the spheroid into the rectangular configuration of the membrane cytoskeleton.
In addition, Iopromide influenced the actin polymerization seriously: After contact of erythrocytes with Iopromide extremely long actin filaments appeared (up to the complete cell diameter) thus crossing the whole cell, which never was observed in autologous plasma or after contact with Iodixanol. This could possibly be caused by the altered distribution of band 4.9 which is a prominent actin capping and bundling protein. The band 4.9, now not longer ubiquitously available and concentrated at the cell rim, could cause the strong tendency to generate long-chain actin filaments especially in central parts of the erythrocytes.
After suspension of erythrocytes in a plasma/Iodixanol mixture an increased number of membrane protrusions oriented perpendicular to the cell membrane appeared, a process which also appeared in cells suspended in autologous plasma, however, in fewer numbers. Suspension in Iopromide, in contrast, induced a complete reorganization of the cytoskeletal actin: the fine grained globular actin distribution disappeared and only few, long and thick actin filaments bundled and possibly polymerized appeared, instead, shown here for the first time. It was shown that the particles—evidently exported from erythrocytes—were at least coated with actin and/or band 3.
Iopromide, evidently, induced markedly more severe alterations of the membrane skeleton compared to Iodixanol whose effects were similar to erythrocytes suspended in autologous plasma.

Acknowledgments

The authors thank the Bundesministerium für Bildung und Forschung (BMBF) for funding within project number 0315696A “Poly4Bio BB”. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dawson, P. Chemotoxicity of contrast media and clinical adverse effects: A review. Investig. Radiol. 1985, 20, 84–91. [Google Scholar]
  2. Aspelin, P. Effect of ionic and non-ionic contrast media on morphology of human erythrocytes. Acta Radiol. 1978, 19, 675–687. [Google Scholar]
  3. Hardeman, M.R.; Goedhart, P.; Koen, I.Y. The effect of low-osmolar ionic and nonionic contrast media on human blood viscosity, erythrocyte morphology, and aggregation behaviour. Investig. Radiol. 1991, 26, 810–819. [Google Scholar] [CrossRef]
  4. Kerl, J.M.; Nguyen, S.A.; Lazarchick, J.; Powell, J.W.; Oswald, M.W.; Alvi, F.; Costello, P.; Vogl, T.J.; Schoepf, U.J. Iodinated contrast media: Effect of osmolarity and injection temperature on erythrocyte morphology in vitro. Acta Radiol. 2008, 49, 337–343. [Google Scholar] [CrossRef]
  5. Losco, P.; Nash, G.; Stone, P.; Ventre, J. Comparison of the effects of radiographic contrast media on dehydration and filterability of red blood cells from donors homozygous for hemoglobin A or hemoglobin S. Am. J. Hematol. 2001, 68, 149–158. [Google Scholar]
  6. Mrowietz, C.; Hiebl, B.; Franke, R.P.; Park, J.-W.; Jung, F. Reversibility of echinocyte formation after contact of erythrocytes with various radiographic contrast media. Clin. Hemorheol. Microcirc. 2008, 39, 281–286. [Google Scholar]
  7. Franke, R.P.; Fuhrmann, R.; Hiebl, B.; Jung, F. Influence of various radiographic contrast media on the buckling of endothelial cells. Microvasc. Res. 2008, 76, 110–113. [Google Scholar]
  8. Sumimura, T.; Sendo, T.; Itoh, Y.; Oka, M.; Oike, M.; Ito, Y.; Oishi, R. Calcium-dependent injury of human microvascular endothelial cells induced by a variety of iodinated radiographic contrast media. Investig. Radiol. 2003, 38, 366–374. [Google Scholar]
  9. Zhang, H.; Holt, C.M.; Malik, N.; Shepherd, L.; Morcos, S.K. Effects of radiographic contrast media on proliferation and apoptosis of human vascular endothelial cells. Br. J. Radiol. 2000, 73, 1034–1041. [Google Scholar]
  10. Bach, R.; Jung, F.; Scheller, B.; Hummel, B.; Özbek, C.; Spitzer, S.; Schieffer, H. Influence of a nonionic X-ray contrast medium on the microcirculation. Acta Radiol. 1996, 37, 214–217. [Google Scholar] [CrossRef]
  11. Jung, F.; Mrowietz, C.; Gerk, U.; Franke, R.P. Influence of a radiographic contrast media (Iopentol) with different viscosities on capillary perfusion in patients with coronary artery disease. Clin. Hemorheol. Microcirc. 2013, 53, 201–208. [Google Scholar]
  12. Jung, F.; Matschke, K.; Mrowietz, C.; Tugtekin, S.M.; Geissler, T.; Keller, S.; Spitzer, S.G. Influence of radiographic contrast media on myocardial tissue oxygen tension: NaCl-controlled, randomised, comparative study of iohexol versus iopromide in an animal model. Clin. Hemorheol. Microcirc. 2003, 28, 189–200. [Google Scholar]
  13. Barras, J.P. Blood rheology—General review. Bibl. Haematol. 1969, 33, 277–286. [Google Scholar]
  14. Chabanel, A.; Reinhart, W.H.; Chien, S. Increased resistance to membrane deformation of shape-transformed human red blood cells. Blood 1987, 69, 739–743. [Google Scholar]
  15. Meiselman, H. Morphological determinants of red cell deformability. J. Clin. Lab. Investig. 1981, 41, 27–34. [Google Scholar]
  16. Kern, M.J. Coronary blood flow and myocardial ischemia. In Braunwald’s Heart Disease. A Textbook of Cardiovascular Medicine; Braunwald, E., Ed.; Elsevier Saunders: Philadelphia, PA, USA, 2005; p. 1124. [Google Scholar]
  17. Khan, A.A.; Hanada, T.; Mohseni, M.; Jeong, J.J.; Zeng, L.; Gaetani, M.; Li, D.; Reed, B.C.; Speicher, D.W.; Chishti, A.H. Dematin and adducin provide a novel link between the spectrin cytoskeleton and human erythrocyte membrane by directly interacting with glucose transporter-1. J. Biol. Chem. 2008, 23, 14600–14609. [Google Scholar]
  18. Khanna, R.; Chang, S.H.; Andrabi, S.; Azam, M.; Kim, A.; Rivera, A.; Brugnara, C.; Low, P.S.; Liu, S.; Chishti, A.H. Headpiece domain of dematin is required for the stability of the erythrocyte membrane. Proc. Natl. Acad. Sci. USA 2002, 99, 6637–6642. [Google Scholar] [CrossRef]
  19. Mohandas, N.; Gallagher, P.G. Red cell membrane: Past, present, and future. Blood 2008, 112, 3939–3948. [Google Scholar] [CrossRef]
  20. Franke, R.P.; Scharnweber, T.; Fuhrmann, R.; Mrowietz, C.; Jung, F. Effect of radiographic contrast media (Iodixanol, Iopromide) on the spectrin/actin-network of the membranous cytoskeleton of erythrocytes. Clin. Hemorheol. Microcirc. 2013, 54, 273–285. [Google Scholar]
  21. Franke, R.P.; Scharnweber, T.; Fuhrmann, R.; Wenzel, F.; Krüger, A.; Mrowietz, C.; Jung, F. Effect of radiographic contrast media on the spectrin/band 3-network of the membrane skeleton of erythrocytes. PLoS One 2014, 9, e89512. [Google Scholar]
  22. Franke, R.P.; Scharnweber, T.; Fuhrmann, R.; Mrowietz, C.; Wenzel, F.; Krüger, A.; Jung, F. Radiographic contrast media (Iodixanol, Iopromide) alterate the localization of the junctional complex constituents actin/band 4.9 in the membrane cytoskeleton of human erythrocytes. Clin. Hemorheol. Microcirc. 2014. accepted for publication. [Google Scholar]
  23. Franke, R.P.; Scharnweber, T.; Fuhrmann, R.; Krüger, A.; Wenzel, F.; Mrowietz, C.; Jung, F. Distribution of actin of the human erythrocyte membrane cytoskeleton after interaction with radiographic contrast media. Clin. Hemorheol. Microcirc. 2013, 55, 481–490. [Google Scholar]
  24. Kutt, H.; Schick, R.; Rennie, L.; McDowell, F. The quantities of sodium diatrizoate in cerebral vessels during arteriography. J. Neurosurg. 1963, 20, 515–519. [Google Scholar]
  25. Strickland, N.; Rampling, M.; Dawson, P. Contrast media induced effects on blood rheology and their importance in angiography. Clin. Radiol. 1992, 45, 240–242. [Google Scholar]
  26. Bessis, M. Red cell shapes: An illustrated classification and its rationale. In Red Cell Shape: Physiology, Pathology, and Ultrastructure; Bessis, M., Weed, R.I., Leblond, P.F., Eds.; Springer: Heidelberg, Germany, 1973; pp. 1–24. [Google Scholar]
  27. Bennett, V.; Baines, A.J. Spectrin and ankyrin-based pathways: Metazoan inventions for integrating cells into tissues. Physiol. Rev. 2001, 81, 1353–1392. [Google Scholar]
  28. Drenckhahn, D.; Zenker, W. Benninghoff Anatomie Band 1; Urban & Schwarzenberg: München, Germany; Baltimore, MD, USA, 1994. [Google Scholar]
  29. Sackmann, E. Mikromechanik der Zelle. Phys. J. 2004, 3, 35–42. [Google Scholar]
  30. Baskurt, O.; Meiselman, H. Erythrocyte aggregation: Basic aspects and clinical importance. Clin. Hemorheol. Microcirc. 2013, 53, 23–37. [Google Scholar]
  31. Chien, S. The present state of blood rheology. In Hemodilution. Theoretical Basis and Clinical Application; Messmer, K., Schmid-Schönbein, H., Eds.; Karger: Basel, Switzerland, 1972; pp. 1–45. [Google Scholar]
  32. Rampling, M.W.; Meiselman, H.J.; Neu, B.; Baskurt, O.K. Influence of cell-specific factors on red blood cell aggregation. Biorheology 2004, 41, 91–112. [Google Scholar]
  33. Schmid-Schönbein, H. Microrheology of erythrocytes and thrombocytes, blood viscosity and the distribution of blood flow in the microcirculation. In Handbuch der allgemeinen Pathologie; Springer: Berlin, Germany, 1977. [Google Scholar]
  34. Rana, A.P.; Ruff, P.; Maalouf, G.J.; Speicher, D.W.; Chishti, A.H. Cloning of human erythroid dematin reveals another member of the villin family. Proc. Natl. Acad. Sci. USA 1993, 90, 6651–6655. [Google Scholar]
  35. Pompeo, G.; Girasole, M.; Cricenti, A.; Boumis, G.; Bellelli, A.; Amiconi, S. Erythrocytedeath in vitro induced by starvation in the absence of Ca2+. Biochim. Biophys. Acta 2010, 1798, 1047–1055. [Google Scholar]
  36. Drenckhahn, D. Removal of old and abnormal red blood cells from circulation: Mechanical and immunological mechanisms. In Red Blood Cells, Rheology and Aging; Springer: Berlin, Germany, 1988; pp. 62–76. [Google Scholar]
  37. Nightingale, T.D.; Cutler, D.F.; Cramer, L.P. Actin coats and rings promote regulated exocytosis. Trends Cell Biol. 2012, 22, 329–337. [Google Scholar]
  38. Frank, B.S.; Vardar, D.; Chishti, A.H.; McKnight, C.J. The NMR structure of dematin headpiece reveals a dynamic loop that is conformationally altered upon phosphorylation at a distal site. J. Biol. Chem. 2004, 279, 7909–7916. [Google Scholar]
  39. Derick, L.H.; Liu, S.C.; Chishti, A.H.; Palek, J. Protein immunolocalization in the spread erythrocyte membrane skeleton. Eur. J. Cell Biol. 1992, 57, 317–320. [Google Scholar]
  40. Chen, H.; Khan, A.A.; Liu, F.; Gilligan, D.M.; Peters, L.L.; Messick, J.; Hasheck-Hock, W.M.; Li, X.; Ostafin, A.E.; Chishti, A.H. Combined deletion of mouse dematin-headpiece and beta-adducin exerts a novel effect on the spectrin–actin junctions leading to erythrocyte fragility and haemolytic anemia. J. Biol. Chem. 2007, 282, 4124–4135. [Google Scholar]
  41. Bruce, L.J.; Beckmann, R.; Ribeiro, M.L.; Peters, L.L.; Chasis, J.A.; Delaunay, J.; Mohandas, N.; Anstee, D.J.; Tanner, M.J.A. A band 3–based macrocomplex of integral and peripheral proteins in the RBC membrane. Blood 2003, 101, 4180–4188. [Google Scholar]
  42. Endeward, V.; Cartron, J.-P.; Ripoche, P.; Gros, G. RhAG protein of the Rhesus complex is a CO2 channel in the human red cell membrane. FASEB J. 2008, 22, 64–73. [Google Scholar]
  43. Sowah, D.; Casey, J.R. An intramolecular transport metabolon: Fusion of carbonic anhydrase II to the COOH terminus of the Cl−/HCO3− exchanger, AE1. Am. J. Physiol. Cell Physiol. 2011, 301, C336–C346. [Google Scholar]
  44. Sterling, D.; Reithmeier, R.A.F.; Casey, J.R. A transport metabolon. J. Biol. Chem. 2001, 276, 47886–47894. [Google Scholar]
  45. Campanella, M.E.; Chu, H.Y.; Low, P.S. Assembly and regulation of a glycolytic enzyme complex on the human erythrocyte membrane. Proc. Natl. Acad. Sci. USA 2005, 102, 2402–2407. [Google Scholar]
  46. Puchulu-Campanella, E.; Chu, H.; Anstee, D.J.; Galan, J.A.; Tao, W.A.; Low, P.S. Identification of the components of a glycolytic enzyme metabolon on the human red blood cell membrane. J. Biol. Chem. 2013, 288, 848–858. [Google Scholar]
  47. Sega, M.F.; Chu, H.; Christian, J.; Low, P.S. Interaction of deoxyhemoglobin with the cytoplasmic domain of murine erythrocyte band 3. Biochemistry 2012, 51, 3264–3272. [Google Scholar]
  48. Ferru, E.; Giger, K.; Pantaleo, A.; Campanella, E.; Grey, J.; Ritchie, K.; Vono, R.; Turrini, F.; Low, P.S. Regulation of membrane-cytoskeletal interactions by tyrosine phosphorylation of erythrocyte band 3. Blood 2011, 117, 5998–6006. [Google Scholar]
  49. Salomao, M.; Zhang, X.; Yang, Y.; Lee, S.; Hartwig, J.H.; Chasis, J.A.; Mohandas, N.; An, X. 1R-dependent multi-protein complex: New insights into the structural organization of the red blood cell membrane. Proc. Natl. Acad. Sci. USA 2008, 105, 8026–8031. [Google Scholar]
  50. Della Rocca, G.; Tripi, G.; Pompei, L. Free fluid therapy is best. Appl. Cardiopulm. Pathophysiol. 2013, 17, 77–80. [Google Scholar]
  51. Sprague, R.S.; Stephenson, A.H.; Ellsworth, M.L. Red not dead: Signaling in and from erythrocytes. Trends Endocrinol. Metab. 2007, 18, 350–355. [Google Scholar]
  52. Matschke, K.; Gerk, U.; Mrowietz, C.; Park, J.-W.; Jung, F. Influence of radiographic contrast media on myocardial oxygen tension: A randomized, NaCl-controlled comparative study of Iodixanol versus Iomeprol in pigs. Acta Radiol. 2007, 48, 292–299. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Franke, R.-P.; Krüger, A.; Scharnweber, T.; Wenzel, F.; Jung, F. Effects of Radiographic Contrast Media on the Micromorphology of the Junctional Complex of Erythrocytes Visualized by Immunocytology. Int. J. Mol. Sci. 2014, 15, 16134-16152. https://doi.org/10.3390/ijms150916134

AMA Style

Franke R-P, Krüger A, Scharnweber T, Wenzel F, Jung F. Effects of Radiographic Contrast Media on the Micromorphology of the Junctional Complex of Erythrocytes Visualized by Immunocytology. International Journal of Molecular Sciences. 2014; 15(9):16134-16152. https://doi.org/10.3390/ijms150916134

Chicago/Turabian Style

Franke, Ralf-Peter, Anne Krüger, Tim Scharnweber, Folker Wenzel, and Friedrich Jung. 2014. "Effects of Radiographic Contrast Media on the Micromorphology of the Junctional Complex of Erythrocytes Visualized by Immunocytology" International Journal of Molecular Sciences 15, no. 9: 16134-16152. https://doi.org/10.3390/ijms150916134

APA Style

Franke, R. -P., Krüger, A., Scharnweber, T., Wenzel, F., & Jung, F. (2014). Effects of Radiographic Contrast Media on the Micromorphology of the Junctional Complex of Erythrocytes Visualized by Immunocytology. International Journal of Molecular Sciences, 15(9), 16134-16152. https://doi.org/10.3390/ijms150916134

Article Metrics

Back to TopTop
