Synthesis of Five Known Brassinosteroid Analogs from Hyodeoxycholic Acid and Their Activities as Plant-Growth Regulators

by
María Isabel Duran
1,
Cesar González
1,
Alison Acosta
2,
Andrés F. Olea
3,
Katy Díaz
1,* and
Luis Espinoza
1,*
1
Departamento de Química, Universidad Técnica Federico Santa María, Avenida España 1680, Valparaíso 2340000, Chile
2
Escuela de Ingeniería en Biotecnología, Facultad de Ciencias Biológicas, Universidad Andrés Bello, Quillota 980, Viña del Mar 2520000, Chile
3
Instituto de Ciencias Químicas Aplicadas, Facultad de Ingeniería, Universidad Autónoma de Chile, Santiago 8910339, Chile
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(3), 516; https://doi.org/10.3390/ijms18030516
Submission received: 23 January 2017 / Revised: 17 February 2017 / Accepted: 23 February 2017 / Published: 8 March 2017
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
Brassinosteroids (BRs) are plant hormones that promote growth in different plant organs and tissues. The structural requirements that these compounds should possess to exhibit this biological activity have been studied. In this work, a series of known BR analogs 5–15, were synthesized starting from hyodeoxycholic acid 4, and maintaining the alkyl side chain as cholic acid or its methyl ester. The growth-promoting effects of brassinolide (1) and synthesized analogs were evaluated by using the rice lamina inclination assay at concentrations ranging from 1 × 10−8–1 × 10−6 M. Our results indicate that in this concentration range the induced bending angle of rice seedlings increases with increasing concentration of BRs. Analysis of the activities, determined at the lowest tested concentration, in terms of BR structures shows that the 2α,3α-dihydroxy-7-oxa-6-ketone moiety existing in brassinolide is required for the plant growing activity of these compounds, as it has been proposed by some structure-activity relationship studies. The effect of compound 8 on cell elongation was assessed by microscopy analysis, and the results indicate that the growth-promoting effect of analog 8 is mainly due to cell elongation of the adaxial sides, instead of an increase on cell number.

Graphical Abstract

1. Introduction

Brassinosteroids (BRs) are a naturally occurring polyhydroxysteroidal plant hormone group that regulates plant growth and development by producing an array of physiological changes [1]. Natural BRs occur at low concentrations throughout the plant kingdom, with a range of 1–100 µg·kg−1 fresh weight, while shoots and leaves usually contain even lower amounts, i.e., 0.01–0.1 µg·kg−1 fresh weight [2]. They have been detected in all plant organs (pollen, anthers, seeds, leaves, stems, roots, flowers, and grains) and also in the insect and crown galls. Further work has demonstrated that BRs elicit a broad spectrum of physiological and morphological responses in plants, including stem elongation, leaf bending and epinasty, induction of ethylene biosynthesis and proton pump activation, synthesis of nucleic acid and proteins, regulation of carbohydrate assimilation and allocation, and activation of photosynthesis [1]. The leaf bending caused by extracts from Distylium racemosum in the rice lamina inclination assay is one of the earliest reports of brassinolide (1) activity in plants [3]. In this assay, 1 caused dose-dependent swelling of the adaxial cells in the joint between the leaf blade and sheath of etiolated rice seedlings. The angle of the leaf bending caused by the swelling is used as a sensitive bioassay during brassinolide isolation and quantification procedures [4]. An early report on growth-promoting activity of “brassin”, from which 1 was isolated, was based on brassinolide-mediated stimulation of bean elongation at the 2nd and 3rd internodes, with higher concentrations causing the splitting of the stem [5,6]. Brassinolide and synthetic analogs were subsequently used in various bioassays, which indicated that in addition to leaf bending, cell elongation, and cell division, 1 also affects source/sink relationships [7], proton pumping and membrane polarization [8,9], photosynthesis [10] and stress responses including thermotolerance [11,12] and senescence [13]. The role of BRs in improving the productivity of various crop plants such as vegetables, fruits, and oil seed plants are well documented [14,15,16,17].
All natural bioactive BRs possess a vicinal 22R, 23R diol structural functionality (for example brassinolide (1), castasterone (2) and typhasterol (3), Figure 1), which seems to be essential for high biological activity. In this sense, several studies have been focused on determining the structural requirements that these compounds should possess to elicit strong biological activity [18,19,20]. It has been concluded that the activity of BRs depends on the oxygen atoms spatial situation, and a new way to relate the structure of BRs with their activity has been proposed [21,22]. Namely, the activity is attributed to the different conformations that BR molecules can adopt, one of them being the active conformation. Therefore the structural requirements are not associated to the presence or absence of a specific functional group in the molecule [18,19], but to the spatial distribution of all the functionalities present in it [22]. These spatial orientations can be indicated as distances or angles between the oxygen atoms present in a brassinosteroid. However, in recent decades, efforts have been focused on the synthesis of new BR analogs, keeping common patterns of organic functions in the A/B rings and cis-trans fusion between them, as occurs in some natural BRs, but with moderate or dramatic structural changes (shorter side chains, different oxygenated functions, spirostanic, aromatic and cyclic substituents, methyl esters, carboxylic acids) [21,23,24,25]. Surprisingly, some of these analogs have presented very important biological activity.
Therefore, in this work we report the synthesis of a series of known brassinosteroid analogs, (6, 7, 9, 10, 12, 13 and 15), starting from hyodeoxycholic acid (4) and following a procedure recently described for the synthesis of analogs 5, 8, 11, and 14 (see Figure 1 and Figure 2) [26]. In all these compounds 5–15 the native side chain is kept as cholic acid or its methyl ester. In addition, the effects of analogs 5, 6, 8, 12 and 15 on elongation in the rice lamina inclination assay were evaluated at concentrations ranging from 1 × 10−8–1 × 10−6 M. The results indicate that analogs 12 and 15 are the more active compounds in the applied test at the same concentration (1 × 10−8 M). Additionally, in this work we inform the full NMR spectroscopic characterization for these derivatives, which was previously reported only in partial form.

2. Results and Discussion

2.1. Chemical Synthesis

Hyodeoxycholic acid (4) has been used for the synthesis of brassinolide and a number of analogs because it contains the organic functions, which can be chemically modified, at suitable positions in order to fulfill the structural requirements for their activity [27].
Compound 5, with 5α-cholestan-6-one skeleton (Scheme 1), has been synthesized by different methods [26,28,29,30,31,32], but we have obtained it from hyodeoxycholic acid (1) following a procedure previously described by us [26]. Compound 9 is obtained from 5 through a dehydration reaction in which the alcohol group at C-3 position of compound 5 is transformed into the double bond at C-2 position of compound 9. A large number of reports have shown that the indirect or direct conversion of 3α or 3β-hydroxy steroid in Δ2 alkenes can take place by following at least three different strategies. The indirect path transforms the alcohol into a good leaving group such as tosylate, which in a subsequent treatment with Li2CO3/LiBr/DMF in reflux system [25,28,33,34,35] or treatment of mesylate derivatives under the same conditions produces the Δ2 alkenes [26,36,37,38,39]. On the other hand, an efficient alternative is the direct dehydration of 3α or 3β-hydroxy steroid that is carried out by adsorbing the substrate on silica gel in a reaction catalyzed by copper (II) sulfate [32,40,41,42]. In this work, the conversion of compound 5 to 9 was performed by using a mild one-pot method with Tf2O/DMAP in CH2Cl2 at 0 °C, and the alkene 9 was obtained with 83% yield (Scheme 1) [43]. The spectroscopic data (IR, 1H and 13C-NMR) and physical properties of compound 9 were consistent with those reported [26,28,32]. Compounds 6 and 7 were synthesized from 9 and 5 respectively, according to the methodology previously described by us [26].
The synthesis of lactones 11 and 14 from 3α-hydroxy-6-oxo-5α-cholanate 5 has been previously reported [26] (Figure 2). In this case, the Baeyer-Villiger oxidation of 5 with m-CPBA/CH2Cl2 gave a mixture of known 7-oxalactone 11 and 6-oxalactone 14 with 10.8% and 14.9% yields, respectively [26]. Other authors reported the synthesis of these compounds with 26% and 44% yields respectively [29]. However, it is known that oxidation of 5α-6-keto-steroid would result in the stereo and regioselective formation of the 7-oxalactone when electron-withdrawing substituents are present in the C-3 positions. Also, the use of CF3CO3H as an oxidant agent has a marked effect upon the 6-oxa:7-oxa ratio, and can lead to the preferential formation of the desired 7-oxa isomer [44,45,46]. For these reasons we carry out the Baeyer-Villiger oxidation of compound 7 with CF3CO3H/CHCl3 system. In this case the known 7-oxalactone 10 and 6-oxalactone 13 (Scheme 1) were obtained with 44% and 8% yields, respectively. Even though the synthesis of compounds 10 and 13 was previously reported, no NMR and IR spectroscopic data of these compounds were included [15]. Thus, the full structural assignment of compound 10 was mainly assigned by 1H, 13C, 2D Heteronuclear Single Quantum Coherence (HSQC) and 2D Heteronuclear Multiple Bond Correlation (HMBC) NMR spectroscopy. In the 1H-NMR spectrum of compound 10 a signal was observed at δH = 4.10–4.07 ppm (m, 2H), which was assigned to the two hydrogens H-7 and correlated by 2D 1H-13C HSQC with the signal at δC = 70.47 ppm (CH2-7 from 13C and DEPT-135 spectra, Table 1). Additionally, from 2D 1H–13C HMBC spectrum important heteronuclear correlations were observed: (i) H-7 shows 3JHC correlations with the signal at δC = 176.11 that was assigned to the carbon C-6 (C=O of lactone function, Table 1), and the signal at δC = 58.43 ppm, assigned to the carbon C-9; (ii) H-5α at δH = 3.02 ppm (1H, dd, J = 12.1 and 4.0 Hz) showed 3JHC correlation with signals at δC = 14.58, and δC = 58.43 ppm (Table 1), which were assigned to carbons CH3-19 and C-9 respectively; (iii) H-5α showed 2JHC correlation with signals at δC = 29.79, 36.18 and 176.11 ppm assigned to carbons C-4, C-10 and C-6, respectively (Figure 3a). These 2D HMBC observations confirm unequivocally the 7-oxalactone position for compound 10.
A similar analysis was performed to determine the structure of 6-oxolactone 13. Thus, in the 1H-NMR spectrum a signal at δH = 4.46 ppm (1H, dd, J = 11.2 and 5.4 Hz) was assigned to H-5α, and correlated by 2D 1H-13C HSQC with the signal at δC = 79.53 ppm (CH with impair multiplicity from DEPT-135 spectrum). Additionally, H-5α showed 2JHC correlation with signal at δC = 32.86 ppm that was assigned to the carbon C-4 and 3JHC correlation with signals at δC = 11.48, 57.91 and 174.73 ppm, that were assigned to the carbons CH3-19, C-9 and C-6 (C=O, of lactone function, Table 1) respectively. While the signal of H-7 (2H, m) at δH = 2.51–2.39 ppm showed 2JHC correlation with signals appearing at δC = 34.70 and 174.73 ppm, which were assigned to carbons C-8 and C-6 respectively (Figure 3b).
Saponification reaction of compounds 10 and 13 with K2CO3/MeOH in reflux and subsequent acidification with aqueous 5% HCl produced carboxylic acids 12 and 15 with 83% and 75% yields, respectively (Scheme 1). These compounds were previously reported, but only partial NMR spectroscopy data was provided [31]. Thus, a deeper NMR analysis for 12 and 15 is provided in Figure S1 of Supplementary Materials.

2.2. Bioactivity in the Rice Lamina Inclination Assay of Brassinosteroid Analogs

A number of bioassays, such as first bean internode, root growth, and rice lamina inclination, has been developed to evaluate brassinolide activity [33,47,48,49,50,51,52]. In this work, plant growth-promoting activity of BR analogs was evaluated by the rice lamina inclination bioassay, because of its specificity and high sensitivity for brassinolide and related compounds [33,47,48,49], using a local rice (ZAFIRO) cultivar. The results are presented in Figure 4 and listed in Table 2.
The angles given in the table correspond to the difference between the induced angle produced by treatment with each compound and that found for the negative control. Values are means of angles measured for four segments per treatment considering two assays.
The values of Table 2 indicate that the effect is dose-dependent, i.e., for compounds 5, 6 and 8 the activity increases steadily with increasing concentration, whereas compounds 12 and 15 exhibit an initial twofold increase in activity, which reach a maximum value at 1 × 10−6 M. Finally, the effect of brassinolide seems to level off above 1 × 10−8 M and then increases in a factor of two at 1 × 10−6 M.
The concentration effect on growth-promoting activity of BRs has been studied by several authors [53,54,55,56]. Wada et al. found a linear correlation between the bending of leaf segments and concentrations of brassinolide and castasterone in the range 1 × 10−10–1 × 10−8 M [53]. The effect leveled off at concentrations above 1 × 10−8 M. It has also been shown that application of exogenous BRs induces an inhibitory effect on root-growth in Arabidopsis when a threshold concentration is reached [54,55]. Similar results have been found in rice, where at relatively higher concentration BRs inhibit both root and seedling growth [57]. The effect of increasing concentrations of brassinolide on rice seedlings growth has also been evaluated, and the inhibitory effect has been attributed to inactivation of gibberellins, another growth hormone [58].
The opposite effects on growth of different tissues in the same plant, reported for high concentrations of exogenous BRs, has been explained in terms of differences in the concentration of endogenous BRs. Application of exogenous BRs induces growth inhibition in those tissues where the endogenous BR concentration is near to the threshold concentration, but promotes growth in those containing the lowest endogenous BR concentration [55].
As our results indicate that the concentration effect on growth activity depends on the structure of BR analogs, the activities measured at the lowest tested concentration (see Table 2) will be used to analyze the relation between activity and chemical structures of assayed compounds.
Brassinolide is commonly used as positive control to evaluate the activity of BR analogs, and therefore the effect of 1 on bending angle in the lamina assay has been taken as a reference. The results collected in Table 2 indicate that, at the lowest assayed concentration, compounds 12 and 15 are the most active BR analogs. The lowest activities are shown by deoxybrassinosteroids 5, 6 and 8, in which the oxa group is not present in ring B. These results are in line with other works where it has been suggested that the 2α,3α-dihydroxy-7-oxa-6-ketone moiety existing in brassinolide is a structural requisite for a compound manifesting the plant growth-promoting activity [33]. On the other hand, compounds 5 and 8 are synthetic analogs of typhasterol, which is considered to be a biosynthetic intermediate to castasterone and brassinolide [59], and whose activity in the rice-lamina inclination bioassay is only one tenth of that shown by brassinolide [60]. A comparison of activities of compounds 5 and 8 indicates that a minor change in the structure of the side alkyl chain (COOCH3 to COOH) induces a large increase in activity. On the other hand, a comparison of activities exhibited by analogs 12 and 15 shows that the 7-oxalactone is slightly more active than the 6-oxalactone. Similar results have been reported for other synthetic analogs of typhasterol, but the activity changes were 40–50 times larger for the 7-oxalactone [61]. In other words, a change in the spatial distribution of the oxa-lactone moiety in ring B produces a slight change in activity for these compounds.
Interestingly, at the higher assayed concentration deoxybrassinosteroids 6 and 8 become twofold more active than compounds 12 and 15. However, as discussed above, these results are more difficult to explain because at higher concentrations there are other factors affecting the growth-promoting activity.
In order to determine the effect of BRs on cell elongation we have evaluated the effect of compound 8 on cell elongation by microscopy analysis. Frotis of vegetal tissue of second leaf lamina joints was performed, and the inner mesophyll cells were observed through an optical microscope 40×. The shape and size of cells showed that those cells submitted to treatment with compound 8 were stretched longitudinally as compared to the negative control (Figure 5a,b). These results indicate that growth-promoting effect of analog 8 is mainly due to changes of cell length of the adaxial sides, instead of an increase on cell number.

3. Materials and Methods

3.1. General

Chemicals were obtained from Merck (Darmstadt, Germany) or Aldrich (St. Louis, MO, USA) and were used without further purification. A detailed description of conditions used to register Fourier transform infrared (FT-IR) spectra, 1H, 13C, 13C DEPT-135, 2D HSQC and 2D HMBC spectra has been given elsewhere [26]. IR spectra were recorded as KBr disks in a FT-IR Nicolet 6700 spectrometer (Thermo Scientific, San Jose, CA, USA) and frequencies are reported in cm−1. High-resolution mass spectra (HRMS-ESI) were recorded in a Thermo Fisher Scientific Exactive Plus mass spectrometer. The analysis for the reaction products was performed with the following relevant parameters: heater temperature, 50 °C; sheath gas flow, 5 (arbitrary unit); sweep gas flow rate, 0 (arbitrary unit) and spray voltage, 3.0 kV at negative mode. The accurate mass measurements were performed at a resolving power: 140,000 FWHM at range m/z 300–500. Elemental analyses were obtained on a Carlo Erba Fisons EA-1108 Elemental Analyzer (Fisons Instruments/Carlo Erba Instruments, Milano, Italy). Silica gel (200–300 mesh, Merck, Darmstadt, Germany) was used for Column Chromatography (C.C.) and silica gel plates HF-254 for thin layer chromatography (TLC). TLC spots were detected by heating after spraying with 25% H2SO4 in H2O. Melting points were measured on a Stuart-Scientific SMP3 apparatus (Stone, Staffordshire ST15 OSA, UK) and are uncorrected.

3.2. Synthesis

3.2.1. Methyl 2-en-6-oxo-5α-cholan-24-oate (9)

To a solution of compound 5 (1.0 g, 0.207 mmol) in 40 mL of CH2Cl2, 0.5 mL of pyridine and DMAP 10 mg (0.082 mmol) were added. Then the mixture was cooled to 0 °C in an ice-water bath. Later 1.2 mL (7.14 mmol) of trifluoromethanesulfonic anhydride (triflic anhydride) were added. The reaction mixture was kept under slow stirring at 0 °C for 24 h. The end of reaction was verified by TLC, the mixture was then concentrated in a rotary evaporator to a volume of approximately 10 mL. Then AcOEt (30 mL) was added and the organic layer was washed with NaHCO3 saturated solution (2 × 20 mL) and water (2 × 20 mL), dried over Na2SO4, and filtered. The solvent was evaporated in a rota-vapor and the crude was re-dissolved in CH2Cl2 (5 mL) and chromatographed on silica gel with EtOAc/hexane mixtures of increasing polarity (0.2:9.8 → 3.0:7.0) Compound 9 0.793 g, 83% yield. The 1H, 13C-NMR and IR spectroscopic data and physical properties of alkene 9 were consistent with those reported [26,28,32].

3.2.2. Methyl 2α, 3α-dihydroxy-6-oxo-5α-cholan-24-oate (6)

Compound 6 was synthesized from 9 according to the methodology previously described by us [26]. From 700 mg (1.81 mmol) of compound 9, 517 mg (68% yield) were obtained. The 1H, 13C-NMR and IR spectroscopic data and physical properties of compound 6 were consistent with those reported [26,28,32]. Elemental analysis: found C, 71.45%; H, 9.67%; C25H40O5 requires C, 71.39%; H, 9.59%.

3.2.3. Methyl 3α-acetoxy-6-oxo-5α-cholan-24-oate (7)

Compound 7 was synthesized from 5 by standard acetylation according to the methodology previously described by us [26]. From 3.5 g (8.65 mmol) of compound 7, 3.78 g (98% yield) were obtained. The 1H, 13C-NMR and IR spectroscopic data and physical properties of compound 7 were consistent with those reported [26]. Elemental analysis: found C, 72.68%; H, 9.55%; C27H42O5 requires C, 72.61%; H, 9.48%.

3.2.4. Methyl 3α-acetoxy-6-oxo-7-oxa-5α-cholan-24-oate (10) and Methyl 3α-acetoxy-6-oxa-7-oxo-5α-cholan-24-oate (13)

Preparation of oxidant: 0.40 mL of H2O2 (30%), (26.5 mmol) was slowly dripped into a solution of (CF3SO2)2O, (16.9 mL, 119.9 mmol) at 0 °C, diluted with CHCl3 (3 mL) and stirred for 30 min.
The oxidant mixture was slowly added over the solution of compound 7 (0.8 g, 1.79 mmol in 10 mL of CHCl3) at 0 °C and slowly stirred in N2 atmosphere for 24 h. The end of reaction was verified by TLC, the mixture was filtered, then concentrated in a rotary evaporator to a volume of approximately 10 mL. Then AcOEt (40 mL) was added and the organic layer was washed with saturated NaHCO3 solution (2 × 20 mL), water (2 × 15 mL), then dried over Na2SO4, and filtered. The solvent was evaporated and the crude was re-dissolved in CH2Cl2 (5 mL) and chromatographed on silica gel with EtOAc/hexane mixtures of increasing polarity (0.2:50.0 → 23.8:26.2) Three fractions were obtained. Fraction I: 0.35 g (44% yield) compound 10. Fraction II: 0.27 g of mixture compounds 10 and 13. Fraction III: 0.066 g (8% yield) compound 13.
Compound 10. Colorless solid (m.p. = 131 ± 2 °C, Hexane/Et2O) IR (cm−1): 2949 (C–H); 2867 (C–H); 2849 (C–H); 1738 (C=O); 1366 (CH3); 1240 (C–O); 1189 (C–O); 1080 (C–O). 1H-NMR (CDCl3): 5.09 (1H, m, H-3); 4.10–4.07 (2H, m, H-7); 3.66 (s, 3H, CH3O); 3.02 (1H, dd, J = 12.1 and 4.0 Hz, H-5); 2.35 (1H, m, H-23); 2.26–2.13 (2H, m, H-23 and H-4); 2.06 (3H, s, CH3CO); 0.92 (3H, d, J = 6.5 Hz, H-21); 0.89 (3H, s, H-19); 0.69 (3H, s, H-18). 13C-NMR: See Table 1. Elemental analysis: found C, 70.16%; H, 9.23%; C27H42O6 requires C, 70.10%; H, 9.15%.
Compound 13. Colorless solid (m.p. = 125 ± 3 °C, Hexane/Et2O) IR (cm−1): 2978 (C–H); 2955 (C–H); 2863 (C–H); 1738 (C=O); 1720 (C=O); 1365 (CH3); 1254 (C–O); 1038 (C–O). 1H-NMR (CDCl3): 5.06 (1H, m, H-3); 4.46 (1H, dd, J = 11.2 and 5.4 Hz, H-5); 3.66 (3H, s, CH3O); 2.51–2.39 (2H, m, H-7); 2.35–2.27 (1H, m, H-23); 2.22–2.18 (1H, m, H-23); 2.03 (3H, s, CH3CO); 0.870 (3H, d, J = 4.8 Hz, H-21); 0.865 (3H, s, H-19); 0.650 (3H, s, H-18). 13C-NMR: See Table 1. HRMS-ESI (negative mode): Calculated 405.2719 found 405.2762. Elemental analysis: found C, 70.18%; H, 9.25%; C27H42O6 requires C, 70.10%; H, 9.15%.

3.2.5. Acid-3α-hydroxy-6-oxo-7-oxa-5α-cholan-24-oic (12)

To a solution of compound 10 (100 mg, 0.22 mmol) in 20 mL of CH3OH, 10 mL of 15% aqueous solution of K2CO3 were added. The reaction mixture was maintained with constant stirring and reflux for 1 h. The end of reaction was verified by TLC, then the mixture was concentrated in a rotary evaporator and evaporated to dryness. The crude was acidified with 15 mL of aqueous 5% HCl (until pH = 2–3). The solid obtained was filtered and washed with water (10–15 mL) to neutral pH and then it was dried under a vacuum. 73 mg (83% yield) of compound 12 were obtained. Compound 12: colorless solid (m.p. = 177–180 °C, MeOH/Et2O; referential: 177–181 °C [24]) IR (cm−1): 3480–2540 (O–H); 2926 (C–H); 2869 (C–H); 2853 (C–H); 1725 (C=O); 1704 (C=O); 1380 (CH3); 1189 (C–O); 1128 (C–O); 1074 (C–O). 1H-NMR (CD3OH): 4.21 (1H, dd, J = 12.5 and 9.8 Hz, H-7a), 4.08–4.03 (2H, m, H-7b and H-3); 3.24 (1H, dd, J = 12.5 and 4.2 Hz, H-5α); 2.33–2.29 (1H, m, H-23); 2.23–2.07 (1H, m, H-23); 0.95 (3H, d, J = 6.4 Hz, H-21); 0.86 (3H, s, H-19); 0.740 (3H, s, H-18). 13C-NMR: See Table 1. HRMS-ESI (negative mode): Calculated 405.2719 found 405.2650. Elemental analysis: found C, 70.98%; H, 9.50%; C24H38O5 requires C, 70.90%; H, 9.42%.

3.2.6. Acid-3α-hydroxy-6-oxa-7-oxo-5α-cholan-24-oic (15)

Compound 15 was obtained from 13 by the same method described above. To a solution of compound 13 (50 mg, 0.11 mmol) in 15 mL of CH3OH, 5 mL of 15% aqueous solution of K2CO3 were added. Then 33 mg (75% yield) of compound 15 were obtained. Compound 15: colorless solid (m.p. = 275–279 °C, MeOH/Et2O; referential: 276–278 °C [31]) IR (cm−1): 3457–2538 (O–H); 2956 (C–H); 2943 (C–H); 2870 (C–H); 2852 (C–H); 1730 (C=O); 1680 (C=O); 1380 (CH3); 1250 (C–O); 1199 (C–O); 1140 (C–O); 1074 (C–O). 1H-NMR: (CD3OD) 4.68 (1H, dd, J = 11.0 and 5.2 Hz, H-5α); 4.09 (1H, b.s, H-3); 2.61 (1H, dd, J = 12.6 and 12.0 Hz, H-7a); 2.40 (1H, d, J = 12.0 Hz, H-7b); 2.30 (1H, m, H-23); 2.19 (1H, m, H-23); 0.940 (3H, d, J = 6.4 Hz, H-21); 0.880 (3H, s, H-19); 0.730 (3H, s, H-18). 13C-NMR: See Table 1. Elemental analysis: found C, 70.96%; H, 9.49%; C24H38O5 requires C, 70.90%; H, 9.42%.

3.3. Biological Activity: A Rice Lamina Inclination Assay

The lamina joint bending assay using excised leaf segments was performed as previously described [33] with minor modifications. After soaking for 24 h in distilled water, seeds of a rice (Oryza sativa) cultivar Zafiro (obtained from the National Agricultural Research Institute (INIA)) were grown in pots (10 cm length × 15 cm diameter) filled with substrate + vermiculite + perlite (in the ratio 2:1:1) inside a greenhouse maintained at a 16 h day (22 °C)/8 h night (20 °C) cycle, with 50%–60% of relative humidity (RH). Uniform seedlings were selected and leaf segments of approximately 8 cm, consisting of the second leaf lamina and the second lamina joint and sheath, were excised. For each treatment, four of these segments were incubated in 60 mL of sterile distilled water for 24 h inside a petri dish containing a finite amount (1 × 10−8, 1 × 10−7 and 1 × 10−6 M) of the test sample (BR analogs: 5, 6, 8, 12 and 15). Brassinolide, used as positive control, was purchased from Sigma Chemical Co., St. Louis, USA. The negative control contains only physiological saline. After incubating for 48 h at 25 °C in darkness, the magnitude of the angle between the leaf and sheath was measured. Images were taken using a Leica EZ4HD Stereo Microscope with camera software. This test was made in duplicate for each treatment.
Tissue sections from leaf segments treated with compound 8 were fixed, stained with Lactophenol Cotton Blue (BD, Franklin Lakes, NJ, USA), and observed by optical microscopy. Images were captured with a camera ICC50HD coupled to a DM500 microscope (Leica Microsystems, Wetzlar, Germany), and cell lengths were measured using Leica software ((Leica Microsystems, Wetzlar, Germany).

4. Conclusions

Therefore, active BR analogs synthesized and described in this work might be used as an alternative to manipulate plant height and offer the potential to improve production of crops. However, the optimal growth-promoting concentration must be determined.

Supplementary Materials

Supplementary materials can be found at www.mdpi.com/1422-0067/18/3/516/s1.

Acknowledgments

The authors thank to FONDECYT (grant No.1160446) and the Dirección General de Investigación y Postgrado (DGIP-USM grant No. 116.13.12 of Universidad Técnica Federico Santa María.

Author Contributions

María Isabel Duran collaborated in the synthesis, separation and purification of compounds 5–9. Cesar González collaborated in the synthesis, separation, and purification of compounds 10–13 and structure determination of hyodeoxycholic acid derivatives by spectroscopic methods (1D, 2D NMR and IR). Katy Díaz performed the bioassays and wrote the biological component of this manuscript. Alison Acosta collaborated with the synthesis, separation, and purification of compound 12, 15 and bioassay. Andrés F. Olea collaborated in the discussion and interpretation of the results, manuscript redaction and corrections. Luis Espinoza supervised the whole work, collaborated in the syntheses, structure determination of hyodeoxycholic acid derivatives by spectroscopic methods (1D, 2D NMR and IR), and manuscript redaction.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

MDPIMultidisciplinary digital Publishing Institute
DOAJDirectory of open access journals
TLAThree letter acronym
LDLinear dichroism
BRsBrassinosteroids
DCMDichloromethane
PCCPyridinium ChloroChromate
DMAP4-Dimethylaminopyridine
DMFDimethylformamide
Tf2OTrifluoromethanesulfonic anhydride
m-CPBA3-Chloro or metha-chloroperoxybenzoic acid
DEPT-135Distortionless Enhancement by Polarization Transfer with flip angle of 135°
HSQCHeteronuclear Single Quantum Coherence
HMBCHeteronuclear Multiple Bond Correlation

References

  1. Bajguz, A. Brassinosteroids—Occurence and Chemical Structures in Plants. In Brassinosteroids: A Class of Plant Hormone; Hayat, S., Ahmad, A., Eds.; Springer: Dordrecht, The Netherlands, 2016. [Google Scholar]
  2. Fujioka, S. Natural Occurrence of Brassinosteroids in the Plant Kingdom. In Brassinosteroids: Steroidal Plant Hormones; Sakurai, A., Yokota, T., Clouse, S.D., Eds.; Springer-Verlag: Tokyo, Japan, 1999. [Google Scholar]
  3. Marumo, S.; Hattori, H.; Abe, H.; Nonoyama, Y.; Munakata, K. Presence of Novel Plant Growth Regulators in Leaves of Distylium Racemosum Sieb et Zucc. Agric. Biol. Chem. 1968, 32, 528–529. [Google Scholar]
  4. Crozier, A.; Yokota, T.; Bishop, G.J.; Kamiya, Y. Biosynthesis of Hormones and Elicitor Molecules. In Biochemistry and Molecular Biology of Plants; Buchanan, B.B., Gruissem, W., Jones, R.L., Eds.; American Society of Plant Physiologists: Rockville, MD, USA, 2000. [Google Scholar]
  5. Mitchell, J.W.; Mandava, N.; Worley, J.F.; Plimmer, J.R.; Smith, M.V. Brassins—A New Family of Plant Hormones from Rape Pollen. Nature 1970, 225, 1065–1066. [Google Scholar] [CrossRef] [PubMed]
  6. Grove, M.D.; Spencer, G.F.; Rohwedder, W.K.; Mandava, N.; Worley, J.F.; Warthen, J.D.; Steffens, G.L.; Flippenanderson, J.L.; Cook, J.C. Brassinolide, A Plant Growth-Promoting Steroid Isolated from Brassica-Napus Pollen. Nature 1979, 281, 216–217. [Google Scholar] [CrossRef]
  7. Krizek, D.T.; Mandava, N.B. Influence of Spectral Quality on the Growth-Response of Intact Bean-Plants to Brassinosteroid, A Growth-Promoting Steroidal Lactone. 2. Chlorophyll Content and Partitioning of Assimilate. Physiol. Plant. 1983, 57, 324–329. [Google Scholar] [CrossRef]
  8. Cerana, R.; Bonetti, A.; Marre, M.T.; Romani, G.; Lado, P.; Marre, E. Effects of A Brassinosteroid on Growth and Electrogenic Proton Extrusion in Azuki Bean Epicotyls. Physiol. Plant. 1983, 59, 23–27. [Google Scholar] [CrossRef]
  9. Romani, G.; Marre, M.T.; Bonetti, A.; Cerana, R.; Lado, P.; Marre, E. Effects of A Brassinosteroid on Growth and Electrogenic Proton Extrusion in Maize Root Segments. Physiol. Plant. 1983, 59, 528–532. [Google Scholar] [CrossRef]
  10. Braun, P.; Wild, A. The Influence of Brassinosteroid on Growth and Parameters of Photosynthesis of Wheat and Mustard Plants. J. Plant Physiol. 1984, 116, 189–196. [Google Scholar] [CrossRef]
  11. Mandava, N.B.; Sasse, J.M.; Yopp, J.H. Brassinolide, A Growth-Promoting Steroidal Lactone. 2. Activity in Selected Gibberellin and Cytokinin Bioassays. Physiol. Plant. 1981, 53, 453–461. [Google Scholar] [CrossRef]
  12. Wilen, R.W.; Sacco, M.; Gusta, L.V.; Krishna, P. Effects of 24-Epibrassinolide on Freezing and Thermotolerance of Bromegrass (Bromus-Inermis) Cell-Cultures. Physiol. Plant. 1995, 95, 195–202. [Google Scholar] [CrossRef]
  13. Dhaubhadel, S.; Chaudhary, S.; Dobinson, K.F.; Krishna, P. Treatment with 24-epibrassinolide, a brassinosteroid, increases the basic thermotolerance of Brassica napus and tomato seedlings. Plant Mol. Biol. 1999, 40, 333–342. [Google Scholar] [CrossRef] [PubMed]
  14. Khripach, V.; Zhabinskii, V.; de Groot, A. Twenty years of brassinosteroids: Steroidal plant hormones warrant better crops for the XXI century. Ann. Bot. 2000, 86, 441–447. [Google Scholar] [CrossRef]
  15. Vardhini, B.V.; Anuradha, S.; Rao, S.S.R. Brassinosteroids—New class of plant hormone with potential to improve crop productivity. Indian J. Plant Physiol. 2006, 11, 1–12. [Google Scholar]
  16. Divi, U.K.; Krishna, P. Brassinosteroid: A biotechnological target for enhancing crop yield and stress tolerance. New Biotechnol. 2009, 26, 131–136. [Google Scholar] [CrossRef] [PubMed]
  17. Vriet, C.; Russinova, E.; Reuzeau, C. Boosting Crop Yields with Plant Steroids. Plant Cell 2012, 24, 842–857. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Thompson, M.J.; Meudt, W.J.; Mandava, N.B.; Dutky, S.R.; Lusby, W.R.; Spaulding, D.W. Synthesis of Brassinosteroids and Relationship of Structure to Plant Growth-Promoting Effects. Steroids 1982, 39, 89–105. [Google Scholar] [CrossRef]
  19. Takatsuto, S.; Yazawa, N.; Ikekawa, N.; Takematsu, T.; Takeuchi, Y.; Koguchi, M. Structure Activity Relationship of Brassinosteroids. Phytochemistry 1983, 22, 2437–2441. [Google Scholar] [CrossRef]
  20. Takatsuto, S.; Yazawa, N.; Ikekawa, N.; Morishita, T.; Abe, H. Synthesis of (24R)-28-Homobrassinolide Analogs and Structure Activity Relationships of Brassinosteroids in the Rice-Lamina Inclination Test. Phytochemistry 1983, 22, 1393–1397. [Google Scholar] [CrossRef]
  21. Brosa, C.; Soca, L.; Terricabras, E.; Ferrer, J.C.; Alsina, A. New synthetic brassinosteroids: A 5 α-hydroxy-6-ketone analog with strong plant growth promoting activity. Tetrahedron 1998, 54, 12337–12348. [Google Scholar] [CrossRef]
  22. Brosa, C.; Capdevila, J.M.; Zamora, I. Brassinosteroids: A new way to define the structural requirements. Tetrahedron 1996, 52, 2435–2448. [Google Scholar] [CrossRef]
  23. Iglesias-Arteaga, M.A.; Martinez, C.P.; Manchado, F.C. Spirostanic analogues of castasterone. Steroids 2002, 67, 159–163. [Google Scholar] [CrossRef]
  24. Romero-Avila, M.; de Dios-Bravo, G.; Mendez-Stivalet, J.M.; Rodriguez-Sotres, R.; Iglesias-Arteaga, M.A. Synthesis and biological activity of furostanic analogues of brassinosteroids bearing the 5 α-hydroxy-6-oxo moiety. Steroids 2007, 72, 955–959. [Google Scholar] [CrossRef] [PubMed]
  25. Rosado-Abon, A.; de Dios-Bravo, G.; Rodriguez-Sotres, R.; Iglesias-Arteaga, M.A. Synthesis and plant growth promoting activity of polyhydroxylated ketones bearing the 5α-hydroxy-6-oxo moiety and cholestane side chain. Steroids 2012, 77, 461–466. [Google Scholar] [CrossRef] [PubMed]
  26. Herrera, H.; Carvajal, R.; Olea, A.F.; Espinoza, L. Structural modifications of deoxycholic acid to obtain three known brassinosteroid analogues and full NMR spectroscopic characterization. Molecules 2016, 21, 1139. [Google Scholar] [CrossRef] [PubMed]
  27. Jiang, B.; Huang, L.; Tian, W.; Zhou, W. Methods for Construction of Sidechain of Brassinosteroids and Application to Syntheses of Brassinosteroids. In Structure and Chemistry (Part E); Rahman, A., Ed.; Elsevier: Amsterdam, The Netherlands, 2016. [Google Scholar]
  28. Zhou, W.S.; Tian, W.S. The Synthesis of Steroids Containing Structural Unit of A, B Ring of Brassinolide and Ecdysone from Hyodesoxycholic Acid. Acta Chim. Sin. 1984, 42, 1173–1177. [Google Scholar]
  29. Zhou, W.S.; Jiang, B.; Pan, X.F. Studies on Steroidal Plant-Growth Hormones. 8. the Regioselective Synthesis of Methyl 3-α-Hydroxy-7-Oxa-6-Oxo-B-Homo-5-α-Cholanate. Acta Chim. Sin. 1989, 47, 182–185. [Google Scholar]
  30. Iida, T.; Tamaru, T.; Chang, F.C.; Niwa, T.; Goto, J.; Nambara, T. Potential Bile-Acid Metabolites. 20. A New Synthetic Route to Stereoisomeric 3,6-Dihydroxy-5-α-Cholanoic and 6-Hydroxy-5-α-Cholanoic Acids. Steroids 1993, 58, 362–369. [Google Scholar] [CrossRef]
  31. Zhou, W.; Jiang, B.; Shen, J. Synthesis of Cholesteric Lactones and Analogs as Plant Growth Regulators. Patent CN 1184113 A, 10 June 1998. [Google Scholar]
  32. Yang, Y.X.; Zheng, L.T.; Shi, J.J.; Gao, B.; Chen, Y.K.; Yang, H.C.; Chen, H.L.; Li, Y.C.; Zhen, X.C. Synthesis of 5 α-cholestan-6-one derivatives and their inhibitory activities of NO production in activated microglia: Discovery of a novel neuroinflammation inhibitor. Bioorg. Med. Chem. Lett. 2014, 24, 1222–1227. [Google Scholar] [CrossRef] [PubMed]
  33. Wada, K.; Marumo, S. Synthesis and Plant Growth-Promoting Activity of Brassinolide Analogs. Agric. Biol. Chem. 1981, 45, 2579–2585. [Google Scholar]
  34. Robaina, C.; Zullo, M.A.; Coll, F. Síntesis y Caracterización Espectroscópica de Análogos de Brasinoesteroides a partir de Ácido Cólico. Revista Cubana de Química XIII 2001, 2, 15–20. [Google Scholar]
  35. Rivera, D.G.; Leon, F.; Coll, F.; Davison, G.P. Novel 5β-hydroxyspirostan-6-ones ecdysteroid antagonists: Synthesis and biological testing. Steroids 2006, 71, 1–11. [Google Scholar] [CrossRef] [PubMed]
  36. Takatsuto, S.; Yazawa, N.; Ikekawa, N. Synthesis and Biological-Activity of Brassinolide Analogs, 26,27-Bisnorbrassinolide and Its 6-oxo Analog. Phytochemistry 1984, 23, 525–528. [Google Scholar] [CrossRef]
  37. Takatsuto, S.; Ikekawa, N. Synthesis and Activity of Plant Growth-Promoting Steroids, (22R,23R,24S)-28-Homobrassinosteroids, with Modifications in Ring-A and Ring-B. J. Chem. Soc. Perkin Trans. 1 1984, 439–447. [Google Scholar] [CrossRef]
  38. Iglesias-Arteaga, M.A.; Martinez, C.S.P.; Manchado, F.C. Synthesis and characterization of (25R)-2α,3α-epoxy-5α-spirostan-12,23-dione. Synth. Commun. 1999, 29, 1811–1818. [Google Scholar] [CrossRef]
  39. Takatsuto, S.; Yazawa, N.; Ishiguro, M.; Morisaki, M.; Ikekawa, N. Stereoselective Synthesis of Plant Growth-Promoting Steroids, Brassinolide, Castasterone, Typhasterol, and Their 28-Nor Analogs. J. Chem. Soc. Perkin Trans. 1 1984, 139–146. [Google Scholar] [CrossRef]
  40. Zhou, W.S.; Huang, L.F. Studies on Steroidal Plant-Growth Regulator. 25. Concise Stereoselective Construction of Side-Chain of Brassinosteroid from the Intact Side-Chain of Hyodeoxycholic Acid-Formal Syntheses of Brassinolide, 25-Methylbrassinolide, 26,27-Bisnorbrassinolide and Their Related-Compounds. Tetrahedron 1992, 48, 1837–1852. [Google Scholar]
  41. Huang, L.F.; Zhou, W.S. Studies on Steroidal Plant-Growth Regulators. 33. Novel Method for Construction of the Side-Chain of 23-Arylbrassinosteroids via Heck Arylation and Asymmetric Dihydroxylation as Key Steps. J. Chem. Soc. Perkin Trans. 1 1994, 24, 3579–3585. [Google Scholar] [CrossRef]
  42. Nishiguchi, T.; Machida, N.; Yamamoto, E. Dehydration of Alcohols Catalyzed by Copper(II) Sulfate Adsorbed on Silica-Gel. Tetrahedron Lett. 1987, 28, 4565–4568. [Google Scholar] [CrossRef]
  43. Kumar, R.R.; Haveli, S.D.; Kagan, H.B. A Mild-One Pot Method for Conversion of Various Steroidal Secondary Alcohols into the Corresponding Olefins. Synlett 2011, 12, 1709–1712. [Google Scholar] [CrossRef]
  44. Takatsuto, S.; Ikekawa, N. Remote Substituent Effect on the Regioselectivity in the Baeyer-Villiger Oxidation of 5-α-Cholestan-6-One Derivatives. Tetrahedron Lett. 1983, 24, 917–920. [Google Scholar] [CrossRef]
  45. Back, T.G. Stereoselective Synthesis of Brassinosteroids. In Stereoselective Synthesis (Part J); Rahman, A., Ed.; Elsevier: Amsterdam, The Netherlands, 1997. [Google Scholar]
  46. Voigt, B.; Schmidt, J.; Adam, G. Synthesis of 24-epiteasterone, 24-epityphasterol and their B-homo-6a-oxalactones from ergosterol. Tetrahedron 1996, 52, 1997–2004. [Google Scholar] [CrossRef]
  47. Maeda, E. Rate of Lamina Inclination in Excised Rice Leaves. Physiol. Plant. 1965, 18. [Google Scholar] [CrossRef]
  48. Takeno, K.; Pharis, R.P. Brassinosteroid-Induced Bending of the Leaf Lamina of Dwarf Rice Seedlings—An Auxin-Mediated Phenomenon. Plant Cell Physiol. 1982, 23, 1275–1281. [Google Scholar] [CrossRef]
  49. Ramirez, J.A.; Centurion, O.M.T.; Gros, E.G.; Galagovsky, L.R. Synthesis and bioactivity evaluation of brassinosteroid analogs. Steroids 2000, 65, 329–337. [Google Scholar] [CrossRef]
  50. Takematsu, T.; Takenchi, Y.; Koguchi, M. New plant growth regulators, Brassinolide analogues: Their biological effects and application to agriculture and biomass production. Chem. Regul. Plants 1983, 18, 2–15. [Google Scholar]
  51. Kim, S.K.; Asano, T.; Marumo, S. Biological-Activity of Brassiosteroid Inhibitor Km-01 Produced by A Fungus Drechslera-Avenae. Biosci. Biotechnol. Biochem. 1995, 59, 1394–1397. [Google Scholar] [CrossRef]
  52. Adam, G.; Marquardt, V. Brassinosteroids. Phytochemistry 1986, 25, 1787–1799. [Google Scholar] [CrossRef]
  53. Wada, K.; Marumo, S.; Abe, H.; Morishita, T.; Nakamura, K.; Uchiyama, M.; Mori, K. A Rice Lamina Inclination Test—A Micro-Quantitative Bioassay for Brassinosteroids. Agric. Biol. Chem. 1984, 48, 719–726. [Google Scholar]
  54. Clouse, S.D.; Langford, M.; McMorris, T.C. A brassinosteroid-insensitive mutant in Arabidopsis thaliana exhibits multiple defects in growth and development. Plant Physiol. 1996, 111, 671–678. [Google Scholar] [CrossRef] [PubMed]
  55. Müssig, C.; Shin, G.-H.; Altmann, T. Brassinosteroids Promote Root Growth in Arabidopsis. Plant Physiol. 2003, 133, 1261–1271. [Google Scholar] [CrossRef] [PubMed]
  56. Jeong, D.H.; Lee, S.; Kim, S.L.; Hwang, I.; An, G. Regulation of brassinosteroid responses by phytochrome B in rice. Plant Cell Environ. 2007, 30, 590–599. [Google Scholar] [CrossRef] [PubMed]
  57. Tong, H.; Jin, Y.; Liu, W.; Fang, J.; Yin, Y.; Qian, Q.; Zhu, L.; Chu, C. Dwarf and low-tillering, a new member of the gras family, plays positive roles in brassinosteroid signaling in rice. Plant J. 2009, 58, 803–816. [Google Scholar] [CrossRef] [PubMed]
  58. Tong, H.; Xiao, Y.; Liu, D.; Gao, S.; Liu, L.; Yin, Y.; Jin, Y.; Qian, Q.; Chu, C. Brassinosteroid Regulates Cell Elongation by Modulating Gibberellin Metabolism in Rice. Plant Cell 2014, 26, 4376–4393. [Google Scholar] [CrossRef] [PubMed]
  59. Suzuki, H.; Fujioka, S.; Takatsuto, S.; Yokota, T.; Murofushi, N.; Sakurai, A. Biosynthesis of Brassinolide from Teasterone Via Typhasterol and Castasterone in Cultured-Cells of Catharanthus-Roseus. J. Plant Growth Regul. 1994, 13, 21–26. [Google Scholar] [CrossRef]
  60. Abe, H.; Morishita, T.; Uchiyama, M.; Takatsuto, S.; Ikekawa, N. A New Brassinolide-Related Steroid in the Leaves of Thea-Sinensis. Agric. Biol. Chem. 1984, 48, 2171–2172. [Google Scholar] [CrossRef]
  61. Abe, H.; Asakawa, S.; Ando, T.; Mouri, T.; Aburatani, M.; Takeuchi, T. Effect of Introducing A Lactone Group Into Typhasterol and Teasterone to Promote Rice Lamina Inclination. Biosci. Biotechnol. Biochem. 1992, 56, 1312–1313. [Google Scholar] [CrossRef]
Ijms 18 00516 g001 550

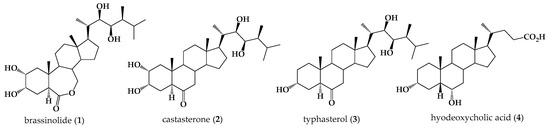

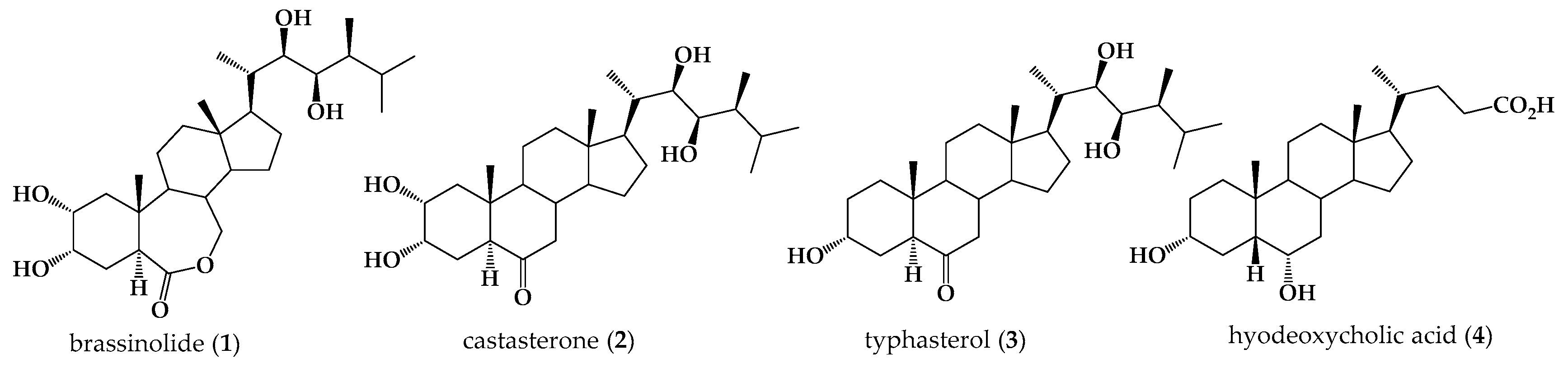

Figure 1. Brassinolide (1), castasterone (2), typhasterol (3) and hyodeoxycholic acid (4).
Figure 1. Brassinolide (1), castasterone (2), typhasterol (3) and hyodeoxycholic acid (4).
Ijms 18 00516 g001
Ijms 18 00516 g002 550

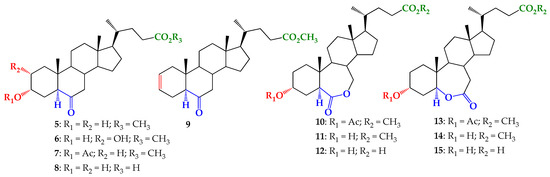

Figure 2. Brassinosteroid analogs obtained from hyodeoxycholic acid (4).
Figure 2. Brassinosteroid analogs obtained from hyodeoxycholic acid (4).
Ijms 18 00516 g002
Ijms 18 00516 sch001 550

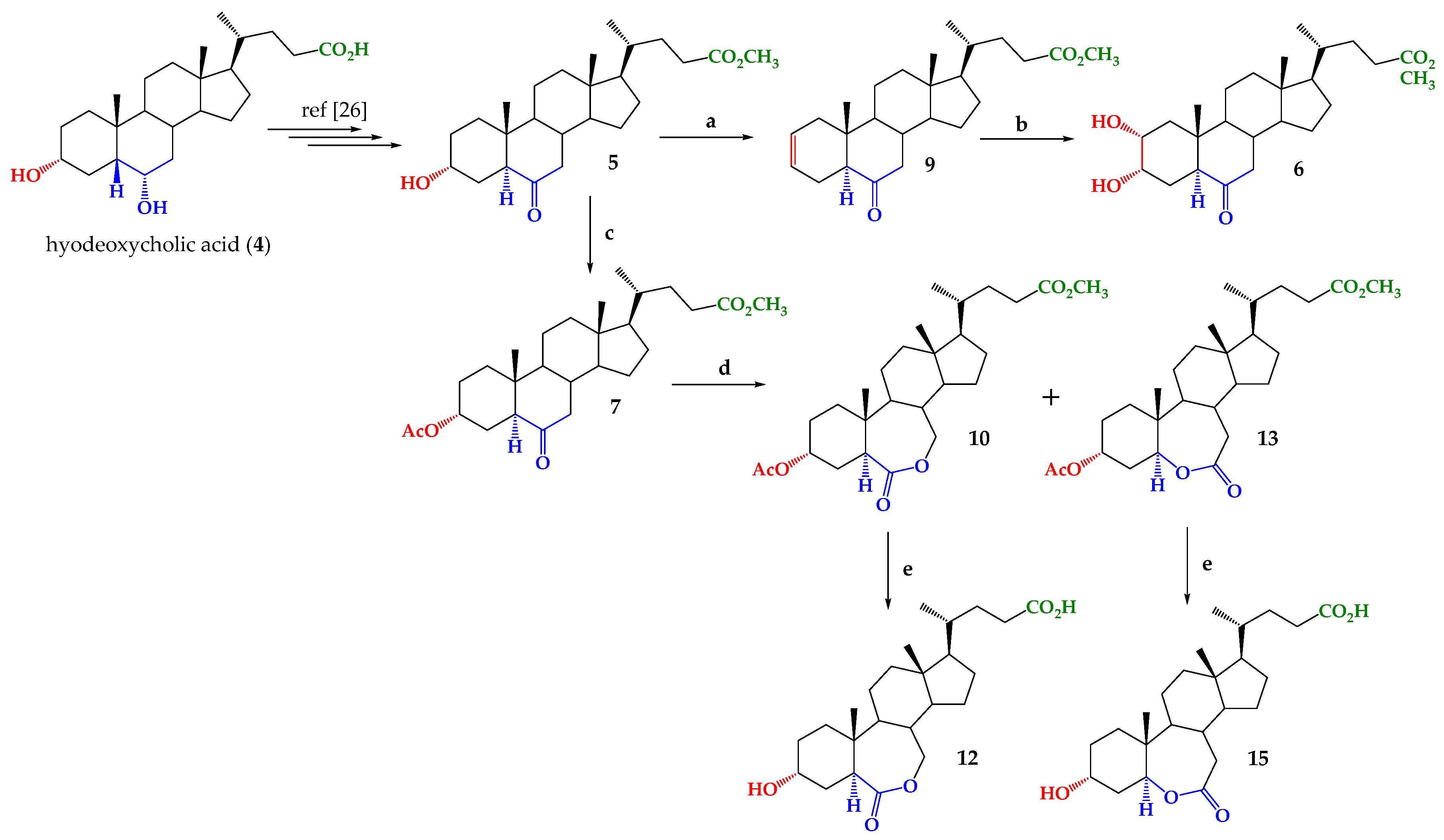

Scheme 1. Synthesis of hyodeoxycholic acid derivatives 5, 7, 9 and brassinosteroid analogs 6, 10, 12, 13 and 15. Reagents and conditions: (a) Tf2O/DMAO/CH2Cl2, 0 °C, 24 h.; (b) OsO4 4%/NMO, acetone, r.t., 72 h.; (c) Ac2O/DMAP, CH2Cl2/py, r.t., 30 min.; (d) (CF3SO2)2/H2O2/CHCl3, 0 °C, 24 h.; (e) K2CO3 15% (aqueous solution)/CH3OH, reflux, 1 h. Derivative 5 has been previously reported [26].
Scheme 1. Synthesis of hyodeoxycholic acid derivatives 5, 7, 9 and brassinosteroid analogs 6, 10, 12, 13 and 15. Reagents and conditions: (a) Tf2O/DMAO/CH2Cl2, 0 °C, 24 h.; (b) OsO4 4%/NMO, acetone, r.t., 72 h.; (c) Ac2O/DMAP, CH2Cl2/py, r.t., 30 min.; (d) (CF3SO2)2/H2O2/CHCl3, 0 °C, 24 h.; (e) K2CO3 15% (aqueous solution)/CH3OH, reflux, 1 h. Derivative 5 has been previously reported [26].
Ijms 18 00516 sch001
Ijms 18 00516 g003 550

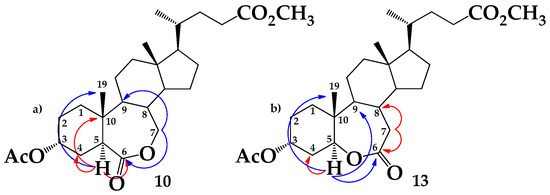

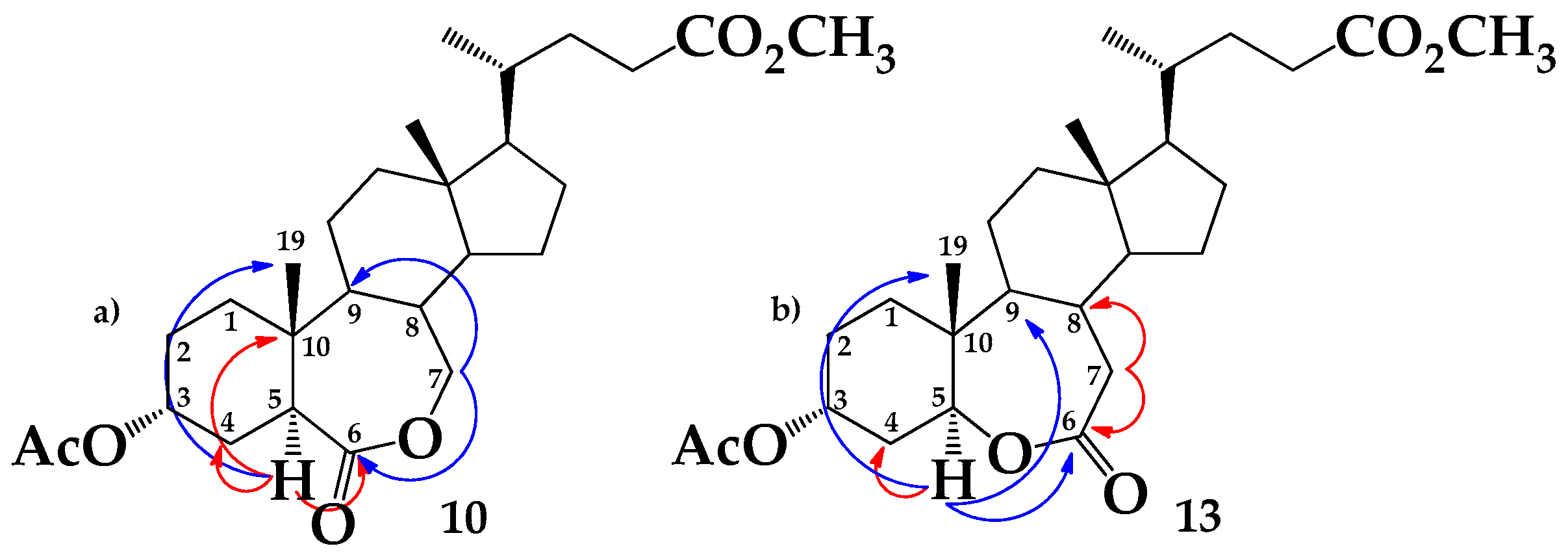

Figure 3. Major observed 2JHC (red arrows) and 3JHC (blue arrows) correlations of hydrogens H-5α and H-7 for compound 10 (7-oxalactone derivative (a)) and compound 13 (6-oxolactone derivative (b)).
Figure 3. Major observed 2JHC (red arrows) and 3JHC (blue arrows) correlations of hydrogens H-5α and H-7 for compound 10 (7-oxalactone derivative (a)) and compound 13 (6-oxolactone derivative (b)).
Ijms 18 00516 g003
Ijms 18 00516 g004 550

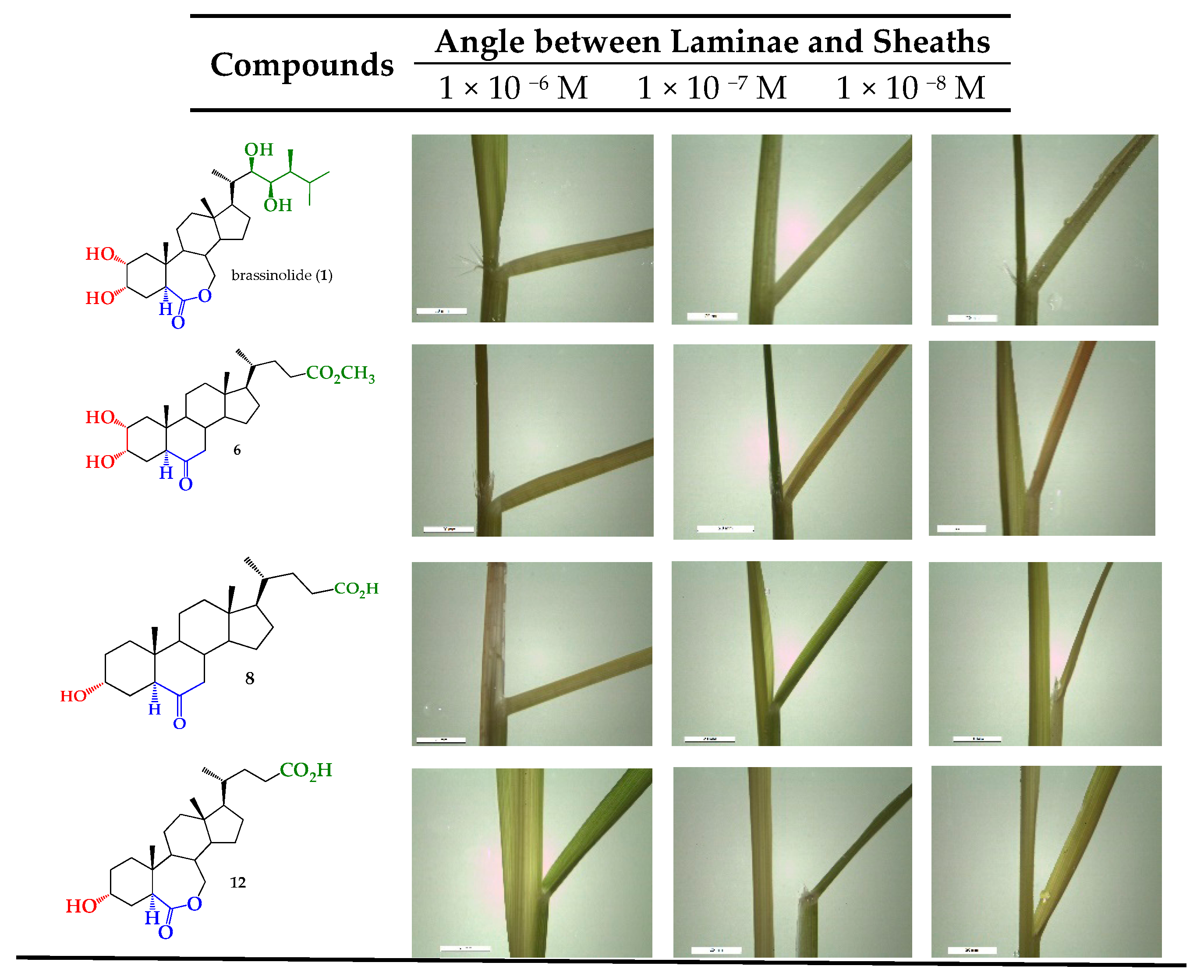

Figure 4. Rice-lamina assay using the second leaf lamina joints of excised leaf segments treated with brassinolide (1) and more active BR analogs at 1 × 10−6, 1 × 10−7 and 1 × 10−8 M. Scale bars = 2 cm.
Figure 4. Rice-lamina assay using the second leaf lamina joints of excised leaf segments treated with brassinolide (1) and more active BR analogs at 1 × 10−6, 1 × 10−7 and 1 × 10−8 M. Scale bars = 2 cm.
Ijms 18 00516 g004
Ijms 18 00516 g005 550
Figure 5. Changes induced by analog 8 in mesophyll cell length in second lamina of rice plants. Longitudinal sections of adaxial sides of the second leaf lamina joint: (a) negative control; (b) in the presence of analog 8. Optic Microscope 40×, Scale of bars = 20 µm.
Figure 5. Changes induced by analog 8 in mesophyll cell length in second lamina of rice plants. Longitudinal sections of adaxial sides of the second leaf lamina joint: (a) negative control; (b) in the presence of analog 8. Optic Microscope 40×, Scale of bars = 20 µm.
Ijms 18 00516 g005
Table
Table 1. δ13C-RMN (CDCl3, 100.6 MHz) for compounds 10, 12, 13 and 15.
Table 1. δ13C-RMN (CDCl3, 100.6 MHz) for compounds 10, 12, 13 and 15.
C1012 *1315 *
133.6934.0431.7432.40
227.8428.9027.3728.51
368.4865.4969.4366.95
429.7933.3932.8636.57
542.6442.8879.5381.59
6176.11179.68174.73178.28
770.4771.7538.0238.79
839.4340.7934.7036.36
958.4359.4957.9159.09
1036.1837.2539.5840.88
1122.1523.2622.0923.27
1239.6441.0139.5240.97
1342.6643.8242.6143.87
1455.8157.1256.0057.46
1525.1728.8325.1528.51
1624.8025.7624.7526.32
1751.5252.5455.3756.54
1811.7912.2111.6712.15
1914.5814.9311.4811.83
2035.3236.6235.1836.62
2118.1418.6318.0418.62
2230.8131.9530.6631.97
2331.0332.1530.9032.12
24174.59178.09174.39178.20
CH3O51.46-51.39-
CH3CO-170.32-170.02-
CH3CO-21.38-21.19-
* The 13C-NMR spectrum of compounds 12 and 15 was recorded in CD3OD solution.
Table
Table 2. Effect of brassinolide and analogs 5, 6, 8, 12 and 15, on the lamina inclination of rice seedlings.
Table 2. Effect of brassinolide and analogs 5, 6, 8, 12 and 15, on the lamina inclination of rice seedlings.
BRsAngle Degrees between Laminae and Sheaths (°) (± Standard Error)
Concentration (M)
Compounds1 × 10−61 × 10−71 × 10−8
511 ± 2.51 ± 0.00 ± 0.0
647 ± 4.7 29 ± 4.50 ± 1.0
849 ± 2.0 29 ± 6.37 ± 2.4
1226 ± 2.5 26 ± 2.515 ± 0.0
1523 ± 6.018 ± 8.710 ± 0.0
Brassinolide (C+)64 ± 4.830 ± 4.128 ± 2.9
Control (C−)20 ± 0

Share and Cite

MDPI and ACS Style

Duran, M.I.; González, C.; Acosta, A.; Olea, A.F.; Díaz, K.; Espinoza, L. Synthesis of Five Known Brassinosteroid Analogs from Hyodeoxycholic Acid and Their Activities as Plant-Growth Regulators. Int. J. Mol. Sci. 2017, 18, 516. https://doi.org/10.3390/ijms18030516

AMA Style

Duran MI, González C, Acosta A, Olea AF, Díaz K, Espinoza L. Synthesis of Five Known Brassinosteroid Analogs from Hyodeoxycholic Acid and Their Activities as Plant-Growth Regulators. International Journal of Molecular Sciences. 2017; 18(3):516. https://doi.org/10.3390/ijms18030516

Chicago/Turabian Style

Duran, María Isabel, Cesar González, Alison Acosta, Andrés F. Olea, Katy Díaz, and Luis Espinoza. 2017. "Synthesis of Five Known Brassinosteroid Analogs from Hyodeoxycholic Acid and Their Activities as Plant-Growth Regulators" International Journal of Molecular Sciences 18, no. 3: 516. https://doi.org/10.3390/ijms18030516

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
