Galangin Inhibits Thrombin-Induced MMP-9 Expression in SK-N-SH Cells via Protein Kinase-Dependent NF-κB Phosphorylation

by
Chien-Chung Yang
1,2,
Chih-Chung Lin
3,
Li-Der Hsiao
3 and
Chuen-Mao Yang
3,4,5,*
1
Department of Traditional Chinese Medicine, Chang Gung Memorial Hospital at Tao-Yuan, Kwei-San, Tao-Yuan 333, Taiwan
2
School of Traditional Chinese Medicine, College of Medicine, Chang Gung University, Kwei-San, Tao-Yuan 333, Taiwan
3
Department of Anesthetics, Chang Gung Memorial Hospital at Linkuo, and College of Medicine, Chang Gung University, Kwei-San, Tao-Yuan 333, Taiwan
4
Department of Physiology and Pharmacology and Health Ageing Research Center, College of Medicine, Chang Gung University, Kwei-San, Tao-Yuan 333, Taiwan
5
Research Center for Industry of Human Ecology and Graduate Institute of Health Industry Technology, Chang Gung University of Science and Technology, Tao-Yuan 333, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2018, 19(12), 4084; https://doi.org/10.3390/ijms19124084
Submission received: 30 October 2018 / Revised: 7 December 2018 / Accepted: 14 December 2018 / Published: 17 December 2018
(This article belongs to the Section Molecular Pharmacology)
Browse Figures
Versions Notes

Abstract

:
Galangin, a member of the flavonol compounds of the flavonoids, could exert anti-inflammatory effects in various cell types. It has been used for the treatment of arthritis, airway inflammation, stroke, and cognitive impairment. Thrombin, one of the regulators of matrix metalloproteinase (MMPs), has been known as a vital factor of physiological and pathological processes, including cell migration, the blood–brain barrier breakdown, brain edema formation, neuroinflammation, and neuronal death. MMP-9 especially may contribute to neurodegenerative diseases. However, the effect of galangin in combating thrombin-induced MMP-9 expression is not well understood in neurons. Therefore, we attempted to explore the molecular mechanisms by which galangin inhibited MMP-9 expression and cell migration induced by thrombin in SK-N-SH cells (a human neuroblastoma cell line). Gelatin zymography, western blot, real-time PCR, and cell migration assay were used to elucidate the inhibitory effects of galangin on the thrmbin-mediated responses. The results showed that galangin markedly attenuated the thrombin-stimulated phosphorylation of proto-oncogene tyrosine-protein kinase (c-Src), proline-rich tyrosine kinase 2 (Pyk2), protein kinase C (PKC)α/β/δ, protein kinase B (Akt), mammalian target of rapamycin (mTOR), p42/p44 mitogen-activated protein kinase (MAPK), Jun amino-terminal kinases (JNK)1/2, p38 MAPK, forkhead box protein O1 (FoxO1), p65, and c-Jun and suppressed MMP-9 expression and cell migration in SK-N-SH cells. Our results concluded that galangin blocked the thrombin-induced MMP-9 expression in SK-N-SH cells via inhibiting c-Src, Pyk2, PKCα/βII/δ, Akt, mTOR, p42/p44 MAPK, JNK1/2, p38 MAPK, FoxO1, c-Jun, and p65 phosphorylation and ultimately attenuated cell migration. Therefore, galangin may be a potential candidate for the management of brain inflammatory diseases.

1. Introduction

Matrix metalloproteinases (MMPs), a series of zinc-dependent endopeptidases, consist of more than 20 members, including the MMPs of humans and other species. They are typically secreted or anchored to the cell surface; thereby, they can catalyze the degradation of proteins within the secretory pathway or the extracellular matrix (ECM). Therefore, MMPs may initiate the breakdown of the blood–brain barrier (BBB) allowing the entry of immune cells and autoreactive lymphocytes that may locally secrete TSP-1 (granzyme A), tryptase, and other serine proteases in the brain tissues with inflammation [1]. Several reports have suggested that demyelination, inflammation, and neurotoxicity in many central nervous system (CNS) diseases, such as multiple sclerosis, stroke, CNS infection, and CNS degeneration, are mediated through the upregulation of MMPs [2,3,4]. Actually, several lines of evidence have shown that the inflammatory responses induced by diverse brain insults lead to the abnormal expression and activation of MMP-9, which can degrade the ECM, resulting in the disruption of the BBB, preventing normal cell signaling and eventually leading to cell death [5,6]. It has been shown for decades that the upregulation of MMP-9 has played a vital role in neuroinflammatory and neurodegenerative disorders [7,8]. These links have been made by the finding of BBB damage leading to cerebral edema, excitotoxicity, neuronal damage, apoptosis, and hemorrhagic transformation by MMP-9 in brain insults [9,10,11]. Furthermore, in a mouse model of middle cerebral artery occlusion, using a fibrin-rich clot demonstrated that the inhibition of MMPs by SB-3CT, a selective inhibitor of gelatinases, showed beneficial effects by attenuating infarct volume and ameliorating neurobehavioral outcomes [12,13]. As a consequence, it can be speculated that adjuvant intervention with gelatinases inhibitors might diminish the disease severity and brain injury by stabilizing the BBB in cases of acute stages of stroke or demyelination disorder.
Thrombin plays vital roles in the regulation of numerous physiological and pathological processes, such as vascular tone, neuroinflammation, atherogenesis, thrombosis, and neurodegeneration. High levels of thrombin may have detrimental effects, as they can cause neuron and astrocyte apoptosis, disrupt the BBB after intracerebral hemorrhage, and induce brain edema [14]. Moreover, high levels of thrombin also participate in the pathological process in Alzheimer’s disease (AD) patients [15] and in stroke models [16]. Moreover, thrombin has been revealed to induce MMP-9 production related to pathological processes in various cell types [17,18,19]. In our previous studies, thrombin was shown to induce MMP-9 expression via various signaling components in SK-N-SH cells [20,21]. In the clinic, traditional Chinese medicines rich in flavonoids have been used to treat inflammatory diseases and prevent illnesses. Galangin (3,5,7-trihydroxy-2-phenyl-4H-1-benzopyran-4-one) is a member of the flavonol compounds of the flavonoids. It exists in high concentrations in Alpinia officinarum and has been used as a herbal medicine for a variety of diseases. Therefore, the aim of the present study was to evaluate whether galangin inhibited thrombin-induced MMP-9 expression and cell migration in human SK-N-SH cells.
It has been demonstrated that galangin has anti-inflammatory, anti-oxidant, antimutagenic, anticlastogenic, metabolic enzyme modulating, bactericidal, and anti-fibrotic activities [22] in various disorders, such as collagen-induced arthritis and ovalbumin-induced airway inflammation via inhibiting nuclear factor-κB (NF-κB) signaling [23,24]. Recent evidence indicates that galangin has therapeutic potential in some neuroinflammatory and neurodegenerative disorders, such as stroke and cognitive impairment [25,26,27,28]. Moreover, galangin suppresses phorbol-12-myristate-13-acetate-induced MMP-9 expression by blocking the activation of the NF-κB- and activator protein 1 (AP-1)-dependent pathways in human fibrosarcoma HT-1080 cells [29]. These results suggest that galangin acts as one of the inhibitors that attenuate thrombin-mediated responses [30]; thereby, it can be a potential intervention for the management of brain diseases. Further, experiments were performed to dissect the detailed molecular mechanisms by which galangin attenuates thrombin-induced MMP-9 expression in human SK-N-SH cells. Therefore, we further evaluated whether galangin (GLG) attenuates the thrombin-stimulated activation of protein kinases, including non-receptor tyrosine receptor kinases (nRTKs), PKCs, Akt, mTOR, MAPKs, and transcription factors, such as NF-κB, AP-1, and forkhead box protein O1 (FoxO1), in human SK-N-SH cells.

2. Results

2.1. Galangin Attenuates Thrombin-Induced MMP-9 Expression and Cell Migration

We evaluated the effects of galangin on thrombin-induced MMP-9 expression. SK-N-SH cells were pretreated with galangin for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals (16 h for protein and RNA, 24 h for promoter activity, and 48 h for cell migration). As shown in Figure 1A, pretreatment with galangin at the indicated dosage significantly reduced the thrombin-induced MMP-9 protein level, determined by gelatin zymography. In addition, pretreatment with galangin (10 μM) for 1 h also attenuated the thrombin-induced MMP-9 mRNA level and promoter activity, respectively (Figure 1B). Furthermore, to explore the inhibitory effect of galangin on the functional activity of MMP-9, we evaluated the effect of galangin on the cell migration of SK-N-SH cells challenged with thrombin. The SK-N-SH cell migration was observed 48 h after the treatment with thrombin in the absence or presence of galangin (3 or 10 μM). These data showed that the galangin reduced the migratory cell number of the thrombin-induced SK-N-SH cell migration in a concentration-dependent manner (Figure 1C). These results suggested that galangin inhibits the thrombin-induced MMP-9 expression associated with cell migration in SK-N-SH cells.

2.2. Galangin Attenuates Thrombin-Induced Non-Receptor Tyrosine Kinase (nRTK) Activity

Several studies have uncovered that several nRTKs, including c-Src and Pyk2, can regulate MMP-9 expression in various cell types [18,31,32]. Our previous results also found that c-Src and Pyk2 are involved in the thrombin-induced MMP-9 expression in SK-N-SH cells [20]. Therefore, we further explored whether galangin can attenuate the thrombin-stimulated activation of nRTKs in SK-N-SH cells. We discovered that pretreatment with galangin (3 μM) reduced the phosphorylation of c-Src (Figure 2A) and Pyk2 (Figure 2B) stimulated by thrombin. These results suggested that galangin reduces thrombin-induced MMP-9 expression via attenuating the c-Src and Pyk2-dependent pathways in SK-N-SH cells.

2.3. Galangin Reduces Thrombin-Stimulated Phosphorylation of PKCs

Recent reports have shown that PKC-dependent pathways contribute to MMP-9 expression in various cell types [18,33,34]. Our recent study also revealed that PKCs play a key role in the thrombin-induced MMP-9 expression in SK-N-SH cells [21]. Therefore, we further evaluated the effect of galangin on the thrombin-stimulated activation of PKCs. We demonstrated that pretreatment with galangin (3 μM) attenuated the thrombin-stimulated phosphorylation of PKCα/βII or δ in SK-N-SH cells (Figure 3). These results indicated that galangin reduces the thrombin-induced MMP-9 expression by suppressing PKCα/βII or δ activation in SK-N-SH cells.

2.4. Galangin Reduces Thrombin-Stimulated Phosphorylation of Mammalian Target of Rapamycin (mTOR)

Several reports have found that mTOR is involved in MMP-9 expression in various cell types [35,36,37]. Our previous study also found that PI3K/Akt are key players in the thrombin-induced MMP-9 expression in SK-N-SH cells [20]. Therefore, we further explored whether galangin can attenuate the thrombin-induced mTOR-dependent pathway in SK-N-SH cells. We determined that pretreatment with galangin (3 μM) reduced the phosphorylation of mTOR (Figure 4A) and Akt (Figure 4B) stimulated by thrombin. These results suggested that galangin reduces the thrombin-induced MMP-9 expression via attenuating the activation of mTOR and Akt-dependent pathways in SK-N-SH cells.

2.5. Galangin Inhibits Thrombin-Stimulated MAPKs Activity

Recent reports have demonstrated that MAPK-dependent pathways are involved in thrombin-induced MMP-9 expression in various cell types [38,39,40]. Our recent data have also revealed that MAPKs participate in the thrombin-induced MMP-9 expression in SK-N-SH cells [20,21]. Therefore, we further explored whether galangin reduced the MAPKs-dependent pathways associated with the attenuation of thrombin-induced MMP-9 expression. We found that pretreatment with galangin (3 μM) attenuated the thrombin-stimulated phosphorylation of p44/p42 MAPK (Figure 5A), p38 MAPK (Figure 5B), and JNK1/2 (Figure 5C) in SK-N-SH cells. These results indicated that galangin-reduced thrombin-induced MMP-9 expression is mediated via suppressing the MAPKs activation in SK-N-SH cells.

2.6. Galangin Inhibits Thrombin-Stimulated Transcription Factor Activation

Several transcription factors, such as NF-κB, AP-1, and FoxO1, have been revealed to be involved in MMP-9 expression in various cell types [20,41,42,43]. Our previous studies also showed that NF-κB and AP-1 contribute to the thrombin-induced MMP-9 expression in SK-N-SH cells [20,21]. Here, we explored whether galangin blocked the transcription factors involved in the thrombin-induced MMP-9 expression in SK-N-SH cells. The NF-κB, AP-1, and FoxO1-dependent pathways were detected by western blot and chromatin immunoprecipitation (ChIP) assays. Our results showed that pretreatment with galangin significantly reduced the thrombin-stimulated phosphorylation of p65 (Figure 6A) and FoxO1 (Figure 6B). The interactions of p65 (Figure 6C) and c-Jun (Figure 6D) with MMP-9 promoter were blocked by galangin in SK-N-SH cells challenged by thrombin. These results indicated that galangin reduces the thrombin-induced MMP-9 expression by suppressing the activation of the transcription factors, including NF-κB, AP-1, and FoxO1 in SK-N-SH cells.

3. Discussion

Among MMPs, uncontrolled MMP-9 expression and activity lead to the pathological effects of brain disorders, such as stroke, brain tumor, and AD [7,44,45]. Thrombin also participates in neuroinflammatory reactions in these brain disorders [46], suggesting its role in neurodegenerative processes. Therefore, the inhibitors of thrombin and MMP-9 have therapeutic potential in neuroinflammatory diseases [13,30]. Flavonoids are a group of polyphenolic compounds and exert many biological activities, including anti-inflammatory, antioxidant, and antitumor capabilities. These compounds have been elucidated to inhibit two members of the MMP family, MMP-2 and MMP-9, and thrombin activity [30,47]. Here, we evaluated whether galangin had inhibitory effects on the thrombin-induced MMP-9 expression and signaling components in SK-N-SH cells. Therefore, the concentrations of galangin (up to 10 µM) used in this study had no effect on the cell viability and allowed us to evaluate how galangin attenuated the thrombin-stimulated activation of the protein kinases and transcription factors in human SK-N-SH cells. However, higher dosages (greater than 10 µM) of galangin could induce apoptosis (Supplementary Figure S1). Our results elucidated that in SK-N-SH cells, galangin blocked the thrombin-induced MMP-9 expression and cell migration via inhibiting the activation of PKCs, Akt, mTOR, c-Src, Pyk2, p38 MAPK, p44/p42 MAPK, JNK1/2-dependent FoxO1, AP-1, and p65 signaling pathways (Figure 7).
To the best of our knowledge, this is the first report showing that galangin has anti-inflammatory effects on SK-N-SH cells by attenuating the thrombin-induced MMP-9 expression and cell migration. Our previous studies and others have reported that thrombin-stimulated MMP-9 expression is mediated via c-Src, Pyk2, and PKCs in various cell types, including SK-N-SH cells [18,20,21]. Moreover, galangin has been revealed to inhibit protein tyrosine kinase activity [48]. Galangin also attenuates MMP-9 expression by inhibiting PKC activity [29]. 12-O-tetradecanoylphorbol-13-acetate (TPA)-induced invasion and migration of HepG2 were inhibited by galangin through the attenuation of a PKC/ERK1/2 pathway [49]. In our study, we confirmed that galangin attenuated the MMP-9 expression induced by thrombin via the suppression of c-Src, Pyk2, and PKCα/βII or δ phosphorylation in SK-N-SH cells. However, we cannot exclude the possibility of galangin being an inhibitor of c-Src, Pyk2, or PKC catalytic activity.
Abnormal signal responses, such as Akt and mTOR, may implicate several brain inflammatory disorders. Thrombin has been reported to stimulate Akt and mTOR-dependent pathways to trigger pathophysiological processes in numerous cell types [50,51]. Galangin has been shown to induce autophagy by stimulating the phosphorylation of adenosine monophosphate-activated protein kinase (AMPK) and liver kinase B1 (LKB1) but inhibiting the phosphorylation of Akt and mTOR. The inhibition of AMPK activation suppresses the dephosphorylation of mTOR to block galangin-induced autophagy [52]. Another study has also revealed that galangin induces p53-mediated cell cycle arrest and the apoptotic process of nasopharyngeal carcinoma cells by suppressing the PI3K/Akt signaling pathway [53]. More recently, treatment of MG63 cells with galangin significantly inhibited the expression of cyclin D1 and MMP-2/9 via the suppression of PI3K and Akt phosphorylation [54]. In this study, we confirmed that these Akt/mTOR-dependent pathways play crucial roles in galangin reducing the MMP-9 expression induced by thrombin in SK-N-SH cells. Our findings showed that galangin inhibited the thrombin-stimulated phosphorylation of Akt and mTOR and attenuated MMP-9 expression in SK-N-SH cells. However, we cannot exclude the possibility of galangin being an inhibitor of Akt catalytic activity.
MAPKs pathways, including p42/p44 MAPK, p38 MAPK, and JNK1/2, participate in regulating the inflammatory reactions stimulated by proinflammatory factors, such as thrombin, cytokines, and chemokines [55,56,57]. In our recent studies, we have demonstrated that thrombin stimulates MAPK activation via PKCs and PI3K/Akt-dependent cascades, resulting in MMP-9 expression and cell migration in SK-N-SH cells [20,21]. Moreover, MAPKs have also been known to possess an important role in the regulation of the pathological processes of several CNS inflammatory disorders, such as stroke and AD [58,59,60,61]. Furthermore, several reports have shown that galangin elicits anti-inflammatory effects by inhibiting MAPK phosphorylation [62,63,64]. Galangin also attenuates airway remodeling by inhibiting transforming growth factor (TGF)-beta1-mediated reactive oxygen species (ROS) generation and MAPK/Akt phosphorylation in asthma [63]. In addition, galangin reduced phorbol-12-myristate-13-acetate (PMA)-induced MMP-9 expression by hampering NF-κB activation and JNK activation but not via inhibiting Erk1/2 or p38 MAPK activity in HT-1080 cells [29]. Moreover, the pharmacological properties of flavonoid compounds have been investigated in different types of cells. Several studies have demonstrated that flavonoids could exert an anti-cancer activity in hepatocellular carcinoma cells. For example, epigallocatechin-3-gallate (EGCG), a polyphenolic compound, has been shown to act as a potent inhibitor of the thrombin-PAR1/PAR4-p42/p44 MAPK invasive signaling axis in hepatocellular carcinoma cells [65]. In addition, flavonoid compounds including galangin have been demonstrated to exert their different anticancer effects via different intracellular signaling pathways and serve as antioxidants in various types of cells [66]. In this study, we confirmed that these MAPK-dependent signaling pathways were involved in galangin reducing the MMP-9 expression induced by thrombin in SK-N-SH cells. Our findings indicated that galangin inhibited the thrombin-stimulated phosphorylation of MAPKs to reduce MMP-9 expression in SK-N-SH cells. The differences in MAPKs between our study and others may be due to different experimental models and conditions. However, we cannot exclude the possibility of galangin being an inhibitor of MAPK catalytic activity.
Several transcription factors participate in the expression of inflammatory target genes associated with inflammation. Among these transcription factors, NF-κB, AP-1, and FoxO1 have central roles in regulating the expression of several genes, including MMP-9 associated with brain injury and inflammation during pathological events [62,67,68]. In our recent studies, we addressed that NF-κB- and AP1-dependent pathways participate in the MMP-9 expression induced by thrombin [20,21]. FoxO transcription factors have been revealed to regulate cell proliferation, apoptotic processes and cell cycle arrest. The mechanisms of thrombin-regulated smooth muscle cell proliferation are mediated via PI3K/Akt-dependent FoxO1 phosphorylation [69]. Moreover, galangin exerts its anti-inflammatory effects via the inhibition of NF-κB p65 and AP-1-dependent pathways to downregulate MMP-9 expression [29,62]. Our findings also showed that galangin inhibited the thrombin-stimulated phosphorylation of p65 and FoxO1, as well as p65 and c-Jun binding activities with the MMP-9 promoter to downregulate MMP-9 expression in SK-N-SH cells. Therefore, we confirmed that thrombin-induced MMP-9 expression was mediated via NF-κB, AP-1, and FoxO1, which were inhibited by galangin in SK-N-SH cells.
Our previous studies have shown that thrombin-induced MMP-9 expression is mediated via c-Src/Pyk2-dependent Akt and PLC/PKC-dependent signaling pathways, which stimulates MAPK-dependent activation of NF-κB and AP-1, leading to cell migration in SK-N-SH cells [20,21]. In this study, we extended the inhibitory effects of galangin on thrombin-induced MMP-9 expression and cell migration through the suppression of the activation of different protein kinases, including nRTKs, PKCs, Akt, mTOR, MAPKs, and transcription factors, such as NF-κB, AP-1, and FoxO1, in human SK-N-SH cells. Thus, the novelty of our study was more completely defining the detailed mechanisms by which galangin targeted signaling components and attenuated cell migration in a single type of human SK-N-SH cells. These results demonstrated that galangin attenuated the thrombin-induced MMP-9 expression via blocking the c-Src, Pyk2, Akt, mTOR, PKCα/βII or δ, p44/p42 MAPK, p38 MAPK, and JNK1/2-dependent NF-κB, AP-1, and FoxO1 cascade in SK-N-SH cells. In the present study, we only demonstrated that galangin had an inhibitory effect on the thrombin-stimulated phosphorylation of protein kinases and MMP-9 expression. We did not clarify the possibility of galangin directly or indirectly modulating the activities of these protein kinases. Thus, the inhibitory effects of galangin on targeting the signaling components are an important issue for further study.

4. Materials and Methods

4.1. Materials

The Dulbecco’s modified Eagle medium (DMEM)/F-12 medium, fetal bovine serum (FBS), and TRIzol were from Invitrogen (Carlsbad, CA, USA). The hybond membrane and enhanced chemiluminescence (ECL) western blotting detection system were from GE Healthcare Biosciences (Buckinghamshire, UK). The anti-phospho antibodies against p42/p44 MAPK (#9101), p38 MAPK (#9211), JNK1/2 (#4668), mTOR (#5536), Akt (#9271), c-Src (#2101), Pyk2 (#3291), PKCα/βII (#9375), PKCδ (#9374), p65 (#3031), FoxO1 (#9461), and mTOR (#2972) were from Cell Signaling (Danvers, MA, USA). The antibodies against p44 MAPK (sc-94), p42 MAPK (sc-154), p38 MAPK (sc-535), JNK1/3 (sc-474), JNK2 (sc-827), Akt (sc-8312), c-Src (sc-18), PKCα (sc-208), PKCδ (sc-213), and p65 (sc-7151) were from Santa Cruz (Santa Cruz, CA, USA). The antibody against GAPDH (#MCA-1D4) was from EnCor (Gainesville, FL, USA). The antibodies against Pyk2 (ab55358) and FoxO1A (ab52857) were from Abcam (Cambridge, MA, USA). Galangin (3,5,7-trihydroxy-2-phenyl-4H-1-benzopyran-4-one) was purchased from Cayman Chemicals (Ann Arbor, MI, USA). The thrombin, enzymes, and other chemicals were from Sigma (St. Louis, MO, USA). The SDS-PAGE reagents were from MDBio Inc (Taipei, Taiwan).

4.2. SK-N-SH Cell Cultures and Treatment

SK-N-SH cells, a human neuroblastoma cell line, were purchased from the American Type Culture Collection (Manassas, VA, USA) and cultured in DMEM/F12 supplemented with 10% FBS and antibiotics (100 U/mL penicillin G, 100 μg/mL streptomycin, and 250 ng/mL fungizone) at 37 °C in a humidified 5% CO2 atmosphere, as described previously [21]. When the cultures reached confluence (7 days), the cells were treated with 0.05% (w/v) trypsin/1 mM ethylenediaminetetraacetic acid (EDTA) for 3 min at 37°C. The cells were counted and diluted with DMEM/F12 to a final concentration of 2 × 105 cells/mL. The cells were plated onto (1 mL/well) 12-well, (2 mL/well) 6-well culture plates, and (10 mL/dish) 10-cm culture dishes for these experiments. The medium was changed every 2–3 days. The experiments were performed with cells from passages 4–9. The cells were made quiescent by incubation in serum-free DMEM/F-12 for 24 h and then incubated with thrombin for the indicated time intervals. When galangin was used, it was added 1 h prior to the application of thrombin. These cells were incubated with either DMSO or various dosages of galangin alone for 24 h or 48 h. Galangin (up to 10 μM) had no significant effect on the cell viability determined by a 2,3-bis-(2-methoxy-4-nitro-5-sulfophenyl)-2H-tetrazolium-5-carboxanilide (XTT) assay kit (Figure S1).

4.3. Preparation of Cell Extracts and Western Blot Analysis

After incubation, the cells were then rapidly washed with ice-cold phosphate-buffered saline (PBS), scraped, and collected by centrifugation at 1,000 × g for 10 min, as described previously [21]. The collected whole cells were lysed with ice-cold lysis buffer containing: 25 mM Tris-HCl, pH 7.4, 25 mM NaCl, 25 mM NaF, 25 mM sodium pyrophosphate, 1 mM sodium vanadate, 2.5 mM EDTA, 2.5 mM ethylene glycol tetraacetic acid (EGTA), 0.05% Triton X-100, 0.5% SDS, 0.5% deoxycholate, 0.5% NP-40, 5 μg/mL leupeptin, 5 μg/mL aprotinin, and 1 mM phenylmethylsulphonyl fluoride (PMSF). The lysates were centrifuged at 45,000 × g for 1 h at 4 °C to yield the whole cell extract. The protein concentration was determined by using BCA reagents according to the instructions of the manufacturer. Samples from these supernatant fractions (30 μg protein) were denatured and subjected to SDS-PAGE using a 10% running gel. The proteins were transferred to nitrocellulose membrane and incubated successively at room temperature with 5% bovine serum albumin (BSA) in Tween-Tris buffered saline [(50 mM Tris-HCl, 150 mM NaCl, 0.05% Tween 20, pH 7.4)] for 1 h. The membranes were incubated overnight at 4 °C with their respective component antibody or anti-GAPDH antibody used at a dilution of 1:1000 in Tween-Tris buffered saline. The membranes were washed with Tween-Tris buffered saline 4 times for 5 min each and incubated with a 1:2000 dilution of anti-mouse or rabbit horseradish peroxidase antibody for 1 h. Following each incubation, the membrane was washed extensively with Tween-Tris buffered saline. The immunoreactive bands were detected by ECL reagents and captured by a UVP BioSpectrum 500 Imaging System (Upland, CA, USA). The image densitometry analysis was quantified by an UN-SCAN-IT gel software (Orem, UT, USA).

4.4. MMP Gelatin Zymography

After treatment, the culture media were collected and centrifuged at 1000 × g for 10 min at 4 °C to remove the cells and debris and then were electrophoretically separated on 10% SDS-polyacrylamide gels copolymerized with 1 mg/mL gelatin (Sigma-Aldrich) under non-reducing conditions, as described previously [21]. The gels were washed twice in 2.5% Triton X-100 to remove SDS and then incubated for 72 h with a developing buffer containing 50 mM Tris base, 40 mM HCl, 200 mM NaCl, 5 mM CaCl2, and 0.02% Brij-35 at 37 °C before staining with Coomassie Blue R-250. After incubation, the gels were stained in 30% methanol, 10% acetic acid, and 0.5% w/v Coomassie brilliant blue for 1 h followed by being destained to visualize the gelatinolytic bands (MMP-2/9) on a dark blue background. Mixed human MMP-2 and MMP-9 (Chemicon, Temecula CA, USA) were used as the gelatinase standards. Because cleaved MMPs are not reliably detectable, only pro-form zymogens were quantified.

4.5. RNA Extraction and Real-Time RT-PCR Analysis

Total RNA from SK-N-SH cells treated by the indicated conditions was extracted using a TRIzol reagent according to the protocol of the manufacturer. The mRNA was reverse-transcribed into cDNA using 2 μg of total RNA and random hexamers as primers in a final volume of 20 μL (5 μg/μL random hexamers, 1 mM dNTPs, 2 U/μL RNasin, and 10 U/μL Moloney murine leukemia virus reverse transcriptase).Then, the cDNA was analyzed by real-time PCR, as described previously [21]. Real-time PCR was performed using SYBR Green PCR reagents (Applied Biosystems, Branchburg, NJ, USA) and primers specific for MMP-9 and GAPDH mRNAs. The level of MMP-9 was determined by normalizing to GAPDH expression. The primers were: MMP-9:5′-CGATGCCTGCAACGTGAAC-3′ (sense) and 5′-AGAGCCGCTCCTCAAAGACC-3′ (anti-sense); GAPDH: 5′-GCCAGCCGAGCCACAT-3′ (sense) and 5′-CTTTACCAGAGTTAAAAGCAGCCC-3′ (anti-sense).

4.6. Human MMP-9 Promoter Cloning, Transient Transfection, and Promoter Activity Assays

A 710 bp (−720 to −11) segment from the 5′-promoter region of the MMP-9 gene was cloned as previously described [70]. Briefly, a 0.71 kb segment at the 5′-flanking region of the human MMP-9 gene was amplified by PCR using specific primers from the human MMP-9 gene (accession no. D10051): 5′-ACATTTGCCCGAGCTCCTGAAG (forward/SacI) and 5′-AGGGGCTGCCAGAAGCTTATGGT (reverse/HindIII). The pGL3-Basic vector, containing a polyadenylation signal upstream from the luciferase gene, was used to construct the expression vectors by subcloning PCR-amplified DNA of the MMP-9 promoter into the SacI/HindIII site of the pGL3-Basic vector. The PCR products (pGL3-MMP-9) were confirmed by their sizes, as determined by electrophoresis, and by DNA sequencing. MMP-9-luc reporter construct plasmids were transiently transfected at a concentration of 0.8 μg/mL, and the control pGal encoding for β-galactosidase presented at 0.2 μg/mL to normalize the transfection efficiency. To assess promoter activity, the cells were collected and disrupted by sonication in lysis buffer (25 mM Tris, pH 7.8, 2 mM EDTA, 1% Triton X-100, and 10% glycerol). After centrifugation, aliquots of the supernatants were collected, and the MMP-9-luc luciferase activities were determined by using a luciferase assay system (Abcam, Cambridge, UK) according to the manufacturer’s instructions. Detected firefly luciferase activities were standardized with β-galactosidase activity.

4.7. Cell Migration Assay

When they reached confluence, the monolayer cells were manually scratched with a pipette tip to create a straight scratch wound in the center of the well with a bright and clear field (~2 mm), as described previously [21]. The detached cells were removed by washing the cells once with PBS. Serum-free DMEM/F-12 medium with or without thrombin was added to each well as indicated after pretreatment with galangin for 1 h, containing a DNA synthesis inhibitor hydroxyurea (10 μM) during the period of experiments. Images of migratory cells from the scratch boundary were observed and acquired at 0 and 48 h with a digital camera coupled with a light microscope (Olympus, Tokyo, Japan). The numbers of migratory cells were counted from the resulting 4-phase images for each point and then averaged for each experimental condition. The data presented were summarized from three separate assays.

4.8. Chromatin Immunoprecipitation Assay

To detect the in vivo association of the nuclear proteins with the human MMP-9 promoter, chromatin immunoprecipitation analysis was conducted as previously described [71]. Briefly, SK-N-SH cells were cross-linked with 1% formaldehyde for 10 min at 37 °C and washed thrice with ice-cold PBS containing 1 mM phenylmethylsulphonyl fluoride (PMSF) and 1% aprotinin. The cell lysates were prepared using a SDS-lysis buffer (1% SDS, 5mM EDTA, 1mM PMSF, 50 mM Tris-HCl) and were sonicated at 4 °C until the DNA size became 200–300 base pairs. After soluble chromatin was precleared by incubation with sheared salmon sperm DNA-protein agarose A, one portion of the sample was as DNA input control; the other supernatant was immunoprecipitated without (control) or with anti-p65, anti-c-Jun antibody, and protein A beads. After washing and elution, the precipitates were heated overnight at 65 °C to reverse the cross-linking of the DNA and proteins. The DNA fragments were purified by phenol-chloroform extraction and ethanol precipitation. The purified DNA was subjected to PCR amplification using the primers specific for the region (−666 ~ −308, Accession NO: NC000020) containing the distal AP-1 binding site (−539 to −533) and NF-κB binding site (−605 to −595) present in the MMP-9 promoter region, sense primer (NF-κB): 5′-GCTACTGTCCCCTTTACTGCCC-3′; antisense primer (NF-κB): 5’-GGGGGATGAAGCTGGAGGG-3′, sense primer (AP-1): 5′-GCTACTGTCCCCTTTACTGCCC-3′; antisense primer (AP-1): 5′-TCTTTGACTCAGCTTCCTCTCC-3′. The PCR fragments were analyzed on 3% agarose in 1× TAE gel containing ethidium bromide, and the size (340 bp of NF-κB and 139 bp of AP-1) was compared to a molecular weight marker.

5. Statistical Analysis of Data

All the data were expressed as the mean or mean ± SEM of five individual experiments performed in duplicate or triplicate. The significance of the difference between the two groups was determined by paired two-tailed Student’s t-test for western blot data. All the others statistical analyses were a comparison of multiple groups, a GraphPad Prism Program (GraphPad, San Diego, CA, USA) by one-way analysis of variance (ANOVA) followed by Tukey’s post-hoc test was used. A p < 0.05 value was considered significant.

6. Conclusions

In the central nervous system, MMP-9 is involved in numerous pathophysiological responses, such as ECM degradation, tissue remodeling, neurite outgrowth, and injury repair [44]. Moreover, upregulation of MMP-9 may be implicated in the pathological processes of brain disorders, including stroke, AD, multiple sclerosis, and malignant glioma [72]. These findings of galangin inhibiting the thrombin-induced MMP-9 expression in SK-N-SH cells indicate that galangin might be a potential candidate for the therapeutic agents of brain inflammatory and degenerative diseases. However, the limitations of this study were that there was no evidence to clarify the inhibitory effects of galangin in vivo. Moreover, the anti-inflammatory molecules induced by galagin to protect against brain inflammation are still unknown. Therefore, it is important to further explore the effect of galagin in vivo and investigate which molecules participate in its anti-inflammatory effects.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/12/4084/s1. Figure S1: Effect of galangin on SK-N-SH cell cyto-toxicity.

Author Contributions

C.-C.Y., C.-C.L., L.-D.H., and C.-M.Y. designed and conducted the study. C.-C.Y., C.-C.L., and L.-D.H. performed and collected the data. C.-C.Y., C.-C.L., L.-D.H., and C.-M.Y. analyzed and interpreted the data. C.-C.Y. and C.-M.Y. prepared the manuscript. C.-C.Y., C.-C.L., L.-D.H., and C.-M.Y. reviewed the manuscript. C.-C.Y., C.-C.L., L.-D.H., and C.-M.Y. approved the final manuscript.

Funding

This work was supported by the Ministry of Education, Taiwan [Grant numbers: EMRPD1H032 and EMRPD1H055]; the Ministry of Science and Technology, Taiwan [Grant numbers: MOST104-2320-B-182A-003-MY3, MOST105-2320-B-182-005-MY3 MOST107-2320-B-182A-011, and MOST107-2320-B-182-020-MY2]; and Chang Gung Medical Research Foundation, Taiwan [Grant numbers: CMRPD1F0022, CMRPD1F0023, CMRPD1F0551, CMRPD1F0552, CMRPG3E2232, CMRPG3F1532 CMRPG3F1533, CMRPG3H0061, and CMRPG5F0202].

Acknowledgments

We appreciated Chen-yu Wang for his suggestions and his construction of the plasmids applied in this study.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ADAlzheimer’s disease
AMPKAdenosine monophosphate-activated protein kinase
BBBBlood–brain barrier
ECLEnhanced chemiluminescence
ECMExtracellular matrix
FBSFetal bovine serum
LKB1Liver kinase B1
MMPsMatrix metalloproteinases
NF-κBNuclear factor-κB
nRTKsnon-receptor tyrosine receptor kinases
PMSFPhenylmethylsulphonyl fluoride
XTT2,3-bis-(2-methoxy-4-nitro-5-sulfophenyl)-2H-tetrazolium-5-carboxanilide

References

  1. Chapman, J. Thrombin in inflammatory brain diseases. Autoimmun. Rev. 2006, 5, 528–531. [Google Scholar] [CrossRef] [PubMed]
  2. Rosenberg, G.A. Matrix metalloproteinases in neuroinflammation. Glia 2002, 39, 279–291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Park, S.K.; Hwang, Y.S.; Park, K.K.; Park, H.J.; Seo, J.Y.; Chung, W.Y. Kalopanaxsaponin A inhibits PMA-induced invasion by reducing matrix metalloproteinase-9 via PI3K/Akt- and PKCδ-mediated signaling in MCF-7 human breast cancer cells. Carcinogenesis 2009, 30, 1225–1233. [Google Scholar] [CrossRef] [PubMed]
  4. Weiss, N.; Miller, F.; Cazaubon, S.; Couraud, P.O. The blood-brain barrier in brain homeostasis and neurological diseases. Biochim. Biophys. Acta 2009, 1788, 842–857. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Candelario-Jalil, E.; Yang, Y.; Rosenberg, G.A. Diverse roles of matrix metalloproteinases and tissue inhibitors of metalloproteinases in neuroinflammation and cerebral ischemia. Neuroscience 2009, 158, 983–994. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hu, J.; Van den Steen, P.E.; Sang, Q.X.; Opdenakker, G. Matrix metalloproteinase inhibitors as therapy for inflammatory and vascular diseases. Nat. Rev. Drug Discov. 2007, 6, 480–498. [Google Scholar] [CrossRef] [PubMed]
  7. Ramos-Fernandez, M.; Bellolio, M.F.; Stead, L.G. Matrix metalloproteinase-9 as a marker for acute ischemic stroke: A systematic review. J. Stroke Cerebrovasc. Dis. 2011, 20, 47–54. [Google Scholar] [CrossRef]
  8. Bruno, M.A.; Mufson, E.J.; Wuu, J.; Cuello, A.C. Increased matrix metalloproteinase 9 activity in mild cognitive impairment. J. Neuropathol. Exp. Neurol. 2009, 68, 1309–1318. [Google Scholar] [CrossRef]
  9. Hernandez-Guillamon, M.; Martinez-Saez, E.; Delgado, P.; Domingues-Montanari, S.; Boada, C.; Penalba, A.; Boada, M.; Pagola, J.; Maisterra, O.; Rodriguez-Luna, D.; et al. MMP-2/MMP-9 plasma level and brain expression in cerebral amyloid angiopathy-associated hemorrhagic stroke. Brain Pathol. 2012, 22, 133–141. [Google Scholar] [CrossRef]
  10. Kawakita, K.; Kawai, N.; Kuroda, Y.; Yasashita, S.; Nagao, S. Expression of matrix metalloproteinase-9 in thrombin-induced brain edema formation in rats. J. Stroke Cerebrovasc. Dis. 2006, 15, 88–95. [Google Scholar] [CrossRef]
  11. Turner, R.J.; Sharp, F.R. Implications of MMP9 for Blood Brain Barrier Disruption and Hemorrhagic Transformation Following Ischemic Stroke. Front. Cell. Neurosci. 2016, 10, 56. [Google Scholar] [CrossRef] [PubMed]
  12. Cui, J.; Chen, S.; Zhang, C.; Meng, F.; Wu, W.; Hu, R.; Hadass, O.; Lehmidi, T.; Blair, G.J.; Lee, M.; et al. Inhibition of MMP-9 by a selective gelatinase inhibitor protects neurovasculature from embolic focal cerebral ischemia. Mol. Neurodegener. 2012, 7, 21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Chaturvedi, M.; Kaczmarek, L. Mmp-9 inhibition: A therapeutic strategy in ischemic stroke. Mol. Neurobiol. 2014, 49, 563–573. [Google Scholar] [CrossRef] [PubMed]
  14. Hua, Y.; Keep, R.F.; Gu, Y.; Xi, G. Thrombin and brain recovery after intracerebral hemorrhage. Stroke 2009, 40, S88–S89. [Google Scholar] [CrossRef] [PubMed]
  15. Grammas, P.; Samany, P.G.; Thirumangalakudi, L. Thrombin and inflammatory proteins are elevated in Alzheimer’s disease microvessels: Implications for disease pathogenesis. J. Alzheimers Dis. 2006, 9, 51–58. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, B.; Friedman, B.; Whitney, M.A.; Winkle, J.A.; Lei, I.F.; Olson, E.S.; Cheng, Q.; Pereira, B.; Zhao, L.; Tsien, R.Y.; et al. Thrombin activity associated with neuronal damage during acute focal ischemia. J. Neurosci. 2012, 32, 7622–7631. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, J.; Lee, J.W.; Kim, S.I.; Choi, Y.J.; Lee, W.K.; Jeong, M.J.; Cha, S.H.; Lee, H.J.; Chun, W.; Kim, S.S. Thrombin-induced Migration and Matrix Metalloproteinase-9 Expression Are Regulated by MAPK and PI3K Pathways in C6 Glioma Cells. Korean J. Physiol. Pharmacol. 2011, 15, 211–216. [Google Scholar] [CrossRef] [PubMed]
  18. Lin, C.C.; Lee, I.T.; Chi, P.L.; Hsieh, H.L.; Cheng, S.E.; Hsiao, L.D.; Liu, C.J.; Yang, C.M. C-Src/Jak2/PDGFR/PKCδ-dependent MMP-9 induction is required for thrombin-stimulated rat brain astrocytes migration. Mol. Neurobiol. 2014, 49, 658–672. [Google Scholar] [CrossRef]
  19. Machida, T.; Takata, F.; Matsumoto, J.; Takenoshita, H.; Kimura, I.; Yamauchi, A.; Dohgu, S.; Kataoka, Y. Brain pericytes are the most thrombin-sensitive matrix metalloproteinase-9-releasing cell type constituting the blood-brain barrier in vitro. Neurosci. Lett. 2015, 599, 109–114. [Google Scholar] [CrossRef]
  20. Yang, C.C.; Hsiao, L.D.; Yang, C.M.; Lin, C.C. Thrombin Enhanced Matrix Metalloproteinase-9 Expression and Migration of SK-N-SH Cells via PAR-1, c-Src, PYK2, EGFR, Erk1/2 and AP-1. Mol. Neurobiol. 2017, 54, 3476–3491. [Google Scholar] [CrossRef]
  21. Yang, C.C.; Lin, C.C.; Chien, P.T.; Hsiao, L.D.; Yang, C.M. Thrombin/Matrix Metalloproteinase-9-Dependent SK-N-SH Cell Migration is Mediated Through a PLC/PKC/MAPKs/NF-κB Cascade. Mol. Neurobiol. 2016, 53, 5833–5846. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, X.; Gong, G.; Yang, W.; Li, Y.; Jiang, M.; Li, L. Antifibrotic activity of galangin, a novel function evaluated in animal liver fibrosis model. Environ. Toxicol. Pharmacol. 2013, 36, 288–295. [Google Scholar] [CrossRef] [PubMed]
  23. Huh, J.E.; Jung, I.T.; Choi, J.; Baek, Y.H.; Lee, J.D.; Park, D.S.; Choi, D.Y. The natural flavonoid galangin inhibits osteoclastic bone destruction and osteoclastogenesis by suppressing NF-κB in collagen-induced arthritis and bone marrow-derived macrophages. Eur. J. Pharmacol. 2013, 698, 57–66. [Google Scholar] [CrossRef] [PubMed]
  24. Zha, W.J.; Qian, Y.; Shen, Y.; Du, Q.; Chen, F.F.; Wu, Z.Z.; Li, X.; Huang, M. Galangin Abrogates Ovalbumin-Induced Airway Inflammation via Negative Regulation of NF-κB. Evid. Based Complement. Altern. Med. 2013, 2013, 767689. [Google Scholar] [CrossRef]
  25. Yang, R.; Chen, K.; Zhao, Y.; Tian, P.; Duan, F.; Sun, W.; Liu, Y.; Yan, Z.; Li, S. Analysis of Potential Amino Acid Biomarkers in Brain Tissue and the Effect of Galangin on Cerebral Ischemia. Molecules 2016, 21, 438. [Google Scholar] [CrossRef]
  26. Li, S.; Wu, C.; Zhu, L.; Gao, J.; Fang, J.; Li, D.; Fu, M.; Liang, R.; Wang, L.; Cheng, M.; et al. By improving regional cortical blood flow, attenuating mitochondrial dysfunction and sequential apoptosis galangin acts as a potential neuroprotective agent after acute ischemic stroke. Molecules 2012, 17, 13403–13423. [Google Scholar] [CrossRef] [PubMed]
  27. Wu, C.; Chen, J.; Chen, C.; Wang, W.; Wen, L.; Gao, K.; Chen, X.; Xiong, S.; Zhao, H.; Li, S. Wnt/beta-catenin coupled with HIF-1α/VEGF signaling pathways involved in galangin neurovascular unit protection from focal cerebral ischemia. Sci. Rep. 2015, 5, 16151. [Google Scholar] [CrossRef]
  28. Lei, Y.; Chen, J.; Zhang, W.; Fu, W.; Wu, G.; Wei, H.; Wang, Q.; Ruan, J. In vivo investigation on the potential of galangin, kaempferol and myricetin for protection of D-galactose-induced cognitive impairment. Food Chem. 2012, 135, 2702–2707. [Google Scholar] [CrossRef]
  29. Choi, Y.J.; Lee, Y.H.; Lee, S.T. Galangin and kaempferol suppress phorbol-12-myristate-13-acetate-induced matrix metalloproteinase-9 expression in human fibrosarcoma HT-1080 cells. Mol. Cells 2015, 38, 151–155. [Google Scholar] [CrossRef]
  30. Liu, L.; Ma, H.; Yang, N.; Tang, Y.; Guo, J.; Tao, W.; Duan, J. A series of natural flavonoids as thrombin inhibitors: Structure-activity relationships. Thromb. Res. 2010, 126, e365–e378. [Google Scholar] [CrossRef]
  31. Lee, H.S.; Moon, C.; Lee, H.W.; Park, E.M.; Cho, M.S.; Kang, J.L. Src tyrosine kinases mediate activations of NF-κB and integrin signal during lipopolysaccharide-induced acute lung injury. J. Immunol. 2007, 179, 7001–7011. [Google Scholar] [CrossRef] [PubMed]
  32. Revuelta-Lopez, E.; Castellano, J.; Roura, S.; Galvez-Monton, C.; Nasarre, L.; Benitez, S.; Bayes-Genis, A.; Badimon, L.; Llorente-Cortes, V. Hypoxia induces metalloproteinase-9 activation and human vascular smooth muscle cell migration through low-density lipoprotein receptor-related protein 1-mediated Pyk2 phosphorylation. Arterioscler. Thromb. Vasc. Biol. 2013, 33, 2877–2887. [Google Scholar] [CrossRef]
  33. Halder, K.; Banerjee, S.; Ghosh, S.; Bose, A.; Das, S.; Chowdhury, B.P.; Majumdar, S. Mycobacterium indicus pranii (Mw) inhibits invasion by reducing matrix metalloproteinase (MMP-9) via AKT/ERK-1/2 and PKCα signalling: A potential candidate in melanoma cancer therapy. Cancer Biol. Ther. 2015, 18, 850–862. [Google Scholar] [CrossRef]
  34. Noh, E.M.; Lee, Y.R.; Hong, O.Y.; Jung, S.H.; Youn, H.J.; Kim, J.S. Aurora kinases are essential for PKC-induced invasion and matrix metalloproteinase-9 expression in MCF-7 breast cancer cells. Oncol. Rep. 2015, 34, 803–810. [Google Scholar] [CrossRef]
  35. Baek, S.H.; Ko, J.H.; Lee, J.H.; Kim, C.; Lee, H.; Nam, D.; Lee, J.; Lee, S.G.; Yang, W.M.; Um, J.Y.; et al. Ginkgolic Acid Inhibits Invasion and Migration and TGF-β-Induced EMT of Lung Cancer Cells Through PI3K/Akt/mTOR Inactivation. J. Cell. Physiol. 2017, 232, 346–354. [Google Scholar] [CrossRef] [PubMed]
  36. Caporali, S.; Alvino, E.; Lacal, P.M.; Levati, L.; Giurato, G.; Memoli, D.; Caprini, E.; Antonini Cappellini, G.C.; D’Atri, S. Targeting the PI3K/AKT/mTOR pathway overcomes the stimulating effect of dabrafenib on the invasive behavior of melanoma cells with acquired resistance to the BRAF inhibitor. Int. J. Oncol. 2016, 49, 1164–1174. [Google Scholar] [CrossRef] [PubMed]
  37. Park, J.H.; Cho, Y.Y.; Yoon, S.W.; Park, B. Suppression of MMP-9 and FAK expression by pomolic acid via blocking of NF-κB/ERK/mTOR signaling pathways in growth factor-stimulated human breast cancer cells. Int. J. Oncol. 2016, 49, 1230–1240. [Google Scholar] [CrossRef] [PubMed]
  38. Chung, T.W.; Choi, H.; Lee, J.M.; Ha, S.H.; Kwak, C.H.; Abekura, F.; Park, J.Y.; Chang, Y.C.; Ha, K.T.; Cho, S.H.; et al. Oldenlandia diffusa suppresses metastatic potential through inhibiting matrix metalloproteinase-9 and intercellular adhesion molecule-1 expression via p38 and ERK1/2 MAPK pathways and induces apoptosis in human breast cancer MCF-7 cells. J. Ethnopharmacol. 2017, 195, 309–317. [Google Scholar] [CrossRef] [PubMed]
  39. Obradovic, H.; Krstic, J.; Kukolj, T.; Trivanovic, D. Doxycycline Inhibits IL-17-Stimulated MMP-9 Expression by Downregulating ERK1/2 Activation: Implications in Myogenic Differentiation. Mediat. Inflamm. 2016, 2016, 2939658. [Google Scholar] [CrossRef] [PubMed]
  40. Ho, H.Y.; Lin, C.W.; Chien, M.H.; Reiter, R.J.; Su, S.C.; Hsieh, Y.H.; Yang, S.F. Melatonin suppresses TPA-induced metastasis by downregulating matrix metalloproteinase-9 expression through JNK/SP-1 signaling in nasopharyngeal carcinoma. J. Pineal Res. 2016, 61, 479–492. [Google Scholar] [CrossRef]
  41. Huang, H.; Du, T.; Xu, G.; Lai, Y.; Fan, X.; Chen, X.; Li, W.; Yue, F.; Li, Q.; Liu, L.; et al. Matrine suppresses invasion of castration-resistant prostate cancer cells by downregulating MMP-2/9 via NF-κB signaling pathway. Int. J. Oncol. 2017, 50, 640–648. [Google Scholar] [CrossRef] [PubMed]
  42. Luo, K.W.; Wei, C.; Lung, W.Y.; Wei, X.Y.; Cheng, B.H.; Cai, Z.M.; Huang, W.R. EGCG inhibited bladder cancer SW780 cell proliferation and migration both in vitro and in vivo via down-regulation of NF-κB and MMP-9. J. Nutr. Biochem. 2016, 41, 56–64. [Google Scholar] [CrossRef] [PubMed]
  43. Liu, S.; Wang, J.; Guo, C.; Qi, H.; Sun, M.Z. Annexin A11 knockdown inhibits in vitro proliferation and enhances survival of Hca-F cell via Akt2/FoxO1 pathway and MMP-9 expression. Biomed. Pharmacother. 2015, 70, 58–63. [Google Scholar] [CrossRef] [PubMed]
  44. Yong, V.W.; Power, C.; Forsyth, P.; Edwards, D.R. Metalloproteinases in biology and pathology of the nervous system. Nat. Rev. Neurosci. 2001, 2, 502–511. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, X.X.; Tan, M.S.; Yu, J.T.; Tan, L. Matrix metalloproteinases and their multiple roles in Alzheimer’s disease. BioMed Res. Int. 2014, 2014, 908636. [Google Scholar] [CrossRef] [PubMed]
  46. Rohatgi, T.; Sedehizade, F.; Reymann, K.G.; Reiser, G. Protease-activated receptors in neuronal development, neurodegeneration, and neuroprotection: Thrombin as signaling molecule in the brain. Neuroscientist 2004, 10, 501–512. [Google Scholar] [CrossRef] [PubMed]
  47. Ende, C.; Gebhardt, R. Inhibition of matrix metalloproteinase-2 and -9 activities by selected flavonoids. Planta Med. 2004, 70, 1006–1008. [Google Scholar] [CrossRef]
  48. Hashemi, M.; Behrangi, N.; Borna, H.; Entezari, M. Protein tyrosine kinase (PTK) as a novel target for some natural anti-cancer molecules extracted from plants. J. Med. Plants Res. 2012, 6, 4375–4378. [Google Scholar]
  49. Chien, S.T.; Shi, M.D.; Lee, Y.C.; Te, C.C.; Shih, Y.W. Galangin, a novel dietary flavonoid, attenuates metastatic feature via PKC/ERK signaling pathway in TPA-treated liver cancer HepG2 cells. Cancer Cell Int. 2015, 15, 15. [Google Scholar] [CrossRef]
  50. Parrales, A.; Lopez, E.; Lee-Rivera, I.; Lopez-Colome, A.M. ERK1/2-dependent activation of mTOR/mTORC1/p70S6K regulates thrombin-induced RPE cell proliferation. Cell. Signal. 2013, 25, 829–838. [Google Scholar] [CrossRef]
  51. Cao, H.; Dronadula, N.; Rao, G.N. Thrombin induces expression of FGF-2 via activation of PI3K-Akt-Fra-1 signaling axis leading to DNA synthesis and motility in vascular smooth muscle cells. Am. J. Physiol. Cell Physiol. 2006, 290, C172–C182. [Google Scholar] [CrossRef] [PubMed]
  52. Zhang, H.; Li, N.; Wu, J.; Su, L.; Chen, X.; Lin, B.; Luo, H. Galangin inhibits proliferation of HepG2 cells by activating AMPK via increasing the AMP/TAN ratio in a LKB1-independent manner. Eur. J. Pharmacol. 2013, 718, 235–244. [Google Scholar] [CrossRef] [PubMed]
  53. Lee, C.; Lin, M.; Meng, M.; Chen, S. Galangin-induced cell arrest and apoptosis of nasopharyngeal carcinoma cells through suppression of PI3K/Akt signaling pathway. FASEB J. 2016, 30. [Google Scholar] [CrossRef]
  54. Yang, Z.; Li, X.; Han, W.; Lu, X.; Jin, S.; Yang, W.; Li, J.; He, W.; Qian, Y. Galangin suppresses human osteosarcoma cells: An exploration of its underlying mechanism. Oncol. Rep. 2017, 37, 435–441. [Google Scholar] [CrossRef] [PubMed]
  55. Lin, C.C.; Lee, I.T.; Wu, W.B.; Liu, C.J.; Hsieh, H.L.; Hsiao, L.D.; Yang, C.C.; Yang, C.M. Thrombin mediates migration of rat brain astrocytes via PLC, Ca2+, CaMKII, PKCα, and AP-1-dependent matrix metalloproteinase-9 expression. Mol. Neurobiol. 2013, 48, 616–630. [Google Scholar] [CrossRef] [PubMed]
  56. Brinson, C.W.; Lu, Z.; Li, Y.; Lopes-Virella, M.F.; Huang, Y. Lipopolysaccharide and IL-1β coordinate a synergy on cytokine production by upregulating MyD88 expression in human gingival fibroblasts. Mol. Immunol. 2016, 79, 47–54. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Guo, C.; Yang, X.G.; Wang, F.; Ma, X.Y. IL-1α induces apoptosis and inhibits the osteoblast differentiation of MC3T3-E1 cells through the JNK and p38 MAPK pathways. Int. J. Mol. Med. 2016, 38, 319–327. [Google Scholar] [CrossRef] [PubMed]
  58. Cao, G.; Jiang, N.; Hu, Y.; Zhang, Y.; Wang, G.; Yin, M.; Ma, X.; Zhou, K.; Qi, J.; Yu, B.; et al. Ruscogenin Attenuates Cerebral Ischemia-Induced Blood-Brain Barrier Dysfunction by Suppressing TXNIP/NLRP3 Inflammasome Activation and the MAPK Pathway. Int. J. Mol. Sci. 2016, 17, 1418. [Google Scholar] [CrossRef] [PubMed]
  59. Lehotsky, J.; Tothova, B.; Kovalska, M.; Dobrota, D.; Benova, A.; Kalenska, D.; Kaplan, P. Role of Homocysteine in the Ischemic Stroke and Development of Ischemic Tolerance. Front. Neurosci. 2016, 10, 538. [Google Scholar] [CrossRef] [PubMed]
  60. Zhao, B.; Pan, Y.; Wang, Z.; Xu, H.; Song, X. Hyperbaric Oxygen Pretreatment Improves Cognition and Reduces Hippocampal Damage Via p38 Mitogen-Activated Protein Kinase in a Rat Model. Alzheimers Res. Ther. 2017, 58, 131–138. [Google Scholar] [CrossRef]
  61. Maphis, N.; Jiang, S.; Xu, G.; Kokiko-Cochran, O.N.; Roy, S.M.; Van Eldik, L.J.; Watterson, D.M.; Lamb, B.T.; Bhaskar, K. Selective suppression of the alpha isoform of p38 MAPK rescues late-stage tau pathology. Alzheimers Res. Ther. 2016, 8, 54. [Google Scholar] [CrossRef] [PubMed]
  62. Jung, Y.C.; Kim, M.E.; Yoon, J.H.; Park, P.R.; Youn, H.Y.; Lee, H.W.; Lee, J.S. Anti-inflammatory effects of galangin on lipopolysaccharide-activated macrophages via ERK and NF-κB pathway regulation. Immunopharmacol. Immunotoxicol. 2014, 36, 426–432. [Google Scholar] [CrossRef] [PubMed]
  63. Liu, Y.N.; Zha, W.J.; Ma, Y.; Chen, F.F.; Zhu, W.; Ge, A.; Zeng, X.N.; Huang, M. Galangin attenuates airway remodelling by inhibiting TGF-β1-mediated ROS generation and MAPK/Akt phosphorylation in asthma. Sci. Rep. 2015, 5, 11758. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Choi, J.K.; Kim, S.H. Inhibitory effect of galangin on atopic dermatitis-like skin lesions. Food Chem. Toxicol. 2014, 68, 135–141. [Google Scholar] [CrossRef] [PubMed]
  65. Kaufmann, R.; Henklein, P.; Henklein, P.; Settmacher, U. Green tea polyphenol epigallocatechin-3-gallate inhibits thrombin-induced hepatocellular carcinoma cell invasion and p42/p44-MAPKinase activation. Oncol. Rep. 2009, 21, 1261–1267. [Google Scholar] [CrossRef] [PubMed]
  66. Liao, C.Y.; Lee, C.C.; Tsai, C.C.; Hsueh, C.W.; Wang, C.C.; Chen, I.H.; Tsai, M.K.; Liu, M.Y.; Hsieh, A.T.; Su, K.J.; et al. Novel investigations of flavonoids as chemopreventive agents for hepatocellular carcinoma. BioMed Res. Int. 2015, 2015, 840542. [Google Scholar] [CrossRef]
  67. Wu, C.Y.; Hsieh, H.L.; Sun, C.C.; Yang, C.M. IL-1β induces MMP-9 expression via a Ca2+-dependent CaMKII/JNK/c-JUN cascade in rat brain astrocytes. Glia 2009, 57, 1775–1789. [Google Scholar] [CrossRef]
  68. Li, Z.; He, Q.; Zhai, X.; You, Y.; Li, L.; Hou, Y.; He, F.; Zhao, Y.; Zhao, J. Foxo1-mediated inflammatory response after cerebral hemorrhage in rats. Neurosci. Lett. 2016, 629, 131–136. [Google Scholar] [CrossRef]
  69. Mahajan, S.G.; Fender, A.C.; Meyer-Kirchrath, J.; Kurt, M.; Barth, M.; Sagban, T.A.; Fischer, J.W.; Schror, K.; Hohlfeld, T.; Rauch, B.H. A novel function of FoxO transcription factors in thrombin-stimulated vascular smooth muscle cell proliferation. Thromb. Haemost. 2012, 108, 148–158. [Google Scholar] [CrossRef]
  70. Moon, S.K.; Cha, B.Y.; Kim, C.H. ERK1/2 mediates TNF-α-induced matrix metalloproteinase-9 expression in human vascular smooth muscle cells via the regulation of NF-κB and AP-1: Involvement of the ras dependent pathway. J. Cell. Physiol. 2004, 198, 417–427. [Google Scholar] [CrossRef]
  71. Hsieh, H.L.; Wu, C.Y.; Yang, C.M. Bradykinin induces matrix metalloproteinase-9 expression and cell migration through a PKC-δ-dependent ERK/Elk-1 pathway in astrocytes. Glia 2008, 56, 619–632. [Google Scholar] [CrossRef] [PubMed]
  72. Ding, M.; Huang, C.; Lu, Y.; Bowman, L.; Castranova, V.; Vallyathan, V. Involvement of protein kinase C in crystalline silica-induced activation of the MAP kinase and AP-1 pathway. Am. J. Physiol. Lung Cell. Mol. Physiol. 2006, 290, L291–L297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 19 04084 g001 550

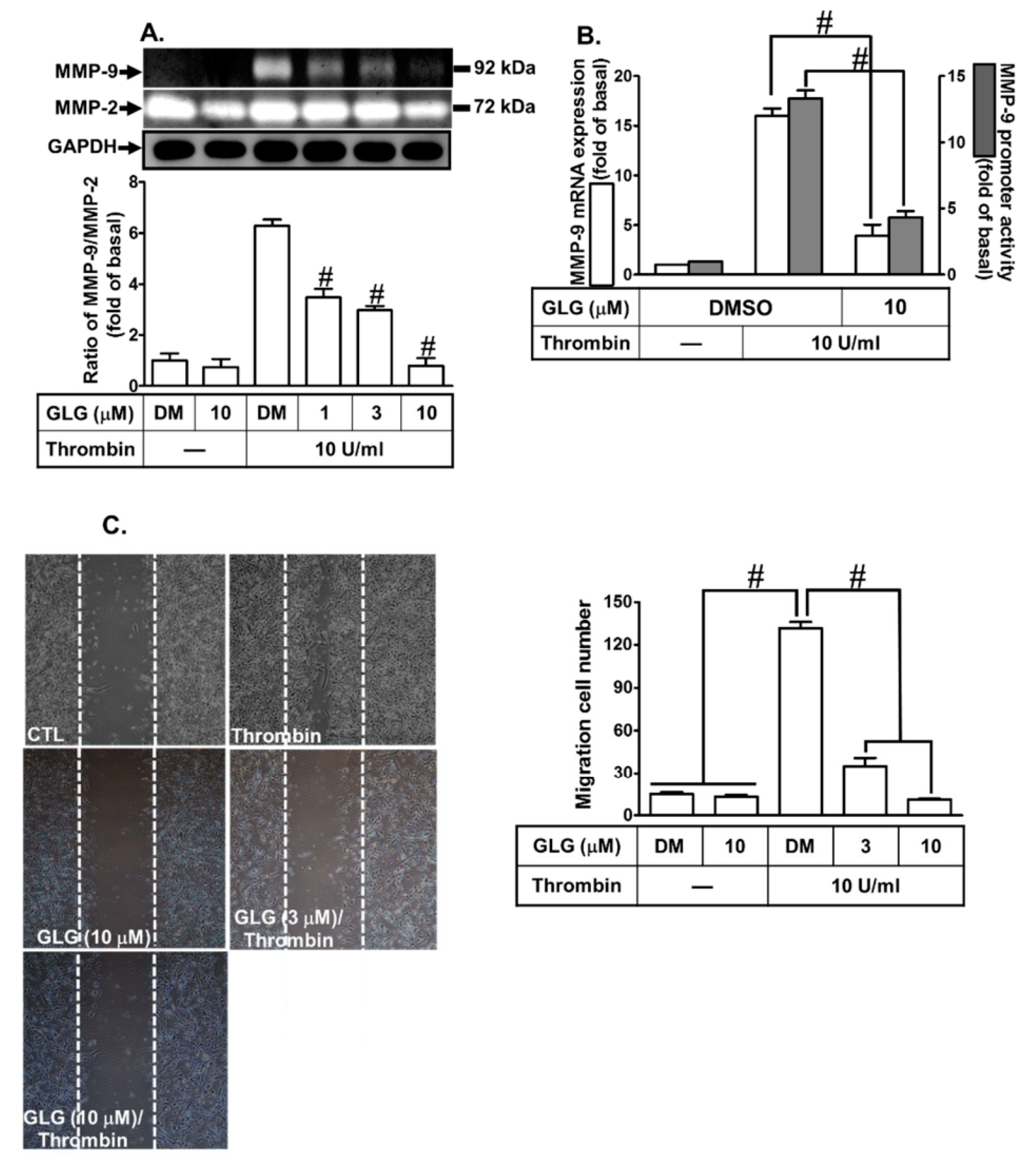

Figure 1. Galangin (GLG) reduces thrombin-induced pro-form (pro) MMP-9 expression and cell migration in SK-N-SH cells. (A) The cells were pretreated with galangin (1, 3, 10 μM) for 1 h and then incubated with 10 U/mL thrombin for 16 h. The conditioned cell culture media were collected to measure the MMP-9 expression by gelatin zymography. The activity of proMMP-9 was normalized to that of MMP-2. The cell lysates were analyzed by western blot to determine the expression of glyceraldehyde-3-phosphate dehydrogenase (GAPDH), serving as the marker for the cell viability during these treatments. (B) The cells were pretreated with galangin (10 μM) for 1 h and then incubated with 10 U/mL thrombin for 16 h (mRNA expression) or 24 h (promoter activity). The mRNA expression and promoter activity of MMP-9 were determined by real-time PCR and promoter assay, respectively. (C) The cells were plated on 6-well culture plates, grown to confluence, and then starved with serum-free medium for 24 h. At that point, the cells were pretreated with galangin (3 or 10 μM) for 1 h and then incubated with thrombin for 48 h. Images of the migratory cells were taken at the indicated conditions. The data are expressed as mean ± SEM of three independent experiments. # p < 0.01, as compared with the cells exposed to thrombin alone. −: no treatment with Thrombin; DM: DMSO (dimethyl sulfoxide).
Figure 1. Galangin (GLG) reduces thrombin-induced pro-form (pro) MMP-9 expression and cell migration in SK-N-SH cells. (A) The cells were pretreated with galangin (1, 3, 10 μM) for 1 h and then incubated with 10 U/mL thrombin for 16 h. The conditioned cell culture media were collected to measure the MMP-9 expression by gelatin zymography. The activity of proMMP-9 was normalized to that of MMP-2. The cell lysates were analyzed by western blot to determine the expression of glyceraldehyde-3-phosphate dehydrogenase (GAPDH), serving as the marker for the cell viability during these treatments. (B) The cells were pretreated with galangin (10 μM) for 1 h and then incubated with 10 U/mL thrombin for 16 h (mRNA expression) or 24 h (promoter activity). The mRNA expression and promoter activity of MMP-9 were determined by real-time PCR and promoter assay, respectively. (C) The cells were plated on 6-well culture plates, grown to confluence, and then starved with serum-free medium for 24 h. At that point, the cells were pretreated with galangin (3 or 10 μM) for 1 h and then incubated with thrombin for 48 h. Images of the migratory cells were taken at the indicated conditions. The data are expressed as mean ± SEM of three independent experiments. # p < 0.01, as compared with the cells exposed to thrombin alone. −: no treatment with Thrombin; DM: DMSO (dimethyl sulfoxide).
Ijms 19 04084 g001
Ijms 19 04084 g002 550

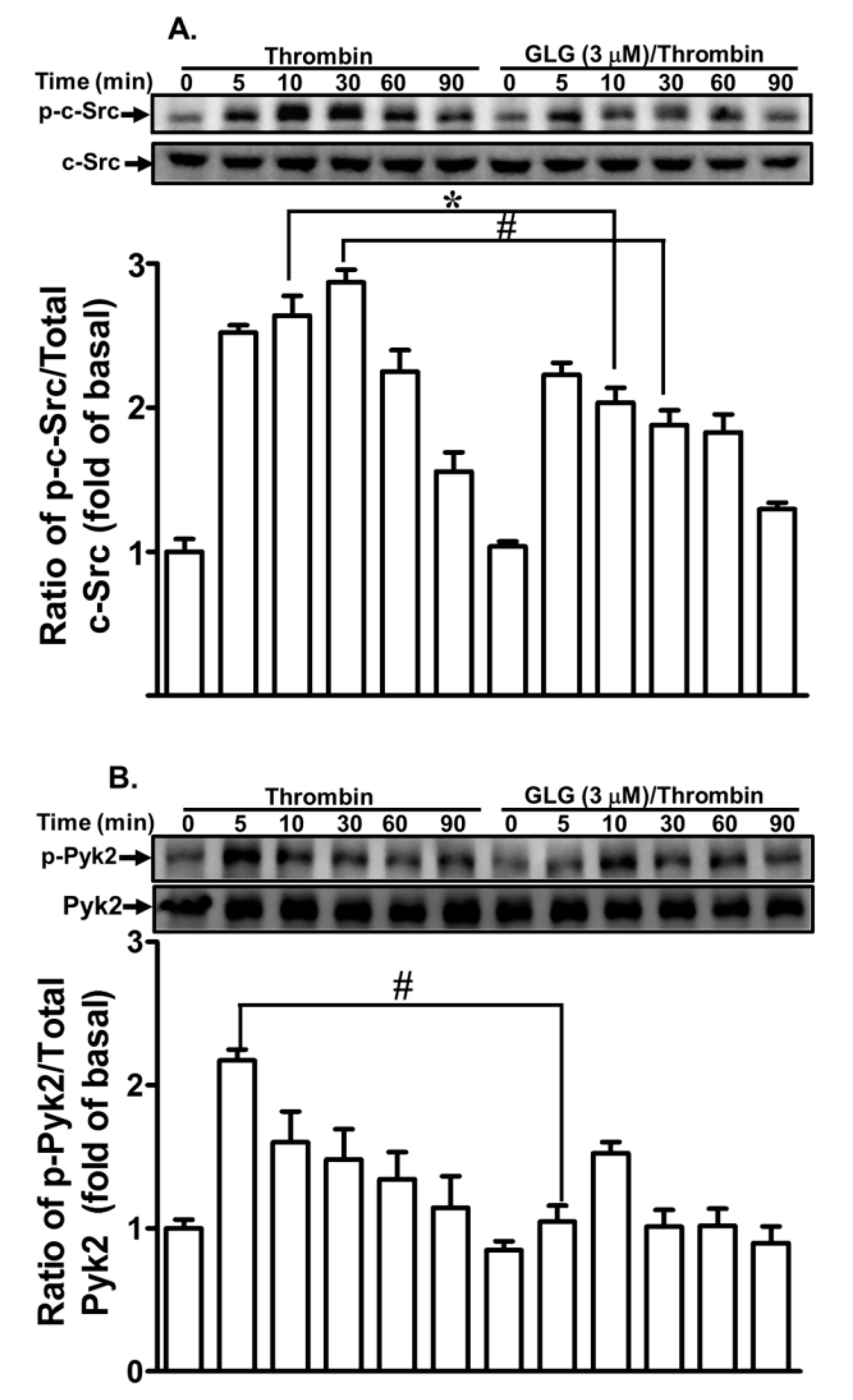

Figure 2. Galangin inhibits the thrombin-induced phosphorylation of proto-oncogene tyrosine-protein kinase (c-Src), proline-rich tyrosine kinase 2 (Pyk2). The cells were pretreated with galangin (3 μM) for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) c-Src and (B) Pyk2 phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Figure 2. Galangin inhibits the thrombin-induced phosphorylation of proto-oncogene tyrosine-protein kinase (c-Src), proline-rich tyrosine kinase 2 (Pyk2). The cells were pretreated with galangin (3 μM) for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) c-Src and (B) Pyk2 phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Ijms 19 04084 g002
Ijms 19 04084 g003 550

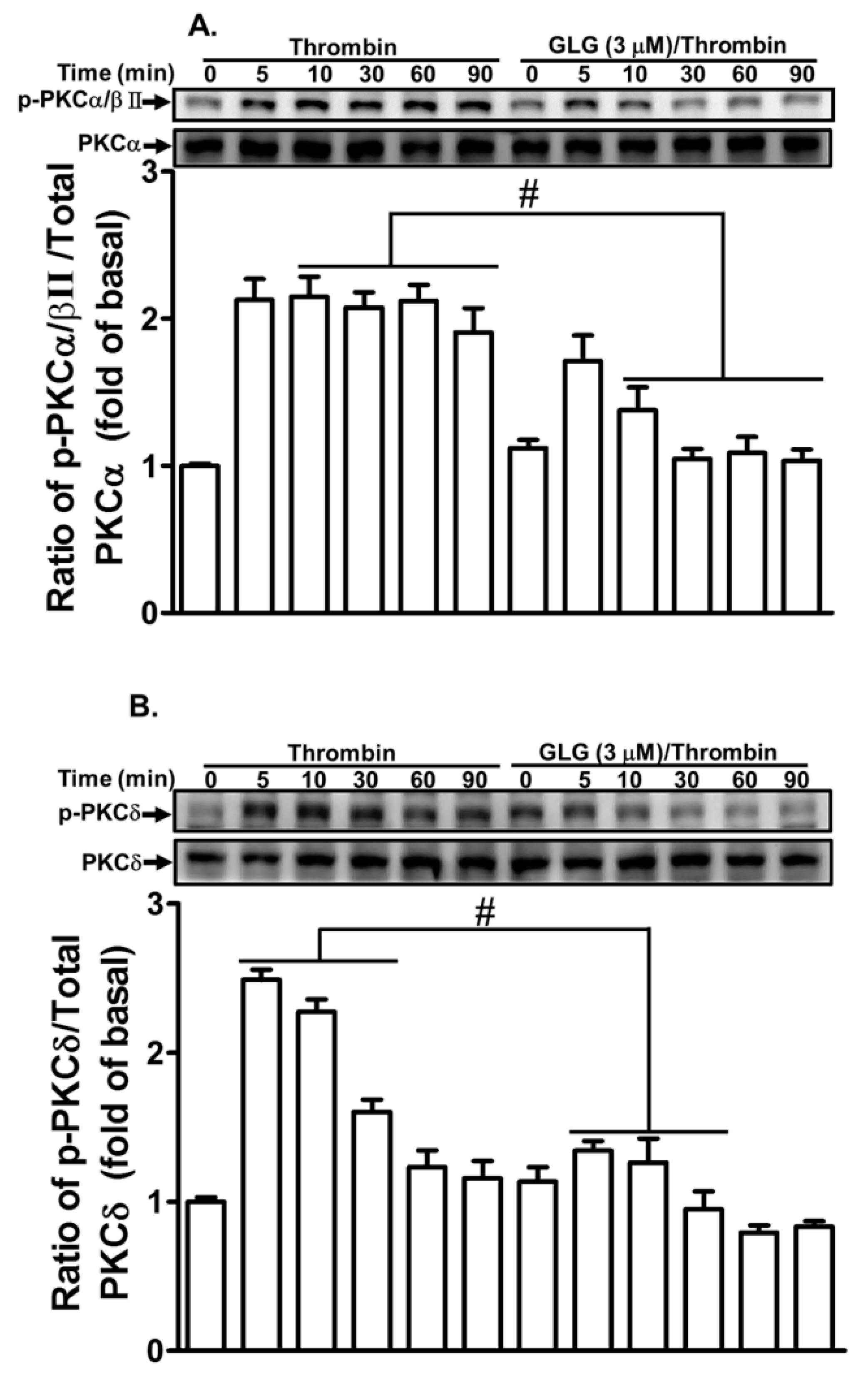

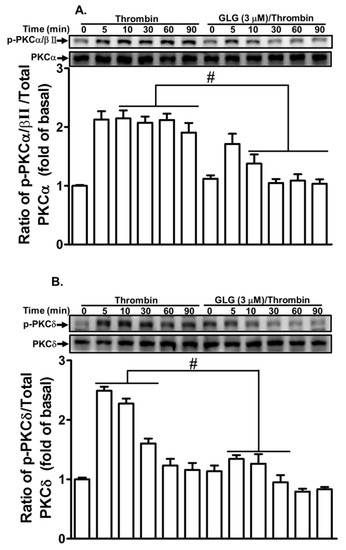

Figure 3. Galangin inhibits thrombin-induced phosphorylation of protein kinase C (PKC)α/βII and δ. The cells were pretreated with galangin (3 μM) for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) PKCα/βII and (B) PKCδ phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Figure 3. Galangin inhibits thrombin-induced phosphorylation of protein kinase C (PKC)α/βII and δ. The cells were pretreated with galangin (3 μM) for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) PKCα/βII and (B) PKCδ phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Ijms 19 04084 g003
Ijms 19 04084 g004 550

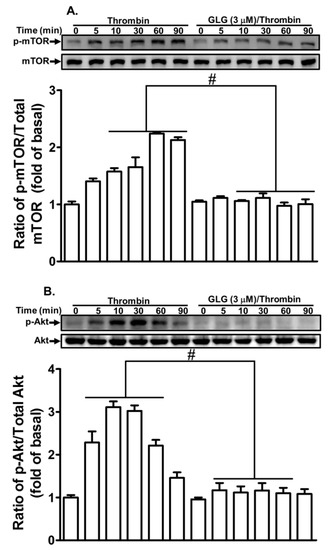

Figure 4. Galangin inhibits thrombin-induced phosphorylation of Akt and mammalian target of rapamycin (mTOR). The cells were pretreated with galangin (3 μM) for 1 h and then challenged with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) mTOR and (B) Akt phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Figure 4. Galangin inhibits thrombin-induced phosphorylation of Akt and mammalian target of rapamycin (mTOR). The cells were pretreated with galangin (3 μM) for 1 h and then challenged with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) mTOR and (B) Akt phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Ijms 19 04084 g004
Ijms 19 04084 g005 550

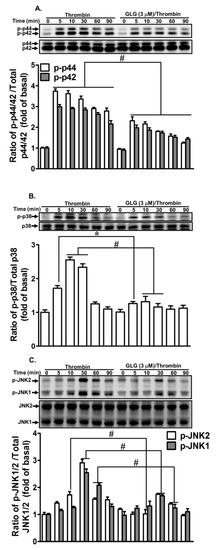

Figure 5. Galangin inhibits thrombin-induced phosphorylation of p42/p44 mitogen-activated protein kinase (MAPK), p38 MAPK, and Jun amino-terminal kinases (JNK)1/2. The cells were pretreated with galangin (3 μM) for 1 h and then challenged with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) p42/p44 MAPK, (B) p38 MAPK, and (C) JNK1/2 phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Figure 5. Galangin inhibits thrombin-induced phosphorylation of p42/p44 mitogen-activated protein kinase (MAPK), p38 MAPK, and Jun amino-terminal kinases (JNK)1/2. The cells were pretreated with galangin (3 μM) for 1 h and then challenged with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) p42/p44 MAPK, (B) p38 MAPK, and (C) JNK1/2 phosphorylation and their respective protein levels were determined by western blot. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Ijms 19 04084 g005
Ijms 19 04084 g006 550

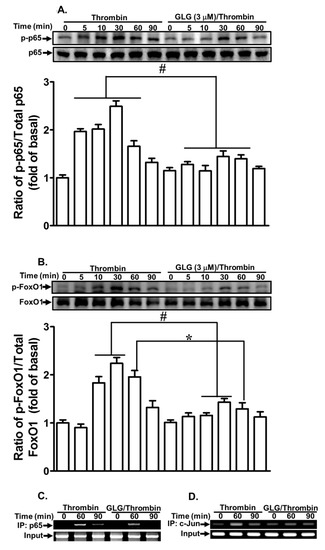

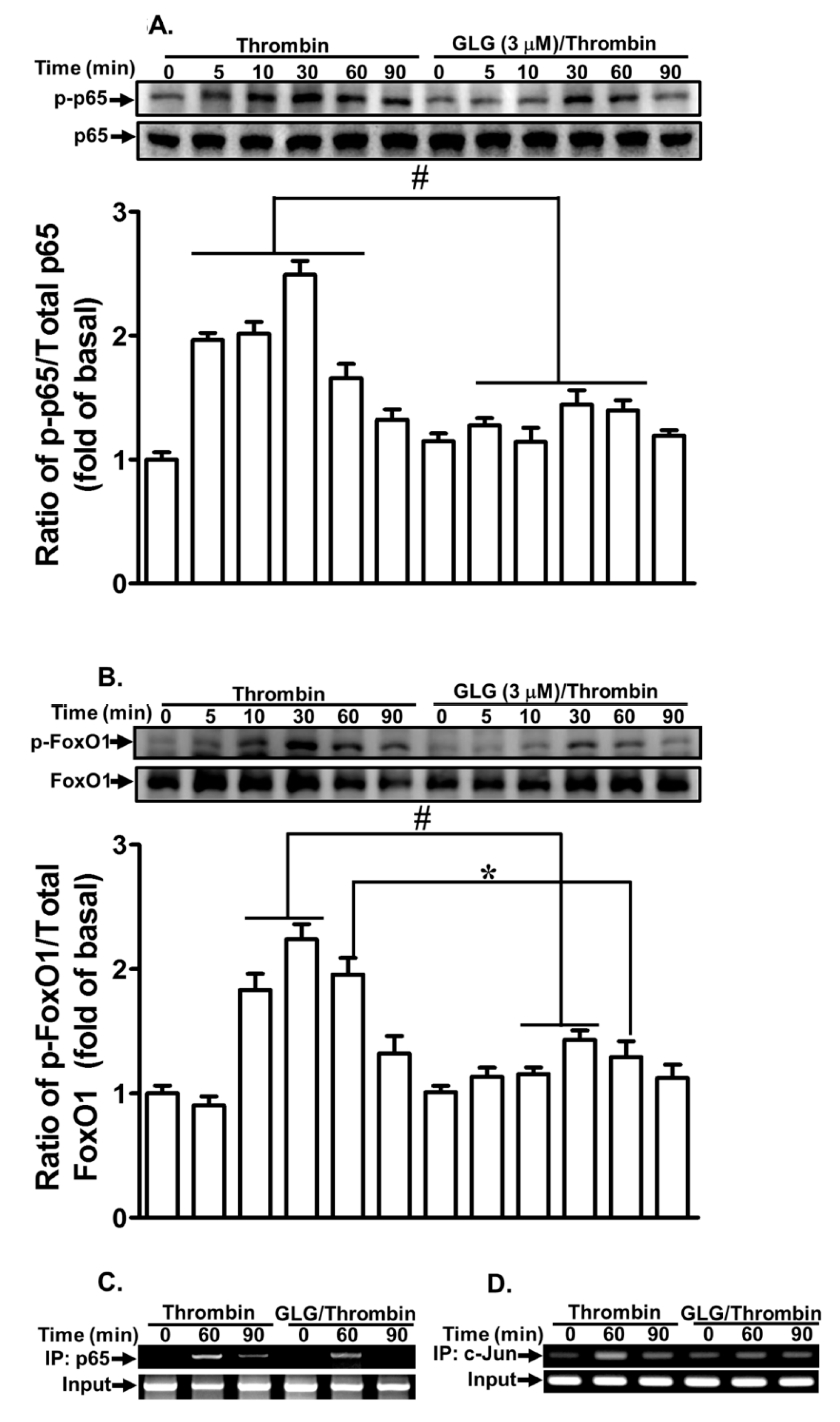

Figure 6. Galangin reduces thrombin-induced proMMP-9 expression via inhibiting nuclear factor-kappaB (NF-κB), activator protein 1 (AP-1), and forkhead box protein O1 (FoxO1). The cells were pretreated with galangin (3 μM) for 1 h and then challenged with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) p65 and (B) FoxO1 phosphorylation and their respective protein levels were determined by western blot. (C, D) The cells were pretreated with/without galangin (3 μM) for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals, chromatin immunoprecipitation (ChIP) assay was performed by using the antibodies-p65 (C) and c-Jun (D), respectively. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Figure 6. Galangin reduces thrombin-induced proMMP-9 expression via inhibiting nuclear factor-kappaB (NF-κB), activator protein 1 (AP-1), and forkhead box protein O1 (FoxO1). The cells were pretreated with galangin (3 μM) for 1 h and then challenged with thrombin (10 U/mL) for the indicated time intervals. The levels of (A) p65 and (B) FoxO1 phosphorylation and their respective protein levels were determined by western blot. (C, D) The cells were pretreated with/without galangin (3 μM) for 1 h and then incubated with thrombin (10 U/mL) for the indicated time intervals, chromatin immunoprecipitation (ChIP) assay was performed by using the antibodies-p65 (C) and c-Jun (D), respectively. The data are expressed as mean ± SEM of three independent experiments. * p < 0.05; # p < 0.01, as compared with the cells exposed to thrombin alone.
Ijms 19 04084 g006
Ijms 19 04084 g007 550

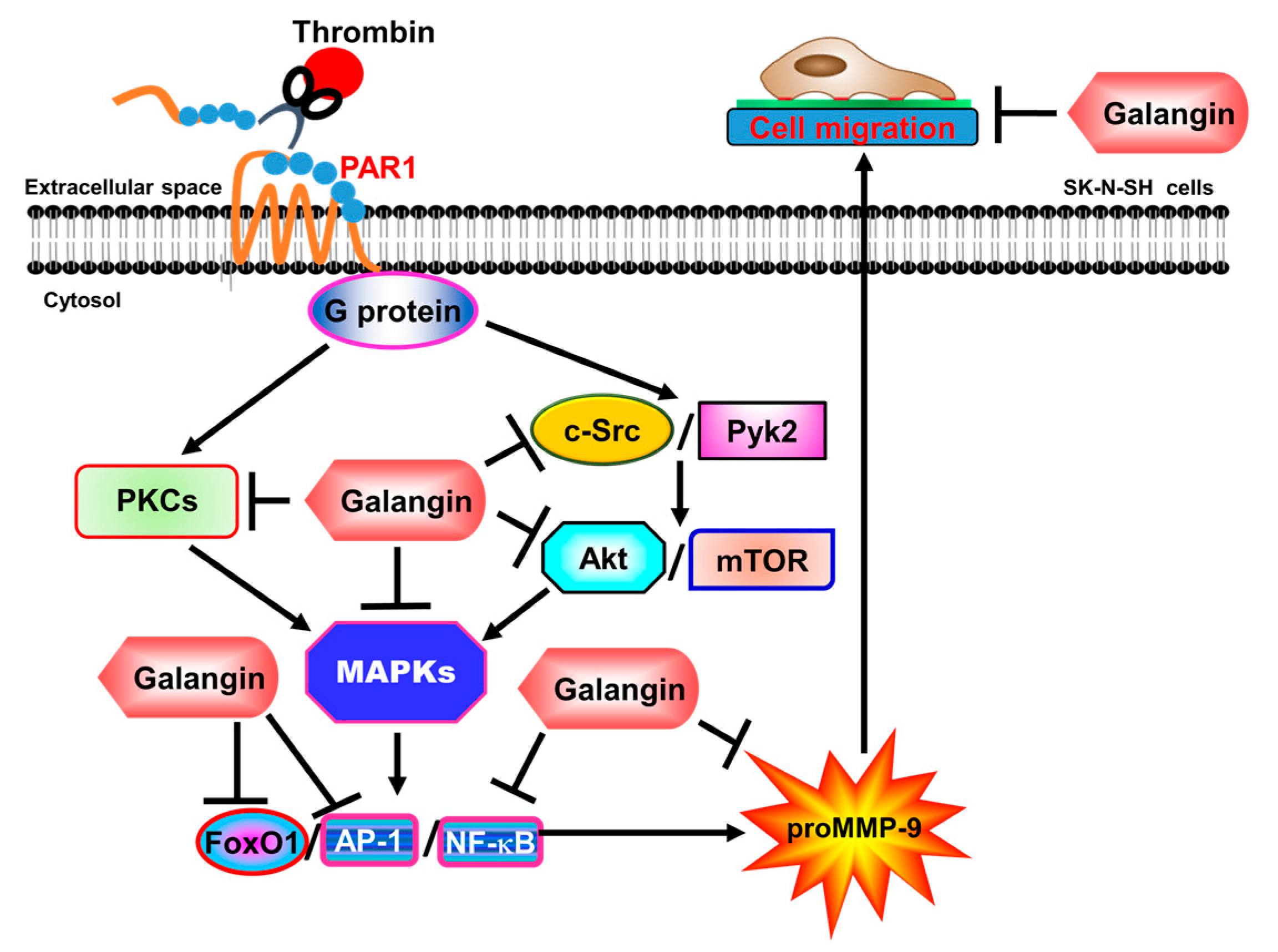

Figure 7. The schematic signaling pathways involved in galangin inhibiting the MMP-9 expression in SK-N-SH cells challenged with thrombin. Galangin inhibits MMP-9 expression by attenuating c-Src, Pyk2, PKCα/β/δ, Akt, mTOR, p42/p44 MAPK, p38 MAPK, and JNK1/2 phosphorylation to decrease NF-κB, AP-1, and FoxO1 activation and ultimately reduces SK-N-SH cell migration.
Figure 7. The schematic signaling pathways involved in galangin inhibiting the MMP-9 expression in SK-N-SH cells challenged with thrombin. Galangin inhibits MMP-9 expression by attenuating c-Src, Pyk2, PKCα/β/δ, Akt, mTOR, p42/p44 MAPK, p38 MAPK, and JNK1/2 phosphorylation to decrease NF-κB, AP-1, and FoxO1 activation and ultimately reduces SK-N-SH cell migration.
Ijms 19 04084 g007

Share and Cite

MDPI and ACS Style

Yang, C.-C.; Lin, C.-C.; Hsiao, L.-D.; Yang, C.-M. Galangin Inhibits Thrombin-Induced MMP-9 Expression in SK-N-SH Cells via Protein Kinase-Dependent NF-κB Phosphorylation. Int. J. Mol. Sci. 2018, 19, 4084. https://doi.org/10.3390/ijms19124084

AMA Style

Yang C-C, Lin C-C, Hsiao L-D, Yang C-M. Galangin Inhibits Thrombin-Induced MMP-9 Expression in SK-N-SH Cells via Protein Kinase-Dependent NF-κB Phosphorylation. International Journal of Molecular Sciences. 2018; 19(12):4084. https://doi.org/10.3390/ijms19124084

Chicago/Turabian Style

Yang, Chien-Chung, Chih-Chung Lin, Li-Der Hsiao, and Chuen-Mao Yang. 2018. "Galangin Inhibits Thrombin-Induced MMP-9 Expression in SK-N-SH Cells via Protein Kinase-Dependent NF-κB Phosphorylation" International Journal of Molecular Sciences 19, no. 12: 4084. https://doi.org/10.3390/ijms19124084

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
