Article

Preparation of Fish Skin Gelatin-Based Nanofibers Incorporating Cinnamaldehyde by Solution Blow Spinning

1
State Key Laboratory of Food Science and Technology, Jiangnan University, Wuxi 214122, China
2
School of Food Science and Technology, Jiangnan University, Wuxi 214122, China
3
Department of Food Engineering, Ondokuz Mayis University, Samsun 55139, Turkey
4
Western Regional Research Center, ARS, U.S. Department of Agriculture, Albany, CA 94710, USA
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2018, 19(2), 618; https://doi.org/10.3390/ijms19020618
Submission received: 23 January 2018 / Revised: 12 February 2018 / Accepted: 13 February 2018 / Published: 22 February 2018

Abstract

:
Cinnamaldehyde, a natural preservative that can non-specifically deactivate foodborne pathogens, was successfully incorporated into fish skin gelatin (FSG) solutions and blow spun into uniform nanofibers. The effects of cinnamaldehyde ratios (5–30%, w/w FSG) on physicochemical properties of fiber-forming emulsions (FFEs) and their nanofibers were investigated. Higher ratios resulted in higher values in particle size and viscosity of FFEs, as well as higher values in diameter of nanofibers. Loss of cinnamaldehyde was observed during solution blow spinning (SBS) process and cinnamaldehyde was mainly located on the surface of resultant nanofibers. Nanofibers all showed antibacterial activity by direct diffusion and vapor release against Escherichia coli O157:H7, Salmonella typhimurium, and Listeria monocytogenes. Inhibition zones increased as cinnamaldehyde ratio increased. Nanofibers showed larger inhibition effects than films prepared by casting method when S. typhimurium was exposed to the released cinnamaldehyde vapor, although films had higher remaining cinnamaldehyde than nanofibers after preparation. Lower temperature was favorable for cinnamaldehyde retention, and nanofibers added with 10% cinnamaldehyde ratio showed the highest retention over eight-weeks of storage. Results suggest that FSG nanofibers can be prepared by SBS as carriers for antimicrobials.

Graphical Abstract

1. Introduction

Microbial contamination can not only lead to food spoilage but it can also increase the risk of foodborne illness [1]. These illnesses caused by foodborne pathogens might have several symptoms, ranging from mild gastroenteritis to life-threatening neurological, hepatic, or renal syndromes [2]. In the United States, foodborne pathogens cause around 3000 deaths each year [2,3]. There are 31 known pathogens responsible for the 9.4 million episodes of foodborne illnesses each year according to Scallan, et al. [4]. Among them, Escherichia coli, Salmonella typhimurium, and Listeria monocytogenes are three of the major pathogens [2,5]. One method of inactivating the foodborne pathogens and preserving food products is to add preservatives. Since consumers and food processors worry about the potential hazards of synthetic chemical residues in foods, natural additives have been gaining extensive attention [6,7].
Essential oils, containing small, hydrophobic terpenoid or phenolic compounds, have been reported to have powerful antimicrobial activity against a variety of foodborne pathogens [8,9]. Cinnamaldehyde, the main active constituent in cinnamon essential oil (60–75%), has effective activity against a broad spectrum of food-borne pathogens, including Gram-positive and Gram-negative bacteria [3,10]. It is approved by the Food and Drug Administration (FDA) as Generally Recognized as Safe (GRAS) and has been widely used in gum, ice cream, candy, beverages, breads and cereals [11]. However, the application of cinnamaldehyde in food preservation is limited by its particular flavor, volatility and lipophilic nature [1,2,12]. This limitation can be avoided or lessened by encapsulation, which can mask flavor, improve aqueous solubility and improve stability [13]. Recently, nanomaterials incorporating natural antimicrobials have attracted increased attention because they have improved antimicrobial activities as compared to traditional materials [1,14].
Nanofibers have been examined for controlled release of drugs and bioactive agents due to their large surface area to volume ratio, high encapsulation efficiency and controlled-release properties [15,16]. Among various approaches to preparing nanofibers, electrospinning has been widely used due to its relative continuous fabricating capability and simple operating process [17,18]. Previous studies have shown that cinnamaldehyde can be encapsulated into chitosan/poly (ethylene oxide) or polyvinyl alcohol nanofibers, showing excellent antimicrobial activity against Escherichia coli, Pseudomonas aeruginosa, and Staphylococcus aureus [1,8]. Nevertheless, the use of a large electric field, a conductive collector as well as the low fiber production rate in electrospinning limit the commercial applicability and the use for an immediate in situ application of electrospun fibers [19,20,21]. Very recently, a novel alternative technique, solution blow spinning (SBS), has been developed to produce nano- and microfibers [22,23,24,25]. Generally, a SBS setup consists of a pressurized air gas source for delivering the carrier gas and a syringe pump for polymer solution, which combines concepts of electrospinning, solution and melt spinning [21]. In addition, environmentally-friendly polymers are preferable to traditional petroleum-based polymers for use as the polymeric matrix in food applications [1]. According to Liu, et al. [26], blow spun nanofibers can be successfully prepared from fish skin gelatin (FSG) using an acetic acid solution as the solvent.
In this study, we aim to develop antimicrobial FSG-based nanofibers incorporating cinnamaldehyde at different ratios through SBS technology. Physicochemical properties of fiber-forming emulsions (FFEs) and their resultant nanofibers were investigated as a function of cinnamaldehyde ratios. Antibacterial activities of these nanofibers against E. coli O157:H7, S. typhimurium, and L. monocytogenes and their storage stability were evaluated. Films made by the same FFEs were investigated as controls in antimicrobial tests.

2. Results and Discussion

2.1. Characterization of Fiber-Forming Emulsions (FFEs)

2.1.1. Particle Size and Particle Size Distribution

FSG and lecithin form complexes to disperse cinnamaldehyde according to Xue and Zhong [27]. As shown in Figure 1, FSG-based FFE with a particle size of 233.7 nm was obtained at the 5% cinnamaldehyde ratio. The formation of small oil droplets would be affected by oil phase composition because of its impact on oil phase and surfactant properties [28]. Therefore, the particle size was then significantly (p < 0.05) increased to 375.0 nm as the cinnamaldehyde ratio increased to 25%. Similar results were also reported by Liang, et al. [29] in the preparation of essential oil nanoemulsions. Further increase in cinnamaldehyde ratio to 30% led to an obvious decrease in particle size to 305.7 nm. This might be due to the presence of excessive oil volume fraction, which could not be completely encapsulated by FSG and lecithin. However, the polydispersity index (PDI) values corresponding to the particle size distribution of droplets were all lower than 0.1 at any cinnamaldehyde ratio. This suggested that all FFEs had a narrow range of size distribution. Furthermore, cinnamaldehyde might form Schiff bases with FSG due to its aldehyde structures [30], thus resulting in pink colors of FFEs especially at higher cinnamaldehyde ratios (≥15%, Figure S1).

2.1.2. Viscosity

The viscosity of polymer solutions had previously been shown to influence the fiber diameter, initial droplet shape and jet trajectory during the SBS process [31]. Only certain appropriate viscosities could favor the formation of fibers; decreasing the viscosity below a certain limit or increasing it above a certain limit would result in the failure of spin ability [32]. Figure 2 shows that the viscosity of FFEs slightly increased with increasing cinnamaldehyde ratio from 0% to 30%. This increase in viscosity might be due to the increase in internal cinnamaldehyde content and droplet size, as well as the expansion caused by the binding of cinnamaldehyde to gelatin [32,33]. Solutions showed shear-thinning behavior with an increase in shear rate, especially for FFE-25 and FFE-30. FFEs with higher cinnamaldehyde ratios had higher degrees of shear-thinning behavior and this shear-thinning behavior appeared at lower shear rates. This shear-thinning behavior might be due to the decrease in average cluster sizes of the droplets as the shear rate increases. In addition, the deformation or compaction of clusters could also result in the shear-thinning behavior.

2.1.3. Surface Tension

The surface tension was caused by a net downward force as the liquid molecules below the surface exerted a greater attractive force than the gas molecules [34]. Similar to viscosity, it also had a direct impact on the fiber formation as well as the structures formed in the SBS process [35]. Compared to the blank sample, the surface tension of FSG solutions sharply decreased in value with the addition of cinnamaldehyde and lecithin (Figure 3). This might be due to the surface activity of lecithin, thus lowering the surface tension [32]. The increase in cinnamaldehyde ratio from 5% to 15% caused a gradual decrease in the surface tension of FFEs. This decrease in surface tension might facilitate the formation of thinner and more uniform fibers as well as reduce the formation of beads [36,37]. A relatively constant surface tension value was observed when more cinnamaldehyde (≥20%) was added to the FFEs. This might be due to the reduction in the amount of lecithin molecules available to adsorb at the air-water interface, where more FSG-lecithin complexes are needed to disperse the cinnamaldehyde at higher cinnamaldehyde ratios [27,32].

2.2. Characterization of Nanofibers

2.2.1. Morphology and Diameter

The morphology of FSG-based nanofibers with different cinnamaldehyde ratios (0%, 5%, 15%, 20%, 25% and 30%) was investigated using scanning electron microscopy (SEM) and the representative images and fiber diameter distributions are shown in Figure 4. Uniform nanofibers were formed at all cinnamaldehyde ratios, but beads were observed at higher ratios. The average fiber diameter (AFD) of nanofibers also increased from 67.5 nm to 98.3 nm by increasing cinnamaldehyde ratio from 0% to 30%. According to previous reports, the viscosity and surface tension of the polymer solution could affect the fiber formation in the SBS process [22,36,37]. Higher viscosity of FSG solutions could lead to less stretching of the ejected jet [16], thus forming thicker nanofibers with the presence of beads. Moreover, the increase in cinnamaldehyde ratio resulted in new morphology, with bundled nanofibers being observed. This might be due to the counteraction between viscoelasticity/surface tension from FSG solution and shearing/stretching forces from blown air [38,39]. Similar results were also reported previously [23].

2.2.2. Cinnamaldehyde Distribution within Nanofibers

Transmission electron microscopy (TEM) was used to visualize the distribution of cinnamaldehyde emulsions in the FSG-based nanofibers. As shown in Figure 5, the blank nanofibers showed smooth surfaces with no trace of emulsion droplets prior to the addition of cinnamaldehyde. Emulsion droplets (arrows) were exclusively observed on the surface of the FFE-5 sample in the presence of cinnamaldehyde. These droplets appeared more transparent to the electron beam in contrast to the darker nanofibers due to the differences in material contrast. It was hypothesized that the cinnamaldehyde was successfully loaded on the surface of nanofibers. Emulsion droplets became elongated as the cinnamaldehyde ratio was progressively increased to 30%. This might be due to the greater particle size (Figure 1), where emulsion droplets were sheared and stretched along the nanofibers.
Fourier Transform Infrared Spectroscopy (FTIR) was also used to confirm the presence of cinnamaldehyde in the nanofibers (Figure 6). The blank nanofibers had a broad peak at 3290 cm−1 corresponding to the N–H stretching coupled with hydrogen bonding. More characteristic peaks indicative of gelatin at 1636, 1530 and 1240 cm−1 were assigned to the C=O stretching in combination with COO, bending vibration of N–H groups associated with stretching vibrations of C–N groups, and vibrations in C–N and N–H groups of bound amide [40,41,42], respectively. These characteristic absorption peaks were not significantly modified after incorporation of cinnamaldehyde. In comparison to the spectra of blank nanofibers, cinnamaldehyde-loaded nanofibers showed some new peaks at 1122, 746 and 687 cm−1 corresponding to the aromatic C–H bond, –CH bending out-of-plane in aromatic ring and CH=CH bending out-of-plane in alkenes [10,43,44], respectively. These results further suggested the presence of cinnamaldehyde within nanofibers.

2.3. Antimicrobial Activity and Storage Stability of Nanofibers

2.3.1. Antimicrobial Activity

The antimicrobial activities of FSG-based nanofibers with and without cinnamaldehyde against E. coli O157:H7, S. typhimurium, and L. monocytogenes were investigated using the disk diffusion method (Figure 7a). Blank nanofibers had an inhibition effect against S. typhimurium and L. monocytogenes, which might be due to the trace amounts of residual acetic acid after fiber preparation. With the addition of 5% cinnamaldehyde, the inhibition effect was significantly enhanced (p < 0.05). The inhibition zone was further increased with increasing cinnamaldehyde from 5% to 30%, indicating that cinnamaldehyde was a concentration-dependent antimicrobial. Similar results were also observed by Manu, et al. [45]. In addition, L. monocytogenes was more sensitive to cinnamaldehyde-loaded nanofibers than E. coli O157:H7 and S. typhimurium at the same cinnamaldehyde ratios. Generally, Gram-negative bacteria have a hydrophilic outer membrane with degradative and detoxifying enzymes in periplasmic space, however, such outer membrane and protective enzymes are absent in Gram-positive bacteria [3,6,46]. This absence might have allowed cinnamaldehyde to penetrate the microbial cell easier in L. monocytogenes and subsequently resulted in a greater inhibitory effect.
Corresponding films with increasing cinnamaldehyde ratios were prepared from the same FFEs as controls (Figure 7b). Similar results to nanofibers were also observed in the films. Nanofibers showed smaller inhibition zones for E. coli and S. typhimurium compared to films with the same cinnamaldehyde ratios. This might be due to differences in cinnamaldehyde retention after fiber/film preparation (Table 1). More cinnamaldehyde was lost during the SBS of FFEs. However, a different behavior was observed when S. typhimurium was exposed to the vapor of cinnamaldehyde (Figure S2). Nanofibers showed larger inhibition zones than those of films at 25% and 30% cinnamaldehyde ratios. According to Goñi, et al. [47], an equilibrium could be attained when the cinnamaldehyde was released from nanofibers/film into the headspace in the vapor-phase test. The larger surface area to volume ratio of nanofibers might favor the sustained release of cinnamaldehyde resulting in a higher equilibrium concentration [1] and increased antimicrobial activity.

2.3.2. Storage Stability

The retention of volatile cinnamaldehyde in FSG-based nanofibers as a function of environmental conditions (2 °C, 70% relative humidity (RH) and 20 °C, 51% RH) over eight weeks was investigated (Figure 8 and Figure S3). At both storage conditions, nanofibers with higher cinnamaldehyde ratios showed higher remaining cinnamaldehyde contents during the first two weeks (Figure S3). After this time, the remaining contents were almost the same regardless of the cinnamaldehyde ratios. This might be due to the location of cinnamaldehyde on the surface of nanofibers, whose release was controlled by diffusion [8]. Moreover, Figure 8 showed that the cinnamaldehyde retention percent decreased as cinnamaldehyde ratio increased, however, nanofibers with 10% cinnamaldehyde ratio had the highest retention percent over eight weeks. This higher retention percent might be due to the changes in microstructure and properties of nanofibers with 10% ratio, which slowed down the cinnamaldehyde diffusion [10]. Although higher %RH might cause greater swelling and lead to a faster diffusion [48], nanofibers stored at 2 °C had better cinnamaldehyde retention than those at 20 °C for all cinnamaldehyde ratios. This suggested that temperature was the dominant factor during nanofibers storage. The higher temperature could enhance the motion of FSG chains [49], thus increasing the diffusion of cinnamaldehyde through the FSG. In real food systems, the released cinnamaldehyde could adsorb on food surfaces and exhibit antimicrobial activity during food storage.

3. Materials and Methods

3.1. Materials

Fish skin gelatin (FSG), with high molecular weight, was provided by Norland Products Inc. (Cranbury, NJ, USA). Cinnamaldehyde, with a purity ≥98%, was obtained from Sigma Chemical Co. (St. Louis, MO, USA). Acetic acid was purchased from Avantor Performance Materials, LLC. (Baker Analyzed® A.C.S. Reagent, PA, USA). Organic lecithin was supplied by Clarkson Soy Products, LLC. (Cerro Gordo, IL, USA).

3.2. Preparation of Fiber-Forming Emulsions (FFEs)

FFEs containing various mass ratios of cinnamaldehyde were prepared according to Table 2. Briefly, 19.8 g of FSG was dissolved in 20% (v/v) acetic acid with continuous stirring at 40 °C. Cinnamaldehyde and lecithin were then added into the FSG solution and mixed for 2 min at 15,000 rpm with a Polytron 3000 emulsifier (Kinematica, Littau, Switzerland) to form a crude emulsion according to Table 2. The crude emulsion was further homogenized three times at 15,000 psi by an M-110Y Microfluidizer (Microfluidics Corp., Newton, MA, USA) at 20 °C to form FFEs. In addition, 19.8 g of FSG was dissolved into 100.2 g of 20% (v/v) acetic acid to obtain the blank FFE. After preparation, the FFEs were stored at 4 °C for analyses or fiber formation. A camera was used to take a photo of the FFEs and blank.

3.3. Characterization of Fiber-Forming Emulsions (FFEs)

3.3.1. Particle Size and Particle Size Distribution

The z-average particle size and PDI of FFEs were measured via dynamic light scattering technique using a Malvern Zetasizer (Nano-ZS; Malvern Instruments, Worcestershire, UK) at 25 °C. The FFEs were diluted 100 times by ultrapure water before analysis to reduce multiple scattering effects. All measurements were performed in triplicate.

3.3.2. Viscosity

The viscosity of FFEs and blank were measured with an AR 2000 rheometer (TA Instruments Inc., New Castle, DE, USA) using parallel plate geometry (diameter of 60 mm and gap of 1 mm) at 25 °C. Steady shear mode was used to measure the viscosity over a shear rate range of 1–1000 s−1.

3.3.3. Surface Tension

The surface tension of FFEs and blank was measured with a Krüss K100 force tensiometer (Krüss GmbH, Hamburg, Germany) at 22 °C according to Parize, Oliveira, Foschini, Marconcini and Mattoso [37]. The Wilhelmy plate method was used and the surface tension was recorded for 120 s after placing the platinum plate on the solution surface.

3.4. Preparation of Nanofibers

Nanofibers were prepared with the solution blow spinning (SBS) method at 18 °C and 48% relative humidity (RH) according to our previous study [26], with minor modifications. The SBS apparatus consisted of a syringe pump (KD Scientific, Holliston, MA, USA), a concentric nozzle, and a source of compressed air. FFEs and blank were fed through a 10 mL Becton-Dickinson (Franklin Lakes, NJ, USA) plastic syringe to the inner nozzle. The feed rate was controlled at 0.1 mL/min by the syringe pump. Pressurized air was delivered through the outer nozzle with a pressure of 0.38 MPa and an airflow speed of 14 m/s. A static plate collector covered with aluminum foil located 50 cm from the nozzle tip was used to collect nanofibers. Nanofibers were sealed in Petri dishes, covered with aluminum foil and stored at 4 °C until testing.

3.5. Characterization of Nanofibers

3.5.1. Scanning Electron Microscopy (SEM)

Nanofibers were cut and glued onto aluminum specimen stubs using double-sided adhesive carbon tabs. The samples were first coated with gold-palladium on an Emitech K550X sputter coater (Quorum Technologies Inc., Guelph, ON, Canada) at 25 mA for 45 s. They were then examined using a Hitachi S-4700 field emission scanning electron microscope (Hitachi, Tokyo, Japan) at an accelerating voltage of 5 kV. Nanofiber diameters were measured directly from the scanning electron micrographs using Image Pro Plus 7 (Media Cybernetics, Inc., Rockville, MD, USA) software. The average fiber diameter (AFD) was calculated from ~100 random measurements.

3.5.2. Transmission Electron Microscopy (TEM)

Nanofibers were first applied to a 200 mesh copper grid coated with Formvar/carbon (Catalog No. 01801, Ted Pella Inc., Redding, CA, USA). TEM was then analyzed using a Hitachi H-700 transmission electron microscope (Hitachi, Tokyo, Japan) with an accelerating voltage of 100 kV at room temperature. The samples were not stained.

3.5.3. Fourier Transform Infrared Spectroscopy (FTIR)

FTIR spectra of nanofibers were investigated using an FTIR spectrometer (Nicolet IS 10, Thermo Fisher Scientific Inc., Madison, WI, USA) with attenuated total reflection (ATR) mode at room temperature. Each spectrum was recorded from 700 to 4000 cm−1 using 64 consecutive scans with a resolution of 4 cm−1. Spectra were then analyzed using OMNIC 8.2 data collection software (Thermo Fisher Scientific Inc., Madison, WI, USA).

3.6. Antimicrobial Activity and Storage Stability of Nanofibers

3.6.1. Antimicrobial Activity

Frozen cultures of E. coli O157:H7 ATCC® 35150, S. typhimurium ser. ATCC® 14028 and L. monocytogenes ATCC® 19115 from the Western Regional Research Center (USDA;ARS:WRRC) strain collection were streaked on tryptic soy agar (TSA). TSA was composed of tryptic soy broth and 1.5% granulated agar (Difco, Becton, Dickinson & Co., Sparks, MD, USA). TSA with pathogens were then incubated at 37 °C for 24 h. After that, TSA was used to re-streak an isolated colony and incubated at 37 °C for 24 h. A tube with 5 mL Trypticase Soy Broth (TSB, Difco) was also used to inoculate an isolated colony, which was incubated at 37 °C for 24 h with agitation. This microbial broth was then serially diluted (10-fold) using 0.1% peptone water.
Each bacterial culture with a 0.1 mL volume of 1 × 105 colony-forming-units (CFU)/mL was added onto each of five TSA plates. Each plate was spread evenly with the inoculum and was then dried in a biosafety hood for 5 min. For diffusion release, each agar plate was divided evenly into 2–4 areas and labeled with the different antimicrobial concentrations. On the center of each area, ~15 mg nanofiber mat was deposited in a constant area over the inoculated agar allowing all fibers to touch the agar by applying slight pressure to avoid breaking the agar gel. The plates were incubated at 35 °C for 24 h. The inhibition diameter (colony-free perimeter), including the area where the fibers were deposited on the agar surface, was measured with a digital caliper in triplicate after 24 h of incubation and reported in mm.

3.6.2. Storage Stability

The loss of cinnamaldehyde from nanofibers during eight-weeks of storage at 2 °C (70% RH) and 20 °C (51% RH) under constant air flow was measured at two week intervals. Since volatile cinnamaldehyde would occupy the surrounding headspace of vials to inhibit release, the nanofiber samples were stored without covering. Cinnamaldehyde retention in the FSG-based nanofiber matrix was measured by gas chromatography. Around 20 mg of nanofibers were extracted with 10 mL of dichloromethane containing 0.1013 mg/mL of cinnamyl alcohol (internal standard). The % recovery of the first extraction was 93.1% (average of two replicates) as determined by the analysis of three consecutive extractions. Extracts containing cinnamaldehyde were analyzed with an Agilent 6890 GC equipped with a flame ionization detector (FID). A 30 m × 0.32 mm i.d. (df = 0.25 µm) DB-5 bonded-phase fused-silica capillary column (Agilent Technologies Inc., Folsom, CA, USA) was employed. The injector and detector temperatures were 220 °C. The oven temperature was programmed from 80 °C to 165 °C at 6 °C/min. The linear velocity of the helium carrier gas was 38.2 cm/s (80 °C). Split injections were used with a split ratio of 1:7.9. The instrument was controlled and data were processed by an HP ChemStation (Rev. B.01.01[164]SR1; Agilent Technologies Inc., Santa Clara, CA, USA).
The relative response factor (RRF) was calculated with the following Equation (1):
RRF = (Aa/Ais) × (Cis/Ca)
where:
Aa is the GC peak area of analyte
Ais is the GC peak area of internal standard
Cis is the concentration of internal standard in a solution
Ca is the concentration of analyte in a solution.
The relative response factor, RRF, of cinnamaldehyde/cinnamyl alcohol was determined to be 1.27.
The concentration of cinnamaldehyde was calculated with the following Equation (2):
Ca = ((Aa/Ais) × (Cis/RRF))/% recovery

3.7. Statistical Analysis

Data were reported as mean value ± standard deviation. One-way analysis of variance (ANOVA) was used to analyze the data with the SPSS 19.0 package (IBM, New York, NY, USA). The significant differences of the mean values (p < 0.05) was determined by Duncan’s-multiple range test.

4. Conclusions

FSG-based nanofibers incorporating cinnamaldehyde were successfully prepared via SBS. A significant influence of cinnamaldehyde ratio was demonstrated from the physicochemical, rheological and antimicrobial properties of FFEs and their nanofibers. The morphology of nanofibers was dependent on the viscosity of FFEs, which was controlled by the cinnamaldehyde ratio. Cinnamaldehyde droplets were stretched and distributed on the surface of nanofibers due to their larger size compared to prepared nanofibers. SBS resulted in higher losses of cinnamaldehyde from FFEs than those during film casting. All nanofibers and films showed antimicrobial activity by diffusion and vapor release against three selected foodborne pathogens at all concentrations of cinnamaldehyde. Since cinnamaldehyde was a concentration-dependent antimicrobial, more cinnamaldehyde led to enhanced inhibition effects. Nanofibers had higher antimicrobial activity than films in vapor phase antimicrobial tests due to their larger surface area to volume ratios. The diffusivity of cinnamaldehyde from nanofibers was greatly affected by temperature during storage tests. Loss of cinnamaldehyde was higher at higher cinnamaldehyde ratio, but nanofibers with 10% cinnamaldehyde ratio had the highest retention percent due to changes in their microstructure properties. This research provides insights on the factors that influence the formation and antimicrobial efficacy of cinnamaldehyde-loaded blow spun nanofibers for controlled-release applications.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/2/618/s1.

Acknowledgments

This project was supported by Agriculture and Food Research Initiative Nanotechnology for Agricultural and Food Systems Grant Program 2013-01598 from the USDA National Institute of Food and Agriculture. We thank Norland Products Inc. for providing gelatin samples for this research.

Author Contributions

Roberto J. Avena-Bustillos, Tara H. McHugh and Fang Zhong conceived and designed the experiments; Fei Liu, Furkan Türker Saricaoglu, David F. Bridges, Gary R. Takeoka and Delilah F. Wood performed the experiments. Fei Liu, Furkan Türker Saricaoglu, Roberto J. Avena-Bustillos David F. Bridges and Gary R. Takeoka analyzed the data. Vivian C. H. Wu and Bor-Sen Chiou contributed reagents/materials/analysis tools. Fei Liu, Furkan Türker Saricaoglu and Roberto J. Avena-Bustillos wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

FSGfish skin gelatin
FFEfiber-forming emulsion
SBSsolution blow spinning
FDAFood and Drug Administration
GRASGenerally Recognized as Safe
PDIpolydispersity index
RHrelative humidity
SEMscanning electron microscopy
AFD average fiber diameter
TEMtransmission electron microscopy
FTIRfourier transform infrared spectroscopy
CFUcolony-forming-units
FIDflame ionization detector
RRFrelative response factor
ANOVAanalysis of variance

References

  1. Wen, P.; Zhu, D.-H.; Wu, H.; Zong, M.-H.; Jing, Y.-R.; Han, S.-Y. Encapsulation of cinnamon essential oil in electrospun nanofibrous film for active food packaging. Food Control 2016, 59, 366–376. [Google Scholar] [CrossRef]
  2. Hill, L.E.; Gomes, C.; Taylor, T.M. Characterization of β-cyclodextrin inclusion complexes containing essential oils (trans-cinnamaldehyde, eugenol, cinnamon bark, and clove bud extracts) for antimicrobial delivery applications. LWT Food Sci. Technol. 2013, 51, 86–93. [Google Scholar] [CrossRef]
  3. Makwana, S.; Choudhary, R.; Dogra, N.; Kohli, P.; Haddock, J. Nanoencapsulation and immobilization of cinnamaldehyde for developing antimicrobial food packaging material. LWT Food Sci. Technol. 2014, 57, 470–476. [Google Scholar] [CrossRef]
  4. Scallan, E.; Hoekstra, R.M.; Angulo, F.J.; Tauxe, R.V.; Widdowson, M.-A.; Roy, S.L.; Jones, J.L.; Griffin, P.M. Foodborne illness acquired in the United States—Major pathogens. Emerg. Infect. Dis. 2011, 17, 7. [Google Scholar] [CrossRef] [PubMed]
  5. Du, W.-X.; Olsen, C.W.; Avena-Bustillos, R.J.; McHugh, T.H.; Levin, C.E.; Friedman, M. Storage stability and antibacterial activity against Escherichia coli O157: H7 of carvacrol in edible apple films made by two different casting methods. J. Agric. Food Chem. 2008, 56, 3082–3088. [Google Scholar] [CrossRef] [PubMed]
  6. Lopez, P.; Sanchez, C.; Batlle, R.; Nerin, C. Solid-and vapor-phase antimicrobial activities of six essential oils: Susceptibility of selected foodborne bacterial and fungal strains. J. Agric. Food Chem. 2005, 53, 6939–6946. [Google Scholar] [CrossRef] [PubMed]
  7. Villegas, C.; Torres, A.; Rios, M.; Rojas, A.; Romero, J.; de Dicastillo, C.L.; Valenzuela, X.; Galotto, M.J.; Guarda, A. Supercritical impregnation of cinnamaldehyde into polylactic acid as a route to develop antibacterial food packaging materials. Food Res. Int. 2017, 99, 650–659. [Google Scholar] [CrossRef] [PubMed]
  8. Rieger, K.A.; Schiffman, J.D. Electrospinning an essential oil: Cinnamaldehyde enhances the antimicrobial efficacy of chitosan/poly(ethylene oxide) nanofibers. Carbohydr. Polym. 2014, 113, 561–568. [Google Scholar] [CrossRef] [PubMed]
  9. Burt, S. Essential oils: Their antibacterial properties and potential applications in foods—A review. Int. J. Food Microbiol. 2004, 94, 223–253. [Google Scholar] [CrossRef] [PubMed]
  10. Chen, H.; Hu, X.; Chen, E.; Wu, S.; McClements, D.J.; Liu, S.; Li, B.; Li, Y. Preparation, characterization, and properties of chitosan films with cinnamaldehyde nanoemulsions. Food Hydrocoll. 2016, 61, 662–671. [Google Scholar] [CrossRef]
  11. López-Mata, M.A.; Ruiz-Cruz, S.; de Jesús Ornelas-Paz, J.; del Toro-Sánchez, C.L.; Márquez-Ríos, E.; Silva-Beltrán, N.P.; Cira-Chávez, L.A.; Burruel-Ibarra, S.E. Mechanical, barrier and antioxidant properties of chitosan films incorporating cinnamaldehyde. J. Polym. Environ. 2017, 1–10. [Google Scholar] [CrossRef]
  12. Munhuweyi, K.; Caleb, O.J.; van Reenen, A.J.; Opara, U.L. Physical and antifungal properties of β-cyclodextrin microcapsules and nanofibre films containing cinnamon and oregano essential oils. LWT Food Sci. Technol. 2018, 87, 413–422. [Google Scholar] [CrossRef]
  13. Blanco-Padilla, A.; López-Rubio, A.; Loarca-Piña, G.; Gómez-Mascaraque, L.G.; Mendoza, S. Characterization, release and antioxidant activity of curcumin-loaded amaranth-pullulan electrospun fibers. LWT Food Sci. Technol. 2015, 63, 1137–1144. [Google Scholar] [CrossRef]
  14. Neo, Y.P.; Swift, S.; Ray, S.; Gizdavic-Nikolaidis, M.; Jin, J.; Perera, C.O. Evaluation of gallic acid loaded zein sub-micron electrospun fibre mats as novel active packaging materials. Food Chem. 2013, 141, 3192–3200. [Google Scholar] [CrossRef] [PubMed]
  15. Hu, X.; Liu, S.; Zhou, G.; Huang, Y.; Xie, Z.; Jing, X. Electrospinning of polymeric nanofibers for drug delivery applications. J. Control. Release 2014, 185, 12–21. [Google Scholar] [CrossRef] [PubMed]
  16. Kayaci, F.; Ertas, Y.; Uyar, T. Enhanced thermal stability of eugenol by cyclodextrin inclusion complex encapsulated in electrospun polymeric nanofibers. J. Agric. Food Chem. 2013, 61, 8156–8165. [Google Scholar] [CrossRef] [PubMed]
  17. Kayaci, F.; Uyar, T. Encapsulation of vanillin/cyclodextrin inclusion complex in electrospun polyvinyl alcohol (PVA) nanowebs: Prolonged shelf-life and high temperature stability of vanillin. Food Chem. 2012, 133, 641–649. [Google Scholar] [CrossRef] [Green Version]
  18. Jiang, S.; Lv, J.; Ding, M.; Li, Y.; Wang, H.; Jiang, S. Release behavior of tetracycline hydrochloride loaded chitosan/poly(lactic acid) antimicrobial nanofibrous membranes. Mater. Sci. Eng. C Mater. Biol. Appl. 2016, 59, 86–91. [Google Scholar] [CrossRef] [PubMed]
  19. Behrens, A.M.; Casey, B.J.; Sikorski, M.J.; Wu, K.L.; Tutak, W.; Sandler, A.D.; Kofinas, P. In situ deposition of plga nanofibers via solution blow spinning. ACS Macro Lett. 2014, 3, 249–254. [Google Scholar] [CrossRef]
  20. Bilbao-Sainz, C.; Chiou, B.-S.; Valenzuela-Medina, D.; Du, W.-X.; Gregorski, K.S.; Williams, T.G.; Wood, D.F.; Glenn, G.M.; Orts, W.J. Solution blow spun poly(lactic acid)/hydroxypropyl methylcellulose nanofibers with antimicrobial properties. Eur. Polym. J. 2014, 54, 1–10. [Google Scholar] [CrossRef]
  21. Daristotle, J.L.; Behrens, A.M.; Sandler, A.D.; Kofinas, P. A review of the fundamental principles and applications of solution blow spinning. ACS Appl. Mater. Interfaces 2016, 8, 34951–34963. [Google Scholar] [CrossRef] [PubMed]
  22. Medeiros, E.S.; Glenn, G.M.; Klamczynski, A.P.; Orts, W.J.; Mattoso, L.H.C. Solution blow spinning: A new method to produce micro- and nanofibers from polymer solutions. J. Appl. Polym. Sci. 2009, 113, 2322–2330. [Google Scholar] [CrossRef]
  23. Oliveira, J.E.; Moraes, E.A.; Costa, R.G.F.; Afonso, A.S.; Mattoso, L.H.C.; Orts, W.J.; Medeiros, E.S. Nano and submicrometric fibers of poly(d,l-lactide) obtained by solution blow spinning: Process and solution variables. J. Appl. Polym. Sci. 2011, 122, 3396–3405. [Google Scholar] [CrossRef]
  24. Oliveira, J.E.; Moraes, E.A.; Marconcini, J.M.; Mattoso, L.H.; Glenn, G.M.; Medeiros, E.S. Properties of poly(lactic acid) and poly(ethylene oxide) solvent polymer mixtures and nanofibers made by solution blow spinning. J. Appl. Polym. Sci. 2013, 129, 3672–3681. [Google Scholar] [CrossRef]
  25. Martínez-Sanz, M.; Bilbao-Sainz, C.; Du, W.-X.; Chiou, B.-S.; Williams, T.G.; Wood, D.F.; Imam, S.H.; Orts, W.J.; Lopez-Rubio, A.; Lagaron, J.M. Antimicrobial poly (lactic acid)-based nanofibres developed by solution blow spinning. J. Nanosci. Nanotechnol. 2015, 15, 616–627. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, F.; Avena-Bustillos, R.J.; Bilbao-Sainz, C.; Woods, R.; Chiou, B.S.; Wood, D.; Williams, T.; Yokoyama, W.; Glenn, G.M.; McHugh, T.H.; et al. Solution blow spinning of food-grade gelatin nanofibers. J. Food Sci. 2017, 82, 1402–1411. [Google Scholar] [CrossRef] [PubMed]
  27. Xue, J.; Zhong, Q. Blending lecithin and gelatin improves the formation of thymol nanodispersions. J. Agric. Food Chem. 2014, 62, 2956–2962. [Google Scholar] [CrossRef] [PubMed]
  28. Chang, Y.; McLandsborough, L.; McClements, D.J. Physicochemical properties and antimicrobial efficacy of carvacrol nanoemulsions formed by spontaneous emulsification. J. Agric. Food Chem. 2013, 61, 8906–8913. [Google Scholar] [CrossRef] [PubMed]
  29. Liang, R.; Xu, S.; Shoemaker, C.F.; Li, Y.; Zhong, F.; Huang, Q. Physical and antimicrobial properties of peppermint oil nanoemulsions. J. Agric. Food Chem. 2012, 60, 7548–7555. [Google Scholar] [CrossRef] [PubMed]
  30. Rieger, K.A.; Birch, N.P.; Schiffman, J.D. Electrospinning chitosan/poly(ethylene oxide) solutions with essential oils: Correlating solution rheology to nanofiber formation. Carbohydr. Polym. 2016, 139, 131–138. [Google Scholar] [CrossRef] [PubMed]
  31. Deitzel, J.; Kleinmeyer, J.; Harris, D.; Tan, N.B. The effect of processing variables on the morphology of electrospun nanofibers and textiles. Polymer 2001, 42, 261–272. [Google Scholar] [CrossRef]
  32. Kriegel, C.; Kit, K.M.; McClements, D.J.; Weiss, J. Nanofibers as carrier systems for antimicrobial microemulsions. part I: Fabrication and characterization. Langmuir 2009, 25, 1154–1161. [Google Scholar] [CrossRef] [PubMed]
  33. Yi, F.; Xu, F.; Gao, Y.; Li, H.; Chen, D. Macrocellular polymer foams from water in oil high internal phase emulsion stabilized solely by polymer Janus nanoparticles: Preparation and their application as support for Pd catalyst. RSC Adv. 2015, 5, 40227–40235. [Google Scholar] [CrossRef]
  34. Ramakrishna, S.; Fujihara, K.; Teo, W.; Lim, T.-C.; Ma, Z. An Introduction to Electrospinning and Nanofibers; World Scientific: Singapore, 2005. [Google Scholar]
  35. Fong, H.; Chun, I.; Reneker, D.H. Beaded nanofibers formed during electrospinning. Polymer 1999, 40, 4585–4592. [Google Scholar] [CrossRef]
  36. Parize, D.D.D.S.; Foschini, M.M.; Oliveira, J.E.D.; Klamczynski, A.P.; Glenn, G.M.; Marconcini, J.M.; Mattoso, L.H.C. Solution blow spinning: Parameters optimization and effects on the properties of nanofibers from poly(lactic acid)/dimethyl carbonate solutions. J. Mater. Sci. 2016, 51, 4627–4638. [Google Scholar] [CrossRef]
  37. Parize, D.D.D.S.; Oliveira, J.E.D.; Foschini, M.M.; Marconcini, J.M.; Mattoso, L.H.C. Poly(lactic acid) fibers obtained by solution blow spinning: Effect of a greener solvent on the fiber diameter. J. Appl. Polym. Sci. 2016, 133, 1–10. [Google Scholar]
  38. Okutan, N.; Terzi, P.; Altay, F. Affecting parameters on electrospinning process and characterization of electrospun gelatin nanofibers. Food Hydrocoll. 2014, 39, 19–26. [Google Scholar] [CrossRef]
  39. Oliveira, J.E.; Mattoso, L.H.C.; Orts, W.J.; Medeiros, E.S. Structural and morphological characterization of micro and nanofibers produced by electrospinning and solution blow spinning: A comparative study. Adv. Mater. Sci. Eng. 2013, 2013, 409572. [Google Scholar] [CrossRef]
  40. Nagarajan, M.; Benjakul, S.; Prodpran, T.; Songtipya, P. Properties of film from splendid squid (Loligo formosana) skin gelatin with various extraction temperatures. Int. J. Biol. Macromol. 2012, 51, 489–496. [Google Scholar] [CrossRef] [PubMed]
  41. Nagarajan, M.; Benjakul, S.; Prodpran, T.; Songtipya, P.; Kishimura, H. Characteristics and functional properties of gelatin from splendid squid (Loligo formosana) skin as affected by extraction temperatures. Food Hydrocoll. 2012, 29, 389–397. [Google Scholar] [CrossRef]
  42. Wang, Y.; Liu, A.; Ye, R.; Wang, W.; Li, X. Transglutaminase-induced crosslinking of gelatin-calcium carbonate composite films. Food Chem. 2015, 166, 414–422. [Google Scholar] [CrossRef] [PubMed]
  43. Liu, Y.; Liang, X.; Zhang, R.; Lan, W.; Qin, W. Fabrication of Electrospun polylactic acid/cinnamaldehyde/β-cyclodextrin fibers as an antimicrobial wound dressing. Polymers 2017, 9, 464. [Google Scholar] [CrossRef]
  44. Al-Bayati, F.A.; Mohammed, M.J. Isolation, identification, and purification of cinnamaldehyde fromCinnamomum zeylanicumbark oil. An antibacterial study. Pharm. Biol. 2009, 47, 61–66. [Google Scholar] [CrossRef]
  45. Manu, D.; Mendonca, A.F.; Daraba, A.; Dickson, J.S.; Sebranek, J.; Shaw, A.; Wang, F.; White, S. Antimicrobial efficacy of cinnamaldehyde against Escherichia coli O157:H7 and salmonella enterica in carrot juice and mixed berry juice held at 4 °C and 12 °C. Foodborne Pathog. Dis. 2017, 14, 302–307. [Google Scholar] [CrossRef] [PubMed]
  46. Otoni, C.G.; Moura, M.R.D.; Aouada, F.A.; Camilloto, G.P.; Cruz, R.S.; Lorevice, M.V.; Soares, N.D.F.F.; Mattoso, L.H.C. Antimicrobial and physical-mechanical properties of pectin/papaya puree/cinnamaldehyde nanoemulsion edible composite films. Food Hydrocoll. 2014, 41, 188–194. [Google Scholar] [CrossRef]
  47. Goñi, P.; López, P.; Sánchez, C.; Gómez-Lus, R.; Becerril, R.; Nerín, C. Antimicrobial activity in the vapour phase of a combination of cinnamon and clove essential oils. Food Chem. 2009, 116, 982–989. [Google Scholar] [CrossRef]
  48. Kurek, M.; Guinault, A.; Voilley, A.; Galic, K.; Debeaufort, F. Effect of relative humidity on carvacrol release and permeation properties of chitosan based films and coatings. Food Chem. 2014, 144, 9–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Aytac, Z.; Dogan, S.Y.; Tekinay, T.; Uyar, T. Release and antibacterial activity of allyl isothiocyanate/β-cyclodextrin complex encapsulated in electrospun nanofibers. Colloids Surf. B Biointerfaces 2014, 120, 125–131. [Google Scholar] [CrossRef] [PubMed]

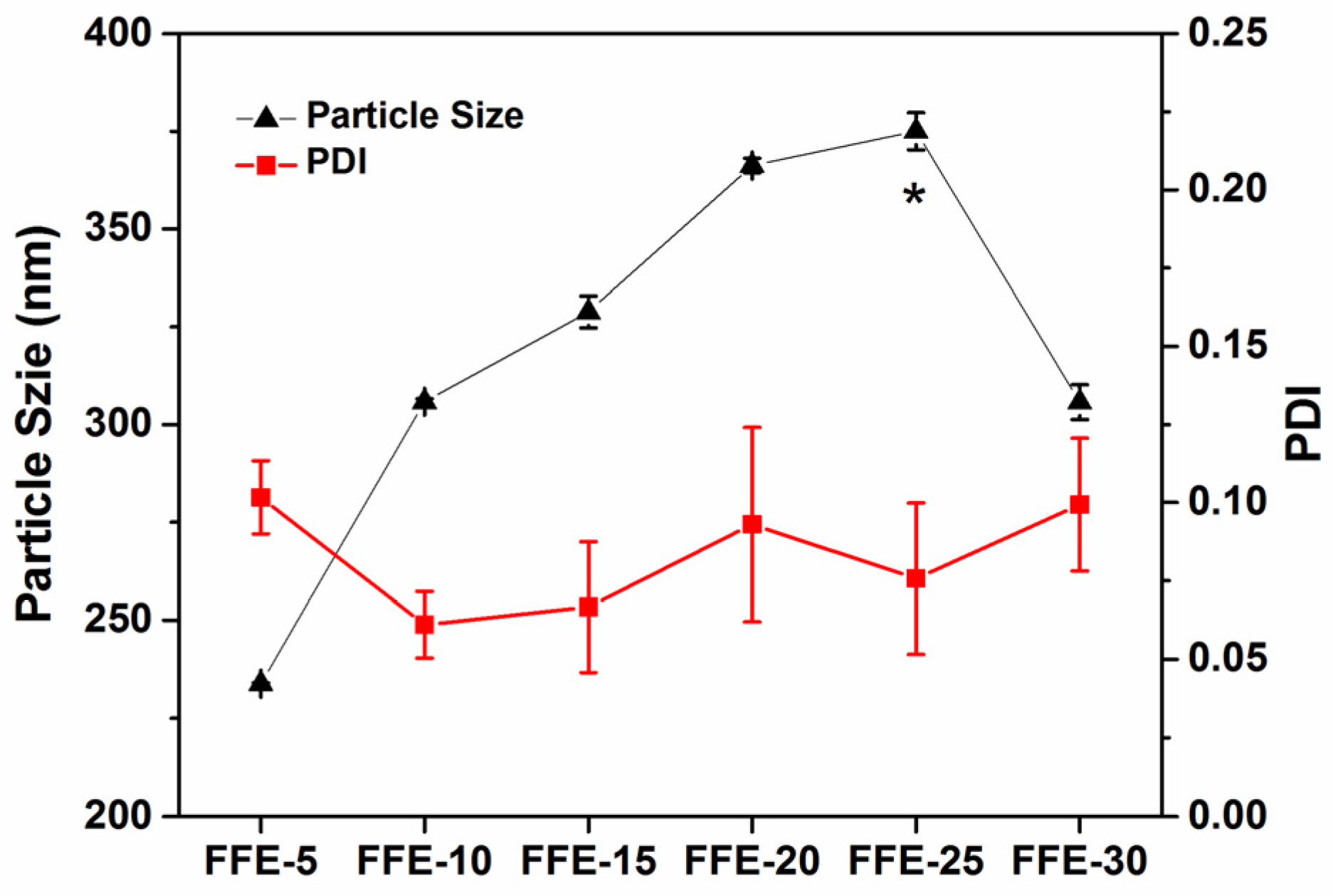

Figure 1. Particle size and polydispersity index (PDI) of fiber-forming emulsions (FFEs). FFE-x, fiber-forming emulsion prepared with the indicated cinnamaldehyde ratio to fish skin gelatin (FSG) (%). Asterisk indicates significant (p < 0.05) differences for particle size.
Figure 1. Particle size and polydispersity index (PDI) of fiber-forming emulsions (FFEs). FFE-x, fiber-forming emulsion prepared with the indicated cinnamaldehyde ratio to fish skin gelatin (FSG) (%). Asterisk indicates significant (p < 0.05) differences for particle size.
Ijms 19 00618 g001

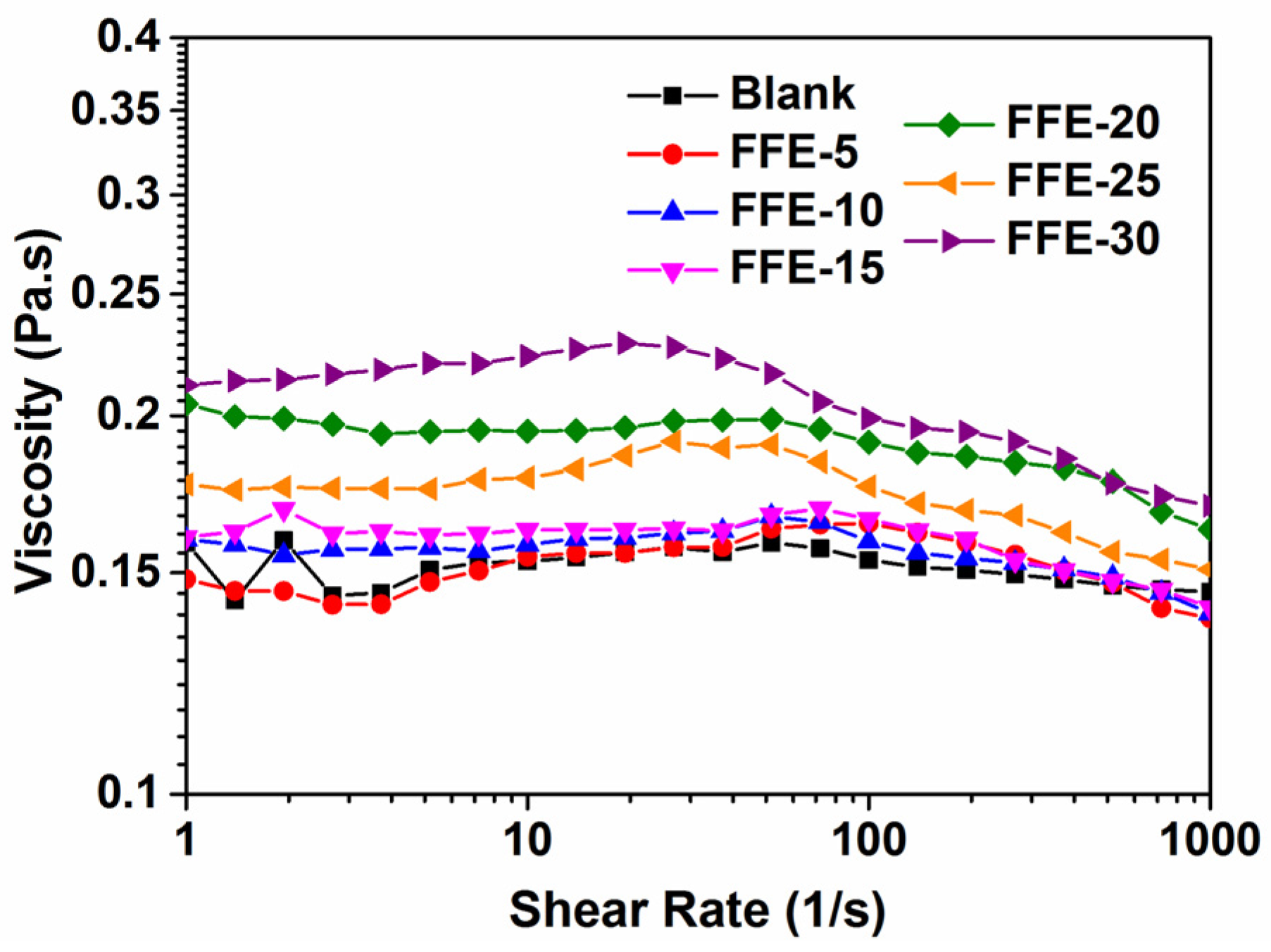

Figure 2. Representative viscosity of FFEs and blank as a function of shear rate (1–1000 s−1). FFE-x, fiber-forming emulsion prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the solution without cinnamaldehyde.
Figure 2. Representative viscosity of FFEs and blank as a function of shear rate (1–1000 s−1). FFE-x, fiber-forming emulsion prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the solution without cinnamaldehyde.
Ijms 19 00618 g002

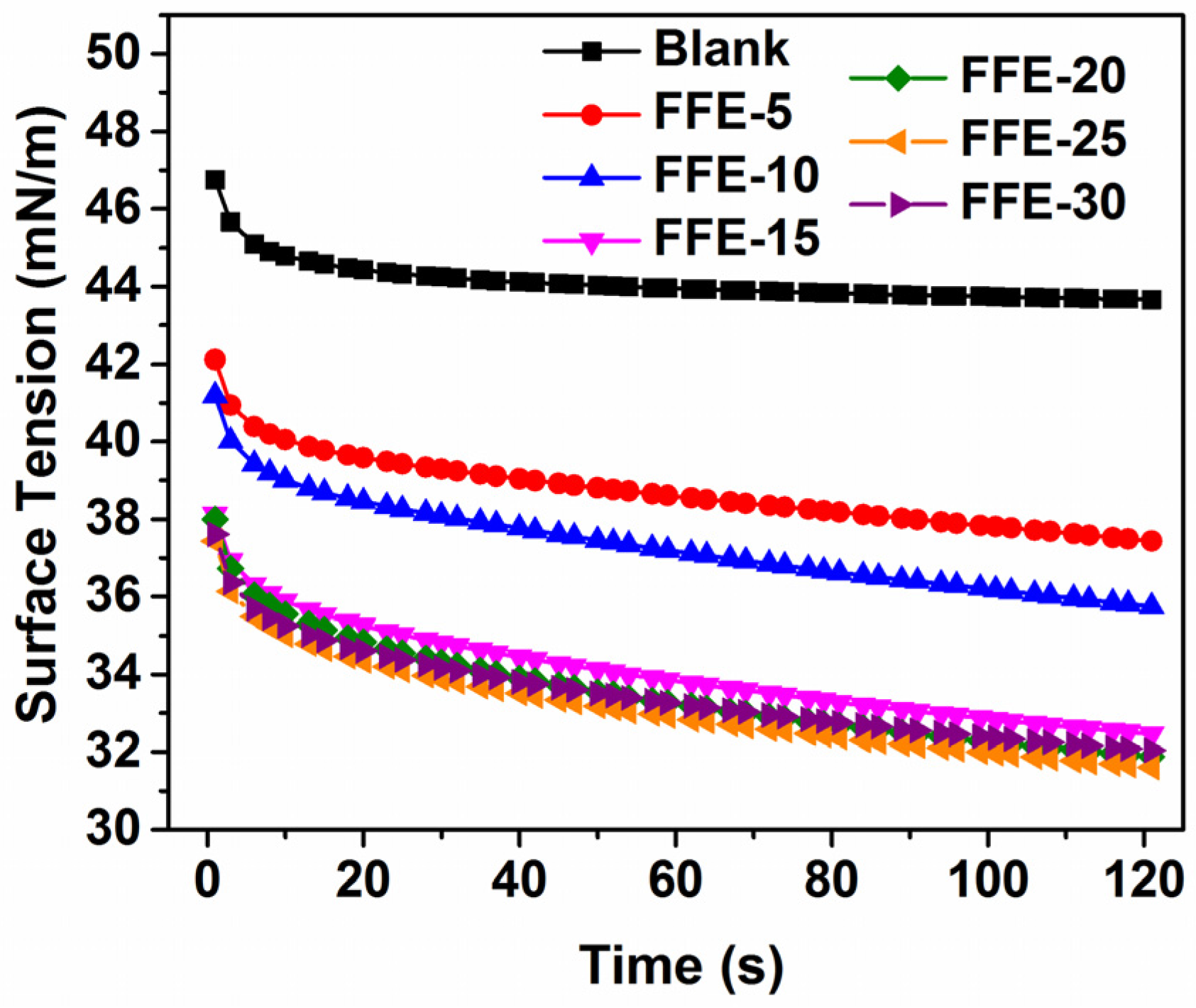

Figure 3. Representative surface tension of FFEs and blank as a function of time (0–120 s). FFE-x, fiber-forming emulsion prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the solution without cinnamaldehyde.
Figure 3. Representative surface tension of FFEs and blank as a function of time (0–120 s). FFE-x, fiber-forming emulsion prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the solution without cinnamaldehyde.
Ijms 19 00618 g003

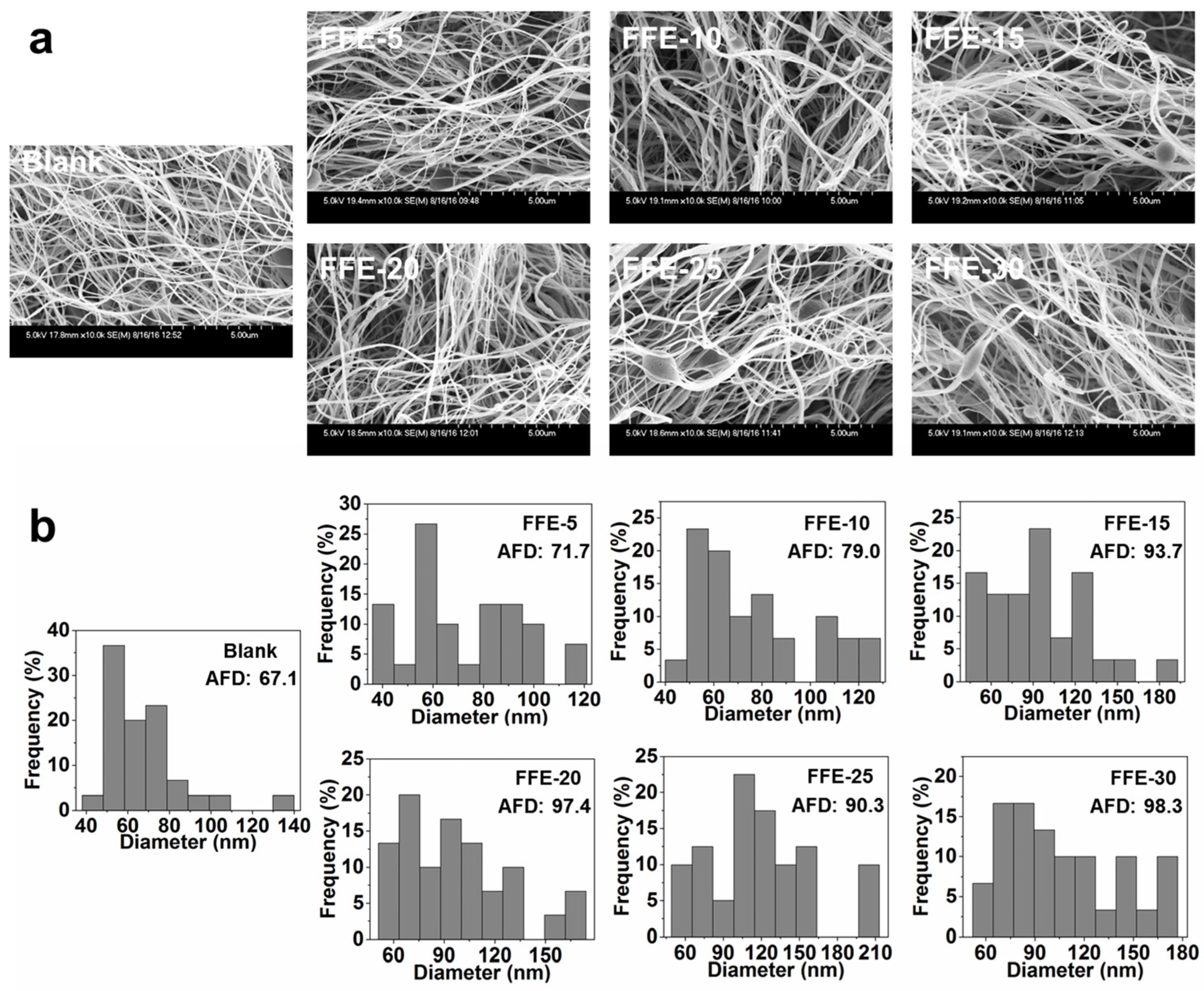

Figure 4. (a) SEM micrographs and (b) diameter distribution and (inset) average fiber diameter (AFD) of nanofibers prepared from FFEs and blank. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde. The scale bar in the bottom right of SEM image indicates 5 μm.
Figure 4. (a) SEM micrographs and (b) diameter distribution and (inset) average fiber diameter (AFD) of nanofibers prepared from FFEs and blank. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde. The scale bar in the bottom right of SEM image indicates 5 μm.
Ijms 19 00618 g004

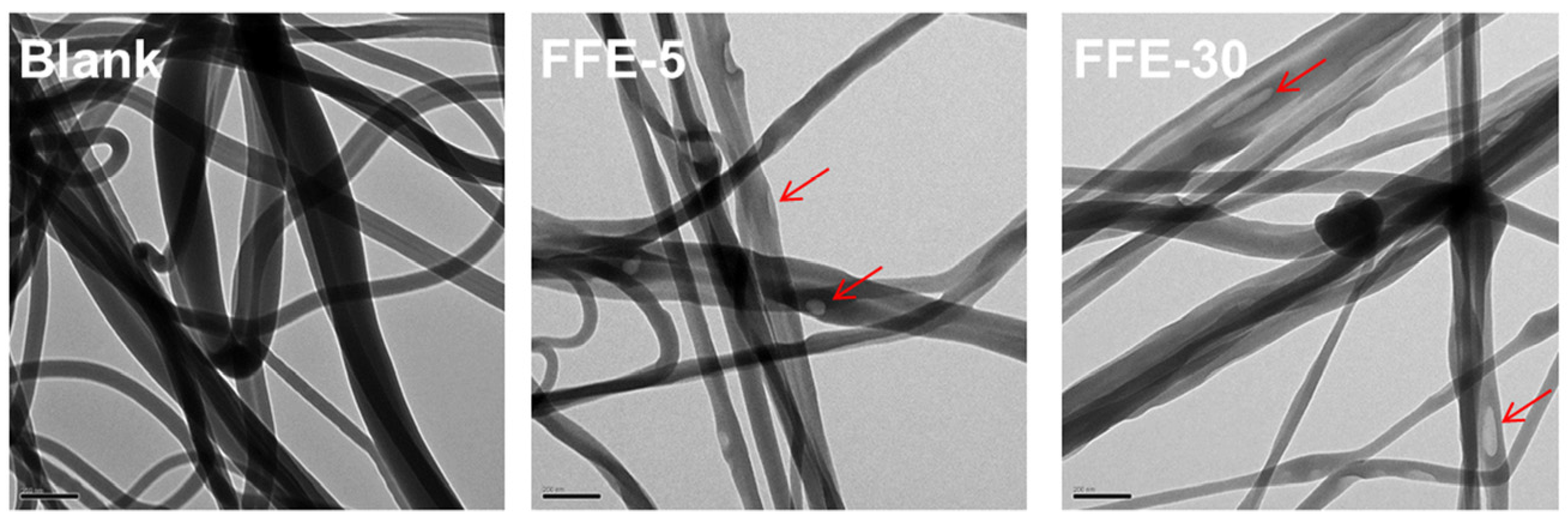

Figure 5. Selected TEM micrographs of nanofibers prepared from FFEs and blank. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde. Arrows indicated the emulsion droplets. The scale bar in bottom left indicates 200 nm.
Figure 5. Selected TEM micrographs of nanofibers prepared from FFEs and blank. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde. Arrows indicated the emulsion droplets. The scale bar in bottom left indicates 200 nm.
Ijms 19 00618 g005

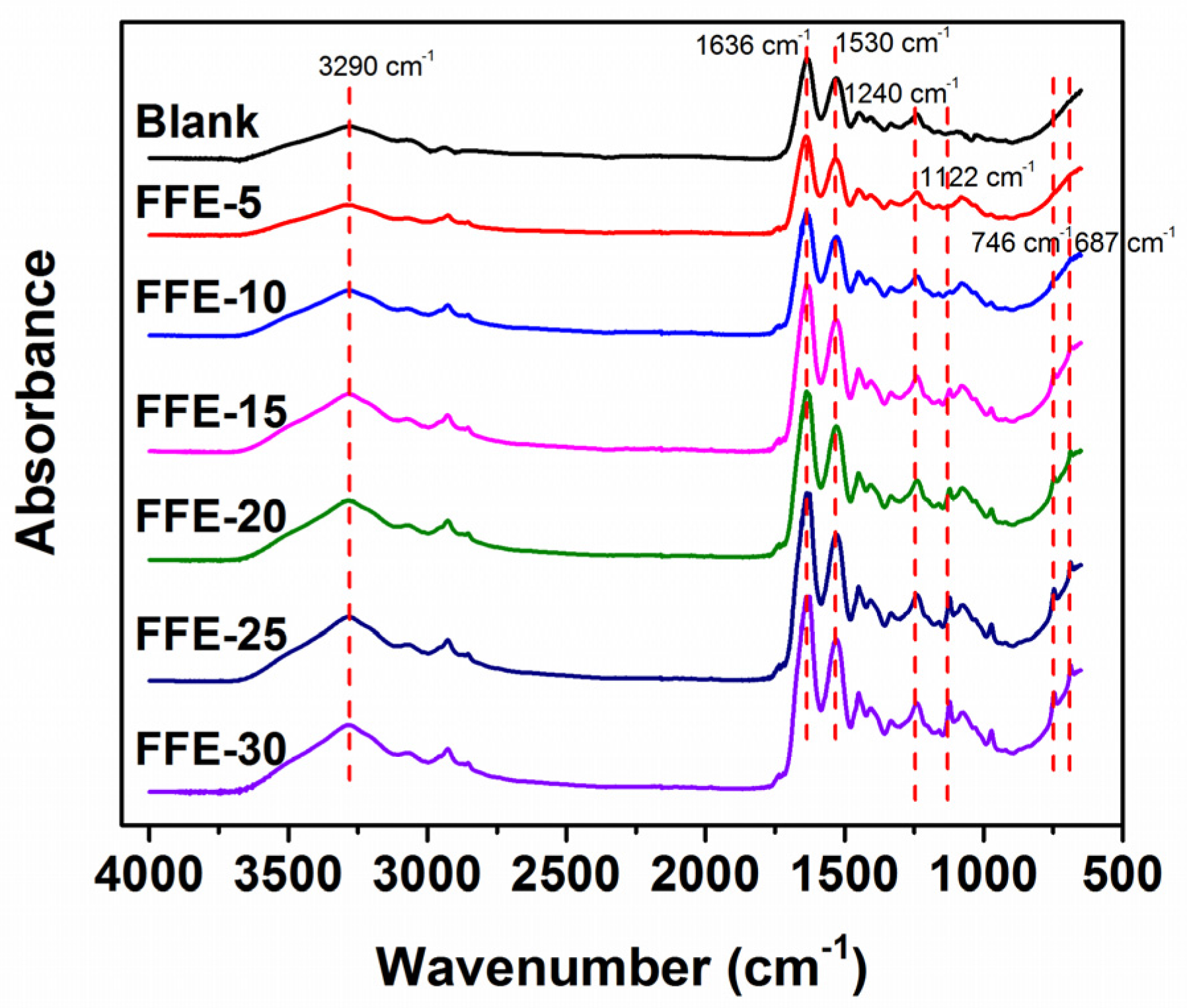

Figure 6. Fourier Transform Infrared Spectroscopy (FTIR) spectra of nanofibers prepared from FFEs and blank. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde.
Figure 6. Fourier Transform Infrared Spectroscopy (FTIR) spectra of nanofibers prepared from FFEs and blank. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde.
Ijms 19 00618 g006

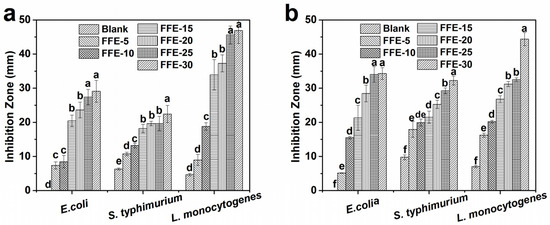

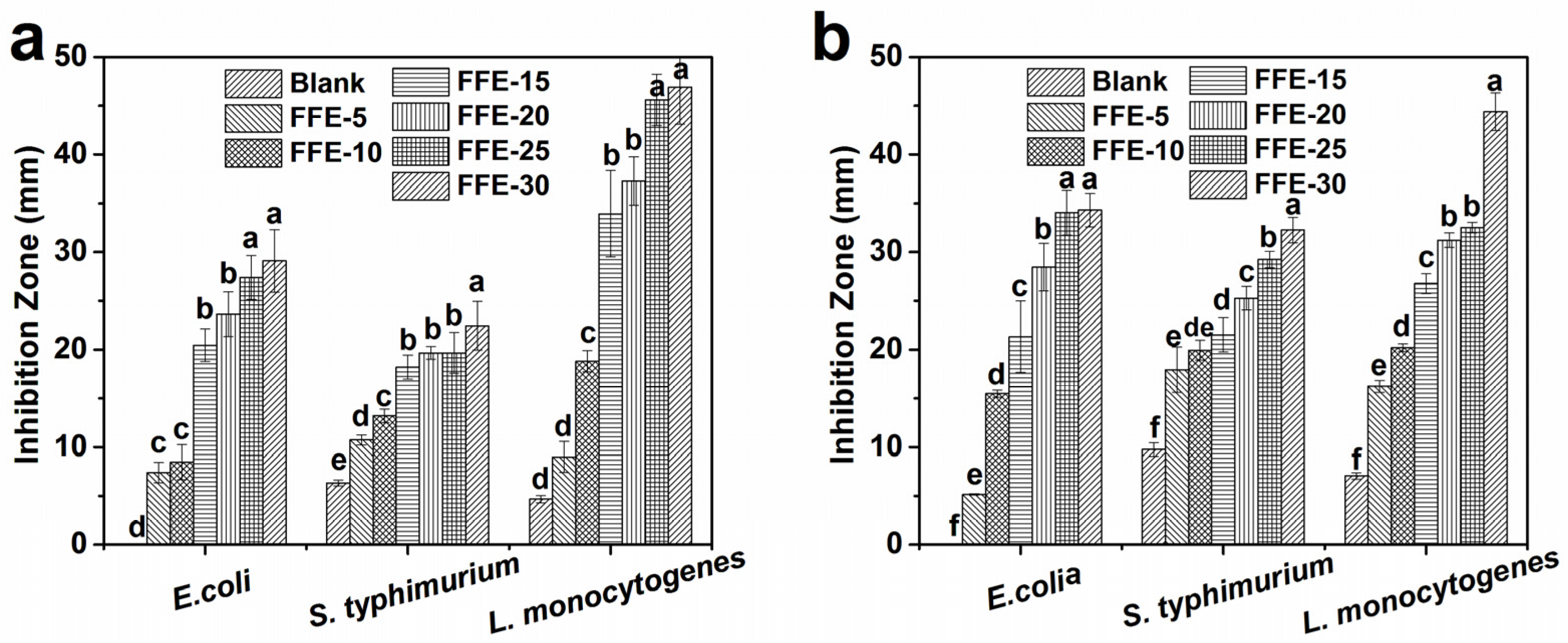

Figure 7. Antimicrobial activity (inhibition zone) of (a) nanofibers and (b) films prepared from FFEs and blank against E. coli O157:H7, S. typhimurium, and L. monocytogenes. Letters (a–f) mean significant differences (p < 0.05) for each foodborne pathogen. FFE-x, nanofibers/film prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers/film without cinnamaldehyde.
Figure 7. Antimicrobial activity (inhibition zone) of (a) nanofibers and (b) films prepared from FFEs and blank against E. coli O157:H7, S. typhimurium, and L. monocytogenes. Letters (a–f) mean significant differences (p < 0.05) for each foodborne pathogen. FFE-x, nanofibers/film prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers/film without cinnamaldehyde.
Ijms 19 00618 g007

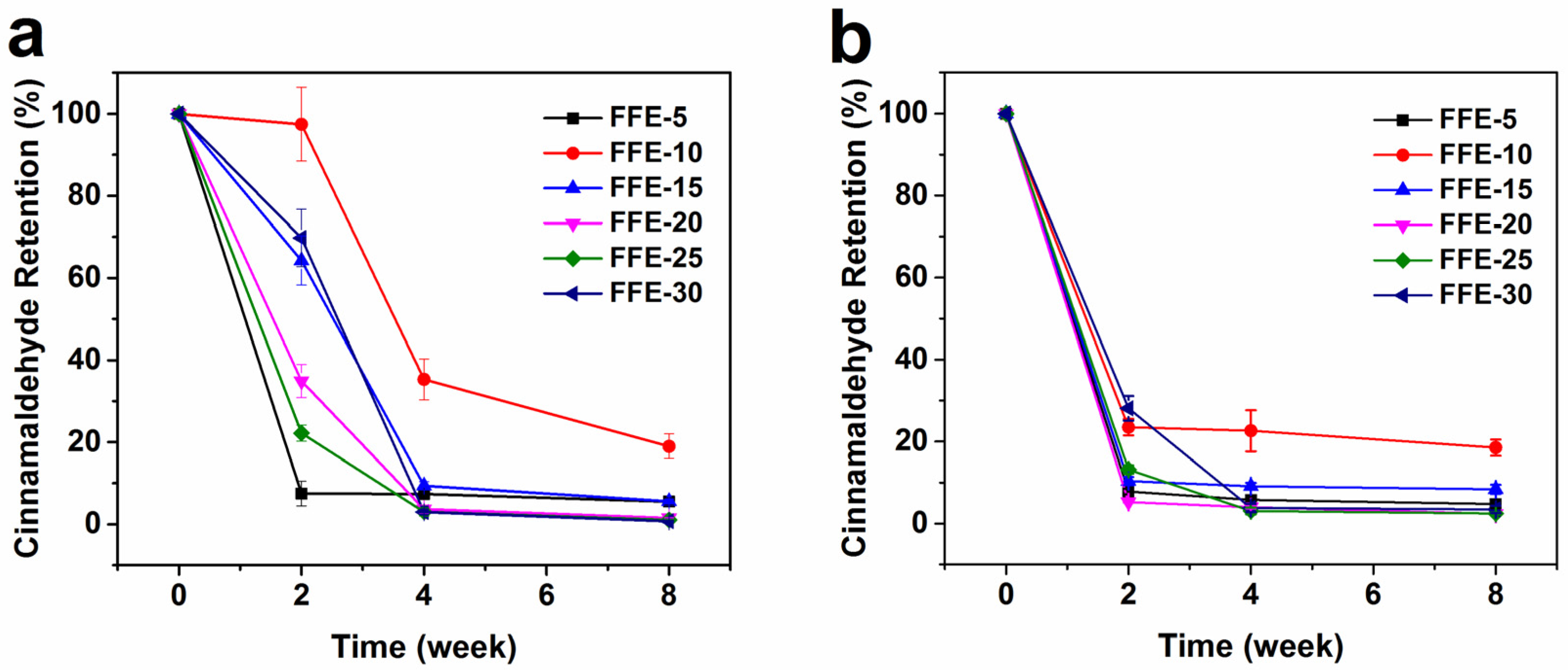

Figure 8. Cinnamaldehyde retention percent of nanofibers prepared from FFEs as a function of storage time. (a) 2 °C and 70% RH, (b) 20 °C and 51% RH. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%).
Figure 8. Cinnamaldehyde retention percent of nanofibers prepared from FFEs as a function of storage time. (a) 2 °C and 70% RH, (b) 20 °C and 51% RH. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%).
Ijms 19 00618 g008
Table 1. Cinnamaldehyde retention of freshly prepared fibers or films. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde.
Table 1. Cinnamaldehyde retention of freshly prepared fibers or films. FFE-x, nanofibers prepared with the indicated cinnamaldehyde ratio to FSG (%). Blank is the nanofibers without cinnamaldehyde.
SamplesCinnamaldehyde Retention after Fiber Preparation
(mg C/mg F)
Cinnamaldehyde Retention after Film Preparation
(mg C/mg F)
Blank--
FFE-50.0130.002
FFE-100.0040.044
FFE-150.0120.021
FFE-200.0580.074
FFE-250.0800.116
FFE-300.0840.171
Table 2. Formulation of FFEs and blank. FFE-x, fiber-forming emulsion prepared at the indicated cinnamaldehyde ratio to FSG (%). Blank is the solution without cinnamaldehyde.
Table 2. Formulation of FFEs and blank. FFE-x, fiber-forming emulsion prepared at the indicated cinnamaldehyde ratio to FSG (%). Blank is the solution without cinnamaldehyde.
Ingredient (g)BlankFFE-5FFE-10FFE-15FFE-20FFE-25FFE-30
FSG19.819.819.819.819.819.819.8
20% acetic acid100.296.2495.2594.2693.2792.2891.29
Cinnamaldehyde -0.991.982.973.964.955.94
Lecithin-2.972.972.972.972.972.97
Total 120120120120120120120

Share and Cite

MDPI and ACS Style

Liu, F.; Türker Saricaoglu, F.; Avena-Bustillos, R.J.; Bridges, D.F.; Takeoka, G.R.; Wu, V.C.H.; Chiou, B.-S.; Wood, D.F.; McHugh, T.H.; Zhong, F. Preparation of Fish Skin Gelatin-Based Nanofibers Incorporating Cinnamaldehyde by Solution Blow Spinning. Int. J. Mol. Sci. 2018, 19, 618. https://doi.org/10.3390/ijms19020618

AMA Style

Liu F, Türker Saricaoglu F, Avena-Bustillos RJ, Bridges DF, Takeoka GR, Wu VCH, Chiou B-S, Wood DF, McHugh TH, Zhong F. Preparation of Fish Skin Gelatin-Based Nanofibers Incorporating Cinnamaldehyde by Solution Blow Spinning. International Journal of Molecular Sciences. 2018; 19(2):618. https://doi.org/10.3390/ijms19020618

Chicago/Turabian Style

Liu, Fei, Furkan Türker Saricaoglu, Roberto J. Avena-Bustillos, David F. Bridges, Gary R. Takeoka, Vivian C. H. Wu, Bor-Sen Chiou, Delilah F. Wood, Tara H. McHugh, and Fang Zhong. 2018. "Preparation of Fish Skin Gelatin-Based Nanofibers Incorporating Cinnamaldehyde by Solution Blow Spinning" International Journal of Molecular Sciences 19, no. 2: 618. https://doi.org/10.3390/ijms19020618

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
