Review

Molecular-Level Interactions between Engineered Materials and Cells

1
Department of Chemical and Biological Engineering, Sookmyung Women’s University, Seoul 04310, Korea
2
Department of Chemistry and Integrated Biotechnology, Sogang University, Seoul 04107, Korea
3
School of Advanced Materials Science and Engineering, Sungkyunkwan University (SKKU), Suwon 16419, Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2019, 20(17), 4142; https://doi.org/10.3390/ijms20174142
Submission received: 15 July 2019 / Revised: 19 August 2019 / Accepted: 21 August 2019 / Published: 25 August 2019
(This article belongs to the Special Issue Cell-Biomaterial Interaction 2019)

Abstract

:
Various recent experimental observations indicate that growing cells on engineered materials can alter their physiology, function, and fate. This finding suggests that better molecular-level understanding of the interactions between cells and materials may guide the design and construction of sophisticated artificial substrates, potentially enabling control of cells for use in various biomedical applications. In this review, we introduce recent research results that shed light on molecular events and mechanisms involved in the interactions between cells and materials. We discuss the development of materials with distinct physical, chemical, and biological features, cellular sensing of the engineered materials, transfer of the sensing information to the cell nucleus, subsequent changes in physical and chemical states of genomic DNA, and finally the resulting cellular behavior changes. Ongoing efforts to advance materials engineering and the cell–material interface will eventually expand the cell-based applications in therapies and tissue regenerations.

1. Introduction

Biological molecules, including DNA, RNA, and proteins, are introduced into mammalian cells to control the physiology, function, behavior, and fate of the cells [1,2,3]. These molecular treatments lead to the expression of the external genes or changes in endogenous gene expression. These genetic manipulations subsequently alter interactions between cellular molecules involved in the targeted cellular pathways, eventually enabling the control of mammalian cells. However, the introduced biological molecules may also eventually alter other cellular processes that were not targeted, via cross-talking with multiple intracellular pathways at the same time or unspecific and random interactions with cellular components, thereby causing unwanted side effects [4,5,6]. In addition, this conventional method may be less than ideal in realizing the intended cellular state.
Recent attempts to improve the control of mammalian cells have explored inducing cellular responses to materials [7,8,9]. This new approach may eliminate the need to introduce biological molecules into cells or enable better control of mammalian cells when combined with currently used biological methods. In the present review, we introduce multiple studies concerning material science and engineering applications to control cells. This review covers the construction of diverse forms of materials with varied physical and chemical characteristics such as stiffness, viscosity, morphology, and chemical structure, molecular mechanisms underlying cellular sensing of engineered materials and transfer of the sensing information to the cell nucleus, the changes in the physical and chemical states of genomic DNA, and the subsequent alterations in endogenous gene expression.

2. Engineered Materials

Cellular interactions with the external environment are multiscale phenomena from atomic and molecular levels to the micrometer-scale. This means that materials used as artificial external environments to control the physiology, function, behavior, and fate of cells need to be engineered to have certain layers, patterns, or structures with sizes ranging from a few nanometers to micrometers [10,11]. Physical characteristics of the engineered environments include stiffness, morphology, and elasticity. Chemical characteristics include hydrophilicity and hydrophobicity and involve chemical moieties that may significantly affect cellular pathways and processes [12,13]. Various materials of different forms and chemical compositions, including polymer/inorganic thin films, composite scaffolds, hydrogels, and fibrous scaffolds, have been constructed as cell culture substrates to control mammalian cells. In this section, we discuss materials that have been recently constructed for biomedical applications and their physical, mechanical, and chemical properties.

2.1. Physical/Mechanical Properties of Materials—Stiffness and Viscosity

Cellular responses to external forces provided by materials can initiate or alter intracellular signaling pathways, ultimately leading to changes in proliferation, development, and differentiation of cells [14,15,16]. The impact of extrinsic or intrinsic mechanical forces on a cell can be understood by using certain materials engineered to have desired physical or mechanical properties, which include shape, strength, elasticity, stiffness, viscosity, and topography. These properties may exert unique effects on different cells [17].
Soft materials are extensively used to study the effect of physical and mechanical properties of materials on cellular behaviors, because of the ease in manufacturing the materials with variable structures, surface morphologies, and stiffness. Generally, natural gels (gelatin, collagen, Matrigel, and fibrin) have excellent biocompatibility but have poor tunability for physical and chemical properties. For example, it is quite difficult to tune the stiffness of pristine gelatin, which is approximately 10 kPa, unless a significant amount of crosslinking agents or nanowires are incorporated extrinsically [18,19]. Conversely, it is quite easy to change the physical and mechanical properties of synthetic hydrogels, such as polyacrylamide (PAAm) [20], polyethylene glycol (PEG) [21,22], polycaprolactone (PCL) [23], and polydimethylsiloxane (PDMS) [24,25,26], simply by changing the preparation conditions. For example, PAAm gels were prepared to have different stiffness of around 8 kPa and 100 kPa by varying the amount of precursors, acrylamide and bis-acrylamide, as 6% and 25%, respectively [20].
The effects of substrate stiffness on the biophysical regulation of cell behavior have been the main focus of many studies (Table 1) [27]. The stiffness of PAAm gels has been controlled by changing their thickness, coating their surface with extracellular matrix (ECM) proteins such as collagens, forming a composite with nanoparticles, and modifying the preparation procedures that involve curing, micropatterning, and printing [11,14,28,29]. Fibronectin coated PAAm gels with varying stiffness of approximately 8.7 kPa and 113.2 kPa revealed different effects on NIH3T3 fibroblast cell focal adhesions, protein dynamics, and mechanosensing [20]. Comparisons with signaling proteins, such as focal adhesion kinase (FAK) and paxillin, have revealed that the mobilities of structural proteins, including tensin, talin, and vinculin, on the cell surface are significantly decreased with increasing substrate stiffness, which eventually alters the cellular mechanosensing and mechano-response of NIH3T3 cells. Similarly, collagen-coated PAAm substrate with stiffness of approximately 5.7 kPa could significantly enhance the nuclear translocation of transcription factors through mechanical forces compared to a substrate with lower stiffness of approximately 150 Pa [30].
In addition to matrix stiffness, surface viscosity-driven ligand mobility change significantly affects the cellular behavior like actin flows, adhesion growth, Yes-associated protein (YAP) nuclear translocation, and myoblast differentiation [31]. The lipid bilayers of 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) fluid and 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) gel were used to construct substrates with different viscosities to understand the cellular behavior of C2C12 mouse myoblasts [31]. DPPC substrates with high viscosity generated a cellular response and hindered flow of actin via the strong adsorption of the lipid membrane. In contrast, DOPC substrates with lower viscosity conferred low resistance for the cell membrane, which enhanced actin flow [31].
Studies mentioned in this subsection show that the viscoelastic properties (defined with viscosity and stiffness) of substrate materials can significantly affect cellular processes and behaviors. Since each cell type may have characteristic interactions with materials, it is important to carefully consider the cell type when designing the materials to obtain desired cellular responses.

2.2. Physical/Mechanical Properties of Materials—Geometrical Factors Including Shape and Morphology

Materials of different shape or morphology, exemplified by spherical, triangular, and square surfaces of varying sizes or one, two, and three dimensional structures, produced distinct results in inducing cellular responses [11,15,32,33]. The surface to volume ratio, surface area, and shape or morphology of materials affect cellular responses, often recognized by changes in cell shape, spreading, and mobility. Inorganic nanomaterials are promising candidates for fabrication of substrates with different dimensions. A recent study with a one-dimensional (1D) inorganic nanomaterial (molybdenum selenide, Mo3Se3) affirmed the enhanced cellular response to physical properties of materials, such as dimension comparable to ECM molecules, mechanical flexibility, and topography [34]. The authors reported high cell proliferation on 1D Mo3Se3 single chain atomic crystals (SCACs) (Figure 1). The authors reported significant increases of proliferation of L-929 fibroblast and MC3T3-E1 osteoblast cell lines up to 268.4 ± 24.4% and 396.2 ± 8.1%, respectively, at 48 h post culturing with Mo3Se3 SCACs (Figure 1). 1D Mo3Se3 SCAC nanowire with negative surface charge, mechanical flexibility, large surface area, and small diameter (approximately 0.6 nm) mimicked ECM and improved the cellular response [34]. Furthermore, others prepared gold (Au) nanomaterials of different sizes and shapes (sphere, star, and nanorod) and demonstrated the effects of the materials on osteogenic differentiation of human mesenchymal stem cells (hMSC) and resulting alkaline phosphatase (ALP) activity and calcium deposition [35]. The effects of materials’ size and shape-dependent factors could be extended to alter nuclear signaling pathways. An investigation of the interaction of Au nanostars with the nuclei of cancer cells revealed major changes in the nuclear state [36].
Geometrical factors can also influence cell proliferation, cell-generated traction forces, and other cellular functions [37]. In general, studies on the effects of geometrical factors on cell interactions have mainly used polymer hydrogels, polymer casted substrates, electrospun fibrous scaffolds, and nanocrystalline substrates [38,39]. The micropatterning technique has been actively utilized to develop desired patterns or geometries on soft and hard materials. Cross-linking, cleavage of hydrogen bonds, and hydration process along with stamping can be useful in constructing hydrogels with controlled geometry [39]. For example, a study employing soft PAAm hydrogel substrates with defined geometries has provided a great deal of information concerning human mammary epithelial (MCF-10A) cells’ behavior on symmetric and asymmetric geometries [40]. Both soft (1 kPa) and stiff (7 kPa) PAAm gels with an identical surface area of 2500 μm2 but with different surface shapes (square, triangular, and rectangular; aspect ratio: 1:1, 1:1, and 1:4, respectively) were developed to investigate the geometric effects of materials on cellular interactions. The results indicated that cell-generated traction forces for protrusion, adhesion, and spreading mainly depended on the shapes of the ECM matrix, irrespective of material stiffness.
Especially, the colloidal lithography technique can be used to develop nanopatterned substrates decorated with Au nanoparticles. Au nanoparticles can be easily functionalized with chemical or biological moieties [10,41]. For example, Nelson et al. used fibronectin coated Au islands with square, rectangular, and spherical geometries to assess the response of cells to the geometry of the substrate [37]. The pattern of forces exerted by the cells corresponded to the edges and boundaries of the substrate (Figure 2A). Likewise, a study demonstrated force-dependent focal adhesion of cells using Au substrates patterned in different sizes (0.1, 0.6, and 3.0 μm). The study reported constraints in localization and adhesion dynamics of cells, which determined cell fates by the geometrical patterns of the materials, independent of matrix stiffness (Figure 2B) [42]. The collective findings indicate that both soft hydrogels and metal-based micropatterned substrates with different shapes and geometries can be used to explore the mechanotransduction mechanism for the regulation of cells.
The impact of two-dimensional (2D) geometrical substrates on cells has been also studied. Although 2D substrates may be suitable to investigate the influence of individual geometrical factors on cellular activities, three-dimensional (3D) geometrical substrates that more realistically support cell growth and interactions with their surroundings can be more useful, as they can closely mimic the cellular environment in vivo. A few studies have explored the influence of 3D geometrical factors on cell behaviors. Werner et al. developed poly(trimethylene carbonate)-based 3D microtopographic cell culture chips comprising concave and convex spherical structures with diameter of 250 μm and principal curvature of 1/125 μm−1 using stereolithography (Figure 2C) [43]. The authors described that the contact area on 3D concave structure increased the migration speed of MSCs, while the 3D convex structure induced osteogenic differentiation of the cells by activating their cytoskeletal forces on the nucleus. Cytoskeleton-tension-associated pulling or pushing force was produced responding to the concave or convex 3D structure, respectively, significantly influencing the cell attachment on the surface and causing nuclear deformation as well.
Another study using a quasi-2D fibrous nanopattern (developed through electrospun nanofiber lithography technique) also indicated the importance of the 3D geometry on cell responses [44]. The poly (methyl methacrylate) (PMMA) nanofibers with various diameters (250–1000 nm) developed on prefunctionalized silane initiator substrate acted as a barrier blocking protein adsorption. This structure was obtained through the growth of a polymer (oligo(ethylene glycol methacrylate)) brush, which is protein- and cell-resistant, and removal of PMMA using an electrospun nanofiber lithography technique. The size of the fibrous fibronectin structure turned out to effectively influence the HaCaT cell adhesion, spreading, and shaping. In another study, electrodeposited Au nanospikes with a 3D leaf-like structure promoted MSC alignment and neurogenic differentiation [45].
Extensive investigation with various surface patterns, including grooves, pits, pillars, and ridges, has highlighted the impact of nanopatterns of supporting materials on cell functions. The materials with these topographic patterns act as anchoring sites for the adhesion of proteins present in the cell membranes and induce changes in cell size and shape, differentiation, and physiological phenotype [10,11,27,46,47]. Among several polymer-based materials, PDMS, PMMA, and poly(lactide-co-glycolide) (PLGA) were used to prepare distinct surface patterns with varying degrees of stiffness to understand the mechanisms of cellular interactions with materials [48]. The use of fibronectin-coated PDMS substrates that were engineered with anisotropic nanogratings and isotropic nanopillars of different dimensions helped to find the effects of nanotopographies on normal human lung fibroblasts (NHLFs) [49]. The results suggested that nanoscale gratings can better facilitate the formation and growth of sites of focal adhesion compared with nanopillars. Importantly, the observation that gratings with a certain dimension caused nuclear deformation, suggested that appropriate patterns could facilitate nuclear mechanosensing.
Furthermore, nanotopography generated by layering nano-sized silica beads could alter the state of genomic DNA of mammalian cells, ultimately affecting retroviral integration patterns. Cells on the bead layer with the highest curvature often harbored the retrovirus genomes in the regulatory domains of their nuclear DNA during infection [9]. This new finding suggests that making cells respond to engineered substrate can be a way to control cellular responses to invading viruses.
Another study demonstrated the need of rational design of specific topographic patterns for certain cell lines. For example, poly(urethane acrylate) (PUA) nanoposts with an approximate thickness of 50 μm and gradient density specifically acted on melanoma cells [7]. Pitrez et al. demonstrated that careful optimization of the topography is important to control cell fate. The authors reported that cell aging was also affected by topography of substrate [50]. A PDMS substrate with a height of 1.5 μm and width of 5 μm, comprising grooves and ridges, induced more extensive disruption between the cytoskeleton and nucleoskeleton, and increased the activity of DNA-dependent protein kinase, compared with other dimensions and a flat substrate [50].
Metal-based substrates with certain topographies have also been used for other biomedical applications [51,52,53]. For example, titanium (Ti) nanostructured surfaces are important nanomaterials for dental and orthopedic implantations, enabling the enhanced osseointegration and soft tissue integration due to the synergistic effects of their nanotopographical and mechanical properties [51,54,55,56,57]. A Ti surface with optimal nanotopographic pattern, wettability, and mechanical strength could effectively induce mechanotransduction [56]. Human gingival fibroblast (hGF) cells showed enhanced cell attachment, proliferation, and differentiation on Ti surfaces with 74 nm diameter pores, surface roughness of 41.6 nm, surface area of 30.4 μm2, and hydrophilicity of 65.5°.
The geometrical factors of materials, such as size, shape, dimension, topography, and surface area play important roles in changing or controlling behaviors of cells, because the patterns of forces exerted by cells are significantly affected by those factors (Table 2). Thus, better design and engineering of these physical factors of materials would be one of the keys to obtain desired states and functions of cells.

2.3. Physical/Mechanical Properties of Materials—Electrical and Magnetic Potentials

Surface charge of materials can also act as a stimulus and induce mechanotransduction of cells (Table 3). Electric and magnetic fields can be desirable responsive platforms to control cell fate, as these external factors directly affect the cell–material interaction mechanisms [58]. Electrical potentials are generally activated by applying electric fields through electrodes deposited on electroconductive materials, while magnetic fields can be activated on magnetic responsive materials by magnets or electromagnetic induction coils [58].
Wei et al. demonstrated that an electric potential can be applied directly on material to guide the cellular response, irrespective of stiffness and chemical inducers [59]. A surface potential sensitive polypyrrole (Ppy) array on Ti surface could induce or affect the intracellular mechanotransduction and cytoskeleton organization when MSCs were attached to the surface and detached from the surface. With the application of surface potential, the Ti surface was transformed to highly adhesive hydrophobic nanotubes and poorly adhesive hydrophilic nanotips during the oxidation and reduction potential cycle, respectively. The dynamic switching of nanotube/nanotip regulated the cell–material interactions, also guided by the surface properties of materials such as wettability, adhesive force, and elastic modulus. The stimulus-responsive materials induced osteogenic differentiation of the cells in the cycle-dependent manner.
In other case, an external magnetic field was applied on a monolayer of RGD-functionalized magnetic nanoparticles (MNPs) conjugated on a glass substrate via a flexible and coiled poly(ethylene glycol) linker to investigate the effect of the tether mobility of RGD on cell adhesion and spreading [60]. RGD mobility is known to directly influence the formation of focal adhesion and mechanotransduction of cells. In the absence of magnetic field, high RGD tether mobility delayed adhesion and spreading of hMSCs. Once magnetic field was applied, RGD tether length decreased from ~72.2 nm to ~17.8 nm. This reduction of tether length significantly restricted the mobility of RGD, which finally resulted in enhanced adhesion and spreading, and mechanotransduction-mediated osteogenic differentiation of hMSCs.
A magnetic force pulse in the range of piconewtons can alter mechanical sensitive microenvironments. In this regard, magnetic nanomaterials were used to spatiotemporally manipulate mechanical force for a magneto-mechanotransduction mechanism [61]. The engineering of such magnetic nanomaterials can target the cell receptors and induce specific signaling pathways for cellular responses. The internalization of functionalized magnetic nanoparticles can affect the intracellular organelles and initiate cell apoptosis. Overall, the effect of magnetic fields has been widely studied for different applications, including regenerative medicine and cancer treatment. Two recently published reviews summarize the recent advances in understanding magnetic nanomaterials and their mechanotransduction effects on different cells [61,62].
Accompanying other physical stimuli, electric and magnetic fields can significantly alter the force-driven cell–material interactions. The design and construction of stimulus-responsive nanomaterials with characteristic stiffness, geometry, and topography would enable the control of cellular states and behaviors.

2.4. Chemical/Biological Functionalization of Materials

Chemical and biological functionalization is also useful to adjust cell–material interactions and to subsequently regulate cell metabolism. The interactions between cell receptors and chemical or biological moieties of material surface have been addressed [52,63]. Specific chemical functional groups or ECM molecules are generally chosen for the chemical or biological functionalization of material surfaces. On the surface, these molecules act as anchoring sites that interact directly with cell surface receptors [64].
ECM components, such as laminin, elastin, vitronectin, collagen, proteoglycans, and glycosaminoglycans, have unique physical and biological properties that facilitate cellular responses. A Matrigel-functionalized, 800 nm grooved PDMS substrates, have been used to distinguish diseased and nondiseased myotubes (Figure 3) [65]. The PDMS substrates patterned with 500, 800, 1000, 1500, and 3000 nm width parallel grooves (400 nm depth) were functionalized with Matrigel, gelatin, Arg-Gly-Asp (RGD) peptide, fibronectin, and type-I collagen to study the behavior of human embryonic stem cells (hESCs) derived myotubes. In the study, the myotubes were aligned in parallel on gelatin, RGD peptide, fibronectin, and type-I collagen functionalized 800 nm nanogrooved substrates, whereas they were aligned perpendicularly on the Matrigel-functionalized 800 nm nanogrooved substrate. Furthermore, the 800 nm substrates were functionalized with laminin-111, laminin-211, and type-IV collagen to identify the ECM component in Matrigel, enabling the cell–material interactions to align perpendicularly to the nanogrooves. Both laminin-111 and laminin-211 favored the perpendicular myotube alignment. This study exhibited that laminins could provide binding sites for α-dystroglycan on the surface of muscle cells through dystrophin-associated protein complex (DAPC)-mediated cytoskeleton–ECM linkage. It has been confirmed with heparin and anti-α-dystroglycan antibody IIH6 via disruption of the DAPC–laminin interactions. In another study, human corneal endothelial cells on different pillar structures functionalized with fibronectin–type-I collagen and laminin-chondroitin sulfate showed changes in gene expression [66]. The cells on the fibronectin–type-I collagen-coated micropillars exhibited high Na+/K+ ATPase and zonula occludens 1 (ZO-1) expression, leading to enhanced circularity.
Biomolecules such as proteins, nucleic acids, and polysaccharides contain amines (-NH2), carboxyl (-COOH), hydroxyl (-OH), methyl (-CH3), sulfhydryl (-SH), and phosphate (-PO4) functional groups which play important roles in most molecular and cellular interactions. Thus, polymer-based cell-culturing substrates are functionalized with chemical groups such as amine, carboxylic, and hydroxyl to induce cell–material interactions [10,46,65,67,68,69,70]. For example, allylamine plasma polymer layer (PPAAm) coated on titanium (Ti) surface promoted adhesion of MG-63 osteoblastic cells [71]. Ti surface functionalized with positively charged PPAAm enhanced the osteoblastic cellular responses including focal contact formation and actin cytoskeleton development. Interestingly, the level of observed osteoblastic cellular responses on PPAAm-Ti surface was comparable to those of cells on type-I-collagen immobilized Ti surface. Similarly, the negatively charged pericellular hyaluronan (HA) promoted initial adhesion steps of osteoblast on the positively charged amino-functionalized Ti surface (PPAAm). Thus, the electrostatically controlled cell–material interaction aided cell adhesion, spreading, and associated behavior. In this regard, the polymer layer seems to mimic the function of collagen in the natural ECM [71].
In another case, Au surfaces functionalized with different chemical groups were used to investigate the surface chemistry-dependent integrin binding and signaling of osteoblast cells [72]. Self-assembled monolayers of alkanethiols like 1-dodecanethiol, 11-mercapto-1-undecanol, 11-mercaptoundecanoic acid, and 12-amino-1-mercaptododecane were used to modify the Au surface with different chemical groups, including CH3 (hydrophobic), OH (neutral and hydrophilic), COOH (negatively charged at pH 7.4), and NH2 (positively charged at pH 7.4), respectively. Among those, growing on OH- and NH2-terminated Au surfaces resulted in increases in expression of alkaline phosphatase, bone sialoprotein, and osteocalcin, activity of alkaline phosphatase, and matrix mineralization of MC3T3-E1 cells, likely due to the predominant binding of specific integrin receptors to the substrates. The selective binding of α5β1 and αVβ3 integrin to functionalized surface affects the focal adhesion composition, osteoblast differentiation, signaling, and mineralization. The systematic investigation of the OH- and NH2-terminated substrates with β1 and β3 integrin blocking antibodies showed enhanced specific binding of β1 integrin which promoted the cellular activities. This result indicates that chemical modification of substrates could enhance the integrin binding specificity to activate specific signaling pathways and cellular behavior. Table 4 summarizes the effects of chemical and biological functionalization of culturing substrate on cells.
Engineering biomaterials to reach certain goals in biomedical applications begins with the right selection of organic, inorganic or, hybrid base materials with characteristic physio-chemical properties. Combining materials engineering with use of various physical, electrical/magnetic, and chemical external stimuli will further facilitate more sophisticated control of the states and behaviors of cells.

3. Cellular Sensing of Engineered Materials

In the process of cellular sensing of the surrounding environment, receptor proteins on the cell surface play major roles [73,74,75]. Cell surface receptors can recognize not only various natural ligands such as growth factors and hormones, but also diverse artificial features of engineered materials such as physical dimensions and chemical functional groups. In particular, physical factors are key targets for cells to recognize for sensing outer engineered materials. Mammalian cells use integrins, mechanosensitive ion channels, and G-protein coupled receptors (GPCRs) for this sensing process [73].

3.1. Sensing Receptors on the Cell Surface—Integrins

Integrin is a receptor protein whose extracellular head domain provides a site for ligand binding and its cytoplasmic tail domain interacts with intracellular molecules. The interactions involving integrins result in physical connections between extracellular and intracellular structural domains. Integrins recognize natural ECM components and various physical and biochemical cues from engineered materials ultimately causing changes in physiology, behaviors, and fate of cells. For example, integrin-mediated sensing of topographic features of the surrounding materials can affect the direction of cell migration. PUA mold materials with thickness of ~50 µm were used to construct an array of 600 nm diameter nanoposts with gradually varied spacing from 0.3 µm to 4.2 µm in one of the orthogonal directions and constant spacing in the other direction. On this material, melanoma cells migrated to the zones with a sparse density of the nanoposts. This is because the cells were able to more readily penetrate into the interpost space in sparser zones than in denser zones, and thus integrin-mediated adhesion to the substrate was increased. The cells migrated from denser to sparser zones where the cell–substrate contact was enhanced [7].

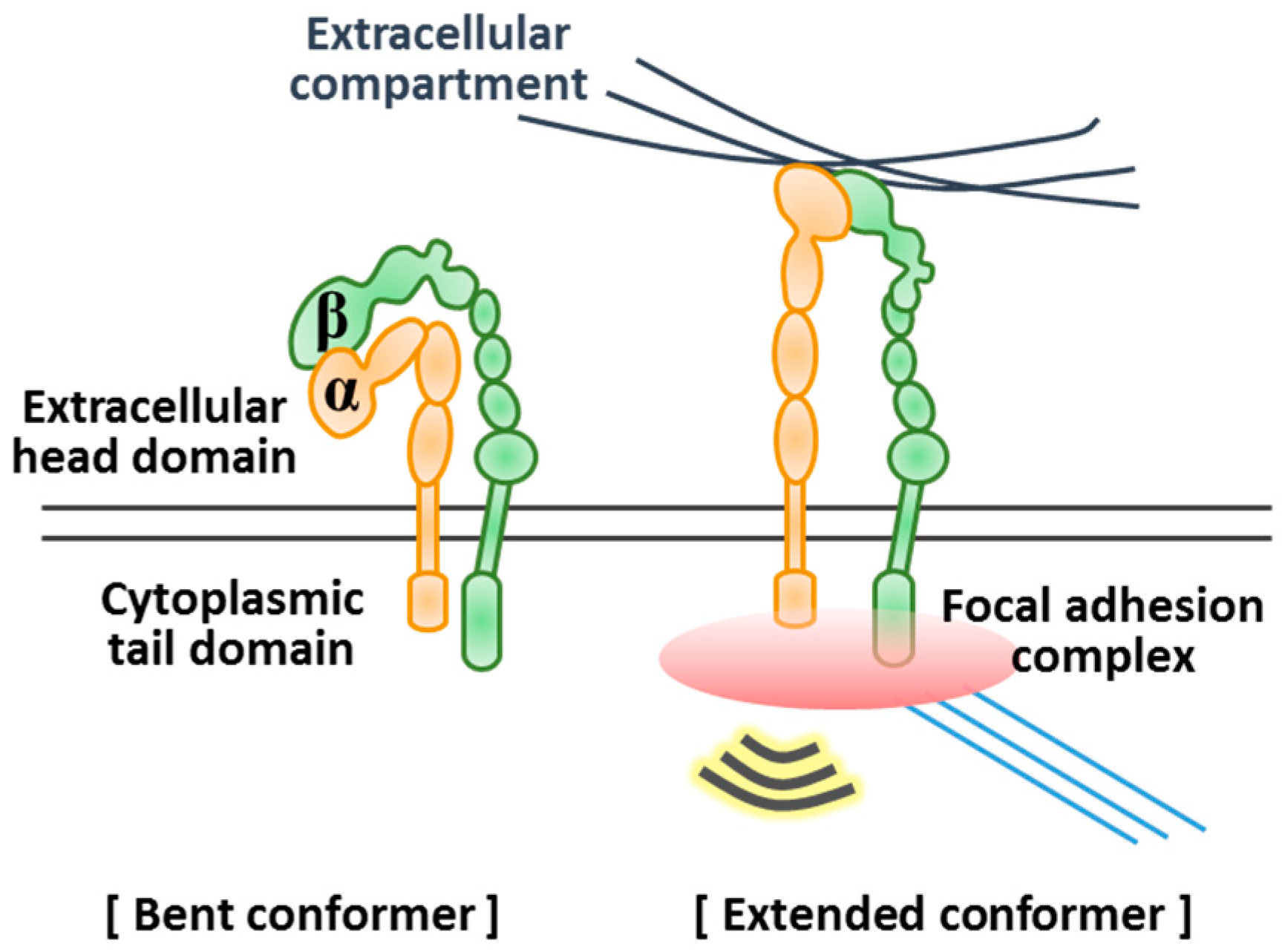

Integrin is a heterodimer composed of α and β subunits (Figure 4). Integrin can interact with various molecules [76]. There are 18 α and 8 β subunit genes in mammalian genomes, of which translation products can combine to form 24 different integrin proteins [76,77]. The extracellular domains of the α and β subunits contribute to form a ligand binding site and the resultant integrins selectively bind to different ligands [77]. As established examples of integrin–ECM component interactions, all five αv integrins (αvβ1, αvβ3, αvβ5, αvβ6, and αvβ8), two β1 integrins (α5β1 and α8β1), and αIIbβ3 bind to the ligands containing RGD sequences, such as fibronectin, vitronectin, and laminin. Additionally, a set of β1 integrins (α1β1, α2β1, α10β1, and α11β1) predominantly interact with collagen and bind to laminin weakly. Three β1 integrins (α3β1, α6β1, and α7β1) and α6β4 are highly selective laminin-binding receptors (Table 5).
These ECM proteins or the integrin-binding motifs in those proteins have been incorporated on engineered materials to enhance cell attachment. In one study, the cell adherence to glass coverslips presenting different integrin-binding motifs (GTPGPQGIAGQRGVV in collagen I, MNYYSNS in collagen IV, PHSRN in fibronectin, and YIGSR in laminin) differed depending on the motifs, but was much higher than the control case without such motifs [78]. When cells sense these materials that present the peptide motifs, molecular links from cytoskeleton to the materials are enhanced by interactions between integrins and their ligands. Another study explored how the mobility of RGD peptides presented on lipid bilayers influences cell behavior. Two types of substrates with different viscosities (DOPC with a lower viscosity and DPPC with a higher viscosity) were used to change the mobility of the ligands. The average area of immortalized C2C12 mouse myoblast cells increased in response to high ligand mobility that was caused by low viscosity of the substrate. This change was abrogated with the blockade of integrin α5β1 and ανβ3, the major receptors for fibronectin [31].
Interactions between materials and cells can cause changes in integrin subunit expression. For example, β1 expression levels of two epithelial cell lines, NMuMG and M1 cells, were decreased when grown on soft matrix, while the expression levels of α2, α5, αv, β3, and β4 were not changed [85]. In another study, poly(L-lactic acid) (PLLA) and PS demixed nanoscale pit textures affected the attachment, spreading, and integrin-mediated focal adhesion structure of human fetal osteoblastic (hFOB) cells. The cells were grown on the PLLA and PS demixed thin materials having circular or channel-shaped pits of three different depths (14, 29, or 45 nm in depth on average) on their surface or flat PLLA materials without a pit as a control. Deeper pits were wider, thereby making the surface areas of deeper pits larger than those of shallow ones (pits of ~14, ~29, and ~45 nm depth had surface areas of 0.09 µm2, 0.18 µm2, and 0.42 µm2 on average, respectively). However, the surface coverage of pits on the thin materials was equivalent to be ~32% of the total surface area for all the three types of materials with pits. Compared with cells on other types of materials including the control case, cells on the materials with 14 nm and 29 nm deep pits showed upregulated expression of αv subunit [86].
For most integrins, ligand binding activity is controlled through conformational rearrangements between the bent conformer having a low affinity and the extended conformer having a high affinity for ligand (Figure 4) [79]. This switchable structures of integrin facilitate adoption of its adhesiveness that is appropriate for the environment [87]. For example, the repetitive mechanical forces applied to bonds between fibronectin coated beads and α5β1-expressing K562 cells prolonged the bond lifetime, which is linked to a conformational change of integrin to the extended conformer [88]. The structure of integrin as well as its expression level is important to the cellular sensing of substrates.

3.2. Sensing Receptors on the Cell Surface—Mechanosensitive Channels and GPCRs

Four types of mechanosensitive ion channels have been found in eukaryotes: cation-selective transient receptor potential (TRP) channels, piezo channels, degenerin/epithelial sodium (DEG/ENaC) channels, and K+-selective 2P domain channels [89]. Piezo channels have been identified as the mechanically activated channels that respond to various physical stimuli. In an early study, electrical current was detected in mouse neuroblastoma cells under mechanical stimuli. Expression profiling and RNA interference knockdown of candidate genes demonstrated that Piezo1 was required for coupling of the mechanical stimuli with ion flux. Piezo2 was also characterized as a mechanically activated cation channel through additional experiments [90]. Piezo1 senses physical force through direct transmission by lipid bilayer tension, although the details of the sensing mechanism are still unclear [91]. Piezo proteins sense various physical factors that are important in physiology. Piezo1 channels sense the shear stress generated from blood flow in the vasculature and evoke Ca2+ entry into endothelial cells [92]. Piezo2 acts as a rapidly adapting mechanoreceptor for innocuous touch sensation in dorsal root ganglia neurons and Merkel cells by transforming mechanical energy into electrical signals [93].
Another study investigated whether the transient receptor potential cation channel subfamily V member 4 (TRPV4) and Piezo1 channels in chondrocytes can be gated by various physical stimuli. Piezo1 channels exhibited altered responses to tested physical factors, including pressure, indentation, deflection at cell–substrate interface, and membrane stretch, while TRPV4 did not. However, the TRPV4 channel was directly activated and mediated ion currents using only the deflection stimulus applied at cell–substrate contact points. The findings indicated that several mechanosensitive ion channels are not activated by every physical factor, but instead respond to only a specific type of physical factor, as integrin family members do. In addition to Piezo1 and Piezo2 channels, which were previously demonstrated to be general mechanosensors, many unknown mechanically activated ion channels seem to exist [94].
Sensing mediated by mechanically activated ion channels has mainly been studied in prokaryotes. Only a few ion channels have been demonstrated as mechanosensors in eukaryotes [95,96]. To discover additional mechanosensors, small interfering RNA (siRNA) that blocks the expression of piezo proteins was transduced into 25 cell lines. Despite the low levels of Piezo1 and Piezo2 transcripts, MDA-MB-231 cells exhibited a robust transient increase in intracellular Ca2+ levels in response to shear stress. Additional tests identified GPR68, a GPCR for sphingosylphosphorylcholine, as another mechanosensor for shear stress that can function separately from Piezo1 channels in MDA-MB-231 cells [97].
GPCRs are the largest group of membrane receptors that cooperate with heterotrimeric guanine nucleotide-binding proteins (G proteins) to mediate a wide range of cell functions. The mediation involves the recognition of physicochemical factors in the cell surroundings in addition to soluble ligands. Apart from GPCR activation by ligand binding, several cellular environmental changes, such as fluid-induced shear stress in blood vessels, osmotic changes, and mechanical pressure, lead to a conformational transition of the receptor from an inactive state to an active state. This transition can mediate downstream signal transduction as well [98,99]. To investigate GPCR-mediated sensing of cell surrounding events various engineered materials have been used to reproduce cellular dynamic environment. For example, stimulation of endothelial cells with fluid-induced shear stress can cause ligand-independent conformational changes of bradykinin B2 GPCR into an active form. In the experiment, a 2 mm wide flow microchamber that exposed endothelial cells to fluid shear stress was used to generate stimulation like that in a blood vessel.
Hypotonic stress and membrane fluidizing agents also have the same effect. These results provided evidence that the GPCR-mediated sensing of physical stimuli is significantly affected by plasma membrane tension or fluidity [98]. The AT1 angiotensin II receptor can be activated by the stimulation of human embryonic kidney (HEK) 293 cells by membrane stretch using the patch-clamp technique [100]. GPR68, which was mentioned as a shear stress sensor, can also sense pH changes in the surroundings. At weak alkaline pH, GPR68 is in an inactive state by hydrogen bonding involving histidine. Protonation can disrupt the hydrogen bonding and cause the consequent conformational switch of GPR68 to be in the active state [99].
In this section, we have summarized how cells sense various physical characteristics of engineered materials (Table 6). The sensing process involves folding changes and actions of integrins, mechanosensitive ion channels, and GPCRs.

4. Cytoplasmic Mechanotransduction

Mechanotransduction from the cell membrane to the nuclear genome has attracted considerable attention since its first demonstration in 1997 [101]. Mechanotransduction is a process by which cells sense mechanical stimuli and respond to them by conversion of mechanical stimuli to biochemical signals, ultimately leading to specific cellular responses that involve changes in gene expression. Mechanical stimuli can change the functions, growth, migration, and differentiation of cells.
Electrical or chemical signals initiated by extracellular stimuli are transmitted into cells through the cooperation between signaling molecules that activate or localize other proteins. This transmission often involves actions of cytoskeletal proteins, which provide intracellular physical connections. During integrin-mediated sensing, integrins adhere to the outer substrate using their avid ligand binding affinity [80]. Integrin–substrate binding promotes the formation of focal adhesion complex with recruitment of signaling molecules and cytoskeletal proteins around the cytoplasmic tail of integrin [102]. Beginning with the autophosphorylation of a tyrosine residue in FAK, various focal adhesion proteins, including Src family kinases, integrin linked kinase (ILK), and paxillin, can be activated sequentially through phosphorylation [20,103].
Physical features of cell surroundings influence integrin-mediated mechanotransduction and change the relevant cell behavior. For example, mammary epithelial cells (MECs) within ribose-stiffened collagen gels (≥150 Pa) had elevated β1 integrin and FAK colocalization and enhanced phosphoinositide 3-kinase (PI3K) signaling, which promotes breast tumor invasion [104]. Nanopatterned surfaces with RGD-functionalized gold dots at regularly spaced intervals also exert effects on the formation of focal adhesions in cells growing on the substrates. Cells cultured on closely arrayed RGD nanopatterns showed elevated levels of vinculin and paxillin throughout the ventral surface of the cells [4]. The activated proteins affect multiple downstream signal cascades involved in a wide range of cellular processes [105]. For example, active Src kinases activate the Ras-Erk pathway, leading to cell proliferation and differentiation. Paxillin and p130Cas, which are also activated by Src kinase, lead to Rac activation, which promotes cell motility [105,106]. Cell survival is regulated by ILK-mediated Akt activity and maintenance of cell polarity requires Cdc42 activity [105].
While soluble factors may trigger cellular signaling pathway independent of the cytoskeletal structure, transduction of physical signals from extracellular substrates into cells requires intact connection between integrin and the actin cytoskeleton. Upon ECM-mediated integrin aggregation, tensin1 molecules are recruited to the focal adhesion site and link between integrins and the actin cytoskeleton [107]. The integrin–ligand interaction induces recruitment of structural proteins, such as vinculin and talin that directly link ECM-bound integrin to actin structure along with tensin1. At the same time, adaptor proteins, including the ezrin-radixin-moesin (ERM) family proteins, Kindlin2, and α-actinin, are also recruited and stabilize the cytoskeletal structure [108,109]. Both signaling molecules and cytoplasmic structural modules are systemically intertwined with each other and cooperatively process the signals sensed by mechanosensors, ultimately eliciting the specific cell behavior. The expression level or activity of each protein involved in the integrin-mediated signal transduction varies responding to the signal from the specific physical stimulus. Altered activities of one or more components in response to the specific physical stimulus affect the overall intracellular signaling network and lead to altered cell behaviors, functions, and fates.
For example, β3 integrin and the ERM family, which act as an integrin adapter protein and signaling molecules, mediated transduction of the information of 3D biomimetic microchips into human kidney podocytes. The chips have several protruding channels and were fabricated by photolithography on 22 mm × 22 mm microscope cover glass slides to mimic the natural shape of podocytes. Either unpatterned glass or square-shaped substrate was used as a control. Blocking β3 integrin reduced the focal adhesion area in micropatterned cells. Additional supporting data indicated that β3 integrin and the ERM family regulate subcellular localization of proteins needed for shape information transduction, thereby maintaining physiologically relevant phenotype of the cells [110].
In the study mentioned above [86], the levels of expressed integrin αν, paxillin, FAK, and autophosphorylated FAK were higher in human fetal osteoblastic (hFOB) cells cultured on nanoscale substrate with topographies harboring 14 nm and 29 nm deep pits, relative to those cultured on substrate with 45 nm deep pits or on flat substrate. The integrin αν-mediated sensing of nanoscale topographies and the subsequently developed focal adhesion structures by highly activated signaling molecules seem to be responsible for hFOB cell attachment and spreading [86]. A study that examined the effects of substrate stiffness on mouse embryonic fibroblast cells found that a rigid substrate was able to activate vinculin by promoting the interaction between vinculin and vinexin α, and could localize vinculin to adhesion sites. High intracellular tension generated when cells were grown on a rigid substrate enabled both activation and localization of vinculin [111].
Mechanotransduction mediated by GPCRs involves two pathways. One is via inositol trisphosphate (IP3) and diacylglycerol (DAG) formation. The other is via adenosine 3′,5′-cyclic monophosphate (cAMP) formation. When Gq/11-coupled receptors sense physical stimuli, phospholipase C (PLC) is activated and cleaves phosphatidylinositol 4,5-bisphosphate (PIP2) to IP3 and diacylglycerol (DAG) [100,112]. GS-coupled receptors activate the cAMP-forming pathway. For example, GPR4, which senses changes in pH, functions in the Gs-coupled receptor-mediated pathway and GPR68 acts as a Gq/11-coupled receptor [97,99].
Mechanical stimuli generated by engineered materials are transmitted into cells by signaling molecules and cytoplasmic proteins (Table 7). This mechanotransduction induces changes in expression levels or activities of multiple proteins and, in turn, leads to alteration of cellular processes. Currently, various studies try to find the proteins affected by specific mechanical stimuli and corresponding results in cell physiology, but the relevant detailed molecular mechanisms are still unavailable.

5. Nuclear Mechanotransduction

The nucleus is a separate organelle from the cytoplasm that is bound by lipid membranes. The nucleus controls many activities of the cell by regulating the expression of genes encoded by nuclear DNA. During cellular sensing of external cues, cytoplasmic structural proteins and regulatory molecules serve as connectors that link the cell surface and nucleus physically and biochemically (Table 8) [101,113,114].
Linker of nucleoskeleton and cytoskeleton (LINC) complexes, as the name indicates, forms a physical connection within cells [115]. These complexes act as bridges across the perinuclear space by coupling Klarsicht/ANC-1/Syne homoloy (KASH) family members, which are outer nuclear membrane proteins, and Sad1p and UNC-84 (SUN) family members, which are inner nuclear membrane proteins [116]. The large cytoplasmic domains of the KASH proteins interact with cytoskeletal elements including actin filaments, intermediate filaments, and microtubules. Exposed residues of KASH proteins at the perinuclear space bind to the SUN domain at the C-termini of SUN proteins, which are anchored in the inner nuclear membrane. SUN proteins expose their N-termini to the nucleoplasm, thereby binding to the nuclear lamins, which are the major structural units supporting the nuclear membrane.
On the other hand, in the signaling pathway for nuclear mechanotransduction, the action of Yes-associated protein/Transcriptional coactivator (YAP/TAZ) complex is important [114]. The YAP/TAZ complex provides bidirectional communication that mediates cellular mechanoresponses. A study demonstrated that osteogenic differentiation of MSCs on stiff ECM was inhibited by depletion of YAP/TAZ complex [113]. YAP/TAZ-mediated regulation requires Rho GTPase activity and tension of the actin cytoskeleton. Thus, the YAP/TAZ complex can mediate the regulation of cell behavior in response to mechanical cues. In another example, LINC complex-mediated cellular responses to mechanical cues can be induced when the signal molecules phosphorylate several structural proteins in the nuclear mechanotransduction pathway [115]. Accordingly, cooperation between cytoskeletal structure and signaling modules is essential to transmit the stimulus from surrounding environments into the nucleus.
Multiple recent studies have revealed the importance of the translocation of various transcription factors from the cytoplasm to the nucleus and the nonrandom organization of chromosomes in the nucleus for gene regulation [117,118,119]. Mechanical stimuli applied on cell membrane are propagated by various messengers to the nucleus and activate transcription factors. These transcription factors bind to their target genomic sites in the nucleus. However, the mechanism behind the activation of these transcription factors by mechanical stimuli is not completely known. A recent study clarified how the force applied on the cell surface can propagate into the cell nucleus through the cytoskeleton and lamin A/C. The result is the dissociation of intranuclear protein–protein complexes [120]. Functions of lamins ultimately cause the changes in the gene regulation [121,122,123]. In the next section, we review recent studies concerning how external mechanical forces change the states of cellular genomes.

6. Changes in Physical and Chemical States of Nuclear Genomes

Figure 5 illustrates how external force applied to the cell surface can affect the chromatin in the nucleus and elevate the DHFR gene transcription [124]. External mechanical stimuli can arrive at the nucleus by mechanical coupling from integrins to cytoskeleton through focal adhesion proteins and enter the nucleus via the LINC complex to nuclear lamin A/B and finally to chromatin.
Gene knockout has been the primary technology that has uncovered the processes of nuclear mechanotransduction. In the approach, the genes encoding the proteins related to mechanotransduction are knocked-out. These genes include Lmnb1/2 (which encodes the elastic lamin B components of the lamina), Lmna (that encodes lamin A, which is important for tissue differentiation and nuclear mechanics), Emd (which encodes the nucleus stiffening emerin protein), cbx1/5 (which encodes HP1), and Banf1 (which encodes BAF) [121,122,125,126]. The knockout of any one of these genes leads to an elevation of spontaneous chromatin movements. The results indicate that HP1 and BAF physically tether chromatin to the nuclear lamins and mediate stress propagation from LINC to chromatins. Reduction of expression for any one of these nuclear proteins leads to the abolition of force propagation and force-induced upregulation of the DHFR gene transcription. These physical links between LINC and chromatins transfer external forces to deform the chromatin structure. Increased stretching of chromatin leads to more pronounced upregulation of the DHFR gene. It is difficult to explain the force-induced upregulation of the DHFR gene by previously suggested models, including translocation or diffusion of FA proteins or other cytoplasmic proteins, such as YAP and TAZ [113] or TWIST1 [30], into the nucleus. Substrate stiffness can regulate Nupr1 expression [127]. To study mechanical force dependent Nupr1 expression changes, tumor-repopulating cells (TRC) were cultured on 2D rigid plastic and 3D soft fibrin matrices. Compared with the 2D surface, the soft 3D fibrin matrices induced reduction of Nupr1 mRNA production and Nupr1 protein levels by approximately 70%. An increase of 3D matrix rigidity and 2D substrate stiffness significantly upregulated Nupr1 expression. These findings indicated that substrate rigidity can regulate Nupr1 gene expression [127].

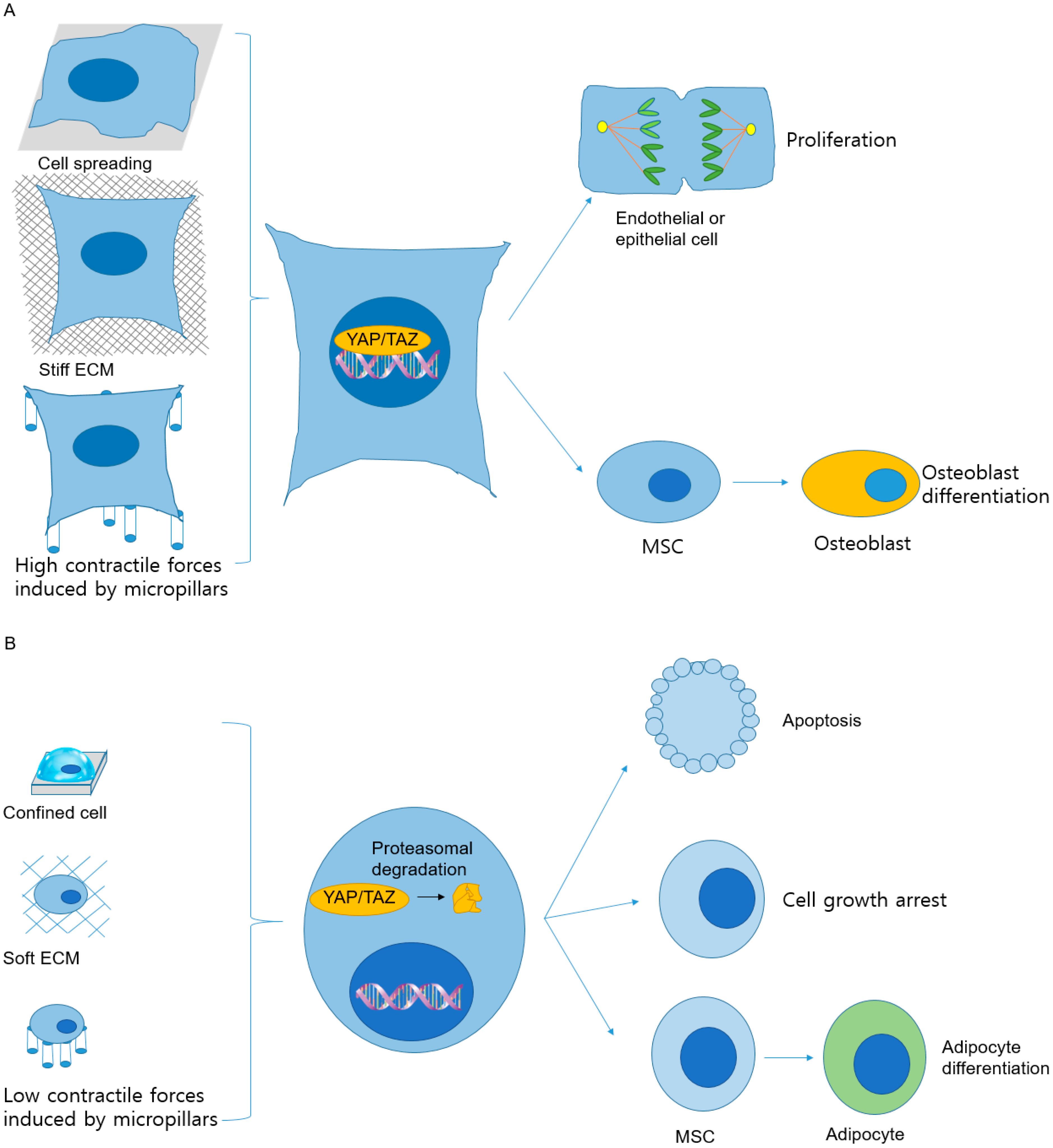

Figure 6 illustrates how different mechanical conditions affect cell fates through activation and inactivation of the YAP and TAZ transcriptional regulators (Table 9). In the experiment described previously, translocation of most YAP molecules into the nuclei occurred in TRCs cultured on the 2D rigid plastic. The translocation efficiency of YAP into the nuclei in TRCs cultured on soft 3D fibrin matrices was only 18%. Furthermore, many of YAP in TRCs cultured in 3D soft fibrin matrices were phosphorylated at serine 127, and the total amounts of YAP in TRCs on 2D rigid plastic and in 3D soft fibrin matrices were similar. These findings indicate that the phosphorylated YAP could not translocate into the nucleus. Translocation of cytoplasmic YAP into the nucleus can upregulate the expression of the Nupr1, a tumor suppressor. Substrate rigidity could control the fate of stem cells [8].
Cells respond to mechanical cues from their environment, which include the stiffness of the extracellular matrix and interacting forces from neighboring cells [128,129,130]. In tissues of animal and human bodies, stiffness and contractile forces of the local environment surrounding individual cells significantly influence their behaviors [129]. These physical factors induce mechanical stress to initiate mechanotransduction. The stiffness and contractile forces can be also provided by engineered materials. If materials of collagen-coated gels have the stiffness that is similar to that of brain tissue, the MSCs grown on the engineered materials differentiate into neuron cells [8].
Cell shapes are dependent on their microenvironment and are one of the critical regulators for determining the cell growth and states [131,132,133]. Well-spread cells proliferate (Figure 6A), while cells confined in small areas experience apoptosis (Figure 6B). MSCs that are spread out differentiate into osteoblasts (Figure 6A), whereas MSCs restricted in a round shape differentiate to adipocytes (Figure 6B) [134]. The rigidity of the ECM also controls cell functions. Each human organ has a distinct stiffness that is controlled by ECM elasticity and the 3D shape of tissues. MSCs spread on solid ECM differentiate to form osteoblasts (Figure 6A), while MSCs cultured on a soft extracellular matrix differentiate to form neurons and adipocytes (Figure 6B) [8]. The MSCs differentiate into neuron cells, myoblasts, and osteoblasts when cultured on ECM with elasticity ranging from 0.1 kPa to 1 kPa, from 8 kPa to 17 kPa, and from 25 kPa to 40 kPa, respectively. TAZ and YAP are transcriptional mediators that transduce mechanical cues from the microenvironment, and finally cause the biological changes of cells, varying by ECM elasticity and cell shape [113,135]. TAZ and YAP translocate into the nucleus where they act as transcriptional activators during cell growth when cells are on solid ECMs with elasticity of 40 kPa (Figure 6A). On the other hand, YAP and TAZ that are located outside the nucleus are functionally inactivated in cells seeded on soft ECMs such as 0.7 kPa fibronectin-coated hydrogels (Figure 6B) [113]. Among MSCs cultured on micropatterned ECMs having the same rigidity, the cells that are spread out and have large adhesion areas display active TAZ and YAP (Figure 6A). In contrast, the cells confined to a small area have inactive TAZ and YAP (Figure 6B) [113,135]. In addition, the rigidity of a substrate can regulate histone modifications. Rigid substrates or forces applied through integrins increase the methylation of lysine 9 at histone 3 (H3K9) [136]. These changes in histone alter the epigenetic states of cells, a key to alter gene expression.

7. Changes in Gene Expression

Figure 7 illustrates four mechanisms, in general, by which mechanical forces affect gene expression (Table 10). As shown in Figure 7A, molecules comprising nuclear scaffolds, networks of fibers existing inside of the cell nucleus, might be deformed by external mechanical forces. This deformation leads to an alteration in self-assembly of regulatory protein complexes or other molecule structures related to gene regulation. External mechanical force-induced chromatin structural change leads to differential accessibility for DNA regulatory factors, such as transcription factors and chromatin modifying enzymes. For example, lamin A and emerins bind to transcription factors, and emerins interact with splicing factors. Therefore, forces that propagate through LINC complexes to these molecules can directly affect gene expression by modifying transcription factors and splicing factors [148,149,150]. As shown in Figure 7B, forces applied to a specific region of chromatin that is tethered to nuclear membrane receptors or lamin molecules or internal nuclear scaffold can regulate transcription or splicing factors (violet). For instance, newly synthesized transcripts interact with pre-mRNA splicing machinery. As a result, the forces transferred to these proteins over the matrix attachment region (MAR) regulate mRNA splicing and processing.
Stress or strain transferred to nuclear scaffolds can change higher-order chromatin organization. This conformation change facilitates the access of transcription factors and can influence gene transcription [151]. As shown in Figure 7C, external mechanical forces applied to nuclear pores increase nuclear transport and regulate post-transcriptional process. The external forces transferred to the nucleus alter the size of nuclear pores and change chromatin status, transcription, and mRNA transport through the deformation of the component shapes of pore and alteration of their chemical activities. It is also possible to transfer force to nuclear scaffolds, so the force can directly regulate gene expression [152]. As shown in Figure 7D, mechanical forces applied to specific regions of nuclear scaffolds can stretch certain regions of DNA via MAR tethering. This mechanical force can melt the DNA (especially at AT-rich sites), and the melting of the DNA region facilitates the binding of transcription factors to the region.
Mechanical forces are important in many cellular processes, such as migration, adhesion, and differentiation, and are also involved in tissue development, regeneration, and morphogenesis. Transfer of external forces to the nucleus through LINC complexes can regulate cell fates during development and differentiation [163]. Higher-order LINC complexes are located at the nuclear boundary. These complexes respond to external mechanical inputs. Mechanical force propagation through nesprin, a key structural protein in the LINC complex, was studied with a mini-Nesprin-2G isoform [164]. The result revealed the involvement of nesprin in force-induced signaling mechanisms. Other proteins are involved in mechanical force propagation. For example, FHOD1, an actin-bundling formin, has both actin- and nesprin-binding domains. It is important in reinforcing LINC complexes during loading of mechanical force [165,166]. The Samp1 inner nuclear membrane protein is also necessary for the formation of transmembrane actin-associated nuclear lines by connecting SUN proteins and nuclear lamina [167].
The nuclear lamina translates these exogenous forces. Lamin A/C deficiency can cause nuclear deformation and defective mechanotransduction under mechanical strain, which can affect mechanically activated gene transcription [168]. The nuclear lamina components can be adjusted by the surrounding environment of cells. In stiffer tissues, the nucleus contains more lamin A/C compared with softer tissues [122]. External force induces a conformation change in lamin [169]. External forces can cause different cytoskeletal prestress, which changes lamin A/C expression, assembly, and disassembly. These events lead to altered gene expression [122]. Lamin A/C is also essential for stem cell differentiation [121,170,171]. Cells in a low-tension environment have more phosphorylated lamin A/Cs, and more lamin A/Cs are degraded in this microenvironment [172,173]. Inner nuclear membrane protein lamin B receptors bind to lamin B and HP1, and LAP2 β binds to lamin B and BAF, resulting in chromatin tethering on nuclear lamina [174,175,176]. This chromatin tethering can increase the stiffness of the nucleus. Osmotic stress also regulates nuclear function and structure [177,178].
Mechanical forces can change the compaction and organization of chromatin. A small deformation of the nucleus leads to an alteration in chromatin remodeling. On the other hand, massive strain causes changes in lamin A/C organization [179]. Chromatin remodeling occurs as an early response to mechanical force. Chromatin condensation in mesenchymal stem cell occurs within 10 min of mechanical stimuli due to the altered activity of the histone modification enzyme [180]. The timescale, nature, and level of mechanical force-induced remodeling of epigenomes depend on the characteristics of the mechanical stimuli. A mechanical force of 1.25 nN applied to the plasma membrane leads to rapid chromatin decompaction [181]. The precise mechanisms for mechanical force-induced epigenomic regulation are still unclear.
In vitro, the activity of histone deacetylases in vascular endothelial cells can be affected by fluid shear stress [182]. Physical stimuli lead to global and locus-specific epigenetic changes related to stem cell pluripotency. For example, in mouse MSCs, oscillatory fluid flow alters the epigenetic state by decreasing DNA methylation of the osteopontin gene promoter and causes the upregulation of the expression of the particular gene [183]. Mouse induced pluripotent stem cells interact with mechanical microenvironment. This interaction increases the levels of H3 acetylation and methylation. These changes improve reprogramming efficiency [184]. Accumulation of mechanical stimuli can result in the phenomenon of ‘mechanical memory’. For example, MSCs cultured on stiff substrates for a long time retain their ‘stiff’ phenotype by localization of RUNX2 and YAP in the nucleus even after these cells are transferred to soft substrates [185].
Mechanotransduction regulates nuclear functions. Mechanical forces have significant impacts on chromatin stretching and gene regulation. Living cells interact with their ECM through many adhesion sites, and the interaction of cell and microenvironment can cause chromatin stretching, compression, or shearing to repress or activate transcription.

8. Conclusions

Numerous studies have successfully engineered materials with the specific characteristics that can alter the cellular processes ultimately affecting the various behaviors of the cells. The studies have clarified the transduction pathways of the mechanical stimuli generated by the materials. These scientific efforts have revealed a great deal about the mechanisms for cellular sensing of mechanical cues, transfer of the sensing information to nucleus, and resulting changes in gene expression, and subsequent alterations in cell physiology, function, and fates.
Better understanding of the interactions between materials and cells will enable rational design of engineered materials that allow sophisticated control of cells. In particular, more information is needed to understand how cells distinguish the different characteristics of engineered materials, transfer the specific sensing information to their nuclei, and finally alter their gene expression profiles to respond or adapt to the given artificial environments.
To date, various studies have been conducted to systematically control cellular states that eventually cause adhesion, proliferation, and differentiation of the cells. Diverse approaches to uncover the controlling effects of engineered materials on cellular processes will eventually advance cell-based biomedical applications by adding new physical and chemical tools to the conventional sets of biological cell-tuning tools.

Funding

This research funded by a grant from the National Research Foundation of Korea (NRF2016M3A9B6947831). This work was also supported by Korea Institute of Planning and Evaluation for Technology in Food, Agriculture and Forestry (IPET) through Animal Disease Management Technology Development Program, funded by Ministry of Agriculture, Food and Rural Affairs (MAFRA) (Grant number: 118094-03).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Park, I.H.; Lerou, P.H.; Zhao, R.; Huo, H.; Daley, G.Q. Generation of human-induced pluripotent stem cells. Nat. Protoc. 2008, 3, 1180–1186. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, Y.; Conaway, L.; Rutherford Bethard, J.; Al-Ayoubi, A.M.; Thompson Bradley, A.; Zheng, H.; Weed, S.A.; Eblen, S.T. Phosphorylation of the alternative mRNA splicing factor 45 (SPF45) by Clk1 regulates its splice site utilization, cell migration and invasion. Nucleic Acids Res. 2013, 41, 4949–4962. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Fu, X.; Zhang, H.; Chen, Z.; Yang, Z.; Shi, D.; Liu, T.; Chen, W.; Yao, F.; Su, X.; Deng, W.; et al. TFAP2B overexpression contributes to tumor growth and progression of thyroid cancer through the COX-2 signaling pathway. Cell Death Dis. 2019, 10, 397. [Google Scholar] [CrossRef] [PubMed]
  4. Cullot, G.; Boutin, J.; Toutain, J.; Prat, F.; Pennamen, P.; Rooryck, C.; Teichmann, M.; Rousseau, E.; Lamrissi-Garcia, I.; Guyonnet-Duperat, V.; et al. CRISPR-Cas9 genome editing induces megabase-scale chromosomal truncations. Nat. Commun. 2019, 10, 1136. [Google Scholar] [CrossRef] [PubMed]
  5. Yao, C.H.; Liu, G.Y.; Wang, R.; Moon, S.H.; Gross, R.W.; Patti, G.J. Identifying off-target effects of etomoxir reveals that carnitine palmitoyltransferase I is essential for cancer cell proliferation independent of beta-oxidation. PLoS Biol. 2018, 16, e2003782. [Google Scholar] [CrossRef]
  6. Hacein-Bey-Abina, S.; Von Kalle, C.; Schmidt, M.; McCormack, M.P.; Wulffraat, N.; Leboulch, P.; Lim, A.; Osborne, C.S.; Pawliuk, R.; Morillon, E.; et al. LMO2-associated clonal T cell proliferation in two patients after gene therapy for SCID-X1. Science 2003, 302, 415–419. [Google Scholar] [CrossRef] [PubMed]
  7. Park, J.; Kim, D.H.; Kim, H.N.; Wang, C.J.; Kwak, M.K.; Hur, E.; Suh, K.Y.; An, S.S.; Levchenko, A. Directed migration of cancer cells guided by the graded texture of the underlying matrix. Nat. Mater. 2016, 15, 792–801. [Google Scholar] [CrossRef] [Green Version]
  8. Engler, A.J.; Sen, S.; Sweeney, H.L.; Discher, D.E. Matrix elasticity directs stem cell lineage specification. Cell 2006, 126, 677–689. [Google Scholar] [CrossRef]
  9. Jang, Y.H.; Park, Y.S.; Nam, J.S.; Yang, Y.; Lee, J.E.; Lee, K.H.; Kang, M.; Chialastri, A.; Noh, H.; Park, J.; et al. Nanotopography-based engineering of retroviral DNA integration patterns. Nanoscale 2019, 11, 5693–5704. [Google Scholar] [CrossRef]
  10. Zhang, C.; Xie, B.; Zou, Y.; Zhu, D.; Lei, L.; Zhao, D.; Nie, H. Zero-dimensional, one-dimensional, two-dimensional and three-dimensional biomaterials for cell fate regulation. Adv. Drug Deliv. Rev. 2018, 132, 33–56. [Google Scholar] [CrossRef]
  11. Xi, W.; Saw, T.B.; Delacour, D.; Lim, C.T.; Ladoux, B. Material approaches to active tissue mechanics. Nat. Rev. Mater. 2019, 4, 23–44. [Google Scholar] [CrossRef]
  12. Muhamed, I.; Chowdhury, F.; Maruthamuthu, V. Biophysical Tools to Study Cellular Mechanotransduction. Bioengineering 2017, 4, 12. [Google Scholar] [CrossRef] [PubMed]
  13. Kang, P.; Kumar, S.; Schaffer, D. Novel biomaterials to study neural stem cell mechanobiology and improve cell-replacement therapies. Curr. Opin. Biomed. Eng. 2017, 4, 13–20. [Google Scholar] [CrossRef] [PubMed]
  14. Vining, K.H.; Mooney, D.J. Mechanical forces direct stem cell behaviour in development and regeneration. Nat. Rev. Mol. Cell Biol. 2017, 18, 728–742. [Google Scholar] [CrossRef] [PubMed]
  15. Di Cio, S.; Gautrot, J.E. Cell sensing of physical properties at the nanoscale: Mechanisms and control of cell adhesion and phenotype. Acta Biomater. 2016, 30, 26–48. [Google Scholar] [CrossRef] [PubMed]
  16. Charras, G.; Yap, A.S. Tensile Forces and Mechanotransduction at Cell-Cell Junctions. Curr. Biol. 2018, 28, R445–R457. [Google Scholar] [CrossRef] [PubMed]
  17. Ingber, D.E. Mechanosensation through integrins: Cells act locally but think globally. Proc. Natl. Acad. Sci. USA 2003, 100, 1472–1474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Xing, Q.; Yates, K.; Vogt, C.; Qian, Z.; Frost, M.C.; Zhao, F. Increasing mechanical strength of gelatin hydrogels by divalent metal ion removal. Sci. Rep. 2014, 4, 4706. [Google Scholar] [CrossRef] [PubMed]
  19. Kim, S.H.; Oh, S.; Chae, S.; Lee, J.W.; Choi, K.H.; Lee, K.E.; Chang, J.; Shi, L.; Choi, J.Y.; Lee, J.H. Exceptional Mechanical Properties of Phase-Separation-Free Mo3Se3(-)-Chain-Reinforced Hydrogel Prepared by Polymer Wrapping Process. Nano Lett. 2019, 19, 5717–5724. [Google Scholar] [CrossRef]
  20. Stutchbury, B.; Atherton, P.; Tsang, R.; Wang, D.Y.; Ballestrem, C. Distinct focal adhesion protein modules control different aspects of mechanotransduction. J. Cell Sci. 2017, 130, 1612–1624. [Google Scholar] [CrossRef] [Green Version]
  21. Patel, N.R.; Whitehead, A.K.; Newman, J.J.; Caldorera-Moore, M.E. Poly (ethylene glycol) Hydrogels with Tailorable Surface and Mechanical Properties for Tissue Engineering Applications. ACS Biomater. Sci. Eng. 2017, 3, 1494–1498. [Google Scholar] [CrossRef]
  22. Whitehead, A.K.; Barnett, H.H.; Caldorera-Moore, M.E.; Newman, J.J. Poly (ethylene glycol) hydrogel elasticity influences human mesenchymal stem cell behavior. Regen. Biomater. 2018, 5, 167–175. [Google Scholar] [CrossRef] [PubMed]
  23. Hendrikson, W.J.; Rouwkema, J.; van Blitterswijk, C.A.; Moroni, L. Influence of PCL molecular weight on mesenchymal stromal cell differentiation. RSC Adv. 2015, 5, 54510–54516. [Google Scholar] [CrossRef] [Green Version]
  24. Palchesko, R.N.; Zhang, L.; Sun, Y.; Feinberg, A.W. Development of polydimethylsiloxane substrates with tunable elastic modulus to study cell mechanobiology in muscle and nerve. PLoS ONE 2012, 7, e51499. [Google Scholar] [CrossRef] [PubMed]
  25. Pedraza, E.; Brady, A.C.; Fraker, C.A.; Stabler, C.L. Synthesis of macroporous poly (dimethylsiloxane) scaffolds for tissue engineering applications. J. Biomater. Sci. Polym. Ed. 2013, 24, 1041–1056. [Google Scholar] [CrossRef]
  26. Varshney, N.; Sahi, A.K.; Vajanthri, K.Y.; Poddar, S.; Balavigneswaran, C.K.; Prabhakar, A.; Rao, V.; Mahto, S.K. Culturing melanocytes and fibroblasts within three-dimensional macroporous PDMS scaffolds: Towards skin dressing material. Cytotechnology 2019, 71, 287–303. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, Y.; Wang, K.; Gu, X.; Leong, K.W. Biophysical Regulation of Cell Behavior-Cross Talk between Substrate Stiffness and Nanotopography. Engineering 2017, 3, 36–54. [Google Scholar] [CrossRef]
  28. Lanniel, M.; Huq, E.; Allen, S.; Buttery, L.; Williams, P.M.; Alexander, M.R. Substrate induced differentiation of human mesenchymal stem cells on hydrogels with modified surface chemistry and controlled modulus. Soft Matter 2011, 7, 6501–6514. [Google Scholar] [CrossRef]
  29. Moeller, J.; Denisin, A.K.; Sim, J.Y.; Wilson, R.E.; Ribeiro, A.J.S.; Pruitt, B.L. Controlling cell shape on hydrogels using lift-off protein patterning. PLoS ONE 2018, 13, e0189901. [Google Scholar] [CrossRef]
  30. Wei, S.C.; Fattet, L.; Tsai, J.H.; Guo, Y.R.; Pai, V.H.; Majeski, H.E.; Chen, A.C.; Sah, R.L.; Taylor, S.S.; Engler, A.J.; et al. Matrix stiffness drives epithelial mesenchymal transition and tumour metastasis through a TWIST1-G3BP2 mechanotransduction pathway. Nat. Cell Biol. 2015, 17, 678. [Google Scholar] [CrossRef]
  31. Bennett, M.; Cantini, M.; Reboud, J.; Cooper, J.M.; Roca-Cusachs, P.; Salmeron-Sanchez, M. Molecular clutch drives cell response to surface viscosity. Proc. Natl. Acad. Sci. USA 2018, 115, 1192–1197. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Lutolf, M.P.; Hubbell, J.A. Synthetic biomaterials as instructive extracellular microenvironments for morphogenesis in tissue engineering. Nat. Biotechnol. 2005, 23, 47–55. [Google Scholar] [CrossRef] [PubMed]
  33. Cipitria, A.; Salmeron-Sanchez, M. Mechanotransduction and Growth Factor Signalling to Engineer Cellular Microenvironments. Adv. Healthc. Mater. 2017, 6. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, J.W.; Chae, S.; Oh, S.; Kim, S.H.; Choi, K.H.; Meeseepong, M.; Chang, J.; Kim, N.; Kim, Y.H.; Lee, N.E.; et al. Single-Chain Atomic Crystals as Extracellular Matrix-Mimicking Material with Exceptional Biocompatibility and Bioactivity. Nano Lett. 2018, 18, 7619–7627. [Google Scholar] [CrossRef] [PubMed]
  35. Li, J.; Li, J.J.; Zhang, J.; Wang, X.; Kawazoe, N.; Chen, G. Gold nanoparticle size and shape influence on osteogenesis of mesenchymal stem cells. Nanoscale 2016, 8, 7992–8007. [Google Scholar] [CrossRef] [PubMed]
  36. Dam, D.H.; Lee, J.H.; Sisco, P.N.; Co, D.T.; Zhang, M.; Wasielewski, M.R.; Odom, T.W. Direct observation of nanoparticle-cancer cell nucleus interactions. ACS Nano 2012, 6, 3318–3326. [Google Scholar] [CrossRef] [PubMed]
  37. Nelson, C.M.; Jean, R.P.; Tan, J.L.; Liu, W.F.; Sniadecki, N.J.; Spector, A.A.; Chen, C.S. Emergent patterns of growth controlled by multicellular form and mechanics. Proc. Natl. Acad. Sci. USA 2005, 102, 11594–11599. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Altomare, L.; Gadegaard, N.; Visai, L.; Tanzi, M.C.; Fare, S. Biodegradable microgrooved polymeric surfaces obtained by photolithography for skeletal muscle cell orientation and myotube development. Acta Biomater. 2010, 6, 1948–1957. [Google Scholar] [CrossRef]
  39. Kang, D.H.; Kim, D.; Wang, S.; Song, D.; Yoon, M.H. Water-insoluble, nanocrystalline, and hydrogel fibrillar scaffolds for biomedical applications. Polym. J. 2018, 50, 637–647. [Google Scholar] [CrossRef]
  40. Sarker, B.; Walter, C.; Pathak, A. Direct Micropatterning of Extracellular Matrix Proteins on Functionalized Polyacrylamide Hydrogels Shows Geometric Regulation of Cell-Cell Junctions. Acs Biomater. Sci. Eng. 2018, 4, 2340–2349. [Google Scholar] [CrossRef]
  41. Li, J.J.; Kawazoe, N.; Chen, G. Gold nanoparticles with different charge and moiety induce differential cell response on mesenchymal stem cell osteogenesis. Biomaterials 2015, 54, 226–236. [Google Scholar] [CrossRef] [PubMed]
  42. Gautrot, J.E.; Malmstrom, J.; Sundh, M.; Margadant, C.; Sonnenberg, A.; Sutherland, D.S. The nanoscale geometrical maturation of focal adhesions controls stem cell differentiation and mechanotransduction. Nano Lett. 2014, 14, 3945–3952. [Google Scholar] [CrossRef] [PubMed]
  43. Werner, M.; Blanquer, S.B.; Haimi, S.P.; Korus, G.; Dunlop, J.W.; Duda, G.N.; Grijpma, D.W.; Petersen, A. Surface Curvature Differentially Regulates Stem Cell Migration and Differentiation via Altered Attachment Morphology and Nuclear Deformation. Adv. Sci. 2017, 4, 1600347. [Google Scholar] [CrossRef] [PubMed]
  44. Di Cio, S.; Boggild, T.M.L.; Connelly, J.; Sutherland, D.S.; Gautrot, J.E. Differential integrin expression regulates cell sensing of the matrix nanoscale geometry. Acta Biomater. 2017, 50, 280–292. [Google Scholar] [CrossRef] [PubMed]
  45. Poudineh, M.; Wang, Z.; Labib, M.; Ahmadi, M.; Zhang, L.; Das, J.; Ahmed, S.; Angers, S.; Kelley, S.O. Three-Dimensional Nanostructured Architectures Enable Efficient Neural Differentiation of Mesenchymal Stem Cells via Mechanotransduction. Nano Lett. 2018, 18, 7188–7193. [Google Scholar] [CrossRef] [PubMed]
  46. Rostam, H.M.; Singh, S.; Vrana, N.E.; Alexander, M.R.; Ghaemmaghami, A.M. Impact of surface chemistry and topography on the function of antigen presenting cells. Biomater. Sci. 2015, 3, 424–441. [Google Scholar] [CrossRef] [PubMed]
  47. Yao, X.; Peng, R.; Ding, J. Cell-material interactions revealed via material techniques of surface patterning. Adv. Mater. 2013, 25, 5257–5286. [Google Scholar] [CrossRef] [PubMed]
  48. Parandakh, A.; Anbarlou, A.; Tafazzoli-Shadpour, M.; Ardeshirylajimi, A.; Khani, M.M. Substrate topography interacts with substrate stiffness and culture time to regulate mechanical properties and smooth muscle differentiation of mesenchymal stem cells. Colloids Surf. B 2019, 173, 194–201. [Google Scholar] [CrossRef]
  49. Wang, K.; Bruce, A.; Mezan, R.; Kadiyala, A.; Wang, L.; Dawson, J.; Rojanasakul, Y.; Yang, Y. Nanotopographical Modulation of Cell Function through Nuclear Deformation. ACS Appl. Mater. Interfaces 2016, 8, 5082–5092. [Google Scholar] [CrossRef] [Green Version]
  50. Pitrez, P.R.; Estronca, L.; Vazao, H.; Egesipe, A.L.; Le Corf, A.; Navarro, C.; Levy, N.; De Sandre-Giovannoli, A.; Nissan, X.; Ferreira, L. Substrate Topography Modulates Cell Aging on a Progeria Cell Model. ACS Biomater. Sci. Eng. 2018, 4, 1498–1504. [Google Scholar] [CrossRef]
  51. Dobbenga, S.; Fratila-Apachitei, L.E.; Zadpoor, A.A. Nanopattern-induced osteogenic differentiation of stem cells—A systematic review. Acta Biomater. 2016, 46, 3–14. [Google Scholar] [CrossRef] [PubMed]
  52. Kang, E.S.; Kim, D.S.; Suhito, I.R.; Lee, W.; Song, I.; Kim, T.H. Two-dimensional material-based bionano platforms to control mesenchymal stem cell differentiation. Biomater. Res. 2018, 22, 10. [Google Scholar] [CrossRef] [PubMed]
  53. Wei, M.; Li, S.; Le, W. Nanomaterials modulate stem cell differentiation: Biological interaction and underlying mechanisms. J. Nanobiotechnol. 2017, 15, 75. [Google Scholar] [CrossRef] [PubMed]
  54. Sjostrom, T.; Dalby, M.J.; Hart, A.; Tare, R.; Oreffo, R.O.; Su, B. Fabrication of pillar-like titania nanostructures on titanium and their interactions with human skeletal stem cells. Acta Biomater. 2009, 5, 1433–1441. [Google Scholar] [CrossRef] [PubMed]
  55. Damodaran, V.B.; Bhatnagar, D.; Leszczak, V.; Popat, K.C. Titania nanostructures: A biomedical perspective. RSC Adv. 2015, 5, 37149–37171. [Google Scholar] [CrossRef]
  56. Ferra-Canellas, M.D.M.; Llopis-Grimalt, M.A.; Monjo, M.; Ramis, J.M. Tuning Nanopore Diameter of Titanium Surfaces to Improve Human Gingival Fibroblast Response. Int. J. Mol. Sci. 2018, 19, 2881. [Google Scholar] [CrossRef]
  57. Kulkarni, M.; Mazare, A.; Gongadze, E.; Perutkova, S.; Kralj-Iglic, V.; Milosev, I.; Schmuki, P.; Iglic, A.; Mozetic, M. Titanium nanostructures for biomedical applications. Nanotechnology 2015, 26, 062002. [Google Scholar] [CrossRef]
  58. Li, W.; Yan, Z.; Ren, J.; Qu, X. Manipulating cell fate: Dynamic control of cell behaviors on functional platforms. Chem. Soc. Rev. 2018, 47, 8639–8684. [Google Scholar] [CrossRef]
  59. Wei, Y.; Mo, X.; Zhang, P.; Li, Y.; Liao, J.; Li, Y.; Zhang, J.; Ning, C.; Wang, S.; Deng, X.; et al. Directing Stem Cell Differentiation via Electrochemical Reversible Switching between Nanotubes and Nanotips of Polypyrrole Array. ACS Nano 2017, 11, 5915–5924. [Google Scholar] [CrossRef]
  60. Wong, D.S.; Li, J.; Yan, X.; Wang, B.; Li, R.; Zhang, L.; Bian, L. Magnetically Tuning Tether Mobility of Integrin Ligand Regulates Adhesion, Spreading, and Differentiation of Stem Cells. Nano Lett. 2017, 17, 1685–1695. [Google Scholar] [CrossRef]
  61. Wu, C.; Shen, Y.; Chen, M.; Wang, K.; Li, Y.; Cheng, Y. Recent Advances in Magnetic-Nanomaterial-Based Mechanotransduction for Cell Fate Regulation. Adv. Mater. 2018, 30, e1705673. [Google Scholar] [CrossRef] [PubMed]
  62. Xia, Y.; Sun, J.; Zhao, L.; Zhang, F.; Liang, X.J.; Guo, Y.; Weir, M.D.; Reynolds, M.A.; Gu, N.; Xu, H.H.K. Magnetic field and nano-scaffolds with stem cells to enhance bone regeneration. Biomaterials 2018, 183, 151–170. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, H.; Zheng, X.; Ahmed, W.; Yao, Y.; Bai, J.; Chen, Y.; Gao, C. Design and Applications of Cell-Selective Surfaces and Interfaces. Biomacromolecules 2018, 19, 1746–1763. [Google Scholar] [CrossRef] [PubMed]
  64. Engin, A.B.; Nikitovic, D.; Neagu, M.; Henrich-Noack, P.; Docea, A.O.; Shtilman, M.I.; Golokhvast, K.; Tsatsakis, A.M. Mechanistic understanding of nanoparticles’ interactions with extracellular matrix: The cell and immune system. Part. Fibre Toxicol. 2017, 14, 22. [Google Scholar] [CrossRef] [PubMed]
  65. Xu, B.; Magli, A.; Anugrah, Y.; Koester, S.J.; Perlingeiro, R.C.R.; Shen, W. Nanotopography-responsive myotube alignment and orientation as a sensitive phenotypic biomarker for Duchenne Muscular Dystrophy. Biomaterials 2018, 183, 54–66. [Google Scholar] [CrossRef] [PubMed]
  66. Koo, S.; Muhammad, R.; Peh, G.S.; Mehta, J.S.; Yim, E.K. Micro-and nanotopography with extracellular matrix coating modulate human corneal endothelial cell behavior. Acta Biomater. 2014, 10, 1975–1984. [Google Scholar] [CrossRef] [PubMed]
  67. Hackett, A.J.; Malmstrom, J.; Travas-Sejdic, J. Functionalization of conducting polymers for biointerface applications. Prog. Polym. Sci. 2017, 70, 18–33. [Google Scholar] [CrossRef]
  68. Hoshiba, T.; Tanaka, M. Integrin-independent Cell Adhesion Substrates: Possibility of Applications for Mechanobiology Research. Anal. Sci. 2016, 32, 1151–1158. [Google Scholar] [CrossRef] [Green Version]
  69. Jedrzejczak-Silicka, M.; Trukawka, M.; Dudziak, M.; Piotrowska, K.; Mijowska, E. Hexagonal Boron Nitride Functionalized with Au Nanoparticles-Properties and Potential Biological Applications. Nanomaterials 2018, 8, 605. [Google Scholar] [CrossRef]
  70. Liu, X.Q.; Tang, R.Z. Biological responses to nanomaterials: Understanding nano-bio effects on cell behaviors. Drug Deliv. 2017, 24, 1–15. [Google Scholar] [CrossRef]
  71. Finke, B.; Luethen, F.; Schroeder, K.; Mueller, P.D.; Bergemann, C.; Frant, M.; Ohl, A.; Nebe, B.J. The effect of positively charged plasma polymerization on initial osteoblastic focal adhesion on titanium surfaces. Biomaterials 2007, 28, 4521–4534. [Google Scholar] [CrossRef] [PubMed]
  72. Keselowsky, B.G.; Collard, D.M.; Garcia, A.J. Integrin binding specificity regulates biomaterial surface chemistry effects on cell differentiation. Proc. Natl. Acad. Sci. USA 2005, 102, 5953–5957. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Yang, C.; Zhang, X.; Guo, Y.; Meng, F.; Sachs, F.; Guo, J. Mechanical dynamics in live cells and fluorescence-based force/tension sensors. Biochim. Biophys. Acta 2015, 1853, 1889–1904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Sicard, R.E. Hormones, neurosecretions, and growth factors as signal molecules for intercellular communication. Dev. Comp. Immunol. 1986, 10, 269–272. [Google Scholar] [CrossRef]
  75. Uings, I.J.; Farrow, S.N. Cell receptors and cell signalling. Mol. Pathol. 2000, 53, 295–299. [Google Scholar] [CrossRef] [PubMed]
  76. Hynes, R.O. Integrins: Versatility, modulation, and signaling in cell adhesion. Cell 1992, 69, 11–25. [Google Scholar] [CrossRef]
  77. Takada, Y.; Ye, X.; Simon, S. The integrins. Genome Biol. 2007, 8, 215. [Google Scholar] [CrossRef]
  78. Cooke, M.J.; Phillips, S.R.; Shah, D.S.; Athey, D.; Lakey, J.H.; Przyborski, S.A. Enhanced cell attachment using a novel cell culture surface presenting functional domains from extracellular matrix proteins. Cytotechnology 2008, 56, 71–79. [Google Scholar] [CrossRef] [Green Version]
  79. Xiao, T.; Takagi, J.; Coller, B.S.; Wang, J.H.; Springer, T.A. Structural basis for allostery in integrins and binding to fibrinogen-mimetic therapeutics. Nature 2004, 432, 59–67. [Google Scholar] [CrossRef] [Green Version]
  80. Sun, Z.; Guo, S.S.; Fassler, R. Integrin-mediated mechanotransduction. J. Cell Biol. 2016, 215, 445–456. [Google Scholar] [CrossRef]
  81. Askari, J.A.; Buckley, P.A.; Mould, A.P.; Humphries, M.J. Linking integrin conformation to function. J Cell Sci 2009, 122, 165–170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Humphries, J.D.; Byron, A.; Humphries, M.J. Integrin ligands at a glance. J. Cell Sci. 2006, 119, 3901–3903. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Tucker, R.P.; Chiquet-Ehrismann, R. Tenascin-C: Its functions as an integrin ligand. Int. J. Biochem. Cell B 2015, 65, 165–168. [Google Scholar] [CrossRef] [PubMed]
  84. Van der Vieren, M.; Le Trong, H.; Wood, C.L.; Moore, P.F.; St John, T.; Staunton, D.E.; Gallatin, W.M. A novel leukointegrin, alpha d beta 2, binds preferentially to ICAM-3. Immunity 1995, 3, 683–690. [Google Scholar] [CrossRef]
  85. Yeh, Y.C.; Ling, J.Y.; Chen, W.C.; Lin, H.H.; Tang, M.J. Mechanotransduction of matrix stiffness in regulation of focal adhesion size and number: Reciprocal regulation of caveolin-1 and beta1 integrin. Sci. Rep. 2017, 7, 15008. [Google Scholar] [CrossRef] [PubMed]
  86. Lim, J.Y.; Dreiss, A.D.; Zhou, Z.; Hansen, J.C.; Siedlecki, C.A.; Hengstebeck, R.W.; Cheng, J.; Winograd, N.; Donahue, H.J. The regulation of integrin-mediated osteoblast focal adhesion and focal adhesion kinase expression by nanoscale topography. Biomaterials 2007, 28, 1787–1797. [Google Scholar] [CrossRef] [PubMed]
  87. Tsuboi, S. Calcium integrin-binding protein activates platelet integrin alpha IIbbeta 3. J. Biol. Chem. 2002, 277, 1919–1923. [Google Scholar] [CrossRef] [PubMed]
  88. Kong, F.; Li, Z.; Parks, W.M.; Dumbauld, D.W.; Garcia, A.J.; Mould, A.P.; Humphries, M.J.; Zhu, C. Cyclic mechanical reinforcement of integrin-ligand interactions. Mol. Cell 2013, 49, 1060–1068. [Google Scholar] [CrossRef]
  89. Sukharev, S.; Sachs, F. Molecular force transduction by ion channels: Diversity and unifying principles. J. Cell Sci. 2012, 125, 3075–3083. [Google Scholar] [CrossRef]
  90. Coste, B.; Mathur, J.; Schmidt, M.; Earley, T.J.; Ranade, S.; Petrus, M.J.; Dubin, A.E.; Patapoutian, A. Piezo1 and Piezo2 are essential components of distinct mechanically activated cation channels. Science 2010, 330, 55–60. [Google Scholar] [CrossRef]
  91. Cox, C.D.; Bae, C.; Ziegler, L.; Hartley, S.; Nikolova-Krstevski, V.; Rohde, P.R.; Ng, C.A.; Sachs, F.; Gottlieb, P.A.; Martinac, B. Removal of the mechanoprotective influence of the cytoskeleton reveals PIEZO1 is gated by bilayer tension. Nat. Commun. 2016, 7, 10366. [Google Scholar] [CrossRef] [PubMed]
  92. Li, J.; Hou, B.; Tumova, S.; Muraki, K.; Bruns, A.; Ludlow, M.J.; Sedo, A.; Hyman, A.J.; McKeown, L.; Young, R.S.; et al. Piezo1 integration of vascular architecture with physiological force. Nature 2014, 515, 279–282. [Google Scholar] [CrossRef] [PubMed]
  93. Ranade, S.S.; Woo, S.H.; Dubin, A.E.; Moshourab, R.A.; Wetzel, C.; Petrus, M.; Mathur, J.; Begay, V.; Coste, B.; Mainquist, J.; et al. Piezo2 is the major transducer of mechanical forces for touch sensation in mice. Nature 2014, 516, 121–125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Servin-Vences, M.R.; Moroni, M.; Lewin, G.R.; Poole, K. Direct measurement of TRPV4 and PIEZO1 activity reveals multiple mechanotransduction pathways in chondrocytes. Elife 2017, 6. [Google Scholar] [CrossRef] [PubMed]
  95. Chalfie, M. Neurosensory mechanotransduction. Nat. Rev. Mol. Cell Biol. 2009, 10, 44–52. [Google Scholar] [CrossRef] [PubMed]
  96. Haswell, E.S.; Phillips, R.; Rees, D.C. Mechanosensitive channels: What can they do and how do they do it? Structure 2011, 19, 1356–1369. [Google Scholar] [CrossRef] [PubMed]
  97. Xu, J.; Mathur, J.; Vessieres, E.; Hammack, S.; Nonomura, K.; Favre, J.; Grimaud, L.; Petrus, M.; Francisco, A.; Li, J.; et al. GPR68 Senses Flow and Is Essential for Vascular Physiology. Cell 2018, 173, 762–775. [Google Scholar] [CrossRef] [PubMed]
  98. Chachisvilis, M.; Zhang, Y.L.; Frangos, J.A. G protein-coupled receptors sense fluid shear stress in endothelial cells. Proc. Natl. Acad. Sci. USA 2006, 103, 15463–15468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  99. Ludwig, M.G.; Vanek, M.; Guerini, D.; Gasser, J.A.; Jones, C.E.; Junker, U.; Hofstetter, H.; Wolf, R.M.; Seuwen, K. Proton-sensing G-protein-coupled receptors. Nature 2003, 425, 93–98. [Google Scholar] [CrossRef]
  100. Mederos y Schnitzler, M.; Storch, U.; Meibers, S.; Nurwakagari, P.; Breit, A.; Essin, K.; Gollasch, M.; Gudermann, T. Gq-coupled receptors as mechanosensors mediating myogenic vasoconstriction. EMBO J. 2008, 27, 3092–3103. [Google Scholar] [CrossRef]
  101. Maniotis, A.J.; Chen, C.S.; Ingber, D.E. Demonstration of mechanical connections between integrins cytoskeletal filaments, and nucleoplasm that stabilize nuclear structure. Proc. Natl. Acad. Sci. USA 1997, 94, 849–854. [Google Scholar] [CrossRef] [PubMed]
  102. Giancotti, F.G.; Ruoslahti, E. Integrin signaling. Science 1999, 285, 1028–1032. [Google Scholar] [CrossRef] [PubMed]
  103. Miyamoto, S.; Teramoto, H.; Coso, O.A.; Gutkind, J.S.; Burbelo, P.D.; Akiyama, S.K.; Yamada, K.M. Integrin function: Molecular hierarchies of cytoskeletal and signaling molecules. J. Cell Biol. 1995, 131, 791–805. [Google Scholar] [CrossRef] [PubMed]
  104. Levental, K.R.; Yu, H.; Kass, L.; Lakins, J.N.; Egeblad, M.; Erler, J.T.; Fong, S.F.; Csiszar, K.; Giaccia, A.; Weninger, W.; et al. Matrix crosslinking forces tumor progression by enhancing integrin signaling. Cell 2009, 139, 891–906. [Google Scholar] [CrossRef] [PubMed]
  105. Hu, P.; Luo, B.H. Integrin bi-directional signaling across the plasma membrane. J. Cell Physiol. 2013, 228, 306–312. [Google Scholar] [CrossRef]
  106. Turner, C.E. Paxillin and focal adhesion signalling. Nat. Cell Biol. 2000, 2, E231–E236. [Google Scholar] [CrossRef] [PubMed]
  107. Haynie, D.T. Molecular physiology of the tensin brotherhood of integrin adaptor proteins. Proteins 2014, 82, 1113–1127. [Google Scholar] [CrossRef]
  108. Otey, C.A.; Carpen, O. Alpha-actinin revisited: A fresh look at an old player. Cell Motil. Cytoskelet. 2004, 58, 104–111. [Google Scholar] [CrossRef]
  109. Montanez, E.; Ussar, S.; Schifferer, M.; Bosl, M.; Zent, R.; Moser, M.; Fassler, R. Kindlin-2 controls bidirectional signaling of integrins. Genes Dev. 2008, 22, 1325–1330. [Google Scholar] [CrossRef] [Green Version]
  110. Ron, A.; Azeloglu, E.U.; Calizo, R.C.; Hu, M.; Bhattacharya, S.; Chen, Y.; Jayaraman, G.; Lee, S.; Neves-Zaph, S.R.; Li, H.; et al. Cell shape information is transduced through tension-independent mechanisms. Nat. Commun. 2017, 8, 2145. [Google Scholar] [CrossRef]
  111. Yamashita, H.; Ichikawa, T.; Matsuyama, D.; Kimura, Y.; Ueda, K.; Craig, S.W.; Harada, I.; Kioka, N. The role of the interaction of the vinculin proline-rich linker region with vinexin alpha in sensing the stiffness of the extracellular matrix. J. Cell Sci. 2014, 127, 1875–1886. [Google Scholar] [CrossRef] [PubMed]
  112. Patel, A.; Sharif-Naeini, R.; Folgering, J.R.; Bichet, D.; Duprat, F.; Honore, E. Canonical TRP channels and mechanotransduction: From physiology to disease states. Pflug. Arch. 2010, 460, 571–581. [Google Scholar] [CrossRef] [PubMed]
  113. Dupont, S.; Morsut, L.; Aragona, M.; Enzo, E.; Giulitti, S.; Cordenonsi, M.; Zanconato, F.; Le Digabel, J.; Forcato, M.; Bicciato, S.; et al. Role of yap/taz in mechanotransduction. Nature 2011, 474, 179. [Google Scholar] [CrossRef] [PubMed]
  114. Uhler, C.; Shivashankar, G.V. Regulation of genome organization and gene expression by nuclear mechanotransduction. Nat. Rev. Mol. Cell Biol. 2017, 18, 717–727. [Google Scholar] [CrossRef] [PubMed]
  115. Guilluy, C.; Burridge, K. Nuclear mechanotransduction: Forcing the nucleus to respond. Nucleus 2015, 6, 19–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  116. Sosa, B.A.; Rothballer, A.; Kutay, U.; Schwartz, T.U. LINC complexes form by binding of three KASH peptides to domain interfaces of trimeric SUN proteins. Cell 2012, 149, 1035–1047. [Google Scholar] [CrossRef] [PubMed]
  117. Panciera, T.; Azzolin, L.; Cordenonsi, M.; Piccolo, S. Mechanobiology of YAP and TAZ in physiology and disease. Nat. Rev. Mol. Cell Biol. 2017, 18, 758–770. [Google Scholar] [CrossRef]
  118. Lanctot, C.; Cheutin, T.; Cremer, M.; Cavalli, G.; Cremer, T. Dynamic genome architecture in the nuclear space: Regulation of gene expression in three dimensions. Nat. Rev. Genet. 2007, 8, 104–115. [Google Scholar] [CrossRef]
  119. Dekker, J.; Mirny, L. The 3D Genome as Moderator of Chromosomal Communication. Cell 2016, 164, 1110–1121. [Google Scholar] [CrossRef] [Green Version]
  120. Poh, Y.C.; Shevtsov, S.P.; Chowdhury, F.; Wu, D.C.; Na, S.; Dundr, M.; Wang, N. Dynamic force-induced direct dissociation of protein complexes in a nuclear body in living cells. Nat. Commun. 2012, 3, 866. [Google Scholar] [CrossRef]
  121. Pajerowski, J.D.; Dahl, K.N.; Zhong, F.L.; Sammak, P.J.; Discher, D.E. Physical plasticity of the nucleus in stem cell differentiation. Proc. Natl. Acad. Sci. USA 2007, 104, 15619–15624. [Google Scholar] [CrossRef] [PubMed]
  122. Swift, J.; Ivanovska, I.L.; Buxboim, A.; Harada, T.; Dingal, P.C.; Pinter, J.; Pajerowski, J.D.; Spinler, K.R.; Shin, J.W.; Tewari, M.; et al. Nuclear lamin—A scales with tissue stiffness and enhances matrix-directed differentiation. Science 2013, 341, 1240104. [Google Scholar] [CrossRef] [PubMed]
  123. Ho, C.Y.; Jaalouk, D.E.; Vartiainen, M.K.; Lammerding, J. Lamin A/C and emerin regulate MKL1-SRF activity by modulating actin dynamics. Nature 2013, 497, 507–511. [Google Scholar] [CrossRef] [PubMed]
  124. Tajik, A.; Zhang, Y.; Wei, F.; Sun, J.; Jia, Q.; Zhou, W.; Singh, R.; Khanna, N.; Belmont, A.S.; Wang, N. Transcription upregulation via force-induced direct stretching of chromatin. Nat. Mater. 2016, 15, 1287–1296. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  125. Lee, J.S.; Hale, C.M.; Panorchan, P.; Khatau, S.B.; George, J.P.; Tseng, Y.; Stewart, C.L.; Hodzic, D.; Wirtz, D. Nuclear lamin A/C deficiency induces defects in cell mechanics, polarization, and migration. Biophys. J. 2007, 93, 2542–2552. [Google Scholar] [CrossRef] [PubMed]
  126. Guilluy, C.; Osborne, L.D.; Van Landeghem, L.; Sharek, L.; Superfine, R.; Garcia-Mata, R.; Burridge, K. Isolated nuclei adapt to force and reveal a mechanotransduction pathway in the nucleus. Nat. Cell Biol. 2014, 16, 376–381. [Google Scholar] [CrossRef] [PubMed]
  127. Jia, Q.; Zhou, W.; Yao, W.; Yang, F.; Zhang, S.; Singh, R.; Chen, J.; Chen, J.J.; Zhang, Y.; Wei, F.; et al. Downregulation of YAP-dependent Nupr1 promotes tumor-repopulating cell growth in soft matrices. Oncogenesis 2016, 5, e220. [Google Scholar] [CrossRef]
  128. Jaalouk, D.E.; Lammerding, J. Mechanotransduction gone awry. Nat. Rev. Mol. Cell Biol. 2009, 10, 63–73. [Google Scholar] [CrossRef] [Green Version]
  129. Wozniak, M.A.; Chen, C.S. Mechanotransduction in development: A growing role for contractility. Nat. Rev. Mol. Cell Biol. 2009, 10, 34–43. [Google Scholar] [CrossRef]
  130. Discher, D.E.; Mooney, D.J.; Zandstra, P.W. Growth factors, matrices, and forces combine and control stem cells. Science 2009, 324, 1673–1677. [Google Scholar] [CrossRef]
  131. Folkman, J.; Moscona, A. Role of cell shape in growth control. Nature 1978, 273, 345–349. [Google Scholar] [CrossRef] [PubMed]
  132. Bruce, M.; Spiegelman, C.A.G. Fibronectin modulation of cell shape and lipogenic gene expression in 3T3-adipocytes. Cell 1983, 35, 657–666. [Google Scholar] [CrossRef]
  133. Singhvi, R.; Kumar, A.; Lopez, G.P.; Stephanopoulos, G.N.; Wang, D.I.; Whitesides, G.M.; Ingber, D.E. Engineering cell shape and function. Science 1994, 264, 696–698. [Google Scholar] [CrossRef] [PubMed]
  134. McBeath, R.; Pirone, D.M.; Nelson, C.M.; Bhadriraju, K.; Chen, C.S. Cell shape, cytoskeletal tension, and RhoA regulate stem cell lineage commitment. Dev. Cell 2004, 6, 483–495. [Google Scholar] [CrossRef]
  135. Wada, K.; Itoga, K.; Okano, T.; Yonemura, S.; Sasaki, H. Hippo pathway regulation by cell morphology and stress fibers. Development 2011, 138, 3907–3914. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  136. Tan, Y.; Tajik, A.; Chen, J.; Jia, Q.; Chowdhury, F.; Wang, L.; Chen, J.; Zhang, S.; Hong, Y.; Yi, H.; et al. Matrix softness regulates plasticity of tumour-repopulating cells via H3K9 demethylation and Sox2 expression. Nat. Commun. 2014, 5, 4619. [Google Scholar] [CrossRef] [PubMed]
  137. Aragona, M.; Panciera, T.; Manfrin, A.; Giulitti, S.; Michielin, F.; Elvassore, N.; Dupont, S.; Piccolo, S. A Mechanical Checkpoint Controls Multicellular Growth through YAP/TAZ Regulation by Actin-Processing Factors. Cell 2013, 154, 1047–1059. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  138. Wang, K.C.; Yeh, Y.T.; Nguyen, P.; Limqueco, E.; Lopez, J.; Thorossian, S.; Guan, K.L.; Li, Y.S.J.; Chien, S. Flow-dependent YAP/TAZ activities regulate endothelial phenotypes and atherosclerosis. Proc. Natl. Acad. Sci. USA 2016, 113, 11525–11530. [Google Scholar] [CrossRef] [Green Version]
  139. Schlegelmilch, K.; Mohseni, M.; Kirak, O.; Pruszak, J.; Rodriguez, J.R.; Zhou, D.W.; Kreger, B.T.; Vasioukhin, V.; Avruch, J.; Brummelkamp, T.R.; et al. Yap1 Acts Downstream of alpha-Catenin to Control Epidermal Proliferation. Cell 2011, 144, 782–795. [Google Scholar] [CrossRef]
  140. Hong, J.H.; Hwang, E.S.; McManus, M.T.; Amsterdam, A.; Tian, Y.; Kalmukova, R.; Mueller, E.; Benjamin, T.; Spiegelman, B.M.; Sharp, P.A.; et al. TAZ, a transcriptional modulator of mesenchymal stem cell differentiation. Science 2005, 309, 1074–1078. [Google Scholar] [CrossRef]
  141. Kuroda, M.; Wada, H.; Kimura, Y.; Ueda, K.; Kioka, N. Vinculin promotes nuclear localization of TAZ to inhibit ECM stiffness-dependent differentiation into adipocytes. J. Cell Sci. 2017, 130, 989–1002. [Google Scholar] [CrossRef] [PubMed]
  142. Tang, Y.; Rowe, R.G.; Botvinick, E.L.; Kurup, A.; Putnam, A.J.; Seiki, M.; Weaver, V.M.; Keller, E.T.; Goldstein, S.; Dai, J.L.; et al. MT1-MMP-Dependent Control of Skeletal Stem Cell Commitment via a beta 1-Integrin/YAP/TAZ Signaling Axis. Dev. Cell 2013, 25, 402–416. [Google Scholar] [CrossRef] [PubMed]
  143. Zhong, W.L.; Tian, K.; Zheng, X.F.; Li, L.N.; Zhang, W.G.; Wang, S.Y.; Qin, J.H. Mesenchymal Stem Cell and Chondrocyte Fates in a Multishear Microdevice Are Regulated by Yes-Associated Protein. Stem Cells Dev. 2013, 22, 2083–2093. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  144. Zhao, B.; Li, L.; Wang, L.; Wang, C.Y.; Yu, J.D.; Guan, K.L. Cell detachment activates the Hippo pathway via cytoskeleton reorganization to induce anoikis. Genes Dev. 2012, 26, 54–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  145. Zhang, L.; Cheng, F.L.; Wei, Y.J.; Zhang, L.J.; Guo, D.S.; Wang, B.F.; Li, W. Inhibition of TAZ contributes radiation-induced senescence and growth arrest in glioma cells. Oncogene 2019, 38, 2788–2799. [Google Scholar] [CrossRef] [PubMed]
  146. Zhao, B.; Wei, X.; Li, W.; Udan, R.S.; Yang, Q.; Kim, J.; Xie, J.; Ikenoue, T.; Yu, J.; Li, L.; et al. Inactivation of YAP oncoprotein by the Hippo pathway is involved in cell contact inhibition and tissue growth control. Genes Dev. 2007, 21, 2747–2761. [Google Scholar] [CrossRef] [Green Version]
  147. Halder, G.; Dupont, S.; Piccolo, S. Transduction of mechanical and cytoskeletal cues by YAP and TAZ. Nat. Rev. Mol. Cell Biol. 2012, 13, 591–600. [Google Scholar] [CrossRef]
  148. Haraguchi, T.; Holaska, J.M.; Yamane, M.; Koujin, T.; Hashiguchi, N.; Mori, C.; Wilson, K.L.; Hiraoka, Y. Emerin binding to Btf, a death-promoting transcriptional repressor, is disrupted by a missense mutation that causes Emery-Dreifuss muscular dystrophy. Eur. J. Biochem. 2004, 271, 1035–1045. [Google Scholar] [CrossRef]
  149. Dreuillet, C.; Tillit, J.; Kress, M.; Ernoult-Lange, M. In vivo and in vitro interaction between human transcription factor MOK2 and nuclear lamin A/C. Nucleic Acids Res. 2002, 30, 4634–4642. [Google Scholar] [CrossRef] [Green Version]
  150. Wilkinson, F.L.; Holaska, J.M.; Zhang, Z.; Sharma, A.; Manilal, S.; Holt, I.; Stamm, S.; Wilson, K.L.; Morris, G.E. Emerin interacts in vitro with the splicing-associated factor, YT521-B. Eur. J. Biochem. 2003, 270, 2459–2466. [Google Scholar] [CrossRef]
  151. Stein, G.S.; Lian, J.B.; van Wijnen, A.J.; Stein, J.L.; Javed, A.; Montecino, M.; Choi, J.Y.; Vradii, D.; Zaidi, S.K.; Pratap, J.; et al. Organization of transcriptional regulatory machinery in nuclear microenvironments: Implications for biological control and cancer. Cancer Treat. Rev. 2007, 47, 242–250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  152. Ingber, D.E. The riddle of morphogenesis: A question of solution chemistry or molecular cell engineering? Cell 1993, 75, 1249–1252. [Google Scholar] [CrossRef]
  153. Wang, N.; Tytell, J.D.; Ingber, D.E. Mechanotransduction at a distance: Mechanically coupling the extracellular matrix with the nucleus. Nat. Rev. Mol. Cell Biol. 2009, 10, 75–82. [Google Scholar] [CrossRef] [PubMed]
  154. Jain, N.; Iyer, K.V.; Kumar, A.; Shivashankar, G.V. Cell geometric constraints induce modular gene-expression patterns via redistribution of HDAC3 regulated by actomyosin contractility. Proc. Natl. Acad. Sci. USA 2013, 110, 11349–11354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  155. Le, H.Q.; Ghatak, S.; Yeung, C.Y.C.; Tellkamp, F.; Gunschmann, C.; Dieterich, C.; Yeroslaviz, A.; Habermand, B.; Pombo, A.; Niessen, C.M.; et al. Mechanical regulation of transcription controls Polycomb-mediated gene silencing during lineage commitment. Nat. Cell Biol. 2016, 18, 864. [Google Scholar] [CrossRef] [PubMed]
  156. Wang, Y.; Nagarajan, M.; Uhler, C.; Shivashankar, G.V. Orientation and repositioning of chromosomes correlate with cell geometry-dependent gene expression. Mol. Biol. Cell 2017, 28, 1997–2009. [Google Scholar] [CrossRef]
  157. Cho, S.; Vashisth, M.; Abbas, A.; Majkut, S.; Vogel, K.; Xia, Y.T.; Ivanovska, I.L.; Irianto, J.; Tewari, M.; Zhu, K.Z.; et al. Mechanosensing by the Lamina Protects against Nuclear Rupture, DNA Damage, and Cell-Cycle Arrest. Dev. Cell 2019, 49, 920–935. [Google Scholar] [CrossRef]
  158. Ivanovska, I.L.; Swift, J.; Spinler, K.; Dingal, D.; Cho, S.; Discher, D.E. Cross-linked matrix rigidity and soluble retinoids synergize in nuclear lamina regulation of stem cell differentiation. Mol. Biol. Cell 2017, 28, 2010–2022. [Google Scholar] [CrossRef]
  159. Elosegui-Artola, A.; Andreu, I.; Beedle, A.E.M.; Lezamiz, A.; Uroz, M.; Kosmalska, A.J.; Oria, R.; Kechagia, J.Z.; Rico-Lastres, P.; Le Roux, A.L.; et al. Force Triggers YAP Nuclear Entry by Regulating Transport across Nuclear Pores. Cell 2017, 171, 1397–1410. [Google Scholar] [CrossRef]
  160. Itano, N.; Okamoto, S.; Zhang, D.X.; Lipton, S.A.; Ruoslahti, E. Cell spreading controls endoplasmic and nuclear calcium: A physical gene regulation pathway from the cell surface to the nucleus. Proc. Natl. Acad. Sci. USA 2003, 100, 5181–5186. [Google Scholar] [CrossRef] [Green Version]
  161. Enyedi, B.; Jelcic, M.; Niethammer, P. The Cell Nucleus Serves as a Mechanotransducer of Tissue Damage-Induced Inflammation. Cell 2016, 165, 1160–1170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  162. Bode, J.; Goetze, S.; Heng, H.; Krawetz, S.A.; Benham, C. From DNA structure to gene expression: Mediators of nuclear compartmentalization and dynamics. Chromosome Res. 2003, 11, 435–445. [Google Scholar] [CrossRef] [PubMed]
  163. Luo, Y.; Lee, I.W.; Jo, Y.J.; Namgoong, S.; Kim, N.H. Depletion of the LINC complex disrupts cytoskeleton dynamics and meiotic resumption in mouse oocytes. Sci. Rep. 2016, 6, 20408. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  164. Arsenovic, P.T.; Ramachandran, I.; Bathula, K.; Zhu, R.J.; Narang, J.D.; Noll, N.A.; Lemmon, C.A.; Gundersen, G.G.; Conway, D.E. Nesprin-2G, a Component of the Nuclear LINC Complex, Is Subject to Myosin-Dependent Tension. Biophys. J. 2016, 110, 34–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  165. Kutscheidt, S.; Zhu, R.; Antoku, S.; Luxton, G.W.; Stagljar, I.; Fackler, O.T.; Gundersen, G.G. FHOD1 interaction with nesprin-2G mediates TAN line formation and nuclear movement. Nat. Cell Biol. 2014, 16, 708–715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  166. Antoku, S.; Zhu, R.; Kutscheidt, S.; Fackler, O.T.; Gundersen, G.G. Reinforcing the LINC complex connection to actin filaments: The role of FHOD1 in TAN line formation and nuclear movement. Cell Cycle 2015, 14, 2200–2205. [Google Scholar] [CrossRef] [PubMed]
  167. Borrego-Pinto, J.; Jegou, T.; Osorio, D.S.; Aurade, F.; Gorjanaacz, M.; Koch, B.; Mattaj, I.W.; Gomes, E.R. Samp1 is a component of TAN lines and is required for nuclear movement. J. Cell Sci. 2012, 125, 1099–1105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  168. Lammerding, J.; Schulze, P.C.; Takahashi, T.; Kozlov, S.; Sullivan, T.; Kamm, R.D.; Stewart, C.L.; Lee, R.T. Lamin A/C deficiency causes defective nuclear mechanics and mechanotransduction. J. Clin. Investig. 2004, 113, 370–378. [Google Scholar] [CrossRef] [Green Version]
  169. Ihalainen, T.O.; Aires, L.; Herzog, F.A.; Schwartlander, R.; Moeller, J.; Vogel, V. Differential basal-to-apical accessibility of lamin A/C epitopes in the nuclear lamina regulated by changes in cytoskeletal tension. Nat. Mater. 2015, 14, 1252–1261. [Google Scholar] [CrossRef] [Green Version]
  170. Zuo, B.; Yang, J.; Wang, F.; Wang, L.; Yin, Y.; Dan, J.; Liu, N.; Liu, L. Influences of lamin A levels on induction of pluripotent stem cells. Biol. Open 2012, 1, 1118–1127. [Google Scholar] [CrossRef] [Green Version]
  171. Constantinescu, D.; Gray, H.L.; Sammak, P.J.; Schatten, G.P.; Csoka, A.B. Lamin A/C expression is a marker of mouse and human embryonic stem cell differentiation. Stem Cells 2006, 24, 177–185. [Google Scholar] [CrossRef] [PubMed]
  172. Buxboim, A.; Swift, J.; Irianto, J.; Spinler, K.R.; Dingal, P.C.; Athirasala, A.; Kao, Y.R.; Cho, S.; Harada, T.; Shin, J.W.; et al. Matrix elasticity regulates lamin-A,C phosphorylation and turnover with feedback to actomyosin. Curr. Biol. 2014, 24, 1909–1917. [Google Scholar] [CrossRef] [PubMed]
  173. Cho, S.; Irianto, J.; Discher, D.E. Mechanosensing by the nucleus: From pathways to scaling relationships. J. Cell Biol. 2017, 216, 305–315. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  174. Gruenbaum, Y.; Margalit, A.; Goldman, R.D.; Shumaker, D.K.; Wilson, K.L. The nuclear lamina comes of age. Nat. Rev. Mol. Cell Biol. 2005, 6, 21–31. [Google Scholar] [CrossRef] [PubMed]
  175. Ye, Q.; Worman, H.J. Interaction between an integral protein of the nuclear envelope inner membrane and human chromodomain proteins homologous to Drosophila HP1. J. Biol. Chem. 1996, 271, 14653–14656. [Google Scholar] [CrossRef] [PubMed]
  176. Schreiner, S.M.; Koo, P.K.; Zhao, Y.; Mochrie, S.G.; King, M.C. The tethering of chromatin to the nuclear envelope supports nuclear mechanics. Nat. Commun. 2015, 6, 7159. [Google Scholar] [CrossRef] [PubMed]
  177. Finan, J.D.; Guilak, F. The effects of osmotic stress on the structure and function of the cell nucleus. J. Cell Biochem. 2010, 109, 460–467. [Google Scholar] [CrossRef]
  178. Finan, J.D.; Leddy, H.A.; Guilak, F. Osmotic stress alters chromatin condensation and nucleocytoplasmic transport. Biochem. Biophys. Res. Commun. 2011, 408, 230–235. [Google Scholar] [CrossRef] [Green Version]
  179. Stephens, A.D.; Banigan, E.J.; Adam, S.A.; Goldman, R.D.; Marko, J.F. Chromatin and lamin A determine two different mechanical response regimes of the cell nucleus. Mol. Biol. Cell 2017, 28, 1984–1996. [Google Scholar] [CrossRef]
  180. Heo, S.J.; Thorpe, S.D.; Driscoll, T.P.; Duncan, R.L.; Lee, D.A.; Mauck, R.L. Biophysical Regulation of Chromatin Architecture Instills a Mechanical Memory in Mesenchymal Stem Cells. Sci. Rep. 2015, 5, 16895. [Google Scholar] [CrossRef]
  181. Iyer, K.V.; Pulford, S.; Mogilner, A.; Shivashankar, G.V. Mechanical activation of cells induces chromatin remodeling preceding MKL nuclear transport. Biophys. J. 2012, 103, 1416–1428. [Google Scholar] [CrossRef] [PubMed]
  182. Lee, D.Y.; Lee, C.I.; Lin, T.E.; Lim, S.H.; Zhou, J.; Tseng, Y.C.; Chien, S.; Chiu, J.J. Role of histone deacetylases in transcription factor regulation and cell cycle modulation in endothelial cells in response to disturbed flow. Proc. Natl. Acad. Sci. USA 2012, 109, 1967–1972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  183. Arnsdorf, E.J.; Tummala, P.; Castillo, A.B.; Zhang, F.; Jacobs, C.R. The epigenetic mechanism of mechanically induced osteogenic differentiation. J. Biomech. 2010, 43, 2881–2886. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  184. Downing, T.L.; Soto, J.; Morez, C.; Houssin, T.; Fritz, A.; Yuan, F.; Chu, J.; Patel, S.; Schaffer, D.V.; Li, S. Biophysical regulation of epigenetic state and cell reprogramming. Nat. Mater. 2013, 12, 1154–1162. [Google Scholar] [CrossRef] [PubMed]
  185. Yang, C.; Tibbitt, M.W.; Basta, L.; Anseth, K.S. Mechanical memory and dosing influence stem cell fate. Nat. Mater. 2014, 13, 645–652. [Google Scholar] [CrossRef]

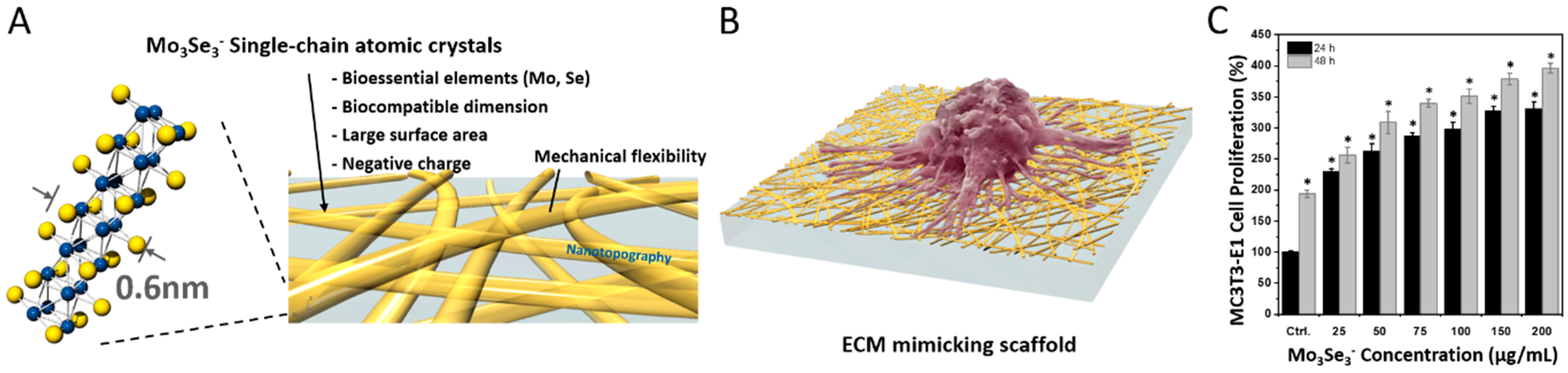

Figure 1. Mo3Se3 SCAC-based extracellular matrix (ECM) mimicking materials [34]. (A) Properties of Mo3Se3 SCACs to mimic ECM. (B) ECM-mimicking scaffold prepared by spray coating of Mo3Se3 SCACs onto a glass substrate. (C) Proliferation of MC3T3-E1 cell lines treated with media containing different concentrations of Mo3Se3 SCACs (* for p < 0.0001). All statistical analysis was performed with the control data. “Reprinted with permission from ref. [34]. Copyright 2018, American Chemical Society.”
Figure 1. Mo3Se3 SCAC-based extracellular matrix (ECM) mimicking materials [34]. (A) Properties of Mo3Se3 SCACs to mimic ECM. (B) ECM-mimicking scaffold prepared by spray coating of Mo3Se3 SCACs onto a glass substrate. (C) Proliferation of MC3T3-E1 cell lines treated with media containing different concentrations of Mo3Se3 SCACs (* for p < 0.0001). All statistical analysis was performed with the control data. “Reprinted with permission from ref. [34]. Copyright 2018, American Chemical Society.”
Ijms 20 04142 g001

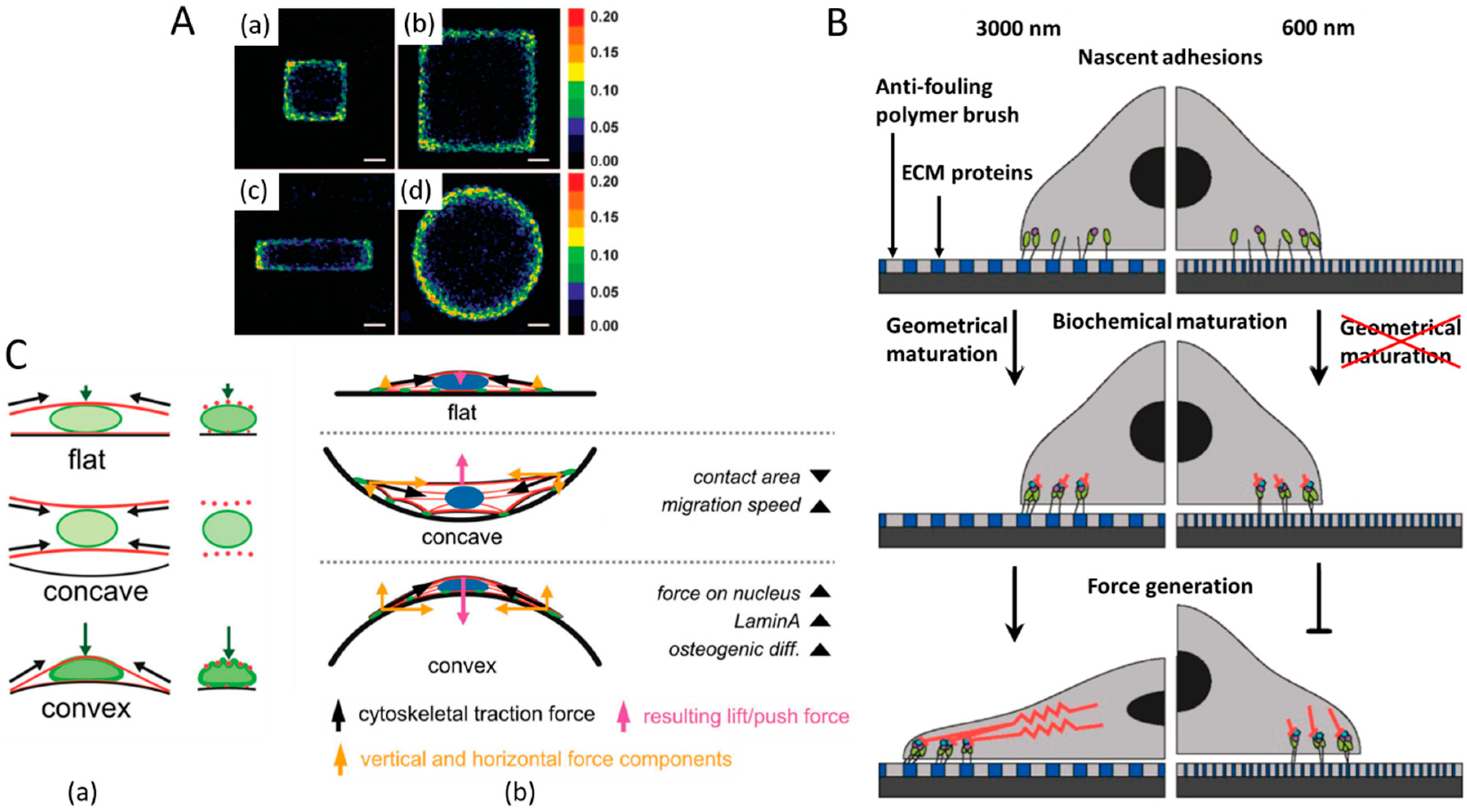

Figure 2. The effects of substrate geometry on cells. (A) The patterns of forces exerted by the cells responding to the edges and boundaries of different substrates. (a) Colorimetric stacked images of cell proliferation in a small (250 µm edge) square, (b) large (500 µm edge) square, (c) small (125 × 500 µm) rectangular, and (d) large (564 µm diameter) circular islands [37]. “Reprinted with permission from ref. [37]. Copyright 2005, National Academy of Sciences” (B) A model of geometrical, biochemical, and mechanical maturation of integrin-mediated cell adhesion and behaviour after responding to nanopatterned matrices [42]. “Reprinted with permission from [42]. Copyright 2014, American Chemical Society.” (C) Schematic representation of (a) the cytoskeletal forces acting on the nucleus (F-actin in red and lamin-A in green) and (b) the proposed geometry-induced changes in cellular attachment and forces on the nucleus for flat, concave and convex surfaces [43]. “Reprinted with permission from ref. [43]. Reproduced with permission under Creative Commons Attribution 4.0 International License http://creativecommons.org/licenses/by/4.0/.
Figure 2. The effects of substrate geometry on cells. (A) The patterns of forces exerted by the cells responding to the edges and boundaries of different substrates. (a) Colorimetric stacked images of cell proliferation in a small (250 µm edge) square, (b) large (500 µm edge) square, (c) small (125 × 500 µm) rectangular, and (d) large (564 µm diameter) circular islands [37]. “Reprinted with permission from ref. [37]. Copyright 2005, National Academy of Sciences” (B) A model of geometrical, biochemical, and mechanical maturation of integrin-mediated cell adhesion and behaviour after responding to nanopatterned matrices [42]. “Reprinted with permission from [42]. Copyright 2014, American Chemical Society.” (C) Schematic representation of (a) the cytoskeletal forces acting on the nucleus (F-actin in red and lamin-A in green) and (b) the proposed geometry-induced changes in cellular attachment and forces on the nucleus for flat, concave and convex surfaces [43]. “Reprinted with permission from ref. [43]. Reproduced with permission under Creative Commons Attribution 4.0 International License http://creativecommons.org/licenses/by/4.0/.
Ijms 20 04142 g002

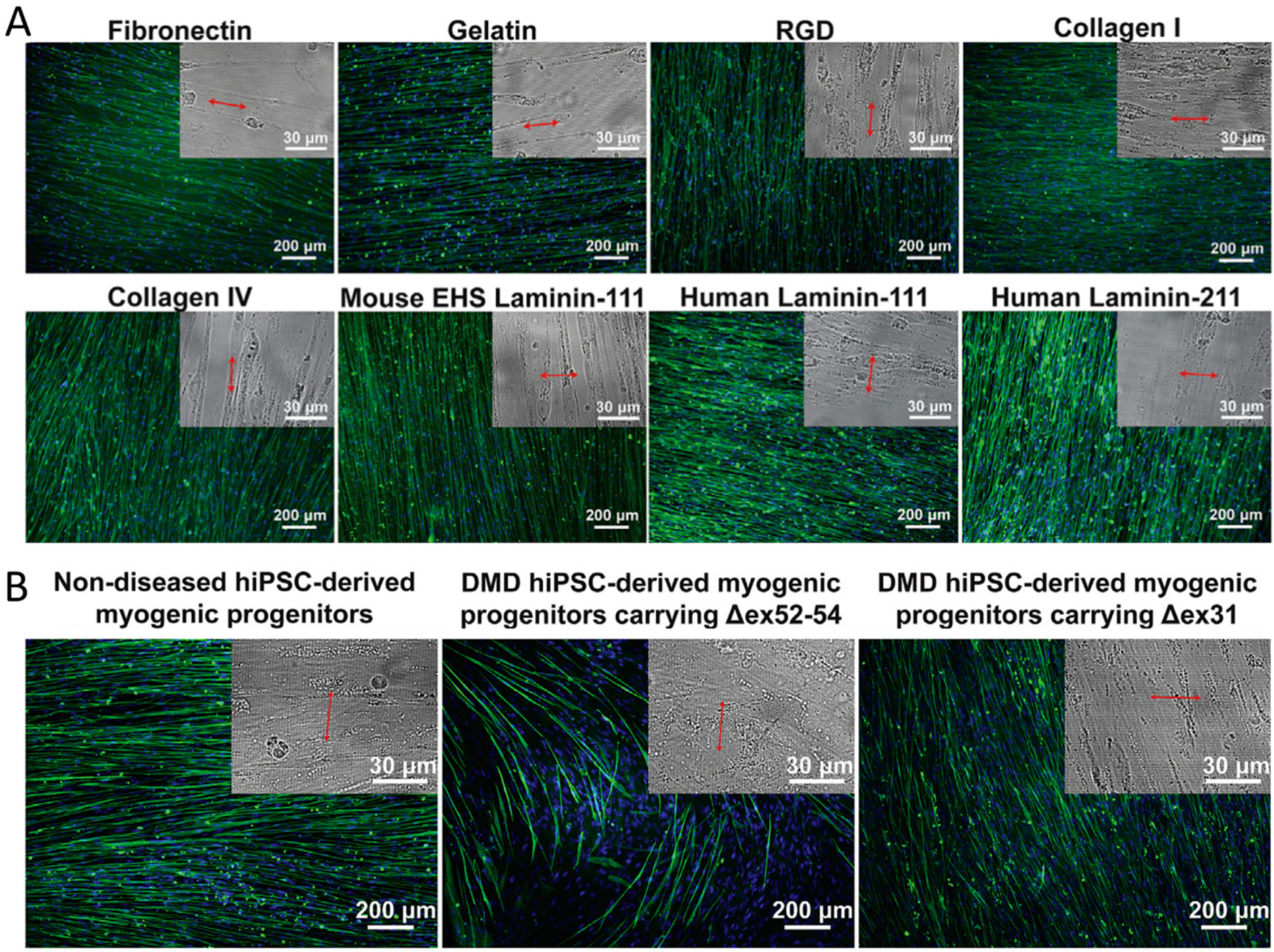

Figure 3. Figure 3. Myotube alignment and orientation on engineered substrates. (A) The effects of substrate-bound adhesion molecules on alignment and orientation of myotubes. Eight hundred nanometer grooved substrates were functionalized with different ECM components. (B) Myotube alignment and orientation on 800 nm grooved Matrigel-functionalized substrates to differentiate diseased and nondiseased cells (inset: bright-field images show nanogroove directions (marked with red arrows)) [65]. “Reprinted from ref. [65], Copyright 2018, with permission from Elsevier.”
Figure 3. Figure 3. Myotube alignment and orientation on engineered substrates. (A) The effects of substrate-bound adhesion molecules on alignment and orientation of myotubes. Eight hundred nanometer grooved substrates were functionalized with different ECM components. (B) Myotube alignment and orientation on 800 nm grooved Matrigel-functionalized substrates to differentiate diseased and nondiseased cells (inset: bright-field images show nanogroove directions (marked with red arrows)) [65]. “Reprinted from ref. [65], Copyright 2018, with permission from Elsevier.”
Ijms 20 04142 g003
Figure 4. Conformational rearrangement of integrin upon attachment to substrate [79,80,81]. Integrin receptor proteins work as αβ heterodimers. When attaching to substrate, integrins undergo conformational rearrangements from bent conformation with low affinity for ligand to extended conformation with high affinity for ligand. This integrin binding to substrates induces signal transduction and provides physical connections between extracellular and intracellular regions through focal adhesion complex formation.
Figure 4. Conformational rearrangement of integrin upon attachment to substrate [79,80,81]. Integrin receptor proteins work as αβ heterodimers. When attaching to substrate, integrins undergo conformational rearrangements from bent conformation with low affinity for ligand to extended conformation with high affinity for ligand. This integrin binding to substrates induces signal transduction and provides physical connections between extracellular and intracellular regions through focal adhesion complex formation.
Ijms 20 04142 g004
Figure 5. Propagation of external mechanical force from integrins to chromatin [124]. External mechanical forces applied to the cell surface are propagated via integrins and tensed actin-myosin cytoskeleton to LINC complexes and nuclear lamins in the nuclear lamina. The forces are then transferred to the chromatin through heterochromatin protein (HP1), Barrier-to-autointegration factor (BAF) proteins, and other molecules. The forces transferred to the chromatin stretch deform the chromatin segment that contains the DHFR gene. The deformation and stretching of chromatin facilitate binding of transcription factors to the DHFR gene for the upregulation of the DHFR gene transcription. The external mechanical force was provided by ferromagnetic beads attached to integrins in a magnetic field. The magnetic stress was 17.5 Pa.
Figure 5. Propagation of external mechanical force from integrins to chromatin [124]. External mechanical forces applied to the cell surface are propagated via integrins and tensed actin-myosin cytoskeleton to LINC complexes and nuclear lamins in the nuclear lamina. The forces are then transferred to the chromatin through heterochromatin protein (HP1), Barrier-to-autointegration factor (BAF) proteins, and other molecules. The forces transferred to the chromatin stretch deform the chromatin segment that contains the DHFR gene. The deformation and stretching of chromatin facilitate binding of transcription factors to the DHFR gene for the upregulation of the DHFR gene transcription. The external mechanical force was provided by ferromagnetic beads attached to integrins in a magnetic field. The magnetic stress was 17.5 Pa.
Ijms 20 04142 g005
Figure 6. Mechanical stimuli induce YAP/TAZ translocation into the nucleus and determine cell fates [113,147]. (A) The translocation of the transcriptional regulators, YAP and TAZ, into the nucleus occurs under mechanical conditions that induce strong intracellular resistive forces and activate YAP and TAZ. In cells spread on an extensive adhesive area, cultured on solid extracellular matrices (ECMs), or stretched between micropillars, YAP and TAZ translocate into the nucleus and become active. Under these conditions, these transcriptional regulators are required for endothelial or epithelial cell proliferation and differentiation of MSCs to osteoblasts. (B) The inactivation and relocalization of YAP and TAZ in cytoplasm followed by proteasomal degradation of YAP and TAZ occur when the cells are confined on small adhesive areas or cultured on soft ECMs or on top of micropillars. The degradation results in weak contractile forces. Degradation of YAP and TAZ causes cell apoptosis, growth arrest, or differentiation of MSCs into adipocytes. Furthermore, the degradation and nuclear localization of YAP and TAZ are affected by ECM properties such as stiffness, area, and contractile force.
Figure 6. Mechanical stimuli induce YAP/TAZ translocation into the nucleus and determine cell fates [113,147]. (A) The translocation of the transcriptional regulators, YAP and TAZ, into the nucleus occurs under mechanical conditions that induce strong intracellular resistive forces and activate YAP and TAZ. In cells spread on an extensive adhesive area, cultured on solid extracellular matrices (ECMs), or stretched between micropillars, YAP and TAZ translocate into the nucleus and become active. Under these conditions, these transcriptional regulators are required for endothelial or epithelial cell proliferation and differentiation of MSCs to osteoblasts. (B) The inactivation and relocalization of YAP and TAZ in cytoplasm followed by proteasomal degradation of YAP and TAZ occur when the cells are confined on small adhesive areas or cultured on soft ECMs or on top of micropillars. The degradation results in weak contractile forces. Degradation of YAP and TAZ causes cell apoptosis, growth arrest, or differentiation of MSCs into adipocytes. Furthermore, the degradation and nuclear localization of YAP and TAZ are affected by ECM properties such as stiffness, area, and contractile force.
Ijms 20 04142 g006
Figure 7. Mechanisms of gene regulation by mechanical stimuli [153]. (A) External mechanical forces deform nuclear scaffolds and chromatin organization, thereby altering assembly of transcription factors for gene regulation. (B) Forces transferred to specific chromatin regions tethered to lamins or other nuclear membrane receptors regulate the activities of assembled transcription factors or splicing factors. (C) Forces applied to nuclear pores change the pore size, thereby altering nuclear transport and gene expression by influencing mRNA transport. (D) Forces transferred to DNA through nuclear scaffolds separate the DNA double helix at specific regions, facilitating the binding of transcription factors to the region.
Figure 7. Mechanisms of gene regulation by mechanical stimuli [153]. (A) External mechanical forces deform nuclear scaffolds and chromatin organization, thereby altering assembly of transcription factors for gene regulation. (B) Forces transferred to specific chromatin regions tethered to lamins or other nuclear membrane receptors regulate the activities of assembled transcription factors or splicing factors. (C) Forces applied to nuclear pores change the pore size, thereby altering nuclear transport and gene expression by influencing mRNA transport. (D) Forces transferred to DNA through nuclear scaffolds separate the DNA double helix at specific regions, facilitating the binding of transcription factors to the region.
Ijms 20 04142 g007
Table 1. Studies reporting the effects of substrate stiffness and viscosity on cells.
Table 1. Studies reporting the effects of substrate stiffness and viscosity on cells.
Material/SubstratesPropertiesCell TypeEffectsRef.
PAAm gel coated with fibronectinStiffness: ~8 kPa and ~100 kPaNIH3T3 fibroblast cellsThe mobilities of the structural proteins are directly influenced by the stiffness of the substrate. The turnover rates of talin,
vinculin and tensin1 decreased with increasing ECM stiffness.
[20]
PAAm gel coated with collagenStiffness: 150 Pa and 5700 Pa Human MCF10A and
mouse Eph4Ras cells
High matrix stiffness promotes nuclear translocation of TWIST1.[30]
PDMS micropatterned with lamininStiffness: 5 kPa (soft) and 1.72 MPa (hard)PC12 rat adrenal pheochromocytoma cellsSoft PDMS resulted in significant increase in neurite length[24]
PDMS micropatterned with fibronectinStiffness: 5 kPa, 50 kPa, 130 kPa, 830 kPa, and 1.72 MPaC2C12 cellsThe number of myotube clusters was increased with softer PDMS substrates (5 kPa)[24]
Arg-Gly-Asp (RGD)-functionalized lipid bilayers composed of either fluid-DOPC or gel-DPPC deposited on glass substrate Viscosity: 8.4 ×10−11 Pa⋅s⋅m (DOPC)
3.0 × 10−9 Pa⋅s⋅m (DPPC)
C2C12 cellsSubstrates with low viscosity prevented protein unfolding and increased actin flow[31]
Table 2. Studies reporting the effects of geometrical factors on cells.
Table 2. Studies reporting the effects of geometrical factors on cells.
Material/SubstratesPropertiesCell TypeEffectsRef.
Mo3Se3 SCAC nanowireInorganic 1D nanowire of 0.6 nm in diameterL929 fibroblast cells and
MC3T3-E1 osteoblast cells
Significant increase in the proliferation of cells was observed in the presence of 1D nanowires.[34]
Au nanomaterials
coated with bovine serum albumin (BSA)
Nanospheres, nanostars, and nanorods of sizes 40 nm, 70 nm, and 100 nm hMSCsSize and shape dependent osteogenic differentiation of cells occurred.
Nanospheres (40 nm and 70 nm) and nanorods (70 nm) increased the alkaline phosphate activity (ALP) and calcium deposition of the cells.
[35]
PAAm gel micropatterned with collagen IStiffness of PAAm gel: Soft (~1 kPa) and stiff (~7 kPa).
Diverse shapes of micropatterns with identical area: Square, triangular, and rectangular
MCF-10A cellsCell−cell junctions could be impaired as matrix became stiffer and the cell shapes became more elongated by the micropatterns.
The cell generated tractions that were increased progressively as the pattern shapes were changed from squares to triangles and rectangles.
[40]
Au islands coated with fibronectin Geometry: Square (250 μm or 500 μm edge), rectangular (125 × 500 μm), and circular (564 μm in diameter)Normal rat kidney epithelial cellsGeometries of micropatterns altered the cell proliferation by affecting cytoskeletal tension.
High cell proliferation was observed on the edges and corners of the square islands.
[37]
Au substrates coated
with fibronectin
Circular shape with different diameters (100, 300, 600, and 3000 nm)Epidermal stem cellsNanoscale adhesion geometry determined the fate of epidermal stem cells
by changing cell shape and AP-1 transcription activity.
[42]
Poly(trimethylene carbonate)3D microtopographic cell culture chips with concave and convex spherical structures (250 μm in diameter and 1/125 μm−1 as principal curvature)hMSCsCytoskeleton-tension-associated pull force on the concave surface: enhanced the cell attachment and increased its migration speed.
Push force on convex surface: caused increases in osteogenic differentiation, lamin-A levels, and nuclear deformation.
[43]
Fibronectin fibers and poly oligo(ethylene glycol methyl ether methacrylate) brushes Quasi-2D fibrous pattern (Dimension: 250, 550, 800, and 1000 nm width,
Density: 22 ± 8% and 60 ± 5%)
HaCaT cellsNanoscale geometry of the ECM acted as an important regulator for cell adhesion, spreading, and shaping. Nanofibrous structures allowed cell adhesions to develop along one axis.[44]
Au3D leaf-like structure (nanospikes)hMSCs3D nanostructured architecture promoted MSC alignment and neurogenic differentiation[45]
PDMS coated with collagen ISmooth and microgrooved topography (10 μm wide, 10 μm apart, and 5 μm deep)
Stiffness: 90 ± 8 kPa (soft) and 1500 ± 110 kPa (hard)
hMSCsMicrogrooved stiff substrate led to high cell viscoelastic properties and expression of α-actin and h1-calponin[48]
PDMS coated with fibronectinNanoscale gratings and pillars: 300 nm, 500 nm, and 1000 nm width and diameter
Height: 150 nm, 300 nm, and 560 nm
NHLF cellsNanoscale gratings and pillars facilitated focal adhesion of cells.
Nanogratings oriented focal adhesions and nuclei along the nanograting directions.
[49]
PDMS coated with gelatinMicropatterned substrate: Height (1.5 μm), Groove width (2, 3, 4, and 5 μm), Ridge width (2, 3, 4, and 5 μm)An accelerated aging cell model derived from induced pluripotent stem cells (iPSCs)Substrates with specific micropatterns, such as groove width of 5 μm and ridge width of 5 μm, led to higher cell aging via disruption of the connection between the cytoskeleton and nucleoskeleton and triggering of DNA damage[50]
Ti surface Nanotopographic pattern, wettability, and mechanical strengthhGF cellsTi surfaces with pore diameter (74 nm), surface roughness (41.6 nm), surface area (30.4 μm2), and hydrophilicity (65.5°) resulted in enhanced cell attachment, proliferation, and differentiation [56]
Table 3. Studies reporting the effects of electric and magnetic field applied to culturing substrates on cells.
Table 3. Studies reporting the effects of electric and magnetic field applied to culturing substrates on cells.
Material/SubstratesProperties Cell TypeEffectsRef.
Ppy array on Ti surfaceHighly adhesive hydrophobic nanotubes and poorly adhesive hydrophilic nanotipsMSCsThe dynamic switching of nanotube/nanotip induced osteogenic differentiation of the cells [59]
RGD-grafted Fe3O4 coated silica Magnetic field induced variation in RGD tether length and mobility on material surfacehMSCsRestriction in the mobility of RGD on material surface, caused by magnetic field, resulted in enhanced cell adhesion, spreading, and osteogenic differentiation[60]
Table 4. Studies reporting the effects of surface functionalization of substrates on cells.
Table 4. Studies reporting the effects of surface functionalization of substrates on cells.
Material/SubstratesProperties Cell TypeEffectsRef.
PDMS
Topography: 500, 800, 1000, 1500, and 3000 nm width parallel grooves (400 nm depth)
Functionalization with Matrigel, laminin-111, laminin-211, gelatin, RGD peptide, fibronectin, collagen I, and collagen IVhESCs Myotubes aligned perpendicularly on matrigel-functionalized 800 nm nanogrooved substrate through DAPC-mediated cytoskeleton–ECM linkage [65]
PDMS
Topography: Nanopillars, microwells, and micropillars
Functionalization: Fibronectin mixed with collagen I (FC) and laminin mixed with chondroitin sulfateHuman corneal endothelial cellsMicropillars functionalized with FC had high Na+/K+ ATPase and zonula occludens-1 (ZO-1) expression, resulting in enhanced circularity[66]
Titanium (Ti)Functionalization: Allylamine plasma polymer layer (PPAAm)MG-63 osteoblastic cellsAmino groups promoted focal contact formation, such as vinculin, paxillin, p-FAK[71]
AuFunctionalization:
Self-assembled monolayers of alkanethiols like 1-dodecanethiol [*CH3 (hydrophobic)], 11-mercapto-1-undecanol [*OH (neutral and hydrophilic)], 11-mercaptoundecanoic acid [*COOH (negatively charged at pH 7.4)], and 12-amino-1-mercaptododecane [*NH2 (positively charged at pH 7.4)]
* - functional groups
MC3T3-E1 osteoblast cells OH- and NH2-terminated Au surfaces resulted in the selective binding of α5β1 and αVβ3 integrin for better focal adhesion composition, osteoblast differentiation, signaling, and mineralization[72]
Table 5. Integrin subunit pairing and binding ligands [76,77,82,83,84]. VCAM: vascular cell adhesion molecule, ICAM: intercellular adhesion molecule, LAP: latency-associated peptide, TGF-β: transforming growth factor beta, vWF: von Willebrand factor.
Table 5. Integrin subunit pairing and binding ligands [76,77,82,83,84]. VCAM: vascular cell adhesion molecule, ICAM: intercellular adhesion molecule, LAP: latency-associated peptide, TGF-β: transforming growth factor beta, vWF: von Willebrand factor.
Integrin SubunitLigand
βα
β1α1Collagen, Laminin
α2Collagen, Laminin, Thrombospondin, E-cadherin, Tenascin C
α10Collagen, Laminin
α11Collagen
α3Laminin, Thrombospondin
α6Laminin
α7Laminin, Tenascin C
β4α6Laminin, Thrombospondin
β1α4Fibronectin, Thrombospondin, Osteopontin, VCAM-1, ICAM-4
α5Fibronectin, Osteopontin
α8Fibronectin, Vitronectin, Osteopontin, Tenascin C
α9Osteopontin, Tenascin C, VCAM-1
αVFibronectin, Osteopontin, LAP TGF-β
β5αVVitronectin, Osteopontin, LAP TGF-β
β6Fibronectin, Osteopontin, Tenascin C, LAP TGF-β
β8LAP TGF-β
β3Fibrinogen, Fibronectin, vWF, Vitronectin, Thrombospondin, Osteopontin, ICAM-4, Tenascin C
β3αIIbFibrinogen, Fibronectin, vWF, Vitronectin, Thrombospondin, ICAM-4
β7α4Fibronectin, Osteopontin, VCAM-1,
Leukocyte-Specific
β7αEE-cadherin
β2αLICAM-4
αMFibrinogen, ICAM-4
αXFibrinogen, ICAM-4, Collagen
αDFibronectin, Vitronectin, Fibrinogen, VCAM-1, ICAM-3
Table 6. Receptors sensing various physical stimuli.
Table 6. Receptors sensing various physical stimuli.
ReceptorsMain FindingsRef.
IntegrinsIntegrin can sense diverse physical characteristics of engineered materials such as topography and viscosity. [7,31]
Integrin also sense ECM proteins and specific motifs of those proteins when incorporated on engineered materials.[31,78]
Integrin is a heterodimer composed of α and β subunits and each integrin selectively binds to different ligands.[31,76,77,78,85]
Ligand binding of integrins is controlled by conformational rearrangement between an inactive bent form and an active extended form.[79,87,88]
Mechanosensitive channelsPiezo channels have been identified as the channels that sense various physical stimuli through transmission by lipid bilayer tension.[89,90,91,92,93]
Piezo channels act on coupling of the mechanical stimuli with ion flux.[90,92,93]
Piezo1 channel is activated by various physical stimuli, including pressure, indentation, deflection, and membrane stretch, while TRPV4 is activated only by deflection stimulus.[94]
GPCRsSeveral cellular environmental stimuli such as shear stress, osmotic changes, and mechanical pressure can lead to a conformational change of GPCR from an inactive state to an active state.[97,98,99]
Fluid-induced shear stress, hypotonic stress, and fluidizing agents have the same effect on GPCR.[98]
Various engineered materials have been used to mimic cellular dynamic environment to investigate GPCR-mediated sensing.[98,99,100]
Table 7. Cytoplasmic transfer of the material-sensing signals.
Table 7. Cytoplasmic transfer of the material-sensing signals.
Signal TransferMain FindingsRef.
Integrin-mediated transfer and roles of signaling moleculesIntegrin–substrate binding promotes the formation of focal adhesion complex along with recruitment of signaling molecules that subsequently activate or localize other proteins.[20,80,102,103]
Beginning with the autophosphorylation of a tyrosine residue in FAK, various focal adhesion proteins can be activated sequentially through phosphorylation.[20,102]
Diverse physical features of cell surroundings such as stiffness and topography lead to changes in localization of focal adhesion proteins.[4,86,105,106]
Integrin-mediated transfer and roles of cytoskeletal structureTransduction of physical signals from substrates into cells requires intact connection between integrin and the actin cytoskeleton.[107]
The integrin–ligand interaction induces recruitment of structural proteins such as vinculin, talin, and tensin1 and adaptor proteins that stabilize the cytoskeletal structure.[108,109]
β3 integrin and the ERM family, which acts as integrin adapter protein and signaling molecule, mediate transduction of the information of 3D biomimetic microchips.[110]
GPCR-mediated signal transferReceptors coupling with Gq/11 proteins activate IP3 and DAG formation and GS protein-coupled receptors activate cAMP formation.[100,112]
GPR4, which senses changes in pH, acts as a GS-coupled receptor and GPR68 acts as a Gq/11-coupled receptor.[97,99]
Table 8. Sensing information transfer between the cell surface and nucleus.
Table 8. Sensing information transfer between the cell surface and nucleus.
Main FindingsRef.
LINC complexes act as bridges across the perinuclear space by coupling KASH family members and SUN family members.[101,115,116]
The cytoplasmic domains of the KASH proteins interact with cytoskeletal elements and the exposed residues of the KASH proteins bind to the C-termini of SUN proteins. [116]
N-termini of SUN proteins bind to the nuclear lamins.[116]
YAP/TAZ complex provides bidirectional biochemical connections.[113,114,115]
YAP/TAZ-mediated regulation requires Rho GTPase activity and tension of the actin cytoskeleton.[113]
LINC complex-mediated nuclear mechanotransduction can be induced when the signal molecules phosphorylate several structural proteins.[115]
Table 9. Activation/inactivation of YAP/TAZ affects cellular behaviors.
Table 9. Activation/inactivation of YAP/TAZ affects cellular behaviors.
YAP/TAZ States and the Affected Cellular BehaviorsMain FindingsRef.
YAP/TAZ activationProliferation YAP and TAZ activity, regulated by mechanical properties of multicellular sheets, controls the proliferative capacity of cells.[137]
YAP distribution and cell density/cell adhesion area (NIH 3T3 cells) are correlated.[135]
The proliferation of endothelial cells is promoted by disturbed flow that causes the activation of YAP/TAZ.[138]
YAP1 is an essential modulator for the proliferation of epidermal stem cell and tissue expansion.[139]
Osteoblast differentiationMSCs differentiation is affected by YAP/TAZ activity, which links to mechanical cues from ECM.[113]
Runx2-involved gene transcription, repression of PPARγ-involved gene transcription, and differentiation of MSCs are regulated by TAZ.[140]
ECM stiffness-dependent osteogenesis of MSCs is promoted by vinculin and enhanced nuclear localization of TAZ.[141]
MSC differentiation is extremely sensitive to tissue level elasticity of ECMs.[8]
Shapes of mesenchymal progenitors are regulated by MT1-MMP, which results in nuclear localization of YAP and TAZ.[142]
YAP activity-dependent MSCs differentiation is regulated by shear stress of cellular environment.[143]
YAP/TAZ inactivationApoptosisYAP inactivation, caused by the detachment of MCF10A cells, induces anoikis, a kind of apoptosis. [144]
Cell growth arrestInactivation of TAZ results in growth arrest of glioma cells.[145]
YAP inactivation is involved in cell growth arrest and cell contact inhibition.[146]
Adipocyte differentiationMSCs differentiation is regulated by YAP/TAZ activity responding to mechanical cues from ECM stiffness.[113]
Runx2-involved gene transcription, repression of PPARγ-involved gene transcription and differentiation of MSCs are regulated by TAZ.[140]
MSC differentiation is extremely sensitive to tissue level elasticity of ECMs.[8]
Shapes of mesenchymal progenitors is regulated by MT1-MMP.[142]
YAP activity-dependent MSCs differentiation is regulated by the shear stress of the cellular environment.[143]
Table 10. Mechanotransduction causes nuclear changes and regulates gene expression.
Table 10. Mechanotransduction causes nuclear changes and regulates gene expression.
Nuclear ChangesMain FindingsRef.
Chromatin recombinationMicropattern-induced reduction of HDAC3 nuclear localization results in decondensation of chromatin.
Gene transcription is regulated by chromatin compaction.
[154]
Decrease of Emd at the inner membrane of the nucleus by extrinsic biaxial mechanical strain leads to the reduction of H3K9me2,3 on chromatin and rearrangements of chromatin for the regulation of gene expression.[155]
There are rearrangements of specific chromosomes containing the genes that are regulated by cell geometries. These rearrangements are caused by physical cues from the patterns of cell culturing substrates.[156]
Chromatin deformation by magnetic force-induced local stress on CHO cells upregulates the DHFR expression.[124]
Nuclear matrix distortionEnhancement of tissue-specific differentiation by mechanotransduction through nuclear lamin A
High level of lamin A of cells on stiff matrix stabilizes the nucleus, lamina, and chromatin, which may affect the epigenetic stability and the extent of DNA breaks.
Tissue-specific gene expression is regulated by lamin A levels.
[122]
Acute perturbations of ECM elasticity results in alterations in the levels of lamin A and DNA damage.
Slow degradation of lamin A by low phosphorylation leads to lower DNA damage in contractile cells cultured on stiff ECM.
[157]
There are synergetic effects of collagen matrix rigidity and retinoids on the differentiation of MSCs to osteoblasts.
Retinoic acid receptor transcription factors regulate the expression of lamin A.
[158]
Nuclear transportA mechanotransduction-induced stretch of nuclear pores leads to increase of YAP nuclear localization on stiff ECM.[159]
A mechanotransduction-induced stretch of nuclei during cell spreading caused the release of perinuclear Ca2+ and elevation of Ca2+ level in the nucleus[160]
Translocation of cytosolic phospholipase A2 and elevation of Ca2+ by nuclear swelling[161]
DNA meltingTethering of destabilized DNA regions on MARs results in melting of the double helix. [162]

Share and Cite

MDPI and ACS Style

Jang, Y.-h.; Jin, X.; Shankar, P.; Lee, J.H.; Jo, K.; Lim, K.-i. Molecular-Level Interactions between Engineered Materials and Cells. Int. J. Mol. Sci. 2019, 20, 4142. https://doi.org/10.3390/ijms20174142

AMA Style

Jang Y-h, Jin X, Shankar P, Lee JH, Jo K, Lim K-i. Molecular-Level Interactions between Engineered Materials and Cells. International Journal of Molecular Sciences. 2019; 20(17):4142. https://doi.org/10.3390/ijms20174142

Chicago/Turabian Style

Jang, Yoon-ha, Xuelin Jin, Prabakaran Shankar, Jung Heon Lee, Kyubong Jo, and Kwang-il Lim. 2019. "Molecular-Level Interactions between Engineered Materials and Cells" International Journal of Molecular Sciences 20, no. 17: 4142. https://doi.org/10.3390/ijms20174142

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
