Article

The Transcription Factor ZmNAC89 Gene Is Involved in Salt Tolerance in Maize (Zea mays L.)

1
Key Laboratory of Germplasm Enhancement, Physiology and Ecology of Food Crops in Cold Region, Engineering Technology Research Center of Maize Germplasm Resources Innovation on Cold land of Heilongjiang Province, Northeast Agricultural University, Harbin 150030, China
2
Institute of Crop Resources Research, Heilongjiang Academy of Agricultural Sciences, Harbin 150086, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(20), 15099; https://doi.org/10.3390/ijms242015099
Submission received: 5 September 2023 / Revised: 3 October 2023 / Accepted: 10 October 2023 / Published: 12 October 2023
(This article belongs to the Special Issue Molecular Mechanisms of Plant Defense against Abiotic Stress 2.0)

Abstract

:
The NAC gene family has transcription factors specific to plants, which are involved in development and stress response and adaptation. In this study, ZmNAC89, an NAC gene in maize that plays a role in saline–alkaline tolerance, was isolated and characterized. ZmNAC89 was localized in the nucleus and had transcriptional activation activity during in vitro experiments. The expression of ZmNAC89 was strongly upregulated under saline–alkaline, drought and ABA treatments. Overexpression of the ZmNAC89 gene in transgenic Arabidopsis and maize enhanced salt tolerance at the seedling stage. Differentially expressed genes (DEGs) were then confirmed via RNA-sequencing analysis with the transgenic maize line. GO analyses showed that oxidation–reduction process-regulated genes were involved in ZmNAC89-mediated salt–alkaline stress. ZmNAC89 may regulate maize saline–alkali tolerance through the REDOX pathway and ABA signal transduction pathway. From 140 inbred maize lines, 20 haplotypes and 16 SNPs were found in the coding region of the ZmNAC89 gene, including the excellent haplotype HAP20. These results contribute to a better understanding of the response mechanism of maize to salt–alkali stress and marker-assisted selection during maize breeding.

1. Introduction

One of the most important abiotic stressors is soil salinization, which hinders crop yields and can destabilize the global food supply [1]. Maize is an important food crop, accounting for more than half of the calories consumed globally [2]. However, maize is a glycophyte and is hypersensitive to salt stress [3]. As such, it is important to understand how maize tolerates salt and to identify new candidate genes in maize breeding.
The NAC transcription factor is an acronym of the NAM, ATAF1/2 and CUC2 genes. The first NAC gene, NAM (No Apical Meristem), is from Petunia hybrida and is related to the development of the shoot tip meristem [4]. Subsequently, ATAF1/2 and CUC2 genes similar to NAM structures were found in Arabidopsis thaliana [5]. Bioinformatics analyses indicated that the NAC transcription factor has 151 members in rice (Oryza sativa) [6], 117 members in Arabidopsis [7] and 152 members in tobacco (Nicotiana tabacum) [8] and soybean (Glycine max) [9]. Analysis of expression profiling demonstrated that 20–25% of NAC genes were activated by a minimum of one abiotic stressor, such as drought conditions, freezing temperatures, salt or phytohormones and ABA [10]. These helped regulate response gene expression, which contributes to abiotic stress resistance in plants.
Combined with the promoter of the ABA signal regulator OsbZIP23, SNAC1 positively regulated the expression of downstream ABA signal genes to improve drought and salt tolerance and increase rice yield [11,12]. Its homologous gene SNAC2 can improve salt and cold resistance [13]. SNAC3 improves drought and heat resistance by regulating ROS detoxification genes in rice [14] OsNAC5, 6 and 10 improved drought tolerance and reduced yield loss [15,16,17]. OsNAC66 can improve rice’s drought resistance and antioxidant ability and resist rice blast and leaf blight by inhibiting the ABA signal pathway [18,19]. OsNAC2 depends on the ABA pathway to accelerate leaf senescence in rice [20]. Other reports indicate that NAC genes can improve crop resistance, including chickpea CarNAC2 [21], sorghum SbSNAC1 [22], wheat TaNAC29 [23,24] and TaNAC2-5A [25], tomato SlNAP2 [26] and SlJUB1 [27]. This indicates that NAC transcription factors have potential applications in abiotic stress breeding.
Based on the sequence characteristics of NAC protein, Voitsik et al. found 116 NAC genes by scanning the whole genome of maize and cloned two NAC transcription factor genes, ZmNAC41 and ZmNAC100, which are related to maize anthracnose [28]. Previously, the functions of some maize NAC transcription factor genes have been verified: ZmSNAC1, ZmNAC33 and ZmNAC55 significantly increase the drought tolerance of transgenic Arabidopsis [29,30,31]. A genome-wide association study confirmed that the ZmNAC111 gene is significantly associated with drought resistance. The promoter region has an insertion of a miniature inverted repeating transposon MITE [32]. ZmaNAC34 and ZmNAC36 genes are associated with starch synthesis [33,34]. ZmNAC84 was phosphorylated by ZmCCaMK at Ser-113 and induced antioxidant defense by activating downstream genes [35].
Previously, we analyzed differentially expressed genes in the maize transcriptome under alkaline–salt Na2CO3 stress using second-generation high-throughput sequencing RNA-Seq technology [36]. We found that the ZmNAC89 gene significantly increased expression levels under stress conditions. In this study, bioinformatics analysis, gene expression pattern analysis under stress treatment, genetic transformation and RNA-seq were used to achieve the following goals: (1) identify the basic characteristics of ZmNAC89 gene, (2) identify the expression of ZmNAC89 gene in other abiotic stresses, (3) identify the best haplotype, as well as predict and identify the extremely saline–alkali-tolerant maize inbred lines for future breeding applications and (4) provide an initial understanding of the response mechanism of maize to saline–alkali stress in the breeding process.

2. Results

2.1. Phylogenetic Analysis of the ZmNAC89 Gene

The ZmNAC89 gene (Gene ID: GRMZM2G430849, XM_008653325.1) is localized in the bin 7.05 region based on B73 RefGen_v2 genome-wide data. Sequence analysis indicated that full-length ZmNAC89 is 2280 bp and that it possesses a common PolyA tail signal (AATAAA) +158 bp~+164 bp after the stop codon TAG (Figure S1). We identified 31 orthologs of ZmNAC89 in different species from Arabidopsis, rice, wheat and soybean and constructed the phylogenetic tree of ZmNAC89 orthologs. The ZmNAC89 protein is 76% similar to the AtNAP protein associated with salt stress in Arabidopsis thaliana. It is in the same clade as the OsNAC10 protein related to salt stress in rice and the TaNAC3 protein related to drought resistance in wheat (Figure 1 and Table S1). Meanwhile, the ZmNAC89 promoter has core elements, such as CAAT-box and TATA-box, as well as biotic and abiotic stress-related elements (Figure S2). Therefore, the promoter could be a stress-inducible promoter.

2.2. Transactivation Activity Analysis of ZmNAC89

In order to verify whether ZmNAC89 has transcriptional activation activity, bait plasmid pGBKT7-ZmNAC89/pGADT7-T, positive control plasmid pGBKT7-53/pGADT7-T and negative control plasmid pGBKT7-Lam/pGADT7-T were, respectively, co-transformed into Y2HGlod yeast cells, and the growth status and color change in colonies were observed on the selection medium to judge whether the bait plasmid has transcriptional activity. Blue spot colonies appeared in bait plasmid pGBKT7-ZmNAC89/pGADT7-T and positive control plasmid pGBKT7-53/pGADT7-T, indicating that the ZmNAC89 transcription factor has transcriptional activation activity (Figure 2).

2.3. Subcellular Localization of the ZmNAC89 Protein

To identify the subcellular localization of the ZmNAC89 protein, we transformed the recombinant plasmid into the protoplast of Arabidopsis thaliana and observed the fluorescence signal by using laser confocal microscopy. The green fluorescence signal of the control sample transformed into the empty vector was present in the nucleus and the cytoplasmic region of the protoplast. However, the green fluorescence signal of the ZmNAC89-GFP fusion protein was located in the nucleus of the protoplast. This suggested that the ZmNAC89 protein is localized on the nucleus (Figure 3).

2.4. Inducible Expression of ZmNAC89 in Response to Various Abiotic Stresses

To examine the function of ZmNAC89, we analyzed the expression pattern of the ZmNAC89 gene in ‘K10′ inbred lines under salt, alkalinity, ABA and drought stress conditions. The ZmNAC89 transcript level was induced through treatment with NaCl, Na2CO3, ABA and PEG in the roots and leaves. Under NaCl and Na2CO3 treatments, the expression of ZmNAC89 achieved a maximum level at 3 and 24 h in the leaves and roots, respectively (Figure 4A,B). Under ABA treatment, the transcript level of ZmNAC89 reached a peak at 3 and 12 h in the leaves and roots, respectively (Figure 4C). Under PEG treatment, peaks appeared at 6 h and 9 h in the leaves and roots, respectively (Figure 4D). These results indicated that ZmNAC89 responds to various abiotic stresses and could have a prominent function in salt and alkalinity adversities.

2.5. ZmNAC89 Gene Overexpression Increased Arabidopsis and Maize Resistance to Alkalinity and Salt

ZmNAC89 expression levels are related to maize salt–alkaline tolerance. Therefore, we produced transgenic maize and Arabidopsis, both of which overexpressed the ZmNAC89 coding sequence (from the K10 genotype). The ZmNAC89 cDNA clone sequence was sent to GenBank (Accession No. MK125509.1).
The phenotypes of ZmNAC89 lines during germination were analyzed for transgenic Arabidopsis. Under 100 mM NaCl stress, the root length, root surface area and root volume of the transgenic lines were significantly greater than the wild type (6.31 cm, 0.29 cm2 and 0.00064 cm3, respectively), with an average of 9.74 cm, 0.4 cm2 and 0.00099 cm3 (Figure 5A,C,G). After 150 mM NaCl treatment, the root length and root surface area were significantly greater in the transgenic lines than in the wild type (2.24 cm and 0.09 cm2, respectively), with an average of 3.33 cm and 0.12 cm2 (Figure 5A,C). Under 0.5 mM NaHCO3 stress treatment, the root length, root surface area and root volume of the transgenic lines were significantly higher than in the wild type (7.72 cm, 0.29 cm2 and 0.00071 cm3, respectively), with an average of 9.38 cm, 0.39 cm2 and 0.00095 cm3, respectively (Figure 5B,D,H). After 1 mM NaHCO3 stress treatment, the root mean diameter was significantly higher in the transgenic lines than in the wild type (0.098 mm), with an average of 0.12 mm (Figure 5F). To further test the function of ZmNAC89 in salt and alkalinity tolerance, we observed the phenotypes of the transgenic Arabidopsis in the mature stage. After salt and alkali treatments, the transgenic lines still maintained solid growth and produced yellow-green leaves, erect stems and normal flowering and fruit. However, the wild type showed wilting, white leaves, curved stems and fewer flowers (Figure 6).
The stress resistance of ZmNAC89 transgenic lines could be reflected by measuring physiological indexes related to stress, such as relative conductivity, chlorophyll and proline. Under 300 mM NaCl stress or 60 mM NaHCO3 stress, the six transgenic lines had a relative conductivity that was significantly lower than wild-type Arabidopsis. In contrast, the proline and chlorophyll contents were significantly higher in all six transgenic lines than in the wild type (Table 1 and Table 2). These results suggested that overexpression of the ZmNAC89 gene can significantly improve the salt and alkalinity tolerance of Arabidopsis thaliana.
Improvements in alkalinity and salt tolerance were also observed in transgenic maize when the ZmNAC89 gene was overexpressed. The germination-stage maize was treated with salt, alkali and saline–alkali mixed stresses, after which multiple comparisons of germination potential, germination rate, root length, shoot length, fresh weight and dry weight of each line were performed through Duncan analysis using SPSS20.0 software. Under different stress treatments, the index characteristics of each transgenic line showed that the germination potential, germination rate, root length, shoot length, fresh weight and dry weight of the transgenic lines DNAC89-C-3, DNAC89-C-5 and DNAC89-C-25 performed better than other transgenic lines and were significantly higher than the control line C01 (Table S2A–C). The seedling-stage maize was treated with salt, alkali and saline–alkali mixed stresses. Multiple comparisons of plant height, dry weight of the shoots and root dry weight were performed with Duncan analysis using SPSS20.0 software. The significance of differences between transgenic lines and C01 were analyzed using the LSD method. Under different stress treatments, the transgenic lines DNAC89-C-3, DNAC89-C-5 and DNAC89-C-25 were the most prominent in plant height, dry weight in the ground, root dry weight, total root length, root surface area and root volume (Figure 7A–D). The measurement results of relative conductivity, chlorophyll and proline content demonstrated that transgenic lines improved salt–alkali resistance compared to the controls. The relative conductivity of 17 overexpressing lines decreased while chlorophyll and proline content increased. DNAC89-C-3, DNAC89-C-5 and DNAC89-C-25 had better salt–alkali resistance than the other transgenic lines (Table S3A–C).

2.6. RNA-Seq Analysis and Prediction of Interacting Proteins

To better understand the molecular mechanism of the ZmNAC89 gene responsible for regulating salt–alkali resistance, we compared transcriptomic data from the WT and transgenic ZmNAC89 maize lines under Na2CO3 and NaCl conditions. edgeR software (3.42.4) was used to analyze the DEGs (|log2foldchange| ≥ 1, p < 0.05). Compared with the WT, the DEGs of transgenic lines increased significantly after stress treatment, and there were more downregulated DEGs than the upregulated DEGs, indicating that the expression of these genes was strongly regulated by ZmNAC89 (Figure S3A–D). Under NaCl treatment, 114 genes were upregulated and 140 were downregulated in the WT, while 932 genes were upregulated and 3137 were downregulated in the transgenic line (Figure 8A). Under Na2CO3 treatment, 326 genes were upregulated and 708 were downregulated in the WT, while there were 1008 upregulated and 5336 downregulated genes in the transgenic control line (Figure 8B). Wayne diagram analysis demonstrated that under different treatments of NaCl and Na2CO3, the transgenic lines had significantly differentially expressed genes compared with the receptor control lines. Under NaCl treatment, 3940 genes were only expressed in the transgenic lines (Figure 8C). Under Na2CO3 treatment, 5816 genes were only expressed in transgenic lines (Figure 8D). These results will help facilitate future analysis of the mechanism regulating ZmNAC89 saline–alkali resistance.
To study the salt–alkaline tolerance network of maize regulated by ZmNAC89, a GO analysis was performed for significantly upregulated and downregulated genes. Under NaCl treatment, many DEGs involved in pathways for the L-phenylalanine catabolic process, oxidation–reduction process, transferase activity and chloroplast were highly enriched (Figure S4A). Under Na2CO3 treatment, many DEGs involved in pathways for photosynthesis, light reaction, chloroplasts, translation and the oxidation–reduction process were highly enriched (Figure S4B). GO analyses showed that oxidation–reduction process-regulated genes were involved in ZmNAC89-mediated salt–alkaline stress, and the ZmNAC89 transcript level was induced by ABA. It has been reported that many MYB [37,38,39] and bZIP [40,41] transcription factors regulate the response to salt–alkaline tolerance through the oxidation–reduction process or ABA pathway. In combination with DEGs screened with RNA-seq, the MYB transcription factor (Zm00001d014364) and bZIP transcription factor (Zm00001d044546) were selected as candidate proteins and for further verification.

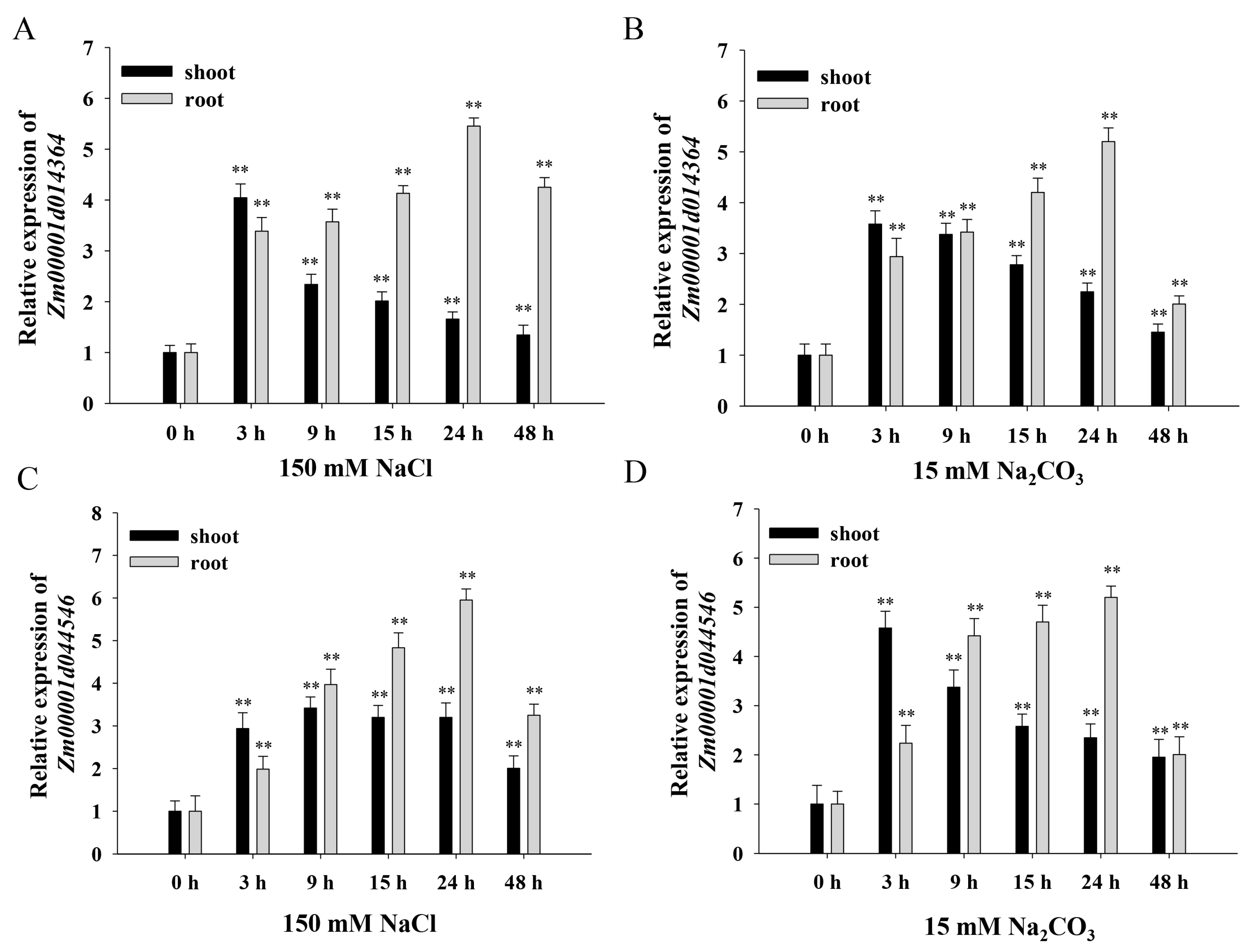

Under NaCl and Na2CO3 treatments, the expression of Zm00001d014364 and Zm00001d044546 (Figure 9) gradually increased in roots and leaves and peaked at 3 h and 24 h, respectively. Combined with the induced expression analysis of ZmNAC89, there was a positive correlation with ZmNAC89 expression levels, indicating that there could be a positive regulatory relationship between them.

2.7. Sequence Variation Analysis of ZmNAC89

The sequence alignment of the ZmNAC89 gene-coding region in 140 maize inbred lines showed that the sequence similarity of the ZmNAC89 gene-coding region in different inbred lines was 99.87%, indicating that the coding region was relatively conservative. The polymorphic sites in this region were analyzed using 100 bp as the sliding frame and 25 bp as the step size. We found approximately 1–500 bp in the first exon region, indicating that there are abundant variations in this region and that polymorphism is significantly higher than in the other two exon regions. The maximum π value of nucleotide polymorphism in the second exon region reached 0.005, and there was no sequence variation in the third exon. This indicates that these two parts are relatively conservative (Figure 10).
A total of 16 SNP sites were detected in the coding region of the ZmNAC89 gene of the tested maize inbred lines. The polymorphic sites were typed according to the mutation type and the number of nucleotides (Table S4A). The SNPs could be divided into six types: base C/G, G/A, G/T, T/C, A/G and C/T. DNA SPV6.0 software analysis was used to detect 20 haplotypes, with a polymorphism of 0.74. The main haplotypes were HAP1, HAP2 and HAP20, which collectively accounted for 82.14% of the tested materials. There were few other haplotypes, most of which belonged to rare variations. There were 40 Hap1 haplotype inbred lines, primarily including Han21, shen3336 and huotanghuang, and other saline–alkali-sensitive materials; the HAP2 haplotype contained 21 inbred lines, mainly guan17, 31 and Luyuan 133, and other moderately saline–alkali-tolerant materials; the HAP20 haplotype contained 54 inbred lines, mainly salt- and alkali-resistant materials such as Shen 118 and Dan 3130. The six SNP sites were synonymous mutations, which did not affect the amino acid sequence. The 10 SNP loci were non-synonymous mutations, which could change the structure and physiological function of proteins and affect resistance (Table S4B). According to the classification of salt- and alkali-resistant inbred lines, the HAP20 haplotype was preliminarily identified as an excellent haplotype.
Combined with the previous NaCl and NA2CO3 stress treatment, the identification of saline–alkali-tolerance-related traits at the seedling stage and comprehensive evaluation via the membership function method obtained clustering results, and the minimum allele frequency in DNAMAN comparison results was 5%. DNA SPV6.0 software was used for SNP nucleotide diversity analysis and haplotype diversity analysis. The results are shown in Table 3.

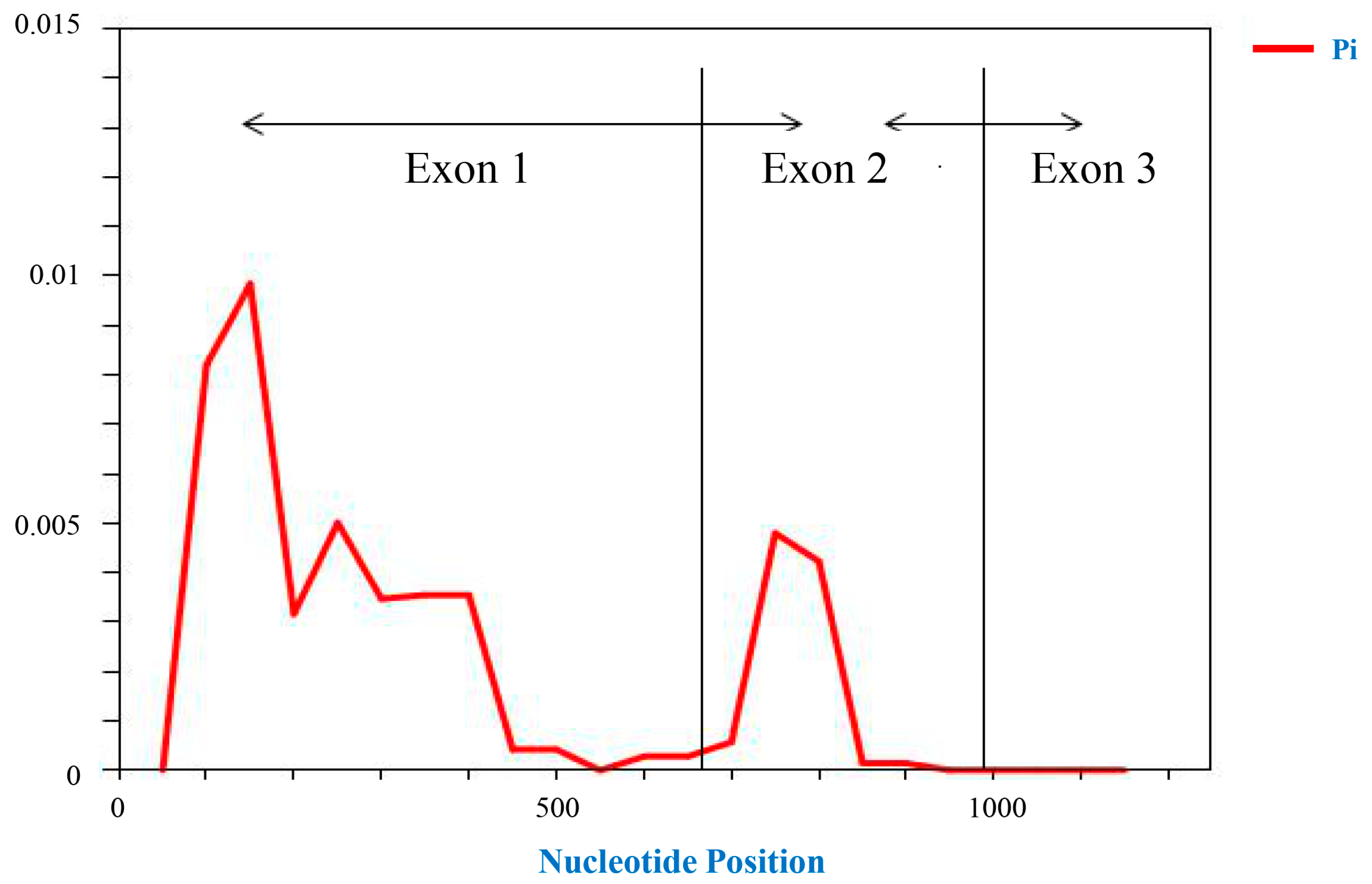

Under Na2CO3 stress, nucleotide diversity π = 0.00291 and Tajima’s D value was −1.10181 in 51 medium-resistance materials. Nucleotide diversity π = 0.00205 and Tajima’s D value was −0.06472, or nucleotide diversity π = 0.00286 and Tajima’s D value was −0.52477, in 23 resistant materials. Nucleotide diversity π = 0.00127 and Tajima’s D value was −0.53609 in 17 sensitive materials. Nucleotide diversity π = 0.00266 and Tajima’s D value was −0.15008 in 16 highly sensitive materials.
Under NaCl stress, nucleotide diversity π = 0.0024 and Tajima’s D value was 0.01116 in 45 resistant materials. Nucleotide diversity π = 0.00216 and Tajima’s D value was −1.03859 in 30 sensitive materials. Nucleotide diversity π = 0.00307 and Tajima’s D value was −0.82036 in 27 highly sensitive materials. Nucleotide diversity π = 0.00245 and Tajima’s D value was −0.38437 in 20 medium-resistance materials. Nucleotide diversity π = 0.00222 and Tajima’s D value was −0.67509 in 18 high-resistance materials.
Under Na2CO3 and NaCl stress, the nucleotide diversity π in maize inbred lines with different salt and alkali tolerance was relatively small, indicating that changes in the coding region of the ZmNAC89 gene in maize inbred lines were relatively conservative. Tajima’s D value, Fu and Li’s D * value and Fu and Li’s F * value did not reach significant levels, indicating that the gene follows neutral evolution in the maize inbred line population.

3. Discussion

Maize salt–alkali tolerance is a complex trait, including different mechanisms of osmosis, ions, oxidation and others, so it is difficult to identify various genes that regulate it [35,42,43]. The NAC transcription factor is involved in abiotic stress responses in plants, including those to salinity, drought and low temperatures. Based on previous transcriptome data [36], we found that the ZmNAC89 gene was significantly induced by alkaline–salt Na2CO3 stress. In this study, we identified ZmNAC89 as a transcription factor with transcriptional activation activity and localization in the nucleus. The expression of ZmNAC89 was strongly upregulated under saline–alkaline, drought and ABA treatments. This indicates that NAC transcription factor genes are involved in plant responses to abiotic stresses.
Overexpression of the ZmNAC89 gene in transgenic Arabidopsis and maize enhanced salt tolerance at the germination and seedling stages. The rice OsNAC5 and OsNAC6 genes can improve salt and drought tolerance of rice by expanding root diameter and enhancing root development, and they regulate the expression of peroxidase genes and genes related to various drought tolerance pathways [15,16]. Under saline–alkali stress, the root length, average root diameter, root surface area and root volume of overexpressing lines were significantly higher than those of wild-type lines, indicating that ZmNAC89 gene may improve salt–alkali tolerance by enhancing root development of plants.
Optimal haplotypes are typically mined based on gene sequence, genome sequence and phenotype screening. Haplotypes can be used to classify germplasm resources [44,45]. Based on the sequence variation analysis of the coding region of the ZmNAC89 gene of 140 maize inbred lines, 20 haplotypes were identified, including 10 non-synonymous mutation sites. The results of the association analysis demonstrated that HAP20 was an excellent haplotype for salt and alkali tolerance. There is the potential to use the excellent saline–alkali-resistance inbred lines in HAP20 for breeding work, to use the information about excellent haplotypes to quickly identify the saline–alkali resistance of unknown resistant materials and to use this information to improve the speed of breeding applications. Maize inbred lines with this haplotype were identified, which is important when breeding salt and alkali tolerance.
Different cis-acting elements in the promoter region can regulate the expression of NAC transcription factors. The OsNAC045 gene is related to drought resistance and salt tolerance in rice and is partially regulated by MYB and MYC elements [46]. PbeNAC1 could increase the expression of some stress-related genes by interacting with PbeDREB1 and PbeDREB2A to improve stress resistance in pears [47]. In this study, Zm00001d014364 and Zm00001d044546 genes as candidate interaction genes for ZmNAC89 protein were the MYB transcription factor and bZIP transcription factor, respectively. qRT-PCR was performed on Zm00001d014364 and Zm00001d044546 genes, which preliminarily demonstrated that their expression was positively correlated with ZmNAC89. The gene promoter region contained elements regulating abscisic acid, methyl jasmonate, gibberellin and auxin and the light response. However, further experiments are needed to determine the interaction protein of ZmNAC89.
Generally, abiotic stress is polytropic. GmNF-YC14 can be significantly induced and upregulated under drought, salt stress and ABA treatment at the same time, and GmNF-YC14 can form complexes with GmNF-YB2 and GmNF-YA16 in soybean plants [48]. In this study, the expression of ZmNAC89 was upregulated under salt, alkali, drought and ABA stress, and the contents of proline and chlorophyll of transgenic lines under salt and alkali stress were increased. In addition, proline is a plant cytoplasmic osmotic regulator. It also plays an important role in stabilizing the structure of biological macromolecules, reducing cell acidity, detoxifying ammonia and regulating cell REDOX potential as an energy reservoir. The results in the transcriptome showed that differentially expressed genes were enriched into REDOX-related pathways and contained multiple ABA-signaling-related genes. Salt, alkali, drought and ABA can be generally classified as hypoxia and osmotic pressure imbalance-related stresses. We speculate that the ZmNAC89 gene may regulate maize salt–alkali tolerance through the REDOX and ABA pathways, and that it may respond to drought and ABA stress as a transcription factor binding to downstream proline- or REDOX-related genes.
Abscisic acid, stress and maturation induction (ASR) genes are a class of plant-specific transcription factors, which play an important role in plant development, growth and abiotic stress response [49]. Whole-genome identification has been conducted in wheat and maize, and some genes in the family were found to be upregulated under stress treatment. ZmNAC89 is also upregulated under ABA stress, which may act on the NAC family binding sites in ZmASRs promoters. The ERECTA gene is a candidate gene with a potential role in drought stress tolerance in soybean [50], and the ERECTA gene may also be activated by NAC family genes in maize. ZmNAC89 protein candidate interaction genes Zm00001d014364 and Zm00001d044546 are MYB transcription factors and bZIP transcription factors, respectively, and many MYB and bZIP transcription factors have been previously reported to improve the plant response to saline-based stress by regulating ABA pathways.

4. Materials and Methods

4.1. Plant Materials and Vector Plasmid

A. thaliana seeds (wild-type Col-0 (WT)) were provided by Pro. Shuzhen Zhang of the Soybean Research Institute of Northeastern Agricultural University. The maize inbred line C01 used as a transgenic receptor was provided by the Life Science and Technology Center of China Seed Group Co., Ltd. (Beijing, China). The binary vector pTF101 was provided by Pro. Kan Wang (Iowa State University, Ames, IA, USA).

4.2. Bioinformatics Analysis of ZmNAC89 Gene

The ZmNAC89 gene was predicted with the online prediction software FGENESH (2023) (http://www.softberry.com/ accessed on 20 April 2023), using the genome-wide sequence of the maize inbred line B73 RefGen_v4 in the MaizeGDB database (http://www.maizegdb.org/ accessed on 20 April 2023). The neighbor-joining (NJ) method was used to build a phylogenetic tree of the aligned protein sequences in MEGA (X) (bootstrap value of 1000). The cis-acting elements of the ZmNAC89 gene flanking sequence were deduced using PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ accessed on 20 April 2023).

4.3. Cloning of the Full-Length cDNA

Total RNA was extracted from seedlings of maize inbred line K10 treated with 150 mM NaCl for 3 h using TRIzol reagent (TransGen, Beijing, China). First-strand cDNA was synthesized from 1 μg of total RNA with 1 μL (200 U) TransScriptTM RT/RI Enzyme Mix (TransGen), according to the manufacturer’s instructions. The primers for ZmNAC89 were performed using KOD-Plus-Neo (TOYOBO, Osaka, Japan) under the following conditions: 94 °C for 3 min, followed by 30 cycles of 94 °C for 45 s, 58.3 °C for 30 s, 72 °C for 1 min and 72 °C for 10 min. The resulting amplification product was subjected to gel purification and cloned to the pEASY-T1 Simple vector (TransGen), after which it was sequenced. The primers are listed in Supplementary Table S5.

4.4. Transactivation Assay

The ZmNAC89 coding sequence was cloned into the pGBKT7 vector. The pGBKT7-ZmNAC89 constructs and the empty vector pGADT7-T were co-transformed into Y2HGlod yeast cells. The empty vector pGADT7-T and pGBKT7-53 were co-transformed as positive controls. The empty vector pGADT7-T and pGBKT7-Lam were co-transformed as negative controls. Transcriptional activation activity was determined on synthetically defined (SD)/-Ade/-His/-Leu/-Trp/X-ɑ-Gal/AbA medium.

4.5. Subcellular Location of ZmNAC89

The ZmNAC89 coding sequence fused with GFP was cloned into the pCAMBIA1302 vector, and then pCAMBIA1302-ZmNAC89-GFP and pCAMBIA1302-GFP were transformed into Arabidopsis protoplasts. After 16 h incubation at 25 °C, the GFP fluorescent signal of the transfected Arabidopsis protoplasts cells was examined with a TCS SP2 confocal spectral microscope imaging system (Leica, Wetzlar, Germany).

4.6. Analysis of Inducible Expression Using Real-Time Quantitative PCR

For qRT–PCR, total RNA was extracted from third-leaf-stage K10 seedlings treated with 15 mM Na2CO3, 150 mM NaCl, 20% (w/v) PEG6000 and 100 μM ABA for 0 h, 1 h, 3 h, 6 h, 9 h, 12 h, 24 h, 2 d and 4 d using TRIzol reagent (TransGen). cDNA was synthesized using TransScriptTM RT/RI Enzyme Mix (TransGen), and qRT–PCR analyses were conducted using TransStart® Tip Green qPCR SuperMix (TransGen) on a Chromo4TM Real-Time Detector (Bio-Rad, Hercules, CA, USA). The maize Actin1 gene (Gene ID: 100282267) was used as an internal standard. The 2−ΔΔCt method was used to analyze relative expression. The primers are listed in Supplementary Table S5.

4.7. Construction and Transformation of Binary Plant Expression Vector

To generate transgenic lines overexpressing ZmNAC89, the coding sequence of ZmNAC89 was cloned into the pTF101 vector and transformed into the Agrobacterium tumefaciens strain EHA105 to infect Arabidopsis through the floral dip method [51] and maize through the embryo infection method. T0- and T1-generation transgenic lines were screened with phosphinothricin (PPT) because the vector contains a screening marker gene Bar. The T2-generation positive transgenic plants were verified using PCR and a Bar protein test strip, and the expression levels of ZmNAC89 in transgenic plants were confirmed through qRT–PCR.
All experiments were performed at the Molecular Breeding Experimental Base of Northeast Agricultural University located in Harbin City, Heilongjiang Province of China. The plants were stored in a specific room, and the locations where the plants were grown were burned once the experiments were concluded.

4.8. PCR and RT-PCR Analysis of Transgenic Plants

Genomic DNA was extracted from maize plants using the CTAB procedure. Due to the ZmNAC89 gene being an endogenous gene in maize, primers were designed with the sequences of the promotor and the terminator of the plant expression vector. For PCR assays of the ZmNAC89 gene, a 1758 bp fragment was amplified using the primers Pro-ZmNAC89-F/ZmNAC89-Ter-R (Supplementary Table S5). The Bar gene was assayed by using the primers of Bar transgenic plants.
TRIzol reagent (Tiangen, Beijing, China) was used to extract total RNA from 100 mg of maize seedling leaves or roots. The RT Reagent Kit (Transgene, Beijing, China) was used to perform reverse transcription on 500 ng DNase-treated RNA. Five-fold diluted cDNA was then used for PCR. A 430 bp ZmNAC89 fragment was amplified with gene-specific primers from the promotor and the conserved region of the target gene. A 429 bp fragment was amplified using the Bar gene primer in the same manner described above. RT-PCR used the β-Actin gene as an internal control. Three replicates were performed.

4.9. Salt and Alkalinity Stress Treatment of Arabidopsis and Maize during Seedling Growth

For the salt and alkalinity tolerance assays of Arabidopsis, T2-generation transgenic seeds and the wild-type (WT) seeds were plated on MS agarose medium (0.8%). After 4 days of vernalization at 4 °C, plates were vertically cultured for 5 days in the incubator. The seedlings with consistent growth were selected and placed in an MS medium with various levels of NaHCO3 (0.5 and 1 mM) and NaCl (100 and 150 mM). After 14 days of vertical culture, the Epson Perfection V800 root scanner was used to analyze root parameters, including total root length (cm), root surface area (cm2) and root volume (cm3). Seven-day-old seedlings were placed in pots with a mix of vermiculite and nutrient soil in a greenhouse (22 °C, humidity 70%, 16 h light/8 h dark), grown for three weeks and irrigated at the same volume of 300 mM NaCl and 60 mM NaHCO3 solution every two days for two weeks.
For the salt and alkalinity tolerance assays of maize, T2-generation transgenic seeds and non-transgenic seeds were soaked for 6 h in 160 mmol/L NaCl solution, 25 mmol/L Na2CO3 solution and a saline–alkali mixed solution with a Na+ concentration of 100 mmol/L made up of NaCl, Na2SO4, NaHCO3 and Na2CO3 at a ratio of 1:9:9:1, and then germinated on filter paper in a culture dish. The germination potential was measured on the 4th day, and the fresh weight, root length, germination rate, dry weight and bud length were measured on the 7th day. T2-generation transgenic seeds, as well as non-transgenic seeds, were placed in 15 cm diameter pots with sand, with 5 seedlings in each pot, 30 seedlings per treatment and 3 replicates. The third-leaf-stage maize seedlings were irrigated with 160 mmol/L NaCl solution, 25 mmol/L Na2CO3 solution and a saline–alkali mixed solution with a Na+ concentration of 100 mmol/L made up of NaCl, Na2SO4, NaHCO3 and Na2CO3 at a ratio of 1:9:9:1, once every two days. All plants were irrigated with 1/2 Hoagland solution before treatment to prevent excessive salt accumulation in the sand.

4.10. Identifying Biochemical and Physiological Characteristics and Changes in Phenotype Associated with Alkalinity and Salt Tolerance

The relative conductivity, chlorophyll and proline content of Arabidopsis and maize ZmNAC89-overexpressed transgenic lines were then determined. The leaves of 0.05 g seedlings were immersed in 5 mL of deionized water. A conductivity meter (DDS-307) was used to detect the relative conductivity, which is the ratio of the electrical conductivity of exudates after soaking for 24 h at room temperature to the electrical conductivity of exudates after removal from a boiling water bath for 10 min until cooled.
Chlorophyll content was estimated according to the method used by Arnon et al. [52]. The plant leaf chlorophyll was extracted with 95% ethanol solution. The extraction absorbance was measured at wavelengths of 645 and 663 nm with a 754 UV-visible spectrophotometer (Shanghai Jinghua Company). The chlorophyll content was calculated according to the following formulas:
Chlorophyll   a   concentration   ( mg / L ) :   C a = 12.7 A 663 2.69 A 645
Chlorophyll   b   concentration   ( mg / L ) :   C b = 22.9 A 645 4.68 A 663
Total   chlorophyll   concentration   ( mg / L ) :   C a + b = C a + C b
Proline content was measured according to the method of Bates et al. [53]. In brief, 5 mL of 3% sulfosalicylic acid was ground into 0.2 g plant leaves to extract proline. It was then placed in boiling water for 10 min, cooled, filtered and diluted to 5 mL. Then, 2 mL of acid ninhydrin and 2 mL of glacial acetic acid solution were added, followed by boiling for another 30 min. Next, 4 mL of toluene was added after it cooled, and the solution was gently vortexed. The toluene layer absorbance was measured at thebwavelength of 520 nm using a 754 UV-visible spectrophotometer (Shanghai Jinghua Company, Shanghai, China). The proline content was calculated from the standard curve.

4.11. RNA Extraction, Transcriptome Library Construction, and Sequencing

WT and transgenic maize seeds of the same size were selected, 75% were disinfected for 15 min and then they were washed with distilled water 3 times. Seeds were germinated via the sprouting paper method for 48 h, and seeds with the same budding potential were selected and cultured in a plastic bowl with a diameter of 15 cm until the three-leaf single stage. They were treated with 160 mmol/L NaCl solution and 25 mmol/L Na2CO3 solution, respectively. Before stress treatment, 1/2 Hoagland solution was irrigated once to prevent excessive accumulation of NaCl and Na2CO3 in the sand. After 3 h of stress, the aggregate tissues of 3 three-leaf maize seedlings were collected for RNA-seq analysis. Total RNA was isolated using TRIzol (Invitrogen, Carlsbad, CA, USA). The concentration and integrity of the RNA were evaluated using a NanoDrop ND-1000 (NanoDrop, Wilmington, DE, USA) and Bioanalyzer 2100 (Agilent, Santa Clara, CA, USA). The construction and sequencing of the transcriptome library were performed by Lianchuan Biotechnology Co., Ltd. in Guangzhou, China. The mRNA was enriched with magnetic beads connected with Oligo(dT) and then fragmented. Double-stranded cDNAs were synthesized using RNaseH, DNA Polymerase I and random hexamer primers. The cDNA fragments were purified using AMPure XP beads. The poly (A) addition was repaired and enriched via PCR to construct the cDNA library. The cDNA library was sequenced on the Illumina Novaseq™ 6000, and the reading length of sequencing was double-ended 2 × 150 bp (PE150).
Cutadapt (https://cutadapt.readthedocs.io/en/stable/ accessed on 19 March 2023) was used to filter out unqualified sequences and obtain valid data from the reference genome comparison. Statistical analysis was performed using HISAT2 (https://daehwankimlab.github.io/hisat2/ accessed on 19 March 2023). StringTie (http://ccb.jhu.edu/software/stringtie/ accessed on 19 March 2023) was used to initially assemble genes or transcripts, combine the initial assembly results of all samples and detect transcripts with GffCompare (http://ccb.jhu.edu/software/stringtie/gffcompare.shtml accessed on 19 March 2023) to obtain the final assembly annotation results. The Balltown package was used to provide a file input for fragments per kilobase of transcript per million mapped reads (FPKM) quantification.
The differentially expressed genes (DEGs) were identified with |log2foldchange| ≥ 1, p < 0.05. The DEG levels were normalized by calculating the fragments per kilobase of transcript per million mapped reads (FPKM). Gene Ontology (GO) analysis was performed for functional gene classification, while KEGG enrichment analysis was performed to understand the metabolic pathways involved in DEGs.

4.12. Sequence Variation Analysis of ZmNAC89

The genome-wide sequence of the maize inbred line B73 RefGen_v4 was checked in the MaizeGDB database (http://www.maizegdb.org/ accessed on 15 March 2023). Specific primers were designed for the candidate gene ZmNAC89 using primer 5.0 software and amplified in 140 maize inbred lines. DNAMAN and DNA SPV6.0 software was used for the multi-sequence alignment of the ZmNAC89 gene-coding region in different inbred lines, SNP nucleotide diversity analysis and haplotype diversity analysis. The primers are listed in Table S5.

5. Conclusions

In this study, the ZmNAC89 gene of the NAC family excavated by using RNA-seq was selected as the research object, and it was confirmed that it had transcriptional activation activity and was located in the nucleus. Under the four abiotic stress treatments, its expression was upregulated. Under salt–alkali treatment of maize and Arabidopsis thaliana, transgenic strains showed higher plant height and higher flowering, and showed good root characteristics. The differentially expressed genes identified by using RNA-seq in transgenic strains were identified in the REDOX pathway through GO enrichment analysis. Quantitative results indicated that ZmNAC89 may respond to saline–alkali stress through the REDOX pathway or ABA signal transduction pathway. Among 140 maize inbred lines, HAP20 was found to be an excellent haplotype with salt and alkali tolerance, providing a material basis for saline–alkali-tolerance breeding. The results are helpful to further clarify the mechanism of saline–alkali tolerance in maize and to support marker-assisted selection in breeding.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms242015099/s1.

Author Contributions

The conception or design of the work: Z.W. and H.D. Performance of experiments: Y.H., C.L., R.Z., X.D., S.L. and C.F. Analysis of data: Y.S., Q.W., Z.L., Y.Z., X.Z. and L.Z. Writing of manuscript: Y.H. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Key Research and Development Project of Heilongjiang Province (2022ZX02B01).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The transcriptome sequencing data have been deposited in the Sequence Read Archive (SRA) at the National Center for Biotechnology Information (NCBI) under the accession number PRJNA1026668.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflict of interest.

References

  1. Ismail, A.M.; Horie, T. Genomics, Physiology, and Molecular Breeding Approaches for Improving Salt Tolerance. Annu. Rev. Plant Biol. 2017, 68, 405–434. [Google Scholar] [CrossRef] [PubMed]
  2. Schnable, J.C. Genome evolution in maize: From genomes back to genes. Annu. Rev. Plant Biol. 2015, 66, 329–343. [Google Scholar] [CrossRef] [PubMed]
  3. Deinlein, U.; Stephan, A.B.; Horie, T.; Luo, W.; Xu, G.; Schroeder, J.I. Plant salt-tolerance mechanisms. Trends Plant Sci. 2014, 19, 371–379. [Google Scholar] [CrossRef] [PubMed]
  4. Souer, E.; van Houwelingen, A.; Kloos, D.; Mol, J.; Koes, R. The no apical meristem gene of Petunia is required for pattern formation in embryos and flowers and is expressed at meristem and primordia boundaries. Cell 1996, 85, 159–170. [Google Scholar] [CrossRef] [PubMed]
  5. Aida, M.; Ishida, T.; Fukaki, H.; Fujisawa, H.; Tasaka, M. Genes involved in organ separation in Arabidopsis: An analysis of the cup-shaped cotyledon mutant. Plant Cell 1997, 9, 841–857. [Google Scholar] [CrossRef]
  6. Nuruzzaman, M.; Manimekalai, R.; Sharoni, A.M.; Satoh, K.; Kondoh, H.; Ooka, H.; Kikuchi, S. Genome-wide analysis of NAC transcription factor family in rice. Gene 2010, 465, 30–44. [Google Scholar] [CrossRef]
  7. Riechmann, J.L.; Heard, J.; Martin, G.; Reuber, L.; Jiang, C.; Keddie, J.; Adam, L.; Pineda, O.; Ratcliffe, O.J.; Samaha, R.R.; et al. Arabidopsis transcription factors: Genome-wide comparative analysis among eukaryotes. Science 2000, 290, 2105–2110. [Google Scholar] [CrossRef]
  8. Rushton, P.J.; Bokowiec, M.T.; Han, S.; Zhang, H.; Brannock, J.F.; Chen, X.; Laudeman, T.W.; Timko, M.P. Tobacco transcription factors: Novel insights into transcriptional regulation in the Solanaceae. Plant Physiol. 2008, 147, 280–295. [Google Scholar] [CrossRef]
  9. Le, D.T.; Nishiyama, R.; Watanabe, Y.; Mochida, K.; Yamaguchi-Shinozaki, K.; Shinozaki, K.; Tran, L.-S.P. Genome-wide survey and expression analysis of the plant-specific NAC transcription factor family in soybean during development and dehydration stress. DNA Res. 2011, 18, 263–276. [Google Scholar] [CrossRef]
  10. Nuruzzaman, M.; Sharoni, A.M.; Satoh, K.; Moumeni, A.; Venuprasad, R.; Serraj, R.; Kumar, A.; Leung, H.; Attia, K.; Kikuchi, S. Comprehensive gene expression analysis of the NAC gene family under normal growth conditions, hormone treatment, and drought stress conditions in rice using near-isogenic lines (NILs) generated from crossing Aday Selection (drought tolerant) and IR64. Mol. Genet. Genom. 2012, 287, 389–410. [Google Scholar] [CrossRef]
  11. Hu, H.; Dai, M.; Yao, J.; Xiao, B.; Li, X.; Zhang, Q.; Xiong, L. Overexpressing a NAM, ATAF, and CUC (NAC) transcription factor enhances drought resistance and salt tolerance in rice. Proc. Natl. Acad. Sci. USA 2006, 103, 12987–12992. [Google Scholar] [CrossRef] [PubMed]
  12. Li, X.; Chang, Y.; Ma, S.; Shen, J.; Hu, H.; Xiong, L. Genome-Wide Identification of SNAC1-Targeted Genes Involved in Drought Response in Rice. Front. Plant Sci. 2019, 10, 982. [Google Scholar] [CrossRef] [PubMed]
  13. Hu, H.; You, J.; Fang, Y.; Zhu, X.; Qi, Z.; Xiong, L. Characterization of transcription factor gene SNAC2 conferring cold and salt tolerance in rice. Plant Mol. Biol. 2008, 67, 169–181. [Google Scholar] [CrossRef] [PubMed]
  14. Fang, Y.; Liao, K.; Du, H.; Xu, Y.; Song, H.; Li, X.; Xiong, L. A stress-responsive NAC transcription factor SNAC3 confers heat and drought tolerance through modulation of reactive oxygen species in rice. J. Exp. Bot. 2015, 66, 6803–6817. [Google Scholar] [CrossRef]
  15. Jeong, J.S.; Kim, Y.S.; Redillas, M.C.F.R.; Jang, G.; Jung, H.; Bang, S.W.; Choi, Y.D.; Ha, S.-H.; Reuzeau, C.; Kim, J.K. OsNAC5 overexpression enlarges root diameter in rice plants leading to enhanced drought tolerance and increased grain yield in the field. Plant Biotechnol. J. 2013, 11, 101–114. [Google Scholar] [CrossRef]
  16. Lee, D.K.; Chung, P.J.; Jeong, J.S.; Jang, G.; Bang, S.W.; Jung, H.; Kim, Y.S.; Ha, S.H.; Choi, Y.D.; Kim, J.K. The rice OsNAC6 transcription factor orchestrates multiple molecular mechanisms involving root structural adaptions and nicotianamine biosynthesis for drought tolerance. Plant Biotechnol. J. 2017, 15, 754–764. [Google Scholar] [CrossRef]
  17. Jeong, J.S.; Kim, Y.S.; Baek, K.H.; Jung, H.; Ha, S.H.; Do Choi, Y.; Kim, M.; Reuzeau, C.; Kim, J.K. Root-specific expression of OsNAC10 improves drought tolerance and grain yield in rice under field drought conditions. Plant Physiol. 2010, 153, 185–197. [Google Scholar] [CrossRef]
  18. Liu, Q.; Yan, S.; Huang, W.; Yang, J.; Dong, J.; Zhang, S.; Zhao, J.; Yang, T.; Mao, X.; Zhu, X.; et al. NAC transcription factor ONAC066 positively regulates disease resistance by suppressing the ABA signaling pathway in rice. Plant Mol. Biol. 2018, 98, 289–302. [Google Scholar] [CrossRef]
  19. Yuan, X.; Wang, H.; Cai, J.; Bi, Y.; Li, D.; Song, F. Rice NAC transcription factor ONAC066 functions as a positive regulator of drought and oxidative stress response. BMC Plant Biol. 2019, 19, 278. [Google Scholar] [CrossRef]
  20. Mao, C.; Lu, S.; Lv, B.; Zhang, B.; Shen, J.; He, J.; Luo, L.; Xi, D.; Chen, X.; Ming, F. A Rice NAC Transcription Factor Promotes Leaf Senescence via ABA Biosynthesis. Plant Physiol. 2017, 174, 1747–1763. [Google Scholar] [CrossRef]
  21. Yu, X.; Peng, H.; Liu, Y.; Zhang, Y.; Shu, Y.; Chen, Q.; Shi, S.; Ma, L.; Ma, H.; Zhang, H. CarNAC2, a novel NAC transcription factor in chickpea (Cicer arietinum L.), is associated with drought-response and various developmental processes in transgenic arabidopsis. J. Plant Biol. 2014, 57, 55–66. [Google Scholar] [CrossRef]
  22. Lu, M.; Zhang, D.-F.; Shi, Y.-S.; Song, Y.-C.; Wang, T.-Y.; Li, Y. Expression of SbSNAC1, a NAC transcription factor from sorghum, confers drought tolerance to transgenic Arabidopsis. Plant Cell Tissue Organ Cult. PCTOC 2013, 115, 443–455. [Google Scholar] [CrossRef]
  23. Huang, Q.; Wang, Y.; Li, B.; Chang, J.; Chen, M.; Li, K.; Yang, G.; He, G. TaNAC29, a NAC transcription factor from wheat, enhances salt and drought tolerance in transgenic Arabidopsis. BMC Plant Biol. 2015, 15, 268. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, Z.; Gongbuzhaxi; Wang, C.; Xue, F.; Zhang, H.; Ji, W. Wheat NAC transcription factor TaNAC29 is involved in response to salt stress. Plant Physiol. Biochem. 2015, 96, 356–363. [Google Scholar] [CrossRef]
  25. He, X.; Qu, B.; Li, W.; Zhao, X.; Teng, W.; Ma, W.; Ren, Y.; Li, B.; Li, Z.; Tong, Y. The Nitrate-Inducible NAC Transcription Factor TaNAC2-5A Controls Nitrate Response and Increases Wheat Yield. Plant Physiol. 2015, 169, 1991–2005. [Google Scholar] [CrossRef] [PubMed]
  26. Ma, X.; Zhang, Y.; Tureckova, V.; Xue, G.P.; Fernie, A.R.; Mueller-Roeber, B.; Balazadeh, S. The NAC Transcription Factor SlNAP2 Regulates Leaf Senescence and Fruit Yield in Tomato. Plant Physiol. 2018, 177, 1286–1302. [Google Scholar] [CrossRef] [PubMed]
  27. Thirumalaikumar, V.P.; Devkar, V.; Mehterov, N.; Ali, S.; Ozgur, R.; Turkan, I.; Mueller-Roeber, B.; Balazadeh, S. NAC transcription factor JUNGBRUNNEN1 enhances drought tolerance in tomato. Plant Biotechnol. J. 2018, 16, 354–366. [Google Scholar] [CrossRef]
  28. Voitsik, A.M.; Muench, S.; Deising, H.B.; Voll, L.M. Two recently duplicated maize NAC transcription factor paralogs are induced in response to Colletotrichum graminicola infection. BMC Plant Biol. 2013, 13, 85. [Google Scholar] [CrossRef]
  29. Lu, M.; Ying, S.; Zhang, D.-F.; Shi, Y.-S.; Song, Y.-C.; Wang, T.-Y.; Li, Y. A maize stress-responsive NAC transcription factor, ZmSNAC1, confers enhanced tolerance to dehydration in transgenic Arabidopsis. Plant Cell Rep. 2012, 31, 1701–1711. [Google Scholar] [CrossRef]
  30. Liu, W.; Zhao, B.G.; Chao, Q.; Wang, B.; Zhang, Q.; Zhang, C.; Li, S.; Jin, F.; Yang, D.; Li, X. Function analysis of ZmNAC33, a positive regulator in drought stress response in Arabidopsis. Plant Physiol. Biochem. 2019, 145, 174–183. [Google Scholar] [CrossRef]
  31. Mao, H.; Yu, L.; Han, R.; Li, Z.; Liu, H. ZmNAC55, a maize stress-responsive NAC transcription factor, confers drought resistance in transgenic Arabidopsis. Plant Physiol. Biochem. 2016, 105, 55–66. [Google Scholar] [CrossRef] [PubMed]
  32. Mao, H.D.; Wang, H.W.; Liu, S.X.; Li, Z.; Yang, X.H.; Yan, J.B.; Li, J.S.; Tran, L.-S.P.; Qin, F. A transposable element in a NAC gene is associated with drought tolerance in maize seedlings. Nat. Commun. 2015, 6, 8326. [Google Scholar] [CrossRef] [PubMed]
  33. Peng, X.; Wang, Q.; Wang, Y.; Cheng, B.; Zhao, Y.; Zhu, S. A maize NAC transcription factor, ZmNAC34, negatively regulates starch synthesis in rice. Plant Cell Rep. 2019, 38, 1473–1484. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, J.; Chen, J.; Yi, Q.; Hu, Y.; Liu, H.; Liu, Y.; Huang, Y. Novel role of ZmaNAC36 in co-expression of starch synthetic genes in maize endosperm. Plant Mol. Biol. 2014, 84, 359–369. [Google Scholar] [CrossRef] [PubMed]
  35. Zhu, J.K. Abiotic Stress Signaling and Responses in Plants. Cell 2016, 167, 313–324. [Google Scholar] [CrossRef]
  36. Li, C.; Jia, Y.; Zhou, R.; Liu, L.; Cao, M.; Zhou, Y.; Wang, Z.; Di, H. GWAS and RNA-seq analysis uncover candidate genes associated with alkaline stress tolerance in maize (Zea mays L.) seedlings. Front. Plant Sci. 2022, 13, 963874. [Google Scholar] [CrossRef]
  37. Daszkowska-Golec, A.; Wojnar, W.; Rosikiewicz, M.; Szarejko, I.; Maluszynski, M.; Szweykowska-Kulinska, Z.; Jarmolowski, A. Arabidopsis suppressor mutant of abh1 shows a new face of the already known players: ABH1 (CBP80) and ABI4—In response to ABA and abiotic stresses during seed germination. Plant Mol. Biol. 2013, 81, 189–209. [Google Scholar] [CrossRef]
  38. Reyes, J.L.; Chua, N.H. ABA induction of miR159 controls transcript levels of two MYB factors during Arabidopsis seed germination. Plant J. 2007, 49, 592–606. [Google Scholar] [CrossRef]
  39. Kim, S.; Yang, J.Y.; Xu, J.; Jang, I.C.; Prigge, M.J.; Chua, N.H. Two cap-binding proteins CBP20 and CBP80 are involved in processing primary MicroRNAs. Plant Cell Physiol. 2008, 49, 1634–1644. [Google Scholar] [CrossRef]
  40. Restovic, F.; Espinoza-Corral, R.; Gomez, I.; Vicente-Carbajosa, J.; Jordana, X. An active Mitochondrial Complex II Present in Mature Seeds Contains an Embryo-Specific Iron-Sulfur Subunit Regulated by ABA and bZIP53 and Is Involved in Germination and Seedling Establishment. Front. Plant Sci. 2017, 8, 277. [Google Scholar] [CrossRef]
  41. Hartmann, L.; Pedrotti, L.; Weiste, C.; Fekete, A.; Schierstaedt, J.; Gottler, J.; Kempa, S.; Krischke, M.; Dietrich, K.; Mueller, M.J.; et al. Crosstalk between Two bZIP Signaling Pathways Orchestrates Salt-Induced Metabolic Reprogramming in Arabidopsis Roots. Plant Cell 2015, 27, 2244–2260. [Google Scholar] [CrossRef] [PubMed]
  42. van Zelm, E.; Zhang, Y.; Testerink, C. Salt Tolerance Mechanisms of Plants. Annu. Rev. Plant Biol. 2020, 71, 403–433. [Google Scholar] [CrossRef] [PubMed]
  43. Zhao, K.F.; Song, J.; Fan, H.; Zhou, S.; Zhao, M. Growth response to ionic and osmotic stress of NaCl in salt-tolerant and salt-sensitive maize. J. Integr. Plant Biol. 2010, 52, 468–475. [Google Scholar] [CrossRef] [PubMed]
  44. Latha, R.; Rubia, L.; Bennett, J.; Swaminathan, M.S. Allele mining for stress tolerance genes in Oryza species and related germplasm. Mol. Biotechnol. 2004, 27, 101–108. [Google Scholar] [CrossRef]
  45. Li, S.; Tian, Y.; Wu, K.; Ye, Y.; Yu, J.; Zhang, J.; Liu, Q.; Hu, M.; Li, H.; Tong, Y.; et al. Modulating plant growth-metabolism coordination for sustainable agriculture. Nature 2018, 560, 595–600. [Google Scholar] [CrossRef]
  46. Zhang, X.; Long, Y.; Huang, J.; Xia, J. OsNAC45 is Involved in ABA Response and Salt Tolerance in Rice. Rice N. Y. 2020, 13, 79. [Google Scholar] [CrossRef]
  47. Jin, C.; Li, K.Q.; Xu, X.Y.; Zhang, H.P.; Chen, H.X.; Chen, Y.H.; Hao, J.; Wang, Y.; Huang, X.S.; Zhang, S.L. A Novel NAC Transcription Factor, PbeNAC1, of Pyrus betulifolia Confers Cold and Drought Tolerance via Interacting with PbeDREBs and Activating the Expression of Stress-Responsive Genes. Front. Plant Sci. 2017, 8, 1049. [Google Scholar] [CrossRef]
  48. Yu, T.; Liu, Y.; Fu, J.; Ma, J.; Fang, Z.; Chen, J.; Zheng, L.; Lu, Z.; Zhou, Y.; Chen, M.; et al. The NF-Y-PYR module integrates the abscisic acid signal pathway to regulate plant stress tolerance. Plant Biotechnol. J. 2021, 19, 2589–2605. [Google Scholar] [CrossRef]
  49. Li, H.; Guan, H.; Zhuo, Q.; Wang, Z.; Li, S.; Si, J.; Zhang, B.; Feng, B.; Kong, L.; Wang, F.; et al. Genome-wide characterization of the abscisic acid-, stress- and ripening-induced (ASR) gene family in wheat (Triticum aestivum. L.). Biol. Res. 2020, 53, 23. [Google Scholar] [CrossRef]
  50. Blair, M.; Cortés, A.; This, D. Identification of an ERECTA gene and its drought adaptation associations with wild and cultivated common bean. Plant Sci. 2016, 242, 250–259. [Google Scholar] [CrossRef]
  51. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [PubMed]
  52. Arnon, D.I. Copper Enzymes in Isolated Chloroplasts. Polyphenoloxidase in Beta Vulgaris. Plant Physiol. 1949, 24, 1–15. [Google Scholar] [PubMed]
  53. Bates, L.S.; Waldren, R.P.; Teare, I.D. Rapid determination of free proline for water-stress studies. Plant Soil 1973, 39, 205–207. [Google Scholar] [CrossRef]

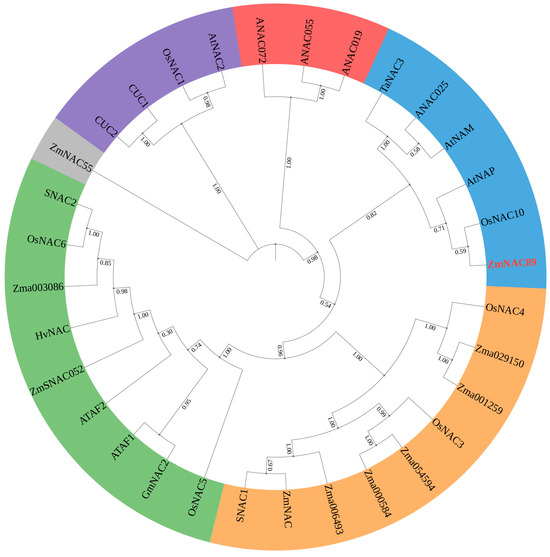

Figure 1. Phylogenetic tree analysis of the ZmNAC89 protein. The phylogenetic tree was constructed using MEGA (X) software based on 31 orthologs of ZmNAC89 in different species. The numbers on the tree nodes represent bootstraps from 1000 replicates.
Figure 1. Phylogenetic tree analysis of the ZmNAC89 protein. The phylogenetic tree was constructed using MEGA (X) software based on 31 orthologs of ZmNAC89 in different species. The numbers on the tree nodes represent bootstraps from 1000 replicates.
Ijms 24 15099 g001
Figure 2. Transactivation activity analysis of ZmNAC89 in yeast.
Figure 2. Transactivation activity analysis of ZmNAC89 in yeast.
Ijms 24 15099 g002
Figure 3. Subcellular localization of ZmNAC89-GFP protein in Arabidopsis protoplasts. Bars = 10 μm.
Figure 3. Subcellular localization of ZmNAC89-GFP protein in Arabidopsis protoplasts. Bars = 10 μm.
Ijms 24 15099 g003

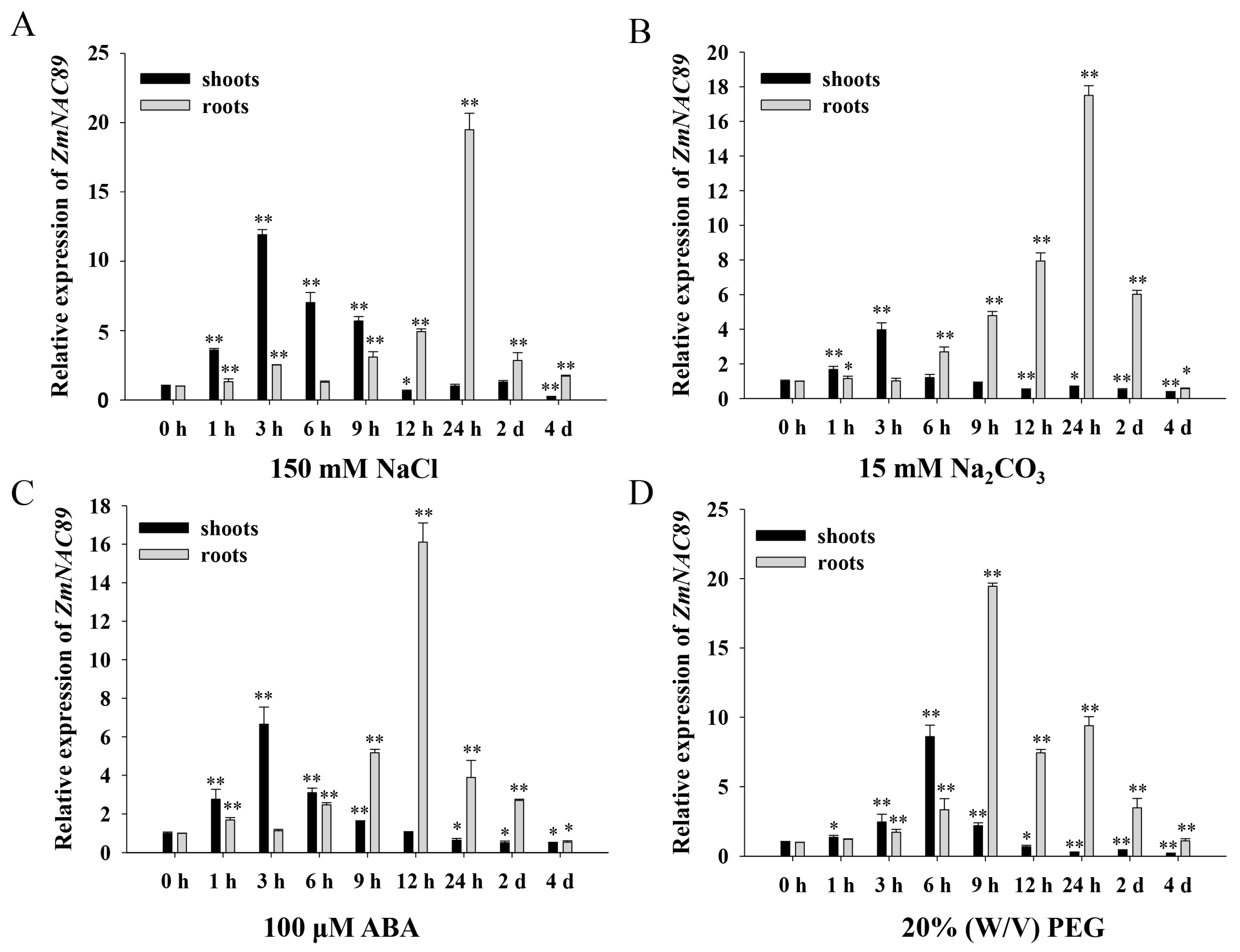

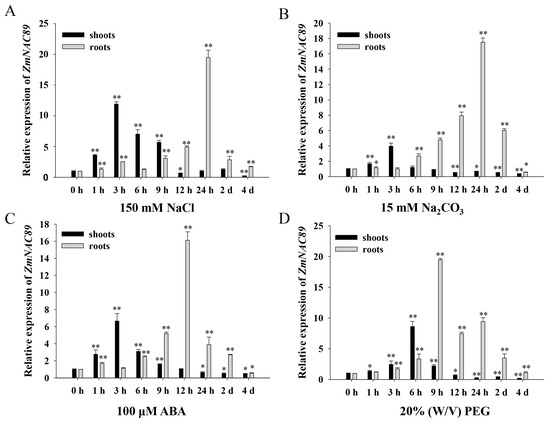

Figure 4. The relative expression of ZmNAC89 at various time points under different stresses: NaCl stress (A), Na2CO3 stress (B), ABA stress (C) and PEG stress (D). Actin was used as a quantitative control. Bars indicate the standard error of the mean. * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Figure 4. The relative expression of ZmNAC89 at various time points under different stresses: NaCl stress (A), Na2CO3 stress (B), ABA stress (C) and PEG stress (D). Actin was used as a quantitative control. Bars indicate the standard error of the mean. * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Ijms 24 15099 g004

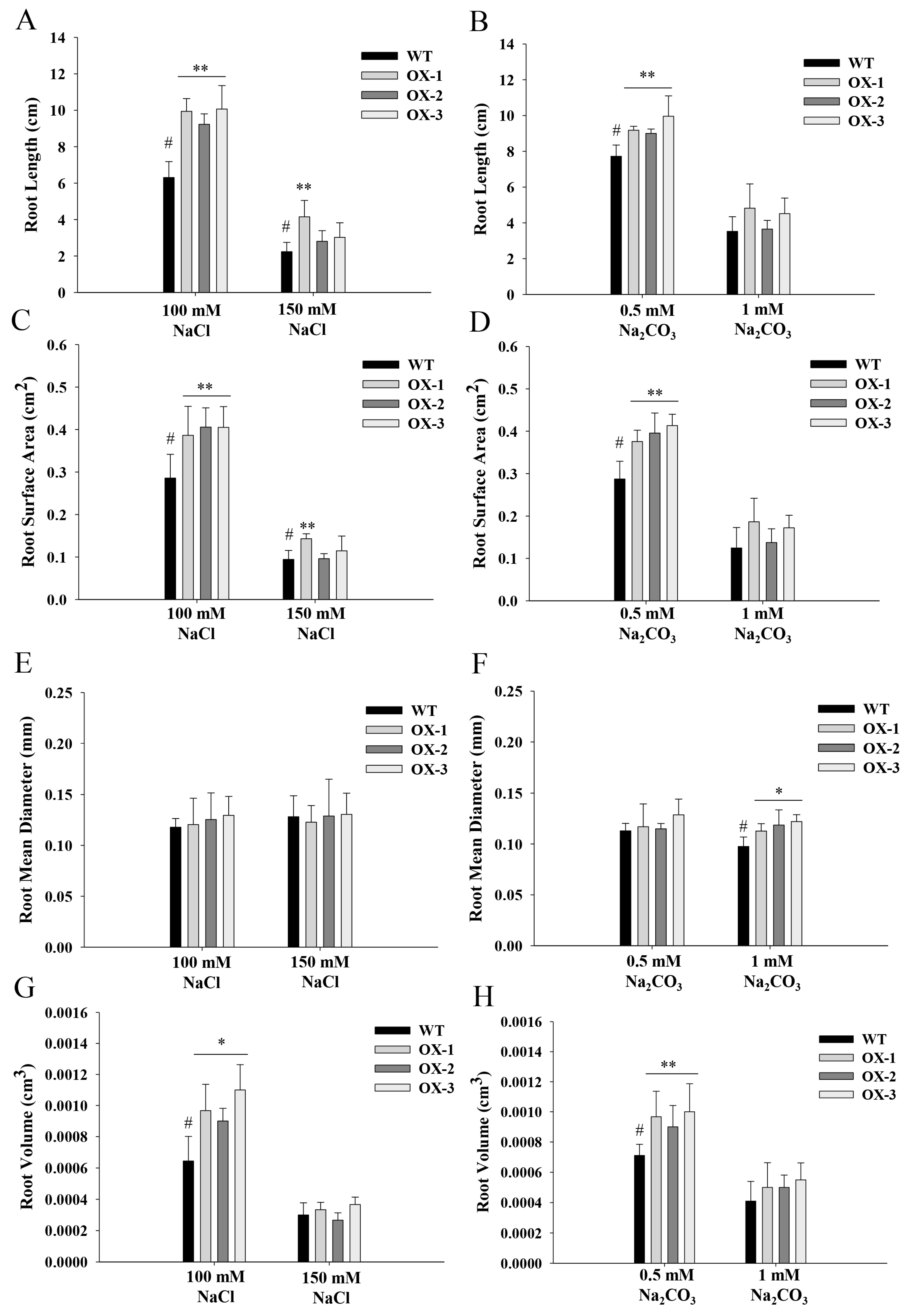

Figure 5. Overexpression of the ZmNAC89 gene increased the resistance of Arabidopsis. (A,B) Root length of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: cm). (C,D) Root surface area of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: cm2). (E,F) Root mean diameter of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: mm). (G,H) Root volume of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: cm3). Bars indicate standard error of the mean. # is the comparison group of significance. * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Figure 5. Overexpression of the ZmNAC89 gene increased the resistance of Arabidopsis. (A,B) Root length of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: cm). (C,D) Root surface area of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: cm2). (E,F) Root mean diameter of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: mm). (G,H) Root volume of transgenic line with the ZmNAC89 gene under two different stress treatments (unit: cm3). Bars indicate standard error of the mean. # is the comparison group of significance. * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Ijms 24 15099 g005
Figure 6. Phenotypic identification of Arabidopsis transgenic ZmNAC89 lines (OX-3). (A) Comparison diagram of germination stage, with receptor control on the left and transgenic strain on the right. (B) Comparison diagram of maturity; the left side is the receptor control, and the right side is the transgenic line. (C) Comparison diagram of stress treatment (300 mM NaCl and 60 mM NaHCO3); the left side is the receptor control, and the right side is the transgenic line.
Figure 6. Phenotypic identification of Arabidopsis transgenic ZmNAC89 lines (OX-3). (A) Comparison diagram of germination stage, with receptor control on the left and transgenic strain on the right. (B) Comparison diagram of maturity; the left side is the receptor control, and the right side is the transgenic line. (C) Comparison diagram of stress treatment (300 mM NaCl and 60 mM NaHCO3); the left side is the receptor control, and the right side is the transgenic line.
Ijms 24 15099 g006

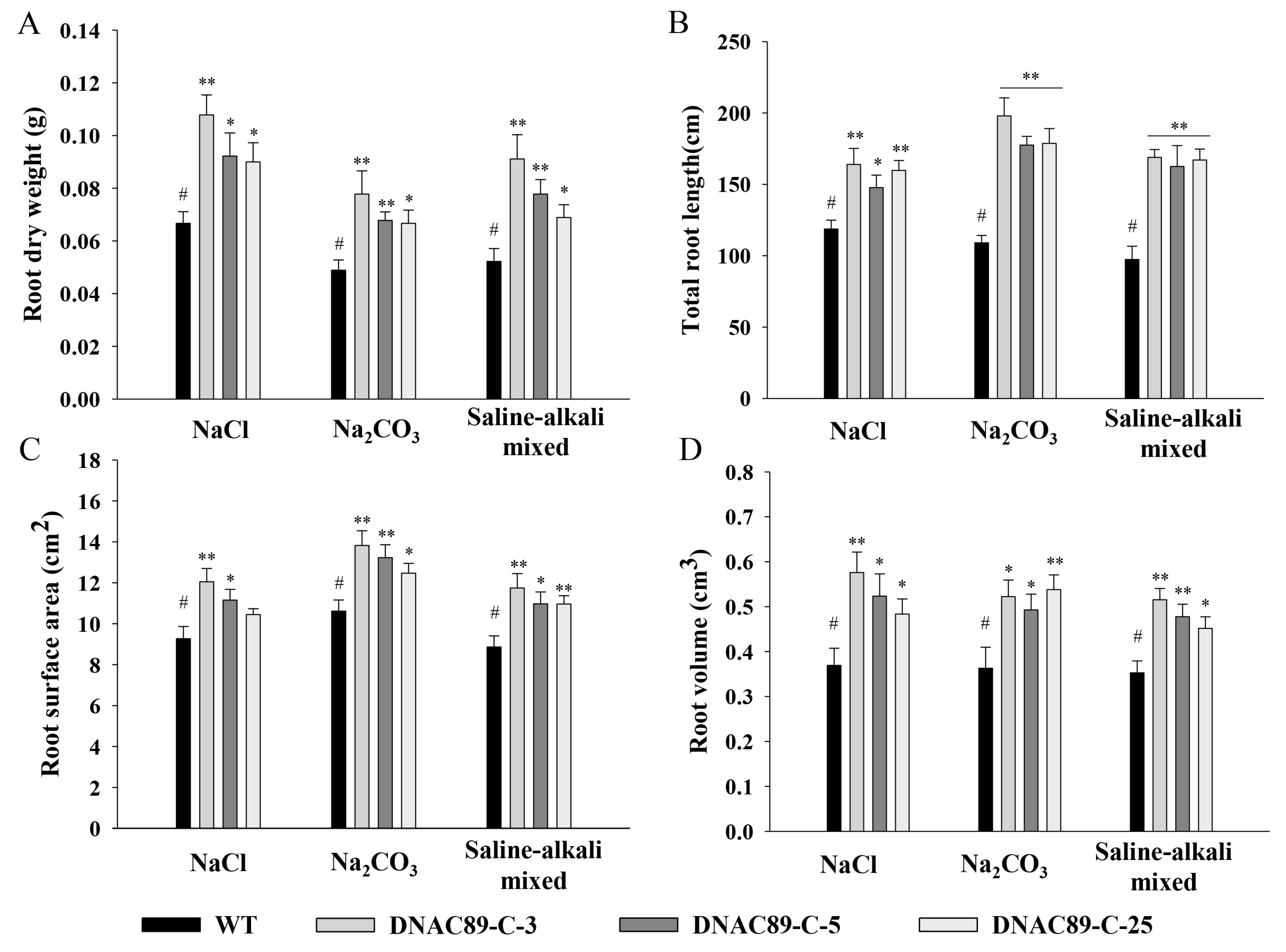

Figure 7. Overexpression of the ZmNAC89 gene increased the resistance of maize. The T2-generation transgenic seeds and non-transgenic seeds were soaked for 6 h in 160 mmol/L NaCl solution, 25 mmol/L Na2CO3 solution and a saline–alkali mixed solution with Na+ concentration of 100 mmol/L combining NaCl, Na2SO4, NaHCO3 and Na2CO3 at a ratio of 1:9:9:1, and then germinated on filter paper in a culture dish. (A) Root dry weight of transgenic line with ZmNAC89 gene under three different stress treatments (unit: g). (B) Total root length of transgenic line with ZmNAC89 gene under three different stress treatments (unit: cm). (C) Root surface area of transgenic line with ZmNAC89 gene under three different stress treatments (unit: cm2). (D) Root volume of transgenic line with ZmNAC89 gene under three different stress treatments (unit: cm3). Bars indicate standard error of the mean. # is the comparison group of significance. * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Figure 7. Overexpression of the ZmNAC89 gene increased the resistance of maize. The T2-generation transgenic seeds and non-transgenic seeds were soaked for 6 h in 160 mmol/L NaCl solution, 25 mmol/L Na2CO3 solution and a saline–alkali mixed solution with Na+ concentration of 100 mmol/L combining NaCl, Na2SO4, NaHCO3 and Na2CO3 at a ratio of 1:9:9:1, and then germinated on filter paper in a culture dish. (A) Root dry weight of transgenic line with ZmNAC89 gene under three different stress treatments (unit: g). (B) Total root length of transgenic line with ZmNAC89 gene under three different stress treatments (unit: cm). (C) Root surface area of transgenic line with ZmNAC89 gene under three different stress treatments (unit: cm2). (D) Root volume of transgenic line with ZmNAC89 gene under three different stress treatments (unit: cm3). Bars indicate standard error of the mean. # is the comparison group of significance. * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Ijms 24 15099 g007

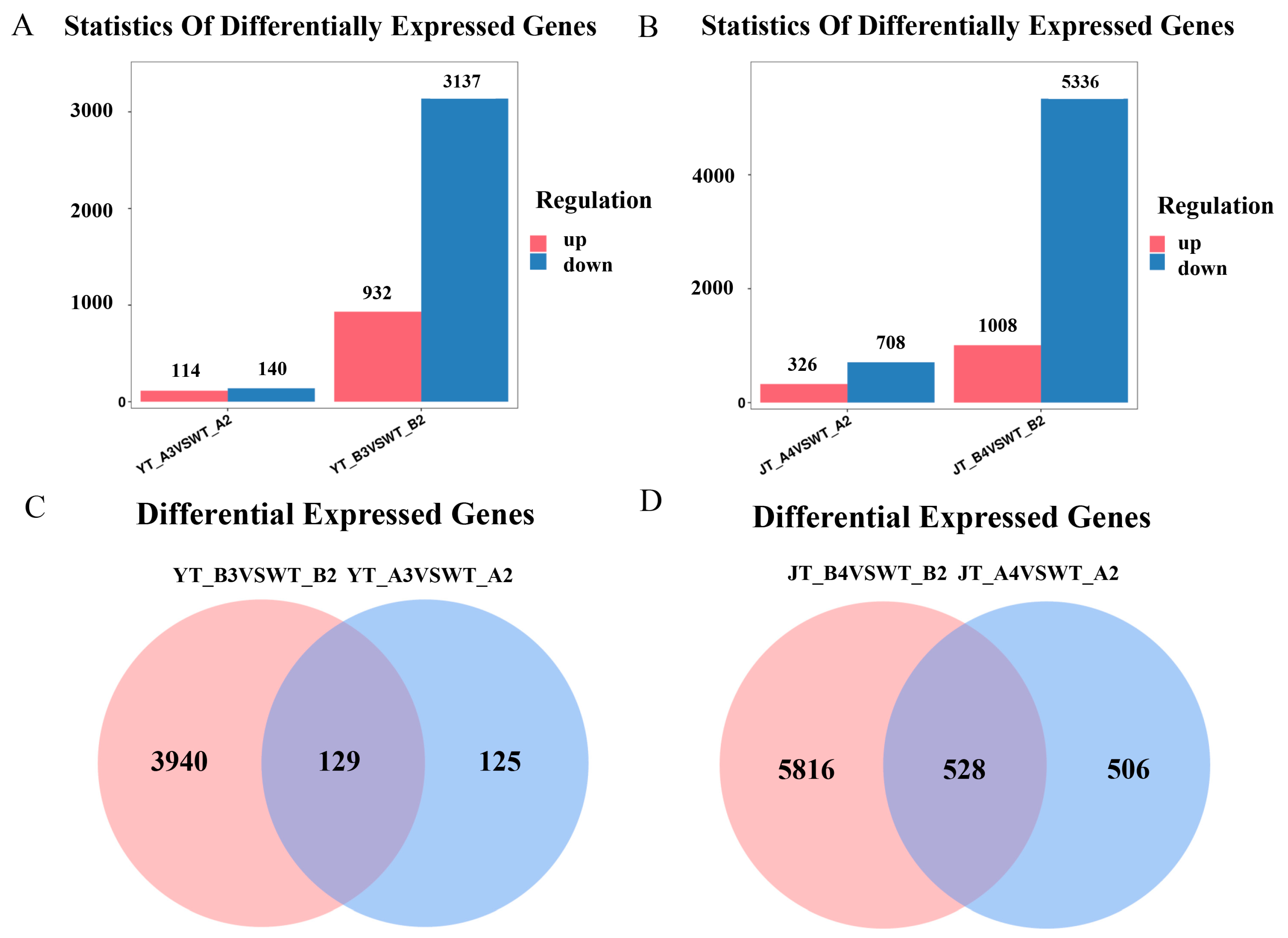

Figure 8. Transcriptomics data analysis of the transgenic ZmNAC89 maize lines and WT under NaCl and Na2CO3 conditions. (A) Under NaCl conditions, the bar chart of differentially expressed genes in the receptor control comparison group (left) and the bar chart of differentially expressed genes in the transgenic comparison group (right). (B) Under Na2CO3 conditions, the bar chart of differentially expressed genes in the receptor control comparison group (left) and the bar chart of differentially expressed genes in the transgenic comparison group (right). (C) Venn diagram of differentially expressed genes in the transgenic comparison group and the recipient control comparison group under NaCl condition, with the middle overlap being the common genes in the two comparison groups (D) Venn diagram of differentially expressed genes in the transgenic comparison group and the recipient control comparison group under Na2CO3 condition, with the middle overlap being the common genes in the two comparison groups. edgeR software (3.42.4) was used to analyze the DEGs (|log2foldchange| ≥ 1, p < 0.05).
Figure 8. Transcriptomics data analysis of the transgenic ZmNAC89 maize lines and WT under NaCl and Na2CO3 conditions. (A) Under NaCl conditions, the bar chart of differentially expressed genes in the receptor control comparison group (left) and the bar chart of differentially expressed genes in the transgenic comparison group (right). (B) Under Na2CO3 conditions, the bar chart of differentially expressed genes in the receptor control comparison group (left) and the bar chart of differentially expressed genes in the transgenic comparison group (right). (C) Venn diagram of differentially expressed genes in the transgenic comparison group and the recipient control comparison group under NaCl condition, with the middle overlap being the common genes in the two comparison groups (D) Venn diagram of differentially expressed genes in the transgenic comparison group and the recipient control comparison group under Na2CO3 condition, with the middle overlap being the common genes in the two comparison groups. edgeR software (3.42.4) was used to analyze the DEGs (|log2foldchange| ≥ 1, p < 0.05).
Ijms 24 15099 g008
Figure 9. The relative expression of Zm00001d014364 and Zm00001d044546 in leaves and roots of transgenic lines under stress treatment at different times. (A): Relative expression of Zm00001d014364 in different parts treated with 150 mM NaCl. (B): Relative expression of Zm00001d014364 in different parts treated with 15 mM Na2CO3. (C): Relative expression of Zm00001d044546 in different parts treated with 150 mM NaCl. (D): Relative expression of Zm00001d044546 in different parts treated with 15 mM Na2CO3. Actin was used as a quantitative control. Bars indicate the standard error of the mean. ** indicates significance at p < 0.01.
Figure 9. The relative expression of Zm00001d014364 and Zm00001d044546 in leaves and roots of transgenic lines under stress treatment at different times. (A): Relative expression of Zm00001d014364 in different parts treated with 150 mM NaCl. (B): Relative expression of Zm00001d014364 in different parts treated with 15 mM Na2CO3. (C): Relative expression of Zm00001d044546 in different parts treated with 150 mM NaCl. (D): Relative expression of Zm00001d044546 in different parts treated with 15 mM Na2CO3. Actin was used as a quantitative control. Bars indicate the standard error of the mean. ** indicates significance at p < 0.01.
Ijms 24 15099 g009
Figure 10. Diversity of nucleotides in the ZmNAC89 gene coding region.
Figure 10. Diversity of nucleotides in the ZmNAC89 gene coding region.
Ijms 24 15099 g010
Table 1. Determination of physiological parameters of T2 transgenic lines with ZmNAC89 gene under 300 mM NaCl stress.
Table 1. Determination of physiological parameters of T2 transgenic lines with ZmNAC89 gene under 300 mM NaCl stress.
LineRelative Conductivity (%)Chlorophyll (mg·g−1)Proline (μg·g−1)
WT22.52 ± 2.117.45 ± 0.5914.29 ± 0.21
OX-115.87 ± 3.07 **10.18 ± 0.41 **20.28 ± 0.35
OX-215.82 ± 1.52 **10.44 ± 0.45 *23.85 ± 1.91 *
OX-313.78 ± 2.56 **11.08 ± 0.43 **29.09 ± 0.69 **
OX-414.99 ± 1.48 **11.46 ± 0.65 **28.22 ± 0.71 **
OX-520.04 ± 1.66 *10.87 ± 0.50 **23.13 ± 1.32 *
OX-617.31 ± 0.41 **10.63 ± 0.45 **21.39 ± 0.45
Values are mean ± SE (n = 3); * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Table 2. Determination of physiological parameters of T2 transgenic lines with ZmNAC89 gene under 60 mM NaHCO3 stress.
Table 2. Determination of physiological parameters of T2 transgenic lines with ZmNAC89 gene under 60 mM NaHCO3 stress.
LineRelative Conductivity (%)Chlorophyll (mg·g−1)Proline (μg·g−1)
WT35.05 ± 0.075.48 ± 0.1410.93 ± 0.91
OX-120.70 ± 1.41 **7.75 ± 0.23 **18.18 ± 0.35 *
OX-219.14 ± 1.45 **8.54 ± 0.95 **21.69 ± 1.25 **
OX-318.74 ± 2.30 **9.12 ± 0.75 **24.96 ± 0.31 **
OX-418.80 ± 0.44 **9.30 ± 0.22 **24.55 ± 0.34 **
OX-526.50 ± 2.34 **7.95 ± 0.26 **20.65 ± 0.59 **
OX-621.31 ± 3.08 **7.72 ± 0.36 *18.13 ± 0.22 *
Values are mean ± SE (n = 3); * and ** indicate significance at p < 0.05 and p < 0.01, respectively.
Table 3. Analysis of nucleotide diversity.
Table 3. Analysis of nucleotide diversity.
Material
Category
Number of Materials
and Tolerance
Nucleotide
Diversity (pi)
Haplotype
Diversity (HD)
Tajima’s DFu and Li’s D *Fu and Li’s F *
Na2CO351 medium-resistance materials0.002910.846−1.10181−1.83401−1.87261
33 high-resistance materials0.002050.753−0.06472−0.76798−0.64457
23 resistant materials0.002860.819−0.52477−1.02437−1.01949
17 sensitive materials0.001270.742−0.53609−0.7063−0.75738
16 highly sensitive materials0.002660.842−0.15008−0.5959−0.54408
NaCl45 resistant materials0.00240.7980.011160.516530.41226
30 sensitive materials0.002160.828−1.03859−2.03901−2.02296
27 highly sensitive materials0.003070.82−0.82036−0.32925−0.56118
20 medium-resistance materials0.002450.818−0.38437−1.50627−1.36738
18 high-resistance materials0.002220.846−0.67509−0.64189−0.75081
* indicate significance at p < 0.05 respectively.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hu, Y.; Li, C.; Zhou, R.; Song, Y.; Lv, Z.; Wang, Q.; Dong, X.; Liu, S.; Feng, C.; Zhou, Y.; et al. The Transcription Factor ZmNAC89 Gene Is Involved in Salt Tolerance in Maize (Zea mays L.). Int. J. Mol. Sci. 2023, 24, 15099. https://doi.org/10.3390/ijms242015099

AMA Style

Hu Y, Li C, Zhou R, Song Y, Lv Z, Wang Q, Dong X, Liu S, Feng C, Zhou Y, et al. The Transcription Factor ZmNAC89 Gene Is Involved in Salt Tolerance in Maize (Zea mays L.). International Journal of Molecular Sciences. 2023; 24(20):15099. https://doi.org/10.3390/ijms242015099

Chicago/Turabian Style

Hu, Yingying, Chunxiang Li, Runyu Zhou, Yongfeng Song, Zhichao Lv, Qi Wang, Xiaojie Dong, Shan Liu, Chenchen Feng, Yu Zhou, and et al. 2023. "The Transcription Factor ZmNAC89 Gene Is Involved in Salt Tolerance in Maize (Zea mays L.)" International Journal of Molecular Sciences 24, no. 20: 15099. https://doi.org/10.3390/ijms242015099

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
