Plasma-Activated Media Produced by a Microwave-Excited Atmospheric Pressure Plasma Jet Is Effective against Cisplatin-Resistant Human Bladder Cancer Cells In Vitro

by
Ara Jo
1,†,
Hea-Min Joh
2,
Jin-Hee Bae
2,‡,
Sun-Ja Kim
2,
Jin-Woong Chung
1,* and
Tae-Hun Chung
2,*
1
Department of Biological Sciences, Dong-A University, Busan 49315, Republic of Korea
2
Department of Physics, Dong-A University, Busan 49315, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
Current address: Department of Pathology, School of Medicine, Duke University, Durham, NC 27710, USA.
‡
Current address: Department of Nuclear and Quantum Engineering, Korea Advanced Institute of Science and Technology, Daejeon 34141, Republic of Korea.
Int. J. Mol. Sci. 2024, 25(2), 1249; https://doi.org/10.3390/ijms25021249
Submission received: 16 December 2023 / Revised: 9 January 2024 / Accepted: 17 January 2024 / Published: 19 January 2024
(This article belongs to the Special Issue Plasma Bioscience and Medicine Molecular Research 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
Media exposed to atmospheric pressure plasma (APP) produce reactive oxygen and nitrogen species (RONS), with hydrogen peroxide (H2O2), nitrite (NO2−), and nitrate (NO3−) being among the most detected species due to their relatively long lifetime. In this study, a standardized microwave-excited (ME) APP jet (APPJ) source was employed to produce gaseous RONS to treat liquid samples. The source was a commercially available plasma jet, which generated argon plasma utilizing a coaxial transmission line resonator at the operating frequency of 2.45 GHz. An ultraviolet-visible spectrophotometer was used to measure the concentrations of H2O2 and NO3− in plasma-activated media (PAM). Three different types of media (deionized water, Hank’s balanced salt solution, and cell culture solution Dulbecco’s modified eagles medium [DMEM]) were utilized as liquid samples. Among these media, the plasma-treated DMEM was observed to have the highest levels of H2O2 and NO3−. Subsequently, the feasibility of using argon ME-APPJ-activated DMEM (PAM) as an adjuvant to enhance the therapeutic effects of cisplatin on human bladder cancer cells (T-24) was investigated. Various cancer cell lines, including T-24 cells, treated with PAM were observed in vitro for changes in cell viability using the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) assay. A viability reduction was detected in the various cancer cells after incubation in PAM. Furthermore, the study’s results revealed that PAM was effective against cisplatin-resistant T-24 cells in vitro. In addition, a possible connection between HER expression and cell viability was sketched.

1. Introduction

Cold atmospheric plasma (CAP) has drawn considerable attention because it contains different reactive and charged species, ultraviolet (UV) light, and electric fields, which can influence biological functions when directly applied to tissue or cells. Consequently, the application of CAP has rapidly expanded to biology, medicine, and agriculture [1,2,3]. Apart from the possibility of directly treating cells or tissues, significant efforts have also been undertaken to utilize the therapeutic capacity of plasma-activated media (PAM) [4,5,6,7,8,9], which can be produced by the CAP treatment of an aqueous solution (e.g., water, phosphate-buffered saline, and other culture media). It is commonly believed that the biochemical activity of PAM is derived from the synergistic effects of highly reactive species, particularly reactive oxygen and nitrogen species (RONS) [9,10]. Recently, CAP and PAM have emerged as novel technologies for cancer therapy.
Different CAP sources have been employed to activate various types of liquids. While CAPs generated by low-frequency driven atmospheric pressure plasma jets (APPJs) or dielectric barrier discharges have been utilized extensively for biomedical applications, microwave-excited (ME) APPJs (ME-APPJs) have several advantages over low-frequency driven plasmas. Microwave-excited plasma differs significantly from the plasmas driven by low- or radio-frequency voltages and has several interesting properties. For example, the electron density is higher in ME compared with radio-frequency or direct current-driven plasmas. Several types of high-density radical species are generated under high electron density circumstances; therefore, the reactivity of ME plasma is expected to be very high [11,12,13].
When operated with ambient air, CAP contains high amounts of RONS, such as ozone (O3), nitrogen dioxide (NO2) and superoxide (O2−), hydroxyl (OH), and nitric oxide (NO) radicals. Gaseous RONS produced by CAP can trigger the production of RONS in the CAP-treated liquids. Treatment of liquids with CAP results in activation and non-equilibrium dissociation of water molecules (H2O), forming short-lived species, such as hydrogen atoms and OH and NO radicals. Chemical reactions between these species form stable species, such as hydrogen peroxide (H2O2), nitrite (NO2−), and nitrate (NO3−). In the case of indirect PAM treatment, the primary effects are associated with long-lived RONS [9]. The RONS and some of their reaction products exhibit strongly oxidative properties and trigger signaling pathways in living cells [10,13]. Numerous studies have shown that PAM produced by non-equilibrium APPJs is effective against cancer cells in vitro and in vivo [8,9,14,15,16,17,18,19].
Plasma laboratories worldwide use different types of plasma devices, including self-constructed, as they are inexpensive and simple to make. Still, the main drawback of using these homemade devices is that comparison of the results obtained under precisely the same conditions is challenging; this has hampered research efforts and impeded insights into the basic understanding of atmospheric pressure plasmas (APPs) and their interaction with biological tissues and cells, slowing their scaling and preventing official approval for medical applications. To solve this problem, a commercially available jet (MiniJet PM-10.R, Heuermann HF-Technik GmbH, Aachen, Germany) with a microwave signal of about 2.45 GHz was employed in this study; this allowed reproducible experiments helping to standardize the CAP/PAM procedure for cancer therapy.
In previous research, we have explored the feasibility of ME-APPJ as an anti-cancer agent. The PAM was produced using a tuned ME-APPJ and was demonstrated to have a significant cytotoxic effect on A549 cells but little effect on normal cell viability [16]. We observed that A549 cell death was mainly via apoptosis due to a higher level of intracellular ROS and was accompanied by cell cycle arrest, ferroptosis, and caspase-3/7 activation [16,17]. In particular, Jo et al. [17] demonstrated that PAM inhibited tumor growth in a xenograft model with increased lipid peroxidation and decreased ferroptosis suppressor gene expression. However, the cytotoxicity of PAM still needs to be verified for various other cancer cell lines. Furthermore, jet plasma should be characterized to explain the correlation between the plasma properties and RONS generation in the plasma-treated liquid.
During the past decade, possible methods to increase the anti-cancer effect of CAP/PAM in combination with chemotherapy have been explored. Some studies have confirmed added value when combining direct plasma treatment with chemotherapeutic methods [5,20,21,22,23]. For example, Pefani-Antimisiari et al. [24] investigated the combined effects of CAP and the chemotherapeutic drug doxorubicin on normal, and murine and human melanoma cells. Using murine (B16) and human (SK-MEL-28) melanoma cells, Sagwal et al. [23] reported synergistic cytotoxicity of doxorubicin and epirubicin, and additive toxicity of oxaliplatin with direct plasma exposure in drug interaction analyses. The combination treatments led to an increased deoxyribonucleic acid (DNA) damage response. The observed synergistic effects in tumor cells resulted from enhanced intracellular doxorubicin accumulation via upregulation of the organic cationic transporter SLC22A16 by plasma treatment [23]. Conway et al. [22] reported that U373MG glioma cells’ relative resistance to CAP could be overcome when used in combination with low doses of glioblastoma multiforme chemotherapy, temozolomide, or exposure to multiple doses. Another DNA damage-related alkylating agent, cisplatin, has been reported to form crosslinks and damage DNA, activating the DNA damage responses and subsequently inducing apoptosis in cancer cells [25,26]. Li et al. [25] found that PAM highly increased the efficacy of the chemotherapeutic agent cisplatin on hepatocellular carcinoma with cancer stem cell characteristics. Nyguen et al. [27] demonstrated that PAM combined with gemcitabine triggered the deaths of hepatic malignant cells via ROS generation.
Furthermore, Liedtke et al. [5] investigated the combined effect of PAM and cisplatin or gemcitabine in pancreatic cancer cells in vitro. The combination of PAM with drugs, particularly cisplatin, resulted in the death, cycle arrest, and growth inhibition of cells, dramatically enhancing PAM’s anti-cancer effects [5]. Using cells with acquired paclitaxel/cisplatin resistance, Utsumi et al. [28] elucidated the effects of indirect PAM exposure on cell viability and tumor growth in vitro and in vivo. Combined PAM/cisplatin appeared to kill cancer cells more efficiently than PAM or cisplatin alone [28]. The biological anti-cancer mechanism of CAP/PAM requires further investigation regarding the biochemical events and synergistic, or possibly antagonistic effects, with radio-frequency or chemotherapy [29].
This study applied ME-APPJs to various liquid media, anticipating plasma-induced liquid phase chemistry mainly through neutral reactive species. Eliminating any direct effect of ultraviolet (UV) light can be achieved by treating the solution without cells and adding it to the cell medium [4]. The chemical activity of the liquid phase was characterized by detecting the concentration of RONS. The RONS generated in the gas and liquid phases were measured using different diagnostic methods, including optical emission spectroscopy and UV-visible (Vis) spectrophotometry. In addition, the viability of various cancer cell lines, including cisplatin-resistant human bladder cancer cells (T-24), treated with PAM was investigated. Furthermore, a plausible connectivity between cell viability and HER2/HER3 gene expression was suggested.

2. Results

2.1. Characterization of the Microwave-Excited Atmospheric Pressure Plasma Jet

The ME-APPJ used for the plasma treatment on the cell culture medium and the schematic diagram of the experimental setup are represented in Figure 1.
Figure 2 presents the measured gas temperature for ME-APPJ as a function of power at three different gas flow rates (1.3, 1.5, and 2.1 standard liters per min [SLM]). The temperature was measured at 2 cm below the jet nozzle. Although the gas temperatures were above room temperature and the treated media evaporated to some extent, there was no serious problem in the treatment of liquids. As the gas flow rate was increased, the gas temperature approached room temperature.
Figure 3 presents a typical optical emission spectrum ranging from 200–900 nm. The spectrum shows the nitrogen molecule (N2) second positive system at 315, 337, 357, and 380 nm, the dinitrogen (N2+) first negative system at 391 nm, the OH radical band at 309 nm, excited argon (Ar) transition lines (4p → 4s), and excited oxygen (O [1D]) bands at 777 nm. Of note are the much higher intensities of the excited OH radical and N2 bands. As ME plasma is continuously generated (i.e., not pulsed), many excited particles, such as Ar atoms and electrons, impinge upon the liquid surface. For example, electrons dissociate H2O according to the reaction H2O + e → •OH + •H + e. The generated OH radicals contribute to the oxidation of organic compounds in the culture medium, while H2O2 is formed [19].
A relatively high presence of OH, O, and excited N2 is attributed to the interaction of ambient air with excited Ar species and high-energy electrons in the plasma. The most predominant chemical species in the plasma jet is metastable state N2*(A), which is involved in many chemical reactions leading to the formation of OH, H, H2O2, NO, NO2, nitrous acid (HNO2), and nitric acid (HNO3) [30]. In contrast to cavity-type-microwave plasma devices operating at medium to high power levels [31], the ME-APPJ utilizing a coaxial transmission line resonator employed in this study had a lower gas temperature and gave rise to a considerable amount of RONS in the gas phase.

2.2. Reactive Species in the Plasma-Treated Liquid

2.2.1. Ozone

Ozone (O3) plays a role in RONS’s formation in aqueous media, and has been investigated intensely in biomedical applications due to its strong oxidation properties and long lifetime. In addition, O3 dissolved in aqueous solutions is an effective antimicrobial oxidant. Ozone is mainly produced via the collision of an oxygen atom (O) and molecule (O2) in the gas phase, which then spreads into the liquid phase [32]. The high reaction rate of this process may deplete O [33]. Figure 4 indicates that the O3 concentration increased with increasing applied power and decreasing gas flow rate. Since O3 is primarily created by a three-body association reaction of O and O2, a rise of O with an increase in power can result in increased O3 yield [34]. The O3 concentration in the gas phase has a tendency to change to that in the liquid phase, which may explain how it is transported into the liquid phase after being produced in the gas phase. Therefore, O3 generation becomes slightly lower as the gas flow rate increases.

2.2.2. Electrical Conductivity and pH

Many RONS are produced in a plasma-treated liquid; consequently, the liquid’s physical and chemical properties, including the pH and electrical conductivity, may change markedly. The pH and electrical conductivity are essential in biomedical applications, such as bacterial inactivation [35]. In addition, the biochemical activity of PAM results from the synergistic effects of highly reactive species, particularly the RONS [10].
Figure 5 shows the pH level and electrical conductivity of plasma-treated deionized water (DW), respectively. Comparison is made between three different APPJs: a low-frequency single jet [36], low-frequency jet array [14,37], and ME-APPJ. In addition, Figure 5 shows that the ME-APPJ treatment resulted in more substantial pH and electrical conductivity changes compared with the other APPJs. The decreased pH value suggests a high concentration of RONS in the treated DW, which could explain the increase in the electrical conductivity after the APPJ treatment. The observed changes in the pH and electrical conductivity can be attributed to the concentrations of N2*, O, H, and OH radicals generated in the plasma and plasma-liquid transition region. These radicals have been produced by collision between Ar excited (mostly metastable) species and ambient air and the vaporization and dissociation of H2O [38].

2.2.3. Hydrogen Peroxide and Nitrate

The ME-APPJ treatment of three different solutions (DW, serum-free Hanks’ balanced salt solution [HBSS], and Dulbecco’s modified eagles medium [DMEM] + 10% fetal bovine serum) were performed to induce the RONS’s changes in the concentration as functions of the operational parameters. To quantify the stable RONS in PAM, H2O2 and NO3− were measured after plasma treatment (3 min) of 3 mL of media using UV-Vis spectrophotometry. Figure 6a shows the change of H2O2 in the PAM produced at different operating conditions. As shown, H2O2 increased with increasing power but decreased with increasing gas flow rate (Figure 6a). The presence of OH radicals favors the formation of H2O2, as the main route of generation in the liquid is the recombination of OH radicals in the gas phase and subsequent diffusion into the liquid phase [38]. As mentioned previously, the main source of OH radicals in the gas phase is the electron impact of H2O molecules in the water vapor above and near the water surface [6]. With increasing gas flow rate, the gas (and the electron) temperature decreases; in addition, the production of H2O2 (OH + OH → H2O2) and destruction (e + H2O2 → OH + OH−) are enhanced [39]. The net result is decreased H2O2 with an increased gas flow rate. The H2O2 concentration in the treated DMEM was observed to be higher than the concentrations in the HBSS and DW. In addition, the DMEM contained a higher concentration of amino acids, vitamins, and additional supplementary components, while the HBSS was composed of various salts only. Furthermore, the plasma might react with amino acids to form NO2− components, possibly explaining the higher NO2− concentration in the treated DMEM compared with the DW and HBSS [40].
Figure 6b shows the change of NO3− in the PAM produced at different operating conditions; the concentration is slightly lower than for the H2O2. As expected, the NO3− levels increased with increasing applied power. When the gas flow rate is increased, the electron temperature decreases; hence, the formation of metastable state N2*(A) is oppressed [41]. In addition, NO is formed by various reactions (including N + OH → NO + H; N + O → NO; and N + O2 → NO + O), and NO2 is formed by reactions such as O3 + NO → NO2 + O2 and 2O + O2 → 2NO2 [42]. Despite the complex pathways involved, we observed that the production of N2*(A) decreased, and the formation of NOx was oppressed with increased gas flow rate [43]. These reactions can result in lower HNOx (the precursor of NO3− and NO2−) in the gas phase, explaining the reduction of the proportionality of NO3− change with the gas flow rate compared with those of H2O2. When the gas flow rate increased from 1.3 to 1.9 SLM, NO3− exhibited a decrease in concentration; this can be explained similarly to the H2O2 case previously described. Hence, the H2O2 and NO3− concentrations increase with increasing applied power while exhibiting a slight decrease with increasing gas flow rate. It is likely that a lower gas flow rate is advantageous for the production of radicals, such as O[1D] and nitrogen (N*) atoms, and excited nitrogen (N2*), singlet oxygen (O2 [1Δg]) molecules, negative molecular oxygen ions (O2−), and OH radicals, which can be utilized for the formation of long-living reactive species [32]. This observation indicated that complex chemical reactions are involved in generating reactive species and the derivatives in the gas and liquid phases, depending on the applied power and gas flow rate.
The high gas temperature obtained by the ME-APPJ provided an environment for nitrogen dissociation via the generation of N2 molecules. In addition, ME plasma can achieve a high electron density and temperature, which could help produce abundant Ar(3p) species. The high-energy components of the plasma are responsible for creating reactive species, including RONS. In an Ar ME-APPJ, the flux of highly reactive or short-lived species, such as Ar metastable, OH radicals, and atomic oxygen (O1), which give rise to further RONS, should be considered [44]. The N2 and O2 molecules in air dissociate to form NO and NO2, which may be converted into acids, such as HNO2 and HNO3 [42,45].

2.3. Cell Viability Induced by Plasma-Activated Media

The RONS in PAM contribute to cellular oxidative stress, which leads to cell death [5,6,7,8]. The cell viability was checked using the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) assay to test the hypothesis that PAM could induce cell death. The cytotoxic effect of PAM on various cancer cell lines, including human colon cancer cell lines (HCT116, RKO, HT29, and DLD-1), bladder cancer cell line (T-24), and human breast cancer cell line (MDA-MB-231), was tested. Figure 7 clearly shows PAM’s “dose” effect—with increasing plasma exposure time, the decrease of cell viability was apparent in all cancer cell types tested.
Furthermore, the effect of PAM on the viability of various cancer cell lines was evaluated at 24, 48, and 72 h post-PAM treatment (i.e., PAM incubation time). Figure 8 shows that cell viability decreased with increasing incubation time. Notably, the T-24 and RKO cancer cells data at 24 and 48 h post-PAM application showed that the longer the cells were exposed to PAM, the stronger the effect on cell viability; more than 50% of the viable cells were killed at 24 h post-PAM application [46].

2.4. Synergistic Effects of Combined Plasma-Activated Media and Cisplatin on Cancer Cells

We hypothesized that plasma treatments may enhance the cellular uptake of chemotherapeutic drugs. The cell viability for PAM or cisplatin alone and combined PAM and cisplatin treatments were determined to confirm if the lethality of combined PAM and cisplatin was synergetic. Moreover, to test the potential of PAM to enhance cellular uptake of chemotherapeutics in chemo-resistant cancer cells, T-24 and cisplatin-resistant T-24 (T-24R) cells were treated with cisplatin in PAM that had been freshly irradiated by plasma.

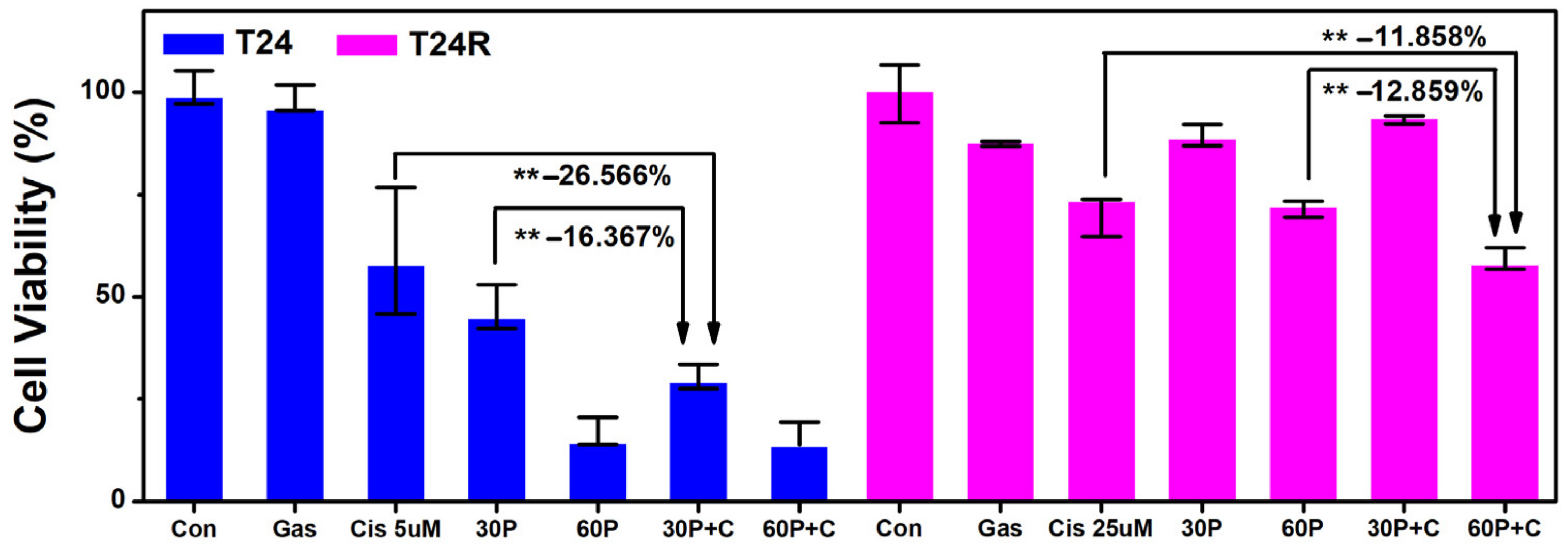

Figure 9 shows that the PAM-alone treatments (30P [plasma exposure time 30 s] and 60P [exposure time 60 s]) were more lethal to T-24 cells compared with the 5 µM of cisplatin-only treatment. However, the combined PAM and cisplatin (30P+C and 60P+C) treatments improved the therapeutic effects and resulted in lower viability in T-24 and T-24R cells compared with the PAM-alone and cisplatin-alone treatments. In particular, the PAM-alone treatment (30P) was ineffective in reducing T-24R cells’ viability; there was no significant difference in cell viability between the PAM-alone (60P) and 25 µM of cisplatin-alone treatments. The results indicated that PAM facilitated cell deaths by substantially sensitizing malignant cells to cisplatin, and that a higher dose of PAM is needed to reduce cell viability in T-24R cells.

3. Discussion

Human epidermal growth factor receptor 3 (HER3, ErbB3), a member of the epidermal growth factor erythroblastic leukemia viral oncogene homolog (ErbB)/HER receptor tyrosine kinases family, has been shown to play a crucial role in the regulation of oncogenic processes [47] and is known to express in various types of tumors. Figure 8 shows that colorectal cancer cell lines demonstrated different sensitivities to PAM. The four colon cancer cell lines used in the experiment can be divided into two groups based on the presence of HER3; HT29 and DLD-1 cells are considered HER3 positive, while RKO and HCT116 cells are HER3 negative [47]. Previous studies have indicated that HER3 is a protective factor in the cell death pathway activated by oxidative stress [48]. In contrast, it has been reported that the expression of HER2 (ErbB2) and HER3 is induced when ovarian cancer cells are exposed to reactive oxygen species (ROS) [49].
Further, ErbB2 is a member of the membrane-spanning type I receptor tyrosine kinase family, comprising four closely related family members [50]. Overexpression of ErbB2 hyperactivates components of the cell cycle machinery and is linked to resistance against apoptosis-inducing therapeutic agents. Mujoo et al. [51] demonstrated that HER3 knockdown induces cell cycle arrest and apoptosis of colon cancer cell lines by activating Bcl-2-associated X protein (Bax) and Bcl-2 antagonist killer 1 (Bak). These studies alluded to the critical involvement of HER3 in colon cancer progression [47]. Accumulating evidence supports the role of HER3 in developing resistance to epidermal growth factor receptor-targeted therapies [52].

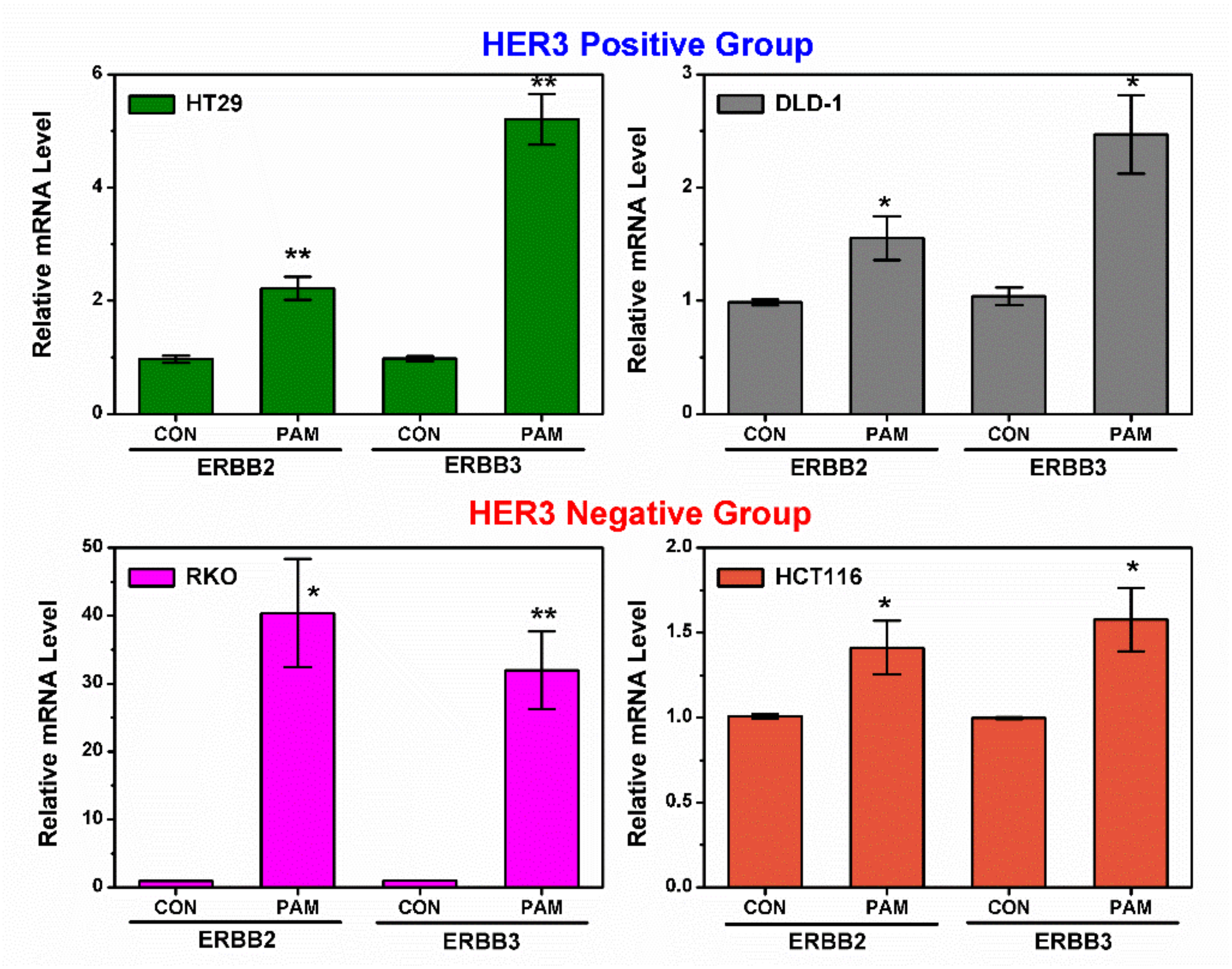

To investigate whether the expression of HER2/HER3 is related to the induction of ROS by PAM in colon cancer cells, ribonucleic acid (RNA) expression changes were examined using quantitative real-time polymerase chain reaction (qRT-PCR). The results indicated a considerable change in expression in all the cancer cell lines (Figure 10). Notably, the changes in HER2 and HER3 expression in the RKO cell line, which belongs to the HER3 negative group, were significant.
In Figure 7, we confirmed the effect of PAM on four colon cancer cells. The result indicates that the effect of PAM varies depending on the cell line. We sought to find the cause of these differences. The four cell lines could be divided into two groups according to the presence or absence of HER3. However, contrary to our expectations, the differences in cell viability were not in accordance with the differences in mRNA levels. The mRNA level measurement indicated that HER2/3 gene expression was greatly changed in RKO cells. From this, it may be inferred that differences in cell viability within colon cancer cells may not be related to the presence or absence of HER3. The reason for a significant increase in HER2/3 gene expression by PAM in RKO cells is not clear at the moment. There may be a connection between HER expression and cell viability because an appreciable decrease in cell viability was observed in the RKO cell line. However, their connectivity on the molecular level should be explored further in future studies.
Previous studies have reported that intracellularly accumulated ROS critically contributes to the decline in mitochondrial membrane function [9,53]. In addition, PAM can induce mitochondrial damage under experimental conditions because the generation of ROS was detected by the PAM treatment [16,17]. Adachi et al. [9] investigated the expression levels of the mitochondrial antiapoptotic proteins B-cell lymphoma 2 (Bcl2) and proapoptotic Bax to elucidate the mechanisms underlying PAM-induced mitochondrial injury; the PAM suppressed the expression of Bcl2 but not Bax. Moreover, mitochondrial dysfunction and endoplasmic reticulum stress interact to disrupt each other and facilitate cellular injury. In addition, the PAM and chemotherapeutics showed synergetic therapeutic effects. A possible explanation for the enhancement of cisplatin uptake is lipid oxidation caused by oxidative stress from ROS, which is further attributed to pore formation [54] or to an increase in the expression of aquaporin 5 [55]. Hence, enhancing molecule uptake by cells after PAM treatment might facilitate the synergistic lethal effect of PAM and chemotherapeutics on cancer cells [56].

4. Materials and Methods

4.1. Plasma Jet and Diagnostics

A commercially available MiniJet PM-10.R utilizing a coaxial transmission line resonator at 2.45 GHz resonance frequency was employed. The details of this APPJ can be found in our earlier study [16]. The MiniJet was controlled with input power between 5–8 W and gas flow rates of 1.3–2.1 SLM.
To identify the gaseous RONS in plasma, optical emission spectroscopy was used to detect NO, OH, N2, N2+, O, H, and Ar bands. The optical emission spectrum of the APPJ was measured using a SPEX 1702 spectrophotometer monochromator (Spex Industries, Inc., Metuchen, NJ, USA) with a KR928 photomultiplier tube (Hamamatsu Photonics K.K., Honshu, Japan). The gas temperature TG was measured using a Luxtron® fiber-optic temperature sensor (M601-DM&STF; Advanced Energy Industries, Inc., Denver, CO, USA) [32].
Ozone is an important reactive species formed by atmospheric pressure plasma. Therefore, O3 generation was detected using an O3 detector (Model 202 Ozone Monitor; 2B Technologies, Broomfield, CO, USA) based on UV light’s absorption at 254 nm [32]. Several authors have described the role of NO and related compounds as a direct cancer therapy or an agent that re-sensitizes tumors to chemotherapy or radiation therapy [53,57,58]. These studies demonstrated an important tumor apoptotic intercellular signaling mechanism involving NO and peroxynitrite (ONOO−) [36].

4.2. Measurement of Reactive Oxygen and Nitrogen Species Concentration in the Plasma-Treated Medium

Plasma generated from atmospheric air contains chemically reactive H, N, O, O3, NO, NO2, OH, and H2O2 [32]. When a solution is exposed to plasma, some of these RONS dissolve from the gas phase into the solution. The final products of these unstable species in the liquid phase might be O2 (1Δg), H2O2, O3, NOx, N2O, and HNOx, which are relatively stable and interact with cells resulting in the production of intracellular RONS [32,53]. In addition, H2O2, HNO2, and HNO3 have high Henry’s law solubility constants; thus, they are continuously transported from the gas phase into the liquid during plasma treatment [59]. In addition to the accumulation of H2O2 in the liquid because of transport from the gas phase, there is a net production of H2O2 in the liquid phase. The dominant mechanism of H2O2 production is the recombination of two OH radicals, which occurs primarily in the first few nm underneath the gas–liquid interface and also in the center of the well (i.e., the depression of the dimple) because further and deeper into the liquid there are few OH radicals left. In the same region, the loss of H2O2 is mainly caused by OH radicals (i.e., H2O2 + OH → HO2 + H2O), while deeper in the bulk liquid, the H2O2 loss is caused by a reaction with H radicals (i.e., H2O2 + H → OH + H2O). As previously mentioned, the short-lived species (O, OH, NO, NO2, and NO3) immediately react in the interface region to form other (long-lived) species; in this way, they cannot reach the bulk liquid and, hence, do not accumulate in the solution. Only H2O2, HNO2/NO2−, and HNO3/ NO3− are stable in the buffered solution after plasma treatment [59].
A photoLab® 7600 UV-VIS spectrophotometer (Xylem Analytics Germany Sales GmbH & Co. KG WTW, Weilheim, Germany) was used to measure the concentrations of H2O2, NO3−, and O3 in plasma-treated liquids. The concentration levels of H2O2 and NO3− in the plasma-treated liquids were investigated as functions of the applied power and gas flow rate. Three solutions (DW, HBSS, and DMEM) were employed as liquid samples. The DW’s electrical conductivity and pH were measured using a conductivity stick meter (Starter ST3100C) and a digital pH meter (Starter ST3100) both Ohaus Corp., Parsippany, NJ, USA. Although the concentration of the active species is the highest at the tip of the plasma plume [60], the treated liquid surface was placed at 5 mm below the plume tip to prevent severe evaporation.

4.3. Cell Culture Cell Viability, and Quantitative Real-Time Polymerase Chain Reaction Analysis

4.3.1. Cell Culture

The T-24, HT29, and DLD-1 cells were grown in DMEM (Capricorn Scientific GmbH, Ebsdorfergrund, Germany) and the MDA-MB-231, RKO, and HCT116 cells were incubated in Roswell Park Memorial Institute with L-glutamine media (Capricorn Scientific GmbH, Ebsdorfergrund, Germany). The media were supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin (Capricorn Scientific GmbH, Ebsdorfergrund, Germany). The T-24R cell line was provided by Professor Sun-Hee Leem (Dong-A University, Busan, Republic of Korea). The cells were incubated in a humidified atmosphere with 5% CO2 at 37 °C.

4.3.2. Cell Viability

Cell viability was measured using the MTT assay (Duchefa Farma, Haarlem, The Netherlands). Cells were seeded in a 96-well plate at 1 × 104 cells/well. The PAM was removed after incubation, replaced with 100 µL of MTT solution (5 mg/mL), and incubated for 3 h. The violet crystals were solubilized with dimethyl sulfoxide, and the absorbance was measured at 550 nm using a microplate reader (FLUO star OPTIMA; BMG Labtech, Ortenberg, Baden-Wrttemberg, Germany). The cell viability (%) was calculated as follows: optical density of treated cells/optical density of non-treated cells × 100.

4.3.3. Quantitative Real-Time Polymerase Chain Reaction Analysis

Total RNA was extracted with an AccuPrep® Universal RNA Extraction Kit (Bioneer Corp., Daejeon, Republic of Korea), and complementary DNA (cDNA) was synthesized with PrimeScript RT Master Mix (Takara Bio, Shiga, Japan), following the manufacturer’s protocol. Then, qRT-PCR was carried out using TB Green® and QuantStudio 3 (Thermo Fisher Scientific Inc., Waltham, MA, USA). The primers were purchased from Bioneer Corp.

4.3.4. Statistical Analysis

All data are reported as mean ± standard deviation (SD). Statistical significance of the difference between groups was analyzed by a two-tailed unpaired or paired Student’s t-test or by one-way analysis of variance (ANOVA) with Tukey’s post hoc test in instances of multiple comparisons (Prism, version 9; GraphPad Software, Inc., San Diego, CA, USA).

5. Conclusions

An Ar ME-APPJ was used to prepare PAM. Although the gas temperature of the ME-APPJ was high, its application to PAM was appropriate, practical, and helpful, especially for cancer cell treatment. The diversity of the antitumor efficacy of the PAM differed depending on the cell type and culture medium; therefore, it is essential to understand how these differences affect the understanding and successful application of PAM. Therefore, the properties of PAM produced by ME-APPJ were explored regarding the chemical composition of long-lived reactive species and its antitumor activity. Among the culture media tested, the plasma-treated DMEM was observed to have the highest levels of H2O2 and NO3−. Furthermore, it was demonstrated that PAM inhibited cell growth in various cancer cell lines. The effects of the PAM alone and combined with cisplatin on treating T-24 and T-24R cells were examined. Combined treatment of PAM and cisplatin was demonstrated to act synergistically against cancer cell growth in vitro. Additionally, a significant increase in HER2/3 gene expression by PAM was observed in human colon cancer cells. The relationship of HER2/3 gene expression with cell viability should be clarified in future studies.

Author Contributions

Conceptualization, T.-H.C. and J.-W.C.; investigation, A.J., H.-M.J. and J.-H.B.; writing—original draft preparation, T.-H.C.; writing—review and editing, A.J., S.-J.K., H.-M.J. and T.-H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea under Contract No. 2022R1A2C1006170.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are contained within the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fridman, G.; Friedman, G.; Gutsol, A.; Shekhter, A.B.; Vasilets, V.N.; Fridman, A. Applied plasma medicine. Plasma Process. Polym. 2008, 5, 503–533. [Google Scholar] [CrossRef]
  2. Lu, X.; Naidis, G.V.; Laroussi, M.; Reuter, S.; Graves, D.B.; Ostrikov, K. Reactive species in non-equilibrium atmospheric-pressure plasmas: Generation, transport, and biological effects. Phys. Rep. 2016, 630, 1–84. [Google Scholar] [CrossRef]
  3. Von Woedtke, T.; Reuter, S.; Masur, K.; Weltmann, K.D. Plasmas for medicine. Phys. Rep. 2013, 530, 291–320. [Google Scholar] [CrossRef]
  4. Wende, K.; Williams, P.; Dalluge, J.; van Gaens, W.; Aboubakr, H.; Bischof, J.; von Woedtke, T.; Goyal, S.M.; Reuter, S.; Weltmann, K.D.; et al. Identification of the biologically active liquid chemistry induced by a nonthermal atmospheric pressure plasma jet. Biointerphases 2015, 10, 029518. [Google Scholar] [CrossRef] [PubMed]
  5. Liedtke, K.-R.; Freund, E.; Hermes, M.; Oswald, S.; Heidecke, C.-D.; Partecke, L.-I.; Bekeschus, S. Gas Plasma-Conditioned Ringer’s Lactate Enhances the Cytotoxic Activity of Cisplatin and Gemcitabine in Pancreatic Cancer In Vitro and In Ovo. Cancers 2020, 12, 123. [Google Scholar] [CrossRef] [PubMed]
  6. Khlyustova, A.; Labay, C.; Machala, Z.; Ginebra, M.-P.; Canal, C. Important parameters in plasma jets for the production of RONS in liquids for plasma medicine: A brief review. Front. Chem. Sci. Eng. 2019, 13, 238–252. [Google Scholar] [CrossRef]
  7. Kaushik, N.K.; Ghimire, B.; Li, Y.; Adhikari, M.; Veerana, M.; Kaushik, N.; Jha, N.; Adhikari, B.; Lee, S.J.; Masur, K.; et al. Biological and medical application of plasma-activated media, water and solutions. Biol. Chem. 2018, 400, 39–62. [Google Scholar] [CrossRef]
  8. Sersenová, D.; Machala, Z.; Repiská, V.; Gbelcová, H. Selective Apoptotic Effect of Plasma Activated Liquids on Human Cancer Cell Lines. Molecules 2021, 26, 4254. [Google Scholar] [CrossRef]
  9. Adachi, T.; Tanaka, H.; Nonomura, S.; Hara, H.; Kondo, S.I.; Hori, M. Plasma-activated medium induces A549 cell injury via a spiral apoptotic cascade involving the mitochondrial-nuclear network. Free Radic. Biol. Med. 2015, 79, 28–44. [Google Scholar] [CrossRef]
  10. Zhou, R.; Zhou, R.; Wang, P.; Xian, Y.; Mai-Prochnow, A.; Lu, X.; Cullen, P.J.; Ostrikov, K.; Bazaka, K. Plasma-activated water: Generation, origin of reactive species and biological applications. J. Phys. D Appl. Phys. 2020, 53, 303001. [Google Scholar] [CrossRef]
  11. Choi, J.; Eom, I.S.; Kim, S.J.; Kwon, Y.W.; Joh, H.M.; Jeong, B.S.; Chung, T.H. Characterization of a microwave-excited atmospheric-pressure argon plasma jet using two-parallel-wires transmission line resonator. Phys. Plasmas 2017, 24, 093516. [Google Scholar] [CrossRef]
  12. Chen, Z.; Xia, G.; Zou, C.; Liu, X.; Feng, D.; Li, P.; Hu, Y.; Stepanova, O.; Kudryavtsev, A.A. Bullet-shaped ionization front of plasma jet plumes driven by microwave pulses at atmospheric gas pressure. J. Appl. Phys. 2017, 122, 093301. [Google Scholar] [CrossRef]
  13. Zhao, J.; Nie, L. Five gaseous reactive oxygen and nitrogen species (RONS) density generated by microwave plasma jet. Phys. Plasmas 2019, 26, 073503. [Google Scholar] [CrossRef]
  14. Kim, D.Y.; Kim, S.J.; Joh, H.M.; Chung, T.H. Characterization of an atmospheric pressure plasma jet array and its application to cancer cell treatment using plasma activated medium. Phys. Plasmas 2018, 25, 073505. [Google Scholar] [CrossRef]
  15. Jo, A.; Joh, H.M.; Chung, J.W.; Chung, T.H. Cell viability and measurement of reactive species in gas- and liquid-phase exposed by a microwave-excited atmospheric pressure argon plasma jet. Curr. Appl. Phys. 2020, 20, 562–571. [Google Scholar] [CrossRef]
  16. Jo, A.; Joh, H.M.; Chung, T.H.; Chung, J.W. Anticancer Effects of Plasma-Activated Medium Produced by a Microwave-Excited Atmospheric Pressure Argon Plasma Jet. Oxid. Med. Cell. Longev. 2020, 2020, 4205640. [Google Scholar] [CrossRef]
  17. Jo, A.; Bae, J.H.; Yoon, Y.J.; Chung, T.H.; Lee, E.-W.; Kim, Y.-H.; Joh, H.M.; Chung, J.W. Plasma-activated medium induces ferroptosis by depleting FSP1 in human lung cancer cells. Cell Death Dis. 2022, 13, 212. [Google Scholar] [CrossRef]
  18. Utsumi, F.; Kajiyama, H.; Nakamura, K.; Tanaka, H.; Mizuno, M.; Ishikawa, K.; Kondo, H.; Kano, H.; Hori, M.; Kikkawa, F. Effect of indirect nonequilibrium atmospheric pressure plasma on anti-proliferative activity against chronic chemo-resistant ovarian cancer cells in vitro and in vivo. PLoS ONE 2013, 8, e81576. [Google Scholar] [CrossRef]
  19. Takahashi, Y.; Taki, Y.; Takeda, K.; Hashizume, H.; Tanaka, H.; Ishikawa, K.; Hori, M. Reduced HeLa cell viability in methionine-containing cell culture medium irradiated with microwave-excited atmospheric-pressure plasma. Plasma Process. Polym. 2018, 15, e1700200. [Google Scholar] [CrossRef]
  20. Bruelle, L.; Vandamme, M.; Rie’s, D.; Martel, E.; Robert, E.; Lerondel, S.; Trichet, V.; Richard, S.; Pouvesle, J.; Pape, A.L. Effects of a Non Thermal Plasma Treatment Alone or in Combination with Gemcitabine in a MIA PaCa2-luc Orthotopic Pancreatic Carcinoma Model. PLoS ONE 2012, 7, e52653. [Google Scholar] [CrossRef]
  21. Köritzer, J.; Boxhammer, V.; Schäfer, A.; Shimizu, T.; Klämpfl, T.G.; Li, Y.-F.; Welz, C.; Schwenk-Zieger, S.; Morfill, G.E.; Zimmermann, J.L.; et al. Restoration of Sensitivity in Chemo—Resistant Glioma Cells by Cold Atmospheric Plasma. PLoS ONE 2013, 8, e64498. [Google Scholar] [CrossRef] [PubMed]
  22. Conway, G.E.; Casey, A.; Milosavljevic, V.; Liu, Y.; Howe, O.; Cullen, P.J.; Curtin, J.F. Non-thermal atmospheric plasma induces ROS-independent cell death in U373MG glioma cells and augments the cytotoxicity of temozolomide. Br. J. Cancer 2016, 114, 435–443. [Google Scholar] [CrossRef] [PubMed]
  23. Sagwal, S.K.; Pasqual-Melo, G.; Bodnar, Y.; Gandhirajan, R.K.; Bekeschus, S. Combination of chemotherapy and physical plasma elicits melanoma cell death via upregulation of SLC22A16. Cell Death Dis. 2018, 9, 1179. [Google Scholar] [CrossRef] [PubMed]
  24. Pefani-Antimisiari, K.; Athanasopoulos, D.K.; Marazioti, A.; Sklias, K.; Rodi, M.; de Lastic, A.-L.; Mouzaki, A.; Svarnas, P.; Antimisiari, S.G. Synergistic effect of cold atmospheric pressure plasma and free or liposomal doxorubicin on melanoma cells. Sci. Rep. 2021, 11, 14788. [Google Scholar] [CrossRef]
  25. Li, Y.; Tang, T.; Lee, H.J.; Song, K. Selective Anti-Cancer Effects of Plasma-Activated Medium and Its High Efficacy with Cisplatin on Hepatocellular Carcinoma with Cancer Stem Cell Characteristics. Int. J. Mol. Sci. 2021, 22, 3956. [Google Scholar] [CrossRef]
  26. Galluzzi, L.; Senovilla, L.; Vitale, I.; Michels, J.; Martins, I.; Kepp, O.; Castedo, M.; Kroemer, G. Molecular mechanisms of cisplatin resistance. Oncogene 2012, 31, 1869–1883. [Google Scholar] [CrossRef]
  27. Nguyen, D.B.; Mok, Y.S.; Huynh, D.L.; Jeong, D.K.; Lee, W.G. Application of plasma jet to the inhibition of the proliferation of hepatic malignant cells via reactive oxygen species generation. Plasma Process. Polym. 2019, 16, 1800173. [Google Scholar] [CrossRef]
  28. Ikeda, J.; Tanaka, H.; Ishikawa, K.; Sakakita, H.; Ikehara, Y.; Hori, M. Plasma-activated medium (PAM) kills human cancer-initiating cell. Pathol. Int. 2018, 68, 23–30. [Google Scholar] [CrossRef]
  29. Bekeschus, S.; Favia, P.; Robert, E.; von Woedtke, T. White paper on plasma for medicine and hygiene: Future in plasma health sciences. Plasma Process. Polym. 2018, 16, e1800033. [Google Scholar] [CrossRef]
  30. Lukes, P.; Dolezalova, E.; Sisrova, I.; Clupek, M. Aqueous-phase chemistry and bactericidal effects from an air discharge plasma in contact with water: Evidence for the formation of peroxynitrite through a pseudo-second-order post-discharge reaction of H2O2 and HNO2. Plasma Sources Sci. Technol. 2014, 23, 015019. [Google Scholar] [CrossRef]
  31. Krčma, F.; Tsonev, I.; Smejkalová, K.; Truchlá, D.; Kozáková, Z.; Zhekova, M.; Marinova, P.; Bogdanov, T.; Benova, E. Microwave micro torch generated in argon based mixtures for biomedical applications. J. Phys. D Appl. Phys. 2018, 51, 414001. [Google Scholar] [CrossRef]
  32. Joh, H.M.; Baek, E.J.; Kim, S.J.; Chung, T.H. Effects of the pulse width and oxygen admixture on the production of reactive species in gas- and liquid-phases exposed by bipolar microsecond-pulsed atmospheric pressure helium plasma jets. Phys. Plasmas 2019, 26, 053509. [Google Scholar] [CrossRef]
  33. Schulz-von der Gathen, V.; Buck, V.; Gans, T.; Knake, N.; Niemi, K.; Reuter, S.; Schaper, L.; Winter, J. Optical Diagnostics of Micro Discharge Jets. Contrib. Plasma Phys. 2007, 47, 510–519. [Google Scholar] [CrossRef]
  34. Huiskamp, T.; Hoeben, W.F.L.M.; Beckers, F.J.C.M.; van Heesch, E.J.M.; Pemen, A.J.M. (Sub)nanosecond transient plasma for atmospheric plasma processing experiments: Application to ozone generation and NO removal. J. Phys. D Appl. Phys. 2017, 50, 405201. [Google Scholar] [CrossRef]
  35. Ikawa, S.; Kitano, K.; Hamaguchi, S. Effects of pH on bacterial inactivation in aqueous solutions due to low-temperature atmospheric pressure plasma application. Plasma Process. Polym. 2010, 7, 33–42. [Google Scholar] [CrossRef]
  36. Kim, S.J.; Chung, T.H. Cold atmospheric plasma jet generated RONS and their selective effects on normal and carcinoma cells. Sci. Rep. 2016, 6, 20332. [Google Scholar] [CrossRef] [PubMed]
  37. Jo, A.; Joh, H.M.; Bae, J.H.; Kim, S.J.; Chung, T.H.; Chung, J.W. Plasma activated medium prepared by a bipolar microsecond-pulsed atmospheric pressure plasma jet array induces mitochondria-mediated apoptosis in human cervical cancer cells. PLoS ONE 2022, 17, e0272805. [Google Scholar] [CrossRef]
  38. Vlad, I.-E.; Anghel, S.D. Time stability of water activated by different on liquid atmospheric pressure plasmas. J. Electrost. 2017, 87, 284–292. [Google Scholar] [CrossRef]
  39. Du, Y.; Nayak, G.; Oinuma, G.; Peng, Z.; Bruggeman, P.J. Effect of water vapor on plasma morphology, OH and H2O2 production in He and Ar atmospheric pressure dielectric barrier discharges. J. Phys. D Appl. Phys. 2017, 50, 145201. [Google Scholar] [CrossRef]
  40. Chen, Z.; Simonyan, H.; Cheng, X.; Gjika, E.; Lin, L.; Canady, J.; Sherman, J.H.; Young, C.; Keidar, M. A Novel Micro Cold Atmospheric Plasma Device for Glioblastoma Both In Vitro and In Vivo. Cancers 2017, 9, 61. [Google Scholar] [CrossRef]
  41. Uhm, H.S. Generation of various radicals in nitrogen plasma and their behavior in media. Phys. Plasmas 2015, 22, 123506. [Google Scholar] [CrossRef]
  42. Kuhn, S.; Bibinov, N.; Gesche, R.; Awakowicz, P. Non-thermal atmospheric pressure HF plasma source: Generation of nitric oxide and ozone for bio-medical applications. Plasma Sources Sci. Technol. 2010, 19, 015013. [Google Scholar] [CrossRef]
  43. Baek, E.J.; Joh, H.M.; Kim, S.J.; Chung, T.H. Effects of the electrical parameters and gas flow rate on the generation of reactive species in liquids exposed to atmospheric pressure plasma jets. Phys. Plasmas 2016, 23, 073515. [Google Scholar] [CrossRef]
  44. Szili, E.J.; Oh, J.-S.; Hong, S.-H.; Hatta, A.; Short, R.D. Probing the transport of plasma-generated RONS in an agarose target as surrogate for real tissue: Dependency on time, distance and material composition. J. Phys. D Appl. Phys. 2015, 48, 202001. [Google Scholar] [CrossRef]
  45. Chandana, L.; Sangeetha, C.J.; Shashidhar, T.; Subrahmanyam, C. Non-thermal atmospheric pressure plasma jet for the bacterial inactivation in an aqueous medium. Sci. Total Environ. 2018, 640–641, 493–500. [Google Scholar] [CrossRef]
  46. Mohades, S.; Laroussi, M.; Sears, J.; Barekzi, N.; Razavi, H. Evaluation of the effects of a plasma activated medium on cancer cells. Phys. Plasmas 2015, 22, 122001. [Google Scholar] [CrossRef]
  47. Beji, A.; Horst, D.; Engel, J.; Kirchner, T.; Ullrich, A. Toward the Prognostic Significance and Therapeutic Potential of HER3 Receptor Tyrosine Kinase in Human Colon Cancer. Clin. Cancer Res. 2012, 18, 956–968. [Google Scholar] [CrossRef]
  48. Morano, M.; Angotti, C.; Tullio, F.; Gambarotta, G.; Penna, C.; Pagliaro, P.; Geuna, S. Myocardial ischemia/reperfusion upregulates the transcription of the Neuregulin1 receptor ErbB3, but only postconditioning preserves protein translation: Role in oxidative stress. Int. J. Cardiol. 2017, 233, 73–79. [Google Scholar] [CrossRef]
  49. He, J.; Xu, Q.; Jing, Y.; Agani, F.; Qian, X.; Carpenter, R.; Li, Q.; Wang, X.-R.; Peiper, S.S.; Lu, Z.; et al. Reactive oxygen species regulate ERBB2 and ERBB3 expression via miR-199a/125b and DNA methylation. EMBO Rep. 2012, 13, 1116–1122. [Google Scholar] [CrossRef]
  50. Harari, D.; Yarden, Y. Molecular mechanisms underlying ErbB2/HER2 action in breast cancer. Oncogene 2000, 19, 6102–6114. [Google Scholar] [CrossRef]
  51. Mujoo, K.; Choi, B.-K.; Huang, Z.; Zhang, N.; An, Z. Regulation of ERBB3/HER3 signaling in cancer. Oncotarget 2014, 5, 10223–10236. [Google Scholar] [CrossRef] [PubMed]
  52. Manickavasagar, T.; Yuan, W.; Carreira, S.; Gurel, B.; Miranda, S.; Ferreira, A.; Crespo, M.; Riisnaes, R.; Baker, C.; O’Brien, M.; et al. HER3 expression and MEK activation in non-small-cell lung carcinoma. Lung Cancer Manag. 2021, 10, LMT48. [Google Scholar] [CrossRef] [PubMed]
  53. Graves, D.B. The emerging role of reactive oxygen and nitrogen species in redox biology and some implications for plasma applications to medicine and biology. J. Phys. D Appl. Phys. 2012, 45, 263001. [Google Scholar] [CrossRef]
  54. Van der Paal, J.; Neyts, E.C.; Verlackt, C.C.; Bogaerts, A. Effect of lipid peroxidation on membrane permeability of cancer and normal cells subjected to oxidative stress. Chem. Sci. 2016, 7, 489–498. [Google Scholar] [CrossRef] [PubMed]
  55. Yan, D.; Talbot, A.; Nourmohammadi, N.; Sherman, J.H.; Cheng, X.; Keidar, M. Toward understanding the selective anticancer capacity of cold atmospheric plasma—A model based on aquaporins. Biointerphases 2015, 10, 040801. [Google Scholar] [CrossRef] [PubMed]
  56. Chen, C.-Y.; Cheng, Y.-C.; Cheng, Y.-J. Synergistic effects of plasma-activated medium and chemotherapeutic drugs in cancer treatment. J. Phys. D Appl. Phys. 2018, 51, 13LT01. [Google Scholar] [CrossRef]
  57. Hirst, D.; Robson, T. Targeting nitric oxide for cancer therapy. J. Pharm. Pharmacol. 2007, 59, 3–13. [Google Scholar] [CrossRef]
  58. Bauer, G. Targeting Extracellular ROS Signaling of Tumor Cells. Anticancer Res. 2014, 34, 1467–1482. [Google Scholar]
  59. Heirman, P.; van Boxem, W.; Bogaerts, A. Reactivity and stability of plasma-generated oxygen and nitrogen species in buffered water solution: A computational study. Phys. Chem. Chem. Phys. 2019, 21, 12881–12894. [Google Scholar] [CrossRef]
  60. Trebulová, K.; Krčma, F.; Skoumalová, P.; Kozáková, Z.; Machala, Z. Effects of different cold atmospheric-pressure plasma sources on the yeast Candida glabrata. Plasma Process. Polym. 2023, 20, e2300048. [Google Scholar] [CrossRef]
Ijms 25 01249 g001

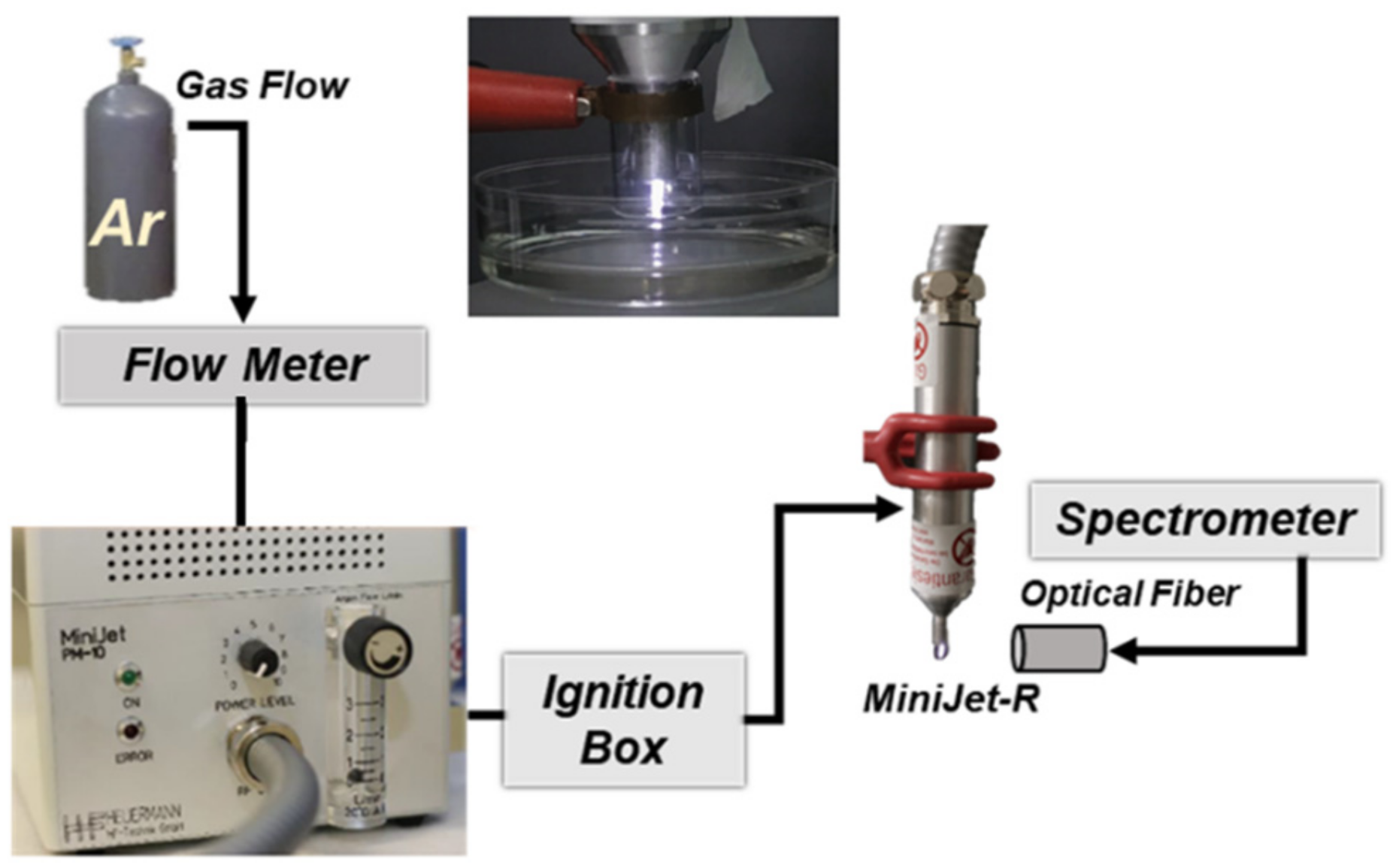

Figure 1. Photograph of the plasma plumes from a microwave-excited atmospheric pressure plasma jet (ME-APPJ) contacting a medium in a liquid container, and schematic diagram of the experimental setup.
Figure 1. Photograph of the plasma plumes from a microwave-excited atmospheric pressure plasma jet (ME-APPJ) contacting a medium in a liquid container, and schematic diagram of the experimental setup.
Ijms 25 01249 g001
Ijms 25 01249 g002

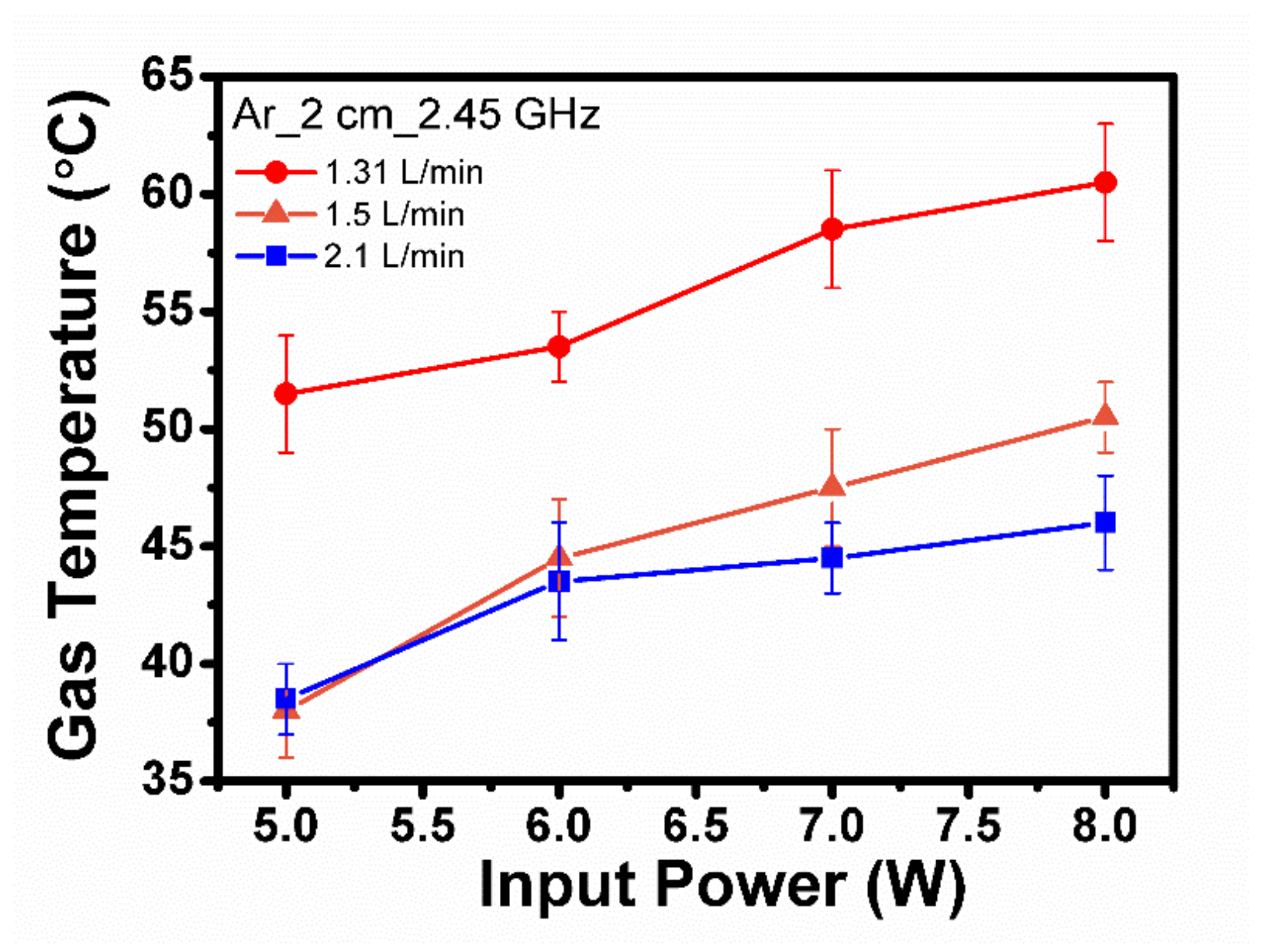

Figure 2. Gas temperature for the microwave-excited atmospheric pressure plasma jet (ME-APPJ) as a function of power at three different gas flow rates (1.3, 1.5, and 2.1 SLM). Each point represents the mean ± SD of three replicates.
Figure 2. Gas temperature for the microwave-excited atmospheric pressure plasma jet (ME-APPJ) as a function of power at three different gas flow rates (1.3, 1.5, and 2.1 SLM). Each point represents the mean ± SD of three replicates.
Ijms 25 01249 g002
Ijms 25 01249 g003

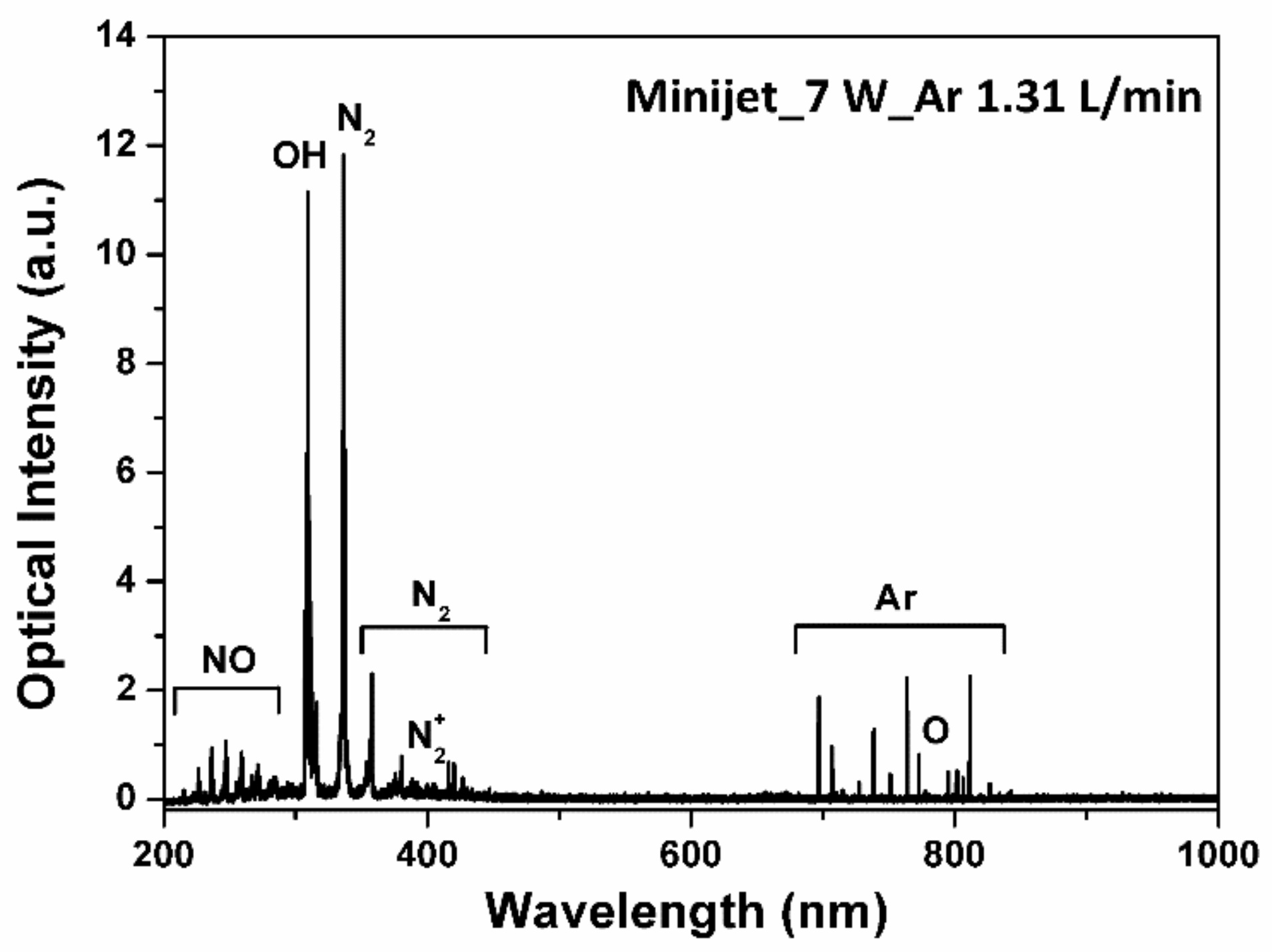

Figure 3. Typical optical emission spectrum for microwave-excited atmospheric pressure plasma jet (ME-APPJ). The power is 7 W and the gas flow rate is 1.3 SLM.
Figure 3. Typical optical emission spectrum for microwave-excited atmospheric pressure plasma jet (ME-APPJ). The power is 7 W and the gas flow rate is 1.3 SLM.
Ijms 25 01249 g003
Ijms 25 01249 g004

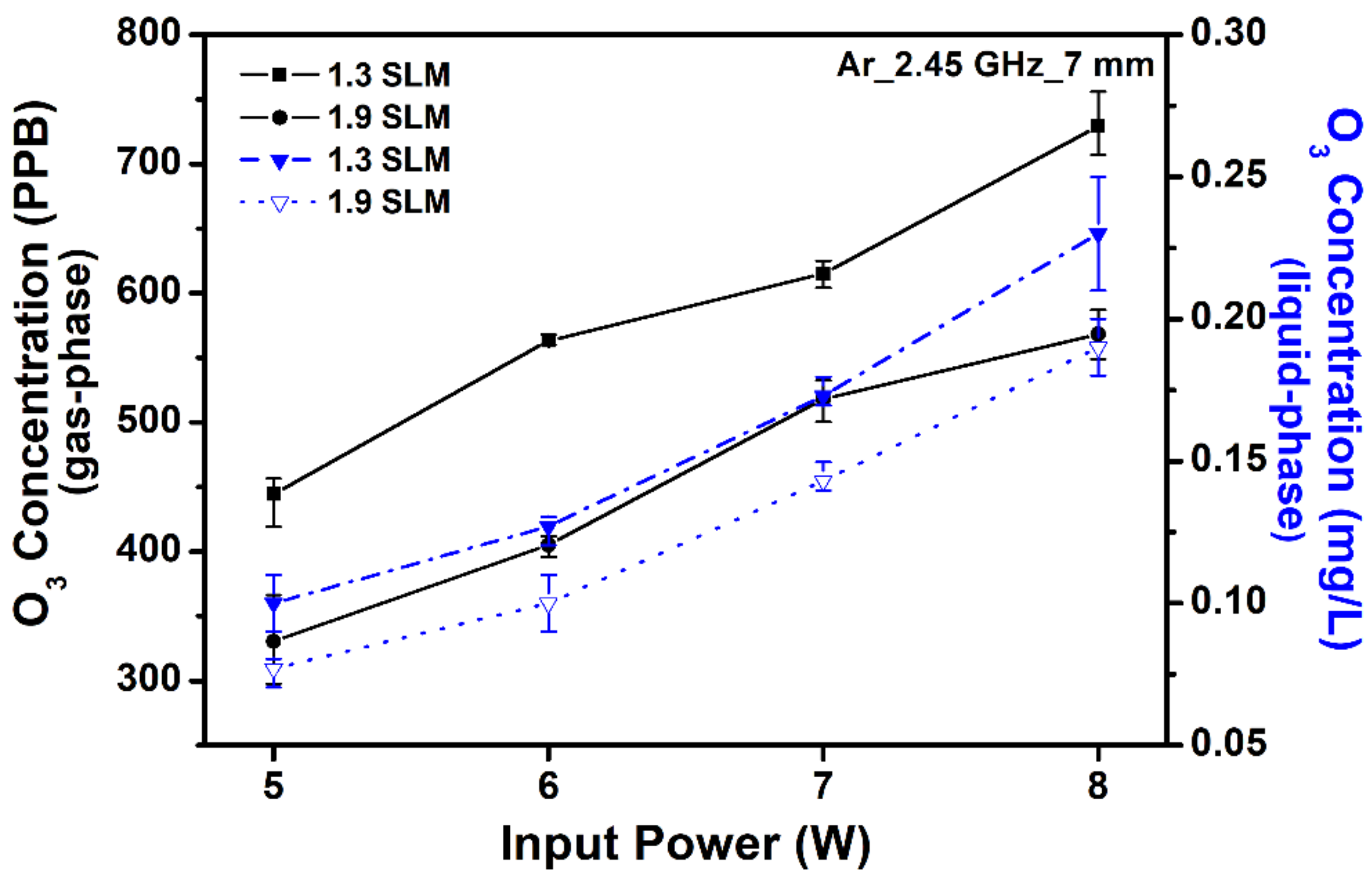

Figure 4. Ozone concentration in the gas phase and plasma-activated media (PAM) as a function of power at different gas flow rates (1.3 and 1.9 SLM). Each point represents the mean ± SD of three replicates.
Figure 4. Ozone concentration in the gas phase and plasma-activated media (PAM) as a function of power at different gas flow rates (1.3 and 1.9 SLM). Each point represents the mean ± SD of three replicates.
Ijms 25 01249 g004
Ijms 25 01249 g005

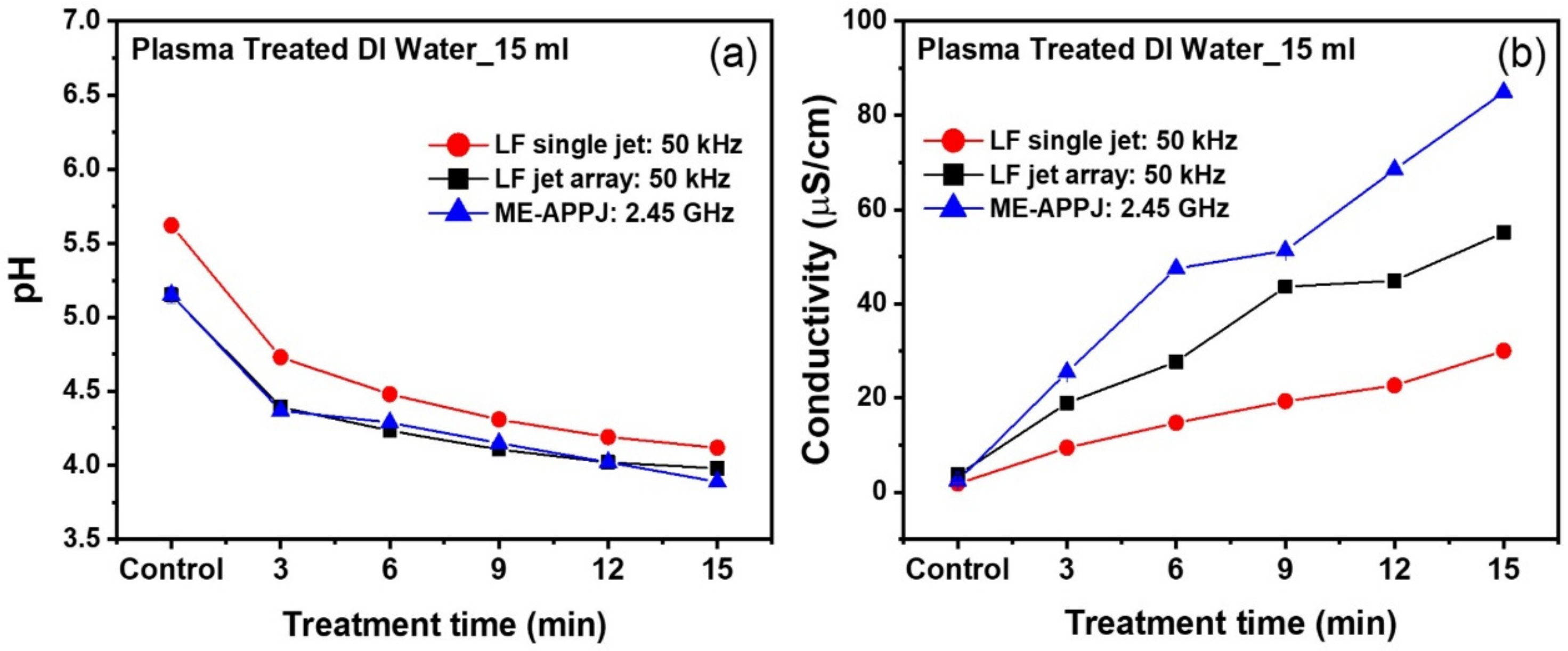

Figure 5. (a) The pH and (b) electrical conductivity of the plasma-treated distilled water (DW). Comparison between three different atmospheric pressure plasma jets (APPJs): low-frequency single jet [36], low-frequency jet array [14,37], and microwave-excited (ME)-APPJ. Each point represents the mean ± SD of three replicates.
Figure 5. (a) The pH and (b) electrical conductivity of the plasma-treated distilled water (DW). Comparison between three different atmospheric pressure plasma jets (APPJs): low-frequency single jet [36], low-frequency jet array [14,37], and microwave-excited (ME)-APPJ. Each point represents the mean ± SD of three replicates.
Ijms 25 01249 g005
Ijms 25 01249 g006

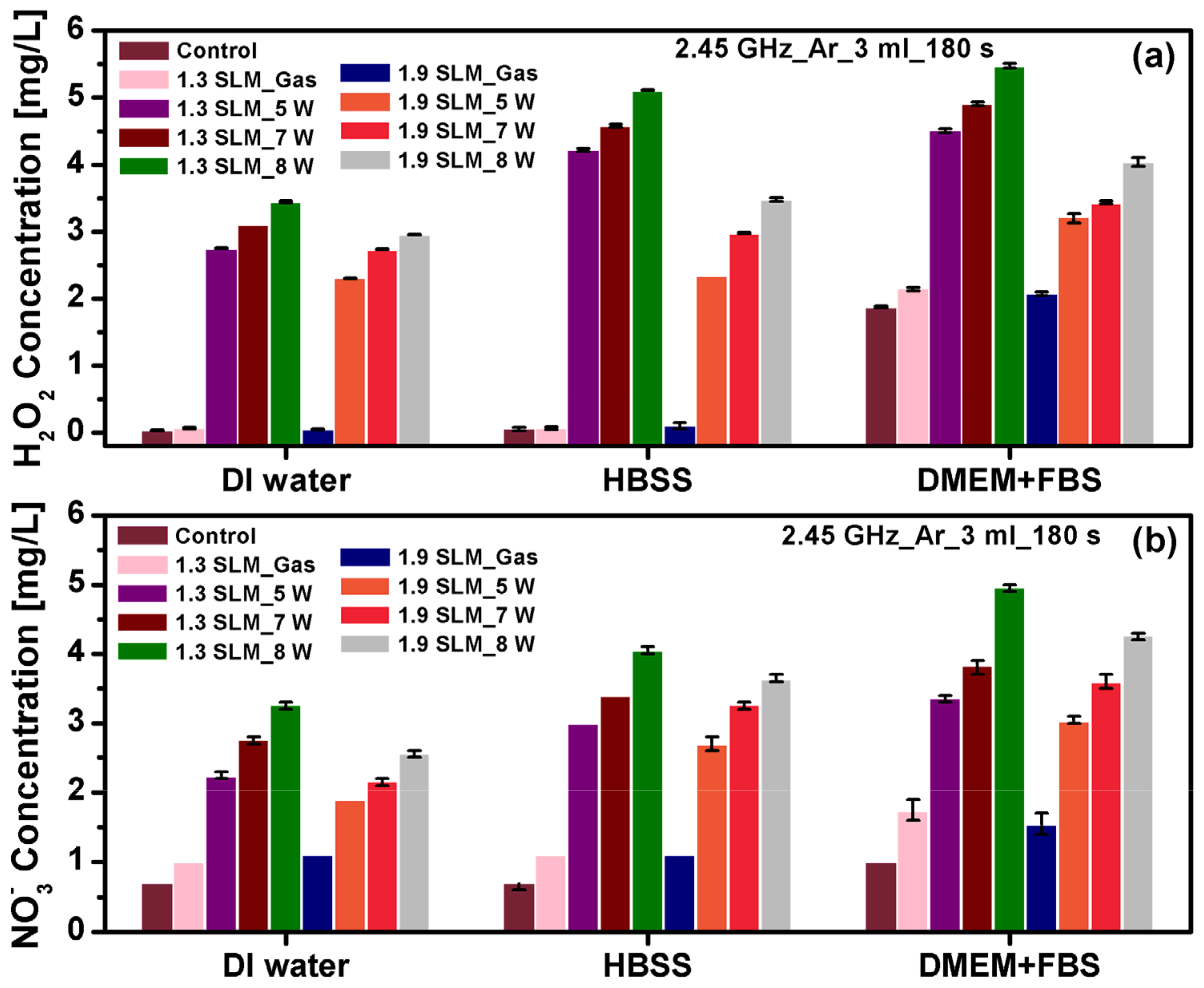

Figure 6. Concentrations of (a) H2O2 and (b) NO3− produced in the plasma-treated media (deionized water [DW], serum-free Hanks’ balanced salt solution [HBSS], and Dulbecco’s modified eagles medium [DMEM]) at different conditions. The concentration of H2O2 and NO3− was detected as a function of the power at different gas flow rates. Each point represents the mean ± SD of three replicates.
Figure 6. Concentrations of (a) H2O2 and (b) NO3− produced in the plasma-treated media (deionized water [DW], serum-free Hanks’ balanced salt solution [HBSS], and Dulbecco’s modified eagles medium [DMEM]) at different conditions. The concentration of H2O2 and NO3− was detected as a function of the power at different gas flow rates. Each point represents the mean ± SD of three replicates.
Ijms 25 01249 g006
Ijms 25 01249 g007

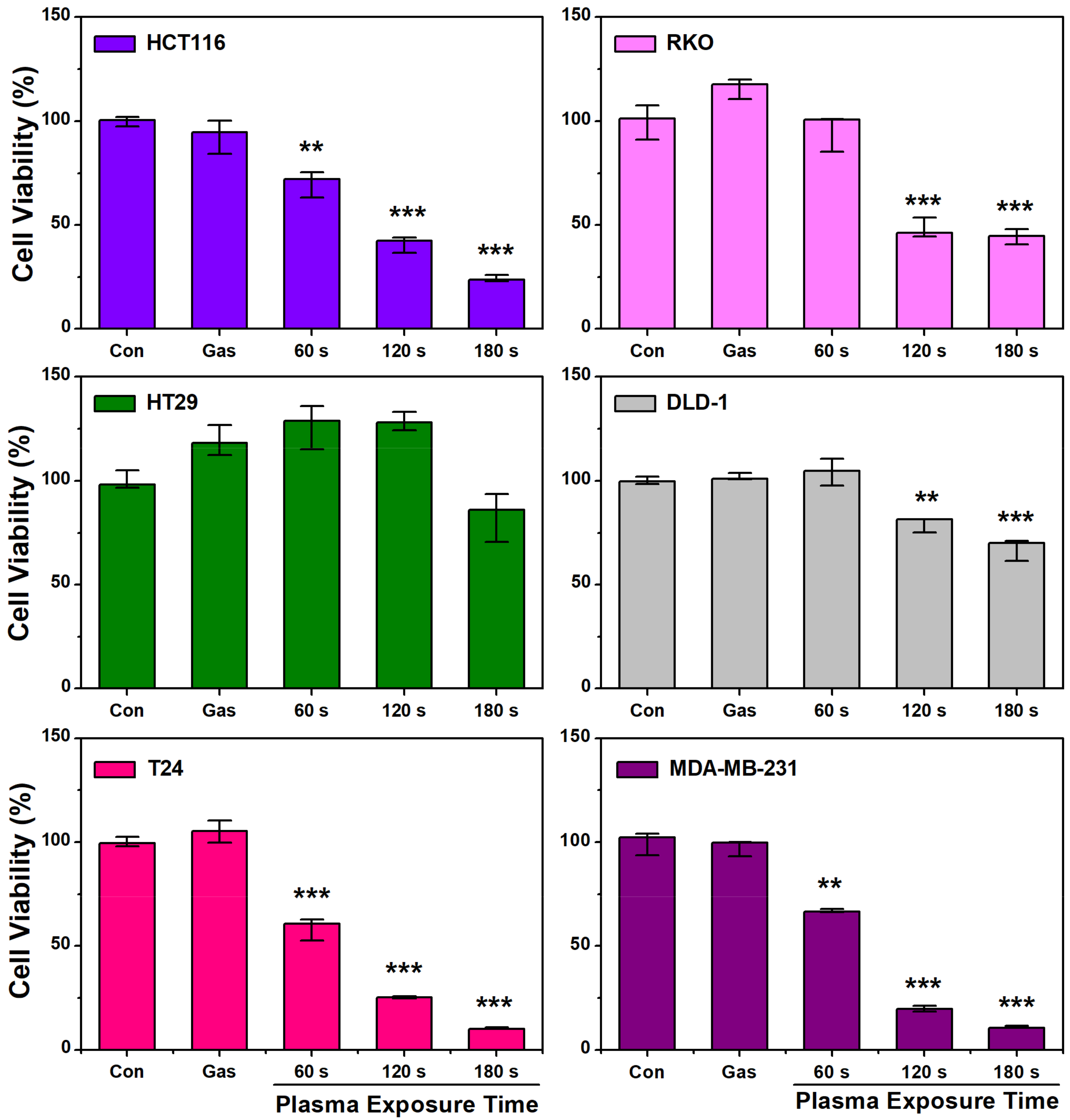

Figure 7. Cell viability of various cancer cell lines (human colorectal cancer cell line [HCT116, RKO, HT29, and DLD-1], human bladder cancer cell line [T-24], and human breast cancer cell line [MDA-MB-231]), detected using a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) assay kit. Data are represented as the mean ± SD. Cell viability was measured 24 h after the plasma-activated media (PAM) treatment. The jet operating conditions were a gas flow rate of 1.9 standard liters per min (SLM) and power of 7 W. The culture medium was exposed for 60, 120, and 180 s. **, p < 0.01; ***, p < 0.001.
Figure 7. Cell viability of various cancer cell lines (human colorectal cancer cell line [HCT116, RKO, HT29, and DLD-1], human bladder cancer cell line [T-24], and human breast cancer cell line [MDA-MB-231]), detected using a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) assay kit. Data are represented as the mean ± SD. Cell viability was measured 24 h after the plasma-activated media (PAM) treatment. The jet operating conditions were a gas flow rate of 1.9 standard liters per min (SLM) and power of 7 W. The culture medium was exposed for 60, 120, and 180 s. **, p < 0.01; ***, p < 0.001.
Ijms 25 01249 g007
Ijms 25 01249 g008

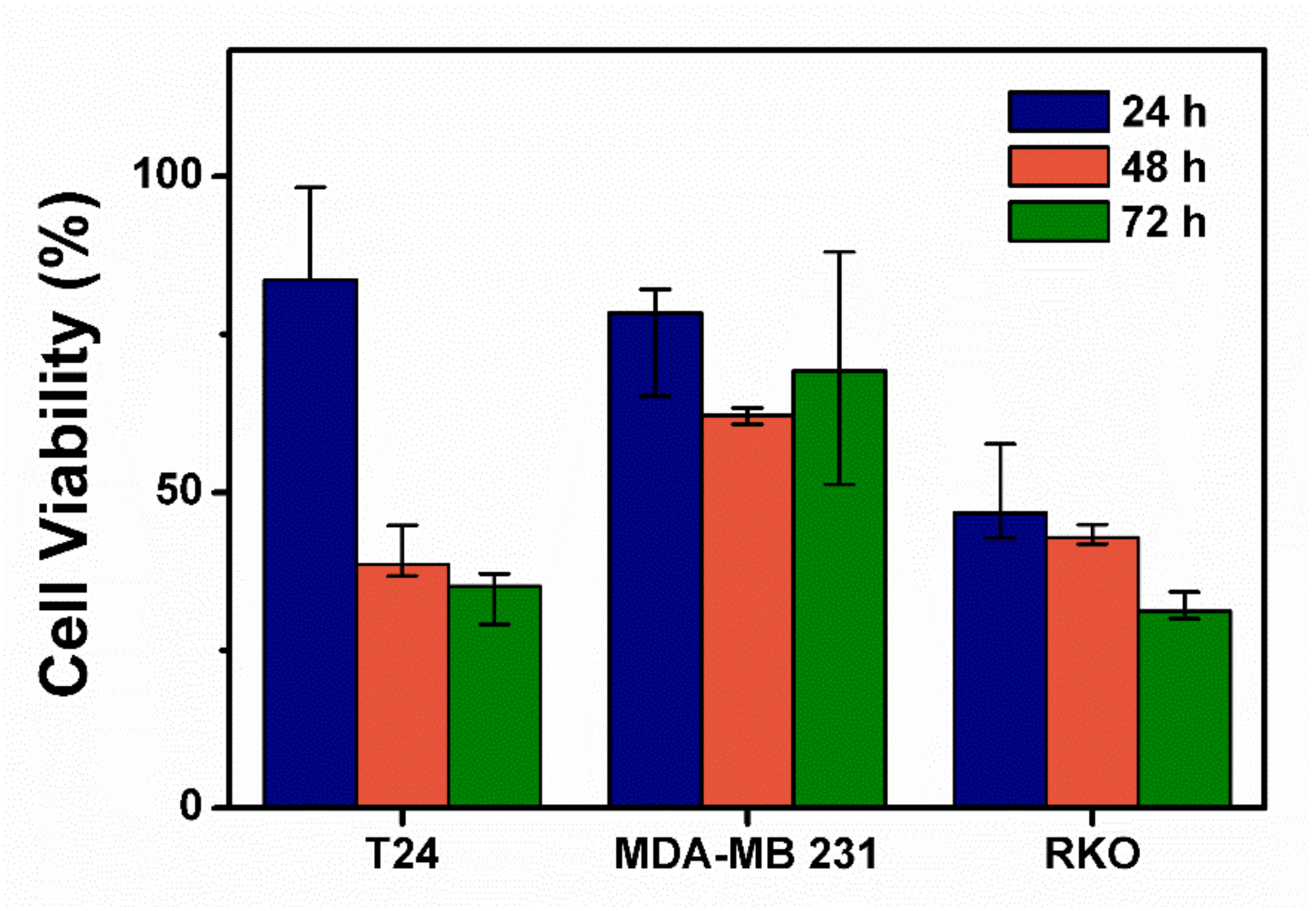

Figure 8. Cell viability of various cancer cell lines (bladder cancer cell line [T-24], human breast cancer cell line [MDA-MB-231], human colorectal cancer cell line [RKO]) at several incubation times (24, 48, and 72 h). Cells were treated by plasma-activated media (PAM) produced by a plasma jet with the operating conditions: 1.9 SLM, 7 W, 120 s. Each point represents the mean ± SD of three replicates.
Figure 8. Cell viability of various cancer cell lines (bladder cancer cell line [T-24], human breast cancer cell line [MDA-MB-231], human colorectal cancer cell line [RKO]) at several incubation times (24, 48, and 72 h). Cells were treated by plasma-activated media (PAM) produced by a plasma jet with the operating conditions: 1.9 SLM, 7 W, 120 s. Each point represents the mean ± SD of three replicates.
Ijms 25 01249 g008
Ijms 25 01249 g009
Figure 9. Plasma-activated media (PAM) sensitizing human bladder cancer cells (T-24) to cisplatin. T-24 and cisplatin-resistant human bladder cancer cells (T-24R) were treated with PAM for 24 h. For the T-24 cells, the PAM-alone treatments 30P (plasma exposure time 30 s) and 60P (exposure time 60 s) proved to be effective relative to the cisplatin (5 µM)-only treatment. For the T-24 cells and T-24R, the combination of the PAM with cisplatin (30P+C and 60P+C) resulted in lower viability as compared to the PAM-alone case and the cisplatin-alone (25 µM) case. Each point represents the mean ± SD of three replicates. **, p < 0.01. The percentage values shown along with ** represent the reduction of the measured viability.
Figure 9. Plasma-activated media (PAM) sensitizing human bladder cancer cells (T-24) to cisplatin. T-24 and cisplatin-resistant human bladder cancer cells (T-24R) were treated with PAM for 24 h. For the T-24 cells, the PAM-alone treatments 30P (plasma exposure time 30 s) and 60P (exposure time 60 s) proved to be effective relative to the cisplatin (5 µM)-only treatment. For the T-24 cells and T-24R, the combination of the PAM with cisplatin (30P+C and 60P+C) resulted in lower viability as compared to the PAM-alone case and the cisplatin-alone (25 µM) case. Each point represents the mean ± SD of three replicates. **, p < 0.01. The percentage values shown along with ** represent the reduction of the measured viability.
Ijms 25 01249 g009
Ijms 25 01249 g010
Figure 10. Plasma-activated media (PAM) regulated mRNA expression levels of HER2 (ErbB2) and HER3 (ErbB3) genes in HT29, DLD-1, RKO, and HCT116 cancer cells measured by quantitative real-time polymerase chain reaction (qRT-PCR). Cells were treated by plasma-activated media (PAM) produced by a plasma jet with the operating conditions: 1.9 SLM, 7 W, 180 s. Each point represents the mean ± SD of three replicates. *, p < 0.05; **, p < 0.01.
Figure 10. Plasma-activated media (PAM) regulated mRNA expression levels of HER2 (ErbB2) and HER3 (ErbB3) genes in HT29, DLD-1, RKO, and HCT116 cancer cells measured by quantitative real-time polymerase chain reaction (qRT-PCR). Cells were treated by plasma-activated media (PAM) produced by a plasma jet with the operating conditions: 1.9 SLM, 7 W, 180 s. Each point represents the mean ± SD of three replicates. *, p < 0.05; **, p < 0.01.
Ijms 25 01249 g010
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jo, A.; Joh, H.-M.; Bae, J.-H.; Kim, S.-J.; Chung, J.-W.; Chung, T.-H. Plasma-Activated Media Produced by a Microwave-Excited Atmospheric Pressure Plasma Jet Is Effective against Cisplatin-Resistant Human Bladder Cancer Cells In Vitro. Int. J. Mol. Sci. 2024, 25, 1249. https://doi.org/10.3390/ijms25021249

AMA Style

Jo A, Joh H-M, Bae J-H, Kim S-J, Chung J-W, Chung T-H. Plasma-Activated Media Produced by a Microwave-Excited Atmospheric Pressure Plasma Jet Is Effective against Cisplatin-Resistant Human Bladder Cancer Cells In Vitro. International Journal of Molecular Sciences. 2024; 25(2):1249. https://doi.org/10.3390/ijms25021249

Chicago/Turabian Style

Jo, Ara, Hea-Min Joh, Jin-Hee Bae, Sun-Ja Kim, Jin-Woong Chung, and Tae-Hun Chung. 2024. "Plasma-Activated Media Produced by a Microwave-Excited Atmospheric Pressure Plasma Jet Is Effective against Cisplatin-Resistant Human Bladder Cancer Cells In Vitro" International Journal of Molecular Sciences 25, no. 2: 1249. https://doi.org/10.3390/ijms25021249

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
