Review

Exploring the Impact of BKCa Channel Function in Cellular Membranes on Cardiac Electrical Activity

by
Yin-Chia Chen
1,
Chia-Lung Shih
2,
Chao-Liang Wu
3,
Yi-Hsien Fang
4,
Edmund Cheung So
5 and
Sheng-Nan Wu
6,7,*
1
Division of Cardiovascular Surgery, Department of Surgery, Ditmanson Medical Foundation Chia-Yi Christian Hospital, Chiayi City 60002, Taiwan
2
Clinical Research Center, Ditmanson Medical Foundation Chia-Yi Christian Hospital, Chiayi City 60056, Taiwan
3
Ditmanson Medical Foundation Chia-Yi Christian Hospital, Chiayi City 60002, Taiwan
4
Institute of Clinical Medicine, National Cheng Kung University Hospital, College of Medicine, National Cheng Kung University, Tainan 70403, Taiwan
5
Department of Anesthesia, An Nan Hospital, China Medical University, Tainan 70965, Taiwan
6
Department of Research and Education, An Nan Hospital, China Medical University, Tainan 70965, Taiwan
7
School of Medicine, College of Medicine, National Sun Yat-sen University, Kaohsiung 80421, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(3), 1537; https://doi.org/10.3390/ijms25031537
Submission received: 13 December 2023 / Revised: 14 January 2024 / Accepted: 19 January 2024 / Published: 26 January 2024
(This article belongs to the Special Issue Ion Channels as a Potential Target in Pharmaceutical Designs 2.0)

Abstract

:
This review paper delves into the current body of evidence, offering a thorough analysis of the impact of large-conductance Ca2+-activated K+ (BKCa or BK) channels on the electrical dynamics of the heart. Alterations in the activity of BKCa channels, responsible for the generation of the overall magnitude of Ca2+-activated K+ current at the whole-cell level, occur through allosteric mechanisms. The collaborative interplay between membrane depolarization and heightened intracellular Ca2+ ion concentrations collectively contribute to the activation of BKCa channels. Although fully developed mammalian cardiac cells do not exhibit functional expression of these ion channels, evidence suggests their presence in cardiac fibroblasts that surround and potentially establish close connections with neighboring cardiac cells. When cardiac cells form close associations with fibroblasts, the high single-ion conductance of these channels, approximately ranging from 150 to 250 pS, can result in the random depolarization of the adjacent cardiac cell membranes. While cardiac fibroblasts are typically electrically non-excitable, their prevalence within heart tissue increases, particularly in the context of aging myocardial infarction or atrial fibrillation. This augmented presence of BKCa channels’ conductance holds the potential to amplify the excitability of cardiac cell membranes through effective electrical coupling between fibroblasts and cardiomyocytes. In this scenario, this heightened excitability may contribute to the onset of cardiac arrhythmias. Moreover, it is worth noting that the substances influencing the activity of these BKCa channels might influence cardiac electrical activity as well. Taken together, the BKCa channel activity residing in cardiac fibroblasts may contribute to cardiac electrical function occurring in vivo.

1. Physiological Implications of Large-Conductance Ca2+-Activated K+ (BKCa) Channels

The large-conductance Ca2+-activated K+, commonly known as BKCa or BK channels—alternatively referred to as big Ca2+-activated K+ channels—are also recognized by names such as KCa1.1, KCNMA1, or Slo1 channels. These channels consist of four pore-forming α subunits, each containing seven transmembrane segments (S0–S6), contributing to their distinctive structure. Unlike voltage-gated K+ (KV) channels, the S0 segment is positioned at the N-terminus of each of the four pore-forming α subunits, while the S1–S6 segments collectively form the transmembrane region of the BKCa channel.
BKCa channels are members of the KV channel family, distinguished by their unique mode of activation. Activation of these channels occurs through an allosteric mechanism triggered by alterations in intracellular Ca2+ levels, variations in membrane potentials, or a combination of both factors [1,2,3,4]. Upon random activation, BKCa channels facilitate the flow of substantial amounts of ions, specifically favoring highly selective K+ ions, through the cell membrane. Additionally, owing to their substantial conductance or permeability to K+ ions, with single-channel conductance typically ranging from approximately 150 to 250 pS, BKCa channels are classified as maxi- or large-K+ channels, as illustrated in Figure 1. The single-channel conductance of BKCa channels refers to the measure of K+ ion flow through a single open channel of this type.
This family of voltage-gated K+ (KV) channels is functionally expressed in a broad spectrum of both excitable and non-excitable cell types. Alterations in the activity of BKCa channels can result in fluctuations in the magnitude of Ca2+-activated K+ currents (IK(Ca)) within the cell, thereby influencing the cell’s membrane potential. These channels demonstrate varying levels of abundance across diverse tissues in the body, including but not limited to smooth muscle tissues, neurons, endothelial cells, adrenal chromaffin cells, epithelial tissues, and pancreatic β cells [1,2,3,4,5]. They are ubiquitously expressed and play diverse roles in the regulation of cellular functions. Their activity has been shown to be involved in numerous physiological or pathological processes. These include membrane excitability, Ca2+ signaling, hormone or neurotransmitter release, stimulus-secretion coupling, muscle relaxation, and motor coordination [1,3,4,5,6,7,8,9,10]. However, the specific roles and levels of abundance can vary between tissues and under different physiological or pathological conditions. Numerous natural and synthetic molecules have been also shown to play crucial roles in regulating BKCa channel activity [11,12]. It has been established that alterations in BKCa channel activity can significantly impact cardiac function [13,14,15]. Furthermore, this review paper presents substantial evidence showing the presence of functional BKCa channels on the cell membranes within cardiac tissue. Importantly, the modulation of these ion channels can result in changes in the electrical activity of heart tissue.

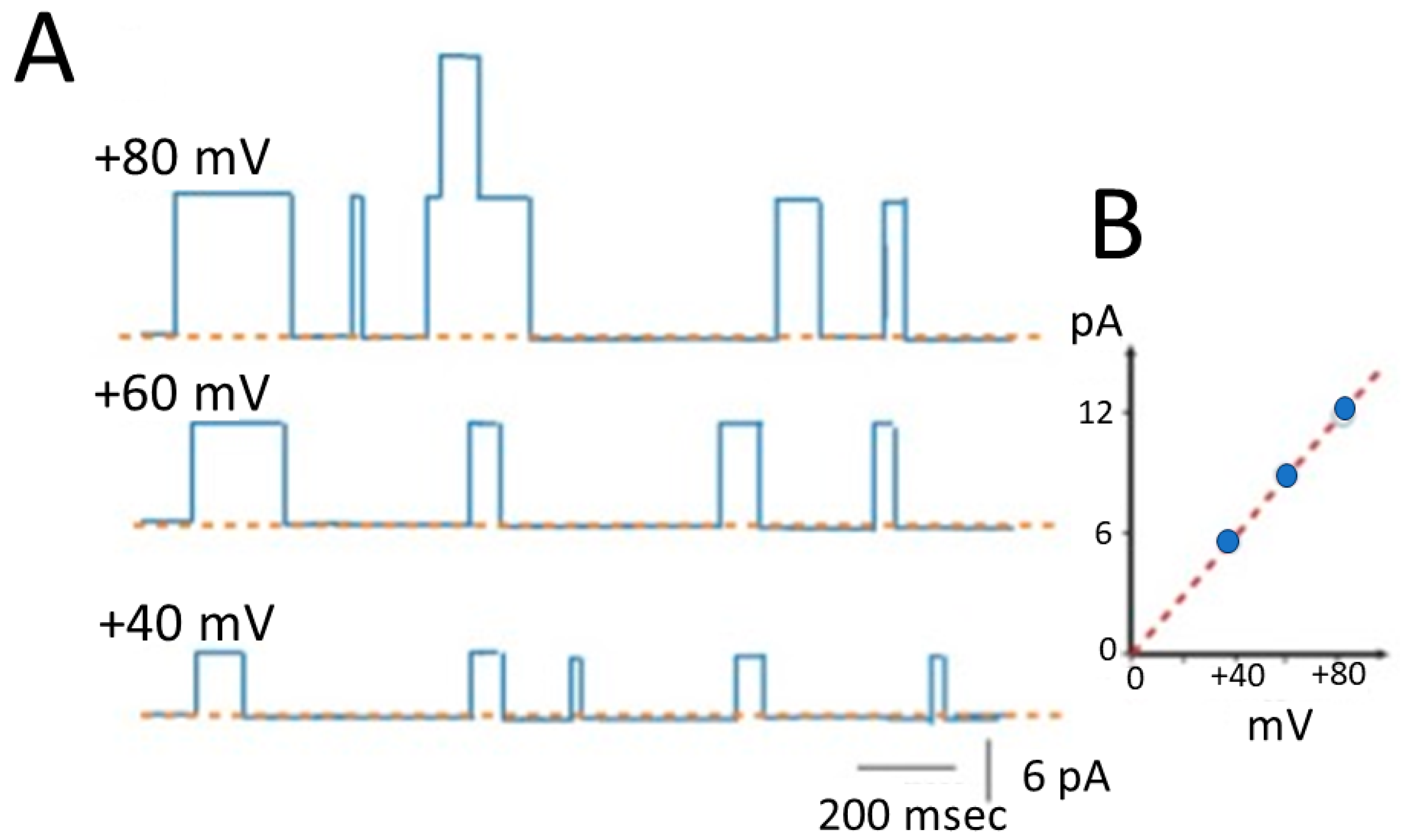

Figure 1. Biophysical characteristics of large-conductance Ca2+-activated K+ (BKCa) channels. The examined cells were bathed in a symmetrical K+ solution (145 mM K+) with a reversal potential of around 0 mV. (A) Idealized traces of BKCa channels in a cardiac fibroblast. These channels display dynamic behavior as they transition between open and closed states, and these state transitions occur randomly. The dashed orange line in each current trace serves as the reference point for zero current, signifying the channel’s closed state. The upper deflection of each current trace indicates events of random opening of the ion channel. The voltage values in the upper left corner of each current trace represent the level of the holding potential applied. Of note, as the voltage becomes more positive, there is an increase in both the amplitude and the open-state probability of ion flow through the BKCa channel. The traces in Figure 1A and Figure in Section 1.2 were idealized using the QUB package (https://qub.mandelics.com/), accessed on 5 January 2024. (B) Current versus voltage (IV) relationship of single BKCa channels with a reversal potential of 0 mV. The experiments were conducted in human cardiac fibroblasts, cells were bathed in a symmetrical K+ solution, and the recording pipette was filled with a K+-enriched solution. The reversal potential of K+ ions refers to the membrane potential at which there is no net flow of K+ ions across the cell membrane. Filled blue circles represent the measured amplitudes of BKCa channels. The dashed red line indicates a linear relationship, specifically the slope of the line, and thus provides an approximate single-channel conductance value of approximately 150 pS [13].
Figure 1. Biophysical characteristics of large-conductance Ca2+-activated K+ (BKCa) channels. The examined cells were bathed in a symmetrical K+ solution (145 mM K+) with a reversal potential of around 0 mV. (A) Idealized traces of BKCa channels in a cardiac fibroblast. These channels display dynamic behavior as they transition between open and closed states, and these state transitions occur randomly. The dashed orange line in each current trace serves as the reference point for zero current, signifying the channel’s closed state. The upper deflection of each current trace indicates events of random opening of the ion channel. The voltage values in the upper left corner of each current trace represent the level of the holding potential applied. Of note, as the voltage becomes more positive, there is an increase in both the amplitude and the open-state probability of ion flow through the BKCa channel. The traces in Figure 1A and Figure in Section 1.2 were idealized using the QUB package (https://qub.mandelics.com/), accessed on 5 January 2024. (B) Current versus voltage (IV) relationship of single BKCa channels with a reversal potential of 0 mV. The experiments were conducted in human cardiac fibroblasts, cells were bathed in a symmetrical K+ solution, and the recording pipette was filled with a K+-enriched solution. The reversal potential of K+ ions refers to the membrane potential at which there is no net flow of K+ ions across the cell membrane. Filled blue circles represent the measured amplitudes of BKCa channels. The dashed red line indicates a linear relationship, specifically the slope of the line, and thus provides an approximate single-channel conductance value of approximately 150 pS [13].
Ijms 25 01537 g001

1.1. The Role of BKCa Channel Activity Residing in Cardiac Fibroblasts

Fibroblasts, residing in connective tissue, are pivotal for synthesizing the extracellular matrix and collagen, thereby offering structural support to tissues, and playing a critical role in the process of wound healing. Specifically, cardiac fibroblasts, located within the heart tissue, are responsible for both the synthesis and maintenance of the extracellular matrix, which is indispensable for providing essential structural support to the heart. This matrix serves as a foundational framework for cardiomyocytes, the muscle cells responsible for the heart’s contraction.
Unlike cardiac muscle cells (cardiomyocytes), which are responsible for rhythmic and coordinated contraction, cardiac fibroblasts, classified as connective tissue cells, are indispensable for upholding the structural integrity of the heart. This is achieved through the synthesis of collagen and other proteins located within the myocardial tissue of the heart. Functional integrity of the heart tissue pertains to the overall health, stability, and proper operation of the various components comprising the physical structure of the heart. The well-developed heart is a complex organ composed of different types of cells, including cardiomyocytes, fibroblasts, blood vessels, and extracellular matrix.
BKCa channels undergo substantial activation in response to either depolarization of the cell membrane or an increase in intracellular Ca2+ levels. Furthermore, the whole-cell IK(Ca), where BKCa channel activity is relevant, displays a pronounced outward rectifying characteristic [3,13,16]. In the context of KV channels, outward rectification means that the channel primarily allows ions to move out of the cell in response to changes in membrane potential. In other words, the BKCa-channel’s conductance is higher for K+ ions moving in the outward direction (from inside the cell to the extracellular space) compared to K+ ions moving in the inward direction (from outside the cell to the intracellular space). This characteristic is significant in functions such as membrane hyperpolarization or repolarization, shaping action potentials, and the modulation of smooth muscle contraction [2,3,17].
However, owing to the outward rectifying property of BKCa channels, their functionality is relatively minimal when the cell membrane is at its resting potential. Consequently, in non-excitable cells such as fibroblasts, where changes in the cell membrane potential are minimal, the impact of BKCa channels on these cells seems to be constrained. In other words, if cardiac fibroblasts do not generate a heart-like action potential, their resting membrane potential is supposed to be roughly between −20 and −40 mV. In this case, BKCa channel activity is very weak. However, through effective electrical coupling, fibroblasts transition to having action potentials, causing the membrane potential to depolarize and consequently activate more BKCa channels. As a result, the magnitude of the whole-cell Ca2+-activated K+ current in cardiac fibroblasts increases significantly.
The action potential in the ventricles of mammalian hearts, excluding rodents, typically manifests as a square- or dome-shaped waveform, characterized by the presence of a plateau potential. The ventricular action potential refers to the sequence of electrical events that occur in the cardiac ventricular cells during each heartbeat. This process involves a series of phases, each characterized by specific changes in membrane potential. The interplay of specific ionic currents during the ventricular action potential ensures the proper coordination of electrical events leading to contraction and relaxation of the ventricular tissues.
It is worth noting, however, that a mitochondrial BKCa channel has been previously identified in dermal fibroblasts and heart cells [15,18,19]. These channels are located within the inner mitochondrial membrane, where they contribute to the regulation of mitochondrial function and cellular bioenergetics [10,20].
BKCa channel activity has been observed to contribute to membrane hyperpolarization in vascular endothelial cells, as part of endothelium-derived processes [10,20]. It is important to note that, unlike vascular smooth muscle cells, where the BKCa channels employ a negative feedback mechanism to regulate the excessive increase of intracellular Ca2+ ions, in vascular endothelial cells, the functioning of BKCa channels in vascular endothelial cells relies on positive feedback mechanisms to control the intracellular elevation of Ca2+ ions. Much like vascular or cardiac fibroblasts, a significant portion of vascular endothelial cells do not exhibit electrical excitability. Consequently, the control of intracellular Ca2+ within these cells relies on an electrochemical driving force, with a particular emphasis on the flux of Ca2+ ions. In simpler terms, the voltage gradient and concentration gradient of Ca2+ both align inward in these cells. The main reason for this is that the concentration of Ca2+ outside the cell is a thousand times greater than inside the cell, and Ca2+ itself carries a double positive charge. The electrochemical driving force refers to the combined influence of both the electrical gradient and the chemical (concentration) gradient acting on ions across a cell membrane. Resting intracellular Ca2+ concentrations in fibroblasts or endothelial cells are typically maintained at low levels within the cytoplasm, usually around 100 nM. The concentration of extracellular Ca2+ usually ranges from approximately 1.1 to 1.3 mM in the blood plasma. However, in response to stimulation, such as exposure to diverse signaling molecules or mechanical forces, a swift and transient elevation in intracellular Ca2+ levels can occur. Furthermore, the activation of BKCa channels is modulated by localized microdomains beneath the surface membrane. The precise intracellular concentration of Ca2+ concentration necessary for BKCa channel activation may vary contingent on the specific tissue or cell type.
However, in electrically excitable cells, such as vascular smooth muscle cells, a negative feedback mechanism operates, revealing a complex interplay during membrane depolarization. When membrane depolarization induces voltage-gated Ca2+ currents—such as T- or L-type Ca2+ currents—across the cell membrane, extracellular Ca2+ ions can readily ingress the cell. Concurrently, membrane depolarization activates voltage-gated Na+ current, further promoting cell depolarization. This dual effect, characterized by both membrane depolarization and elevated cytosolic Ca2+ concentrations, triggers the activation of BKCa channels. Consequently, these channels lead to membrane hyperpolarization by facilitating the efflux of K+ ions out of the cell. This hyperpolarization, in turn, results in the inactivation of voltage-gated Na+ and Ca2+ currents [2,3,21]. The activation of BKCa channels thus contributes to a retardation in the elevation of intracellular Ca2+, ensuring meticulous regulatory control.
The hERG or Kv7.1 channels indeed play a crucial role in the repolarization of the cardiac action potential. However, in mature cardiomyocytes, BKCa channel activity is absent. Consequently, how the activity of BKCa channels compares with other K+ channels in influencing the repolarization of mature cardiomyocytes remains unknown. It may be necessary to investigate whether effective electrical coupling, both qualitatively and quantitatively, can occur between these cardiac cells and the surrounding fibroblasts to gain insights into this aspect.
A noteworthy finding highlights the existence of BKCa channels in cardiac fibroblasts [13,14,22]. These channels are thought to play a role in facilitating potential electrical coupling between myocyte and fibroblast. Electrical coupling denotes the direct electrical link between neighboring cells, and computational modeling studies in silico lend support to this phenomenon [13,23] (Figure 2). This coupling is often used in the context of neurons or certain types of muscle cells where rapid and synchronized communication is essential. When cardiac fibroblasts are numerous and establish robust connections with neighboring cardiac cells through gap junctions or intercalated discs, functional electrical coupling can be ensured. Gap junctions, protein channels spanning the cell membranes of adjacent cardiomyocytes, are thought to allow for the direct exchange of ions (such as Na+, K+, and Ca2+ ions) and small molecules between neighboring cells [24]. Connexins are a family of proteins that play a critical role in the formation of gap junctions, specialized intercellular channels that allow direct communication between adjacent cells. These gap junctions enable the exchange of ions, small molecules, and signaling molecules, contributing to the coordination of physiological functions in tissues.
Moreover, the intercalated discs in heart tissues are specialized structures found in the heart tissue that play a crucial role in facilitating communication and coordination between adjacent cardiac muscle cells of the heart. This can allow them to work together as a functional unit during the contraction and relaxation of the heart. These discs play a crucial role in maintaining the integrity of the cardiac tissue, ensuring the synchronization of both electrical signals and mechanical forces. This synchronization is essential for the efficient and coordinated contraction of the heart. In other words, cardiomyocytes and fibroblasts may form a functional syncytium, allowing for coordinated contraction and efficient pumping of blood. The functional syncytium pertains to the unified and synchronized contraction of cardiac muscle cells in the heart tissue. The ability of these cells to form a functional syncytium is facilitated by their electrical connectivity through gap junctions.
In this context, cardiac fibroblasts may display a “dome-like configuration” in their action potentials, referencing the unique shape observed in specific cardiac cell types, particularly ventricular cardiomyocytes [13,25,26,27] (Figure 2).
Consequently, the depolarization of fibroblasts becomes more pronounced, emphasizing the crucial role of BKCa channels in cardiac fibroblasts due to their outwardly rectifying property. This prompts an intriguing hypothesis that cardiac fibroblasts may engage in significant interactions with cardiomyocytes, potentially making a significant contribution to the heart’s overall structural and functional integrity (Figure 2). This hypothesis becomes especially pertinent when contemplating the potential augmentation of their numbers or sizes within cardiac tissues, particularly in conditions such as atrial fibrillation or preceding myocardial infarction [22,28,29,30,31,32]. Atrial fibrillation is a common and often chronic heart rhythm disorder that affects the upper chambers of the heart, known as the atria. In atrial fibrillation, the normal coordinated electrical impulses that regulate the heart’s rhythm become chaotic and irregular. Consequently, instead of the atria contracting efficiently to move blood into the ventricles, they quiver or fibrillate. The preceding or old myocardial infarction, commonly referred to as an “old heart attack”, is a term used to describe a previous heart attack or myocardial infarction that occurred in the past, and the affected tissue has undergone certain changes over time.
Cardiac fibroblasts play a crucial role in the process of cardiac remodeling that ensues after an old myocardial infarction. Following a myocardial infarction, a section of the heart muscle experiences oxygen deprivation, leading to the demise of cardiomyocytes. Subsequently, the body initiates a sequence of reparative and adaptive processes involving the activation of various cells, including cardiac fibroblasts [25,28,29]. Furthermore, cardiac remodeling, which encompasses both structural and functional alterations in response to diverse stimuli or stressors, relies on the functional capacity of cardiac fibroblasts. This process involves alterations in the size, shape, and function of the heart and its components. These adaptive changes are mechanisms aimed at preserving cardiac output and function in the face of altered conditions, such as increased workload, injury, or pathological circumstances. However, if the remodeling process becomes excessive or prolonged, namely pathological remodeling, it can result in functional impairment, potentially leading to conditions like heart failure. This compromise in the heart’s pumping ability may increase the risk of arrhythmias.

1.2. Influence of BKCa Channel Activity in Cardiac Fibroblasts on Membrane Potential of Heart Cells

Mammalian heart cells display a diverse cellular composition, placing primary emphasis on cardiomyocytes, cardiac fibroblasts, and endothelial cells. Notably, among the non-myocytes, cardiac fibroblasts are not electrically excitable and may constitute a substantial proportion, particularly in cases of atrial fibrillation or old myocardial infarction. These cardiac fibroblasts have been suggested to play crucial roles in shaping both the structure and functionality of the myocardium [26,29]. It is believed that these fibroblasts contribute to various aspects of cardiac performance, encompassing structural, biochemical, mechanical, and even electrical dimensions [25,26,29].
Although fully mature mammalian heart cells display electrical excitability, they do not possess functional activation of BKCa channels, despite the consistent functional expression of voltage-gated Na+ and Ca2+ currents in cardiac cells. Conversely, undifferentiated cardiomyocytes derived from embryonic stem cells have been observed to express the activity of these channels which is sensitive to be increased by membrane depolarization and/or elevated cytosolic Ca+ concentration [33,34]. The function of these channels in undifferentiated cardiomyocytes is also responsive to inhibition by paxilline, a natural product and a class of indole alkaloids known to effectively suppress the activity BKCa channels, but not by apamin, a blocker of small-conductance Ca2+-activated K+ channels. A contributing factor to this difference is the relatively prolonged duration of action potentials with a plateau potential in mature heart cells, which is attributed to the absence of functionally active BKCa channels [1,2]. Likewise, cardiomyocytes differentiated in vivo from amniotic fluid-derived stem cells showed no significant activity of BKCa cells [33]. Alternatively, earlier studies have suggested the possible presence of KCa1.1 (or KCNMA1) in human sinus node function [35,36].
Prior studies have shown that in cell-attached current-clamp voltage recordings, the sporadic opening and closure of BKCa channels were robustly observed in cardiac fibroblasts. The activity of these channels has the potential to induce random depolarizing waveforms via effective electrical coupling [33,37,38] (Figure 3). This phenomenon was also previously found in bovine chromaffin cells [39]. On the other hand, when heart cells are near cardiac fibroblasts, the activity of BKCa channels present on the surface of these fibroblasts can lead to varying degrees of membrane depolarization. When the cell membranes of these cardiac cells undergo random depolarization, coupled with the accumulation of temporal and spatial phenomena, it is likely to significantly increase the excitability of the cell membrane, even inducing the generation of action potentials. If the BKCa channels on cardiac fibroblasts are activated due to the treatment with the openers of the channel [11,14,16,20], it might even result in the facilitation of subtle membrane depolarization in neighboring heart cells. This effect is attributed to effective electrical coupling between cardiac fibroblasts and neighboring heart cells.
Additionally, there are reports of paxilline, which belongs to the indole-diterpene class of mycotoxins and is recognized as a potent inhibitor of BKCa channels. Paxilline is a toxin produced by certain species of fungus, particularly by the mushroom Paxillus involutus [13,40], leading to a reduction in heart rate [35]. Therefore, exploring the potential impact of diverse BKCa channel modulators on the regulation of cardiac electrical activity is also a worthwhile pursuit. However, it is noteworthy that paxilline can inhibit sarco/endoplasmic reticulum Ca2+ ATPase (SERCA) [41], a crucial player in excitation-contraction coupling and cardiac muscle contraction. The precise contribution of paxilline to heart rate effects requires clarification, as it remains uncertain whether these effects are primarily attributed to the modulation of BKCa channels or the inhibition of SERCA activity.

1.3. BKCa-Channel Activity Residing in Vascular Smooth Muscle Cells

Alternatively, in electrically excitable cells like vascular smooth myocytes and pituitary GH3 lactotrophs, there is compelling evidence suggesting that the activity of BKCa channel activity can potentially interact with voltage-gated Ca2+ (CaV) channels. This interaction leads to the formation of BKCa-CaV complexes, facilitating rapid and localized Ca2+-activated K+ signaling [3,17,21,42]. The expression of auxiliary β-subunits was also reported to be lacking in BKCa-channels within cardiac fibroblasts; however, these subunits (i.e., α + β subunits) are abundant in vascular muscle cells.
Previous studies have also shown that BKCa channels in vascular smooth muscle cells exhibit diverse increases in activity when exposed to membrane stretching, even in conditions that simulate vasomotion through cyclic stretching [43]. Vasomotion involves rhythmic, spontaneous, and oscillatory changes in blood vessel diameter, particularly in small arterioles and venules. The frequency of vasomotion can vary among individuals and across different vascular beds, commonly ranging from 0.02 to 0.3 Hz. Consequently, it is a plausible hypothesis that BKCa-channel activity could impact the interaction between fibroblasts and vascular myocytes or cardiomyocytes through cyclic or pulsatile changes in mechanical stress [22,44]. Mechanical stress or strain in blood vessels refers to the physical forces exerted on the vascular walls as a result of the pressure and flow of blood within the circulatory system.
On the other hand, while mature cardiac cells lack functional expression in BKCa channels [1,8,40,41,42,45,46], the majority of vascular smooth muscle cells typically display significant activity in BKCa channels. The heightened BKCa channel activity residing in vascular smooth muscle cells is recognized as contributing to the occurrence of whole-cell spontaneous transient oscillatory outward currents (STOCs) in these cells, even in the absence of external stimulation [47,48,49]. Spontaneous transient outward currents often occur in different types of smooth muscle cells, such as vascular smooth muscle cells, aligning with the occurrence of spontaneous transient oscillatory membrane hyperpolarization observed during the current-clamp configuration. These occurrences involve brief, self-limiting episodes of membrane hyperpolarization arising from the activation of KV channels, especially BKCa channels. Therefore, a thorough investigation is thus warranted to determine whether the increased activity of BKCa channels in vascular smooth muscle cells, especially at the junctions of blood vessels and cardiac tissues such as veins and the atria, or large arteries and the ventricles, might have a potential role in generating ectopic foci and subsequently triggering cardiac arrhythmias in these specific locations [7,22,31,32,43,45,50]. Indeed, earlier reports have identified the source of specific atrial tachycardia, flutter, or fibrillation, with many originating at the interface between the pulmonary veins and the posterior left atrium [51,52]. Therefore, the BKCa channel activity in this region may influence the occurrence of arrhythmias.

2. Conclusions

BKCa channels are ion channels that respond to fluctuations in intracellular Ca2+ levels by facilitating the efflux of K+ ions. This process influences cell membrane potential and various cellular functions across different tissues and cell types. These channels are particularly important in the regulation of cellular excitability, neurotransmitter or hormone release, smooth muscle tone, and cardiovascular function [2,3,7,8]. This paper underscores the significant influence of BKCa channel activity across the membrane of cardiac fibroblasts on the electrical dynamics of cardiac cells, especially in situations where these fibroblasts are plentiful and intricately connected with a substantial proportion of neighboring cardiac cells.
This paper emphasizes that BKCa channels are notably absent in mature cardiomyocytes but are present in fibroblasts. However, due to intercellular connections, the presence of BKCa channels in fibroblasts can impact the membrane potential and action potential duration of neighboring cardiomyocytes. However, the connection between BKCa channels, the action potential, and the onset of arrhythmia seems insufficiently elucidated. Verification is essential for confirming whether alterations in BKCa channels can indeed disturb the action potential and induce arrhythmia in both cellular and animal model settings.
The walls of blood vessels, encompassing both arteries and veins, are composed of three primary layers known as the intima, media, and adventitia. The innermost layer is the intima, housing vascular endothelial cells, while the middle layer is the media, which contains vascular smooth muscle cells. Vascular fibroblasts are located in the connective tissue between the intima and media layers. Vascular endothelial cells are electrically non-excitable, whereas vascular smooth muscle cells are electrically active. This leads to speculation about the potential pivotal role of vascular fibroblasts in maintaining the structural, functional, and electrical integrity of blood vessels. Further research is necessary to explore the potential correlation between BKCa channel activity in these fibroblasts and the separation of intima and media, corresponding to the dissection of blood vessels [53]. The dissection of blood vessels refers to a condition where there is a separation or tearing of the layers that make up the walls of blood vessels. This separation can occur between the intima and media layers or within any of the vascular layers. It is commonly associated with diseases such as aortic or coronary artery dissection [54,55].
Moreover, it is noteworthy that, unlike heart tissues [13,24], there is a limited degree of electrical coupling between endothelial cells [25] and smooth muscle cells. For example, the basal lamina is a specialized extracellular matrix primarily associated with the endothelial cells of the intima layer, and offers structural support to these cells, effectively separating them from the underlying connective tissue. Therefore, within blood vessels, the electrical coupling occurs with varying efficiency among vascular endothelial cells, fibroblasts, vascular smooth muscle cells, and even ganglion cells or neurons. This variability is primarily attributed to the unequal distribution of connective tissue.
Alternatively, prior research has suggested that cardiac fibroblasts possess the ability to evoke additional types of whole-cell K+ currents elicited during membrane depolarization, demonstrating an outward rectifying property [22,23,29,45,56,57]. Previous studies have also highlighted the role of apamin-sensitive Ca2+-activated K+ (KCa) channels, specifically small-conductance KCa channels, in exerting a proarrhythmic effect reported in isolated canine left atrium [58,59]. The activity of the BKCa channel is thought to be impervious to apamin, with susceptibility limited to iberiotoxin or paxilline. However, it remains unexplored whether the magnitude of these KV currents similarly influences the membrane potential of neighboring heart cells, emphasizing the imperative for further investigation in this context [60].

Author Contributions

Conceptualization, S.-N.W., Y.-C.C., C.-L.W., E.C.S. and Y.-H.F.; methodology, S.-N.W.; software, C.-L.W.; validation, Y.-C.C., C.-L.S. and S.-N.W.; writing—original draft preparation, Y.-C.C.; writing—review and editing, C.-L.W.; visualization, S.-N.W.; supervision, S.-N.W.; funding acquisition, S.-N.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partly aided by the grants from Ministry of Science and Technology (NSTC-110-2320-B-006-028, NSTC-111-2320-B-006-028, and NSTC-112-2923-B-006-001) and A Nan Hospital (ANHRF-111-10, ANHRF-112-42, ANAR-112-43, and ANHRF-112-44), Taiwan. The funders of this study did not participate in the study design, data collection, analyses, or interpretation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors draw inspiration and encouragement from Ruey J. Sung of the Department of Medicine at Stanford University School of Medicine, Stanford, CA, USA, over an extended period. Special thanks are extended to Hsin-Yen Cho for technical assistance. Owing to the constraints of the paper’s limited length, it is regrettable that not all pertinent references can be included. The authors apologize for any inconvenience arising from this limitation.

Conflicts of Interest

The authors assert that the research was carried out without any existing commercial or financial affiliations that might be perceived as potential sources of conflicts of interest.

References

  1. Toro, L.; Wallner, M.; Meera, P.; Tanaka, Y. Maxi-K(Ca), a Unique Member of the Voltage-Gated K Channel Superfamily. News Physiol. Sci. 1998, 13, 112–117. [Google Scholar] [CrossRef] [PubMed]
  2. Toro, L.; Li, M.; Zhang, Z.; Singh, H.; Wu, Y.; Stefani, E. MaxiK channel and cell signalling. Pflug. Arch. 2014, 466, 875–886. [Google Scholar] [CrossRef] [PubMed]
  3. Ghatta, S.; Nimmagadda, D.; Xu, X.; O’Rourke, S.T. Large-conductance, calcium-activated potassium channels: Structural and functional implications. Pharmacol. Ther. 2006, 110, 103–116. [Google Scholar] [CrossRef] [PubMed]
  4. Orfali, R.; Albanyan, N. Ca(2+)-Sensitive Potassium Channels. Molecules 2023, 28, 885. [Google Scholar] [CrossRef] [PubMed]
  5. N’Gouemo, P. BKCa channel dysfunction in neurological diseases. Front. Physiol. 2014, 5, 373. [Google Scholar] [CrossRef] [PubMed]
  6. Szteyn, K.; Singh, H. BK(Ca) Channels as Targets for Cardioprotection. Antioxidants 2020, 9, 760. [Google Scholar] [CrossRef]
  7. Guntur, D.; Olschewski, H.; Enyedi, P.; Csáki, R.; Olschewski, A.; Nagaraj, C. Revisiting the Large-Conductance Calcium-Activated Potassium (BKCa) Channels in the Pulmonary Circulation. Biomolecules 2021, 11, 1629. [Google Scholar] [CrossRef]
  8. Al-Karagholi, M.A. Involvement of Potassium Channel Signalling in Migraine Pathophysiology. Pharmaceuticals 2023, 16, 438. [Google Scholar] [CrossRef]
  9. Michelucci, A.; Sforna, L.; Di Battista, A.; Franciolini, F.; Catacuzzeno, L. Ca(2+) -activated K(+) channels regulate cell volume in human glioblastoma cells. J. Cell. Physiol. 2023, 238, 2120–2134. [Google Scholar] [CrossRef]
  10. Neira, F.; Neira, N.; Torres, J.; González-Ortiz, M. Physiological and Pathophysiological Role of Large-Conductance Calcium-Activated Potassium Channels (BKCa) in HUVECs and Placenta. Adv. Exp. Med. Biol. 2023, 1428, 71–82. [Google Scholar] [CrossRef]
  11. Wu, S.N.; Jan, C.R.; Chiang, H.T. Fenamates stimulate BKCa channel osteoblast-like MG-63 cells activity in the human. J. Investig. Med. 2001, 49, 522–533. [Google Scholar] [CrossRef]
  12. Wu, S.N. Large-conductance Ca2+-activated K+ channels:physiological role and pharmacology. Curr. Med. Chem. 2003, 10, 649–661. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, Y.J.; Sung, R.J.; Lin, M.W.; Wu, S.N. Contribution of BK(Ca)-channel activity in human cardiac fibroblasts to electrical coupling of cardiomyocytes-fibroblasts. J. Membr. Biol. 2006, 213, 175–185. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Y.J.; Lin, M.W.; Wu, S.N.; Sung, R.J. The activation by estrogen receptor agonists of the BK(Ca)-channel in human cardiac fibroblasts. Biochem. Pharmacol. 2007, 73, 1347–1357. [Google Scholar] [CrossRef]
  15. Cordeiro, B.; Terentyev, D.; Clements, R.T. BKCa channel activation increases cardiac contractile recovery following hypothermic ischemia/reperfusion. Am. J. Physiol. Heart Circ. Physiol. 2015, 309, H625–H633. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, S.N.; Wu, A.Z.; Lin, M.W. Pharmacological roles of the large-conductance calcium-activated potassium channel. Curr. Top. Med. Chem. 2006, 6, 1025–1030. [Google Scholar] [CrossRef] [PubMed]
  17. Wu, S.N.; Lo, Y.K.; Li, H.F.; Shen, A.Y. Functional coupling of voltage-dependent L-type Ca2+ current to Ca2+-activated K+ current in pituitary GH3 cells. Chin. J. Physiol. 2001, 44, 161–167. [Google Scholar] [PubMed]
  18. Sato, T.; Saito, T.; Saegusa, N.; Nakaya, H. Mitochondrial Ca2+-activated K+ channels in cardiac myocytes: A mechanism of the cardioprotective effect and modulation by protein kinase A. Circulation 2005, 111, 198–203. [Google Scholar] [CrossRef] [PubMed]
  19. Kicinska, A.; Augustynek, B.; Kulawiak, B.; Jarmuszkiewicz, W.; Szewczyk, A.; Bednarczyk, P. A large-conductance calcium-regulated K+ channel in human dermal fibroblast mitochondria. Biochem. J. 2016, 473, 4457–4471. [Google Scholar] [CrossRef]
  20. Li, H.F.; Chen, S.A.; Wu, S.N. Evidence for the stimulatory effect of resveratrol on Ca(2+)-activated K+ current in vascular endothelial cells. Cardiovasc. Res. 2000, 45, 1035–1045. [Google Scholar] [CrossRef]
  21. Berkefeld, H.; Sailer, C.A.; Bildl, W.; Rohde, V.; Thumfart, J.O.; Eble, S.; Klugbauer, N.; Reisinger, E.; Bischofberger, J.; Oliver, D.; et al. BKCa-Cav channel complexes mediate rapid and localized Ca2+-activated K+ signaling. Science 2006, 314, 615–620. [Google Scholar] [CrossRef] [PubMed]
  22. He, M.L.; Liu, W.J.; Sun, H.Y.; Wu, W.; Liu, J.; Tse, H.F.; Lau, C.P.; Li, G.R. Effects of ion channels on proliferation in cultured human cardiac fibroblasts. J. Mol. Cell Cardiol. 2011, 51, 198–206. [Google Scholar] [CrossRef] [PubMed]
  23. Li, G.R.; Sun, H.Y.; Chen, J.B.; Zhou, Y.; Tse, H.F.; Lau, C.P. Characterization of multiple ion channels in cultured human cardiac fibroblasts. PLoS ONE 2009, 4, e7307. [Google Scholar] [CrossRef] [PubMed]
  24. Dean, J.B.; Huang, R.Q.; Erlichman, J.S.; Southard, T.L.; Hellard, D.T. Cell-cell coupling occurs in dorsal medullary neurons after minimizing anatomical-coupling artifacts. Neuroscience 1997, 80, 21–40. [Google Scholar] [CrossRef] [PubMed]
  25. Kamkin, A.; Kiseleva, I.; Lozinsky, I.; Scholz, H. Electrical interaction of mechanosensitive fibroblasts and myocytes in the heart. Basic. Res. Cardiol. 2005, 100, 337–345. [Google Scholar] [CrossRef]
  26. Kizana, E.; Ginn, S.L.; Allen, D.G.; Ross, D.L.; Alexander, I.E. Fibroblasts can be genetically modified to produce excitable cells capable of electrical coupling. Circulation 2005, 111, 394–398. [Google Scholar] [CrossRef]
  27. Lampe, P.D.; Cooper, C.D.; King, T.J.; Burt, J.M. Analysis of Connexin43 phosphorylated at S325, S328 and S330 in normoxic and ischemic heart. J. Cell Sci. 2006, 119, 3435–3442. [Google Scholar] [CrossRef]
  28. Baudino, T.A.; Carver, W.; Giles, W.; Borg, T.K. Cardiac fibroblasts: Friend or foe? Am. J. Physiol. Heart Circ. Physiol. 2006, 291, H1015–H1026. [Google Scholar] [CrossRef]
  29. Wu, C.T.; Qi, X.Y.; Huang, H.; Naud, P.; Dawson, K.; Yeh, Y.H.; Harada, M.; Kuo, C.T.; Nattel, S. Disease and region-related cardiac fibroblast potassium current variations and potential functional significance. Cardiovasc. Res. 2014, 102, 487–496. [Google Scholar] [CrossRef]
  30. Angelini, A.; Ortiz-Urbina, J.; Trial, J.; Reddy, A.K.; Malovannaya, A.; Jain, A.; Entman, M.L.; Taffet, G.E.; Cieslik, K.A. Sex-specific phenotypes in the aging mouse heart and consequences for chronic fibrosis. Am. J. Physiol. Heart Circ. Physiol. 2022, 323, H285–H300. [Google Scholar] [CrossRef] [PubMed]
  31. Gupta, T.; Kaur, M.; Sahni, D. Identification of novel pulmonary vein nodes as generators of ectopic arrhythmic foci for atrial fibrillation: An immunohistochemical proof. Surg. Radiol. Anat. 2022, 44, 129–136. [Google Scholar] [CrossRef]
  32. Yamagishi, Y.; Oginosawa, Y.; Fujino, Y.; Yagyu, K.; Miyamoto, T.; Tsukahara, K.; Ohe, H.; Kohno, R.; Kataoka, M.; Abe, H. Relationship between Effective Refractory Period and Inducibility of Atrial Fibrillation from the Superior Vena Cava after Pulmonary Vein Isolation. Int. Heart J. 2022, 63, 498–503. [Google Scholar] [CrossRef]
  33. Liu, Y.W.; Fang, Y.H.; Su, C.T.; Hwang, S.M.; Liu, P.Y.; Wu, S.N. The biochemical and electrophysiological profiles of amniotic fluid-derived stem cells following Wnt signaling modulation cardiac differentiation. Cell Death Discov. 2019, 5, 59. [Google Scholar] [CrossRef]
  34. Kleger, A.; Liebau, S. Calcium-activated potassium channels, cardiogenesis of pluripotent stem cells, and enrichment of pacemaker-like cells. Trends Cardiovasc. Med. 2011, 21, 74–83. [Google Scholar] [CrossRef]
  35. Imlach, W.L.; Finch, S.C.; Miller, J.H.; Meredith, A.L.; Dalziel, J.E. A role for BK channels in heart rate regulation in rodents. PLoS ONE 2010, 5, e8698. [Google Scholar] [CrossRef] [PubMed]
  36. Pineda, S.; Nikolova-Krstevski, V.; Leimena, C.; Atkinson, A.J.; Altekoester, A.K.; Cox, C.D.; Jacoby, A.; Huttner, I.G.; Ju, Y.K.; Soka, M.; et al. Conserved Role of the Large Conductance Calcium-Activated Potassium Channel, K(Ca)1.1, in Sinus Node Function and Arrhythmia Risk. Circ. Genom. Precis. Med. 2021, 14, e003144. [Google Scholar] [CrossRef] [PubMed]
  37. Perkins, K.L. Cell-attached voltage-clamp and current-clamp recording and stimulation techniques in brain slices. J. Neurosci. Methods 2006, 154, 1–18. [Google Scholar] [CrossRef] [PubMed]
  38. Roshchin, M.V.; Matlashov, M.E.; Ierusalimsky, V.N.; Balaban, P.M.; Belousov, V.V.; Kemenes, G.; Staras, K.; Nikitin, E.S. A BK channel-mediated feedback pathway links single-synapse activity with action potential sharpening in repetitive firing. Sci. Adv. 2018, 4, eaat1357. [Google Scholar] [CrossRef] [PubMed]
  39. Fenwick, E.M.; Marty, A.; Neher, E. A patch-clamp study of bovine chromaffin cells and of their sensitivity to acetylcholine. J. Physiol. 1982, 331, 577–597. [Google Scholar] [CrossRef] [PubMed]
  40. Knaus, H.G.; McManus, O.B.; Lee, S.H.; Schmalhofer, W.A.; Garcia-Calvo, M.; Helms, L.M.; Sanchez, M.; Giangiacomo, K.; Reuben, J.P.; Smith, A.B., 3rd; et al. Tremorgenic indole alkaloids potently inhibit smooth muscle high-conductance calcium-activated potassium channels. Biochemistry 1994, 33, 5819–5828. [Google Scholar] [CrossRef] [PubMed]
  41. Bilmen, J.G.; Wootton, L.L.; Michelangeli, F. The mechanism of inhibition of the sarco/endoplamic reticulum Ca2+-ATPase by paxilline. Arch. Biochem. Biophys. 2002, 406, 55–64. [Google Scholar] [CrossRef]
  42. Dryn, D.O.; Melnyk, M.I.; Melanaphy, D.; Kizub, I.V.; Johnson, C.D.; Zholos, A.V. Bidirectional TRP/L Type Ca(2+) Channel/RyR/BKCa Molecular and Functional Signaloplex in Vascular Smooth Muscles. Biomolecules 2023, 13, 759. [Google Scholar] [CrossRef] [PubMed]
  43. Wu, S.N.; Lin, P.H.; Hsieh, K.S.; Liu, Y.C.; Chiang, H.T. Behavior of nonselective cation channels and large-conductance Ca2+-activated K+ channels induced by dynamic changes in membrane stretch in cultured smooth muscle cells of human coronary artery. J. Cardiovasc. Electrophysiol. 2003, 14, 44–51. [Google Scholar] [CrossRef]
  44. Abramochkin, D.V.; Lozinsky, I.T.; Kamkin, A. Influence of mechanical stress on fibroblast-myocyte interactions in mammalian heart. J. Mol. Cell Cardiol. 2014, 70, 27–36. [Google Scholar] [CrossRef] [PubMed]
  45. Findlay, I.; Pasqualin, C.; Yu, A.; Maupoil, V.; Bredeloux, P. Selective Inhibition of Pulmonary Vein Excitability by Constitutively Active GIRK Channels Blockade in Rats. Int. J. Mol. Sci. 2023, 24, 13629. [Google Scholar] [CrossRef] [PubMed]
  46. Staruschenko, A.; Ma, R.; Palygin, O.; Dryer, S.E. Ion channels and channelopathies in glomeruli. Physiol. Rev. 2023, 103, 787–854. [Google Scholar] [CrossRef] [PubMed]
  47. Wu, S.N.; Chao, C.T. Inhibitory effect of ethanol on voltage-dependent potassium currents in single aortic smooth muscle cells. Gaoxiong Yi Xue Ke Xue Za Zhi 1995, 11, 514–520. [Google Scholar] [PubMed]
  48. Bolton, T.; Imaizumi, Y. Spontaneous transient outward currents in smooth muscle cells. Cell Calcium 1996, 20, 141–152. [Google Scholar] [CrossRef]
  49. Humphries, E.S.A.; Kamishima, T.; Quayle, J.M.; Dart, C. Calcium/calmodulin-dependent kinase 2 mediates Epac-induced spontaneous transient outward currents in rat vascular smooth muscle. J. Physiol. 2017, 595, 6147–6164. [Google Scholar] [CrossRef]
  50. de Bakker, J.M.; Ho, S.Y.; Hocini, M. Basic and clinical electrophysiology of pulmonary vein ectopy. Cardiovasc. Res. 2002, 54, 287–294. [Google Scholar] [CrossRef]
  51. Haïssaguerre, M.; Jaïs, P.; Shah, D.C.; Takahashi, A.; Hocini, M.; Quiniou, G.; Garrigue, S.; Le Mouroux, A.; Le Métayer, P.; Clémenty, J. Spontaneous Initiation of Atrial Fibrillation by Ectopic Beats Originating in the Pulmonary Veins. N. Engl. J. Med. 1998, 339, 659–666. [Google Scholar] [CrossRef]
  52. Pérez-Castellano, N.; Villacastín, J.; Salinas, J.; Vega, M.; Moreno, J.; Doblado, M.; Ruiz, E.; Macaya, C. Epicardial connections between the pulmonary veins and left atrium: Relevance for atrial fibrillation ablation. J. Cardiovasc. Electrophysiol. 2011, 22, 149–159. [Google Scholar] [CrossRef]
  53. Shi, Y.; O’Brien, J.E.; Fard, A.; Mannion, J.D.; Wang, D.; Zalewski, A. Adventitial myofibroblasts contribute to neointimal formation in injured porcine coronary arteries. Circulation 1996, 94, 1655–1664. [Google Scholar] [CrossRef]
  54. Rylski, B.; Schilling, O.; Czerny, M. Acute aortic dissection: Evidence, uncertainties, and future therapies. Eur. Heart J. 2023, 44, 813–821. [Google Scholar] [CrossRef]
  55. Xu, M.; Wang, J.; Yuan, K.; Luo, X.; Liu, F.; Deng, M.; Wang, D. Recurrent spontaneous coronary artery dissection. Coron. Artery Dis. 2023, 34, 59–65. [Google Scholar] [CrossRef] [PubMed]
  56. Shibukawa, Y.; Chilton, E.L.; Maccannell, K.A.; Clark, R.B.; Giles, W.R. K+ currents activated by depolarization in cardiac fibroblasts. Biophys. J. 2005, 88, 3924–3935. [Google Scholar] [CrossRef]
  57. MacCannell, K.A.; Bazzazi, H.; Chilton, L.; Shibukawa, Y.; Clark, R.B.; Giles, W.R. A mathematical model of electrotonic interactions between ventricular myocytes and fibroblasts. Biophys. J. 2007, 92, 4121–4132. [Google Scholar] [CrossRef] [PubMed]
  58. Hsueh, C.H.; Chang, P.C.; Hsieh, Y.C.; Reher, T.; Chen, P.S.; Lin, S.F. Proarrhythmic effect of blocking the small conductance calcium activated potassium channel in isolated canine left atrium. Heart Rhythm. 2013, 10, 891–898. [Google Scholar] [CrossRef] [PubMed]
  59. Chan, Y.-H.; Tsai, W.-C.; Ko, J.-S.; Yin, D.; Chang, P.-C.; Rubart, M.; Weiss, J.N.; Everett, T.H., IV; Lin, S.-F.; Chen, P.-S. Small-conductance calcium-activated potassium current is activated during hypokalemia and masks short-term cardiac memory induced by ventricular pacing. Circulation 2015, 132, 1377–1386. [Google Scholar] [CrossRef]
  60. Mahoney, V.M.; Mezzano, V.; Morley, G.E. A review of the literature on cardiac electrical activity between fibroblasts and myocytes. Prog. Biophys. Mol. Biol. 2016, 120, 128–133. [Google Scholar] [CrossRef] [PubMed]

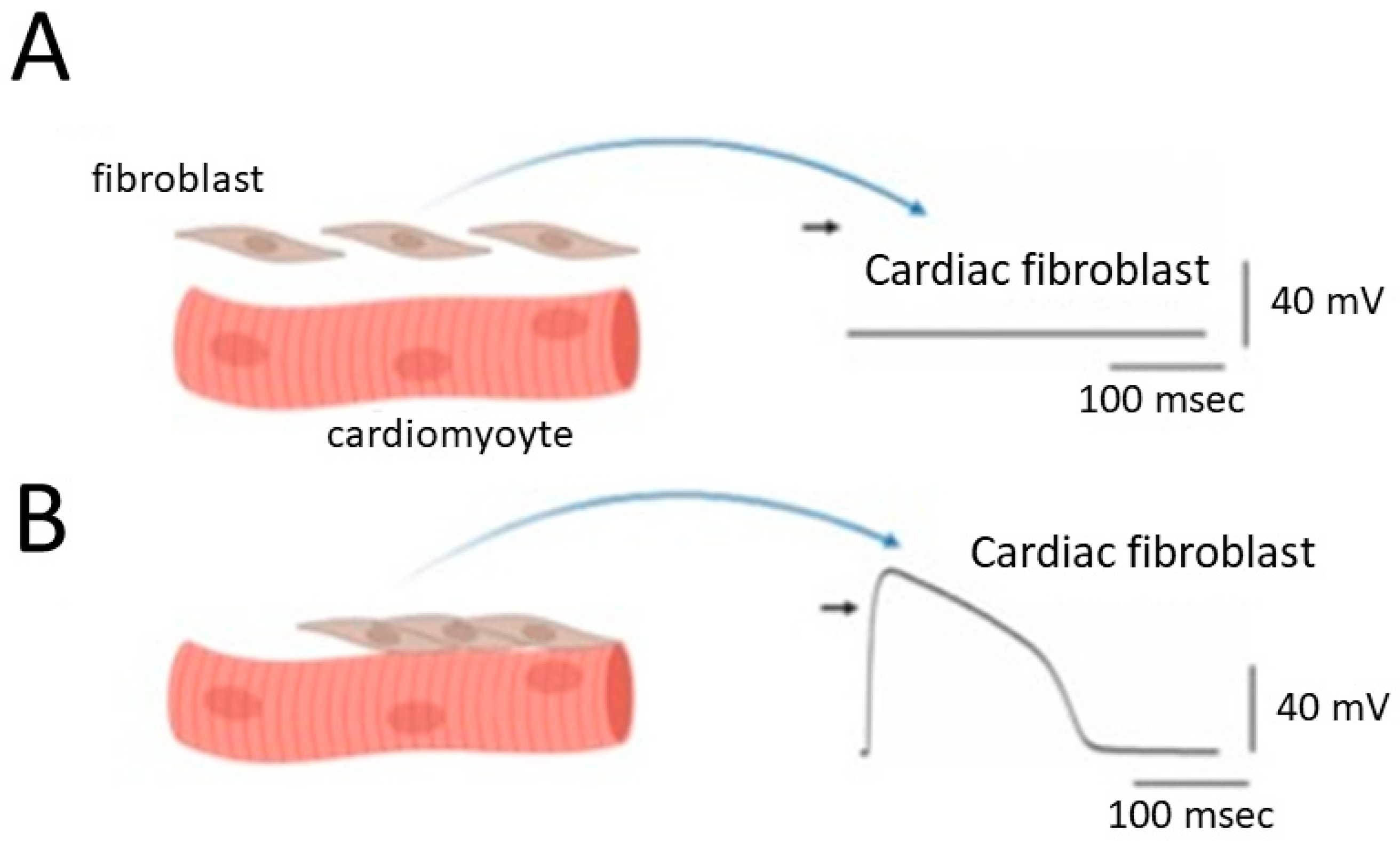

Figure 2. Alterations in the membrane potential of cardiac fibroblasts when they are structurally and electrically coupled to neighboring cardiomyocytes. Panel (A) represents this scenario in the absence of coupling, while panel (B) shows the situation in the presence of effective structural and electrical coupling. The graph depicts cardiac myocytes on the left side, showcasing evident striations. Importantly, the diagram highlights cardiac cells characterized by distinct striations, serving as an indicator of ventricular cells within the heart. Additionally, a comparable coupling phenomenon is observed in cardiac atrial cells when a sufficient number of large fibroblasts are present in the atrium. The black short arrow on the right side of (A,B) indicates the zero potential level. The vertical and horizontal vars in the bottom right corner of each potential trace represent the calibration marks [13].
Figure 2. Alterations in the membrane potential of cardiac fibroblasts when they are structurally and electrically coupled to neighboring cardiomyocytes. Panel (A) represents this scenario in the absence of coupling, while panel (B) shows the situation in the presence of effective structural and electrical coupling. The graph depicts cardiac myocytes on the left side, showcasing evident striations. Importantly, the diagram highlights cardiac cells characterized by distinct striations, serving as an indicator of ventricular cells within the heart. Additionally, a comparable coupling phenomenon is observed in cardiac atrial cells when a sufficient number of large fibroblasts are present in the atrium. The black short arrow on the right side of (A,B) indicates the zero potential level. The vertical and horizontal vars in the bottom right corner of each potential trace represent the calibration marks [13].
Ijms 25 01537 g002

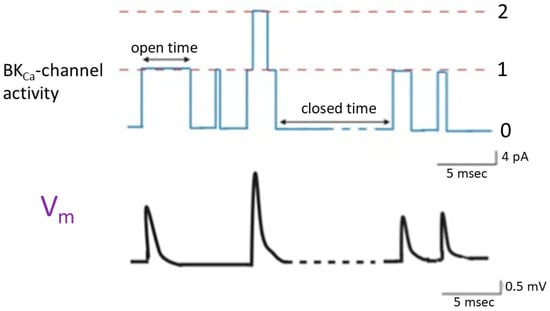

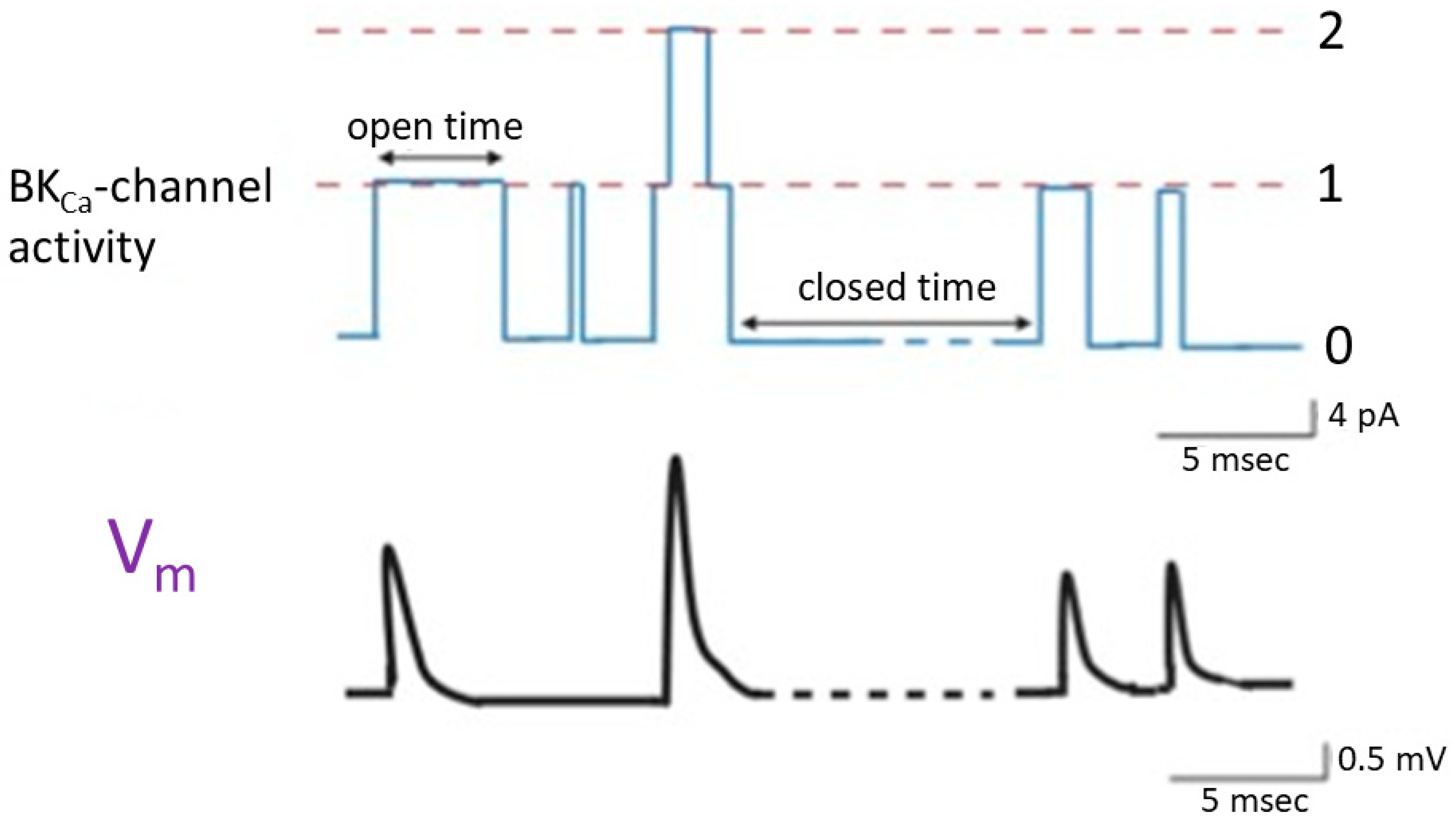

Figure 3. Changes in membrane potential (lower panel) triggered by the random opening of idealized BKCa channels (upper panel) inherently in cardiac fibroblasts. The simultaneous cell-attached potential and current recordings were made in this study, and cells were immersed in normal Tyrode’s solution which contained 5.4 mM K+, and 1.8 mM Ca2+. Tyrode’s solution is a physiological salt solution used in biological and medical research to mimic the extracellular fluid environment in which cells are studied. The dashed orange line in the upper panel represents each level of BKCa-channel opening, while the numerical values on the right indicate the number of channel openings. The double arrow in the channel activity indicates variable duration in the opening or closed state. The upper panel represents the activity of BKCa channels. The lower panel shows the changes in membrane potential induced by BKCa-channel activity. Upward deflection in current (blue color) and potential (black color) traces represents the occurrence of channel opening and membrane depolarization, respectively. In the bottom right corner of both the upper and lower panels, there are calibration marks. Of note, the occurrence of a transient depolarization is not triggered by the second channel opening event, as this event exhibits a brief duration of channel openness, which is less than 1 msec. This figure was modified from a paper [33].
Figure 3. Changes in membrane potential (lower panel) triggered by the random opening of idealized BKCa channels (upper panel) inherently in cardiac fibroblasts. The simultaneous cell-attached potential and current recordings were made in this study, and cells were immersed in normal Tyrode’s solution which contained 5.4 mM K+, and 1.8 mM Ca2+. Tyrode’s solution is a physiological salt solution used in biological and medical research to mimic the extracellular fluid environment in which cells are studied. The dashed orange line in the upper panel represents each level of BKCa-channel opening, while the numerical values on the right indicate the number of channel openings. The double arrow in the channel activity indicates variable duration in the opening or closed state. The upper panel represents the activity of BKCa channels. The lower panel shows the changes in membrane potential induced by BKCa-channel activity. Upward deflection in current (blue color) and potential (black color) traces represents the occurrence of channel opening and membrane depolarization, respectively. In the bottom right corner of both the upper and lower panels, there are calibration marks. Of note, the occurrence of a transient depolarization is not triggered by the second channel opening event, as this event exhibits a brief duration of channel openness, which is less than 1 msec. This figure was modified from a paper [33].
Ijms 25 01537 g003
