Review

Odorant-Binding Proteins as Sensing Elements for Odour Monitoring

by
Paolo Pelosi
*,
Jiao Zhu
and
Wolfgang Knoll
Austrian Institute of Technology GmbH, Biosensor Technologies, Konrad-Lorenzstraße, 24, 3430 Tulln, Austria
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(10), 3248; https://doi.org/10.3390/s18103248
Submission received: 29 August 2018 / Revised: 18 September 2018 / Accepted: 21 September 2018 / Published: 27 September 2018
(This article belongs to the Special Issue Protein-Based Biosensors)
Browse Figures
Versions Notes

Abstract

:
Odour perception has been the object of fast growing research interest in the last three decades. Parallel to the study of the corresponding biological systems, attempts are being made to model the olfactory system with electronic devices. Such projects range from the fabrication of individual sensors, tuned to specific chemicals of interest, to the design of multipurpose smell detectors using arrays of sensors assembled in a sort of artificial nose. Recently, proteins have attracted increasing interest as sensing elements. In particular, soluble olfaction proteins, including odorant-binding proteins (OBPs) of vertebrates and insects, chemosensory proteins (CSPs) and Niemann-Pick type C2 (NPC2) proteins possess interesting characteristics for their use in sensing devices for odours. In fact, thanks to their compact structure, their soluble nature and small size, they are extremely stable to high temperature, refractory to proteolysis and resistant to organic solvents. Moreover, thanks to the availability of many structures solved both as apo-proteins and in complexes with some ligands, it is feasible to design mutants by replacing residues in the binding sites with the aim of synthesising proteins with better selectivity and improved physical properties, as demonstrated in a number of cases.

1. Introduction

Modelling the human sense of smell with biomimetic electronic devices has been a several-decades dream, soon after biochemical research had been applied to olfaction with the discovery of the first proteins involved in odour detection [1,2,3]. The first attempts to design an electronic nose used poor specificity gas sensors, based on metal oxides [4] and conducting polymers [5,6]. During the last four decades, improvements have been made in the fabrication of sensors, signal transduction techniques and data processing [7,8,9,10], but we are still far from designing an instrument capable of discriminating and recognizing odours in a way similar to the human olfactory system.
There are two major difficulties still preventing the accomplishment of such goal: (1) our knowledge of odour coding in the human nose is still poor, and (2) suitable gas sensing elements with required sensitivity, stability and flexibility are still lacking. The need for information about the biological system is essential when designing an electronic nose, defined as an analytical instrument capable of discriminating odours using an approach similar to the one realized in our olfactory system. Aspects related to the olfactory code and strategies currently adopted to decipher the language of smell have been already discussed in a recent review [11]. Therefore, here we focus on the choice of sensing elements and suggest, on the basis of several experimental aspects, that proteins, in particular soluble binding proteins of olfactory systems, could qualify as suitable detecting elements for artificial gas and smell sensing.
Our first reason for preferring proteins is that, with the olfactory system being rather specific in recognising different chemical structures of volatile compounds, proteins are very likely the best candidates and probably the obligated choice as sensing elements with the required selectivity. There are however problems associated with the use of proteins in electronic systems, as they can be easily denatured or degraded, while needing a moist environment to keep their structure and consequentially their functionality. Despite such difficulties, proteins are now regarded as the best alternative to be incorporated into an artificial nose and successful results have been recently published [12,13,14,15,16,17,18,19].
It is worth emphasizing at this point that, although binding proteins appear as the most promising biosensing elements, sensitivity remains probably the main issue in artificial olfaction. Taking as a reference the human nose (which is a poorly performing system when compared to olfaction in insects [3] and also in other mammals), the most sophisticated devices are still orders of magnitudes far from the desired goal [11]. To fill such a gap we need new approaches, rather than more sophisticated amplifiers.
Being any volatile compound a potential odorant, in principle any protein with binding affinity to small hydrophobic chemicals could represent a suitable odour detector candidate. However, the first suggestions are provided by our biological system providing binding proteins which are suitable for technological applications. Our sense of smell utilises two classes of proteins that have been shown to bind smell molecules with good affinity and specificity: membrane-bound olfactory receptors (ORs) and soluble odorant-binding proteins (OBPs). While ORs would represent the first most obvious alternative, as they are responsible for detecting and discriminating different odorant molecules [20,21,22,23,24], their nature as membrane receptors and their related poor stability in harsh environmental conditions could severely limit their use in artificial devices. Moreover, overexpression of both vertebrate and insect ORs in heterologous systems proved difficult and affected by poor yields [25,26,27,28,29]. We therefore focus in this review on the use of OBPs and other soluble binding proteins as the most promising biosensing elements to be incorporated into electronic detectors.

2. Structure and Function of Odorant-Binding Proteins

The structural and functional characteristics of OBPs have been discussed in several recent reviews [30,31,32,33]. Here it will suffice to briefly summarize the main features of these soluble proteins with a specific focus on their potential use in biosensors and their suitability to be incorporated into electronic measuring instruments. We shall then describe in more detail the application of site-directed mutagenesis to modify the binding specificities and the physical properties of these proteins, reporting few examples where such strategy has been successfully adopted.

2.1. Soluble Proteins of Chemical Communication

There are at least four families of soluble binding proteins recognised to act as carriers for pheromones and odours in chemical communication. Two of them bear the same OBP name, despite being structurally different, with the OBPs of vertebrates [34,35,36,37,38], presenting the typical β-barrel folding of lipocalins [39,40] and the OBPs of insects made instead of α-helical segments [33,41,42]. So far the structures of only eight vertebrate OBPs have been solved [34,35,36,37,43,44,45], in contrast with more than 30 insect OBP structures. Proteins similar to insect OBPs and therefore named OBP-like, have been recently reported in some non-insect arthropods, namely chelicerata (spider, ticks and mites), being absent in insects and in crustacea [46,47,48,49,50]. Members of the third family are called Chemosensory Proteins (CSPs) because they were found to be associated with chemosensory organs [51,52,53]. However, this group of proteins includes members involved in a variety of functions, all likely related to binding and transport of small hydrophobic compounds [30]. The structure of CSPs is also made of α-helical domains, as in the case of insect OBPs, but their folding is quite distinct. Three-dimensional structures are available for only three members of this family [54,55,56,57].
A fourth family of soluble binding proteins is now recognized as being involved in chemoreception. These proteins, named Niemann-Pick C2 (NPC2) after the discoverers of the related disease, have been known for a long time as carriers for cholesterol and other lipids in vertebrates [58,59]. Only recently, their large duplication and differentiation in arthropods has suggested a role in semiochemical detection and differentiation in insects and other arthropods [30,32,49,60,61,62]. The folding of these proteins, made of β-sheet segments, recalls that of lipocalins, being however well distinct from that of vertebrate OBPs. Figure 1 shows the structures of binding proteins representative of all the four classes described above.
All these binding proteins have been differentially adopted during evolution and occur in different subphyla, such as Chordata, Hexapoda, Chelicerata and others in a pattern still too unclear to establish relationships between these classes or with potential ancestors. We can also observe, within this perspective, that proteins of all four classes above described as odour and pheromone carriers, often perform other physiological functions both in vertebrates and invertebrates [30]. Table 1 summarizes the occurrence of these soluble proteins of chemical communication in different orders across evolution.

2.2. Stability of Proteins

All the families of odorant carrier proteins described above are exceptionally stable to thermal and solvent denaturation, as well as to proteolytic degradation. OBPs of both vertebrates and insects, as well as CSPs, have been shown to withstand extensive boiling without losing their binding characteristics when cooled down again to room temperature. They can be also completely unfolded by urea denaturation and reduction of disulphide bridges, and then fully renaturated in the original folding when brought back to standard conditions. Such protocol is actually adopted to solubilise these proteins when expressed in bacteria and produced as inclusion bodies [63,64,65].
Specific studies have addressed thermal unfolding of OBPs using infrared spectroscopy, spectrofluorimetry and circular dichroism [66,67,68,69]. Both vertebrate and insect OBPs are particularly stable to thermal denaturation, and their structure are only slightly affected up to temperatures of 70–75 °C. Moreover, the presence of ligands inside the binding pocket further increases the thermal stability of the protein [66].

2.3. Efficient Expression and Easy Purification

Proteins of all four classes have been successfully expressed in bacterial systems with yields of 20–50 mg/L. Depending on the protein, members of all four classes are often found in the soluble fraction, but occasionally they are expressed as insoluble bodies. In such cases, solubilization can be accomplished by denaturing (urea, guanidium chloride) and reducing (DTT) treatments, and then refolding by extensive dialysis. It has been found that in such cases proteins of all four classes refold in their native conformations during renaturation steps [63,64,65]. Most plasmids used to insert the genes into the bacterial cells produce the proteins inside the cytoplasm, but some of them send the mature protein into the periplasmic space. This method has the advantage of always producing the protein in its soluble form, associated to a simplified extraction procedure, not requiring breaking of the cells by sonication, but using a milder osmotic shock to release the periplasmic content [41,70]. However, yields in some cases are lower than with cytoplasmic expression.
Yeast expression has also been used with both mammalian [71] and insect [72] OBPs. Yields are quite good and the protein can be very easily purified from the external medium, being by far the most abundant component. However, being released into the large culture medium, they need to be concentrated before purification. One important aspect to bear in mind when considering yeast expression is related to post-translational modifications, such as glycosylation and phosphorylation, that have been occasionally found in native OBPs [45,73,74]. In most cases, when the proteins are used for sensor construction, such modifications are not needed and can even introduce problems, therefore bacterial expression may be preferred. However, it has been suggested that phosphorylation of OBPs could affect ligand-binding properties [75,76], therefore in the biological system such modification could be used as a way of regulating the selectivity of these binding proteins [75,76]. It is tempting to envisage an application of this mechanism in biosensing devices, where fast enzymatic processes, such as phosphorylation and dephosphorylation could be used to switch on and off a binding protein, thus providing a simple and efficient way of regenerating the biosensor. However more detailed studies on the properties of phosphorylated OBPs are needed.
Purification is usually accomplished by chromatographic steps, using different techniques. Thanks to the high expression level of these proteins and to the acidic nature of most of them, a first run of a crude bacterial extract on anion-exchange resins can afford the desired protein at a purity level of 80–90%. Final purification is generally achieved by a second anion-exchange chromatographic step or by gel filtration [63,64,65]. OBPs and other soluble proteins of chemical communication can also be purified in a single step by affinity chromatography on nickel columns if a His-tag segment had been added to the sequence. This tag has also been used to immobilise proteins on sensor surfaces in a regular and directional way [14].

2.4. Binding Assays

Measuring the affinity to volatile ligands, such as pheromones and odorants present in the environment is of basic importance in characterising these carrier proteins. When used in biosensing devices, it is important to verify that the responses of the artificial sensors reproduce the behaviour of the protein in solution.
Several techniques have been adopted to measure the affinity and the specificity of OBPs and other odorant carrier proteins to pheromones and general odours. A recent review provides an outlook of the advantages and drawbacks of each approach [65]. However, by far the most widely adopted method uses a fluorescent reporter, whose optical properties are markedly different when in an aqueous environment and when bound to a protein into a hydrophobic pocket [66]. This method is simple, fast and inexpensive in terms of the protein needed, thus allowing hundreds of measurements to be made in a couple of day, using as little as few milligrams of protein. Usually an external fluorescent probe is used as reporter: its emission spectrum generally undergoes a blue shift accompanied by a strong increase in fluorescence when the probe is bound inside the hydrophobic pocket of a protein. In this way, the amounts of fluorescent reporter bound and free can be evaluated without disturbing the equilibrium. Binding of other ligands can be evaluated in competition assays, where the amount of fluorescent probe is displaced by gradual addition of the second ligand. In some case it is possible to directly monitor the intrinsic fluorescence of the protein if a tryptophan residue is present in the binding pocket [65]. This approach, that however, presents some limitations for a general use, becomes more practical when using the proteins as biosensing elements. In fact, it avoids the use of an additional chemical, that must be continuously supplied to the system, as it is washed away at the end of each measurement. Most OBPs and CSPs of insects contain a tryptophan in their binding pocket, making this approach feasible without any modification. For other odour carrier proteins, however, a tryptophan can be easily added by site-directed mutagenesis. The main limitation of a tryptophan being used as a reporter is that its fluorescence is mainly affected by aromatic compounds, that can efficiently quench the signal by direct electron transfer. Moreover, the efficiency of tryptophan quenching cannot be related to affinity constants of different ligands, because such optical behaviour is strongly affected, even for aromatic compounds, by the place and orientation different ligands assume within the binding pocket. This is a major drawback when characterising the functionality of a protein, but does not represent a problem when using the protein as a detector for specific analytes.
While discussing the use of proteins to detect chemicals in biosensing devices, we can reverse the problem and look from a specular point of view. Can biosensors be used in monitoring the affinity of ligands to proteins, providing an alternative method to currently used fluorescent binding assays? There is a strong demand for label-free methodologies to measure binding constants of small ligands to proteins and certainly in the future biosensors might find applications in this field. At present, however, the available technology has not reached the level of sophistication required to ensure the required reproducibility in the fabrication of sensors [65].

2.5. Three-Dimensional Structures

Members of all four classes of binding proteins have had their structures solved either by X-ray crystallography or by NMR. By far the family with the largest number of known structures is that of insect OBPs. Since the folding of the Bombyx mori pheromone-binding protein (PBP) was first solved by crystallography [41] and soon after also by NMR [42,77], a large number of structures are available for this class of binding proteins. Table 2 provides a list of all the insect OBPs so far described at the structural level together with their accession numbers. Several members have been studied in complexes with ligands, thus providing a detailed picture on how the pheromone or the odorant interacts with residues inside the binding cavity. Such information represents a valuable data base when designing specific mutants for specific applications. Among the ligands, a couple of fluorescent reporters have been visualised inside the binding pockets, thus confirming at the structural level that such compounds do specifically bind OBPs and providing further experimental evidence to the fluorescent binding method [78,79].
The scaffolding of insect OBPs include six α-helical domains arranged in a compact structure further stabilised by three interlocked disulphide bridges [80,81]. Such structure has been very successful and is well conserved through proteins of different insect orders, from Orthoptera to Diptera, despite extensive variations in protein sequences. In fact, OBPs of insects can be as divergent as to share only 10% of their amino acid residues, but the six conserved cysteines with their disulphide bridges ensure a common architecture with a well-defined hydrophobic binding site. This is true for most insect OBPs, referred to as “classic OBPs”; besides, some members exist with lower or higher numbers of cysteines, as well as with additional domains [82,83].
Only few vertebrate OBPs (which are structurally different from those of insects) have been studied at the three-dimensional level. The bovine OBP, whose structure was the first to be solved, presented the uncommon phenomenon of domain swapping: the homodimer is stabilised by interactions between the α-helix of one monomer with the β-barrel core of the other [34,35]. The other structures of the same family, namely the pig and the panda [45] OBPs are monomeric, with the α-helical domain closely interacting with the core of the same protein. Other members of the same family, classified with different names only because found in body secretions other than the nasal mucus, but structurally undistinguishable from OBPs, have also been crystallised and their structures solved, in some cases with their bound ligands. These include the urinary proteins of rodents [43], the salivary protein of the pig [36] and the hamster aphrodisin [44]. References to their structures can be found in Table 3, together with those relative to the other two classes of soluble carrier proteins.
Both insect and vertebrate OBPs present very compact structures, allowing reliable models to be made even for other proteins of the same family displaying relatively low sequence homology. This is particularly true for insect OBPs, both because their structure is constrained by the three interlocked disulphide bridges, and thanks to the large number of structures available.
Only three structures of CSPs can be found in the databases, those of the lepidopteran Mamestra brassicae [54,55], of the desert locust Schistocerca gregaria [56] and the silkmoth Bombyx mori [57]. CSPs, that are mostly found in insects, are less rigid and more flexible than OBPs. Such characteristic makes modelling and docking simulation less reliable. To get an idea of how the shape of CSPs can be modified upon ligand binding, it has been reported that the CSP1 of M. brassicae can accept three molecules of the large ligand 12-bromododecanol by considerably swelling its binding site [55].
For NPC2 proteins of insects, the forth class of semiochemical binding proteins, only a single structure has been solved [60]. However, NPC2 of vertebrates have been extensively studied as cholesterol and fatty acid carriers and several structures are available [59]. Perhaps it is worth recalling that while in vertebrates a single form of this protein family is expressed in each species, in insects, and more generally in arthropods, NPC2 proteins have undergone a wide process of duplication and differentiation. This phenomenon suggests that such proteins, conserved carriers of lipids in vertebrates, have likely acquired in arthropods the property of binding the diversity of odorants present in the environment [30,32]. From an artificial sensing point of view, the large differentiation of NPC-2 proteins that occurred in the binding pocket to bind a variety of chemical structures, while keeping the external scaffolding almost unaltered, can provide guidelines to design mutants of these proteins to be used in detecting specific ligands of interest.

3. Site-Directed Mutagenesis

While all the above discussed characteristics of OBPs and other soluble proteins of chemical communication make them suitable to be incorporated into sensing devices, perhaps their most useful aspect is linked to the possibility of modifying their structures by site-directed mutagenesis to obtain proteins with the desired specificity for odorant molecules. The possibility of designing mutants and predicting their behaviour with a reasonable degree of reliability lies in the many structures so far solved, also in complexes with ligands, and in the detailed knowledge of the architecture of their binding pockets. Moreover, replacing amino acids in specific positions may also serve other purposes, such as that of introducing a fluorescent reporter in the binding site, adding a functional group for immobilization of the protein in a preferential orientation or further stabilising their structure. The following examples can illustrate the potentialities of this technique applied to OBPs.

3.1. A Fluorescent Reporter in the pigOBP1

The porcine OBP, like all OBPs of vertebrates, presents a conserved tryptophan, part of the lipocalin signature [40], rather close to the N-terminus and located in the folded protein away from the binding pocket. In order to monitor the binding of aromatic ligands without the use of an external probe, a second tryptophan residue was introduced in the binding pocket by replacing the existing phenylalanine in position 88 [84]. Thanks to the presence of this bicyclic aromatic residue, the mutated protein exhibited higher affinity to a large number of polycyclic aromatic hydrocarbons, as compared to the wild-type. Moreover, the binding of these ligands could be efficiently monitored without the need of external probes, but simply using the intrinsic protein fluorescence of the added tryptophan [84]. Such characteristics make the mutated pig OBP a suitable sensing element to be incorporated into optical devices for monitoring pollutants, such as polyaromatic hydrocarbons in the environment. Interestingly, the replacement of a phenylalanine with a tryptophan produced also the unexpected effect that the modified OBP was able to discriminate between the two enantiomers of carvone [13], unlike the native protein [85]. Figure 2 shows the position of the added tryptophan in the structure of the pigOBP and its proximity to bound ligands.

3.2. Narrowing the Specificity of OBPs

Another recent work shows how site-directed mutagenesis can help to obtain more finely tuned sensing elements. The OBP3 of the giant panda binds with good affinity two unrelated classes of chemicals: long-chain linear aldehydes, putative components of the panda pheromone, and some volatile terpenoids of bamboo, components in the flavour of bamboo leaves, the obligated diet of the giant panda [45]. By replacing a single amino acid in the binding pocket (Asn90Leu), the protein lost its affinity to linear aldehydes, while retaining good binding capacity for terpenoids [45]. Figure 3 summarizes the effect of such replacement on the binding properties of the proteins and shows the position of the mutation in the structure of the panda OBP3. Apparently, on the basis of docking simulations, linear aldehydes use Asn90 to establish a hydrogen bond with the protein, while terpenoids bind in the same pocket, but with an opposite orientation. This rationale might explain how the removal of Asn90 drastically reduces the affinity of the protein to linear aldehydes, but does not affect the binding of plant terpenoids.
Another protein in the same animal species, the panda OBP5, shows binding specificity complementary to that of OBP3 [45]. In fact, this protein presents good affinity to linear fatty acids, preferentially to unsaturated members of 16–18 carbon atoms. On the other hand, it does not bind the corresponding aldehydes, nor plant terpenoids, the main ligands of the panda OBP3. A number of proteins with complementary binding specificities, such as OBP3 and OBP5 of the panda, would represent the starting biochemical elements to fabricate a sensor array capable of discriminating different odours on the basis of a combinatorial code approach, borrowing the strategy used by the physiological olfactory system [22].

3.3. Modifying the Specificity of OBPs

Another example of site-directed mutagenesis applied to insect OBPs, shows how the tuning of a protein can be switched between different classes of volatiles, using the available literature information.
In Lepidoptera, OBPs can be divided into two different classes, based on their sequences. The first class includes so-called PBPs (pheromone-binding proteins) and GOBPs (general odorant binding proteins). Despite the inappropriate name of the latter, both PBPs and GOBPs are tuned to sex pheromones and share important structural similarities. The remaining OBPs, that can be clearly distinguished from the above on the basis of their sequences, bind plant volatiles, mainly of terpenoid nature. All three PBPs and two GOBPs of the lepidopteran Plutella xylostella, a major agricultural pest, present aromatic residues in their binding pockets, able to bind linear long-chain aldehydes (the sex pheromones of this species); OBPs, instead, bear in the same positions other residues, including aliphatic branched amino acids (valine, leucine, isoleucine), suitable to interact with branched terpenoid compounds [86].
On this basis of information, the structure of P. xylostella GOBP2 was modified by replacing two aromatic residues in its binding pocket with leucine. As a result, the specificity of this protein was switched from linear aldehyde pheromones to branched-chain terpenoids [86]. Figure 4 summarizes the results of this study. This work shows how feasible it could be to completely change the binding properties of an OBP by replacing only one or two residues in the binding pocket, while keeping the scaffolding of the protein virtually intact.
The above examples show how OBPs can be engineered to narrow their selectivity to a small set of ligands. However, we cannot expect to reach the high specificity of enzymes or some receptors. As a matter of fact, in all the cases tested, the mutated proteins retained their affinity to the fluorescent probe, a chemical often structurally different from the ligands of interest. This is due to the flexibility of the protein, but also to the fact that different ligands can sit inside the binding pocket with different orientations. The above cases (both the panda OBP3 and the Plutella GOBP2) represent good examples of proteins able to accept ligands of two structurally unrelated chemical classes. In the cases of enzymes, these two set of chemicals would represent the substrates and the competitive inhibitors, respectively.

3.4. The Issue of an Aqueous Environment

Despite all these advantages, that indicate OBPs as ideal biosensors for electronic smell detectors, proteins still present some drawbacks, linked to their large size and their hydrophilic nature. Although OBPs are relatively stable, when compared to other proteins, they are far from being rigid and could assume inactive conformation in particularly harsh environments. Certainly, an aqueous medium is strictly required for the protein being functional. Moreover, it might be worth emphasizing the fact that when discussing about stability of OBPs we refer to their unique capability of refolding back into their active conformation after having undergone a denaturing treatment. Instead, permanent denaturing conditions are not compatible with good performance of OBPs.
This represents a major technical issue when immobilising proteins on biochips. On the other hand, odorants by definition are supplied in air, therefore we cannot avoid having an air-water interface when building a protein biosensor, with a series of problems to be solved. First, we should protect the aqueous layer around the protein from evaporation, likely to rapidly occur particularly when the surface of the sensor is kept under a stream of air carrying the odours to be detected. In nature such major problem is solved using different strategies. In the vertebrate nose, a thick layer of mucus, rich in glycoproteins, keeps water molecules tightly bound to the glycan moieties, thus reducing the water vapour pressure and increasing the evaporation time. Nevertheless, evaporation would occur quite rapidly if this mucus layer was not continuously regenerated with new glycoproteins and water supplied by the epithelial cells [87,88].
Insects and other arthropods have adopted a different solution. The sensing elements, the olfactory neurons with their olfactory receptors, are bathed in a special lymph and encapsulated into sensilla within a hard cuticle wall. Tiny pores on the cuticle allow the entrance of odorants, but prevent the exit of water due to its high surface tension. Even in such cases, however, the sensillar lymph is constantly regenerated [89,90].
Although it is technically feasible to put a hydrogel at the interface between the external gaseous environment and the liquid phase in which the detecting proteins are kept, this would introduce a slow step in the biosensor responses, as the odorants, by nature generally hydrophobic, have to cross an aqueous layer, where their low solubility would greatly slow down diffusion towards the biosensing elements.

3.5. Recovery of Biosensor Functionality

More serious difficulties are related to regeneration of biosensors in times compatible with a continuous monitoring of the environment. The first problem is again the presence of an aqueous interface where the reduced diffusion rate of odorants slows down their release back into the environment. In biological systems, such as the mammalian nose or the antenna of an insect, active mechanisms of washing and regenerating olfactory receptors are adopted with a continuous flow of nasal mucus or the fast replacement of sensillar lymph [87,89].
Another problem is related to the performance of the proteins so far adopted in biosensors for odours. Both OBPs of vertebrates and those of insects exhibit dissociation kinetics rather slow, of the order of minutes for insect OBPs and hours for the mammalian proteins [14,65,91]. With the latter proteins, in particular with the bovine OBP it has been observed that there is a gated entrance of the ligand. The benzene ring of a phenylalanine residue acts as a door opening for letting the odorant inside the binding pocket and then returning to a closed position, thus greatly slowing the process of dissociation [34].
This feature, while a major problem when monitoring in real time is desired, could represent an advantage if the protein is used in a sort of dosimeter, accumulating specific odorants of interest, that may be generated from degrading foods or in unhealthy environments.
As a consequence, the biosensors described so far are mostly used to detect ligands in solution and are characterized by times of response and recovery very long as compared to those of biological olfactory systems. Such devices can still be valuable when used as analytical instruments in a laboratory, but are not yet suitable for real time monitoring of environmental odours. Besides, we should emphasize the fact that the biosensors so far developed provide a “proof of concept” rather than devices designed for specific technological use. In this respect, it is unlikely that sensors tuned to insect pheromones might find industrial applications; however, they provide a unique system where the components (pheromones and binding proteins) are know and well characterised, to test the performance of a biosensor and compare its responses with those of the biological system.

4. Conclusions

Based on the properties described above, OBPs and other soluble proteins involved as odorant carriers in chemical communication, can be considered as the best candidates currently available to be used as detecting elements in biosensors for odours.
As proteins, they possess the required specificity to discriminate among the large variety of odours that our nose can recognise. At the same time, they are exceptionally stable compared to other proteins, a characteristic probably related to the fact that they work at the interface between the sensory organs and the external environment.
However, the most promising characteristic of these proteins is the possibility of modifying their ligand-binding specificity by simple techniques of site-specific mutagenesis. Such opportunity is made feasible thanks to the wide and detailed information on the structures of many OBPs, and is documented by several successful projects.
In particular, some results have shown how the properties of the binding cavity can be modified while keeping the scaffolding of the protein unaltered. This fact may suggest that in the future we might be able to design and synthesise new proteins with the desired binding specificity, endowed at the same time with improved characteristic of stability, specific optical properties and suitability to be immobilised onto electronic chips, among other physical properties.

Author Contributions

P.P. wrote the first draft of the manuscript to which the other authors added substantial contributions. The final version was revised and approved by all authors.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pelosi, P.; Pisanelli, A.M.; Baldaccini, N.E.; Gagliardo, A. Binding of [3H]-2-isobutyl-3-methoxypyrazine to cow olfactory mucosa. Chem. Senses 1981, 6, 77–85. [Google Scholar] [CrossRef]
  2. Pelosi, P.; Baldaccini, N.E.; Pisanelli, A.M. Identification of a specific olfactory receptor for 2-isobutyl-3-methoxypyrazine. Biochem. J. 1982, 201, 245–248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Vogt, R.G.; Riddiford, L.M. Pheromone binding and inactivation by moth antennae. Nature 1981, 293, 161–163. [Google Scholar] [CrossRef] [PubMed]
  4. Persaud, K.; Dodd, G. Analysis of discrimination mechanisms in the mammalian olfactory system using a model nose. Nature 1982, 299, 352–355. [Google Scholar] [CrossRef] [PubMed]
  5. Persaud, K.C.; Pelosi, P. An approach to an artificial nose. ASAIO J. 1985, 31, 297–300. [Google Scholar]
  6. Pelosi, P.; Persaud, K.C. Gas Sensors: Towards an artificial nose. In Sensors and Sensory Systems for Advanced Robots; Dario, P., Ed.; NATO ASI Series: Series F: Computer and Systems Science; Springer: Berlin, Germany, 1988; pp. 361–382. [Google Scholar]
  7. Persaud, K.C.; Marco, S.; Gutiérrez-Gálvez, A. (Eds.) Neuromorphic Olfaction; CRC Press/Taylor & Francis: Boca Raton, FL, USA, 2013. [Google Scholar]
  8. Stitzel, S.E.; Aernecke, M.J.; Walt, D.R. Artificial noses. Annu. Rev. Biomed. Eng. 2011, 13, 1–25. [Google Scholar] [CrossRef] [PubMed]
  9. Capelli, L.; Sironi, S.; Del Rosso, R. Electronic noses for environmental monitoring applications. Sensors 2014, 14, 19979–20007. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Wasilewski, T.; Gębicki, J.; Kamysz, W. Bioelectronic nose: Current status and perspectives. Biosens. Bioelectron. 2017, 87, 480–494. [Google Scholar] [CrossRef] [PubMed]
  11. Pelosi, P.; Zhu, J.; Knoll, W. From Gas Sensors to Biomimetic Artificial Noses. Chemosensors 2018, 6, 32. [Google Scholar] [CrossRef]
  12. Larisika, M.; Kotlowski, C.; Steininger, C.; Mastrogiacomo, R.; Pelosi, P.; Schütz, S.; Peteu, S.F.; Kleber, C.; Reiner-Rozman, C.; Nowak, C.; et al. Electronic Olfactory Sensor Based on A. mellifera Odorant-Binding Protein 14 on a Reduced Graphene Oxide Field-Effect Transistor. Angew. Chem. Int. Ed. Engl. 2015, 54, 13245–13248. [Google Scholar] [CrossRef] [PubMed]
  13. Mulla, M.Y.; Tuccori, E.; Magliulo, M.; Lattanzi, G.; Palazzo, G.; Persaud, K.; Torsi, L. Capacitance-modulated transistor detects odorant binding protein chiral interactions. Nat. Commun. 2015, 6, 6010. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kotlowski, C.; Larisika, M.; Guerin, P.M.; Kleber, C.; Kröber, T.; Mastrogiacomo, R.; Nowak, C.; Schutz, S.; Schwaighofer, A.; Knoll, W. Fine discrimination of volatile compounds by graphene-immobilized odorant-binding proteins. Sens. Actuators B Chem. 2018, 256, 564–572. [Google Scholar] [CrossRef]
  15. Liu, Q.; Wang, H.; Li, H.; Zhang, J.; Zhuang, S.; Zhang, F.; Hsia, K.J.; Wang, P. Impedance sensing and molecular modeling of an olfactory biosensor based on chemosensory proteins of honeybee. Biosens. Bioelectron. 2013, 40, 174–179. [Google Scholar] [CrossRef] [PubMed]
  16. Di Pietrantonio, F.; Cannatà, D.; Benetti, M.; Verona, E.; Varriale, A.; Staiano, M.; D’Auria, S. Detection of odorant molecules via surface acoustic wave biosensor array based on odorant-binding proteins. Biosens. Bioelectron. 2013, 41, 328–334. [Google Scholar] [CrossRef] [PubMed]
  17. Lu, Y.; Li, H.; Zhuang, S.; Zhang, D.; Zhang, Q.; Zhou, J.; Dong, S.; Liu, Q.; Wang, P. Olfactory biosensor using odorant-binding proteins from honeybee: Ligands of floral odors and pheromones detection by electrochemical impedance. Sens. Actuators B Chem. 2014, 193, 420–427. [Google Scholar] [CrossRef]
  18. Lu, Y.; Yao, Y.; Zhang, Q.; Zhang, D.; Zhuang, S.; Li, H.; Liu, Q. Olfactory biosensor for insect semiochemicals analysis by impedance sensing of odorant-binding proteins on interdigitated electrodes. Biosens. Bioelectron. 2015, 67, 662–669. [Google Scholar] [CrossRef] [PubMed]
  19. Lu, Y.; Zhang, D.; Zhang, Q.; Huang, Y.; Luo, S.; Yao, Y.; Li, S.; Liu, Q. Impedance spectroscopy analysis of human odorant binding proteins immobilized on nanopore arrays for biochemical detection. Biosens. Bioelectron. 2016, 79, 251–257. [Google Scholar] [CrossRef] [PubMed]
  20. Buck, L.; Axel, R. A novel multigene family may encode odorant receptors: a molecular basis for odor recognition. Cell 1991, 65, 175–187. [Google Scholar] [CrossRef]
  21. Mombaerts, P. Molecular biology of odorant receptors in vertebrates. Annu. Rev. Neurosci. 1999, 22, 487–509. [Google Scholar] [CrossRef] [PubMed]
  22. Malnic, B.; Hirono, J.; Sato, T.; Buck, L.B. Combinatorial receptor codes for odors. Cell 1999, 96, 713–723. [Google Scholar] [CrossRef]
  23. Korsching, S. Olfactory maps and odor images. Curr. Opin. Neurobiol. 2002, 12, 387–392. [Google Scholar] [CrossRef]
  24. Mori, K.; Sakano, H. How is the olfactory map formed and interpreted in the mammalian brain? Annu. Rev. Neurosci. 2011, 34, 467–499. [Google Scholar] [CrossRef] [PubMed]
  25. Stein, B.; Alonso, M.T.; Zufall, F.; Leinders-Zufall, T.; Chamero, P. Functional Overexpression of Vomeronasal Receptors Using a Herpes Simplex Virus Type 1 (HSV-1)-Derived Amplicon. PLoS ONE 2016, 11, e0156092. [Google Scholar] [CrossRef] [PubMed]
  26. Chamero, P.; Zufall, F. Virus-Mediated Overexpression of Vomeronasal Receptors and Functional Assessment by Live-Cell Calcium Imaging. Methods Mol. Biol. 2018, 1820, 43–56. [Google Scholar] [PubMed]
  27. Carraher, C.; Dalziel, J.; Jordan, M.D.; Christie, D.L.; Newcomb, R.D.; Kralicek, A.V. Towards an understanding of the structural basis for insect olfaction by odorant receptors. Insect Biochem. Mol. Biol. 2015, 66, 31–41. [Google Scholar] [CrossRef] [PubMed]
  28. Corcoran, J.A.; Jordan, M.D.; Carraher, C.; Newcomb, R.D. A novel method to study insect olfactory receptor function using HEK293 cells. Insect Biochem. Mol. Biol. 2014, 54, 22–32. [Google Scholar] [CrossRef] [PubMed]
  29. Butterwick, J.A.; Del Mármol, J.; Kim, K.H.; Kahlson, M.A.; Rogow, J.A.; Walz, T.; Ruta, V. Cryo-EM structure of the insect olfactory receptor Orco. Nature 2018, 560, 447–452. [Google Scholar] [CrossRef] [PubMed]
  30. Pelosi, P.; Iovinella, I.; Zhu, J.; Wang, G.; Dani, F.R. Beyond chemoreception: Diverse tasks of soluble olfactory proteins in insects. Biol. Rev. Camb. Philos. Soc. 2018, 93, 184–200. [Google Scholar] [CrossRef] [PubMed]
  31. Leal, W.S. Odorant reception in insects: roles of receptors, binding proteins, and degrading enzymes. Annu. Rev. Entomol. 2013, 58, 373–391. [Google Scholar] [CrossRef] [PubMed]
  32. Pelosi, P.; Iovinella, I.; Felicioli, A.; Dani, F.R. Soluble proteins of chemical communication: An overview across arthropods. Front. Physiol. 2014, 5, 320. [Google Scholar] [CrossRef] [PubMed]
  33. Tegoni, M.; Campanacci, V.; Cambillau, C. Structural aspects of sexual attraction and chemical communication in insects. Trends Biochem. Sci. 2004, 29, 257–264. [Google Scholar] [CrossRef] [PubMed]
  34. Bianchet, M.A.; Bains, G.; Pelosi, P.; Pevsner, J.; Snyder, S.H.; Monaco, H.L.; Amzel, L.M. The three dimensional structure of bovine odorant-binding protein and its mechanism of odor recognition. Nat. Struct. Biol. 1996, 3, 934–939. [Google Scholar] [CrossRef] [PubMed]
  35. Tegoni, M.; Ramoni, R.; Bignetti, E.; Spinelli, S.; Cambillau, C. Domain swapping creates a third putative combining site in bovine odorant binding protein dimer. Nat. Struct. Biol. 1996, 3, 863–867. [Google Scholar] [CrossRef] [PubMed]
  36. Spinelli, S.; Vincent, F.; Pelosi, P.; Tegoni, M.; Cambillau, C. Boar Salivary Lipocalin: Three-dimensional X-ray Structure and Androstenol/Androstenone Docking Simulations. Eur. J. Biochem. 2002, 269, 2449–2456. [Google Scholar] [CrossRef] [PubMed]
  37. Vincent, F.; Spinelli, S.; Ramoni, R.; Grolli, S.; Pelosi, P.; Cambillau, C.; Tegoni, M. Complexes of porcine odorant binding protein with odorant molecules belonging to different chemical classes. J. Mol. Biol. 2000, 300, 127–139. [Google Scholar] [CrossRef] [PubMed]
  38. Tegoni, M.; Pelosi, P.; Vincent, F.; Spinelli, S.; Campanacci, V.; Grolli, S.; Ramoni, R.; Cambillau, C. Mammalian odorant binding proteins. Biochim. Biophys. Acta 2000, 1482, 229–240. [Google Scholar] [CrossRef]
  39. Flower, D.R. The lipocalin protein family: structure and function. Biochem. J. 1996, 318, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Flower, D.R.; North, A.C.; Sansom, C.E. The lipocalin protein family: structural and sequence overview. Biochim. Biophys. Acta 2000, 1482, 9–24. [Google Scholar] [CrossRef]
  41. Sandler, B.H.; Nikonova, L.; Leal, W.S.; Clardy, J. Sexual attraction in the silkworm moth: structure of the pheromone-binding-protein-bombykol complex. Chem. Biol. 2000, 7, 143–151. [Google Scholar] [CrossRef]
  42. Damberger, F.; Nikonova, L.; Horst, R.; Peng, G.; Leal, W.S.; Wuthrich, K. NMR characterization of a pH-dependent equilibrium between two folded solution conformations of the pheromone-binding protein from Bombyx mori. Protein Sci. 2000, 9, 1038–1041. [Google Scholar] [CrossRef] [PubMed]
  43. Böcskei, Z.; Groom, C.R.; Flower, D.R.; Wright, C.E.; Phillips, S.E.; Cavaggioni, A.; Findlay, J.B.C.; North, A.C. Pheromone binding to two rodent urinary proteins revealed by X-ray crystallography. Nature 1992, 360, 186–188. [Google Scholar] [CrossRef] [PubMed]
  44. Vincent, F.; Löbel, D.; Brown, K.; Spinelli, S.; Grote, P.; Breer, H.; Cambillau, C.; Tegoni, M. Crystal structure of aphrodisin, a sex pheromone from female hamster. J. Mol. Biol. 2001, 305, 459–469. [Google Scholar] [CrossRef] [PubMed]
  45. Zhu, J.; Arena, S.; Spinelli, S.; Liu, D.; Zhang, G.; Wei, R.; Cambillau, C.; Scaloni, A.; Wang, G.; Pelosi, P. Reverse chemical ecology: Olfactory proteins from the giant panda and their interactions with putative pheromones and bamboo volatiles. Proc. Natl. Acad. Sci. USA 2017, 114, E9802–E9810. [Google Scholar] [CrossRef] [PubMed]
  46. Renthal, R.; Manghnani, L.; Bernal, S.; Qu, Y.; Griffith, W.P.; Lohmeyer, K.; Guerrero, F.D.; Borges, L.M.F.; Pérez de León, A. The chemosensory appendage proteome of Amblyomma americanum (Acari: Ixodidae) reveals putative odorant-binding and other chemoreception-related proteins. Insect Sci. 2017, 24, 730–742. [Google Scholar] [CrossRef] [PubMed]
  47. Vizueta, J.; Frías-López, C.; Macías-Hernández, N.; Arnedo, M.A.; Sánchez-Gracia, A.; Rozas, J. Evolution of Chemosensory Gene Families in Arthropods: Insight from the First Inclusive Comparative Transcriptome Analysis across Spider Appendages. Genome Biol. Evol. 2017, 9, 178–196. [Google Scholar] [CrossRef] [PubMed]
  48. Vizueta, J.; Rozas, J.; Sánchez-Gracia, A. Comparative Genomics Reveals Thousands of Novel Chemosensory Genes and Massive Changes in Chemoreceptor Repertories across Chelicerates. Genome Biol. Evol. 2018, 10, 1221–1236. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Iovinella, I.; McAfee, A.; Mastrobuoni, G.; Kempa, S.; Foster, L.J.; Pelosi, P.; Dani, F.R. Proteomic analysis of chemosensory organs in the honey bee parasite Varroa destructor: A comprehensive examination of the potential carriers for semiochemicals. J. Proteom. 2018, 181, 131–141. [Google Scholar] [CrossRef] [PubMed]
  50. Eliash, N.; Singh, N.K.; Thangarajan, S.; Sela, N.; Leshkowitz, D.; Kamer, Y.; Zaidman, I.; Rafaeli, A.; Soroker, V. Chemosensing of honeybee parasite, Varroa destructor: Transcriptomic analysis. Sci. Rep. 2017, 7, 13091. [Google Scholar] [CrossRef] [PubMed]
  51. Tuccini, A.; Maida, R.; Rovero, P.; Mazza, M.; Pelosi, P. Putative odorant-binding proteins in antennae and legs of Carausius morosus Insecta, Phasmatodea. Insect Biochem. Mol. Biol. 1996, 26, 19–24. [Google Scholar] [CrossRef]
  52. Angeli, S.; Ceron, F.; Scaloni, A.; Monti, M.; Monteforti, G.; Minnocci, A.; Petacchi, R.; Pelosi, P. Purification, structural characterization, cloning and immunocytochemical localization of chemoreception proteins from Schistocerca gregaria. Eur. J. Biochem. 1999, 262, 745–754. [Google Scholar] [CrossRef] [PubMed]
  53. Marchese, S.; Angeli, S.; Andolfo, A.; Scaloni, A.; Brandazza, A.; Mazza, M.; Picimbon, J.F.; Leal, W.S.; Pelosi, P. Soluble proteins from chemosensory organs of Eurycantha calcarata (Insecta, Phasmatodea). Insect Biochem. Mol. Biol. 2000, 30, 1091–1098. [Google Scholar] [CrossRef]
  54. Lartigue, A.; Campanacci, V.; Roussel, A.; Larsson, A.M.; Jones, T.A.; Tegoni, M.; Cambillau, C. X-ray structure and ligand binding study of a moth chemosensory protein. J. Biol. Chem. 2002, 277, 32094–32098. [Google Scholar] [CrossRef] [PubMed]
  55. Campanacci, V.; Lartigue, A.; Hallberg, B.M.; Jones, T.A.; Giudici-Orticoni, M.T.; Tegoni, M.; Cambillau, C. Moth chemosensory protein exhibits drastic conformational changes and cooperativity on ligand binding. Proc. Natl. Acad. Sci. USA 2003, 29, 5069–5074. [Google Scholar] [CrossRef] [PubMed]
  56. Tomaselli, S.; Crescenzi, O.; Sanfelice, D.; Ab, E.; Wechselberger, R.; Angeli, S.; Scaloni, A.; Boelens, R.; Tancredi, T.; Pelosi, P.; Picone, D. Solution structure of a chemosensory protein from the desert locust Schistocerca gregaria. Biochemistry 2006, 45, 10606–10613. [Google Scholar] [CrossRef] [PubMed]
  57. Jansen, S.; Chmelík, J.; Zídek, L.; Padrta, P.; Novák, P.; Zdráhal, Z.; Picimbon, J.F.; Löfstedt, C.; Sklenár, V. Structure of Bombyx mori chemosensory protein 1 in solution. Arch. Insect Biochem. Physiol. 2007, 66, 135–145. [Google Scholar] [CrossRef] [PubMed]
  58. Storch, J.; Xu, Z. Niemann-Pick C2 (NPC2) and intracellular cholesterol trafficking. Biochim. Biophys. Acta 2009, 1791, 671–678. [Google Scholar] [CrossRef] [PubMed]
  59. Li, X.; Saha, P.; Li, J.; Blobel, G.; Pfeffer, S.R. Clues to the mechanism of cholesterol transfer from the structure of NPC1 middle lumenal domain bound to NPC2. Proc. Natl. Acad. Sci. USA 2016, 113, 10079–10084. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Ishida, Y.; Tsuchiya, W.; Fujii, T.; Fujimoto, Z.; Miyazawa, M.; Ishibashi, J.; Matsuyama, S.; Ishikawa, Y.; Yamazaki, T. Niemann-Pick type C2 protein mediating chemical communication in the worker ant. Proc. Natl. Acad. Sci. USA 2014, 111, 3847–3852. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Iovinella, I.; Ban, L.; Song, L.; Pelosi, P.; Dani, F.R. Proteomic analysis of castor bean tick Ixodes ricinus: A focus on chemosensory organs. Insect Biochem. Mol. Biol. 2016, 78, 58–68. [Google Scholar] [CrossRef] [PubMed]
  62. Zhu, J.; Guo, M.; Ban, L.; Song, L.M.; Liu, Y.; Pelosi, P.; Wang, G. Niemann-Pick C2 Proteins: A New Function for an Old Family. Front. Physiol. 2018, 9, 52. [Google Scholar] [CrossRef] [PubMed]
  63. Ban, L.P.; Scaloni, A.; D’Ambrosio, C.; Zhang, L.; Yan, Y.H.; Pelosi, P. Biochemical characterisation and bacterial expression of an odorant-binding protein from Locusta migratoria. Cell. Mol. Life Sci. 2003, 60, 390–400. [Google Scholar] [CrossRef] [PubMed]
  64. Calvello, M.; Guerra, N.; Brandazza, A.; D’Ambrosio, C.; Scaloni, A.; Dani, F.R.; Turillazzi, S.; Pelosi, P. Soluble proteins of chemical communication in the social wasp Polistes dominulus. Cell. Mol. Life Sci. 2003, 60, 1933–1943. [Google Scholar] [CrossRef] [PubMed]
  65. Pelosi, P.; Zhu, J.; Knoll, W. From radioactive ligands to biosensors: binding methods with olfactory proteins. Appl. Microbiol. Biotechnol. 2018. [Google Scholar] [CrossRef] [PubMed]
  66. Paolini, S.; Tanfani, F.; Fini, C.; Bertoli, E.; Pelosi, P. Porcine odorant-binding protein: structural stability and ligand affinities measured by fourier-transform infrared spectroscopy and fluorescence spectroscopy. Biochim. Biophys. Acta 1999, 1431, 179–188. [Google Scholar] [CrossRef]
  67. Marabotti, A.; Lefevre, T.; Staiano, M.; Crescenzo, R.; Varriale, A.; Rossi, M.; D’Auria, S. Mutant bovine odorant-binding protein: Temperature affects the protein stability and dynamics as revealed by infrared spectroscopy and molecular dynamics simulations. Proteins Struct. Funct. Genet. 2008, 72, 769–778. [Google Scholar] [CrossRef] [PubMed]
  68. Schwaighofer, A.; Pechlaner, M.; Oostenbrink, C.; Kotlowski, C.; Araman, C.; Mastrogiacomo, R.; Pelosi, P.; Knoll, W.; Nowak, C.; Larisika, M. Insights into structural features determining odorant affinities to honey bee odorant binding protein 14. Biochem. Biophys. Res. Commun. 2014, 446, 1042–1046. [Google Scholar] [CrossRef] [PubMed]
  69. Schwaighofer, A.; Kotlowski, C.; Araman, C.; Chu, N.; Mastrogiacomo, R.; Becker, C.; Pelosi, P.; Knoll, W.; Larisika, M.; Nowak, C. Honey bee odorant-binding protein 14: Effects on thermal stability upon odorant binding revealed by FT-IR spectroscopy and CD measurements. Eur. Biophys. J. 2014, 43, 105–112. [Google Scholar] [CrossRef] [PubMed]
  70. Zhu, J.; Iovinella, I.; Dani, F.R.; Liu, Y.L.; Huang, L.Q.; Liu, Y.; Wang, C.Z.; Pelosi, P.; Wang, G. Conserved chemosensory proteins in the proboscis and eyes of Lepidoptera. Int. J. Biol. Sci. 2016, 12, 1394–1404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Ferrari, E.; Lodi, T.; Sorbi, R.T.; Tirindelli, R.; Cavaggioni, A.; Spisni, A. Expression of a lipocalin in Pichia pastoris: Secretion, purification and binding activity of a recombinant mouse major urinary protein. FEBS Lett. 1997, 401, 73–77. [Google Scholar] [CrossRef]
  72. Qiao, H.; He, X.; Schymura, D.; Ban, L.; Field, L.; Dani, F.R.; Michelucci, E.; Caputo, B.; Della Torre, A.; Iatrou, K.; et al. Cooperative interactions between odorant-binding proteins of Anopheles gambiae. Cell. Mol. Life Sci. 2011, 68, 1799–1813. [Google Scholar] [CrossRef]
  73. Nagnan-Le Meillour, P.; Le Danvic, C.; Brimau, F.; Chemineau, P.; Michalski, J.C. Phosphorylation of native porcine olfactory binding proteins. J. Chem. Ecol. 2009, 35, 752–760. [Google Scholar] [CrossRef] [PubMed]
  74. Nagnan-Le Meillour, P.; Vercoutter-Edouart, A.S.; Hilliou, F.; Le Danvic, C.; Lévy, F. Proteomic analysis of pig (Sus scrofa) olfactory soluble proteome reveals O-linked-N-acetylglucosaminylation of secreted odorant-binding proteins. Front. Endocrinol. 2014, 5, 202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Brimau, F.; Cornard, J.P.; Le Danvic, C.; Lagant, P.; Vergoten, G.; Grebert, D.; Pajot, E.; Nagnan-Le Meillour, P. Binding specificity of recombinant Odorant Binding Protein isoforms is driven by phosphorylation. J. Chem. Ecol. 2010, 36, 801–813. [Google Scholar] [CrossRef] [PubMed]
  76. Bouclon, J.; Le Danvic, C.; Guettier, E.; Bray, F.; Tokarski, C.; Rolando, C.; Nagnan-Le Meillour, P. Identification of Post-translational Modifications on Odorant-Binding Protein Isoforms from Pig Olfactory Secretome by High-Resolution Mass Spectrometry: O-β-N-acetylglucosaminylation and Phosphorylation. Front. Ecol. Evol. 2017. [Google Scholar] [CrossRef]
  77. Lee, D.; Damberger, F.F.; Peng, G.; Horst, R.; Güntert, P.; Nikonova, L.; Leal, W.S.; Wüthrich, K. NMR structure of the unliganded Bombyx mori pheromone-binding protein at physiological pH. FEBS Lett. 2002, 531, 314–318. [Google Scholar] [CrossRef]
  78. Spinelli, S.; Lagarde, A.; Iovinella, I.; Legrand, P.; Tegoni, M.; Pelosi, P.; Cambillau, C. Crystal structure of Apis mellifera OBP14, a C-minus odorant-binding protein, and its complexes with odorant molecules. Insect Biochem. Mol. Biol. 2012, 42, 41–50. [Google Scholar] [CrossRef] [PubMed]
  79. Lartigue, A.; Gruez, A.; Spinelli, S.; Riviere, S.; Brossut, R.; Tegoni, M.; Cambillau, C. The crystal structure of a cockroach pheromone-binding protein suggests a new ligand binding and release mechanism. J. Biol. Chem. 2003, 278, 30213–30218. [Google Scholar] [CrossRef] [PubMed]
  80. Scaloni, A.; Monti, M.; Angeli, S.; Pelosi, P. Structural analyses and disulfide-bridge pairing of two odorant-binding proteins from Bombyx mori. Biochem. Biophys. Res. Commun. 1999, 266, 386–391. [Google Scholar] [CrossRef] [PubMed]
  81. Leal, W.S.; Nikonova, L.; Peng, G. Disulfide structure of the pheromone binding protein from the silkworm moth, Bombyx mori. FEBS Lett. 1999, 464, 85–90. [Google Scholar] [CrossRef]
  82. Zhou, J.J.; Huang, W.; Zhang, G.A.; Pickett, J.A.; Field, L.M. “Plus-C” odorant-binding protein genes in two Drosophila species and the malaria mosquito Anopheles gambiae. Gene 2004, 327, 117–129. [Google Scholar] [CrossRef] [PubMed]
  83. Xu, P.X.; Zwiebel, L.J.; Smith, D.P. Identification of a distinct family of genes encoding atypical odorant-binding proteins in the malaria vector mosquito, Anopheles gambiae. Insect Mol. Biol. 2003, 12, 549–560. [Google Scholar] [CrossRef] [PubMed]
  84. Wei, Y.; Brandazza, A.; Pelosi, P. Binding of Polyclycic Aromatic Hydrocarbons to Mutants of Odorant-Binding Protein: a first step towards biosensors for environmental monitoring. Biochim. Biophys. Acta 2008, 1784, 666–671. [Google Scholar] [CrossRef] [PubMed]
  85. Pelosi, P.; Tirindelli, R. Structure/activity studies and characterization of an odorant-binding protein. In Chemical Senses. Vol. 1. Receptor Events and Transduction in Taste and Olfaction; Brand, J.G., Teeter, J.H., Cagan, R.H., Kare, M.R., Eds.; Marcel Dekker, Inc.: New York, NY, USA; Basel, Switzerland, 1989; pp. 207–226. [Google Scholar]
  86. Zhu, J.; Ban, L.; Song, L.M.; Liu, Y.; Pelosi, P.; Wang, G. General odorant-binding proteins and sex pheromone guide larvae of Plutella xylostella to better food. Insect Biochem. Mol. Biol. 2016, 72, 10–19. [Google Scholar] [CrossRef] [PubMed]
  87. Getchell, T.V.; Margolis, F.L.; Getchell, M.L. Perireceptor and receptor events in vertebrate olfaction. Prog. Neurobiol. 1984, 23, 317–345. [Google Scholar] [CrossRef]
  88. Gladysheva, O.; Kukushkina, D.; Martynova, G. Glycoprotein composition of olfactory mucus in vertebrates. Acta Histochem. 1986, 78, 141–146. [Google Scholar] [CrossRef]
  89. Steinbrecht, R.A. Structure and function of insect olfactory sensilla. Ciba Found. Symp. 1996, 200, 158–174. [Google Scholar] [PubMed]
  90. Keil, T.A.; Steinbrecht, R.A. Insects as model systems in cell biology. Methods Cell Biol. 2010, 96, 363–394. [Google Scholar] [PubMed]
  91. Pevsner, J.; Hou, V.; Snowman, A.M.; Snyder, S.H. Odorant-binding protein. Characterization of ligand binding. J. Biol. Chem. 1990, 265, 6118–6125. [Google Scholar] [PubMed]
Sensors 18 03248 g001 550

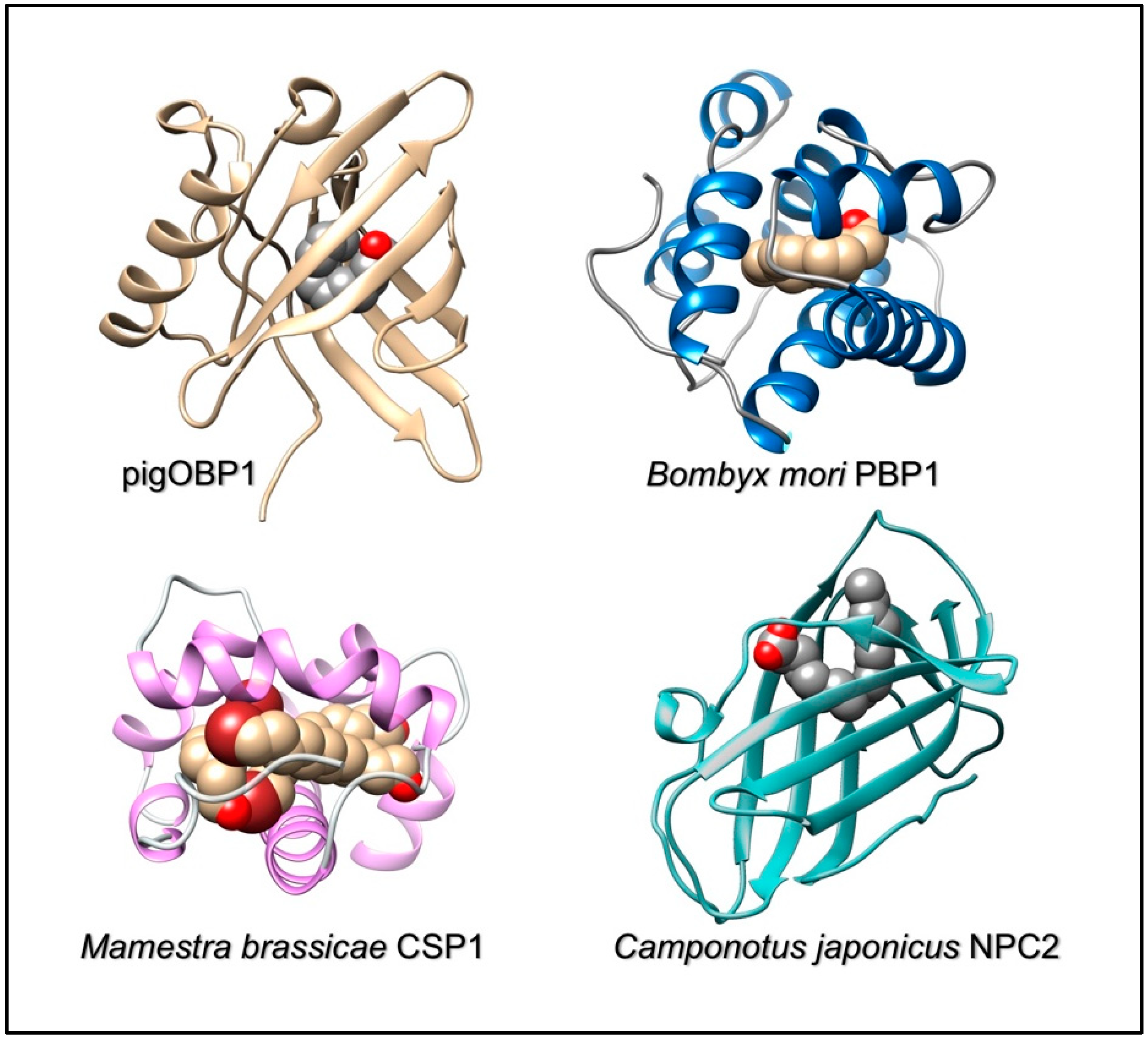

Figure 1. Three-dimensional structures of representative members of the four classes of soluble binding proteins so far described in chemical communication.
Figure 1. Three-dimensional structures of representative members of the four classes of soluble binding proteins so far described in chemical communication.
Sensors 18 03248 g001
Sensors 18 03248 g002 550

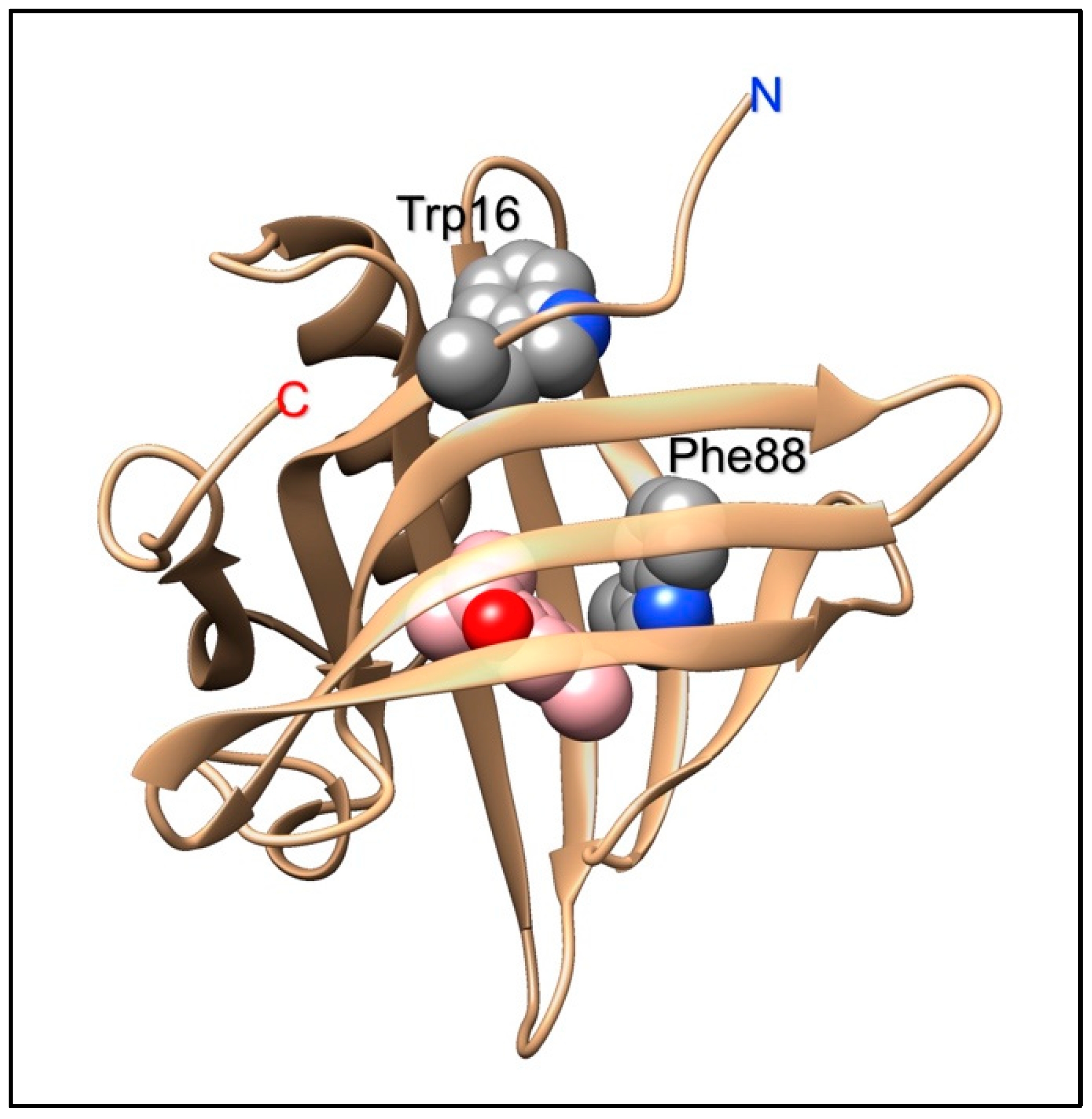

Figure 2. Structure of the pig OBP1. Tryptophan 16 is part of the lipocalin signature and is located outside the binding pocket. In a mutant designed to act as biosensing element for polyaromatic hydrocarbons, phenylalanine 88, which is located inside the binding pocket, was mutated into a second tryptophan residue, that would act as fluorescent reporter to monitor the presence of aromatic ligands in the binding site.
Figure 2. Structure of the pig OBP1. Tryptophan 16 is part of the lipocalin signature and is located outside the binding pocket. In a mutant designed to act as biosensing element for polyaromatic hydrocarbons, phenylalanine 88, which is located inside the binding pocket, was mutated into a second tryptophan residue, that would act as fluorescent reporter to monitor the presence of aromatic ligands in the binding site.
Sensors 18 03248 g002
Sensors 18 03248 g003 550

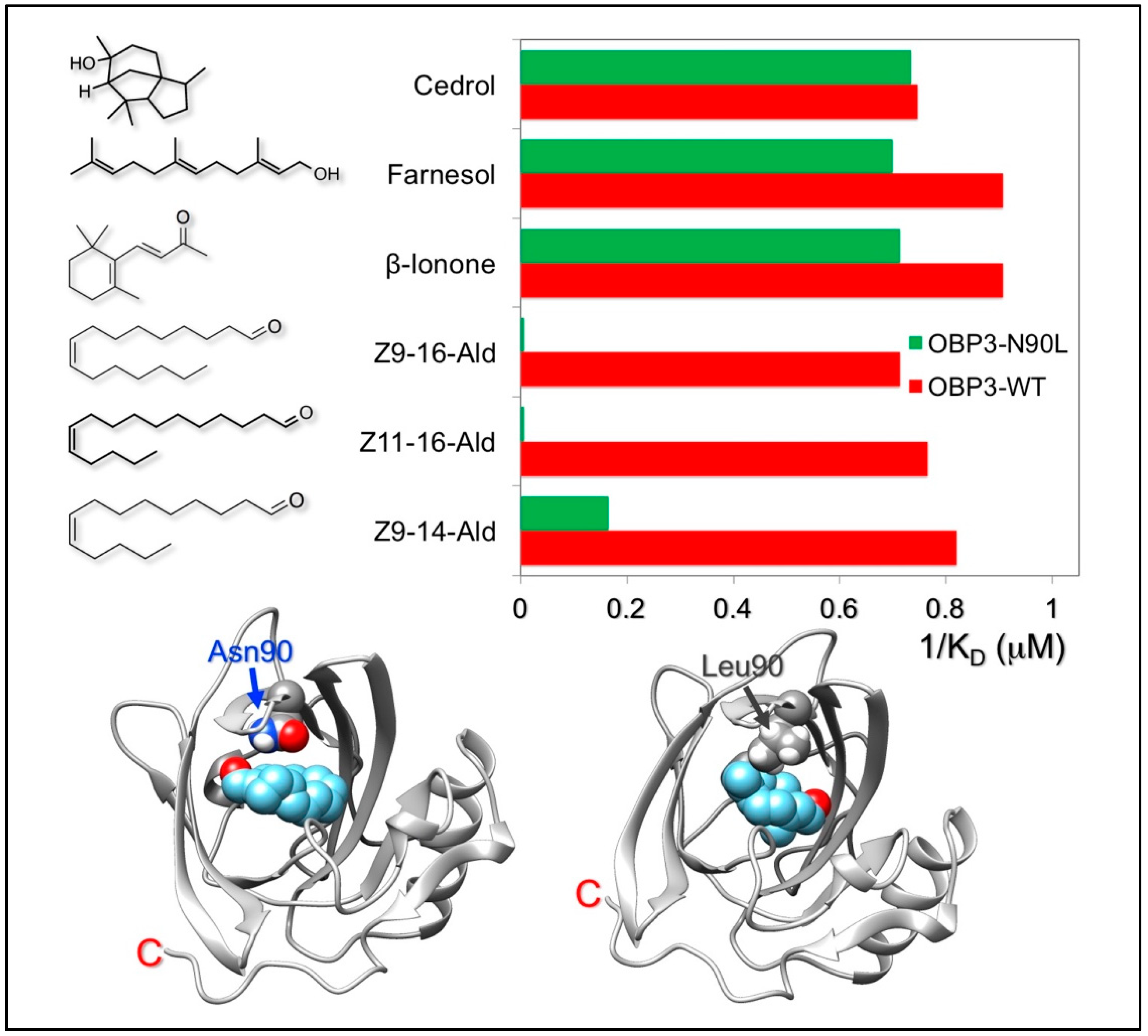

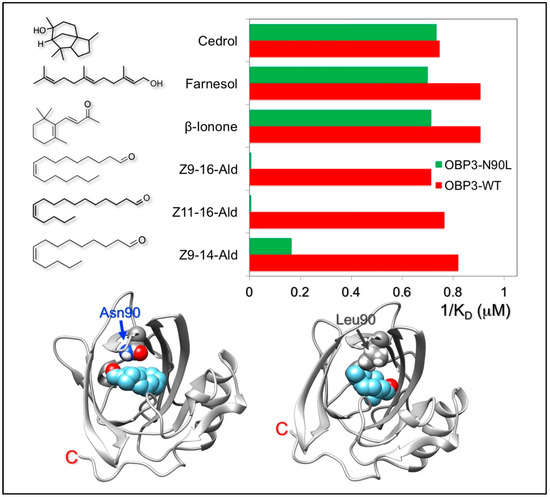

Figure 3. The giant panda OBP3 binds long-chain linear aldehydes as well as terpenoids, including bamboo volatiles. Replacement of asparagine 90 with leucine abolished the affinity of the protein to linear aldehydes while retaining good binding capacity to terpenoids.
Figure 3. The giant panda OBP3 binds long-chain linear aldehydes as well as terpenoids, including bamboo volatiles. Replacement of asparagine 90 with leucine abolished the affinity of the protein to linear aldehydes while retaining good binding capacity to terpenoids.
Sensors 18 03248 g003
Sensors 18 03248 g004 550

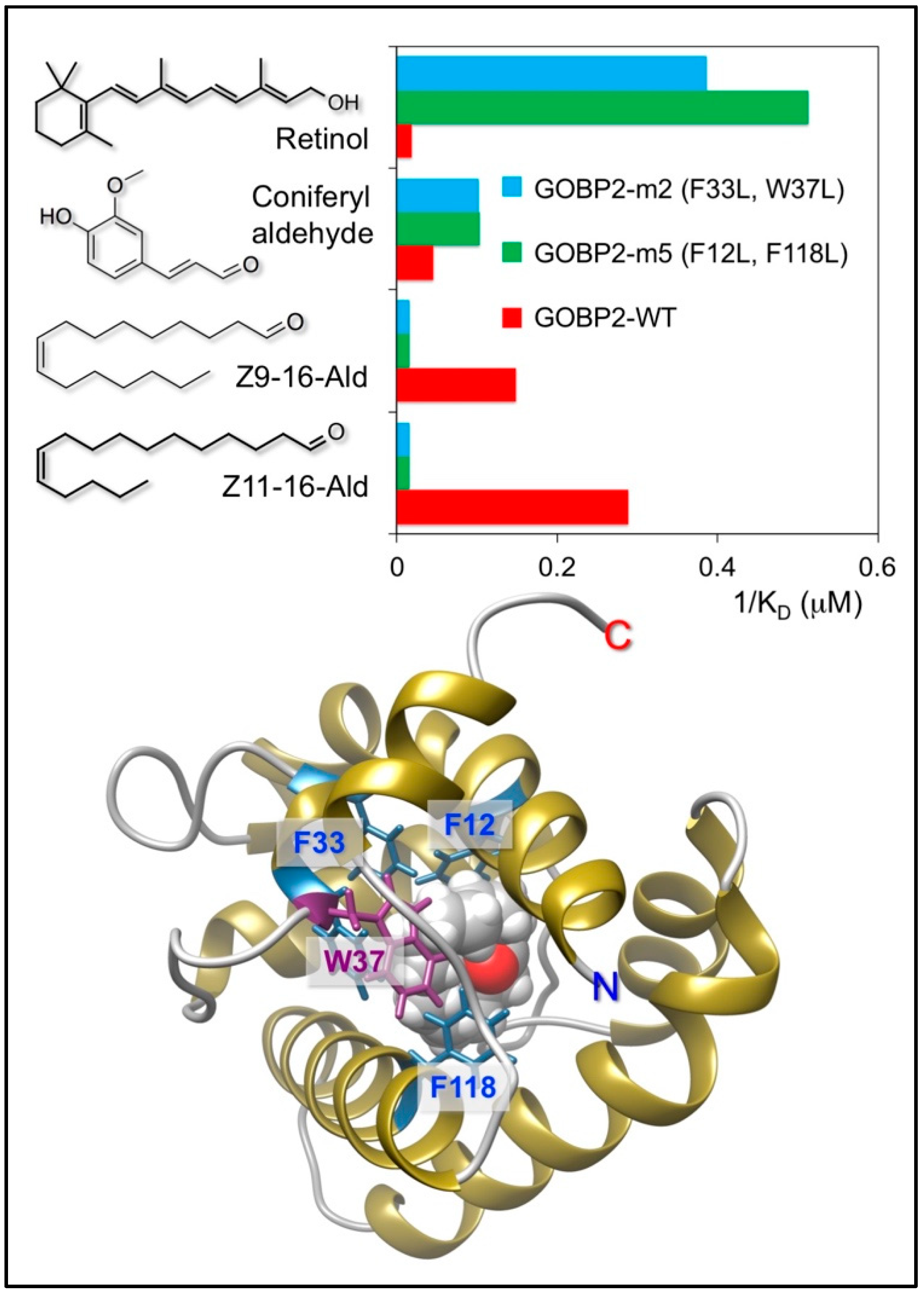

Figure 4. The GOBP2 of the moth Plutella xylostella binds with good affinity linear aldehydes, components of the sex pheromone of this species. By replacing two aromatic residues inside the binding pocket with leucine, the specificity of the protein can be switched from linear aldehydes to branched terpenoid compounds.
Figure 4. The GOBP2 of the moth Plutella xylostella binds with good affinity linear aldehydes, components of the sex pheromone of this species. By replacing two aromatic residues inside the binding pocket with leucine, the specificity of the protein can be switched from linear aldehydes to branched terpenoid compounds.
Sensors 18 03248 g004
Table
Table 1. Soluble proteins used for chemical communication across evolution. The small number of CSPs in Crustacea (1–3) probably does not support a role in chemical communication. NPC2 proteins occur in all phyla, but only in invertebrates their number and diversity indicate a function in chemical communication.
Table 1. Soluble proteins used for chemical communication across evolution. The small number of CSPs in Crustacea (1–3) probably does not support a role in chemical communication. NPC2 proteins occur in all phyla, but only in invertebrates their number and diversity indicate a function in chemical communication.
VerOBPsInsOBPsCSPsNPC2OBP-Like
Hexapoda ●●●
Crustacea ●●
Chelicerata ●●
Myriapoda ●
Amphibia●
Mammalia●
Table
Table 2. Structures of insect OBPs. Accession numbers are: MMDB; PDB.
Table 2. Structures of insect OBPs. Accession numbers are: MMDB; PDB.
SpeciesProteinAcc. n. (apo)Acc. n. (olo)
Diptera
Aedes aegyptiOBP178,632, 3K1E
Aedes aegyptiAed769,416, 3DXL
69,417, 3DY9		69,419, 3DZT
69,418, 3DYE
Amyelois transitellaPBP179,681, 2KPH (NMR, pH 4.5)108,208, 4INX
108,207, 4INW
Anopheles gambiaeOBP794,463, 3R1P
94,462, 3R1O		94,464, 3R1V
Anopheles gambiaeOBP20103,980, 3VB1
104,060, 4F7F		103,979, 3V2L
Anopheles gambiaeOBP1 91,180, 3N7H
142,574, 5EL2
Anopheles gambiaeOBP4790,818, 3PM2
Anopheles gambiaeOBP48113,919, 4KYN113,894, 4IJ7
Anopheles gambiaeD7r459,449, 2QEV59,448, 2QEO
59,445, 2QEH
59,443, 2QEB
59,316, 2PQL
Culex quinquefasciatusOBP 85,954, 3OGN
Drosophila melanogasterLUSH32,732, 1T14
23,924, 1OOI (pH 6.5)		23,923, 1OOH
23,922, 1OOG
23,921, 1OOF
46,137, 2GTE
Drosophila melanogasterLUSH T57A 62,295, 3B88
62,294, 3B87
Drosophila melanogasterLUSH T57S 62,293, 3B86
Drosophila melanogasterLUSH S52A 62,291, 3B6X
Drosophila melanogasterLUSH D118A64,745, 2QDI
Drosophila melanogasterLUSH S52A 62,292, 3B7A
Lutzomyia longipalpisSALO141,432, 5KX4
Phlebotomus duboscqiCPI 113,901, 4JD9
Lepidoptera
Antheraea polyphemusPBP126,871, 1QWV
60,086, 2JPO (pH 4.5, NMR)
35,432, 1TWO (NMR, low pH)
Bombyx moriPBP137,387, 2FJY
21,174, 1LS8
18,041, 1GM0
15,475, 1DQE
35,031, 1XFR		45,969, 2P70
4597, 2P71
Bombyx moriGOBP275,865, 2WC5
75,869, 2WCK		75,871, 2WCM
75,870, 2WCL
75,868, 2WCJ
75,867, 2WCH
75,866, 2WC6
Hymenoptera
Apis melliferaASP161,456, 3BJH
64,870, 3CDN
61,126, 2H8V		78,407, 3FE9
64,850, 3BFH
64,849, 3BFB
Apis melliferaASP2 34,972, 1TUJ (NMR)
Apis melliferaOBP598,491, 3R72
Apis melliferaOBP1495,366, 3S0F
95,362, 3S0A		95,365, 3S0E
95,364, 3S0D
95,363, 3S0B
95,361, 3RZS
Apis melliferaOBP14 Q44C, H97C95,367, 3S0G
Apis melliferaOBP14 D35N72,884, 3D78
Apis melliferaOBP14 D35A72,880, 3D74
72,879, 3D73
Coleoptera
Tenebrio molitorTHP1211,597, 1C3Z
11,596, 1C3Y
Orthoptera
Locusta migratoriaOBP1125,780, 4PT1
Blattodea
Rhyparobia maderaePBP124,088, 1ORG24,093, 1OW4
24,102, 1P28
Table
Table 3. Structures of mammals OBPs, and insect CSPs and NPC2. Accession numbers are: MMDB; PDB.
Table 3. Structures of mammals OBPs, and insect CSPs and NPC2. Accession numbers are: MMDB; PDB.
SpeciesProteinAcc. n. (apo)Acc. n. (olo)
Mammals OBPs
Bos taurusOBP150,597, 1OBP19,732, 1G85
6240, 1PBO
18,101, 1HN2
24,552, 1GT5
72,179, 1GT1
71,060, 1GT3
24,551, 1GT4
Bos taurusOBP1 mut63,212, 2HLV
Sus scrofaOBP171,515, 1A3Y15,148, 1DZK
15,150, 1DZP
15,147, 1DZJ
15,149, 1DZM
15,153, 1E06
Sus scrofaSAL19393, 1GM6
Ailuropoda melanoleucaOBP3155,697, 5NGH
Mus musculusMUP956,909, 1MUP
13,488, 1DF3
Rattus norvegicusOBP172,769, 3FIQ
Rattus norvegicusα-2u-globulin 11,004, 2A2G
11,005, 2A2U
Mesocricetus aureusAphrodisin71,930, 1E5P
Insect CSPs
Mamestra brassicaeCSP2 (A6)21,132, 1KX9
21,100, 1K19		21,132, 1KX9
Schistocerca gragariaCSP1 (CSP4)41,578, 2GVS
Bombyx moriCSP160,768, 2JNT
Insect NPC2
Camponotus japonicusNPC2117,138, 3WEA117,139, 3WEB

Share and Cite

MDPI and ACS Style

Pelosi, P.; Zhu, J.; Knoll, W. Odorant-Binding Proteins as Sensing Elements for Odour Monitoring. Sensors 2018, 18, 3248. https://doi.org/10.3390/s18103248

AMA Style

Pelosi P, Zhu J, Knoll W. Odorant-Binding Proteins as Sensing Elements for Odour Monitoring. Sensors. 2018; 18(10):3248. https://doi.org/10.3390/s18103248

Chicago/Turabian Style

Pelosi, Paolo, Jiao Zhu, and Wolfgang Knoll. 2018. "Odorant-Binding Proteins as Sensing Elements for Odour Monitoring" Sensors 18, no. 10: 3248. https://doi.org/10.3390/s18103248

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
