Molecular and Functional Diversity of Crustin-Like Genes in the Shrimp Litopenaeus vannamei

by
Shihao Li
1,2,3,
Xinjia Lv
1,4,
Yang Yu
1,2,3,
Xiaojun Zhang
1,2,3 and
Fuhua Li
1,2,3,5,*
1
Key Laboratory of Experimental Marine Biology, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
2
Laboratory for Marine Biology and Biotechnology, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266237, China
3
Center for Ocean Mega-Science, Chinese Academy of Sciences, Qingdao 266071, China
4
University of Chinese Academy of Sciences, Beijing 100049, China
5
The Innovation of Seed Design, Chinese Academy of Sciences, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
Mar. Drugs 2020, 18(7), 361; https://doi.org/10.3390/md18070361
Submission received: 26 April 2020 / Revised: 29 June 2020 / Accepted: 8 July 2020 / Published: 13 July 2020
(This article belongs to the Collection Bioactive Compounds from Marine Invertebrates)
Browse Figures
Review Reports Versions Notes

Abstract

:
Crustins are crustacean cationic cysteine-rich antimicrobial peptides that contain one or two whey acidic protein (WAP) domain(s) at the carboxyl terminus and mainly show antimicrobial and/or proteinase inhibitory activities. Here, we performed genome and transcriptome screening and identified 34 full-length crustin-like encoding genes in Litopenaeus vannamei. Multiple sequence analysis of the deduced mature peptides revealed that these putative crustins included 10 type Ia, two type Ib, one type Ic, 11 type IIa, three type IIb, four type III, one type IV, one type VI, and one type VII. These putative crustins were clustered into different groups. Phylogenetic analysis, considering their domain composition, showed that different types of crustin-like genes in crustaceans might be originated from the WAP core region, along with sequence insertion, duplication, deletion, and amino acid substitution. Tissue distribution analysis suggested that most crustin-like genes were mainly detected in immune-related tissues while several crustin-like genes exhibited tissue-specific expression patterns. Quantitative PCR analysis on 15 selected crustin-like genes showed that most of them were apparently upregulated after Vibrio parahaemolyticus or white spot syndrome virus (WSSV) infection. One type Ib crustin-like gene, mainly expressed in the ovary, showed the highest expression levels before the gastrula stage and was hardly detected after the limb bud stage, suggesting that it was a maternal immune effector. Collectively, the present data revealed the molecular and functional diversity of crustins and their potential evolutionary routes in crustaceans.

1. Introduction

Antimicrobial peptides (AMPs) are key elements of the innate immune system. AMPs are widely present in all multicellular organisms and exhibit a broad spectrum of activities against bacteria, fungi, yeast, protozoa, and viruses [1]. As of March 2020, as many as 3175 AMPs have been reported in the Antimicrobial Peptide Database (http://aps.unmc.edu/AP/main.php). These AMPs show tremendous sequence diversity, which suggests that organisms employ this mechanism to adapt to microbial challenges in different environments [2]. In invertebrates, various types of AMPs are effective components in the host innate immune system to protect them against pathogen infection. In crustaceans, especially decapods, different AMP families including penaeidins, anti-lipopolysaccharide factors, crustins, stylicins, etc., have been identified and characterized [3,4,5,6]. Significantly, more and more studies reveal that sequence diversity of these AMPs, even for the same kind of AMPs, leads to great changes in their activities, which always impels researchers to isolate new AMPs.
The whey acidic protein (WAP) domain, which was originally discovered in the mammalian milk protein, contains eight conserved cysteine residues forming a four-disulfide core [7]. In vertebrates, WAP domains also exist in non-milk secretory proteins with protease inhibitory or antimicrobial activities [8,9]. Crustins are one kind of crustacean secretory cationic cysteine-rich antimicrobial peptide that contain one or two WAP domain(s) at the carboxyl terminus [6,10]. The first crustin was identified as an 11.5 kD native protein from the hemocytes of the shore crab and subsequently named as carcinin with activity against Gram-positive bacteria [11,12]. Since then, different crustin genes have been identified in shrimp, crayfish, and crabs [13,14,15,16,17,18,19,20].
Crustins are characterized by diverse isoforms and various biological functions. These proteins were initially classified into three types (types I, II, and III) according to the variable N-terminal region of the mature peptides [10]. Type I crustins contain a cysteine-rich domain between the signal peptide and the WAP domain; type II crustins contain a glycine-rich domain and a cysteine-rich domain at this region; type III crustins, also called single WAP domain proteins (SWDs), have a short N-terminal region that is usually rich in proline and arginine residues [5,10]. Based on the peptide length between the cysteine-rich domain and the WAP domain, type II crustins were then divided into two sub-groups, types IIa and IIb [5,21]. Subsequently, two novel types of crustins were defined as types IV and V [6]. Type IV crustins, also named as double WAP domain (DSD)-containing proteins, contain two WAP domains in the mature peptides [22]. Type V crustins, which were first found in the ant genome, contain the cysteine-rich domain and the WAP domain, and also an extra aromatic amino acid-rich region located between them [23]. However, this type of crustin has not been identified in crustaceans until now.
Like the function of some WAP domain-containing proteins in vertebrate animals, crustins mainly exhibit antibacterial, anti-fungal, and proteinase inhibitory activities. However, different types of crustins show apparently distinct biological functions. Generally, the most reported type I crustins mainly show anti-bacterial activity against Gram-positive bacteria, while type II and III crustins exhibit anti-bacterial activity against both Gram-positive and Gram-negative bacteria [6]. Besides the anti-bacterial activity, type III crustins also possess proteinase inhibitory activity [24]. Type IV crustins also have proteinase inhibitory activity and/or anti-bacterial activity, while the function of type V crustins is still not elucidated [6].
Other biological roles of crustins are also reported. In Penaeus monodon, the expression of crustinPm5 is induced upon heat shock and hyperosmotic salinity stress [25], indicating their possible functions in responding to environmental stresses. CrustinPm4 and transglutaminase I could downregulate astakine-mediated hematopoiesis through interacting with 3’-UTR of astakine mRNA, which represses translation of astakine protein [26]. In Carcinus maenas, the immunostaining investigation of carcinin in several organs revealed that the protein may be associated with wounding, cell damage, and/or tissue regeneration [27]. In Portunus pelagicus, the purified crustin Pp-Cru could trigger encapsulation and phagocytosis and exhibit a growth reduction and biofilm inhibition potential on both Gram-positive and Gram-negative bacteria [28]. In Litopenaeus vannamei, the crustin LvCruU might serve as a downstream effector of unfolded protein response, affecting antimicrobial immune response upon endoplasmic reticulum-stress [29]. These investigations reveal that crustins play diverse roles in various biological processes, which might be based on their various types and sequence diversities. Therefore, whole genome level identification of crustin genes in crustaceans will provide important information for understanding sequence and function diversity of these genes.
Although a previous study reported that 16 crustins could be predicted from a transcriptome of L. vannamei [30], their features were still not characterized. In the present study, we performed genome and transcriptome screening and identified 34 full-length crustin-like encoding genes based on the reported genome and transcriptome databases of the shrimp L. vannamei [31]. These genes encoded all reported types of crustins except type V and also four new types or sub-types of crustins. Phylogenetic analysis reveals their possible evolution routes and expression analysis suggests their multiple immune functions in shrimp.

2. Results

2.1. Identification and Sequence Characterization of Crustin-Like Genes in L. vannamei

After WAP domain query and sequence analysis in the genome and transcriptome database of L. vannamei, a total of 34 genes which encode full-length open reading frames (ORFs) of crustin-like genes were identified (Table 1). Five of them have been previously characterized in the directly submitted National Center for Biotechnology Information (NCBI) database or published literatures. Fifteen of them (including three previously characterized sequences) have been annotated in our previous shrimp genome database, while most of them have not been characterized. Seventeen of them were newly identified sequences from the assembled transcriptome database. Among the 34 sequences, 33 (except LvCruIII-4) could be mapped to the genome database, whereas 10 of them were incomplete (lacking the first 2 to 5 nucleotides in their ORF) based on the current version of the shrimp genome database. The mapping information of each gene can be found in the Supplementary Table S1.

2.2. Identification of New Types and Sequence Characterization of Putative Crustins in L. vannamei

According to the amino acids and domain composition of the deduced peptides, these 34 putative crustins could be categorized into six types, including types I, II, III, IV, VI, and VII (Figure 1). Type I was then divided into three sub-types including types Ia, Ib, and Ic. The domain composition of type Ia, composed of signal peptide, cysteine (Cys)-rich region, and the WAP domain, was the same as that of previously reported type I crustin. The domain composition of types IIa, IIb, and IV were all identical to previously reported types or sub-types of crustins. Four transcripts were identified encoding type III crustins. Among them, only LvCrustin III-3 contained a Pro/Arg-rich N-terminal region before its WAP domain, whereas the other three type III crustins had a short N-terminal region without Pro/Arg-rich characteristics.
Type Ib, Ic, VI, and VII crustins were four newly identified types or sub-types. Type Ib crustin contained a longer carboxyl terminal region (more than 30 aa) when compared to other type I crustins. Type Ic crustin contained two linked Cys-rich regions before the WAP domain. Type VI crustin was composed of signal peptide, glycine (Gly)-rich region, and the WAP domain. Type VII crustin contained the signal peptide and the WAP domain, and a serine/leucine (Ser/Leu)-rich region (32.8% of the total residues in this region, Figure 2) between them. Further searching of new identified type and subtype crustin-like genes in the transcriptome database from another shrimp, Fenneropenaeus chinensis [32], identified two type Ib (accession numbers: MT375591 and MT375592), one type Ic (accession number: MT375593), and one type VI crustin (accession number: MT375594), which showed high sequence similarity with those in L. vannamei (Figure 3).
The mature peptides of the shrimp putative crustins exhibited a wide range of theoretical isoelectric point (pI) and molecular weight (Mw) values (Figure 2). The pI values of mature peptides ranged from 4.15 to 9.69 and the Mw values ranged from 5.87 to 28.29 kD. The Cys-rich regions in all identified putative crustins shared a “CX2~3CX7~13CC” formula, where C showed the cysteine residue and Xn showed other residues with length ranges. The WAP domains comprised eight cysteine residues complying with a “CX5~9CX6~31CX5CX5~7CCX3~4CX3~6C” formula, where the general lengths of the second, fourth, fifth, and last X were 9~12, 5, 3, and 5, respectively. Three putative crustins, including Ia-1, Ia-9 and III-1, had an atypical WAP domain, in which the second and seventh cysteine residues were mutated. In the WAP domain of crustin VII, two extra cysteine residues existed.

2.3. Phylogenetic Analysis of Different Types of Putative Crustins in Shrimp

The WAP domains from the 34 identified putative crustins in L. vannamei were clustered by the neighbor-joining method. As shown in Figure 4, different types of putative crustins were classified into different groups. Except for Ia-2, type I crustins exhibited close relationship with each other. Type III and IV crustins also showed close relationships with type I crustins. Type II crustins were all clustered into one big group, together with Ia-2, and type VI and VII crustins.
The phylogenetic analysis of the WAP domains from different species showed that WAP domains from different types of putative crustins were categorized into four branches, branch A to D (Figure 5). Branch A WAPs, which exhibited the closest phylogenetic relationship with outgroup WAP domains, were from type Ic, III, and IV crustins. Brand B and C WAP domains were from type Ia and Ib crustins. Branch D WAP domains were from type II, VI, and VII crustins.

2.4. Spatial and Temporal Distribution of Crustin-Like Transcripts

Tissue distribution analysis of different types of crustin-like genes showed that most of them were widely expressed in several tissues, which were mainly immune-related tissues, including the epidermis, stomach, gill, intestine, and hemocytes (Figure 6). Several crustin-like genes exhibited tissue-specific expression patterns. Among them, Ib-2 was mainly detected in ovary, IIa-8, IIa-9, and IIa-10 were stomach specific, IIb-1 was mainly in eyestalk, and III-4 exhibited hepatopancreas-specific expression pattern. Among different developmental stages, most crustin-like genes showed an increase of expression level in shrimp after hatching (from nauplius or zoea stages, Figure 7). Two crustin-like genes, Ia-1 and Ia-5, also had a temporally high expression in the embryonic stage. In particular, the crustin-like gene Ib-2 was mainly detected in the early embryonic stages before gastrula.

2.5. Immune Responses of Crustin-Like Transcripts on Vibrio parahaemolyticus and WSSV Infection

In order to know whether these crustin-like genes participated in pathogen infection, 15 genes with a relatively high expression level in their target tissues (RPKM > 100 in the most abundant tissue) were selected to perform expression analysis in shrimp after V. parahaemolyticus or WSSV infection. As shown in Figure 8 and Table S2, the expression levels of all tested crustin-like genes were obviously changed after V. parahaemolyticus or WSSV infection. They were upregulated at different time points, mainly at 3, 12, and 24 hpi, and exhibited similar trends in shrimp after V. parahaemolyticus infection (Figure 8A) or after WSSV infection (Figure 8B). An exception was the crustin-like gene Ib-1, which was downregulated after V. parahaemolyticus infection (Figure 8A), while being up-regulated after WSSV infection (Figure 8B).

3. Discussion

Crustins are important immune effectors with diversity and various functions in crustaceans and some insects. Previously identified crustins are categorized into five types, of which type I to IV crustins are from crustacean species, whereas type V crustins only exist in some ant genomes [6,23]. In the present study, as many as 34 genes encoding full-length ORF of crustin-like genes, including all reported crustin types in crustaceans, as well as two new types (types VI and VII) and two new sub-types (types Ib and Ic), were identified in the shrimp, L. vannamei, which was much more than those in other species and greatly enriched the diversity of crustin genes. However, the present identified crustin-like genes do not contain type V crustin either. Besides multiple protein-coding genes in the genome, crustins also contain abundant polymorphic sites. In the crab, Portunus trituberculatus, a total of 87 SNPs and 7 indels were obtained from a 1073 bp DNA sequence encoding PtCrusin2 [33]. Actually, many polymorphic sites were also identified from most identified crustin-like genes in the present study (data not shown), which greatly increased the polymorphism of crustin genes. Although AMPs have been always regarded as immune effectors which show wide activities against different microbes, more and more studies reveal that some AMPs also exhibit exquisite specificity against certain pathogens [34]. In addition, different AMPs could combinate together to defend against pathogen infection [35]. We guess that a large number of crustin-like encoding genes are essential for the shrimp to defend against different pathogens in the marine environment.
Classification of crustins into different types is mainly based on the variable N-terminal region of mature peptides [10]. The C-terminal region WAP is the identical and functional domain of crustins. The phylogenetic analysis based on the WAP domains of all putative crustins from L. vannamei revealed that members from the same type usually had a closer relationship, like type II crustins and most type I crustins. Type III and IV crustins also exhibited close relationship with type I crustins. However, type VI and VII crustins showed close relationship with type II crustins. Moreover, all putative crustins from types I, III, and IV, except LvCrustin Ic, have a short sequence length before their WAP domains. In contrast with them, crustins from types II, VI, and VII have a relatively long N-terminal region. However, LvCrustin Ia-2, which was closely related with type II crustins, was an obvious exception in the phylogenetic data. This might be due to a fast rate of amino acid substitutions in the WAP domain of LvCrustin Ia-2, which was reported to be an important and common mode making crustins exhibit functional diversification [36].
Existence of multiple crustin genes in one species provides a basis to study the evolution of these kinds of genes in crustaceans. In a recent study, an evolution analysis on the WAP domain containing proteins in crustaceans deemed that crustins were generated into two groups by acquisition of Pro/Arg-rich region (type III) or Cys-rich region (type I) before the WAP domain, respectively. Type II crustins were generated by insertion of Gly-rich region in some type I crustins [37]. The present domain composition and phylogenetic analyses supported the viewpoint that type II crustins were generated from type I crustins by Gly-rich region insertion. However, when looking through the amino acid sequences, we could find that there is a short N-terminal region located in front of the WAP domain of most crustins. Some crustins contain several Proline residues in this short region while others don’t, which is similar with that of the short N-terminal region in different type III crustins. Therefore, considering the phylogenetic analysis data, we propose that type III crustins are the ancient type which generates type I crustins.
Based on the above discussion, we proposed an evolutionary route of crustin-like genes in crustaceans (Figure 9). The ancestral WAP core region might be inserted with a short N-terminal region to generate several ancient crustins, the type III crustins. Type Ia crustins might have originated from type III crustins by insertion of a Cys-rich region at the N-terminal, while type II crustins might be generated from type Ia crustins by a subsequent insertion of Gly-rich region before the Cys-rich region. Some type Ia and IIa crustins might also be generated from type gene duplication. The type Ic crustin might be generated by insertion of two Cys-rich regions before the WAP domain. The type IV crustin might be generated by WAP domain duplication because its two WAP domains exhibited the closest relationship compared to other WAP domains, which was also proposed to explain the existence of multiple WAP domain-containing proteins in crustaceans [37]. Type Ib crustins might come from type Ia crustins through a substitution of the stop codon generating a longer C-terminal region. For example, the substitution of the stop codon of LvCruIa-1 could lead to an extension of 39 aa at the C-terminal, which would become a new member of type Ib crustins. Seeing as there is a close phylogenetic relationship, type VI and VII crustins might be generated from type II crustins by deletion of the Cys-rich region and substitution of the Gly-rich region, respectively. However, comparative studies with broad taxonomic sampling and rigorous phylogenetic analysis are needed to clarify the evolutionary relationship of crustin genes in crustaceans.
Although crustins are only reported in crustaceans and a few insect species, the WAP four-disulfide core (WFDC) proteins are ubiquitous in many kinds of vertebrate and invertebrate animals [38]. Many secretory WFDC proteins exhibit antimicrobial activities, such as the antileukoprotease in humans [8] and waprins in snakes [39]. In crustaceans, crustins are regarded as the important immune effectors which participate in the first line of host defense to combat any invaders [40]. The tissue distribution and developmental expression patterns, as well as the immune responses to Vibrio and WSSV infections, of the crustin-like genes in L. vannamei entirely supported the opinion. Crustins in other crustaceans were also responsive to Vibrio or WSSV infection, suggesting their important roles as a kind of AMP [6]. Identification of many novel crustin-like genes in L. vannamei provides a useful source of peptides for developing new antimicrobial drugs, which will be further investigated. What is noteworthy is that one crustin-like gene, LvCrustin Ib-2, is mainly distributed in the ovary (Figure 6) and expresses in the early developmental stages before gastrula (Figure 7), suggesting its possible role as a maternal immune effector. Previously, we found that many immune-related genes, including 13 crustin encoding genes, might be involved in immune protection during shrimp molting [31]. These crustins, which were mainly detected in the epidermis, stomach, and gill, showed the lowest expression levels during late premolt and increased expression levels immediately after ecdysis [31]. In the green lip abalone Haliotis laevigata, the Perlwapin, a secreted nacre protein with three WAP domains, could bind mineral crystals in the shell matrix and play a major role in shell formation by inhibiting calcium deposition [41]. These molting-related crustins might also play functions in calcium deposition in shrimp, which needs to be further investigated.

4. Materials and Methods

4.1. Database

The RNA-seq data from different tissues, developmental stages and molting stages of the shrimp Litopenaeus vannamei were downloaded from NCBI (SRA SRR1460493−SRR1460495, SRR1460504−SRR1460505, and SRX1098368−SRX1098375). To get high-quality clean reads, algorithms were run for removing empty reads, adaptor sequences, and low-quality sequences. The clean reads of each group were then assembled into Unigenes using the RNA-Seq de novo assembly program Trinity (v2.8.2, https://github.com/trinityrnaseq/trinityrnaseq/releases) with default parameters. The gene abundances were calculated and normalized to reads per kilobase per million reads (RPKM).

4.2. Sequence Identification

The amino acid sequences decoding WAP domain of different types of crustins (accession numbers: BAD15063, AAZ76017, ABP88042, ABV25094, ABW82154, ACL97374, ADC32522, ACT82963, ACZ43782, AAS59736, ACQ66004) were downloaded from NCBI protein database (https://www.ncbi.nlm.nih.gov/protein). The WAP domain sequences were used as query sequences to perform a tblastn search (E-value < 10−5) using the L. vannamei genome database (http://www.shrimpbase.net/vannamei.html) and transcriptome databases. The acquired nucleotide sequences were analyzed with ORFfinder (https://www.ncbi.nlm.nih.gov/orffinder/) to predict their open reading frames (ORFs). The deduced amino acid sequences were then analyzed by InterPro (http://www.ebi.ac.uk/interpro/) and SignalP (http://www.cbs.dtu.dk/services/SignalP/) to predict the domains and signal peptide sequences of these deduced amino acid sequences. Those with full-length ORFs, signal peptides, and one or two WAP domains, while not containing other domains, were deemed as crustin candidates. These crustin candidates were then analyzed by performing a functional annotation with blastp on NCBI (https://www.ncbi.nlm.nih.gov). The sequences which hit a reported crustin or crustin-like sequence with the E-value < 10−5 were identified as crustin-like genes in shrimp. The identified crustin-like genes were then re-mapped to the genome database at the NCBI website (https://www.ncbi.nlm.nih.gov/) to obtain the gene encoding sequences by performing a blastn search with the E-value < 10−5.

4.3. Sequence and Expression Analysis

The deduced mature peptides of identified putative crustins were analyzed by performing a multiple alignment using online ClustalW2 software (http://www.ebi.ac.uk/Tools/msa/clustalw2/) with manual modification. The cysteine-rich region was assured by four conserved cysteine residues. Glycine or other amino acid-rich regions were predicted by analysis of amino acid composition using an online ProtParam tool (https://web.expasy.org/protparam/). Cluster analysis was performed with MEGA5 software (https://www.megasoftware.net/) under the neighbor-joining (NJ) method using the WAP domains of the identified L. vannamei putative crustins. A phylogenetic tree was constructed with the same method using the WAP domains of crustins from different crustaceans and the ant, and the WAP domains of Perlwapin from the abalone Haliotis laevigata (accession number: P84811) and Haliotis asinina (accession number: P86730) as the outgroup.
As part of the identified crustin-like genes were not annotated in the shrimp genome database, the expression profiles of these crustin-like genes were analyzed using the assembled transcriptome data. The RPKM values of these crustin-like genes in different samples including tissues, developmental, and molting stages of the shrimp were achieved from the transcriptome data. The heatmaps were drawn with the online software Morpheus (https://software.broadinstitute.org/morpheus/).

4.4. Animals, Infection, and Tissue Collection

Healthy Pacific whiteleg shrimp with a body weight of 9.5 ± 0.4 g were collected from our laboratory (Qingdao, China). The shrimp were cultured in culture tanks filled with aerated seawater at 26 °C and fed thrice daily with artificial food pellets for three days to acclimatize to laboratory conditions.
A total of 135 shrimps were used for infection experiment. The animals were randomly divided into three groups including the PBS group (negative control), Vp group, and WSSV group, with 45 shrimps in each group. In the PBS group, 10 μL PBS was intramuscularly injected into each individual at the 5th abdominal segments. In the Vp group, 10 μL PBS containing 107 CFU formalinized Vibrio parahaemolyticus was injected into each individual. In the WSSV group, 10 μL PBS containing 1000 copies of WSSV particles was injected into each individual. The hepatopancreas, intestine, stomach, and gill from 9 individuals from each group were sampled as three replicates at 3, 6, 12, and 24 h post WSSV injection (hpi) for RNA extraction, respectively. The hemolymph was collected from the ventral sinus located at the first abdominal segment using a syringe with an equal volume of precooled anticoagulant solution (115 glucose, 27 sodium citrate, 336 NaCl, 9 mmol L−1 EDTA·Na2·2H2O, pH 7.4). Then the hemocytes were harvested by centrifugation at 800 g, 4 °C, for 10 min and preserved in liquid nitrogen.

4.5. RNA Extraction and cDNA Synthesis

Total RNA from each sample was isolated with RNAiso Plus (TaKaRa, Kyoto, Japan) following the manufacturer’s instructions. The RNA quality was assessed by electrophoresis on 1% agarose gel. About 1 μg total RNA of each sample was first treated with RQ1 RNase-Free DNase (Promega, Madison, WI, USA) and then used to synthesize cDNAs by PrimeScript™ 1st strand cDNA Synthesis Kit (TaKaRa, Kyoto, Japan) with random 6 mers.

4.6. Quantitative PCR and Data Analysis

Fifteen crustin-like encoding genes were selected to detect their immune responses against V. parahaemolyticus or WSSV challenges. The qPCR primers (Table 2) of the selected nucleotide sequences were designed with Primer Premier 5.0 (Premier Biosoft, USA). The qPCR reactions were carried out using SYBR (TOYOBO, Japan) and 18S rRNA gene was used as the internal control gene. The relative gene expression levels were calculated using the comparative Ct method with the formula 2−ΔΔCt. All data were acquired from at least three parallel tests in separate tubes. An independent sample t-test was used to analyze the difference between the data from the challenge group and PBS group at each time point by SPSS 21.0. Significant differences were considered at p < 0.01.

4.7. Ethical Statement

The present study used shrimp as experimental animals, which are not endangered invertebrates. In addition, there was no genetically modified organism used in the study. According to the national regulation (Fisheries Law of the People’s Republic of China), no permission was required to collect the animals and no formal ethics approval was required for this study.

5. Conclusions

In conclusion, the present study identified 34 transcripts encoding full-length crustin-like genes from the shrimp L. vannamei. They were classified into six types based on their N-terminal regions, with two newly reported types and two new sub-types. The domain composition and phylogenetic analysis results indicated that different types of crustins in crustaceans might have originated from the WAP core region, along with sequence insertion, duplication, deletion, and amino acid substitution. The supposition provided a primary understanding of crustin evolution in crustaceans, which need more evidence to be supported. These multiple genes and their expression patterns reveal the sequence and function diversification of crustins in crustaceans. Future investigations on the antimicrobial activities and biological functions of newly reported crustins are needed to enrich the understanding of the physiological roles of crustins in crustaceans, as well as develop new antimicrobial drugs.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/18/7/361/s1, Table S1: Gene information of the identified crustin-like genes in L. vannamei; Table S2: Statistical analysis of gene expression levels of crustin-like genes in shrimp after V. parahaemolyticus or WSSV infection.

Author Contributions

Conceptualization, S.L. and F.L.; methodology, X.Z.; validation, S.L.; formal analysis, S.L. and X.L.; investigation, S.L. and X.L.; resources, Y.Y., X.Z., and F.L.; data curation, S.L., Y.Y., and X.Z.; writing—original draft preparation, S.L.; writing—review and editing, S.L., X.L., Y.Y., X.Z., and F.L.; visualization, S.L.; funding acquisition, S.L. and F.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (31830100, 31772880, 41776158) and China Agriculture Research system-48 (CARS-48).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Zasloff, M. Antimicrobial peptides of multicellular organisms. Nature 2002, 415, 389–395. [Google Scholar] [CrossRef]
  2. Peschel, A.; Sahl, H.-G. The co-evolution of host cationic antimicrobial peptides and microbial resistance. Nat. Rev. Genet. 2006, 4, 529–536. [Google Scholar] [CrossRef] [PubMed]
  3. Destoumieux-Garzón, D.; Rosa, R.D.; Schmitt, P.; Barreto, C.; Vidal-Dupiol, J.; Mitta, G.; Gueguen, Y.; Bachère, E. Antimicrobial peptides in marine invertebrate health and disease. Philos. Trans. R. Soc. B Biol. Sci. 2016, 371, 20150300. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Rosa, R.D.; Barracco, M.A. Antimicrobial peptides in crustaceans. Invertebr. Surviv. J. 2010, 7, 262–284. [Google Scholar]
  5. Tassanakajon, A.; Amparyup, P.; Somboonwiwat, K.; Supungul, P. Cationic Antimicrobial Peptides in Penaeid Shrimp. Mar. Biotechnol. 2010, 12, 487–505. [Google Scholar] [CrossRef]
  6. Tassanakajon, A.; Somboonwiwat, K.; Amparyup, P. Sequence diversity and evolution of antimicrobial peptides in invertebrates. Dev. Comp. Immunol. 2015, 48, 324–341. [Google Scholar] [CrossRef]
  7. Ranganathan, S.; Simpson, K.J.; Shaw, D.C.; Nicholas, K.R. The whey acidic protein family: A new signature motif and three-dimensional structure by comparative modeling. J. Mol. Graph. Model. 1999, 17, 106–113. [Google Scholar] [CrossRef]
  8. Hiemstra, P.S.; Maassen, R.J.; Stolk, J.; Heinzel-Wieland, R.; Steffens, G.J.; Dijkman, J.H. Antibacterial activity of antileukoprotease. Infect. Immun. 1996, 64, 4520–4524. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Schalkwijk, J.; Wiedow, O.; Hirose, S. The trappin gene family: Proteins defined by an N-terminal transglutaminase substrate domain and a C-terminal four-disulphide core. Biochem. J. 1999, 340 Pt 3, 569–577. [Google Scholar] [CrossRef]
  10. Smith, V.J.; Fernandes, J.M.O.; Kemp, G.D.; Hauton, C. Crustins: Enigmatic WAP domain-containing antibacterial proteins from crustaceans. Dev. Comp. Immunol. 2008, 32, 758–772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Relf, J.M.; Chisholm, J.R.S.; Kemp, G.D.; Smith, V.J. Purification and characterization of a cysteine-rich 11.5-kDa antibacterial protein from the granular haemocytes of the shore crab, Carcinus maenas. Eur. J. Biochem. 1999, 264, 350–357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Smith, V.J.; Chisholm, J.R.S. Antimicrobial Proteins in Crustaceans. In Phylogenetic Perspectives on the Vertebrate Immune System; Springer: Boston, MA, USA, 2001; Volume 484, pp. 95–112. [Google Scholar]
  13. Arockiaraj, J.; Gnanam, A.J.; Muthukrishnan, D.; Gudimella, R.; Milton, J.; Singh, A.; Muthupandian, S.; Kasi, M.; Bhassu, S. Crustin, a WAP domain containing antimicrobial peptide from freshwater prawn Macrobrachium rosenbergii: Immune characterization. Fish Shellfish. Immunol. 2013, 34, 109–118. [Google Scholar] [CrossRef] [PubMed]
  14. Battison, A.; Summerfield, R.; Patrzykat, A. Isolation and characterisation of two antimicrobial peptides from haemocytes of the American lobster Homarus americanus. Fish Shellfish. Immunol. 2008, 25, 181–187. [Google Scholar] [CrossRef] [PubMed]
  15. Cui, Z.; Song, C.; Liu, Y.; Wang, S.; Li, Q.; Li, X. Crustins from eyestalk cDNA library of swimming crab Portunus trituberculatus: Molecular characterization, genomic organization and expression analysis. Fish Shellfish. Immunol. 2012, 33, 937–945. [Google Scholar] [CrossRef]
  16. Hauton, C.; Brockton, V.; Smith, V.J. Cloning of a crustin-like, single whey-acidic-domain, antibacterial peptide from the haemocytes of the European lobster, Homarus gammarus, and its response to infection with bacteria. Mol. Immunol. 2006, 43, 1490–1496. [Google Scholar] [CrossRef]
  17. Jiravanichpaisal, P.; Lee, S.Y.; Kim, Y.-A.; Andrén, T.; Söderhäll, I. Antibacterial peptides in hemocytes and hematopoietic tissue from freshwater crayfish Pacifastacus leniusculus: Characterization and expression pattern. Dev. Comp. Immunol. 2007, 31, 441–455. [Google Scholar] [CrossRef]
  18. Pisuttharachai, D.; Fagutao, F.F.; Yasuike, M.; Aono, H.; Yano, Y.; Murakami, K.; Kondo, H.; Aoki, T.; Hirono, I. Characterization of crustin antimicrobial proteins from Japanese spiny lobster Panulirus japonicus. Dev. Comp. Immunol. 2009, 33, 1049–1054. [Google Scholar] [CrossRef]
  19. Soonthornchai, W.; Rungrassamee, W.; Karoonuthaisiri, N.; Jarayabhand, P.; Klinbunga, S.; Söderhäll, K.; Jiravanichpaisal, P. Expression of immune-related genes in the digestive organ of shrimp, Penaeus monodon, after an oral infection by Vibrio harveyi. Dev. Comp. Immunol. 2010, 34, 19–28. [Google Scholar] [CrossRef]
  20. Sperstad, S.V.; Haug, T.; Paulsen, V.; Rode, T.M.; Strandskog, G.; Solem, S.T.; Styrvold, O.B.; Stensvåg, K. Characterization of crustins from the hemocytes of the spider crab, Hyas araneus, and the red king crab, Paralithodes camtschaticus. Dev. Comp. Immunol. 2009, 33, 583–591. [Google Scholar] [CrossRef]
  21. Amparyup, P.; Kondo, H.; Hirono, I.; Aoki, T.; Tassanakajon, A. Molecular cloning, genomic organization and recombinant expression of a crustin-like antimicrobial peptide from black tiger shrimp Penaeus monodon. Mol. Immunol. 2008, 45, 1085–1093. [Google Scholar] [CrossRef]
  22. Chen, D.; He, N.; Xu, X. Mj-DWD, a double WAP domain-containing protein with antiviral relevance in Marsupenaeus japonicus. Fish Shellfish. Immunol. 2008, 25, 775–781. [Google Scholar] [CrossRef]
  23. Zhang, Z.; Zhu, S. Comparative genomics analysis of five families of antimicrobial peptide-like genes in seven ant species. Dev. Comp. Immunol. 2012, 38, 262–274. [Google Scholar] [CrossRef] [PubMed]
  24. Jia, Y.-P.; Sun, Y.-D.; Wang, Z.-H.; Wang, Q.; Wang, X.-W.; Zhao, X.-F.; Wang, J.-X. A single whey acidic protein domain (SWD)-containing peptide from fleshy prawn with antimicrobial and proteinase inhibitory activities. Aquaculture 2008, 284, 246–259. [Google Scholar] [CrossRef]
  25. Vatanavicharn, T.; Supungul, P.; Puanglarp, N.; Yingvilasprasert, W.; Tassanakajon, A. Genomic structure, expression pattern and functional characterization of crustinPm5, a unique isoform of crustin from Penaeus monodon. Comp. Biochem. Physiol. Part B Biochem. Mol. Biol. 2009, 153, 244–252. [Google Scholar] [CrossRef] [PubMed]
  26. Chang, Y.-T.; Lin, C.-Y.; Tsai, C.-Y.; Siva, V.; Chu, C.-Y.; Tsai, H.-J.; Song, Y.-L. The New Face of the Old Molecules: Crustin Pm4 and Transglutaminase Type I Serving as RNPs Down-Regulate Astakine-Mediated Hematopoiesis. PLoS ONE 2013, 8, e72793. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Suleiman, S.; Smith, V.J.; Dyrynda, E.A. Unusual tissue distribution of carcinin, an antibacterial crustin, in the crab, Carcinus maenas, reveals its multi-functionality. Dev. Comp. Immunol. 2017, 76, 274–284. [Google Scholar] [CrossRef] [Green Version]
  28. Rekha, R.; Vaseeharan, B.; Ishwarya, R.; Anjugam, M.; Alharbi, N.S.; Kadaikunnan, S.; Khaled, J.M.; Al-Anbr, M.N.; Govindarajan, M. Searching for crab-borne antimicrobial peptides: Crustin from Portunus pelagicus triggers biofilm inhibition and immune responses of Artemia salina against GFP tagged Vibrio parahaemolyticus Dahv2. Mol. Immunol. 2018, 101, 396–408. [Google Scholar] [CrossRef]
  29. Chen, Y.-H.; Lian, Y.-Y.; He, H.-H.; Yuan, K.; Zhang, C.-Z.; Yue, G.H.; He, J.-G. Functional characterization of an ER-stress responding Crustin gene in Litopenaeus vannamei. Fish Shellfish. Immunol. 2019, 84, 541–550. [Google Scholar] [CrossRef]
  30. Lai, A.G.; Aboobaker, A. Comparative genomic analysis of innate immunity reveals novel and conserved components in crustacean food crop species. BMC Genom. 2017, 18, 389. [Google Scholar] [CrossRef] [Green Version]
  31. Zhang, X.; Yuan, J.; Sun, Y.; Li, S.; Gao, Y.; Yu, Y.; Liu, C.; Wang, Q.; Lv, X.; Zhang, X.; et al. Penaeid shrimp genome provides insights into benthic adaptation and frequent molting. Nat. Commun. 2019, 10, 356. [Google Scholar] [CrossRef] [Green Version]
  32. Li, S.; Zhang, X.; Sun, Z.; Li, F.; Xiang, J. Transcriptome Analysis on Chinese Shrimp Fenneropenaeus chinensis during WSSV Acute Infection. PLoS ONE 2013, 8, e58627. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Song, C.; Luo, D.; Cui, Z.; Liu, Y.; Li, X.; Shi, G.; Wang, C. Polymorphism of crustins in the swimming crab (Portunus trituberculatus) and its association withVibrio alginolyticus. Aquac. Res. 2013, 46, 1261–1268. [Google Scholar] [CrossRef]
  34. Hanson, M.A.; Lemaitre, B. New insights on Drosophila antimicrobial peptide function in host defense and beyond. Curr. Opin. Immunol. 2020, 62, 22–30. [Google Scholar] [CrossRef] [PubMed]
  35. Zanchi, C.; Johnston, P.R.; Rolff, J. Evolution of defence cocktails: Antimicrobial peptide combinations reduce mortality and persistent infection. Mol. Ecol. 2017, 26, 5334–5343. [Google Scholar] [CrossRef]
  36. Padhi, A. Adaptive evolution of crustin antimicrobial peptides in decapods. Genetica 2012, 140, 197–203. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, Y.-X.; Wang, J.-X.; Wang, X.-W. First identification and characterization of a triple WAP domain containing protein in Procambarus clarkii provides new insights into the classification and evolution of WAP proteins in crustacean. Fish Shellfish. Immunol. 2019, 94, 592–598. [Google Scholar] [CrossRef]
  38. Smith, V.J. Phylogeny of whey acidic protein (WAP) four-disulfide core proteins and their role in lower vertebrates and invertebrates. Biochem. Soc. Trans. 2011, 39, 1403–1408. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Torres, A.M.; Wong, H.Y.; Desai, M.; Moochhala, S.; Kuchel, P.; Kini, R.M. Identification of a Novel Family of Proteins in Snake Venoms—Purification and structural characterization of nawaprin from Naja nigricollis snake venom. J. Biol. Chem. 2003, 278, 40097–40104. [Google Scholar] [CrossRef] [Green Version]
  40. Jiravanichpaisal, P.; Puanglarp, N.; Petkon, S.; Donnuea, S.; Söderhäll, I.; Söderhäll, K. Expression of immune-related genes in larval stages of the giant tiger shrimp, Penaeus monodon. Fish Shellfish. Immunol. 2007, 23, 815–824. [Google Scholar] [CrossRef] [PubMed]
  41. Treccani, L.; Mann, K.; Heinemann, F.; Fritz, M. Perlwapin, an Abalone Nacre Protein with Three Four-Disulfide Core (Whey Acidic Protein) Domains, Inhibits the Growth of Calcium Carbonate Crystals. Biophys. J. 2006, 91, 2601–2608. [Google Scholar] [CrossRef] [Green Version]
Marinedrugs 18 00361 g001 550

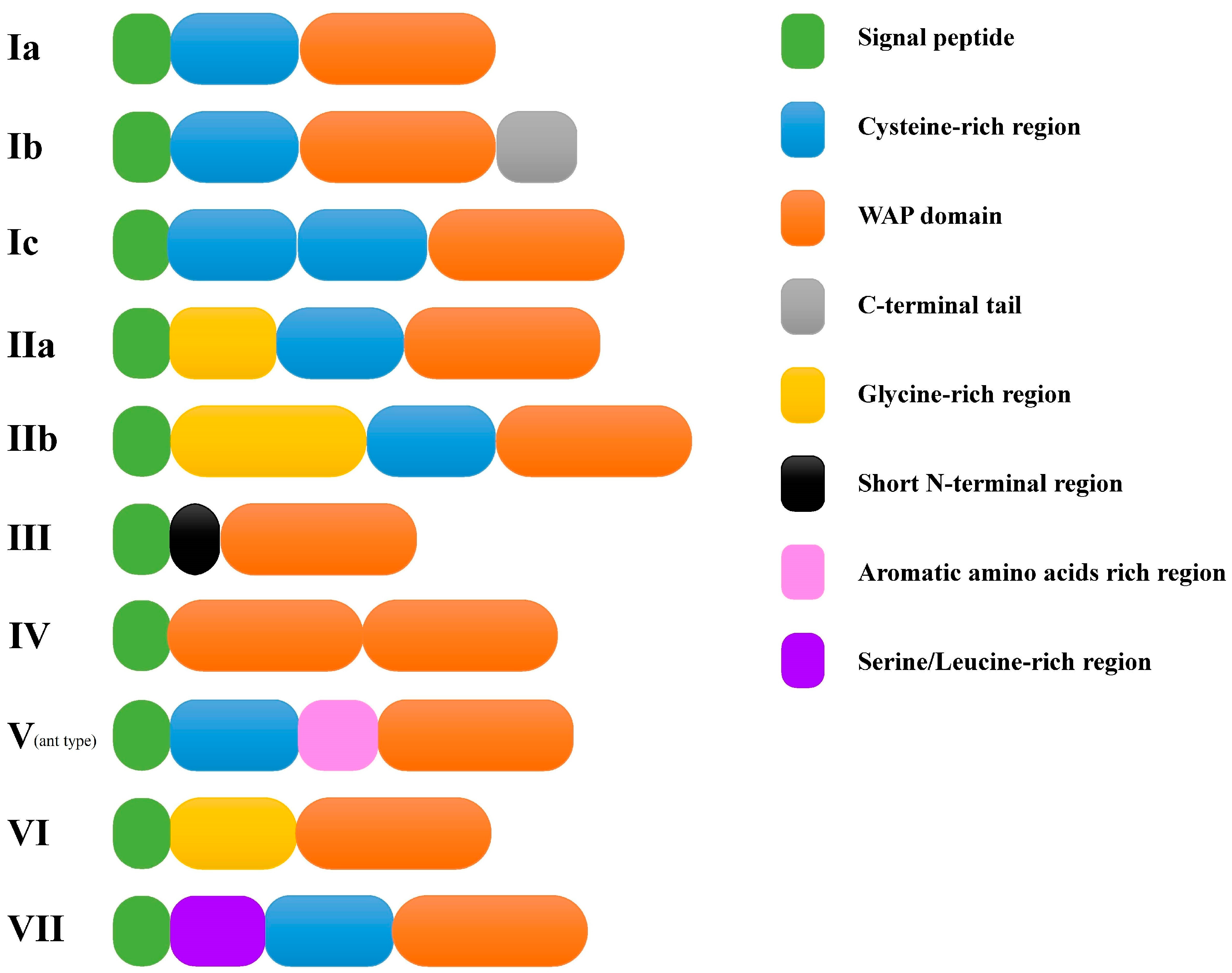

Figure 1. Diagram of different types of crustins. Seven different types of crustins are shown with Roman numerals from I to VII. Subtypes are displayed with lowercase letters followed the type names. Sequence features are shown with different colors.
Figure 1. Diagram of different types of crustins. Seven different types of crustins are shown with Roman numerals from I to VII. Subtypes are displayed with lowercase letters followed the type names. Sequence features are shown with different colors.
Marinedrugs 18 00361 g001
Marinedrugs 18 00361 g002 550

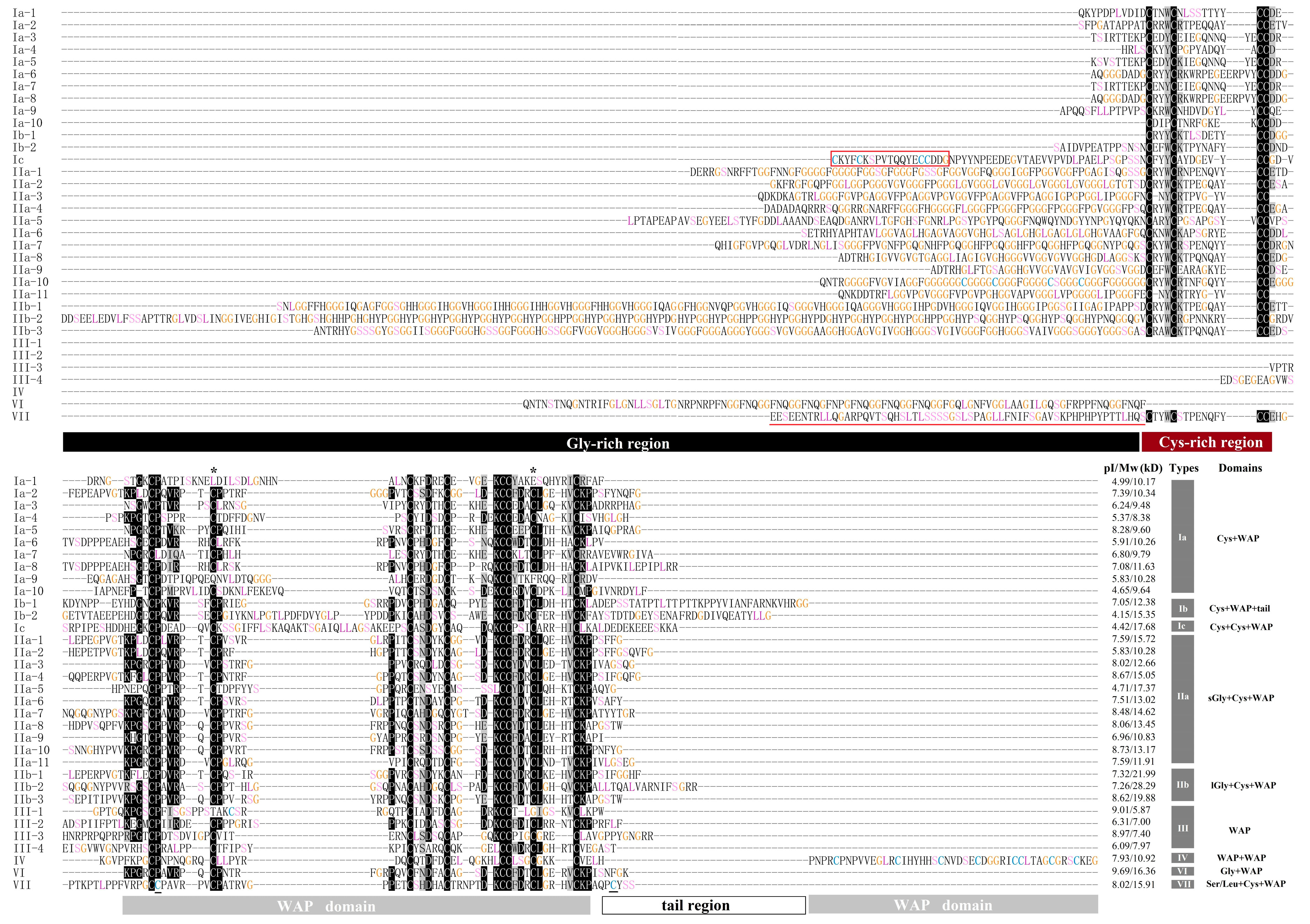

Figure 2. Multiple alignments of putative crustins identified in L. vannamei. The information of these sequences was listed in Table 1. Different sequence features including glycine-rich region, cysteine-rich region, whey acidic protein (WAP) domain, and C-terminal tail are displayed with columns under the alignment. The first cysteine-rich region of LvCrustin Ic and the serine/leucine-rich region of LvCrustin VII are boxed and underlined, respectively. Identical and similar residues are shown in dark. The second and seventh conserved cysteine sites of three atypical WAP domains are shown with stars (*) above the alignment. The cysteine, glycine, serine, and leucine residues are colored. The pI/Mw values, type, and domain composition of each putative crustin are exhibited at the end of the alignment.
Figure 2. Multiple alignments of putative crustins identified in L. vannamei. The information of these sequences was listed in Table 1. Different sequence features including glycine-rich region, cysteine-rich region, whey acidic protein (WAP) domain, and C-terminal tail are displayed with columns under the alignment. The first cysteine-rich region of LvCrustin Ic and the serine/leucine-rich region of LvCrustin VII are boxed and underlined, respectively. Identical and similar residues are shown in dark. The second and seventh conserved cysteine sites of three atypical WAP domains are shown with stars (*) above the alignment. The cysteine, glycine, serine, and leucine residues are colored. The pI/Mw values, type, and domain composition of each putative crustin are exhibited at the end of the alignment.
Marinedrugs 18 00361 g002
Marinedrugs 18 00361 g003 550

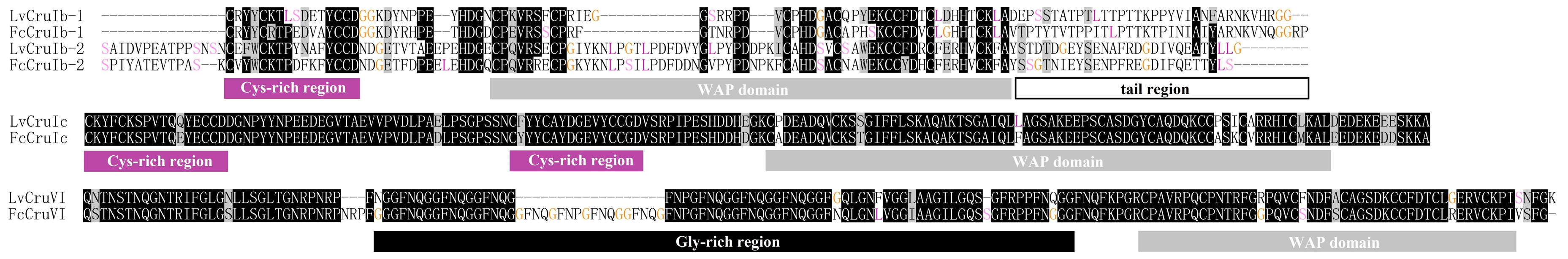

Figure 3. Alignment of type Ib, Ic, and VI crustins from L. vannamei and F. chinensis. Different sequence features including glycine-rich region, cysteine-rich region, WAP domain, and C-terminal tail are displayed with columns under the alignment.
Figure 3. Alignment of type Ib, Ic, and VI crustins from L. vannamei and F. chinensis. Different sequence features including glycine-rich region, cysteine-rich region, WAP domain, and C-terminal tail are displayed with columns under the alignment.
Marinedrugs 18 00361 g003
Marinedrugs 18 00361 g004 550

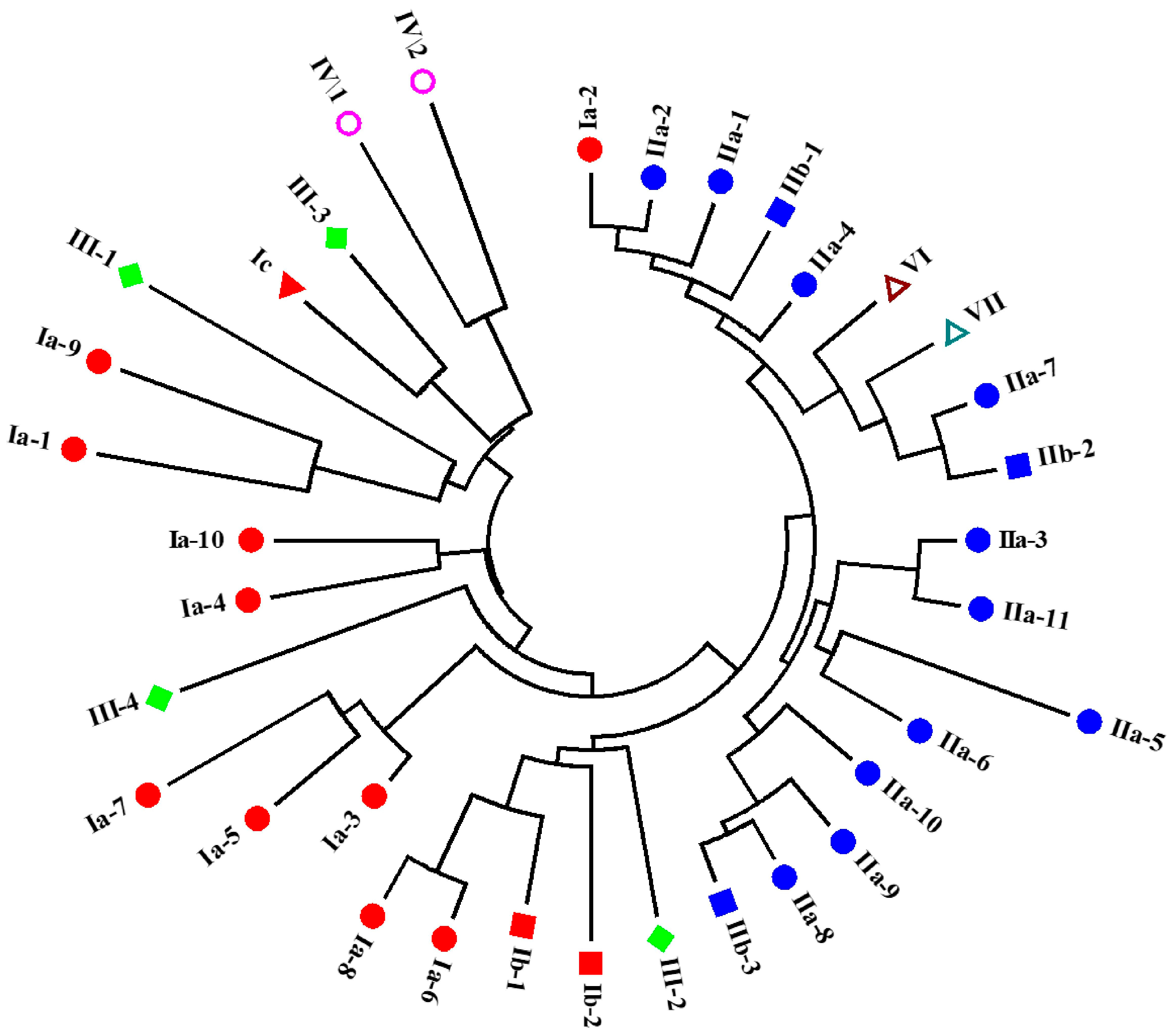

Figure 4. Cluster of putative crustins identified in L. vannamei. The WAP domains of these putative crustins are used for analysis using the neighbor-joining method. Different types and sub-types of putative crustins are shown in different shapes and colors.
Figure 4. Cluster of putative crustins identified in L. vannamei. The WAP domains of these putative crustins are used for analysis using the neighbor-joining method. Different types and sub-types of putative crustins are shown in different shapes and colors.
Marinedrugs 18 00361 g004
Marinedrugs 18 00361 g005 550

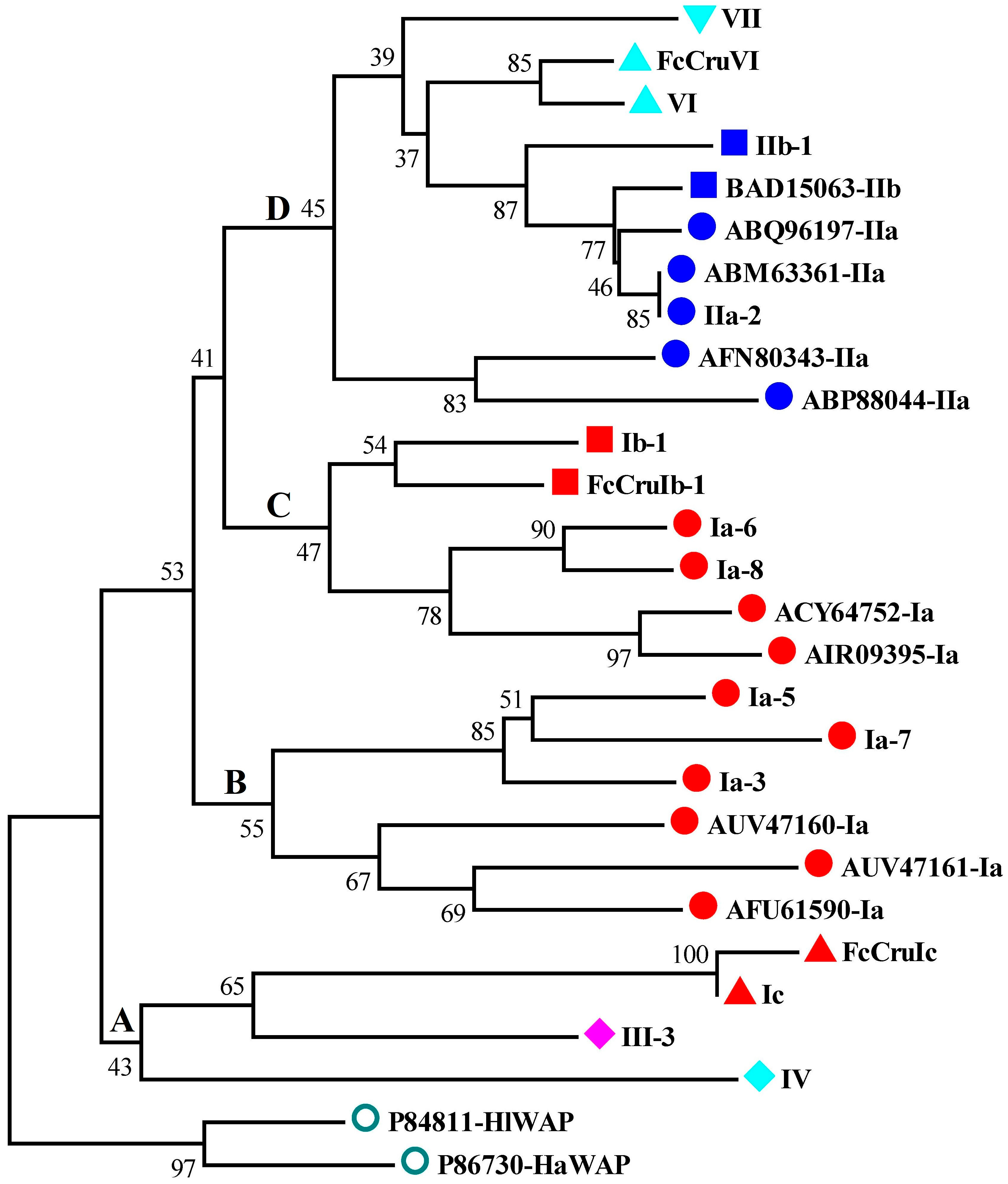

Figure 5. Phylogenetic analysis crustins and homologues from L. vannamei and other species. The WAP domains of these proteins are used for phylogenic analysis using the neighbor-joining method. Bootstrap value is set at 1000. Crustins from the present study are shown with their symbols. Crustins from other species are shown with NCBI accession numbers and types. Different types and sub-types of crustins, which are classified into four branches (A–D), and the Perlwapin are shown in different shapes and colors.
Figure 5. Phylogenetic analysis crustins and homologues from L. vannamei and other species. The WAP domains of these proteins are used for phylogenic analysis using the neighbor-joining method. Bootstrap value is set at 1000. Crustins from the present study are shown with their symbols. Crustins from other species are shown with NCBI accession numbers and types. Different types and sub-types of crustins, which are classified into four branches (A–D), and the Perlwapin are shown in different shapes and colors.
Marinedrugs 18 00361 g005
Marinedrugs 18 00361 g006 550

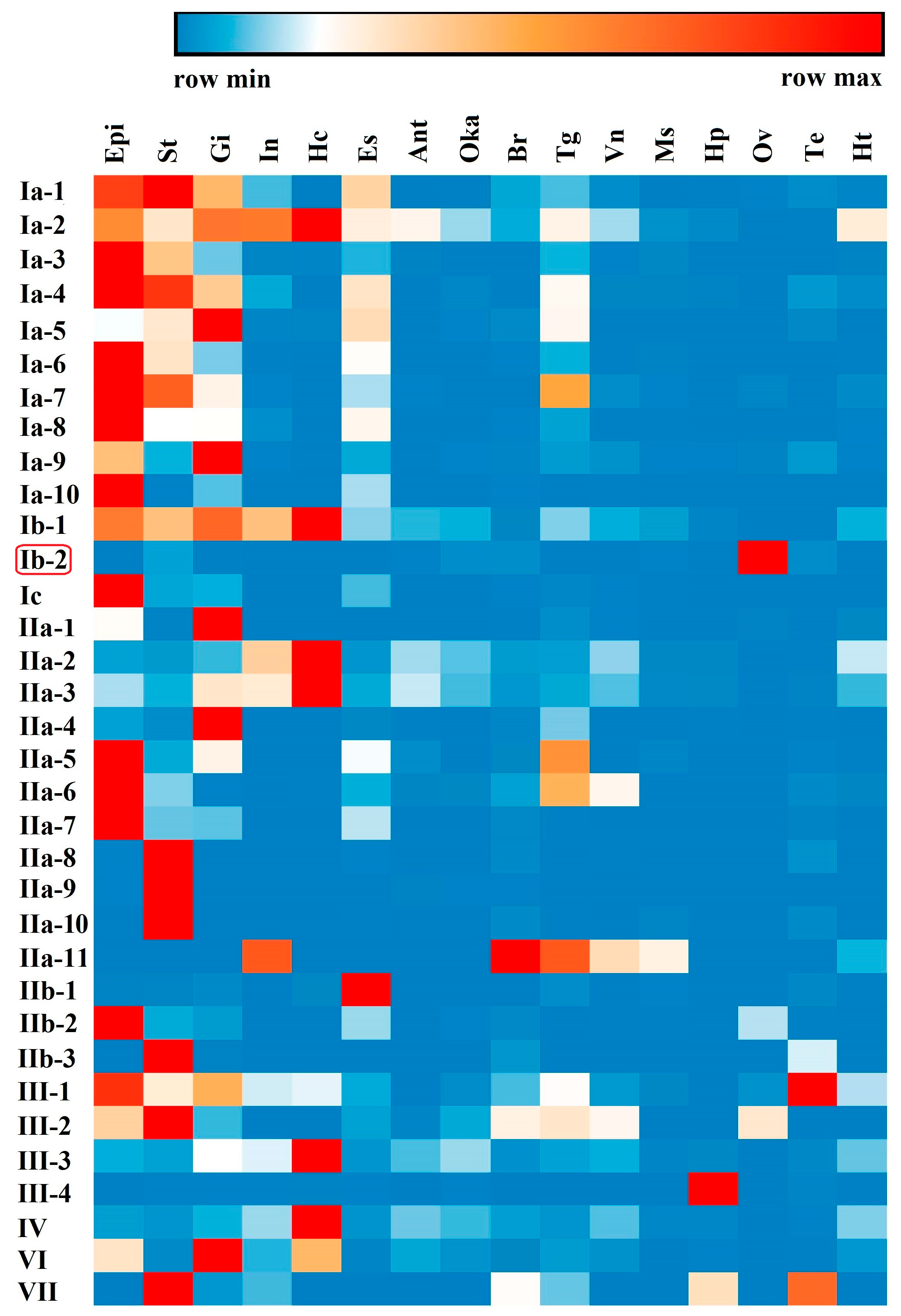

Figure 6. Tissue distribution of the crustin-like transcripts identified in L. vannamei. Epi, epidermis; St, stomach; Gi, gill; In, intestine; Hc, hemocytes; Es, eyestalk; Ant, antennal gland; Oka, lymph organ; Br, brain; Tg, thoracic ganglia; Vn, ventral nerve cord; Ms, muscle; Hp, hepatopancreas; Ov, ovary; Te, testis; Ht, heart. The gene symbols of crustin-like genes are listed left. The above color bar shows the expression level changes of the genes. The data show a mean expression level of each gene in each sample, which is a mixed tissue sample collected from 10 individuals.
Figure 6. Tissue distribution of the crustin-like transcripts identified in L. vannamei. Epi, epidermis; St, stomach; Gi, gill; In, intestine; Hc, hemocytes; Es, eyestalk; Ant, antennal gland; Oka, lymph organ; Br, brain; Tg, thoracic ganglia; Vn, ventral nerve cord; Ms, muscle; Hp, hepatopancreas; Ov, ovary; Te, testis; Ht, heart. The gene symbols of crustin-like genes are listed left. The above color bar shows the expression level changes of the genes. The data show a mean expression level of each gene in each sample, which is a mixed tissue sample collected from 10 individuals.
Marinedrugs 18 00361 g006
Marinedrugs 18 00361 g007 550

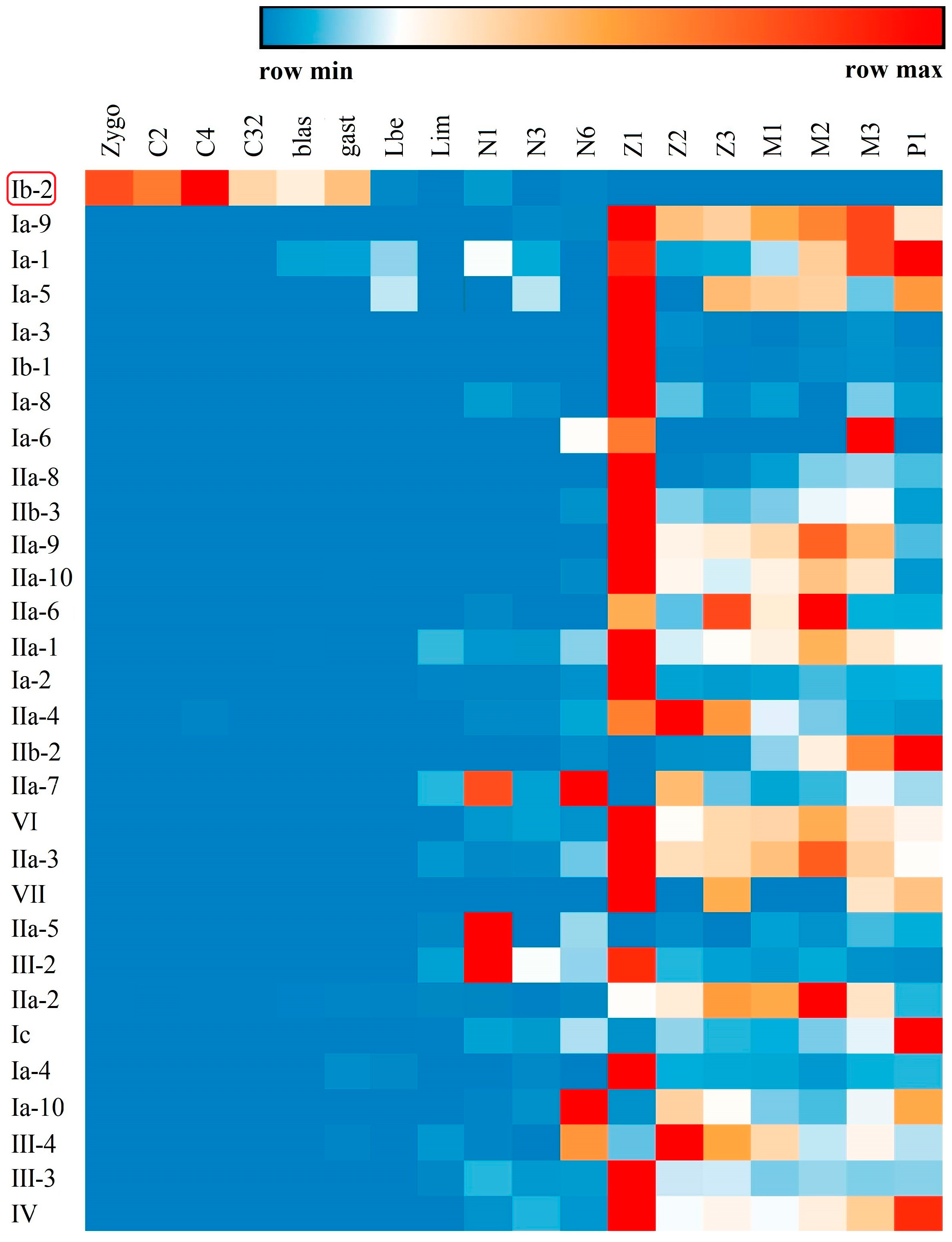

Figure 7. Temporal expression profiles of the crustin-like genes transcripts identified in L. vannamei. The expression levels of these crustin-like genes are detected in different developmental stages including fertilized egg (Zygo), 2-cell stage (C2), 4-cell stage (C4), 32-cell stage (C32), blastocyst (blas), gastrula (gast), limb bud embryo (lbe), larva in membrane (lim), nauplius I (N1), nauplius III (N3), nauplius VI (N6), zoea I (Z1), zoea II (Z2), zoea III (Z3), mysis I (M1), mysis II (M2), mysis III (M3), and postlarvae 1 (P1) stages. The gene symbols of crustin-like genes are listed left. The above color bar shows the expression level changes of the genes.
Figure 7. Temporal expression profiles of the crustin-like genes transcripts identified in L. vannamei. The expression levels of these crustin-like genes are detected in different developmental stages including fertilized egg (Zygo), 2-cell stage (C2), 4-cell stage (C4), 32-cell stage (C32), blastocyst (blas), gastrula (gast), limb bud embryo (lbe), larva in membrane (lim), nauplius I (N1), nauplius III (N3), nauplius VI (N6), zoea I (Z1), zoea II (Z2), zoea III (Z3), mysis I (M1), mysis II (M2), mysis III (M3), and postlarvae 1 (P1) stages. The gene symbols of crustin-like genes are listed left. The above color bar shows the expression level changes of the genes.
Marinedrugs 18 00361 g007
Marinedrugs 18 00361 g008 550

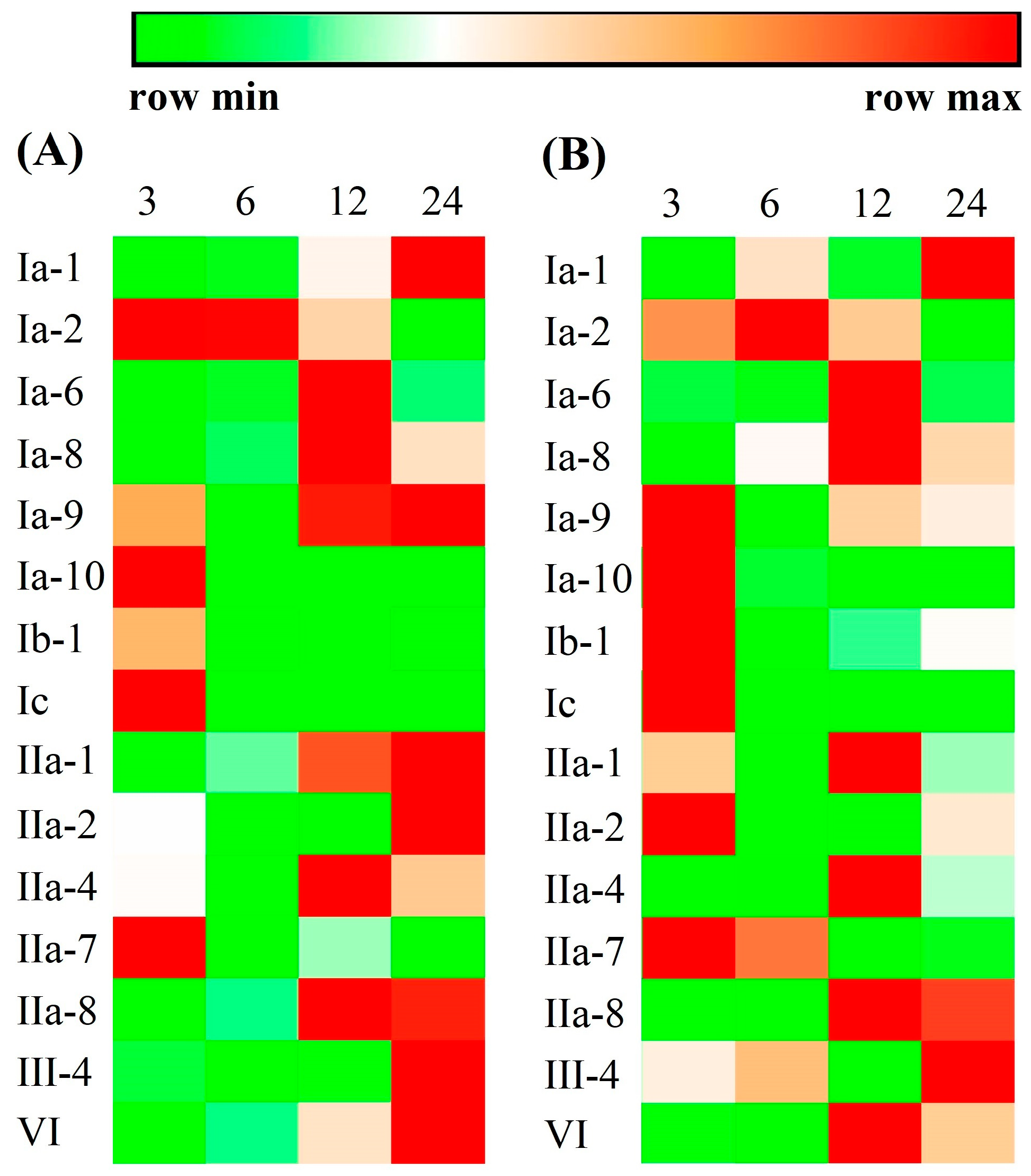

Figure 8. Immune responses of selected crustin-like genes against Vibrio parahaemolyticus (A) or WSSV (B) infection. The expression levels are analyzed in shrimp at 3, 6, 12, and 24 h post pathogen infection. The gene symbols of crustin-like genes are listed left. The above color bar shows the expression level changes of the genes. The heatmap is drawn with the mean relative expression data obtained by qPCR analysis from three biological replicates. The statistical analysis results are shown in Table S2.
Figure 8. Immune responses of selected crustin-like genes against Vibrio parahaemolyticus (A) or WSSV (B) infection. The expression levels are analyzed in shrimp at 3, 6, 12, and 24 h post pathogen infection. The gene symbols of crustin-like genes are listed left. The above color bar shows the expression level changes of the genes. The heatmap is drawn with the mean relative expression data obtained by qPCR analysis from three biological replicates. The statistical analysis results are shown in Table S2.
Marinedrugs 18 00361 g008
Marinedrugs 18 00361 g009 550

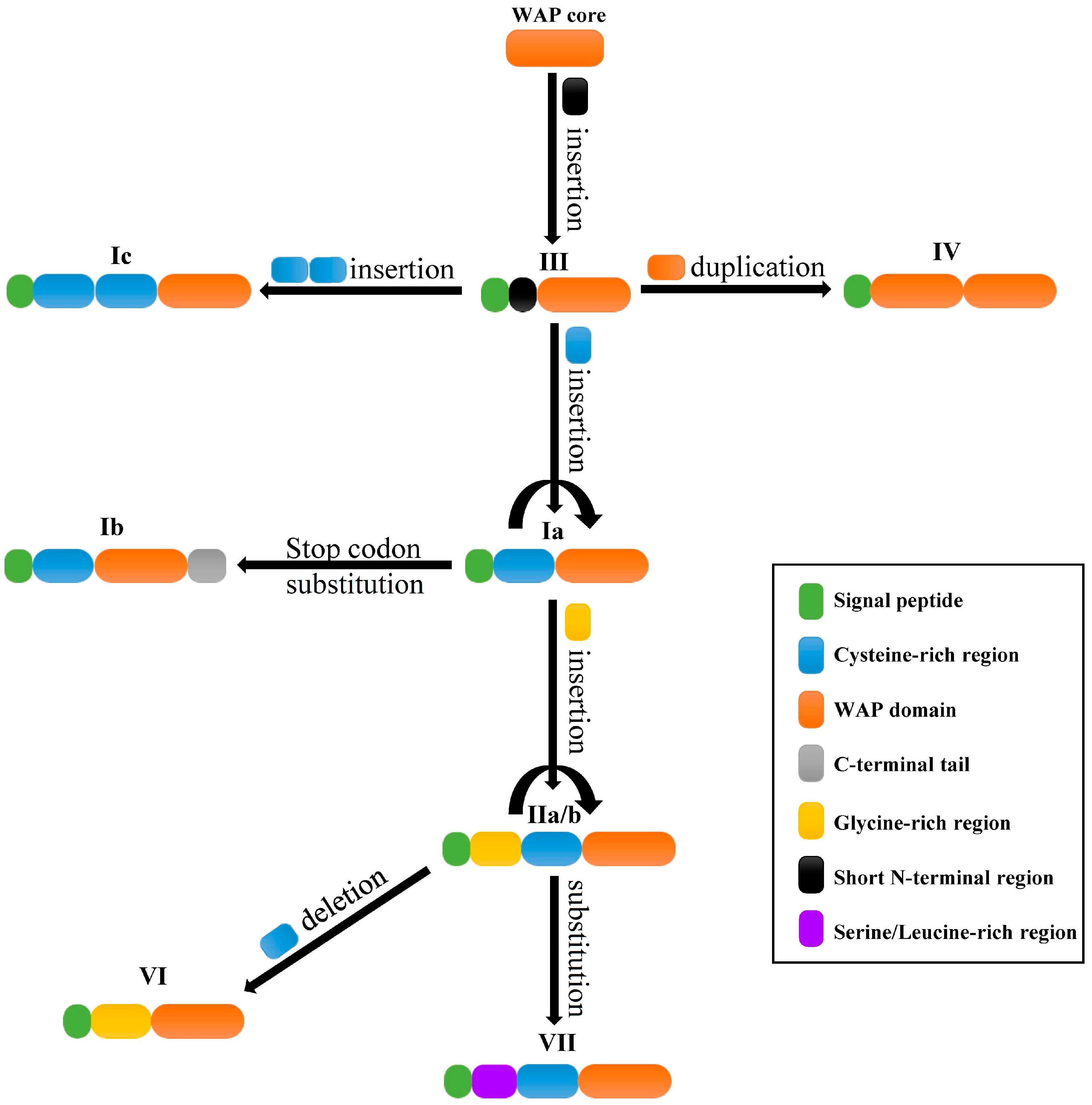

Figure 9. A proposed mode for the evolutionary route of crustins in crustaceans. Different types pf crustins are shown with type names and diagrams consisting of sequence features with colors. The possible changes among different types of crustins are displayed beside the arrowed lines.
Figure 9. A proposed mode for the evolutionary route of crustins in crustaceans. Different types pf crustins are shown with type names and diagrams consisting of sequence features with colors. The possible changes among different types of crustins are displayed beside the arrowed lines.
Marinedrugs 18 00361 g009
Table
Table 1. Sequence information of crustin-like genes in Litopenaeu vannamei.
Table 1. Sequence information of crustin-like genes in Litopenaeu vannamei.
Transcriptome_IDGenome_IDGene SymbolNCBI Accession NumberORF Length (bp)Sequence Features
Unigene0010238XP_027238377Ia-1MT375557318SP+Cys+WAP
Unigene0016512N/AIa-2MT375558345SP+Cys+WAP
Unigene0015168N/AIa-3MT375559306SP+Cys+WAP
Unigene0058358XP_027212735Ia-4MT375560291SP+Cys+WAP
Unigene0088991N/AIa-5MT375561309SP+Cys+WAP
Unigene0053725ROT80205Ia-6MT375562327SP+Cys+WAP
Unigene0088992N/AIa-7MT375563309SP+Cys+WAP
Unigene0053724XP_027219667Ia-8MT375564363SP+Cys+WAP
Unigene0062421XP_027221901Ia-9MT375565342SP+Cys+WAP
Unigene0047792XP_027209751Ia-10MT375566339SP+Cys+WAP
Unigene0045871XP_027212782Ib-1MT375567/ATU82299381SP+Cys+WAP+tail
Unigene0068591XP_027219394Ib-2MT375568474SP+Cys+WAP+tail
Unigene0070992N/AIcMT375569546SP+Cys+Cys+WAP
Unigene0074242N/AIIa-1MT375570522SP+sGly+Cys+WAP
Unigene0014103XP_027208055IIa-2MT375571/AAL36890492SP+sGly+Cys+WAP
Unigene0047624N/AIIa-3MT375572/AFV77524444SP+sGly+Cys+WAP
Unigene0075484N/AIIa-4MT375573492SP+sGly+Cys+WAP
Unigene0059807N/AIIa-5MT375574540SP+sGly+Cys+WAP
Unigene0070231XP_027213162IIa-6MT375575456SP+sGly+Cys+WAP
Unigene0046286XP_027227947IIa-7MT375576531SP+sGly+Cys+WAP
Unigene0003589N/AIIa-8MT375577471SP+sGly+Cys+WAP
Unigene0051595N/AIIa-9MT375578384SP+sGly+Cys+WAP
Unigene0060777N/AIIa-10MT375579465SP+sGly+Cys+WAP
Unigene0106537N/AIIa-11MT375580405SP+sGly+Cys+WAP
Unigene0076000N/AIIb-1MT375581732SP+lGly+Cys+WAP
Unigene0021981N/AIIb-2MT375582870SP+lGly+Cys+WAP
Unigene0035165N/AIIb-3MT375583720SP+lGly+Cys+WAP
Unigene0091111N/AIII-1MT375584492SP+sN+WAP
Unigene0069142XP_027213161III-2MT375585252SP+sN+WAP
Unigene0068231XP_027228308III-3MT375586/AY465833282SP+sN+WAP
Unigene0047523N/AIII-4MT375587282SP+sN+WAP
Unigene0075840N/AIVMT375588/ABR19819276SP+WAP+WAP
Unigene0073524XP_027229424VIMT375589351SP+Gly+WAP
Unigene0106295XP_027236662VIIMT375590516SP+Ser/Leu+Cys+WAP
Note: N/A represents lack of annotated genes in the shrimp genome data. The abbreviations represent signal peptide (SP), cysteine-rich region (Cys), WAP domain (WAP), short glycine-rich region (sGly), long glycine-rich region (lGly), short N-terminal region (sN), and serine/leucine-rich region (Ser/Leu), respectively.
Table
Table 2. Sequence information of primers used in the present study.
Table 2. Sequence information of primers used in the present study.
Gene SymbolPrimer NameNucleotide Sequence (5’~3’)Annealing Temperature (℃)
Ia-1Ia-1FCTCTGGTGGACATTGACTGC55
Ia-1RGTTGAGGGCGTTGTGGTT
Ia-10Ia-10FGGGTTGGCGTTACTTGGA52
Ia-10RGGGCAGGTTGGAAACTCATT
Ia-2Ia-2FCCCACAAGTCCGTCCCACCT58
Ia-2RCTCCCAGACACCTGTCGAAGCAG
Ia-6Ia-6FCGCCGATGGTTGCAGGTATT55
Ia-6RCATGATGGTCCAAGCAGGTGTC
Ia-8Ia-8FCGCCGATGGTTGCAGGTAT55
Ia-8RCGTGATGGTCCAAGCAGGTGT
Ia-9Ia-9FAATGGCGACCCTGATGTTG55
Ia-9RGGTGTCTAAGACGTTCTGCTCC
Ib-1Ib-1FTGCGATGGCGGGAAAGAT55
Ib-1RGCAGCACTTCTCGTAGGGTTGG
IcIc-FGCAGTGCCTCAATCTTATCCTC52
Ic-RTCGGCTGTTACACCTTCATCTT
IIa-1IIa-1FACCGATCTTGAACCCGAGGGC58
IIa-1RTGCAGGCACCTGTCGAAGCAG
IIa-2IIa-2FGGTGTTGGTGGTGGTTTCCC55
IIa-2RCAGTCGCTTGTGCCAGTTCC
IIa-4IIa-4FTTGTGCTGTCTCCTGGTGGCTGTT58
IIa-4RCGCCAAAGAATCTTGCATTCCCTC
IIa-7IIa-7FGCAGGTCACCCGAGAATCAGT55
IIa-7RCGAGGCATCTGTCGAAGCAG
IIa-8IIa-8FGGCCTCATAGCGGGCATCG58
IIa-8RCCTGGTTCTGGGGCGTCTTG
III-4III-4FGGAAATCCAGTCCGGCACTCT56
III-4RAAGCAGCGGTCCCAGCAA
VIVI-FCCCAGAACACCAACAGCACC55
VI-RGTCCACCGACGAAGTTACCG
18S rRNA18S-FTATACGCTAGTGGAGCTGGAA55
18S-RGGGGAGGTAGTGACGAAAAAT

Share and Cite

MDPI and ACS Style

Li, S.; Lv, X.; Yu, Y.; Zhang, X.; Li, F. Molecular and Functional Diversity of Crustin-Like Genes in the Shrimp Litopenaeus vannamei. Mar. Drugs 2020, 18, 361. https://doi.org/10.3390/md18070361

AMA Style

Li S, Lv X, Yu Y, Zhang X, Li F. Molecular and Functional Diversity of Crustin-Like Genes in the Shrimp Litopenaeus vannamei. Marine Drugs. 2020; 18(7):361. https://doi.org/10.3390/md18070361

Chicago/Turabian Style

Li, Shihao, Xinjia Lv, Yang Yu, Xiaojun Zhang, and Fuhua Li. 2020. "Molecular and Functional Diversity of Crustin-Like Genes in the Shrimp Litopenaeus vannamei" Marine Drugs 18, no. 7: 361. https://doi.org/10.3390/md18070361

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
