Orientation Dependence of Elastic and Piezoelectric Properties in Rhombohedral BiFeO₃

Abstract

Through a coordinate transformation approach, crystal orientation dependences of elastic and piezoelectric properties at room temperature have been investigated in a three-dimensional space for rhombohedral bismuth ferrite (BiFeO₃). Elastic constants (stiffnesses) c_11′, c_12′, c_13′ and piezoelectric constants d_15′, d_31′, d_33′ along arbitrary orientations were obtained based on crystalline asymmetry characteristics of 3m point group BiFeO₃. Parameters along specific orientations obtaining the largest values were presented. The max c_11′ = 213 × 10⁹ N/m² could be achieved in planes with $\varphi$ = 0° and 90°. The max c_12′ = c_13′ = 132.2 × 10⁹ N/m² could be achieved along directions at θ = 13° and θ = 77° inside three mirror planes, respectively. The max d_15′ = 27.6 × 10⁻¹² C/N and the max d_31′ = 12.67 × 10⁻¹² C/N could be both obtained along directions at θ = 69° inside mirror planes. The max d_33′ = 18 × 10⁻¹² C/N could be obtained at θ = 0°, along the spontaneous polarization axis. By adopting optimal directions, the elastic and piezoelectric parameters of BiFeO₃ could be significantly enhanced which shows applications for the growth of BeFeO₃ films with preferred orientations and enhanced properties.

1. Introduction

Bismuth ferrite (BiFeO₃) was first actively pursued as a room temperature single-phase multiferroic material for its coexistence of magnetic order and electric order, high Curie point, and G-type antiferromagnetic Neel point [1,2,3,4]. Then, as BiFeO₃ exhibits good ferroelectric and piezoelectric properties, it was also studied as a piezoelectric phase to combine other magnetostrictive phase to form composite multiferric with tailored properties, such as BiFeO₃-CoFe₂O₄ [5], BiFeO₃-CuFe₂O₄ [6], etc., which shows potential technical applications in multi-state magnetoelectric memories [7], weak magnetic fields detectors [8], and other novel sensors [9,10]. As a lead-free piezoelectric material, BiFeO₃ could be highly applied in piezoelectric MEMS devices because of the spontaneous polarization of as high as 100 μC/cm² [11] and the high Curie temperature [3]. Besides, BiFeO₃ thin films are reported to have lower dielectric constants than Pb-based piezoelectric materials which could generate high electromechanical coupling abilities [12,13]. On raising piezoelectric constants of BiFeO₃, previous studies were focused on doping transition metals such as Sm, Yb, Ho in A site and Sc, In in B site of BiFeO₃, piezoelectric constants d₃₃ of up to ~20–~50 pC/N were achieved [14,15]. Most piezoelectrics have asymmetrical crystal structures, which result high anisotropy of parameters of the materials. Piezoelectric thin films with preferred orientations can obtaion enhanced or decreased properties compared with grain random distributed materials [16,17]. This also applies to doped BiFeO₃ with unchanged crystal structures. Whether the properties will be enhanced or decreased is strongly determined by asymmetry characteristics of crystal, i.e., the point groups. The crystal structure of BiFeO₃ below 1100 K belongs to a rhombohedral system with point group of 3m [18]. It is meaningful to have a precise description of properties-orientation relations to guide further experimental works. In this research, using the coordinate transformation method, we investigated the orientation dependences of elastic and piezoelectric parameters of rhombohedral BiFeO₃ with the 3m point group. Precise relations between values of parameters and arbitrary orientations were given, and orientations along which the maximum and minimum of these parameters could be obtained were specified. The result shows applications for the growth of BiFeO₃ films with an oriented structure and enhanced properties.

2. Methods

The Curie point and the antiferromagnetic Neel point of BiFeO₃ are 1100 [3] and 640 K [4], respectively. Below the Curie point, BiFeO₃ is a member of rhombohedral crystal system with point group of 3m [18]. For this type of crystal, the asymmetrical characteristics lie in such a way that it has a threefold rotation axis along the c-axis (also the spontaneous polarization axis, displacements of Bi relative to O in rhombohedral BiFeO₃ [19,20], also can be denoted as [111]-axis using coordinate with oxygen octahedra in perovskite Bi framework) and three mirror planes which are 120° apart (two of them are parallel to a- and b-axes, respectively). Because of α = β = 90° and γ = 120° for rhombohedral BiFeO₃ crystal, the physical orthogonal coordinate system does not coincide rightly with a-, b-, and c-axes. The chosen coordinate system in this study is as follows: X-axis and Z-axis are chosen along a-axis and c-axis (i.e., X||a, Z||c), respectively; Y-axis is determined by using the right-hand rule, which is perpendicular to a-axis and at a 30° angle with b-axis (Figure 1).

To determine the anisotropy of properties originating from asymmetry of crystals, we use the coordinate system transformation method that is related to transforming the property tensors to obtain values in any arbitrary direction. It contains two-step rotations to reach a desired direction from the original coordinate system. Firstly, rotation through a clockwise angle $\varphi$ about the Z-axis, the original orthogonal coordinates XYZ can be changed into a set of new coordinates X’Y’Z’ (Z’||Z); secondly, rotation through a clockwise angle θ about the X’-axis; the coordinate system X’Y’Z’ can be changed into another set of coordinates X”Y”Z” (X”||X’). The transformation matrices A_Z and A_X corresponding to the first and the second rotations are

$$A_Z=\left(\begin{array}{ccc}\cos \varphi & \sin \varphi & 0\\ -\sin \varphi & \cos \varphi & 0\\ 0& 0& 1\end{array}\right)$$

(1)

$$A_X=\left(\begin{array}{ccc}1& 0& 0\\ 0& \cos \theta & \sin \theta \\ 0& -\sin \theta & \cos \theta \end{array}\right)$$

(2)

N and M are [6 × 6] bond strain transformation matrices. a_ij represents the element in row i and column j in transformation matrices A, the matrices N and M are

$$N=\left(\begin{array}{cccccc}{a}_{11}^2& a_{12}^2& a_{13}^2& a_{12}{a}_{13}& a_{13}{a}_{11}& a_{11}{a}_{12}\\ a_{21}^2& a_{22}^2& a_{23}^2& a_{22}{a}_{23}& a_{23}{a}_{21}& a_{21}{a}_{22}\\ a_{31}^2& a_{32}^2& a_{33}^2& a_{32}{a}_{33}& a_{33}{a}_{31}& a_{31}{a}_{32}\\ 2a_{21}{a}_{31}& 2a_{22}{a}_{32}& 2a_{23}{a}_{33}& a_{22}{a}_{33}+a_{32}{a}_{23}& a_{23}{a}_{31}+a_{33}{a}_{21}& a_{21}{a}_{32}+a_{31}{a}_{22}\\ 2a_{31}{a}_{11}& 2a_{32}{a}_{12}& 2a_{33}{a}_{13}& a_{32}{a}_{13}+a_{12}{a}_{33}& a_{33}{a}_{11}+a_{13}{a}_{31}& a_{31}{a}_{12}+a_{11}{a}_{32}\\ 2a_{11}{a}_{21}& 2a_{12}{a}_{22}& 2a_{13}{a}_{23}& a_{12}{a}_{23}+a_{22}{a}_{13}& a_{13}{a}_{21}+a_{23}{a}_{11}& a_{11}{a}_{22}+a_{21}{a}_{12}\end{array}\right)$$

(3)

$$M=\left(\begin{array}{cccccc}{a}_{11}^2& a_{12}^2& a_{13}^2& 2a_{12}{a}_{13}& 2a_{11}{a}_{13}& 2a_{11}{a}_{12}\\ a_{21}^2& a_{22}^2& a_{23}^2& 2a_{22}{a}_{23}& 2a_{21}{a}_{23}& 2a_{21}{a}_{22}\\ a_{31}^2& a_{32}^2& a_{33}^2& 2a_{32}{a}_{33}& 2a_{31}{a}_{33}& 2a_{31}{a}_{32}\\ a_{21}{a}_{31}& a_{22}{a}_{32}& a_{23}{a}_{33}& a_{22}{a}_{33}+a_{32}{a}_{23}& a_{23}{a}_{31}+a_{33}{a}_{21}& a_{21}{a}_{32}+a_{31}{a}_{22}\\ a_{11}{a}_{31}& a_{12}{a}_{32}& a_{13}{a}_{33}& a_{32}{a}_{13}+a_{12}{a}_{33}& a_{33}{a}_{11}+a_{13}{a}_{31}& a_{31}{a}_{12}+a_{11}{a}_{32}\\ a_{11}{a}_{21}& a_{12}{a}_{22}& a_{13}{a}_{23}& a_{12}{a}_{23}+a_{22}{a}_{13}& a_{13}{a}_{21}+a_{23}{a}_{11}& a_{11}{a}_{22}+a_{21}{a}_{12}\end{array}\right)$$

(4)

The elastic constants, including the compliance s_ij (i, j = 1–6) (m²/N) and the stiffness c_ij (i, j = 1–6) (N/m²), are defined by Hooke’s Law containing the relations between the strain x and the stress X, (x) = (s) (X) and (X) = (c) (x). The piezoelectric coefficient d_ij (i = 1–3, j = 1–6) (C/N), relates polarization P, to stress X in the relation of (P) = (d) (X). For a three-dimensional space coordinate system, all physical quantities are presented in matrix forms. Matrices of elastic stiffnesses c_ij and piezoelectric constants d_ij are presented in [6 × 6] and [3 × 6] rank tensors, respectively. According to Euler’s rotation laws, physical quantity matrices in a new orientation are obtained by two-step product operations with transformation matrices A, N, and M [21,22].

$$\left(c{}^{\prime }\right)=M_X\cdot M_Z\cdot \left(c\right)\cdot M_Z^t\cdot M_X^t$$

(5)

$$\left(d{}^{\prime }\right)=A_X\cdot A_Z\cdot \left(d\right)\cdot N_Z^t\cdot N_X^t$$

(6)

The symbols ‘′’ and ‘t’ represent parameters in the new coordinate system and transpose matrix, respectively. The key to calculate Equations (5) and (6) is using the right original matrices (at θ = $\varphi$ = 0°) which are obtained from Neumann’s principle changing with different point groups. The original matrices of (c) and (d) for 3m point group can be obtained from Ref. [20]. The elastic stiffnesses c_ij of BiFeO₃ at room temperature were obtained from Refs. [23,24]. The piezoelectric constants d_ij of BiFeO₃ at room temperature were obtained from Refs. [24,25]. Three-dimensional and two-dimensional representation graphs of parameters were drawn using Maple 18, a mathematical software program.

3. Results and Discussion

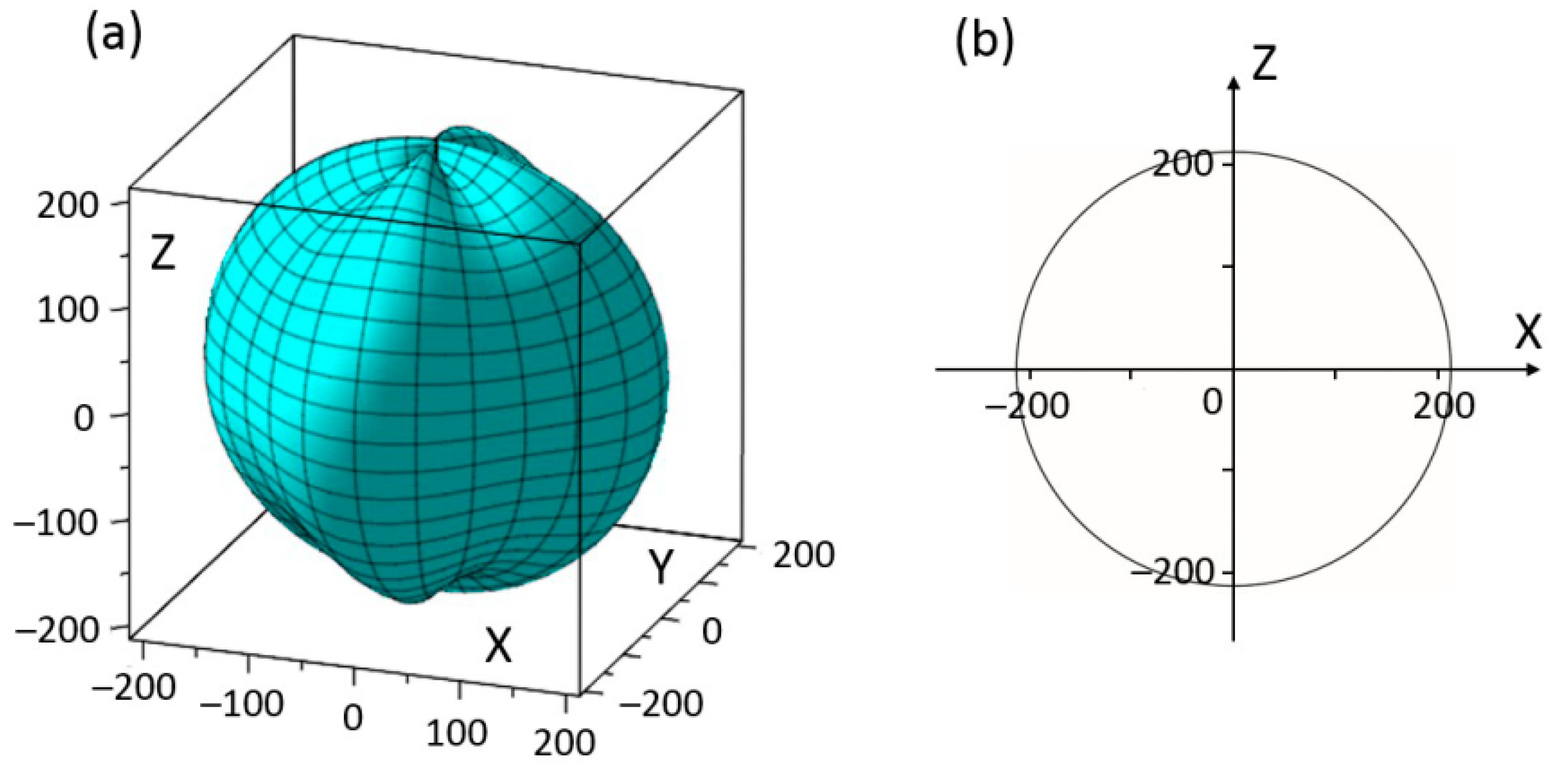

In both three-dimensional and two-dimensional graphs, the distance between a point and the original point represents the absolute value of the relative physical quantity in the relative direction. Orientational dependences of elastic constants c_ij′ were obtained by calculating (c′) in Equation (5) using data of five independent elastic constants (c₁₁, c₁₂, c₁₃, c₃₃, and c₄₄) for rhombohedral BiFeO₃. Figure 2a shows the three-dimensional representation of the first term elastic constant c_11′. In the geometry in Figure 2a, moderate changes of c_11′ could be observed with rhombohedral BiFeO₃ crystal rotating to different (θ, ϕ). The max c_11′ = 213 × 10⁹ N/m² is along $\varphi$ = 0° and 90° (also see Figure 2b); while the min c_11′ = 188 × 10⁹ N/m² is along $\varphi$ = 45° and 135° with a 11.7% decrease from the maximum. It also indicates that along principle axes of rhombohedral BiFeO₃, the max c_11′ could be obtained.

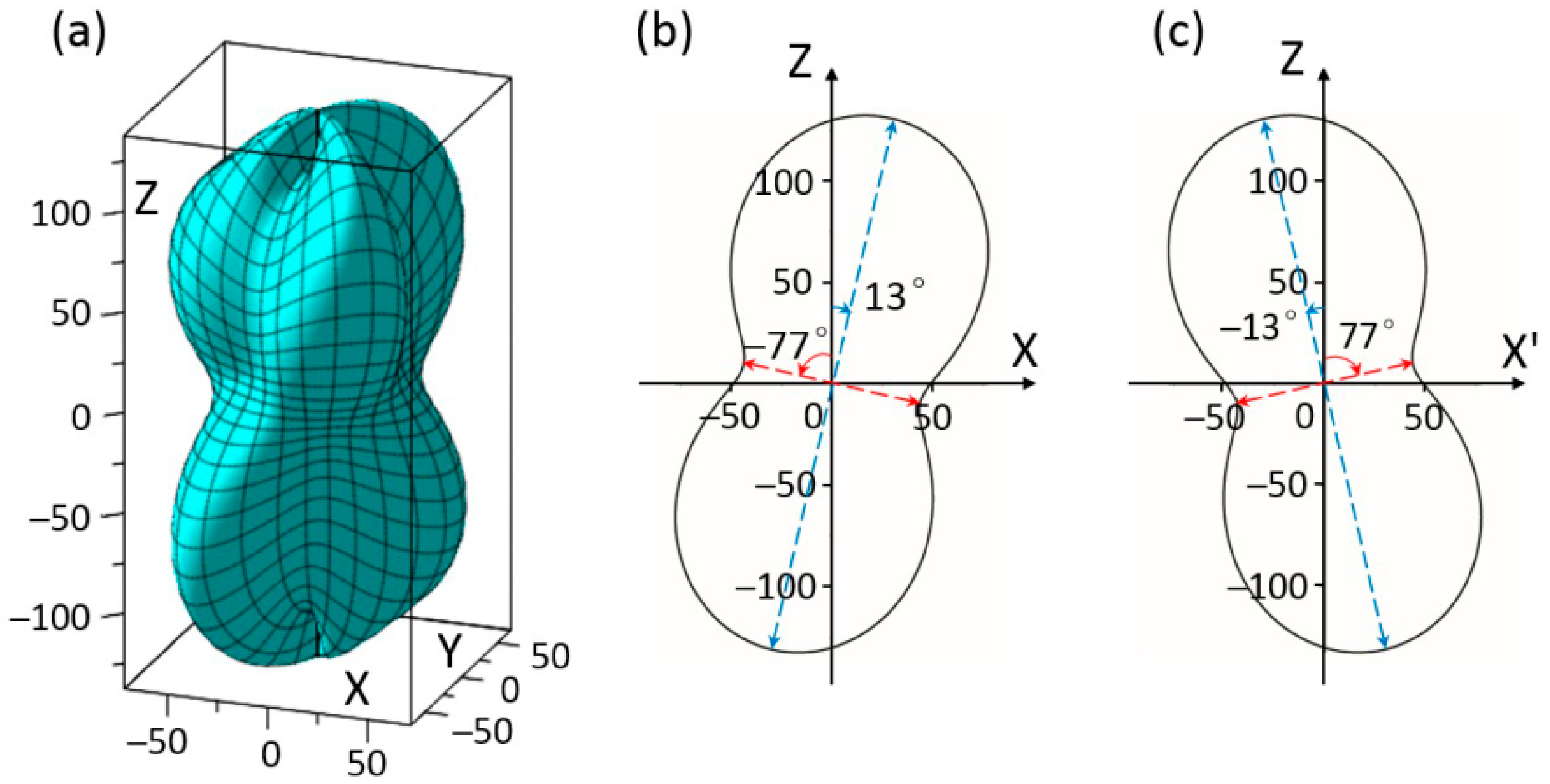

Figure 3a shows the three-dimensional representation of the second term elastic stiffness c_12′ of rhombohedral BiFeO₃. The geometry exhibits rotation symmetry in that by rotating through the Z-axis about 120° it coincides with each other, and by rotating through the Z-axis about 60° the rotated and original shapes are axisymmetric about the Z-axis. This is because to the symmetry elements of rhombohedral BiFeO₃ are three mirror-planes 120° apart from each other. Figure 3b shows the cross-section plots of c_12′ in XOZ plane at $\varphi$ = 0° or 120°. Plot in Figure 3c at $\varphi$ = 60° is axisymmetric with the plot of Figure 3b about the Z-axis. The max c_12′ = 132.3 × 10⁹ N/m² can be obtained at θ = 13° when $\varphi$ = 0° and 120°, θ = −13° when $\varphi$ = 60°. This indicates the three maximums exist in the mirror plane of rhombohedral BiFeO₃, but they are at an angle to the spontaneous polarization axis. The min c_12′ = 49 × 10⁹ N/m² can be obtained at θ = −77°.

Figure 4a shows the three-dimensional representation of the second term elastic stiffness c_13′ of rhombohedral BiFeO₃. Unlike c_12′, large c_13′ is found along the transverse directions, rather than the longitudinal directions. Symmetrical lobes of c_13′ also are along mirror planes, as shown in Figure 4b,c. The max c_13′ = 132 × 10⁹ N/m² can be obtained at θ of 77° inside mirror planes. The min c_13′ = 44.6 × 10⁹ N/m² can be obtained at θ of –13°. Values of c_11′, c_12′, and c_13′ of rhombohedral BiFeO₃ along several chosen orientations are shown in

Table 1. Comparison of elastic stiffness c_ij′ (GPa) and piezoelectric constant d_ij′ (10⁻¹² C/N) and their extremums along chosen orientations among BiFeO₃ (3m), tetragonal BaTiO₃ (4mm), and KNbO₃ (m2m) [28,29] ^#.

Crystal||[nkl]	[100]	[010]	[001]	Max	Min	Crystal||[nkl]	[100]	[010]	[001]	Max	Min
BFc11′	213	188	213	213	188	BTc11′ [28]	271	271	271	271	271
BFc12′	49	49	111	132	44.6	BTc12′ [28]	152	152	179	179	152
BFc13′	111	111	49	132	44.6
BFd15′	25.9	0	9.8	27.6	0	BTd15′ [29]	392	392	0	392	0
						KNd15′ [29]	206	206	21	206	21
BFd31′	11.9	0	4.5	12.67	0	BTd31′ [29]	0	0	−34.5	0	−34.5
						KNd31′ [29]	0	0	19.5	19.5	0
BFd33′	13	13	18	18	0	BTd33′ [29]	20	20	85.6	157.8	20
						KNd33′ [29]		0	29.3	59.3	0

^# The symbols BF, BT, and KN represent BiFeO₃, BaTiO₃, and KNbO₃, respectively.

.

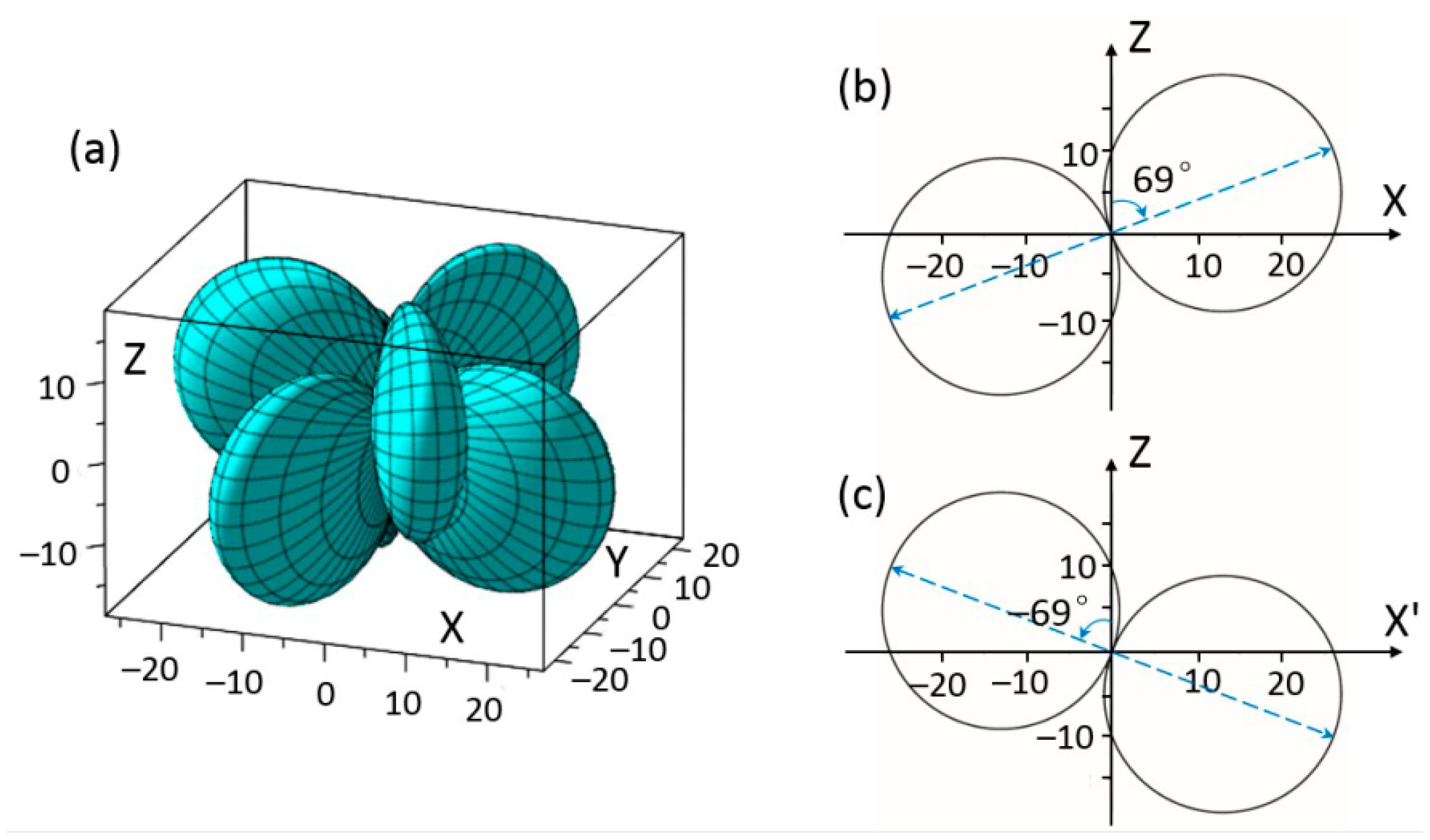

Orientational dependences of piezoelectric constants d_ij′ were obtained by calculating (d′) in Equation (6) using data of four independent elastic constants (d₁₅, d₂₂, d₃₁, and d₃₃) for rhombohedral BiFeO₃. Figure 5a shows the three-dimensional representation of shear piezoelectric constant d_15′. There are three pairs of lobes in the geometry shape of d_15′. Each pairs are along mirror planes of 3m BiFeO₃, and two components of each pairs are centrosymmetric to the origin point. d_15′ with large values could be obtained along orientations inside there lobes and it tends to be zero outside these lobes showing very evident spatial anisotropy. Figure 5b shows a cross-sectional plot of piezoelectric constant d_15′ at $\varphi$ = 0°, 120°, and 240° (Figure 5c is the relative plot at $\varphi$ = 60°). The max d_15′ = 27.6 × 10⁻¹² C/N could be obtained at θ = 69° inside mirror planes.

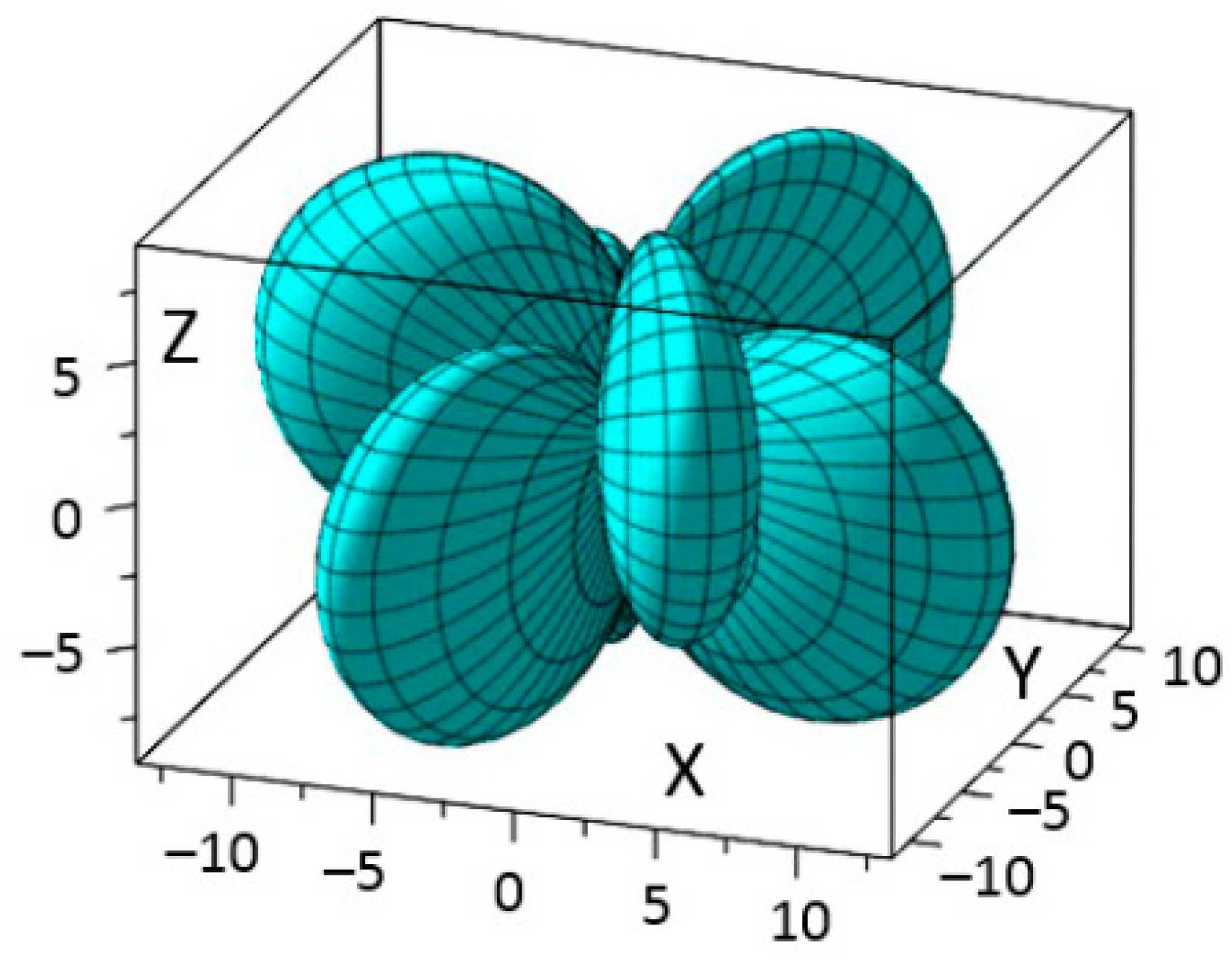

The transverse piezoelectric constant d_31′ of rhombohedral BiFeO₃ exhibits characteristics quite similar to that of d_31′, shown in Figure 6. The max d_31′ = 12.67 × 10⁻¹² C/N could also be obtained at θ = 69° inside mirror planes, which is about three times larger than d_31′ = 4.5 × 10⁻¹² C/N along the [001]-axis. Notably, the transverse piezoelectric constant d_31′ tends to be small along the spontaneous polarization axis ([001]-axis in this study). The result is in accordance with transverse piezoelectric stress constant values e₃₁ (unit C/m², e = d·c, where d and c are piezoelectric constant and elastic stiffness, respectively) of epitaxial BiFeO₃ films with various preferred orientations, e₃₁ along the spontaneous polarization axis and at a tilt 54.7° were −1.3 and −3.5 C/m², respectively, which is also about three times larger [26].

Figure 7a shows the three-dimensional representation of longitudinal piezoelectric constant d_33′ of rhombohedral BiFeO₃. Symmetrical lobes of d_33′ also can be found along mirror planes. The max d_33′ = 18 × 10⁻¹² C/N could be obtained at θ = 0° along the spontaneous polarization axis. The cross-sectional two-dimensional plots in X’OZ planes are shown in Figure 7b,c. The value of d_33′ along [100] and [010] is 13 × 10⁻¹² C/N. The result in this study is quite in accordance with d₃₃ value of BiFeO₃ crystal measured by Raman scattering, which is d₃₃ = 16 × 10⁻¹² C/N [27]. For epitaxial BiFeO₃ films, because of another measurement method applied (i.e., piezoelectric force microscopy, PFM) and strain from the substrates, values of d₃₃ of epitaxial BiFeO₃ films tend to be larger, in a range of 20–60 × 10⁻¹² C/N. However, experimental results showed epitaxial BiFeO₃ films with oriented structure has about four times the enhancement of longitudinal piezoelectric constant compared with polycrystalline BiFeO₃ films [28,29], which are generally in line with our results. Values of d_15′, d_31′, and d_33′ of rhombohedral BiFeO₃ along several chosen orientations are summarized in Table 1.

From the orientation dependences of elastic and piezoelectric parameters investigated in this study, it can be found that the spatial anisotropy of c_ij and d_ij are related closely with the asymmetrical characteristics of rhombohedral BiFeO₃ crystal with the 3m point group. As there is a rotation axis that is also the c-axis, several parameters tend to produce extreme values along this direction: c₁₁ and d₃₃ have the max values while d₁₅ and d₃₁ have the min values. Also, as there are three mirror planes locate at $\varphi$ = 0°, 60° (240°), and 120°, respectively (see Figure 8a–c, also denoting them with Miller index of (010), ($\overline{1}10$), and (100), respectively), the main lobes of several parameters are along the mirror planes: c₁₂, c₁₃, and all piezoelectric constants investigated. It also should be noted that Maxima directions are at a certain angle with the main crystalline axes, which may be attributed to the intrinsic lattice effects, which also appear in other piezoelectrics like BaTiO₃ [30] and LiNbO₃ [31]. The values of these parameters along arbitrary orientations were given in this study (some are listed in Table 1), which provides precise predictions for values of parameters with changing orientations. Table 1 also indicates that as a lead-free piezoelectric material, BiFeO₃ has smaller elastic stiffnesses (larger elastic compliances) than tetragonal BaTiO₃, and it has piezoelectric constants in the same level with those of KNbO₃ [32,33]. Furthermore, the largest values of these parameters were given in this study, which shows applications for the growth of BiFeO₃ films with oriented structure and enhanced properties.

4. Conclusions

Using the coordinate transformation method, the elastic and piezoelectric parameters at room temperature of rhombohedral BiFeO₃ with the 3m point group along arbitrary orientations have been investigated. Several conclusions were obtained through this study:

(1) The max elastic stiffness c_11′ = 213 × 10⁹ N/m² lies in planes with $\varphi$ = 0° and 90°. The max elastic stiffness c_12′ = c_13′ = 132.2 × 10⁹ N/m² lie in directions at θ = 13° and θ = 77° inside three mirror planes, respectively.

(2) The max piezoelectric constant d_15′ = 27.6 × 10⁻¹² C/N and the max piezoelectric constant d_31′ = 12.67 × 10⁻¹² C/N could both be obtained at θ = 69° inside three mirror planes. The max piezoelectric constant d_33′ = 18 × 10⁻¹² C/N could be obtained at θ = 0°, along the spontaneous polarization axis.

(3) The elastic and piezoelectric parameters of BiFeO₃ along arbitrary orientations were presented, and by adopting optimal directions these parameters could be significantly enhanced, which shows applications for the growth of BeFeO₃ films with oriented structures and enhanced properties.
