Development of ZIF-Derived Nanoporous Carbon and Cobalt Sulfide-Based Electrode Material for Supercapacitor

by
Rabia Ahmad
1,
Naseem Iqbal
1,* and
Tayyaba Noor
2
1
US–Pakistan Center for Advanced Studies in Energy (USPCAS–E), National University of Sciences and Technology (NUST), Islamabad 44000, Pakistan
2
School of Chemical and Materials Engineering (SCME), National University of Sciences and Technology (NUST), Islamabad 44000, Pakistan
*
Author to whom correspondence should be addressed.
Materials 2019, 12(18), 2940; https://doi.org/10.3390/ma12182940
Submission received: 8 July 2019 / Revised: 31 July 2019 / Accepted: 14 August 2019 / Published: 11 September 2019
(This article belongs to the Special Issue Advances in Electrochemical Energy Materials)
Browse Figures
Versions Notes

Abstract

:
Zeolitic Imidazolate Framework (ZIF-67) was prepared in two different solvents—water and methanol. Nanoporous carbon was derived from ZIF-67 via pyrolysis in an inert atmosphere. Anion exchange step of sulfidation on the synthesized material has a great influence on the structure and properties. Structural morphology and thermal stability were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM)/energy dispersive x-ray spectroscopy (EDS), Brunauer-Emmett-Teller (BET), and thermogravimetric (TG) analysis. The electrochemical analysis was evaluated by cyclic voltammetry, chronopotentiometry, and impedance analysis. The as-prepared nanoporous carbon and cobalt sulfide (NPC/CS) electrode material (water) in 2M KOH electrolyte solution exhibit high specific capacitance of 677 F/g. The excellent electrochemical performance of the NPC/CS was attributed to its hierarchical structure. This functionalized ZIF driven strategy paves the way to the preparation of various metal oxide and metal sulfide-based nanoheterostructures by varying the type of metal.

1. Introduction

With the affluence of the energy industry, several countries have paid much attention to the advancement of power sources. Presently, studies on supercapacitors are rare, compared to the energy storage devices of batteries. As an alternative energy source, supercapacitors have the advantages of high power density, long cyclic stability, and low-cost [1,2,3]. The main four parts of a supercapacitor are electrode material, electrolyte, separator, and collector. Electrode material exhibits a primary role in the performance of the supercapacitors [4,5].
Among the reported electrode materials for the supercapacitors, metallic oxides and metallic hydroxides have very good theoretical specific capacity but they have very poor electrical conductivity and poor cyclic stability [6]. At present, metallic sulfides have gained many attractions for the applications in supercapacitors as they have very good specific capacitance and electrical conductivity, supporting the improved electrochemical features [7]. Metalic sulfides electrode materials have a high reversible Faradic reaction at the electrode/electrolyte interface that occurs during the charge transfer process. A number of sulfides use supercapacitor applications, i.e., MnS [8], CuS [9], MoS [10], CoS [11], NiS [12], as well as bimetallic sulfides such as NiCo2S4 [7]; although, the enhancement in surface area, porosity, and mechanical support can improve the electrochemical properties of the metallic sulfides. For that purpose, graphene/graphene oxide and metallic sulfide-based composed like NiS/reduced GO, Co3S4 growth on graphene have been reported as a promising electrode material for the applications in supercapacitors [11].
The metal-organic frameworks (MOFs) have deployed a great sway in the development of supercapacitors since the MOFs were formed in the late 1990s [13]. Excessive consideration was paid to ZIF-67 just because of its polyhedral framework. Due to the number of porosities, considerable surface area, small density, thermal, and chemical stabilities [1], ZIFs represent a breakthrough in the various applications comprising adsorption/separation [14,15], sensors [16], catalysis [17], gas storage [18], and drug delivery [19].
Metal-organic framework (MOF) (and by extension, ZIFs) is a class of nanoporous material that is assembled by coordinated bonds between the two main components—metal ions and organic linker—to shape a 3D porous assembly [4]. Tremendous porosity and surface area, exceptional pore size, and chemical permanency, in ZIFs like ZIF-8 and ZIF-67, are extensively useful in numerous applications such as gas storage [2], separation technologies [14], catalysis [16], and energy-related fields [1]. ZIFs with particle-like morphology remained dominant in use so far, and it has been an eye-catching task to control their framework. It is commonly believed that different structural evaluation stages, like the first formation of nucleation, initiation crystallization, and then growth, are tangled in the crystallization of ZIFs [2]. In recent times, a new 2D leaf-like structure was prepared by using metal ions of zinc and the linker 2–methylimidazole. It is well acknowledged that morphology and particle size have a great effect on both the extensive and intensive characteristics of the material [20,21]. ZIFs derived nanoporous carbon (NPC) and metal oxide (MO) based material has a synergistic effect of both carbon-based material and metallic oxide. Furthermore, in comparison with the metal oxide-based material, metal sulfide-based electrode materials have superior electrocatalytic activity [22,23].
In the present work, we synthesized cobalt sulfide onto the nanoporous carbon to positively incorporate the synergistic effect towards the electrical conductivity and stability in two different solvents. Here we demonstrated, the 2D leaf-like morphology exhibits the superior capacity and the best electrochemical performance. Effect of solvent i.e., water and methanol, on the synthesis of ZIF-67-derived nanoporous carbon and cobalt sulfide-based electrode, and then measured specific capacitance, is also investigated for the application in supercapacitor.

2. Materials and Methods

2.1. Chemicals

Metal ion used is cobalt nitrate hexahydrate (Co(NO3)2·6H2O, 99%), and the linker is 2–Methylimidazole (99%) were used. All the chemicals were purchased from Sigma Aldrich/Merck, have analytical purity and used as received.

2.2. Synthesis of ZIF-67

For the synthesis of ZIF-67, the following scheme was used; 0.873 g of cobalt nitrate hexahydrate was dissolved in 30 mL of methanol to form a clear solution; 0.984 g of organic linker 2–Methylimidazole was dissolved in 10 mL of methanol to make another clear solution. The two solutions mixed with a vigorous shake of a few minutes. The mixed solution was kept overnight at room temperature. Thenceforth, centrifugation is used to collect the precipitates followed by multiple washes using methanol and dried up at 80 °C for 6 hours. The same experimental procedure was used to synthesis ZIF-67 using deionized water.

2.3. Preparation of Nanoporous Carbon (NPC) and Cobalt Oxide (CO)

The dried powder ZIF-67 particles were heated at 350 °C for 1.5 hours, raised to 700 °C at a ramp rate of 4 °C per minute, followed by pyrolysis for 3.5 hours under a flowing argon atmosphere. Next, the prepared black fluffy powder was cooled to room temperature naturally.

2.4. Preparation of Nanoporous Carbon (NPC) and Cobalt Sulfide (CS)

Aqueous suspension of nanoporous carbon-containing cobalt oxide was stirred in 0.015M sodium sulfide for 30 minutes, and then solution mixture transferred to a stainless steel autoclave of Teflon-lined and heated at 120 °C for 6 hours. As obtained precipitates washed and dried.

2.5. Material Characterization

The surface morphological analysis of the polyhedral structure was described by field emission scanning electron microscopy (VEGA3, 51–ADD0007) (Tescan, Brno, Czech Republic). The identification of a crystalline structure was elucidated by X-ray diffraction on a diffractometer (D8 Advance, CuKR, λ = 1.54Å) (Bruker, Karlsruhe, Germany). The thermogravimetric analysis was conducted on a DTG–60H (Shimadzu, Kyoto, Japan) instrument in the temperature range of room temperature to 800 °C. The surface areas and porous structure of synthesized NPC/CO and NPC/CS were measured by Brunauer–Emmett–Teller analysis using NovaWin 20e (Quantachrome, Virginia, USA) instrument at a relative pressure p/po = 0–1.0 and the samples were degassed at 160 °C under the vacuum.

2.6. Electrochemical Testing

The electrochemical measurements of the prepared samples were performed on an electrochemical workstation CHI 760E (CH Instrument, Texas, USA) with a setup of three electrodes. A reference electrode Ag/AgCl (SC) and a counter electrode of a platinum coil are used. To prepare the ink for the working electrode (GC), the following scheme was used; catalyst (2 mg) was dispersed ultrasonically for 1 to 2 hours in 0.08 mL of ethanol solution with 0.02 mL of Nafion solution (5 wt. %) to form a homogeneous ink. Then, the polished glassy carbon electrode (3 mm diameter) was coated by dropping the suspension (5 µL).
Electrochemical impedance spectroscopy (EIS) used a frequency field of 1 to 100 kHz in 2 M KOH solution. Cyclic voltammetry was performed within the potential window of 0.5 V in 2 M KOH solution with various sweep rates of 10, 20, 50, 80, and 100 mV s−1. The chronopotentiometry technique is used to measure the charge-discharge curve at 0.01 mA cathodic current to obtain the discharge time in the potential window of 0.35 V.

3. Results

3.1. Morphology/Structural Analysis

The framework and surface morphology of the as-prepared specimen were explored on SEM (Figure 1). Metal-organic framework (MOF) ZIF-67 displayed a different framework of structure with a different solvent. ZIF-67 prepared in methanol exhibits well-defined polyhedrons with a smooth surface. The shape of ZIF-67 showed typical and uniform rhombic dodecahedron assembly, which is consistent with the morphology of ZIF-67 in the literature [4]. The synthesized product with water as a solvent (Figure 1a) showed 2D leaf-like morphology, and the side length of this leaf-like morphology is approximately 2.498 micron. In Figure 1d, in the rhombic face, the side length is ~430 nm. The appearance of each rhombic face is smooth, proposing high purity of the as-prepared product ZIF-67. Furthermore, the sharp edges and clear-cut corners of ZIF-67 particles (see Figure 1d) demonstrate the ascertaining of the crystallography characteristics.
The crystal structure of ZIF-67 before and after pyrolysis was examined by XRD measurements. The relative intensity and peak positions are well-matched with the literature [24], which shows that ZIF-67 was successfully synthesized. The wide diffraction peak at 2θ =25° belongs to peak (002) of graphite carbon. The diffraction peaks derived for the metallic cobalt at the (111) phase and (200) phase were detected at 2θ= 45° and 52° (JCPDS card No. 15–0806). All diffraction peaks of nanoporous carbon and cobalt sulfide, as shown in Figure 2, correspond well with the patterns reported in the previous study [25,26]. Through the sulfidation treatment, CoO particles were successfully transformed into the well-defined CoS2 cubic phase (JCPDS card No. 41–1471).
The atomic ratio of C: Co:O:S is confirmed by the energy-dispersive X-ray spectroscopy (EDS) analyses (Figure 3).
TGA curves of prepared ZIF-67, nanoporous carbon/cobalt oxide (NPC/CO), and nanoporous carbon/cobalt sulfide (NPC/CS) under flowing nitrogen condition, as shown in Figure 4. The first stage mass loss of approximately 11%, below 200 °C, and a 6% loss from 200 °C to 320 °C correspond to the removal of guest water molecules, i.e., surface moisture, solvent, nitrates, and weekly bounded linker molecules, respectively [27]. Next, the rapid degradation occurred with the mass losses from 320 °C in H2O-based system and 316°C MeOH-based system. Finally, no further weight loss was observed after 530°C of NPC/CS (H2O) and NPC/CS (MeOH), the quasistatic point, and the residual mass was comprised of metal oxide [28].
In the thermal analysis, Figure 4 curves indicate that nanoporous carbon and cobalt sulfide doped samples have high thermal stability (Table 1).
The N2 adsorption-desorption isotherms for as-prepared samples, which is characterized as type I and type II hysteresis loops according to the IUPAC classification, indicating the microporous characteristics of the synthesized sample. Nitrogen adsorption can be considered as the first stage in the characterization of microporous and mesoporous solids. In the vision of the complexity of the condensation and evaporation mechanisms, one should not be supposed to be able to conclude a reliable pore size distribution unless certain conditions are met. It is recommended that the shape and location of the hysteresis loop should always be taken into account before any computation [29].
It can be identified that the specific surface areas of NPC/CS have increased largely with the treatment of sulfidation, as the analysis is presented in Table 2. From the Figure 5, it can be clearly seen Type I isotherm is given by all the materials except NPC/CS (MeOH). Type I isotherms are microporous materials that acquire mostly wider micropores and possibly narrow mesopores. In the case of NPC/CS (MeOH), type II isotherm materials are often disordered and the distribution of pore size and shape is not well-defined [30]. The type II isotherm is the consequence of the open monolayer-to-multilayer adsorption up to p/p0.
The enhanced surface area can be attributed to smaller diameters and larger quantities of the nanocrystals and nanopores. The total pore volume of NPC/CS showed an increment as compared to parent NPC/CO.

3.2. Electrochemical Testing

The measurement and investigation of electrochemical behavior were explored by galvanostatic charge-discharge (GCD), cyclic voltammetry (CV), and electrochemical impedance spectroscopy (EIS) in 2M KOH solution.
By definition, capacitance = charge/voltage [31].
Capacitance value can be calculated from resulting cyclic voltammogram using the following equation [32].
C = Q 2 Δ V m
where C is the specific capacitance in (Figure 1), Q is the average integral area under the curve, ∆V is the potential window in volts, and m is the mass loading of the active material in the working electrode (g).
The energy density (ED) uses the relation [32]:
E D = 1 2 · C ( V ) 2 3.6
where C is the value of specific capacitance and V is the voltage window.
The reversible process was observed in all cases. The linear trend across the whole range of scan rates reveals that the process is reversible.
The electrochemical performance of ZIF-67-derived NPC/CO and NPC/CS were studied by varying the scan rate ranging from 10mV/s to 100 mV/s CV curves and shown in Figure 6. The anodic peaks and cathodic peaks, which are related to positive current and negative current, respectively, in the CV curves, originate from the oxidation and reduction process of the cobalt cation, which indicates that the capacitance aspects are primarily driven by Faradaic redox reaction.
It was observed that as the scan rate increases from 10mV/s to 100mV/s, the specific capacitance increases. This variation in capacitance reveals that at low scan rate, inner parts and outer part of the nanoporous material exhibited the redox reaction, whereas, for high scan rate, the only outer part of the material involved redox reaction [33,34]. There are interfaces faces present in the case of oxides that causes the limitation in the connectivity or the flow of electrons, while this is reported by many of authors that the deposition of sulfide on oxide containing composite reduces these interfaces and produce connectivity in the flow. This will contribute to enhancing conductivity [11,35]. Thus the specific capacitance and the energy density calculated is given in Table 3.

3.3. Cyclic Stability Study

One of the most essential and considerable parts in the achievement of a supercapacitor is cyclic stability. Figure 7 shows the electrochemical performance of the nanoporous carbon; the cobalt sulfide-based electrode recorded over 1600 cycles with a scan rate of 100 mV/s. The cyclic stability study demonstrates the change in the specific capacitance of the NPC/CS electrode with the number of cycles. The specific capacitance decreases with 86% retention capacity over 1600 cycles for the case of NPC/CS (H2O) and noted as 74% over 1600 cycles for the NPC/CS (MeOH) systems. Zhu et al. [36] presented nearly 74% stability aimed at the nickel sulfide electrode material by recording 1000 cycles in a potassium hydroxide electrolyte; a nearly identical method to that of the cinnamon-like electrode. This decomposition was perceived in cycling stability. This might be expected because of the disintegration of the active electrode material in the electrolyte and the capacity imbalances between the electrochemical electrodes, which originates the instability of the electrode potential [37].

3.4. Electrochemical Impedance Spectroscopy Study

To evaluate the frequency performance and confrontation attitude of any material, electrochemical impedance spectroscopy is a robust engine [38]. The EIS spectra are recorded in a frequency ranging from 100 kHz to 1 Hz and shown in Figure 8. The perfect supercapacitor has a greater slop in a low-frequency region, which signifies electro–capacitive behavior [39,40].
It can be seen from Figure 8 that the smaller arc diameter in the EIS spectrum of nanoporous carbon and cobalt sulfide-based materials showed lower charge transfer resistance and more idealistic properties as compared to nanoporous carbon and metal oxide electrodes [41]. The slop of NPC/CS (water) approach has ideally straight line, inferring the superior accessibility of ions.

4. Conclusions

In summary, we have successfully fabricated ZIF-67-derived nanoporous carbon and metal sulfide-based electrode material in a simple and economical method. SEM and XRD confirmed the synthesis of nanoporous material with increased surface area and 2D morphology. The enhanced electrochemical performance, due to sulfidation of cobalt oxide, was investigated by CV GCD and EIS. The specific capacitance value has increased to 677 F/g in the case of NPC/CS (H2O). A novel and facile route for the synthesis of nanoporous and binder-free electrode material is proposed with increased specific capacitance for the energy storage application.

Author Contributions

Conceptualization, R.A. and N.I.; data curation, methodology, and investigation, R.A.; Supervision N.I. and T.N., original draft preparation R.A.; writing-reviews and editing all authors.

Funding

Funding for this project was provided by USAID and U.S.-Pakistan Centers for Advanced Studies in Energy (USPCAS-E), NUST, Pakistan.

Acknowledgments

The authors are very grateful to USAID and U.S.-Pakistan Centers for Advanced Studies in Energy, NUST, Pakistan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, B.; Yang, Z.; Zhu, Y.; Xia, Y. Zeolitic imidazolate framework materials: Recent progress in synthesis and applications. J. Mater. Chem. A 2014, 2, 16811–16831. [Google Scholar] [CrossRef]
  2. Yao, J.; Wang, H. Zeolitic imidazolate framework composite membranes and thin films: Synthesis and applications. Chem. Soc. Rev. 2014, 43, 4470–4493. [Google Scholar] [CrossRef] [PubMed]
  3. Park, K.S.; Ni, Z.; Côté, A.P.; Choi, J.Y.; Huang, R.; Uribe–Romo, F.J.; Chae, H.K.; O’Keeffe, M.; Yaghi, O.M. Exceptional chemical and thermal stability of zeolitic imidazolate frameworks. P. Natl. Acad. Sci. USA 2006, 103, 10186–10191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wang, Q.; Gao, F.; Xu, B.; Cai, F.; Zhan, F.; Gao, F.; Wang, Q. ZIF–67 derived amorphous CoNi2S4 nanocages with nanosheet arrays on the shell for a high–performance asymmetric supercapacitor. Chem. Eng. J. 2017, 327, 387–396. [Google Scholar] [CrossRef]
  5. Zhou, J.J.; Han, X.; Tao, K.; Li, Q.; Li, Y.L.; Chen, C.; Han, L. Shish–kebab type MnCo2O4@Co3O4 nanoneedle arrays derived from MnCo–LDH@ZIF–67 for high–performance supercapacitors and efficient oxygen evolution reaction. Chem. Eng. J. 2018, 354, 875–884. [Google Scholar] [CrossRef]
  6. Guan, C.; Li, X.; Wang, Z.; Cao, X.; Soci, C.; Zhang, H.; Fan, H.J. Nanoporous walls on macroporous foam: Rational design of electrodes to push areal pseudocapacitance. Adv. Mater. 2012, 24, 4186–4190. [Google Scholar] [CrossRef]
  7. Hao, P.; Tian, J.; Sang, Y.; Tuan, C.C.; Cui, G.; Shi, X.; Wong, C.P.; Tang, B.; Liu, H. 1D Ni–Co oxide and sulfide nanoarray/carbon aerogel hybrid nanostructures for asymmetric supercapacitors with high energy density and excellent cycling stability. Nanoscale 2016, 8, 16292–16301. [Google Scholar] [CrossRef]
  8. Tang, Y.; Chen, T.; Yu, S. Morphology controlled synthesis of monodispersed manganese sulfide nanocrystals and their primary application in supercapacitors with high performances. Chem. Commun. 2015, 51, 9018–9021. [Google Scholar] [CrossRef]
  9. Raj, C.J.; Kim, B.C.; Cho, W.J.; Lee, W.G.; Seo, Y.; Yu, K.H. Electrochemical capacitor behavior of copper sulfide (CuS) nanoplatelets. J. Alloy. Compd. 2014, 586, 191–196. [Google Scholar]
  10. Huang, K.J.; Wang, L.; Liu, Y.J.; Liu, Y.M.; Wang, H.B.; Gan, T.; Wang, L.L. Layered MoS2–graphene composites for supercapacitor applications with enhanced capacitive performance. Int. J. Hydrog. Energy 2013, 38, 14027–14034. [Google Scholar] [CrossRef]
  11. Sun, L.; Lu, L.; Bai, Y.; Sun, K. Three–dimensional porous reduced graphene oxide/sphere–like CoS hierarchical architecture composite as efficient counter electrodes for dye–sensitized solar cells. J. Alloy. Compd. 2016, 654, 196–201. [Google Scholar] [CrossRef]
  12. Yang, J.; Duan, X.; Guo, W.; Li, D.; Zhang, H.; Zheng, W. Electrochemical performances investigation of NiS/rGO composite as electrode material for supercapacitors. Nano Energy 2014, 5, 74–81. [Google Scholar] [CrossRef]
  13. Zhou, H.C.; Long, J.R.; Yaghi, O.M. Introduction to Metal–Organic Frameworks. Chem. Rev. 2012, 112, 673–674. [Google Scholar] [CrossRef] [PubMed]
  14. Bux, H.; Chmelik, C.; Krishna, R.; Caro, J. Ethene/ethane separation by the MOF membrane ZIF–8: Molecular correlation of permeation, adsorption, diffusion. J. Membrane. Sci. 2011, 369, 284–289. [Google Scholar] [CrossRef]
  15. Song, X.D.; Wang, S.; Hao, C.; Qiu, J.S. Investigation of SO2 gas adsorption in metal–organic frameworks by molecular simulation. Inorg. Chem. Commun. 2014, 46, 277–281. [Google Scholar] [CrossRef]
  16. Samadi-Maybodi, A.; Ghasemi, S.; Ghaffari-Rad, H. A novel sensor based on Ag–loaded zeolitic imidazolate framework–8 nanocrystals for efficient electrocatalytic oxidation and trace level detection of hydrazine. Sens. Actuators B Chem. 2015, 220, 627–633. [Google Scholar] [CrossRef]
  17. Guan, Y.; Shi, J.; Xia, M.; Zhang, J.; Pang, Z.; Marchetti, A.; Wang, X.; Cai, J.; Kong, X. Monodispersed ZIF–8 particles with enhanced performance for CO2 adsorption and heterogeneous catalysis. Appl Surf. Sci 2017, 423, 349–353. [Google Scholar] [CrossRef]
  18. Mu, L.; Liu, B.; Liu, H.; Yang, Y.; Sun, C.; Chen, G. A novel method to improve the gas storage capacity of ZIF–8. J. Mater. Chem. 2012, 22, 12246–12252. [Google Scholar] [CrossRef]
  19. Shearier, E.; Cheng, P.; Zhu, Z.; Bao, J.; Hu, Y.H.; Zhao, F. Surface defection reduces cytotoxicity of Zn(2–methylimidazole)2 (ZIF–8) without compromising its drug delivery capacity. Rsc Adv. 2016, 6, 4128–4135. [Google Scholar] [CrossRef]
  20. Wang, Q.; Bai, J.; Lu, Z.; Pan, Y.; You, X. Finely tuning MOFs towards high–performance post–combustion CO2 capture materials. Chem. Commun. 2016, 52, 443–452. [Google Scholar] [CrossRef]
  21. Bustamante, E.L.; Fernández, J.L.; Zamaro, J.M. Influence of the solvent in the synthesis of zeolitic imidazolate framework–8 (ZIF–8) nanocrystals at room temperature. J. Colloid Interface Sci. 2014, 424, 37–43. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, C.; Ou, X.; Xiong, X.; Zheng, F.; Hu, R.; Chen, Y.; Liu, M.; Huang, K. V5S8–graphite hybrid nanosheets as a high rate–capacity and stable anode material for sodium–ion batteries. Energy Environ. Sci. 2017, 10, 107–113. [Google Scholar] [CrossRef]
  23. Zhu, X.; Liang, X.; Fan, X.; Su, X. Fabrication of flower–like MoS2/TiO2 hybrid as an anode material for lithium ion batteries. Rsc. Adv. 2017, 7, 38119–38124. [Google Scholar] [CrossRef]
  24. Wu, R.; Qian, X.; Rui, X.; Liu, H.; Yadian, B.; Zhou, K.; Wei, J.; Yan, Q.; Feng, X.Q.; Long, Y.; et al. Zeolitic Imidazolate Framework 67–Derived High Symmetric Porous Co3O4 Hollow Dodecahedra with Highly Enhanced Lithium Storage Capability. Small 2014, 10, 1932–1938. [Google Scholar] [CrossRef] [PubMed]
  25. Torad, N.L.; Hu, M.; Ishihara, S.; Sukegawa, H.; Belik, A.A.; Imura, M.; Ariga, K.; Sakka, Y.; Yamauchi, Y. Direct Synthesis of MOF–Derived Nanoporous Carbon with Magnetic Co Nanoparticles toward Efficient Water Treatment. Small 2014, 10, 2096–2107. [Google Scholar] [CrossRef]
  26. Hu, H.; Han, L.; Yu, M.; Wang, Z.; Lou, X.W. Metal–organic–framework–engaged formation of Co nanoparticle–embedded carbon@Co9S8 double–shelled nanocages for efficient oxygen reduction. Energy Environ. Sci. 2016, 9, 107–111. [Google Scholar] [CrossRef]
  27. Escorihuela, J.; Sahuquillo, Ó.; García–Bernabé, A.; Giménez, E.; Compañ, V. phosphoric acid doped polybenzimidazole (PBI)/zeolitic imidazolate framework composite membranes with significantly enhanced proton conductivity under low humidity conditions. Nanomaterials 2018, 8, 775. [Google Scholar] [CrossRef]
  28. Barjola, A.; Escorihuela, J.; Andrio, A.; Giménez, E.; Compañ, V. Enhanced conductivity of composite membranes based on sulfonated poly (ether ether ketone)(SPEEK) with zeolitic imidazolate frameworks (ZIFs). Nanomaterials 2018, 8, 1042. [Google Scholar] [CrossRef]
  29. Qin, J.; Wang, S.; Wang, X. Visible–light reduction CO2 with dodecahedral zeolitic imidazolate framework ZIF–67 as an efficient co–catalyst. Appl. Catal. B: Environ 2017, 209, 476–482. [Google Scholar] [CrossRef]
  30. Alothman, Z. A Review: Fundamental Aspects of Silicate Mesoporous Materials. Materials 2012, 5, 2874–2902. [Google Scholar] [CrossRef] [Green Version]
  31. Chen, G.Z. Understanding supercapacitors based on nano–hybrid materials with interfacial conjugation. Prog. Nat. Sci–Mater 2013, 2, 245–255. [Google Scholar] [CrossRef]
  32. Ensafi, A.A.; Ahmadi, N.; Rezaei, B. Electrochemical preparation and characterization of a polypyrrole/nickel–cobalt hexacyanoferrate nanocomposite for supercapacitor applications. Rsc. Adv. 2015, 5, 91448–91456. [Google Scholar] [CrossRef]
  33. Dong, X.; Wang, L.; Wang, D.; Li, C.; Jin, J. Layer–by–Layer Engineered Co–Al Hydroxide Nanosheets/Graphene Multilayer Films as Flexible Electrode for Supercapacitor. Langmuir. 2012, 28, 293–298. [Google Scholar] [CrossRef] [PubMed]
  34. Zhou, Y.; Liu, C.; Li, X.; Sun, L.; Wu, D.; Li, J.; Huo, P.; Wang, H. Chemical precipitation synthesis of porous Ni2P2O7 nanowires for supercapacitor. J. Alloy. Compd. 2019, 790, 36–41. [Google Scholar] [CrossRef]
  35. Syed, J.A.; Ma, J.; Zhu, B.; Tang, S.; Meng, X. Hierarchical Multicomponent Electrode with Interlaced Ni(OH)2 Nanoflakes Wrapped Zinc Cobalt Sulfide Nanotube Arrays for Sustainable High-Performance Supercapacitors. Adv. Energy Mater. 2017, 7, 1701228. [Google Scholar] [CrossRef]
  36. Zhu, B.T.; Wang, Z.; Ding, S.; Chen, J.S.; Lou, X.W. Hierarchical nickel sulfide hollow spheres for high performance supercapacitors. Rsc. Adv. 2011, 1, 397–400. [Google Scholar] [CrossRef]
  37. Zhu, T.; Koo, E.R.; Ho, G.W. Shaped–controlled synthesis of porous NiCo2O4 with 1–3 dimensional hierarchical nanostructures for high–performance supercapacitors. Rsc. Adv. 2015, 5, 1697–1704. [Google Scholar] [CrossRef]
  38. Li, J.; Ren, Z.; Ren, Y.; Zhao, L.; Wang, S.; Yu, J. Activated carbon with micrometer–scale channels prepared from luffa sponge fibers and their application for supercapacitors. Rsc. Adv. 2014, 4, 35789–35796. [Google Scholar] [CrossRef]
  39. Yang, J.; Gunasekaran, S. Electrochemically reduced graphene oxide sheets for use in high performance supercapacitors. Carbon 2013, 51, 36–44. [Google Scholar] [CrossRef]
  40. Wang, R.; Li, Q.; Cheng, L.; Li, H.; Wang, B.; Zhao, X.S.; Guo, P. Electrochemical properties of manganese ferrite–based supercapacitors in aqueous electrolyte: The effect of ionic radius. Colloids Surf. A Phys. Eng. Asp. 2014, 457, 94–99. [Google Scholar] [CrossRef]
  41. Sun, K.; Feng, E.; Peng, H.; Ma, G.; Wu, Y.; Wang, H.; Lei, Z. A simple and high–performance supercapacitor based on nitrogen–doped porous carbon in redox–mediated sodium molybdate electrolyte. Electrochim. Acta 2015, 158, 361–367. [Google Scholar] [CrossRef]
Materials 12 02940 g001 550
Figure 1. SEM images of ZIF-67 prepared in different solvents: (a) ZIF-67 prepared in H2O, before pyrolysis, after pyrolysis; (b) NPC/CO (H2O) at 700 °C; (c) NPC/CS (H2O); (d) ZIF-67 prepared in MeOH; (e) NPC/CO (MeOH) at 700 °C; and (f) NPC/CS (MeOH).
Figure 1. SEM images of ZIF-67 prepared in different solvents: (a) ZIF-67 prepared in H2O, before pyrolysis, after pyrolysis; (b) NPC/CO (H2O) at 700 °C; (c) NPC/CS (H2O); (d) ZIF-67 prepared in MeOH; (e) NPC/CO (MeOH) at 700 °C; and (f) NPC/CS (MeOH).
Materials 12 02940 g001
Materials 12 02940 g002 550

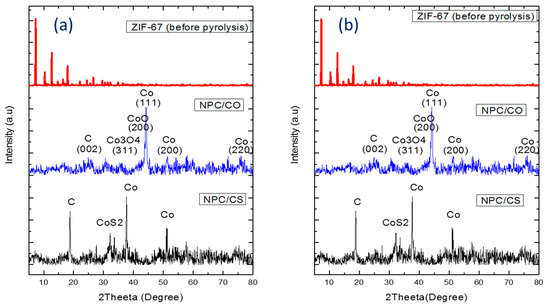

Figure 2. XRD patterns of (a) ZIF-67, NPC/CO and NPC/CS prepared in H2O and (b) ZIF-67, NPC/CO, and NPC/CS prepared in MeOH.
Figure 2. XRD patterns of (a) ZIF-67, NPC/CO and NPC/CS prepared in H2O and (b) ZIF-67, NPC/CO, and NPC/CS prepared in MeOH.
Materials 12 02940 g002
Materials 12 02940 g003 550

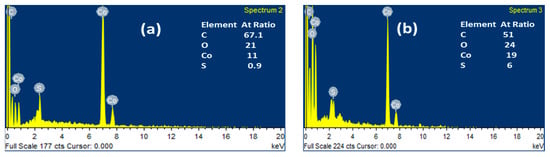

Figure 3. EDS spectrum of (a) NPC/CS (H2O) and (b) NPC/CS (MeOH).
Figure 3. EDS spectrum of (a) NPC/CS (H2O) and (b) NPC/CS (MeOH).
Materials 12 02940 g003
Materials 12 02940 g004 550

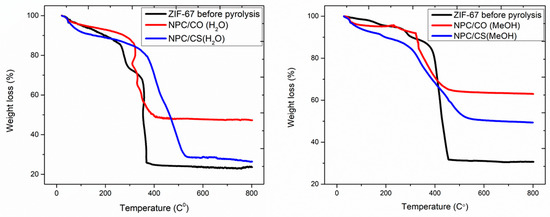

Figure 4. TGA curve analysis of as prepared ZIF-67, NPC/CO, and NPC/CS.
Figure 4. TGA curve analysis of as prepared ZIF-67, NPC/CO, and NPC/CS.
Materials 12 02940 g004
Materials 12 02940 g005 550

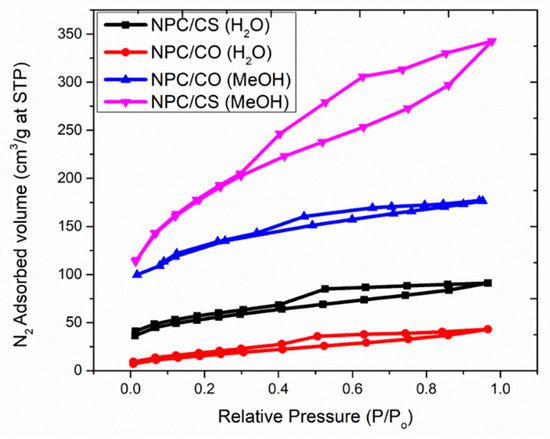

Figure 5. N2 adsorption isotherms at 77 K.
Figure 5. N2 adsorption isotherms at 77 K.
Materials 12 02940 g005
Materials 12 02940 g006 550
Figure 6. Electrochemical properties of the NPC/CO and NPC/CS in 2M KOH: (a) cyclic voltammetry at 10 mv/s scan rate (b–e) at different scan rates and (f) charge-discharge profiles at 0.01 mA/g.
Figure 6. Electrochemical properties of the NPC/CO and NPC/CS in 2M KOH: (a) cyclic voltammetry at 10 mv/s scan rate (b–e) at different scan rates and (f) charge-discharge profiles at 0.01 mA/g.
Materials 12 02940 g006
Materials 12 02940 g007 550

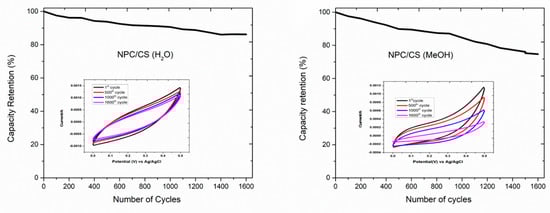

Figure 7. Numbers of cycles versus capacitive retention for the electrode NPC/CS electrode materials recorded over 1600 cycles at a scan rate of 100 mV/s.
Figure 7. Numbers of cycles versus capacitive retention for the electrode NPC/CS electrode materials recorded over 1600 cycles at a scan rate of 100 mV/s.
Materials 12 02940 g007
Materials 12 02940 g008 550

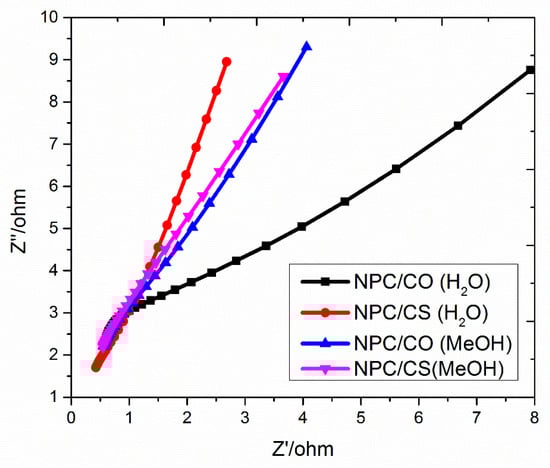

Figure 8. Nyquist plot of the NPC/CO and NPC/CS.
Figure 8. Nyquist plot of the NPC/CO and NPC/CS.
Materials 12 02940 g008
Table
Table 1. TGA thermal analysis of ZIF-derived nanoporous carbon and cobalt oxide/sulfide-based materials.
Table 1. TGA thermal analysis of ZIF-derived nanoporous carbon and cobalt oxide/sulfide-based materials.
CompoundTemp. Range (°C)Mass Loss or Residue (%)
ZIF-67 (MeOH) before pyrolysis
ZIF-67 (H2O) before pyrolysis		336–458
302–373		57
48
NPC/CO (MeOH)
NPC/CO (H2O)		314–492
297–414		28
40
NPC/CS (MeOH)
NPC/CS (H2O)		300–544
311–535		34
56
Table
Table 2. Surface area, pore volume, and average pore size of NPC/CO and NPC/CS.
Table 2. Surface area, pore volume, and average pore size of NPC/CO and NPC/CS.
Electrode MaterialSurface Area (m2/g)Pore Volume (cm3/g)Average Pore Size (nm)
NPC/CO (MeOH)726.30.2731.277
NPC/CS (MeOH)934.50.5321.677
NPC/CO (H2O)264.60.0631.544
NPC/CS (H2O)521.40.1412.25
Table
Table 3. Specific capacitance calculated from cyclic voltammetry.
Table 3. Specific capacitance calculated from cyclic voltammetry.
Electrode MaterialSpecific Capacitance (F/g)Energy Density (Wh/kg)
NPC/CO (MeOH) 1595.520
NPC/CS (MeOH)48016.666
NPC/CS (H2O)37312.951
NPC/CS (H2O)67723.506
